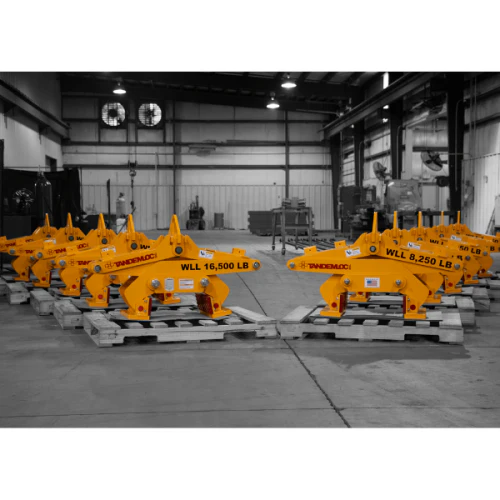

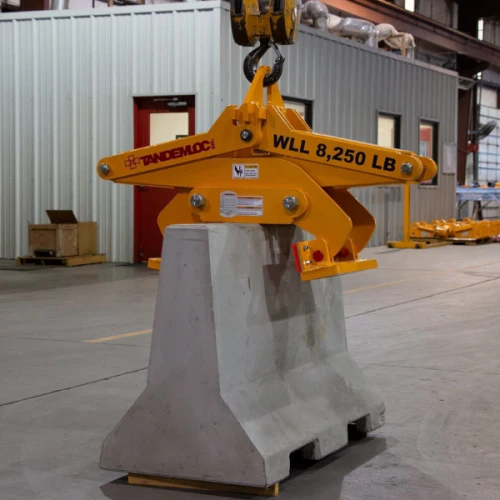

Tandemloc Concrete Barrier Grabs

Available in two lifting capacities – 8.250 (4.125te) and 16,500lbs (8.25te) – Tandemloc’s concrete barrier grabs have been specifically engineered for compatibility with three of the most common profiles of barriers – Jersey, California and Texas – as well as barriers with an F-type profile.

Individually proof tested, Tandemloc’s concrete barrier grabs are made in the USA and are fitted, as standard, with Tandemloc Autolatch mechanism, offering safe touchless operation.

Built for severe service, each item is designed to BTH-1 Category B and Service Class 3, meaning they are made for high volume rugged usage out in the big real world.

• Available in two sizes – 8,250lbs and 16,500lbs
• Made in the USA
• Safe touchless operation
• Designed to BTH-1 Cat. B and Service Class 3
• Individually proof tested to 125% of WLL
• Bespoke paint finish: UV and Saltwater resistant

Model	Description	Top Surface Min/Max	WLL	Profile
AS23B00-083-PA Concrete Barrier Grabs	Concrete Barrier Grab	6”-12”	8,250 LBS.	New Jersey, California, Texas, Type F
AS23B00-165-PA Concrete Barrier Grabs	Concrete Barrier Grab	6”-12”	16,500 LBS.
