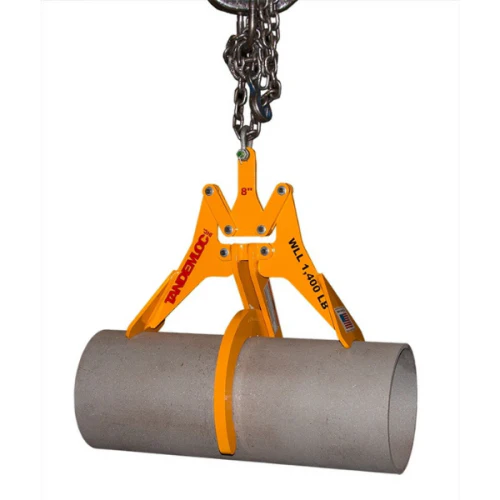

Tandemloc Heavy-Duty Pipe Lifting Grabs
Grabbing different lengths and weights of piping has never been easier thanks to Tandemloc’s heavy-duty pipe grabs.

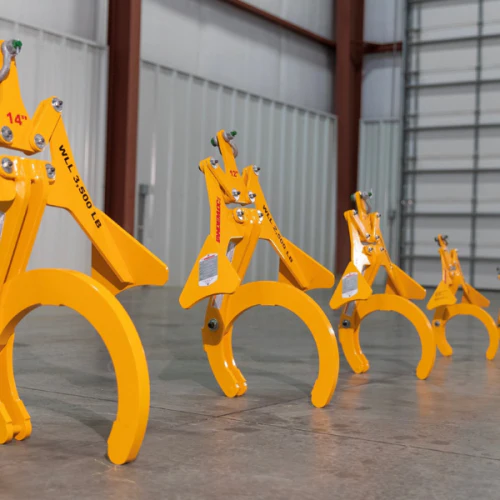

Manufactured from solid steel, long and reliable service is guaranteed, with outriggers stabilizing loads during the lifting phase.
Designed features of these heavy-duty pipe grabs include a convenient auto engage capability, lifting capacity up to 40ft in length, wings that stabilize loads during lifts, no blocking required, all proof tested for 200% of working load limit with accompanying certification, and are all fully ASME B30.20 compliant.
Do's and Don'ts
- DO inspect lifter before each use for loose or worn components.
- DO lower grab onto pipe slowly and seat fully on pipe prior to attempting lift.
- DO lift slowly and verify level, balanced lift is occurring.
- DO NOT use grab with worn or loose components.
- DO NOT jerk load or bump load into obstructions.
- DO NOT drag load or grab on ground or other surface.
- DO NOT allow lifted load to tilt to an angle of greater than 15° from the horizontal during handling.
- DO NOT use grab for lifting material of smaller or larger O.D than specified.
- DO NOT lift or transport load over people.
- Lifts up to 40ft pipe sections
- Wings to stabilise load
- Proof tested to 200% of WLL
- Fully ASME B30.20 compliant
- Auto engage capability

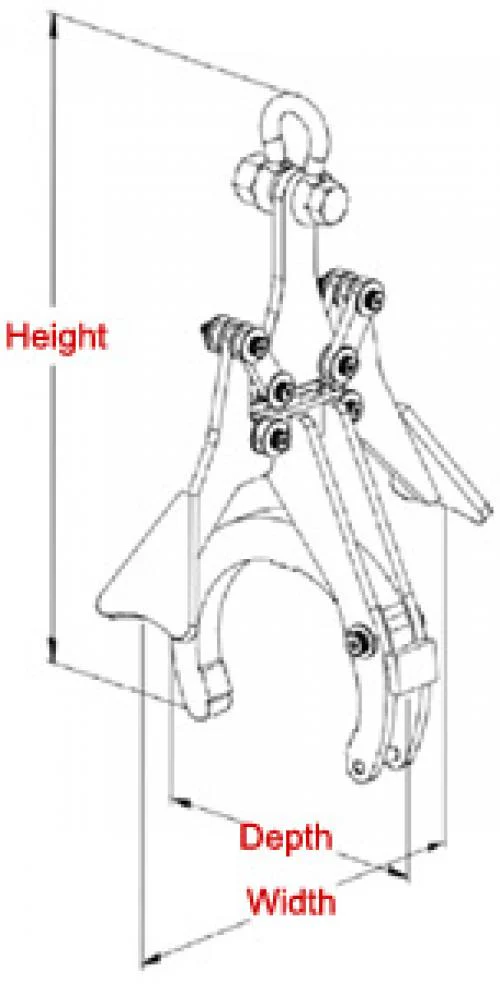

| Model | Pipe OD | Weight (lbs.) | Width | Height | Depth | WLL |
|---|---|---|---|---|---|---|
| AN13A03-00A-PA Pipe Lifting Grabs | 3.5 | 4 | 7.5 inches | 12.25 inches | 5 inches | 450 lbs |
| AN13A04-00A-PA Pipe Lifting Grabs | 4.5 | 6 | 9 inches | 14 inches | 6.4 inches | 600 lbs |
| AN13A05-00A-PA Pipe Lifting Grabs | 5.563 | 8 | 10.7 inches | 15.6 inches | 7.7 inches | 800 lbs |
| AN13A06-00A-PA Pipe Lifting Grabs | 6.63 | 12 | 12.7 inches | 17.5 inches | 9 inches | 1000 lbs |
| AN13A08-00A-PA Pipe Lifting Grabs | 8.63 | 19 | 16 inches | 22 inches | 12 inches | 1400 lbs |
| AN13A10-00A-PA Pipe Lifting Grabs | 10.75 | 44 | 21 inches | 28 inches | 14.6 inches | 2000 lbs |
| AN13A12-00A-PA Pipe Lifting Grabs | 12.75 | 63 | 24.75 inches | 32.5 inches | 17.6 inches | 2500 lbs |
| AN13A14-00A-PA Pipe Lifting Grabs | 14 | 87 | 27 inches | 36 inches | 19.25 inches | 3500 lbs |
Original: $915.94
-65%$915.94
$320.58
