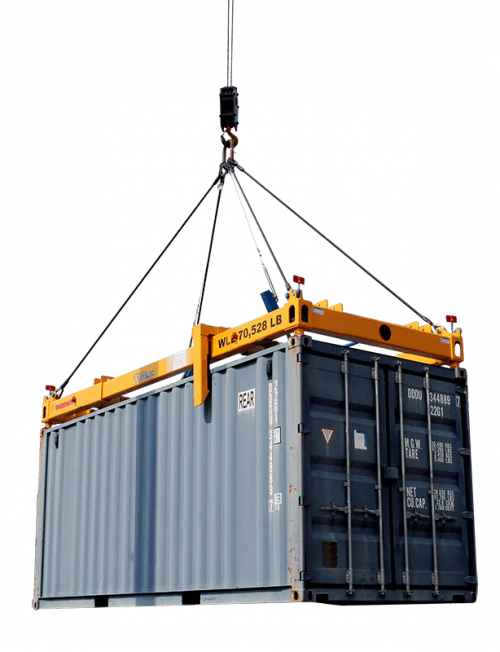

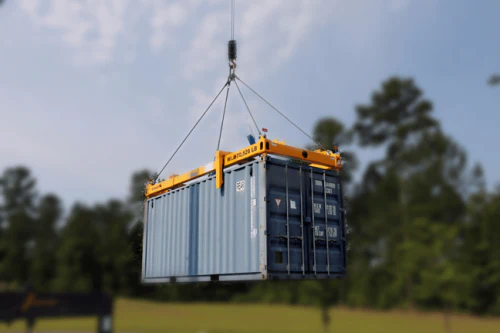

Tandemloc Modular Autoloc 70,500lbs Spreader Frame

Make container lifting simple and seamless with a modular Autoloc spreader frame from TANDEMLOC.

Designed for easy operation, saving significant time and money, the convenient design of the Autoloc makes it clear to see why it’s the perfect choice for lifting those hefty containers.

The simple mechanical operation features no electronics or hydraulics – built simply with four twist lock bayonets that simultaneously actuate by slackening the 4-legged sling from the fully tensioned position. The twistlocks lock/unlock when the sling wires are slackened, meaning there is no need for on-ground personnel during the locking and unlocking phases.

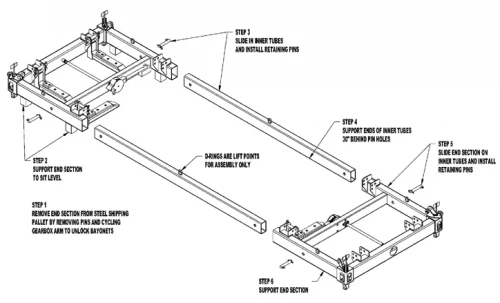

With an large weight load limit of 70,528lbs, this Autoloc Spreader Frame can be easily disassembled from its lifting profile, scaled down to a pallet-ready square that can be shipped inside of the container it is capable of lifting.

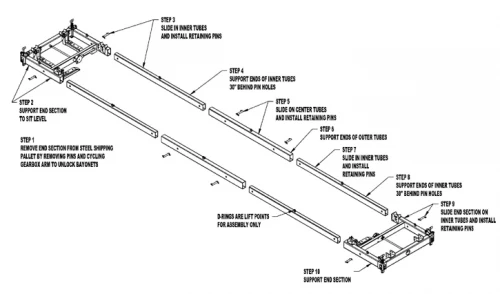

The N3100SF-40A-PA 20’ version can also be transformed into a 40’ variation with the introduction of a simple pin-together conversion kit (contact LES sales team for more information.

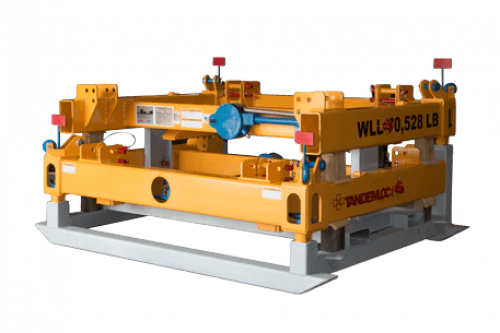

Finally, storage has also been factored into its innovative design, with disassembly significantly reducing its size for when storage space is limited.

• Weight load limit: 70,528lbs
• Modular design
• Twistlock lock and unlocking feature
• No ground personnel required
• Scalable profile

Model	Description	Width	Length	WLL	Top Rigging Type	Weight (lbs.)
N3100SF-00A-PA Modular Autoloc® Spreader Frame	20' Modular Autoloc	88.97 in	230.44 in	70,528 lbs	4 Legged Wire Rope	4,040
N3100SF-40A-PA Modular Autoloc® Spreader Frame	20'/40' Combo Modular Autoloc	88.97 in	471.88 in	70,528 lbs	4 Legged Wire Rope	6,150
