Thern 3WG4 Series Worm Gear Power Winches
11 Thern 3WG4 Series - Worm Gear Power Winches

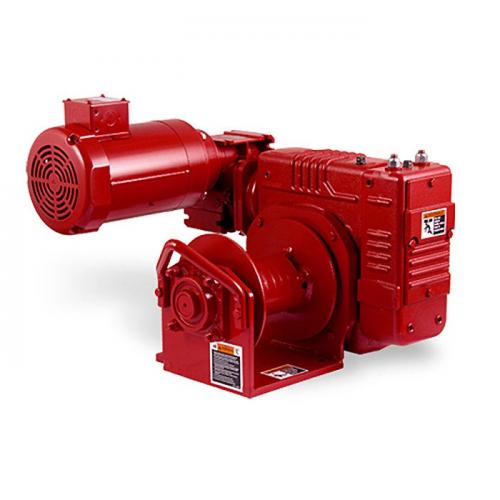

The 3WG4 series from Thern offers portability which makes them great for your company if you constantly need to set up new winch positions. The capacity of these Thern 3WG4 Series Worm Gear Electric Winches is up to 4600 Ibs along with a line speed of 24fpm. These winches from Thern are constructed of cast aluminum which makes them robust and lightweight to use. This product can be a great option for you if your area of work is in the construction, water treatment, and aerospace facilities.
About the Thern 3WG4 Series - Worm Gear Power Winches
Machine cut gears on this Thern worm gear electric winch provide you with high efficiency and smooth operation. There is an enclosed oil bath with reduced wear on gears that give you a longer operating life while the oil seals keep oil in and dirt out. Cast aluminum combines rugged worksite durability with a lightweight package. Internal mechanical or motor brakes provide you with positive load control for lifting and lowering operations. Ball bearings on the Thern worm gear power winch provide you with smooth and efficient operation. The lifting handles on the Thern worm gear power winches aid you in worksite lifting and positioning.
The dual-function cable anchor has both a standard set screw slot and keyhole slot on the drum for quick disconnect with 3/8 inch swaged ball ends making it a versatile product for your business. Mounting options on the Thern worm gear power winches include floor, wall, and ceiling configurations. The worm gear electric winches modular design allows for easy product customization and quick lead times for you. The Thern worm gear power winches come with a two-year limited warranty so you know you’re in good hands.
- Max Capacity: 4,600 lbs
- Line Speed: 24 fpm.
- Travel Distance: 140 ft.
- HP: 3
STAINLESS STEEL WIRE ROPE ASSEMBLIES AVAILABLE ON REQUEST
|
Model |
Power (hp) |
Weight (Ibs) |
|
3WG4-B3500-9S6-B |
1.5 |
186 |
|
3WG4-B3500-9S6-C |
1.5 |
177 |
|
3WG4-B3500-9S6-D/E |
1.5 |
177 |
|
3WG4-B3500-13S6-B |
2 |
191 |
|
3WG4-B3500-13S6-C |
2 |
181 |
|
3WG4-B3500-13S6-D/E |
2 |
181 |
|
3WG4-B4000-9S6-A-P1 |
1.5 |
181 |
|
3WG4-B4600-9S6-B |
2 |
191 |
|
3WG4-B4600-9S6-C |
2 |
181 |
|
3WG4-B4600-9S6-D/E |
2 |
181 |
|
3WG4-B4600-13S6-C |
3 |
190 |
|
3WG4-B4600-13S6-D/E |
3 |
190 |
|
3WG4-M3500-9S6-D/E |
1.5 |
182 |
|
3WG4-M3500-13S6-B |
2 |
191 |
|
3WG4-M3500-13S6-D/E |
2 |
182 |
|
3WG4-M4000-9S6-A-P1 |
1.5 |
181 |
|
3WG4-M4600-9S6-B |
2 |
182 |
|
3WG4-M4600-9S6-D/E |
2 |
182 |
|
3WG4-M4600-13S6-D/E |
3 |
182 |
