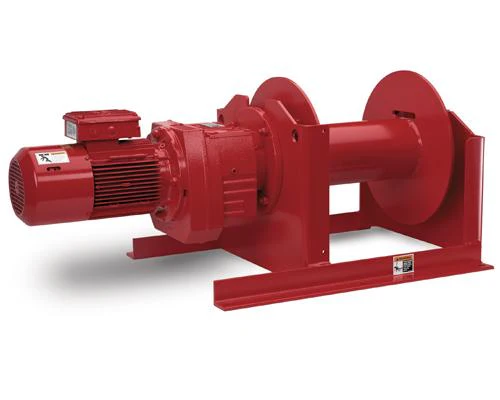

Thern 4HPF Series - Helical/Parallel Gear Power Winches

15 Thern 4HPF Series - Helical/Parallel Gear Power Winches

The Thern Winches & Cranes 4HPF series electric winches feature helical/parallel, high-efficiency gearing making them ideal for your applications that require long travel distances and faster line speeds.

The lifting capacities on the Thern 4HPF Series Power Winches we have on offer at LES USA range from 2000Ibs to 25000Ibs.



14 Thern 4HPFC Series - Helical/Parallel Gear Power Winches with Clutch

The Thern Winches & Cranes 4HPF series electric winches feature helical/parallel and high-efficiency gearing making them ideal for any of your applications that require long travel distances and faster line speeds.

The capacity on these Thern 4HPFC Series Electric Winches with a Clutch range from 2000Ibs to 25000Ibs.

• Flange style roller bearings
• Welded steel drum
• Extended solid steel drum shaft
• Wire rope assemblies
• Flange mounted motor
• Load holding motor disc brake
• Direct drive gear reducers
• AMSE compliance
• 2-Year Limited Warranty

STAINLESS STEEL WIRE ROPE ASSEMBLIES AVAILABLE ON REQUEST

Model	Loading Rate	Line Speed	Motor Codes	Description	Weight (Ibs)
4HPF2M	2000	20	D,E	1 hp – with brake and clutch, no controls	170
4HPF2M	2000	35	D,E	2 hp – with brake, no controls	200
4HPF3M	3000	20	D,E	1.5 hp – with brake, no controls	250
4HPF3M	3000	35	D,E	3 hp – with brake, no controls	260
4HPF5M	5000	20	D,E	3 hp – with brake, no controls	495
4HPF5M	5000	35	D,E	5 hp – with brake, no controls	495
4HPF7M	7000	25	D,E	5 hp – with brake, no controls	645
4HPF7M	7000	40	D,E	7.5 hp – with brake, no controls	760
4HPF9M	9000	20	D,E	5 hp – with brake, no controls	1000
4HPF9M	9000	40	D,E	10 hp – with brake, no controls	1115
4HPF15M	15000	25	D,E	10 hp – with brake, no controls	1340
4HPF15M	15000	35	D,E	15 hp – with brake, no controls	1370
4HPF20M	20000	20	D,E	10 hp – with brake, no controls	2395
4HPF20M	20000	40	D,E	25 hp – with brake, no controls	2620
4HPF25M	25000	20	D,E	15 hp – with brake, no controls	3185
4HPF25M	25000	40	D,E	30 hp – with brake, no controls	3440
