Thern 4HS Series - Helical/Spur Gear Power Winches
15 Thern 4HPF Series - Helical/Parallel Gear Power Winches

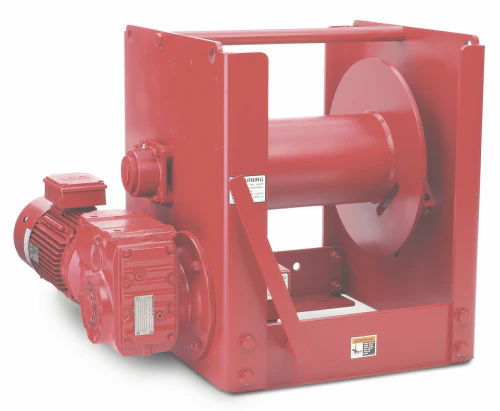

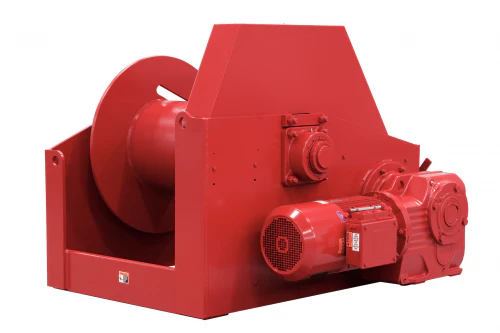

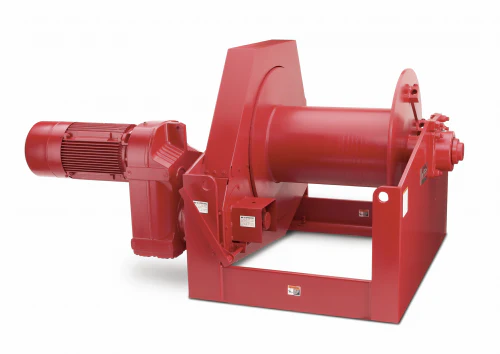

The Thern Winches & Cranes 4HPF series electric winches feature helical/parallel, high-efficiency gearing making them ideal for your applications that require long travel distances and faster line speeds.
The lifting capacities on the Thern 4HPF Series Power Winches we have on offer at LES USA range from 2000Ibs to 25000Ibs.
- Flange style roller bearings
- Welded steel drum
- Extended solid steel drum shaft
- Wire rope assemblies
- Flange mounted motor
- Load holding motor disc brake
- Direct drive gear reducers
- AMSE compliance
- 2-Year Limited Warranty
STAINLESS STEEL WIRE ROPE ASSEMBLIES AVAILABLE ON REQUEST
|
Model |
Loading Rate |
Line Speed |
Motor Codes |
Description |
Weight (Ibs) |
|
4HPF2M |
2000 |
20 |
D,E |
1 hp – with brake and clutch, no controls |
170 |
|
4HPF2M |
2000 |
35 |
D,E |
2 hp – with brake, no controls |
200 |
|
4HPF3M |
3000 |
20 |
D,E |
1.5 hp – with brake, no controls |
250 |
|
4HPF3M |
3000 |
35 |
D,E |
3 hp – with brake, no controls |
260 |
|
4HPF5M |
5000 |
20 |
D,E |
3 hp – with brake, no controls |
495 |
|
4HPF5M |
5000 |
35 |
D,E |
5 hp – with brake, no controls |
495 |
|
4HPF7M |
7000 |
25 |
D,E |
5 hp – with brake, no controls |
645 |
|
4HPF7M |
7000 |
40 |
D,E |
7.5 hp – with brake, no controls |
760 |
|
4HPF9M |
9000 |
20 |
D,E |
5 hp – with brake, no controls |
1000 |
|
4HPF9M |
9000 |
40 |
D,E |
10 hp – with brake, no controls |
1115 |
|
4HPF15M |
15000 |
25 |
D,E |
10 hp – with brake, no controls |
1340 |
|
4HPF15M |
15000 |
35 |
D,E |
15 hp – with brake, no controls |
1370 |
|
4HPF20M |
20000 |
20 |
D,E |
10 hp – with brake, no controls |
2395 |
|
4HPF20M |
20000 |
40 |
D,E |
25 hp – with brake, no controls |
2620 |
|
4HPF25M |
25000 |
20 |
D,E |
15 hp – with brake, no controls |
3185 |
|
4HPF25M |
25000 |
40 |
D,E |
30 hp – with brake, no controls |
3440 |
Original: $12,580.00
-65%$12,580.00
$4,403.00
