Thern 4HWF Series - Helical/Worm Gear Power Winches

13 Thern 4HWF Series - Helical/Worm Gear Power Winches

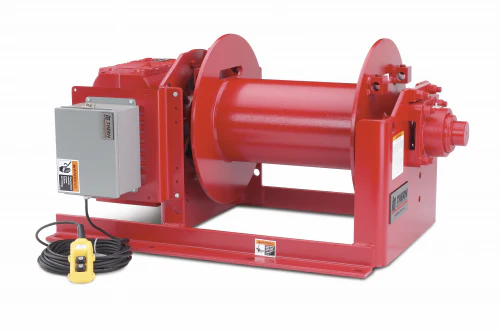

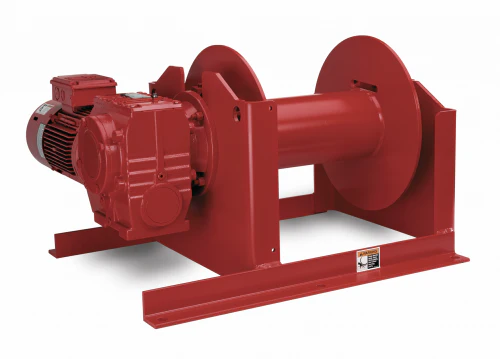

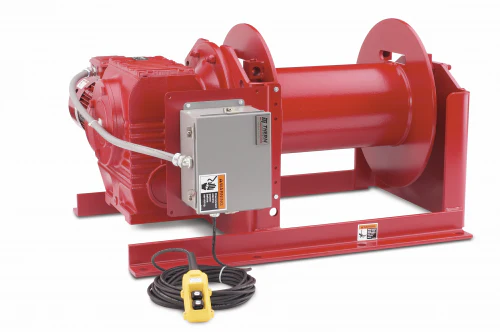

The Thern Winches & Cranes 4HWF series electric winches we have in stock at LES USA feature helical/worm gearing making them ideal for applications requiring secure load control and accurate positioning. The maximum capacity on these Thern 4HWF series electric winches range from 1500Ibs to 8000Ibs.

• Flange style roller bearings
• Welded steel drum
• Extended solid steel drum shaft
• Wire rope assemblies
• Flange mounted motor
• Load holding motor disc brake
• Direct drive gear reducers
• AMSE compliance
• 2-year limited warranty

STAINLESS STEEL WIRE ROPE ASSEMBLIES AVAILABLE ON REQUEST

Model	Loading Rate	Line Speed	Motor Codes	Description	Weight (Ibs)
4HWF1M	1500	5	D,E	1.5 hp – with brake, no controls	190
4HWF1M	1500	35	D,E	2 hp – with brake, no controls	190
4HWF2M	2000	25	D,E	2 hp – with brake, no controls	235
4HWF2M	2000	35	D,E	3 hp – with brake, no controls	235
4HWF4M	4000	25	D,E	3 hp – with brake, no controls	480
4HWF4M	4000	35	D,E	5 hp – with brake, no controls	480
4HWF6M	6000	25	D,E	5 hp – with brake, no controls	650
4HWF6M	6000	35	D,E	7.5 hp – with brake, no controls	705
4HWF8M	8000	25	D,E	7.5 hp – with brake, no controls	110
4HWF8M	8000	35	D,E	10 hp – with brake, no controls	1180
