Thern 5PA10 Series 1200lbs Portable Davit Crane with Winch

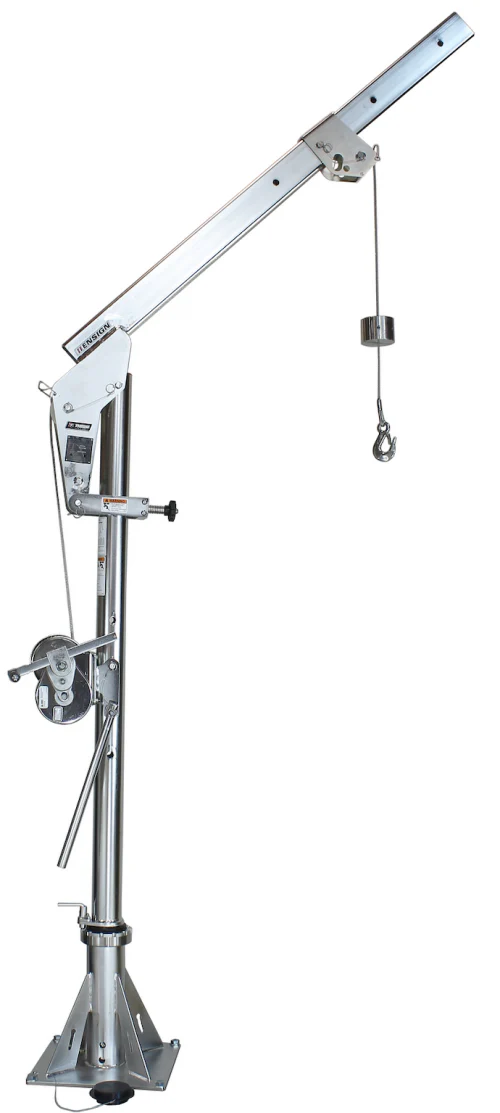

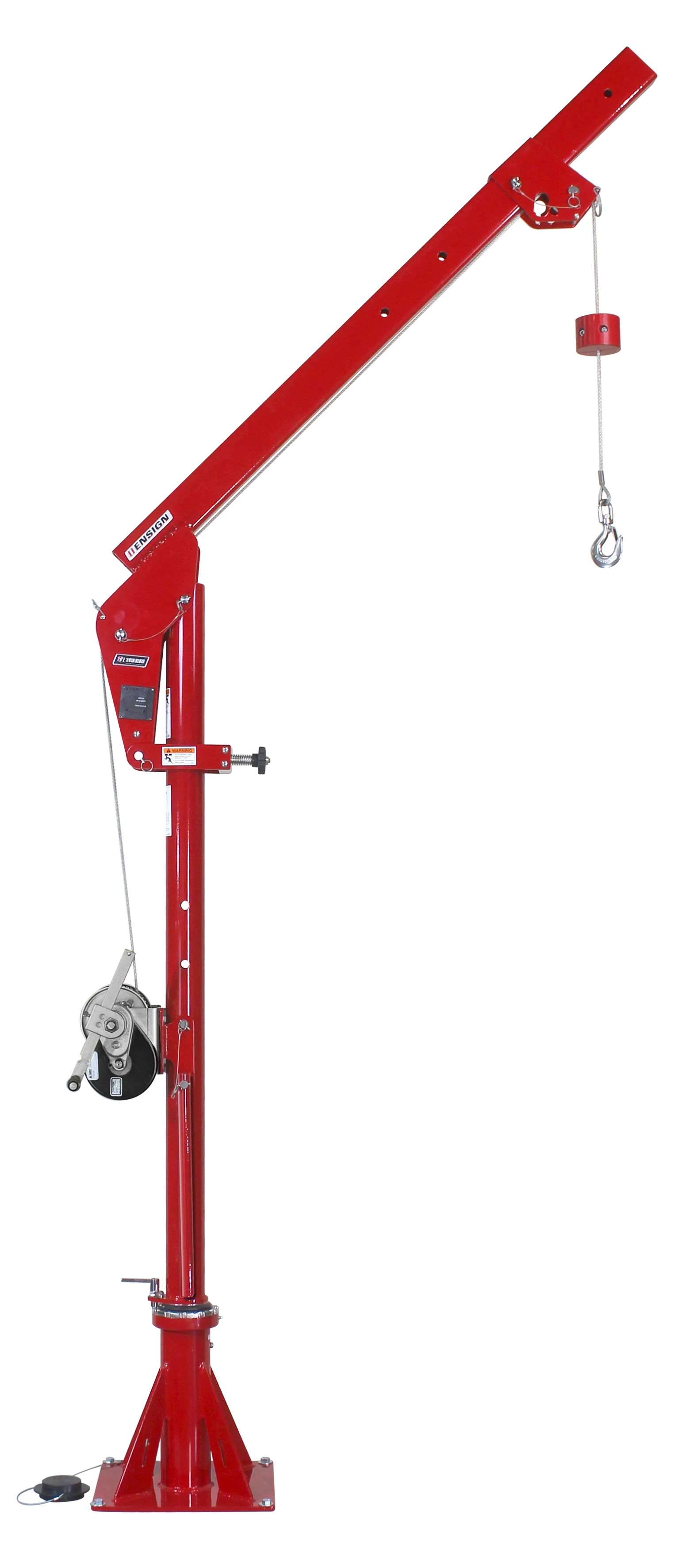

Thern 5PA10 SERIES - Portable Davit Crane
This portable davit crane supplied by Thern Winches & Cranes has a shorter horizontal reach than the Commander Series. The Ensign 1000 features increased vertical hook height for if you need to be clearing tall objects, such as handrails or lifting tall loads.
The Ensign series portable davit cranes from Thern Winches & Cranes are ideal for a range of applications you might have in your workspace. Simple set-up and easy for you and your team to use make this product from Thern a great option for your lifting challenges. This economical series is specially designed for clearance, lift height, and ergonomic operation. Sheave easily adjusts without tools to 4 different positions giving you a wide range of height and reach combinations in your workplace.
SUITABLE WIRE ROPE ASSEMBLIES FOR 5PA10:
- 1/4" 28ft Galvanized
- 1/4" 36ft Galvanized
- 1/4" 45ft Galvanized
- 1/4" 60ft Galvanized
- 3/16" 20ft Galvanized
- 3/16" 28ft Galvanized
- 3/16" 36ft Galvanized
- 3/16" 45ft Galvanized
- 3/16" 60ft Galvanized
- 1/4" 28ft Stainless Steel
- 1/4" 36ft Stainless Steel
- 1/4" 45ft Stainless Steel
- 3/16" 20ft Stainless Steel
- 3/16" 28ft Stainless Steel
- 3/16" 36ft Stainless Steel
- 3/16" 45ft Stainless Steel
QUICK OVERVIEW
- Rugged and Affordable
- Quick-Mount Winch Bracket
- 360° Rotation • Manual or Power Winch Operation
- Five Corrosion-Resistant Finishes
- Easy, No-Tools Assembly/Disassembly
- Variety of Bases
- 2-Year Warranty
|
Model |
Description |
Weight (Ibs) |
|
5PA10-M1 |
up to 1200 lb capacity with M4312PB-K spur gear hand winch - powder coat crane |
160 |
|
5PA10G-M1 |
up to 1200 lb capacity with M4312PB-K spur gear hand winch – galvanized crane |
160 |
|
5PA10-M2 |
up to 1200 lb capacity with 4WM2V-K worm gear hand winch - powder coat crane |
185 |
|
5PA10G-M2 |
up to 1200 lb capacity with 4WM2V-K worm gear hand winch - galvanized crane |
185 |
|
5PA10S-M3 |
up to 1200 lb capacity with M4312PBSS-K spur gear hand winch – stainless steel crane |
167 |
|
5PA10-E2 |
up to 1200 lb capacity with 4WP2V-K electric winch - powder coat crane |
228 |
|
5PA10 |
up to 1200 lb capacity - base model - powder coat finish |
143 |
|
5PA10G |
up to 1200 lb capacity - base model - galvanized finish |
143 |
|
5PA10S |
up to 1200 lb capacity - base model - 304 stainless steel finish |
143 |
|
5PA10S316 |
up to 1200 lb capacity - base model - 316 stainless steel finish |
143 |
|
5PA10X |
up to 1200 lb capacity - base model - epoxy gray finish |
143 |
|
M1 |
M4312PB-K – spur gear hand winch only – zinc plated |
17 |
|
M2 |
4WM2V-K – worm gear hand winch only – powder coat |
42 |
|
M2X |
4WM2VEGRA-K – worm gear hand winch only - epoxy gray |
42 |
|
M3 |
M4312PBSS-K – spur gear hand winch only – stainless steel |
24 |
|
E2 |
4WP2V-K electric winch – 115/1/60 VAC with 6 ft pendant control – enamel |
85 |
|
E2X |
4WP2VEGRA-K electric winch – 115/1/60 VAC with 6 ft pendant control – epoxy gray |
85 |
|
E4 |
4777-K electric winch – 115/1/60 VAC with 6 ft pendant control – ename |
110 |
|
E4X |
4777EGRA-K electric winch – 115/1/60 VAC with 6 ft pendant control – epoxy gray |
110 |
|
E4DC |
4777DC-K electric winch – 12 volt DC with 10 ft pendant control – enamel |
105 |
|
E4DCX |
4777DCEGRA-K electric winch – 12 volt DC with 10 ft pendant control – epoxy gray |
105 |
|
58P10 |
pedestal base - powder coat finish - upright mount |
52 |
|
5BP10G |
pedestal base - galvanized finish - upright mount |
52 |
|
5BP10S |
pedestal base - 304 stainless steel finish - upright mount |
52 |
|
5BP10S316 |
pedestal base - 316 stainless steel finish - upright mount |
52 |
|
5BP10X |
pedestal base - gray epoxy finish - upright mount |
52 |
|
5BF10 |
socket base - powder coat finish - flush mount |
44 |
|
5BF10G |
socket base - galvanized finish - flush mount |
44 |
|
5BF10S |
socket base - 304 stainless steel finish - flush mount |
44 |
|
5BF10S316 |
socket base - 316 stainless steel finish - flush mount |
44 |
|
5BF10X |
socket base - gray epoxy finish - flush mount |
44 |
|
5BW10 |
wall mount base - powder coat finish |
48 |
|
5BW10G |
wall mount base - galvanized finish |
48 |
|
5BW10S |
wall mount base - 304 stainless steel finish |
48 |
|
5BW10S316 |
wall mount base - 316 stainless steel finish |
48 |
|
5BW10X |
wall mount base - gray epoxy finish |
48 |
|
5BE10-15 |
base extension - powder coat finish |
33 |
|
5BE10-15G |
base extension - galvanized finish |
33 |
|
5BE10-15S |
base extension - 304 stainless steel finish |
33 |
|
5BE10-15S316 |
base extension - 316 stainless steel finish |
33 |
|
5BE10-15X |
base extension - gray epoxy finish |
33 |
|
5PA10LS-EL |
limit switch electric |
5 |
|
|
|
Original: $330.00
-65%$330.00
$115.50
