Thern Atlas High Speed Worm Gear Power Winch

Thern Worm Gear Power Winches

The Worm Gear Electric Winches by Thern Winches & Cranes give you lifting power when and where you need it. The maximum capacity on these power winches go up to 2000Ibs.

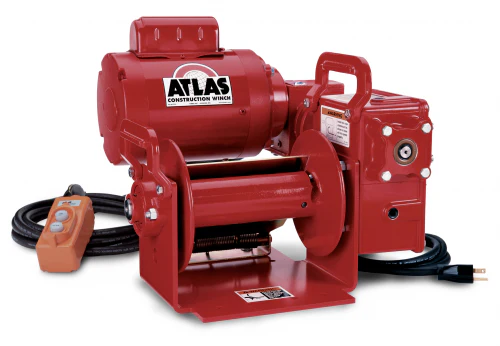

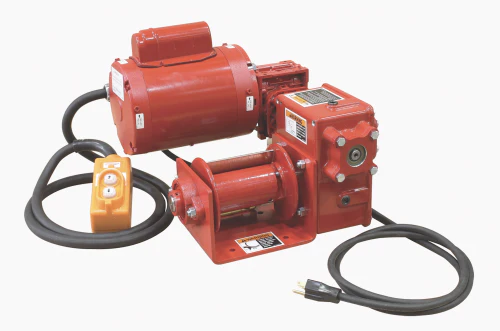

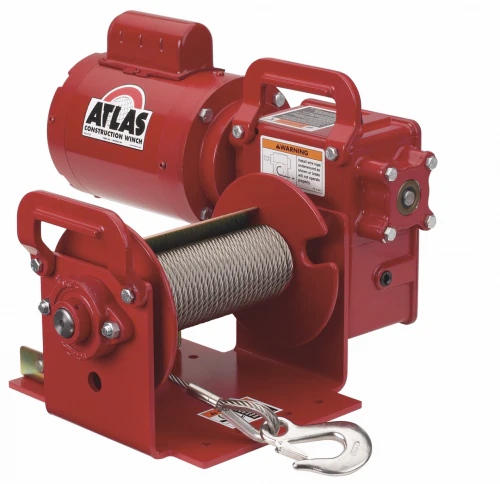

About the Thern 4WP2 and 4WP2T Worm Gear Electric Winches

The products we have available at LES have convenient lifting handles and pendant control make positioning and operation super convenient which includes these Thern 4WP2 and 4WP2T – Thern Worm Gear Electric Winches. These Thern worm gear power winches are enclosed in an oil bath to keep them lubricated and has a dual function cable anchor. Additionally, there is a pressure plate and an internal mechanical brake so the process can be stopped immediately.

You can also purchase accessories for this product separately.

• Machine cut gears
• Enclosed oil bath
• Internal mechanical brake
• Ball bearings
• Pressure plate
• Dual function cable anchor
• Mounting options
• 2-Year Limited Warranty
• Controls sold separately
• Wire rope sold separately

Model	Motor HP	1 st layer loading capacity (Ibs)	Mid drum loading capacity (Ibs)	Full drum capacity (Ibs)	Wire Rope Dia (in)	1 st layer drum capacity (ft)	Mid drum drum capacity (ft)	Full drum drum capacity (ft)	Weight (Ibs)
4WP2	1.3	2000	1500	1200	1/4	11	35	77	85
4WP2T8-2000-8	1.3	2000	1200	800	1/4	19	130	280	101
4WP2TC-2000-8	1.3	2000	1200	800	1/4	12	87	190	106

A (Order separately) 115 volt 1 phase motor – no controls or power cord

B (Order separately) 230 volt 1 phase motor – no controls or power cord

D (Order separately) 230 volt 3 phase motor – no controls or power cord

E (Order separately) 460 volt 3 phase motor – no controls or power cord

F (Order separately) all other voltages or hertz

PN 8-vane air motor with controls (mounted)

TPL-4WP2T8 two part line kit – Not available on 4WP2 model. Only on 4WP2T8 4 lbs
