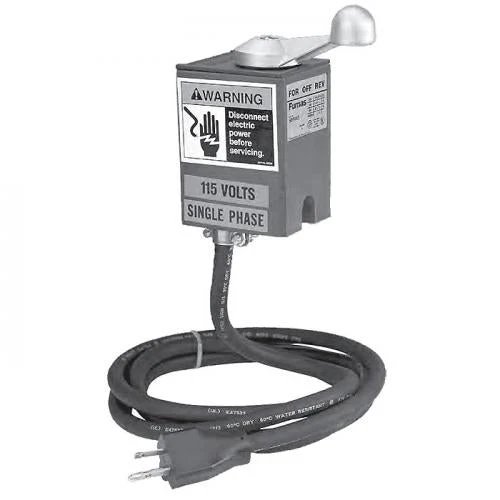

Thern Electric Drum Control Switches

Thern Electric Drum Control Switches

LES USA understands the value of a tailored system and we want to make sure customers can have products that are designed to suit their specific challenge which is why we supply Thern electric drum control switches that can be customized to your specific application.

Using only high-quality UL components, we can design and build a customized, value-added control system with the help of Thern that can meet your exact specifications and venue requirements.

The electric drum control switches come with a two-year limited warranty, so you can rest assured that you're covered in the unlikely chance you hit a problem using it.

• UL and CSA recognized components throughout
• Enclosures to suit your application needs
• NEMA 1 (industrial) rated switches provide protection against dirt and corrosion for most indoor applications
• NEMA 4 (watertight) rated switches keep dirt and water out and are approved for most outdoor applications
• Wiring Diagram is supplied inside the enclosure for convenient reference
• Two-Year Limited Warranty

Electric Drum Control Switches - Horsepower Ratings
Model Number	Description	Voltage / Phase / Hertz with Maximum Rated Motor HP				Approx. Ship Weight
		115 / 1 / 60	230 / 1 / 60	230 / 3 / 60	460 / 3 / 60	(lb)	(kg)
10L2A1	NEMA 1	to 1.5 hp	to 2 hp	to 3 hp	to 3 hp	3	2
10L7E1	NEMA 1	to 1.5 hp	to 3 hp	to 5 hp	to 7.5 hp	3	2
10L2A4	NEMA 4 watertight	to 1.5 hp	to 2 hp	to 3 hp	to 3 hp	7	4
10L7E4	NEMA 4 watertight	to 1.5 hp	to 3 hp	to 5 hp	to 7.5 hp	7	4
