Thern Electric Motor Controls - Single Speed Reversing Motor Starters
Thern Electric Motor Controls - Single Speed Reversing Motor Starters

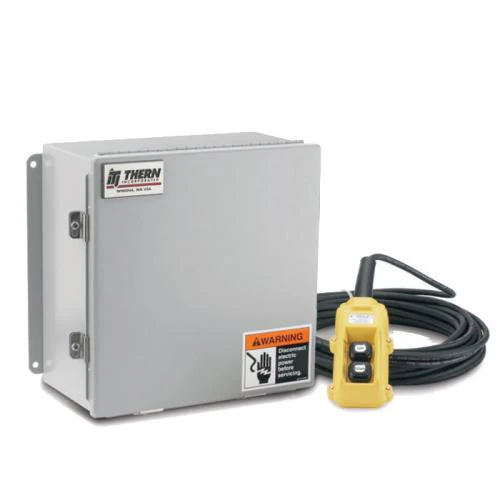

The single-speed electric motor controls that are available by Thern with reversing magnetic controls for 1 and 4 phase motors are a great product to have in your workshop inventory. The Thern single speed reversing motor starters are electrically and mechanically interlocked to give you smooth reversing control.
- UL, IEC or CSA Recognized components throughout
- Steel Enclosure NEMA 4 rated (watertight) keeps dirt and water out
- Approved for most outdoor applications
- Pendant Control Switch NEMA 4X rated (watertight), on a 50-foot cord, allows the operator to stand away from the winch during operation
- Pendant control is operated with momentary contact-type push buttons
- Cord lengths of less than 50 feet are available
- Reversing Contactor is electrically and mechanically interlocked to deliver smooth reversing control
- Thermal Overload Relay trips power OFF to protect the motor from overheating with the switch being manually reset
- Fused Control Circuit powers pendant with 115 volts, 2 amp current to help protect against high voltage shocks
- Wiring Diagram is supplied inside the enclosure
- Steel Mounting Bracket secures control box to winch
- Explosion Proof Controls are available
- Two-year Limited Warranty
|
Model |
Maximum rated motor horsepower for power supply |
|
|
|
|
Weight (Ibs) |
|
|
115 / 1 / 60 |
230 / 1 / 60 |
208 / 3 / 60 |
230 / 3 / 60 |
460 / 3 / 60 |
|
|
10S2A4 |
To 1.5hp |
|
|
|
|
25 |
|
10S3B4 |
|
To 3 hp |
|
|
|
25 |
|
10S3C4 |
|
|
To 3 hp |
|
|
25 |
|
10S7C4 |
|
|
To 7.5 hp |
|
|
25 |
|
10S10C4 |
|
|
To 10 hp |
|
|
28 |
|
10S20C4 |
|
|
To 20 hp |
|
|
28 |
|
10S3D4 |
|
|
|
To 3 hp |
|
25 |
|
10S7D4 |
|
|
|
To 7.5 hp |
|
25 |
|
10S10D4 |
|
|
|
To 10 hp |
|
28 |
|
10S20D4 |
|
|
|
To 20 hp |
|
28 |
|
10S30D4 |
|
|
|
To 30 hp |
|
60 |
|
10S7E4 |
|
|
|
|
To 7.5 hp |
25 |
|
10S15E4 |
|
|
|
|
to 15 hp
|
25 |
|
10S20E4 |
|
|
|
|
To 20 hp |
28 |
|
10S40E4 |
|
|
|
|
To 40 hp |
60 |
|
10S60E4 |
|
|
|
|
To 60 hp |
60 |
Original: $1,720.00
-65%$1,720.00
$602.00
