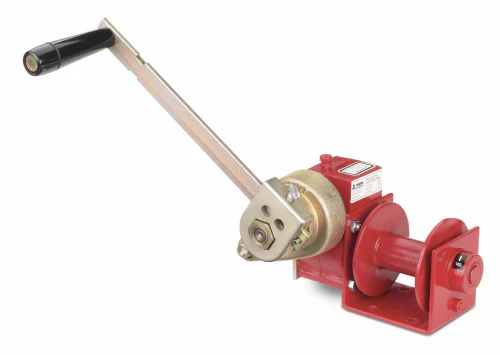

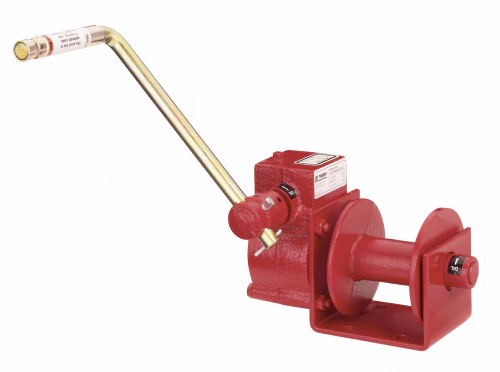

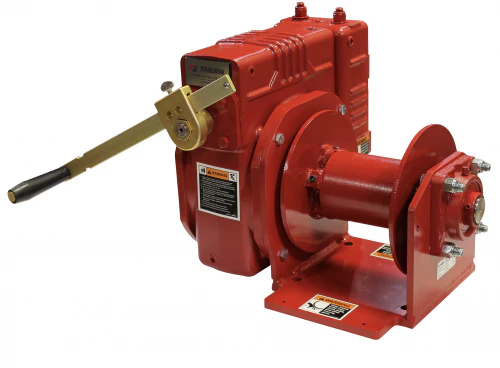

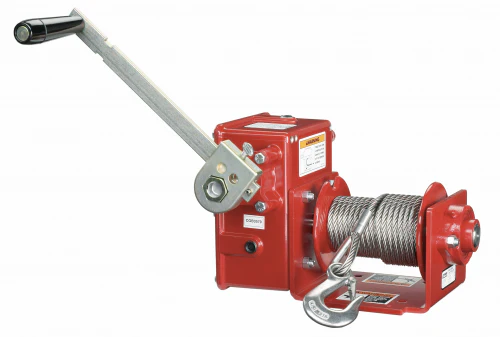

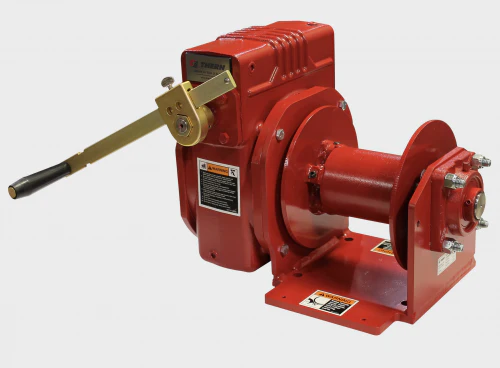

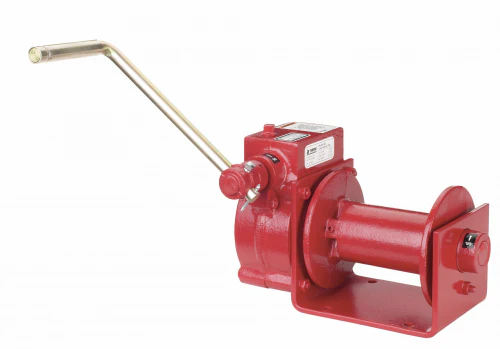

Thern Worm Gear Hand Winches

The Worm Gear Hand Winches from Thern Winches & Cranes that are available at LES USA have fewer moving parts and are best known for their superior endurance and high reliability. Within a Worm gear is a gearbox which has two major parts called the worm and the bull gear.

It has been generalized that worm gear winches have a slower line speed and are less efficient than other designs. However, they can be self-braking, meaning that they stop when the driving worm gear stops which is make the process safer. This product is also extremely robust. If you are an industry that requires line speeds that are equal to planetary counterparts, then try the technologically advanced worm gears.

About the Thern Worm Gear Hand Winches:

The Worm Gear Hand winches from Thern Winches & Cranes provide accurate operation and long-lasting service for your industry. The models from Thern Winches & Cranes are enclosed in an oil bath which provides continuous lubrication of gears to minimize wear, except on Model 465 . On Model 4WM2 oil seals keep oil in and dirt out.

Model 4WM2 can be drill-driven with a maximum of 400 rpm drill (Hex Drive and a handle are included). Additionally, the Thern Winches & Cranes Automatic Brake Models provide positive load control for lifting. Brake models have a PB or B suffix. Model 4WM2 features an internal mechanical brake and is the model commonly found on our Davit Cranes .



For suitable wire ropes, please see table below

• Up to 4600 lb (2086 kg) capacity (choose model from drop-down menu)
• Large diameter drums minimize wear on the wire rope
• Cast aluminium construction
• Machine-cut worm gears
• Bronze bearings provide a super-smooth operation
• Enclosed oil bath- provides constant lubrication of gears to minimize wear (except model #465). On models 4WM2 and 2W40 oil seals keep oil in and dirt out
• Internal mechanical brake (models 4WM2 and 2W40-B) provides positive load control for lifting applications
• Corrosion-resistant durable paint finish protects against harsh environments
• Handle adjustment enables the user to modify the force required operate
• Mounting options- floor, wall or ceiling
• Two-Year Limited Warranty

Model Number Of Worm gear Hand Winch	1 st layer Loading rate (Ibs)	Mid drum Loading rate (Ibs)	Full Drum Loading rate (Ibs)	Wire rope dia (in)	Drum capacity 1 st layer (ft)1	Drum capacity Mid drum (ft)1	Drum capacity Full drum (ft)1	Gear ratio	Force 2 to lift 1000Ibs	Weight
465	750	600	400	1/8 3/16	7 4	58 27	130 59	20:1	21	12
462	1000	700	500	1/8 3/16	7 4	61 28	140 61	15:1	34	15
4622PB	1000	700	500	1/8 3/16	7 4	61 28	140 61	15:1	26	21
472	2000	1700	1300	3/16 ¼ 5/16	15 11 8	65 35 23	140 77 52	24:1	24	32
4WM2	2000	1500	1200	1/4	11	35	77	32:1	14	41
2W40-L	4000	2800	2200	5/16 3/8	18 14	91 65	200 140	26:1	18	140
2W40-M	4600	3300	2500	5/16 3/8	18 14	91 65	200 140	26.1	18	135
2W40-BL	4000	2800	2200	5/16 3/8	18 14	91 65	200 140	31.1	11	150
2W40-BM	4600	3300	2500	5/16 3/8	18 14	91 65	200 140	31:1	11	145



























































*Color-coding does not have any particular meaning, it has been used to create an easy-on-the-eye experience only.
