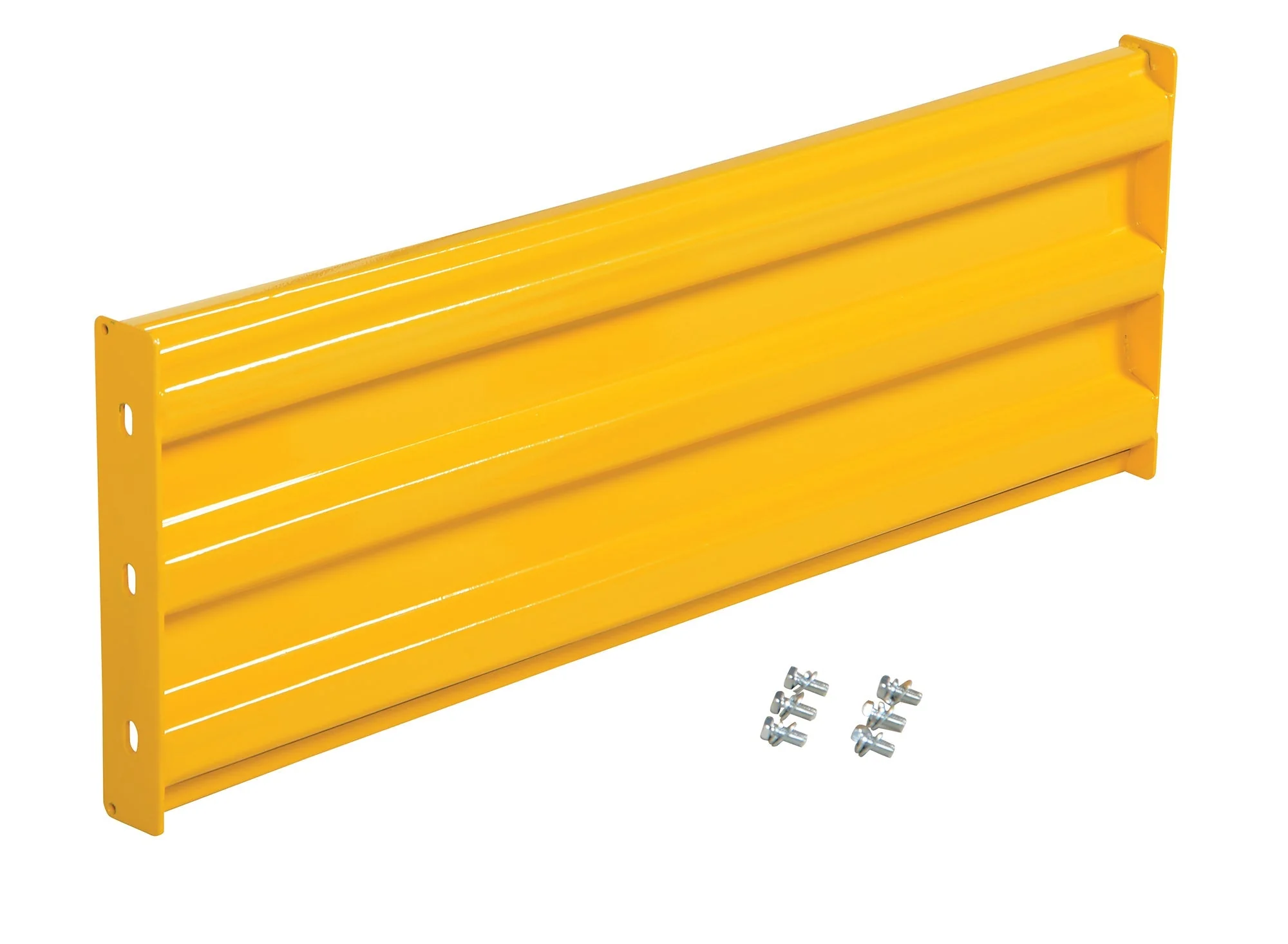

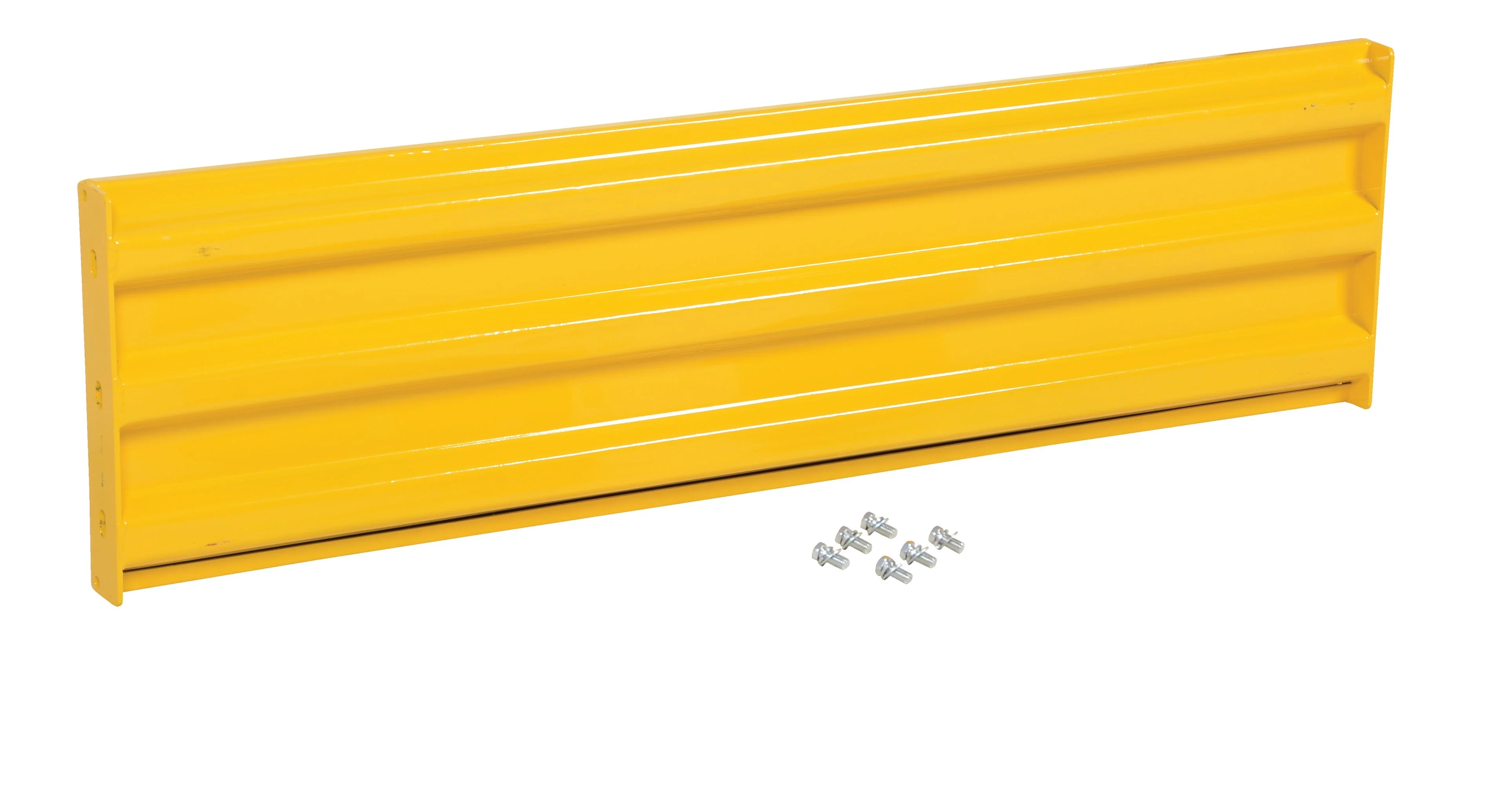

Vestil 3-Rib Bolt-On Structural Guard Rail Systems (Rail)
Create a modular system to protect equipment, inventory, and individuals from damage or injury. Posts are constructed of round corner 1/4" thick material. The steel base plate measures 10" square and is 5/8" thick. Bolts and washers are provided with individual rail sections. Concrete mounting kit is available separately.
| Structural Guard Rail | ||||
| Yellow Model |
Description | Height | Length | Weight (lbs) |
| Structural Guard Rail Section - Drop-In Style (2 Brackets Included Per Rail) | ||||
| GR-F2R-DI-1-YL | 2 Rib Rail | 10" | 12" | 13 |
| GR-F2R-DI-2-YL | 2 Rib Rail - Yellow | 10" | 24" | 21 |
| GR-F2R-DI-3-YL | 2 Rib Rail - Yellow | 10" | 36" | 42 |
| GR-F2R-DI-4-YL | 2 Rib Rail - Yellow | 10" | 48" | 51 |
| GR-F2R-DI-5-YL | 2 Rib Rail - | 10" | 60" | 92 |
| GR-F2R-DI-6-YL | 2 Rib Rail - Yellow | 10" | 72" | 102 |
| GR-F2R-DI-7-YL | 2 Rib Rail - Yellow | 10" | 84" | 114 |
| GR-F2R-DI-8-YL | 2 Rib Rail - Yellow | 10" | 96" | 134 |
| GR-F2R-DI-9-YL | 2 Rib Rail - Yellow | 10" | 108" | 148 |
| GR-F2R-DI-10-YL | 2 Rib Rail - Yellow | 10" | 120" | 160 |
| GR-F3R-DI-1-YL | 3 Rib Rail - Yellow | 15" | 12" | 17 |
| GR-F3R-DI-2-YL | 3 Rib Rail - Yellow | 15" | 24" | 29 |
| GR-F3R-DI-3-YL | 3 Rib Rail - Yellow | 15" | 36" | 49 |
| GR-F3R-DI-4-YL | 3 Rib Rail - Yellow | 15" | 48" | 58 |
| GR-F3R-DI-5-YL | 3 Rib Rail - Yellow | 15" | 60" | 104 |
| GR-F3R-DI-6-YL | 3 Rib Rail - Yellow | 15" | 72" | 116 |
| GR-F3R-DI-7-YL | 3 Rib Rail - Yellow | 15" | 84" | 128 |
| GR-F3R-DI-8-YL | 3 Rib Rail - Yellow | 15" | 96" | 148 |
| GR-F3R-DI-9-YL | 3 Rib Rail - Yellow | 15" | 108" | 160 |
| GR-F3R-DI-10-YL | 3 Rib Rail - Yellow | 15" | 120" | 172 |
| Structural Guard Rail Section - Bolt-On Style | ||||
| GR-F2R-BO-1-YL | 2 Rib Rail - Yellow | 15" | 12" | 8 |
| GR-F2R-BO-2-YL | 2 Rib Rail - Yellow | 15" | 24" | 16 |
| GR-F2R-BO-3-YL | 2 Rib Rail - Yellow | 15" | 29-7/8" | 32 |
| GR-F2R-BO-4-YL | 2 Rib Rail - Yellow | 15" | 41-7/8" | 41 |
| GR-F2R-BO-5-YL | 2 Rib Rail - Yellow | 15" | 53-7/8" | 82 |
| GR-F2R-BO-6-YL | 2 Rib Rail - Yellow | 15" | 65-7/8" | 92 |
| GR-F2R-BO-7-YL | 2 Rib Rail - Yellow | 15" | 77-7/8" | 104 |
| GR-F2R-BO-8-YL | 2 Rib Rail - Yellow | 15" | 89-7/8" | 124 |
| GR-F2R-BO-9-YL | 2 Rib Rail - Yellow | 15" | 101-7/8" | 138 |
| GR-F2R-BO-10-YL | 2 Rib Rail - Yellow | 15" | 113-7/8" | 150 |
| GR-F3R-BO-1-YL | 3 Rib Rail - Yellow | 15" | 12" | 12 |
| GR-F3R-BO-2-YL | 3 Rib Rail - Yellow | 15" | 24" | 24 |
| GR-F3R-BO-3-YL | 3 Rib Rail - Yellow | 15" | 29-7/8" | 39 |
| GR-F3R-BO-4-YL | 3 Rib Rail - Yellow | 15" | 41-7/8" | 48 |
| GR-F3R-BO-5-YL | 3 Rib Rail - Yellow | 15" | 53-7/8" | 94 |
| GR-F3R-BO-6-YL | 3 Rib Rail - Yellow | 15" | 65-7/8" | 106 |
| GR-F3R-BO-7-YL | 3 Rib Rail - Yellow | 15" | 77-7/8" | 118 |
| GR-F3R-BO-8-YL | 3 Rib Rail - Yellow | 15" | 89-7/8" | 138 |
| GR-F3R-BO-9-YL | 3 Rib Rail - Yellow | 15" | 101-7/8" | 150 |
| GR-F3R-BO-10-YL | 3 Rib Rail - Yellow | 15" | 113-7/8" | 162 |
| Rigid Posts | ||||
| GR-F2R-BO-TP18-YL | 2 Rib Rail Bolt-On Post - Yellow | 18" | Accommodates (1) Rail Level | 38 |
| GR-F3R-BO-TP18-YL | 3 Rib Rail Bolt-On Post - Yellow | 18" | Accommodates (1) Rail Level | 38 |
| GR-F2R-DI-TP18-YL | 2 Rib Rail Drop-In Post - Yellow | 18" | Accommodates (1) Rail Level | 32 |
| GR-F3R-DI-TP18-YL | 3 Rib Rail Drop-In Post - Yellow | 18" | Accommodates (1) Rail Level | 32 |
| GR-F2R-BO-TP42-YL | 2 Rib Rail Bolt-On Post - Yellow | 42" | Accommodates (2) Rail Levels | 65 |
| GR-F3R-BO-TP42-YL | 3 Rib Rail Bolt-On Post - Yellow | 42" | Accommodates (2) Rail Levels | 65 |
| GR-F2R-DI-TP42-YL | 2 Rib Rail Drop-In Post - Yellow | 42" | Accommodates (2) Rail Levels | 65 |
| GR-F3R-DI-TP42-YL | 3 Rib Rail Drop-In Post - Yellow | 42" | Accommodates (2) Rail Levels | 65 |
| GR-F2R-BO-TP60-YL | 2 Rib Rail Bolt-On Post - Yellow | 60" | Accommodates (3) Rail Levels | 95 |
| GR-F3R-BO-TP60-YL | 3 Rib Rail Bolt-On Post - Yellow | 60" | Accommodates (3) Rail Levels | 95 |
| GR-F2R-DI-TP60-YL | 2 Rib Rail Drop-In Post - Yellow | 60" | Accommodates (3) Rail Levels | 95 |
| GR-F3R-DI-TP60-YL | 3 Rib Rail Drop-In Post - Yellow | 60" | Accommodates (3) Rail Levels | 95 |
| GR-F2R-BO-TP72-YL | 2 Rib Rail Bolt-On Post - Yellow | 72" | Accommodates (4) Rail Levels | 135 |
| GR-F3R-BO-TP72-YL | 3 Rib Rail Bolt-On Post - Yellow | 72" | Accommodates (4) Rail Levels | 135 |
| GR-F2R-DI-TP72-YL | 2 Rib Rail Drop-In Post - Yellow | 72" | Accommodates (4) Rail Levels | 135 |
| GR-F3R-DI-TP72-YL | 3 Rib Rail Drop-In Post - Yellow | 72" | Accommodates (4) Rail Levels | 135 |
| Single Rail Swing Gate For 3 Rib Guard Rail Series | ||||
| GR-F3R-GBS-3-YL | Yellow | 3' | 3 Rib Gate Hinged Single Guard Rail 3' Long | 52 |
| GR-F3R-GBS-4-YL | Yellow | 4' | 3 Rib Gate Hinged Single Guard Rail 4' Long | 61 |
| Double Rail Swing Gate For 3 Rib Guard Rail Series | ||||
| GR-F3R-GBD-3-YL | Yellow | 3' | 3 Rib Gate Hinged Double Guard Rail 3' Long | 143 |
| GR-F3R-GBD-4-YL | Yellow | 4' | 3 Rib Gate Hinged Double Guard Rail 4' Long | 143 |
