Vestil Air Hydraulic Carts

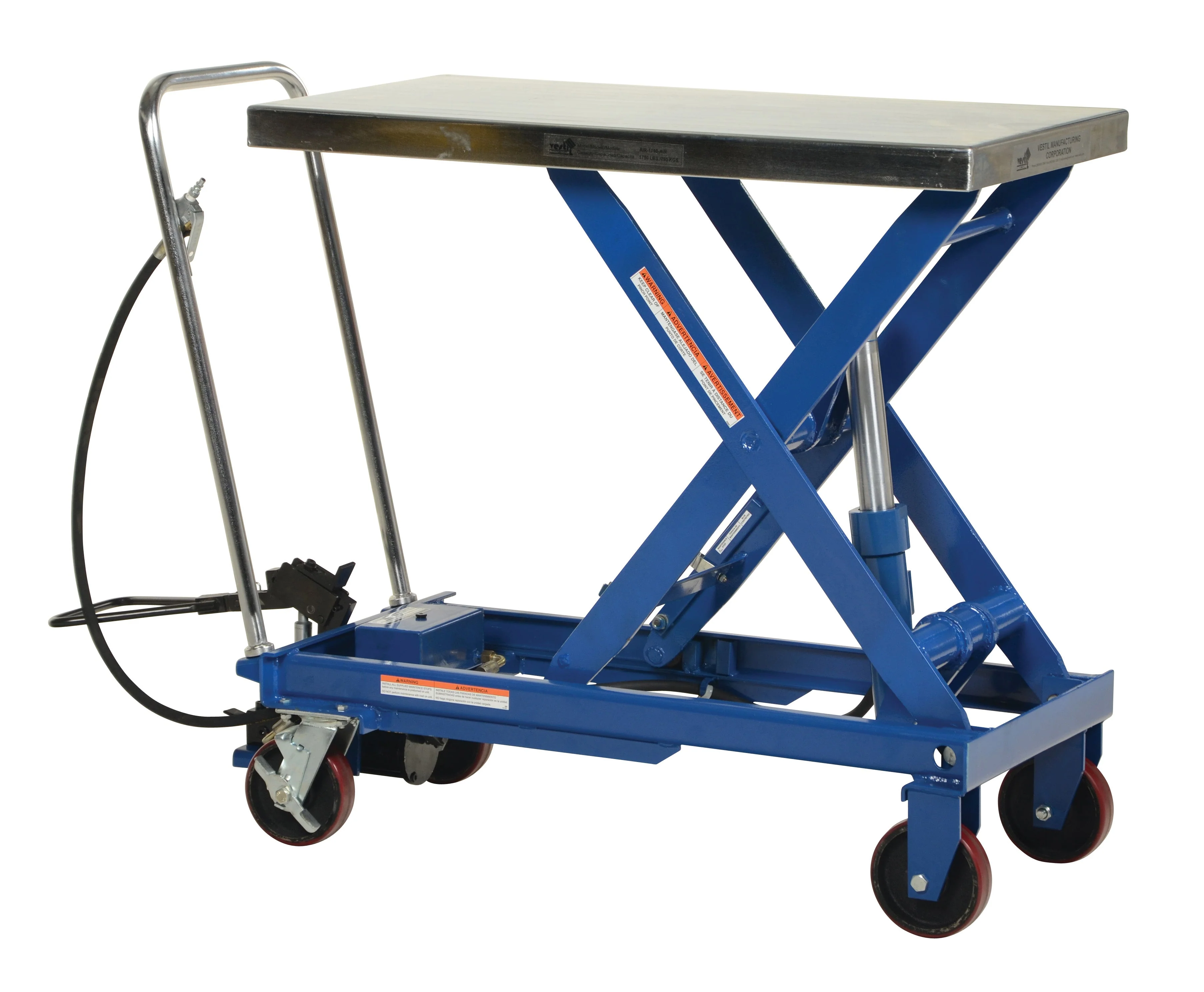

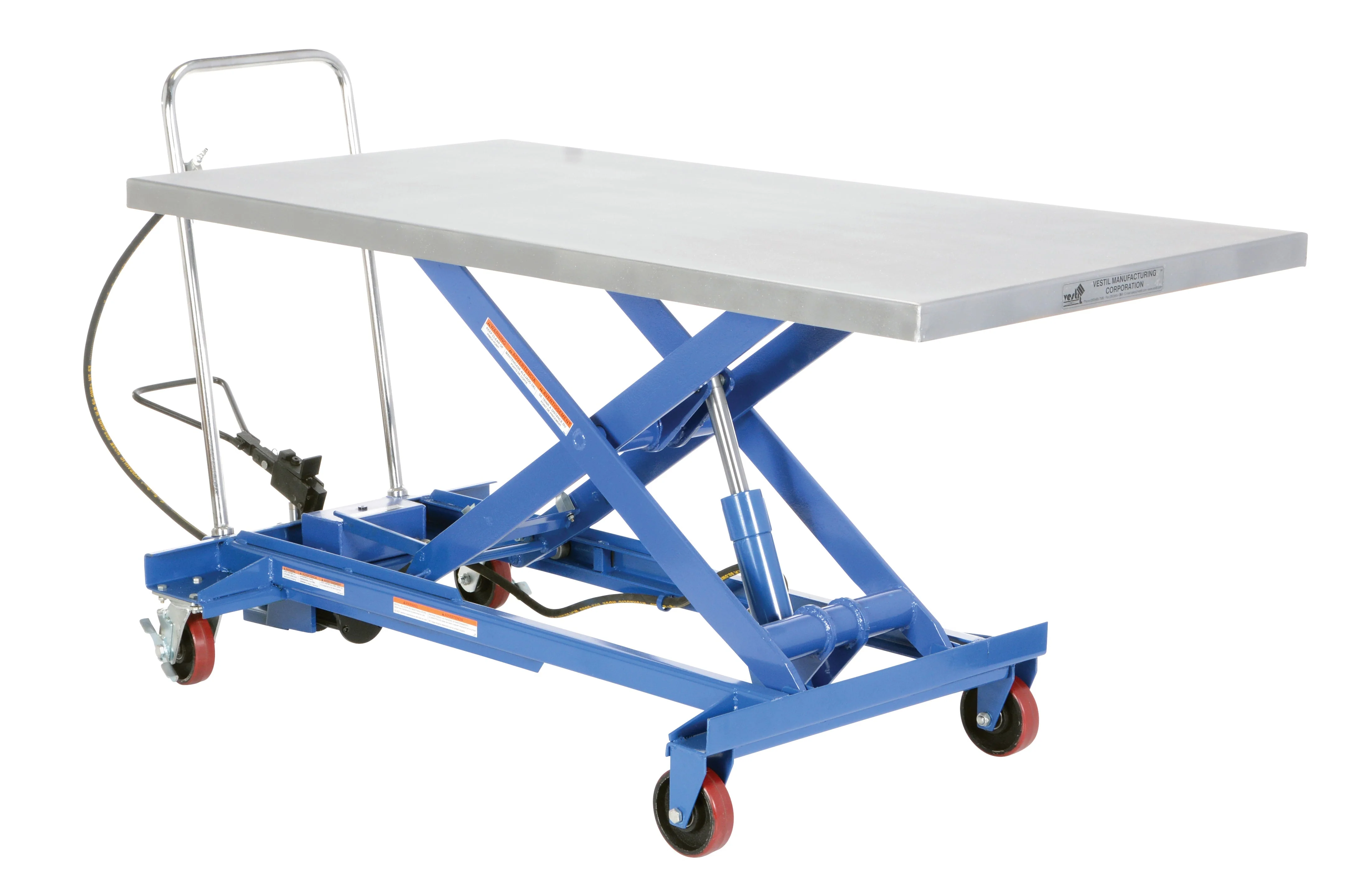

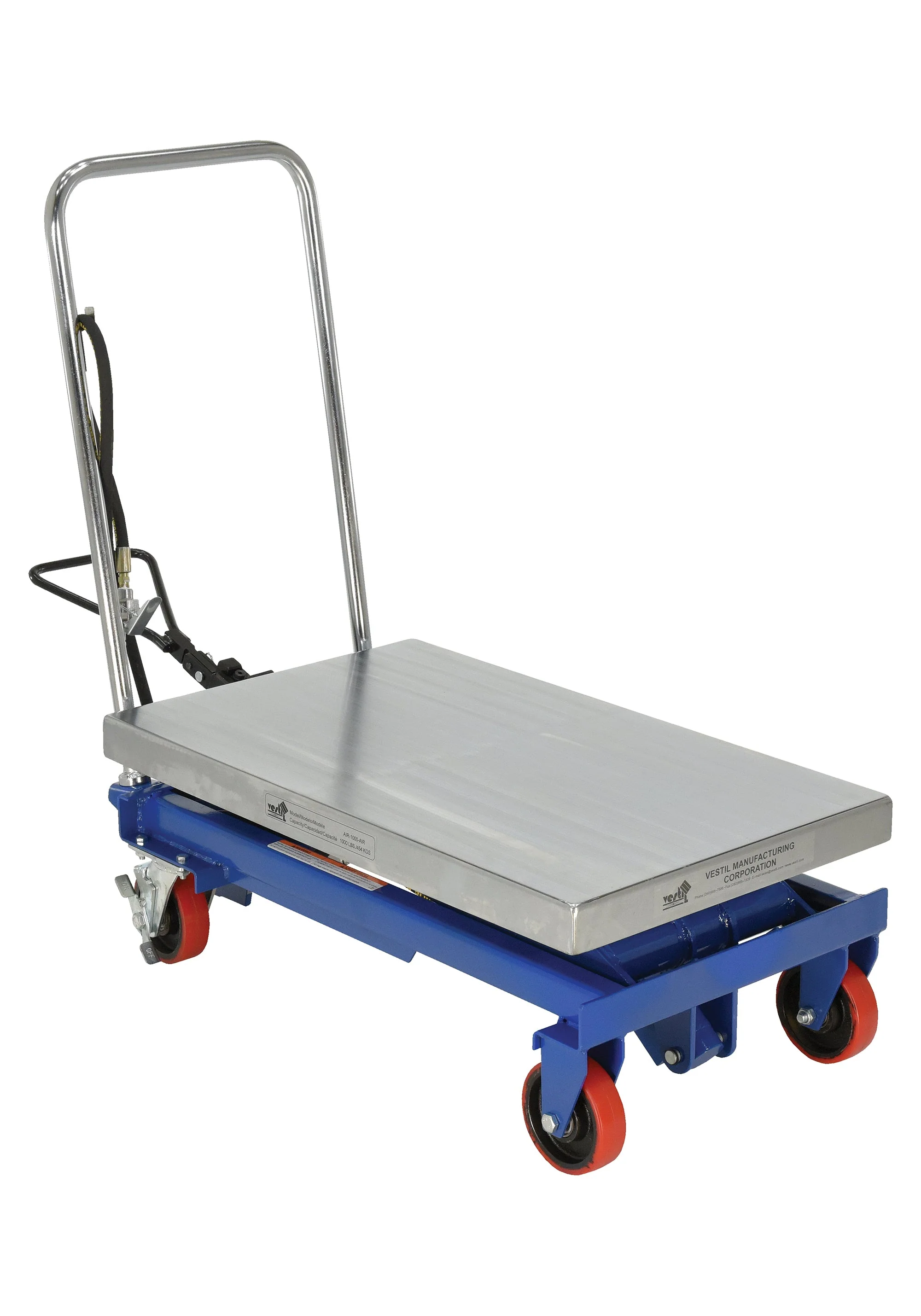

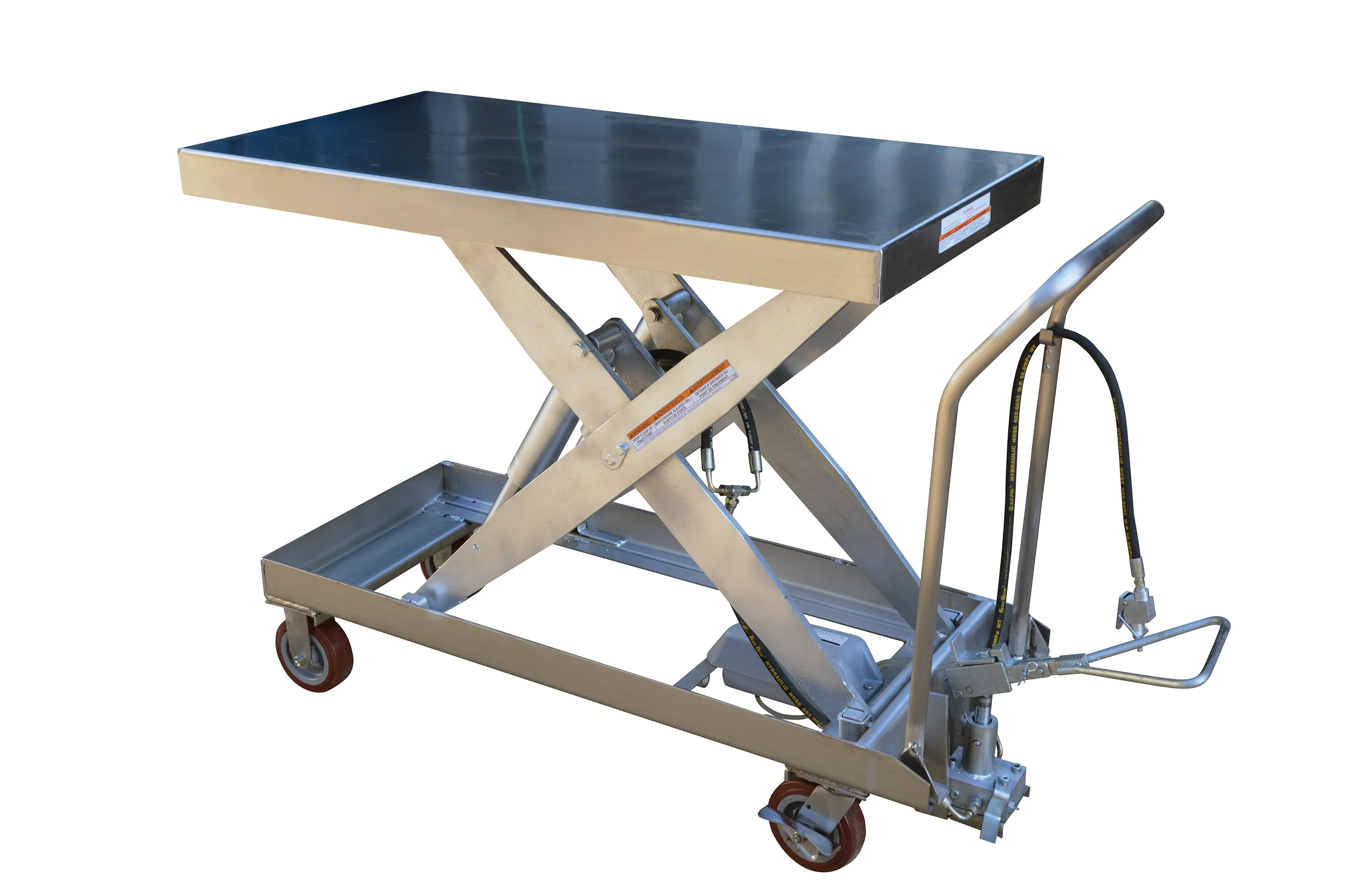

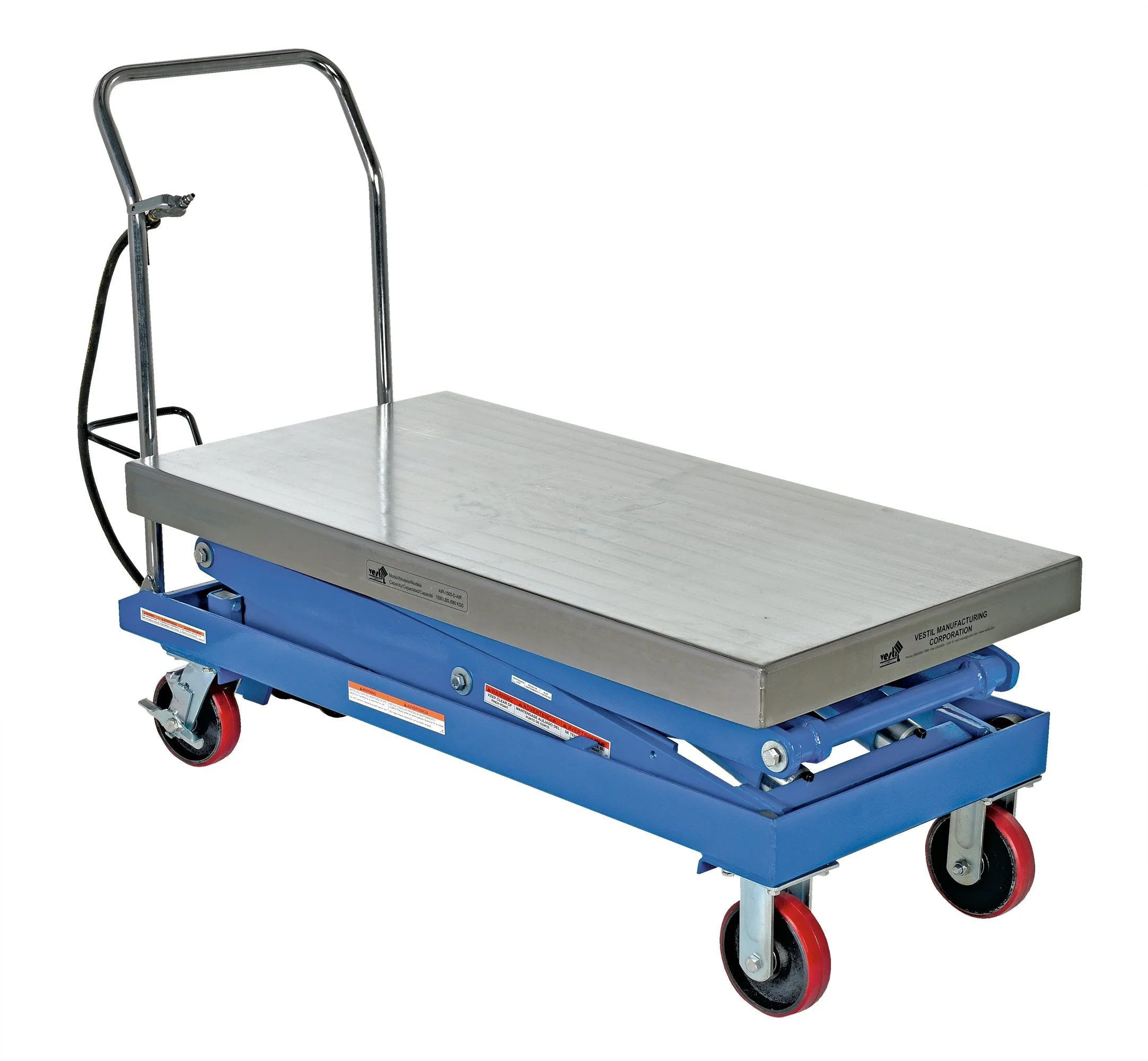

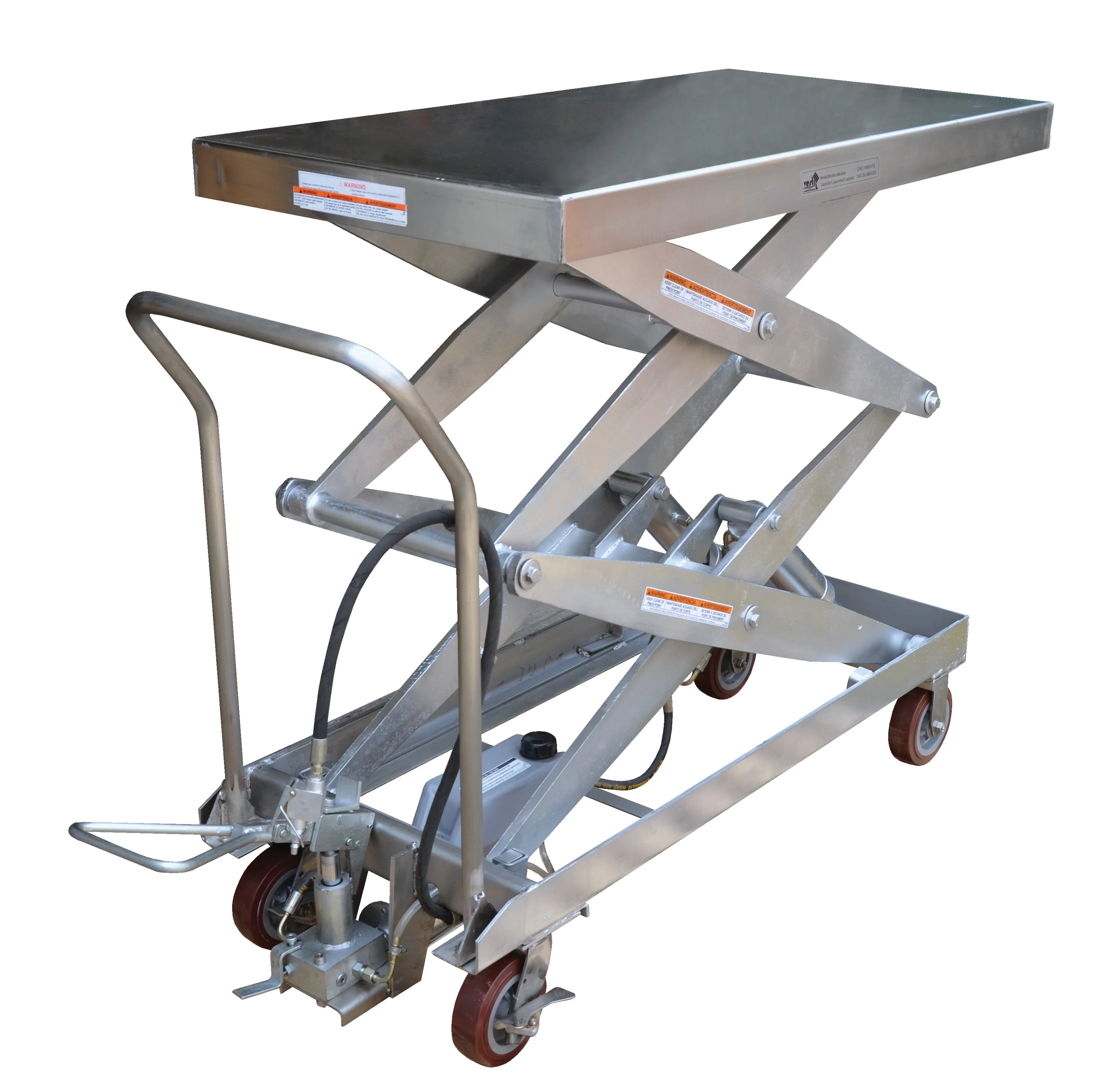

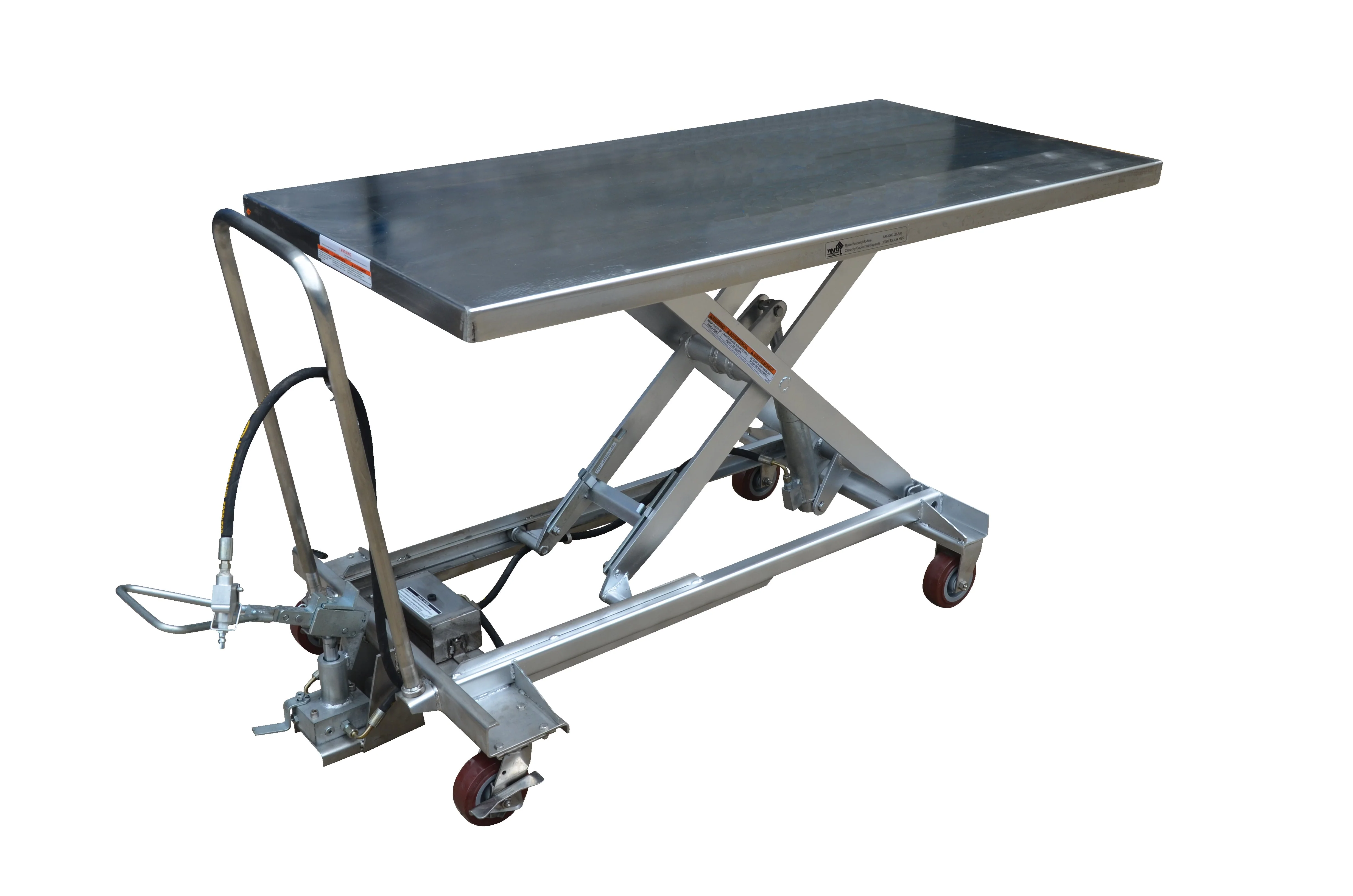

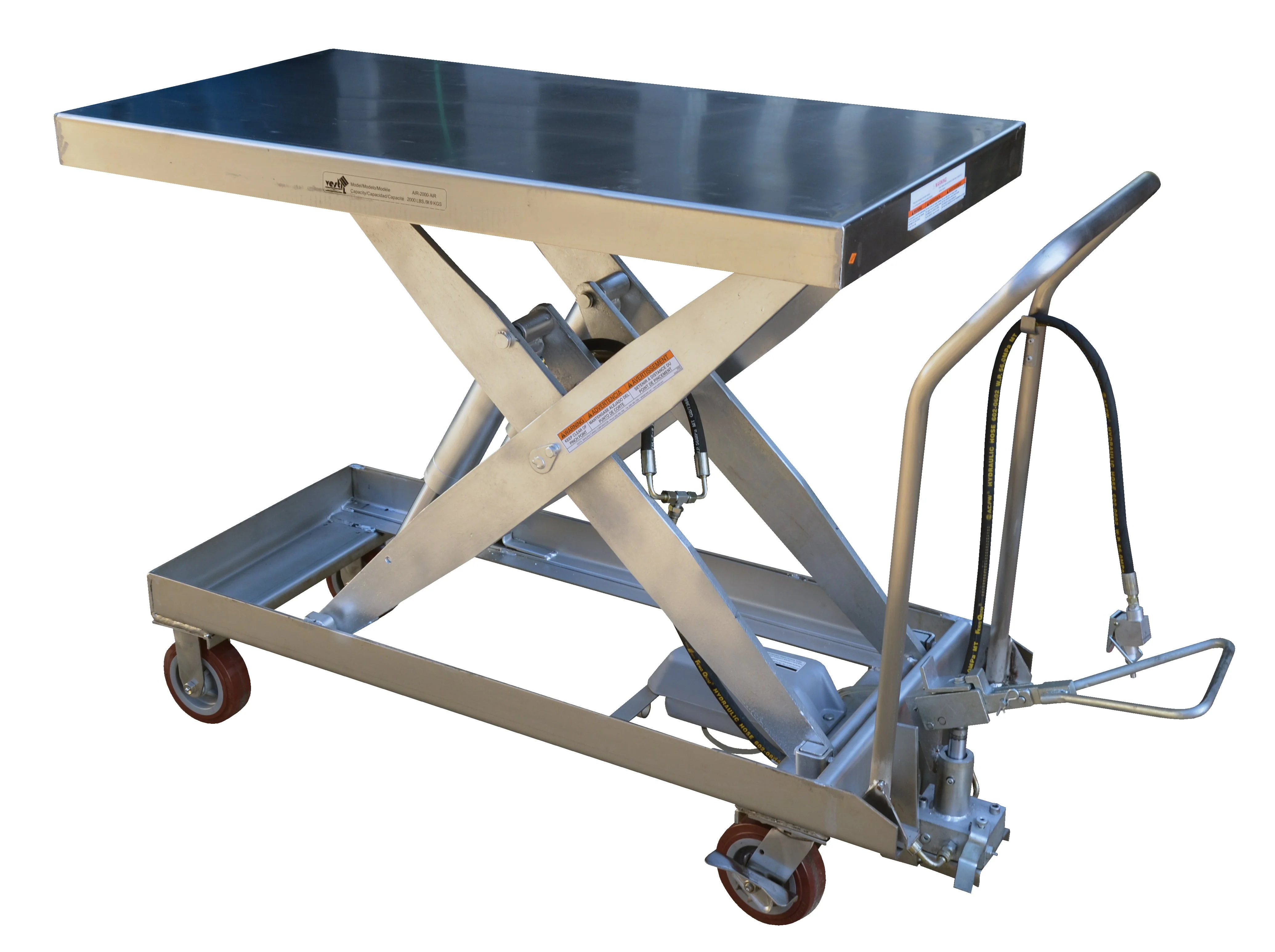

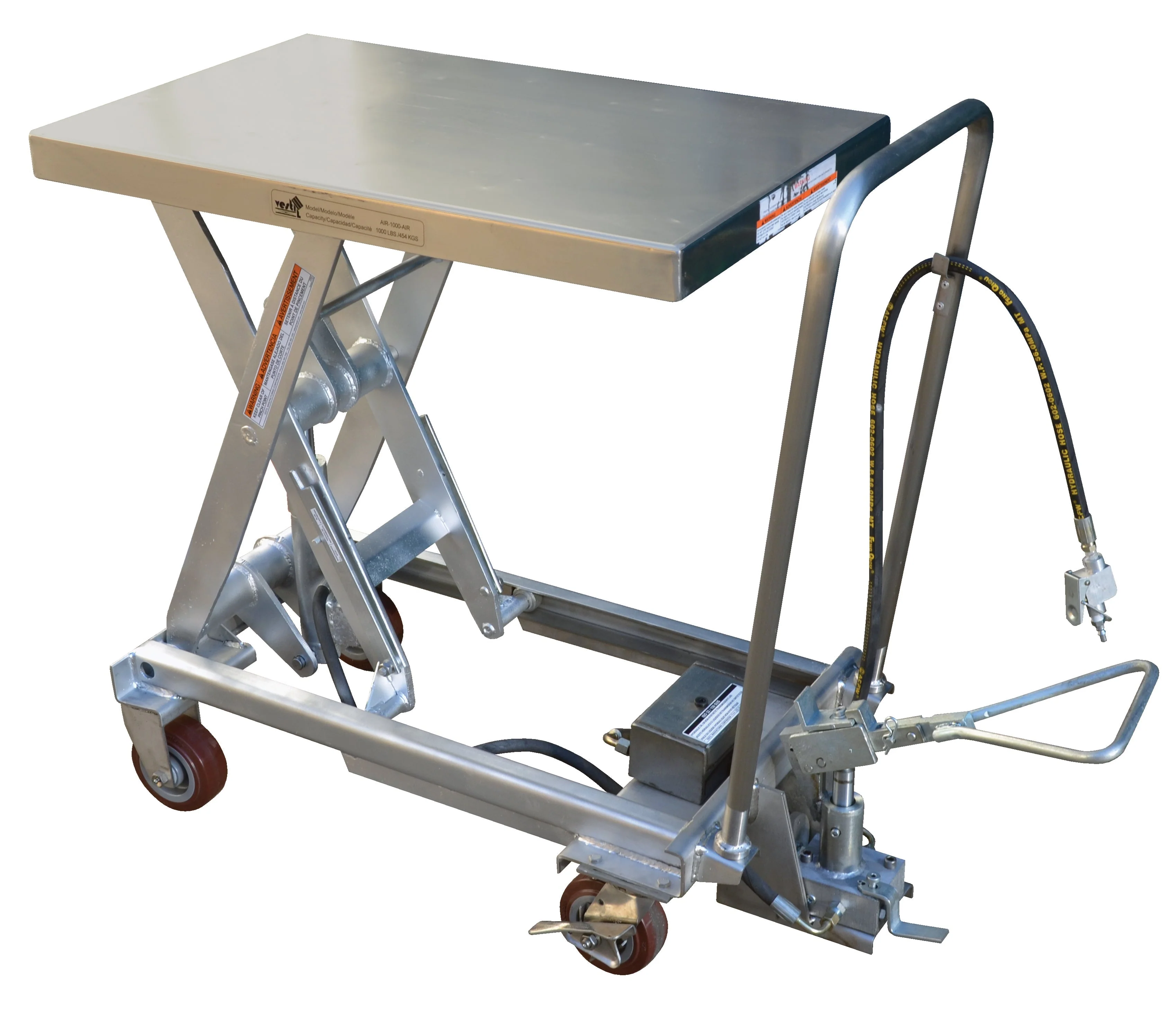

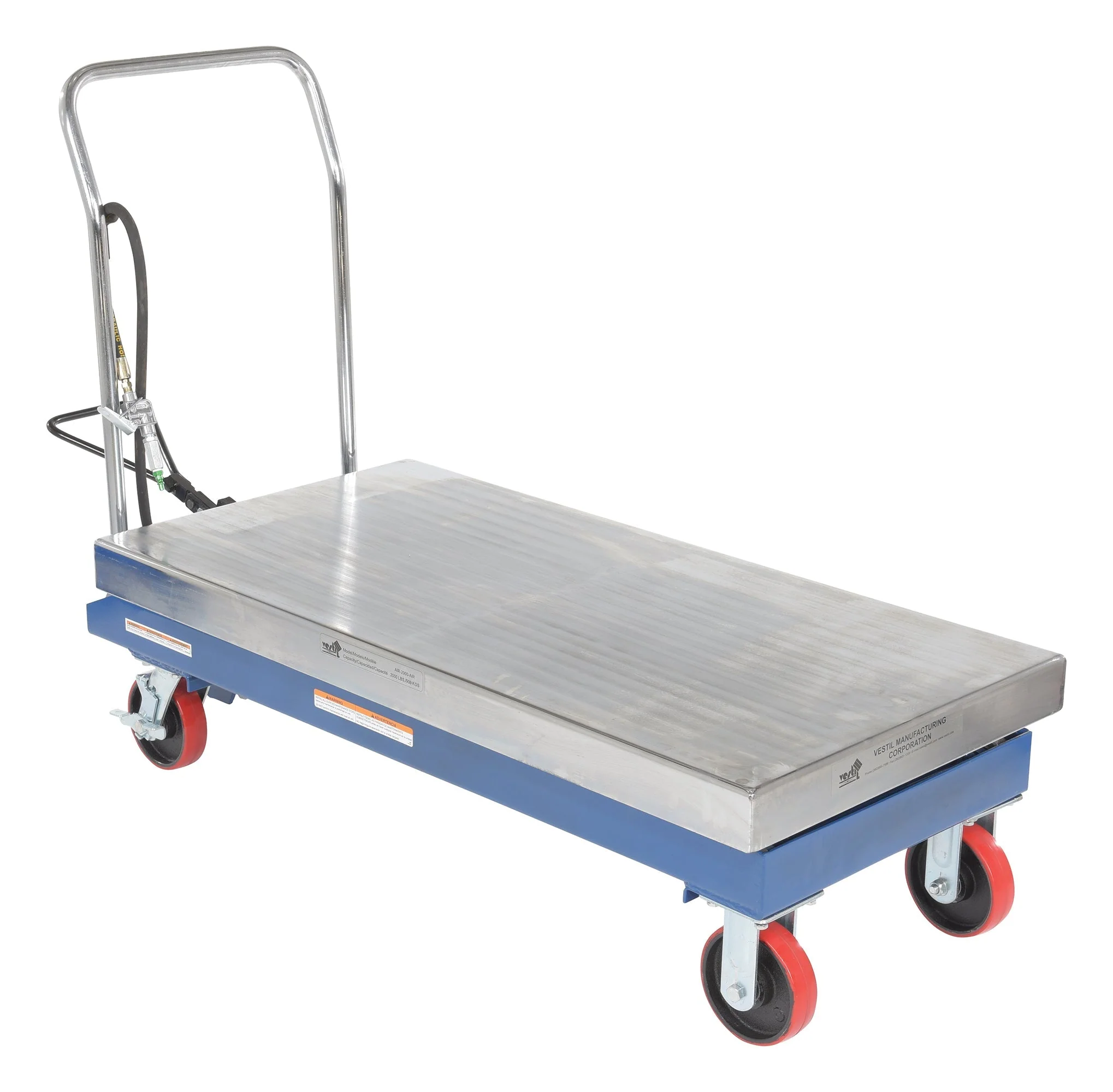

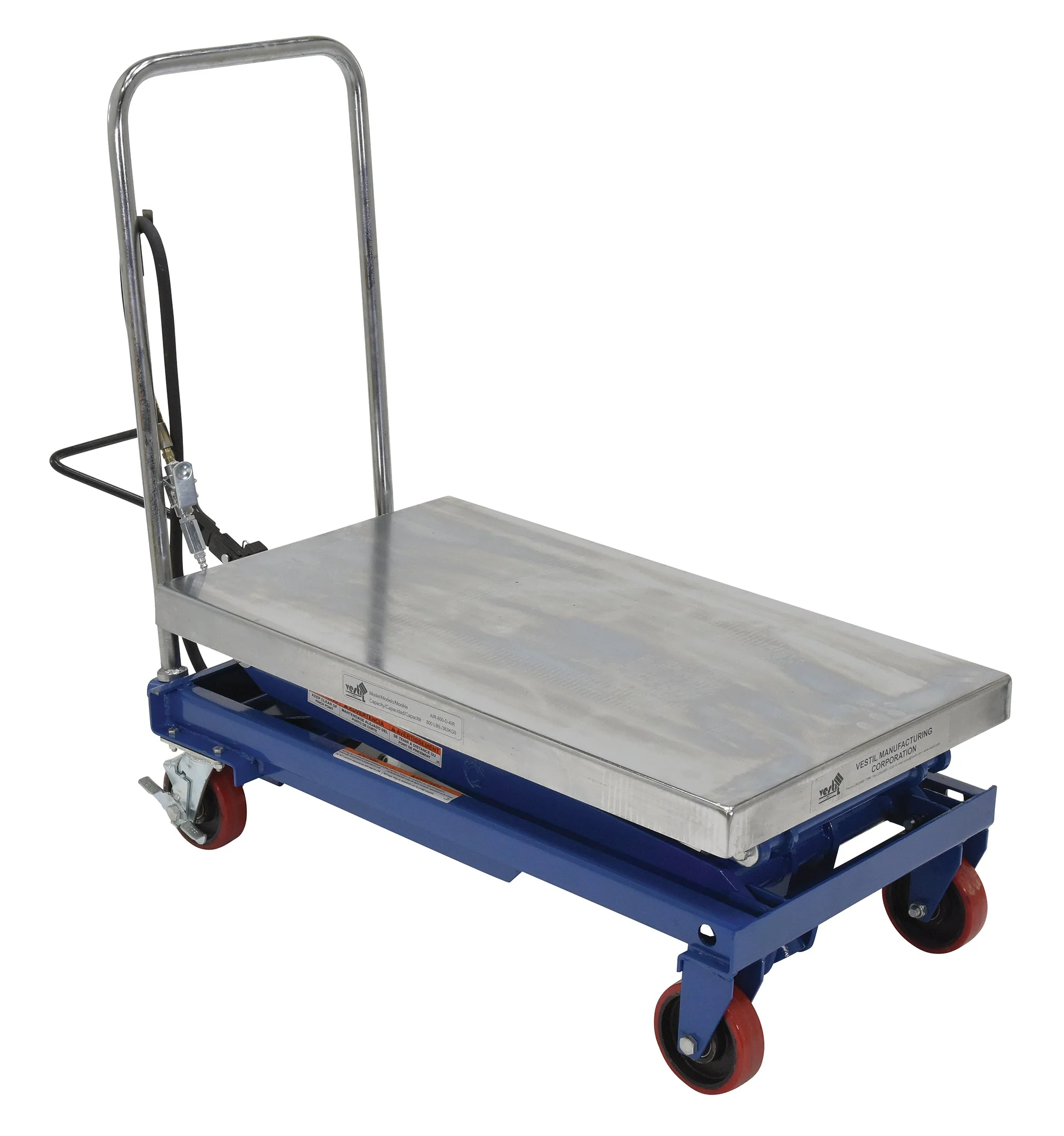

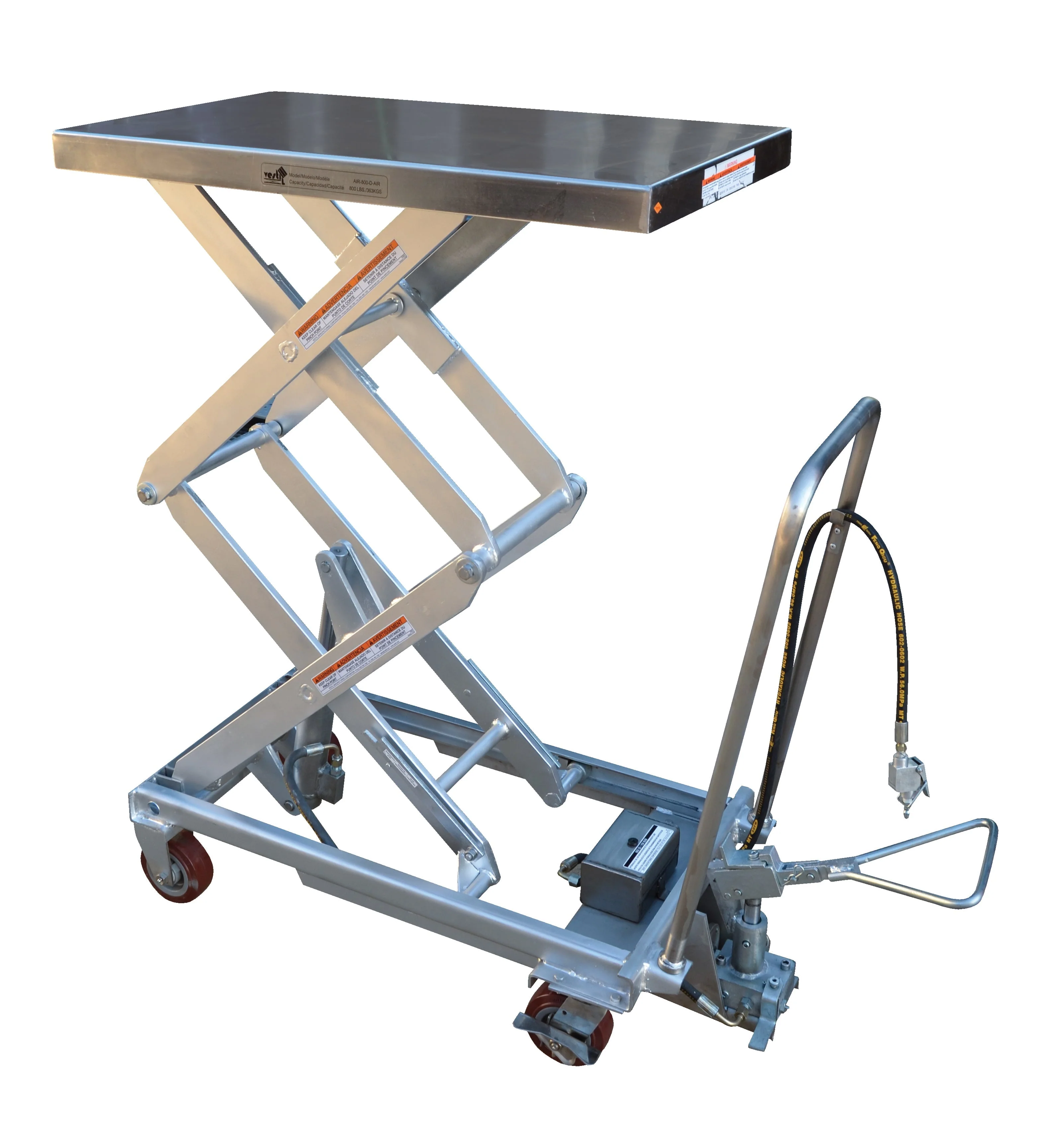

Utilize the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting up to 2,000 uniform pounds. Partially stainless steel carts are available. On suffix PSS, the platform, handle, base frame, caster brackets, and hardware are all stainless steel. Air pump, hydraulic cylinder, scissor legs, and foot pedal are zinc plated. Wheels are poly-on-poly.
| Air Hydraulic Carts | |||||
| Model | Platform Size (WxL) |
Capacity (lbs) |
Service Range |
Caster Size |
Wt. (lbs) |
| AIR-800-D | 20"x35-1/2" | 800 | 13-3/4"to51" | 5"x1-1/2" | 317 |
| AIR-800-D-PSS | 20"x35-1/2" | 800 | 13-3/4"to51" | 5"x1-1/2" | 317 |
| AIR-1000 | 19-11/16"x32-1/2" | 1,000 | 13-3/4"to35-7/16" | 5"x1-1/2" | 225 |
| AIR-1000-LD | 31-1/2"x63" | 1,000 | 12-1/8"to35-1/2" | 5"x1-1/2" | 359 |
| AIR-1500-D | 24"x47-1/2" | 1,500 | 19-1/2"x67" | 6"x1-1/2" | 601 |
| AIR-1500-D-PSS | 24"x47-1/2" | 1,500 | 19-1/2"x67" | 6"x1-1/2" | 586 |
| AIR-1750 | 20"x39-1/2" | 1,750 | 14-1/4"to39-1/2" | 6"x1-1/2" | 324 |
| AIR-1750-PSS | 20"x39-1/2" | 1,750 | 14-1/4"to39-1/2" | 6"x1-1/2" | 324 |
| AIR-2000 | 24"x47-1/4" | 2,000 | 15"to39-1/2" | 6"x1-1/2" | 441 |
| AIR-2000-PSS | 24"x47-1/4" | 2,000 | 15"to39-1/2" | 6"x1-1/2" | 441 |
| AIR-1000-LD-PSS | 31-1/2"x63" | 1,000 | 12-1/8" to 35-1/2" | 5"x1-1/2" | 340 |
| AIR-1000-PSS | 19-11/16"x32-1/2" | 1,000 | 13-3/4"to35-7/16" | 5"x1-1/2" | 340 |
Original: $1,038.05
-65%$1,038.05
$363.32
Description
Utilize the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting up to 2,000 uniform pounds. Partially stainless steel carts are available. On suffix PSS, the platform, handle, base frame, caster brackets, and hardware are all stainless steel. Air pump, hydraulic cylinder, scissor legs, and foot pedal are zinc plated. Wheels are poly-on-poly.
