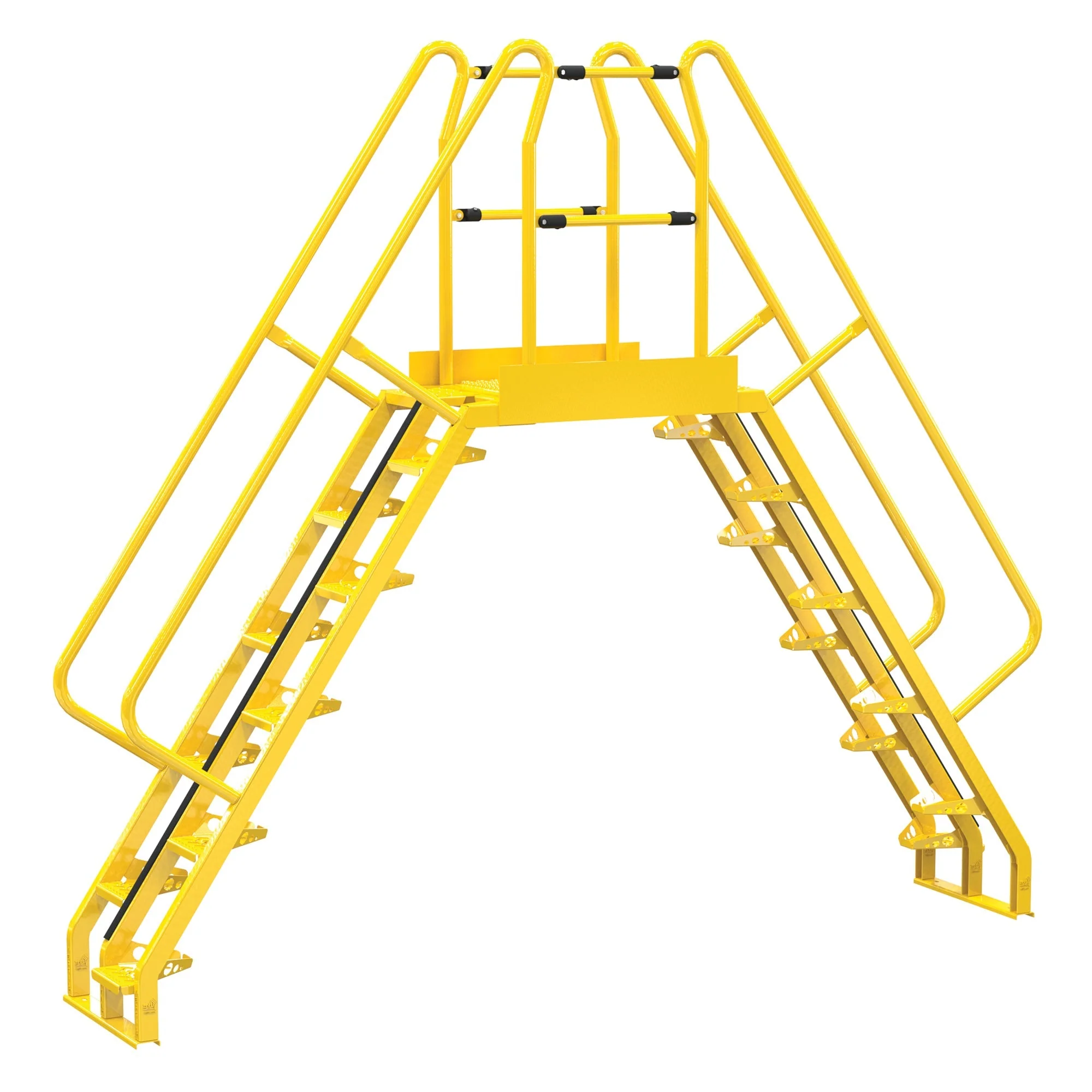

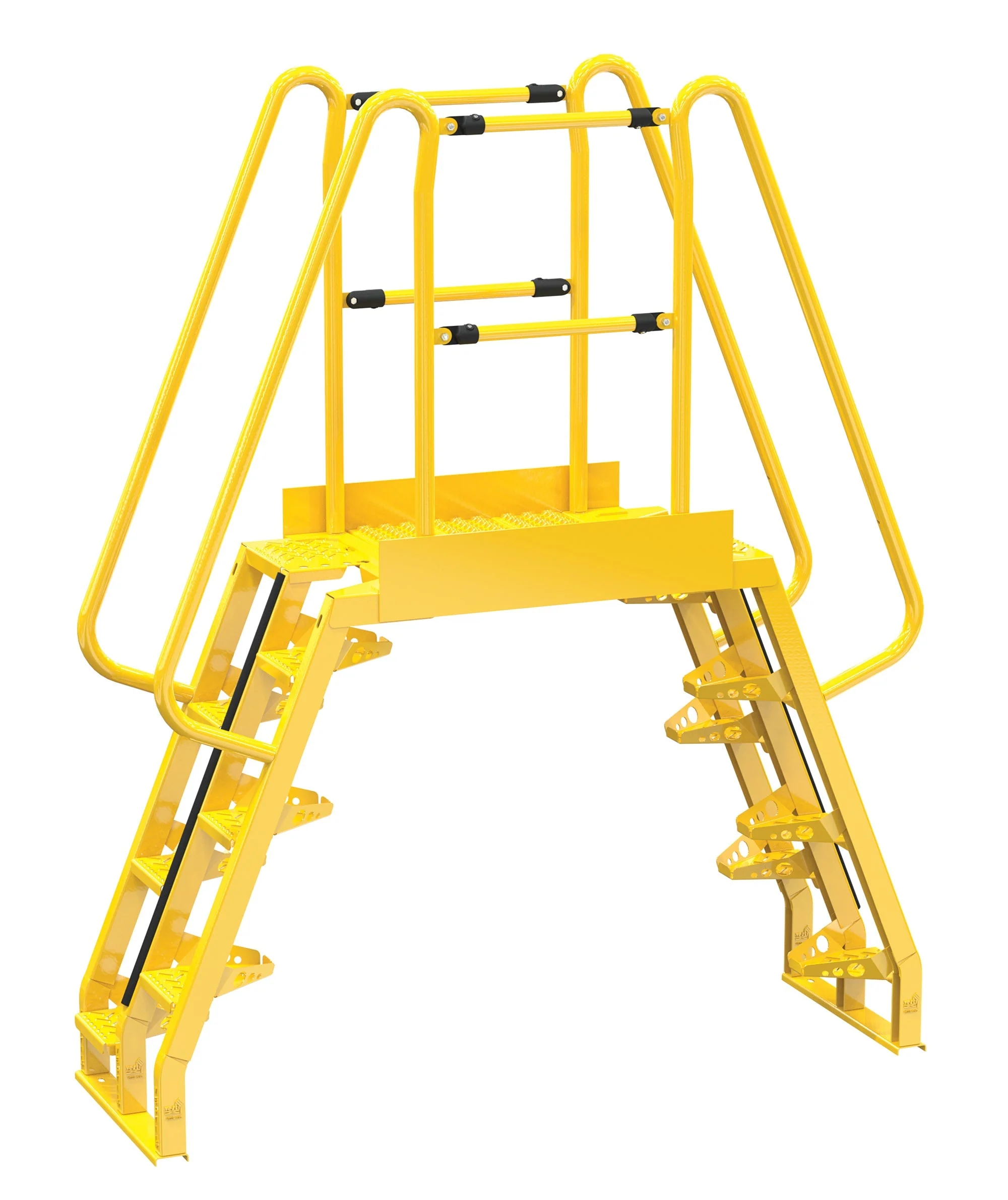

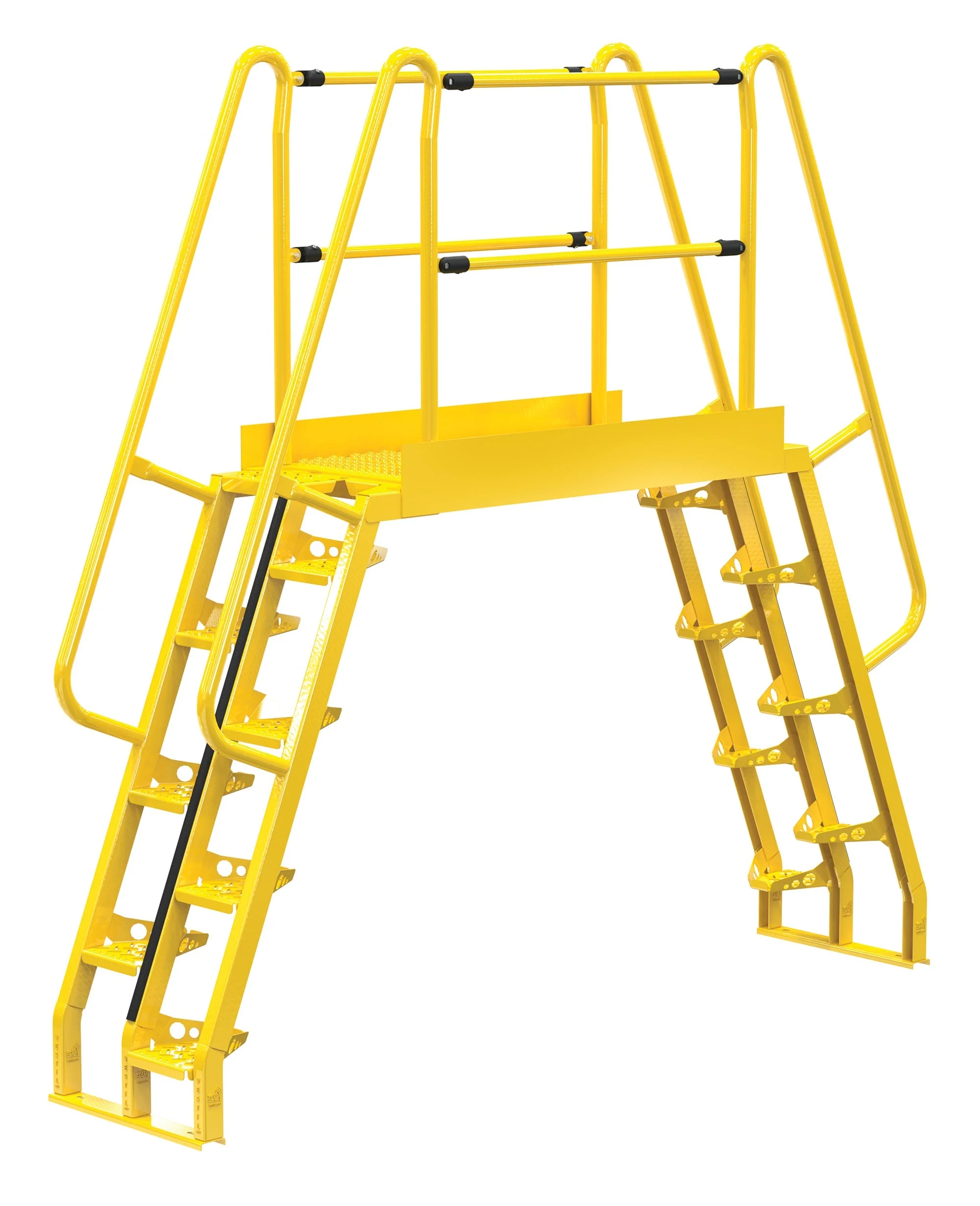

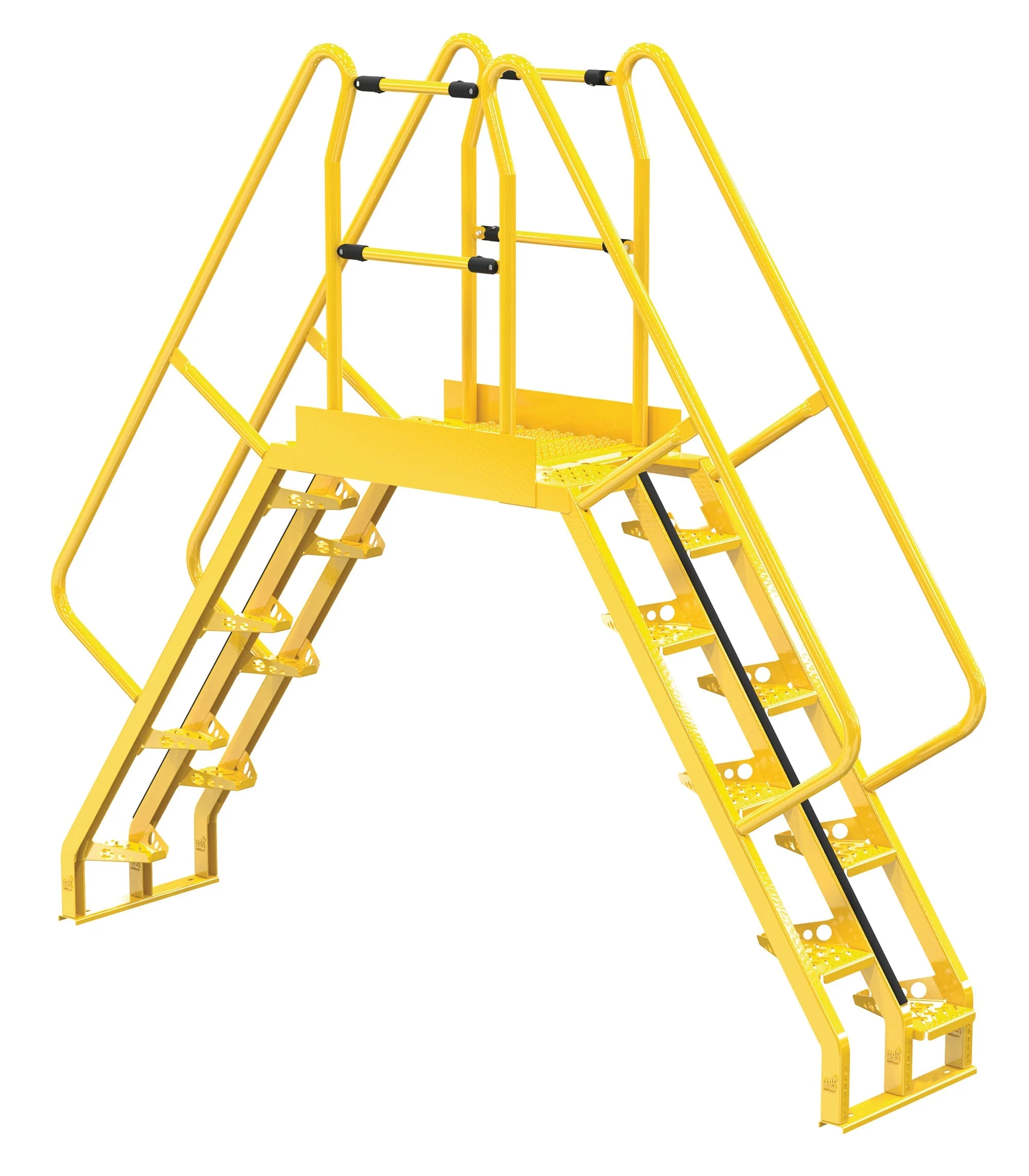

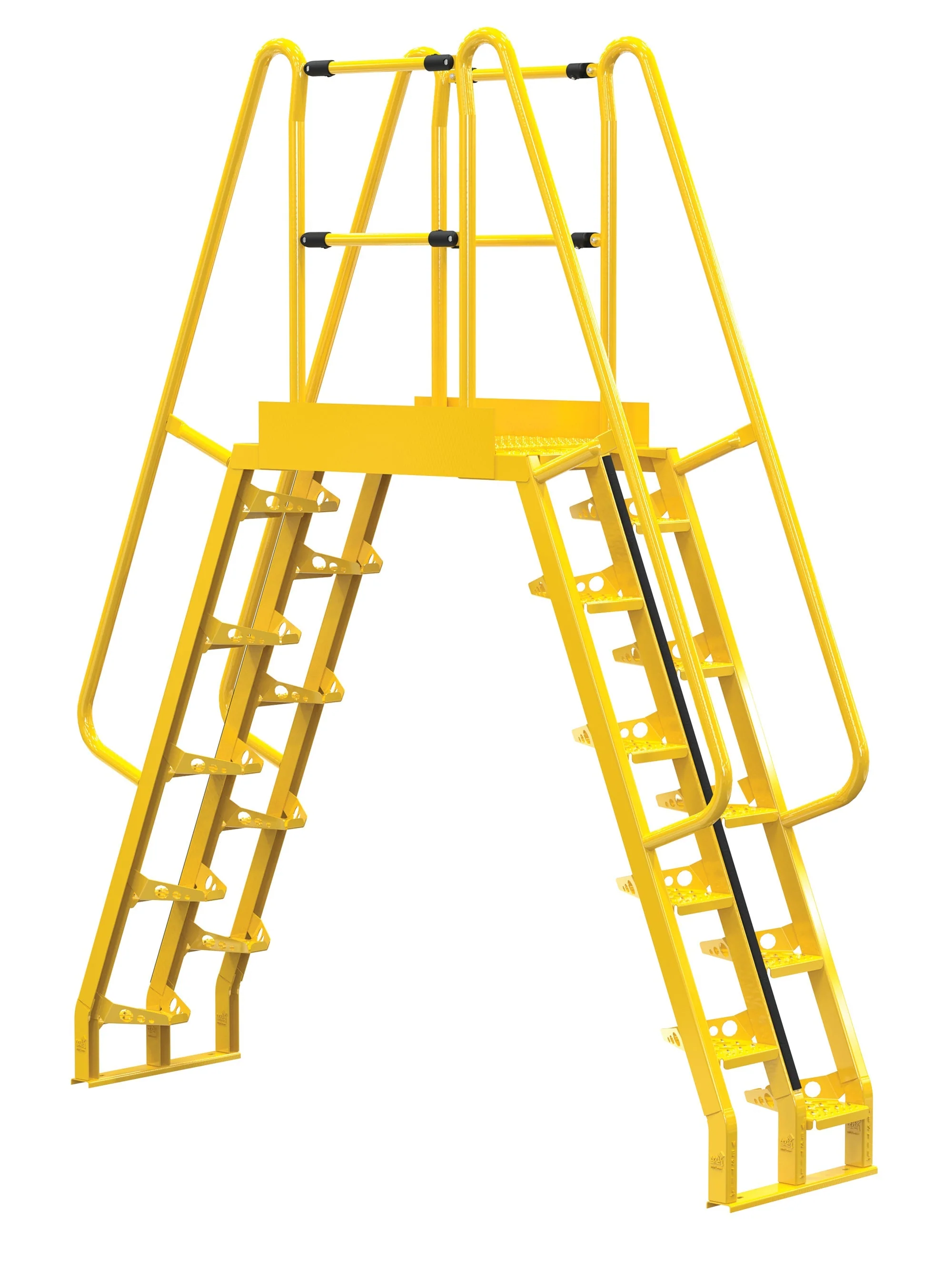

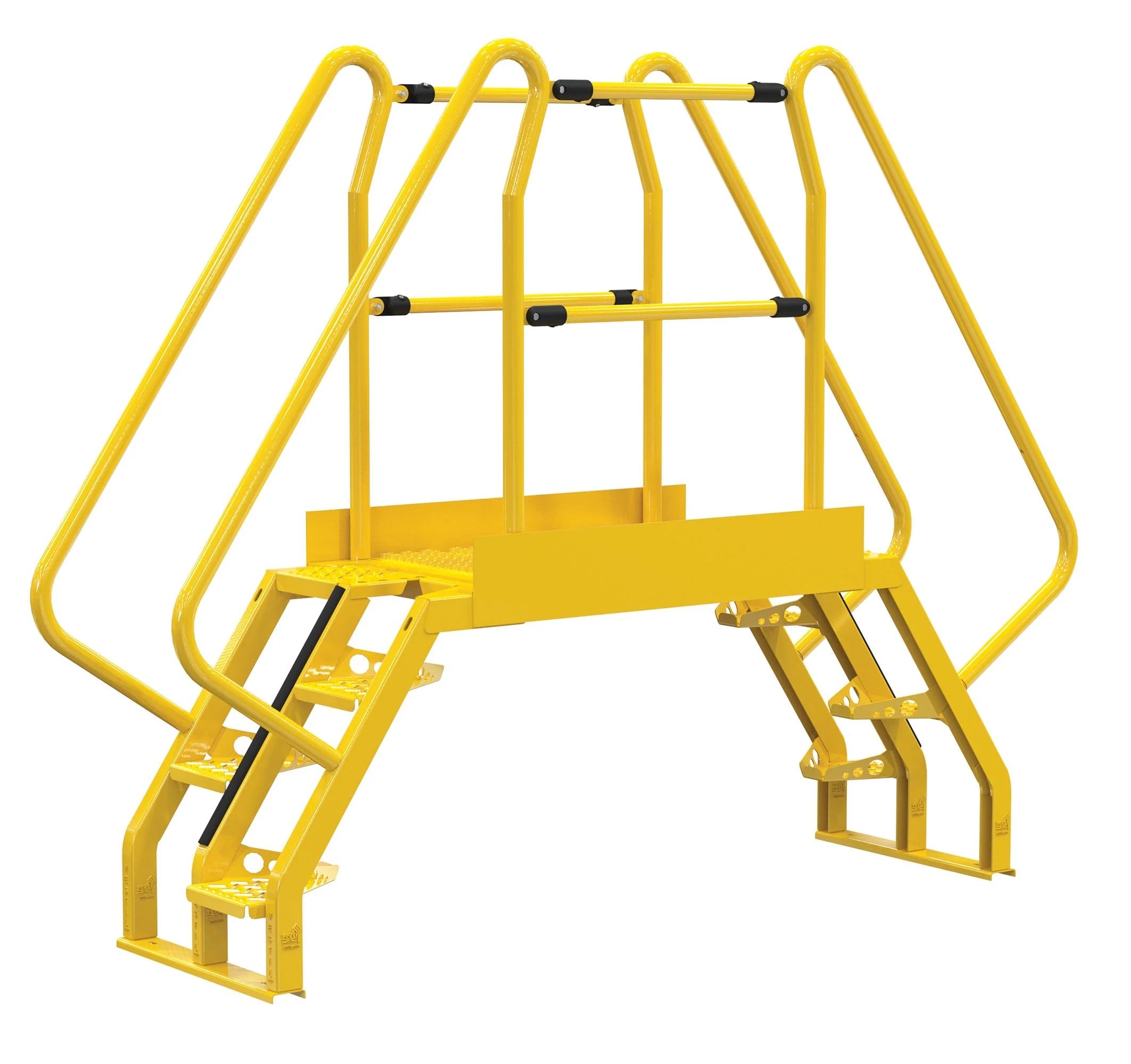

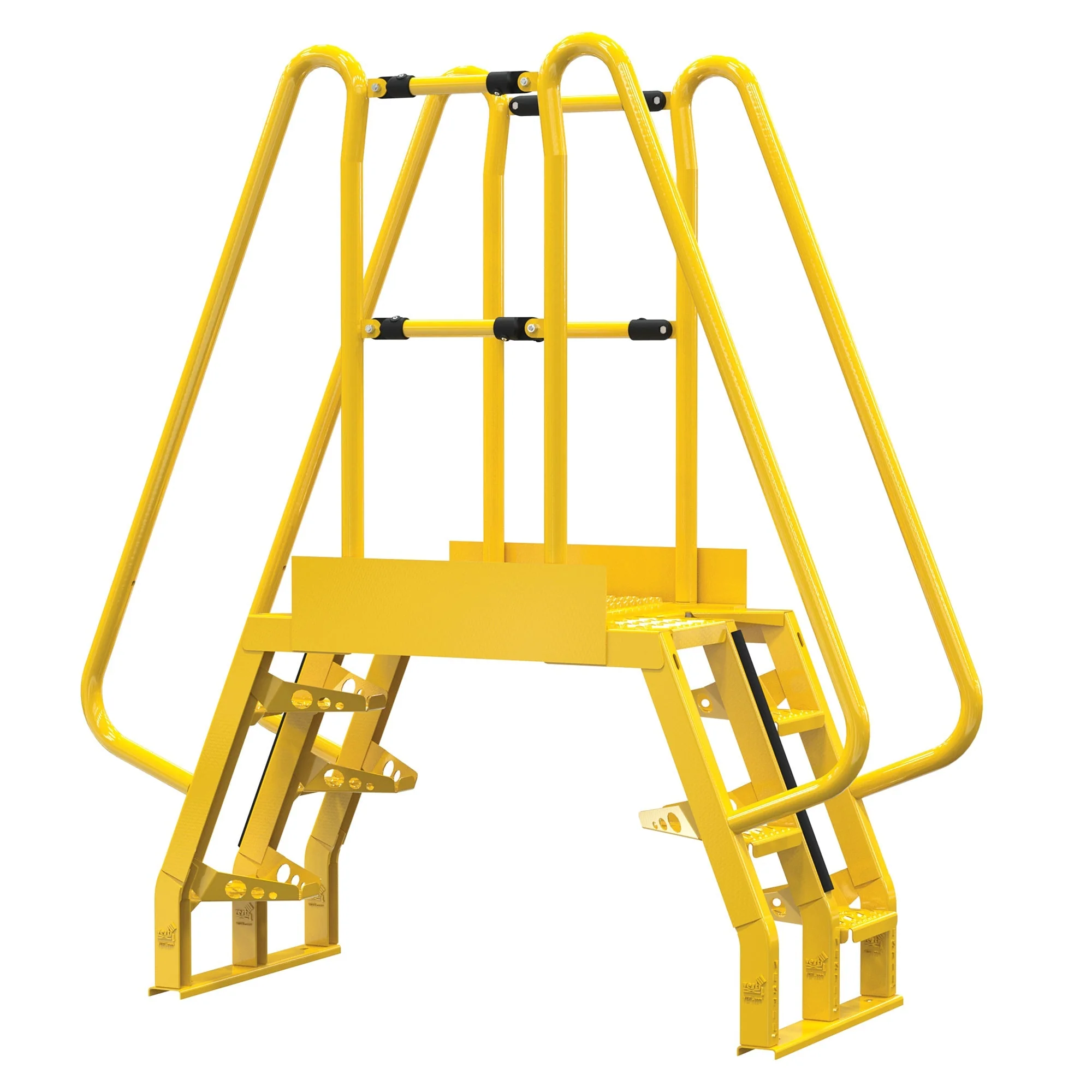

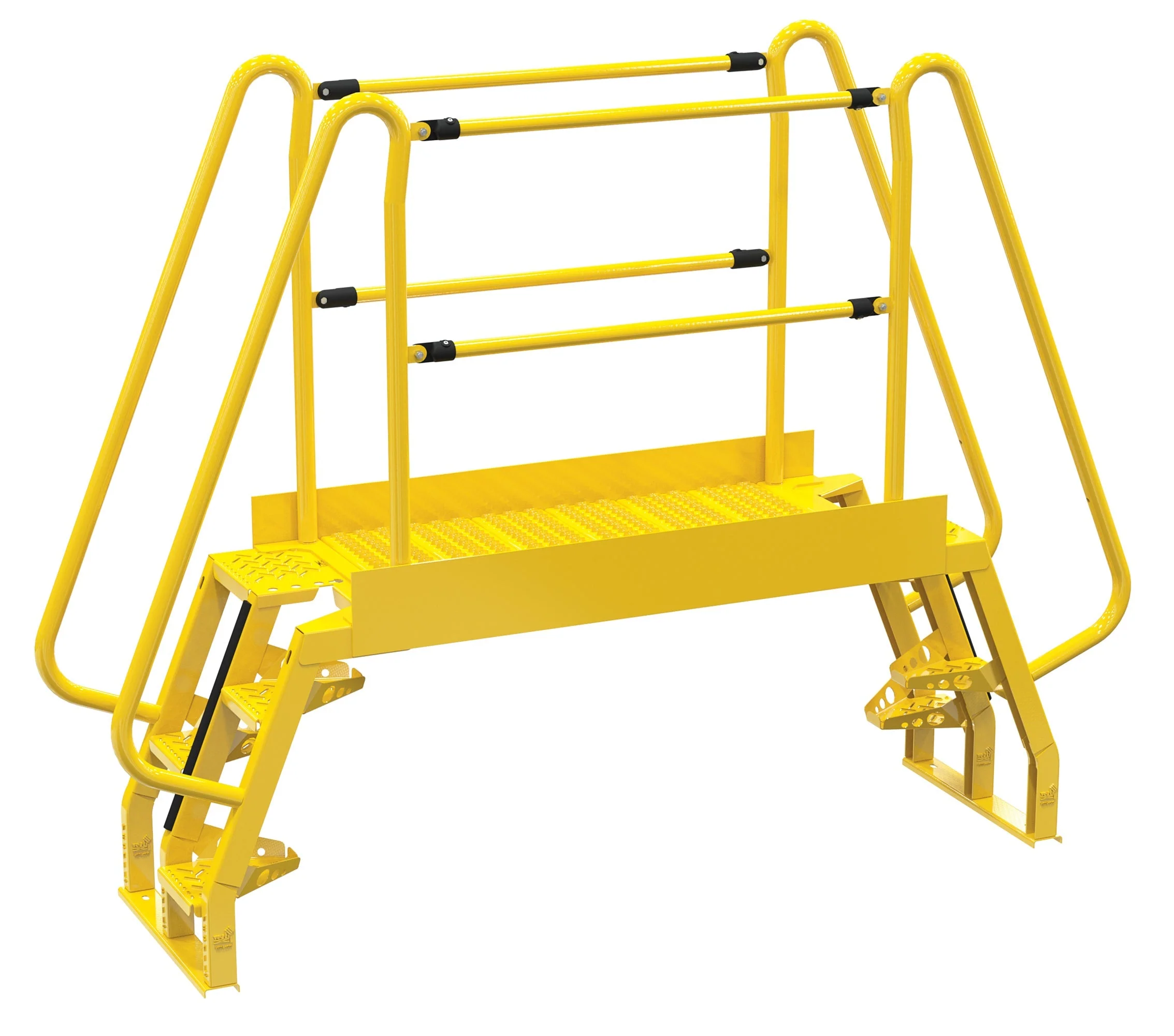

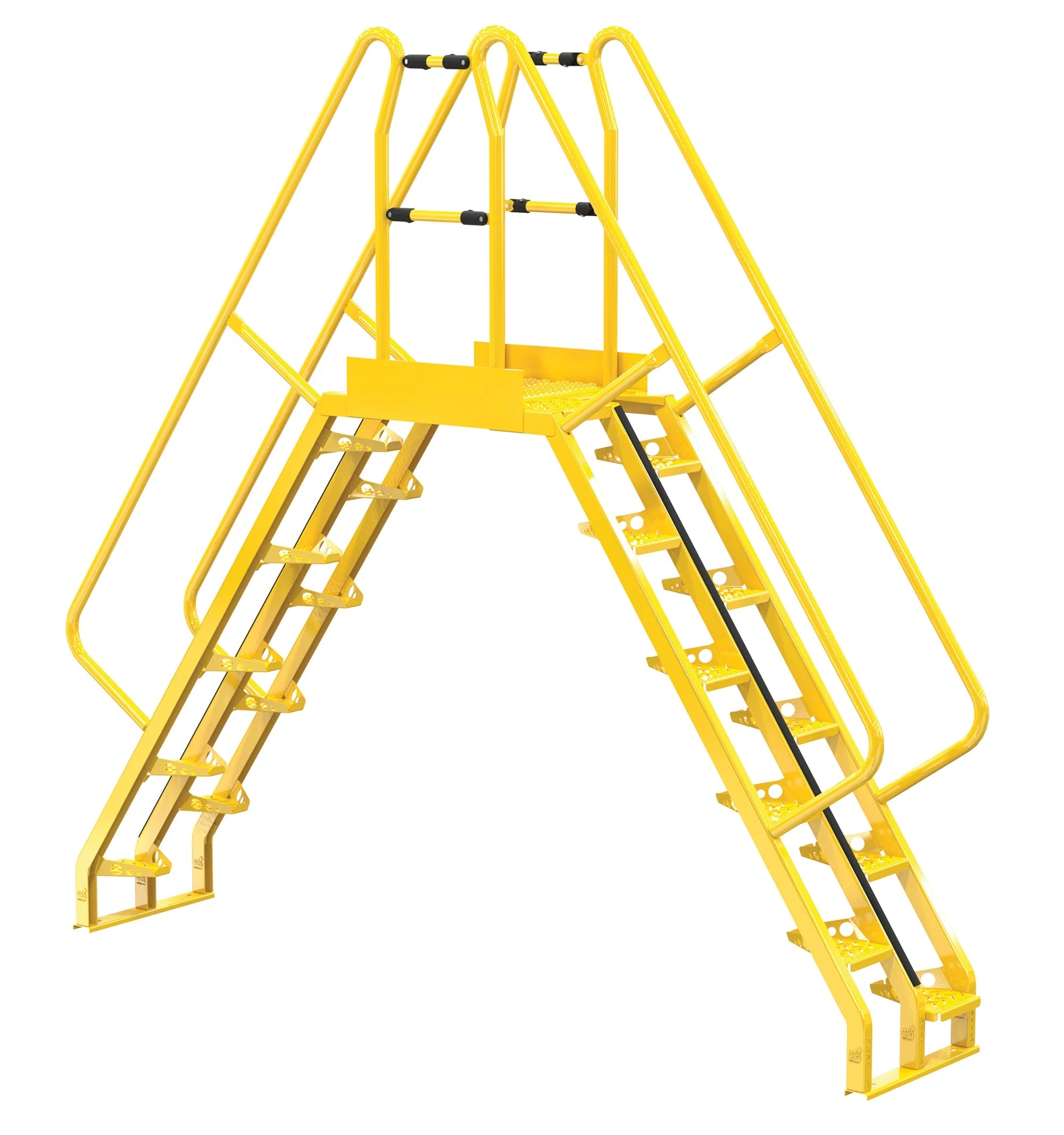

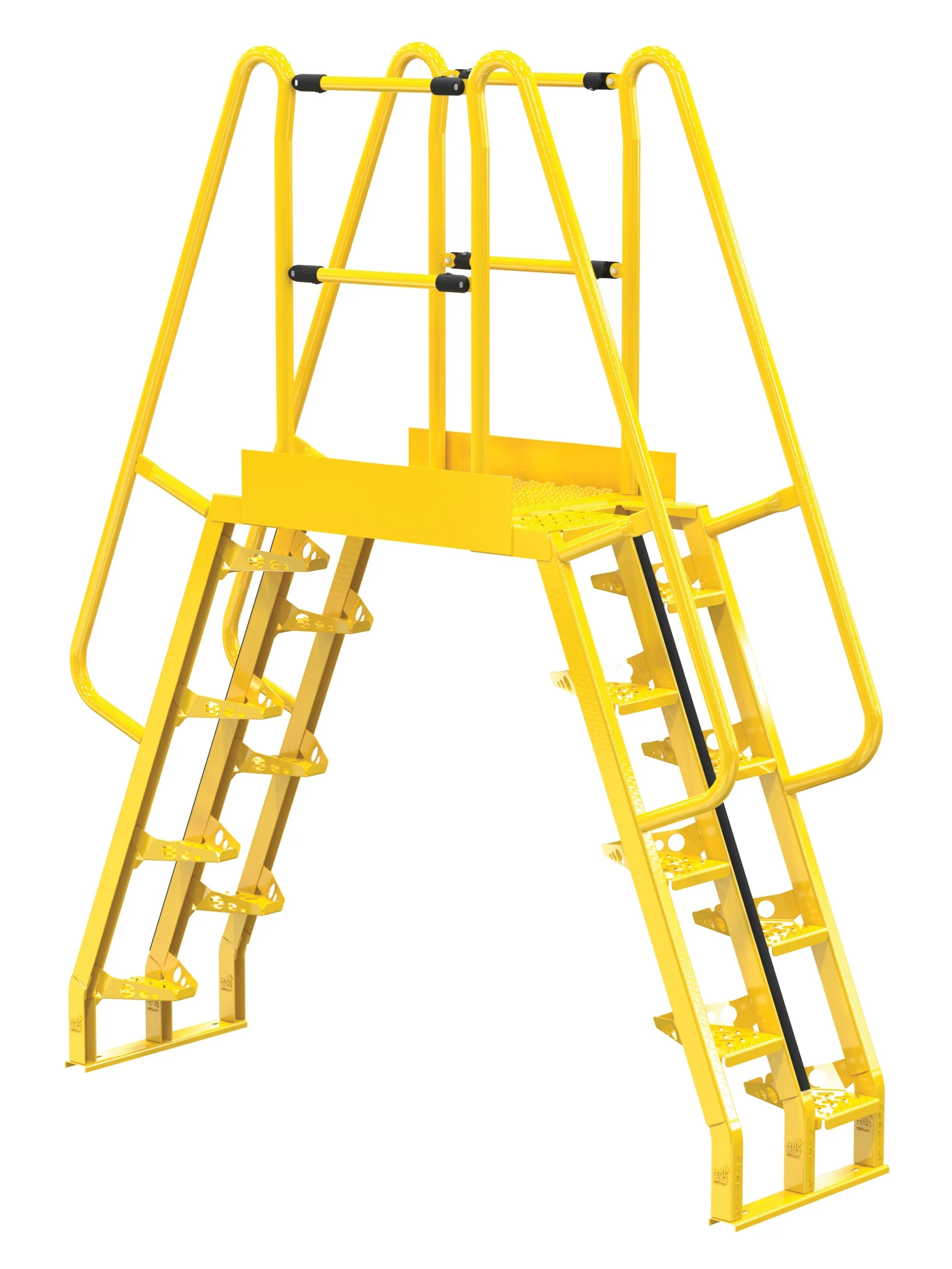

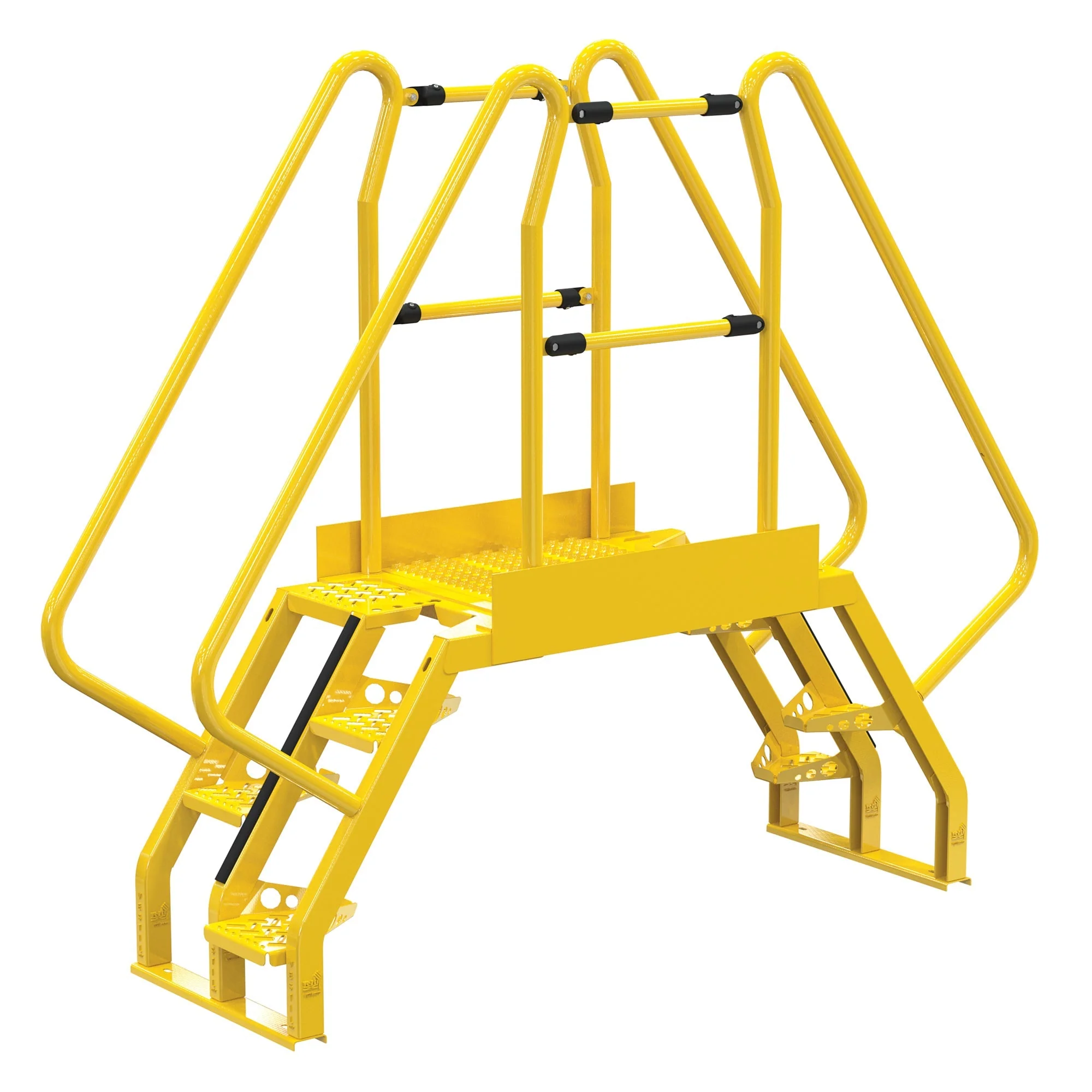

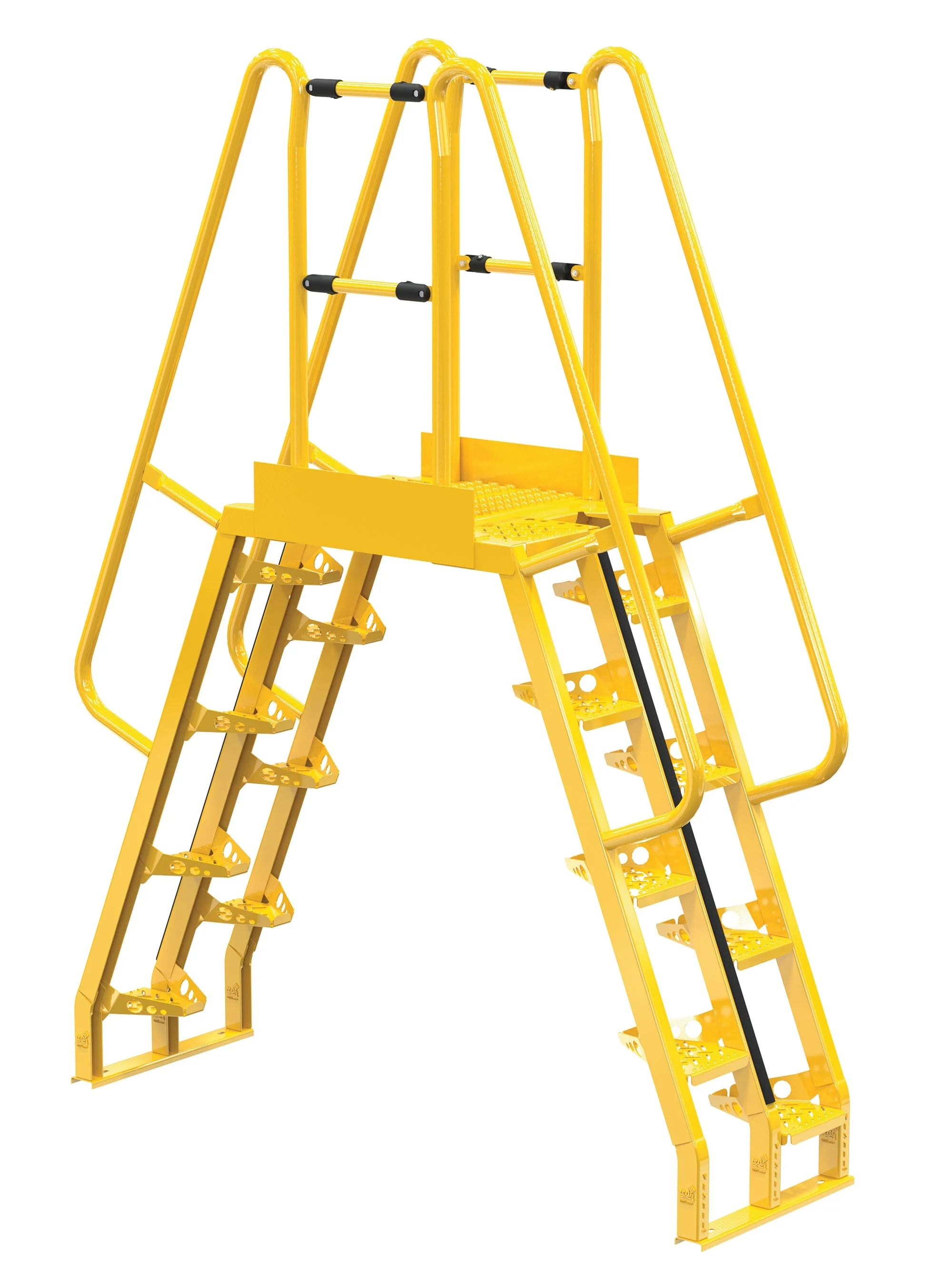

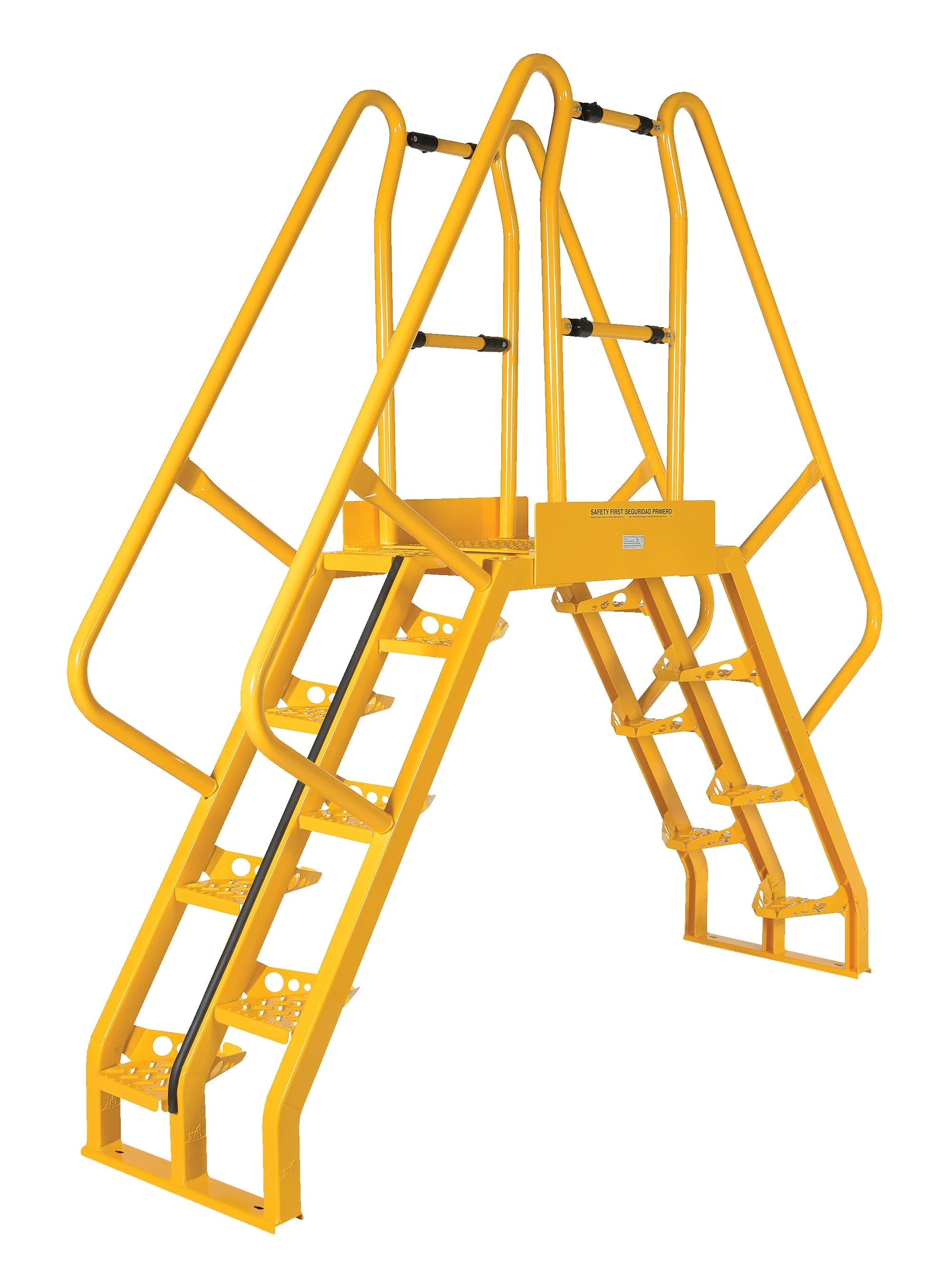

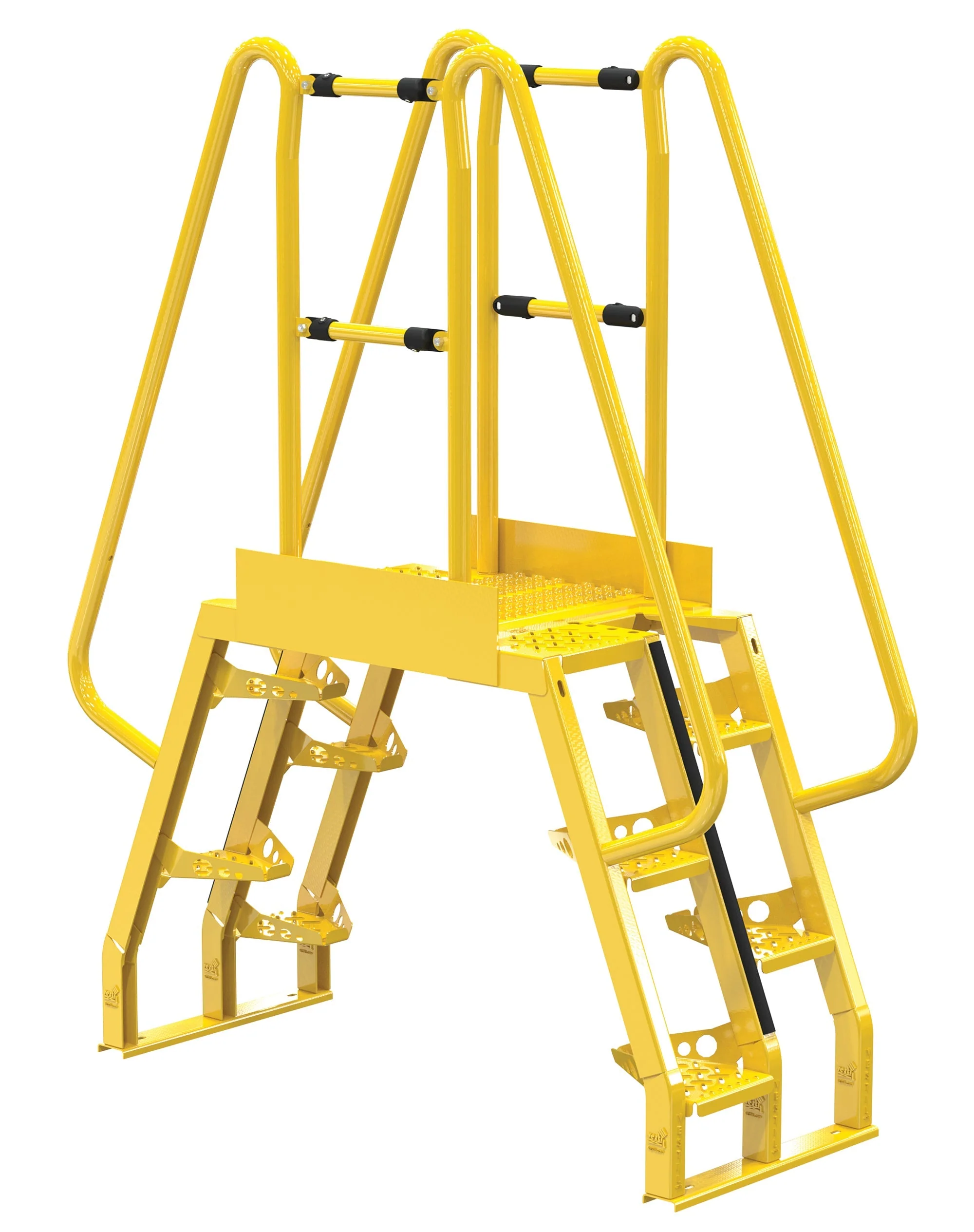

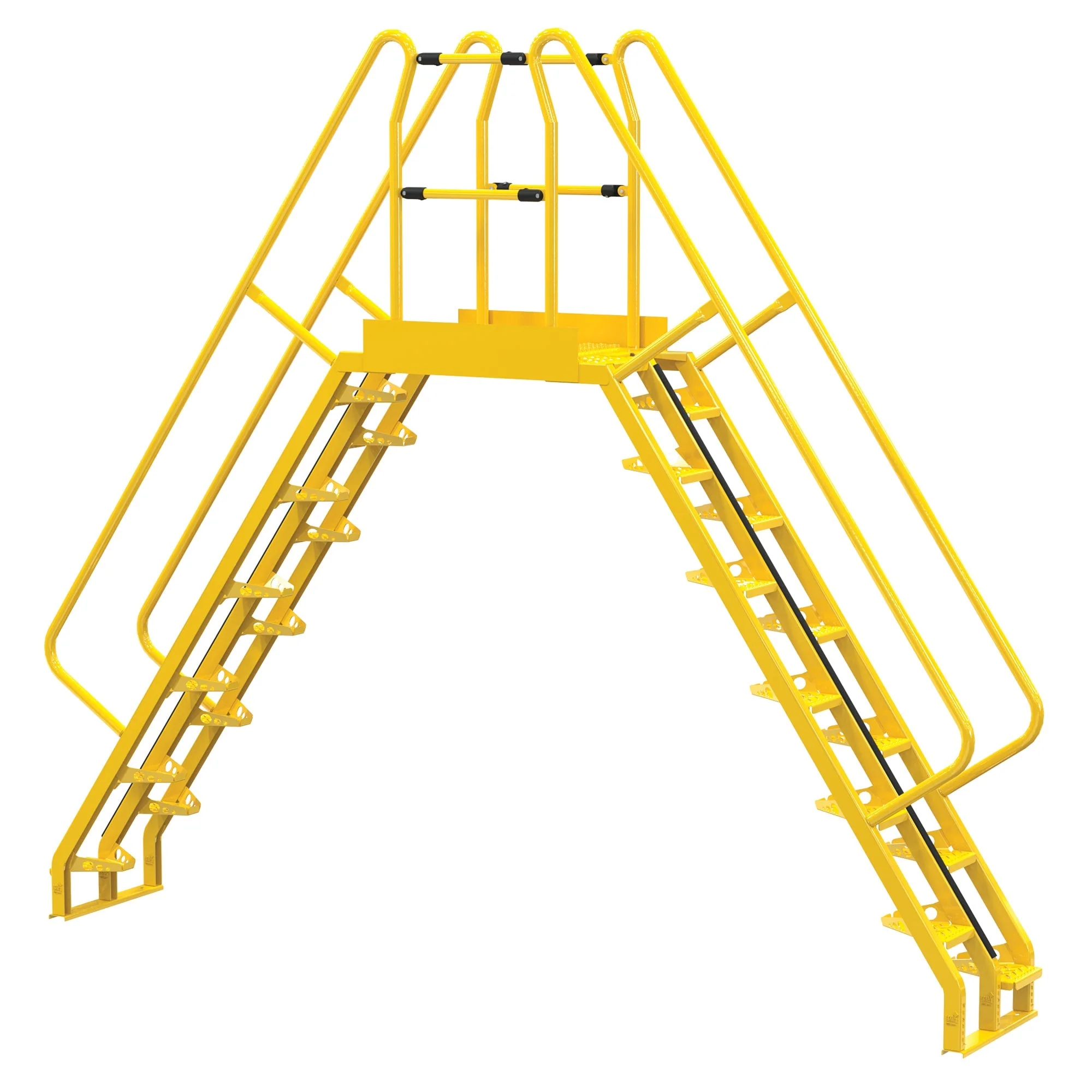

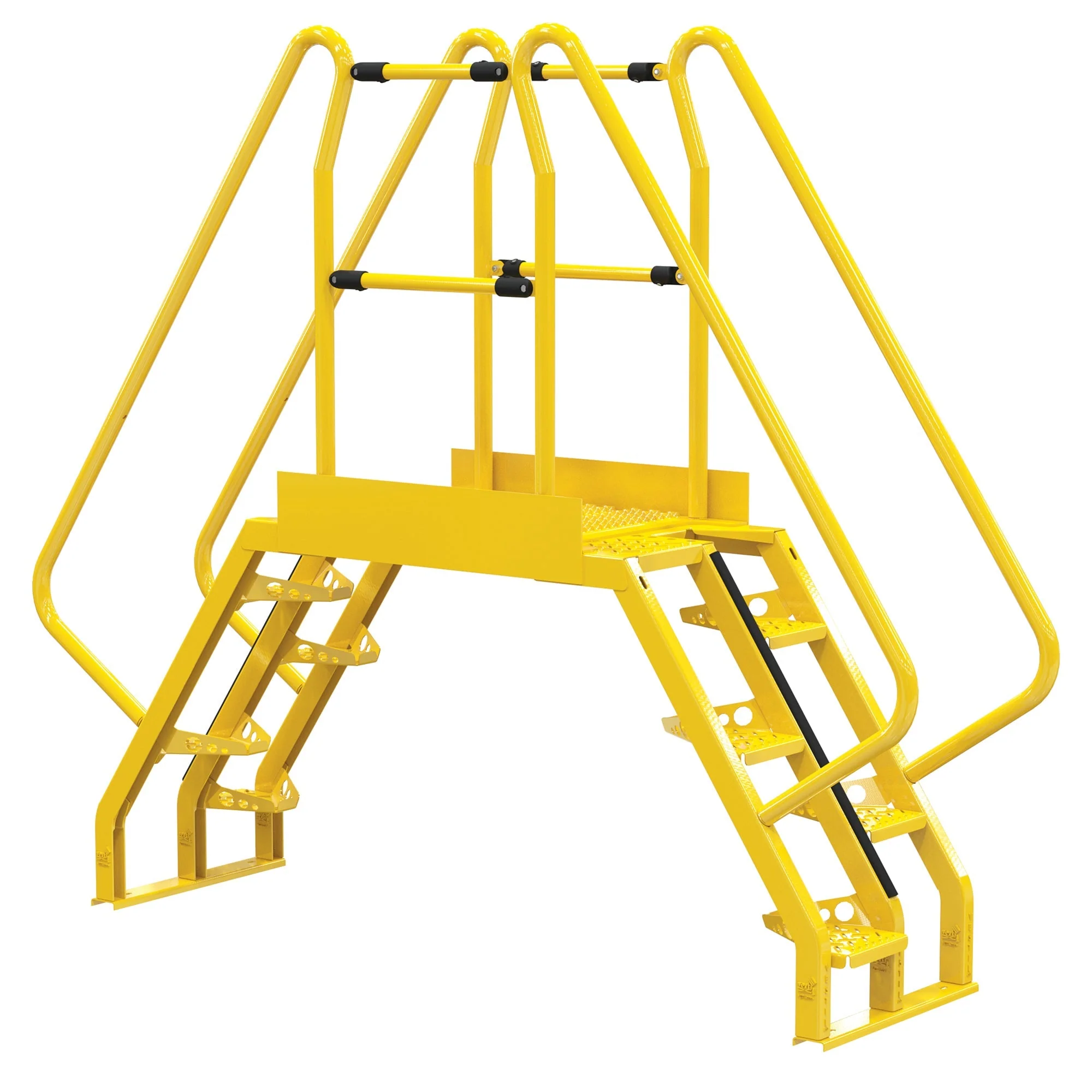

Vestil Alternating Step Cross-Over Ladders

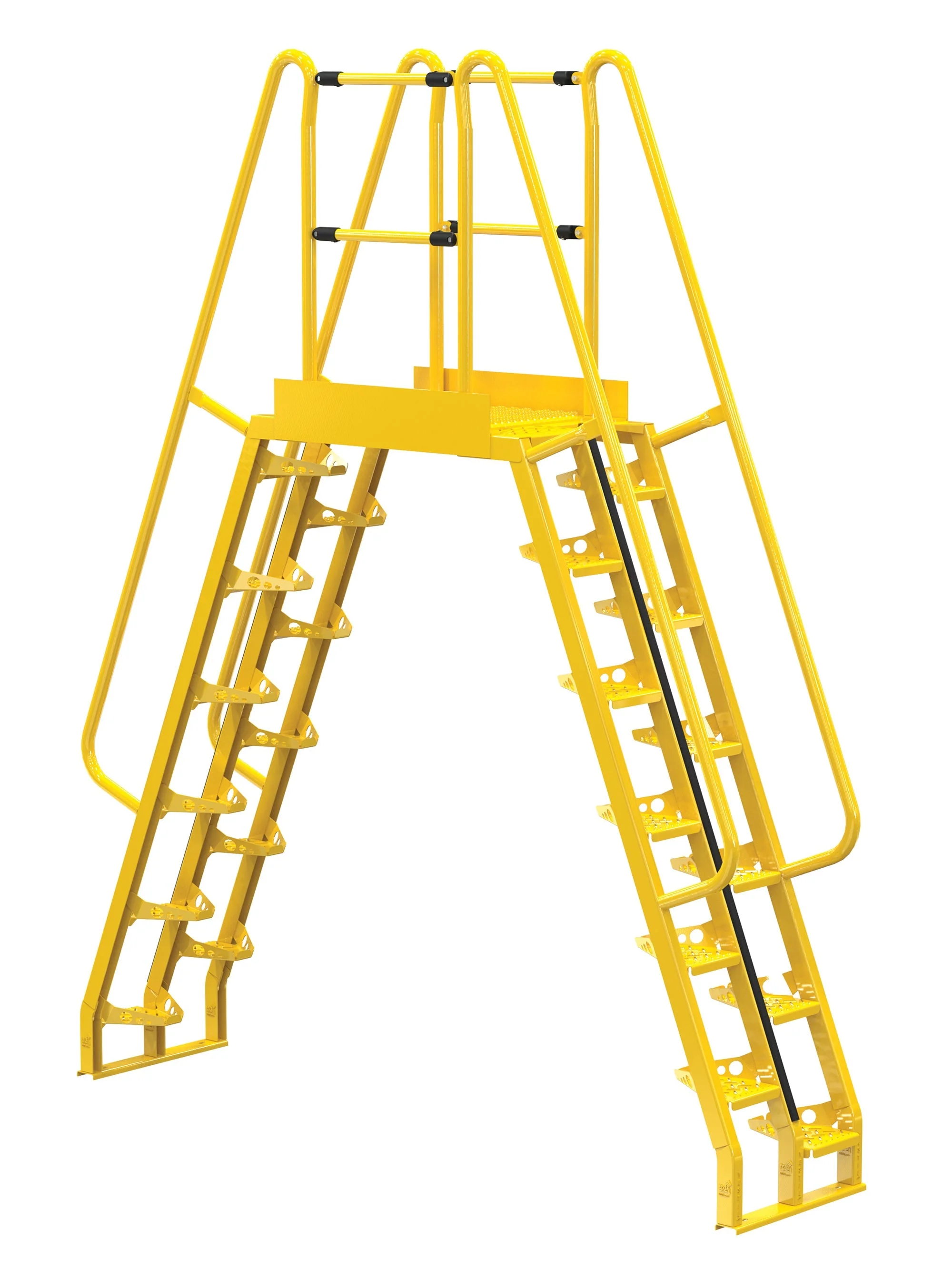

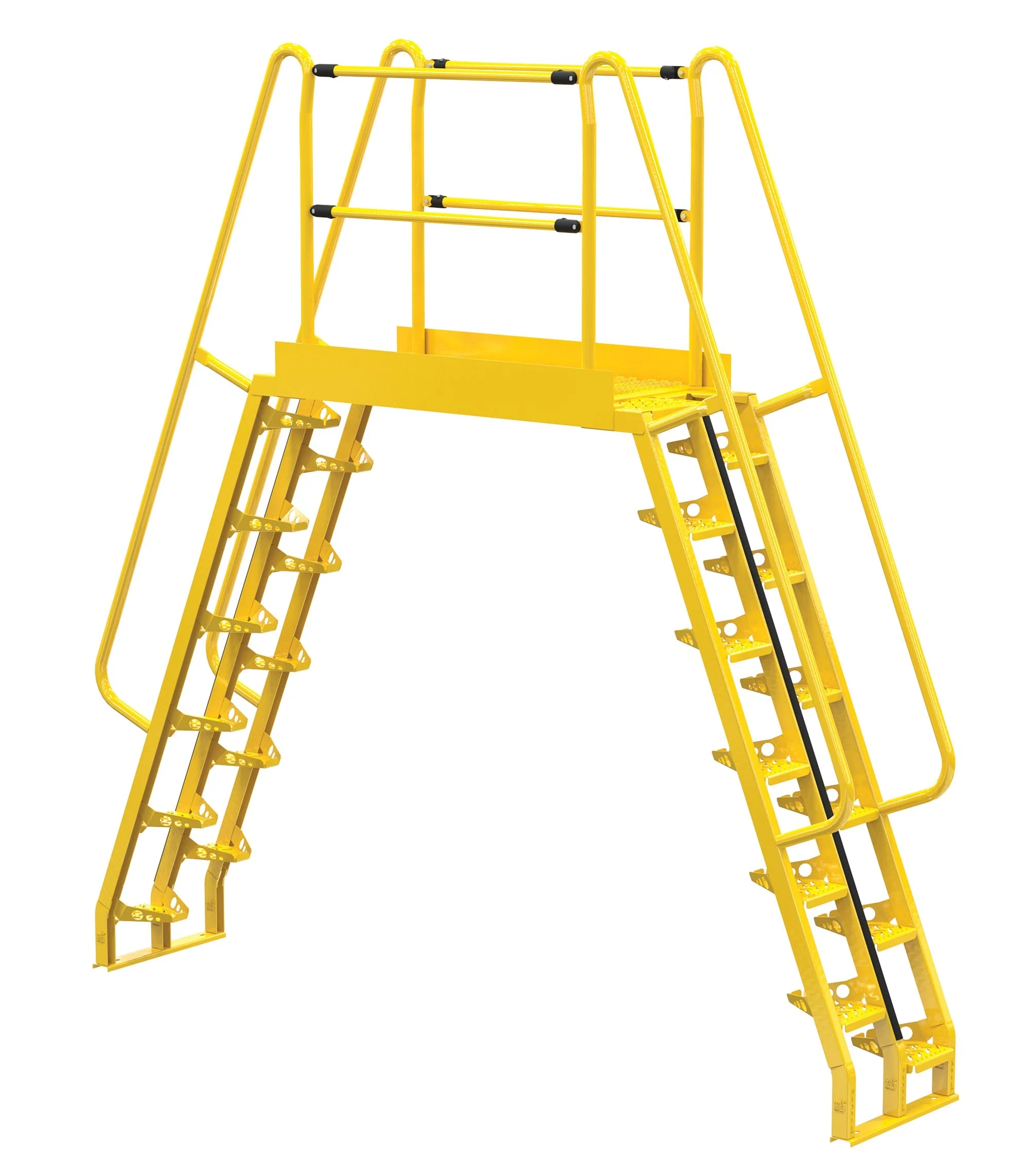

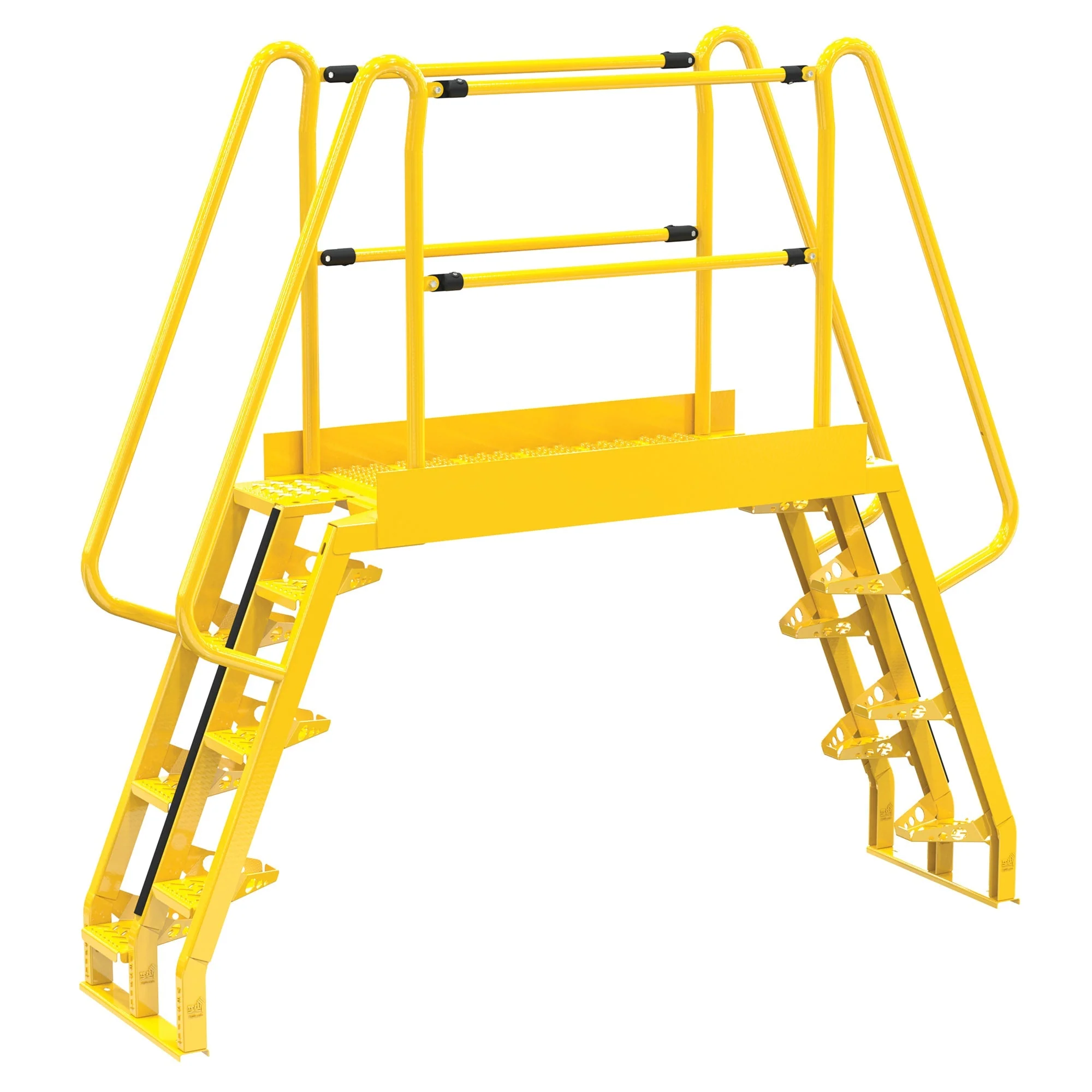

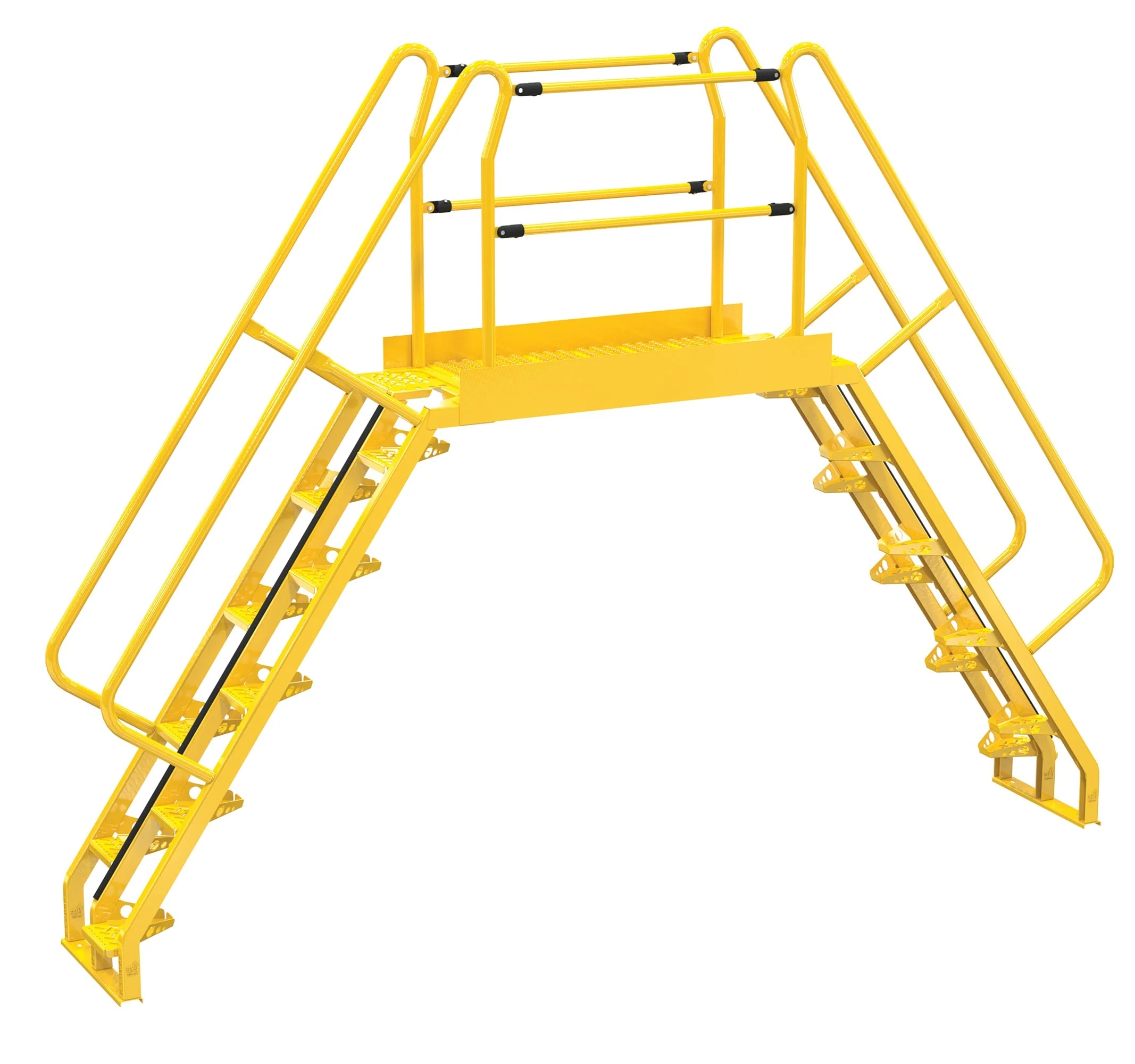

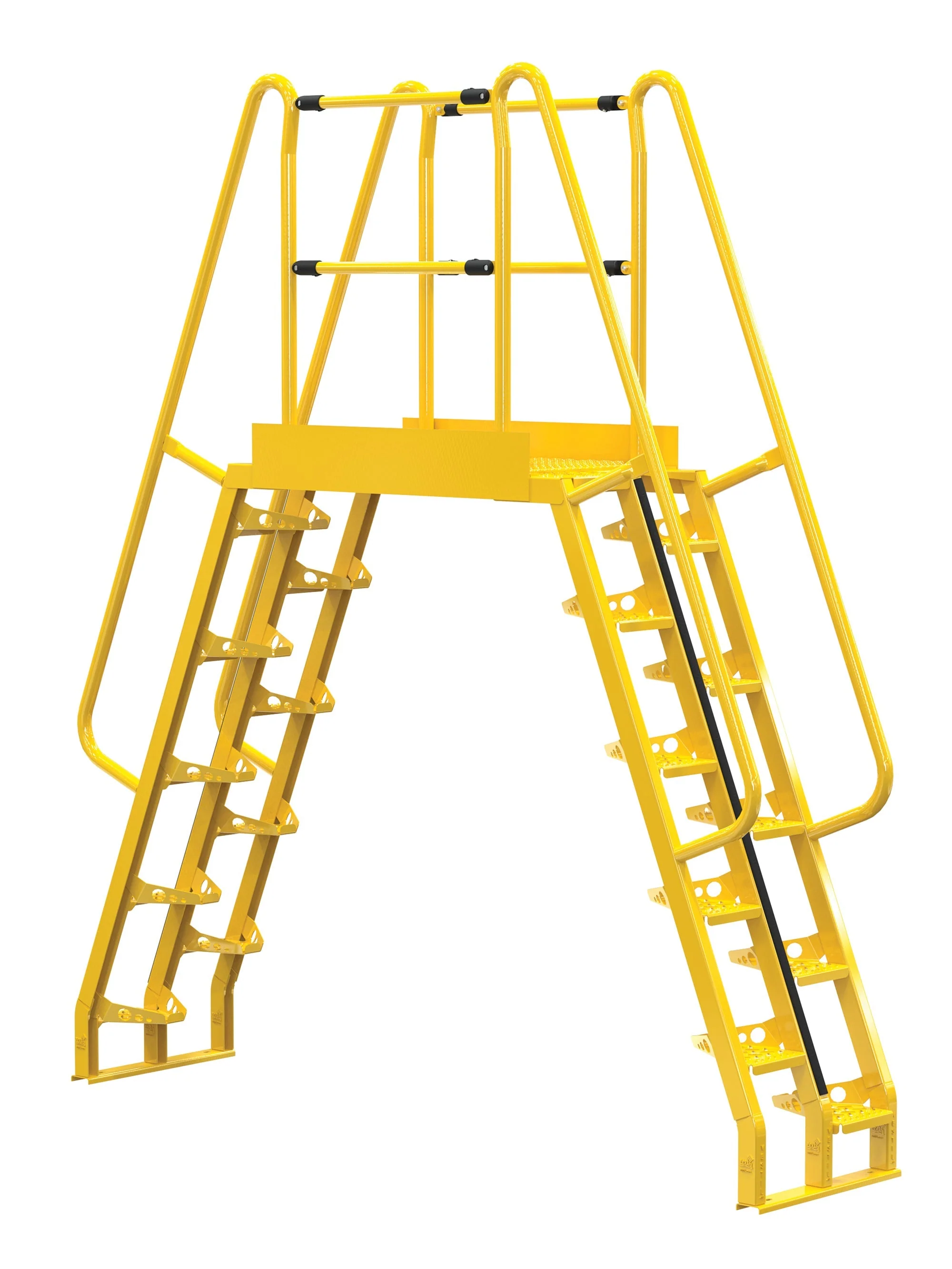

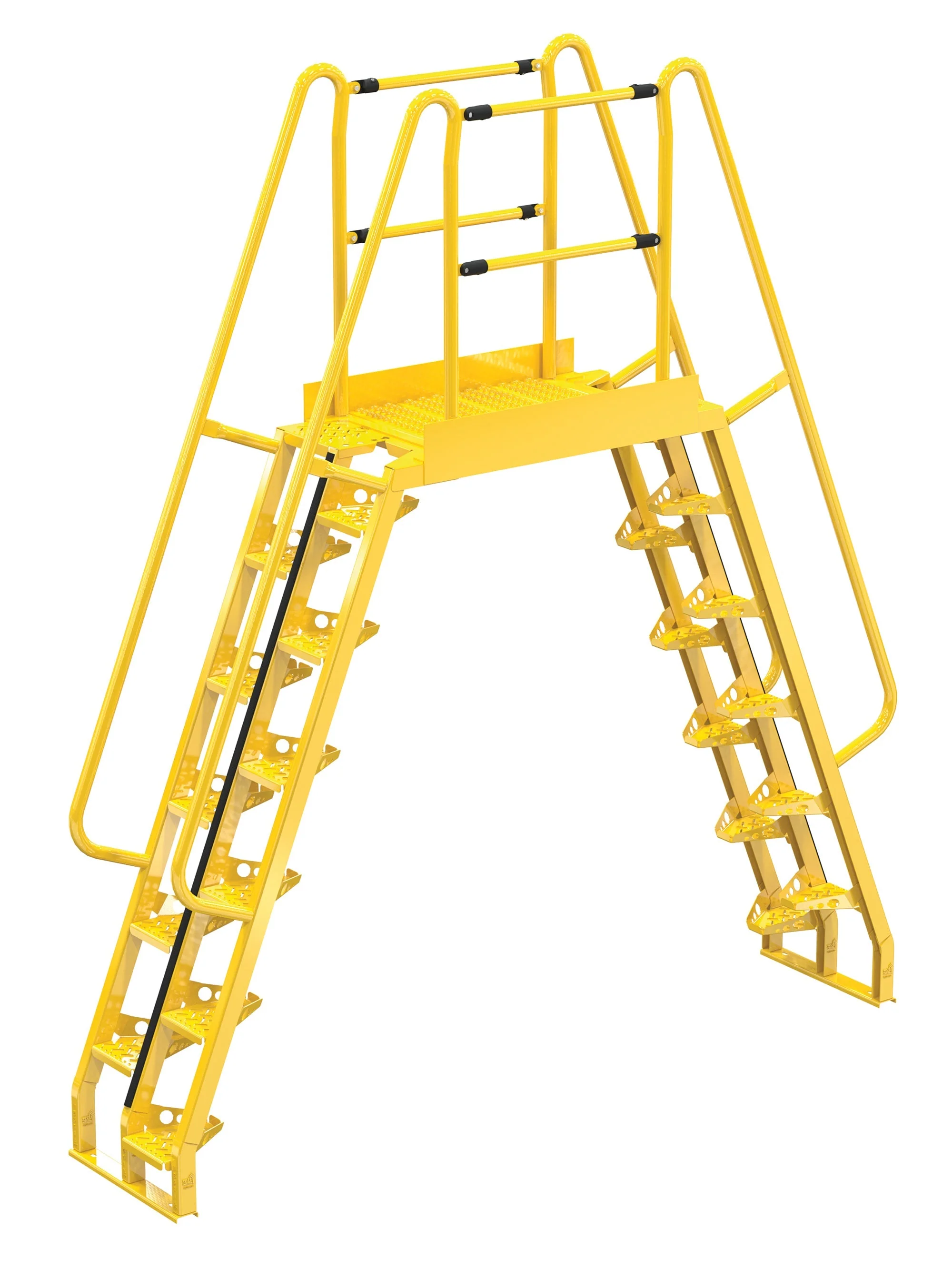

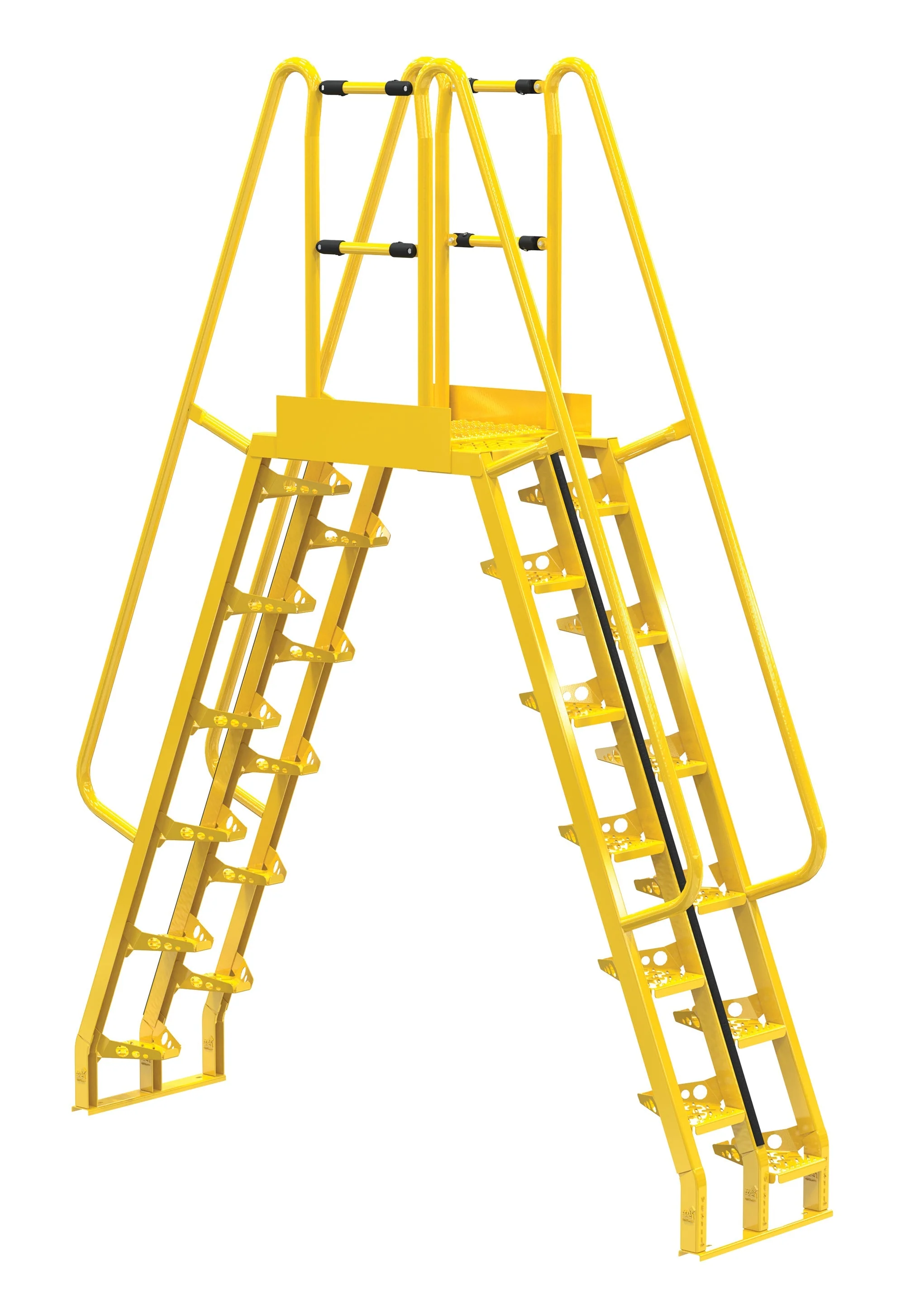

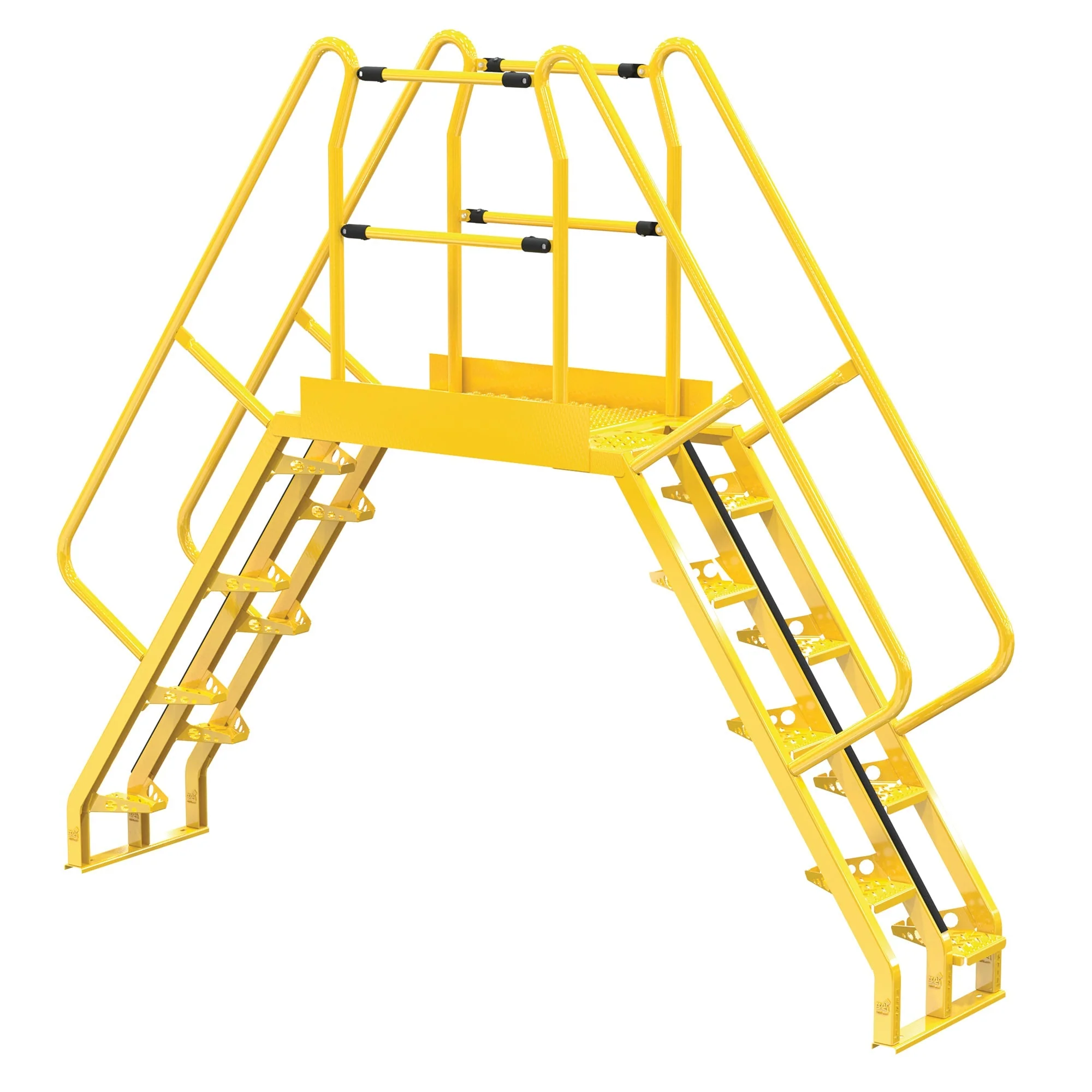

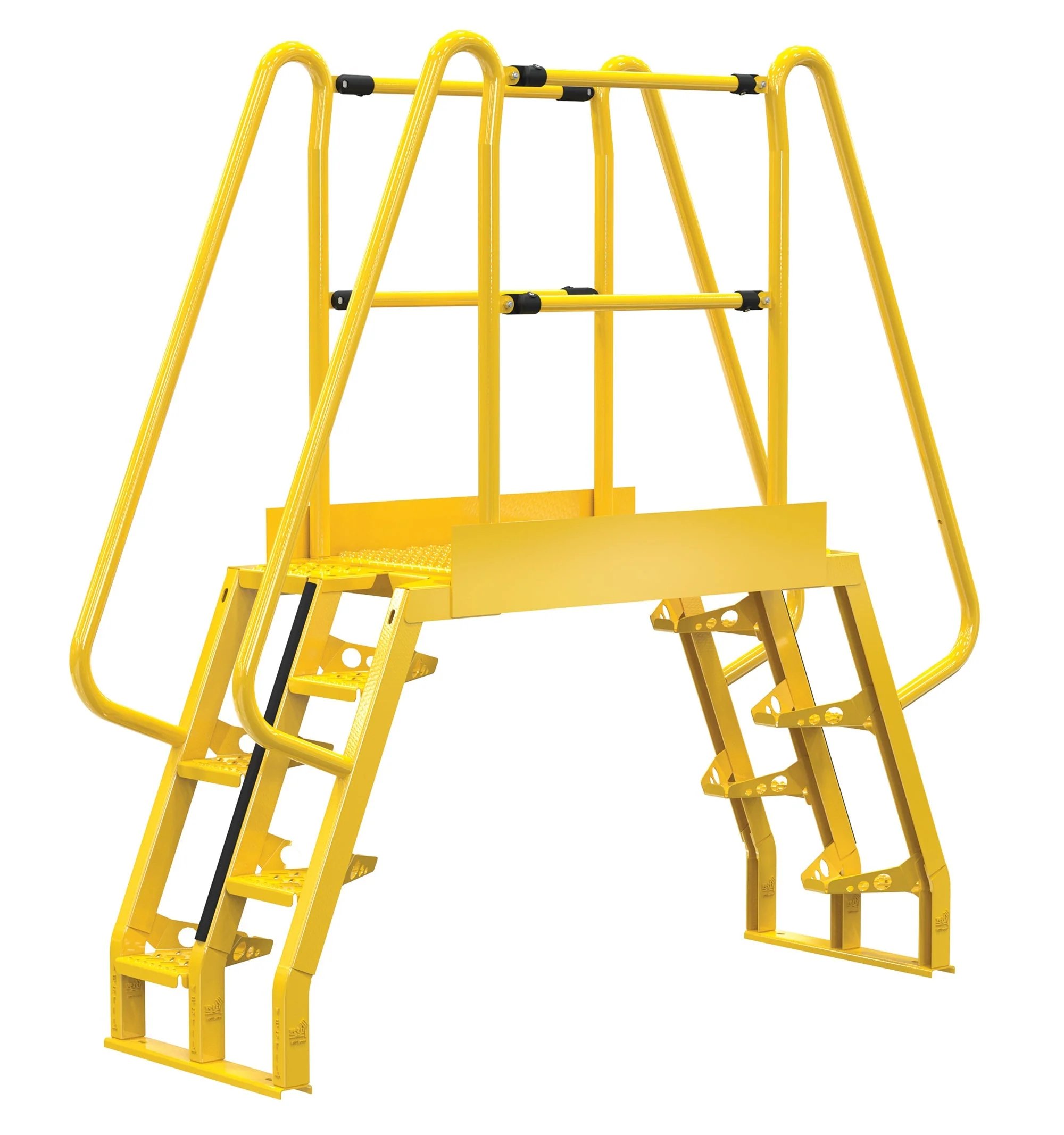

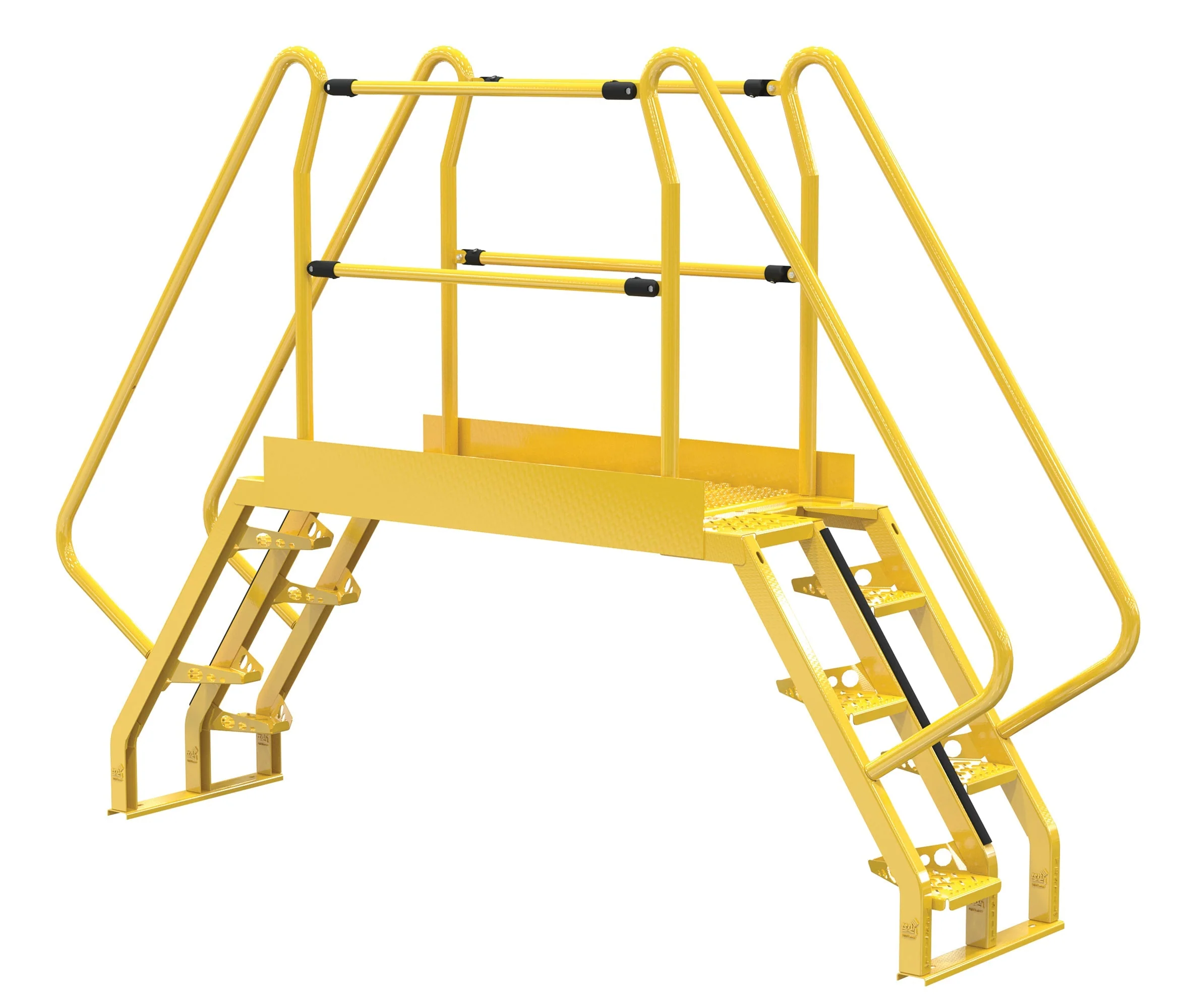

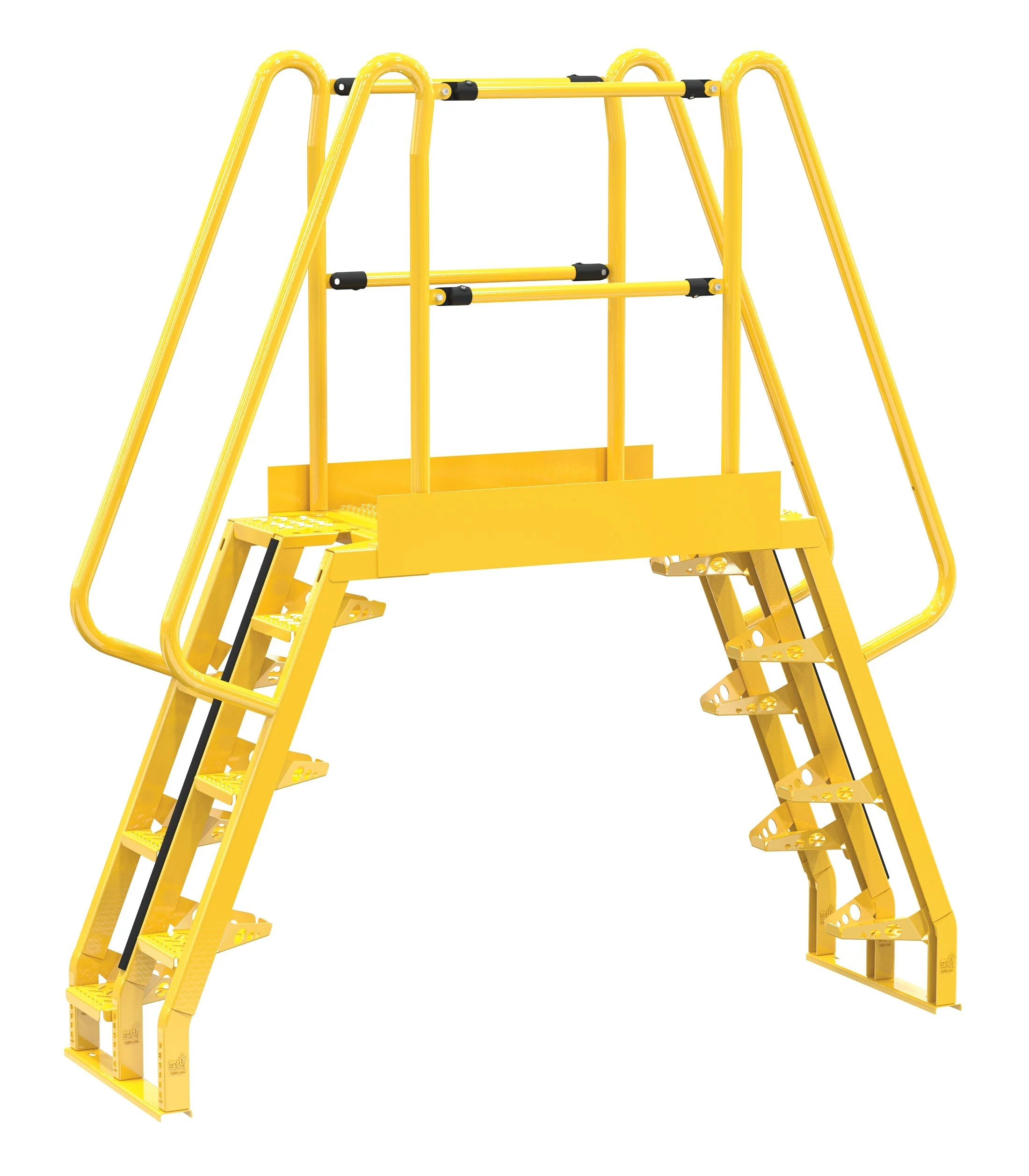

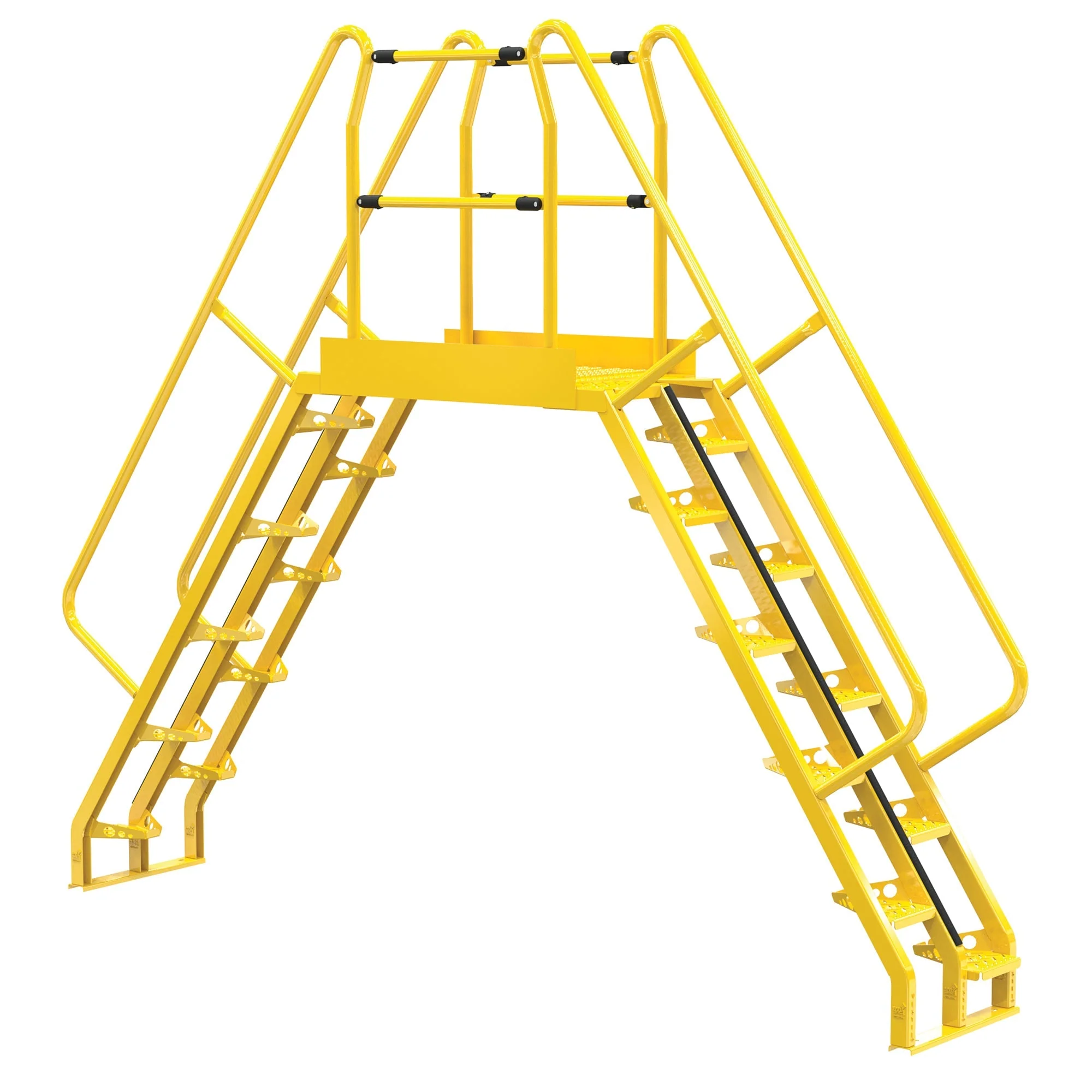

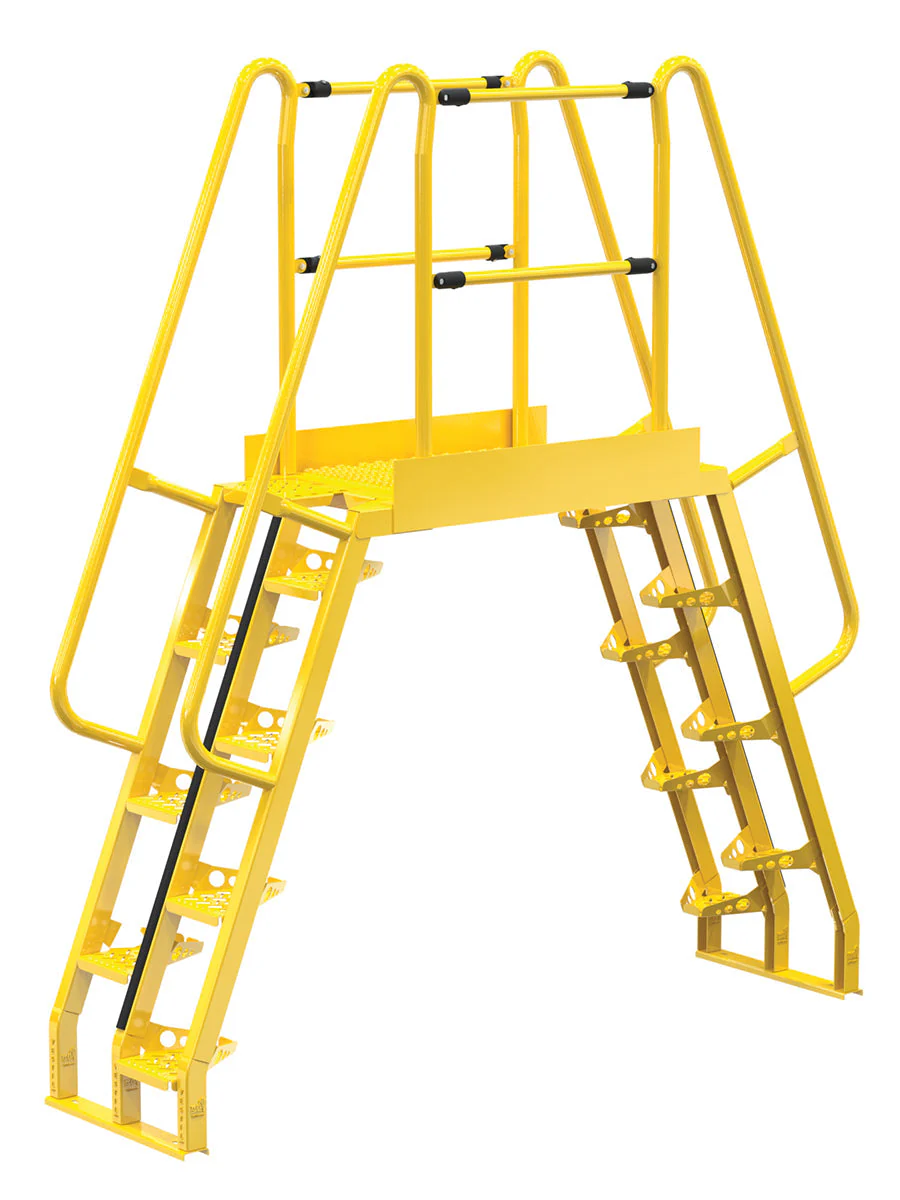

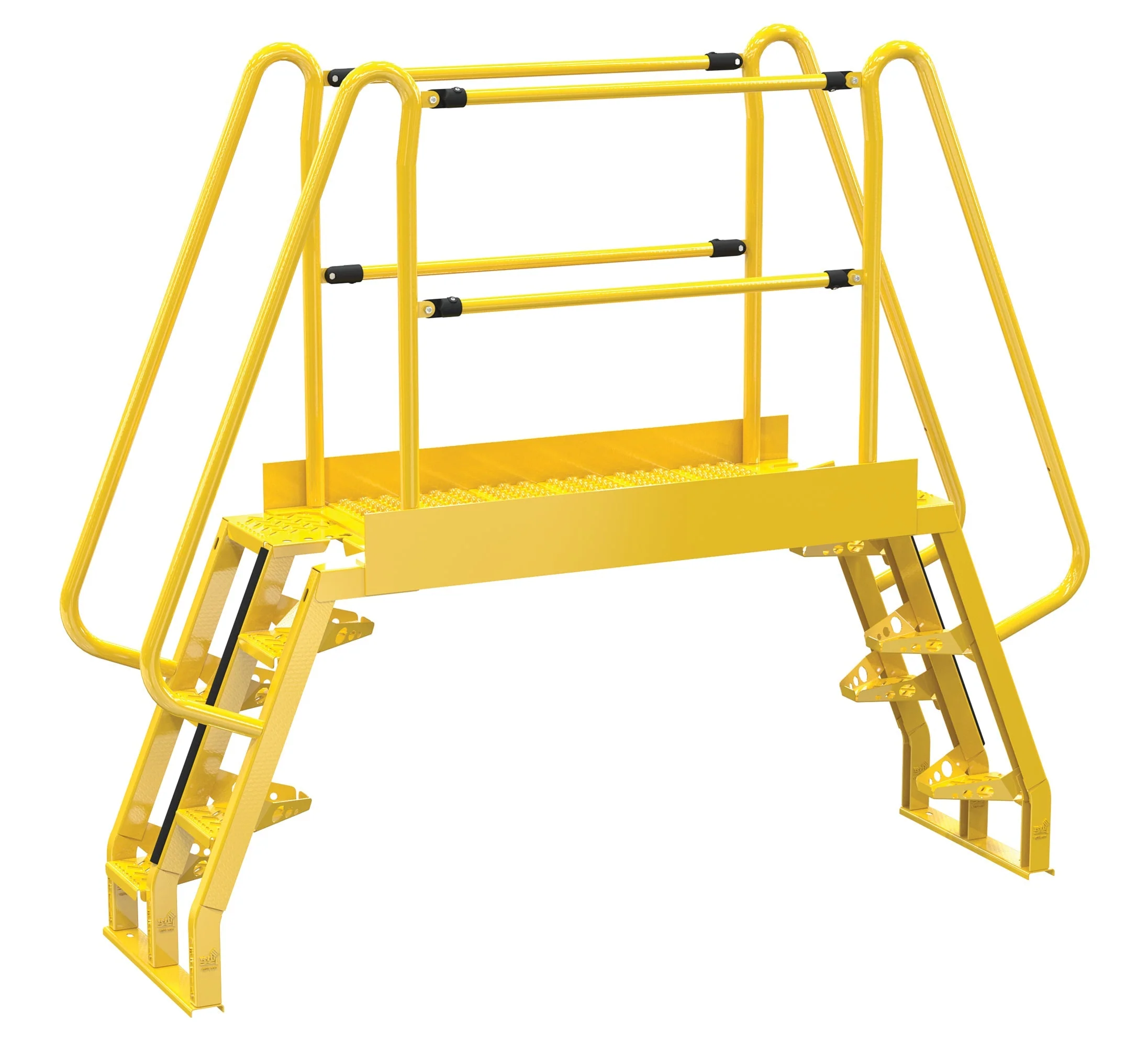

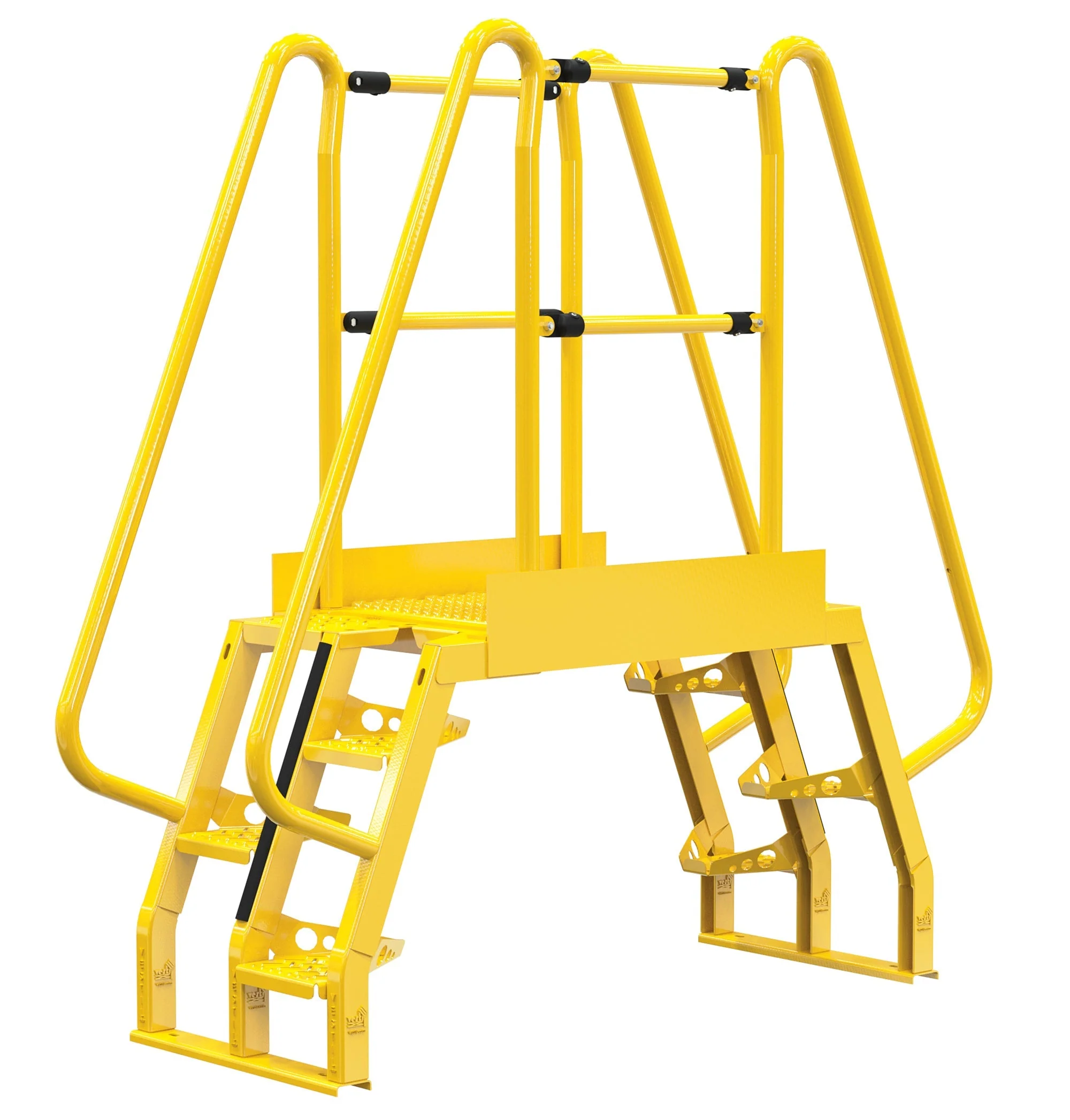

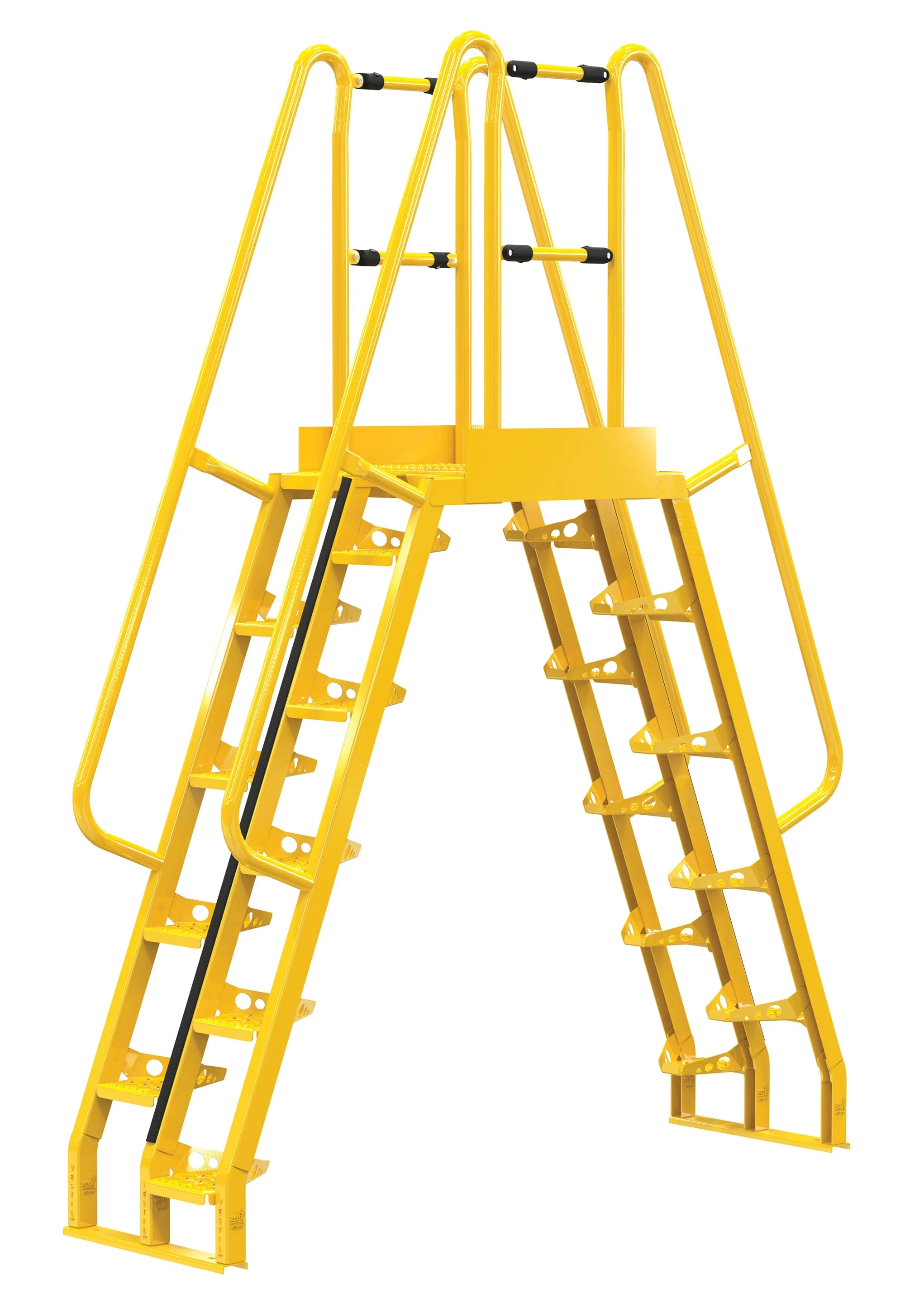

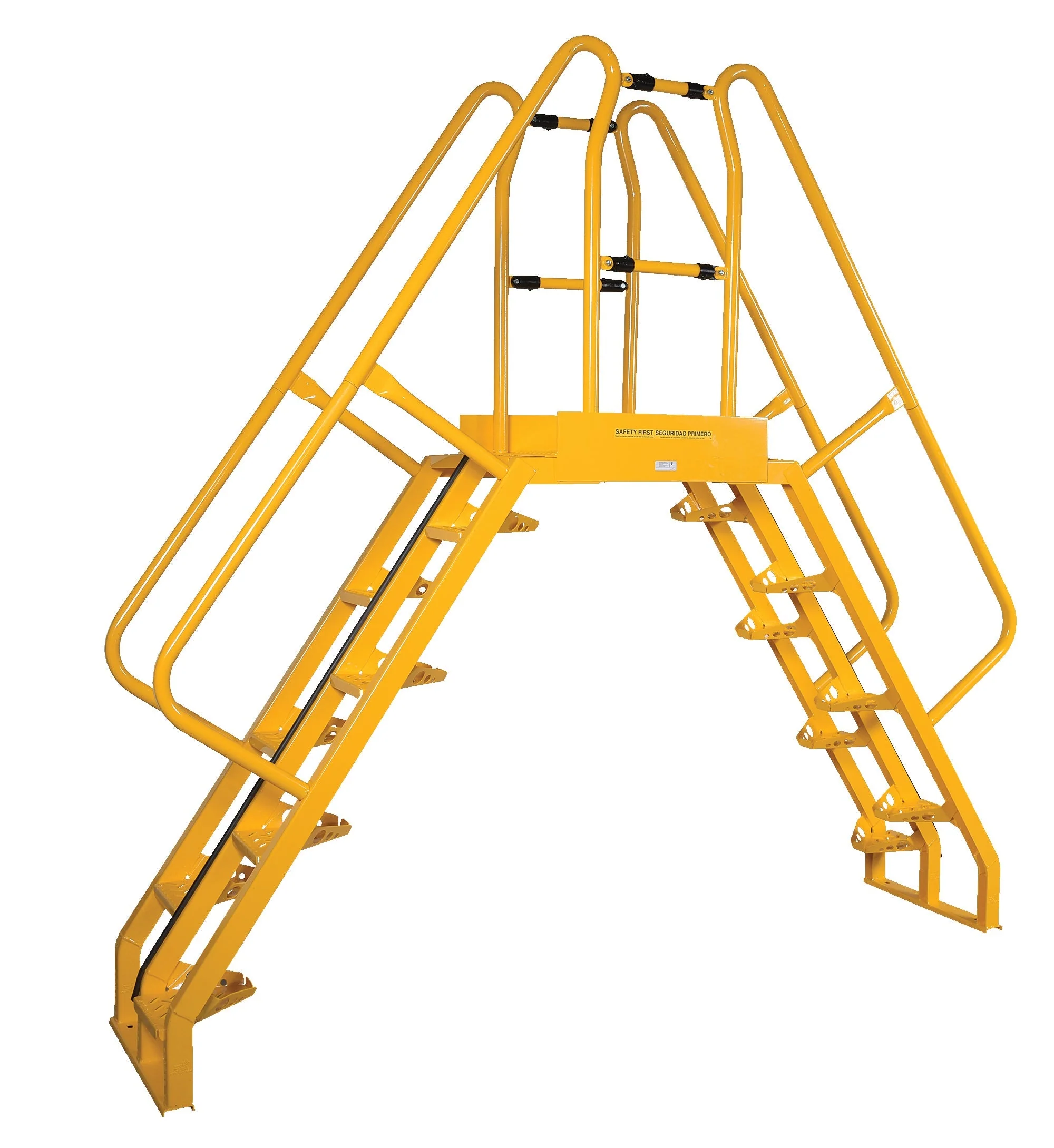

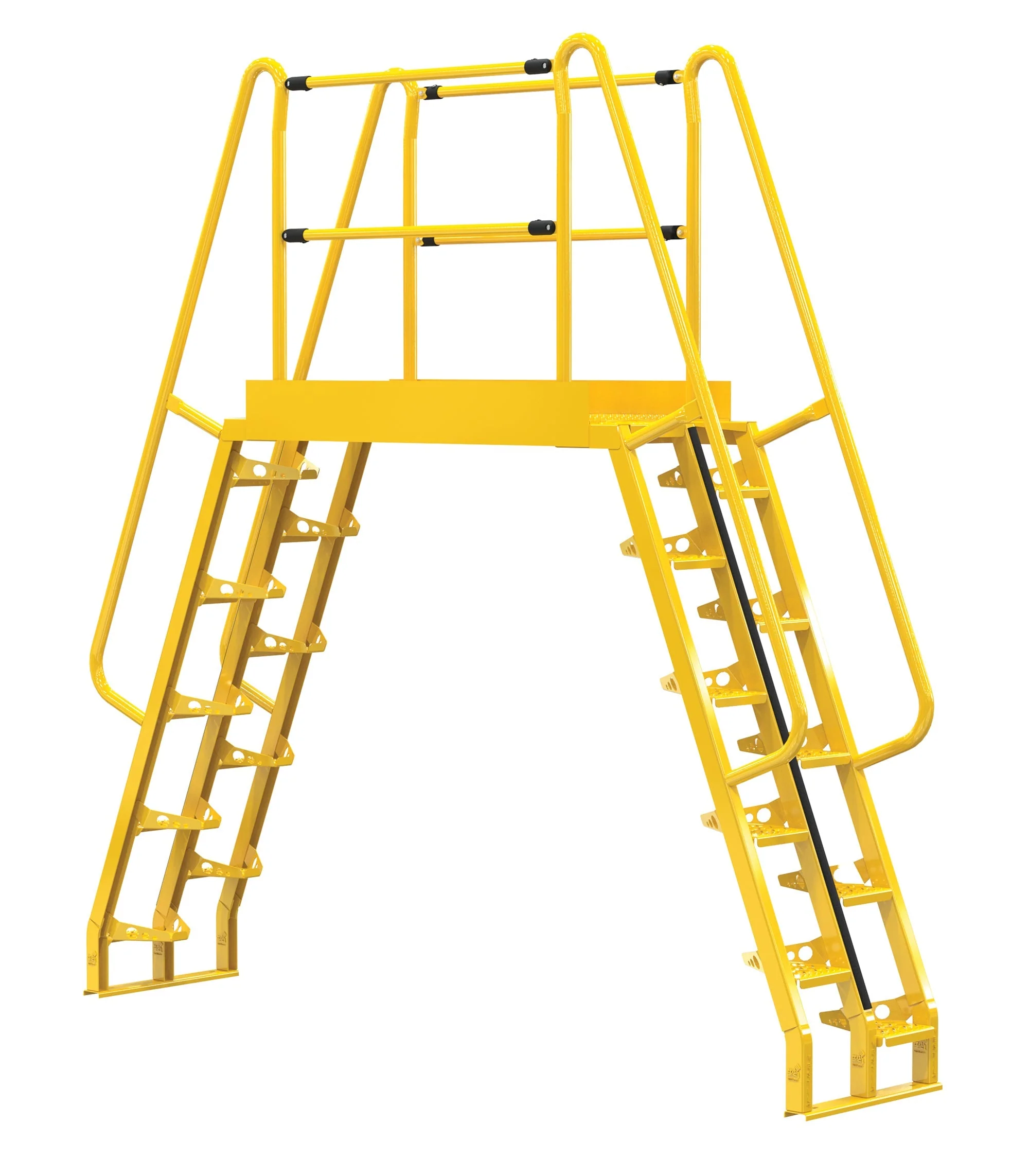

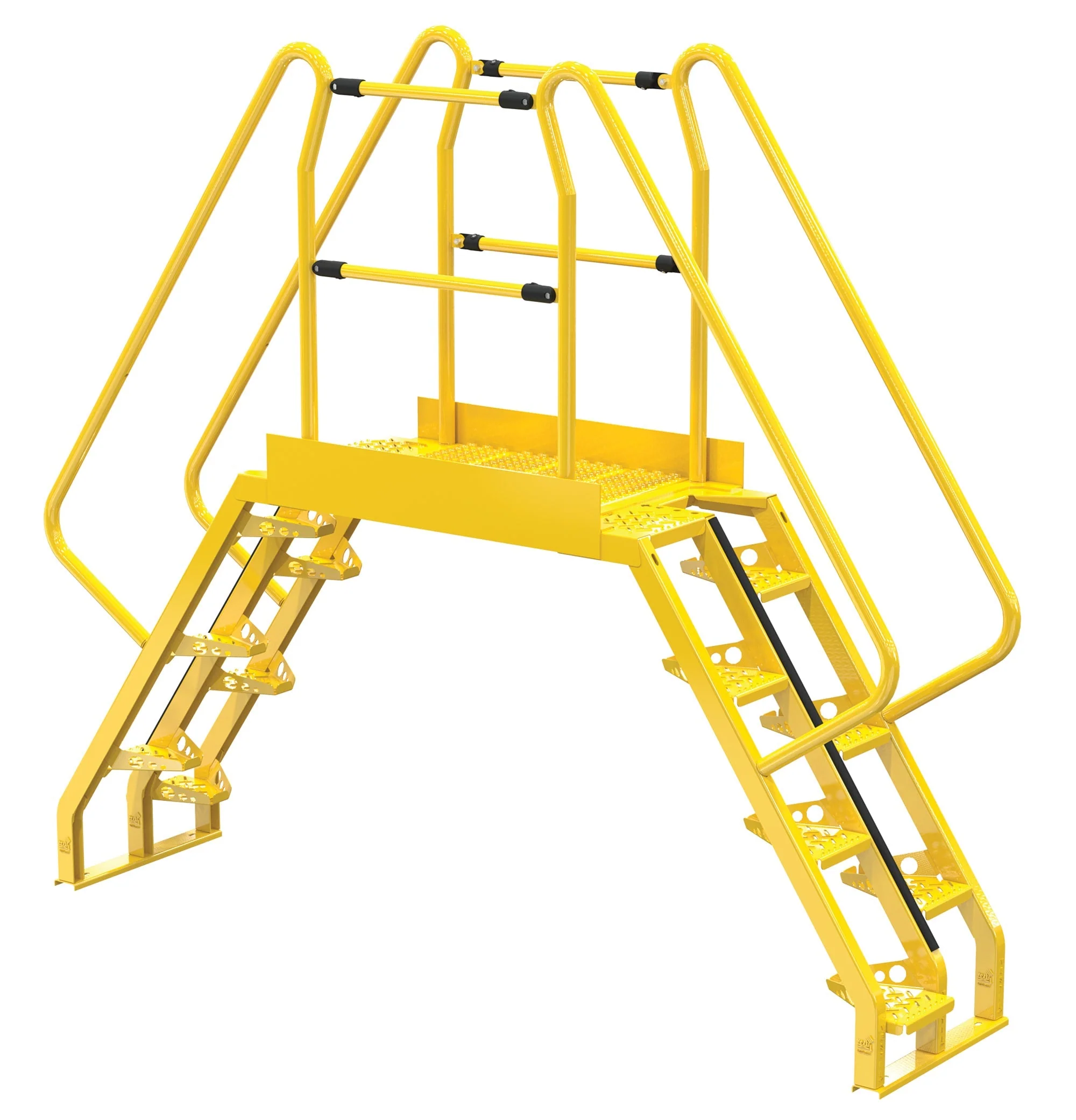

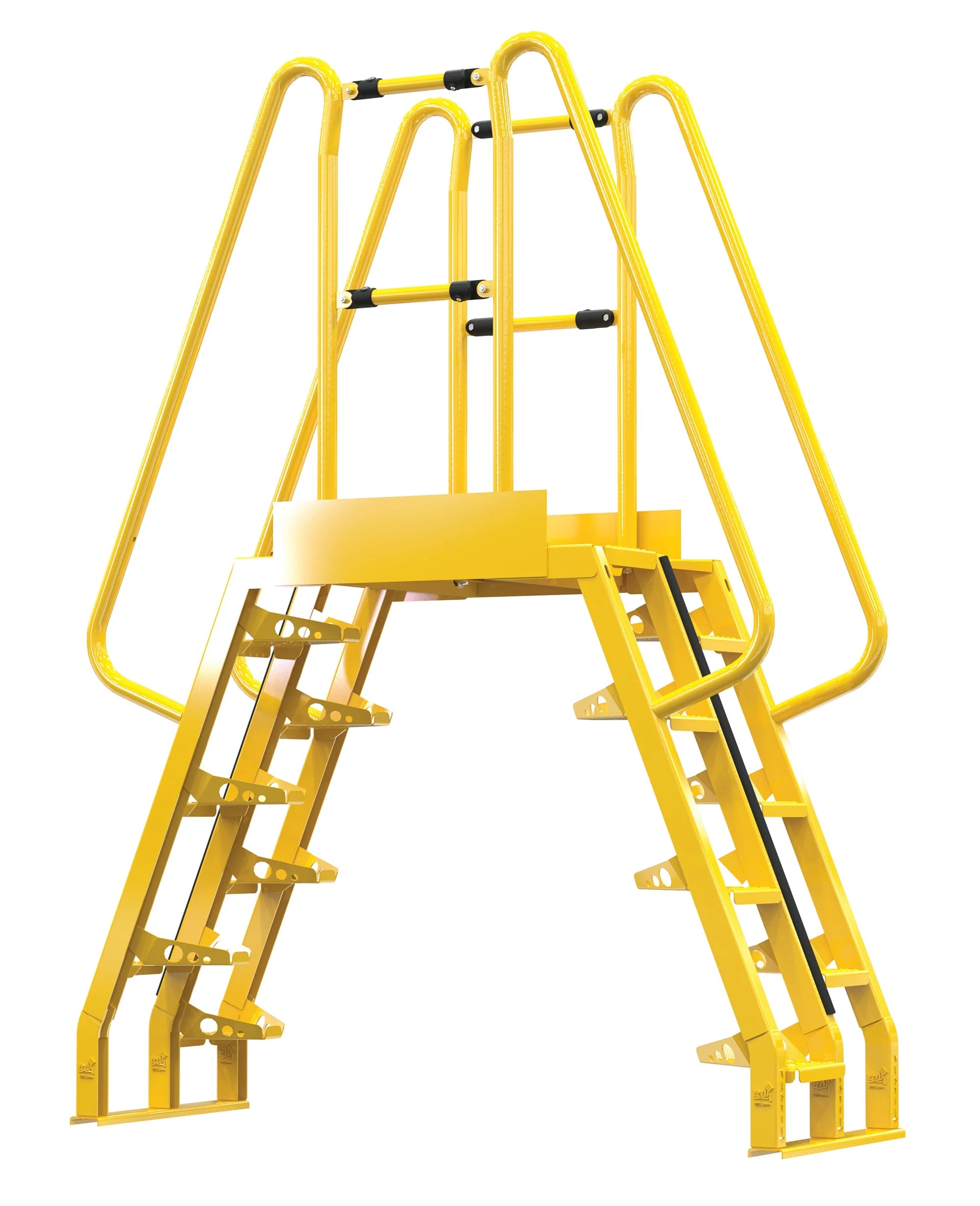

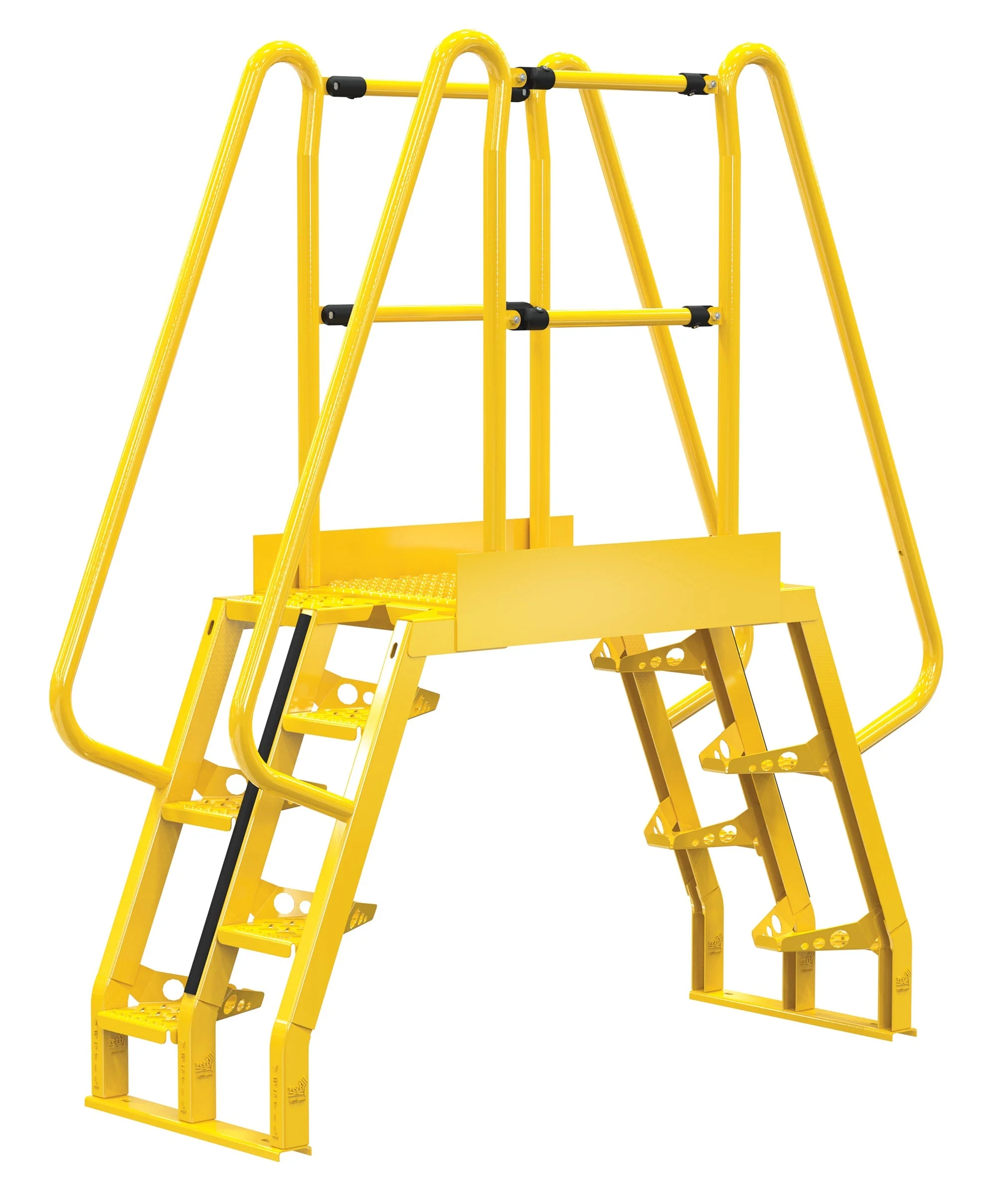

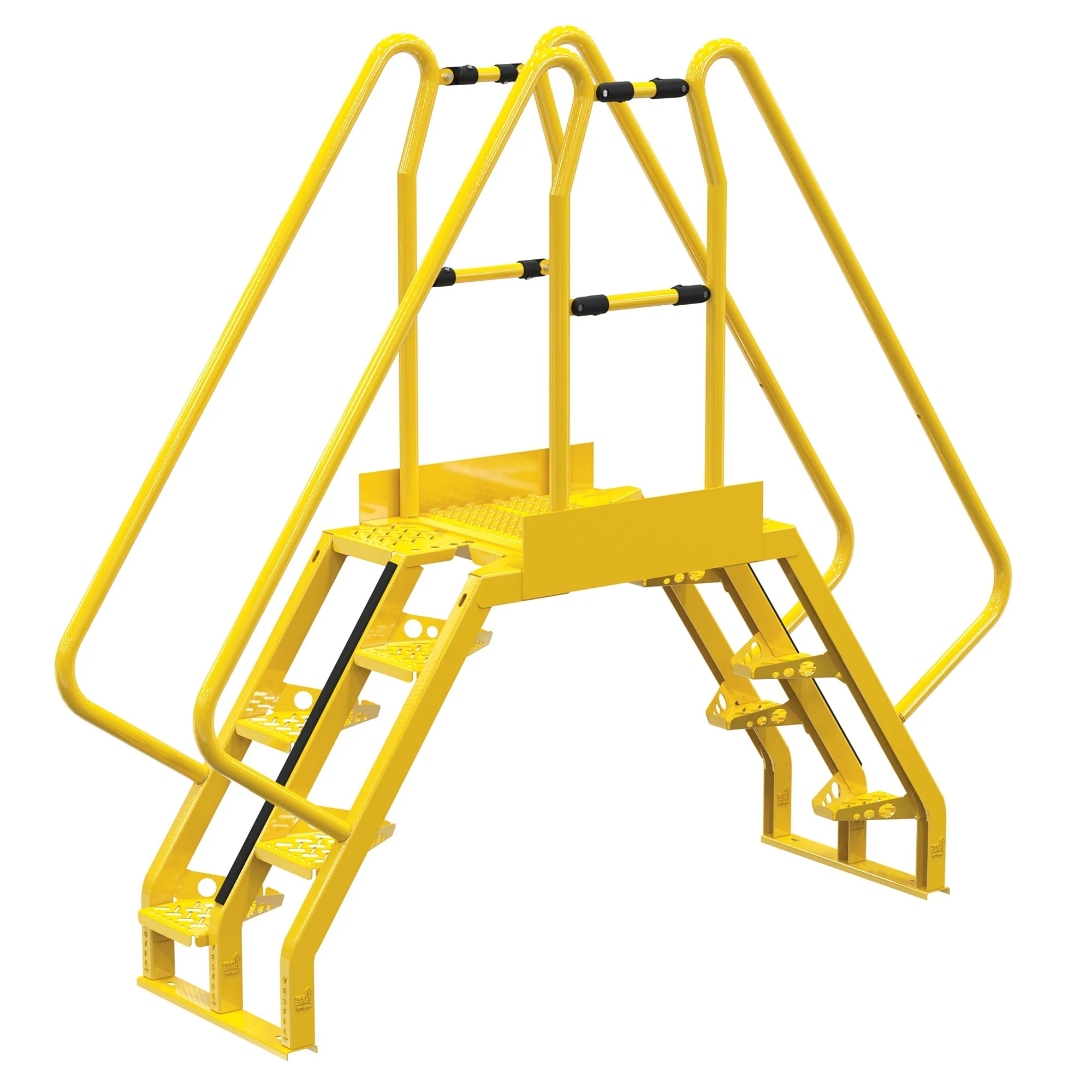

Mount where you need permanent access at crossover points. Alternating step design for shorter overall span than other units. The upper platform features removable two sided 39" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Usable width is 20-1/16" between handrails. Heavy-duty uniform capacity rating of 350 pounds per unit. Includes lag-down points for securing to floor, mounting hardware not included. Steel construction with baked-in powder-coated finish for added toughness. Meets OSHA STD 01-01-011 and ANSI A14.7 standards.
| Alternating Step Cross-Over Ladders | |||||||
|
Model Number |
Number of Steps |
Overall Height |
Clear Height |
Clear Span |
Overall Span | Step Angle | Wt. (lbs.) |
| COLA-2-56-20 | 4 | 72-1/4" | 26-13/16" | 24" | 62-7/8" | 56 degrees | 324 |
| COLA-2-56-32 | 4 | 72-1/4" | 26-13/16" | 31" | 69-7/8" | 56 degrees | 357 |
| COLA-2-56-44 | 4 | 72-1/4" | 26-13/16" | 38" | 76-7/8" | 56 degrees | 390 |
| COLA-2-56-56 | 4 | 72-1/4" | 26-13/16" | 52" | 90-7/8" | 56 degrees | 423 |
| COLA-2-68-20 | 4 | 71-5/8" | 26-13/16" | 19-13/16" | 52-1/4" | 68 degrees | 296 |
| COLA-2-68-32 | 4 | 71-5/8" | 26-13/16" | 26-13/16" | 59-1/4" | 68 degrees | 329 |
| COLA-2-68-44 | 4 | 71-5/8" | 26-13/16" | 33-13/16" | 66-1/4" | 68 degrees | 362 |
| COLA-2-68-56 | 4 | 71-5/8" | 26-13/16" | 47-13/16" | 80-1/4" | 68 degrees | 396 |
| COLA-3-56-20 | 5 | 80-1/4" | 34-13/16" | 24-1/8" | 73-5/8" | 56 degrees | 324 |
| COLA-3-56-32 | 5 | 80-1/4" | 34-13/16" | 31-1/8" | 80-5/8" | 56 degrees | 357 |
| COLA-3-56-44 | 5 | 80-1/4" | 34-13/16" | 38-1/8" | 87-5/8" | 56 degrees | 390 |
| COLA-3-56-56 | 5 | 80-1/4" | 34-13/16" | 52-1/8" | 101-5/8" | 56 degrees | 423 |
| COLA-3-68-20 | 5 | 79-5/8" | 34-13/16" | 19-15/16" | 58-3/4" | 68 degrees | 296 |
| COLA-3-68-32 | 5 | 79-5/8" | 34-13/16" | 26-15/16" | 65-3/4" | 68 degrees | 329 |
| COLA-3-68-44 | 5 | 79-5/8" | 34-13/16" | 33-15/16" | 72-3/4" | 68 degrees | 362 |
| COLA-3-68-56 | 5 | 79-5/8" | 34-13/16" | 47-15/16" | 86-3/4" | 68 degrees | 363 |
| COLA-4-56-20 | 7 | 90-3/4" | 45-1/2" | 23-1/4" | 88" | 56 degrees | 324 |
| COLA-4-56-32 | 7 | 90-3/4" | 45-1/2" | 30-1/4" | 95" | 56 degrees | 357 |
| COLA-4-56-44 | 7 | 90-3/4" | 45-1/2" | 37-1/4" | 102" | 56 degrees | 390 |
| COLA-4-56-56 | 7 | 90-3/4" | 45-1/2" | 51-1/4" | 116" | 56 degrees | 423 |
| COLA-4-68-20 | 7 | 90-1/4" | 45-1/2" | 19-1/2" | 67-3/8" | 68 degrees | 353 |
| COLA-4-68-32 | 7 | 90-1/4" | 45-1/2" | 26-1/2" | 74-3/8" | 68 degrees | 361 |
| COLA-4-68-44 | 7 | 90-1/4" | 45-1/2" | 33-1/2" | 81-3/5" | 68 degrees | 362 |
| COLA-4-68-56 | 7 | 90-1/4" | 45-1/2" | 47-1/2" | 95-3/8" | 68 degrees | 396 |
| COLA-5-56-20 | 8 | 102-3/4" | 57-3/8" | 24-1/8" | 104" | 56 degrees | 401 |
| COLA-5-56-32 | 8 | 102-3/4" | 57-3/8" | 31-1/8" | 111" | 56 degrees | 413 |
| COLA-5-56-44 | 8 | 102-3/4" | 57-3/8" | 38-1/8" | 118" | 56 degrees | 418 |
| COLA-5-56-56 | 8 | 102-3/4" | 57-3/8" | 52-1/8" | 132" | 56 degrees | 424 |
| COLA-5-68-20 | 8 | 102" | 57-3/8" | 20" | 76-15/16" | 68 degrees | 363 |
| COLA-5-68-32 | 8 | 102" | 57-3/8" | 27" | 83-15/16" | 68 degrees | 387 |
| COLA-5-68-44 | 8 | 102" | 57-3/8" | 34" | 90-15/16" | 68 degrees | 396 |
| COLA-5-68-56 | 8 | 102" | 57-3/8" | 48" | 104-15/16" | 68 degrees | 430 |
| COLA-6-56-20 | 10 | 114-1/2" | 69-3/16" | 23-3/4" | 102-1/32" | 56 degrees | 427 |
| COLA-6-56-32 | 10 | 114-1/2" | 69-3/16" | 30-3/4" | 127-1/32" | 56 degrees | 429 |
| COLA-6-56-44 | 10 | 114-1/2" | 69-3/16" | 37-3/4" | 134-1/32" | 56 degrees | 462 |
| COLA-6-56-56 | 10 | 114-1/2" | 69-3/16" | 51-3/4" | 148-1/32" | 56 degrees | 495 |
| COLA-6-68-20 | 10 | 114" | 69-1/4" | 19-3/4" | 86-1/2" | 68 degrees | 402 |
| COLA-6-68-32 | 10 | 114" | 69-1/4" | 26-3/4" | 93-1/2" | 68 degrees | 413 |
| COLA-6-68-44 | 10 | 114" | 69-1/4" | 33-3/4" | 100-1/2" | 68 degrees | 431 |
| COLA-6-68-56 | 10 | 114" | 69-1/4" | 47-3/4" | 114-1/2" | 68 degrees | 464 |
| COLA-7-56-20 | 12 | 126-11/16" | 81-5/16" | 23-1/2" | 136-3/8" | 56 degrees | 433 |
| COLA-7-56-32 | 12 | 126-11/16" | 81-5/16" | 30-1/2" | 143-3/8 | 56 degrees | 466 |
| COLA-7-56-44 | 12 | 126-11/16" | 81-5/16" | 37-1/2" | 150-3/8" | 56 degrees | 499 |
| COLA-7-56-56 | 12 | 126-11/16" | 81-5/16" | 51-1/2" | 164-3/5" | 56 degrees | 532 |
| COLA-7-68-20 | 12 | 126-1/8" | 81-5/16" | 19-1/2" | 96-1/4" | 68 degrees | 400 |
| COLA-7-68-32 | 12 | 126-1/8" | 81-5/16" | 26-1/2" | 103-1/4" | 68 degrees | 444 |
| COLA-7-68-44 | 12 | 126-1/8" | 81-5/16" | 33-1/2" | 110-1/4" | 68 degrees | 475 |
| COLA-7-68-56 | 12 | 126-1/8" | 81-5/16" | 47-1/2" | 124-1/4" | 68 degrees | 499 |
Select Step Count
Select Clearance Width (In.)
Select Degree of Steps
From $704.35
Original: $2,012.44
-65%Vestil Alternating Step Cross-Over Ladders—
$2,012.44
$704.35
