Vestil Alternating-Tread Stairs

Vestil Alternating-Tread Stairs

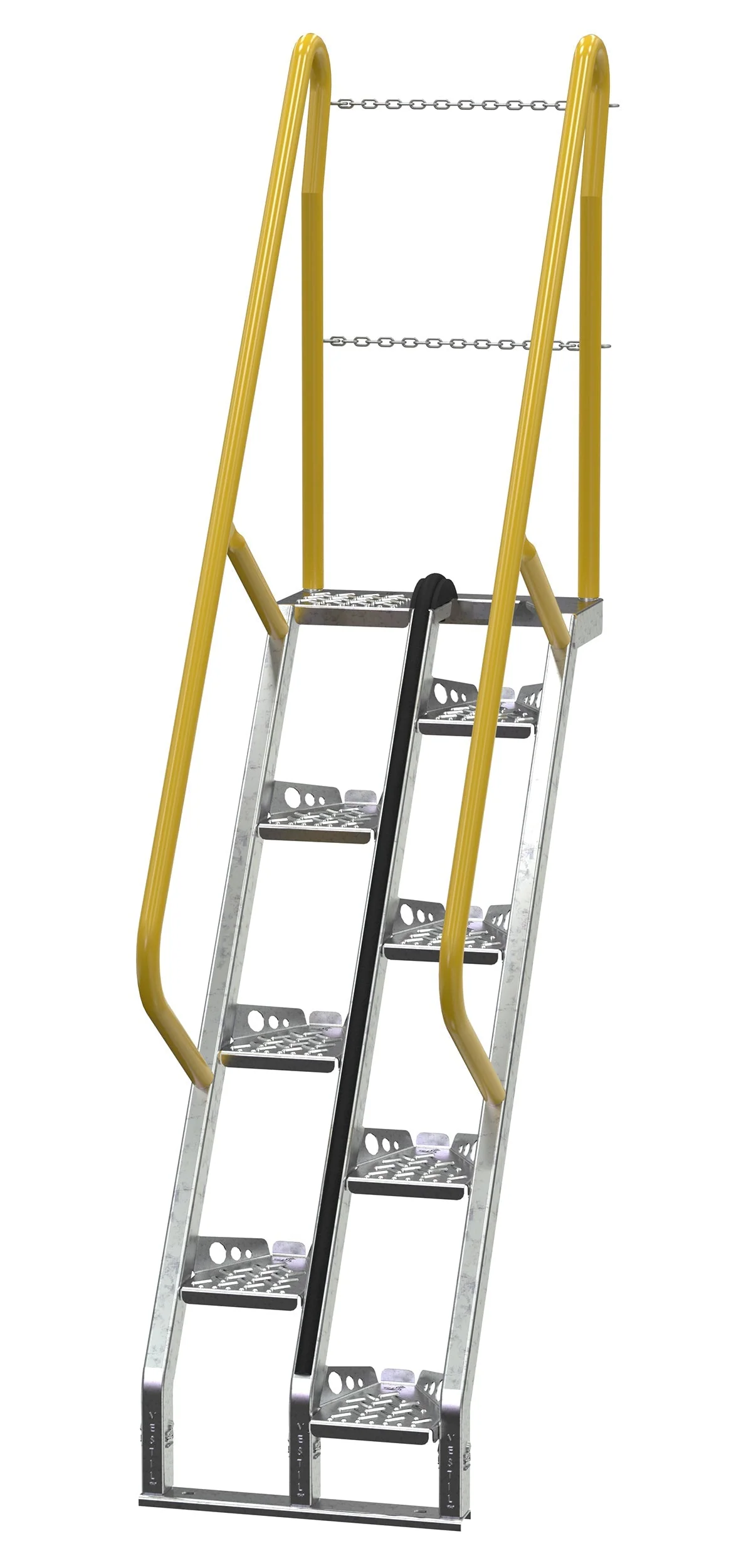

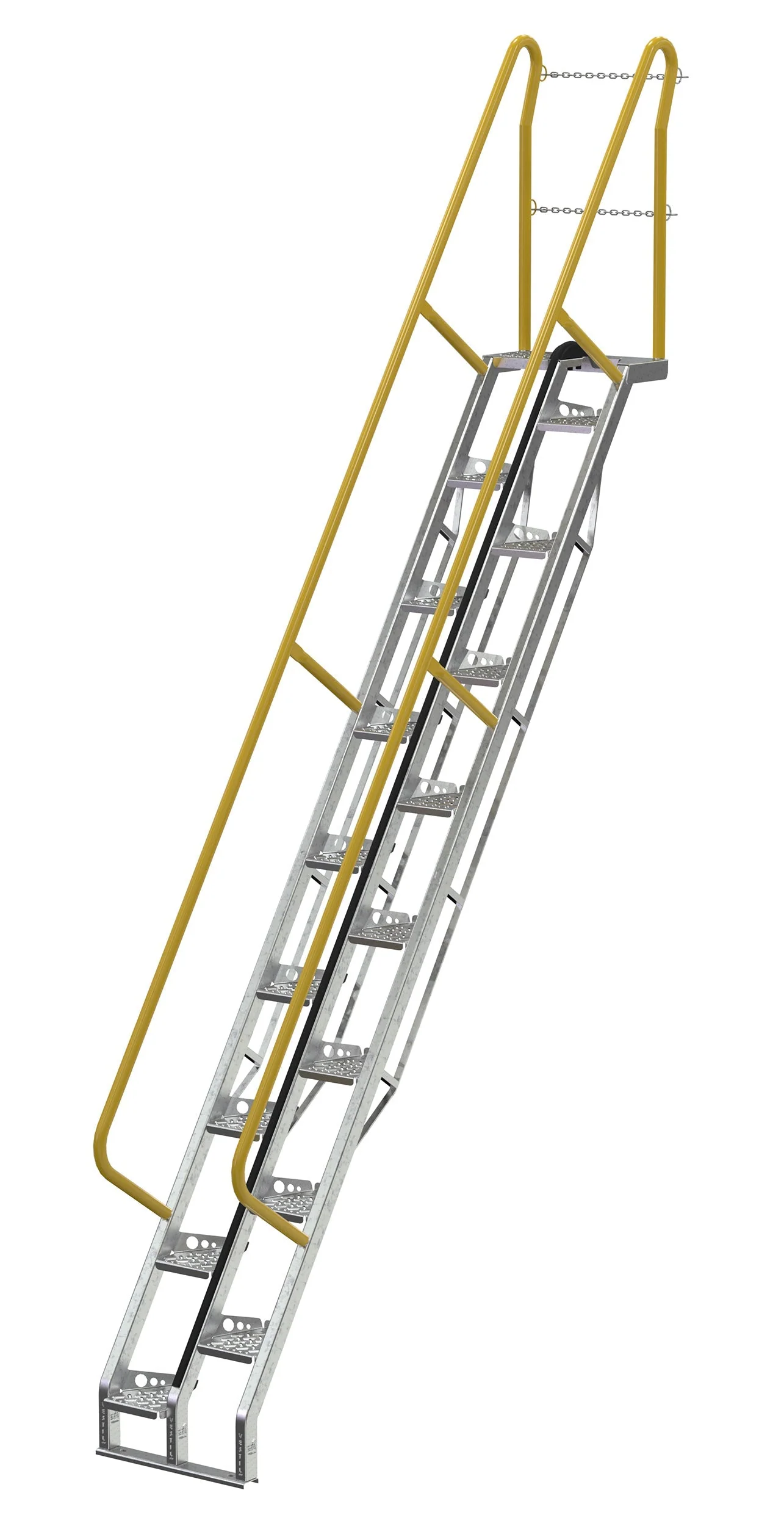

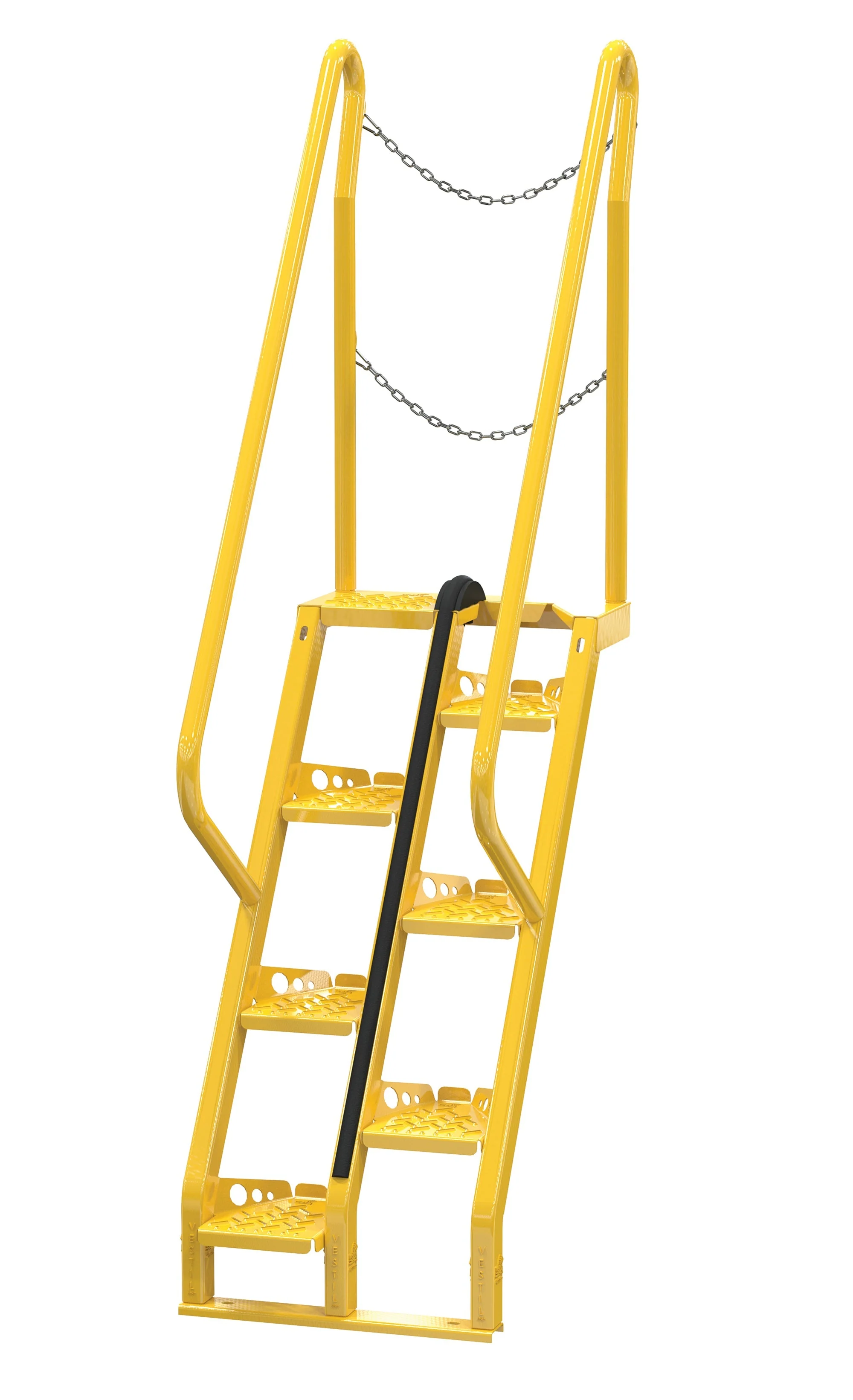

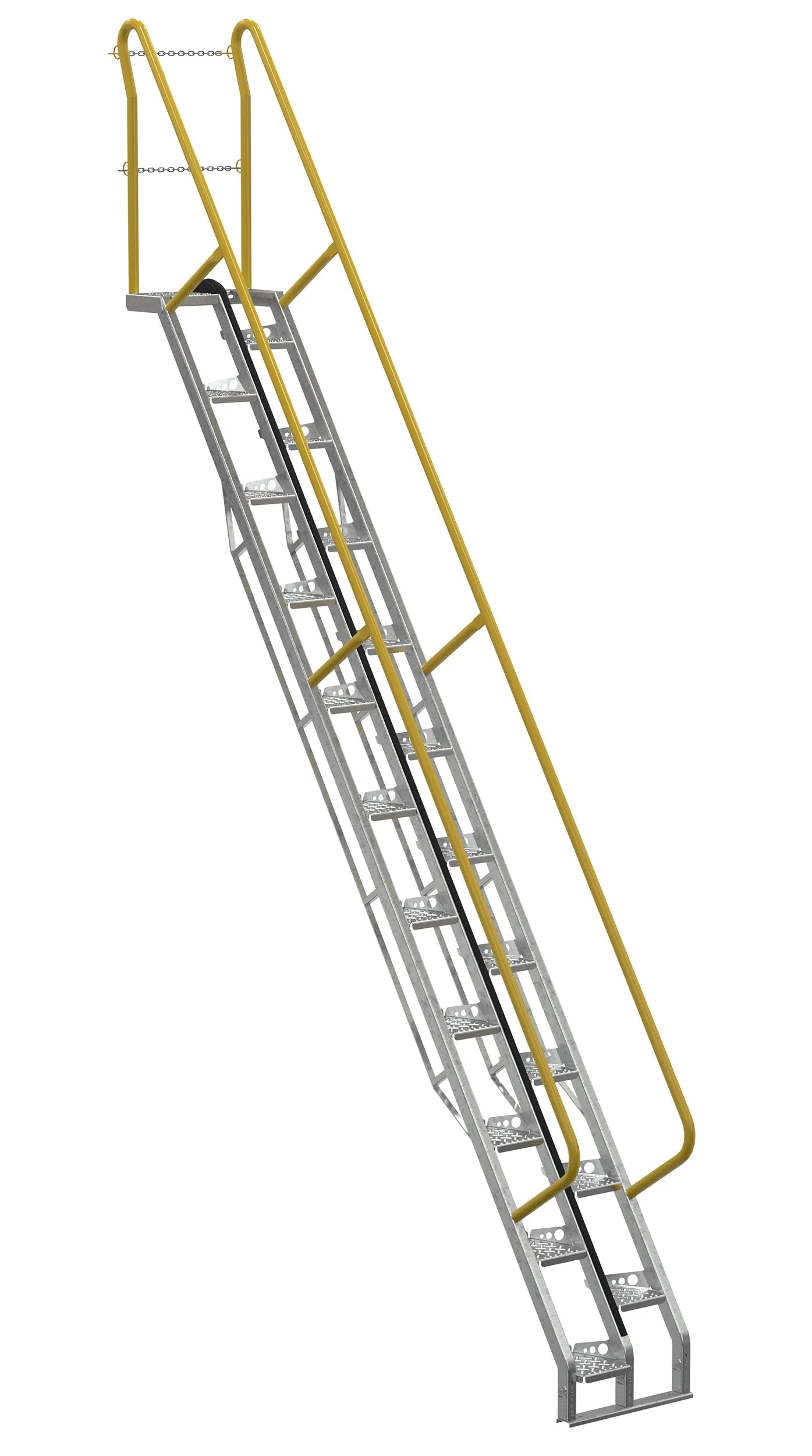

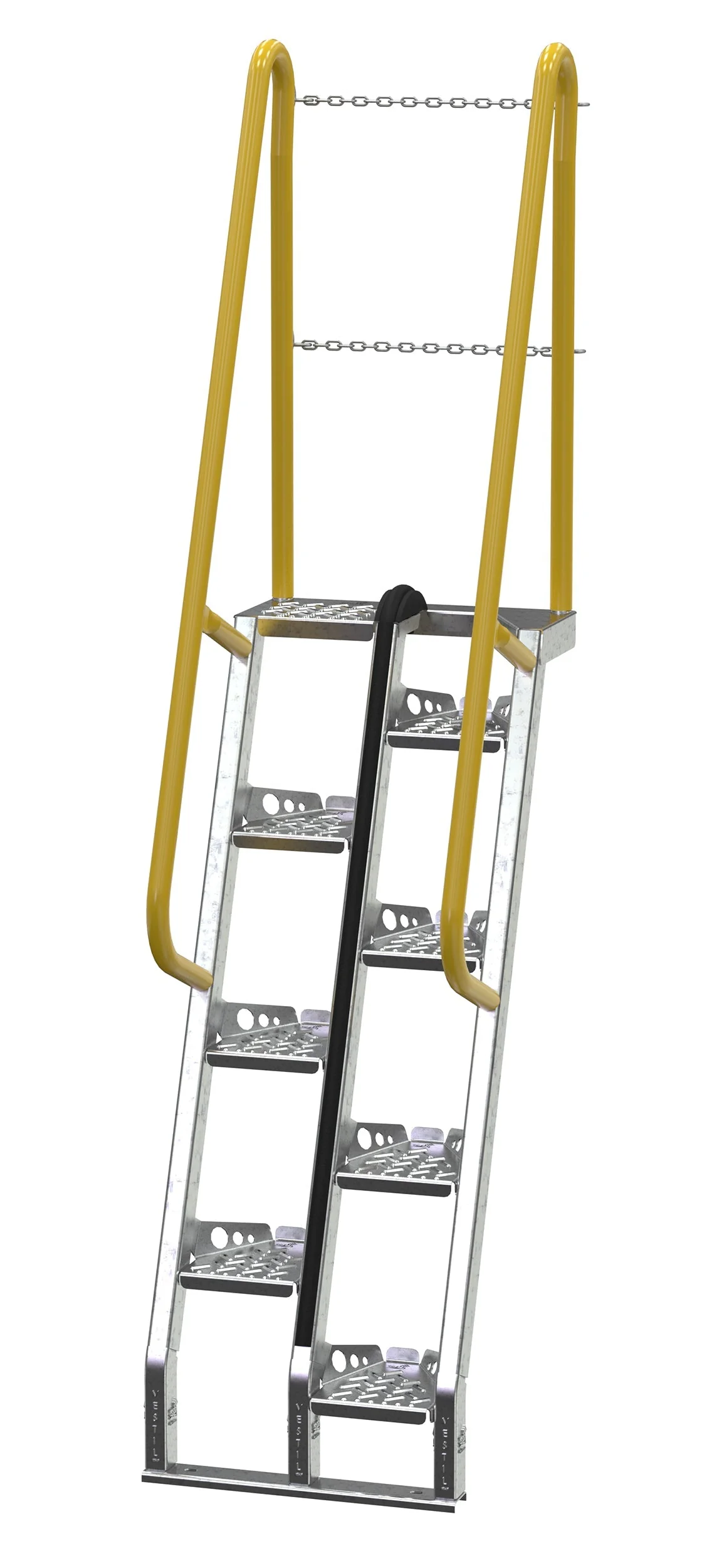

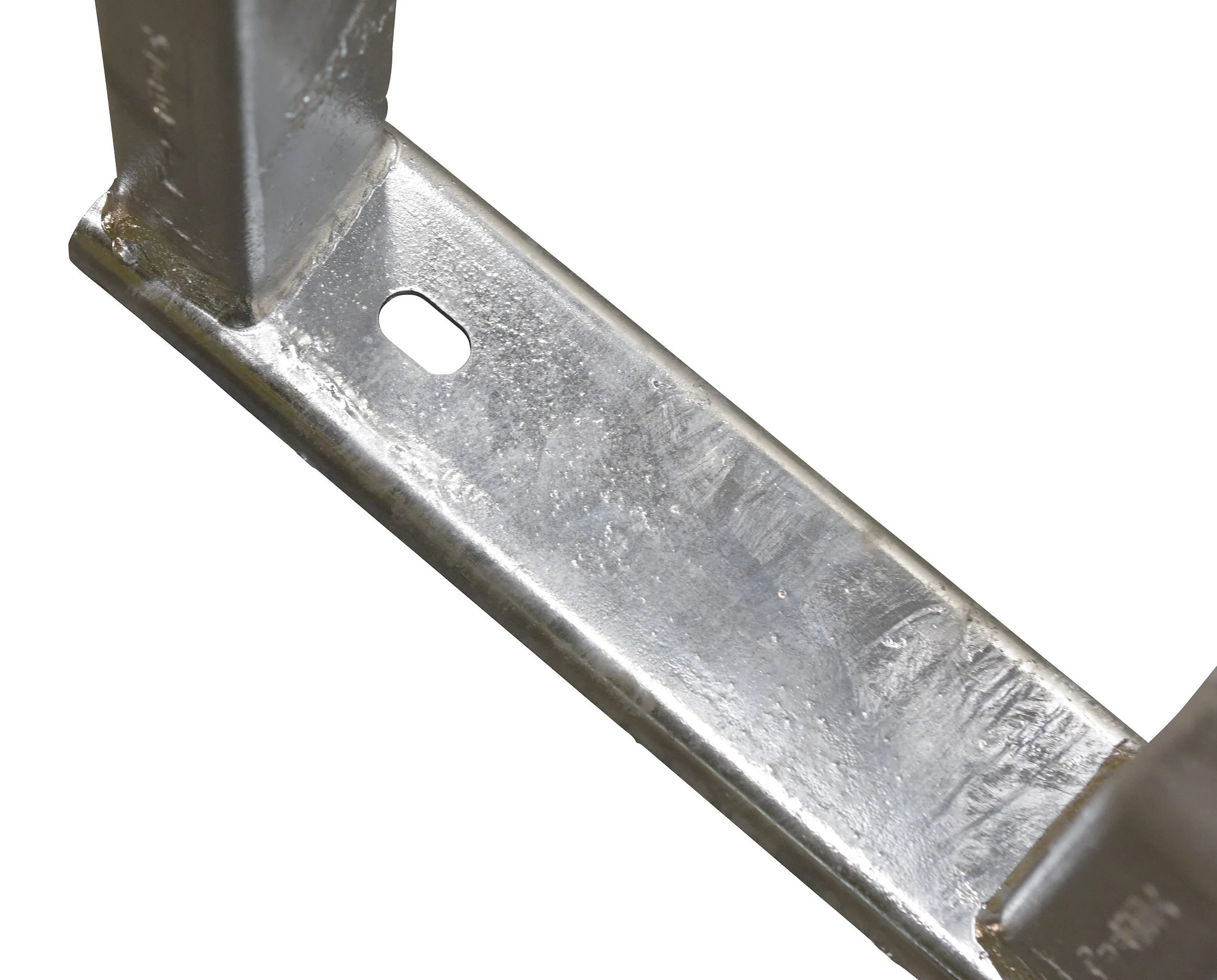

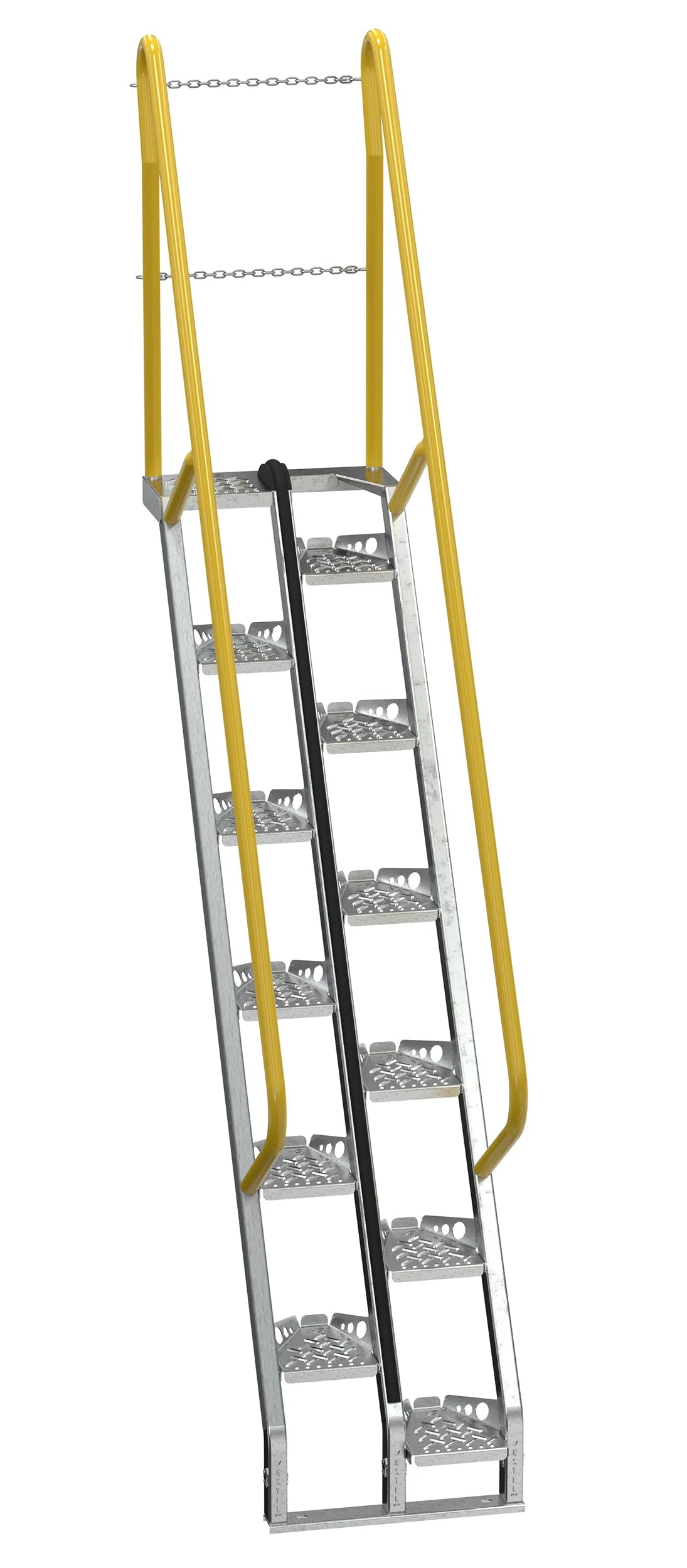

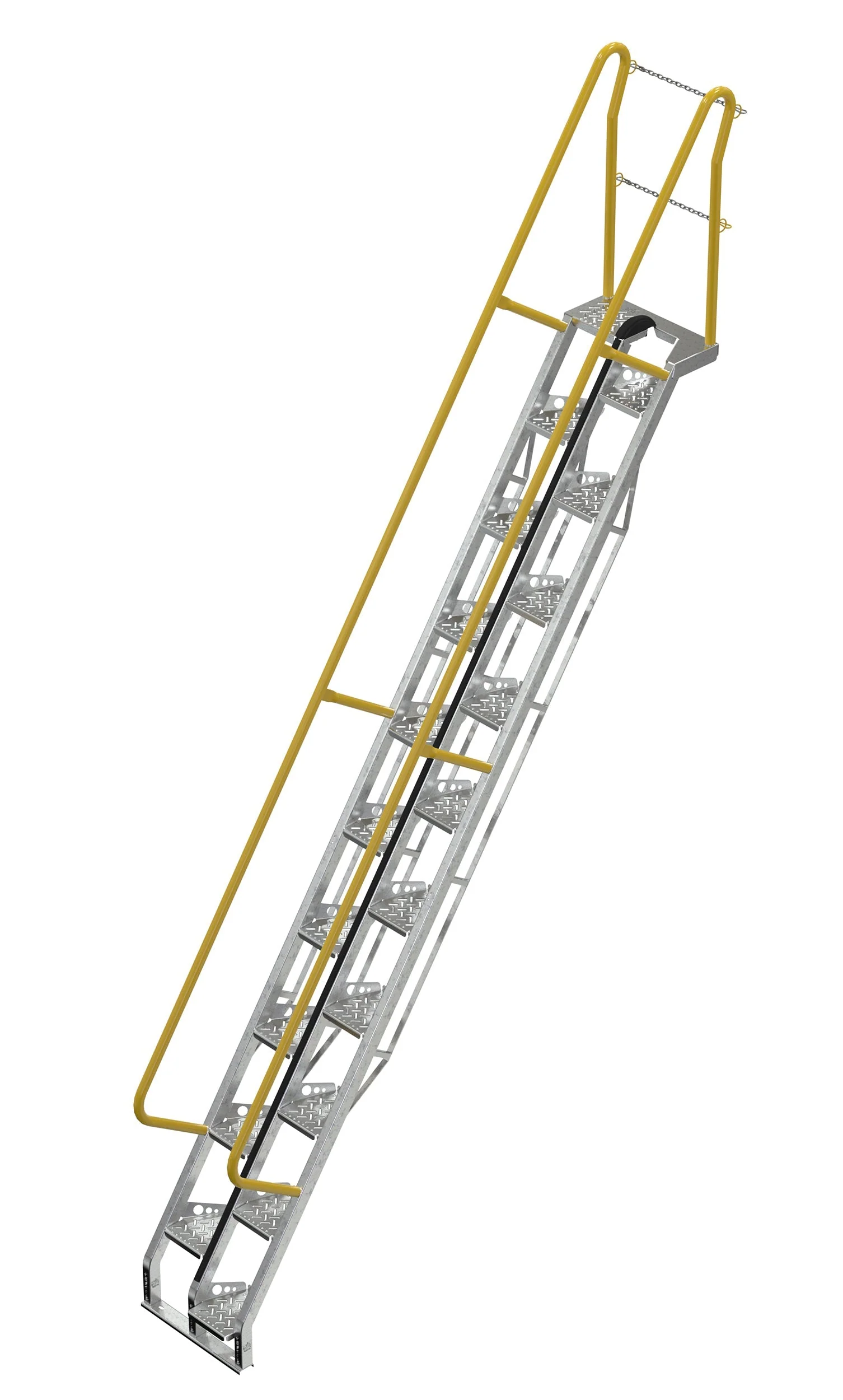

Alternating-Tread Step design offers a shorter span than traditional steps. Features a handrail on each side of unit and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt-on handrails. Standard models are powder coate yellow. Models ending in -HDG have hot dip galvanized steel steps. As well as hot dip galvanized handrails with a yellow powder coat finish. Meets OSHA specification 29 CFR 1910.25(f). Ships knockdown for lower freight costs.

Alternating Tread Stairs

Model Number

Number
of Steps

 Top Step
Height

Overall Length

 Step
Angle		 Capacity
(lbs)		 Wt.
(lbs.)
ATS-4-56 7 48-1/8" 42" 56 degrees 350 156
ATS-5-56 8 60" 49-1/4" 56 degrees 350 192
ATS-6-56 10 71-7/8" 57-1/2" 56 degrees 350 214
ATS-7-56 12 84" 65-3/4" 56 degrees 350 224
ATS-8-56 13 95-7/8" 73-1/2" 56 degrees 350 254
ATS-9-56 15 107-3/4" 81-5/8" 56 degrees 350 284
ATS-10-56 16 120" 89-3/4" 56 degrees 350 312
ATS-11-56 17 131-3/4" 97-1/2" 56 degrees 350 374
ATS-12-56 20 143-3/4" 106" 56 degrees 350 400
ATS-13-56 21 156-1/4" 114-1/8" 56 degrees 350 608
ATS-14-56 24 168" 122-3/8" 56 degrees 350 638
ATS-4-68 7 48-1/8" 30" 68 degrees 350 150
ATS-5-68 8 60" 34-5/8" 68 degrees 350 180
ATS-6-68 10 71-7/8" 39-1/2" 68 degrees 350 188
ATS-7-68 12 84" 44-1/2" 68 degrees 350 238
ATS-8-68 13 95-7/8" 49-3/4" 68 degrees 350 248
ATS-9-68 15 107-3/4" 54-1/8" 68 degrees 350 256
ATS-10-68 16 120" 58-7/8" 68 degrees 350 274
ATS-11-68 17 131-3/4" 63-1/2" 68 degrees 350 298
ATS-12-68 20 143-3/4" 68-1/2" 68 degrees 350 338
ATS-13-68 21 156-1/8" 73-1/2" 68 degrees 350 600
ATS-14-68 24 168" 78 -3/8" 68 degrees 350 610
Hot Dip Galvanized Finish

Model Number

Number
of Steps

 Top Step
Height

Overall Length

 Step
Angle		 Capacity
(lbs)		 Wt.
(lbs.)
ATS-4-56-HDG 7 48-1/8" 42" 56 degrees 350 156
ATS-5-56-HDG 8 60" 49-1/4" 56 degrees 350 192
ATS-6-56-HDG 10 71-7/8" 57-1/2" 56 degrees 350 214
ATS-7-56-HDG 12 84" 65-3/4" 56 degrees 350 224
ATS-8-56-HDG 13 95-7/8" 73-1/2" 56 degrees 350 254
ATS-9-56-HDG 15 107-3/4" 81-5/8" 56 degrees 350 284
ATS-10-56-HDG 16 120" 89-3/4" 56 degrees 350 312
ATS-11-56-HDG 17 131-3/4" 97-1/2" 56 degrees 350 374
ATS-12-56-HDG 20 143-3/4" 106" 56 degrees 350 400
ATS-13-56-HDG 21 156-1/4" 114-1/8" 56 degrees 350 608
ATS-14-56-HDG 24 168" 122-3/8" 56 degrees 350 638
ATS-4-68-HDG 7 48-1/8" 30" 68 degrees 350 150
ATS-5-68-HDG 8 60" 34-5/8" 68 degrees 350 180
ATS-6-68-HDG 10 71-7/8" 39-1/2" 68 degrees 350 188
ATS-7-68-HDG 12 84" 44-1/2" 68 degrees 350 238
ATS-8-68-HDG 13 95-7/8" 49-3/4" 68 degrees 350 248
ATS-9-68-HDG 15 107-3/4" 54-1/8" 68 degrees 350 256
ATS-10-68-HDG 16 120" 58-7/8" 68 degrees 350 274
ATS-11-68-HDG 17 131-3/4" 63-1/2" 68 degrees 350 298
ATS-12-68-HDG 20 143-3/4" 68-1/2" 68 degrees 350 338
ATS-13-68-HDG 21 156-1/8" 73-1/2" 68 degrees 350 600
ATS-14-68-HDG 24 168" 78 -3/8" 68 degrees 350 610
Select Step Count
Select Degree of Steps
Select Finish - Color
From $350.75

Original: $1,002.15

-65%
Vestil Alternating-Tread Stairs—

$1,002.15

$350.75
Product image 1

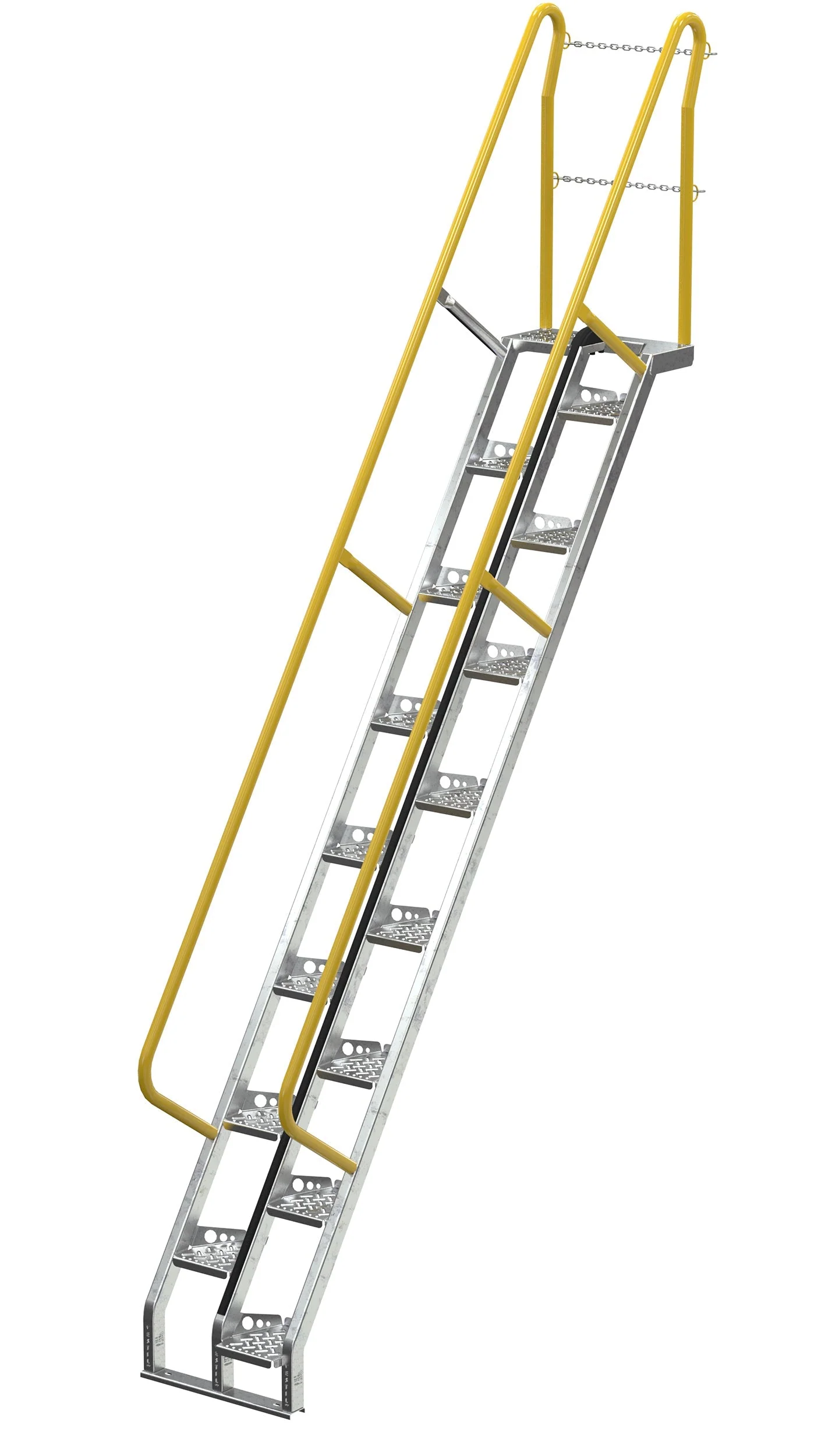

Product image 2
Product image 3
Product image 4

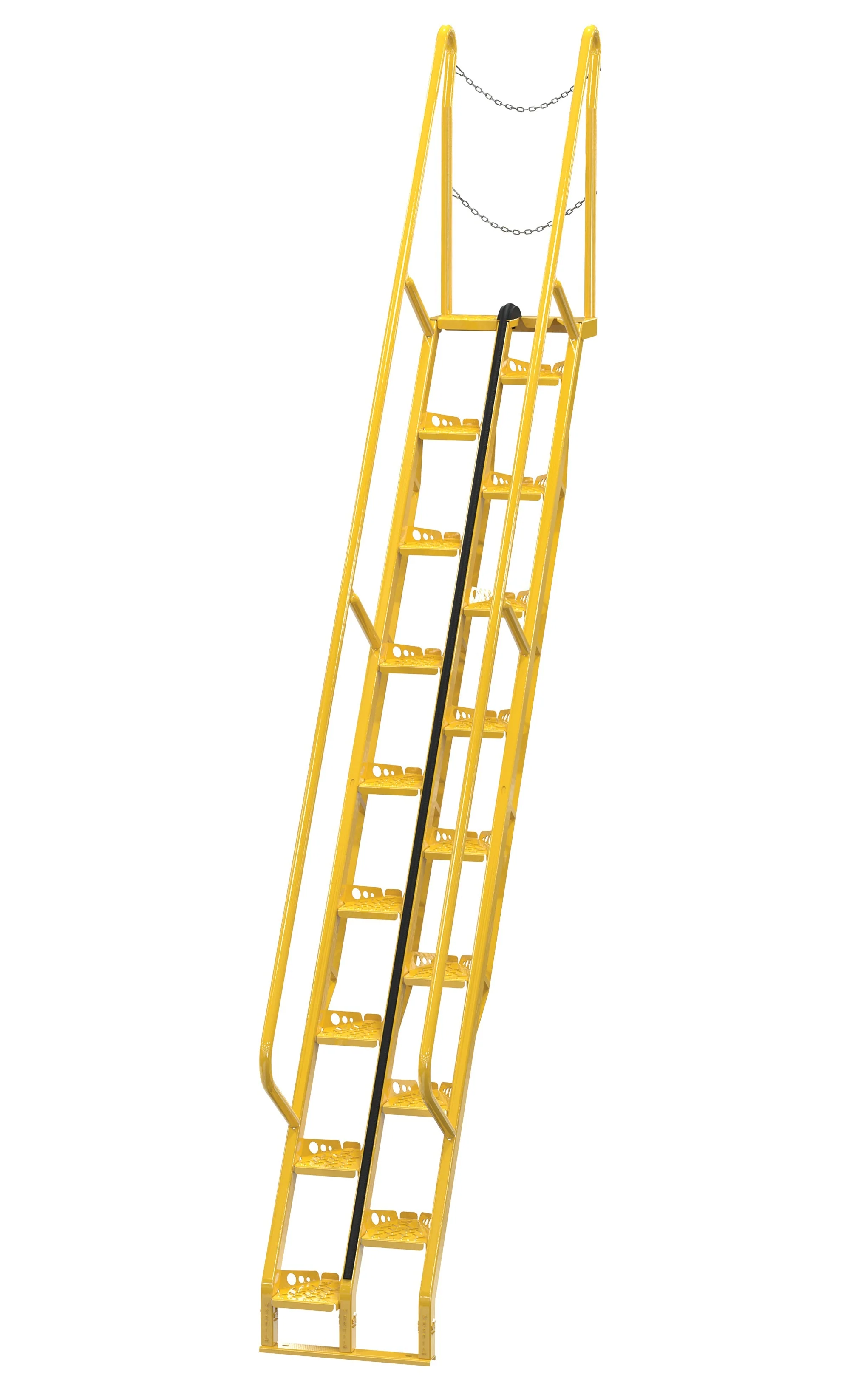

Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10

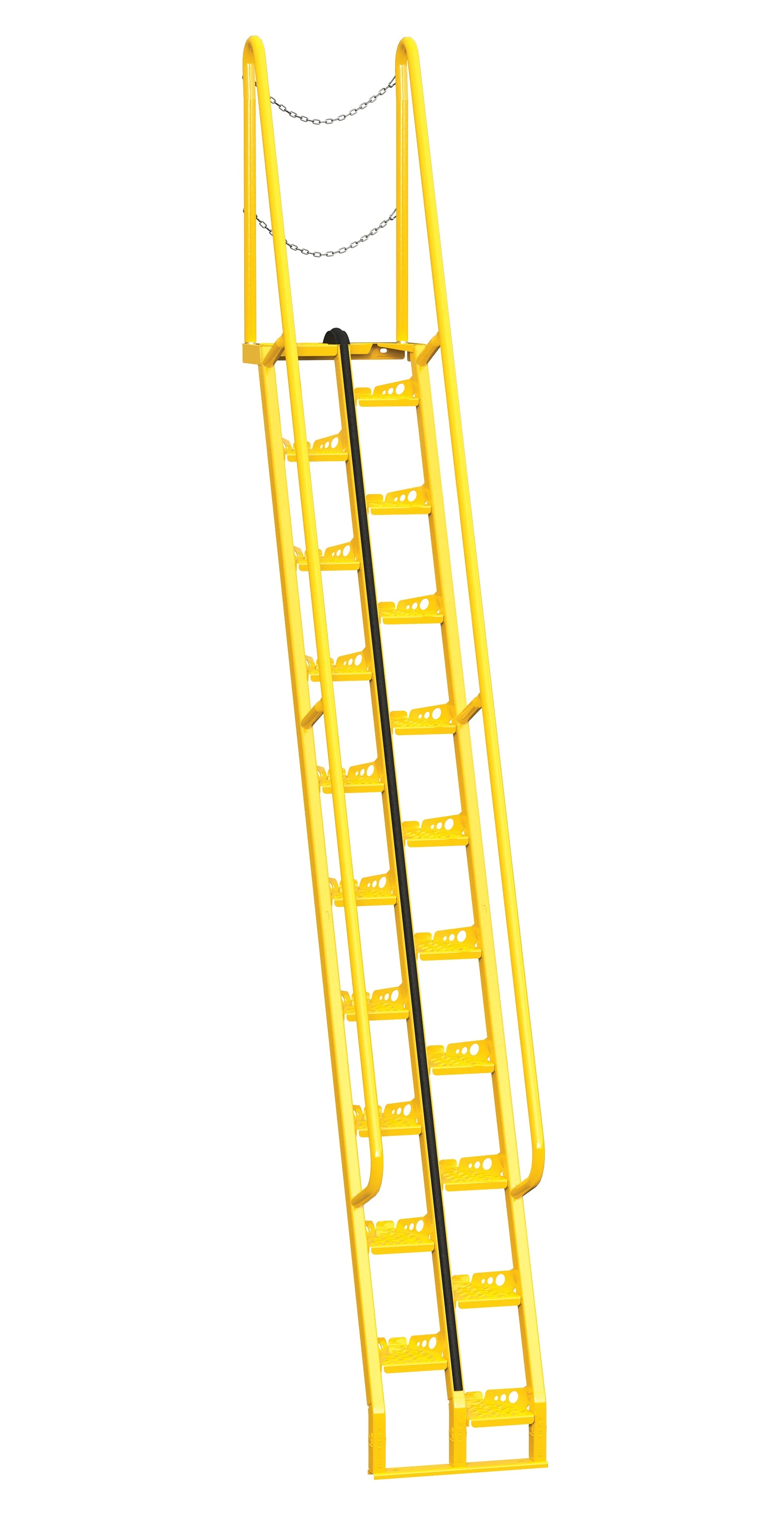

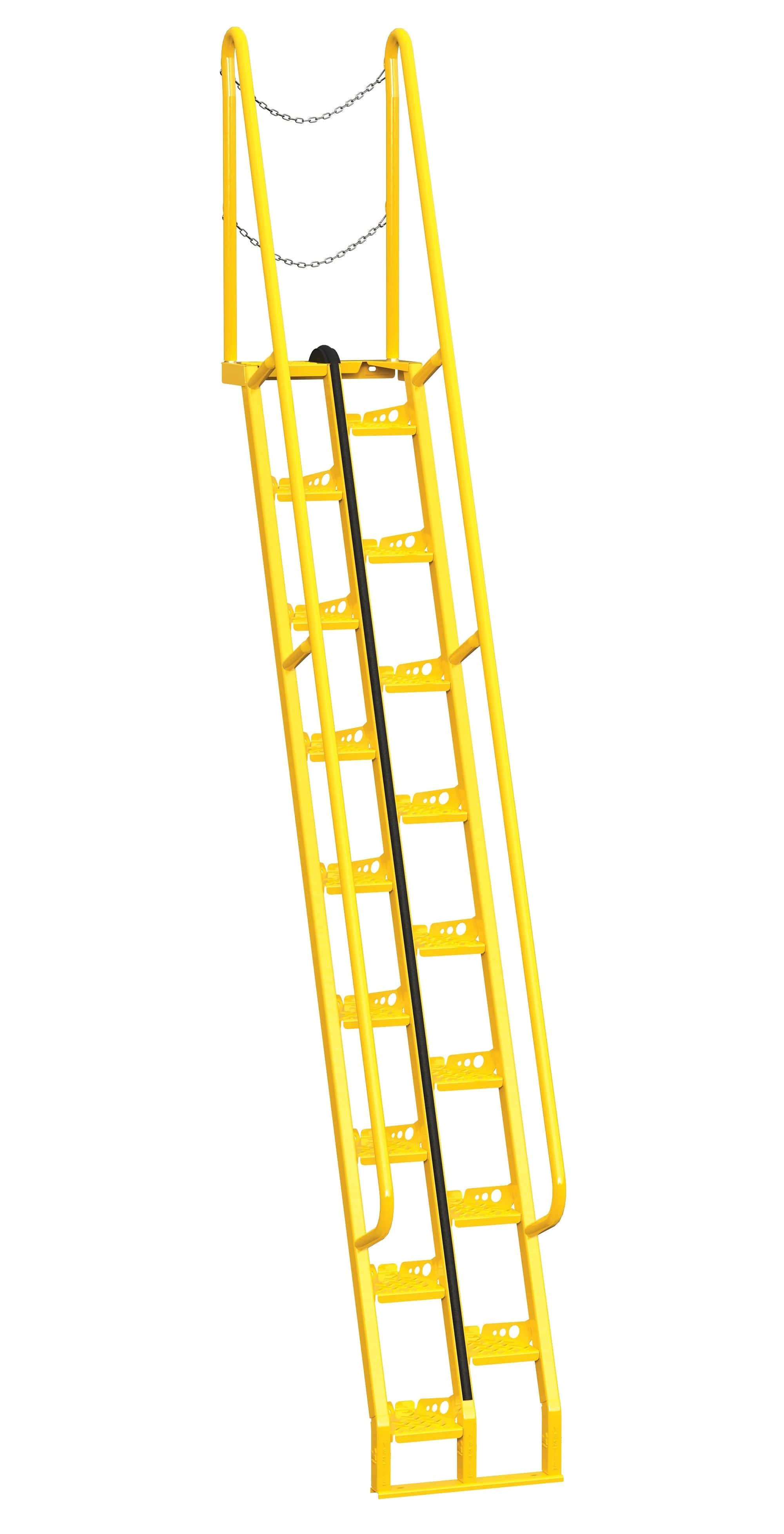

Product image 11

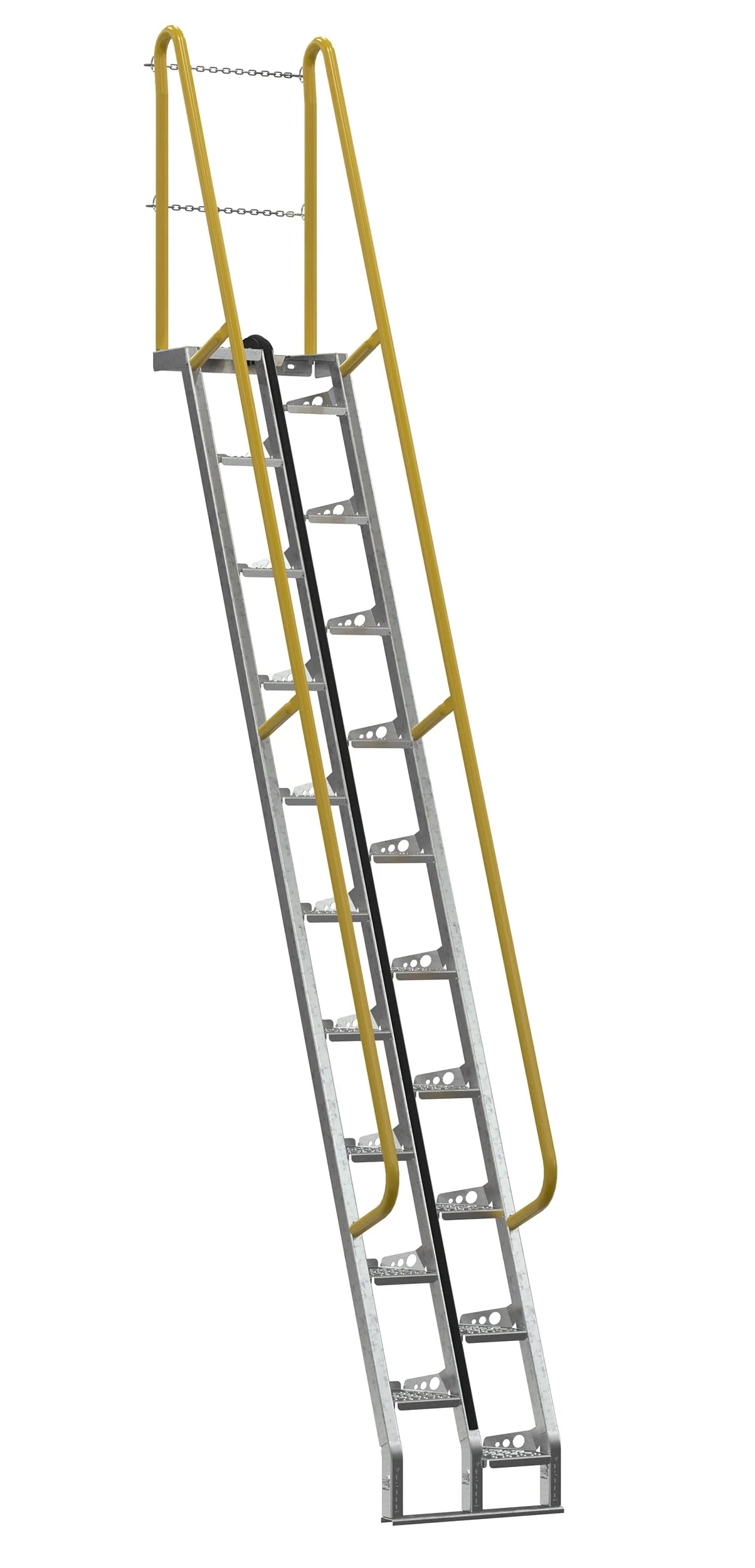

Product image 12

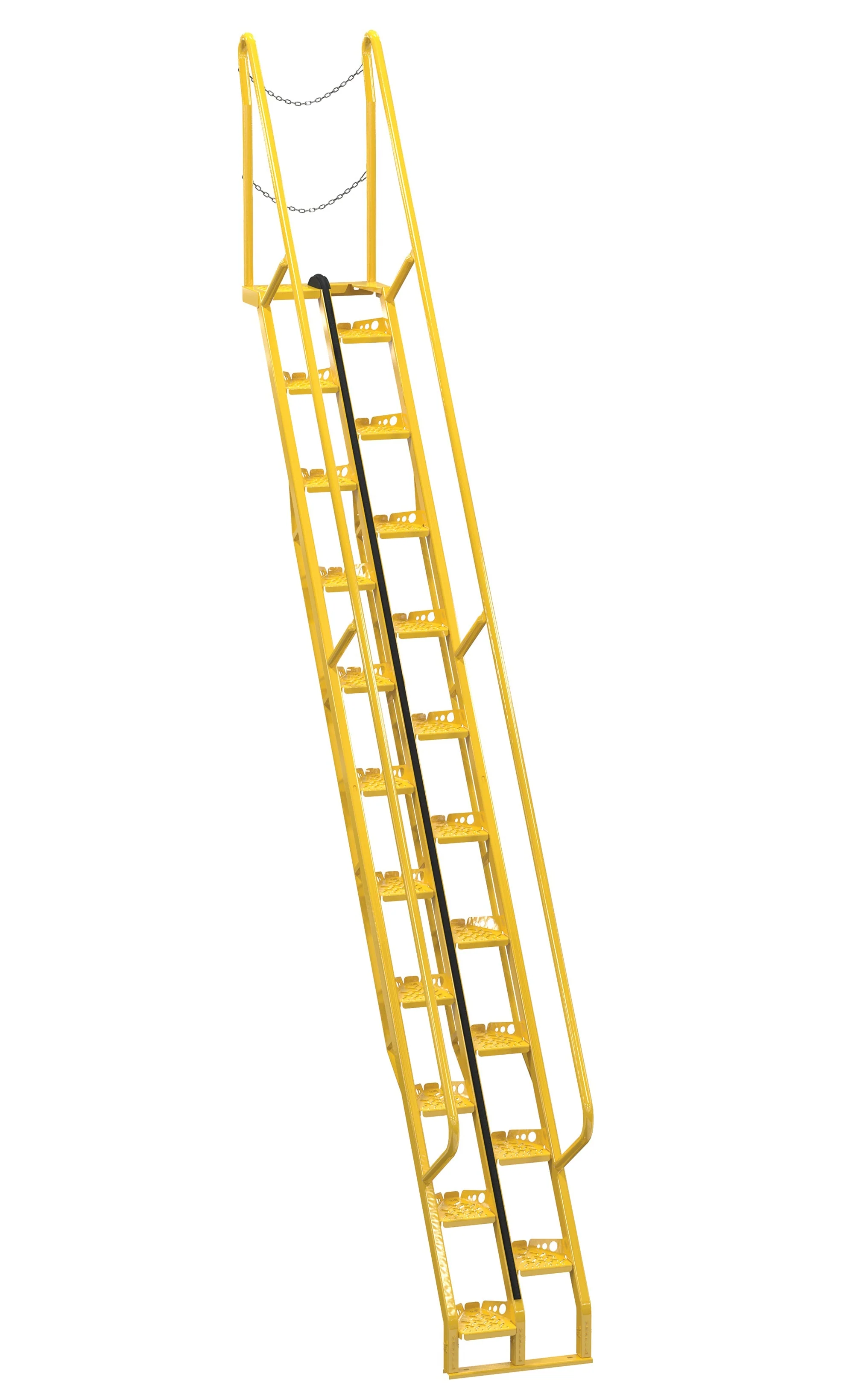

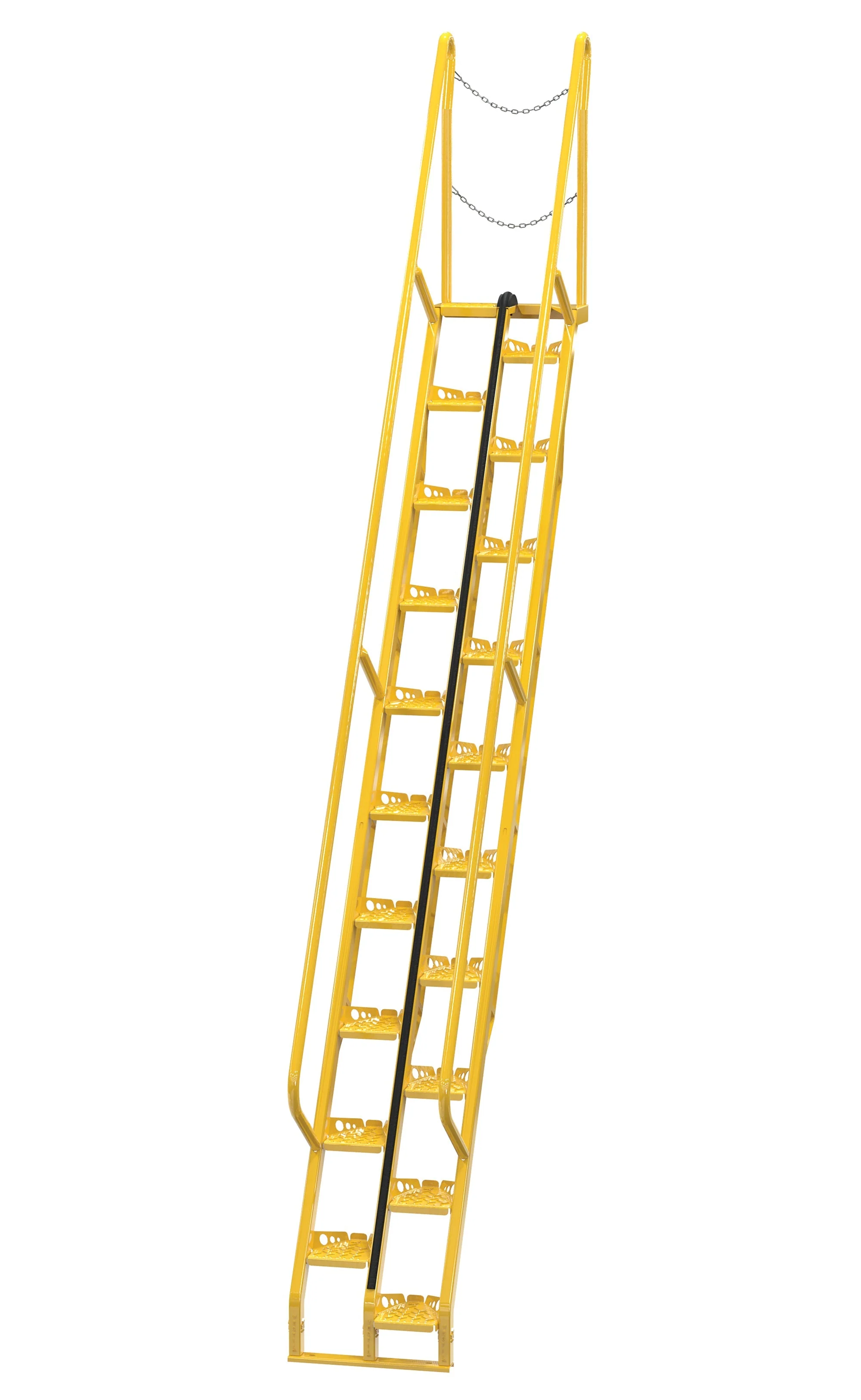

Product image 13
Product image 14

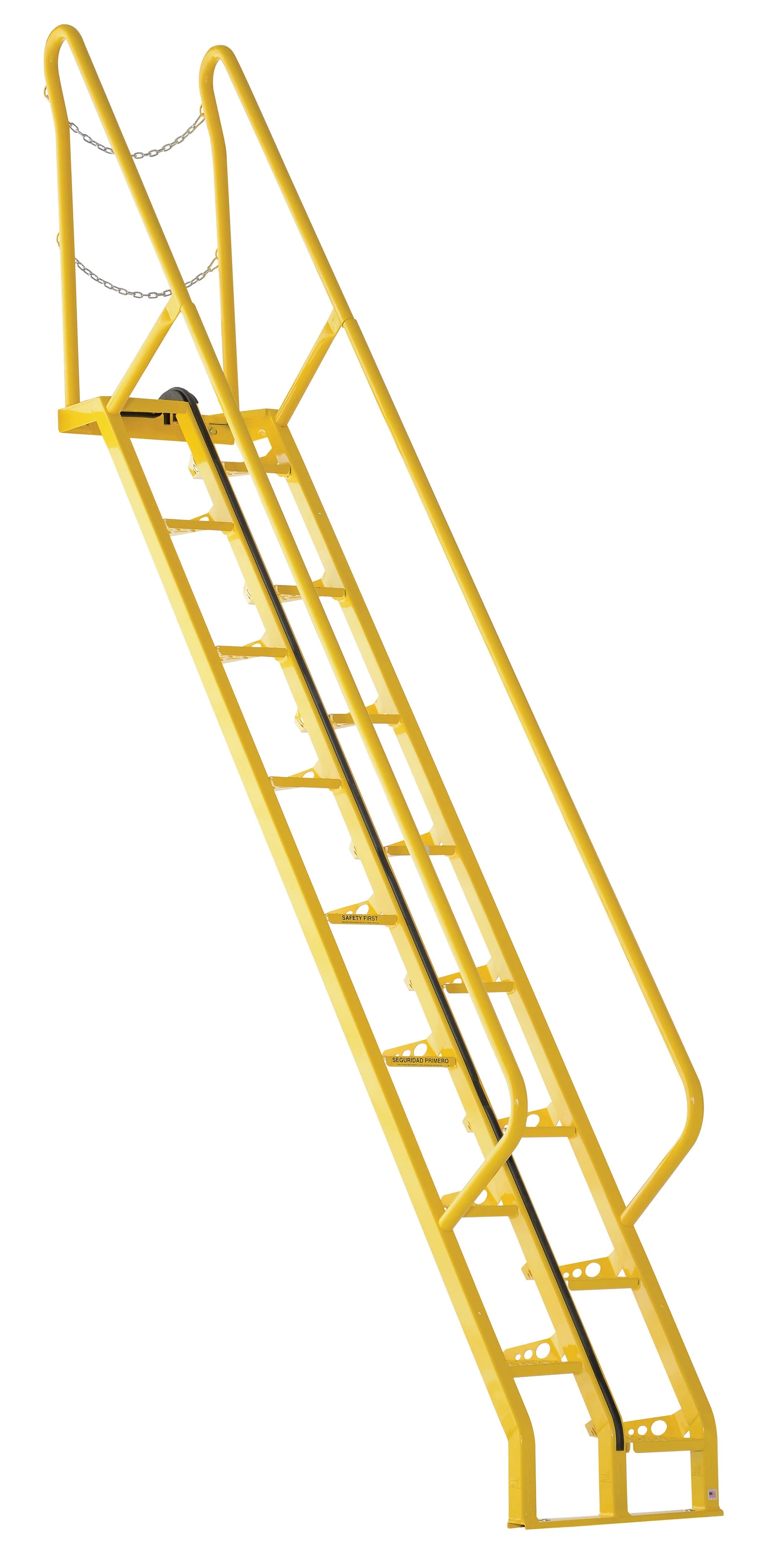

Product image 15
Product image 16
Product image 17
Product image 18
Product image 19

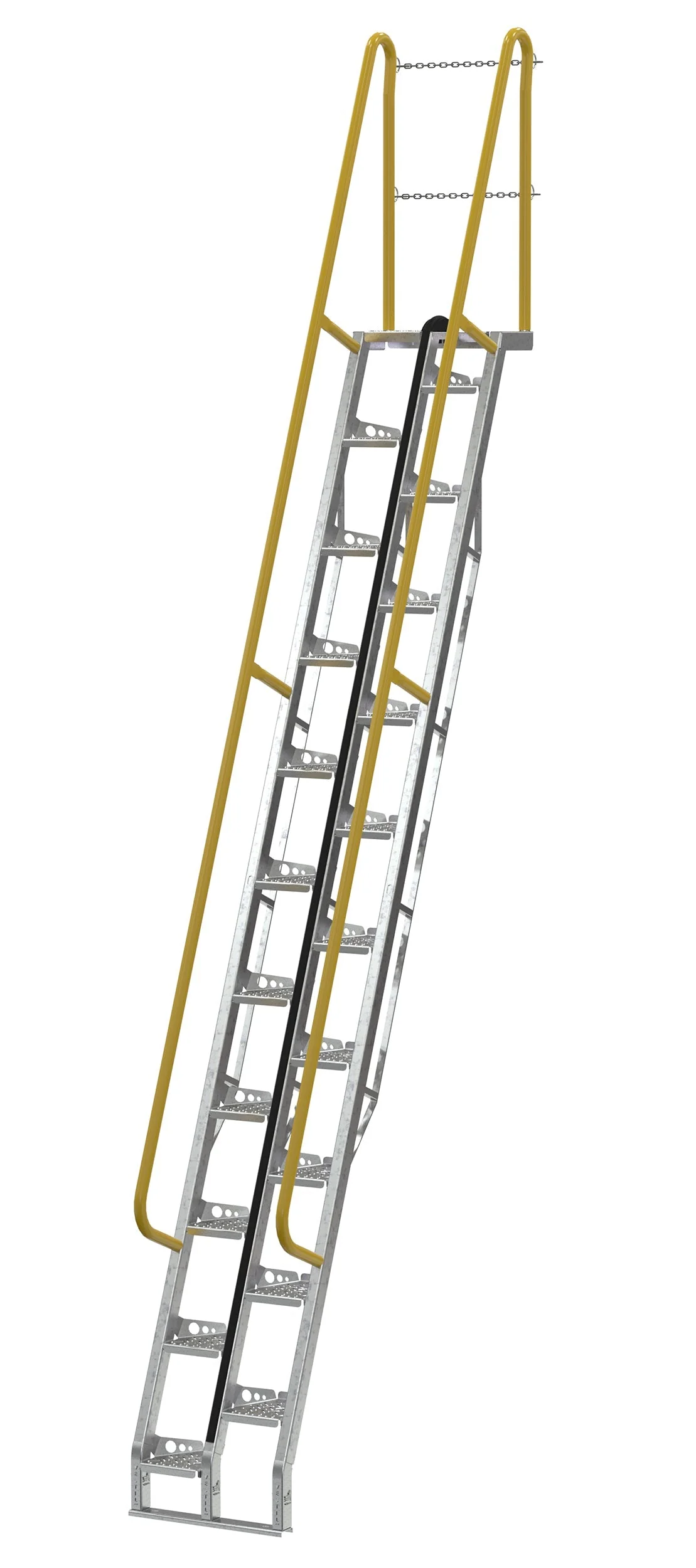

Product image 20
Product image 21

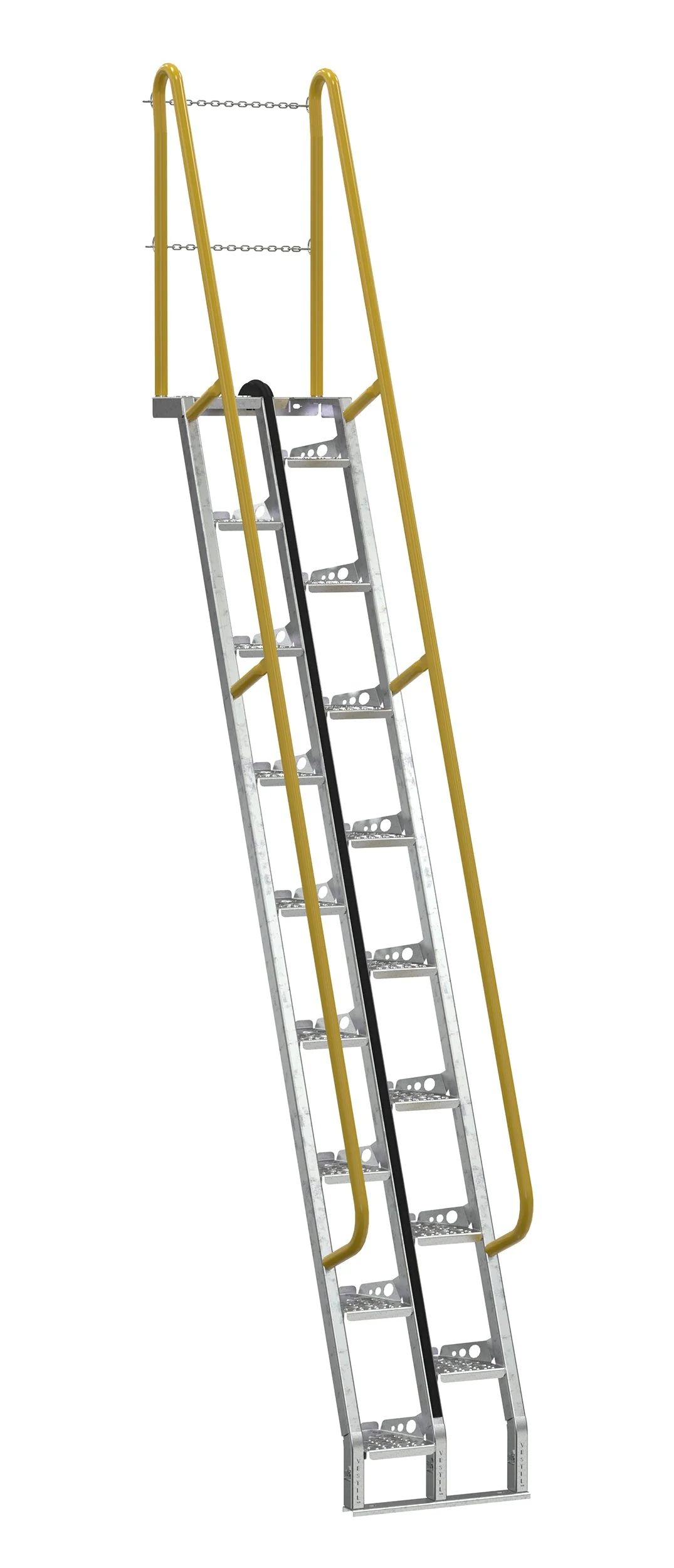

Product image 22
Product image 23

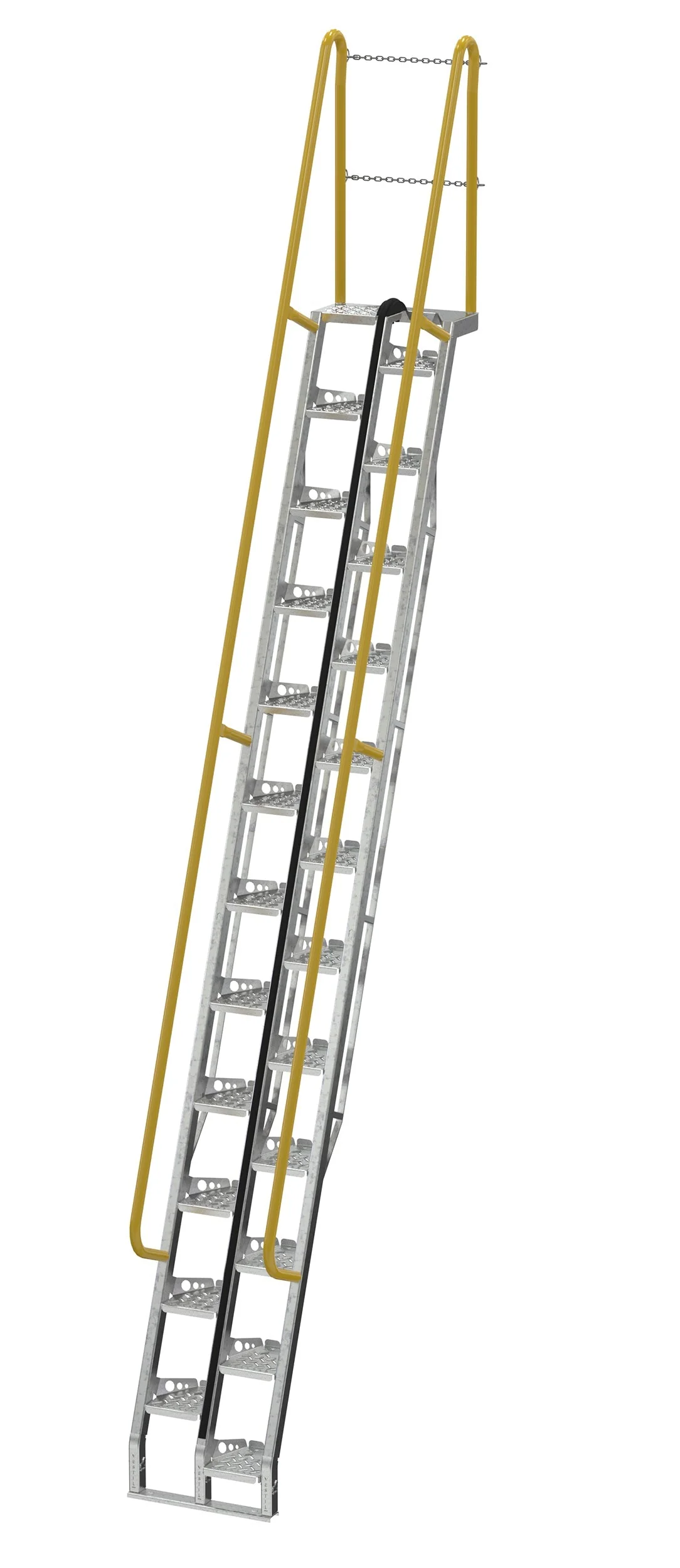

Product image 24

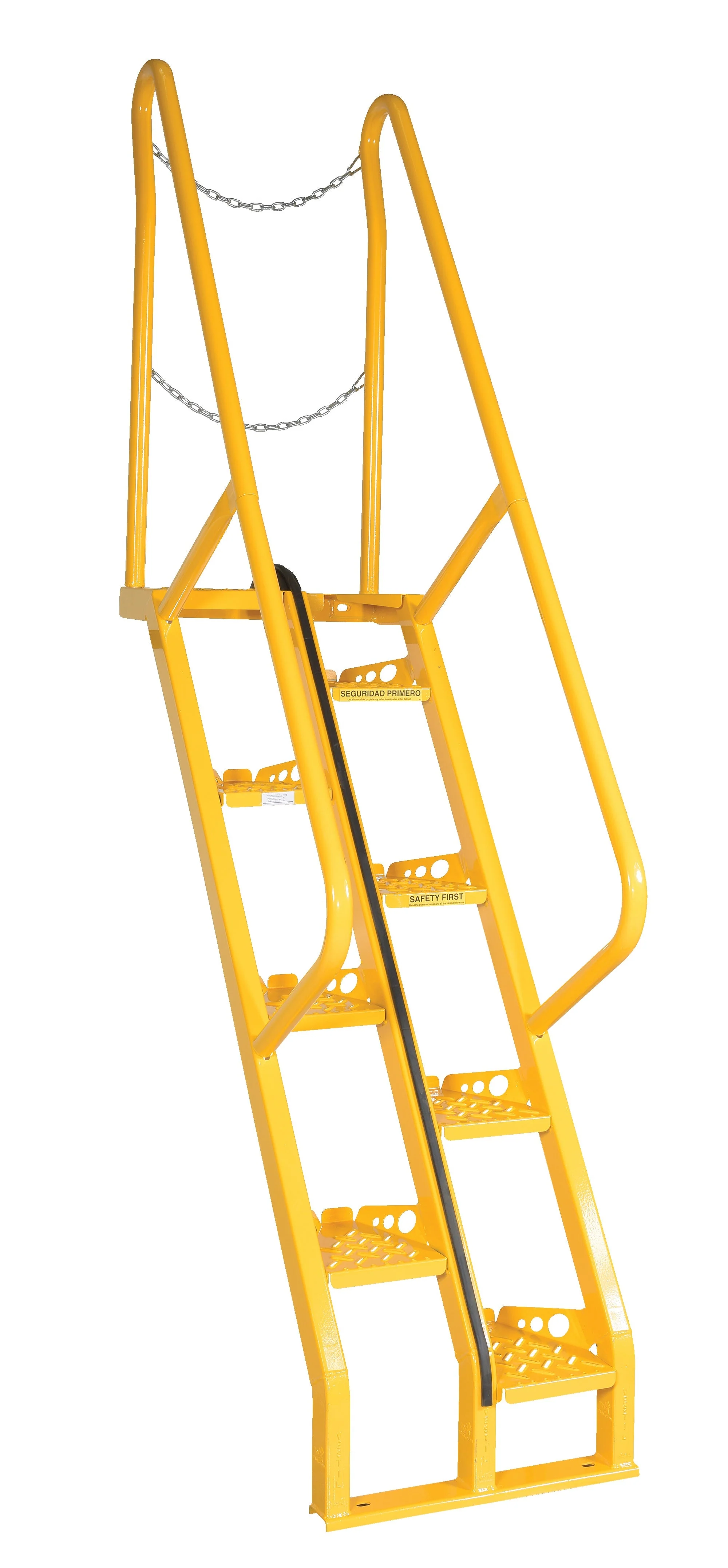

Product image 25

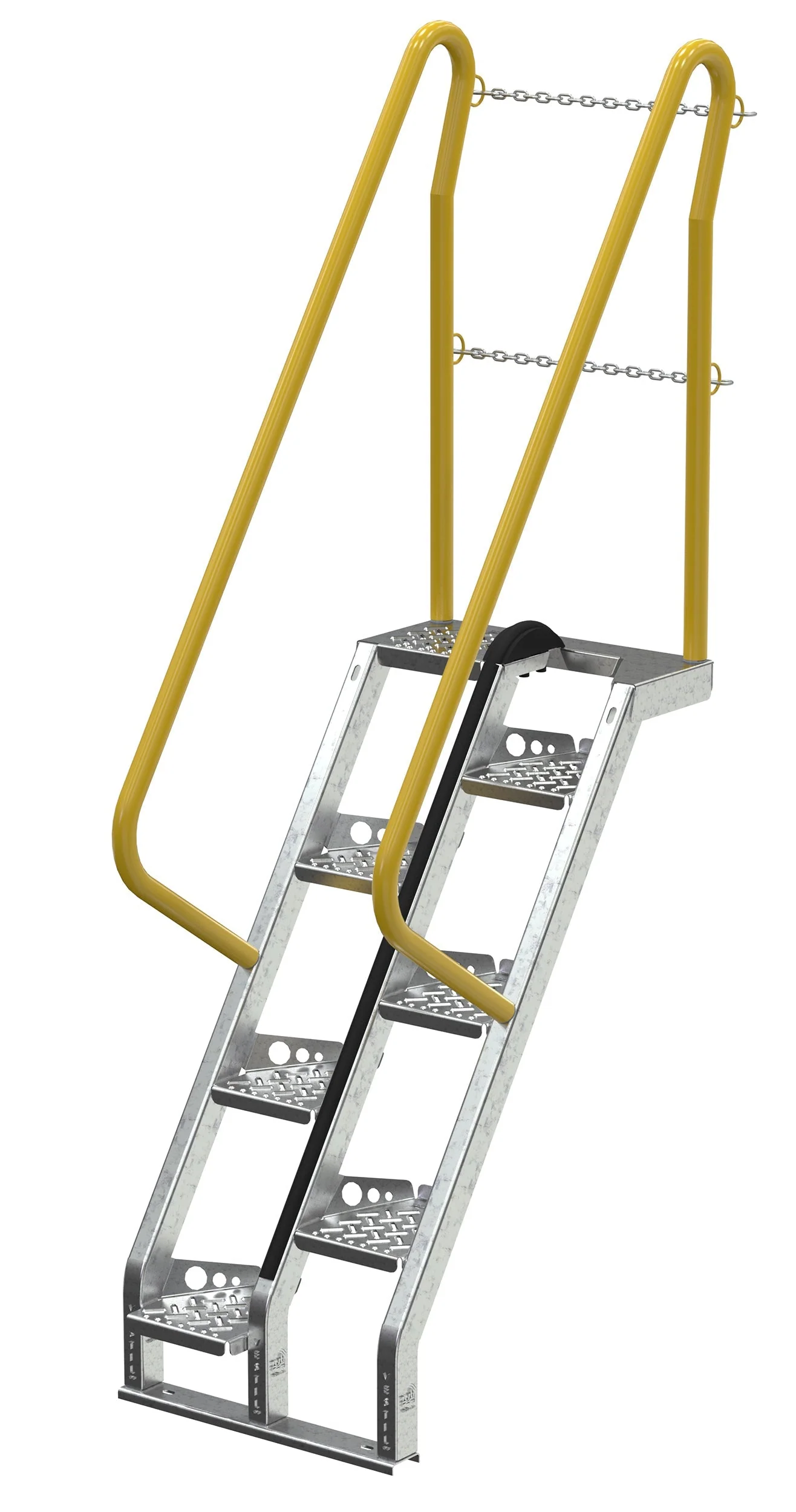

Product image 26

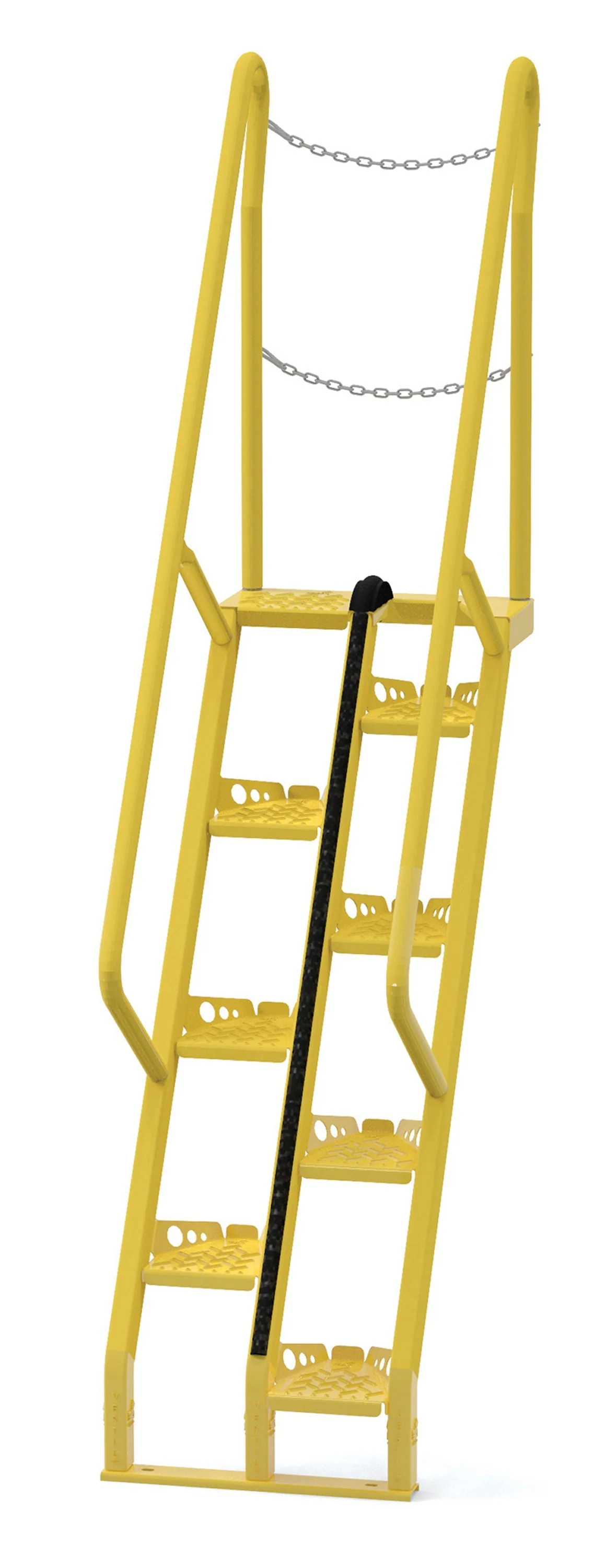

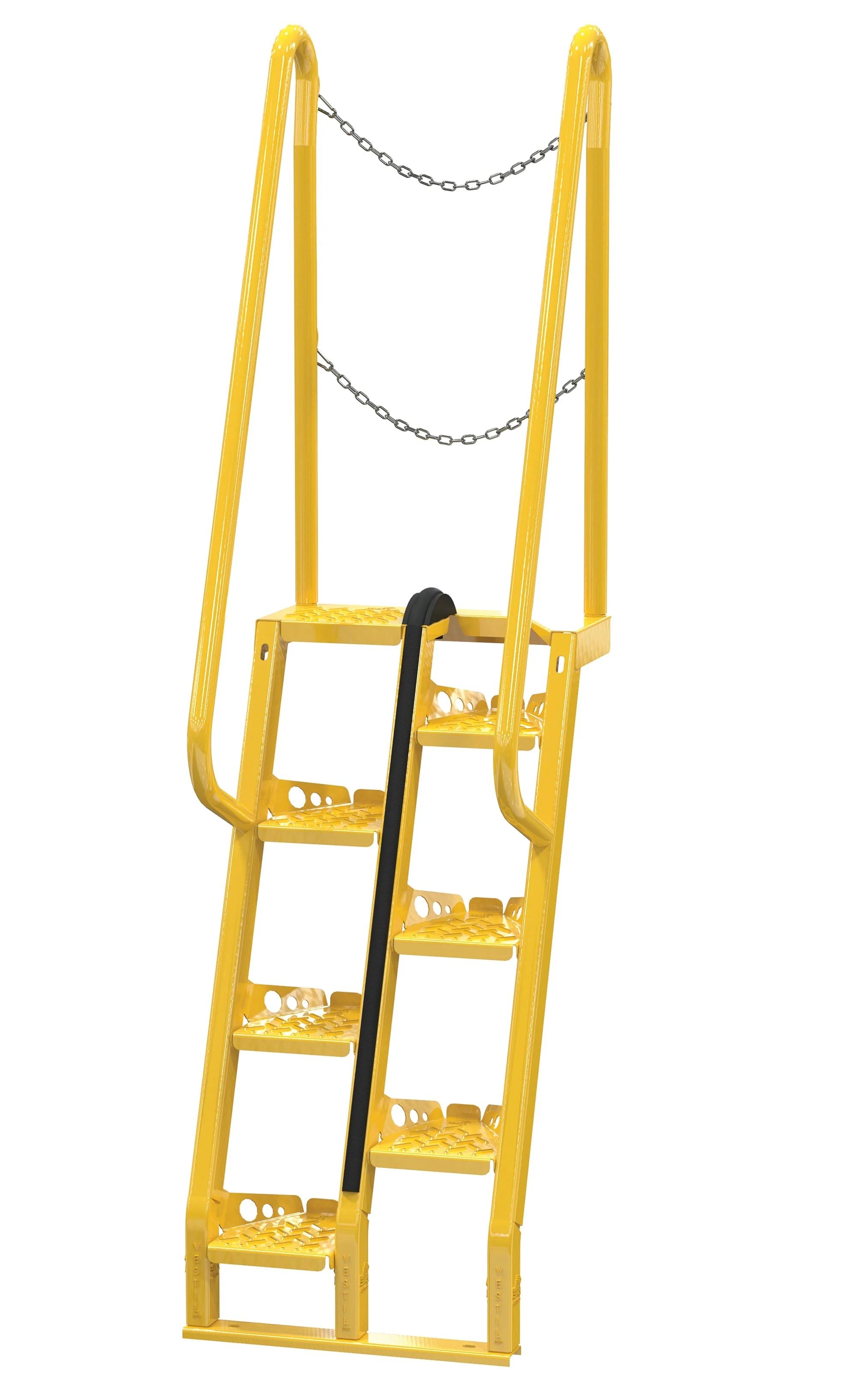

Product image 27

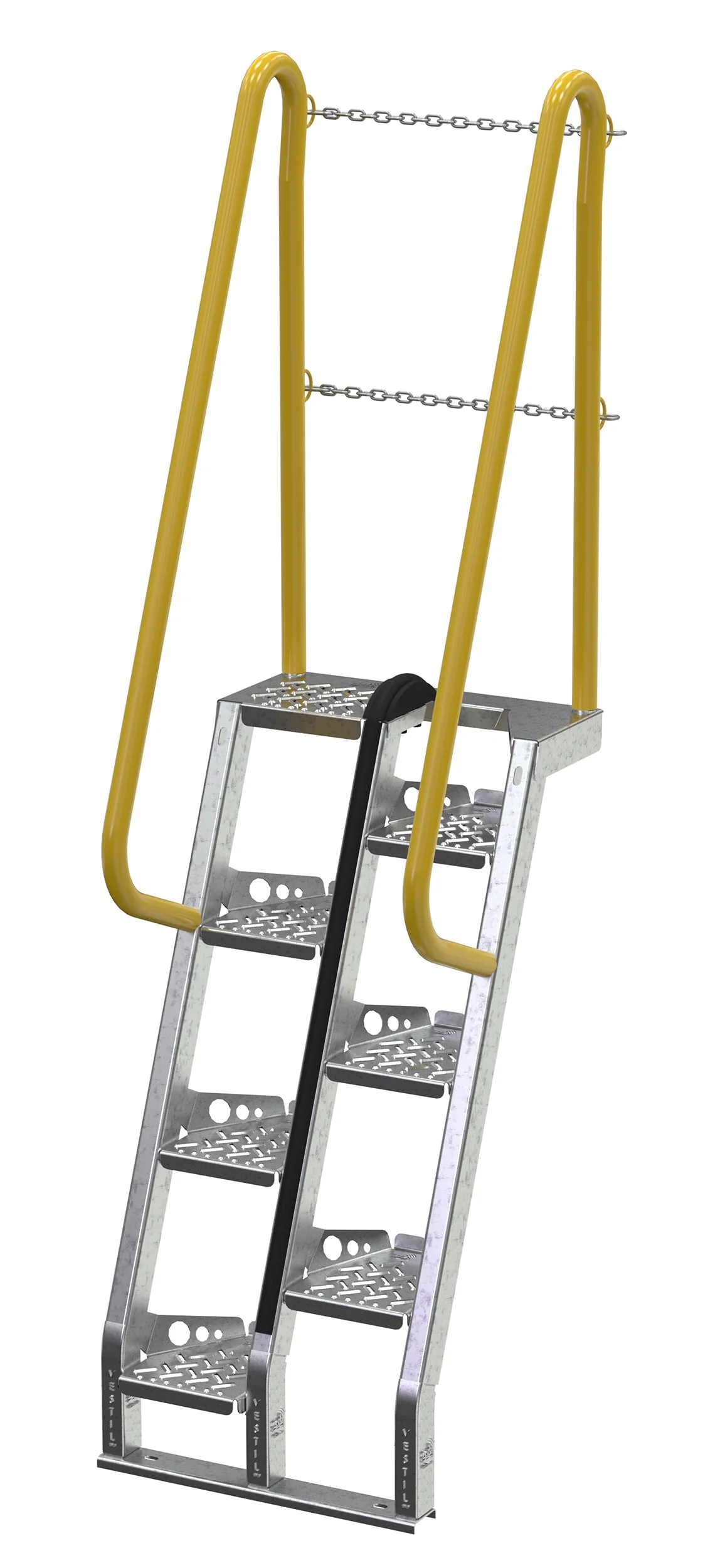

Product image 28

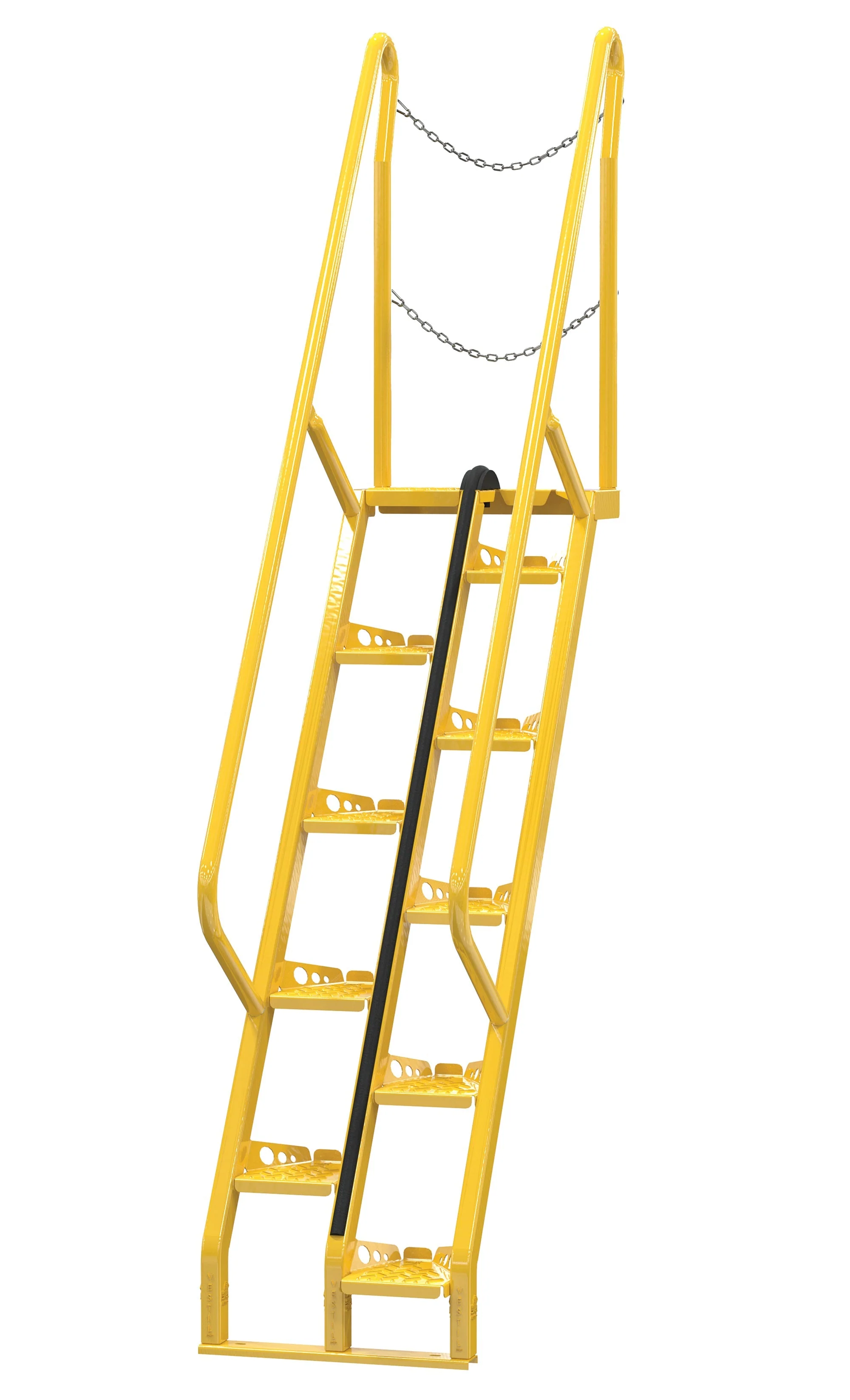

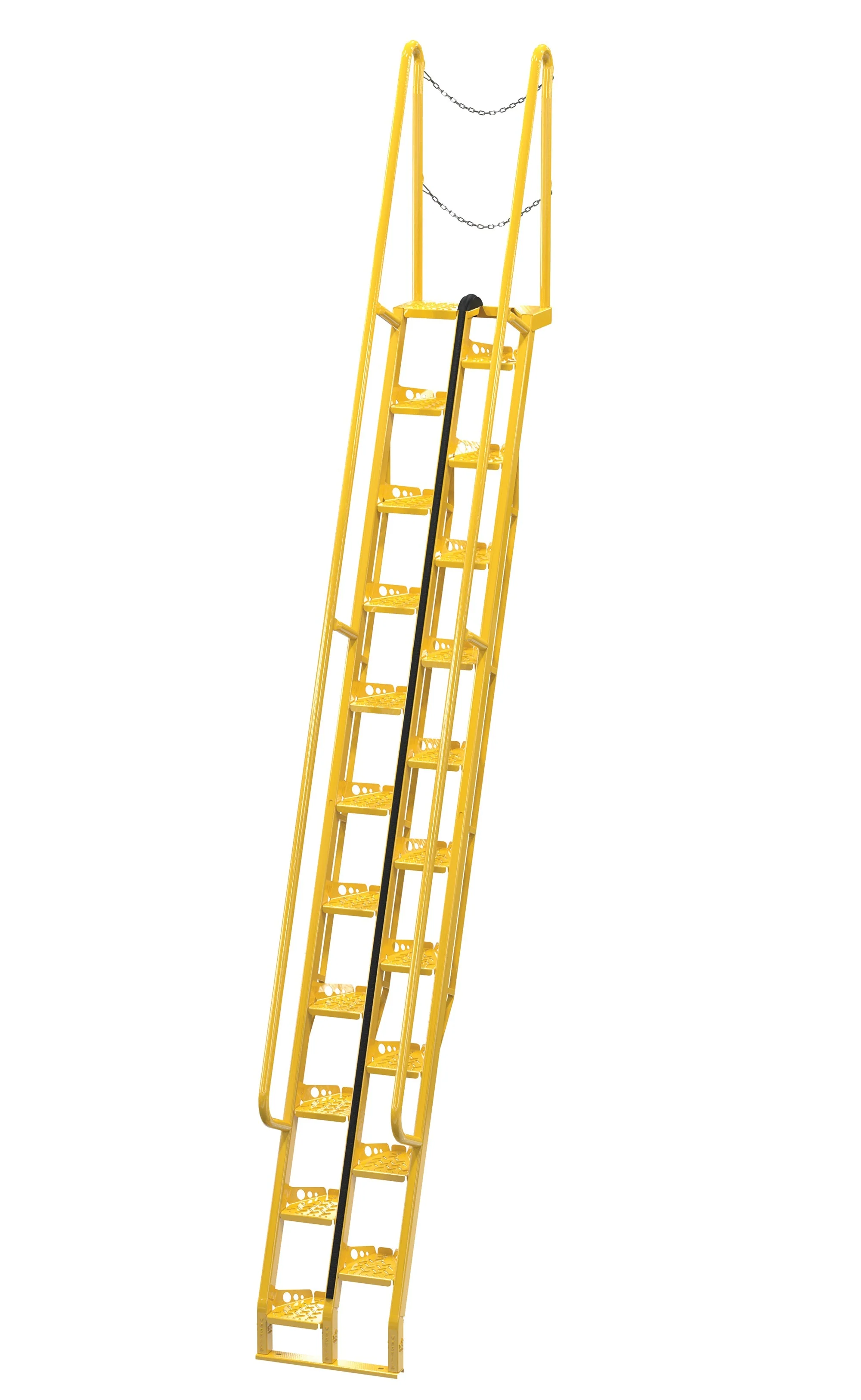

Product image 29

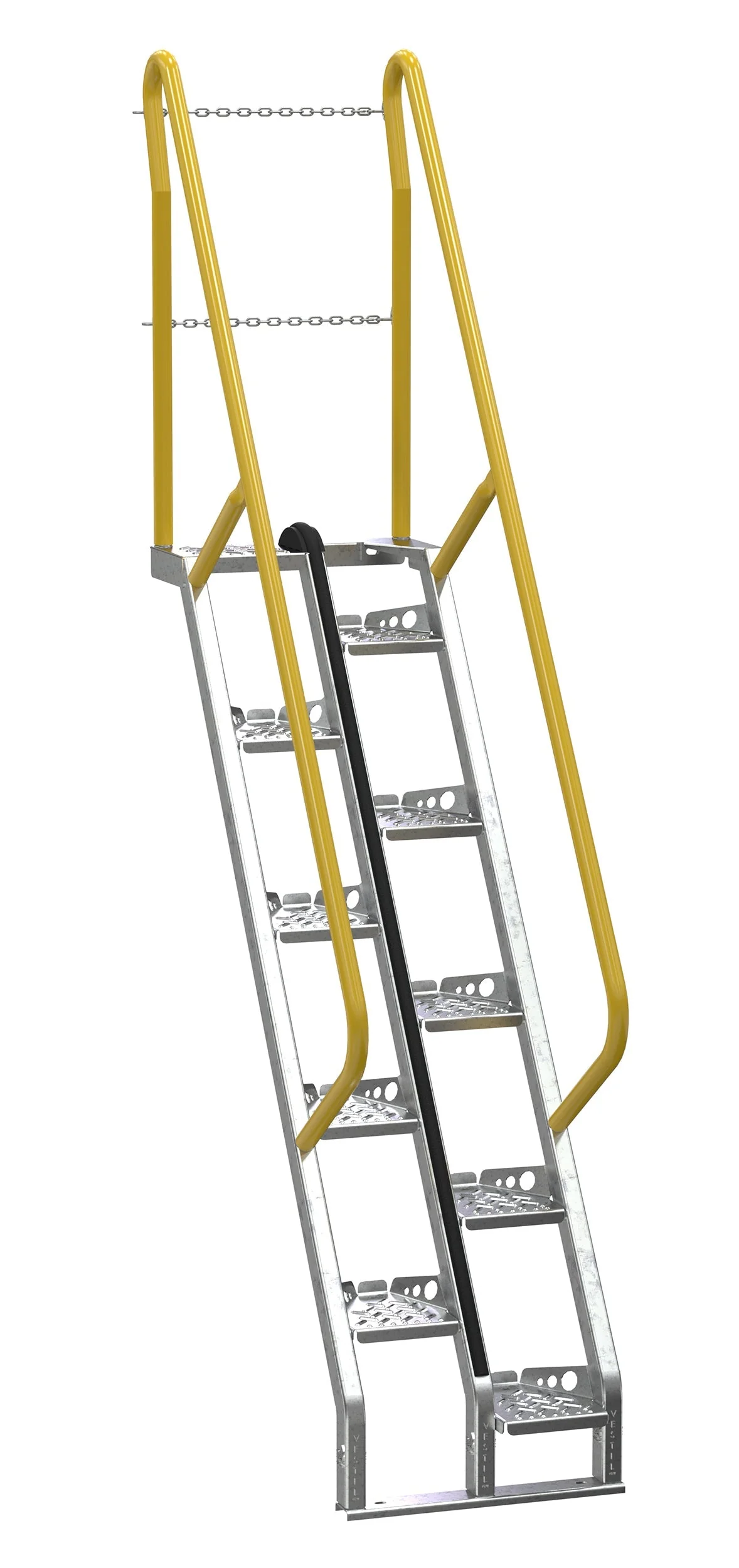

Product image 30

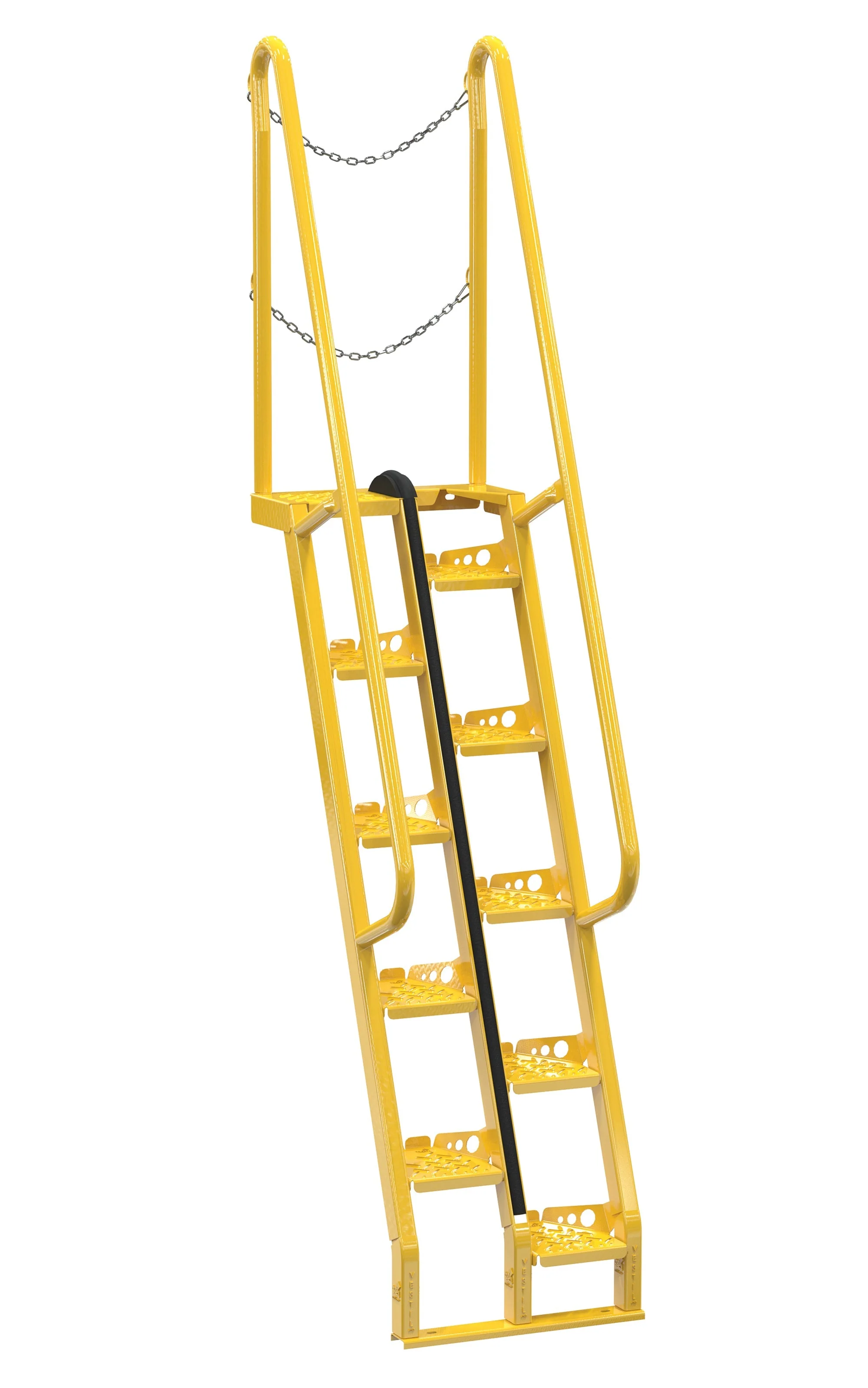

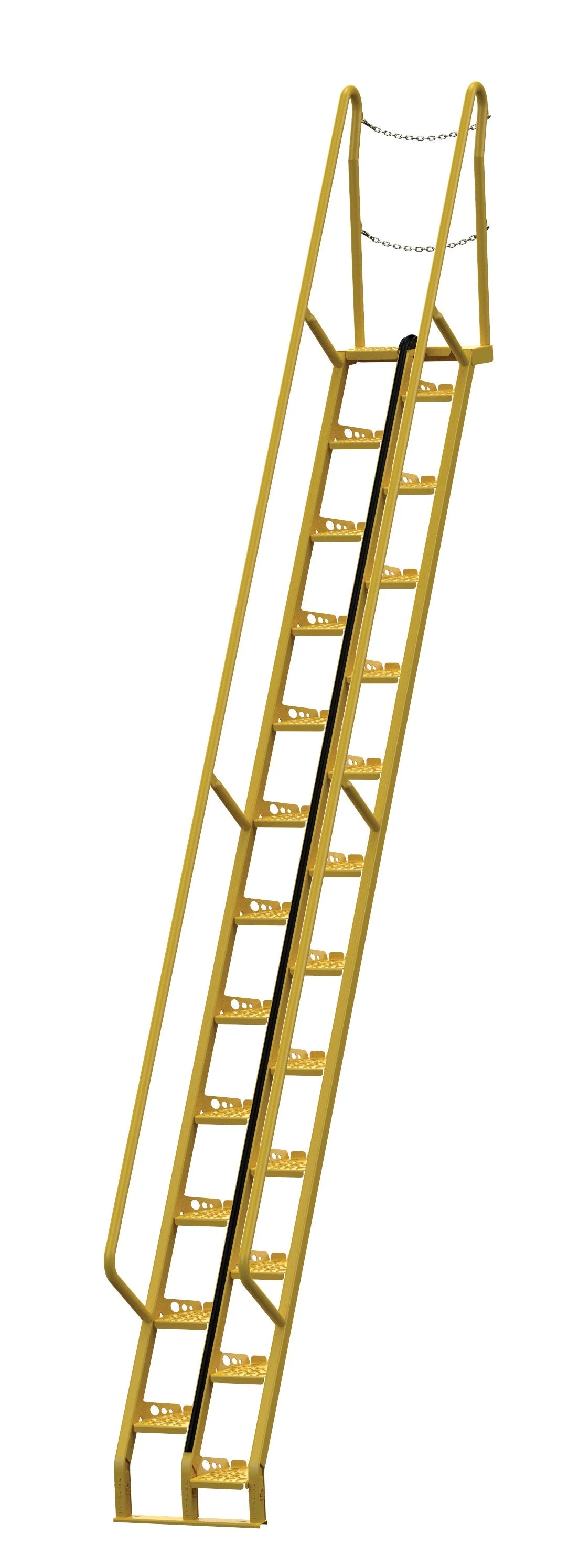

Product image 31

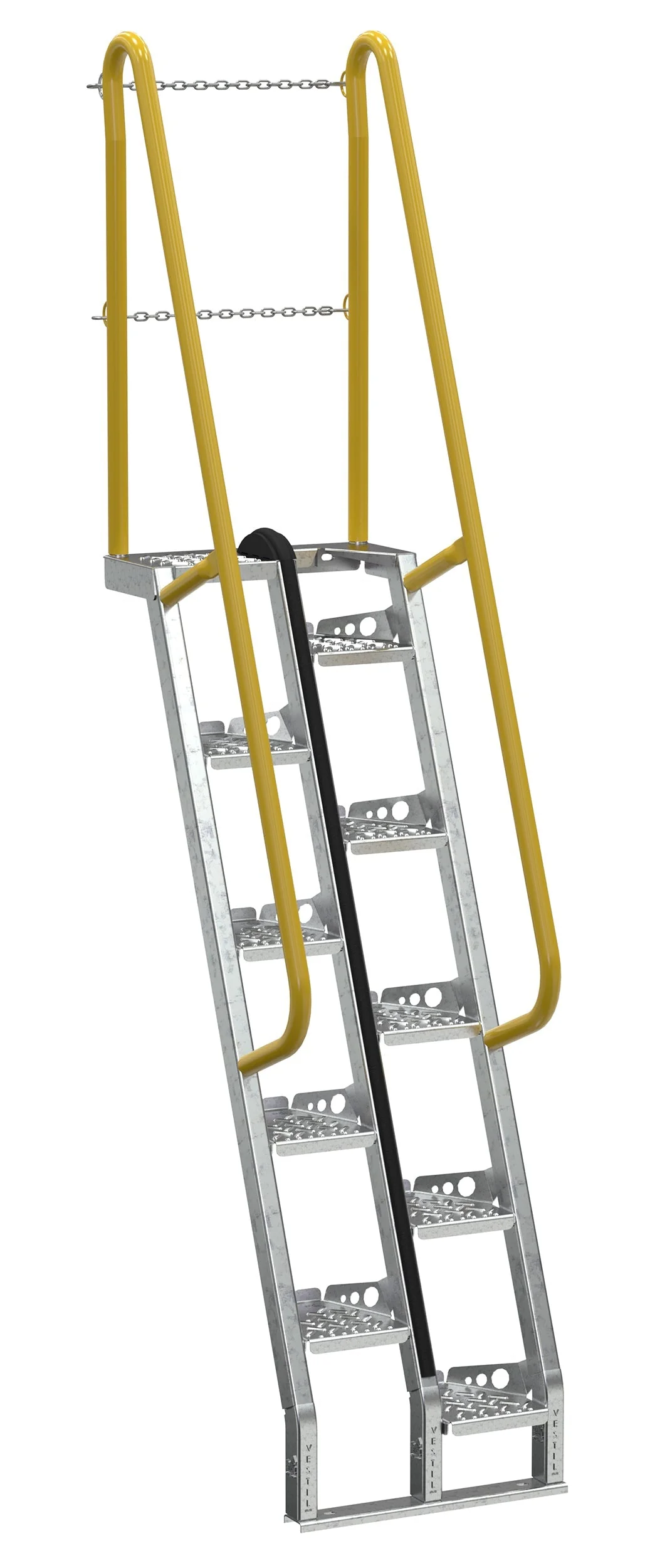

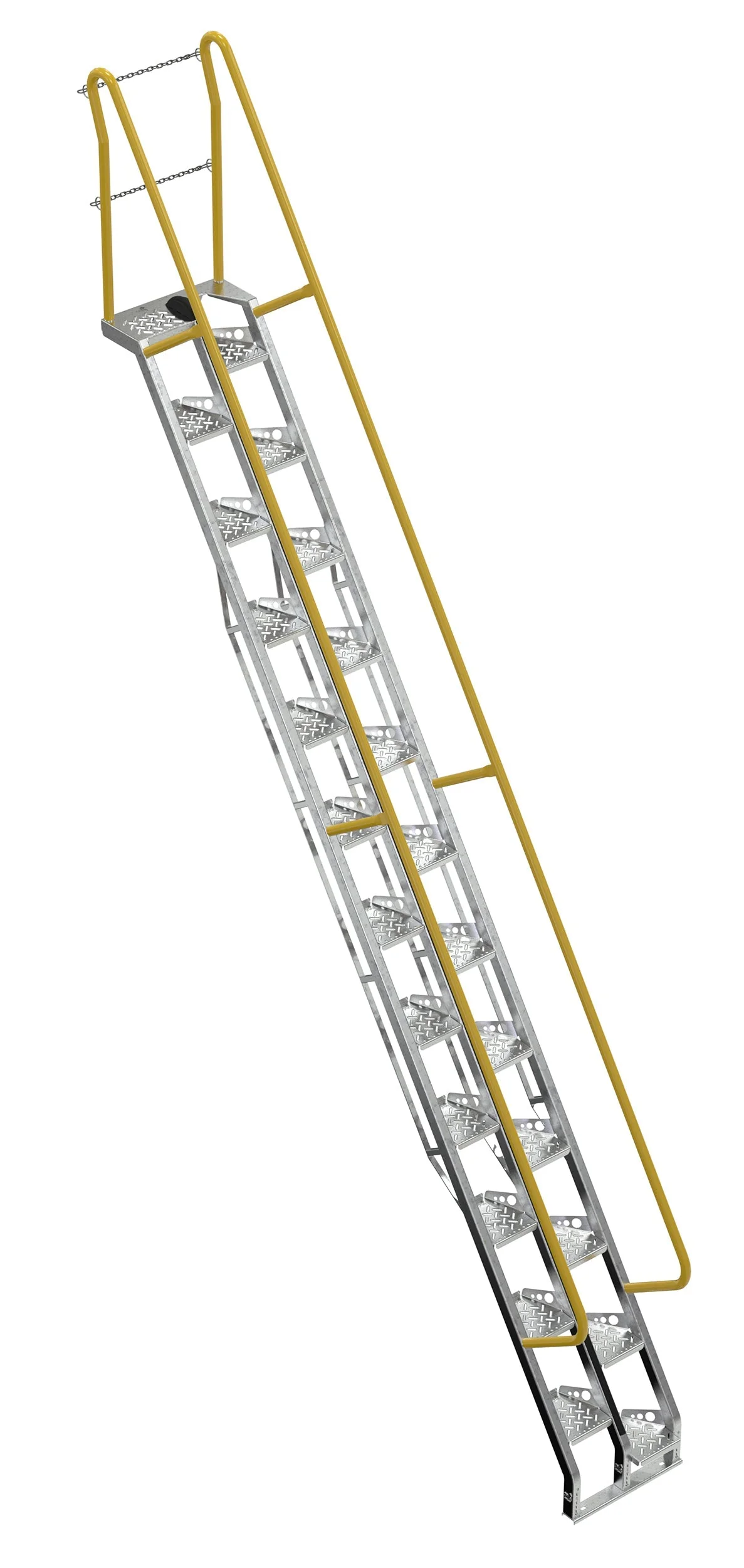

Product image 32

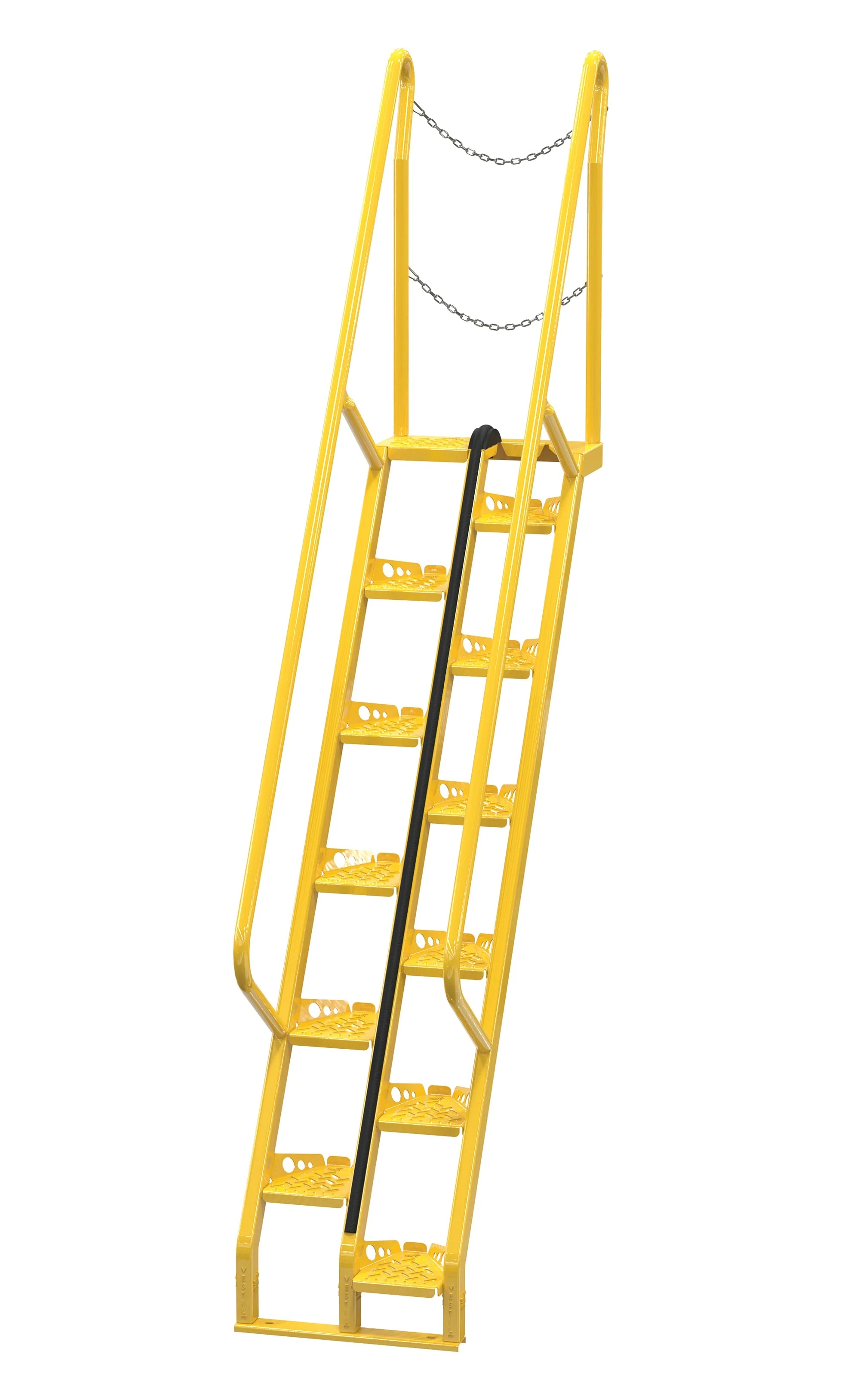

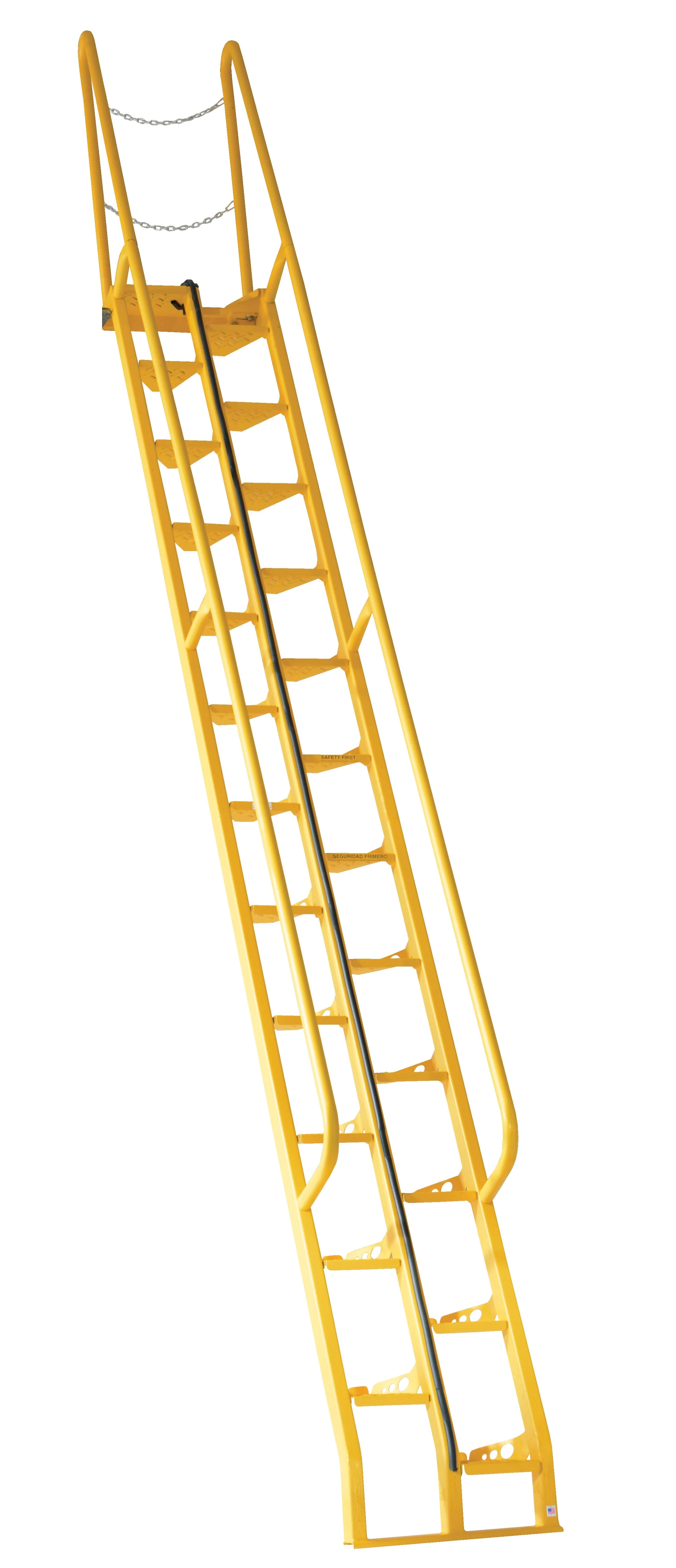

Product image 33
Product image 34

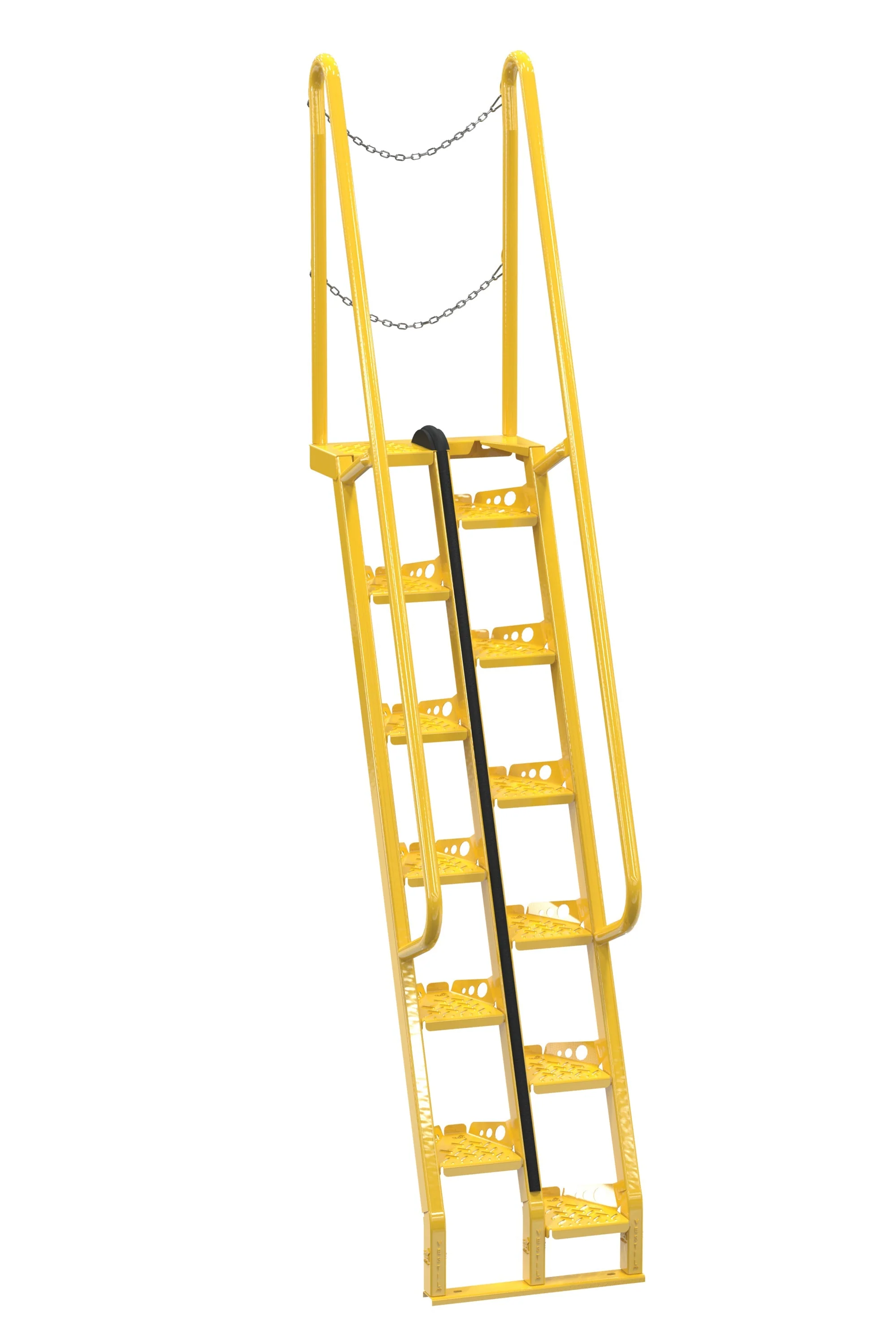

Product image 35

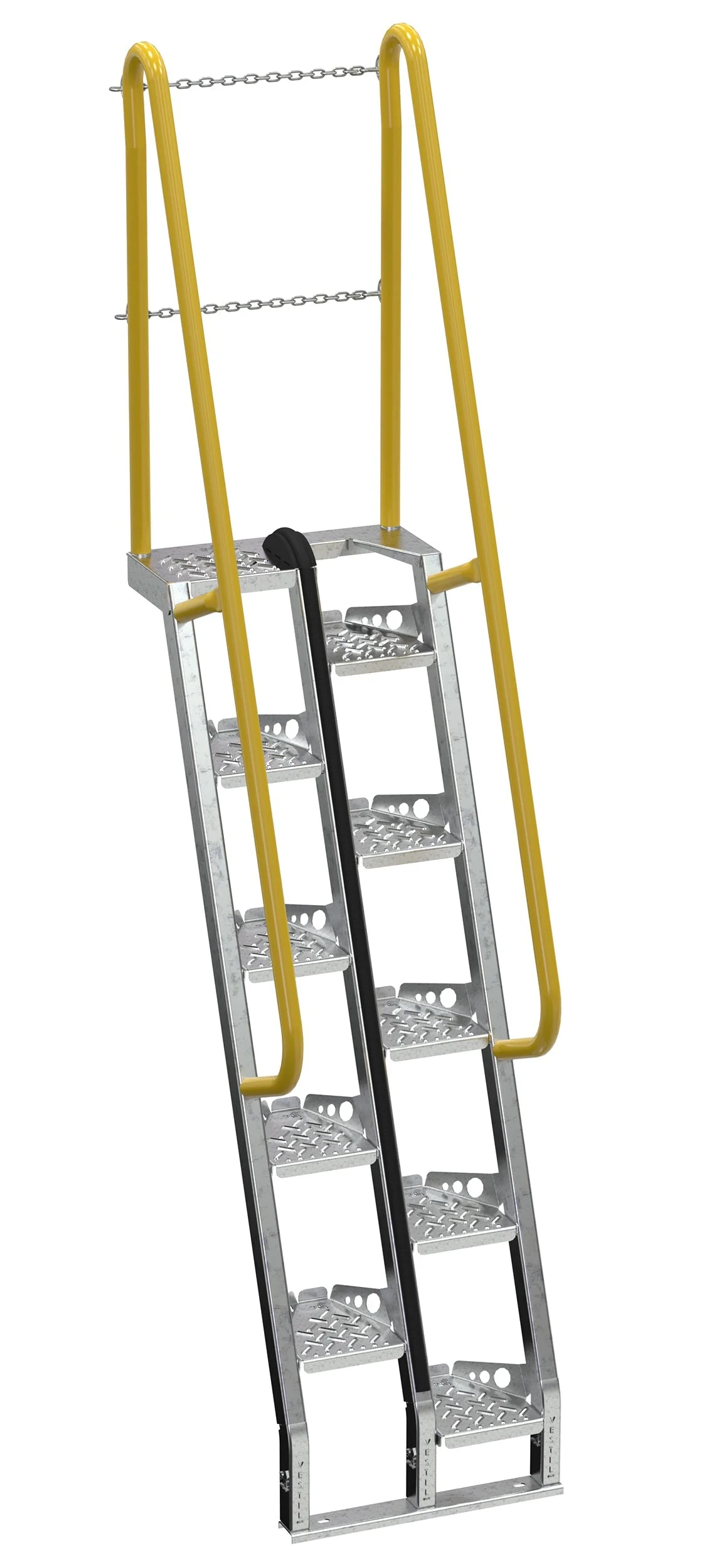

Product image 36

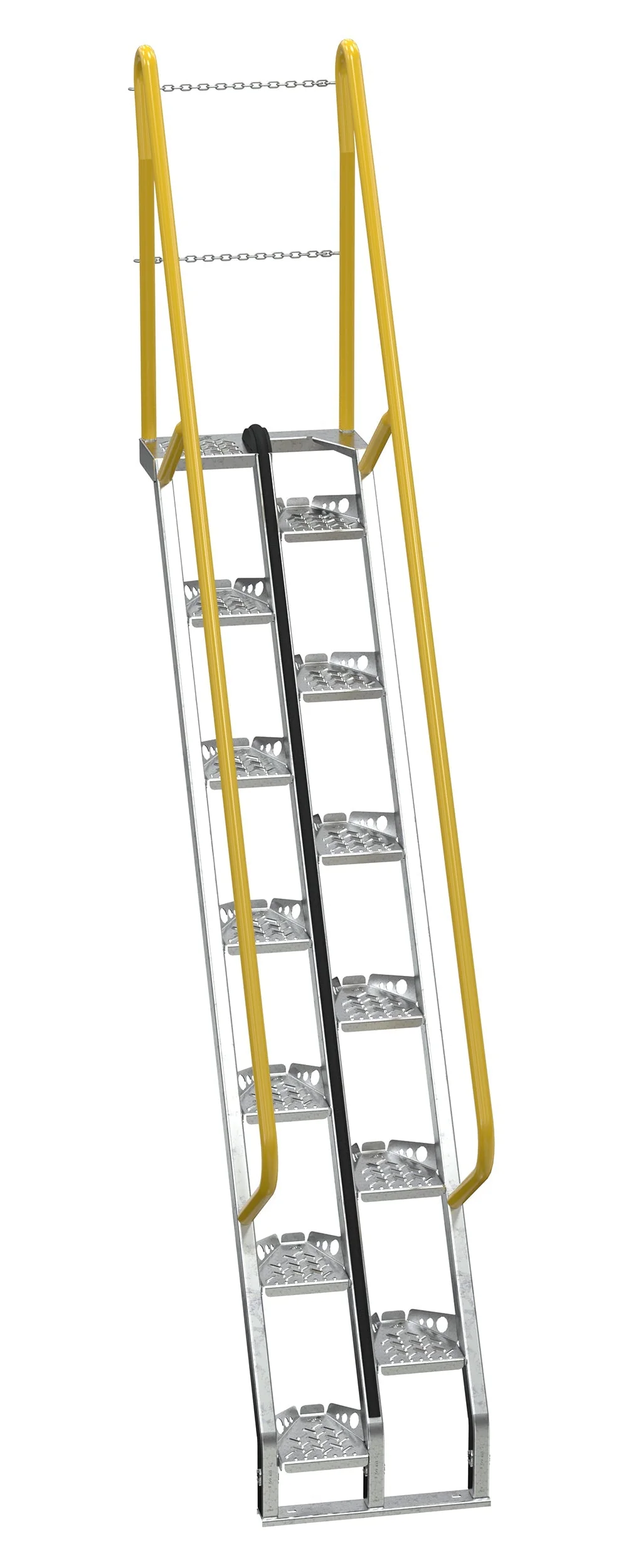

Product image 37

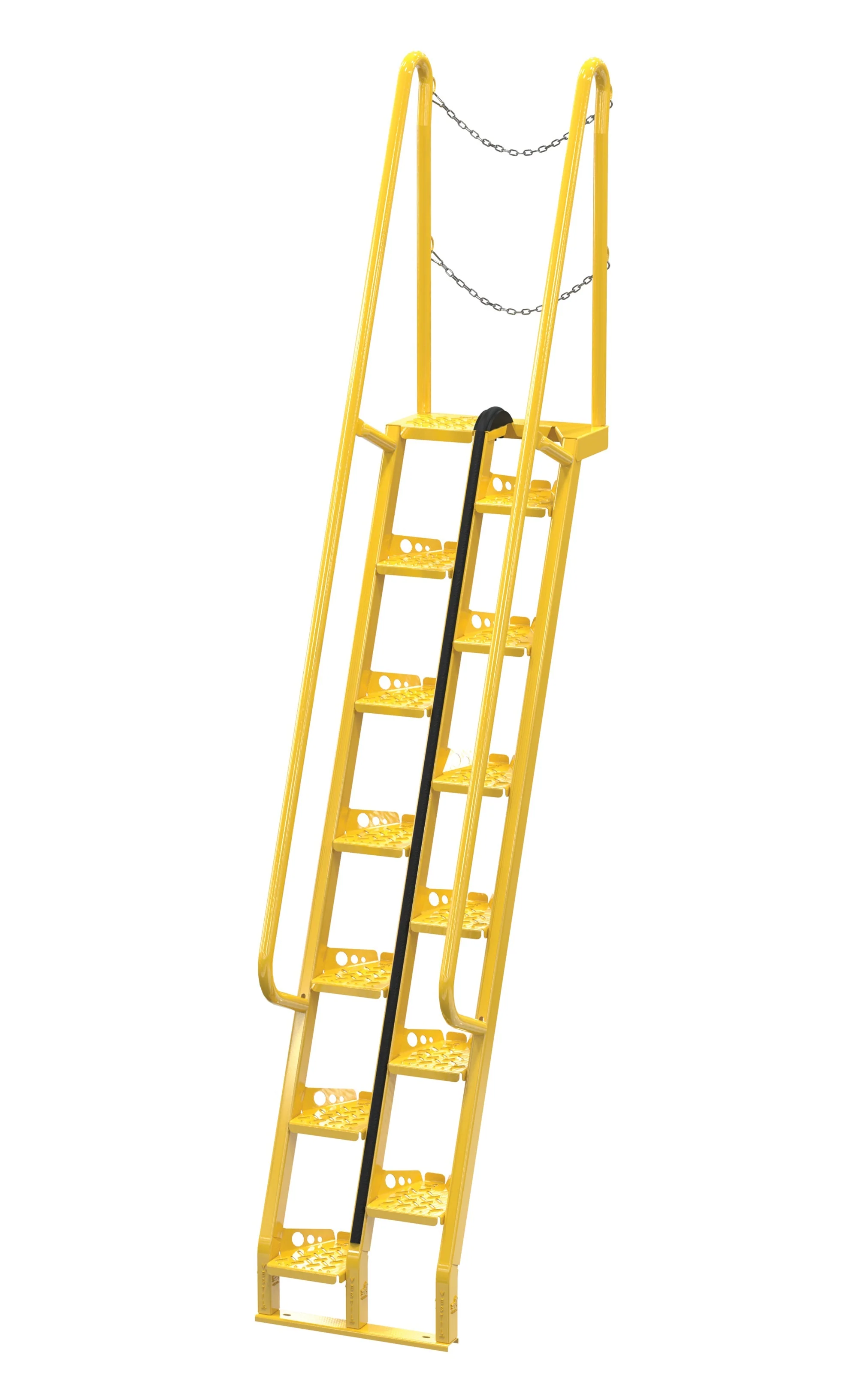

Product image 38

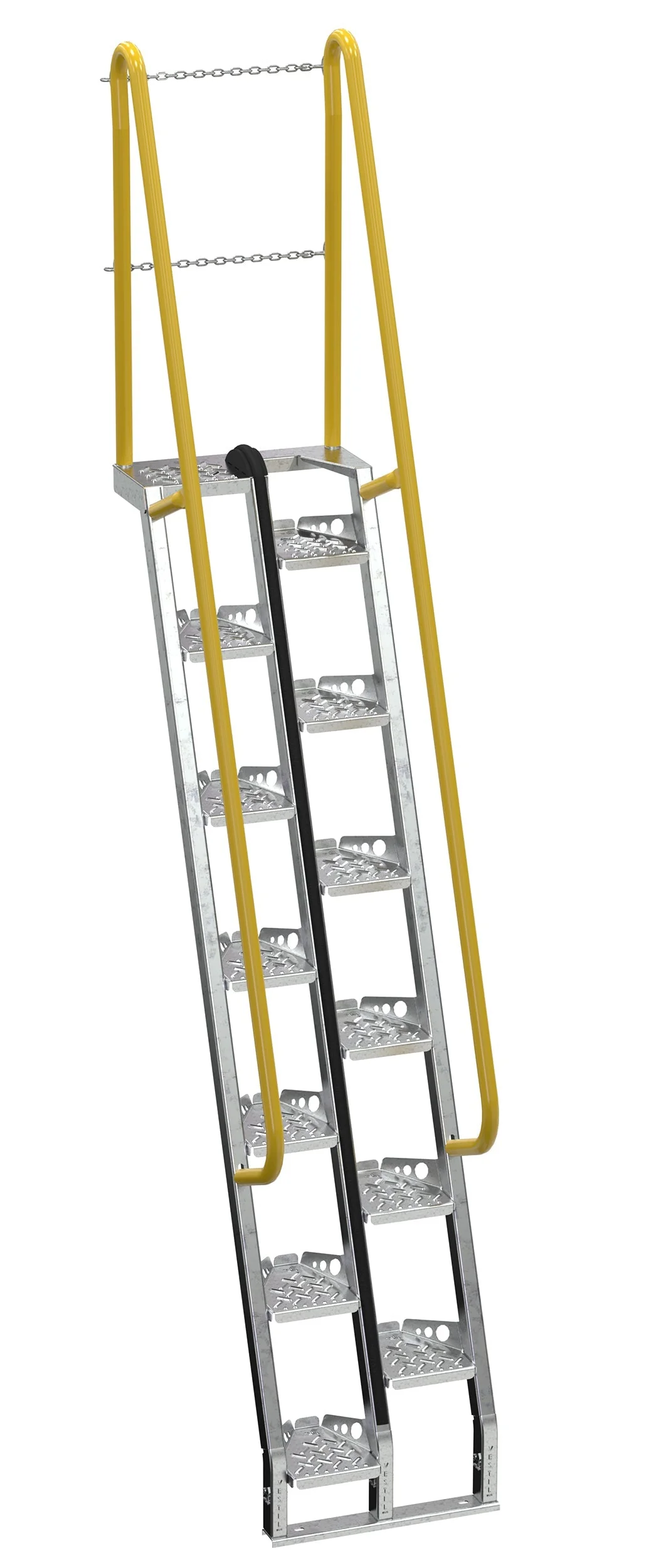

Product image 39
Product image 40

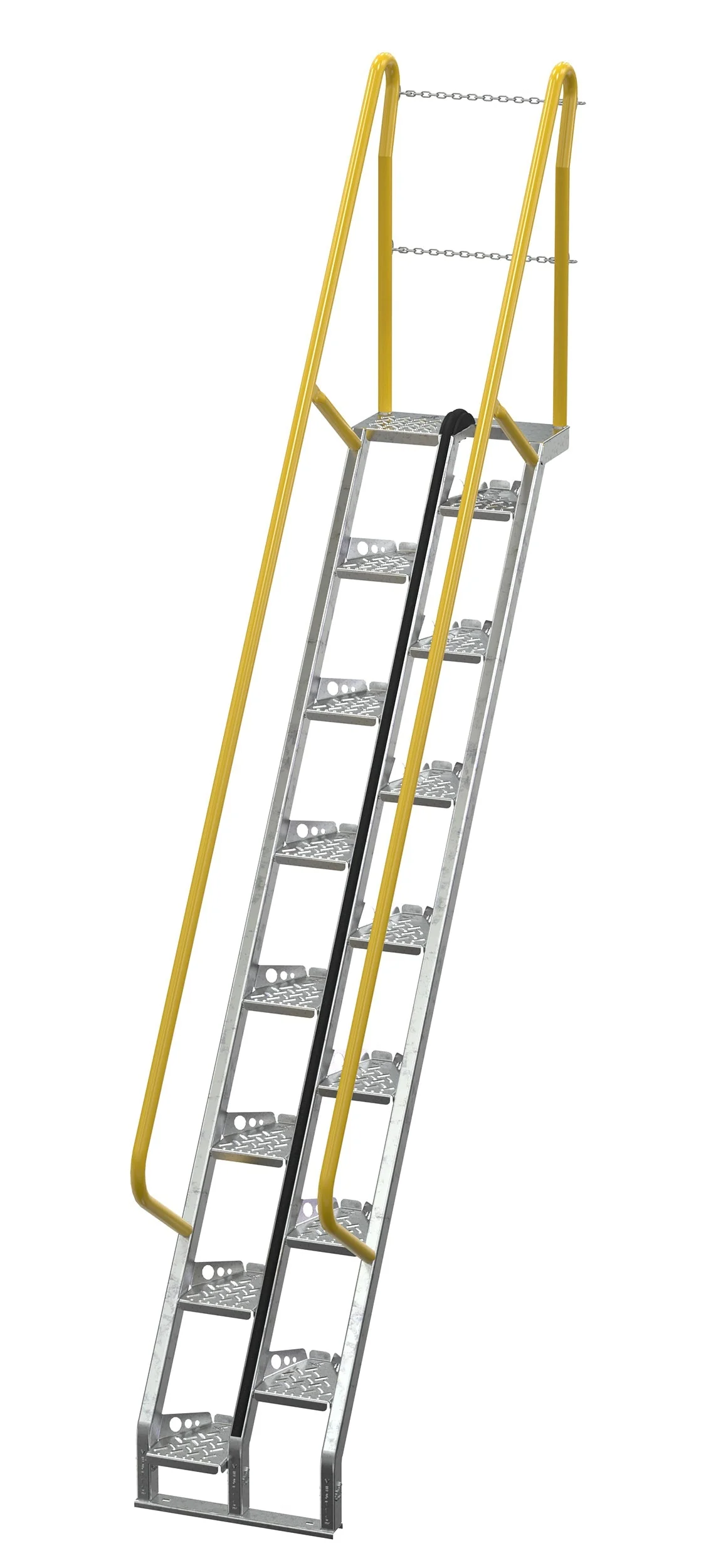

Product image 41

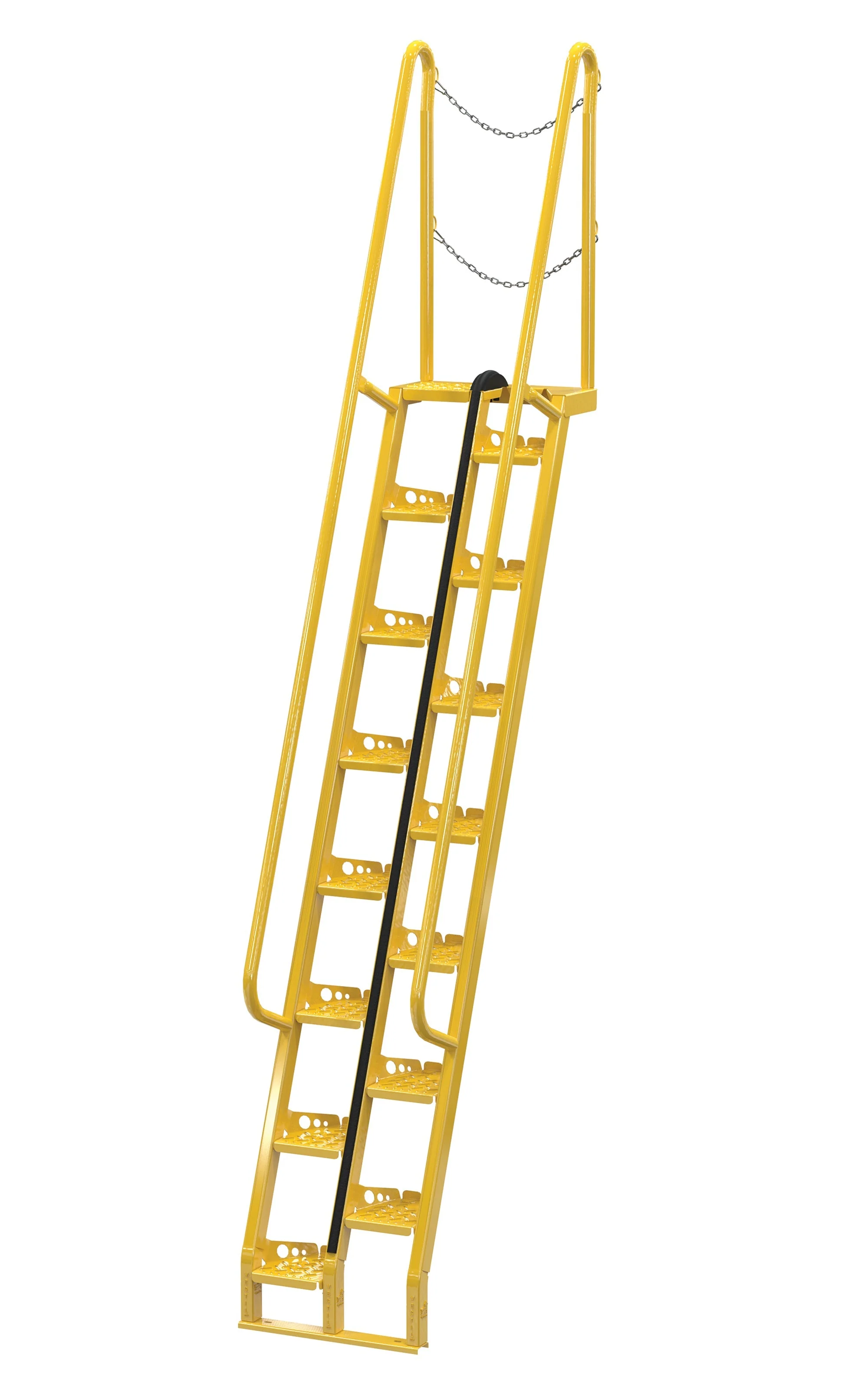

Product image 42

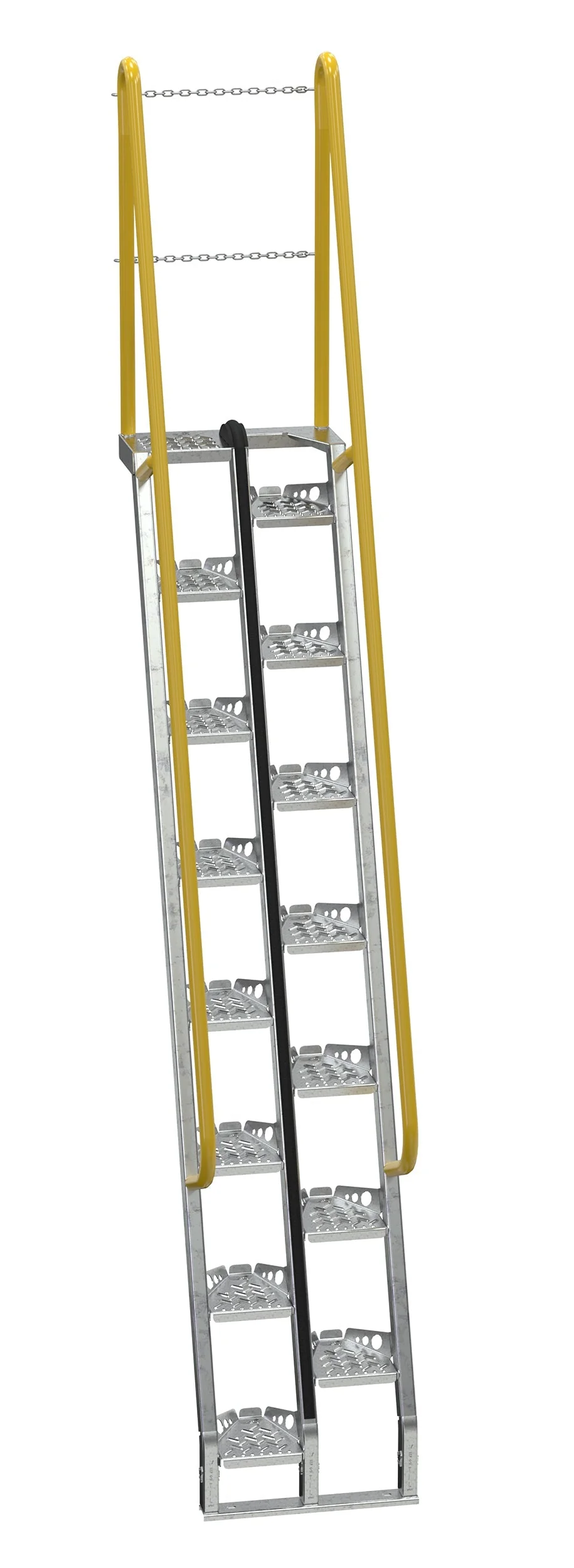

Product image 43

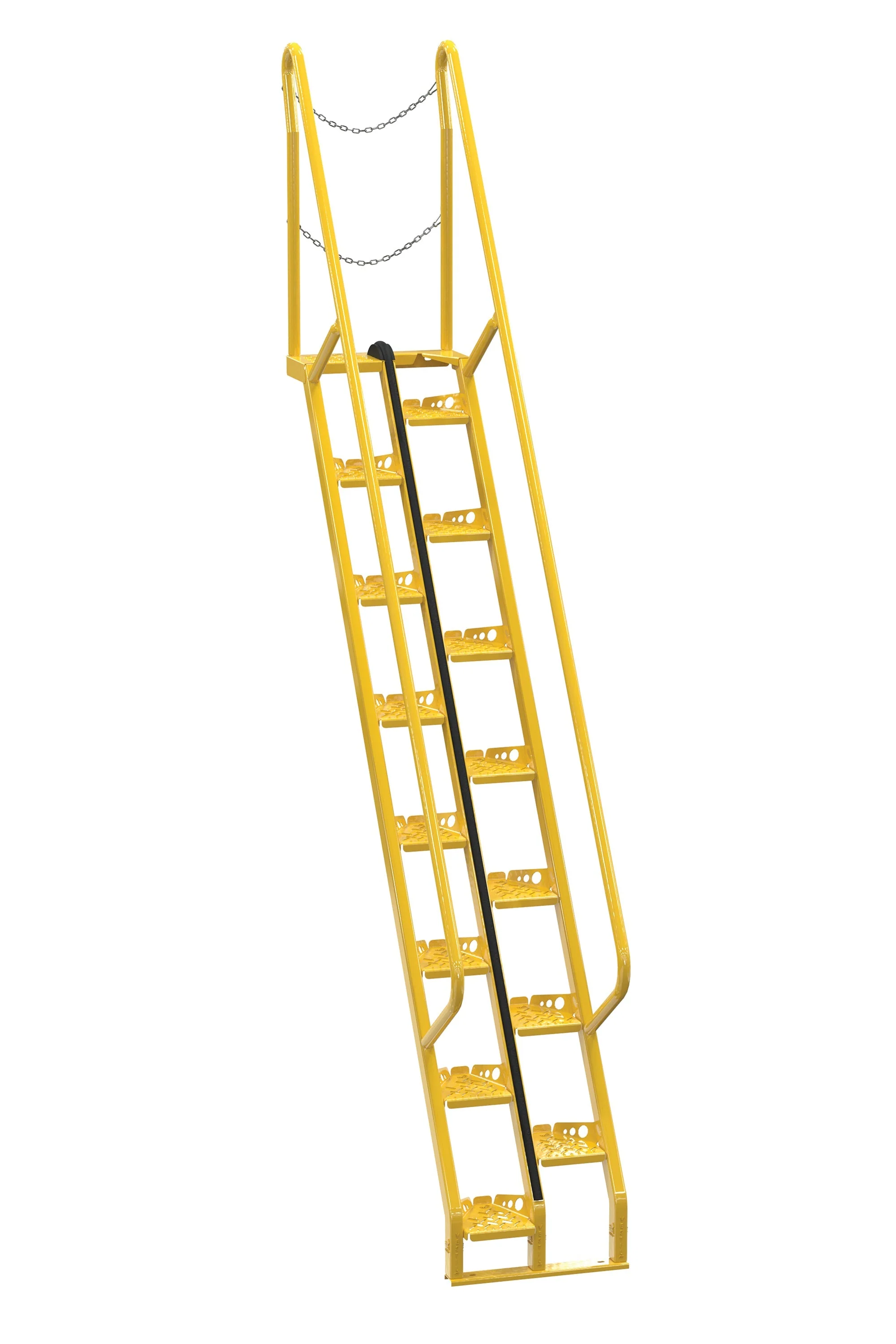

Description
