Vestil Aluminum Economizer Dockplates

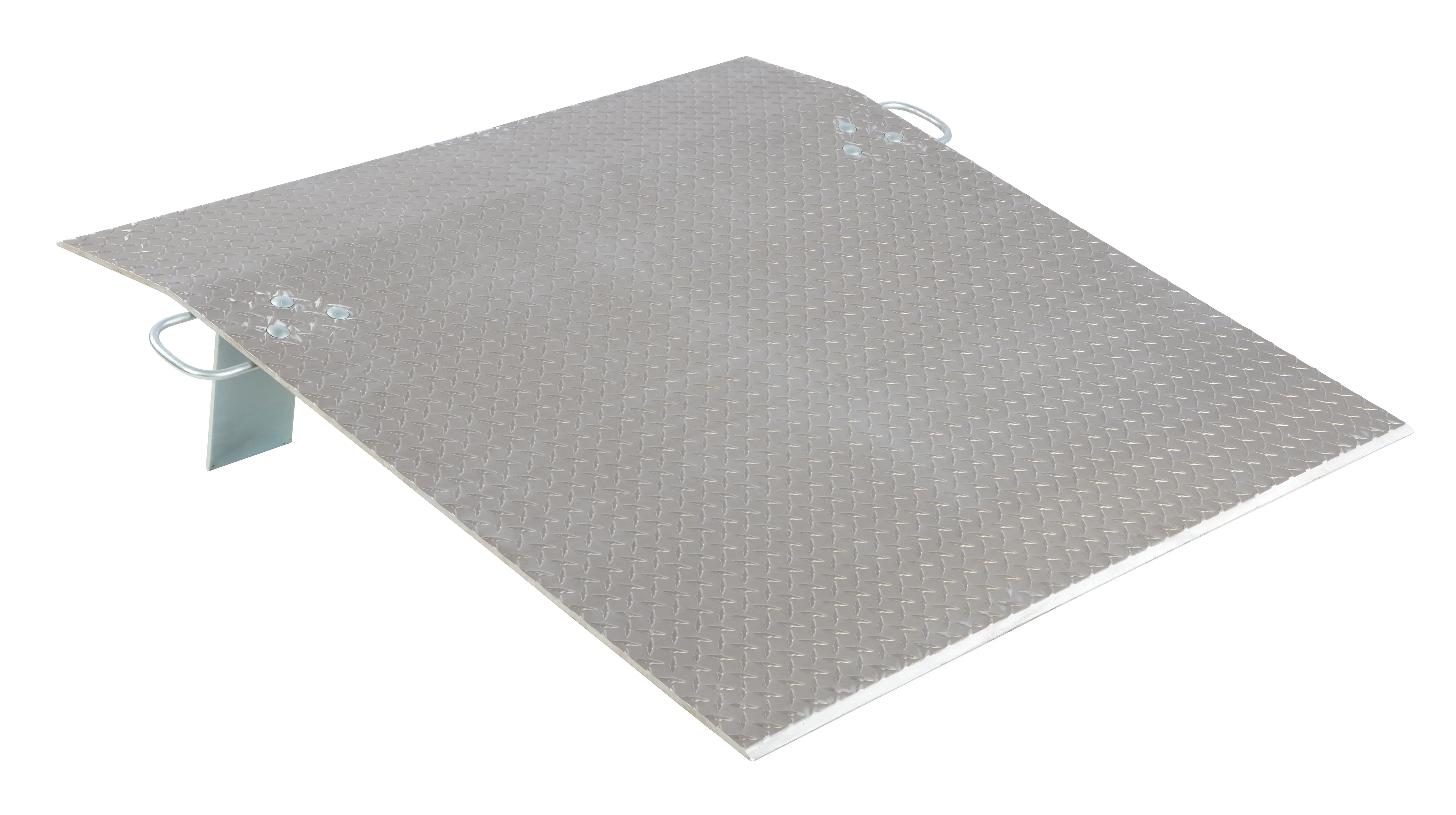

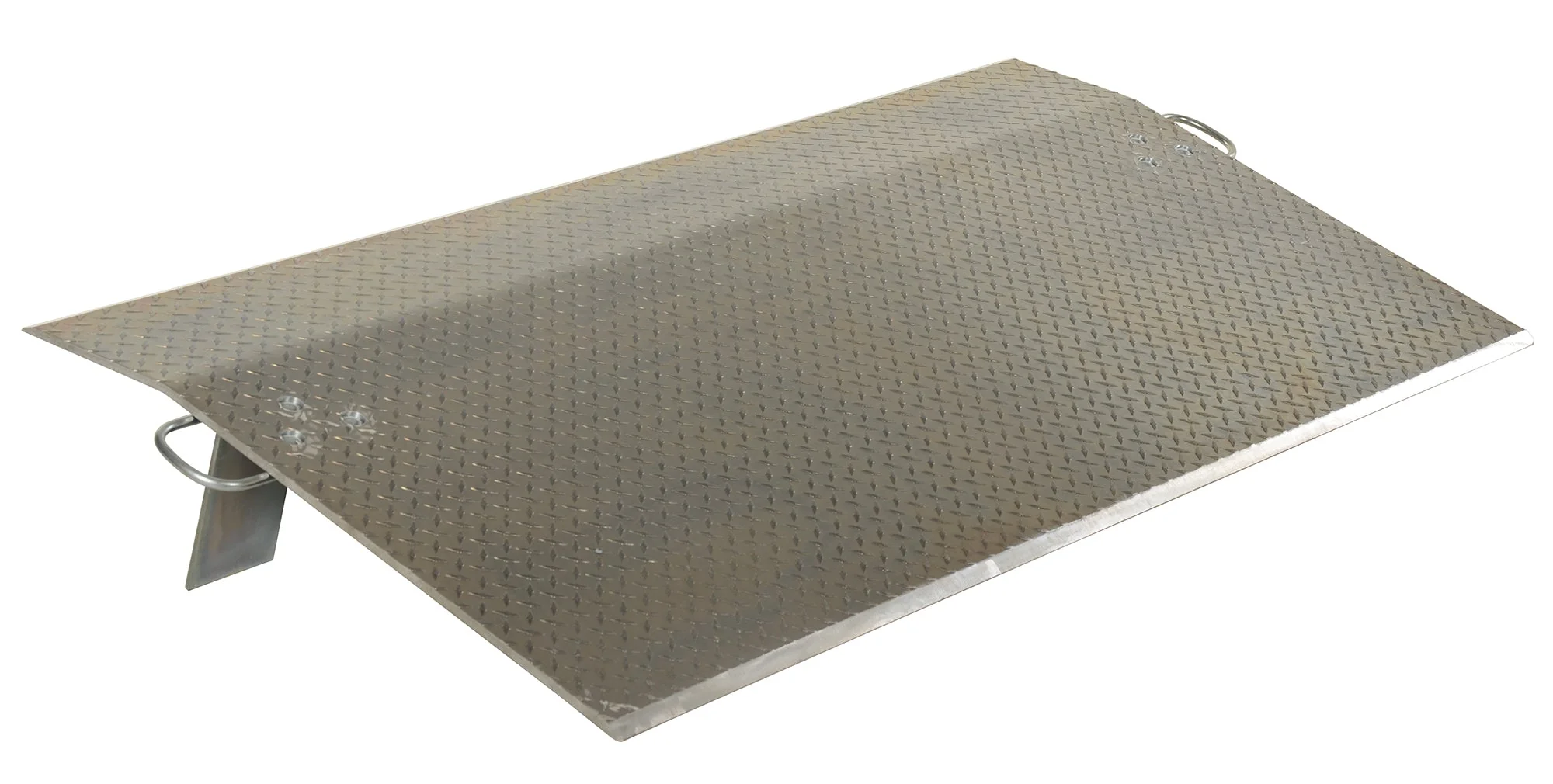

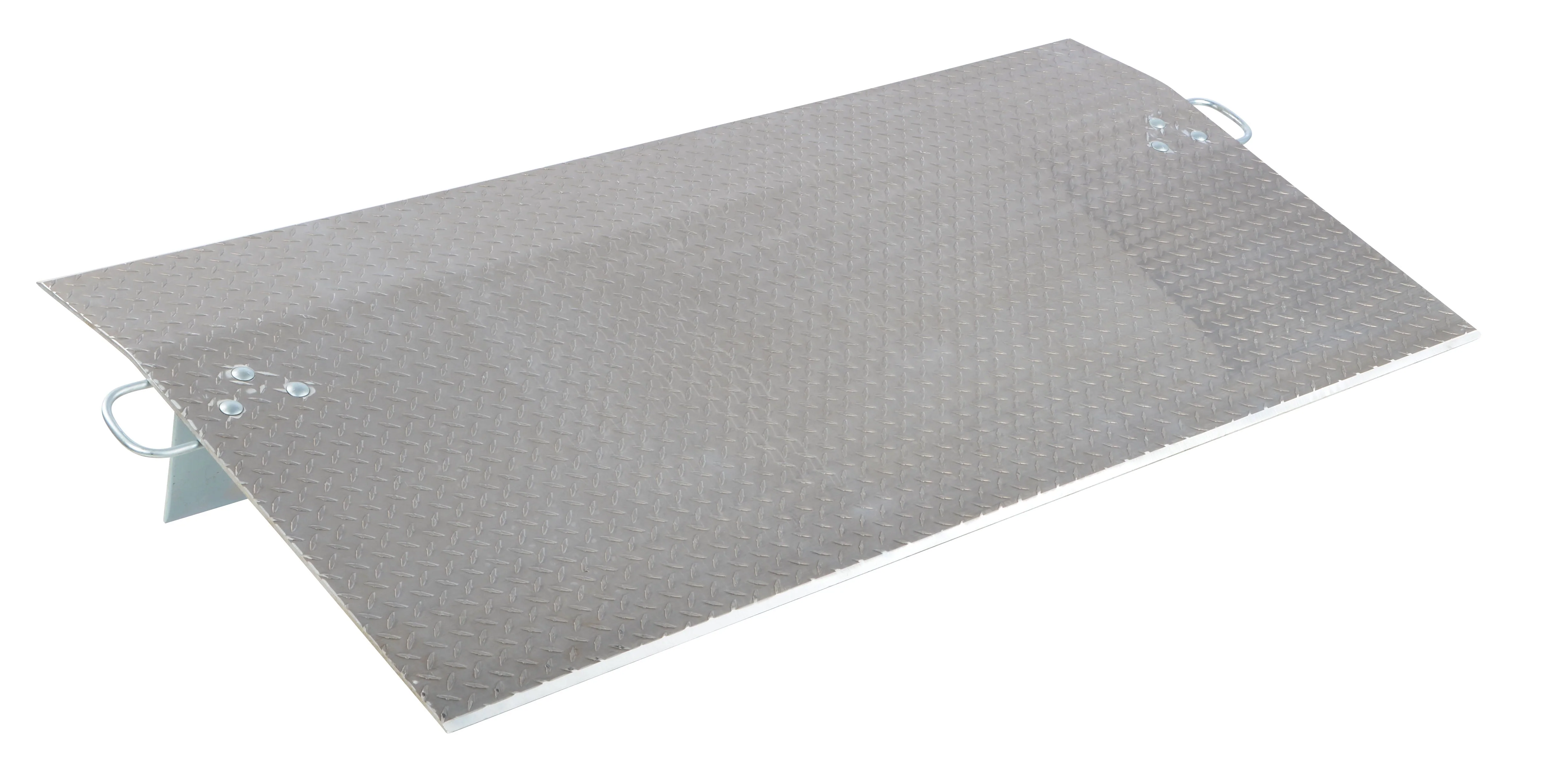

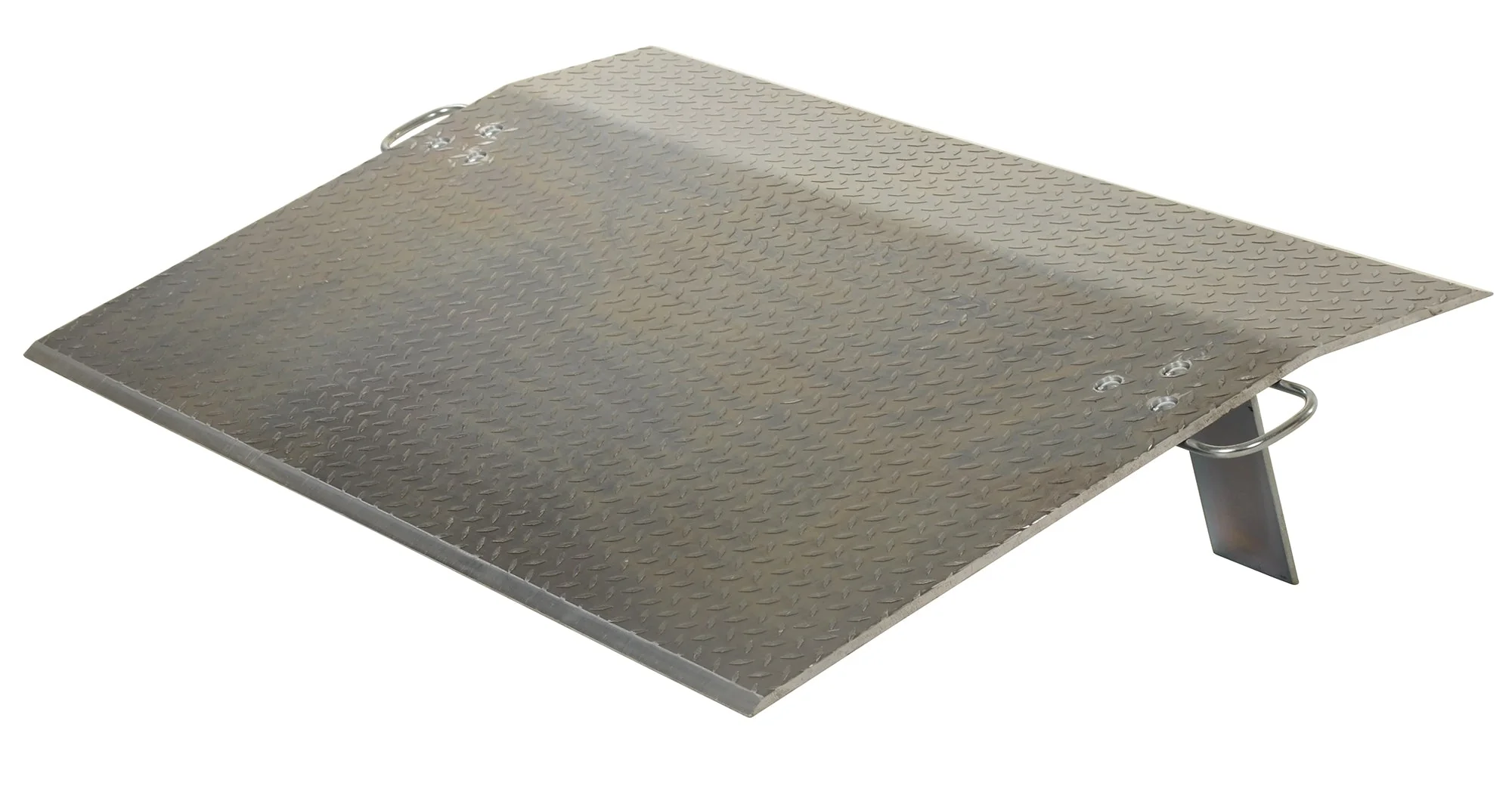

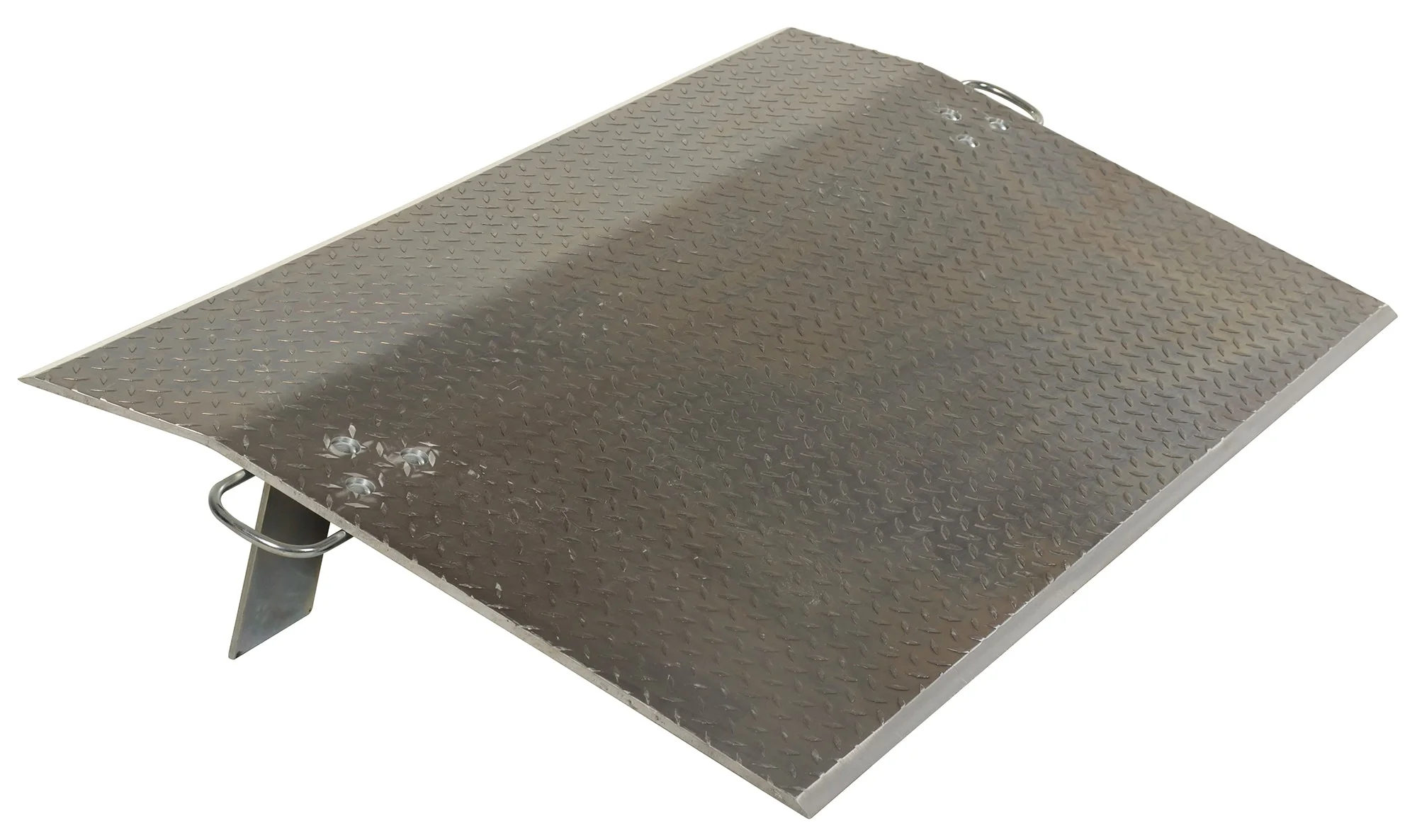

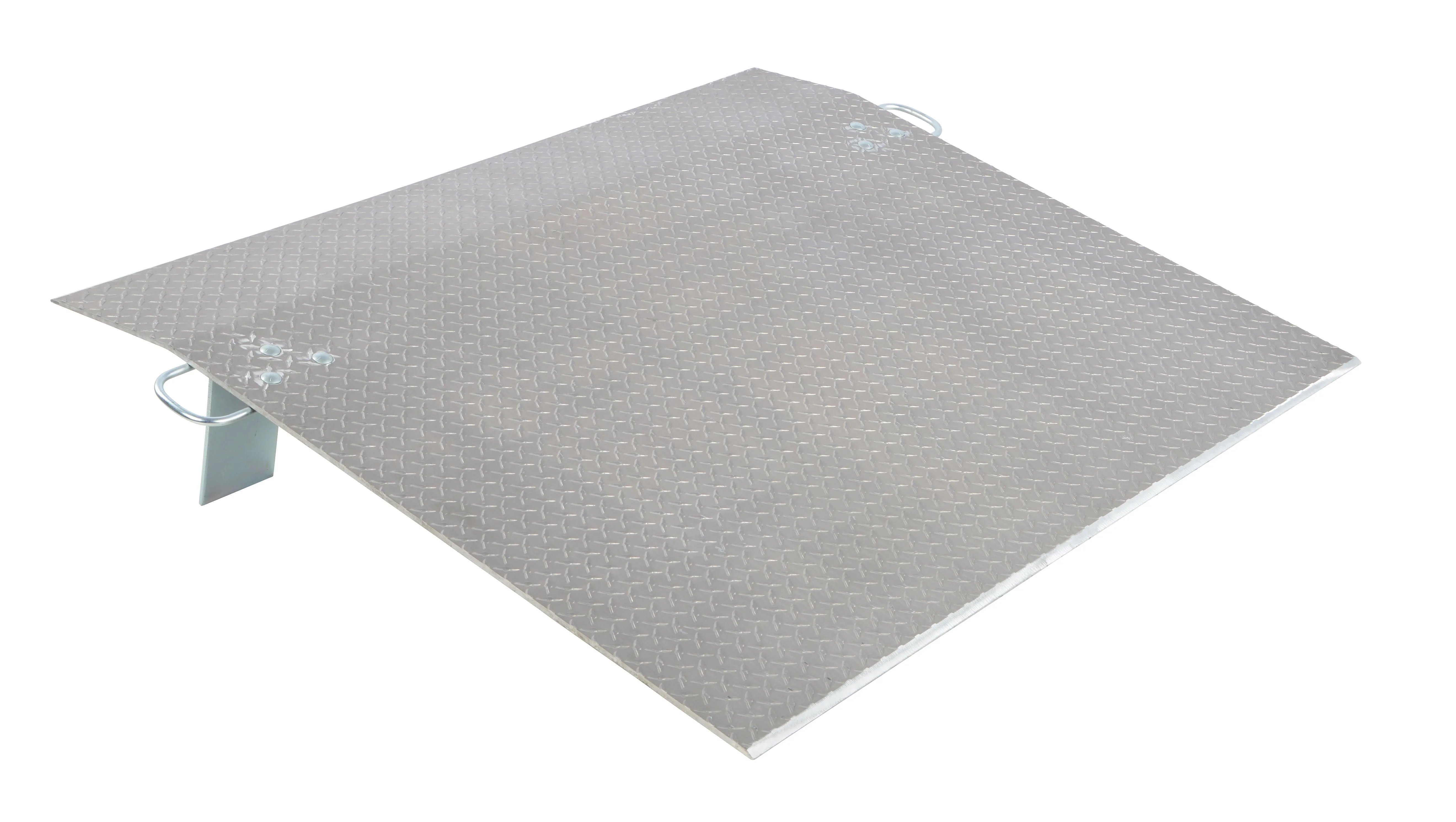

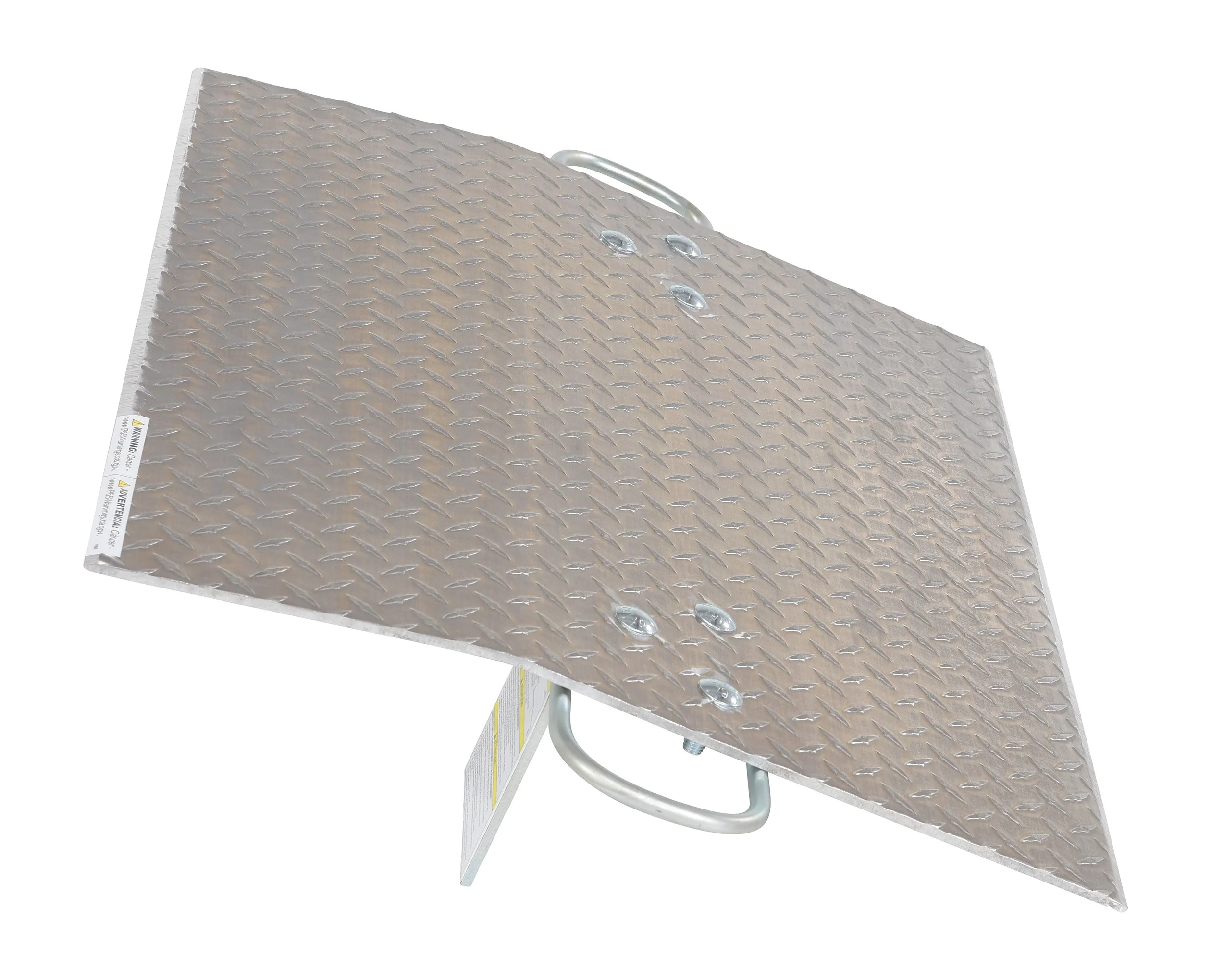

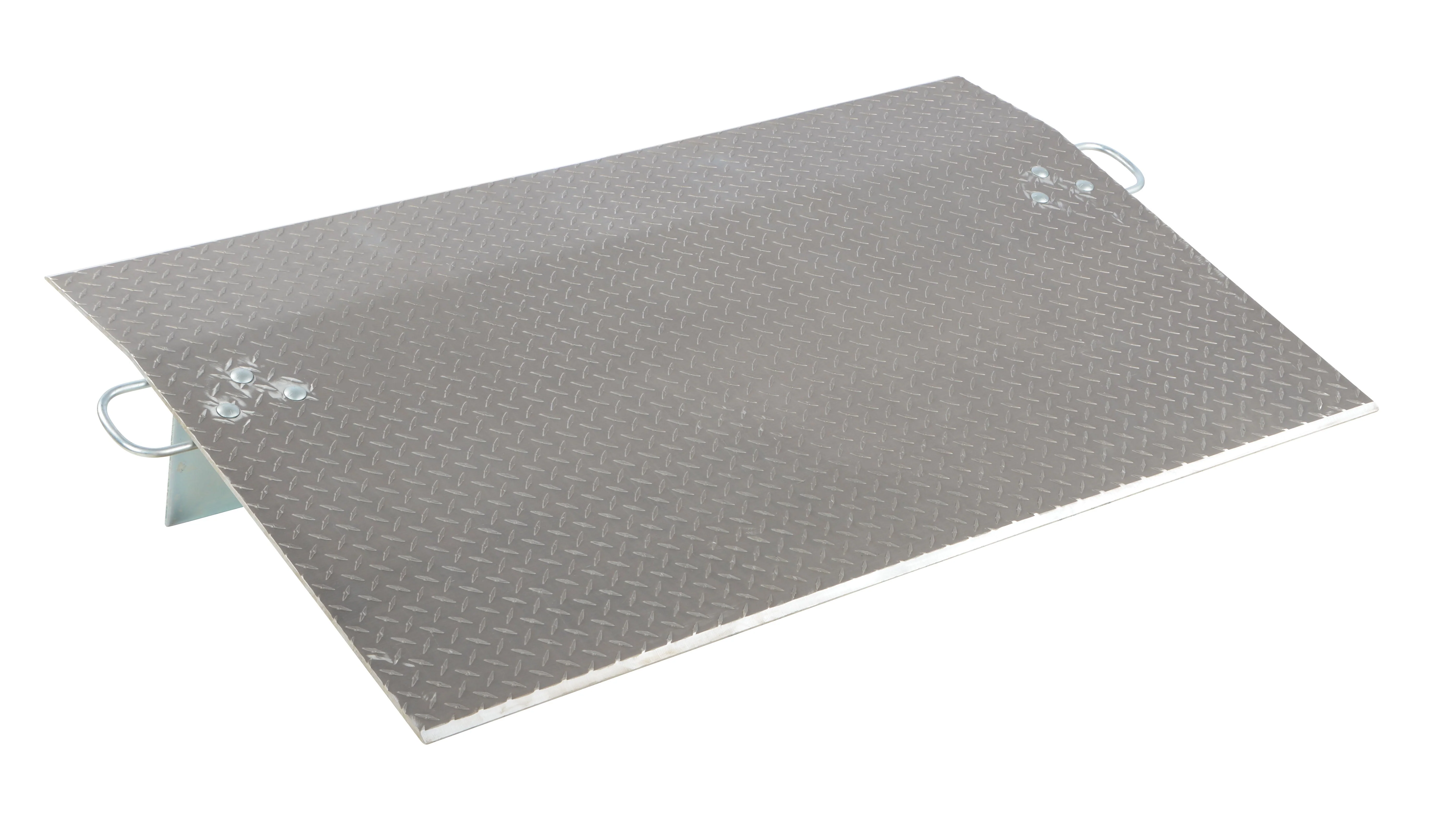

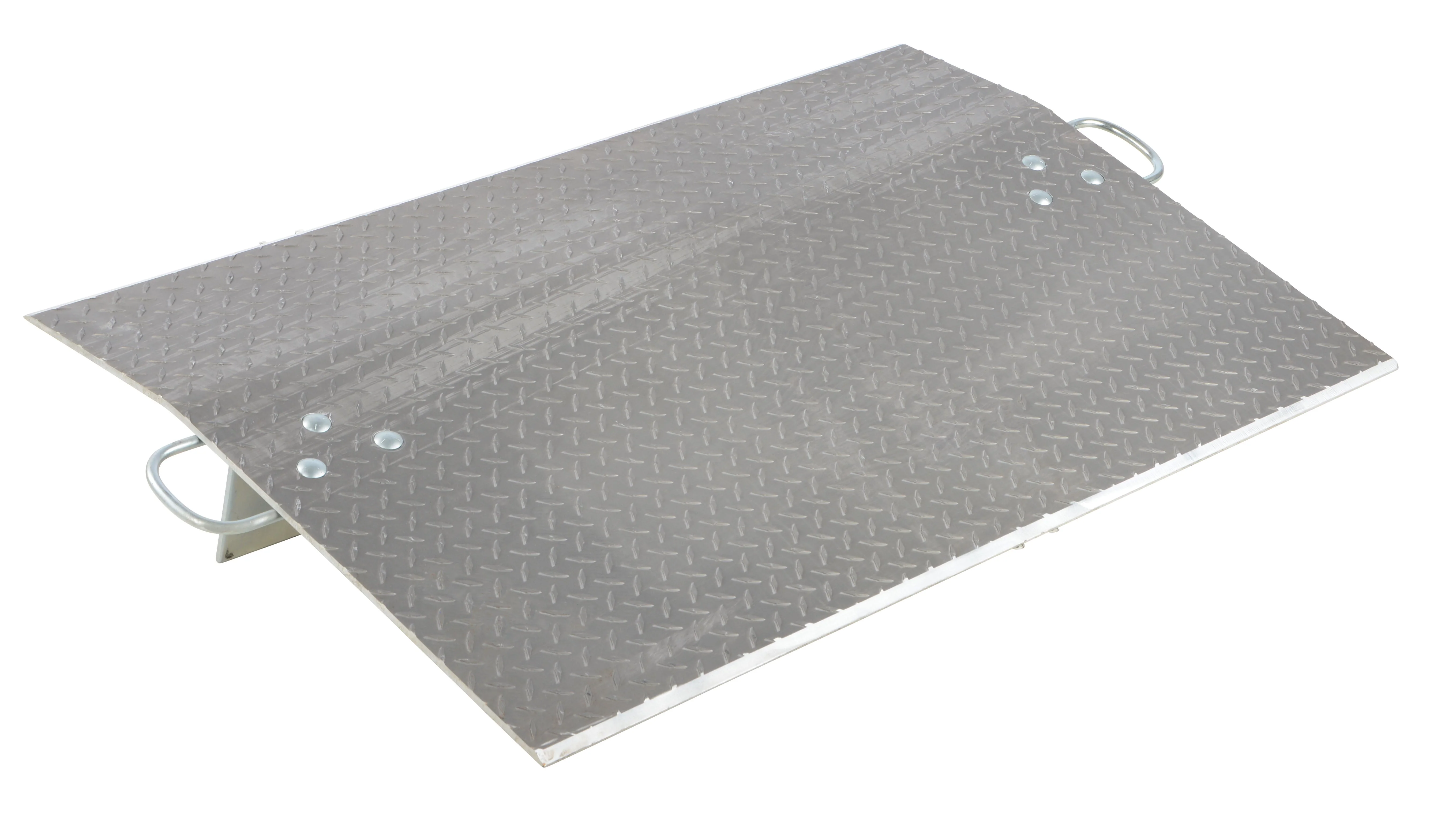

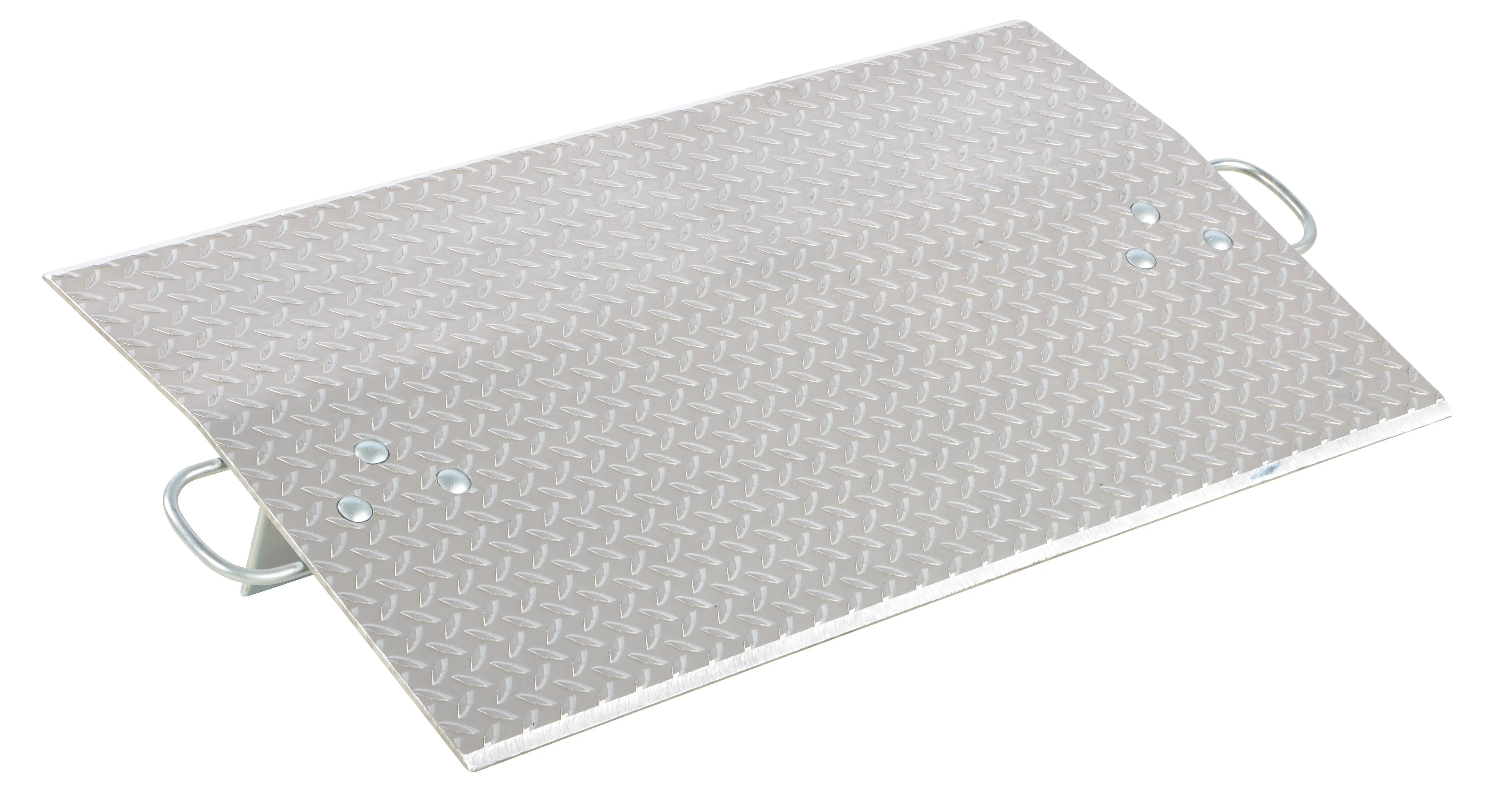

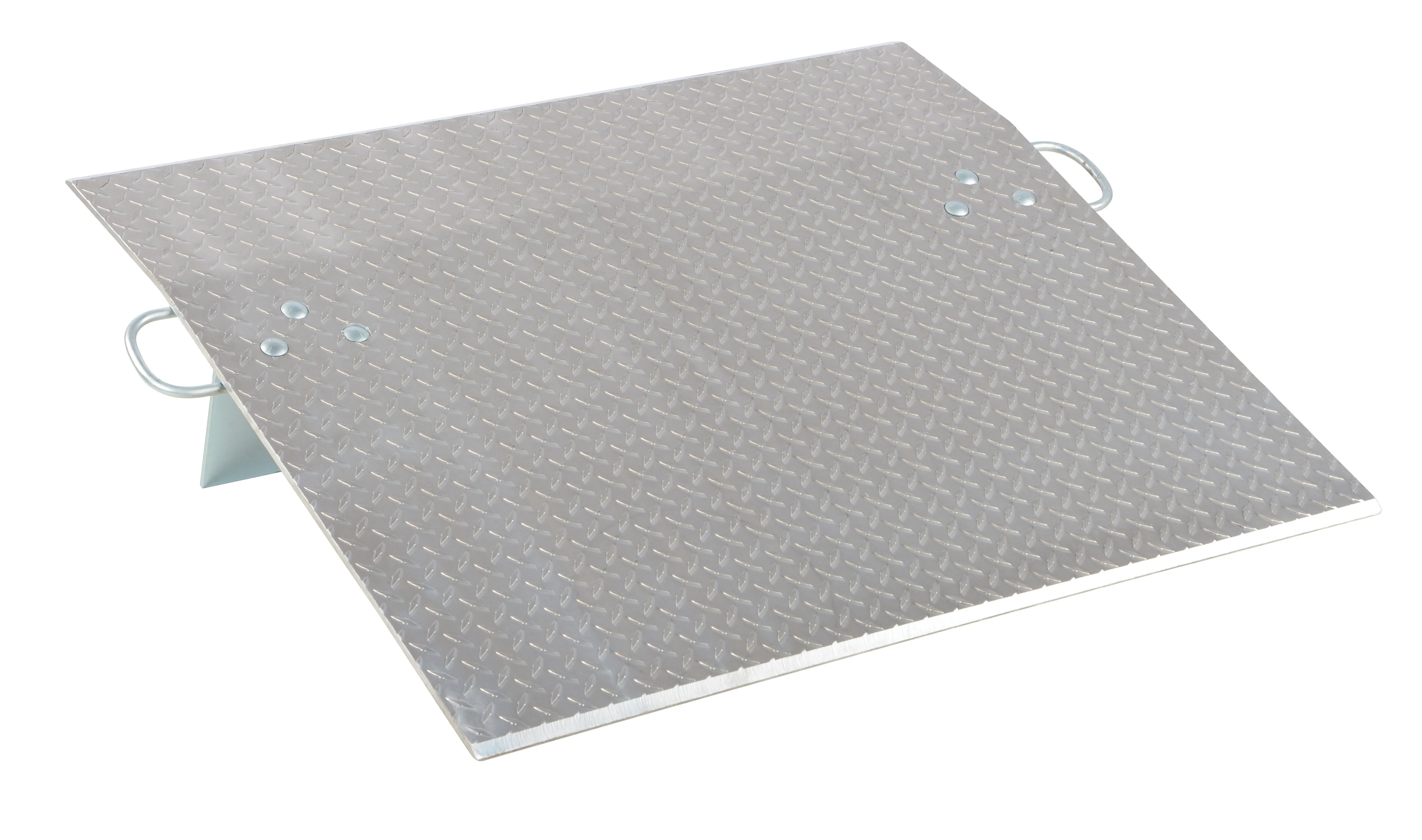

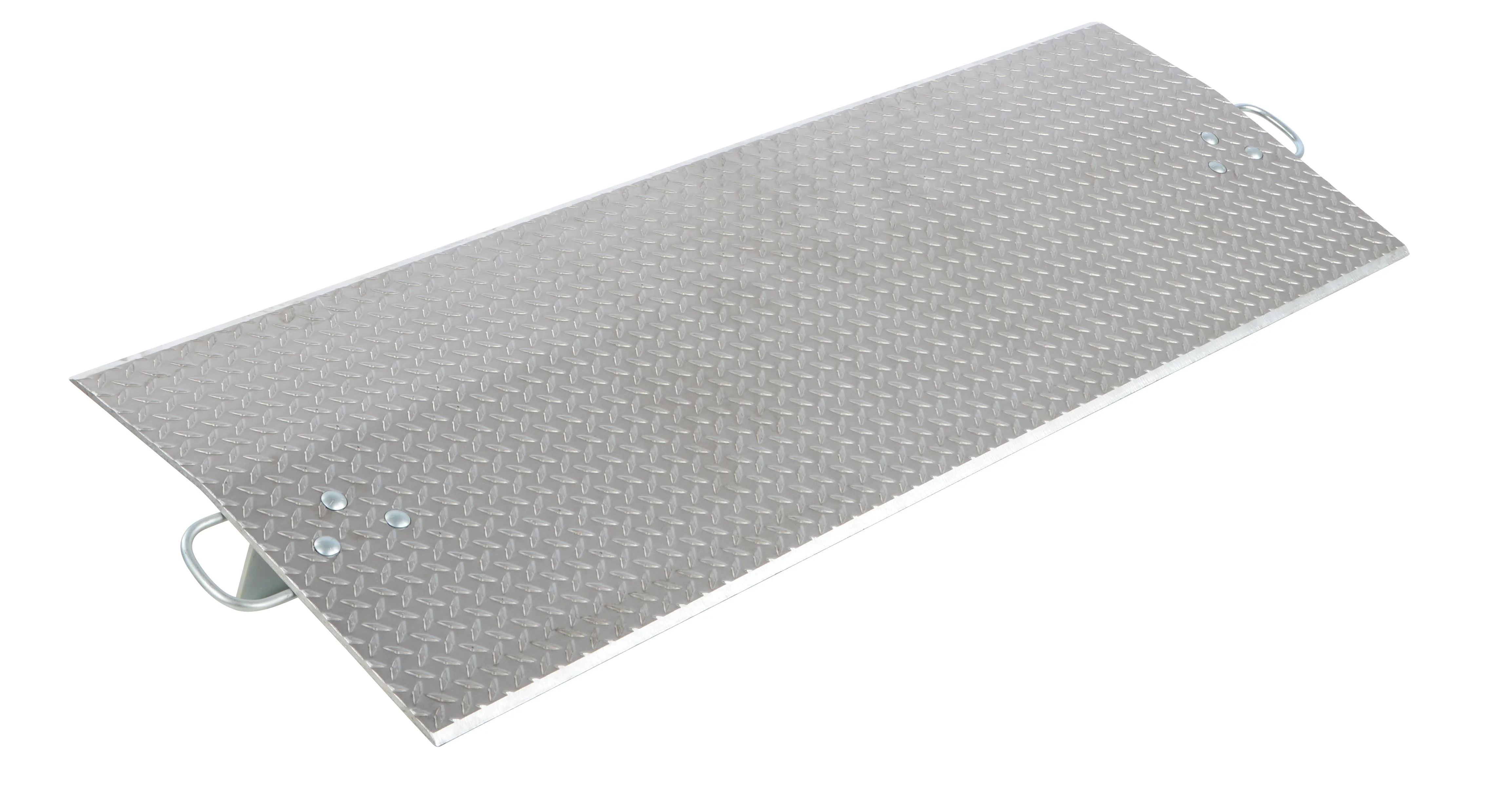

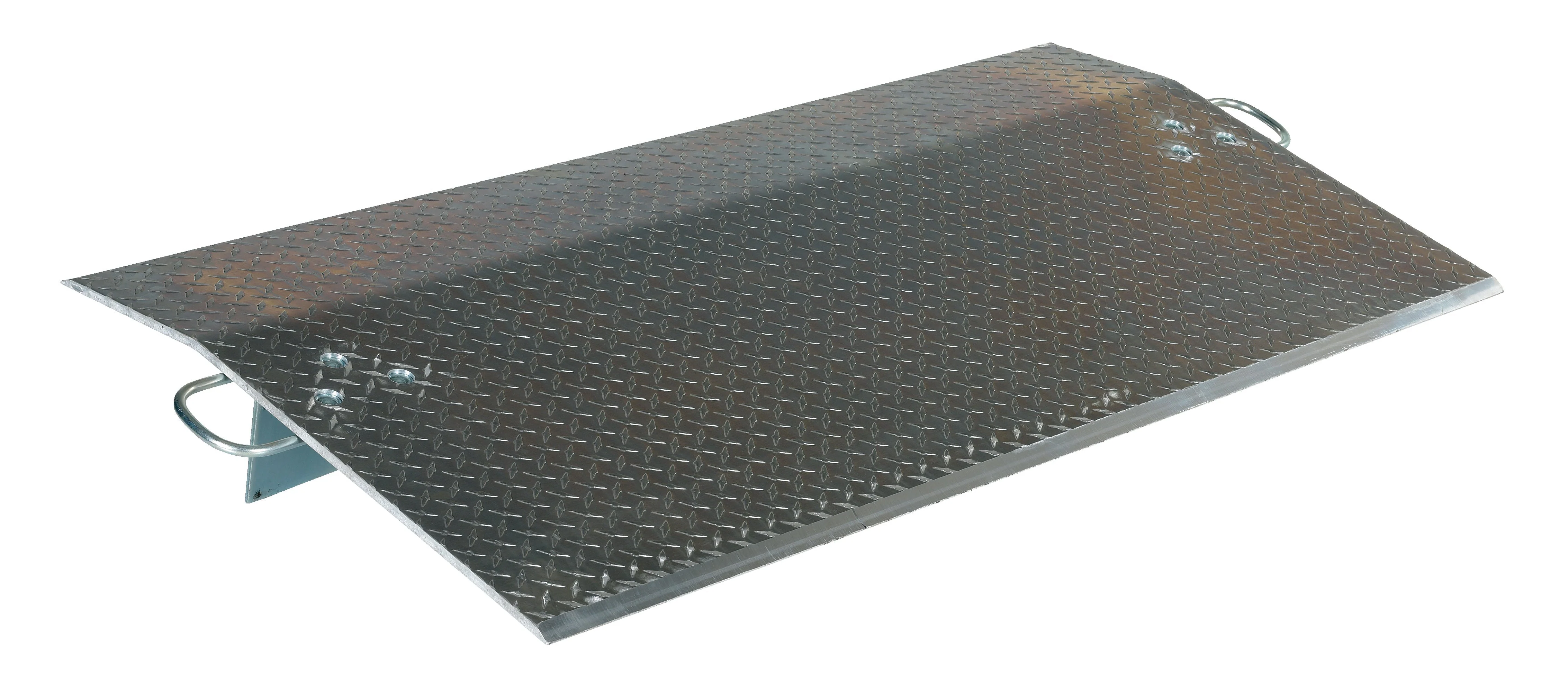

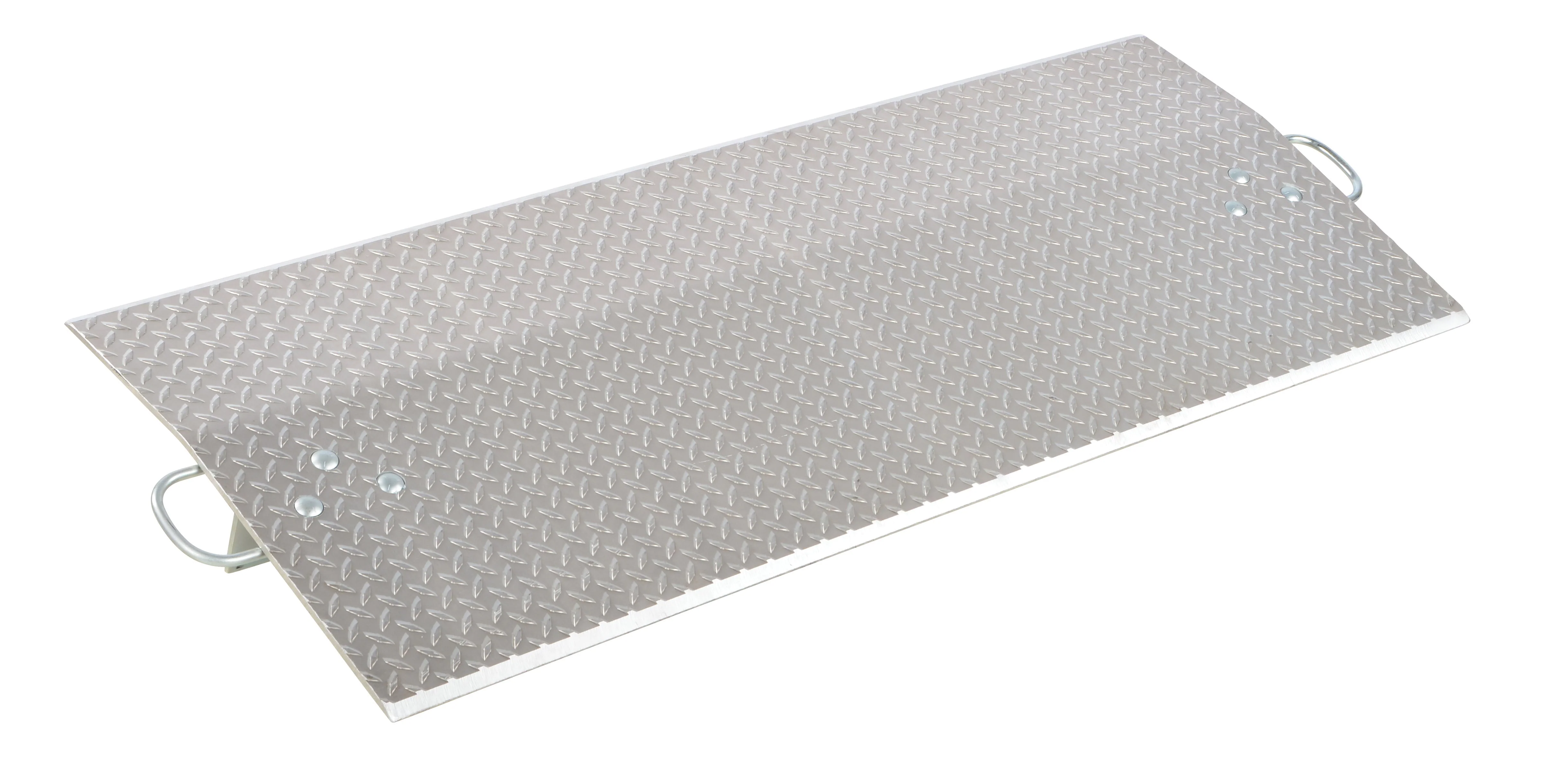

Aluminum Economizer Dockplates are an economical way to speed up truck loading and unloading. Spans the opening between the dock and trailer to allow pallet or hand trucks, along with pedestrian traffic to safely move in and out of the trailer. The dockplate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt-on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. The bend or crown is 11 degrees and located 9" from edge of dockplate. Not for use with fork trucks.
| Aluminum Economizer Dockplates | ||||
| Model | Plate (WxL) |
Height Differential |
Capacity (lbs) |
Wt. (lbs.) |
|
3/8" Plate Thickness |
||||
| E-3024 | 30"x24" | 3" | 3,000 | 35 |
| E-3030 | 30"x30" | 4" | 2,300 | 52 |
| E-3036 | 30"x36" | 5" | 1,800 | 49 |
| E-3048 | 30"x48" | 7" | 1,400 | 69 |
| E-3624 | 36"x24" | 3" | 3,600 | 66 |
| E-3630 | 36"x30" | 4" | 3,000 | 56 |
| E-3636 | 36"x36" | 5" | 2,500 | 81 |
| E-3648 | 36"x48" | 7" | 1,900 | 69 |
| E-3660 | 36"x60" | 9" | 1,400 | 88 |
| E-4824 | 48"x24" | 3" | 5,200 | 48 |
| E-4830 | 48"x30" | 4" | 4,100 | 63 |
| E-4836 | 48"x36" | 5" | 3,500 | 110 |
| E-4842 | 48"x42" | 6" | 3,000 | 81 |
| E-4848 | 48"x48" | 7" | 2,600 | 91 |
| E-4860 | 48"x60" | 9" | 1,800 | 112 |
| E-6024 | 60"x24" | 3" | 5,700 | 100 |
| E-6030 | 60"x30" | 4" | 4,600 | 112 |
| E-6036 | 60"x36" | 5" | 4,100 | 75 |
| E-6042 | 60"x42" | 6" | 3,500 | 107 |
| E-6048 | 60"x48" | 7" | 2,900 | 119 |
| E-6060 | 60"x60" | 9" | 2,000 | 136 |
| E-7224 | 72"x24" | 3" | 6,500 | 84 |
| E-7230 | 72"x30" | 4" | 5,400 | 92 |
| E-7236 | 72"x36" | 5" | 4,300 | 100 |
| E-7248 | 72"x48" | 7" | 3,400 | 138 |
| E-7260 | 72"x60" | 9" | 2,500 | 156 |
|
1/2" Plate Thickness |
||||
| EH-3024 | 30"x24" | 3" | 5,200 | 42 |
| EH-3030 | 30"x30" | 4" | 4,100 | 50 |
| EH-3036 | 30"x36" | 5" | 3,500 | 61 |
| EH-3048 | 30"x48" | 7" | 2,600 | 74 |
| EH-3624 | 36"x24" | 3" | 6,200 | 49 |
| EH-3630 | 36"x30" | 4" | 5,100 | 60 |
| EH-3636 | 36"x36" | 5" | 4,300 | 85 |
| EH-3648 | 36"x48" | 7" | 3,000 | 89 |
| EH-4824 | 48"x24" | 3" | 8,200 | 53 |
| EH-4830 | 48"x30" | 4" | 6,300 | 73 |
| EH-4836 | 48"x36" | 5" | 5,300 | 89 |
| EH-4842 | 48"x42" | 6" | 4,300 | 103 |
| EH-4848 | 48"x48" | 7" | 3,800 | 118 |
| EH-4860 | 48"x60" | 9" | 2,900 | 153 |
| EH-6024 | 60"x24" | 3" | 10,000 | 89 |
| EH-6030 | 60"x30" | 4" | 7,800 | 88 |
| EH-6036 | 60"x36" | 5" | 6,600 | 109 |
| EH-6042 | 60"x42" | 6" | 5,500 | 127 |
| EH-6048 | 60"x48" | 7" | 4,800 | 146 |
| EH-6060 | 60"x60" | 9" | 3,700 | 177 |
| EH-7224 | 72"x24" | 3" | 11,900 | 132 |
| EH-7230 | 72"x30" | 4" | 9,500 | 168 |
| EH-7236 | 72"x36" | 5" | 7,800 | 176 |
| EH-7248 | 72"x48" | 7" | 5,900 | 185 |
Original: $266.74
-65%$266.74
$93.36
