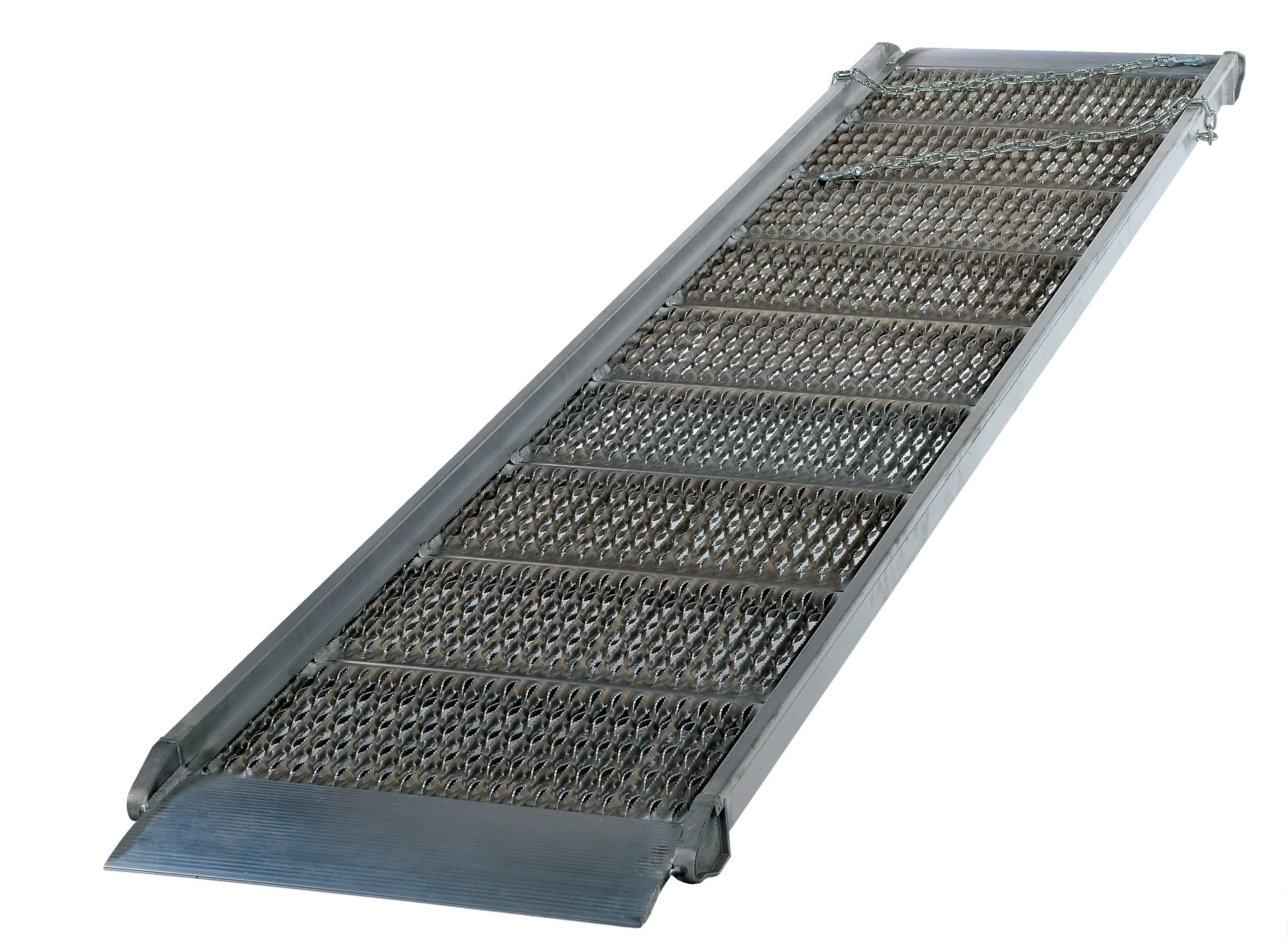

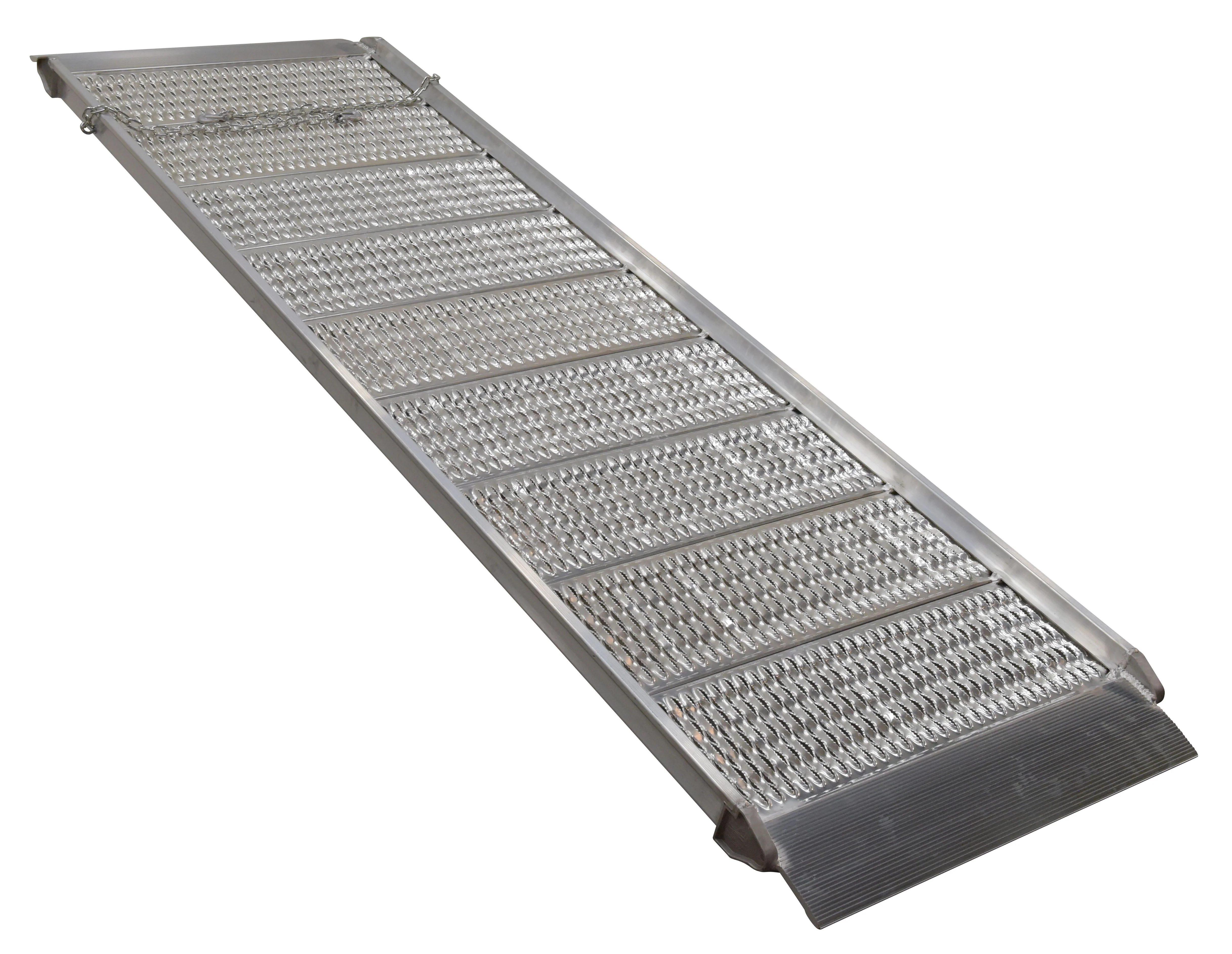

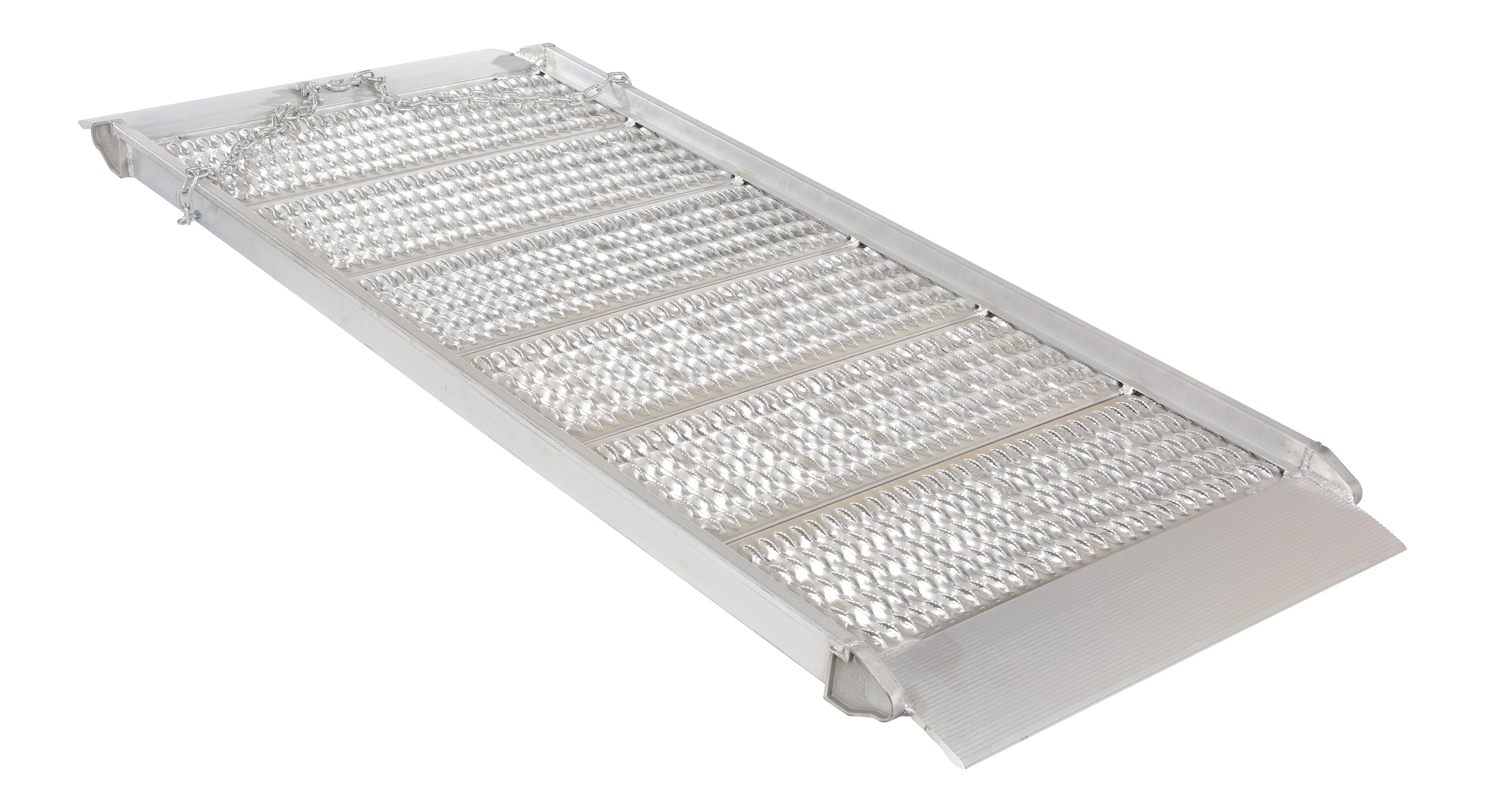

Vestil Aluminum Grip-Strut Walk Ramps

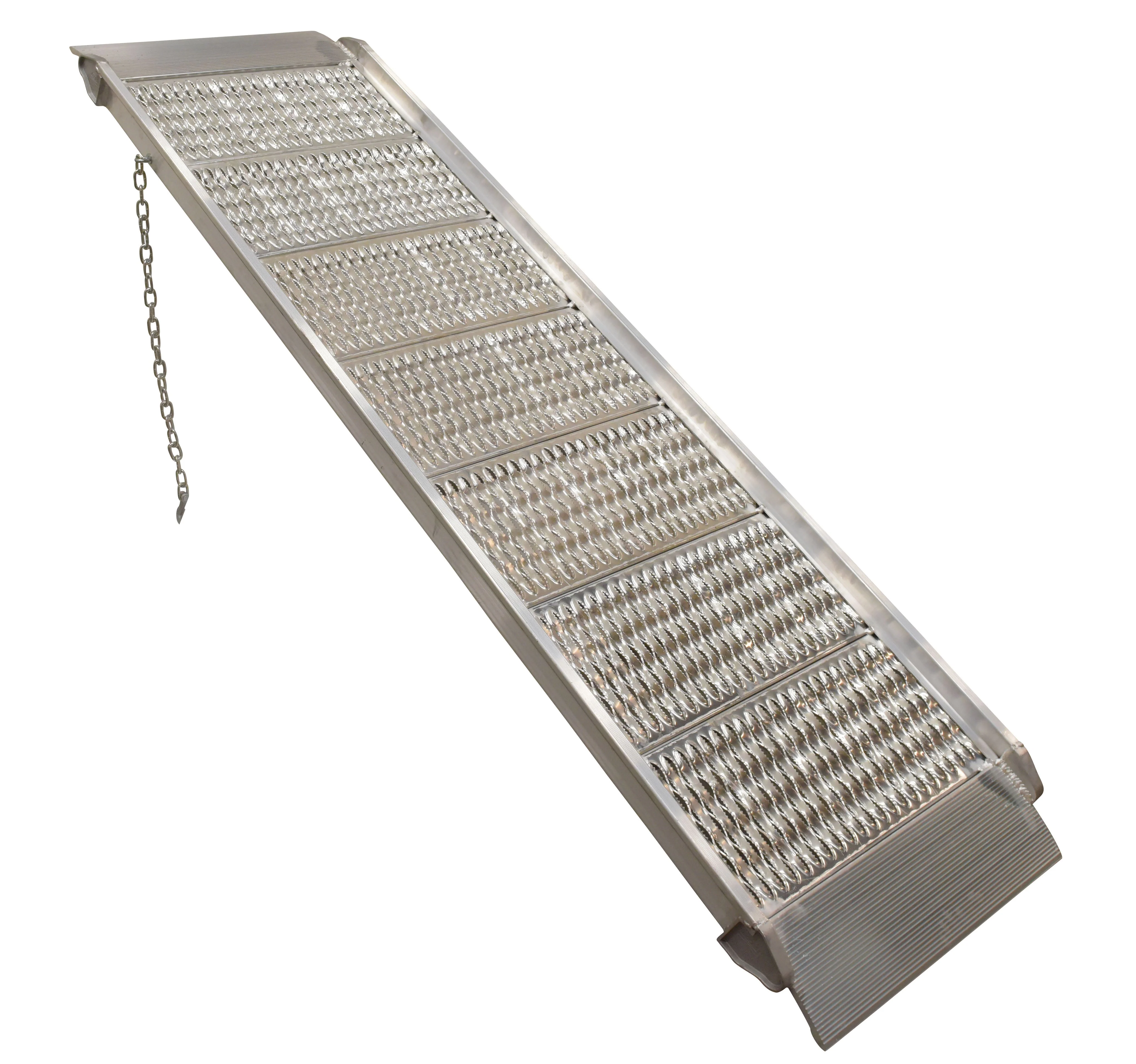

Load and unload trucks when docks are unavailable. The open deck design allows snow, ice, and water to fall through ramp providing a positive grip for delivery personnel, shippers, and receivers. One hundred percent welded aluminum construction is lightweight and will not rust. Ramps feature a 2" high safety curb on each side. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two (2) safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three-wheeled carts. Aluminum Grip-Strut Walk Ramps with Handrail, offer the same durable ramp as above with more stability and security. Railing sections are 40-1/4" high with a 18-7/16" mid-rail. Handrails are bolted onto the aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Installation brackets and hardware included. Handrails are included for both sides of the ramp. Capacity is dependent on number of wheels the hand cart has
|
Aluminum Grip-Strut Walk Ramps |
|||||
| Model | Usable Length | 4-Wheel Cart Capacity (lbs) |
2-Wheel Cart Capacity (lbs) |
Height Range |
Wt. (lbs) |
| AWR-G-28-6A | 73-1/4" | 2,800 | 2,000 | 6"-21" | 41 |
| AWR-G-28-7A | 85" | 2,800 | 1,800 | 6"-25" | 59 |
| AWR-G-28-8A | 96-3/4" | 2,500 | 1,650 | 6"-29" | 61 |
| AWR-G-28-9A | 108-1/2" | 2,500 | 1,600 | 6"-33" | 63 |
| AWR-G-28-10A | 120-1/4" | 2,200 | 1,500 | 6"-38" | 118 |
| AWR-G-28-12A | 143-3/4" | 1,900 | 1,400 | 6"-46" | 129 |
| AWR-G-28-14A | 167-1/4" | 1,600 | 1,200 | 6"-56" | 89 |
| AWR-G-28-16A | 190-3/4" | 1,000 | 1,000 | 6"-62" | 122 |
| AWR-G-38-6A | 73-1/4" | 2,800 | 2,000 | 6"-21 | 55 |
| AWR-G-38-7A | 85" | 2,800 | 1,800 | 6"-25 | 59 |
| AWR-G-38-8A | 96-3/4" | 2,500 | 1,650 | 6"-29" | 66 |
| AWR-G-38-9A | 108-1/2" | 2,500 | 1,600 | 6"-33" | 73 |
| AWR-G-38-10A | 120-1/4" | 2,200 | 1,500 | 6"-38" | 80 |
| AWR-G-38-12A | 143-3/4" | 1,900 | 1,400 | 6"-46" | 94 |
| AWR-G-38-14A | 167-1/4" | 1,600 | 1,200 | 6"-56" | 123 |
| AWR-G-38-16A | 190-3/4" | 1,000 | 1,000 | 6"-62" | 232 |
| Aluminum Grip-Strut Walk Ramps with Handrail | |||||
| AWR-G-28-6A-HR | 73-1/4" | 2,800 | 2,000 | 6"-21" | 77 |
| AWR-G-28-7A-HR | 85" | 2,800 | 1,800 | 6"-25" | 97 |
| AWR-G-28-8A-HR | 96-3/4" | 2,500 | 1,650 | 6"-29" | 103 |
| AWR-G-28-9A-HR | 108-1/2" | 2,500 | 1,600 | 6"-33" | 107 |
| AWR-G-28-10A-HR | 120-1/4" | 2,200 | 1,500 | 6"- 38" | 166 |
| AWR-G-28-12A-HR | 143-3/4" | 1,900 | 1,400 | 6"-46" | 153 |
| AWR-G-28-14A-HR | 167-1/4" | 1,600 | 1,200 | 6"-56" | 173 |
| AWR-G-28-16A-HR | 190-3/4" | 1,000 | 1,000 | 6"-62" | 210 |
| AWR-G-38-6A-HR | 73-1/4" | 2,800 | 2,000 | 6"-21" | 91 |
| AWR-G-38-7A-HR | 85" | 2,800 | 1,800 | 6"-25" | 97 |
| AWR-G-38-8A-HR | 96-3/4" | 2,500 | 1,650 | 6"-29" | 108 |
| AWR-G-38-9A-HR | 108-1/2" | 2,500 | 1,600 | 6"-33" | 117 |
| AWR-G-38-10A-HR | 120-1/4" | 2,200 | 1,500 | 6"38" | 128 |
| AWR-G-38-12A-HR | 143-3/4" | 1,900 | 1,400 | 6"-46" | 170 |
| AWR-G-38-14A-HR | 167-1/4" | 1,600 | 1,200 | 6"-56" | 207 |
| AWR-G-38-16A-HR | 190-3/4" | 1,000 | 1,000 | 6"-62" | 230 |
| SPLIT RAMP STYLE | |||||
| Model | Overall Size (WxLxH) |
4-Wheel Cart Capacity (lbs) |
2-Wheel Cart Capacity (lbs) |
Usable Width |
Wt. (lbs) |
| AWR-G-18-ESR-12A | 35-7/8"x143-3/4"x6-9/16" | 1,800 | 1,400 | 33-3/8" | 140 |
| AWR-G-36-ESR-12A | 35-7/8"x143-3/4"x6-9/16" | 1,800 | 1,400 | 33-3/8" | 265 |
| AWR-G-18-ESR-12A-EXT | 18-7/16"x143-3/4"x4-15/16" | 1,800 | 1,400 | 16-11/16" | 63 |
