Vestil Aluminum Hand Truck Dockboards

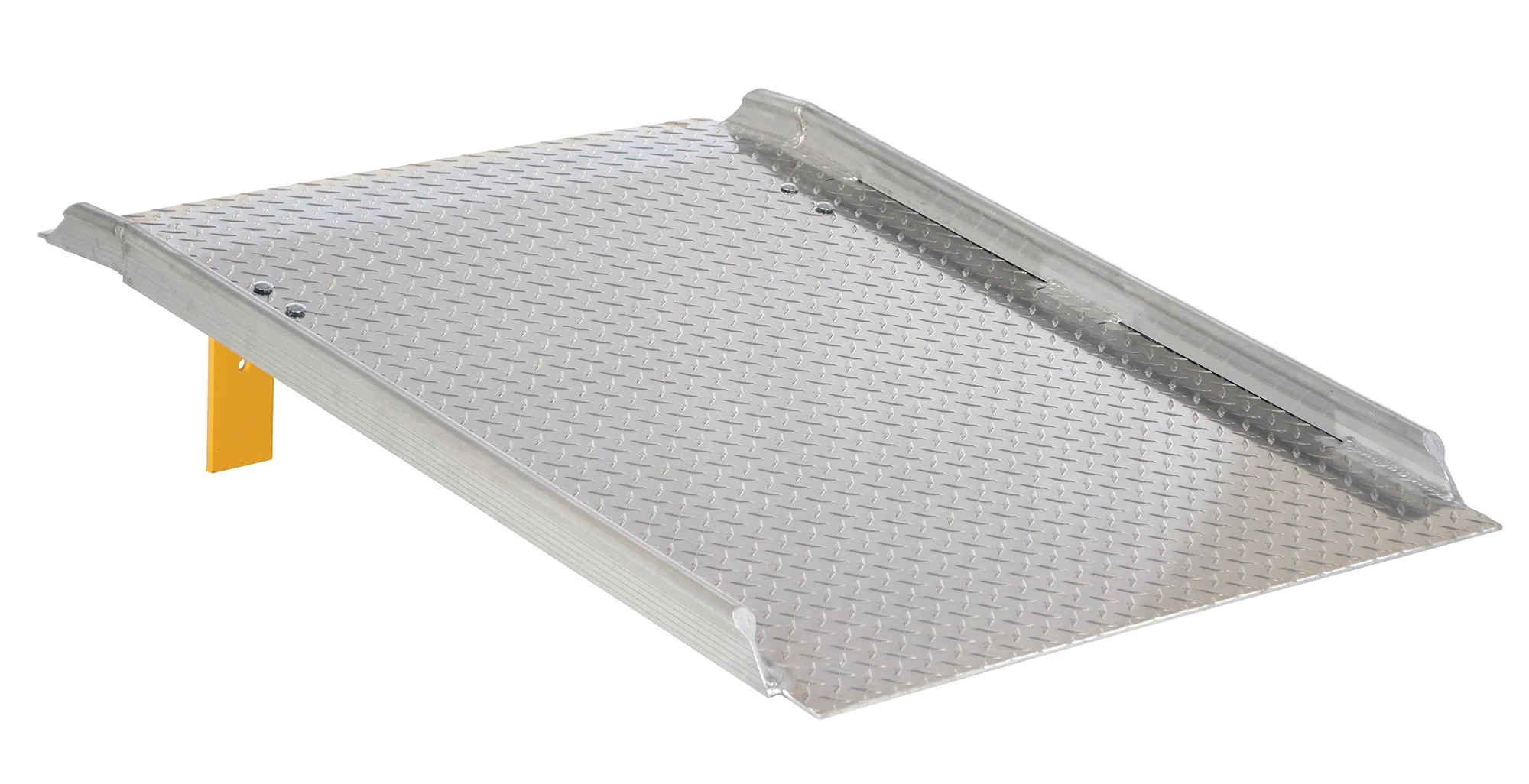

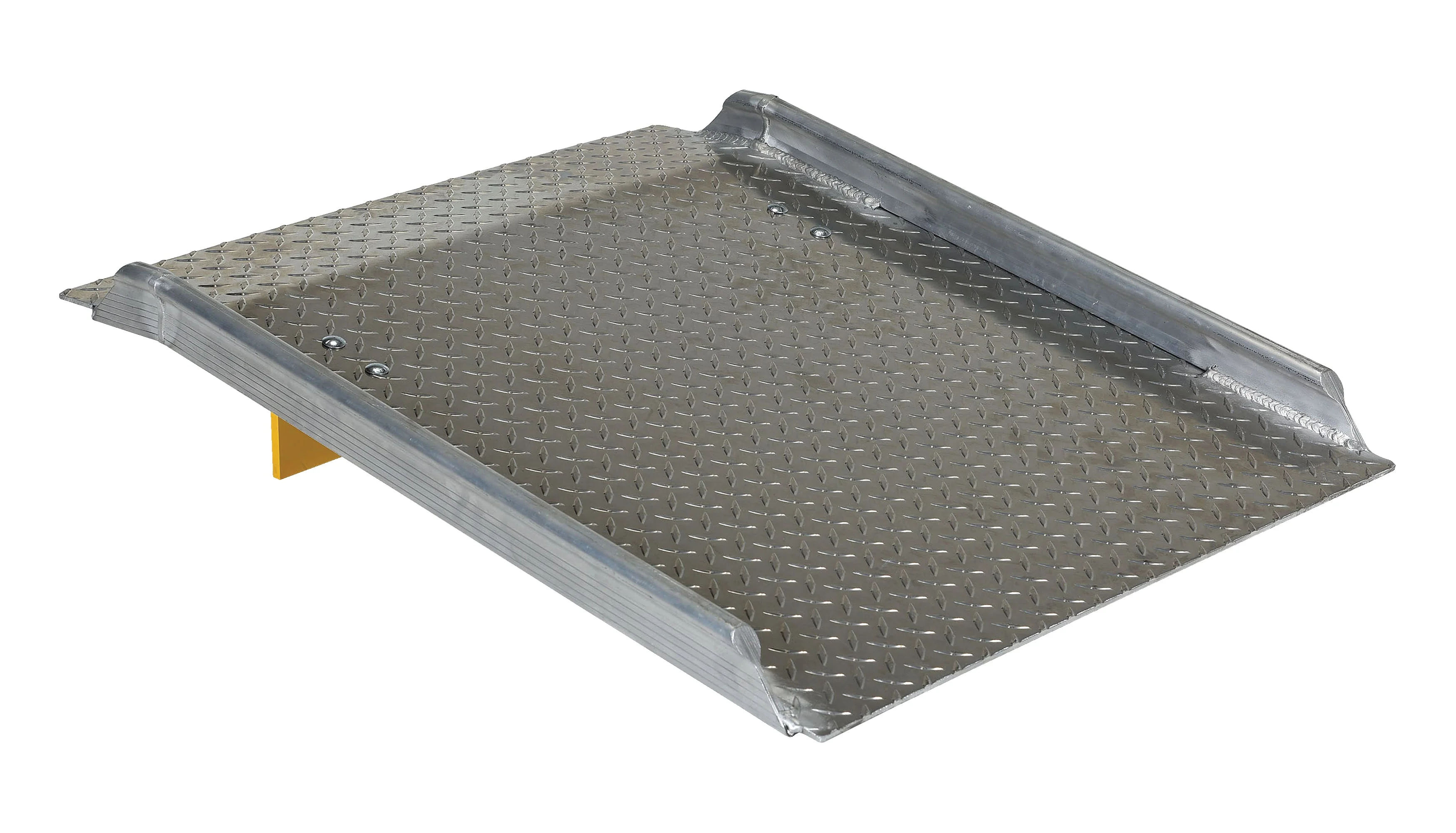

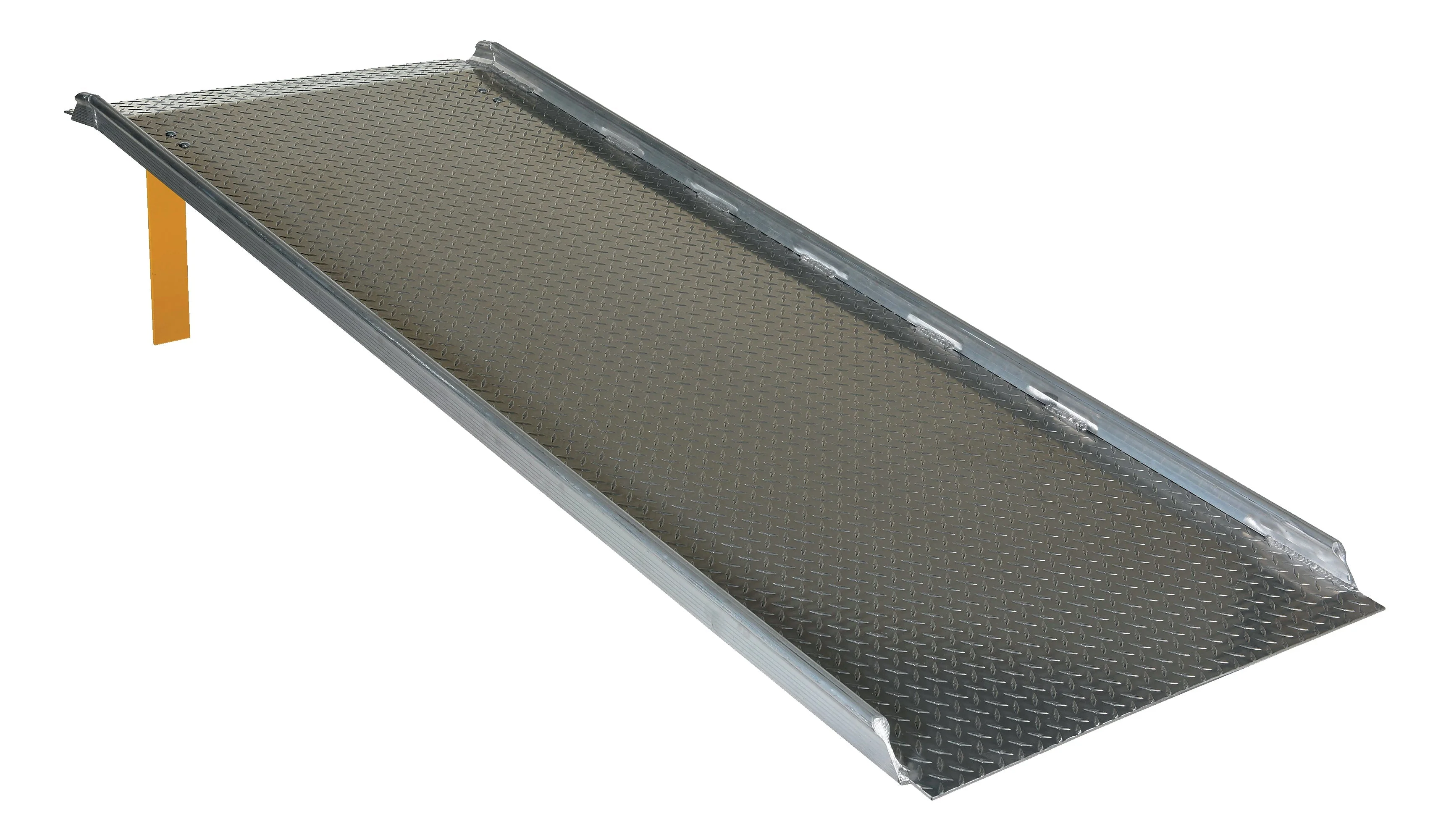

The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.
| Aluminum Hand Truck Dockboards | |||||
| Model | Overall Width |
Usable Width |
Overall Length | Height Diff. | Wt. (lbs) |
| AHTD-3036 | 31-1/4" | 28" | 35-7/8" | 5" | 35 |
| AHTD-3048 | 31-1/4" | 28" | 47-7/8" | 7" | 46 |
| AHTD-3648 | 37-1/4" | 34" | 47-7/8" | 7" | 50 |
| AHTD-3660 | 37-1/4" | 34" | 59-7/8" | 10" | 112 |
| AHTD-3672 | 37-1/4" | 34" | 71-7/8" | 13" | 95 |
| AHTD-3696 | 37-1/4" | 34" | 95-7/8" | 19" | 107 |
Original: $321.63
-65%$321.63
$112.57
Description
The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.
| Aluminum Hand Truck Dockboards | |||||
| Model | Overall Width |
Usable Width |
Overall Length | Height Diff. | Wt. (lbs) |
| AHTD-3036 | 31-1/4" | 28" | 35-7/8" | 5" | 35 |
| AHTD-3048 | 31-1/4" | 28" | 47-7/8" | 7" | 46 |
| AHTD-3648 | 37-1/4" | 34" | 47-7/8" | 7" | 50 |
| AHTD-3660 | 37-1/4" | 34" | 59-7/8" | 10" | 112 |
| AHTD-3672 | 37-1/4" | 34" | 71-7/8" | 13" | 95 |
| AHTD-3696 | 37-1/4" | 34" | 95-7/8" | 19" | 107 |
