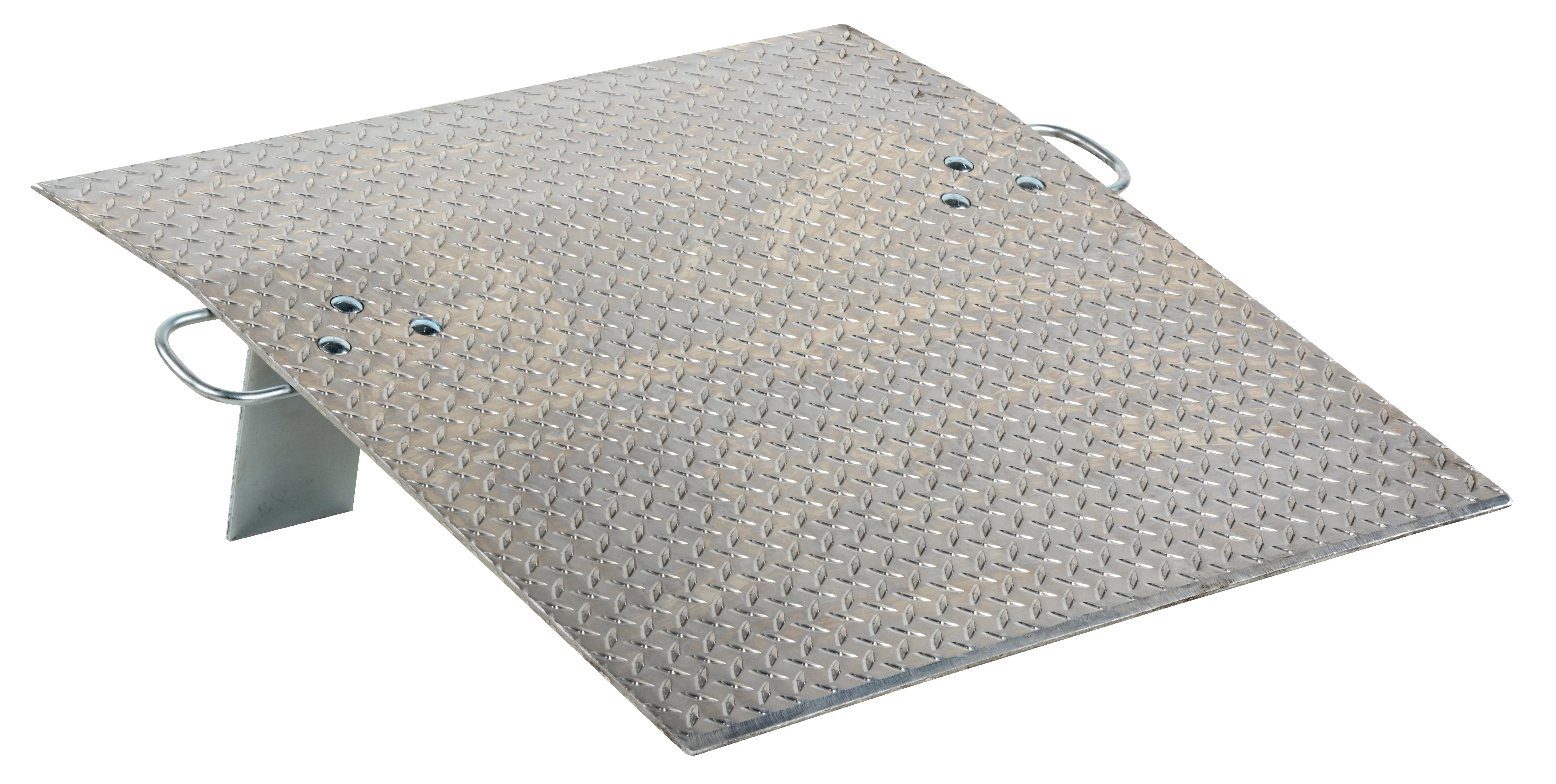

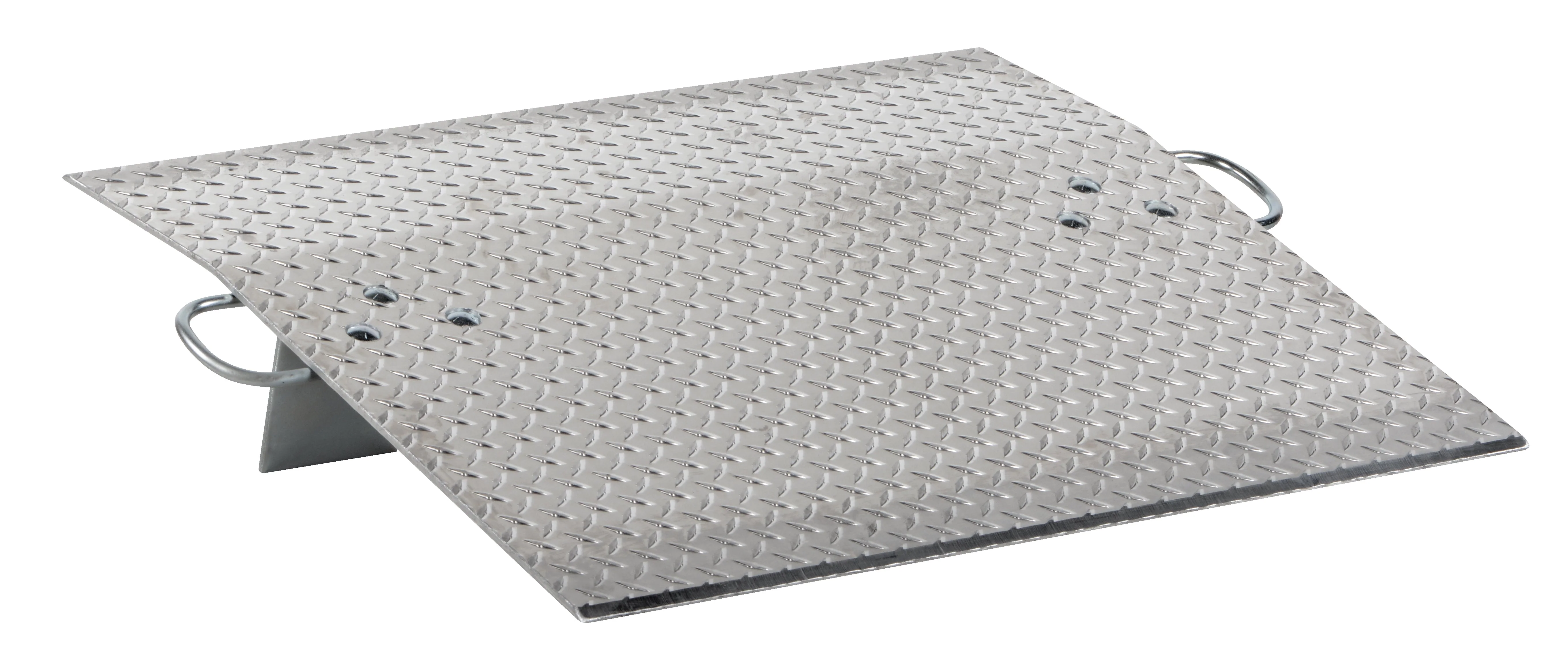

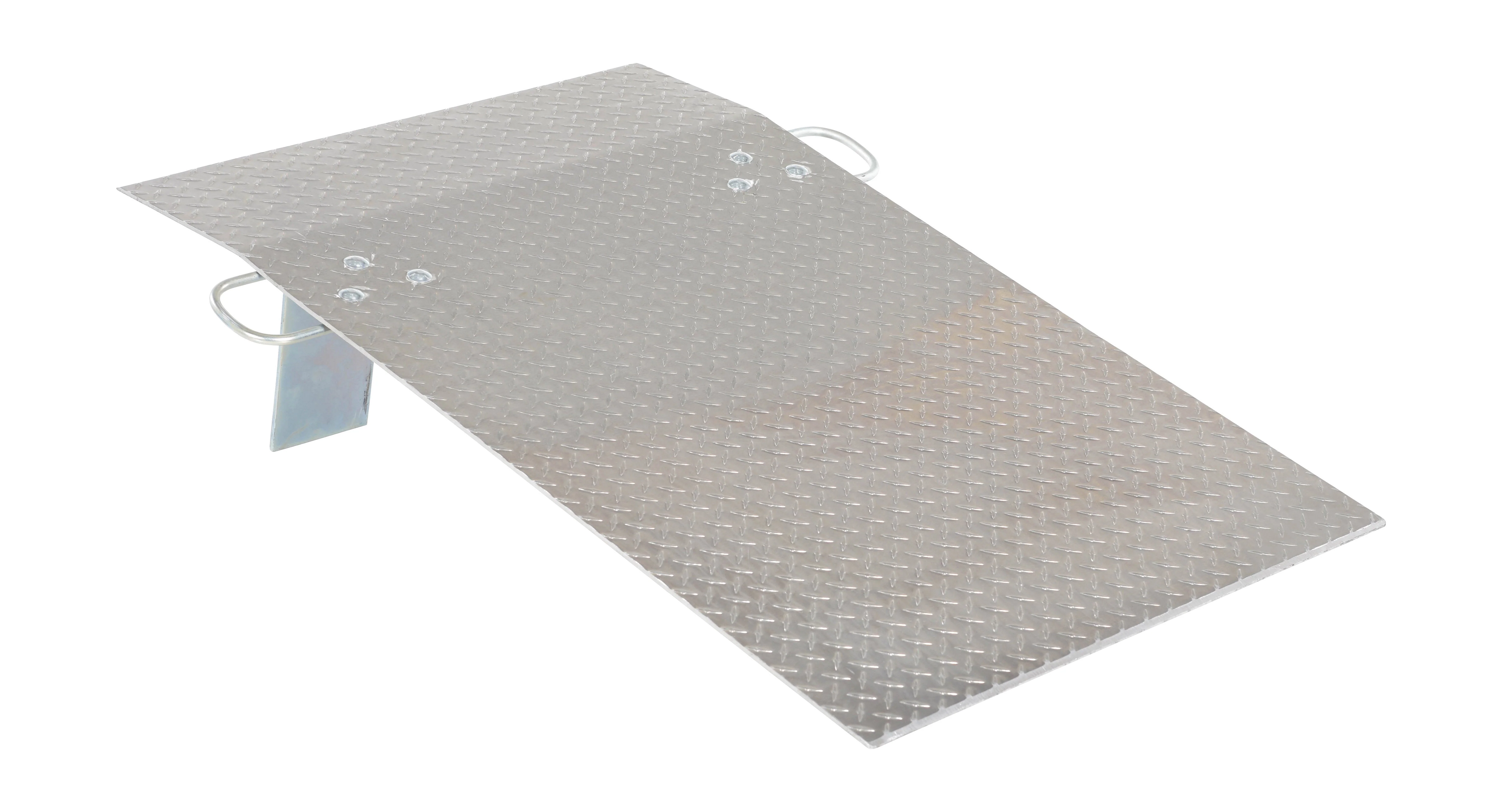

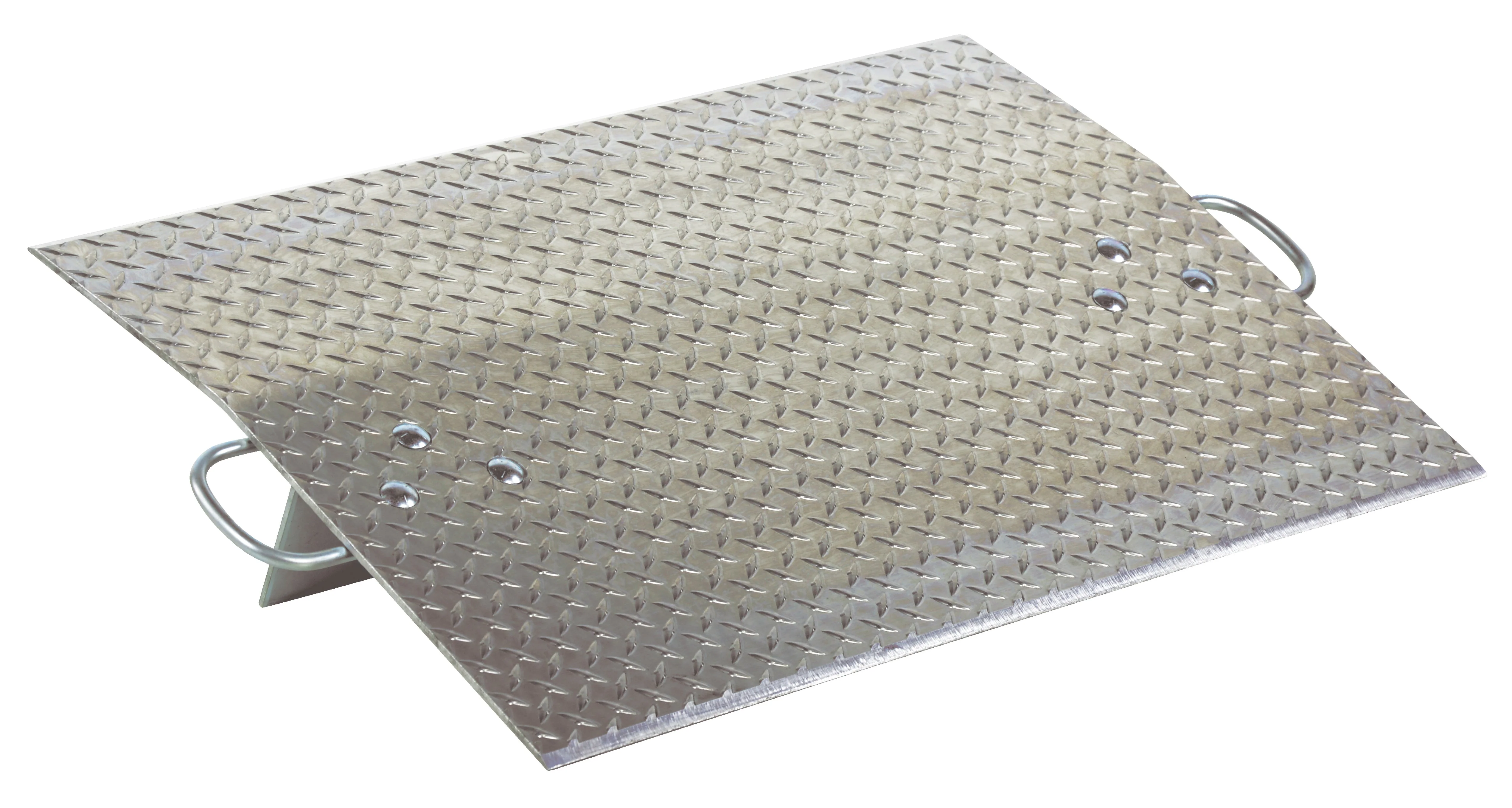

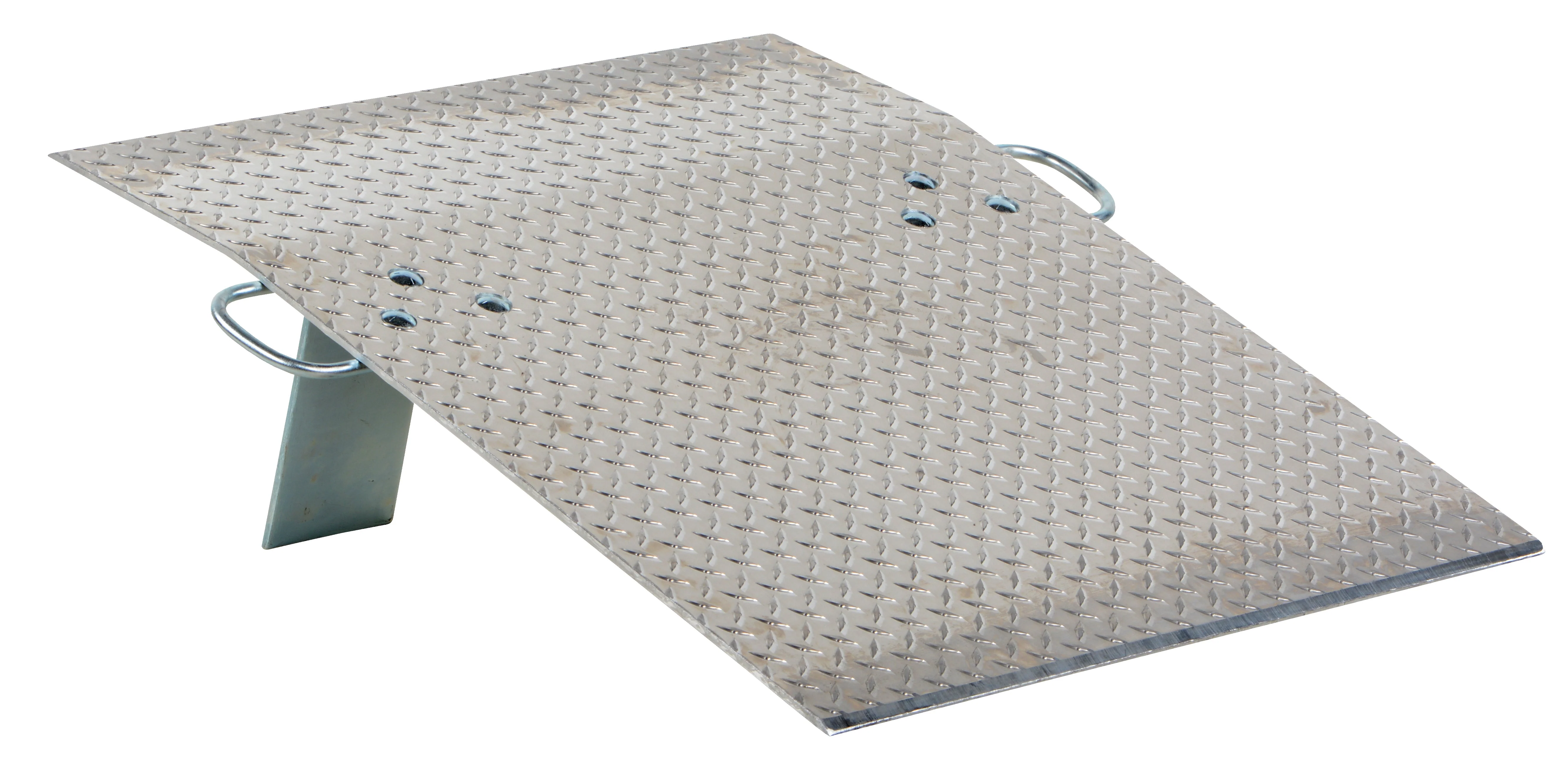

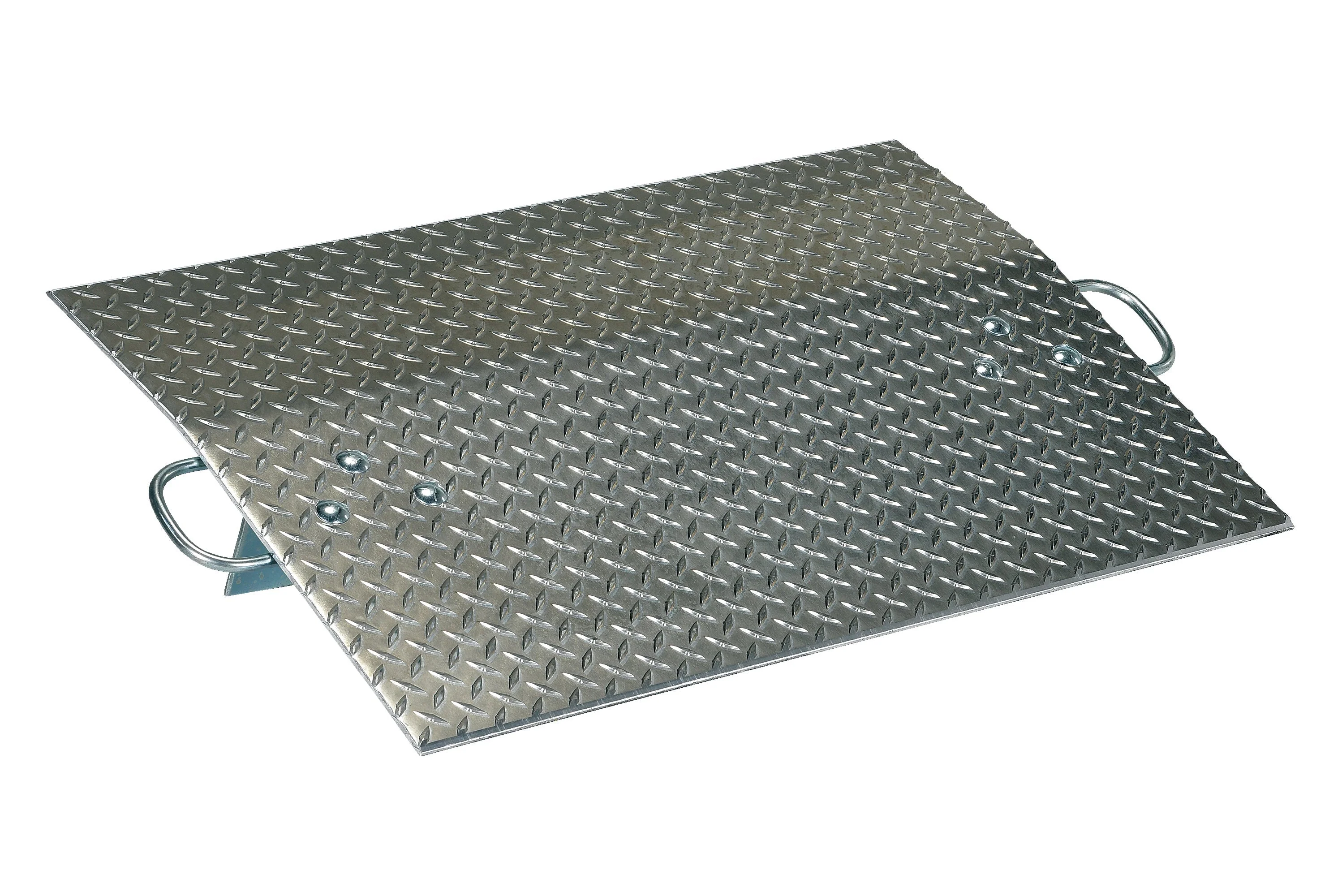

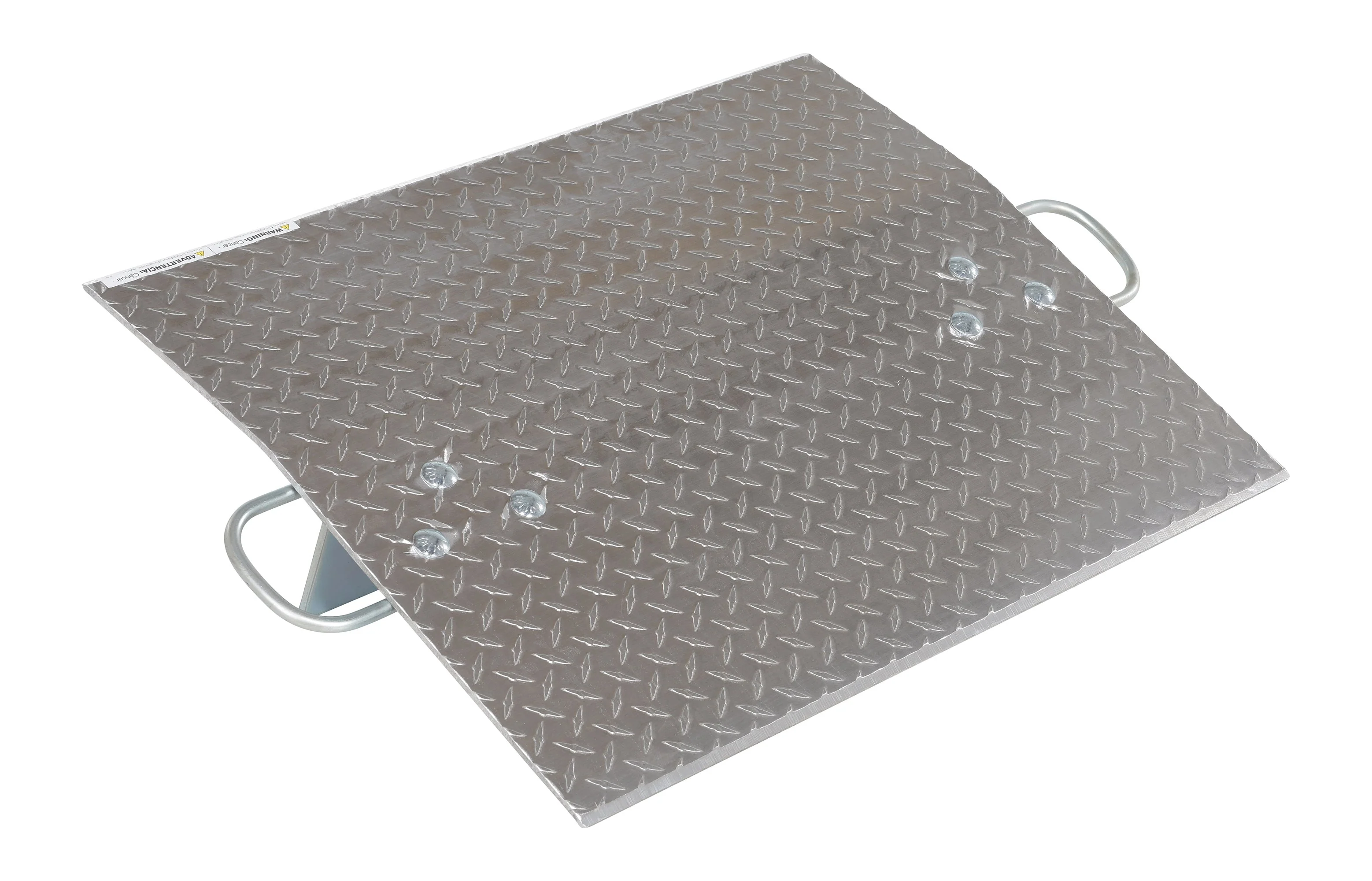

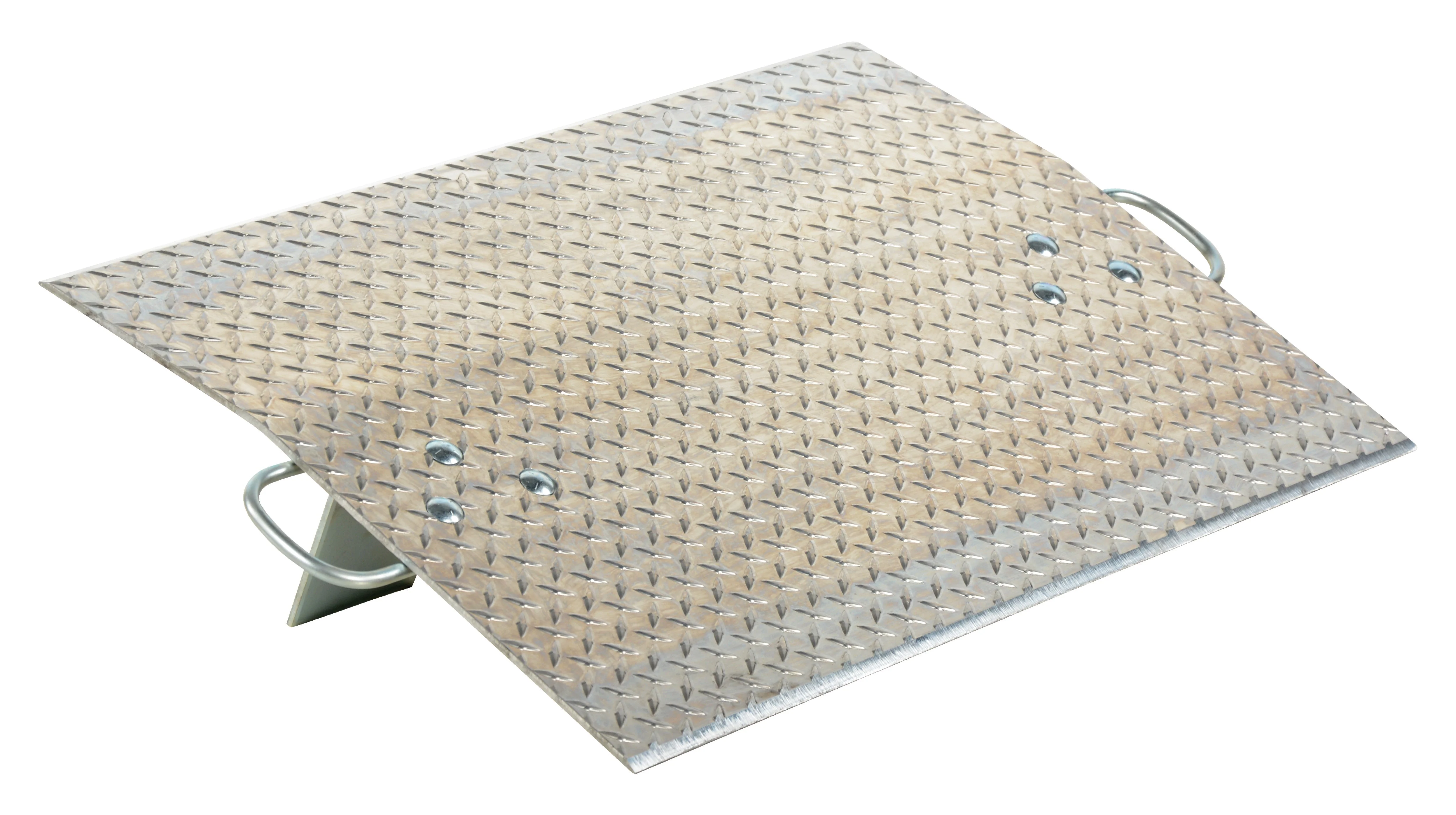

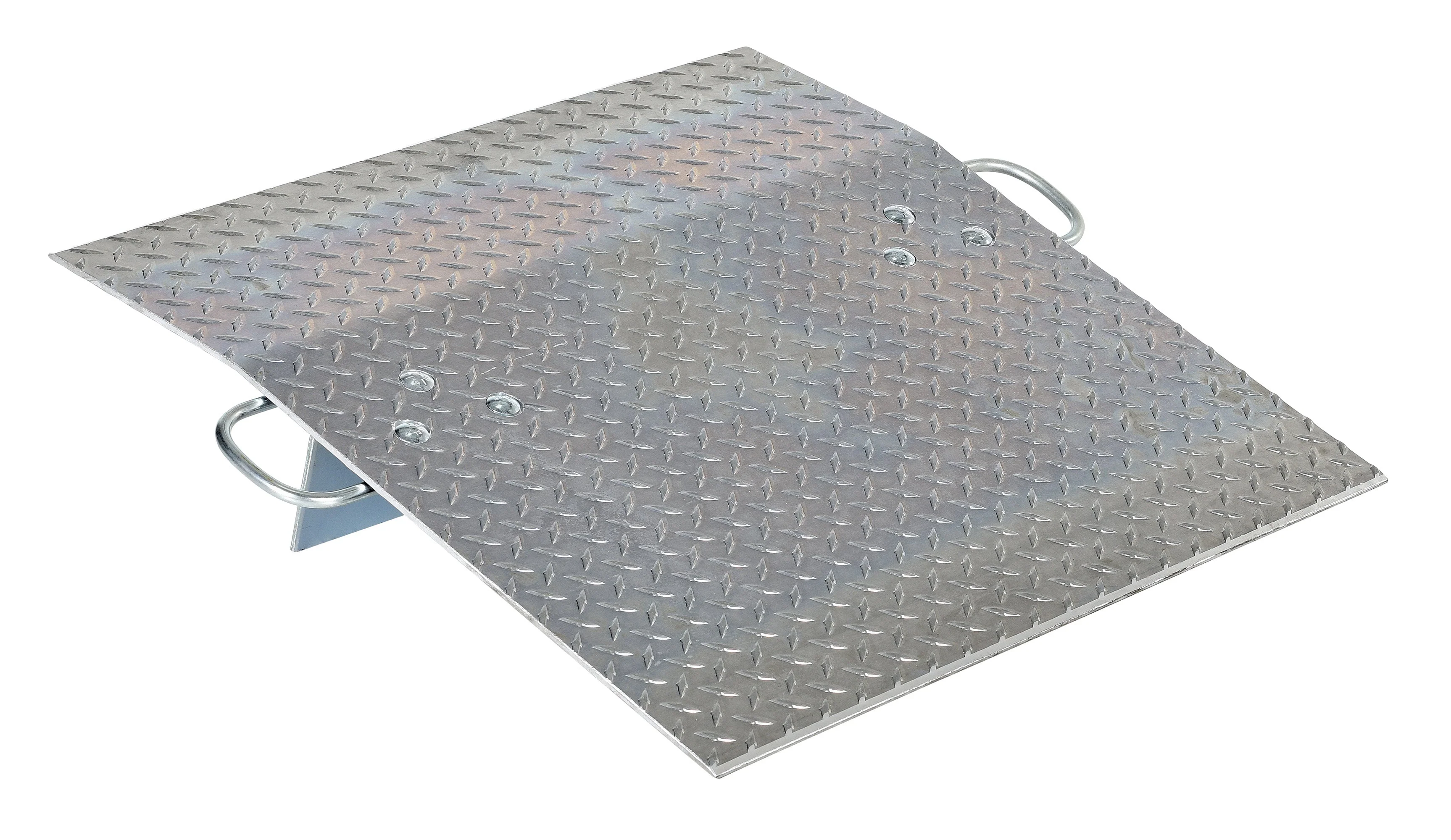

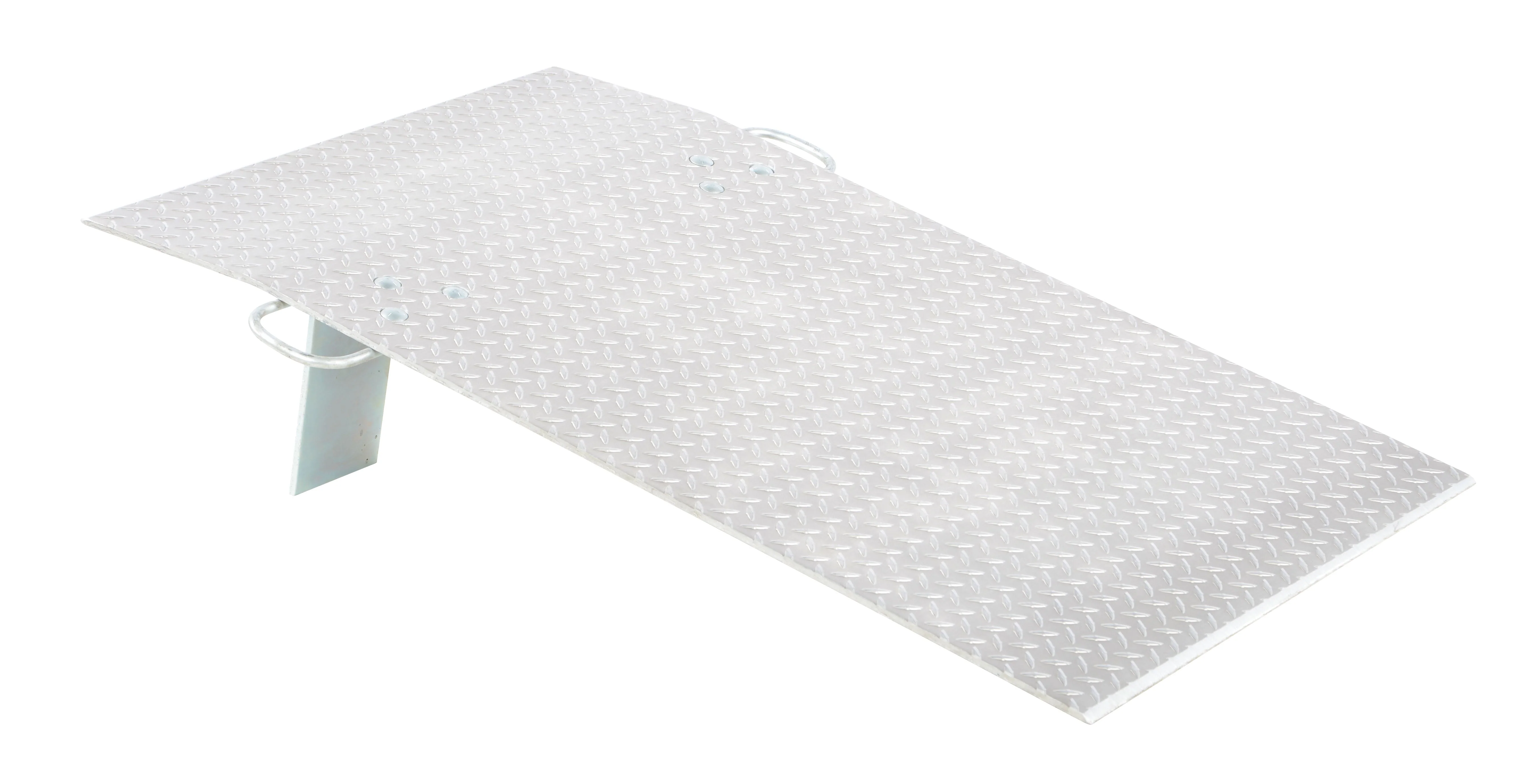

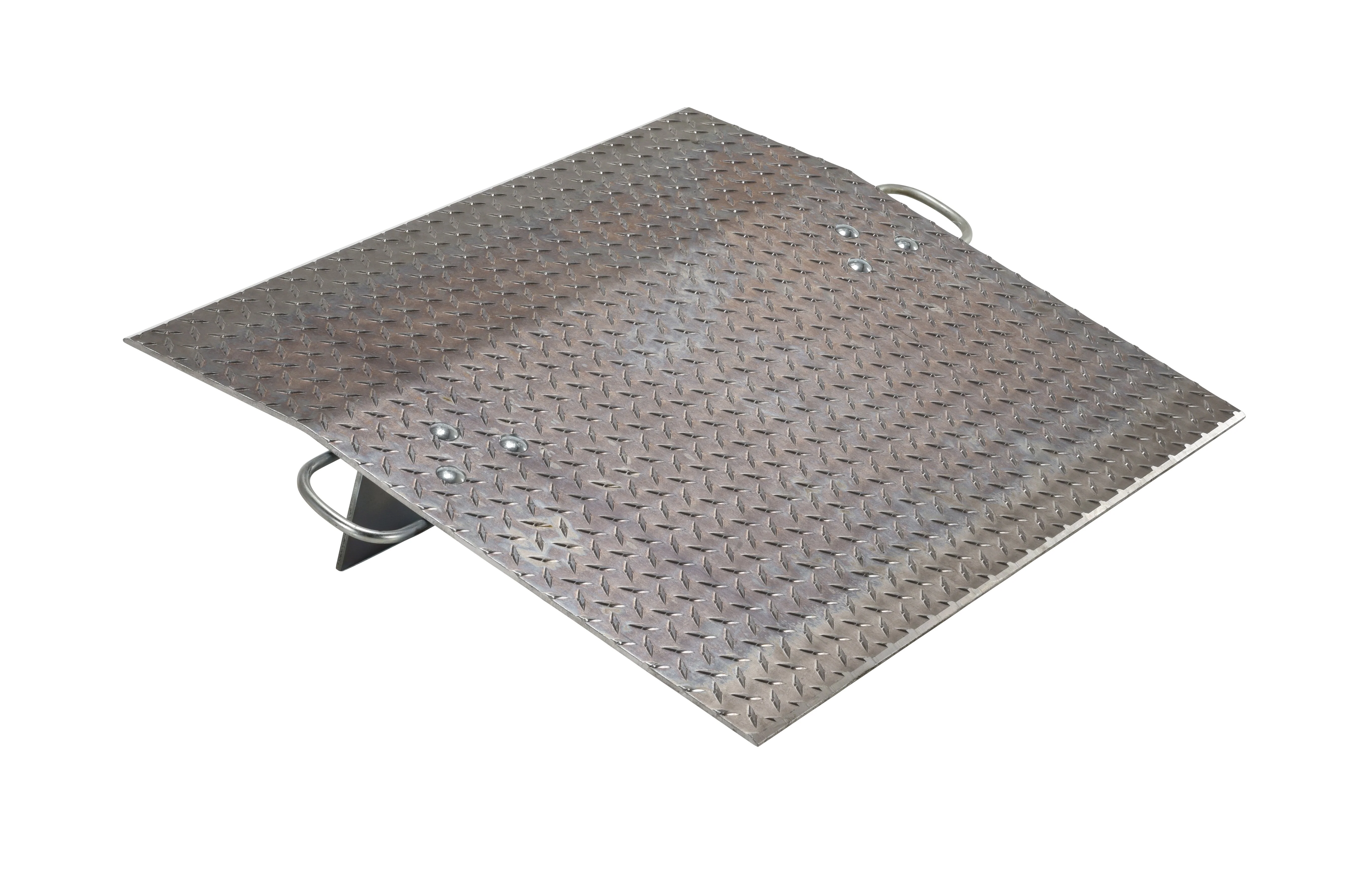

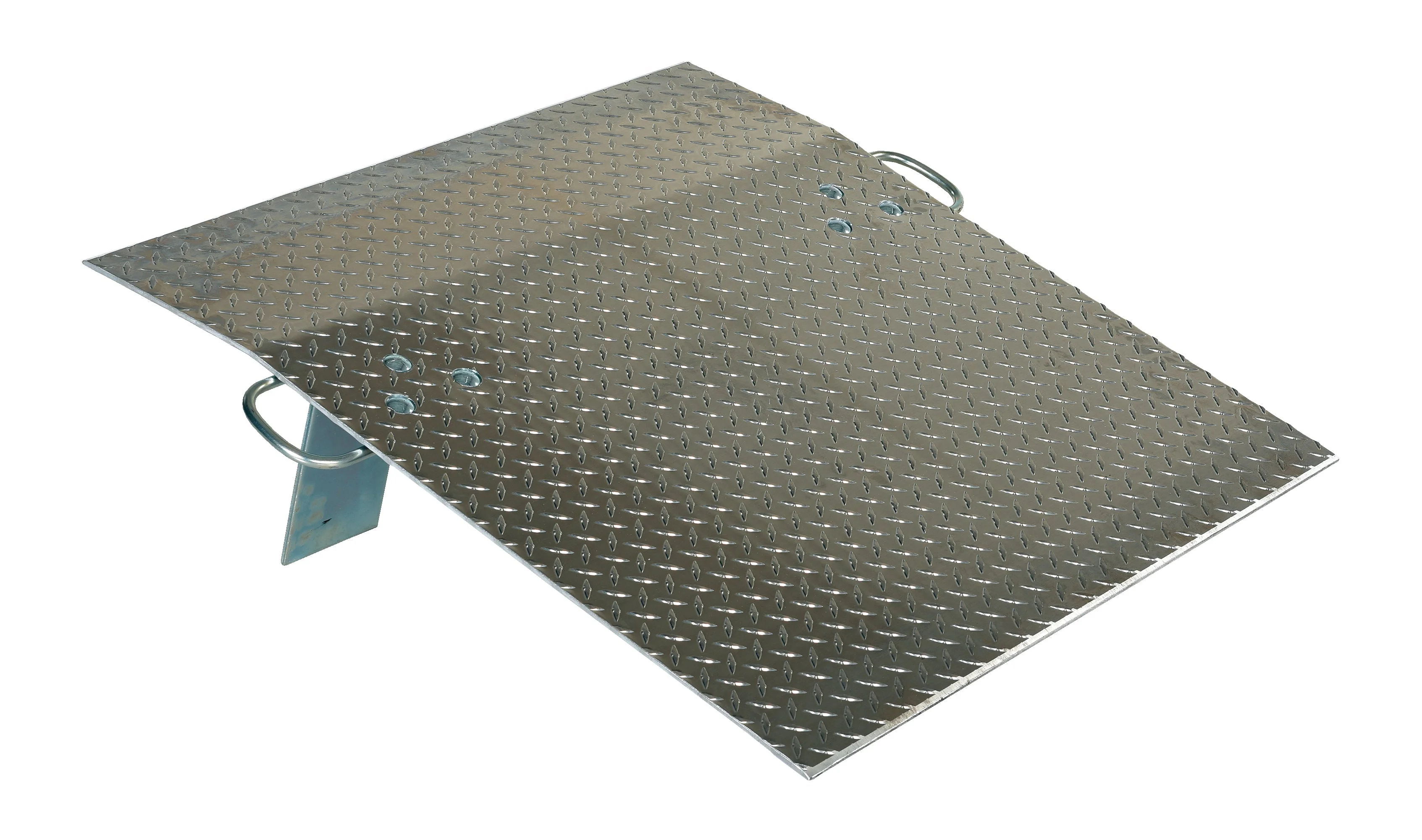

Vestil Aluminum Hand Truck Dockplates
Designed for use with two wheel hand trucks. A convenient, safe and easy way to access loading docks from trucks. Lightweight and easily portable by just one person. Treadplate surface ensures skid-resistant safe traction. Locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs. The bend or crown is 11 degrees and located 9" from edge of dockplate
| Aluminum Hand Truck Dockplates | |||||
| Model | Plate Width |
Plate Length |
Height Diff. |
Capacity (lbs) |
Wt. (lbs) |
|
1/4" Plate Thickness |
|||||
| A-3024 | 30" | 24" | 3" | 500 | 39 |
| A-3030 | 30" | 30" | 4" | 500 | 44 |
| A-3036 | 30" | 36" | 5" | 500 | 48 |
| A-3048 | 30" | 48" | 7" | 500 | 50 |
| A-3624 | 36" | 24" | 3" | 500 | 44 |
| A-3630 | 36" | 30" | 4" | 500 | 45 |
| A-3636 | 36" | 36" | 5" | 500 | 63 |
| A-3648 | 36" | 48" | 7" | 500 | 57 |
|
5/16" Plate Thickness |
|||||
| AH-3024 | 30" | 24" | 3" | 700 | 36 |
| AH-3030 | 30" | 30" | 4" | 700 | 39 |
| AH-3036 | 30" | 36" | 5" | 700 | 63 |
| AH-3048 | 30" | 48" | 7" | 700 | 74 |
| AH-3624 | 36" | 24" | 3" | 700 | 37 |
| AH-3630 | 36" | 30" | 4" | 700 | 49 |
| AH-3636 | 36" | 36" | 5" | 700 | 64 |
| AH-3648 | 36" | 48" | 7" | 700 | 64 |
Original: $213.85
-65%$213.85
$74.85
Description
Designed for use with two wheel hand trucks. A convenient, safe and easy way to access loading docks from trucks. Lightweight and easily portable by just one person. Treadplate surface ensures skid-resistant safe traction. Locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs. The bend or crown is 11 degrees and located 9" from edge of dockplate
| Aluminum Hand Truck Dockplates | |||||
| Model | Plate Width |
Plate Length |
Height Diff. |
Capacity (lbs) |
Wt. (lbs) |
|
1/4" Plate Thickness |
|||||
| A-3024 | 30" | 24" | 3" | 500 | 39 |
| A-3030 | 30" | 30" | 4" | 500 | 44 |
| A-3036 | 30" | 36" | 5" | 500 | 48 |
| A-3048 | 30" | 48" | 7" | 500 | 50 |
| A-3624 | 36" | 24" | 3" | 500 | 44 |
| A-3630 | 36" | 30" | 4" | 500 | 45 |
| A-3636 | 36" | 36" | 5" | 500 | 63 |
| A-3648 | 36" | 48" | 7" | 500 | 57 |
|
5/16" Plate Thickness |
|||||
| AH-3024 | 30" | 24" | 3" | 700 | 36 |
| AH-3030 | 30" | 30" | 4" | 700 | 39 |
| AH-3036 | 30" | 36" | 5" | 700 | 63 |
| AH-3048 | 30" | 48" | 7" | 700 | 74 |
| AH-3624 | 36" | 24" | 3" | 700 | 37 |
| AH-3630 | 36" | 30" | 4" | 700 | 49 |
| AH-3636 | 36" | 36" | 5" | 700 | 64 |
| AH-3648 | 36" | 48" | 7" | 700 | 64 |
