Vestil Aluminum Yard Ramps

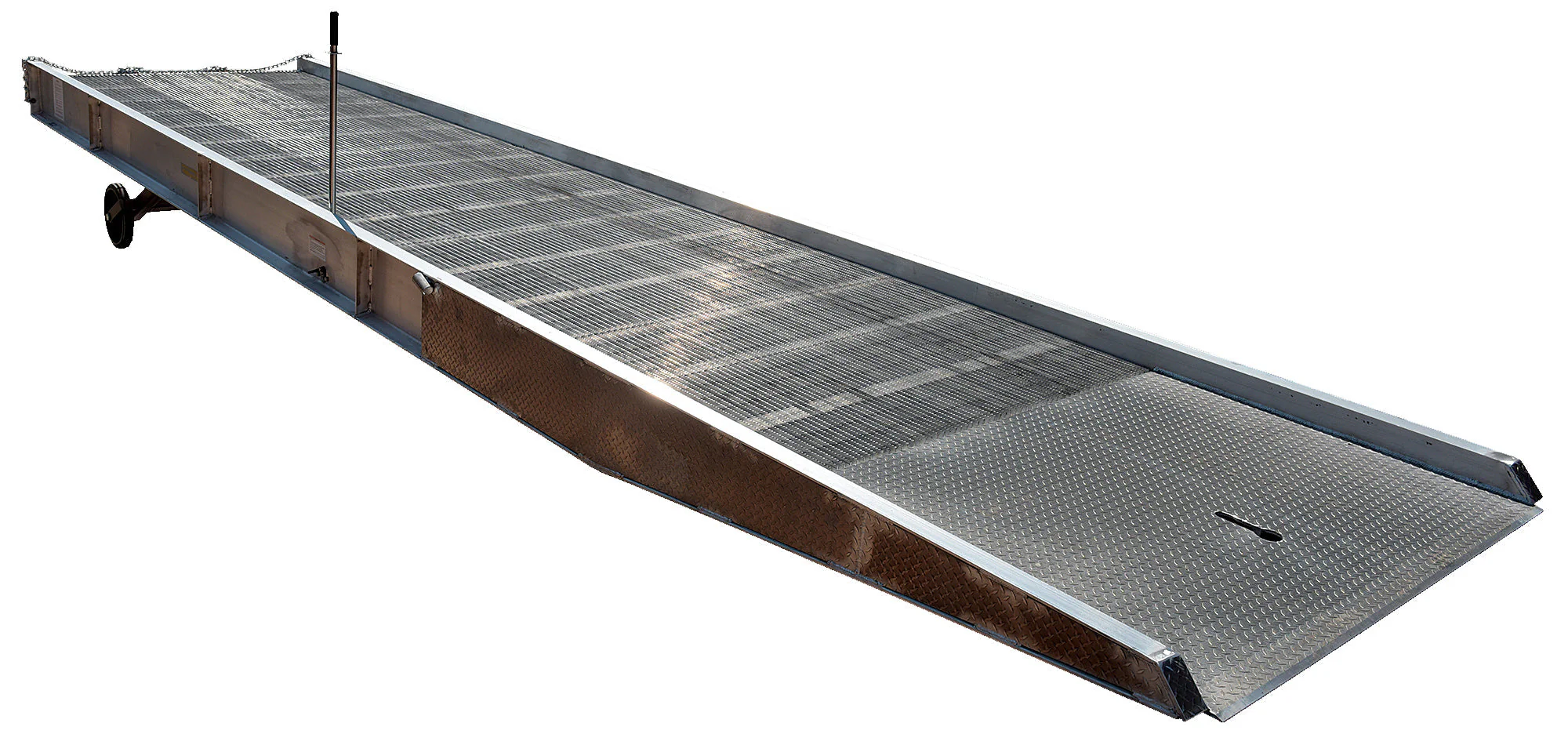

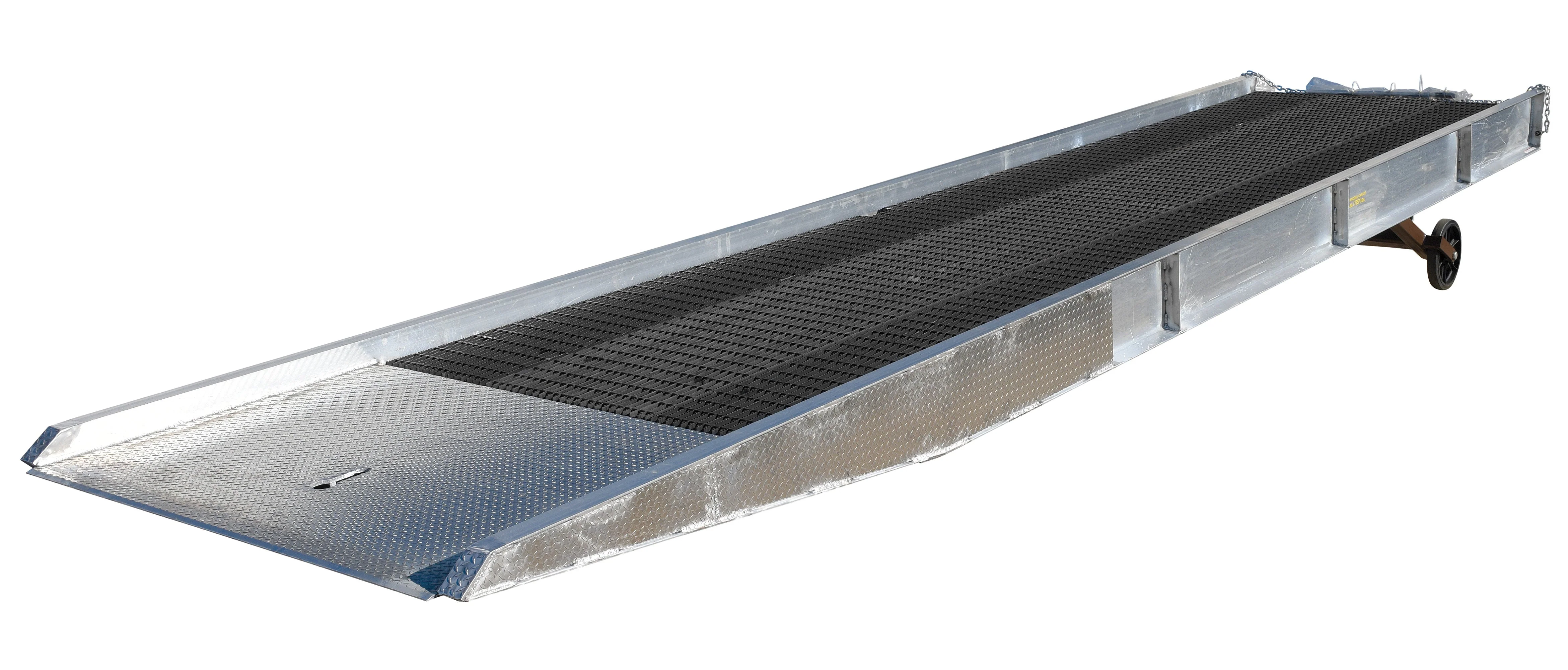

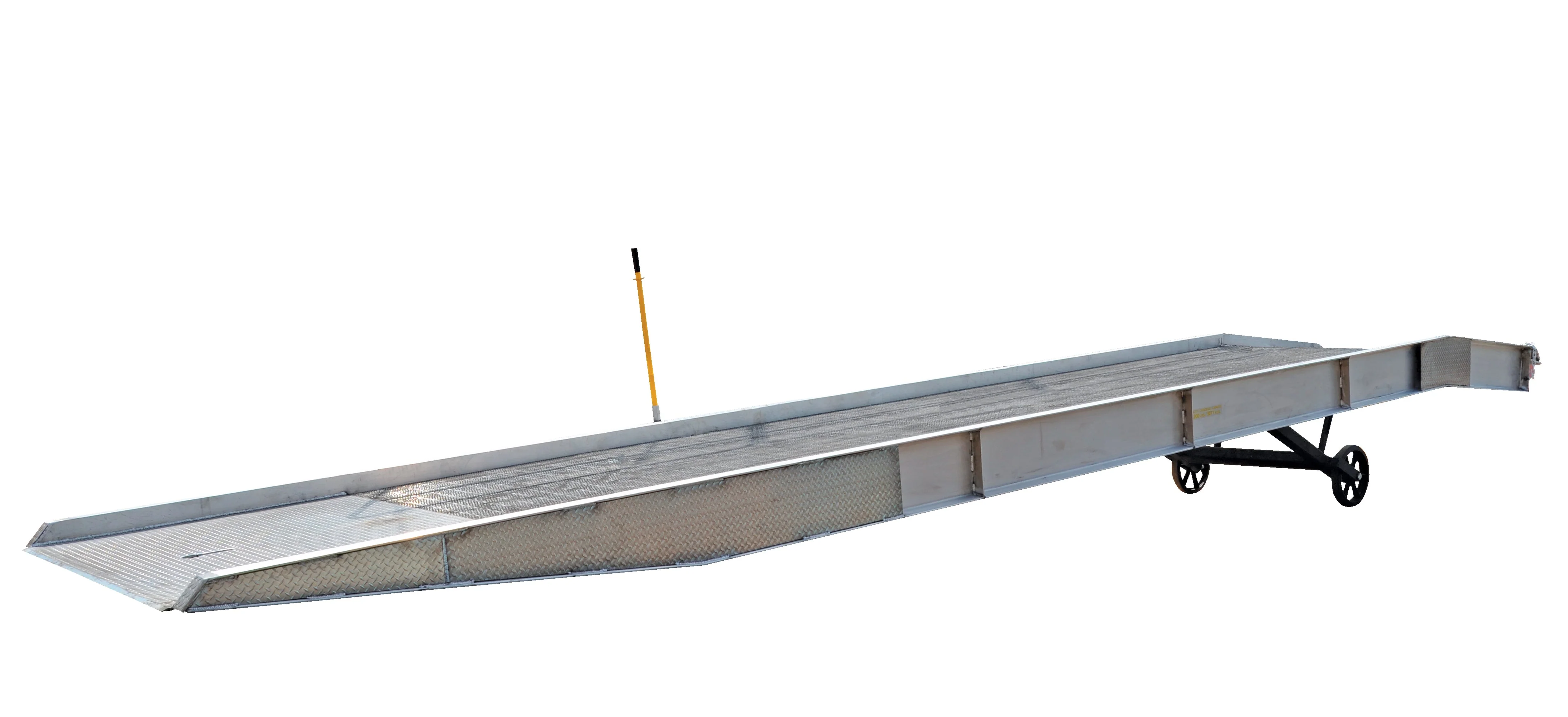

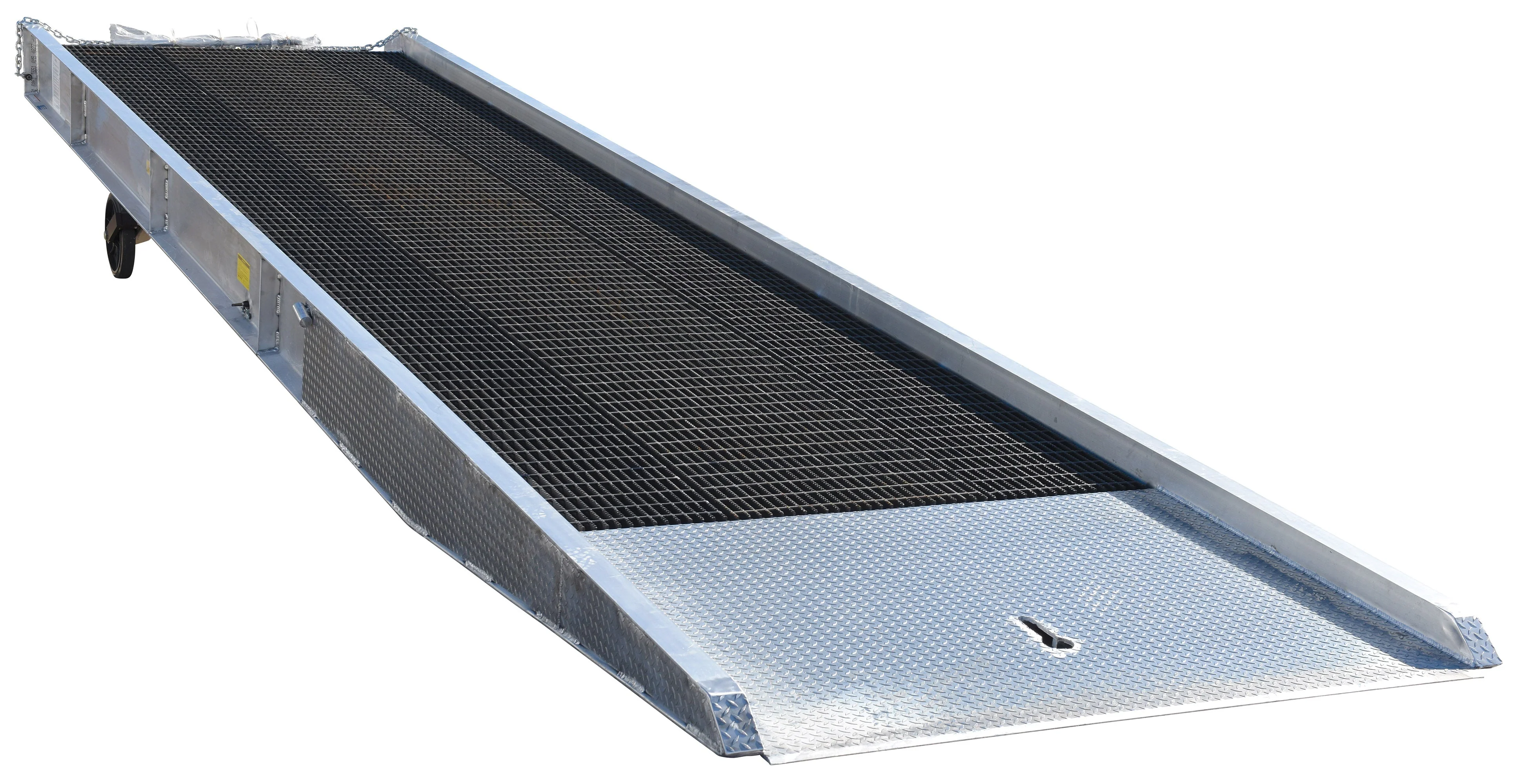

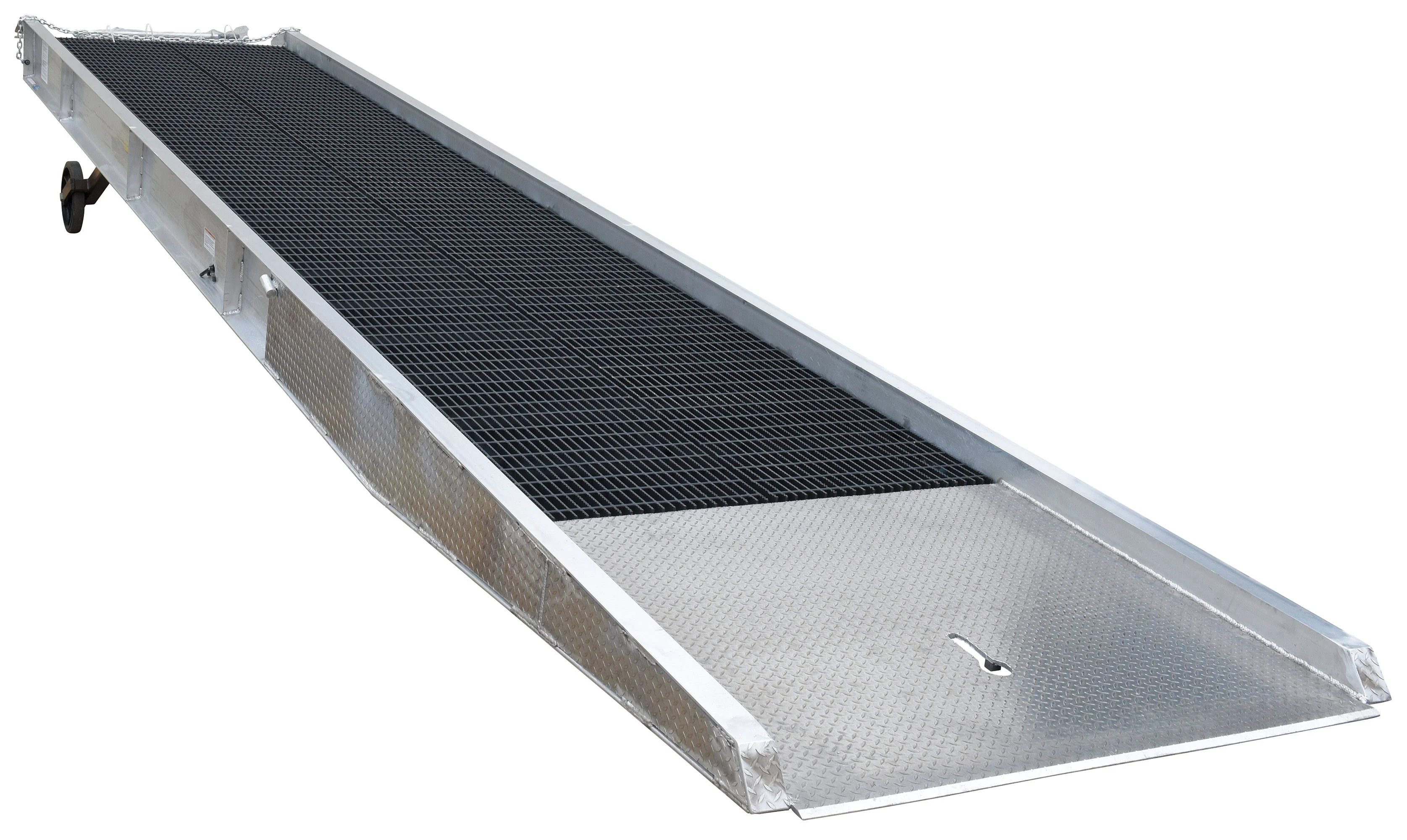

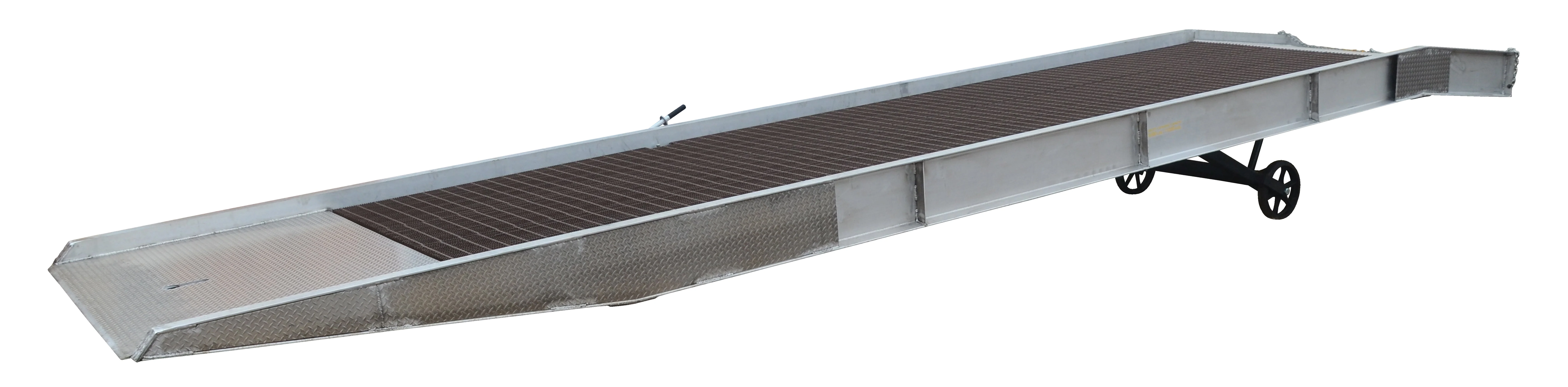

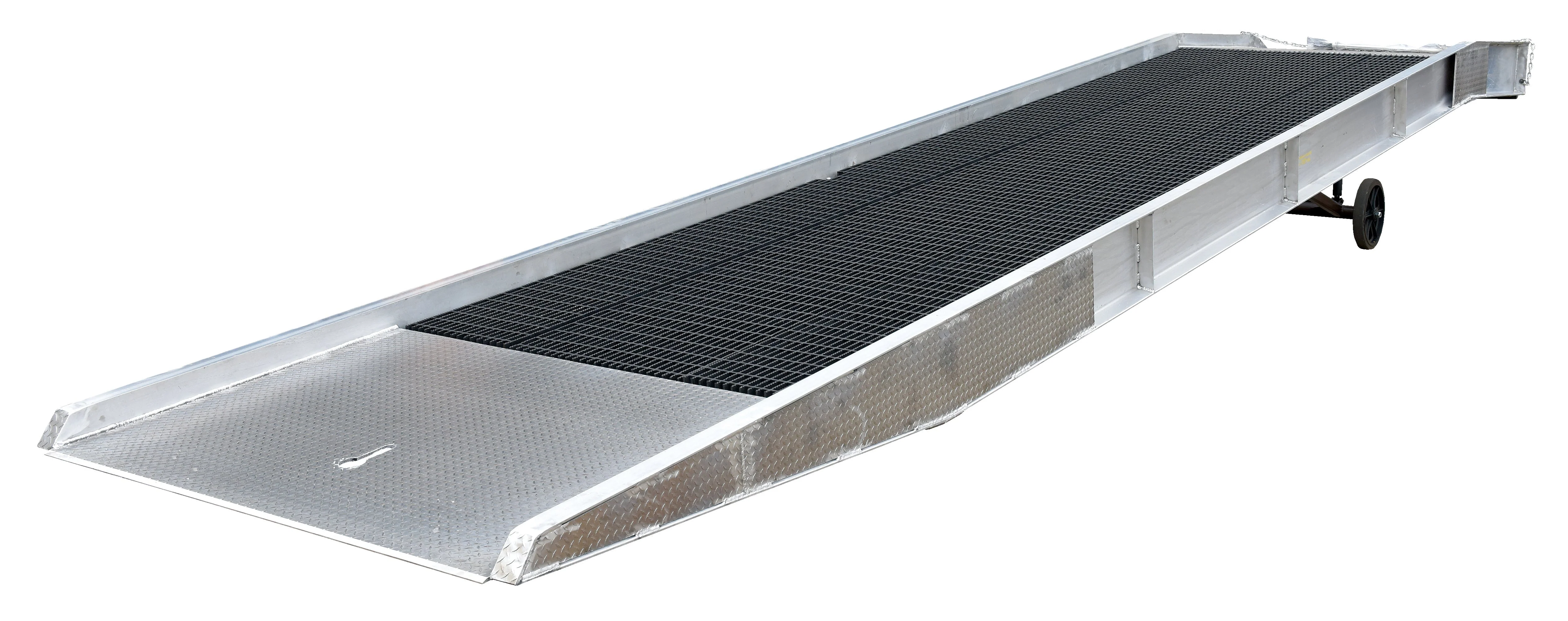

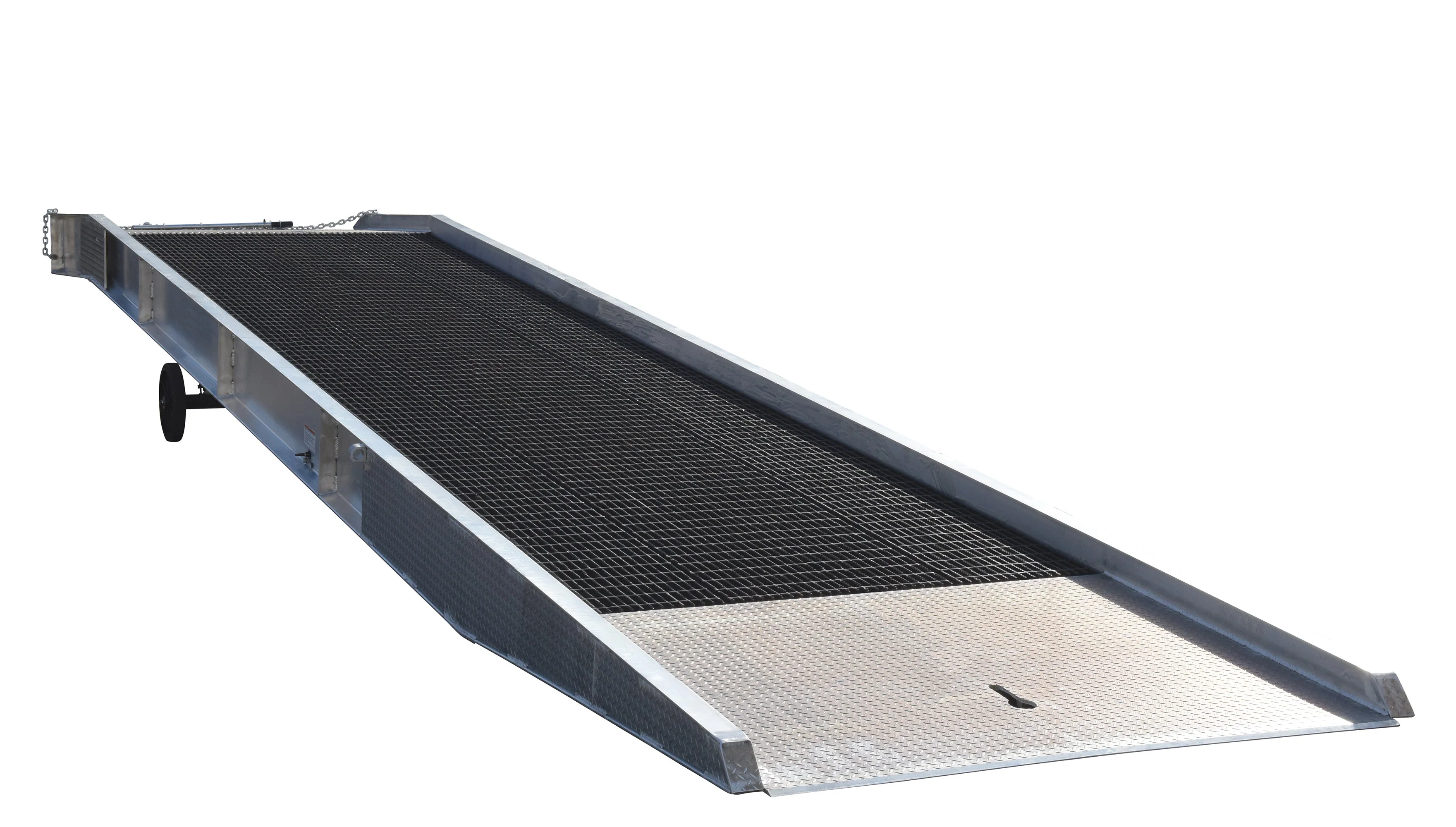

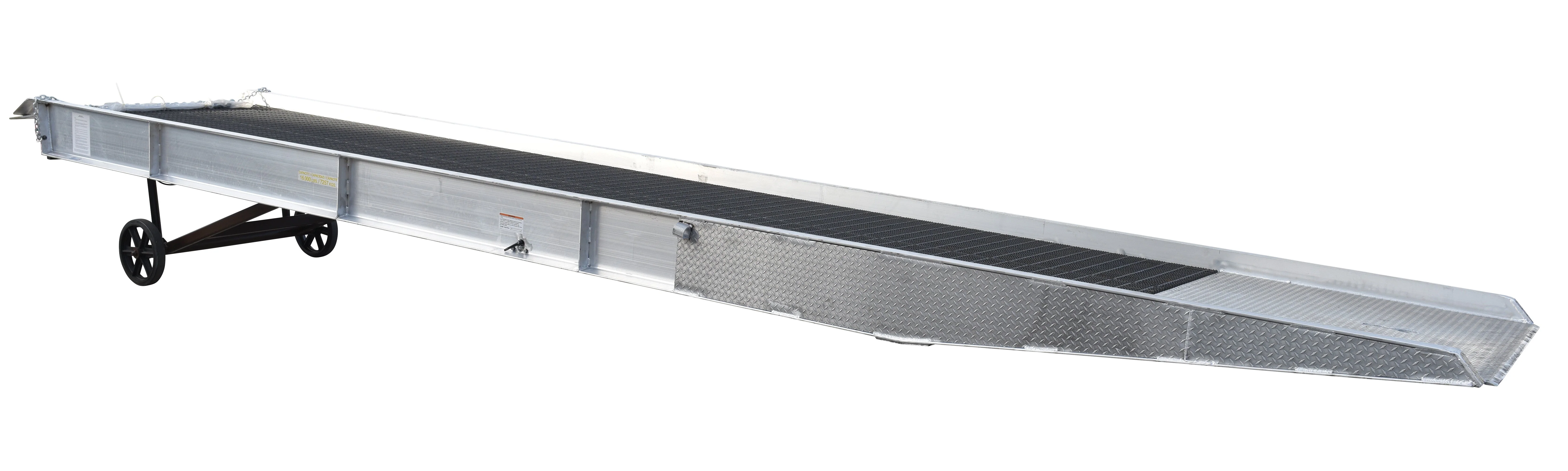

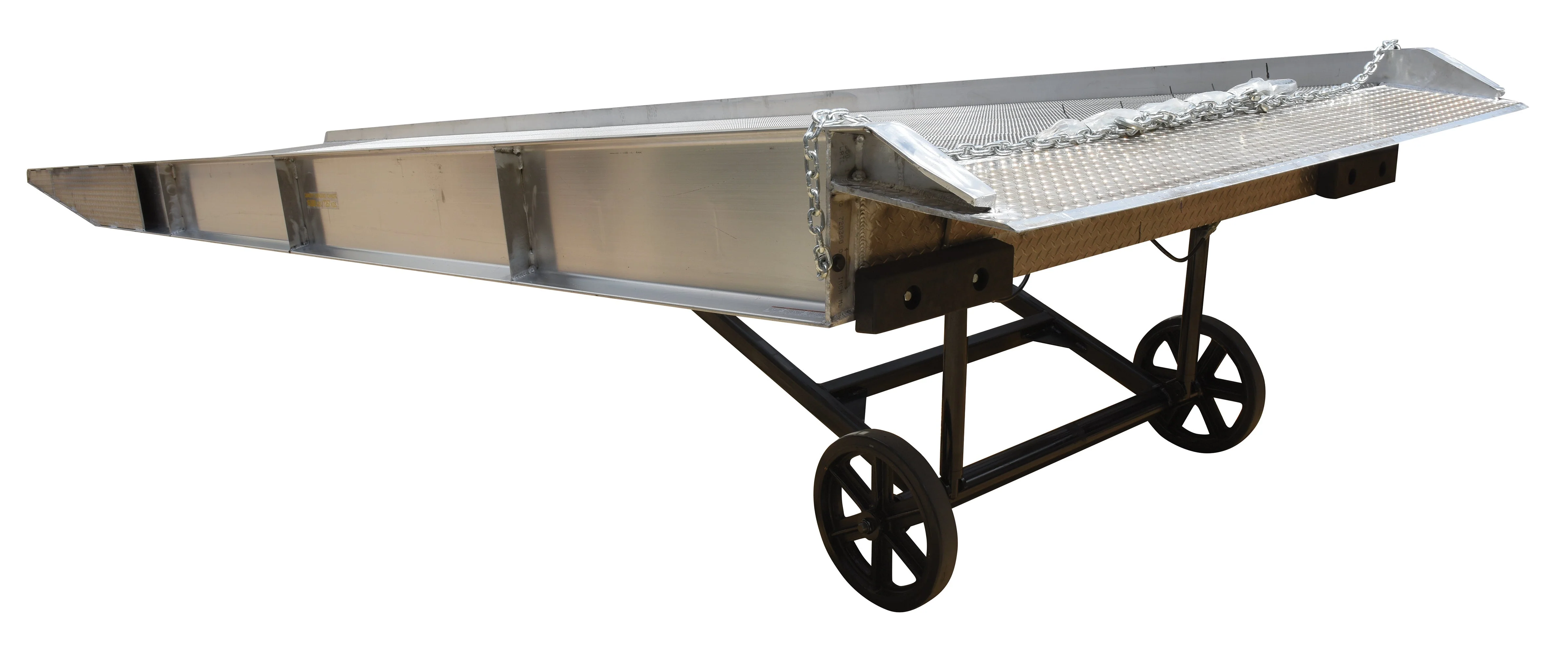

Portable Aluminum Yard Ramps have a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Available with steel or rust resistant aluminum grating. Standard features: Manual hydraulic hand pump (safety pressure relief valve),18" x 5" mold-on-rubber tires, 4" high curbs, service range of 45" to 62", anchor chains, and tow bar pocket. Yard ramps ship flatbed truck. (Yellow guards are optional)
| Aluminum Yard Ramps - Alum. Grating | |||||
| Model | Capacity (lbs) |
Overall Width |
Usable Width |
Length | Wt. (lbs) |
| AY-167230 | 16,000 | 74" | 66" | 30' | 2783 |
| AY-168430 | 16,000 | 86" | 78" | 30' | 3150 |
| AY-169330 | 16,000 | 95" | 87" | 30' | 3465 |
| AY-167236-L | 16,000 | 74" | 66" | 36' | 3360 |
| AY-168436-L | 16,000 | 86" | 78" | 36' | 3728 |
| AY-169336-L | 16,000 | 95" | 87" | 36' | 3990 |
| AY-207230 | 20,000 | 74" | 66" | 30' | 3565 |
| AY-208430 | 20,000 | 86" | 78" | 30' | 3255 |
| AY-209330 | 20,000 | 95" | 87" | 30' | 3570 |
| AY-207236-L | 20,000 | 74" | 66" | 36 | 3465 |
| AY-208436-L | 20,000 | 86" | 78" | 36' | 3833 |
| AY-209336-L | 20,000 | 95" | 87" | 36' | 4095 |
| AY-257230 | 25,000 | 74" | 66" | 30' | 2940 |
| AY-258430 | 25,000 | 86" | 78" | 30' | 3308 |
| AY-259330 | 25,000 | 95" | 87" | 30' | 3675 |
| AY-257236-L | 25,000 | 74" | 66" | 36' | 3578 |
| AY-258436-L | 25,000 | 86" | 78" | 36' | 3885 |
| AY-259336-L | 25,000 | 95" | 87" | 36' | 4200 |
| AY-307230 | 30,000 | 74" | 66" | 30' | 3092 |
| AY-308430 | 30,000 | 86" | 78" | 30' | 3360 |
| AY-307236-L | 30,000 | 74" | 66" | 36' | 3570 |
| AY-308436-L | 30,000 | 86" | 78" | 36' | 3938 |
| Aluminum Yard Ramps - Steel Grating | |||||
| SY-167230 | 16,000 | 74" | 66" | 30' | 3518 |
| SY-168430 | 16,000 | 86" | 78" | 30' | 4043 |
| SY-169330 | 16,000 | 95" | 87" | 30' | 4515 |
| SY-167236-L | 16,000 | 74" | 66" | 36' | 4305 |
| SY-168436-L | 16,000 | 86" | 78" | 36' | 4830 |
| SY-169336-L | 16,000 | 95" | 87" | 36' | 5303 |
| SY-207230 | 20,000 | 74" | 66" | 30' | 3623 |
| SY-208430 | 20,000 | 86" | 78" | 30' | 4148 |
| SY-209330 | 20,000 | 95" | 87" | 30' | 4620 |
| SY-207236-L | 20,000 | 74" | 66" | 36' | 4410 |
| SY-208436-L | 20,000 | 86" | 78" | 36' | 4935 |
| SY-209336-L | 20,000 | 95" | 87" | 36' | 5408 |
| SY-257230 | 25,000 | 74" | 66" | 30' | 3675 |
| SY-258430 | 25,000 | 86" | 78" | 30' | 4200 |
| SY-259330 | 25,000 | 95" | 87" | 30' | 4725 |
| SY-257236-L | 25,000 | 74" | 66" | 36' | 4463 |
| SY-258436-L | 25,000 | 86" | 78" | 36' | 4988 |
| SY-259336-L | 25,000 | 95" | 87" | 36' | 5513 |
| SY-307230 | 30,000 | 74" | 66" | 30' | 3728 |
| SY-308430 | 30,000 | 86" | 78" | 30' | 4253 |
| SY-307236-L | 30,000 | 74" | 66" | 36' | 4515 |
| SY-308436-L | 30,000 | 86" | 78" | 36' | 5040 |
Original: $16,955.15
-65%$16,955.15
$5,934.30
Description
Portable Aluminum Yard Ramps have a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Available with steel or rust resistant aluminum grating. Standard features: Manual hydraulic hand pump (safety pressure relief valve),18" x 5" mold-on-rubber tires, 4" high curbs, service range of 45" to 62", anchor chains, and tow bar pocket. Yard ramps ship flatbed truck. (Yellow guards are optional)
| Aluminum Yard Ramps - Alum. Grating | |||||
| Model | Capacity (lbs) |
Overall Width |
Usable Width |
Length | Wt. (lbs) |
| AY-167230 | 16,000 | 74" | 66" | 30' | 2783 |
| AY-168430 | 16,000 | 86" | 78" | 30' | 3150 |
| AY-169330 | 16,000 | 95" | 87" | 30' | 3465 |
| AY-167236-L | 16,000 | 74" | 66" | 36' | 3360 |
| AY-168436-L | 16,000 | 86" | 78" | 36' | 3728 |
| AY-169336-L | 16,000 | 95" | 87" | 36' | 3990 |
| AY-207230 | 20,000 | 74" | 66" | 30' | 3565 |
| AY-208430 | 20,000 | 86" | 78" | 30' | 3255 |
| AY-209330 | 20,000 | 95" | 87" | 30' | 3570 |
| AY-207236-L | 20,000 | 74" | 66" | 36 | 3465 |
| AY-208436-L | 20,000 | 86" | 78" | 36' | 3833 |
| AY-209336-L | 20,000 | 95" | 87" | 36' | 4095 |
| AY-257230 | 25,000 | 74" | 66" | 30' | 2940 |
| AY-258430 | 25,000 | 86" | 78" | 30' | 3308 |
| AY-259330 | 25,000 | 95" | 87" | 30' | 3675 |
| AY-257236-L | 25,000 | 74" | 66" | 36' | 3578 |
| AY-258436-L | 25,000 | 86" | 78" | 36' | 3885 |
| AY-259336-L | 25,000 | 95" | 87" | 36' | 4200 |
| AY-307230 | 30,000 | 74" | 66" | 30' | 3092 |
| AY-308430 | 30,000 | 86" | 78" | 30' | 3360 |
| AY-307236-L | 30,000 | 74" | 66" | 36' | 3570 |
| AY-308436-L | 30,000 | 86" | 78" | 36' | 3938 |
| Aluminum Yard Ramps - Steel Grating | |||||
| SY-167230 | 16,000 | 74" | 66" | 30' | 3518 |
| SY-168430 | 16,000 | 86" | 78" | 30' | 4043 |
| SY-169330 | 16,000 | 95" | 87" | 30' | 4515 |
| SY-167236-L | 16,000 | 74" | 66" | 36' | 4305 |
| SY-168436-L | 16,000 | 86" | 78" | 36' | 4830 |
| SY-169336-L | 16,000 | 95" | 87" | 36' | 5303 |
| SY-207230 | 20,000 | 74" | 66" | 30' | 3623 |
| SY-208430 | 20,000 | 86" | 78" | 30' | 4148 |
| SY-209330 | 20,000 | 95" | 87" | 30' | 4620 |
| SY-207236-L | 20,000 | 74" | 66" | 36' | 4410 |
| SY-208436-L | 20,000 | 86" | 78" | 36' | 4935 |
| SY-209336-L | 20,000 | 95" | 87" | 36' | 5408 |
| SY-257230 | 25,000 | 74" | 66" | 30' | 3675 |
| SY-258430 | 25,000 | 86" | 78" | 30' | 4200 |
| SY-259330 | 25,000 | 95" | 87" | 30' | 4725 |
| SY-257236-L | 25,000 | 74" | 66" | 36' | 4463 |
| SY-258436-L | 25,000 | 86" | 78" | 36' | 4988 |
| SY-259336-L | 25,000 | 95" | 87" | 36' | 5513 |
| SY-307230 | 30,000 | 74" | 66" | 30' | 3728 |
| SY-308430 | 30,000 | 86" | 78" | 30' | 4253 |
| SY-307236-L | 30,000 | 74" | 66" | 36' | 4515 |
| SY-308436-L | 30,000 | 86" | 78" | 36' | 5040 |
