Vestil Battery Transfer Platforms

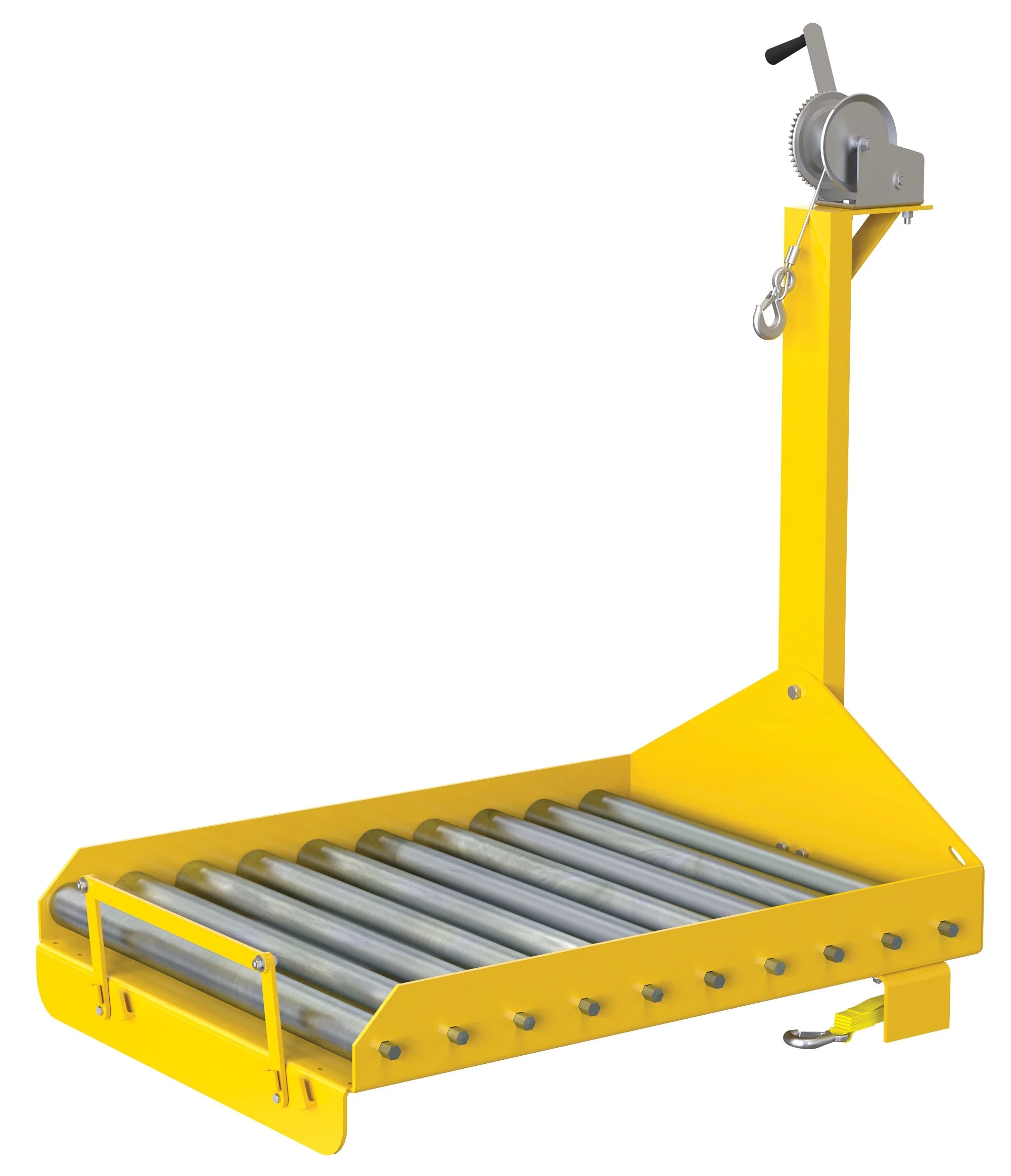

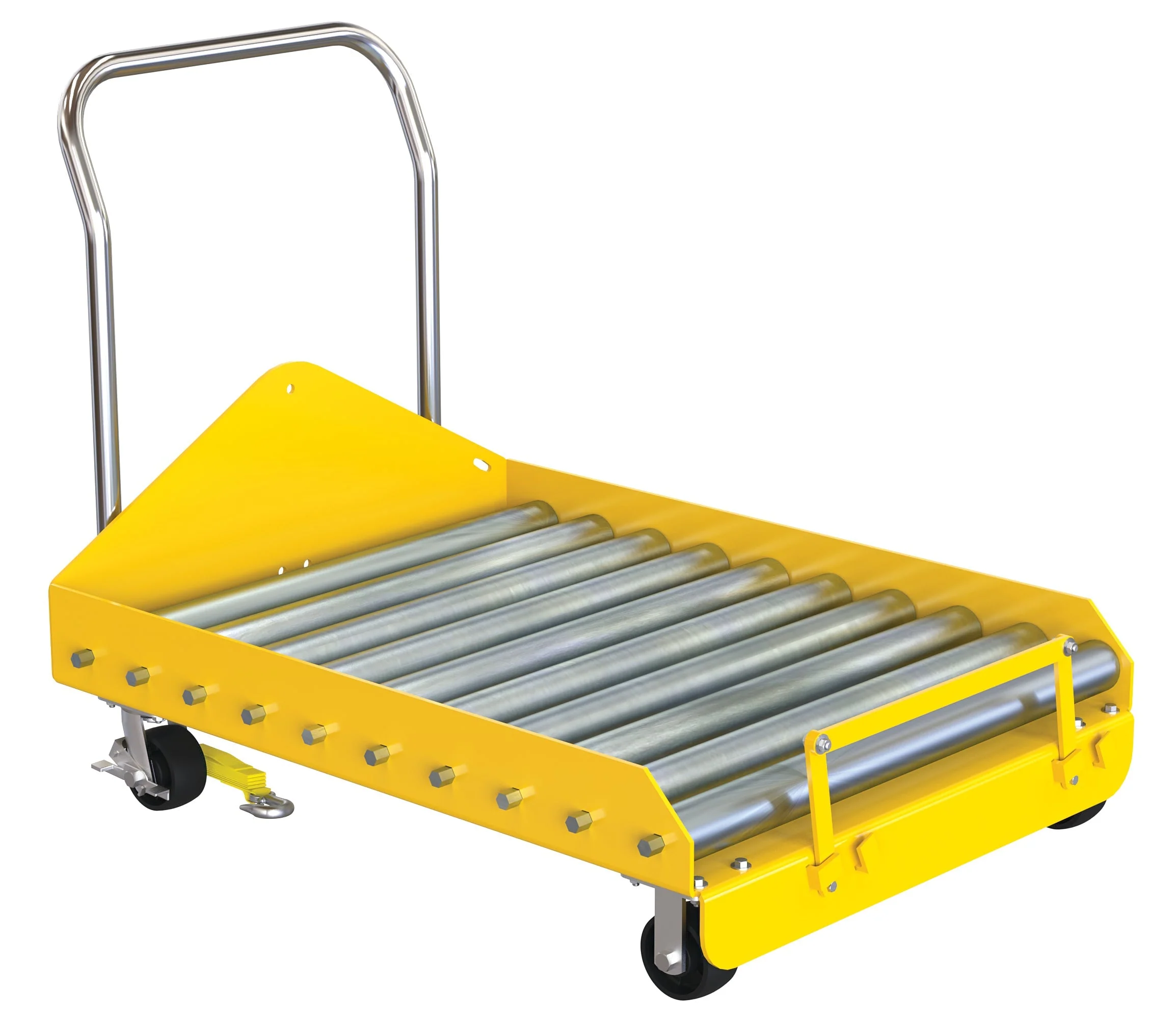

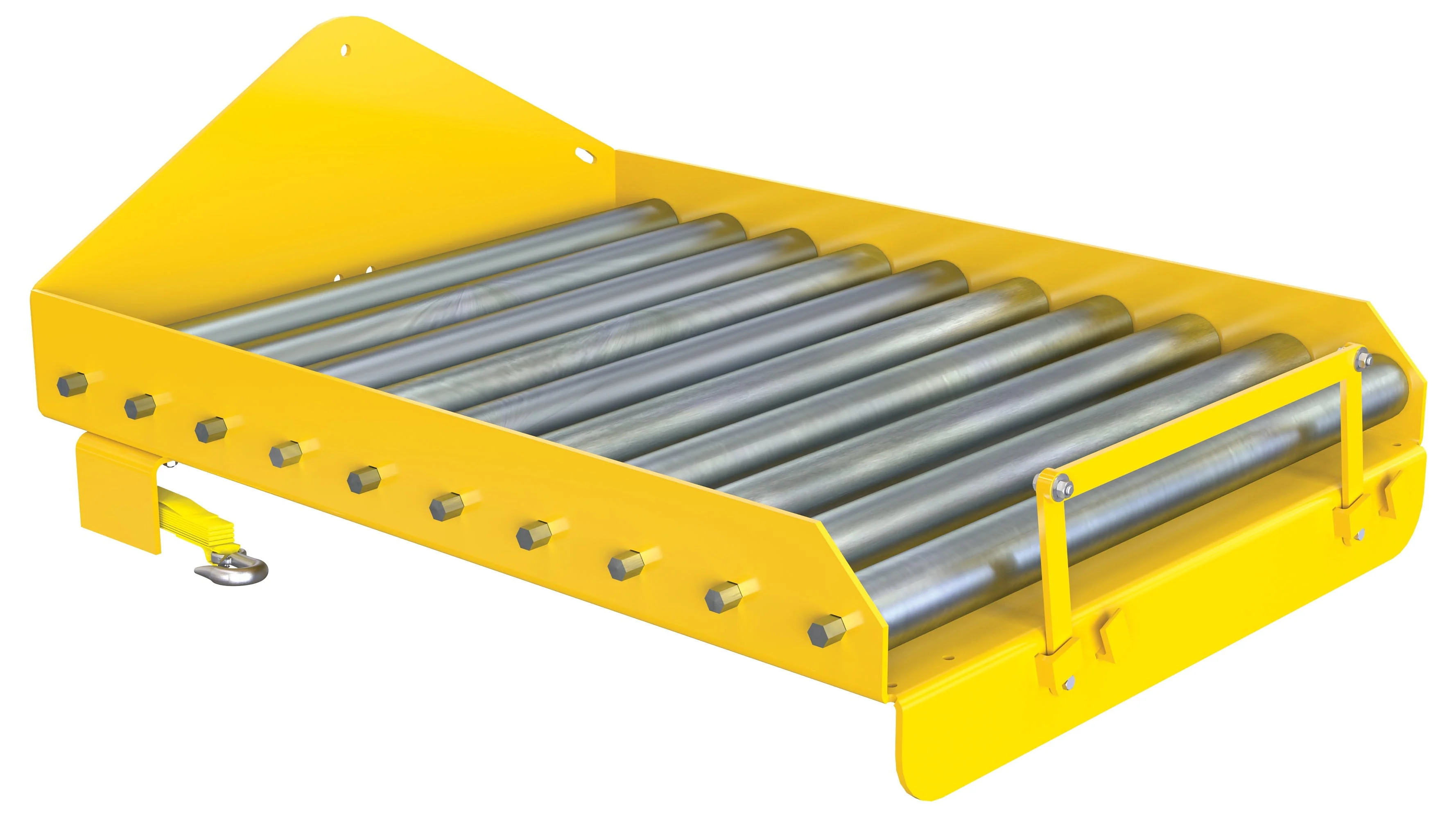

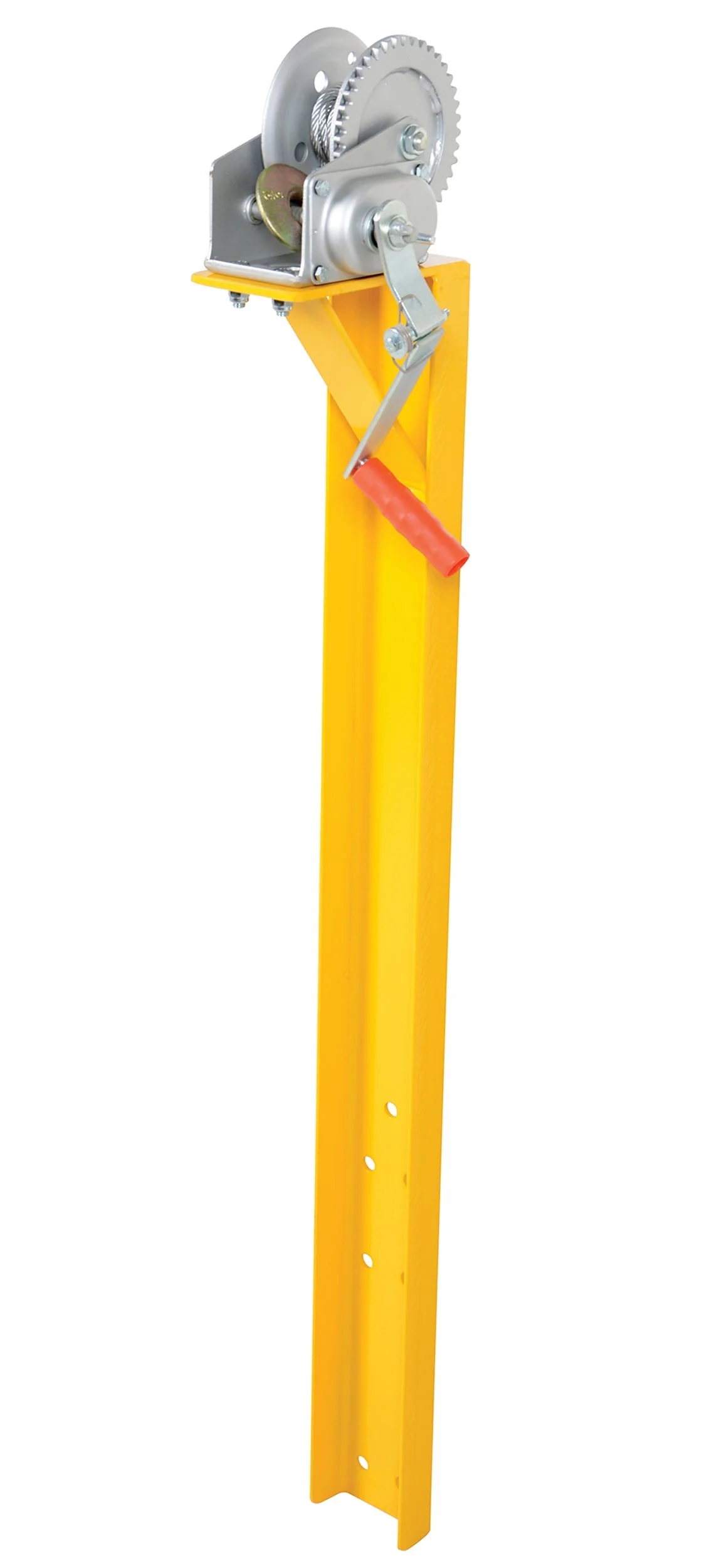

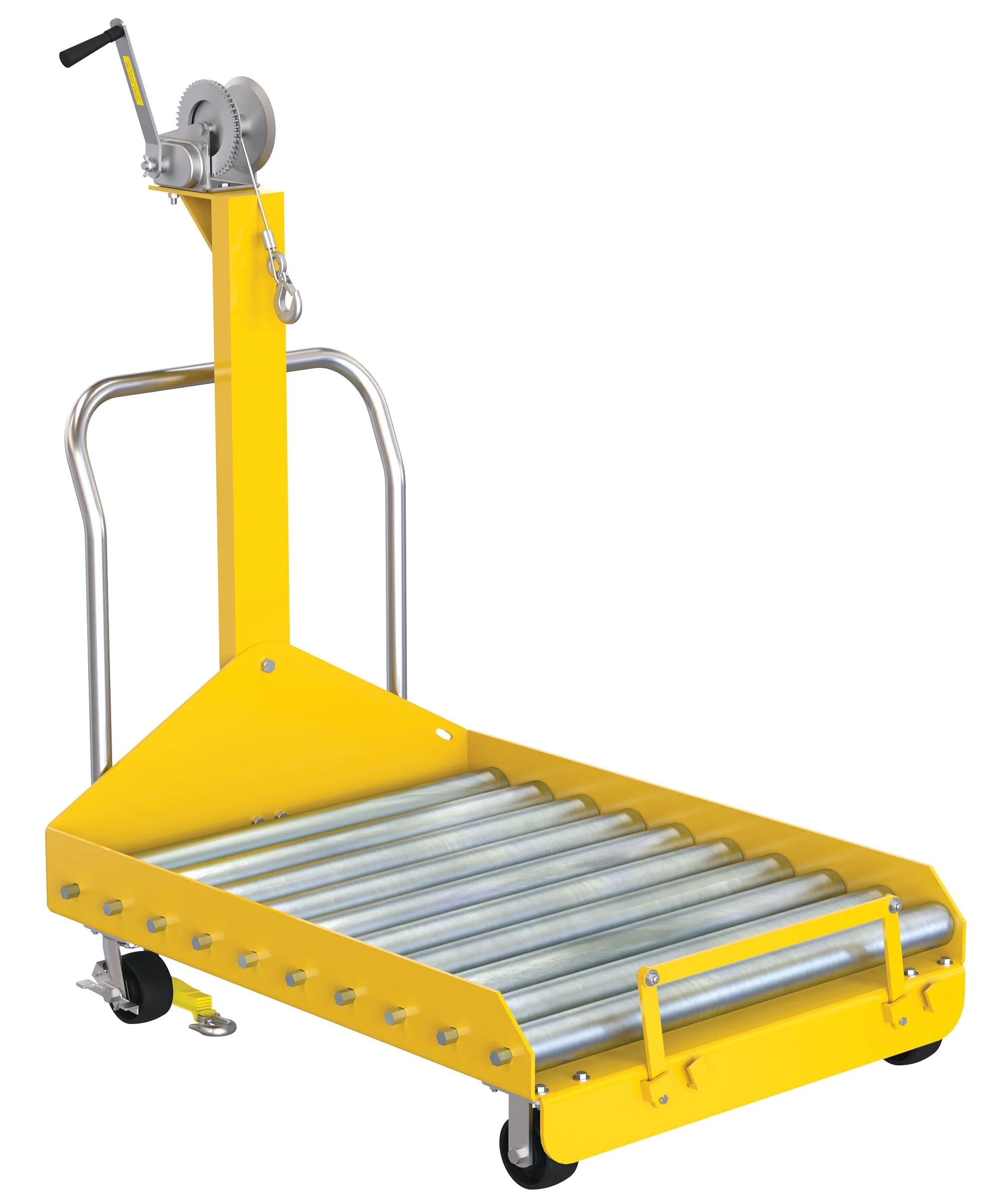

The Battery Transfer Platform is designed to load, unload, and transfer fork truck batteries. Features roller deck for easy battery movement. Front locking safety tabs to secure battery in cart. Welded steel construction with baked-in powder coated finish for added toughness. Models BTC-CART and BTC-Cart-WINCH, includes two (2) rigid and two (2) swivel 4" x 2" glass filled nylon casters for portability. Not pallet truck accessible, but can be lifted with a fork lift. Models BTC-PJ and BTC-PJ-WINCH designed to accommodate most pallet trucks. Pallet truck sold separately. Optional winch attachment, model BTC-WINCH, can be installed easily to either BTC unit with the supplied hardware. The manual winch is designed to pull battery out of fork truck.
| Fork Truck Battery Movers | |||||
| Model | Description | Overall Size (WxLxH) | Cart Capacity (lbs) |
Winch Pulling Capacity (lbs) |
Wt. (lbs) |
| BTC-PJ | Battery Transfer Platform (for use with Pallet Truck) | 33-1/4"x 41-1/8"x 16-1/8" | 4,000 | -- | 276 |
| BTC-PJ-WINCH | Battery Transfer Platform w/ Winch (for use with Pallet Truck) | 33-1/4"x 48-5/8" x 52-3/16" | 4,000 | 1,200 | 318 |
| BTC-CART | Battery Transfer Platform- w/ Casters (for use with fork Lift) | 33-1/4" x 50-1/16" x 37-1/16" | 4,000 | -- | 303 |
| BTC-CART-WINCH | Battery Transfer Platform w/ Winch and Casters (for use with Fork Lift) | 33-1/4"x50-1/16"x54-7/8" | 4,000 | 1,200 | 299 |
| BTC-WINCH | Optional winch only | 52-3/16"H | -- | 1,200 | 38 |
Original: $216.41
-65%$216.41
$75.74
Description
The Battery Transfer Platform is designed to load, unload, and transfer fork truck batteries. Features roller deck for easy battery movement. Front locking safety tabs to secure battery in cart. Welded steel construction with baked-in powder coated finish for added toughness. Models BTC-CART and BTC-Cart-WINCH, includes two (2) rigid and two (2) swivel 4" x 2" glass filled nylon casters for portability. Not pallet truck accessible, but can be lifted with a fork lift. Models BTC-PJ and BTC-PJ-WINCH designed to accommodate most pallet trucks. Pallet truck sold separately. Optional winch attachment, model BTC-WINCH, can be installed easily to either BTC unit with the supplied hardware. The manual winch is designed to pull battery out of fork truck.
| Fork Truck Battery Movers | |||||
| Model | Description | Overall Size (WxLxH) | Cart Capacity (lbs) |
Winch Pulling Capacity (lbs) |
Wt. (lbs) |
| BTC-PJ | Battery Transfer Platform (for use with Pallet Truck) | 33-1/4"x 41-1/8"x 16-1/8" | 4,000 | -- | 276 |
| BTC-PJ-WINCH | Battery Transfer Platform w/ Winch (for use with Pallet Truck) | 33-1/4"x 48-5/8" x 52-3/16" | 4,000 | 1,200 | 318 |
| BTC-CART | Battery Transfer Platform- w/ Casters (for use with fork Lift) | 33-1/4" x 50-1/16" x 37-1/16" | 4,000 | -- | 303 |
| BTC-CART-WINCH | Battery Transfer Platform w/ Winch and Casters (for use with Fork Lift) | 33-1/4"x50-1/16"x54-7/8" | 4,000 | 1,200 | 299 |
| BTC-WINCH | Optional winch only | 52-3/16"H | -- | 1,200 | 38 |
