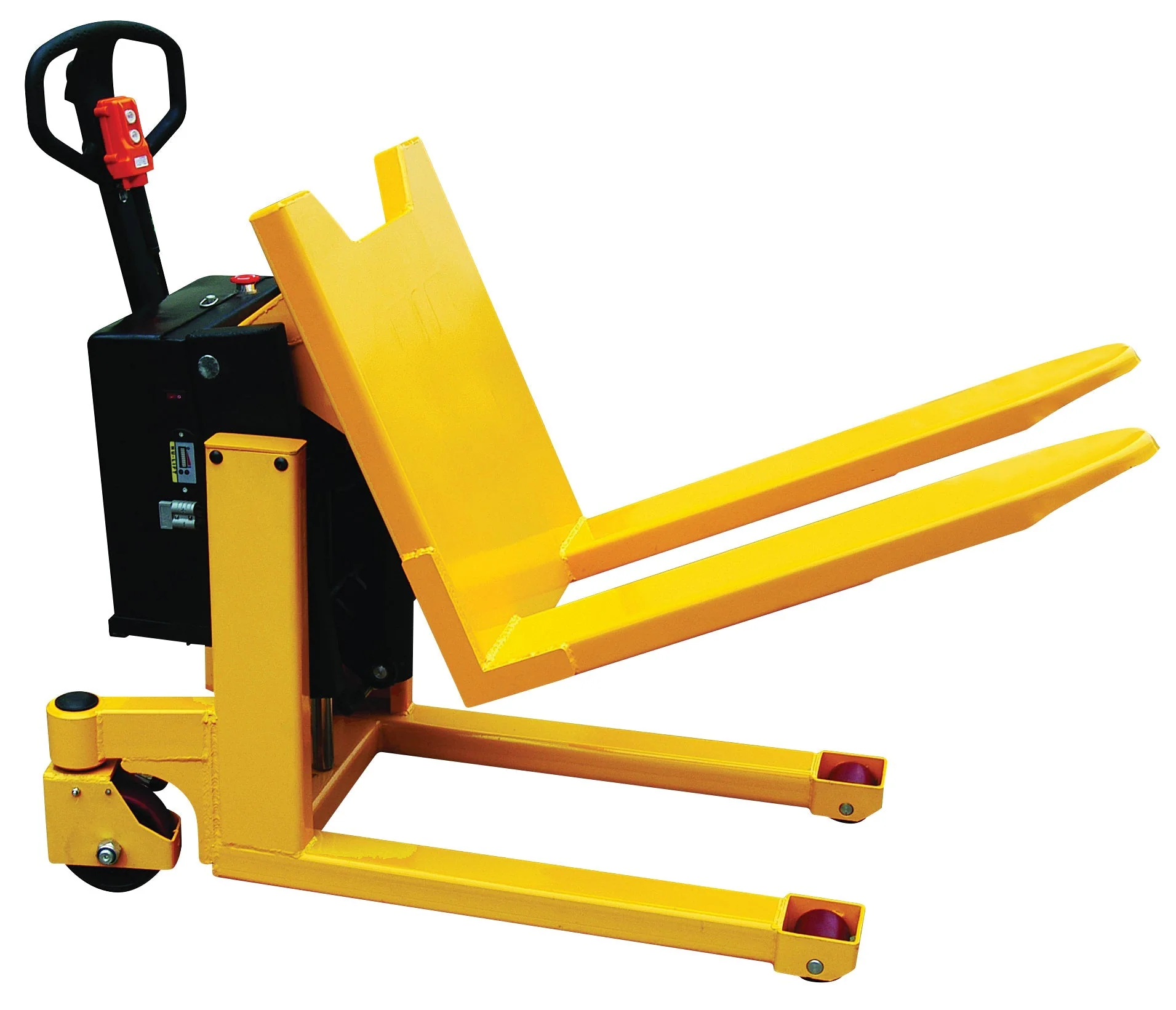

Vestil DC Powered Tilt Master

The battery operated electric lifter and tilter is designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Lift, tilt and transport crates, boxes, and pallets with an open bottom. Forks can be tilted to 90 degrees. Rolls smoothly on 6" x 2" nylon swivel casters with brake and foot protectors. Width between forks is 9-1/2". The overall fork width is 22". The individual fork width is 6-1/4". Handle can be turned and locked in position away for the work area. Features include hand control for the tilt and emergency on/off switch. 12V battery and external battery charger included. The stainless steel constructed version provides strength and durability throughout a lifetime of daily use.

DC Powered Tilt Master
Model	Fork Length	Uniform Capacity (lbs)	Vertical Lift Height	Lowered Fork Height	Wt. (lbs)
TM-22-DC	31-1/2"	2,200	11-1/4"	3-1/2"	498

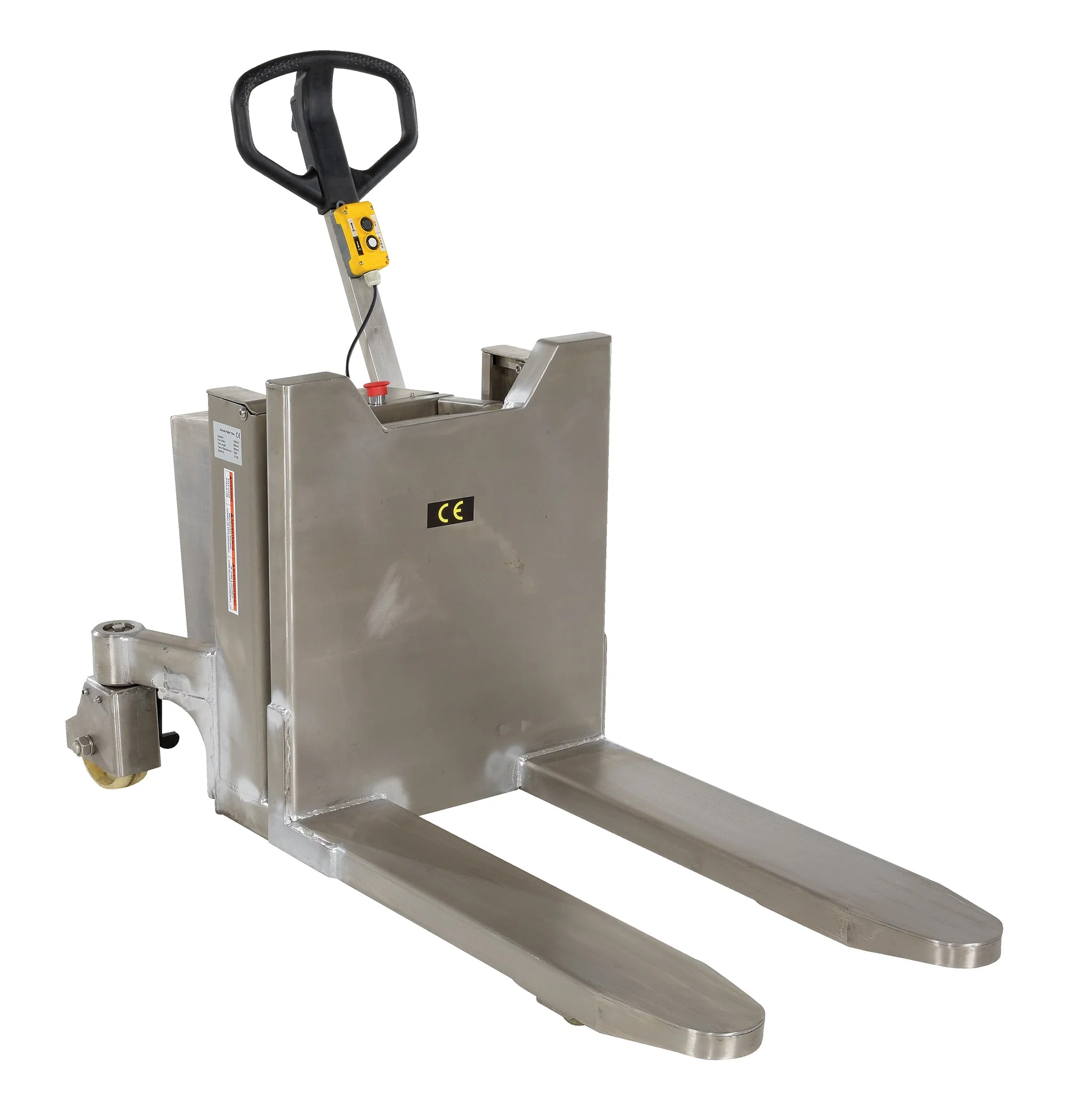

Stainless Steel Tilt Master
TM-22-DC-SS	31-1/2"	2,200	59-1/2"	3-1/2"	474
