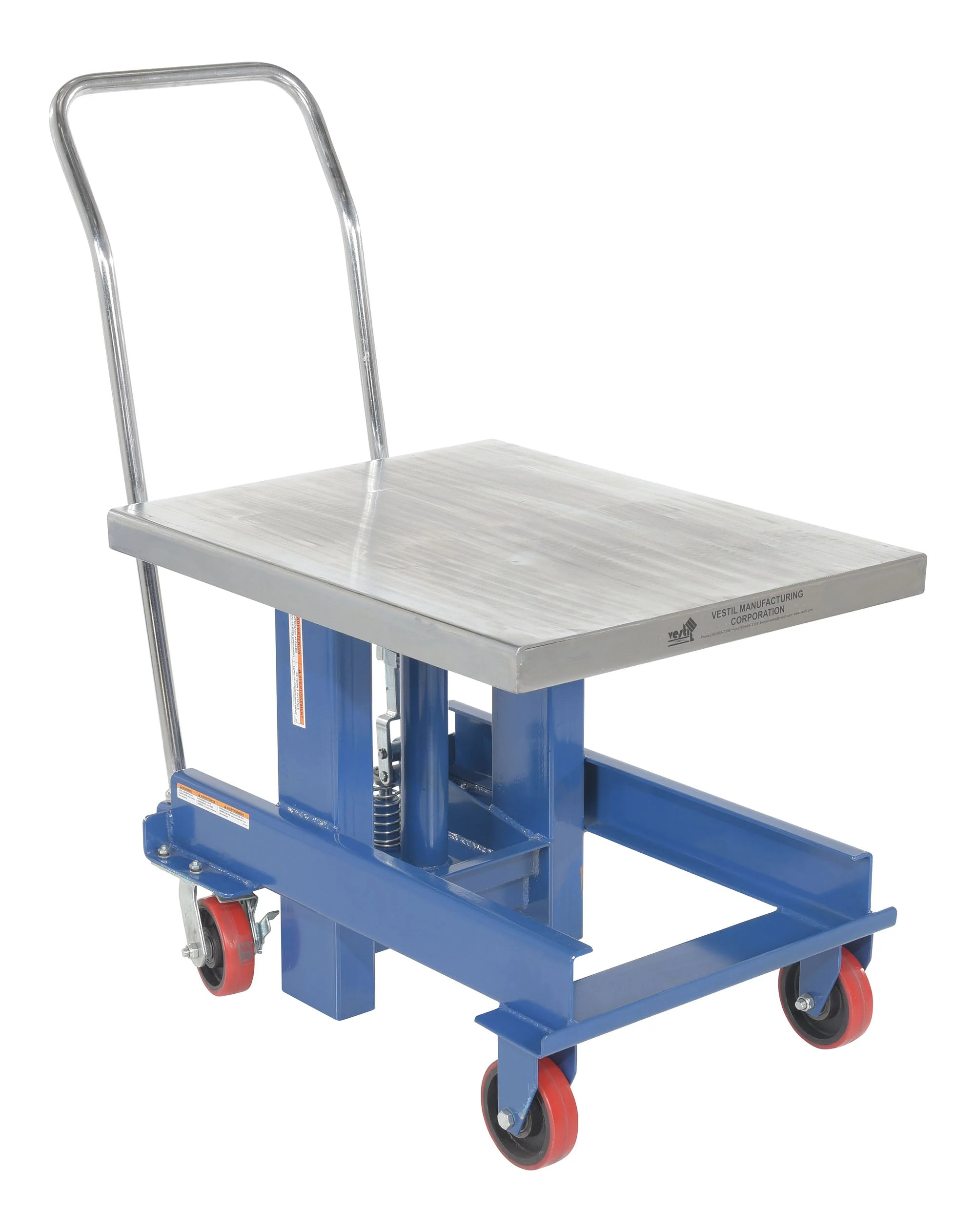

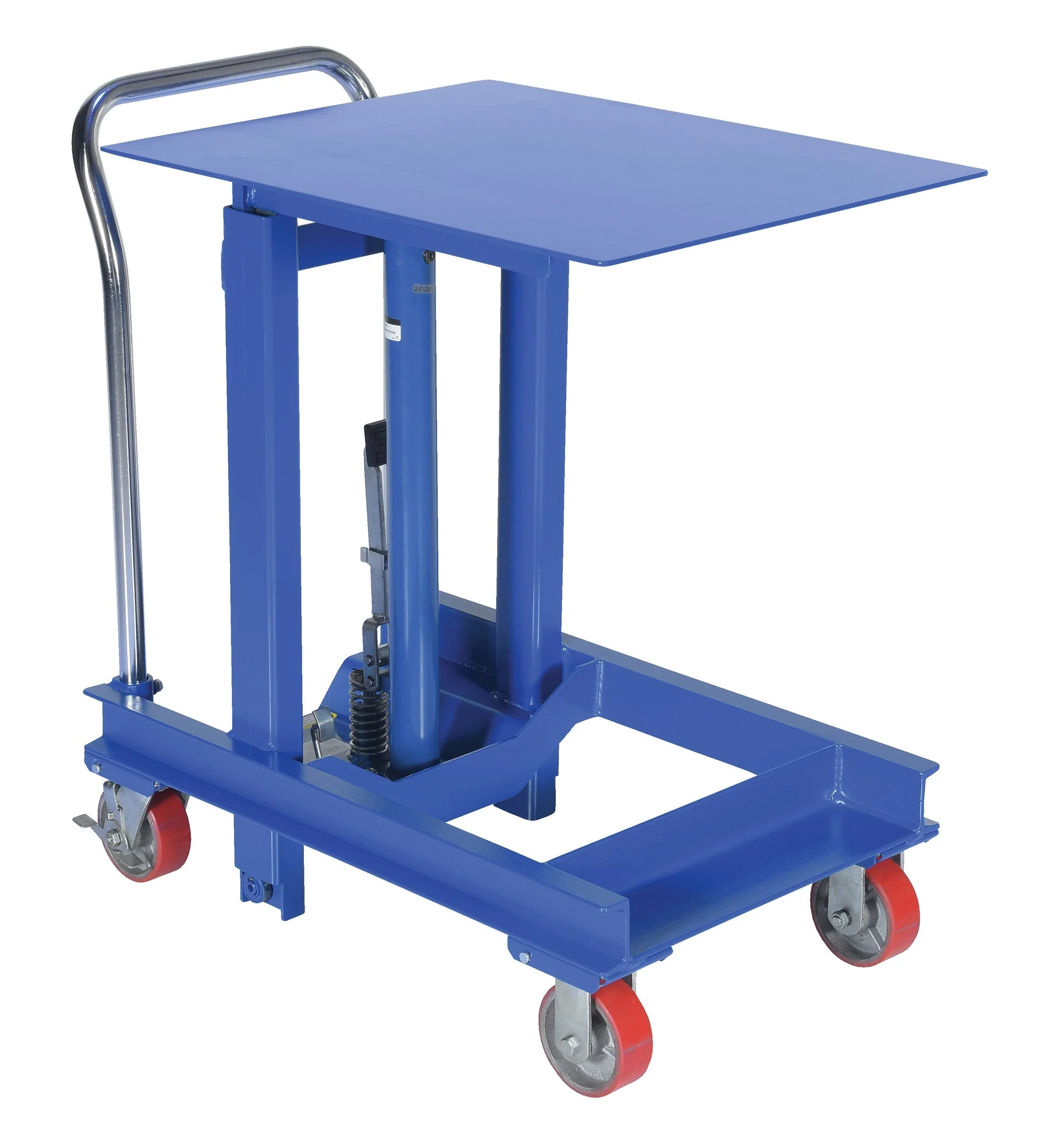

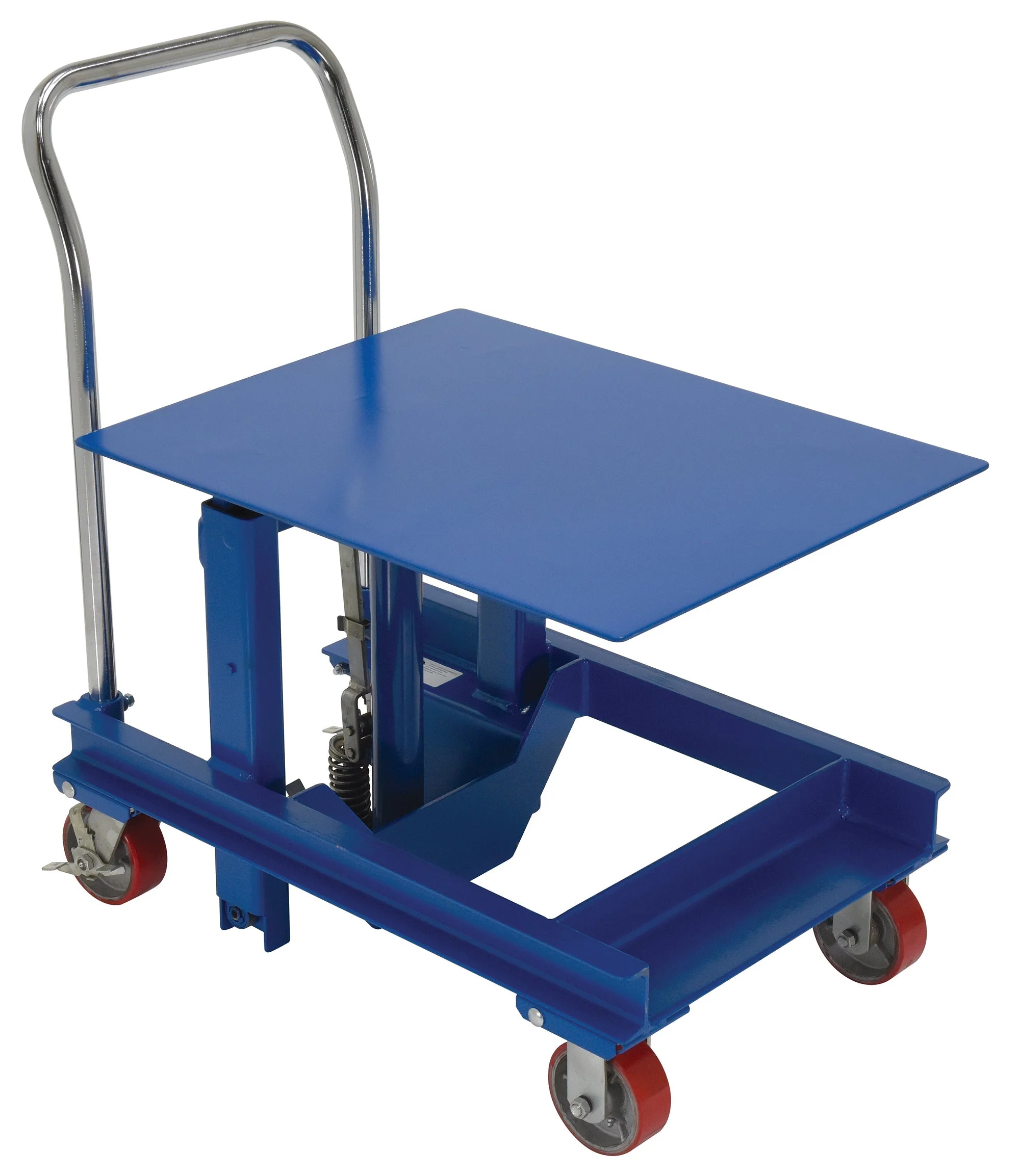

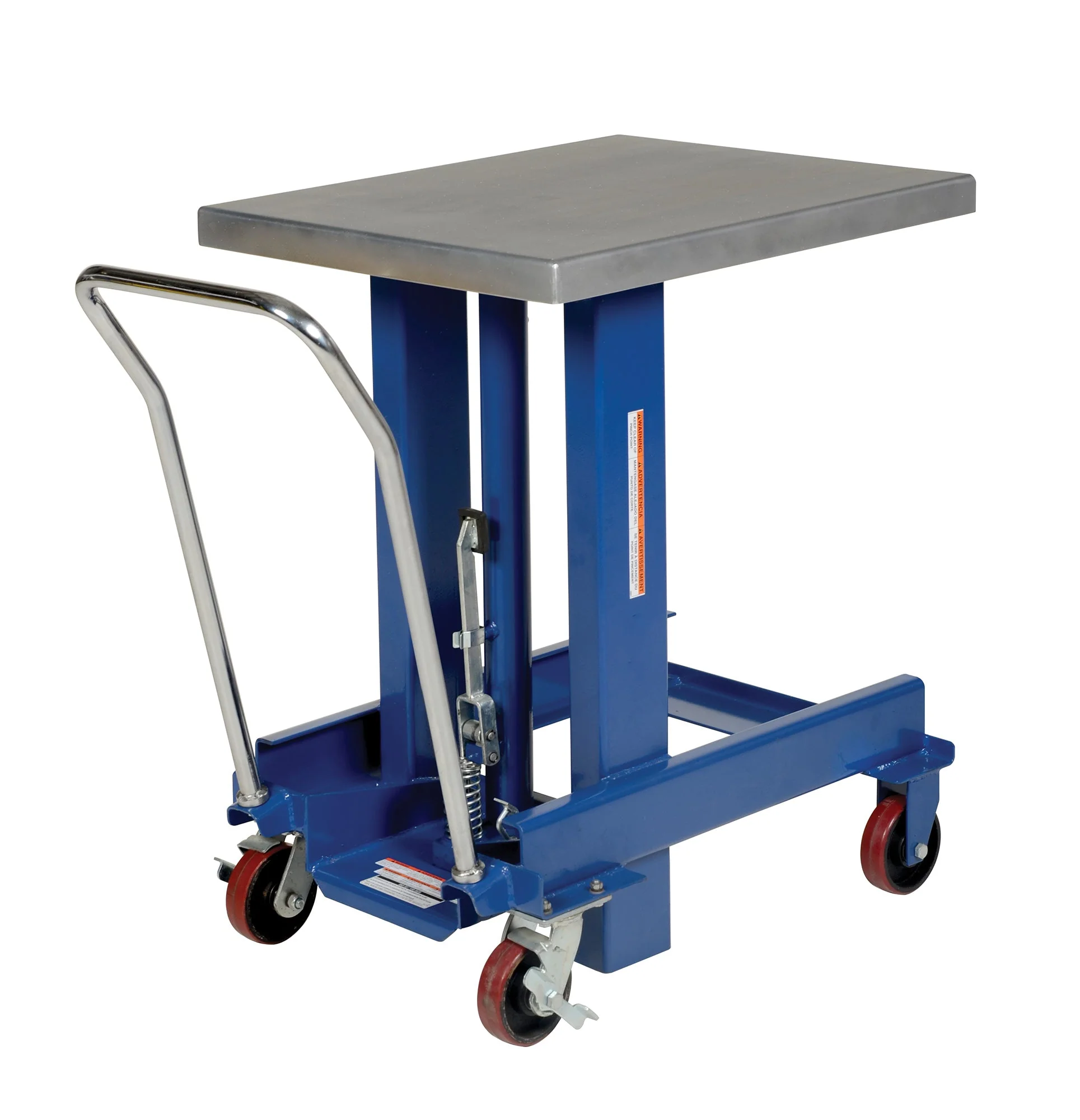

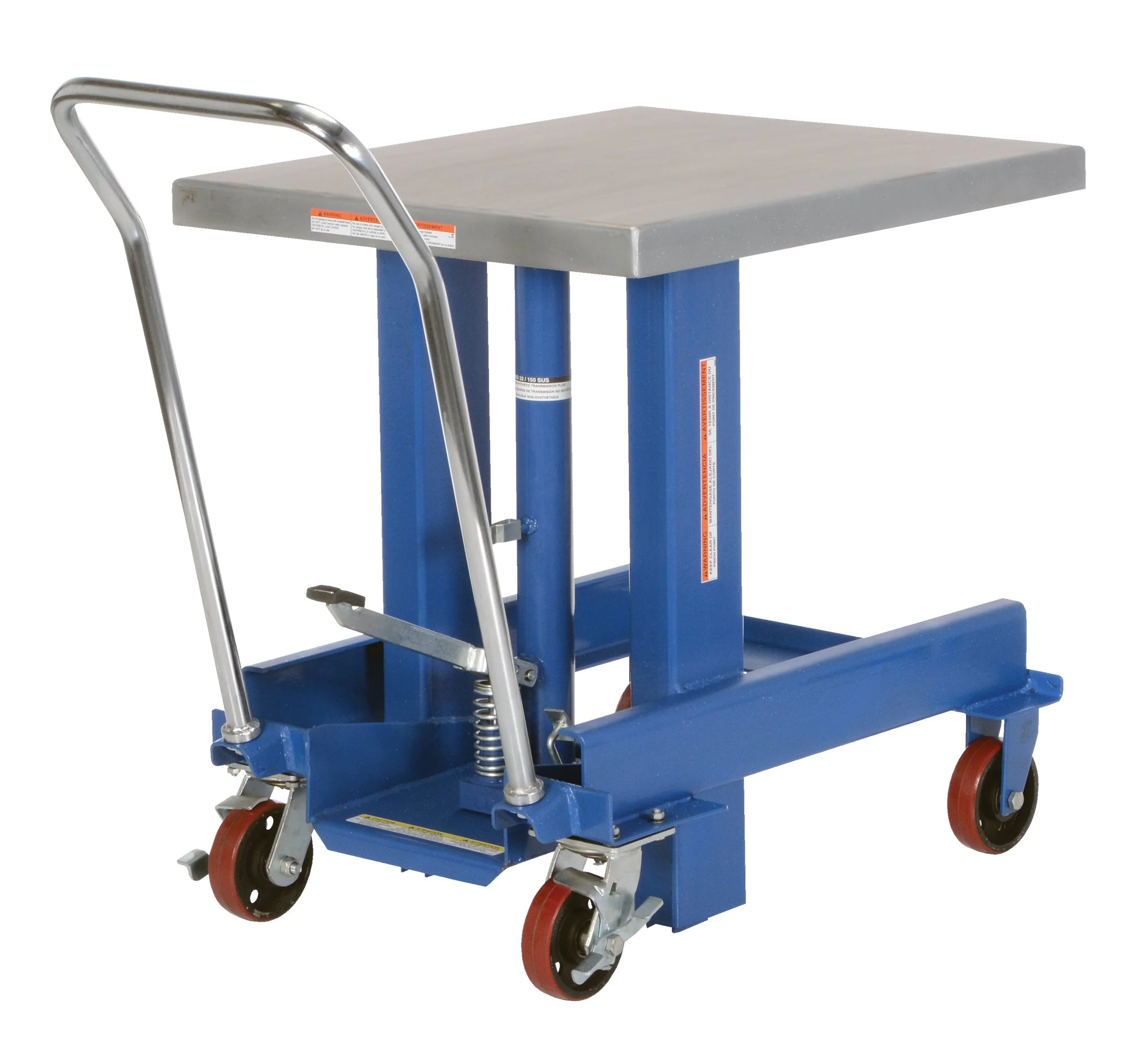

Vestil Die Tables
Designed to reduce back injury and cumulative trauma disorders. Lifts heavy equipment to dynamic working height. Foot pump operated hydraulic pump and lift cylinders. All welded steel construction will provide years of service and hard work. Small frame size allows unit to access hard-to-reach locations. Two rigid and two swivel with side brake casters. Suffix "C" represents a chrome top platform on foot pump operated models.
|
Die Table |
|||||
| Model | Platform Size (WxL) | Service Range |
Power | Capacity (lbs.) |
Wt. (lbs.) |
| DIE-2430-36 | 24"x30" | 24" to 36" | Foot Pump | 2,000 | 290 |
| DIE-2430-36-C | 24"x30" | 24-1/2" to 36" | Foot Pump | 2,000 | 290 |
| DIE-2430-48 | 24"x30" | 30" to 48" | Foot Pump | 2,000 | 295 |
| DIE-2430-48-C | 24"x30" | 30-1/2" to 48" | Foot Pump | 2,000 | 295 |
| DIE-2430-60 | 24"x30" | 36" to 60" | Foot Pump | 2,000 | 344 |
| DIE-2430-60-C | 24"x30" | 36-3/4" to 60-3/4" | Foot Pump | 2,000 | 312 |

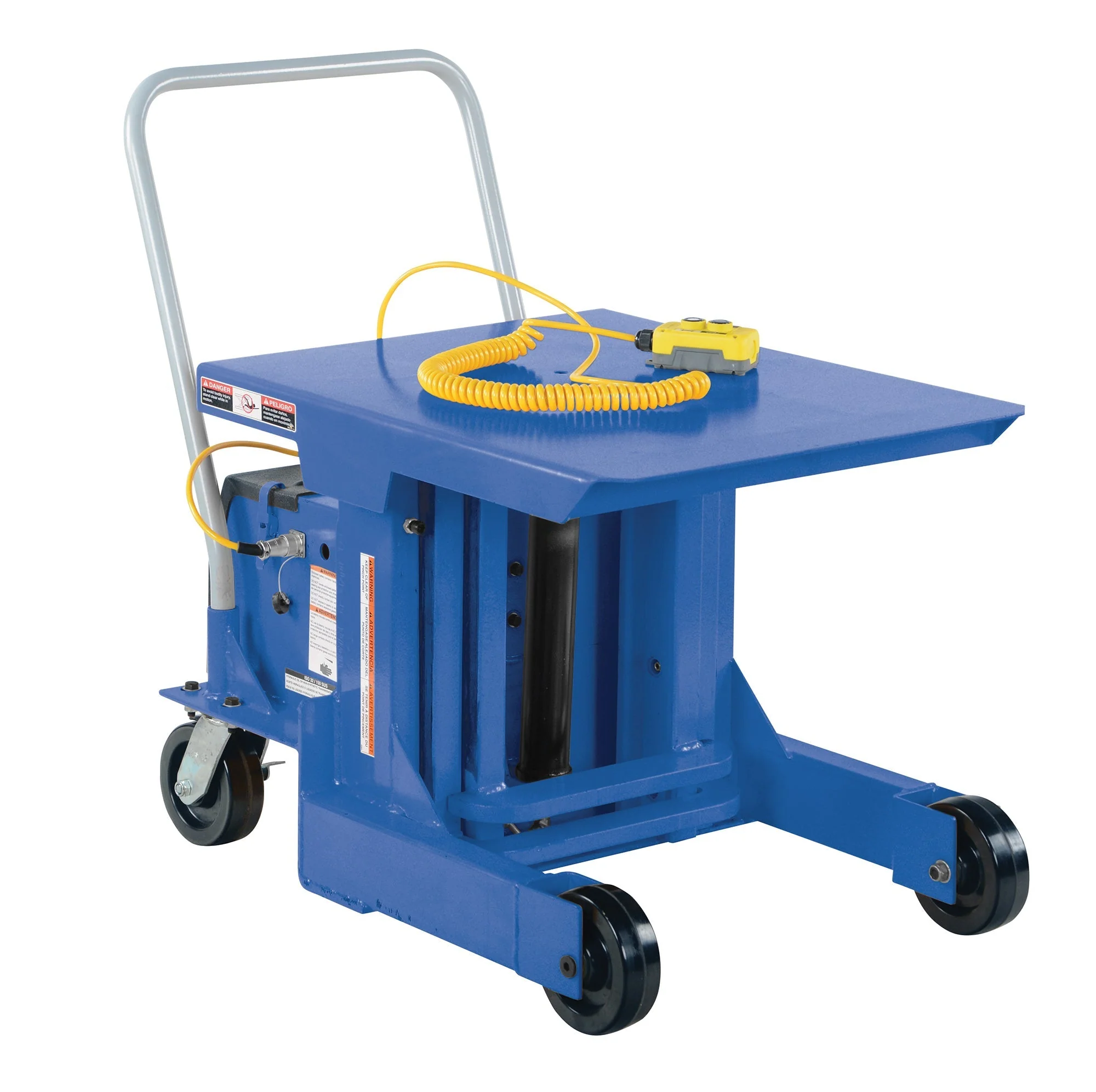

| DIE-2430-DC-C* | 24"x30" | 24" to 51" | DC Powered | 2,000 | 416 |
| *ONE (1) 12V Battery | |||||
Original: $992.40
-65%$992.40
$347.34





Description
Designed to reduce back injury and cumulative trauma disorders. Lifts heavy equipment to dynamic working height. Foot pump operated hydraulic pump and lift cylinders. All welded steel construction will provide years of service and hard work. Small frame size allows unit to access hard-to-reach locations. Two rigid and two swivel with side brake casters. Suffix "C" represents a chrome top platform on foot pump operated models.
|
Die Table |
|||||
| Model | Platform Size (WxL) | Service Range |
Power | Capacity (lbs.) |
Wt. (lbs.) |
| DIE-2430-36 | 24"x30" | 24" to 36" | Foot Pump | 2,000 | 290 |
| DIE-2430-36-C | 24"x30" | 24-1/2" to 36" | Foot Pump | 2,000 | 290 |
| DIE-2430-48 | 24"x30" | 30" to 48" | Foot Pump | 2,000 | 295 |
| DIE-2430-48-C | 24"x30" | 30-1/2" to 48" | Foot Pump | 2,000 | 295 |
| DIE-2430-60 | 24"x30" | 36" to 60" | Foot Pump | 2,000 | 344 |
| DIE-2430-60-C | 24"x30" | 36-3/4" to 60-3/4" | Foot Pump | 2,000 | 312 |
| DIE-2430-DC-C* | 24"x30" | 24" to 51" | DC Powered | 2,000 | 416 |
| *ONE (1) 12V Battery | |||||
