Vestil Dock Seals

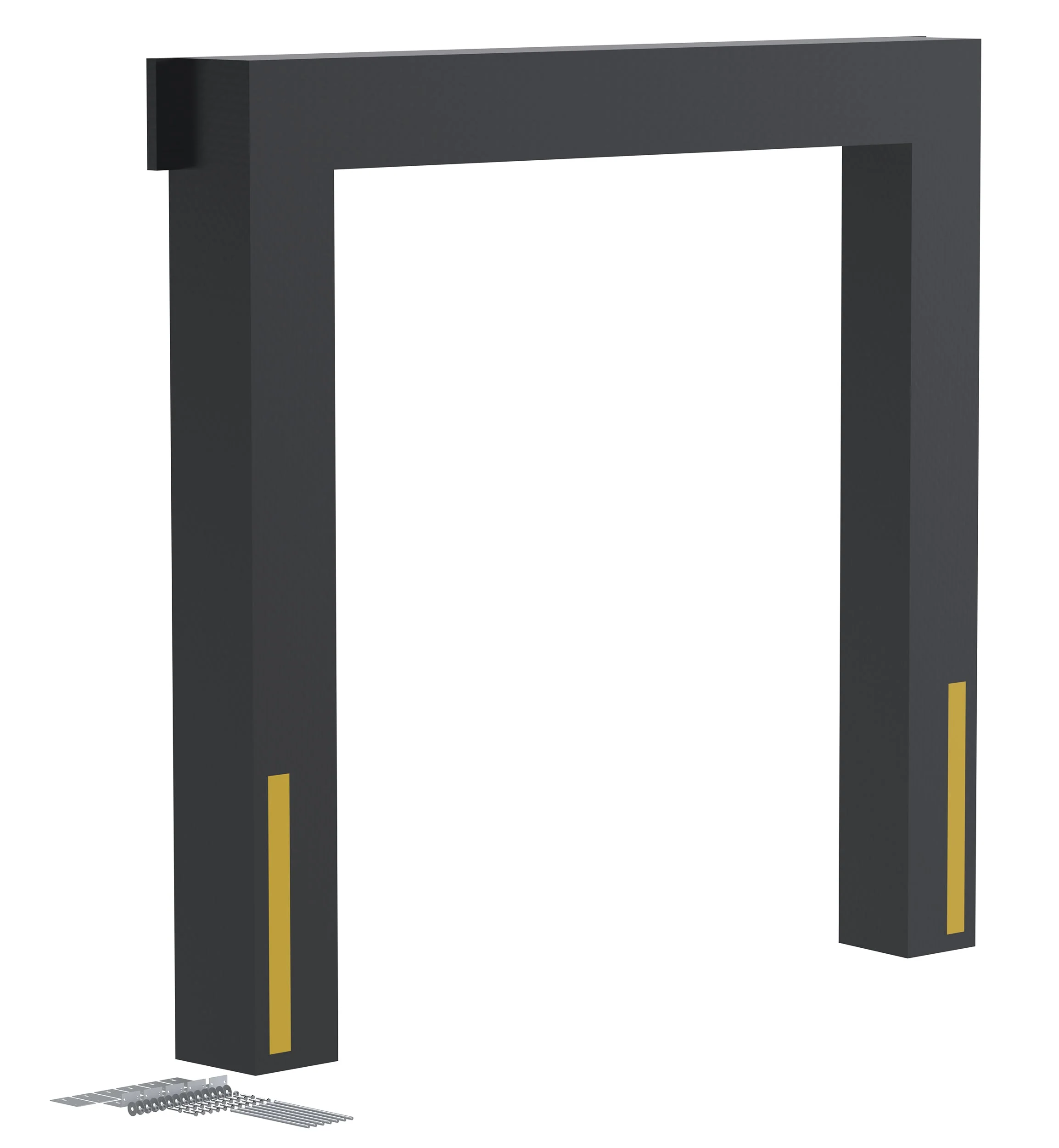

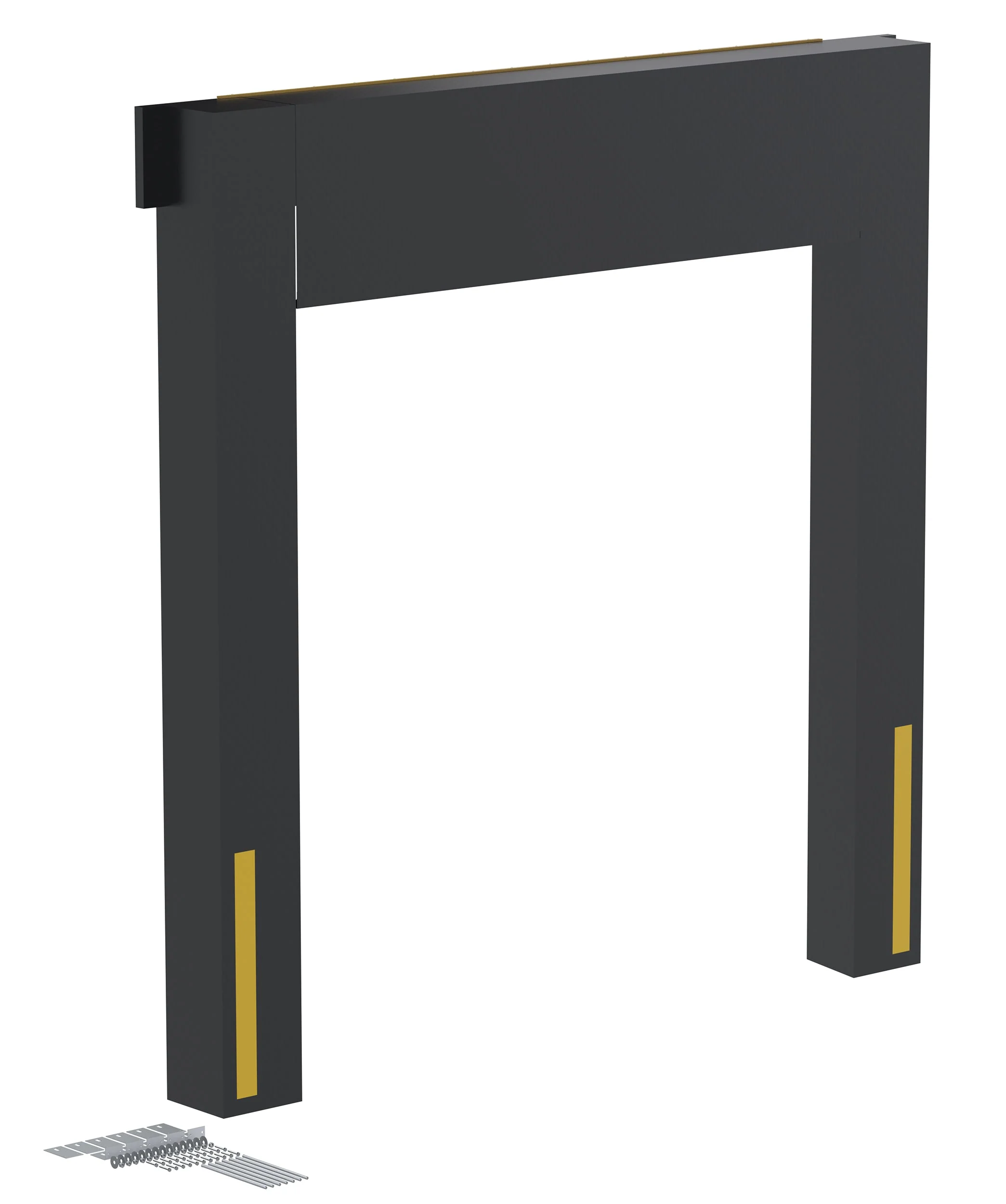

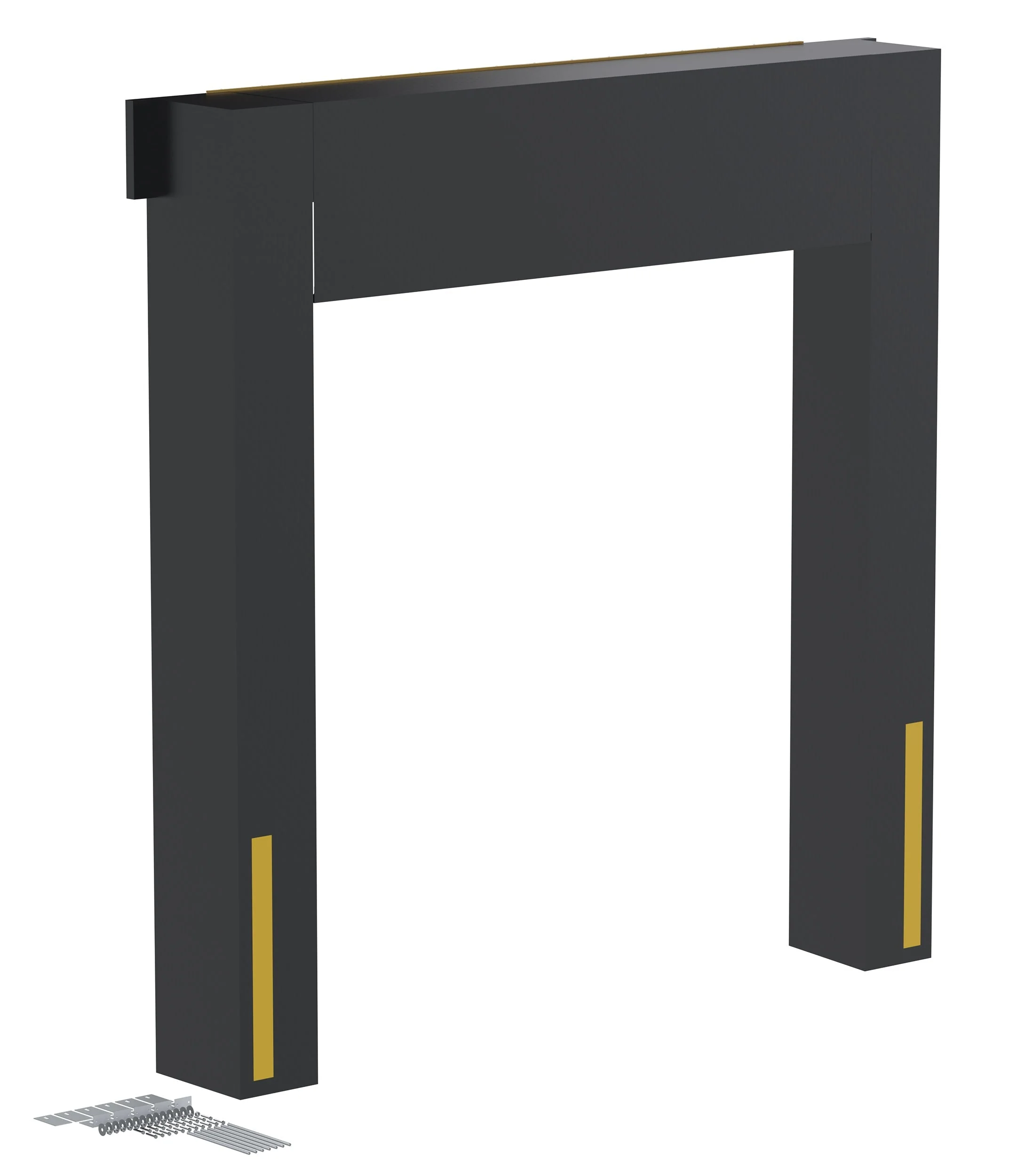

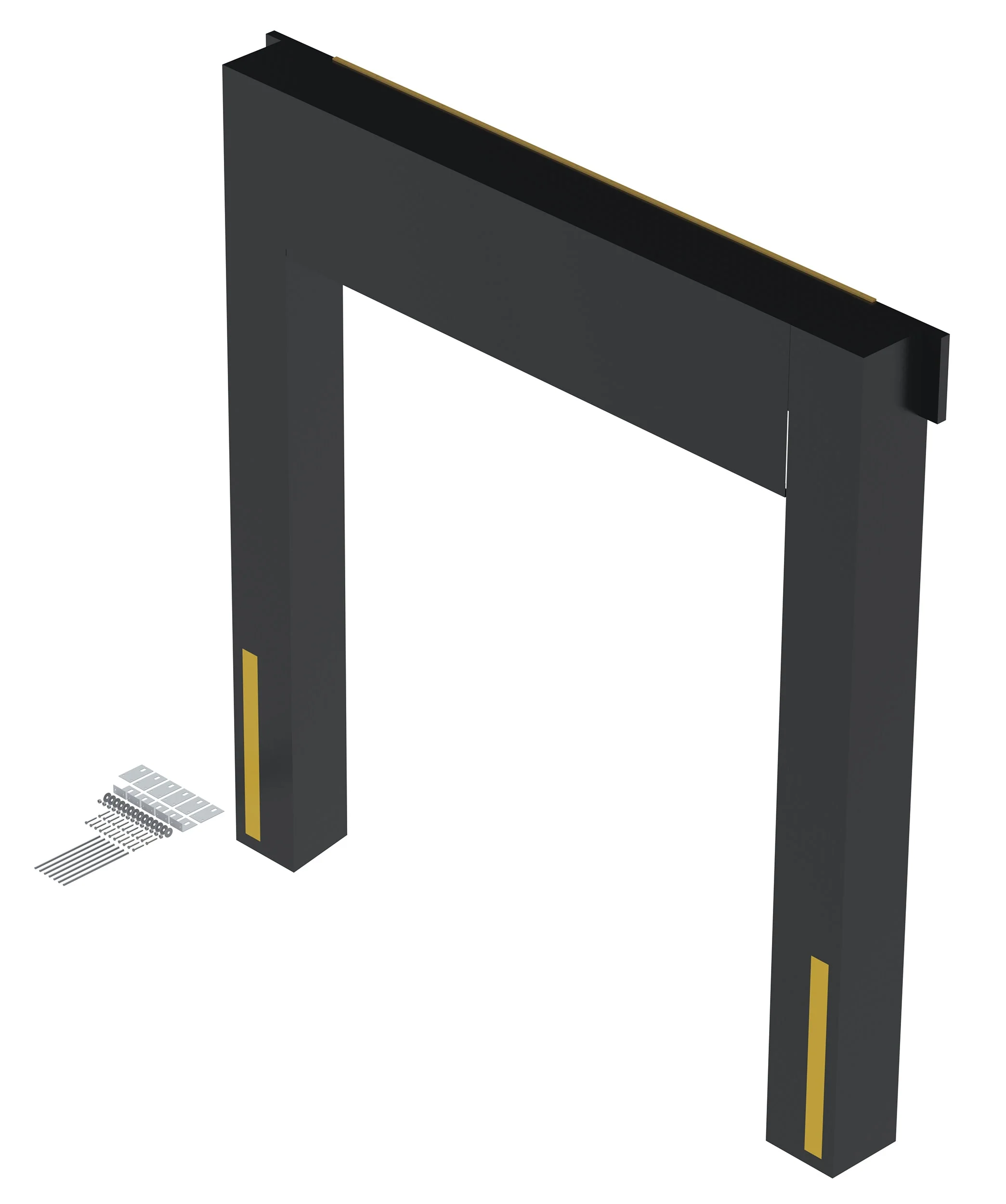

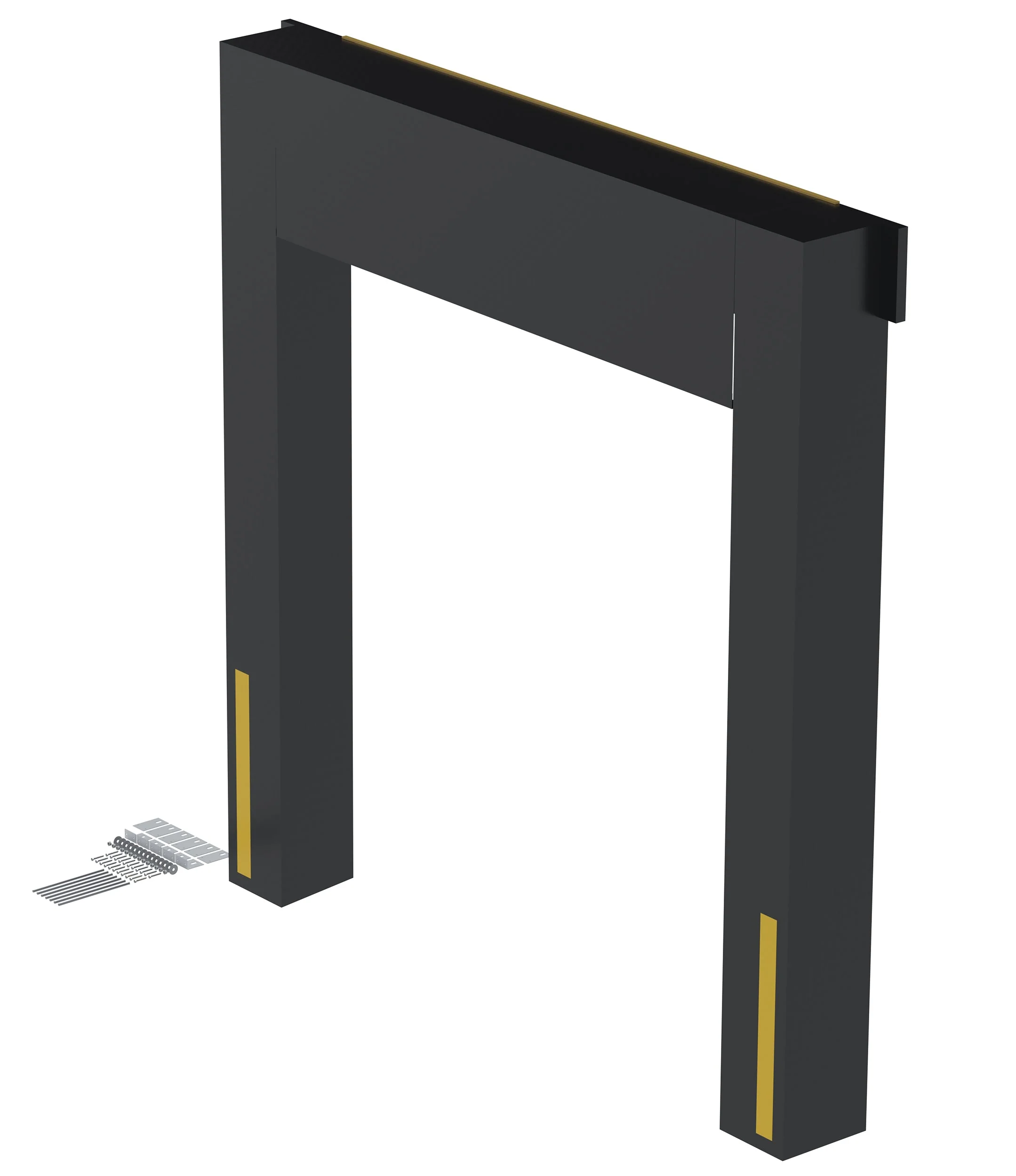

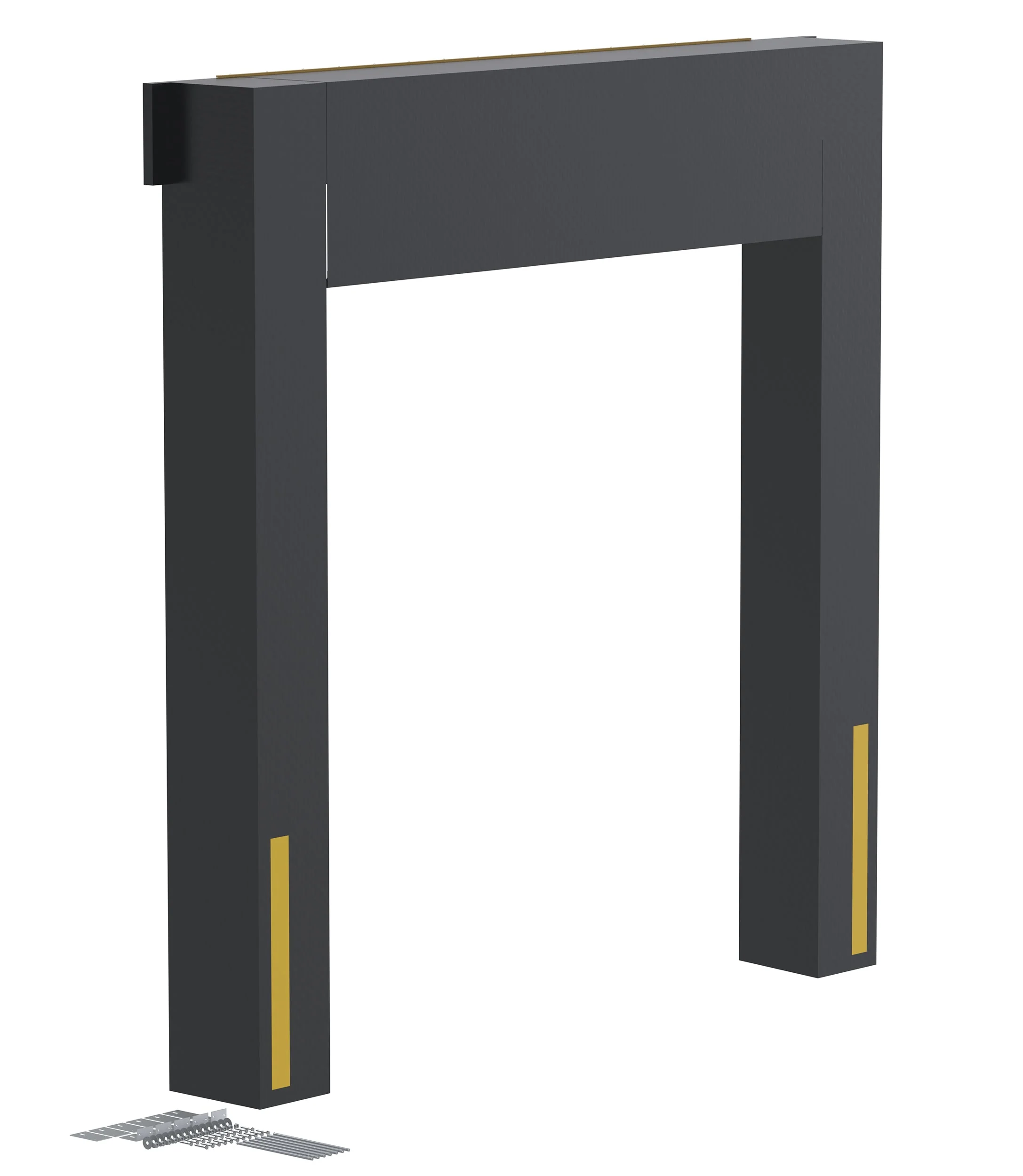

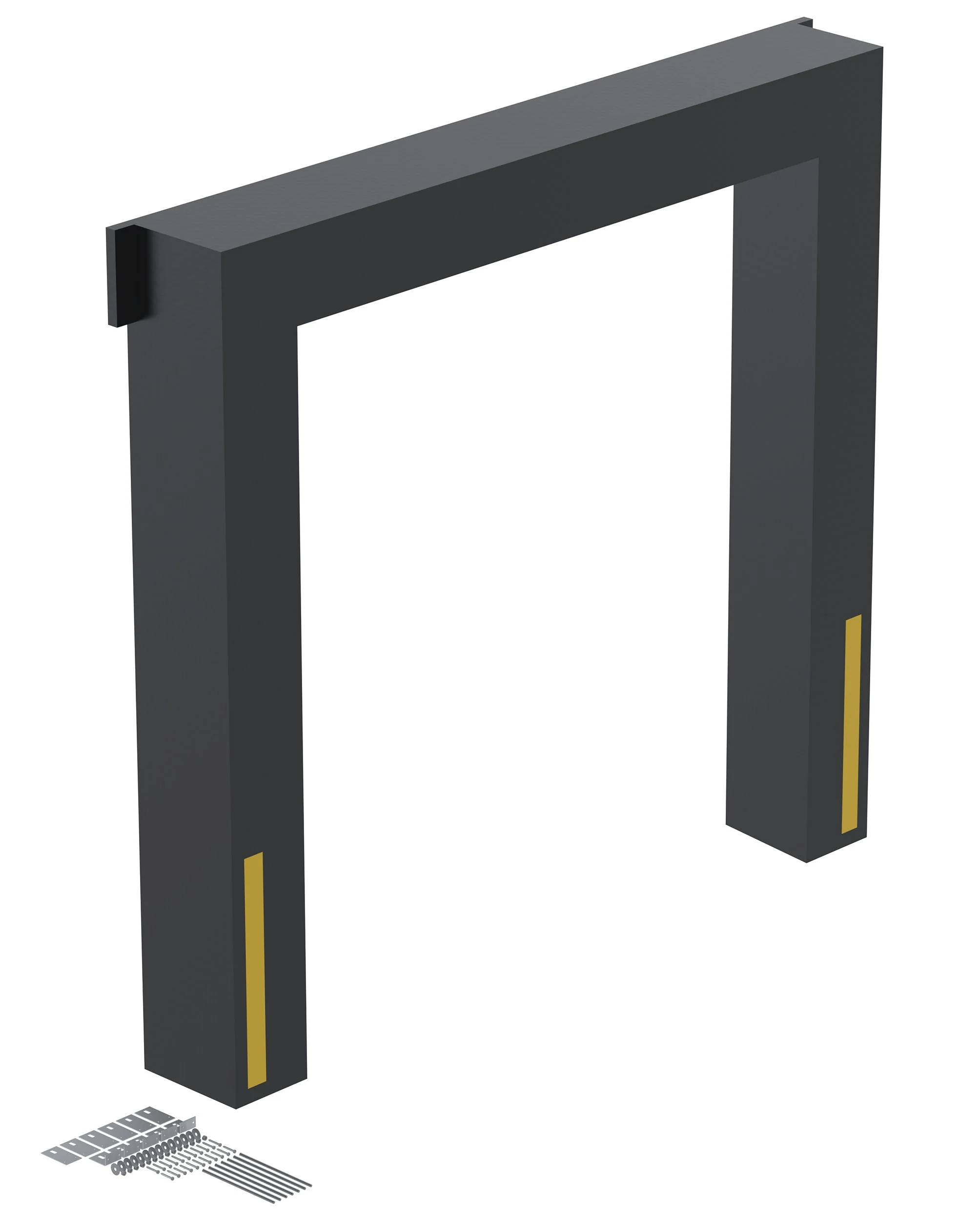

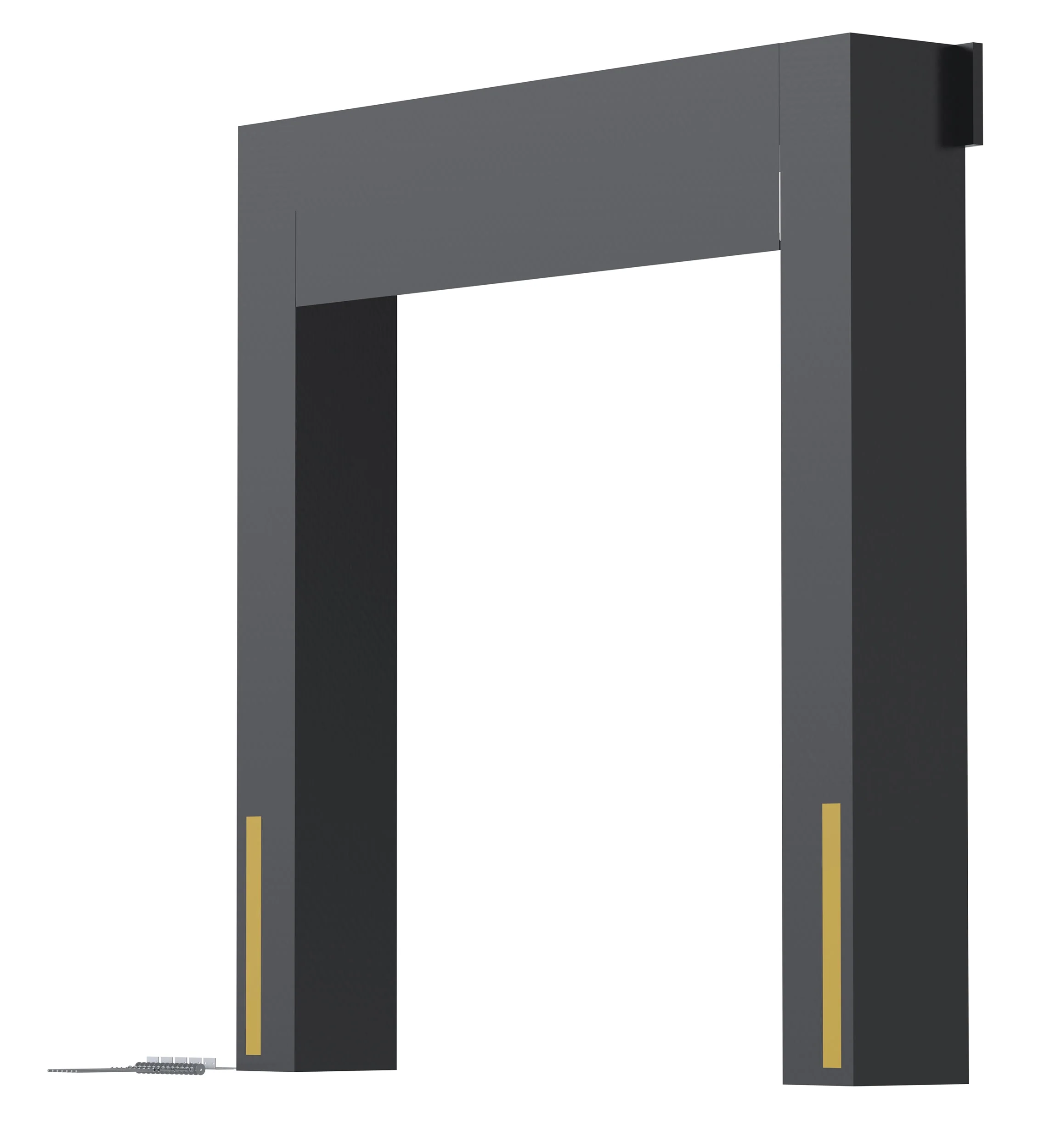

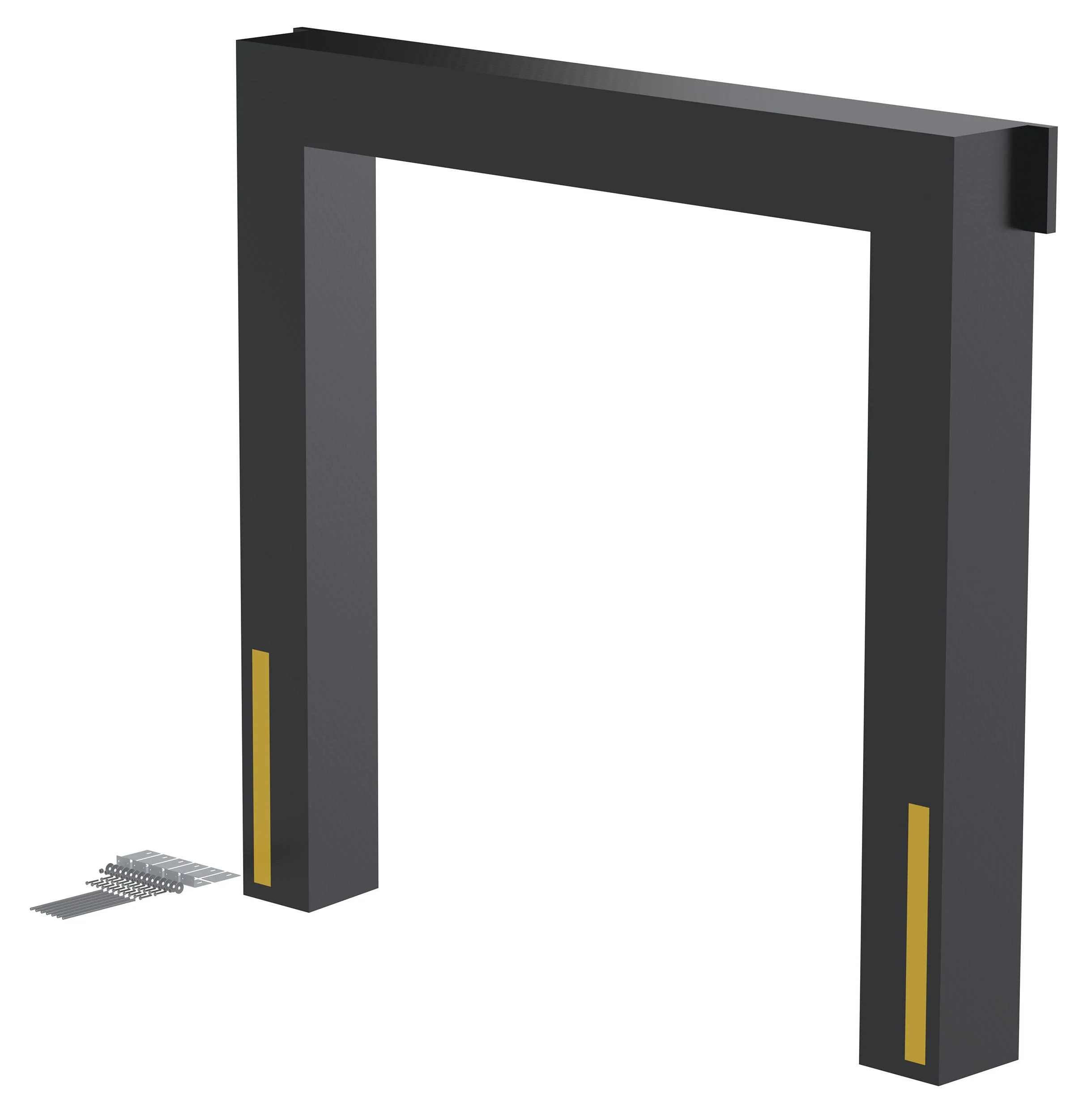

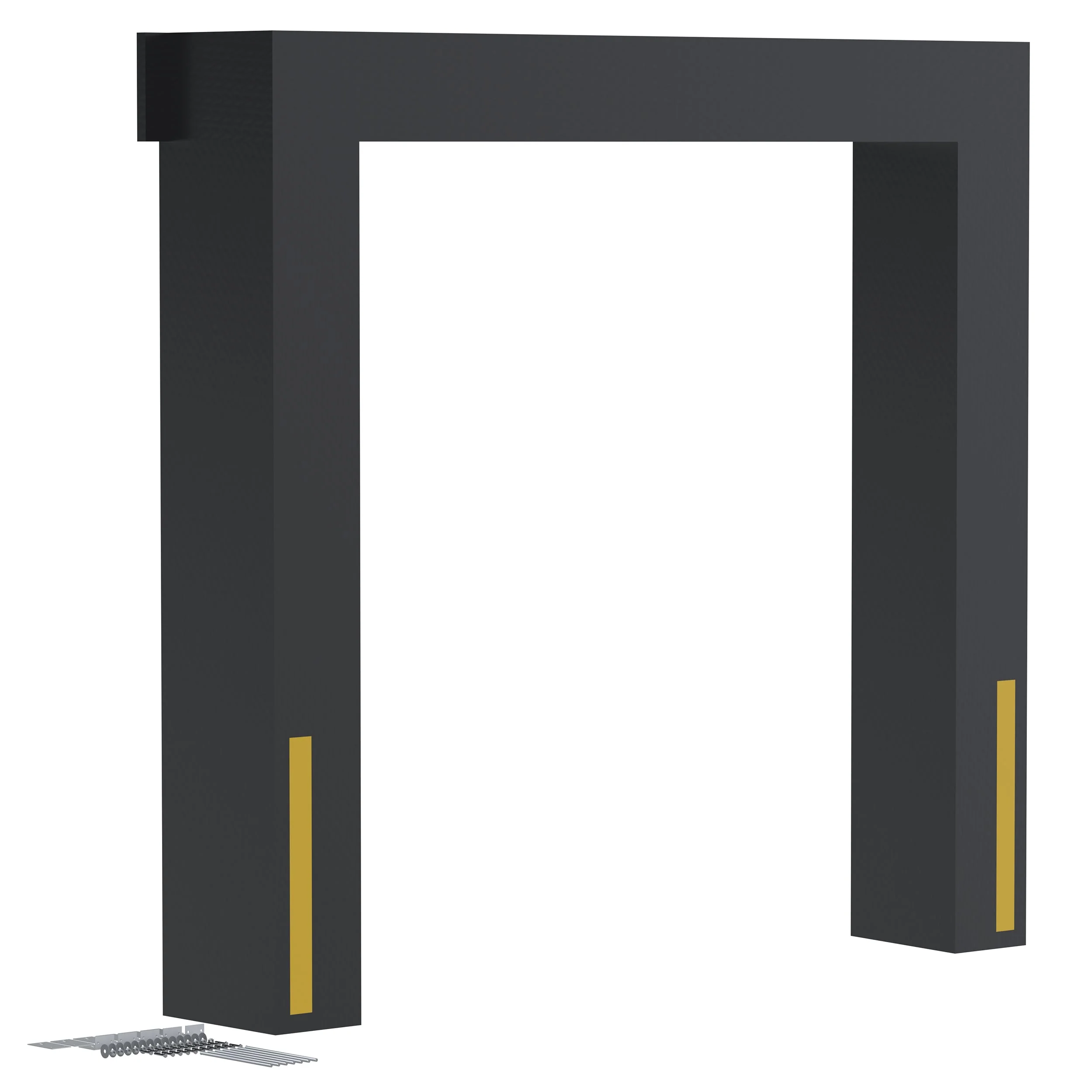

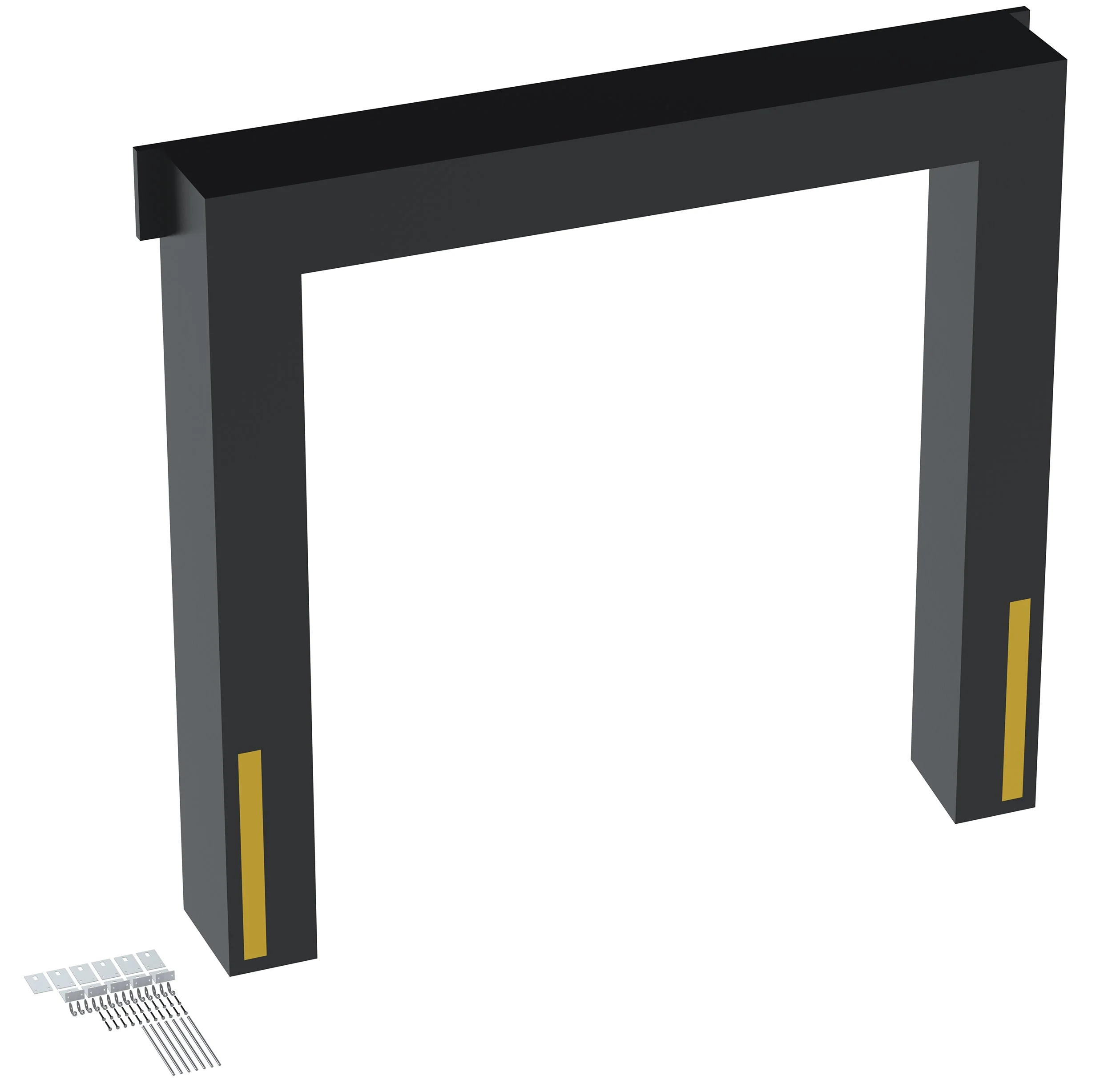

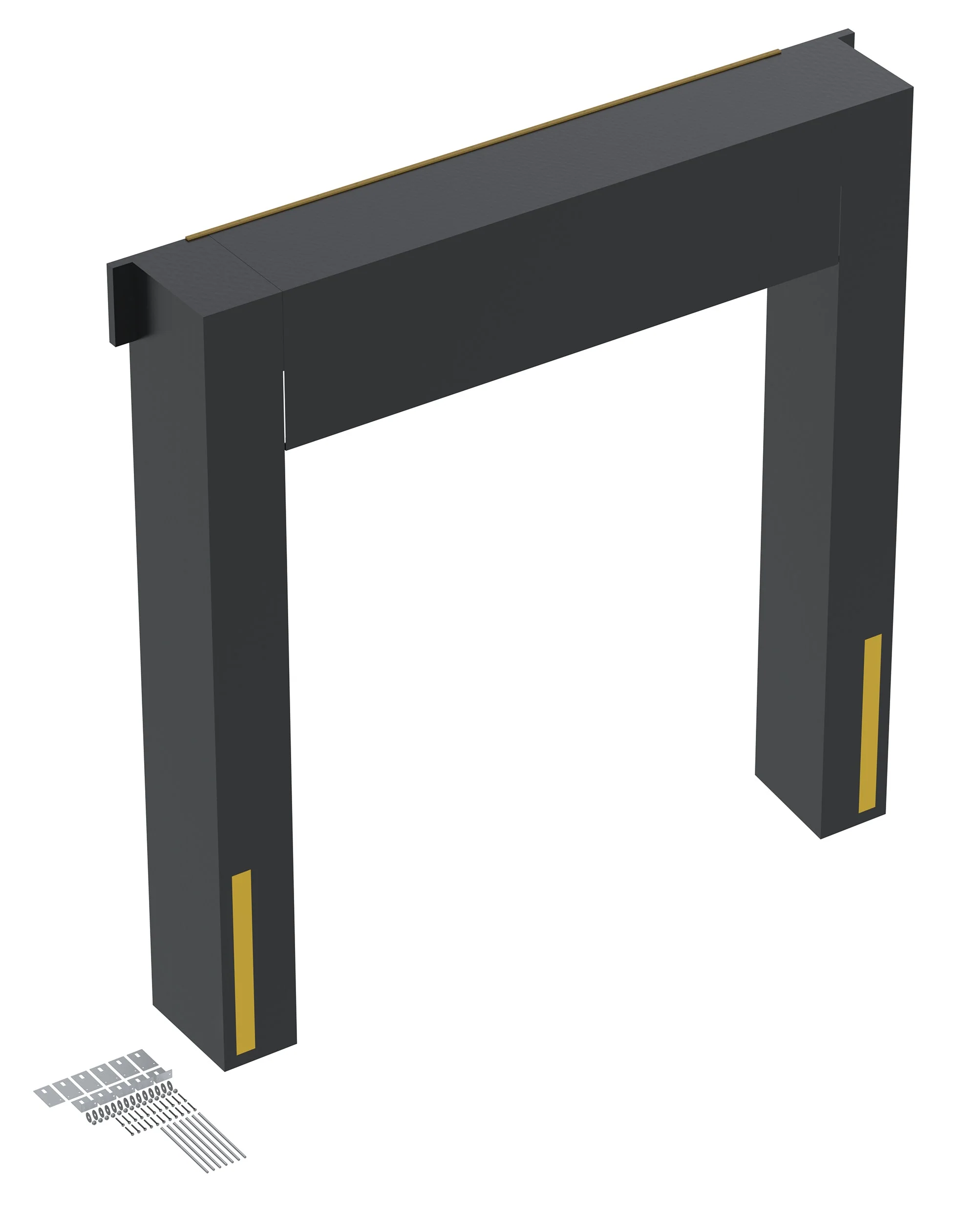

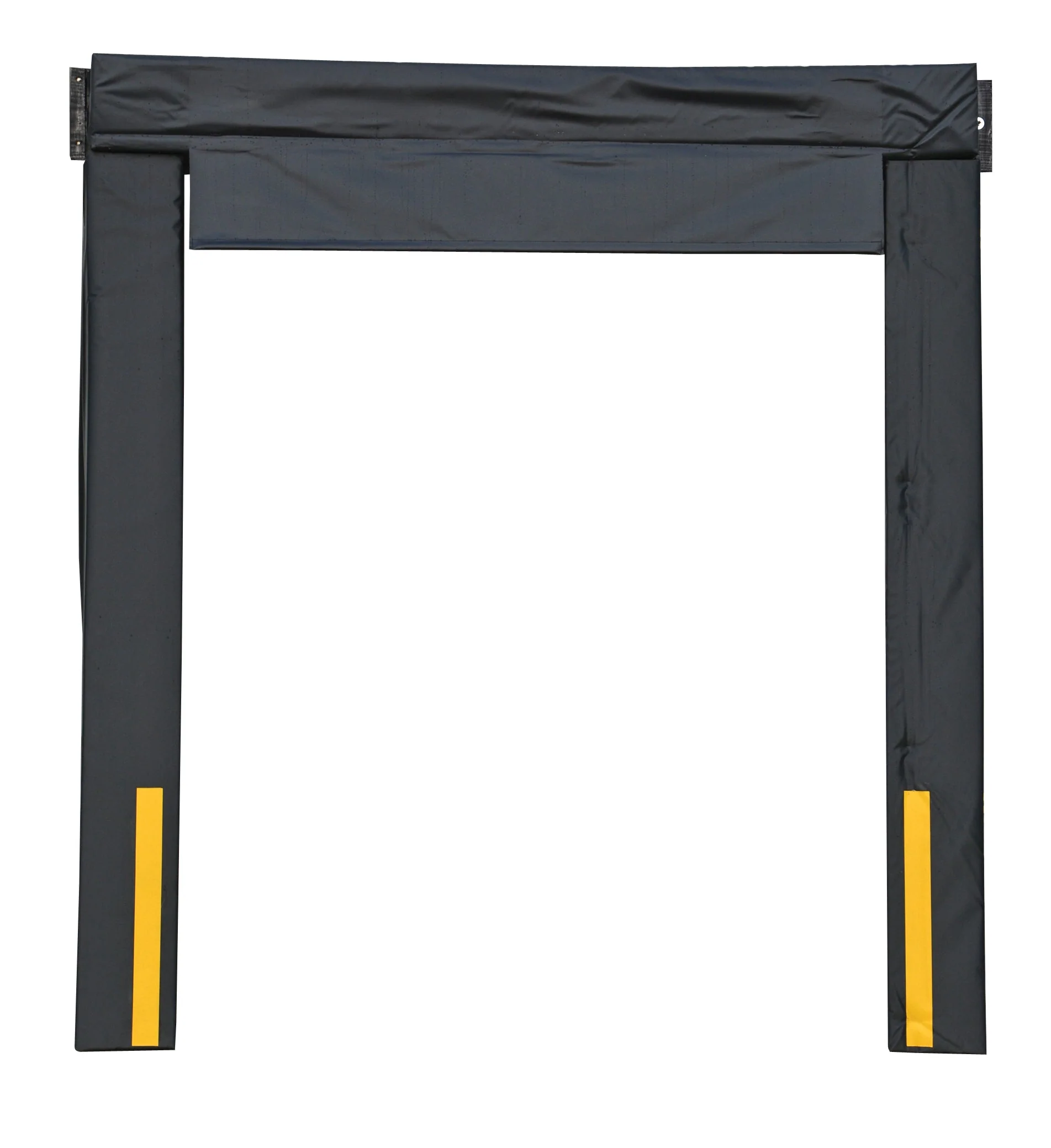

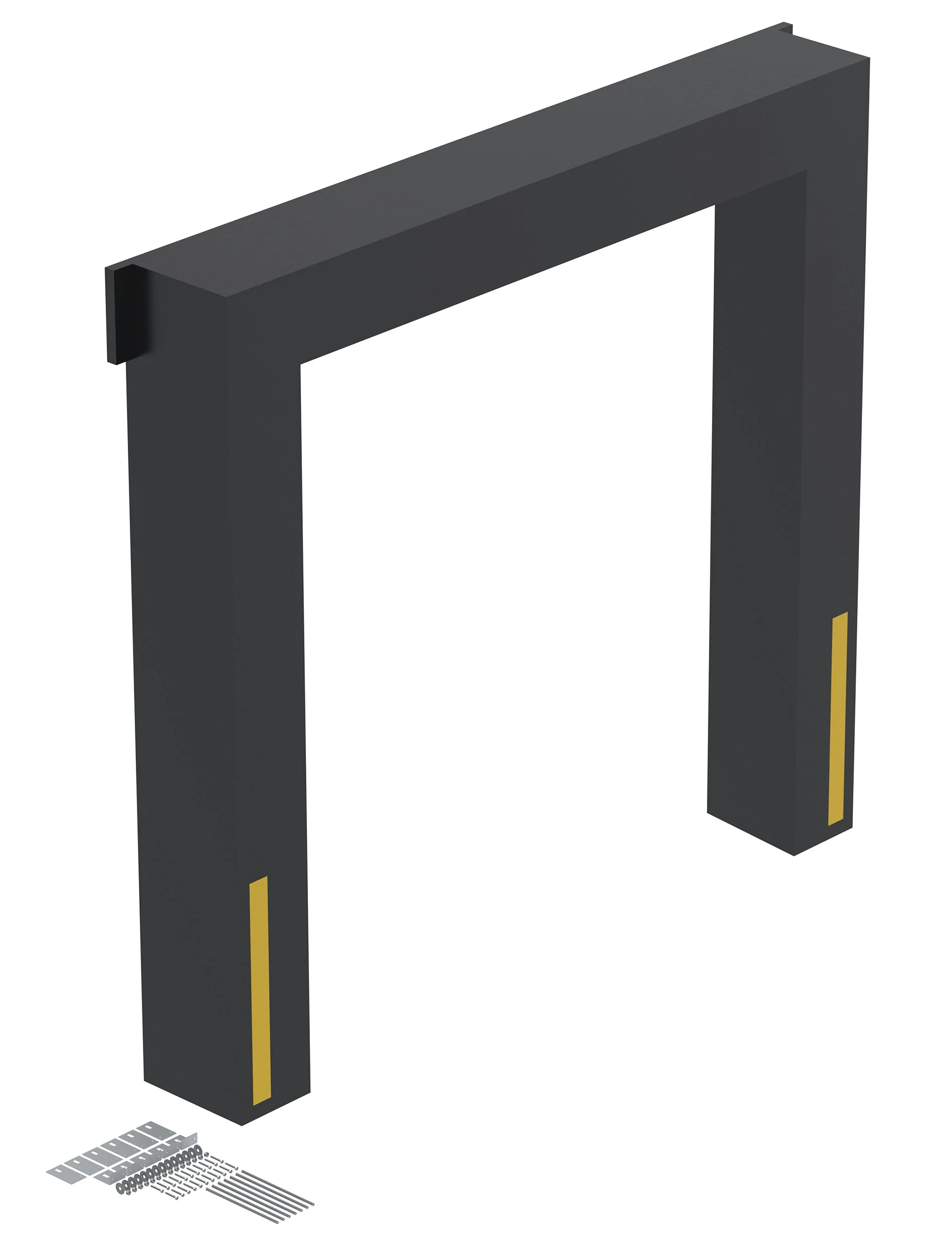

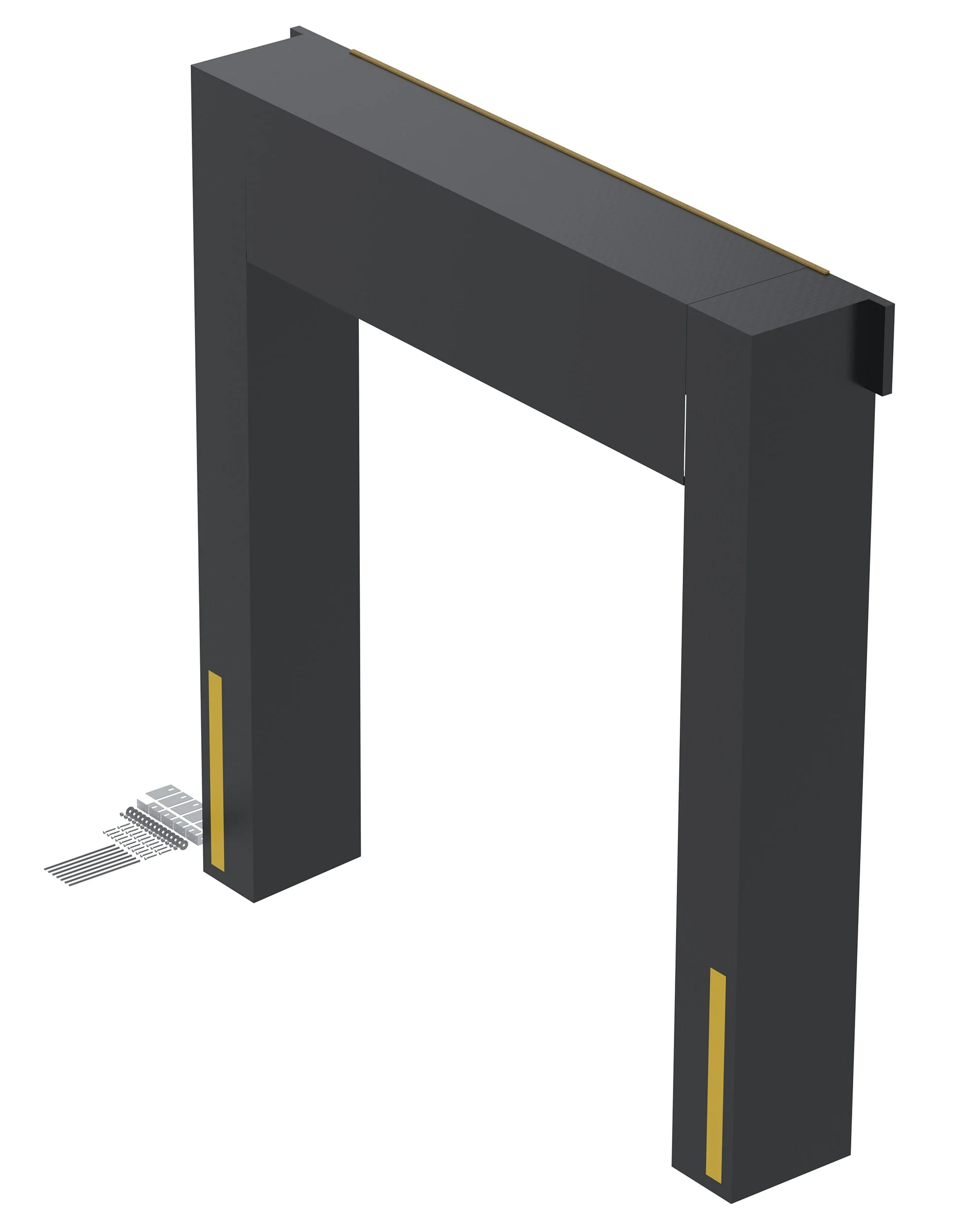

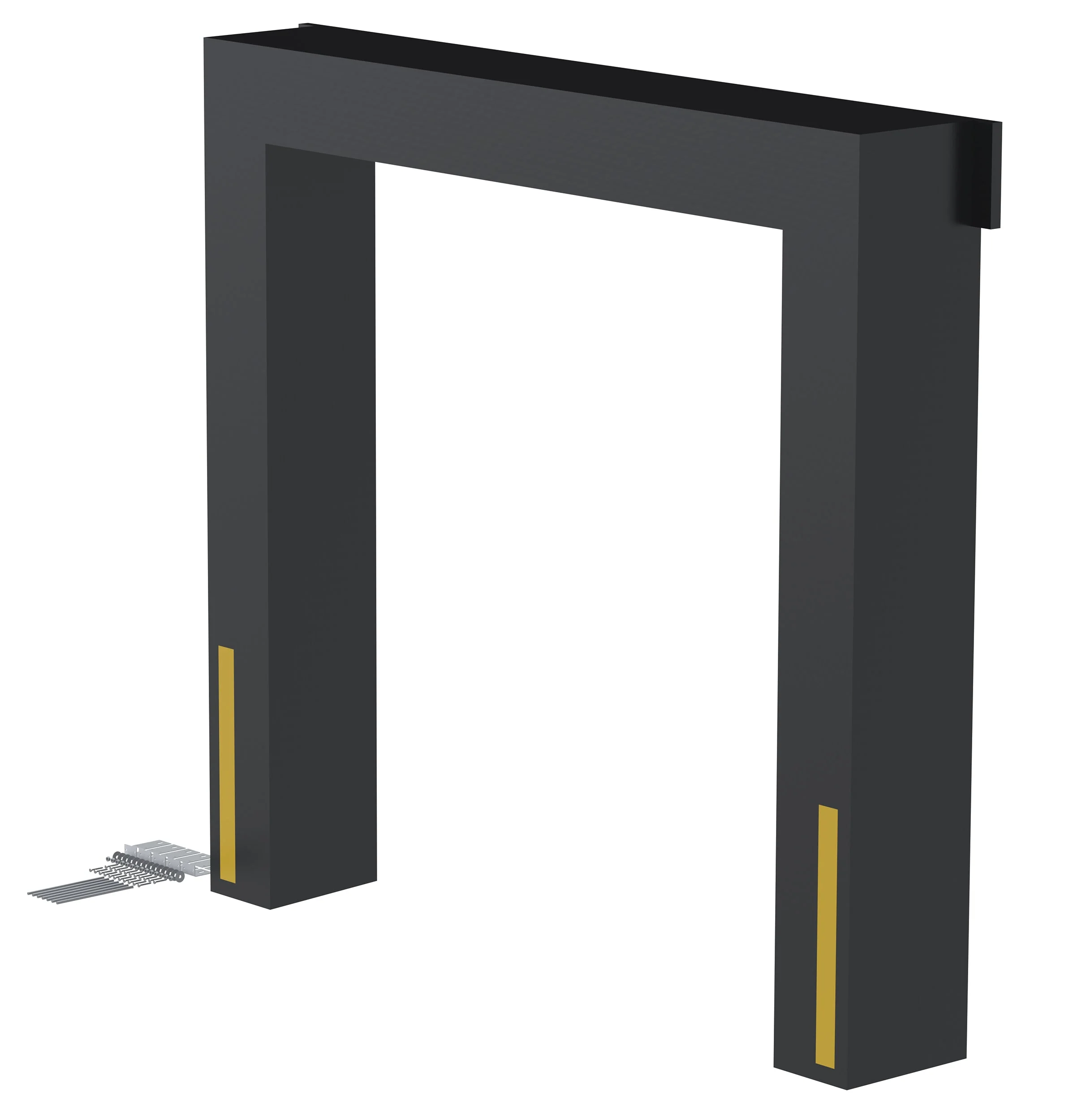

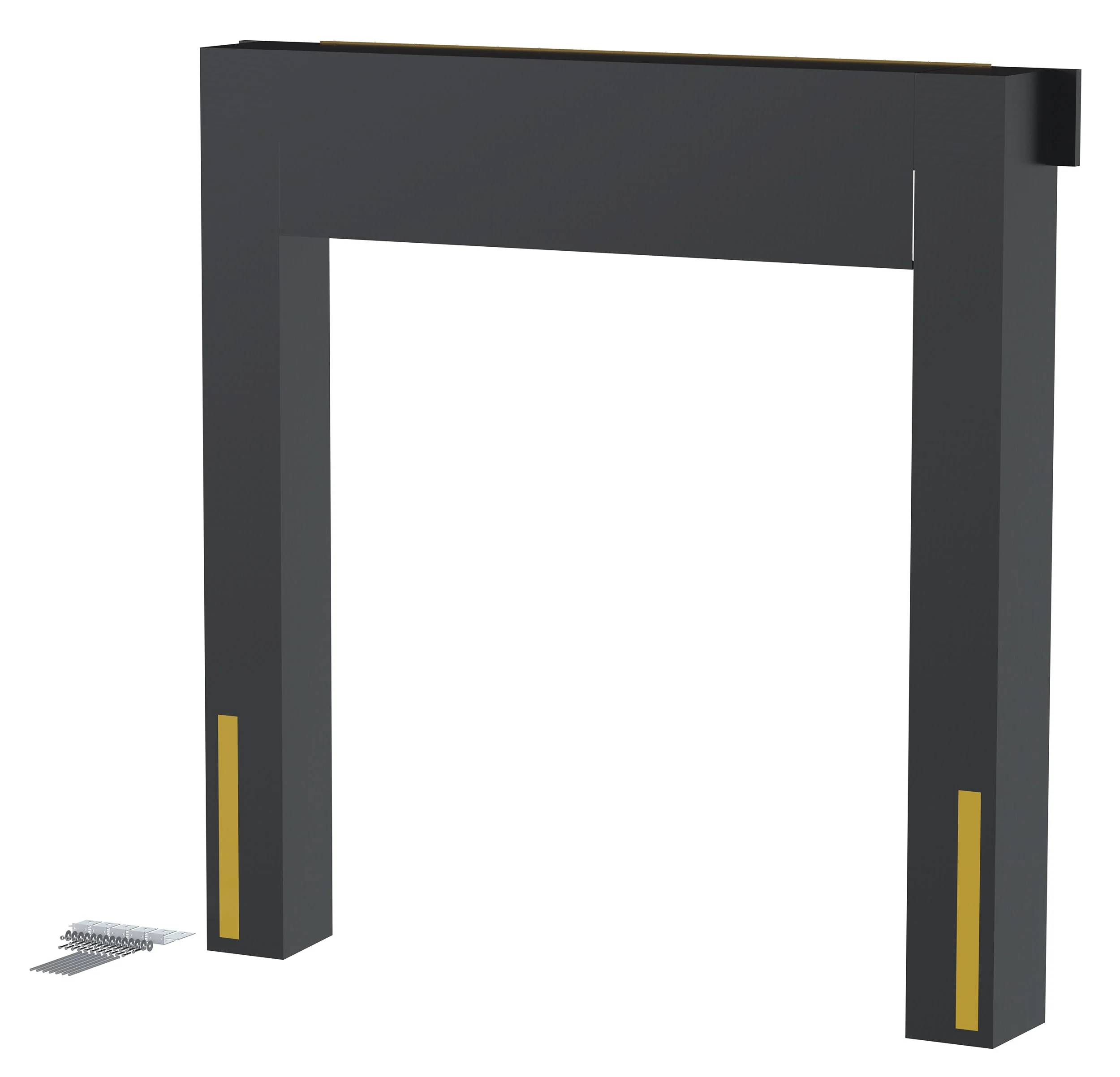

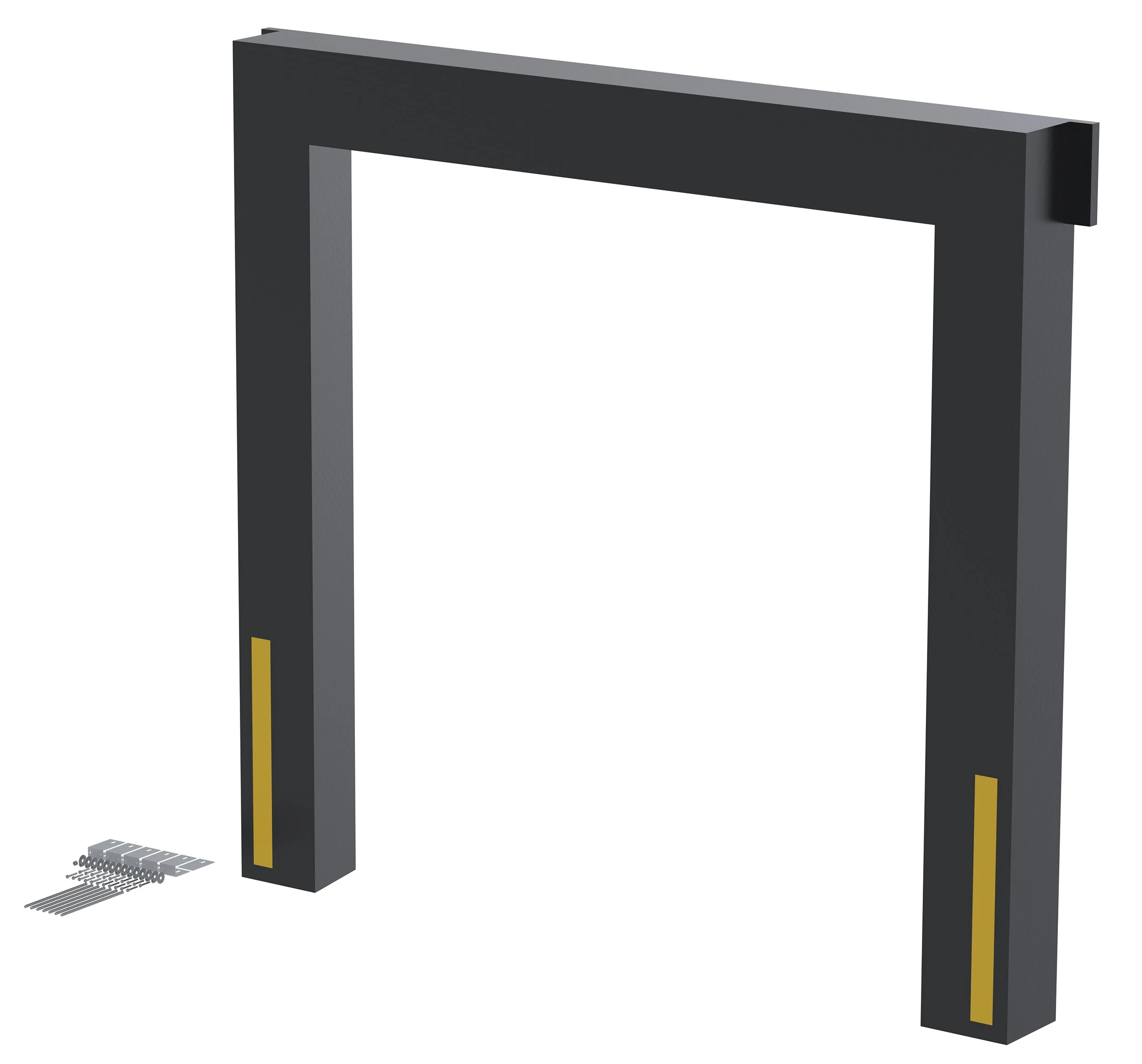

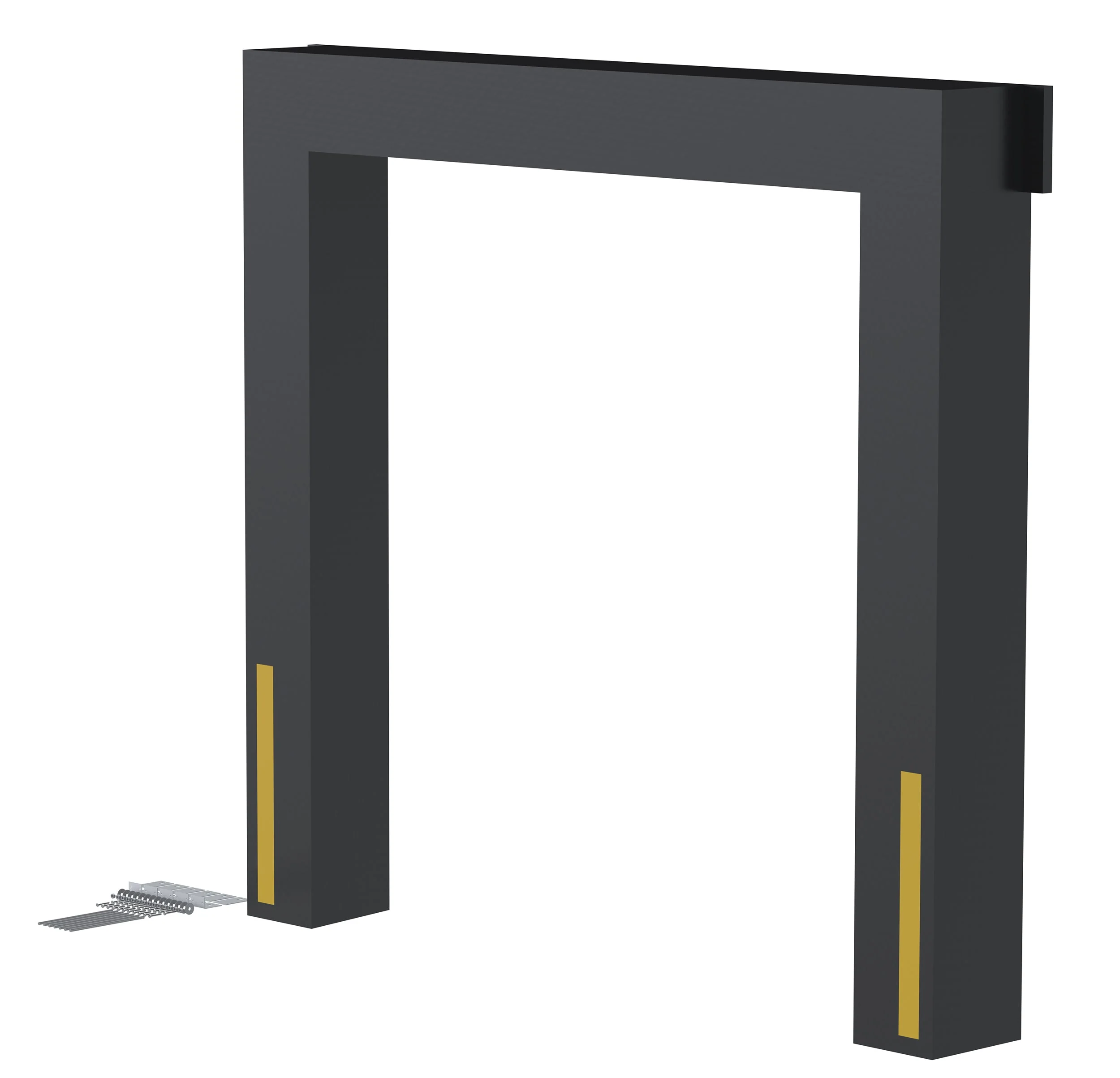

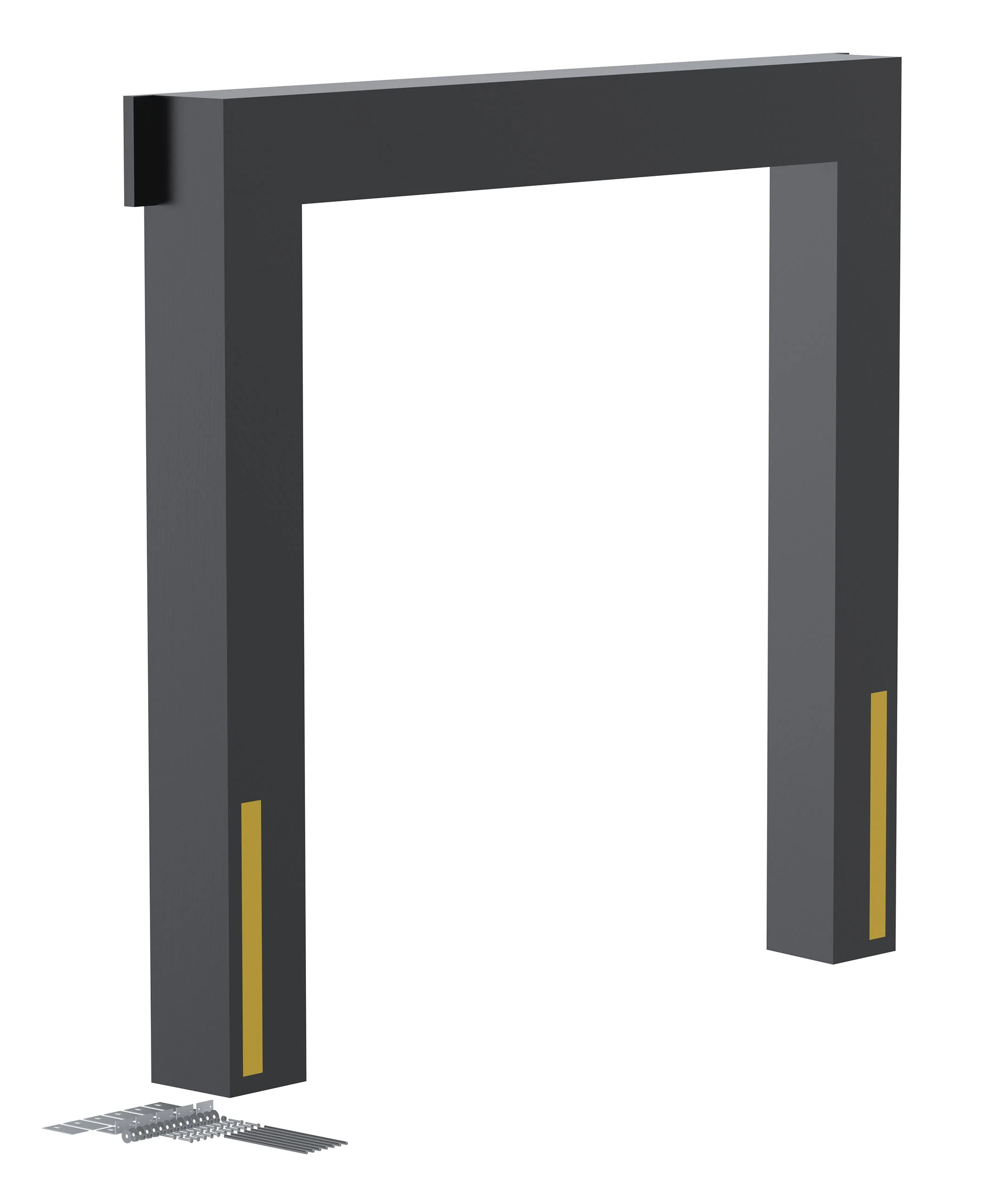

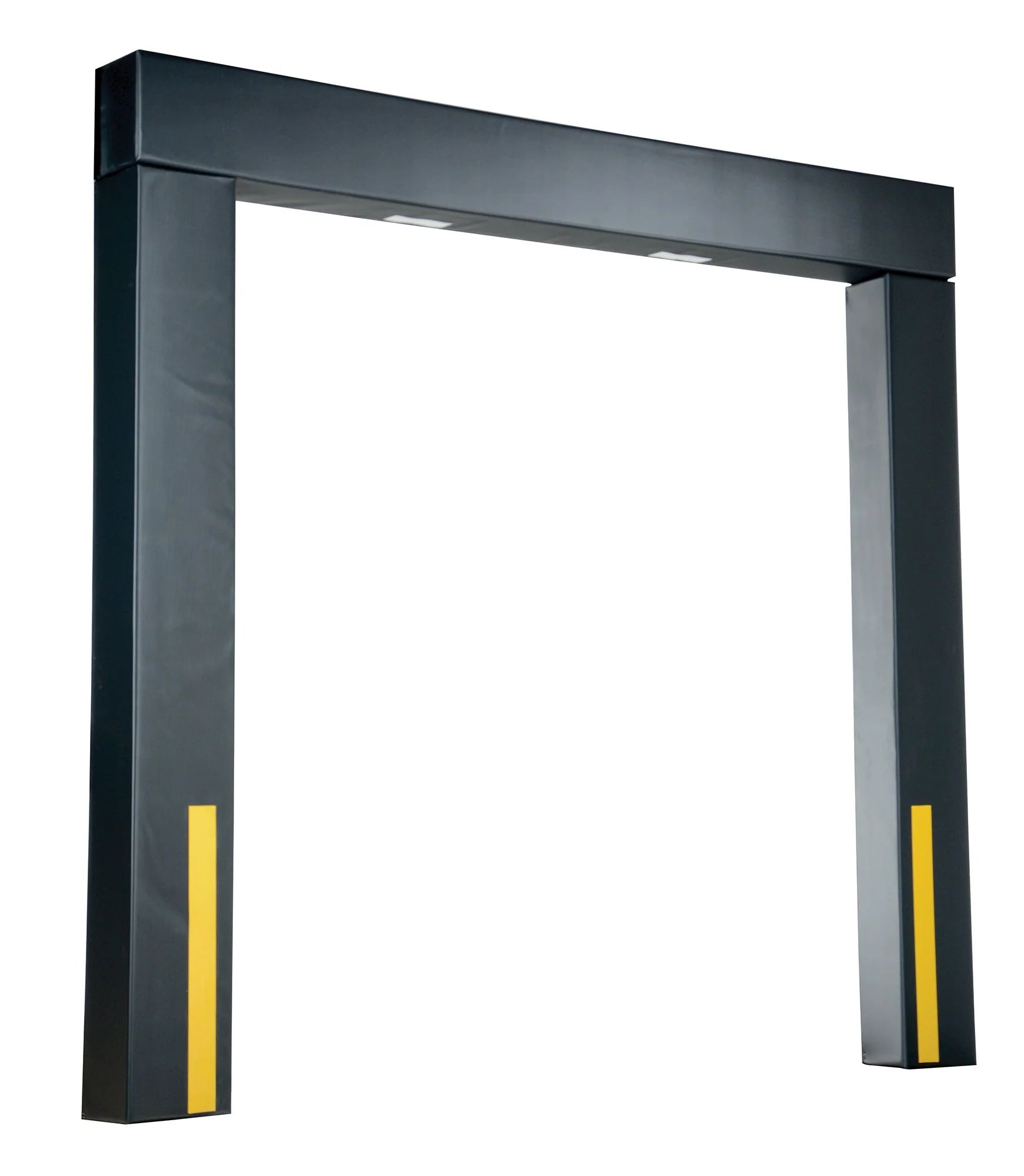

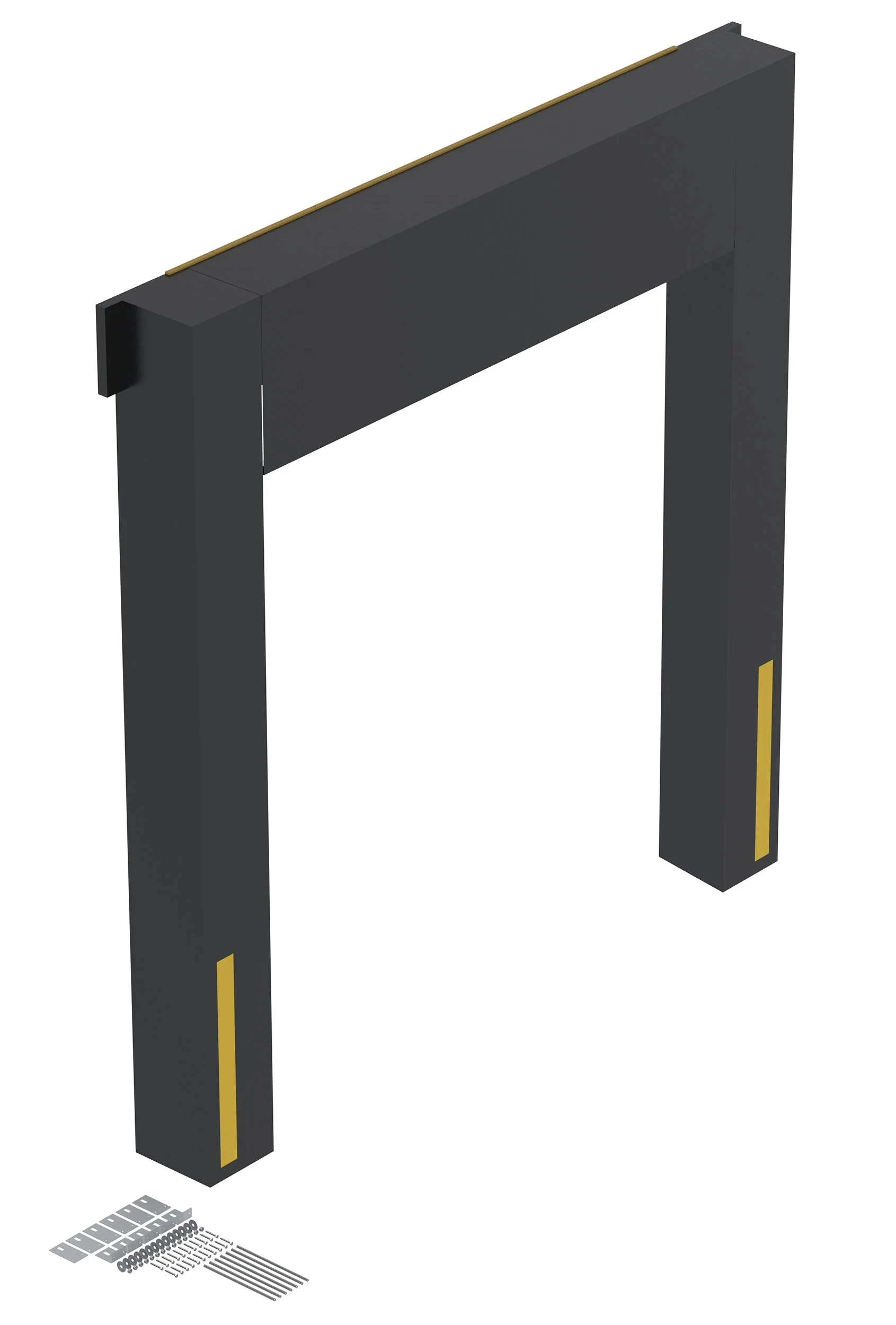

The Dock Seals superior 36 oz. nylon reinforced vinyl facings have a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.
| Dock Seals (for 8' wide x 8' high doors) | |||||
|
Model Number |
Projection |
Overall |
Overall |
Door |
Wt. lbs. |
| D-150-10 | 10" | 108" | 120" | 8' X 8' | 212 |
| D-150-11 | 11" | 108" | 120" | 8' X 8' | 214 |
| D-150-12 | 12" | 108" | 120" | 8' X 8' | 216 |
| D-150-13 | 13" | 108" | 120" | 8' X 8' | 218 |
| D-150-14 | 14" | 108" | 120" | 8' X 8' | 219 |
| D-150-15 | 15" | 108" | 120" | 8' X 8' | 220 |
| D-150-16 | 16" | 108" | 120" | 8' X 8' | 221 |
| D-150-17 | 17" | 108" | 120" | 8' X 8' | 222 |
| D-150-18 | 18" | 108" | 120" | 8' X 8' | 249 |
| D-150-19 | 19" | 108" | 120" | 8' X 8' | 251 |
| D-150-20 | 20" | 108" | 120" | 8' X 8' | 252 |
| Dock Seals (for 8' wide x 9' high doors) | |||||
|
Model Number |
Projection |
Overall |
Overall |
Door |
Wt. lbs. |
| D-350-10 | 10" | 120" | 120" | 8' X 9' | 216 |
| D-350-11 | 11" | 120" | 120" | 8' X 9' | 218 |
| D-350-12 | 12" | 120" | 120" | 8' X 9' | 221 |
| D-350-13 | 13" | 120" | 120" | 8' X 9' | 225 |
| D-350-14 | 14" | 120" | 120" | 8' X 9' | 237 |
| D-350-15 | 15" | 120" | 120" | 8' X 9' | 243 |
| D-350-16 | 16" | 120" | 120" | 8' X 9' | 248 |
| D-350-17 | 17" | 120" | 120" | 8' X 9' | 250 |
| D-350-18 | 18" | 120" | 120" | 8' X 9' | 264 |
| D-350-19 | 19" | 120" | 120" | 8' X 9' | 270 |
| D-350-20 | 20" | 120" | 120" | 8' X 9' | 275 |
Original: $859.03
-65%$859.03
$300.66
Description
The Dock Seals superior 36 oz. nylon reinforced vinyl facings have a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.
| Dock Seals (for 8' wide x 8' high doors) | |||||
|
Model Number |
Projection |
Overall |
Overall |
Door |
Wt. lbs. |
| D-150-10 | 10" | 108" | 120" | 8' X 8' | 212 |
| D-150-11 | 11" | 108" | 120" | 8' X 8' | 214 |
| D-150-12 | 12" | 108" | 120" | 8' X 8' | 216 |
| D-150-13 | 13" | 108" | 120" | 8' X 8' | 218 |
| D-150-14 | 14" | 108" | 120" | 8' X 8' | 219 |
| D-150-15 | 15" | 108" | 120" | 8' X 8' | 220 |
| D-150-16 | 16" | 108" | 120" | 8' X 8' | 221 |
| D-150-17 | 17" | 108" | 120" | 8' X 8' | 222 |
| D-150-18 | 18" | 108" | 120" | 8' X 8' | 249 |
| D-150-19 | 19" | 108" | 120" | 8' X 8' | 251 |
| D-150-20 | 20" | 108" | 120" | 8' X 8' | 252 |
| Dock Seals (for 8' wide x 9' high doors) | |||||
|
Model Number |
Projection |
Overall |
Overall |
Door |
Wt. lbs. |
| D-350-10 | 10" | 120" | 120" | 8' X 9' | 216 |
| D-350-11 | 11" | 120" | 120" | 8' X 9' | 218 |
| D-350-12 | 12" | 120" | 120" | 8' X 9' | 221 |
| D-350-13 | 13" | 120" | 120" | 8' X 9' | 225 |
| D-350-14 | 14" | 120" | 120" | 8' X 9' | 237 |
| D-350-15 | 15" | 120" | 120" | 8' X 9' | 243 |
| D-350-16 | 16" | 120" | 120" | 8' X 9' | 248 |
| D-350-17 | 17" | 120" | 120" | 8' X 9' | 250 |
| D-350-18 | 18" | 120" | 120" | 8' X 9' | 264 |
| D-350-19 | 19" | 120" | 120" | 8' X 9' | 270 |
| D-350-20 | 20" | 120" | 120" | 8' X 9' | 275 |
