Vestil Drop-In Bracket Highway Guard Rail Systems

Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided. Rail mounting hardware is included with posts. Floor mounting hardware is sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.

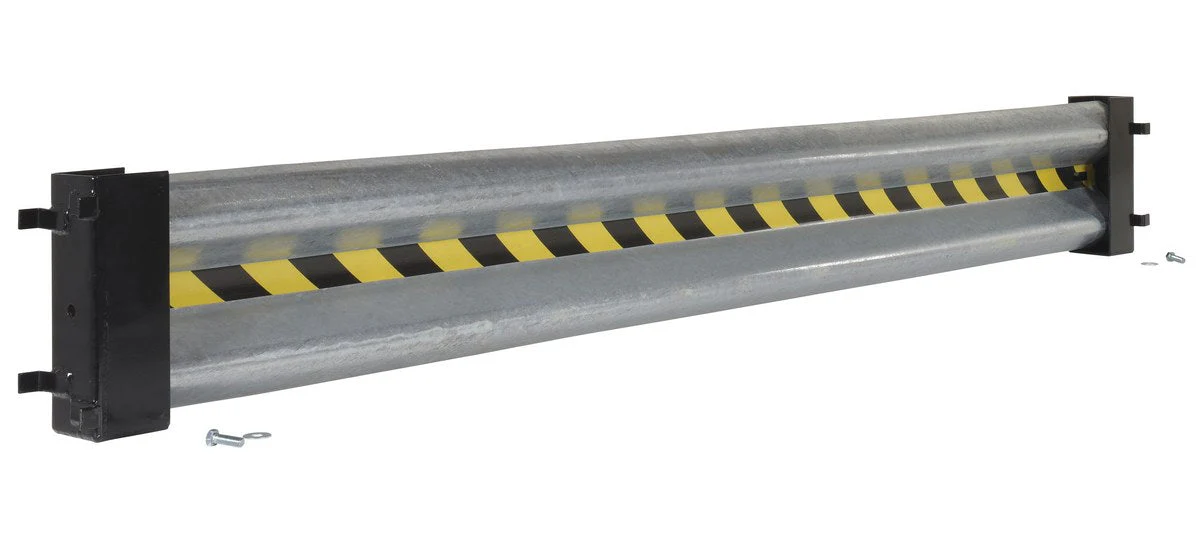

Galvanized Bolt-On Straight Guard Rails
Model	Mounting Posts Required	Height	Length	Radius	Wt. (lbs)
GR-H2R-BO-3-HDG	2	12"	36"	-	20
GR-H2R-BO-4-HDG	2	12"	48"	-	30
GR-H2R-BO-5-HDG	2	12"	60"	-	41
GR-H2R-BO-6-HDG	2	12"	72"	-	48
GR-H2R-BO-7-HDG	2	12"	84"	-	76
GR-H2R-BO-8-HDG	2	12"	96"	-	78
GR-H2R-BO-9-HDG	3	12"	108"	-	86
GR-H2R-BO-10-HDG	3	12"	120"	-	104
GR-H2R-BO-11-HDG	3	12"	132"	-	112
GR-H2R-BO-12-HDG	3	12"	144"	-	120

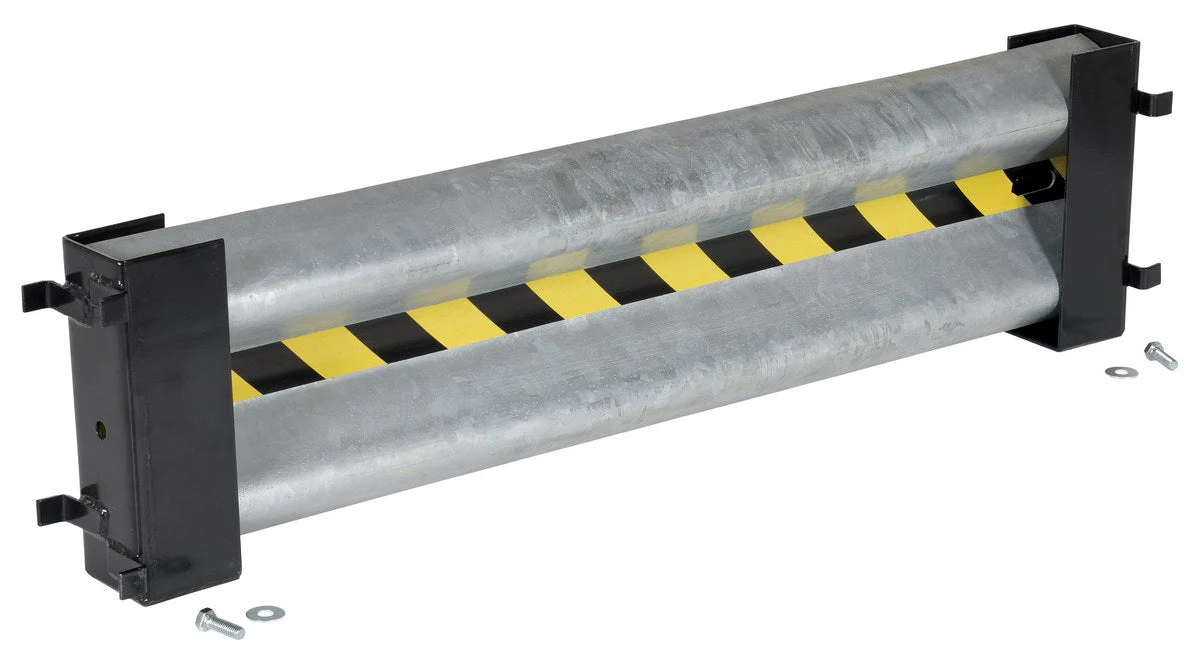

Galvanized Drop-In Straight Guard Rails - Brackets and Hardware Included
Model	Mounting Posts Required	Height	Length	Radius	Wt. (lbs)
GR-H2R-DI-3-HDG	2	12-13/16"	38-3/4"	-	49
GR-H2R-DI-4-HDG	2	12-13/16"	50-3/4"	-	54
GR-H2R-DI-5-HDG	2	12-13/16"	62-3/4"	-	70
GR-H2R-DI-6-HDG	2	12-13/16"	74-3/4"	-	72
GR-H2R-DI-7-HDG	2	12-13/16"	86-3/4"	-	91
GR-H2R-DI-8-HDG	2	12-13/16"	98-3/4"	-	90
GR-H2R-DI-9-HDG	3	12-13/16"	110-3/4"	-	116
GR-H2R-DI-10-HDG	3	12-13/16"	122-3/4"	-	123
GR-H2R-DI-11-HDG	3	12-13/16"	134-3/4"	-	137
GR-H2R-DI-12-HDG	3	12-13/16"	146-3/4"	-	131
Powder Coated Bolt-On Straight Guard Rails
Model	Mounting Posts Required	Height	Length	Radius	Wt. (lbs)
GR-H2R-BO-3-YL	2	12"	36"	-	20
GR-H2R-BO-4-YL	2	12"	48"	-	30
GR-H2R-BO-5-YL	2	12"	60"	-	41
GR-H2R-BO-6-YL	2	12"	72"	-	48
GR-H2R-BO-7-YL	2	12"	84"	-	76
GR-H2R-BO-8-YL	2	12"	96"	-	78
GR-H2R-BO-9-YL	3	12"	108"	-	86
GR-H2R-BO-10-YL	3	12"	120"	-	104
GR-H2R-BO-11-YL	3	12"	132"	-	112
GR-H2R-BO-12-YL	3	12"	144"	-	120
Powder Coated Drop-In Straight Guard Rails - Brackets and Hardware Included
Model	Mounting Posts Required	Height	Length	Radius	Wt. (lbs)
GR-H2R-DI-3-YL	2	12-13/16"	38-3/4"	-	49
GR-H2R-DI-4-YL	2	12-13/16"	50-3/4"	-	54
GR-H2R-DI-5-YL	2	12-13/16"	62-3/4"	-	70
GR-H2R-DI-6-YL	2	12-13/16"	74-3/4"	-	72
GR-H2R-DI-7-YL	2	12-13/16"	86-3/4"	-	91
GR-H2R-DI-8-YL	2	12-13/16"	98-3/4"	-	90
GR-H2R-DI-9-YL	3	12-13/16"	110-3/4"	-	116
GR-H2R-DI-10-YL	3	12-13/16"	122-3/4"	-	123
GR-H2R-DI-11-YL	3	12-13/16"	134-3/4"	-	137
GR-H2R-DI-12-YL	3	12-13/16"	146-3/4"	-	131
Galvanized Bolt-On 90 Degree Curved Guard Rails
Model	Mounting Posts Required	Height	Length	Radius	Wt. (lbs)
GR-H2R-CRV-BO-4-HDG	2	12"	48"	30-1/2"	32
GR-H2R-CRV-BO-6-HDG	2	12"	72"	46"	55
GR-H2R-CRV-BO-8-HDG	2	12"	96"	61"	69
GR-H2R-CRV-BO-10-HDG	3	12"	120"	75-1/2"	85
GR-H2R-CRV-BO-12-HDG	3	12"	144"	91-1/2"	135
