Vestil Forklift Fork Extensions

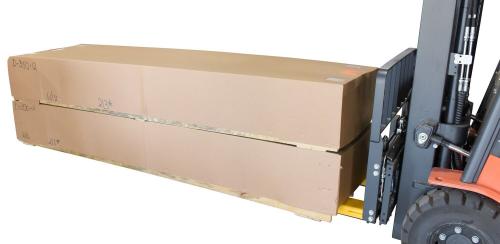

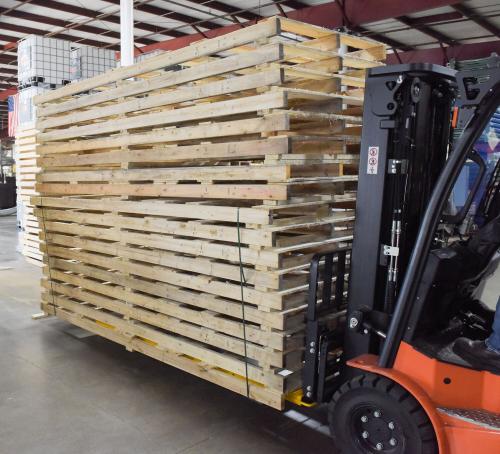

Vestil Forklift Fork Extensions offer a solutions for applications where standard length forklift forks cannot reach. By sliding on the easy-to-use extension sleeves on to any class 2 or class 3 forks (providing the width is the same) it takes just seconds to extend the reach of your existing forklift truck.

Standard loop style retaining straps prevent the extensions from sliding off the forks.

Models FE-4, FE-5, FE-6 have cast steel tips, FE-7 and FE-8 have a tapered cut front end.

• Powder coated
• Regulations require that extensions are no more than 150% of the existing fork length
• Capacity per pair (evenly distributed)

Model	Capacity	Maximm Fork Width	Usable Length	Weight
FE-4-42	4000lbs	4inches	42inches	35lbs
FE-4-48	4000lbs	4inches	48inches	38lbs
FE-4-54	4000lbs	4inches	54inches	42lbs
FE-4-60	4000lbs	4inches	60inches	47lbs
FE-4-63	4000lbs	4inches	63inches	49lbs
FE-4-66	4000lbs	4inches	66inches	51lbs
FE-4-72	4000lbs	4inches	72inches	57lbs
FE-4-84	4000lbs	4inches	84inches	145lbs
FE-4-90	4000lbs	4inches	90inches	166lbs
FE-4-96	4000lbs	4inches	96inches	172lbs
