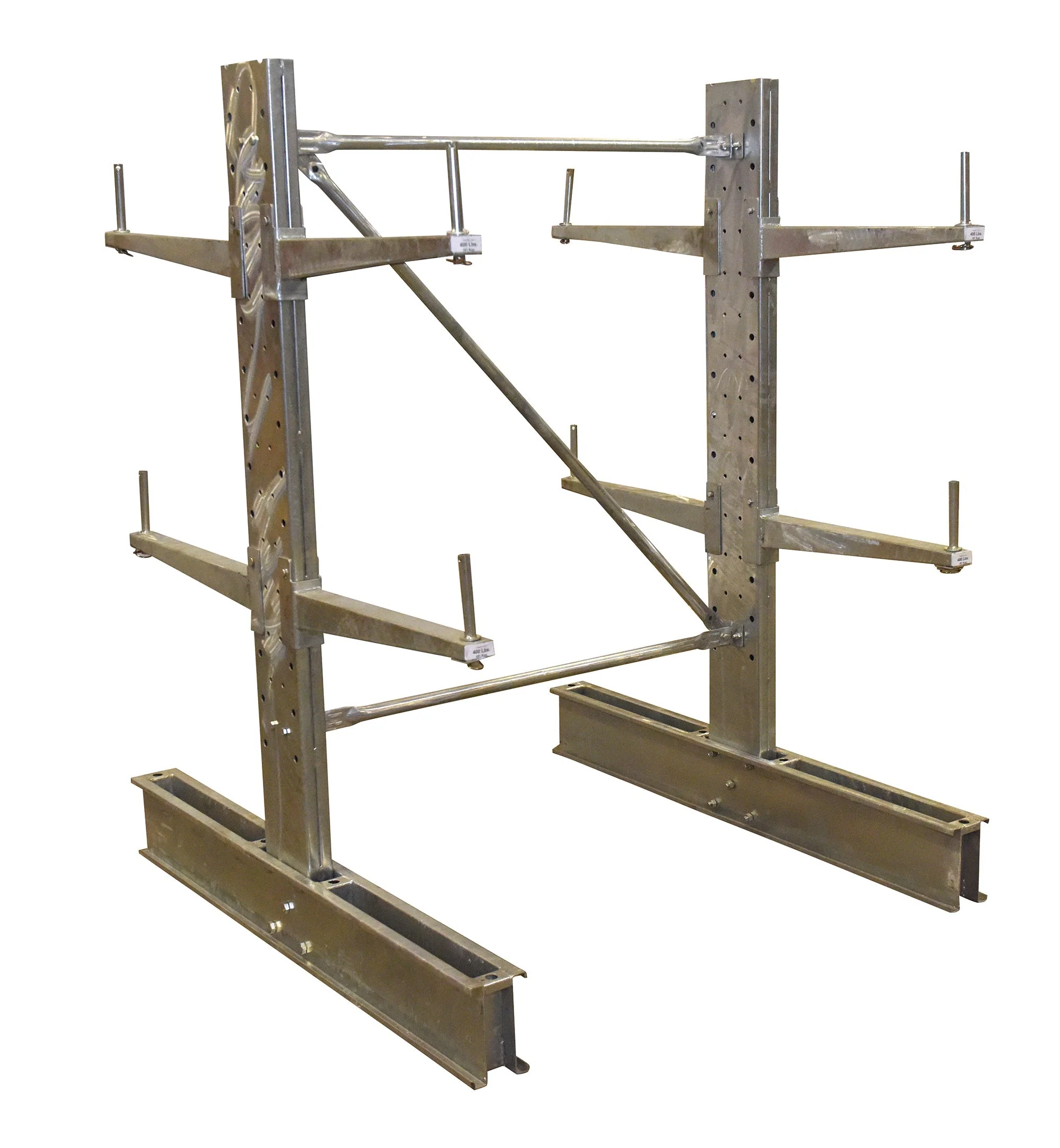

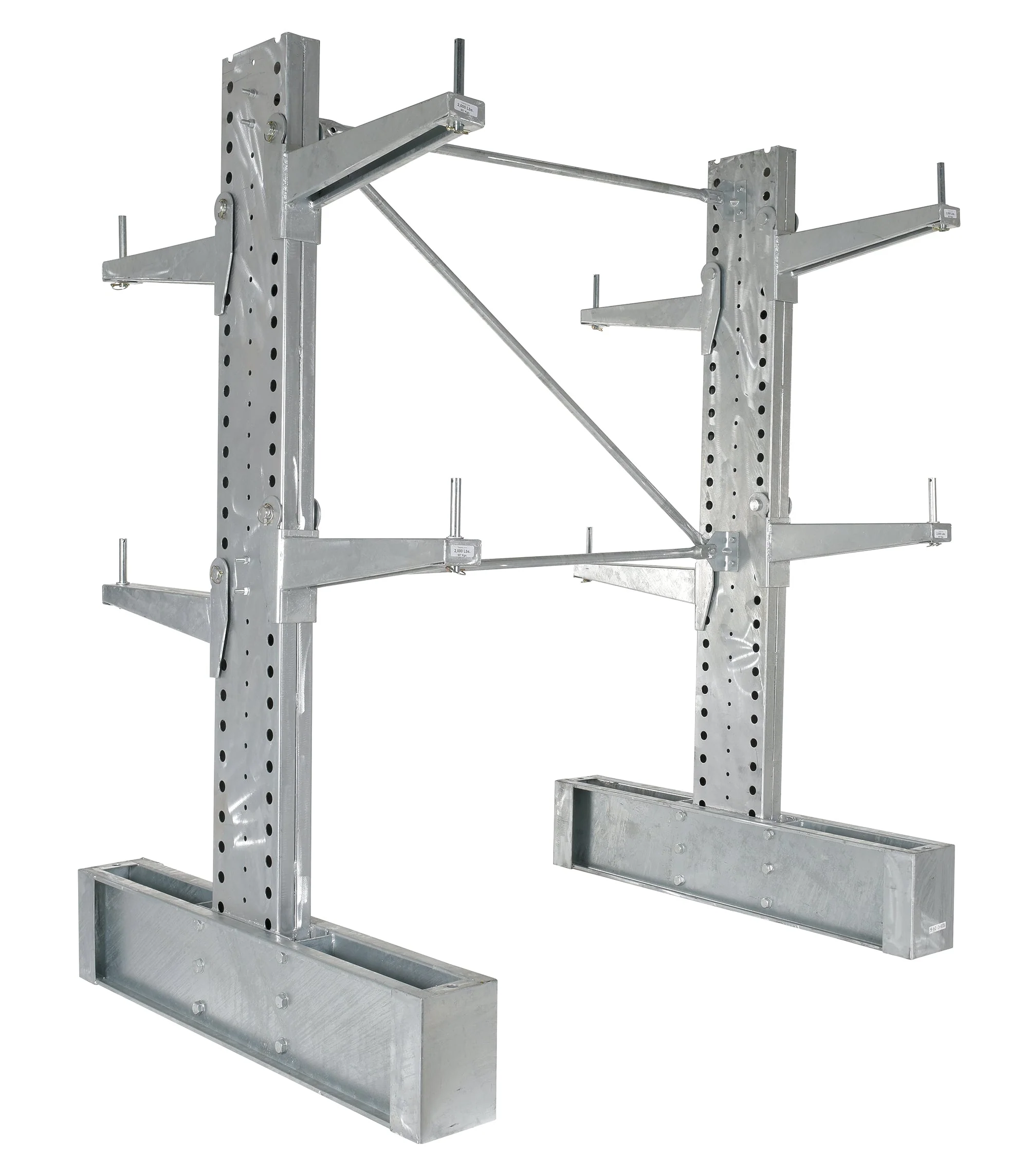

Vestil Galvanized Cantilever Rack Kits

The Galvanized Cantilever Rack systems are ideal for distributing and industrial settings. The galvanized steel design minimizes rust while providing a strong construction. The adjustable rack arms can be adapted to a customized position allowing the unit to fit the needs of individual circumstances. Capacity is per level.

Galvanized Cantilever Rack Kits
Model	Package Contents	Capacity (lbs)	Wt. (lbs)
Standard-Duty Galvanized Cantilever Rack Kits
SU-C-6-24-G-SET	(2) SU-C-6-24-G 6' High Single Sided Uprights, (1) SB-C-6-48-G Brace Set, (4) SSA-C-24-G 24" Arms	800	516
SU-C-8-24-G-SET	(2) SU-C-8-24-G 8' High Single Sided Uprights, (1) SB-C-8-48-G Brace Set, (4) SSA-C-24-G 24" Arms	800	422
SDU-C-6-24-G-SET	(2) SDU-C-6-24-G 6' High Double Sided Uprights, (1) SB-C-6-48-G Brace Set, (8) SSA-C-24-G 24" Arms	1,600	382
SDU-C-6-36-G-SET	(2) SDU-C-6-24-G 6' High Double Sided Uprights, (1) SB-C-6-48-G Brace Set, (8) SSA-C-36-G 36" Arms	800	556
Medium-Duty Galvanized Cantilever Rack Kits
MU-C-6-24-G-SET	(2) MU-C-6-24-G 6' High Single Sided Uprights, (1) MB-C-6-48-G Brace Set, (4) MSA-C-24-G 24" Arms	1,200	618
MU-C-8-24-G-SET	(2) MU-C-8-24-G 8' High Single Sided Uprights, (1) MB-C-8-48-G Brace Set, (4) MSA-C-24-G 24" Arms	1,200	522
MDU-C-6-24-G-SET	(2) MDU-C-6-24-G 6' High Double Sided Uprights, (1) MB-C-6-48-G Brace Set, (8) MSA-C-24-G 24" Arms	2,400	482
MDU-C-6-36-G-SET	(2) MDU-C-6-24 6' High Double Sided Uprights, (1) MB-C-6-48 Brace Set, (8) MSA-C-36 36" Arms	1,600	656
Heavy-Duty Galvanized Cantilever Rack Kits
HU-C-8-36-G-SET	(2) HU-C-8-36-G 8' High Single Sided Uprights, (1) HB-C-8-48-G Brace Set, (4) HSA-C-36-G 36" Arms	2,400	810
HDU-C-8-24-G-SET	(2) HDU-C-8-24-G 8' High Double Sided Uprights, (1) HB-C-8-48-G Brace Set, (8) HSA-C-24-G 24" Arms	8,000	890
HDU-C-8-36-G-SET	(2) HDU-C-8-36-G 8' High Double Sided Uprights, (1) HB-C-8-48-G Brace Set, (8) HSA-C-36-G 36" Arms	4,800	1016
