Vestil Galvanized Cross-Over Ladders

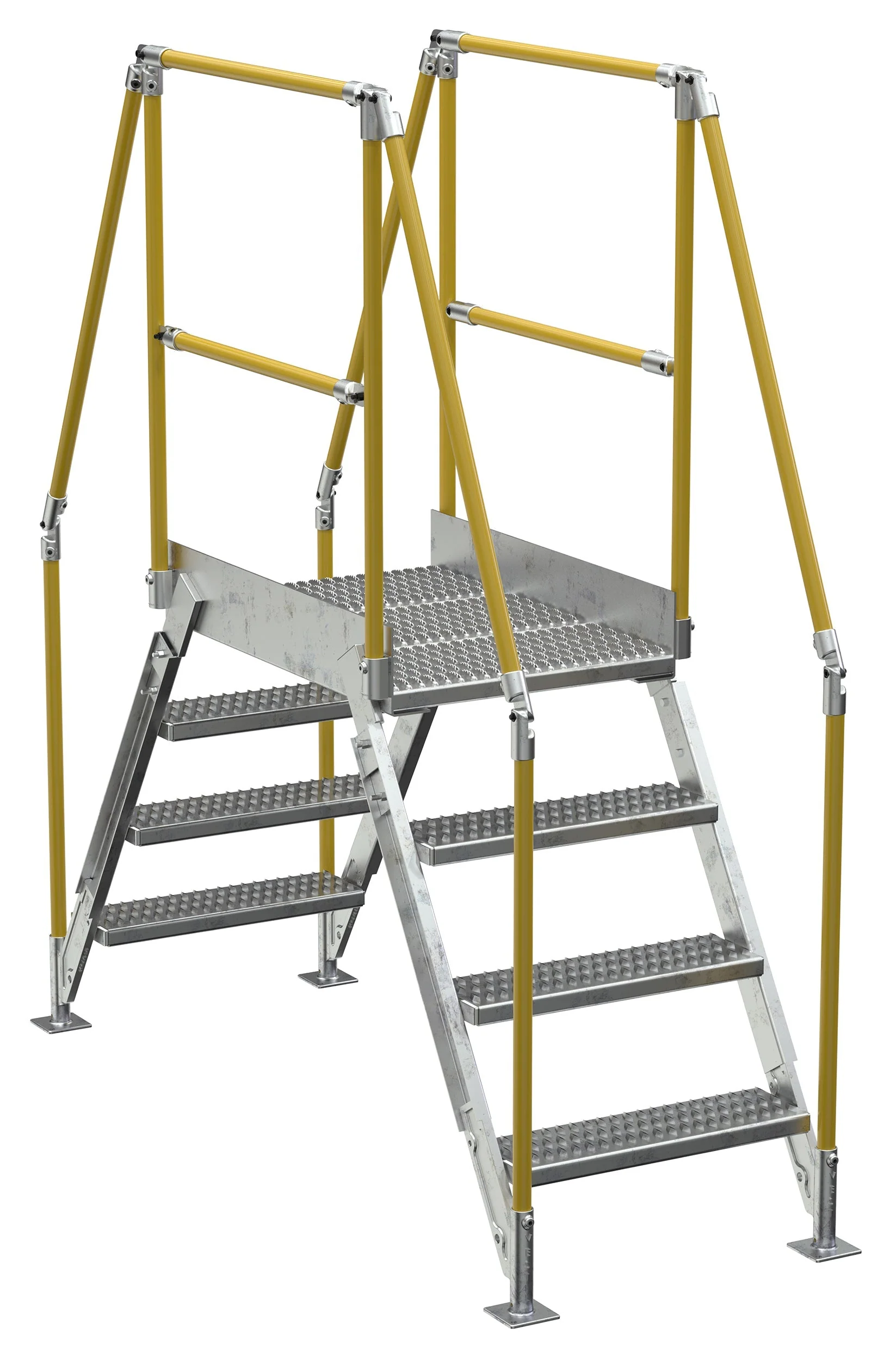

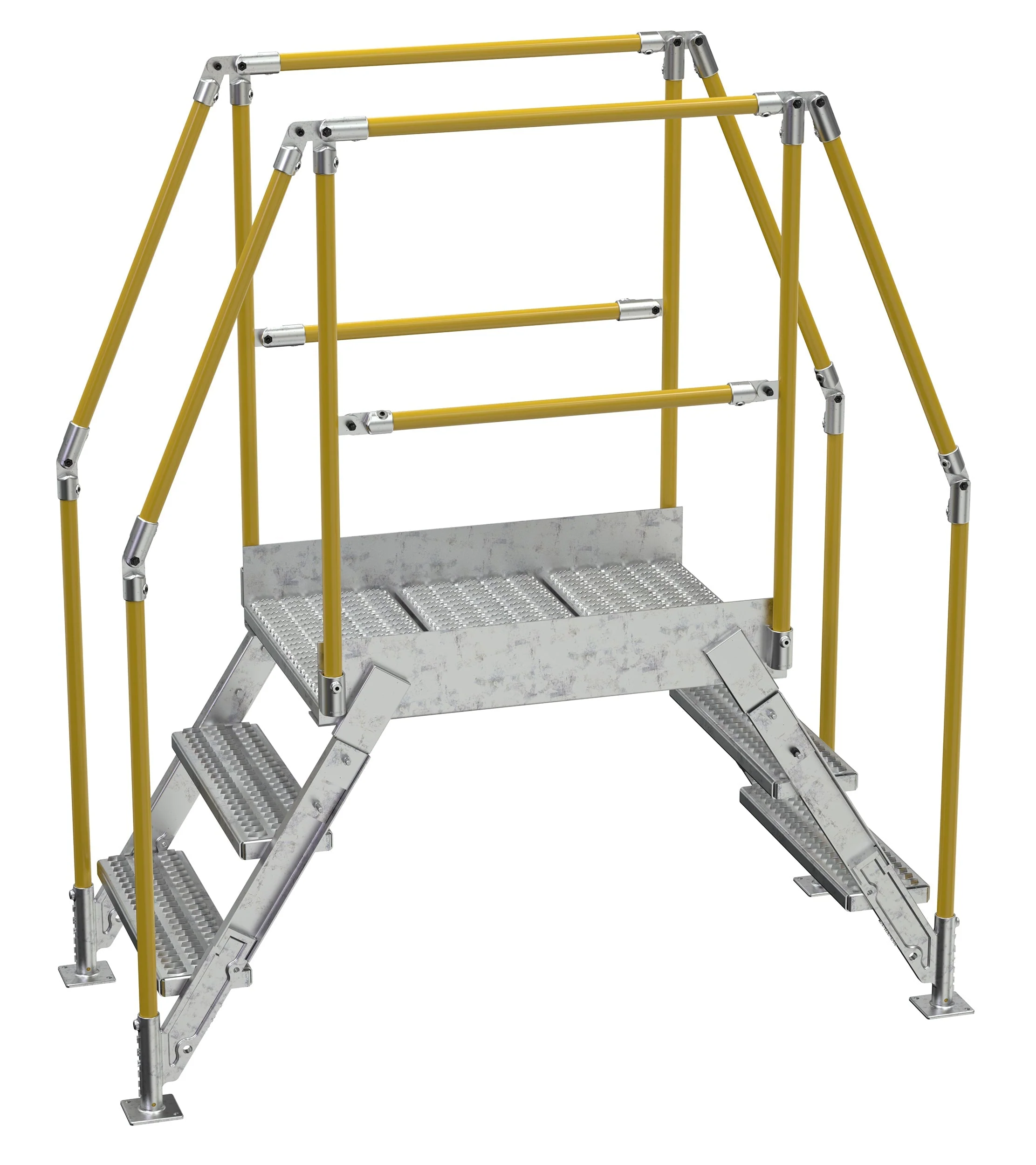

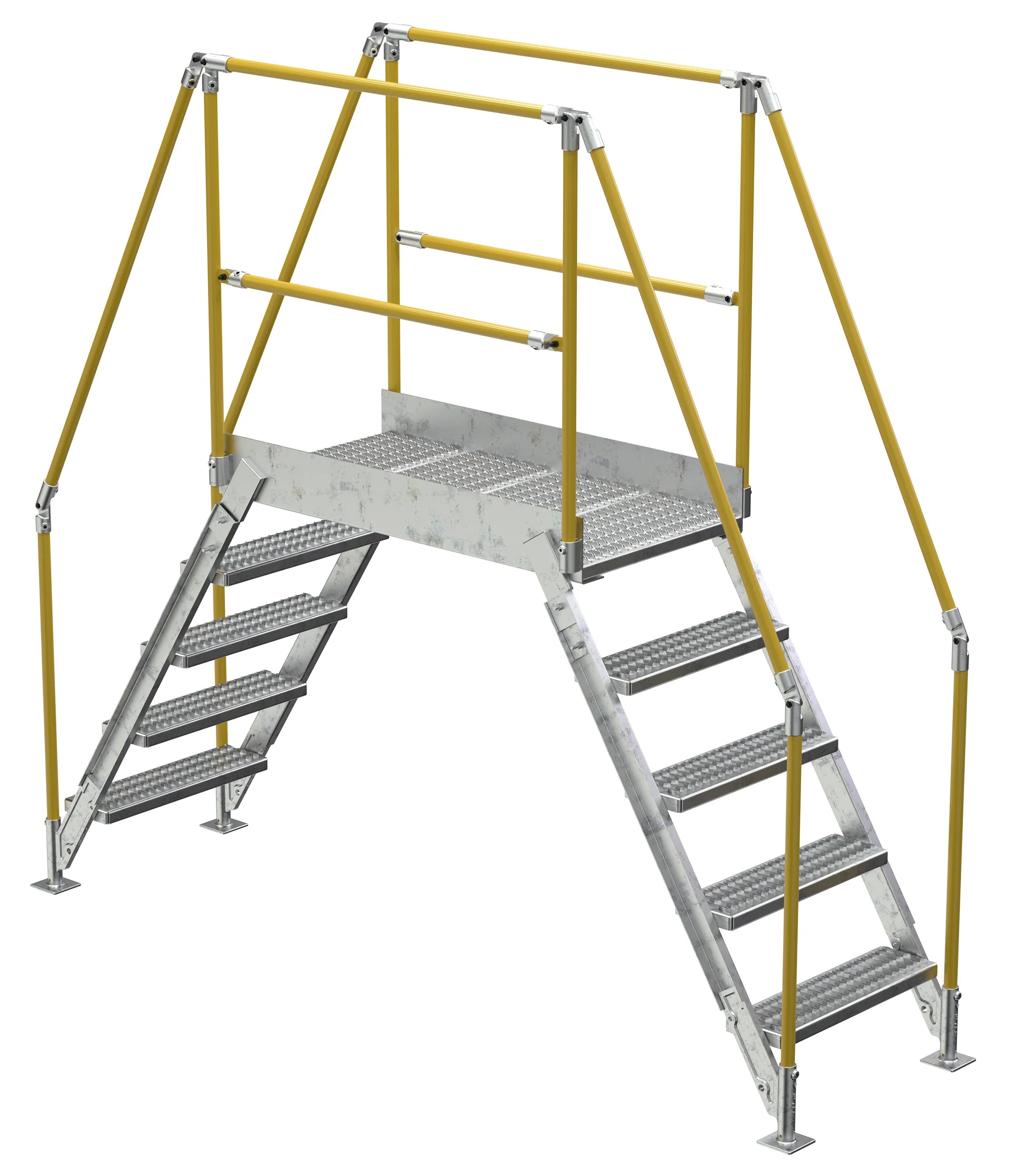

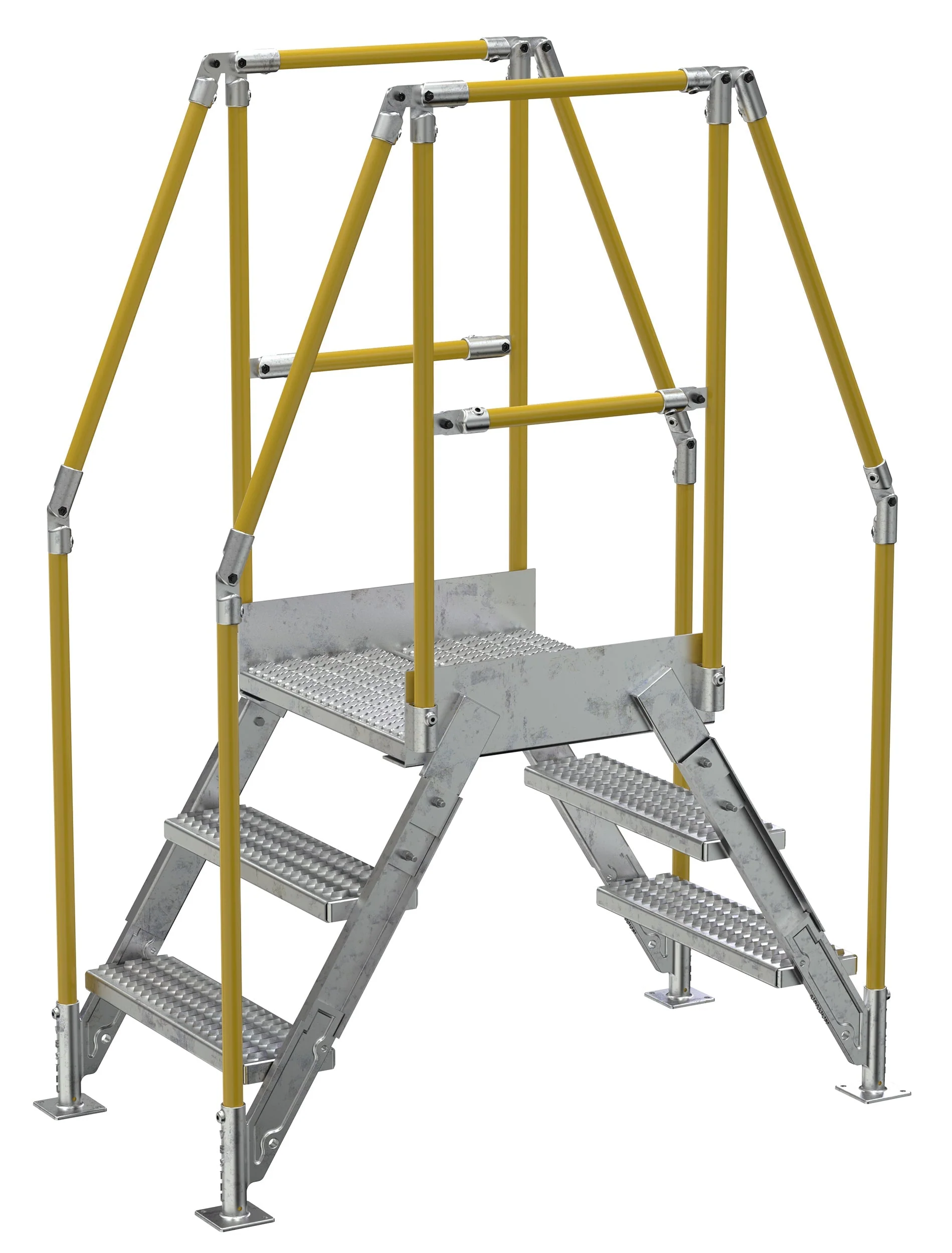

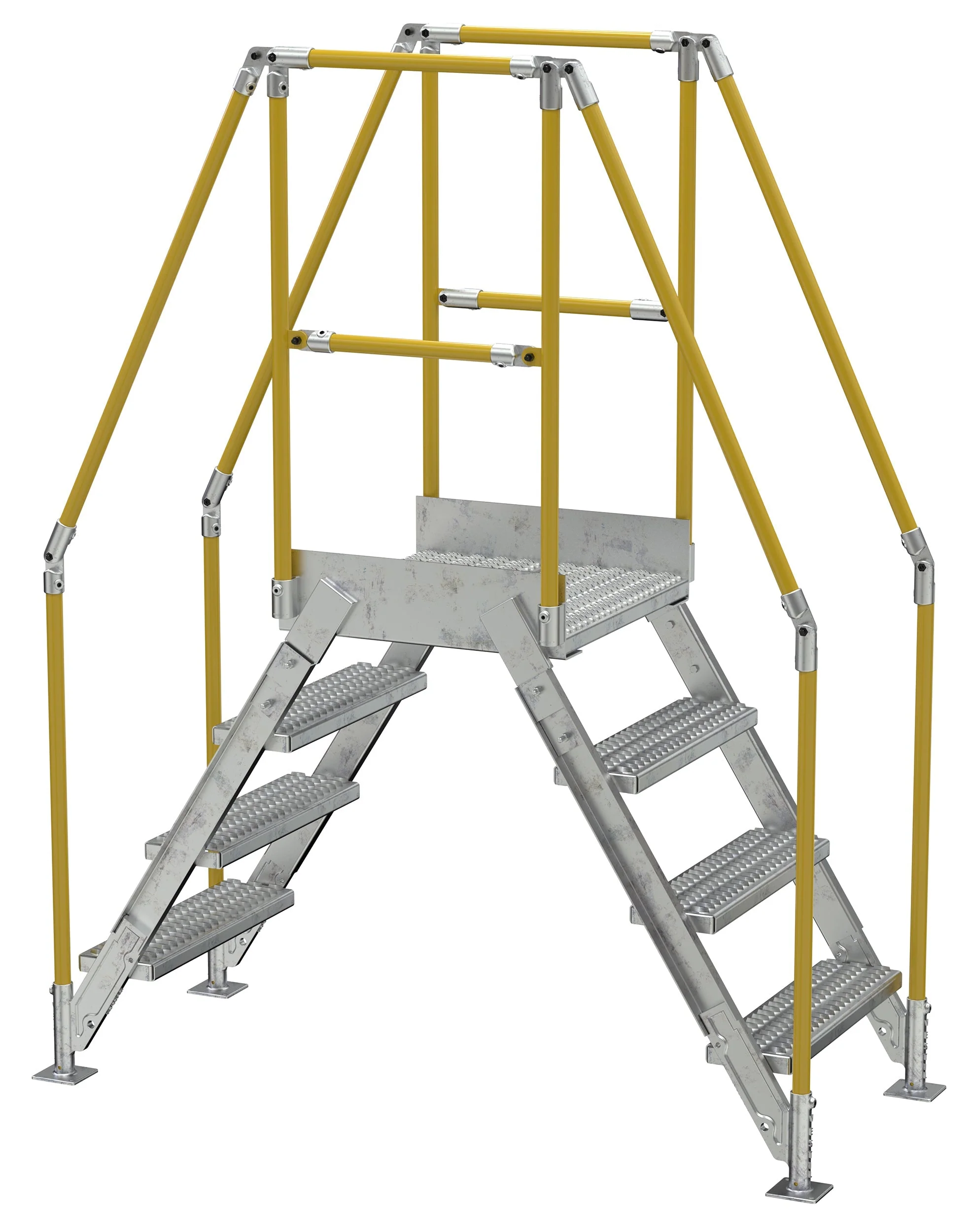

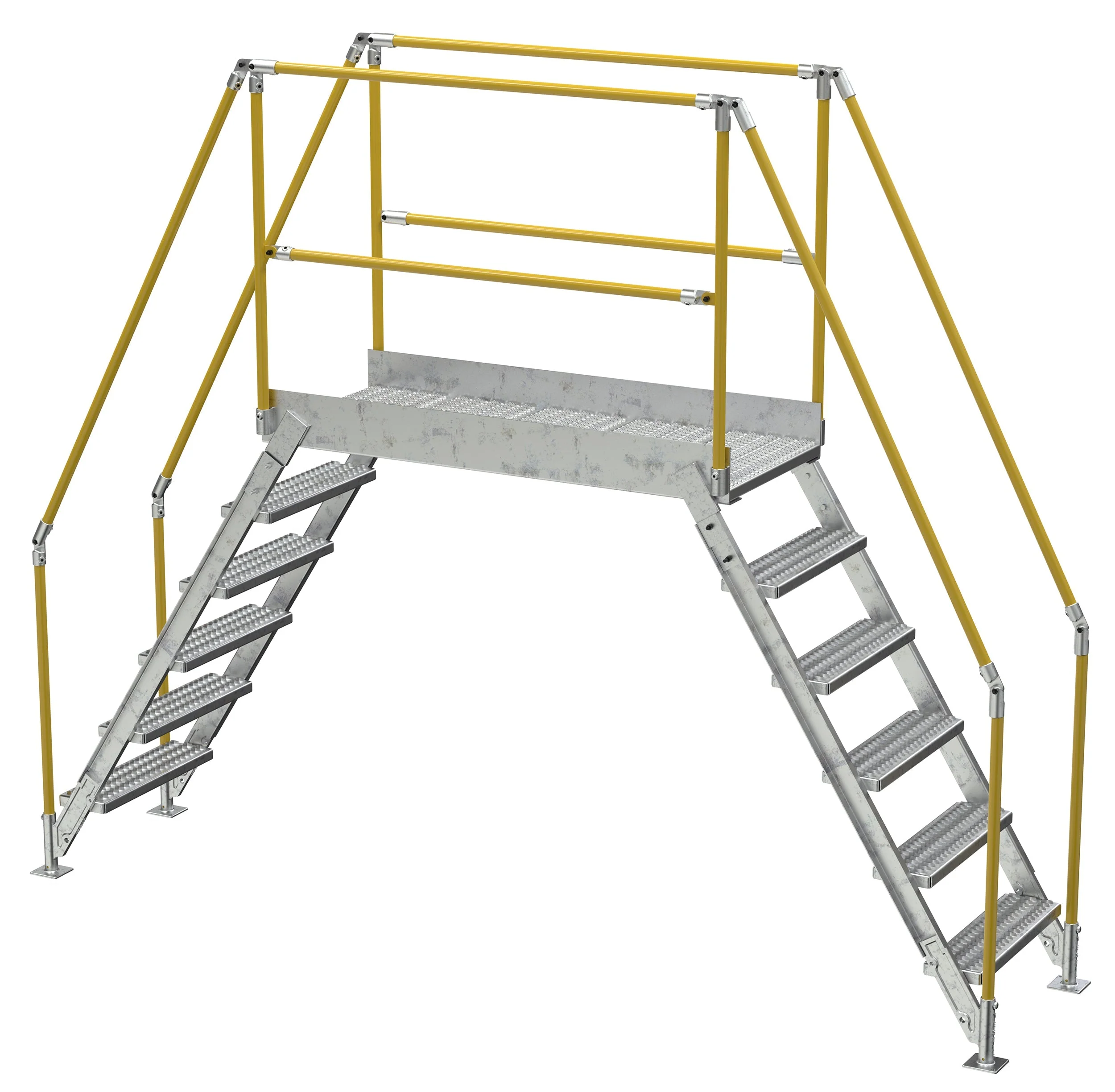

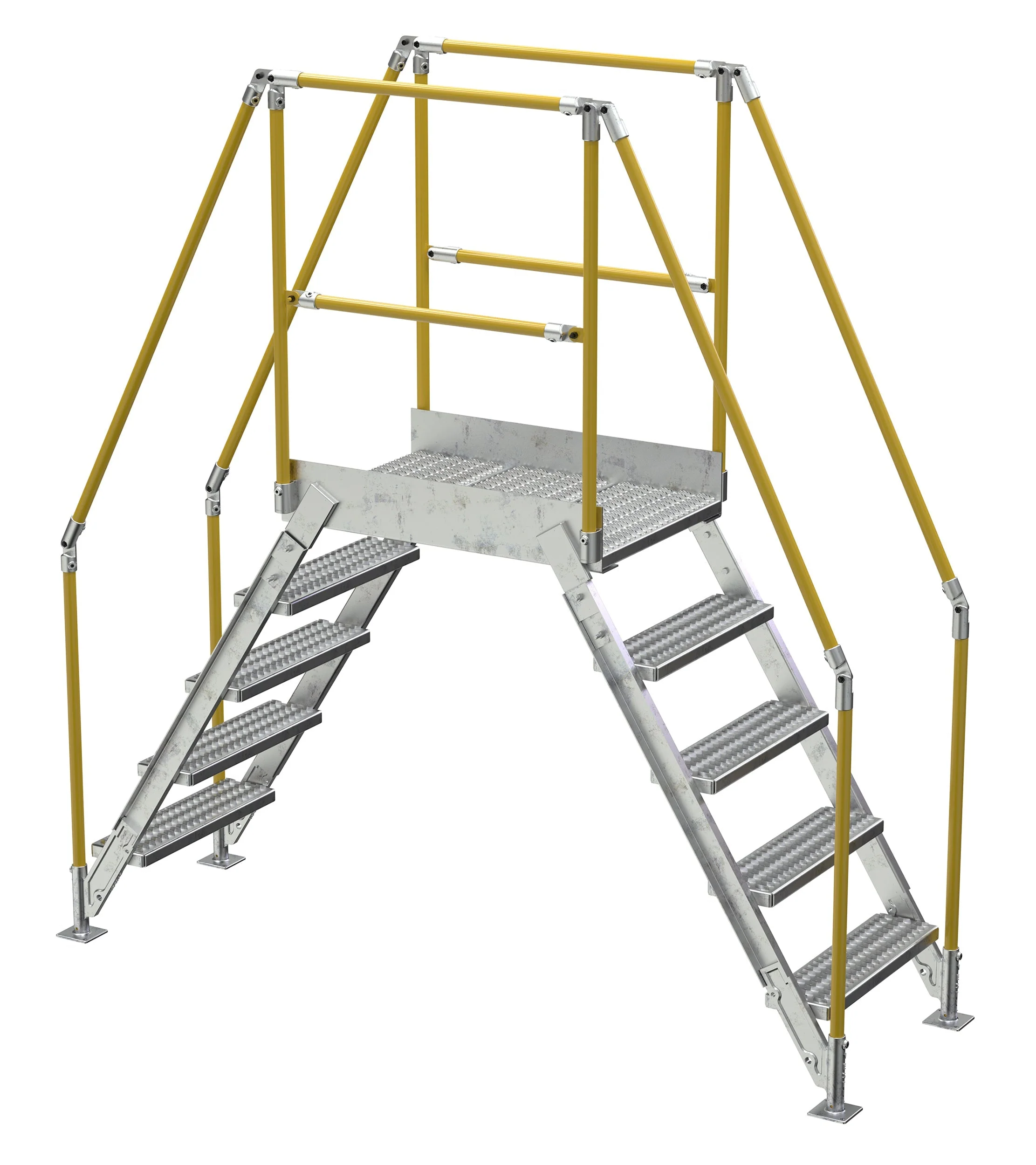

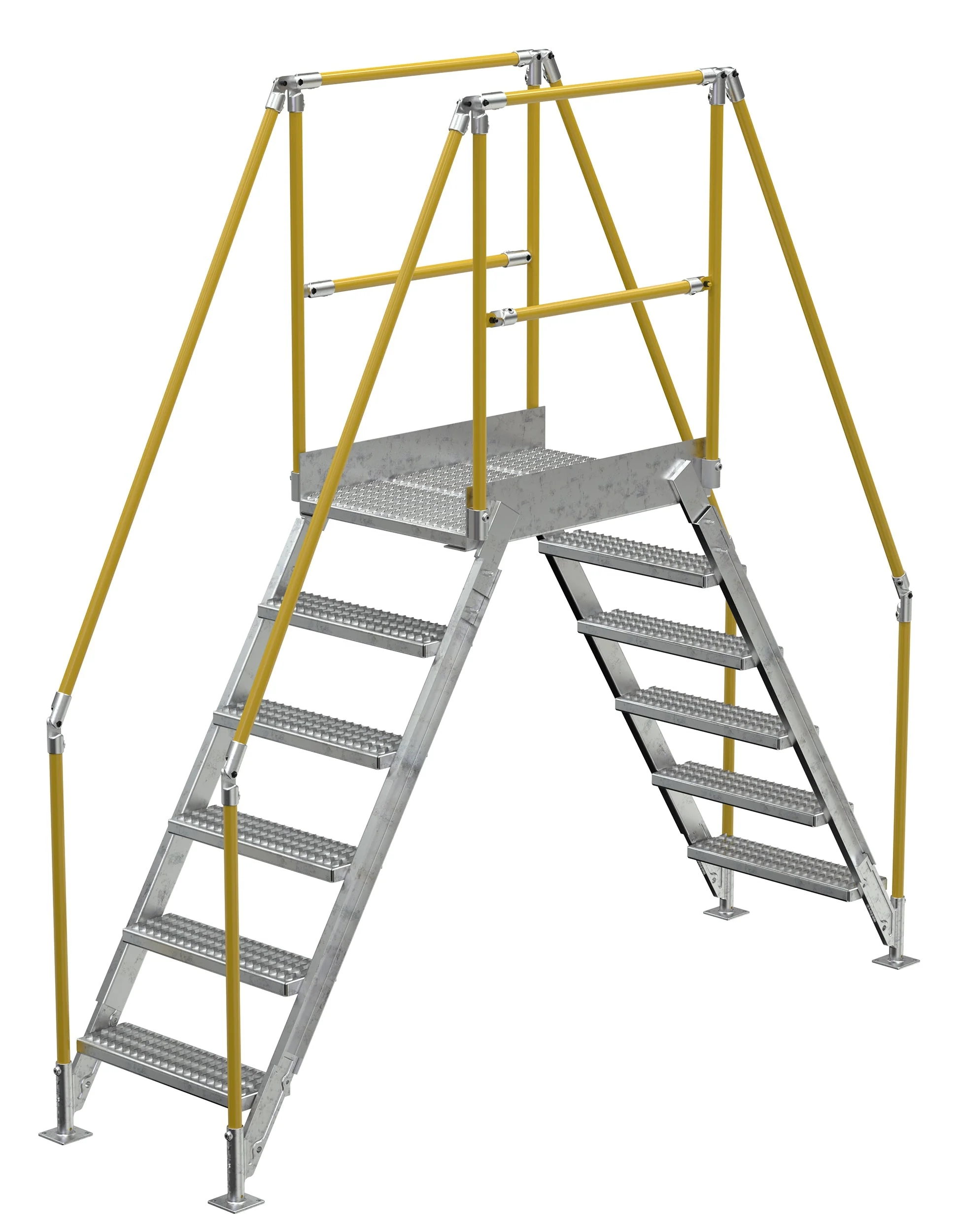

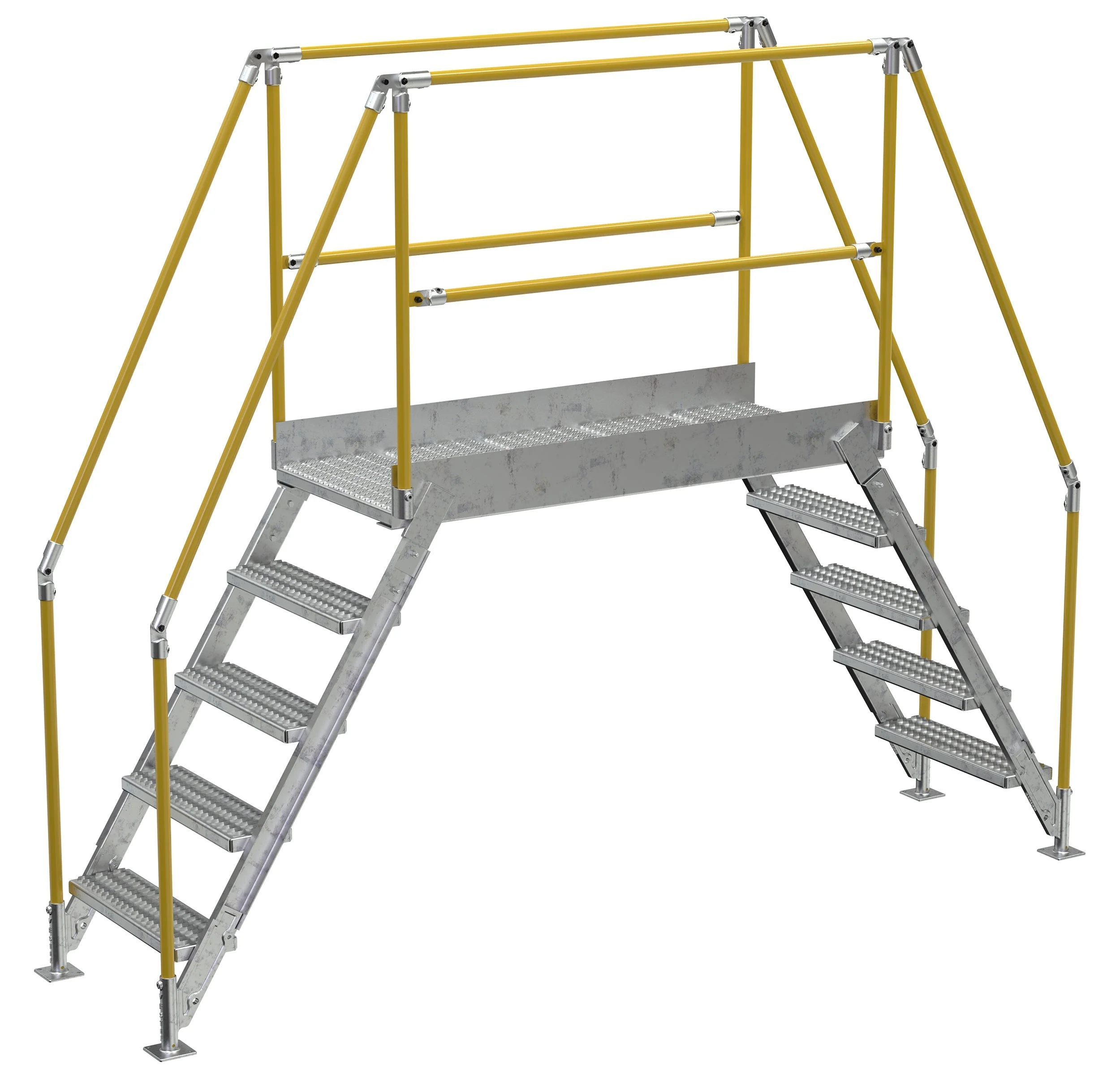

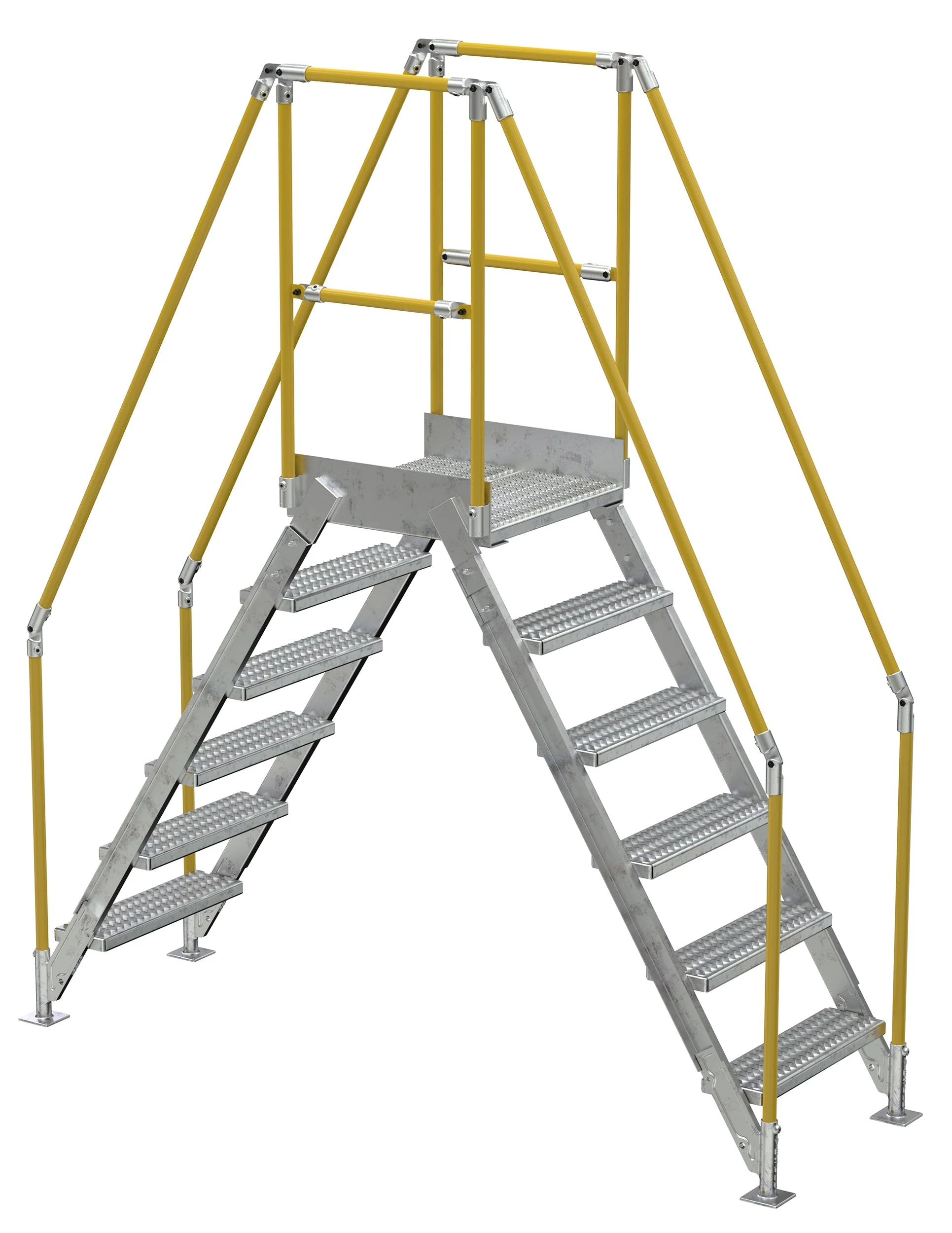

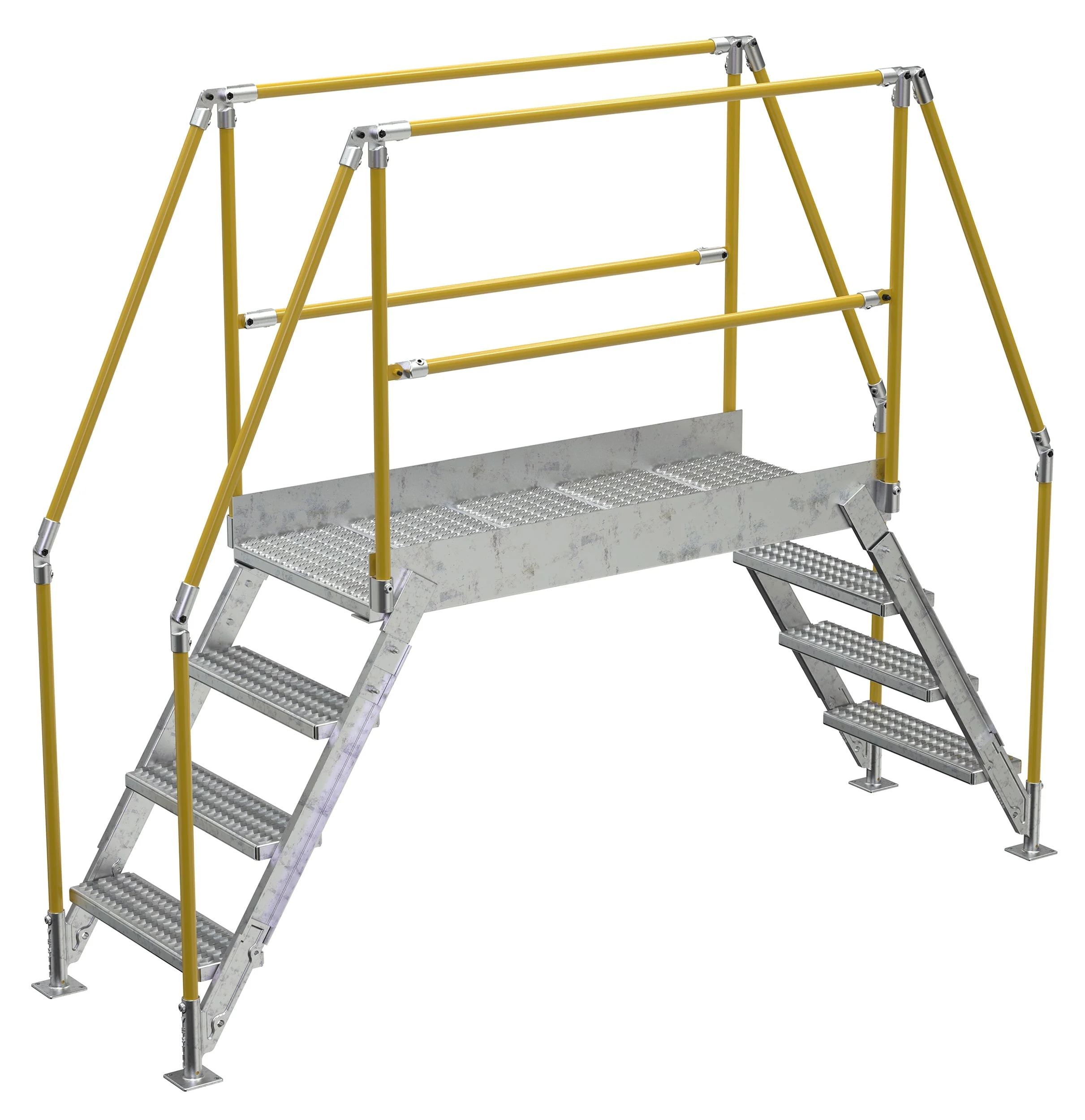

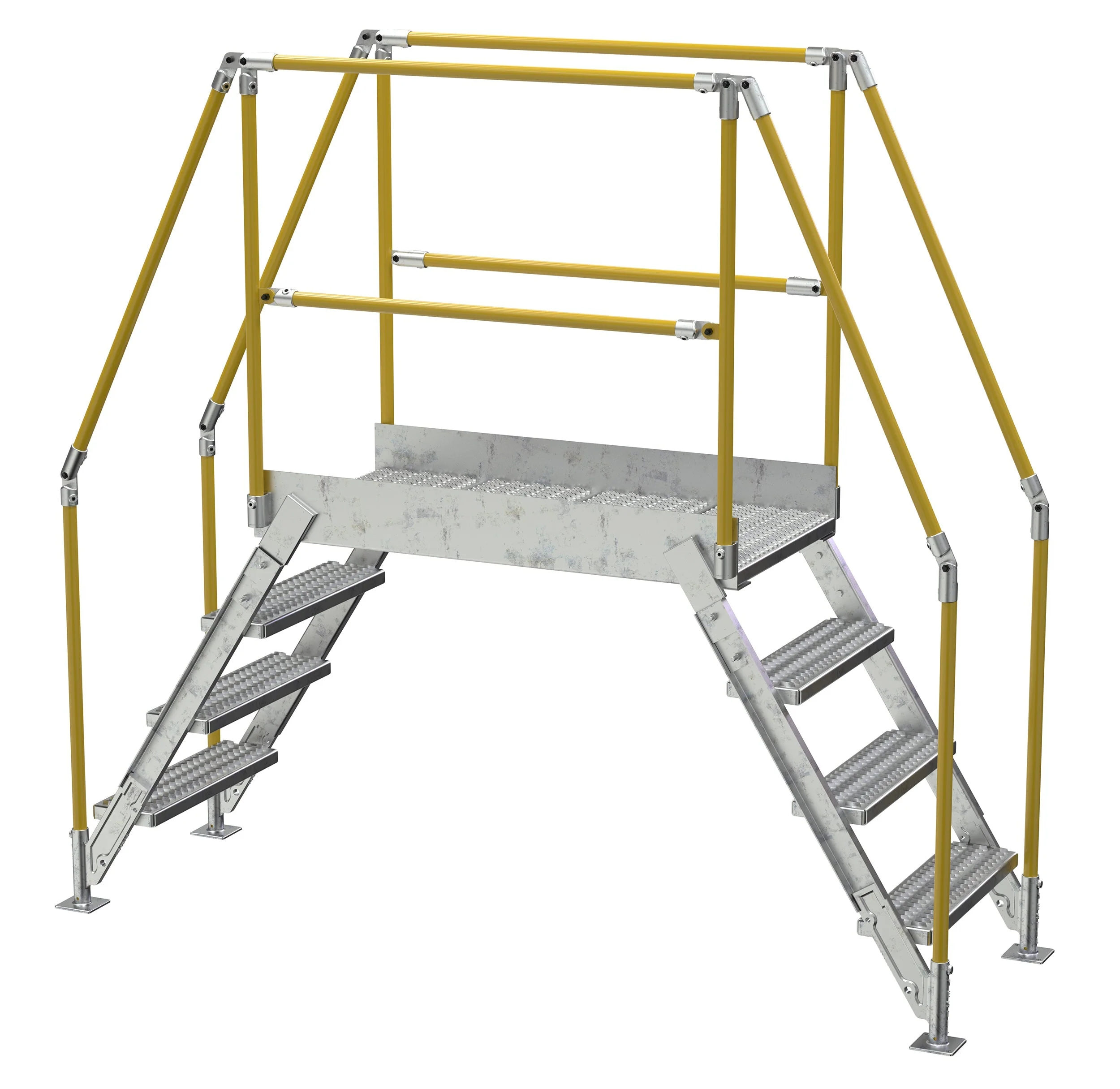

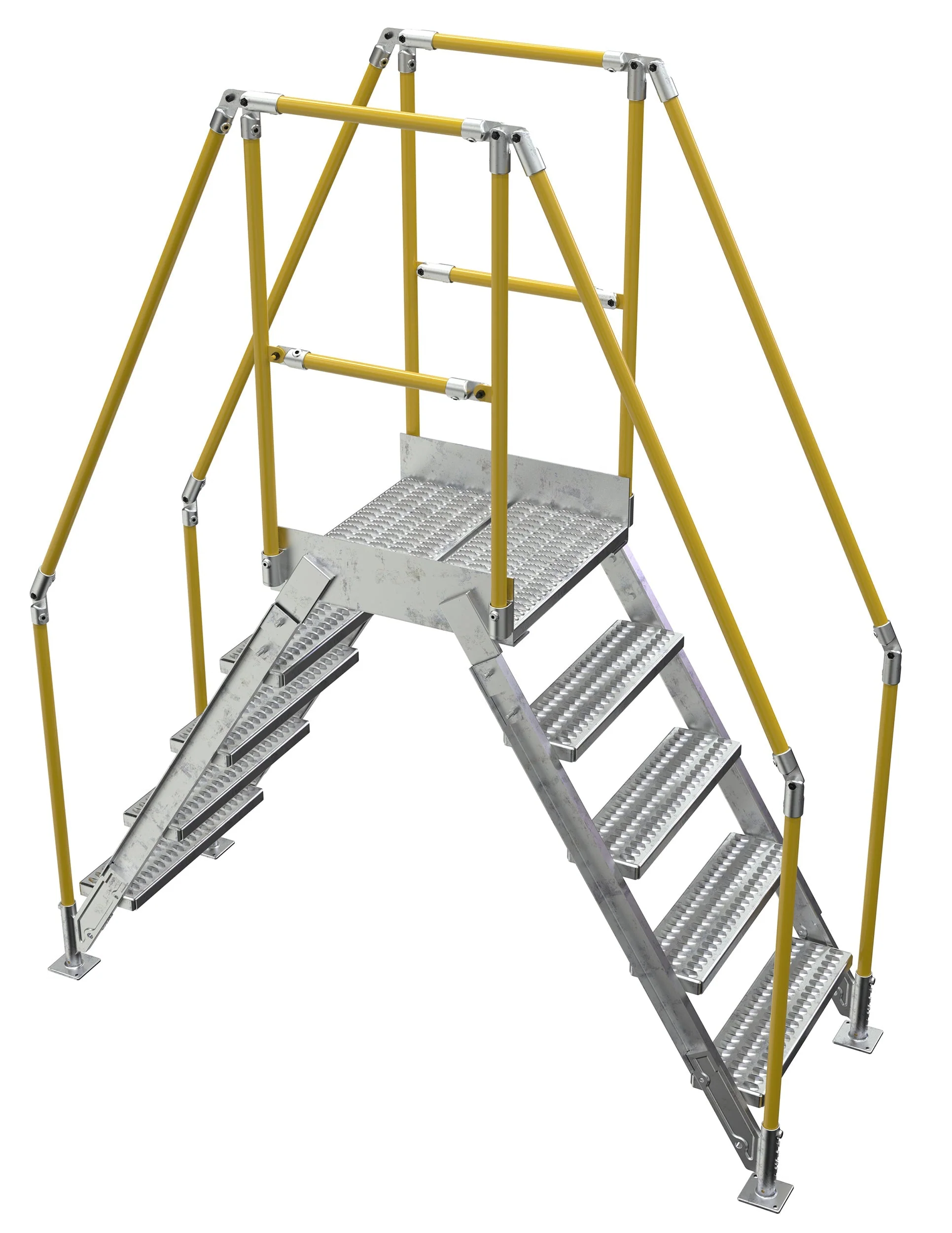

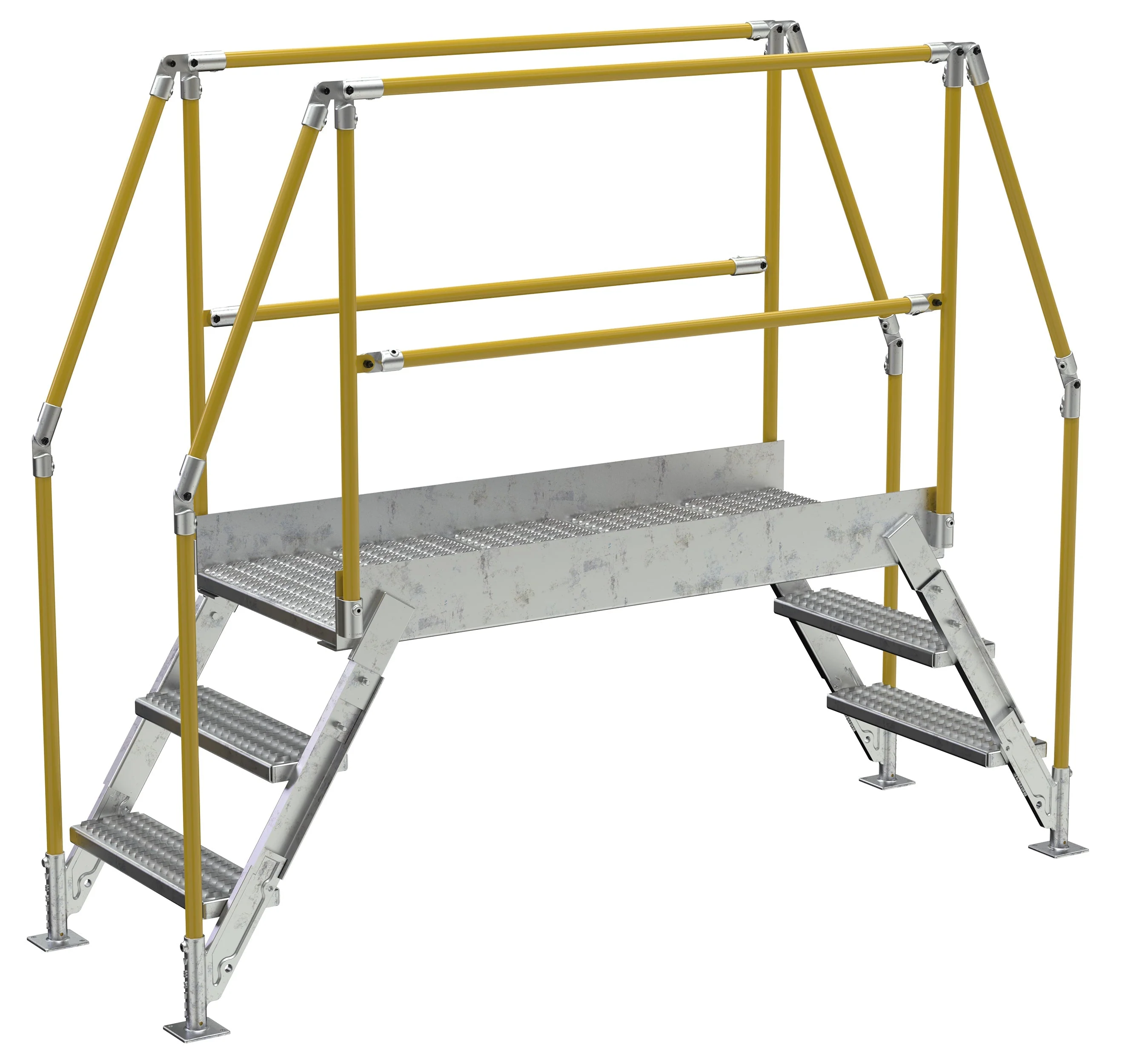

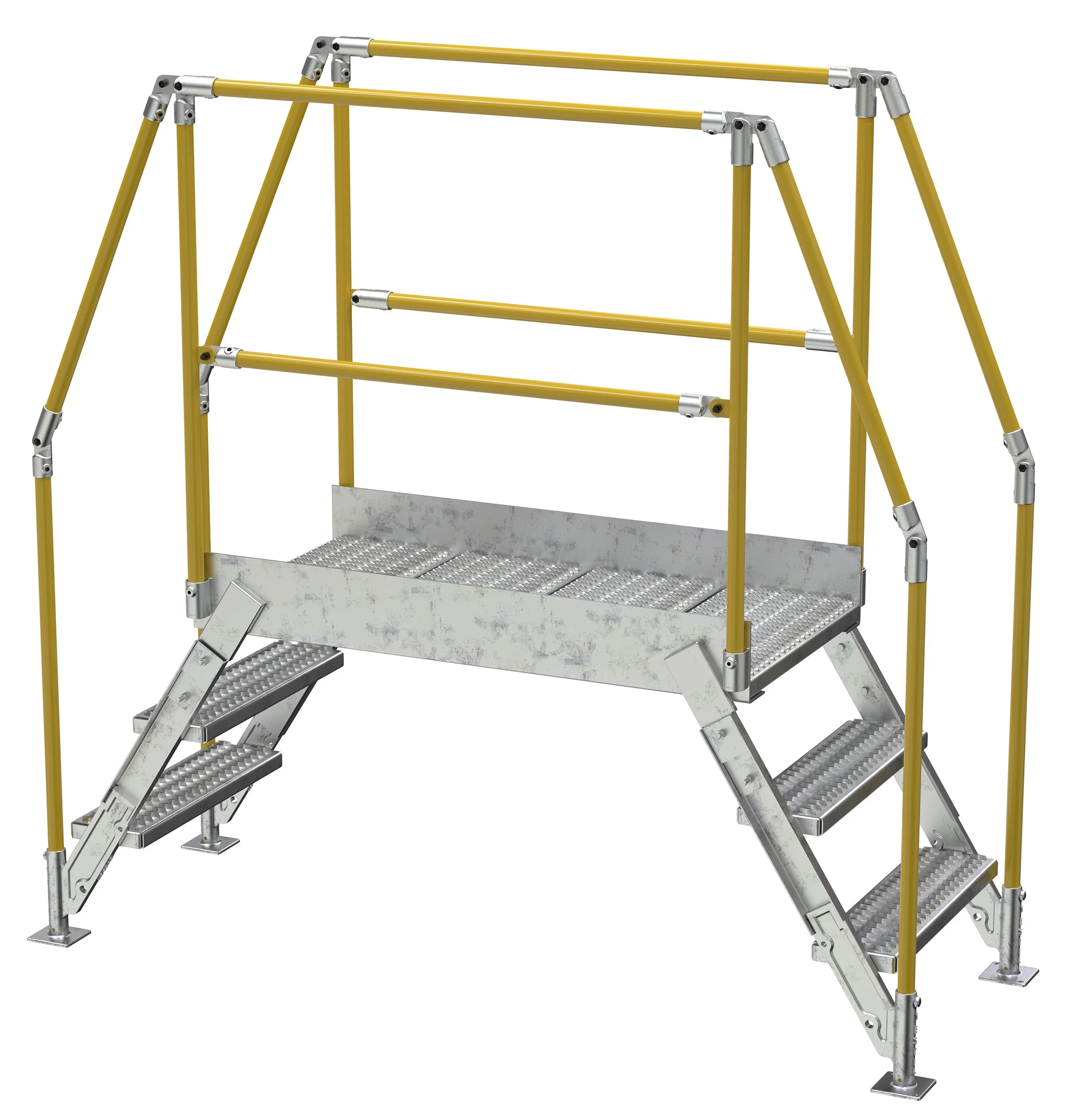

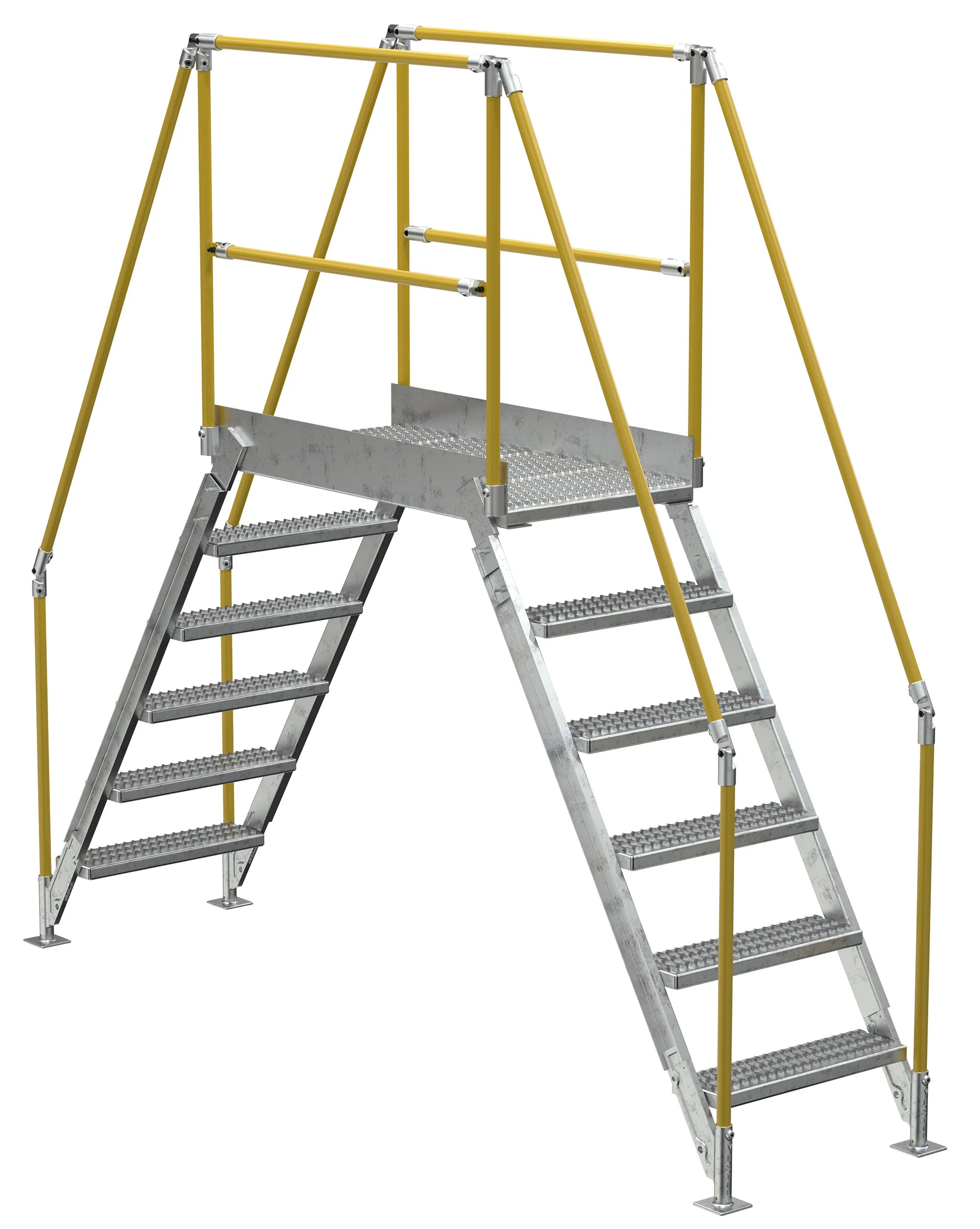

In crowded industrial settings, sometimes the best way around an obstruction is up and over. Utilizing a crossover ladder allows the permanent pieces in the work area to stay in place, while providing a more efficient option for personnel. The horizontal platform includes both upper and lower rails for complete staff security. Ground legs include floor mounting pads and units must be anchored to the surface. During times of temporary use, the ladder can be uninstalled and 'knocked-down' for storage and shipping. Hot dip galvanized steel handrails with yellow powder coated finish.
| Hot Dip Galvanized Finish | ||||||||
|
Model Number |
Number |
A |
B |
C |
D |
E | F | Wt. (lbs.) |
| COL-3-26-14-HDG | 3 | 28-1/4" | 14-1/8" | 54-1/2" | 72-7/8" | 30" | 24" | 264 |
| COL-3-26-23-HDG | 3 | 28-1/4" | 26-1/8" | 66-1/2" | 72-7/8" | 30" | 36" | 282 |
| COL-3-26-33-HDG | 3 | 28-1/4" | 38-1/8" | 78-1/2" | 72-7/8" | 30" | 48" | 315 |
| COL-3-26-44-HDG | 3 | 28-1/4" | 50-1/8" | 90-1/2" | 73" | 30" | 60" | 349 |
| COL-4-36-14-HDG | 4 | 38-1/4" | 14-1/8" | 67" | 82-7/8" | 40" | 24" | 326 |
| COL-4-36-23-HDG | 4 | 38-1/4" | 26-1/8" | 79" | 82-7/8" | 40" | 36" | 346 |
| COL-4-36-33-HDG | 4 | 38-1/4" | 38-1/8" | 91" | 82-7/8" | 40" | 48" | 380 |
| COL-4-36-44-HDG | 4 | 38-1/4" | 50-1/8" | 103" | 83" | 40" | 60" | 378 |
| COL-5-46-14-HDG | 5 | 48-1/4" | 14-1/8" | 79-1/2" | 92-7/8" | 50" | 24" | 340 |
| COL-5-46-23-HDG | 5 | 48-1/4" | 26-1/8" | 91-1/2" | 92-7/8" | 50" | 36" | 380 |
| COL-5-46-33-HDG | 5 | 48-1/4" | 38-1/8" | 103-1/2" | 92-7/8" | 50" | 48" | 420 |
| COL-5-46-44-HDG | 5 | 48-1/4" | 50-1/8" | 115-1/2" | 93" | 50" | 60" | 440 |
| COL-6-56-14-HDG | 6 | 58-1/4" | 14-1/8" | 92" | 102-7/8" | 60" | 24" | 348 |
| COL-6-56-23-HDG | 6 | 58-1/4" | 26-1/8" | 104" | 102-7/8" | 60" | 36" | 397 |
| COL-6-56-33-HDG | 6 | 58-1/4" | 38-1/8" | 116" | 102-7/8" | 60" | 48" | 401 |
| COL-6-56-44-HDG | 6 | 58-1/4" | 50-1/8" | 128" | 103" | 60" | 60" | 460 |
Original: $1,551.51
-65%$1,551.51
$543.03
