Vestil Hydraulic Elevating Carts

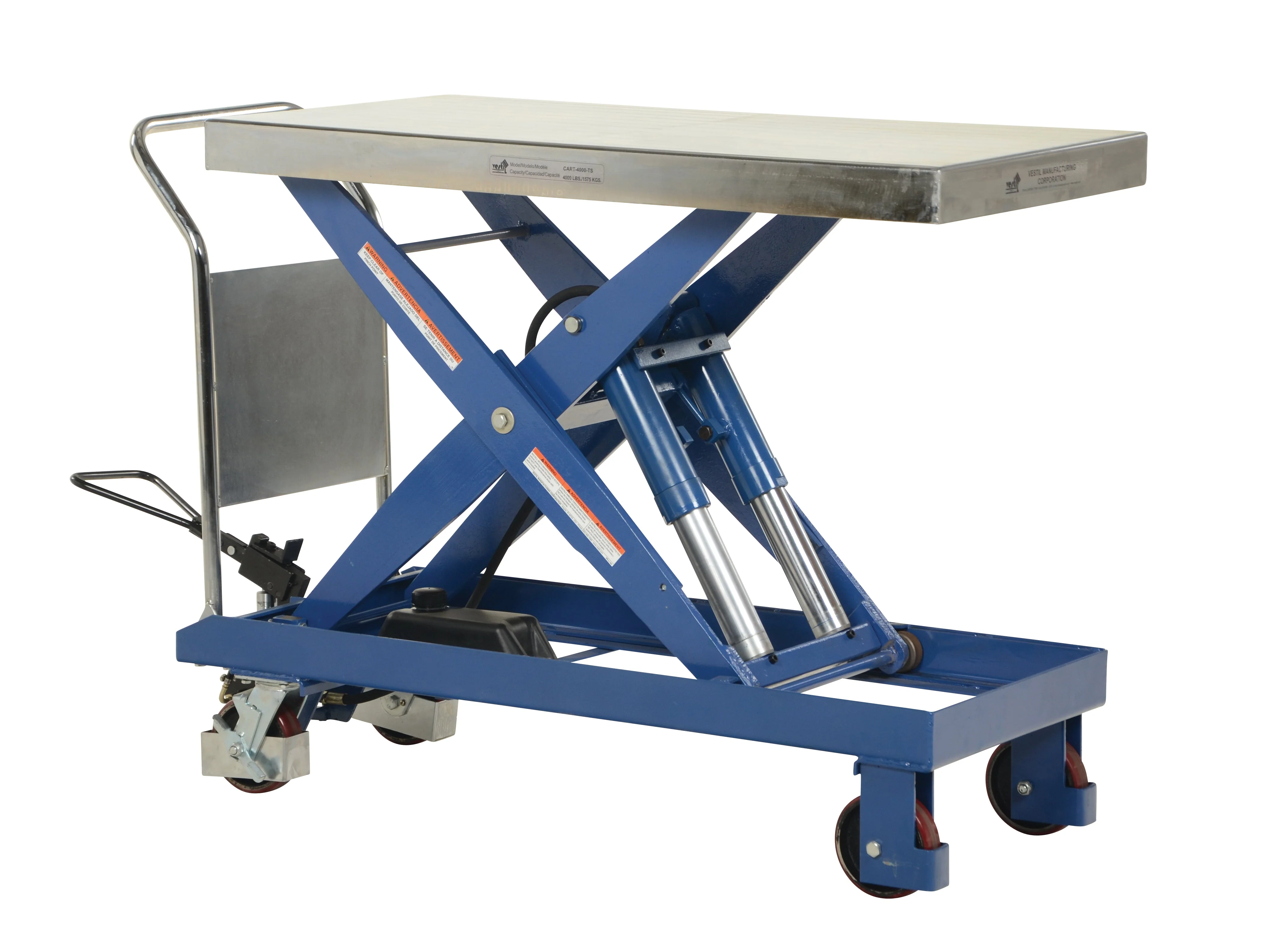

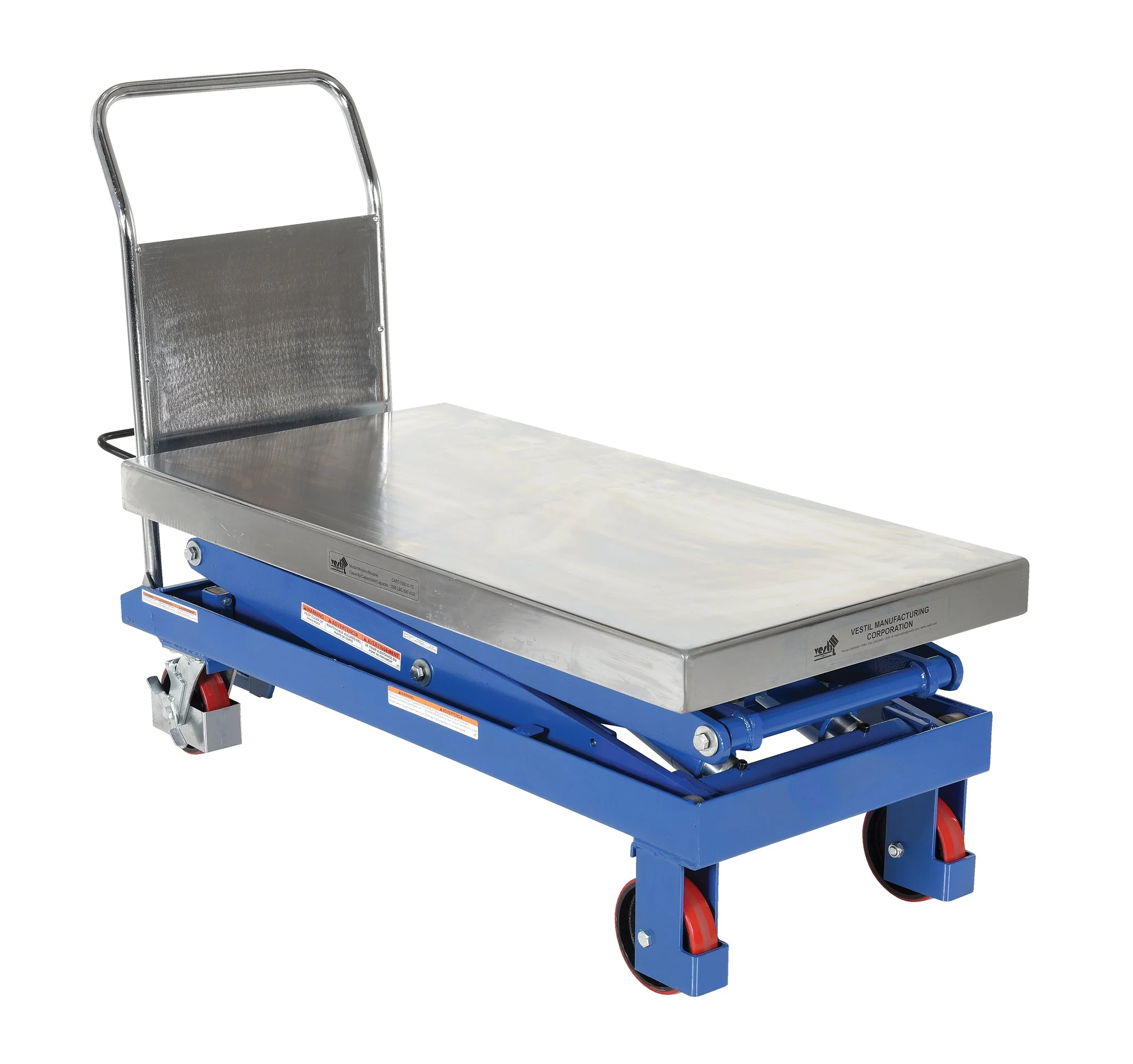

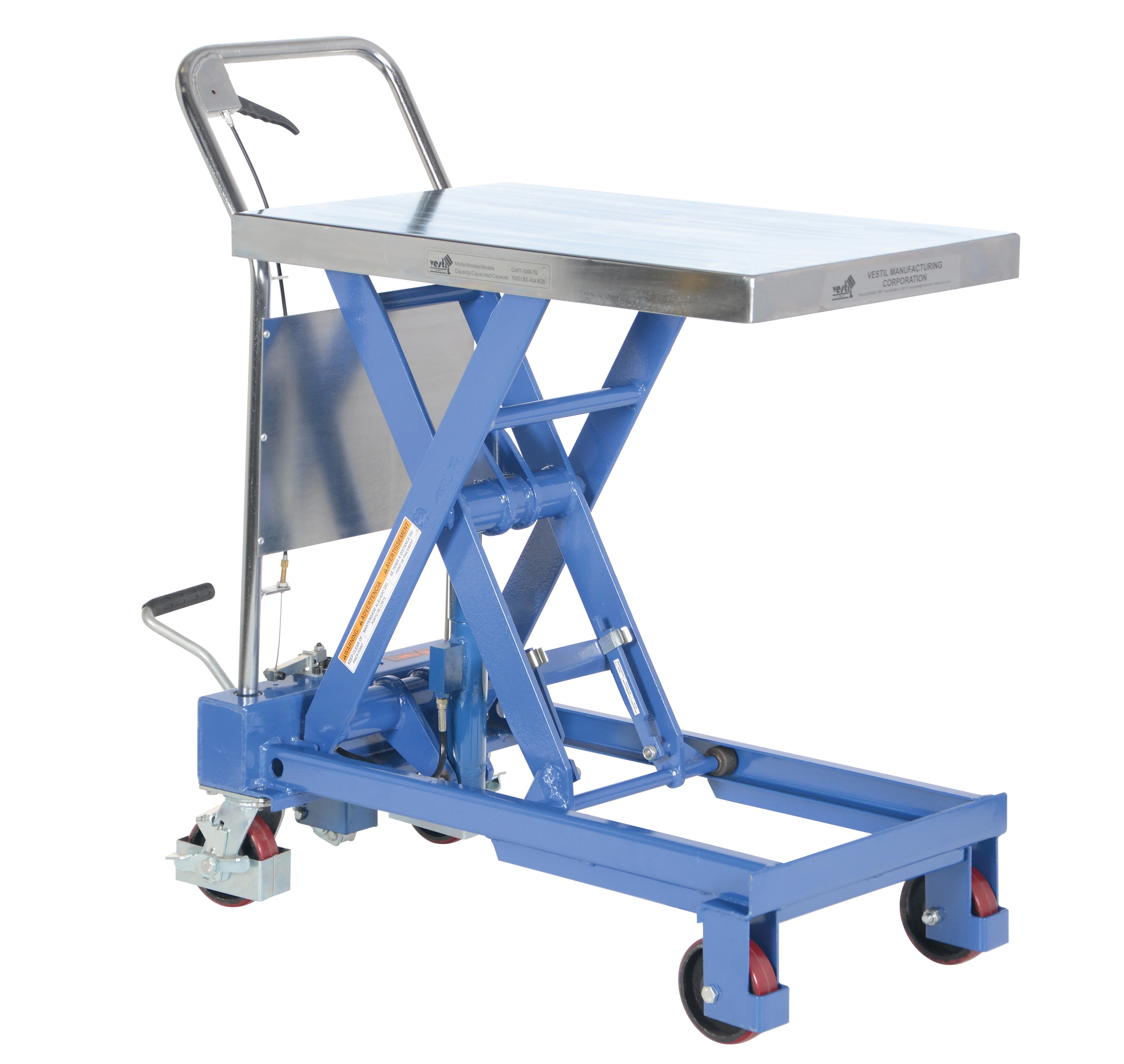

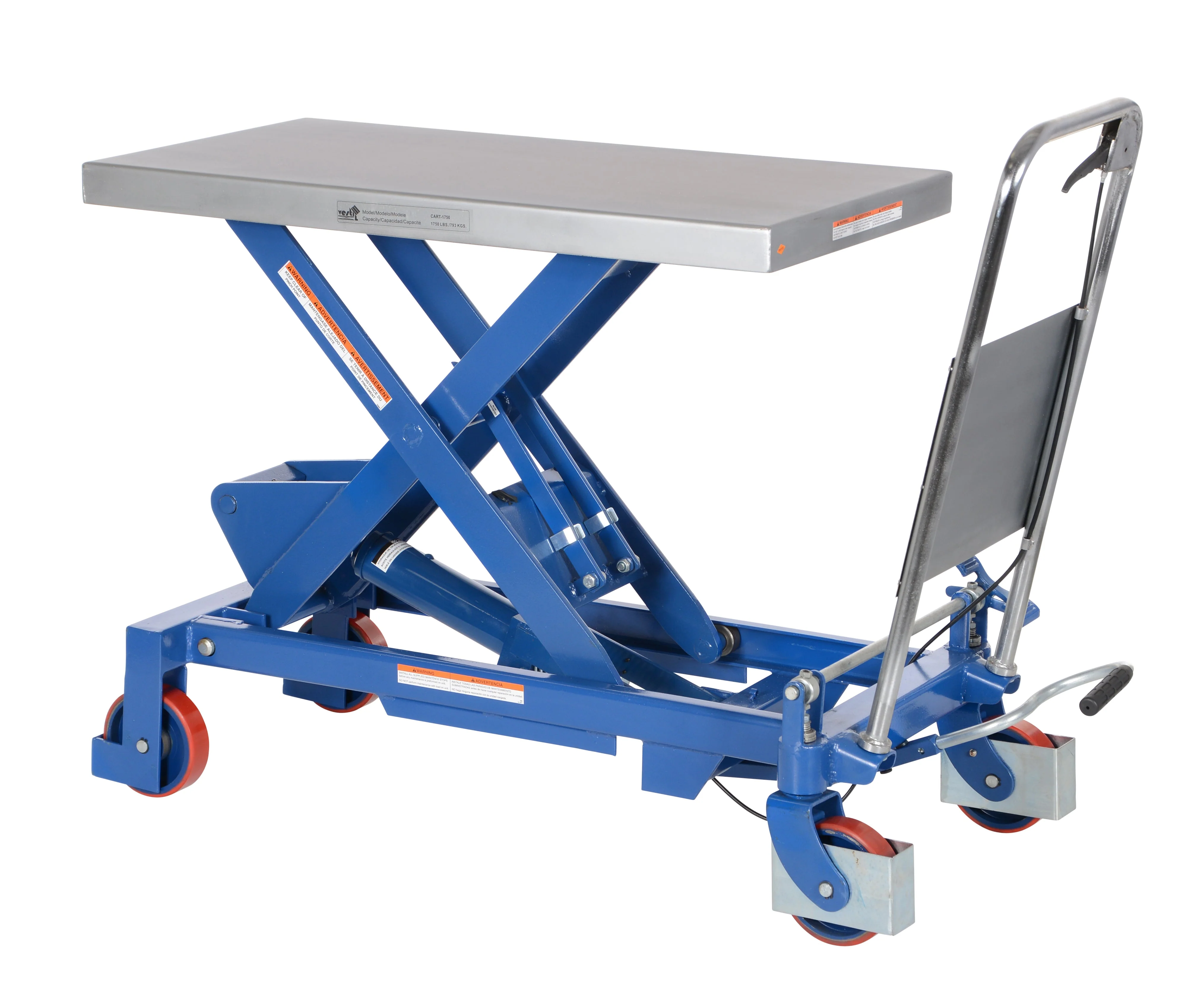

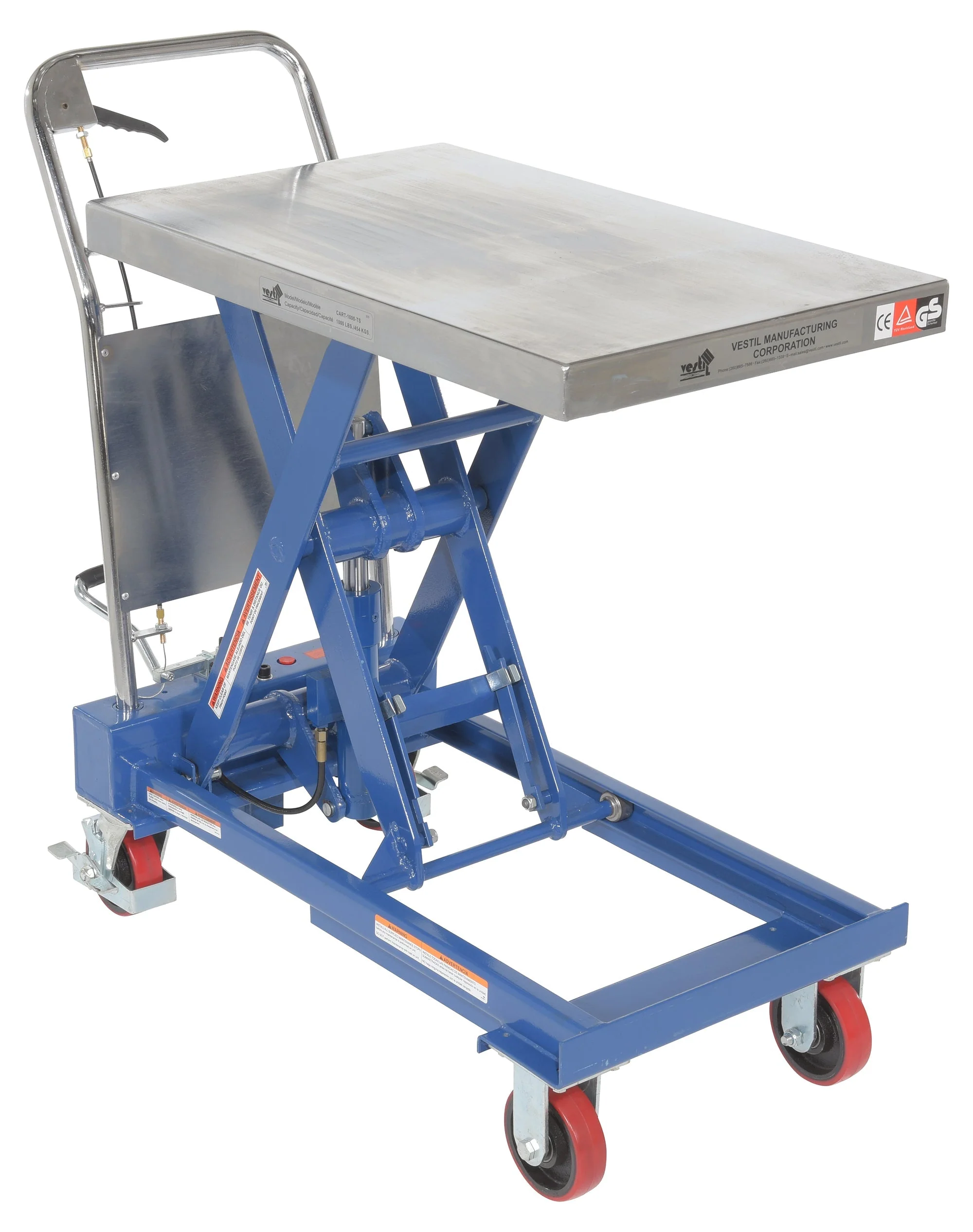

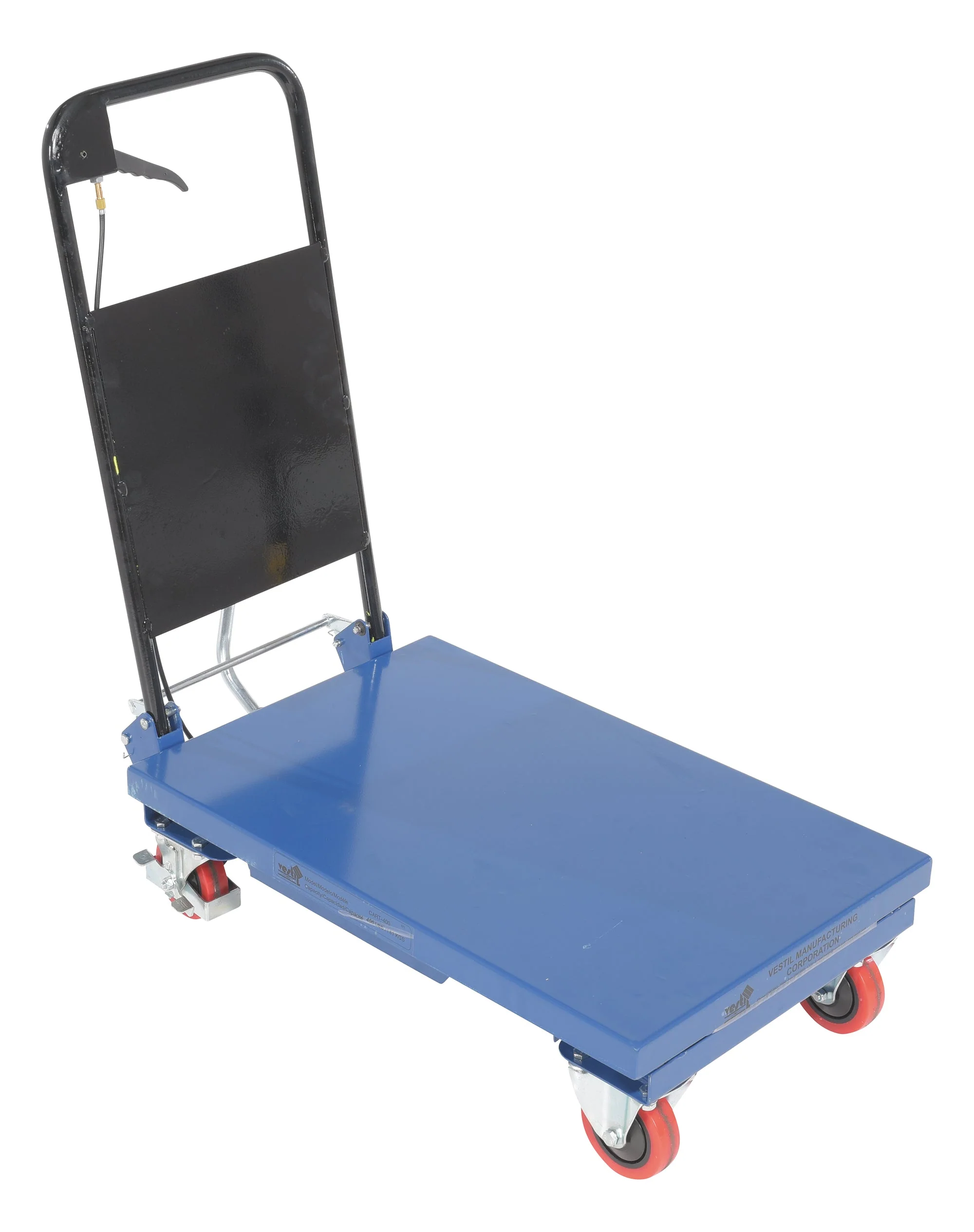

Hydraulic Elevating Carts are well suited for manufacturing and distributing industries. Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination. Foot pump includes a soft-lowering down valve for precise positioning and the perfect ergonomic height. The unit rolls on (4) polyurethane casters; two (2) swivel with brakes and two (2)rigid. The tables can be raised and lowered with a single speed foot pump, two speed foot pump or a two speed auto shifter that automatically shifts when the table is loaded. Steel construction with chrome platform and handle on all models, except model CART-200-ALUM which includes an aluminum platform surface. Models with suffix FP have a painted platform.
| Hydraulic Elevating Carts | ||||||
|

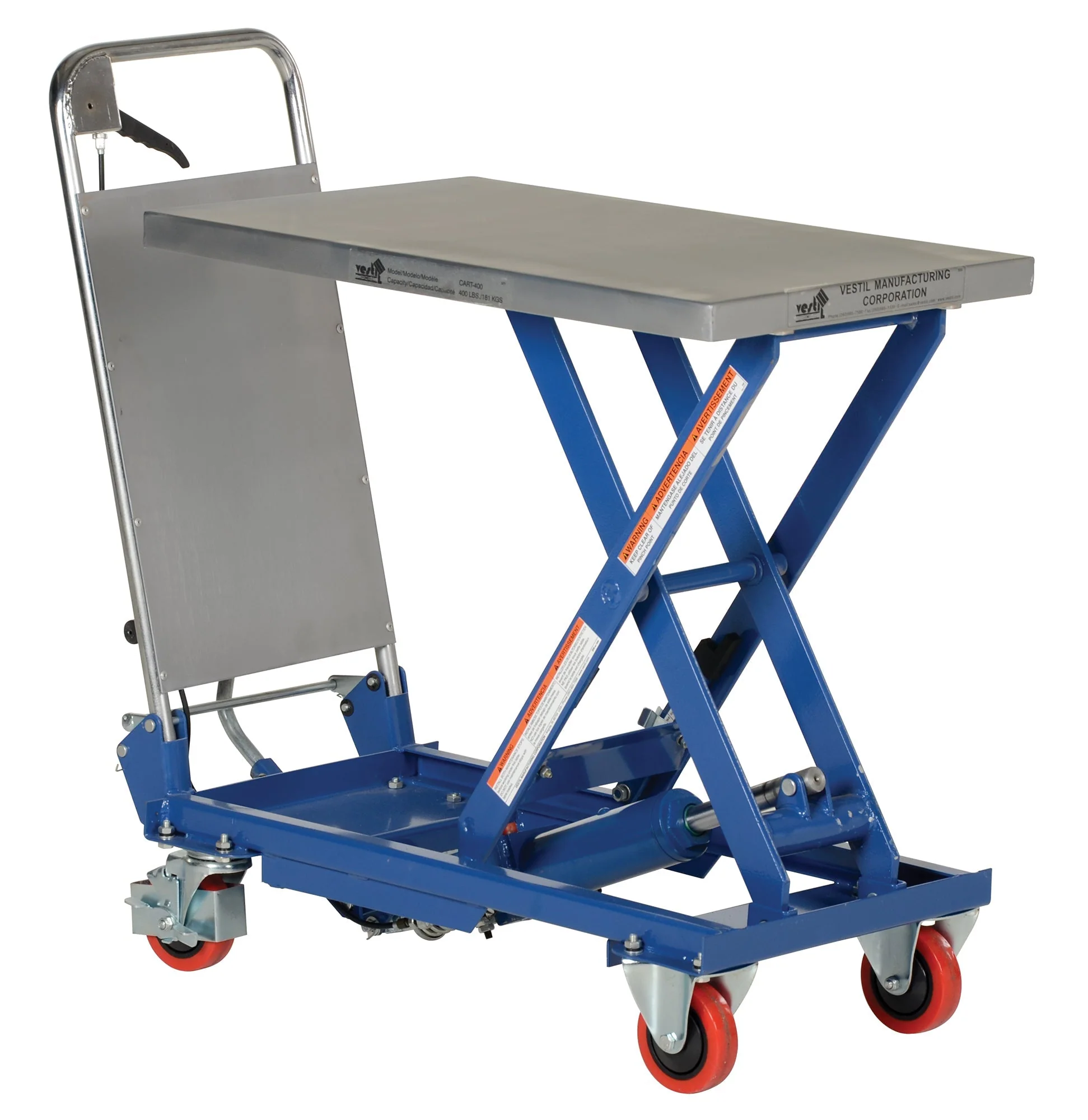

Single Scissor Steel Carts |
||||||
| Model | Caster Size & Material | Platform Size (WxL) | Capacity (lbs) | Service Range | Foot Pump Speed | Wt. (lbs) |
| CART-330 | 4" Polyurethane | 17-1/2"x27-1/2" | 330 | 8-3/4"to29" | Single | 128 |
| CART-400 | 4" Poly-on-Poly | 17-1/2"x27-1/2" | 400 | 8-3/4"to29" | Single | 120 |
| CART-750-TS | 5" Poly-on-Poly | 19-3/4"x32 | 750 | 15-1/2"to35-1/2" | Two | 242 |
| CART-1000-TS | 5" Poly-on-Poly | 19-3/4"x32" | 1,000 | 15-1/2"to35-1/2" | Two | 224 |

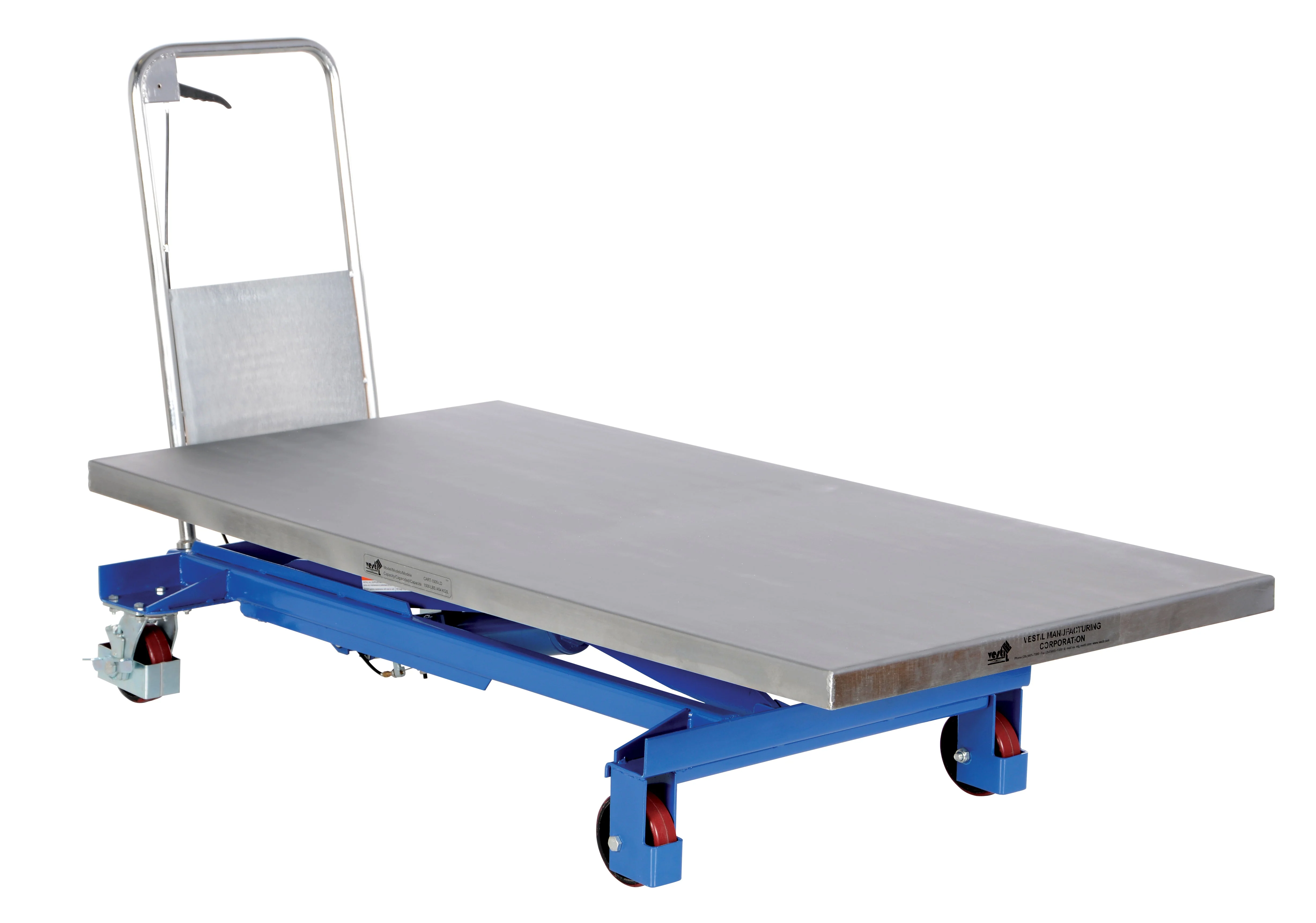

| CART-1000-LD | 5" Poly-on-Poly | 31-1/2" x 63" | 1,000 | 15"to36" | Single | 336 |
| CART-1750 | 5" Poly-on-Steel | 20"x39-1/2" | 1,750 | 17"to40" | Single | 294 |
| CART-4000 | 6" Poly-on-Steel | 24"x47" | 4,000 | 15-1/2"to40" | Two | 504 |

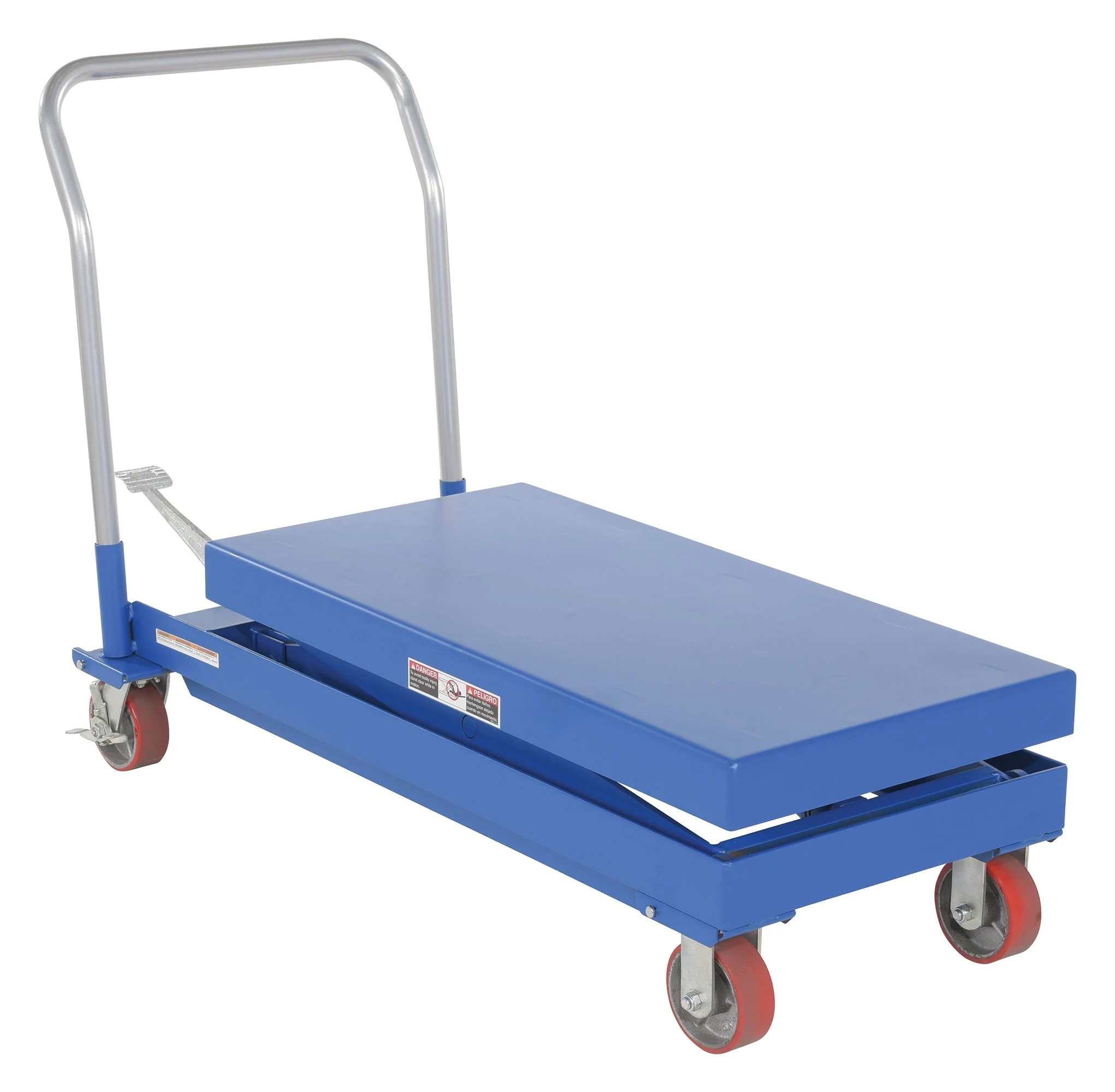

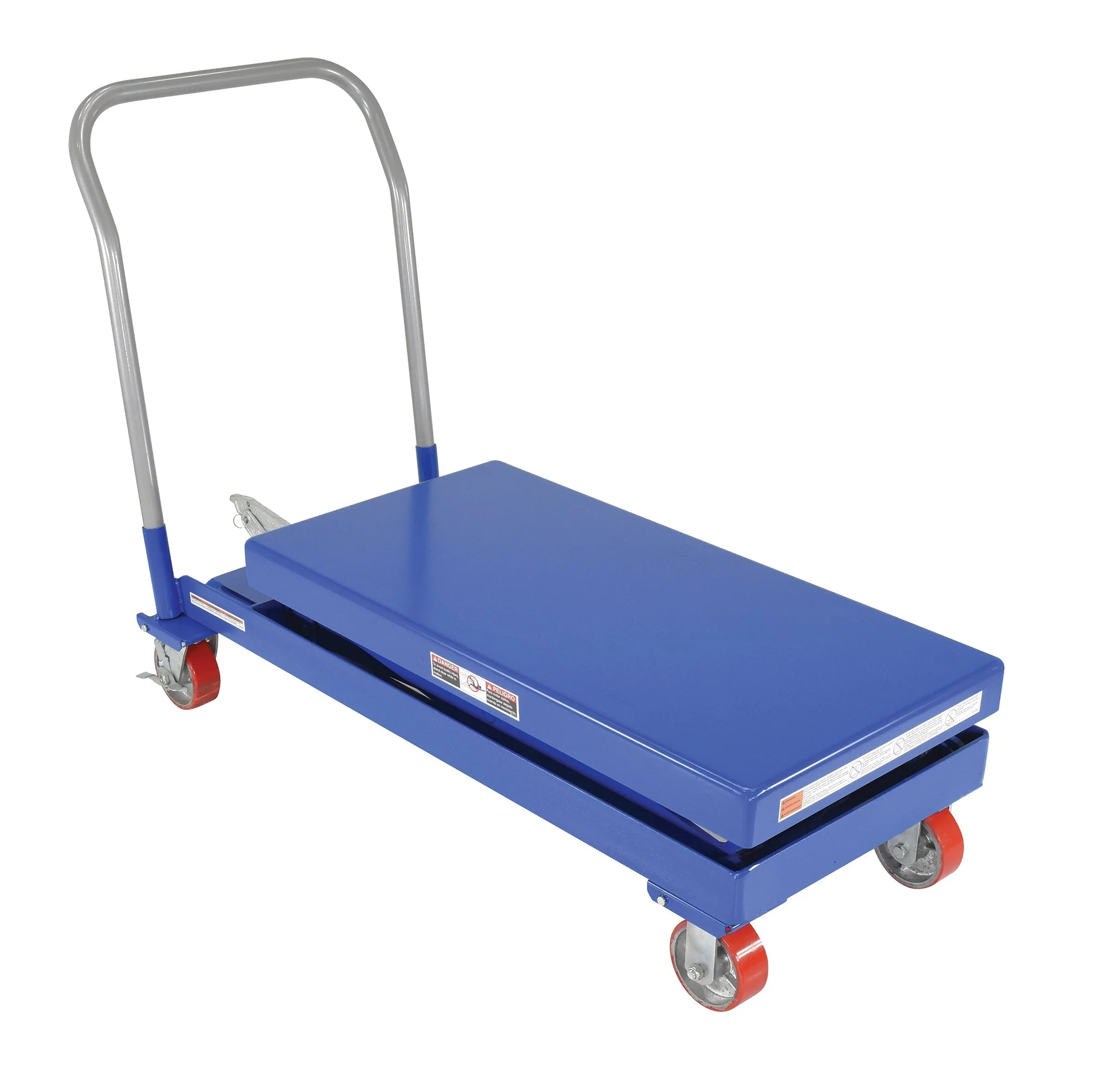

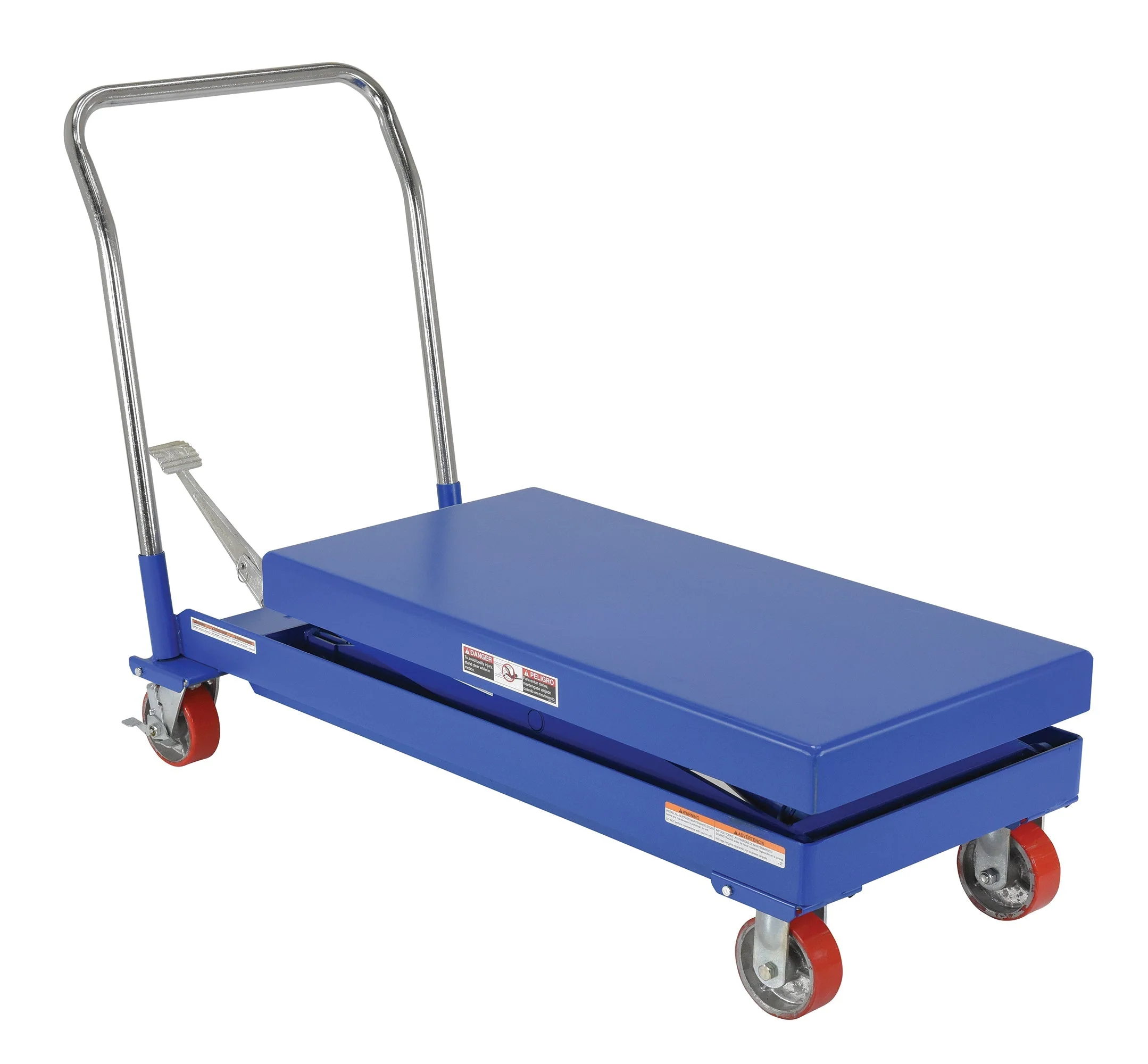

| CART-1000-2040-FP | 5" Poly-on-Steel | 20"x40" | 1,000 | 15"to39" | Two | 361 |
| CART-2000-2040-FP | 5" Poly-on-Steel | 20"x40" | 2,000 | 15"to39" | Two | 374 |
| CART-2000-3240-FP | 5" Poly-on-Steel | 32"x40" | 2,000 | 15"to39" | Two | 440 |
| CART-2000-4242-FP | 5" Poly-on-Steel | 42"x42" | 2,000 | 15"to39" | Two | 461 |
| CART-2500-2040-FP | 5" Poly-on-Steel | 20"x40" | 2,500 | 15"to39" | Two | 392 |
|

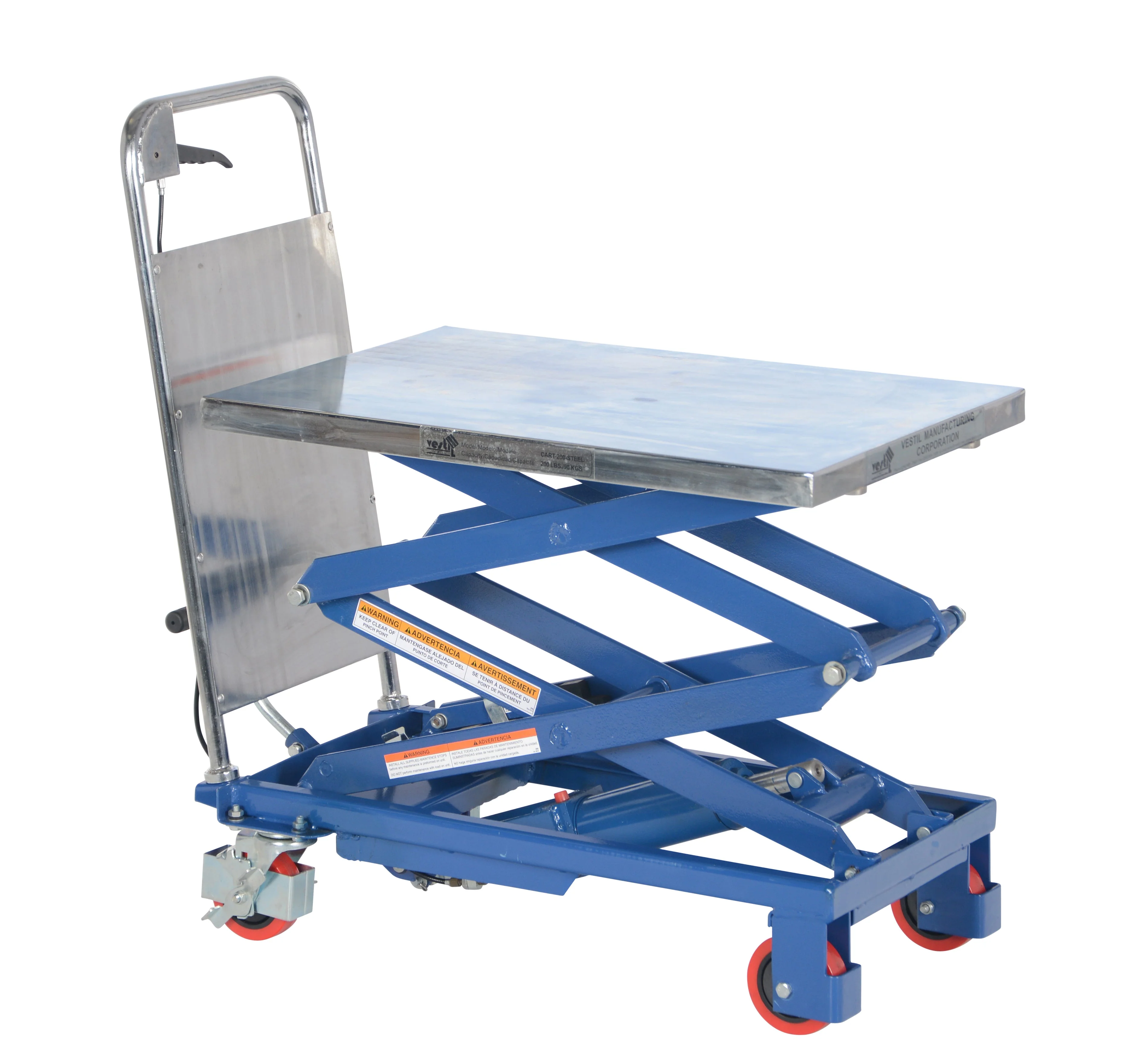

Double Scissor Steel Carts |
||||||

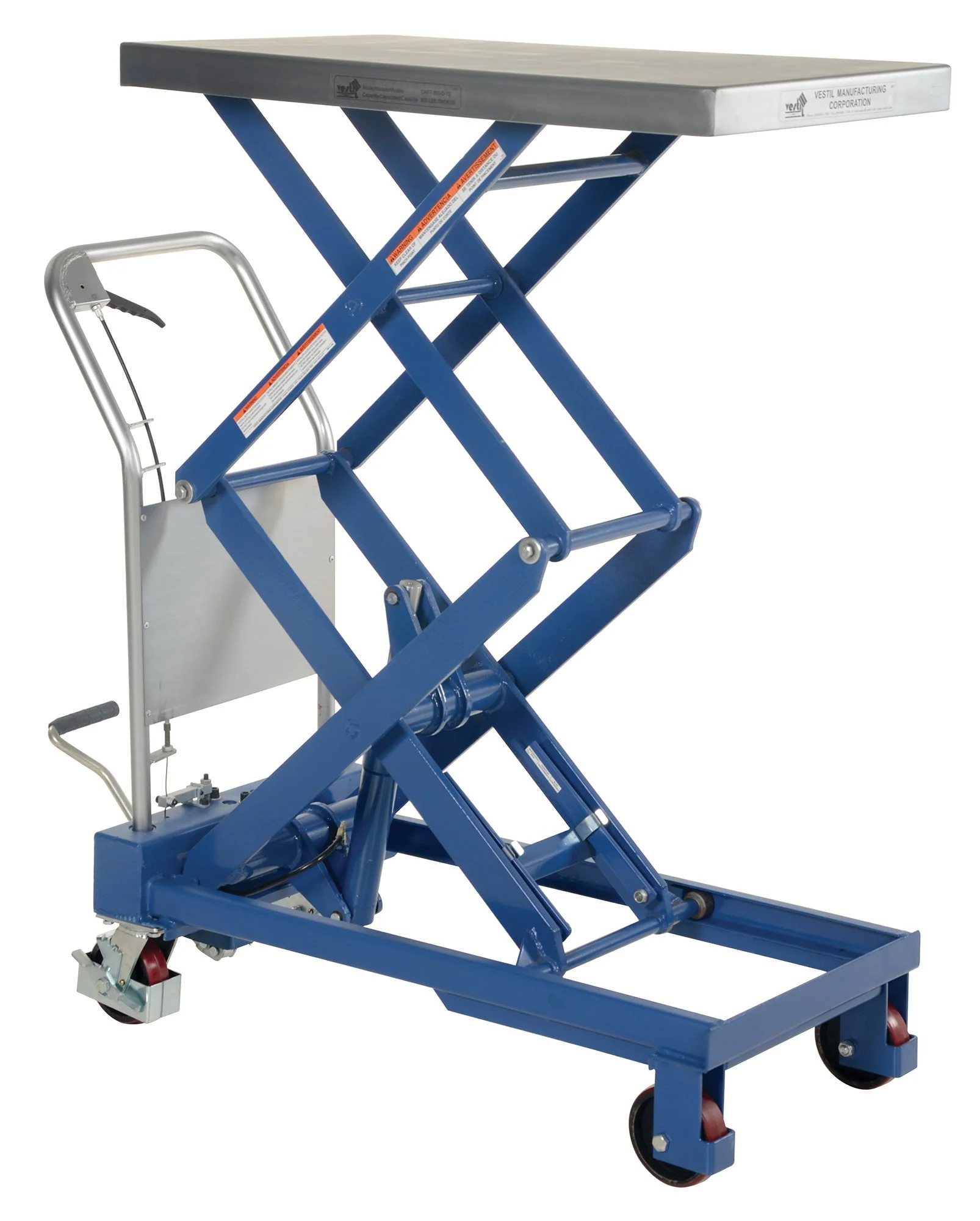

| CART-200-D | 4" Poly-on-Poly | 17-1/2"x27-1/2" | 220 | 10"to51" | Single | 158 |
| CART-800-D-TS | 5" Poly-on-Poly | 20"x35-1/2" | 800 | 15-1/2"to51-7/8" | Two | 292 |
| CART-1500-D-TS | 6" Poly-on-Steel | 24"x47-1/2" | 1,500 | 19"to68" | Two | 612 |
|
Aluminum Scissor Cart |
||||||

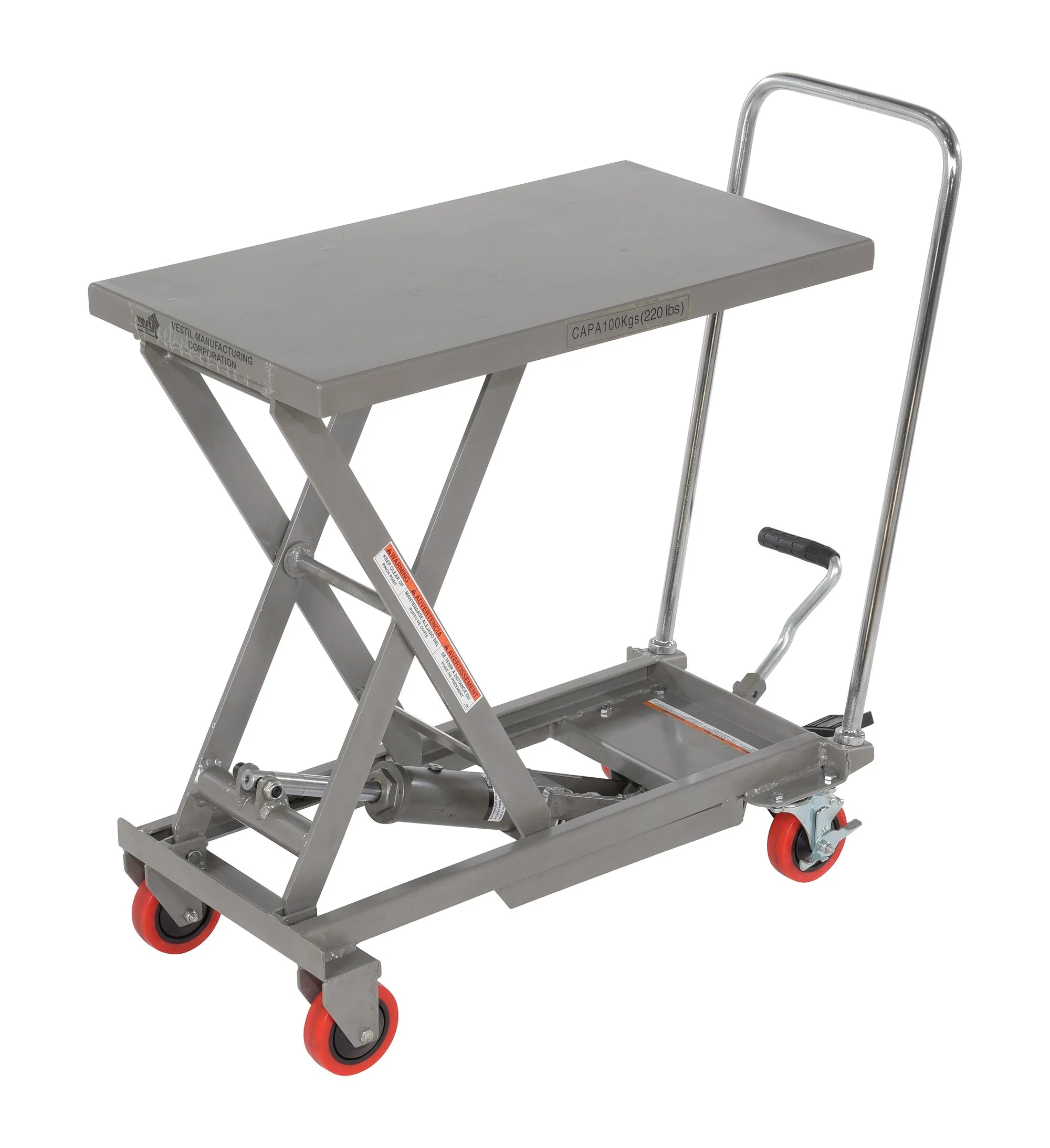

| CART-200-ALUM | 4" Poly-on-Poly | 15-3/4"x27-1/2" | 220 | 8-1/2"to29" | Single | 78 |
Original: $362.89
-65%$362.89
$127.01
Description
Hydraulic Elevating Carts are well suited for manufacturing and distributing industries. Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination. Foot pump includes a soft-lowering down valve for precise positioning and the perfect ergonomic height. The unit rolls on (4) polyurethane casters; two (2) swivel with brakes and two (2)rigid. The tables can be raised and lowered with a single speed foot pump, two speed foot pump or a two speed auto shifter that automatically shifts when the table is loaded. Steel construction with chrome platform and handle on all models, except model CART-200-ALUM which includes an aluminum platform surface. Models with suffix FP have a painted platform.
| Hydraulic Elevating Carts | ||||||
|
Single Scissor Steel Carts |
||||||
| Model | Caster Size & Material | Platform Size (WxL) | Capacity (lbs) | Service Range | Foot Pump Speed | Wt. (lbs) |
| CART-330 | 4" Polyurethane | 17-1/2"x27-1/2" | 330 | 8-3/4"to29" | Single | 128 |
| CART-400 | 4" Poly-on-Poly | 17-1/2"x27-1/2" | 400 | 8-3/4"to29" | Single | 120 |
| CART-750-TS | 5" Poly-on-Poly | 19-3/4"x32 | 750 | 15-1/2"to35-1/2" | Two | 242 |
| CART-1000-TS | 5" Poly-on-Poly | 19-3/4"x32" | 1,000 | 15-1/2"to35-1/2" | Two | 224 |
| CART-1000-LD | 5" Poly-on-Poly | 31-1/2" x 63" | 1,000 | 15"to36" | Single | 336 |
| CART-1750 | 5" Poly-on-Steel | 20"x39-1/2" | 1,750 | 17"to40" | Single | 294 |
| CART-4000 | 6" Poly-on-Steel | 24"x47" | 4,000 | 15-1/2"to40" | Two | 504 |
| CART-1000-2040-FP | 5" Poly-on-Steel | 20"x40" | 1,000 | 15"to39" | Two | 361 |
| CART-2000-2040-FP | 5" Poly-on-Steel | 20"x40" | 2,000 | 15"to39" | Two | 374 |
| CART-2000-3240-FP | 5" Poly-on-Steel | 32"x40" | 2,000 | 15"to39" | Two | 440 |
| CART-2000-4242-FP | 5" Poly-on-Steel | 42"x42" | 2,000 | 15"to39" | Two | 461 |
| CART-2500-2040-FP | 5" Poly-on-Steel | 20"x40" | 2,500 | 15"to39" | Two | 392 |
|
Double Scissor Steel Carts |
||||||
| CART-200-D | 4" Poly-on-Poly | 17-1/2"x27-1/2" | 220 | 10"to51" | Single | 158 |
| CART-800-D-TS | 5" Poly-on-Poly | 20"x35-1/2" | 800 | 15-1/2"to51-7/8" | Two | 292 |
| CART-1500-D-TS | 6" Poly-on-Steel | 24"x47-1/2" | 1,500 | 19"to68" | Two | 612 |
|
Aluminum Scissor Cart |
||||||
| CART-200-ALUM | 4" Poly-on-Poly | 15-3/4"x27-1/2" | 220 | 8-1/2"to29" | Single | 78 |
