Vestil Hydraulic Post Tables

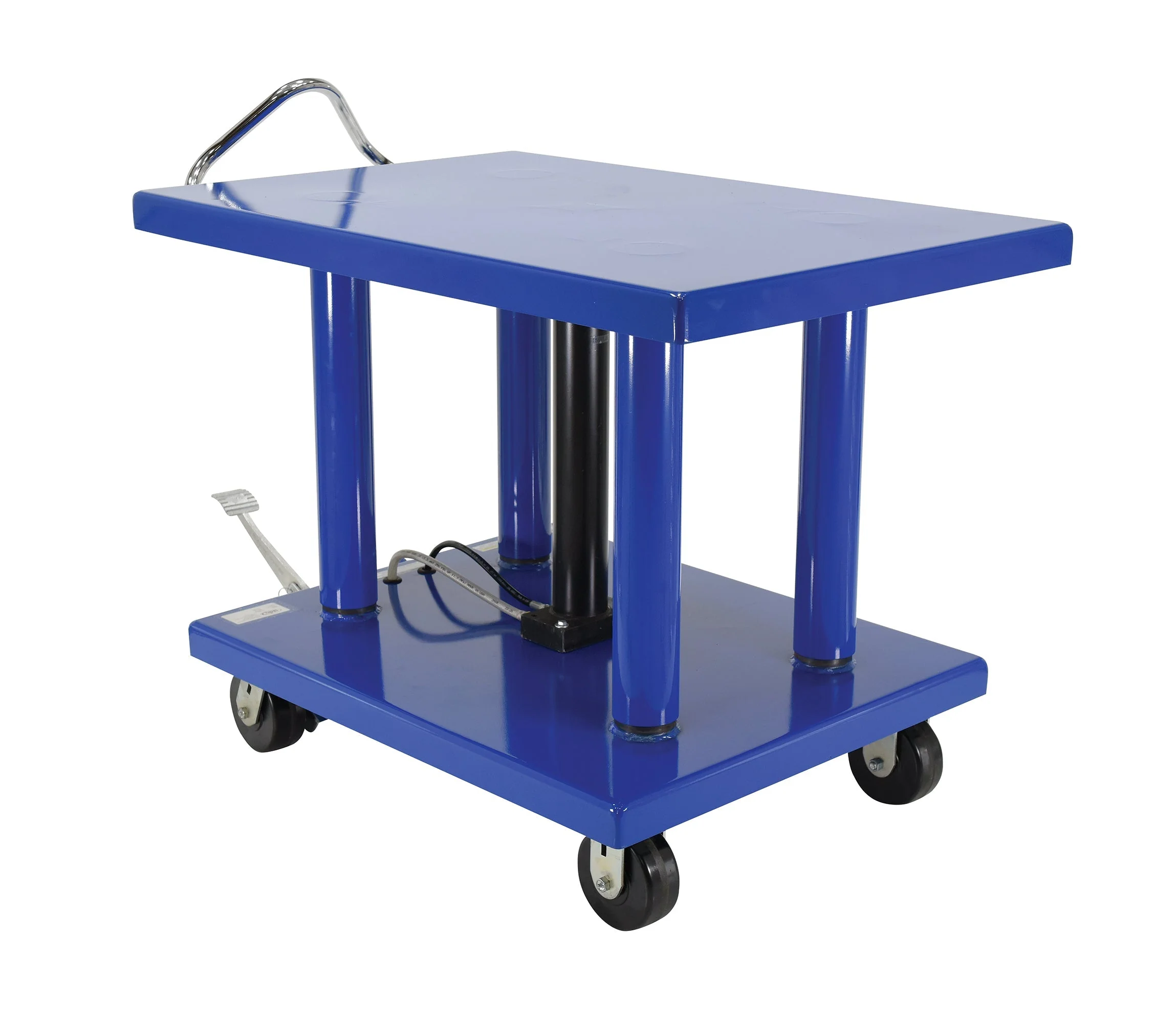

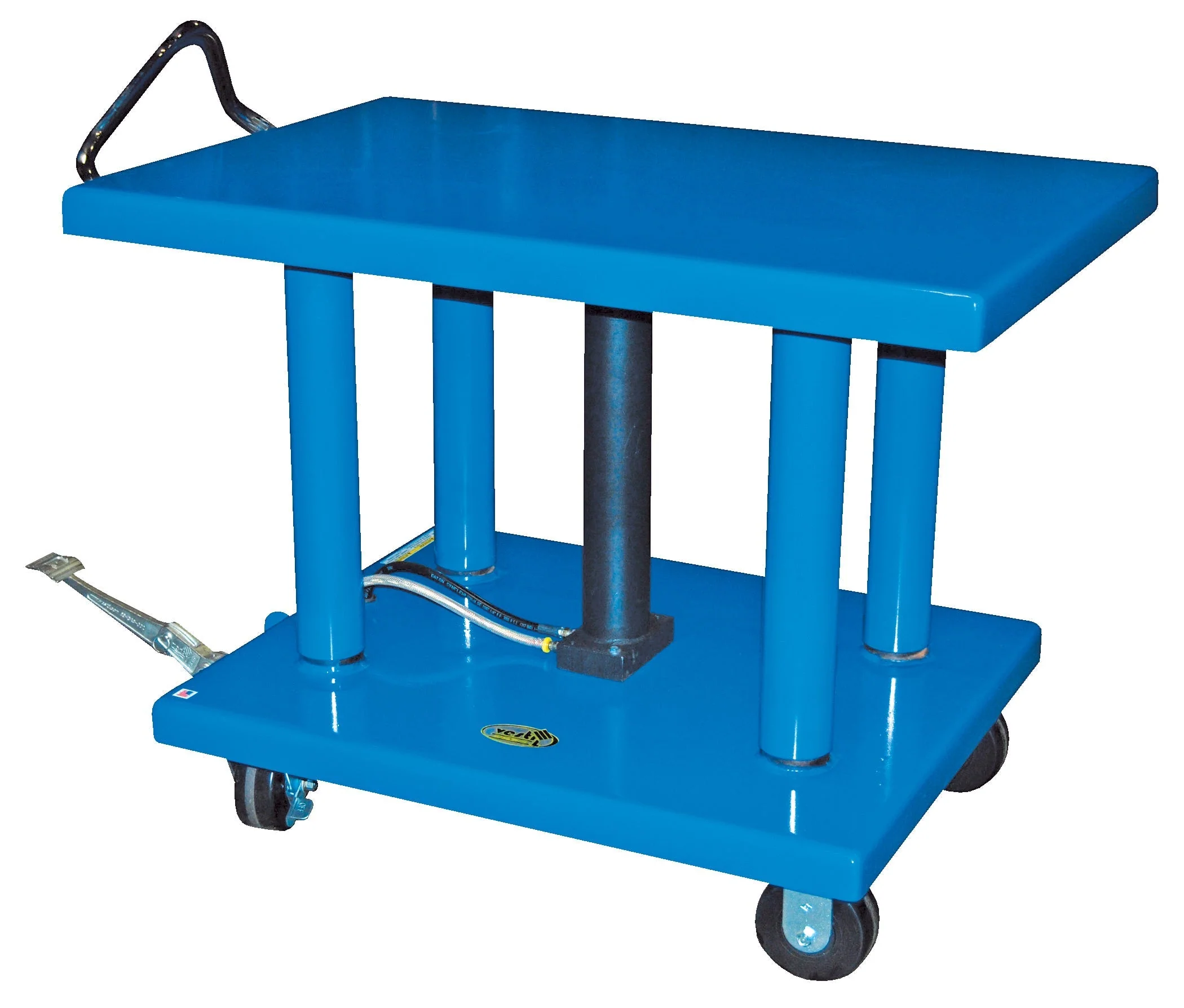

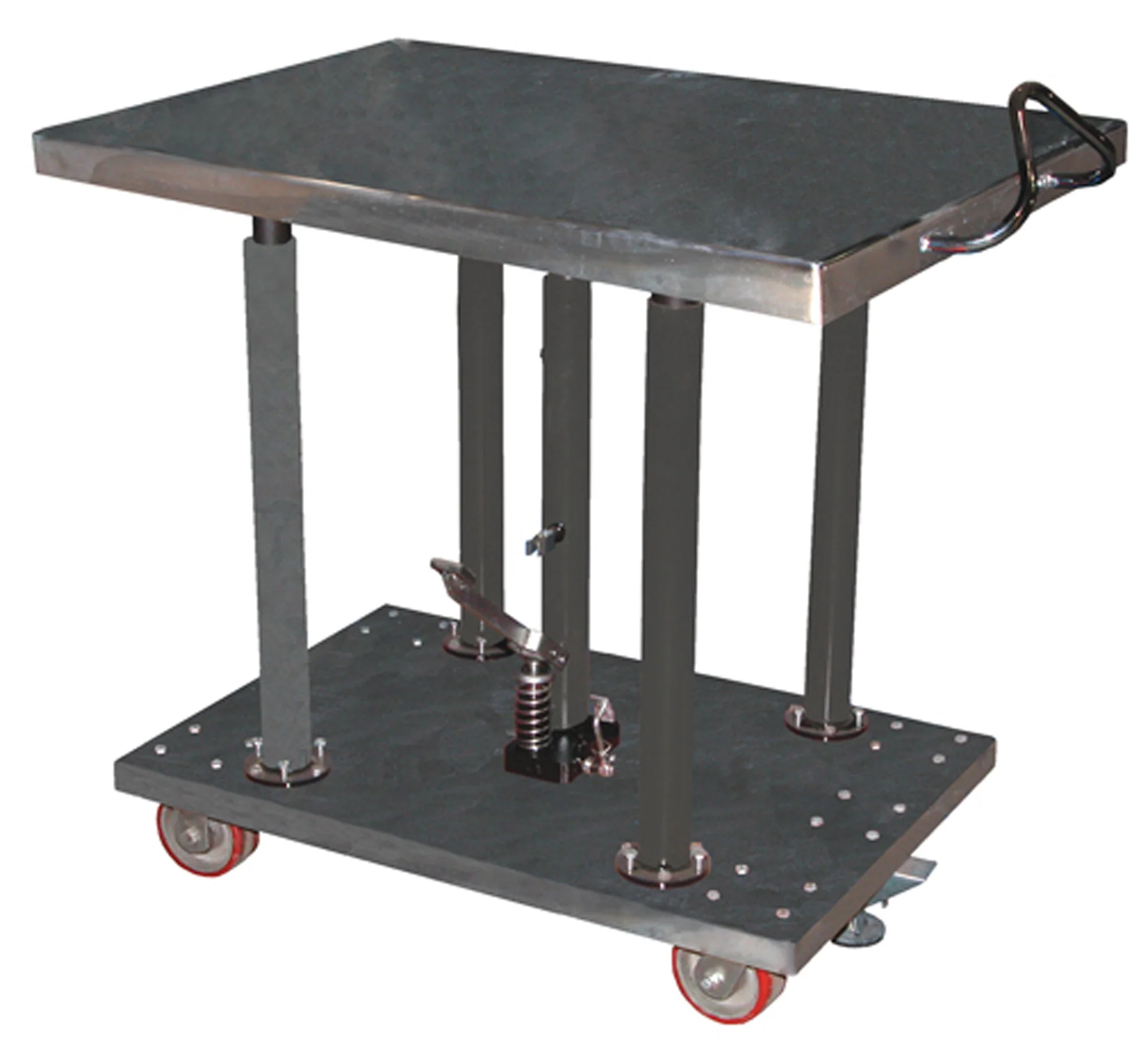

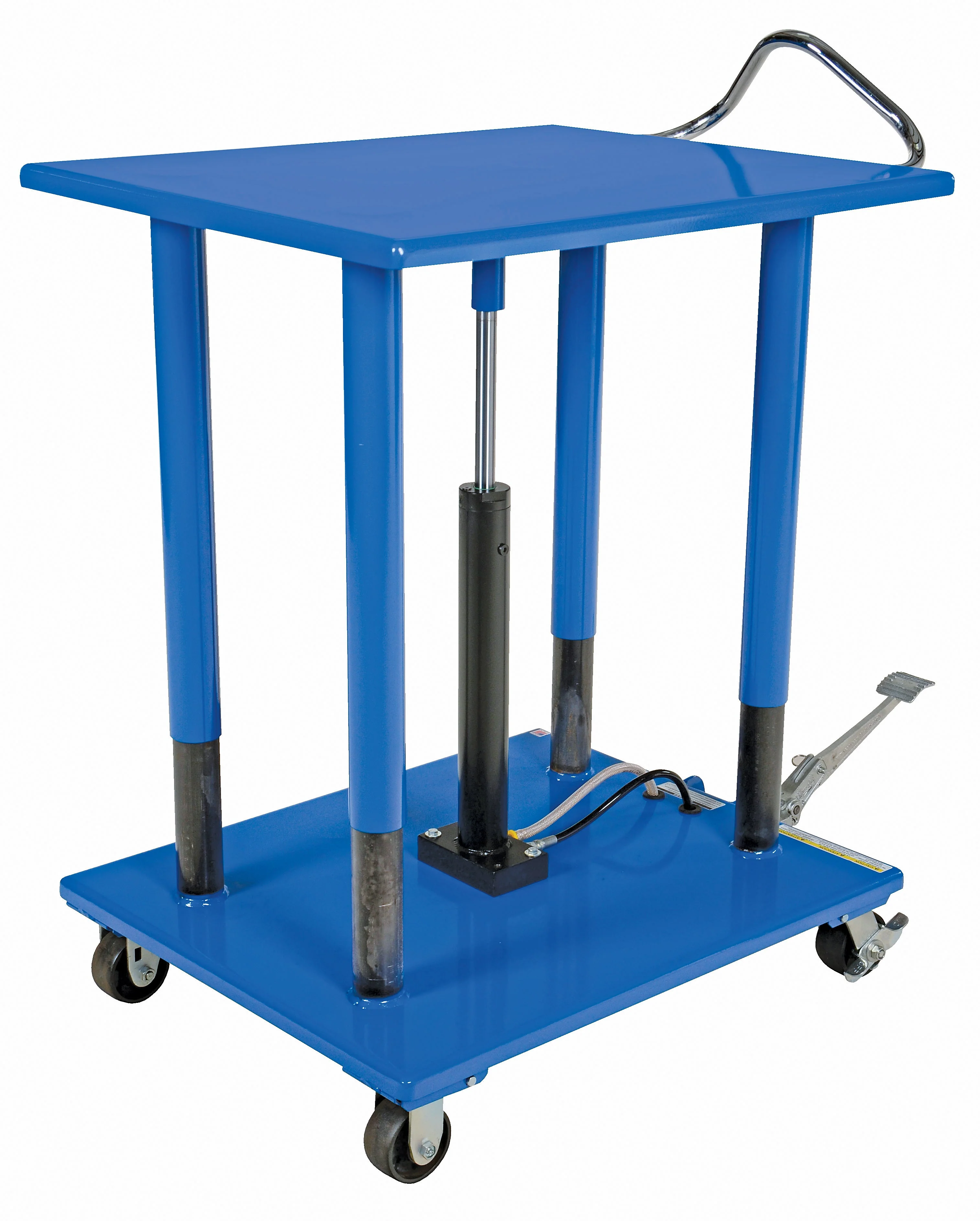

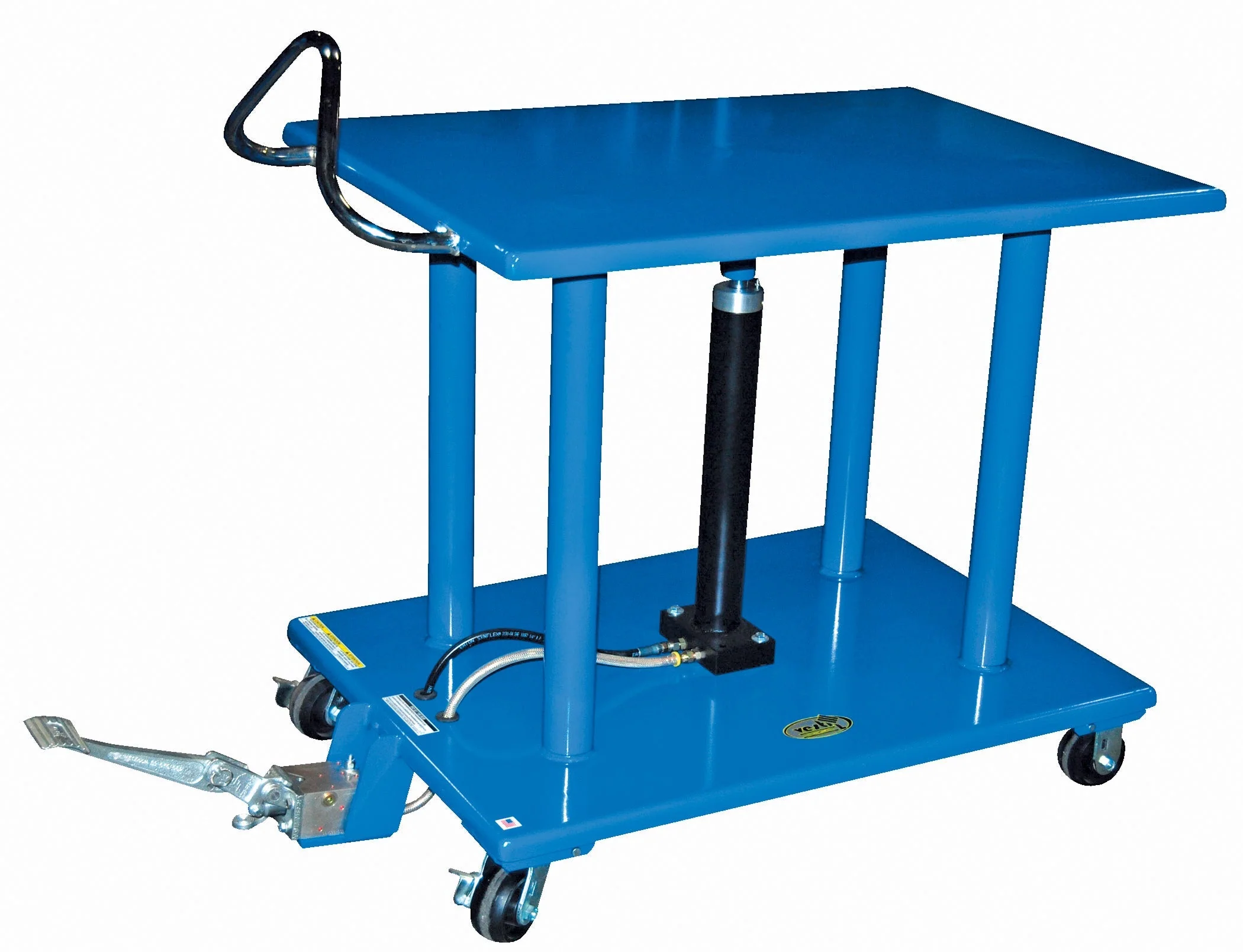

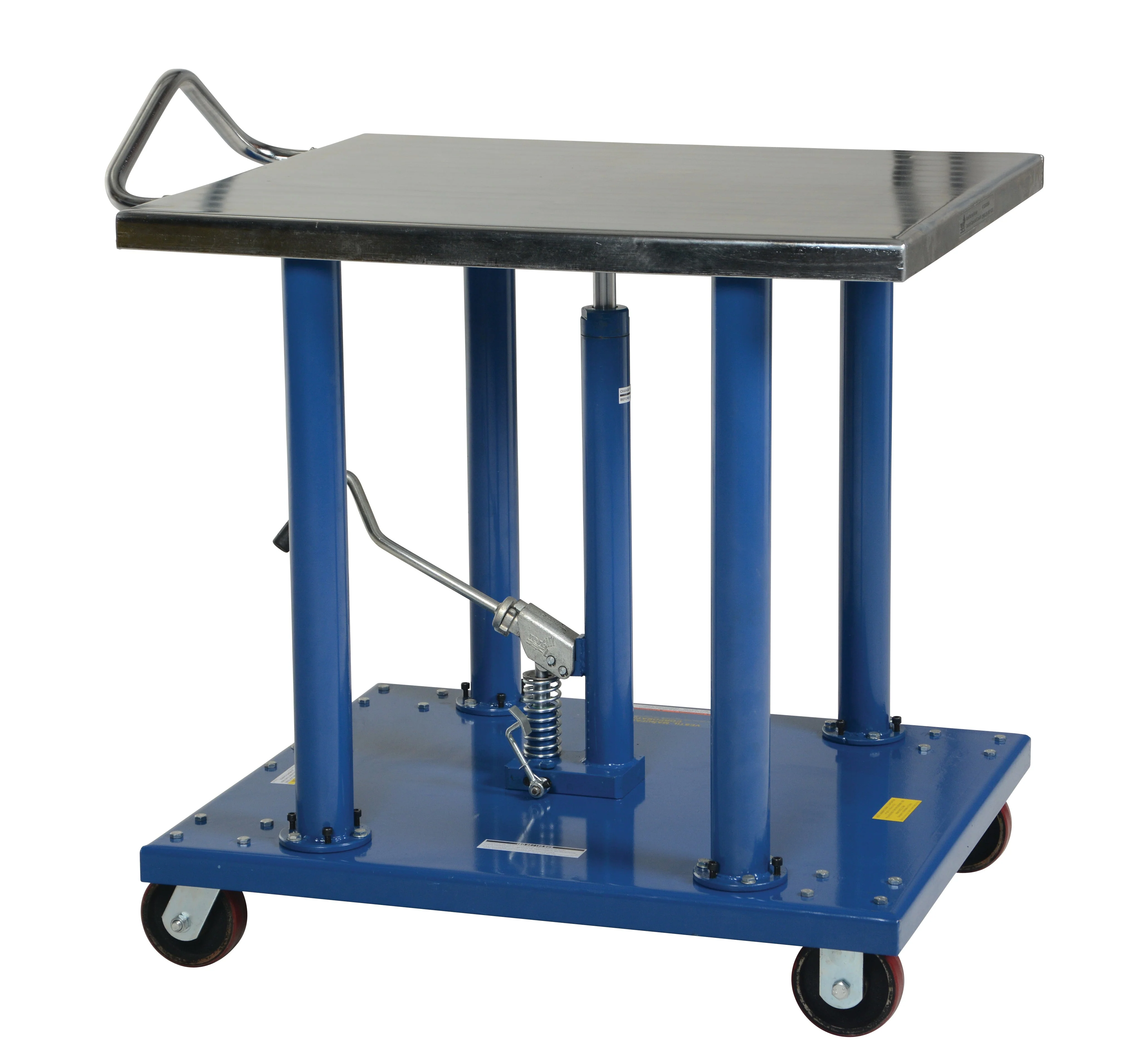

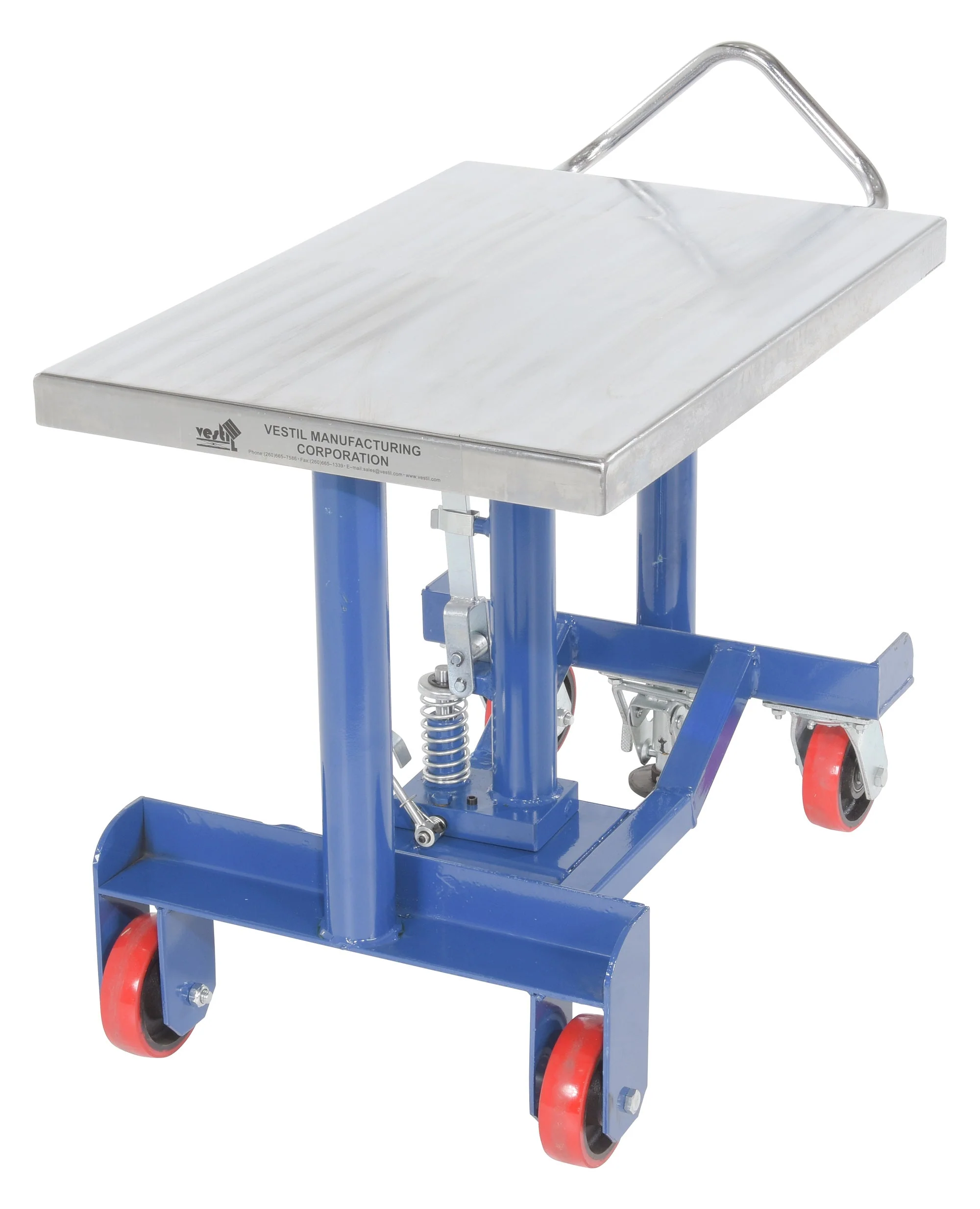

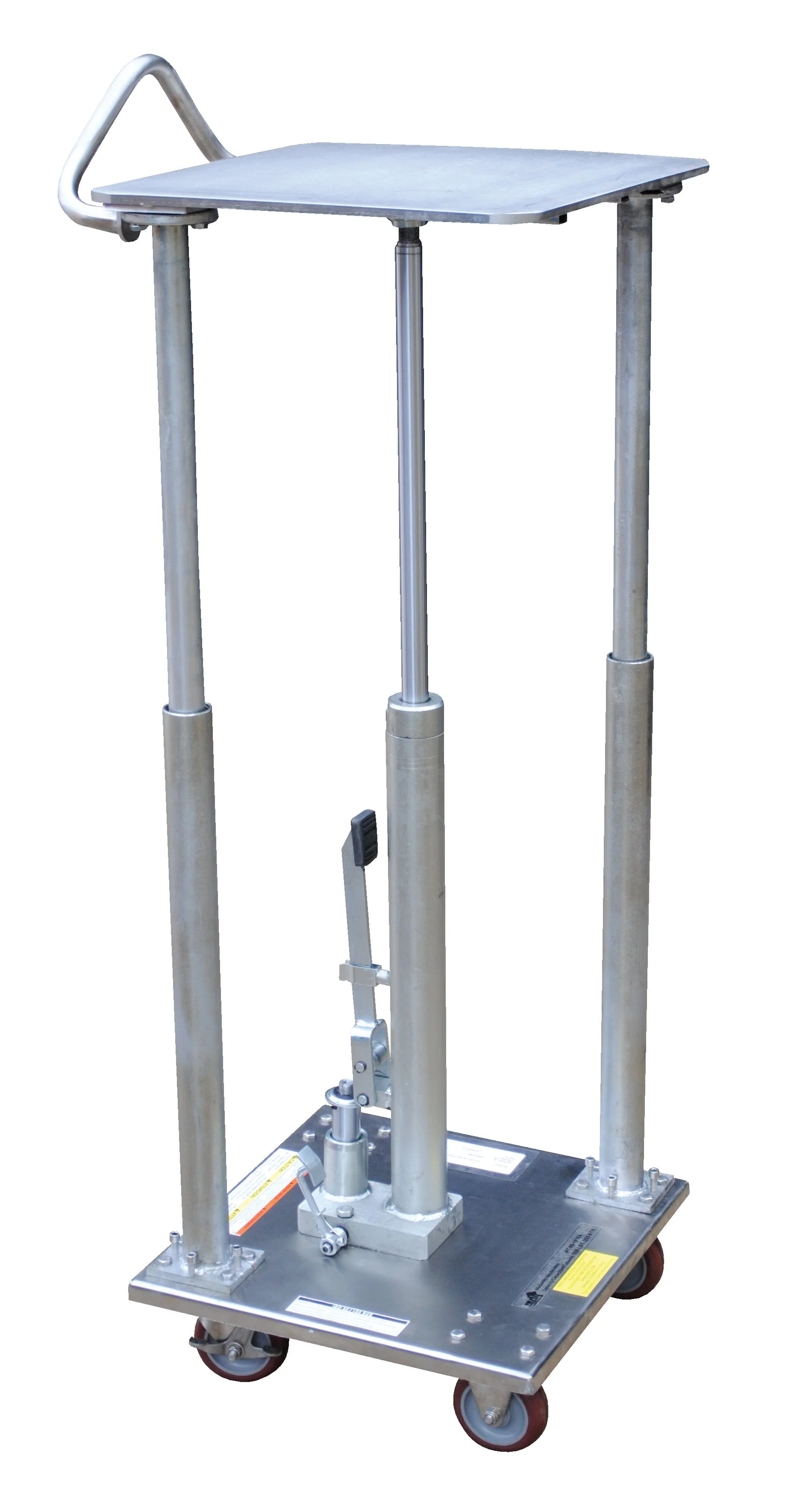

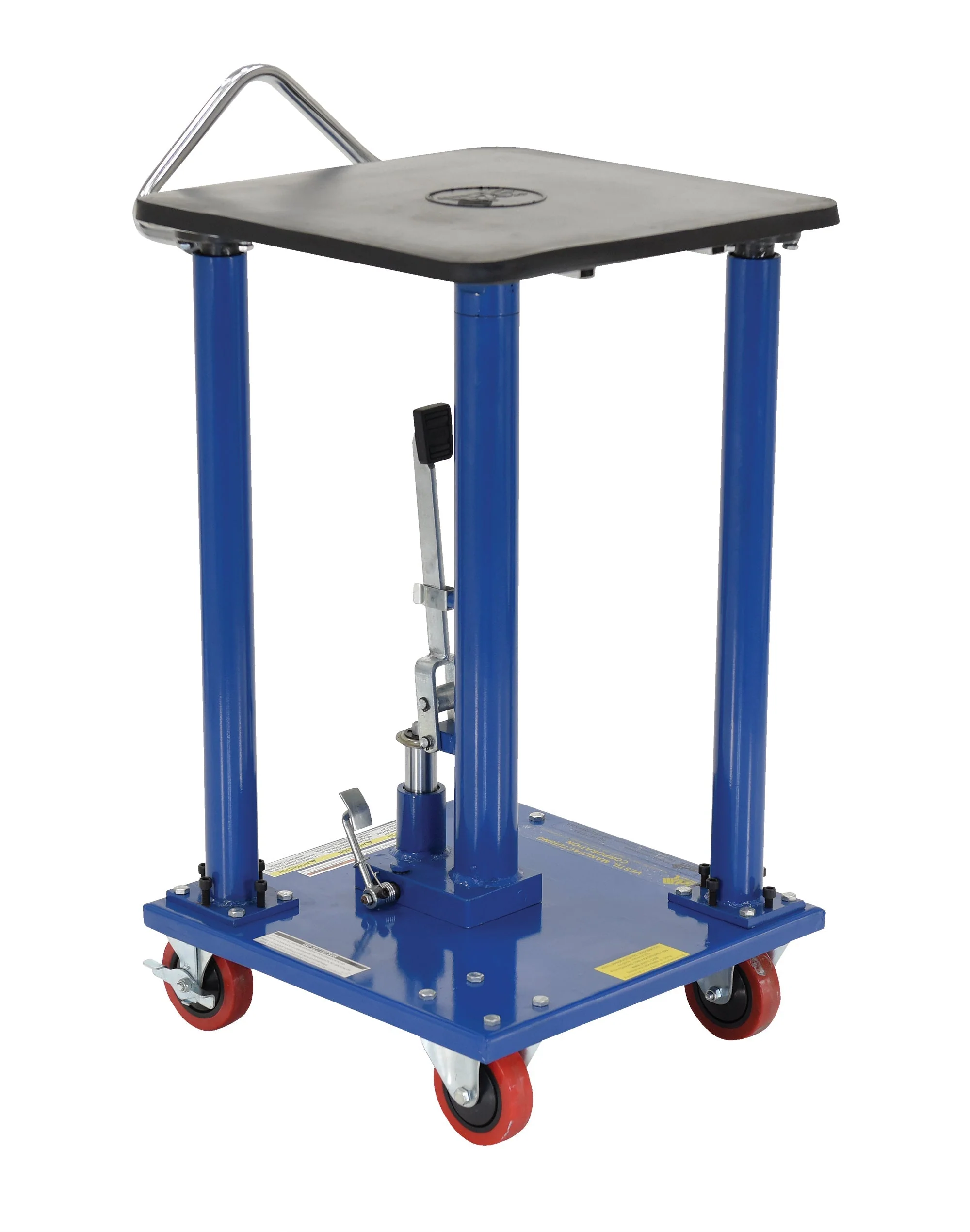

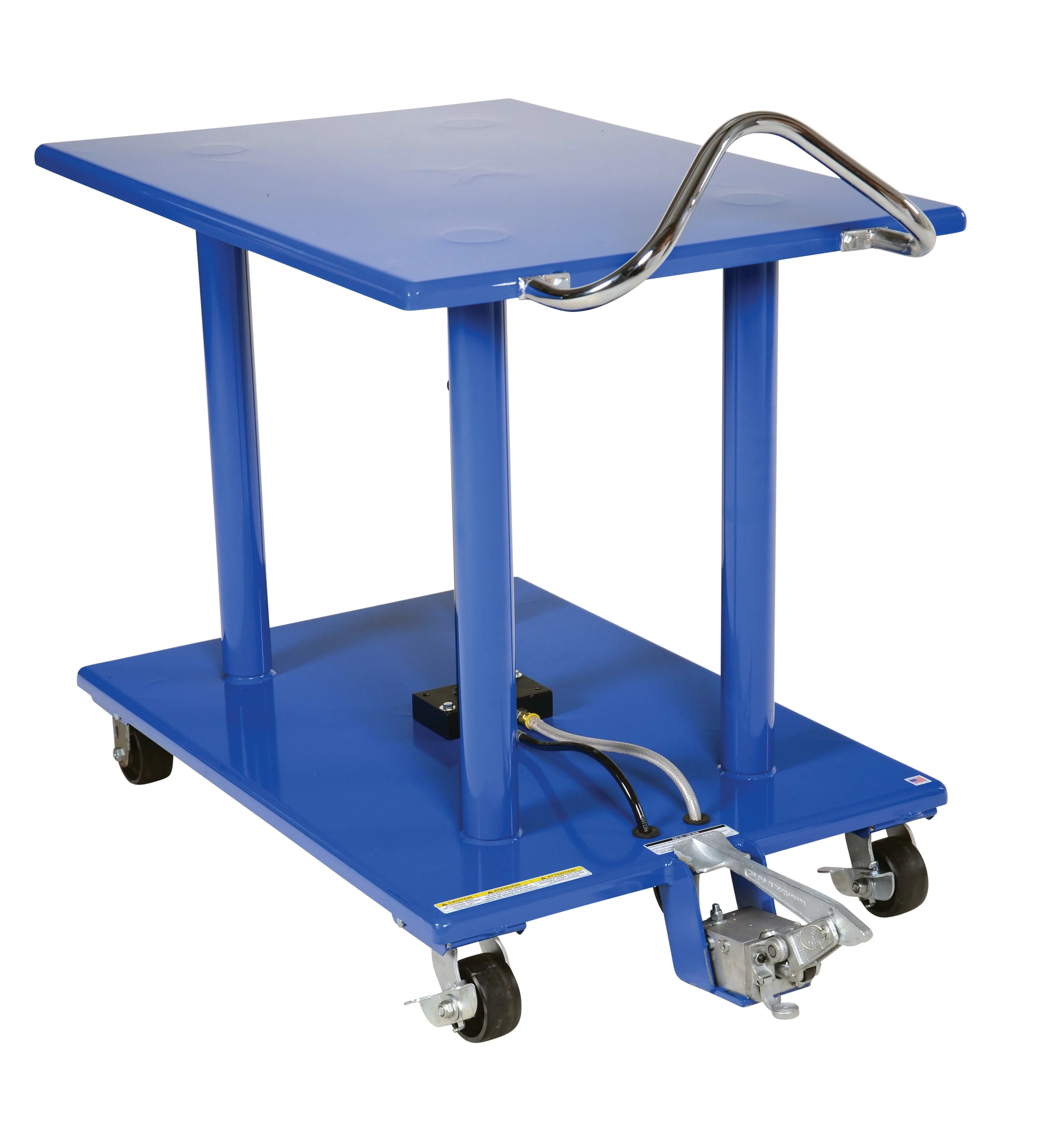

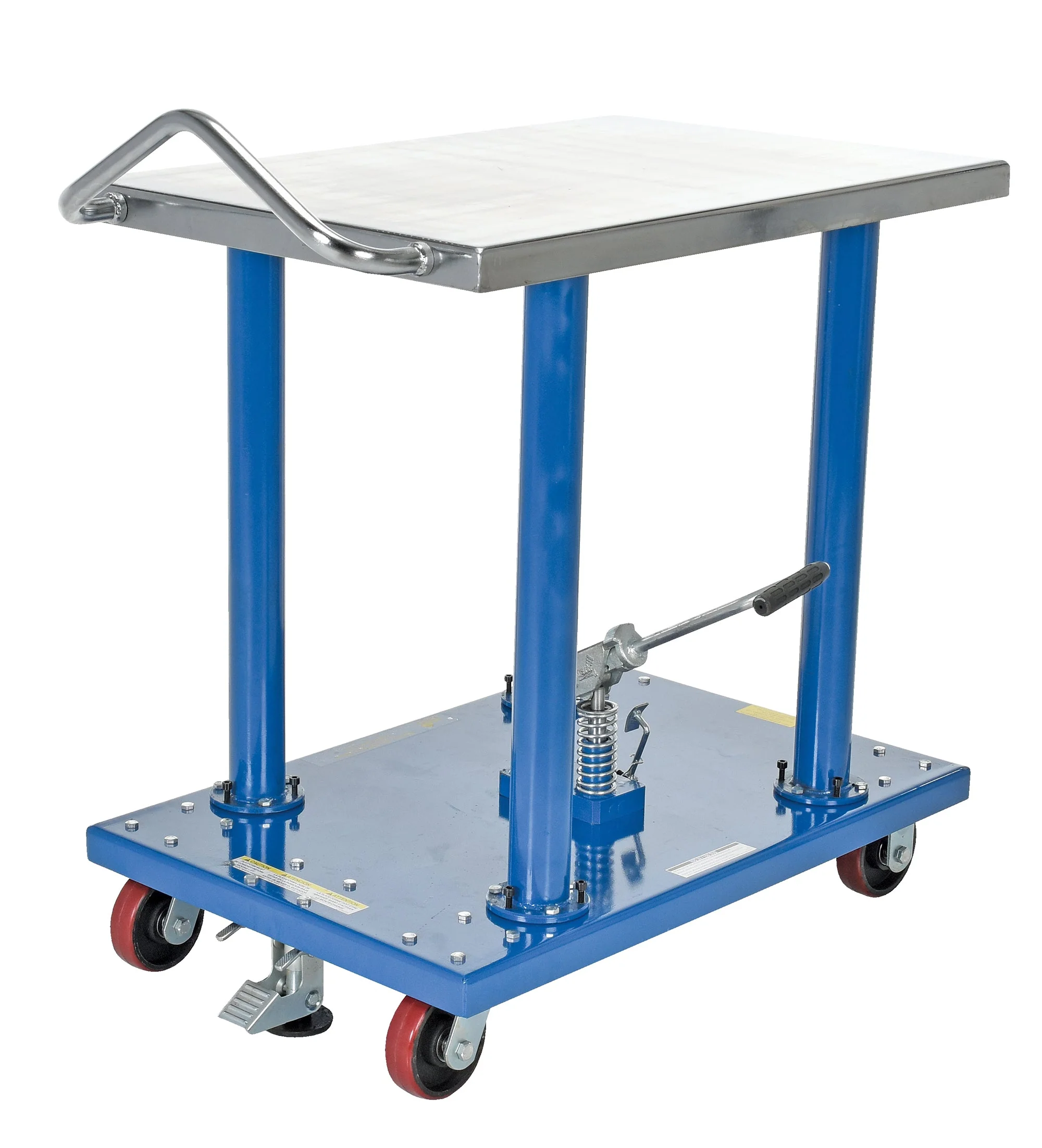

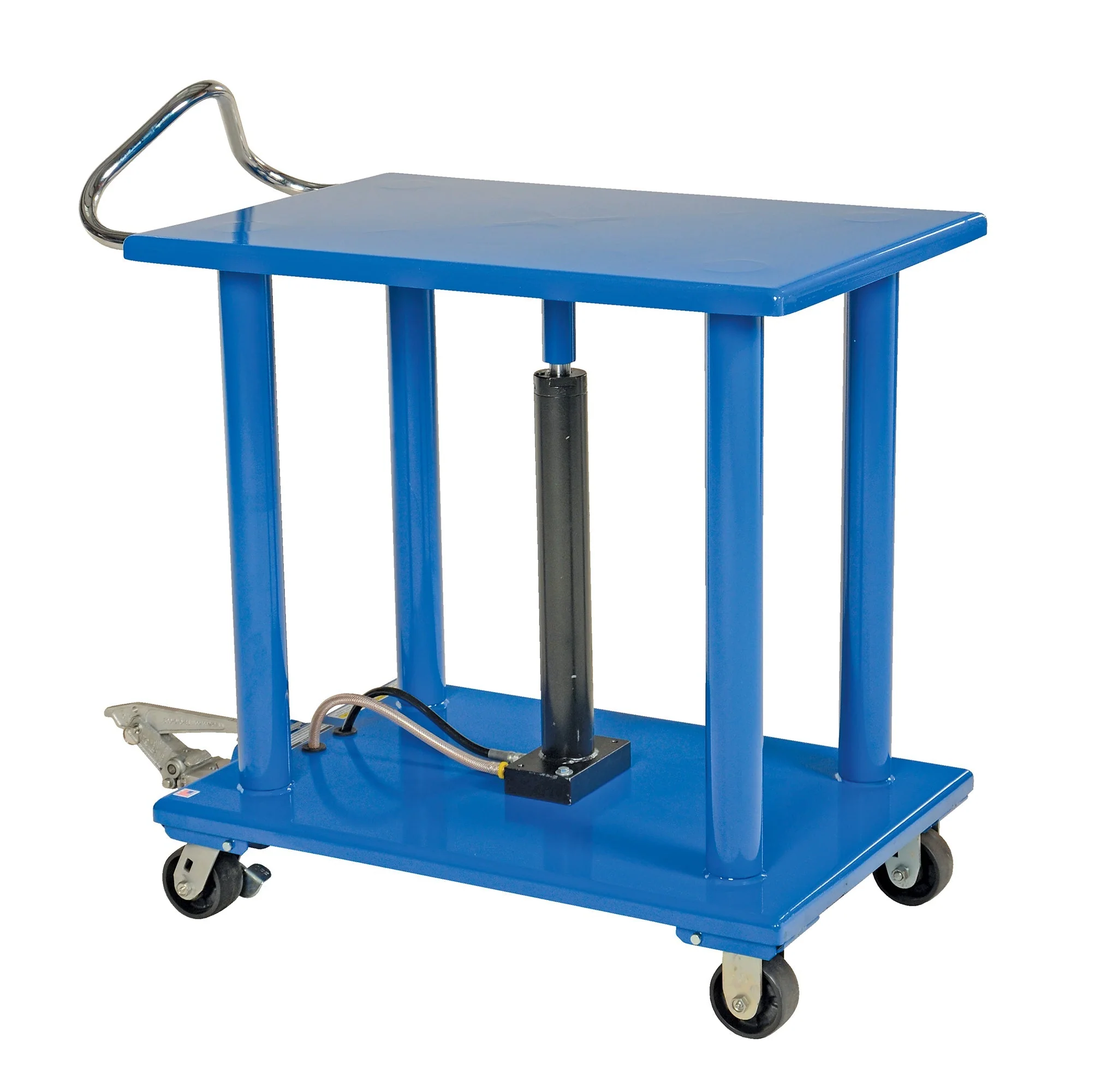

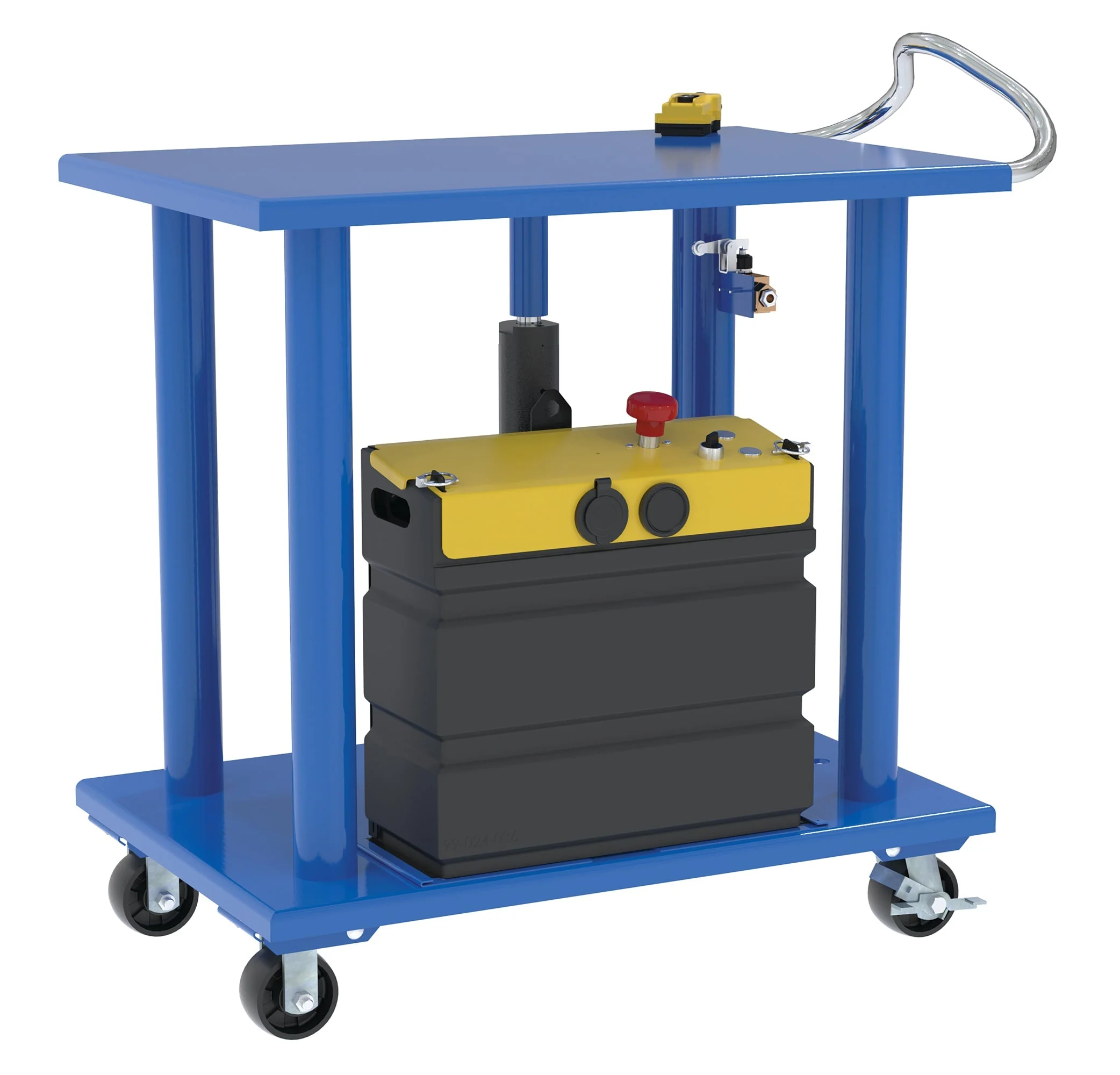

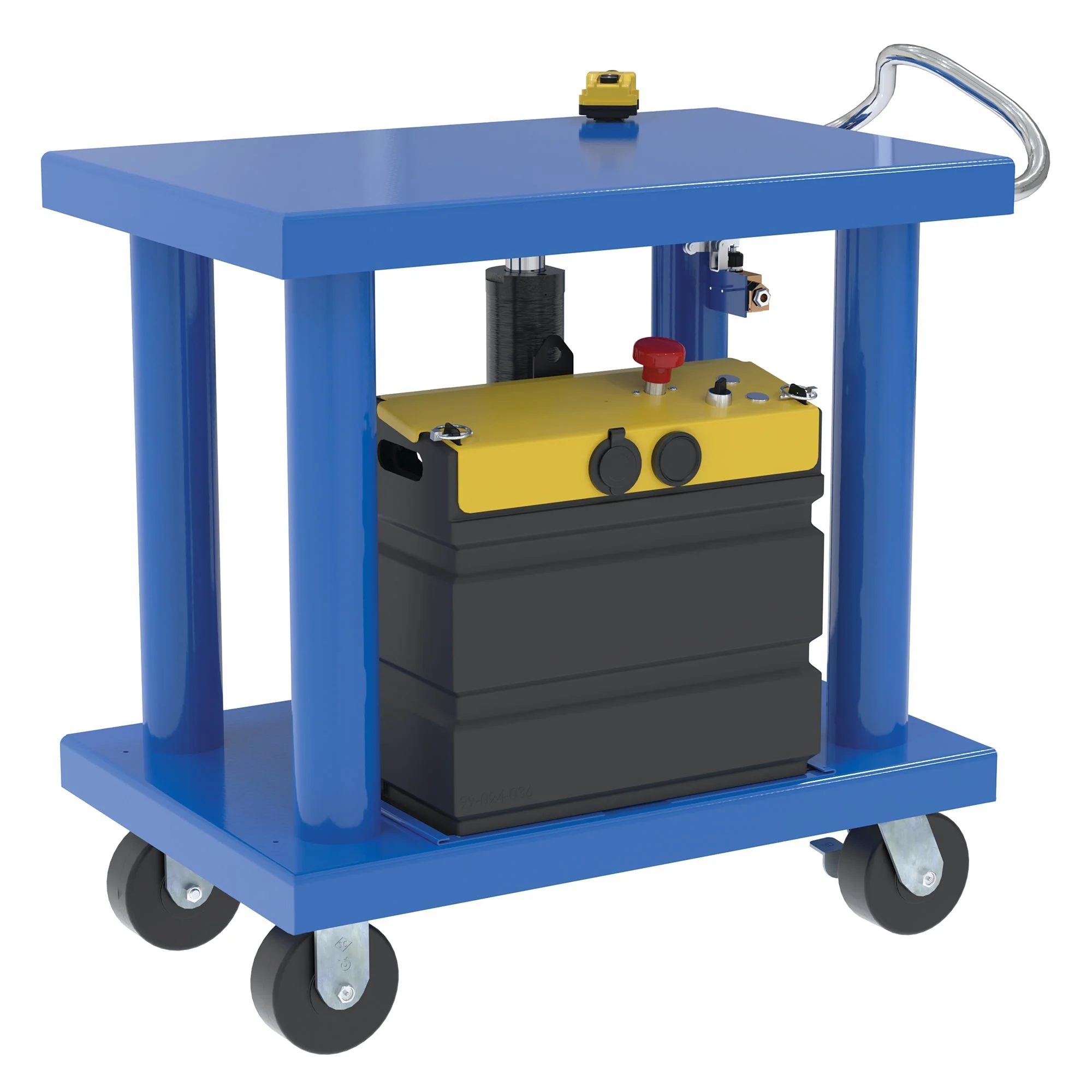

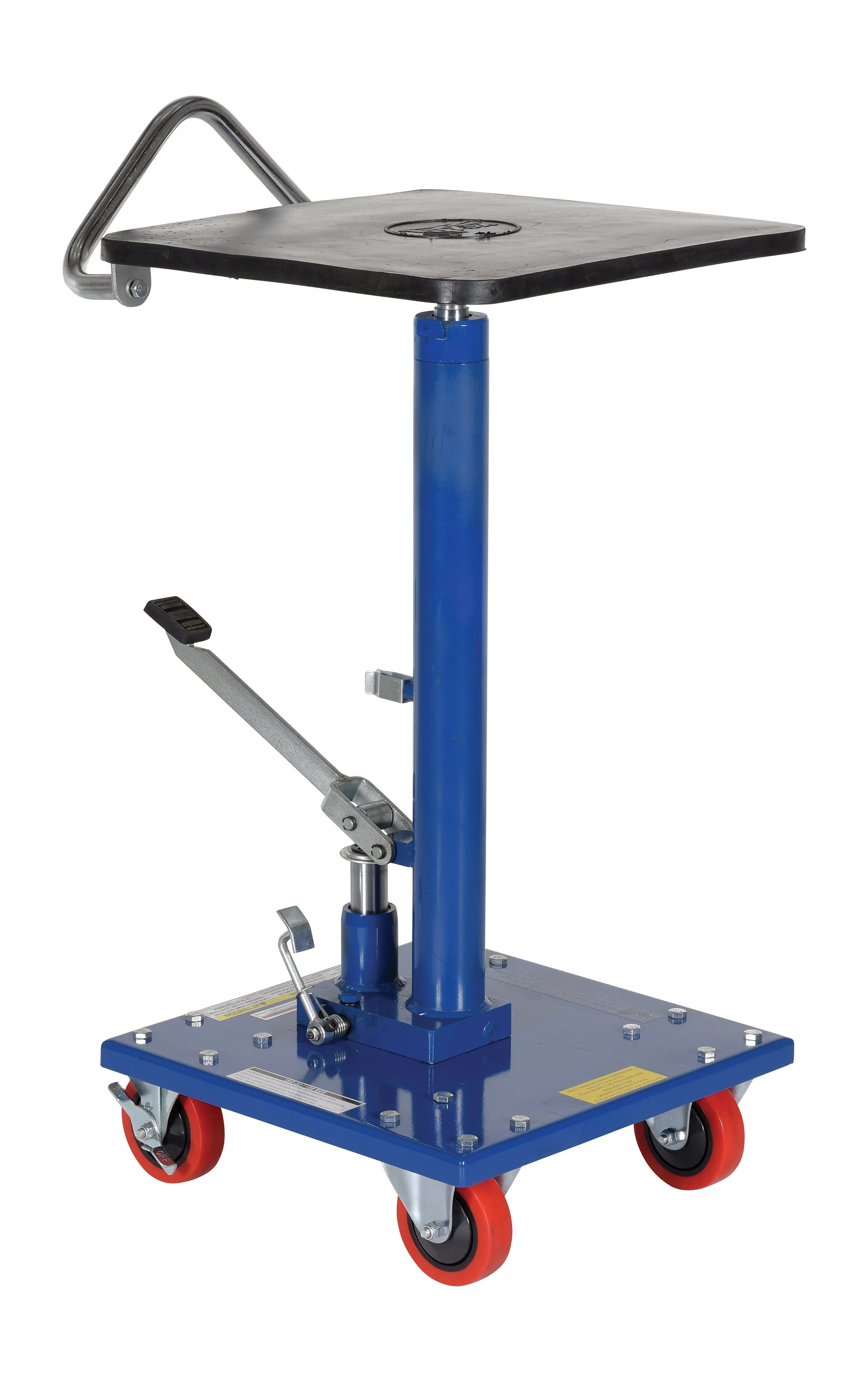

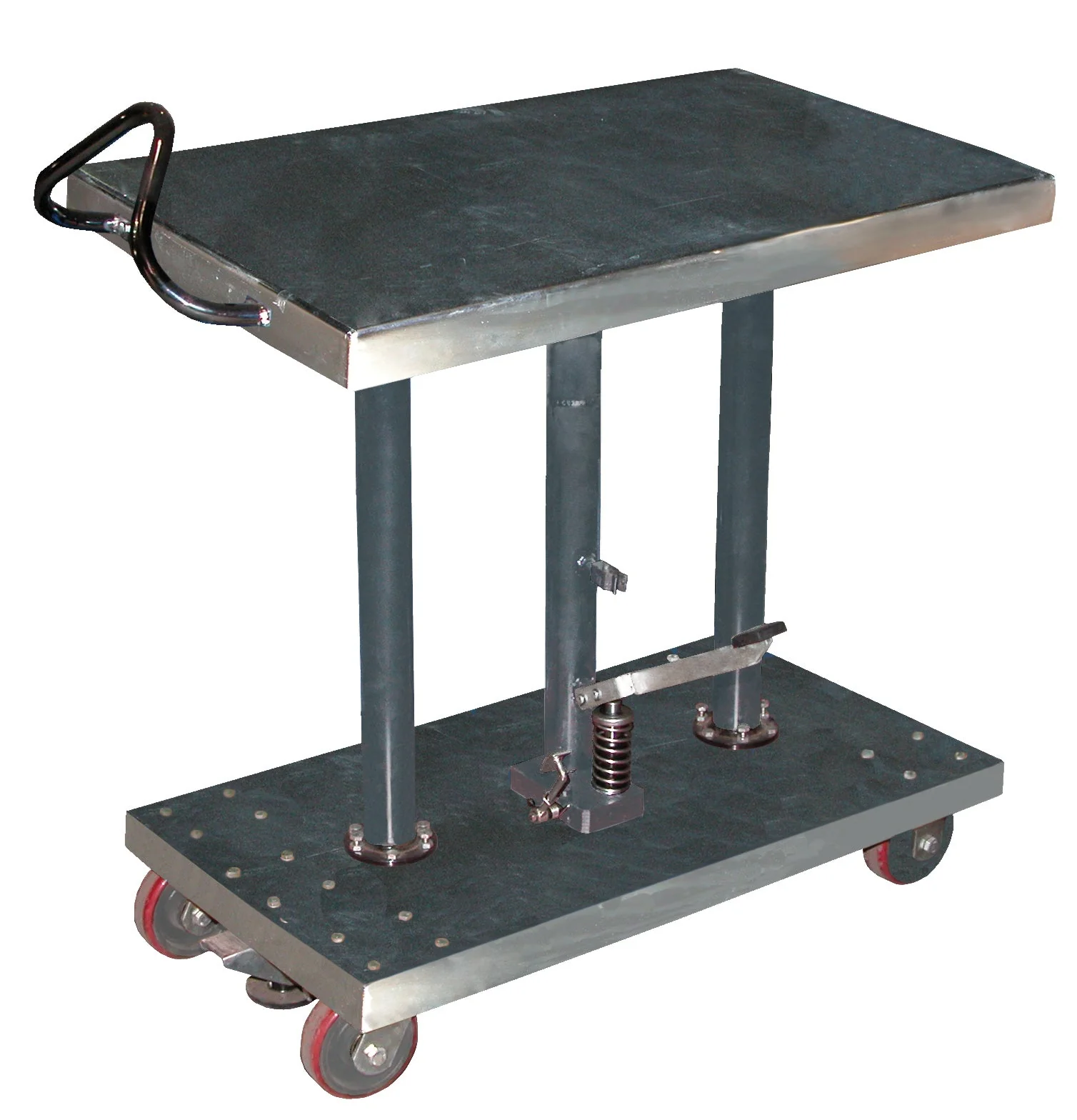

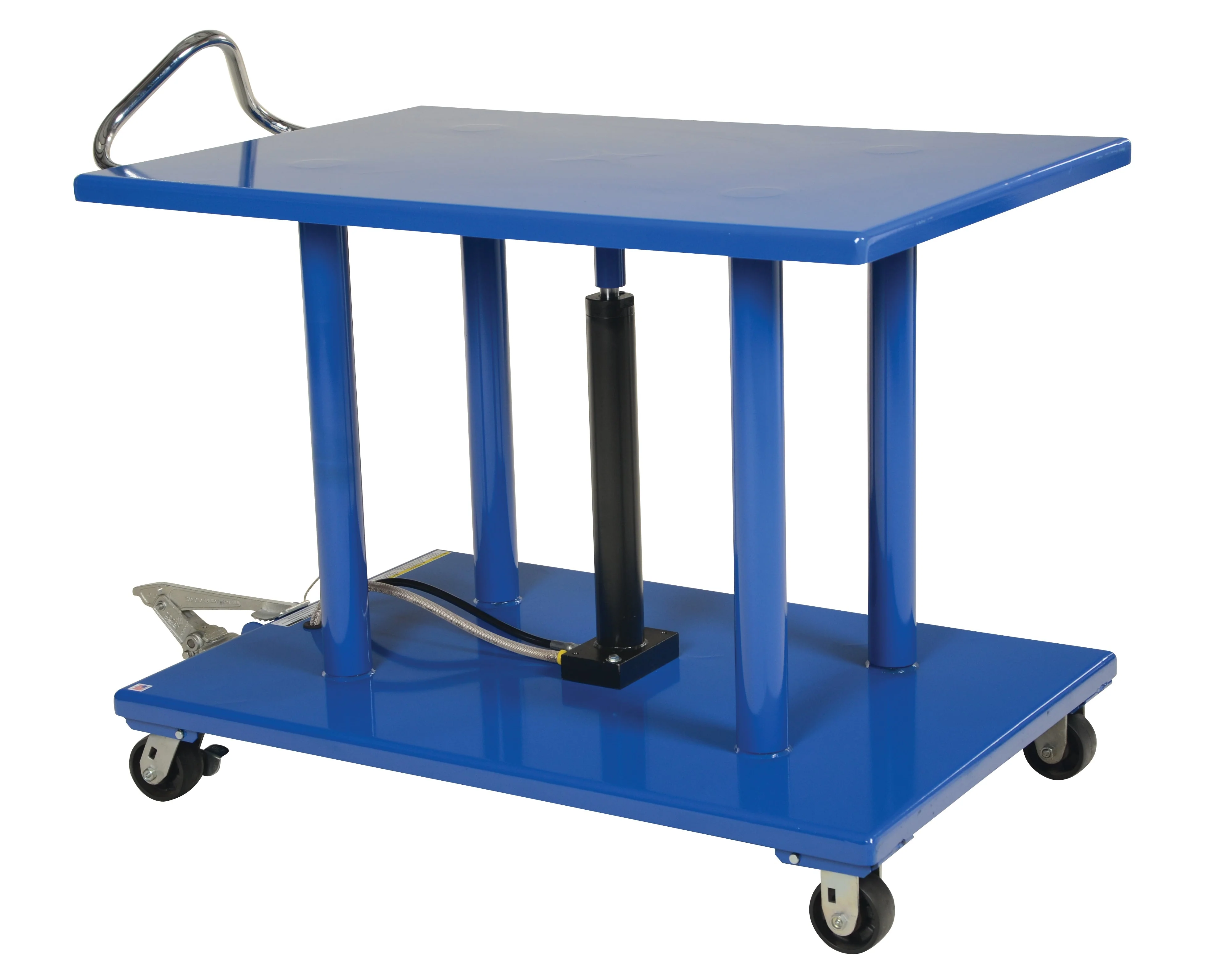

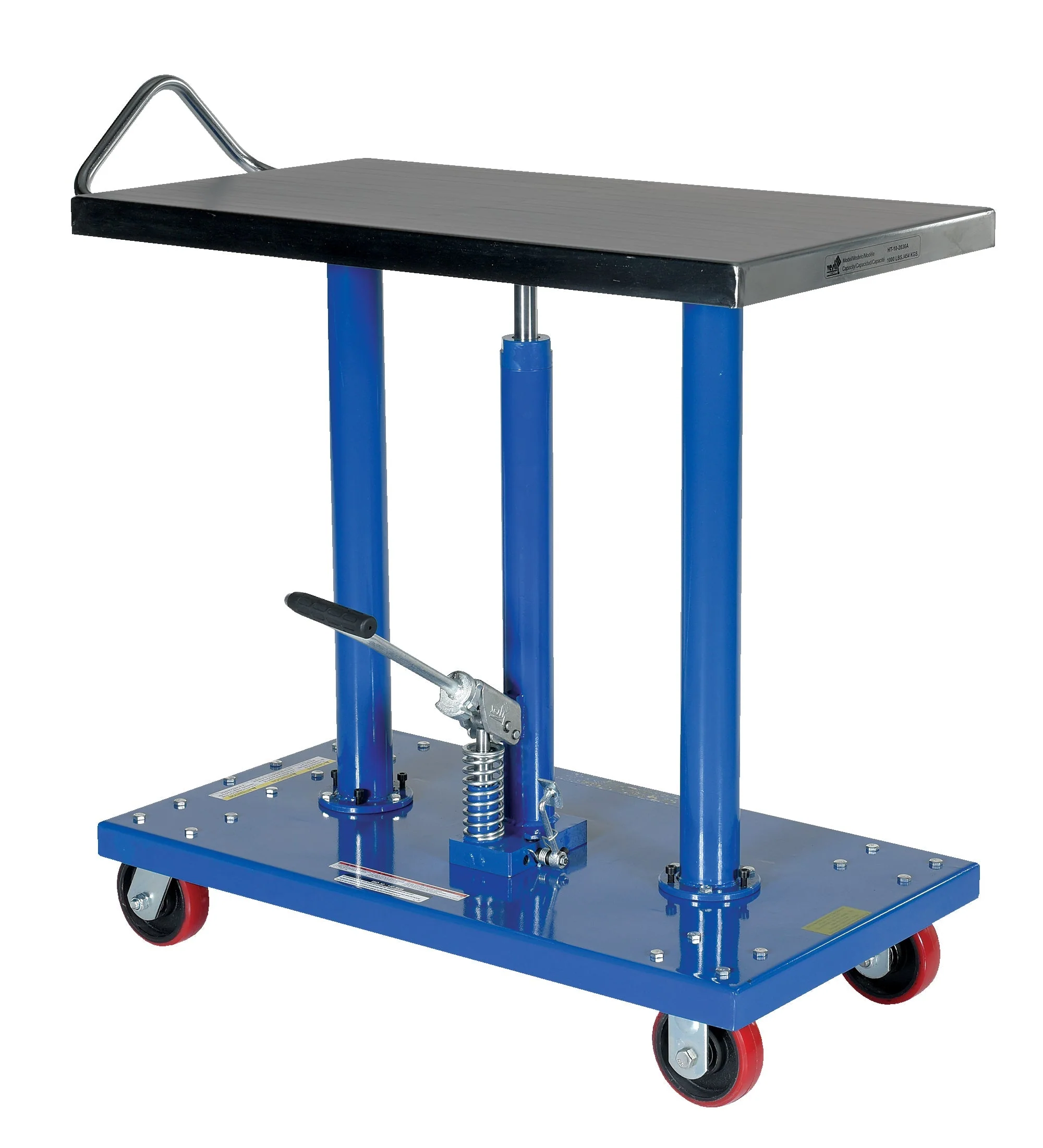

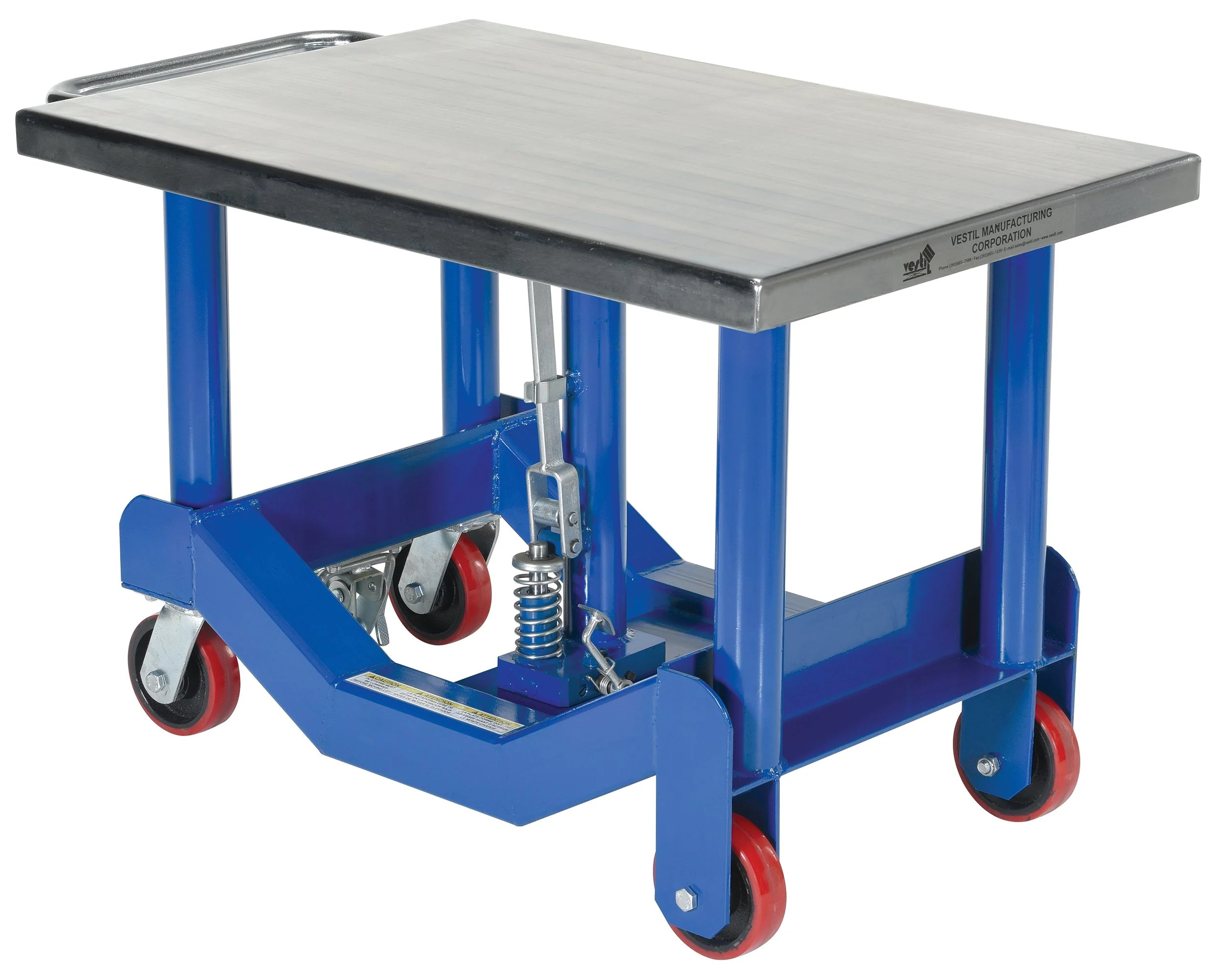

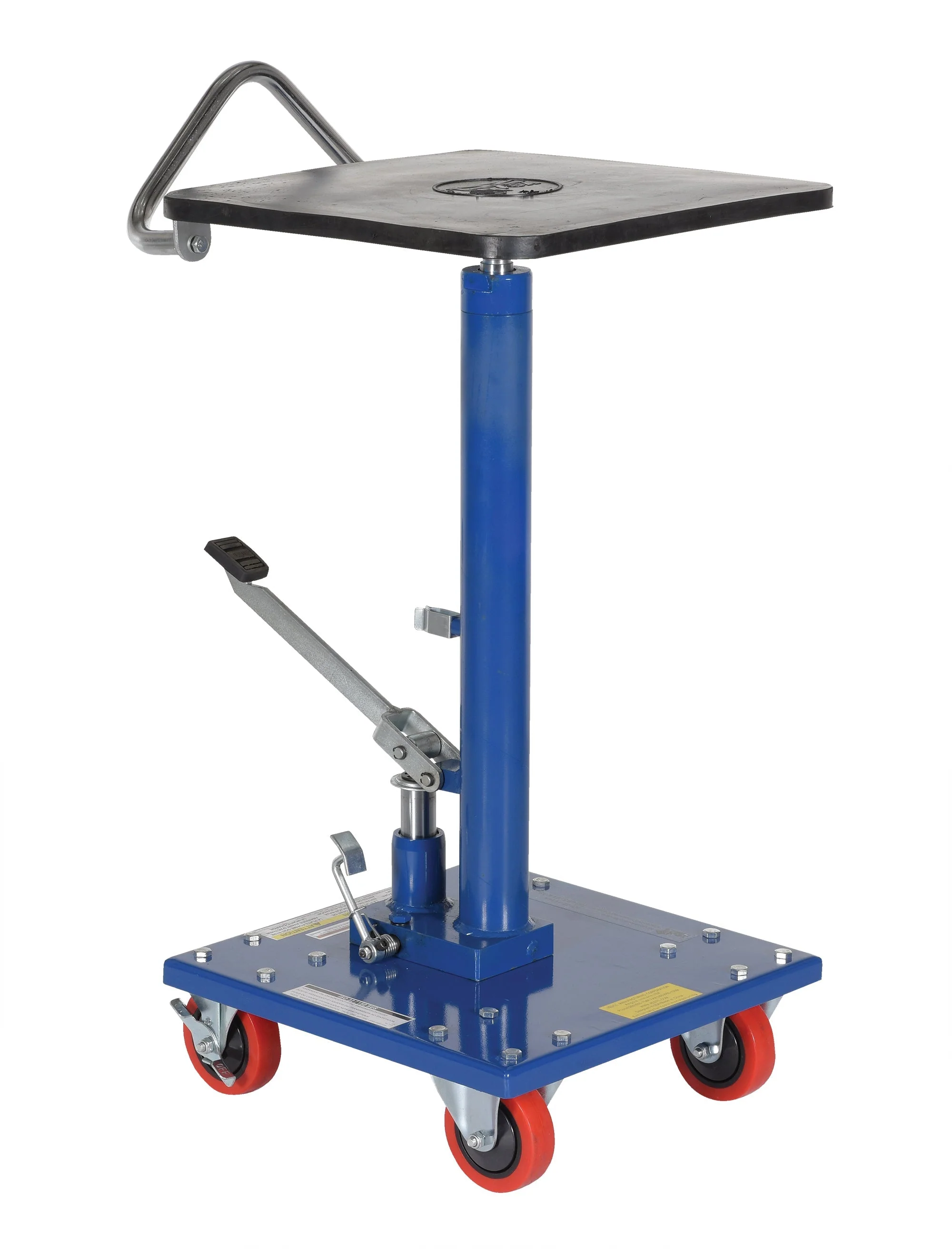

Hydraulic Post Tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, or a two speed auto shifter that automatically shifts when the table is loaded. DC units include one (1) 12V battery to raise and lower the platform. They also include a battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360 degrees for use as a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle, casters rigs, and hardware are stainless steel.
| Hydraulic Post Table | |||||||
| Model | Platform Size | Service Range | Operation | Capacity (lbs) | Number of Posts | Caster Size/Type |
Wt. |
| HT-02-1616A | 16"x16" | 31" to 49" | 1-Speed Foot Pump | 200 | 0 |
4"x1-1/4" Poly-on-Poly |
126 |
| HT-03-1616A | 16"x16" | 31" to 49" | 1-Speed Foot Pump | 300 | 0 |
4"x1-1/4" Poly-on-Poly |
126 |
| HT-05-1818A | 18"x18" | 31" to 49" | 1-Speed Foot Pump | 500 | 2 | 4"x1-1/4" Poly-on-Poly | 151 |
| HT-10-2036A | 20"x36" | 36" to 54" | 2-Speed Foot Pump | 1,000 | 2 |
5"x1-1/2" Poly-on-Steel |
241 |
| HT-20-2436A | 24"x36" | 36" to 54" | 2-Speed Foot Pump | 2,000 | 4 |
5"x1-1/2" Poly-on-Steel |
332 |
| HT-20-3036A | 30"x36" | 36" to 54" | 2-Speed Foot Pump | 2,000 | 4 |
5"x1-1/2" Poly-on-Steel |
376 |
| HT-20-3042 | 30"x42" | 36" to 54" | 2-Speed Auto Shift | 2,000 | 4 |
4"x2" Phenolic |
483 |
| HT-20-3248 | 32"x48" | 36" to 54" | 2-Speed Auto Shift | 2,000 | 4 | 4"x2" Phenolic | 475 |
| HT-20-4048 | 40"x48" | 36" to 54" | 2-Speed Auto Shift | 2,000 | 4 | 4"x2" Phenolic | 540 |
| HT-20-4848 | 48"x48" | 36" to 54" | 2-Speed Auto Shift | 2,000 | 4 | 4"x2" Phenolic | 565 |
| HT-30-2436 | 24"x36" | 36" to 54" | 2-Speed Auto Shift | 3,000 | 4 | 4"x2" Phenolic | 340 |
| HT-30-3036 | 30"x36" | 36" to 54" | 2-Speed Auto Shift | 3,000 | 4 | 4"x2" Phenolic | 400 |
| HT-30-3042 | 30"x42" | 36" to 54" | 2-Speed Auto Shift | 3,000 | 4 | 4"x2" Phenolic | 470 |
| HT-30-3248 | 32"x48" | 36" to 54" | 2-Speed Auto Shift | 3,000 | 4 | 4"x2" Phenolic | 475 |
| HT-30-4048 | 40"x48" | 36" to 54" | 2-Speed Auto Shift | 3,000 | 4 | 4"x2" Phenolic | 540 |
| HT-30-4848 | 48"x48" | 36" to 54" | 2-Speed Auto Shift | 3,000 | 4 | 4"x2" Phenolic | 565 |
| HT-40-2436 | 24"x36" | 36" to 54" | 2-Speed Auto Shift | 4,000 | 4 | 4"x2" Phenolic | 346 |
| HT-40-3036 | 30"x36" | 36" to 54" | 2-Speed Auto Shift | 4,000 | 4 | 4"x2" Phenolic | 462 |
| HT-40-3042 | 30"x42" | 36" to 54" | 2-Speed Auto Shift | 4,000 | 4 | 4"x2" Phenolic | 477 |
| HT-40-3248 | 32"x42" | 36" to 54" | 2-Speed Auto Shift | 4,000 | 4 | 4"x2" Phenolic | 475 |
| HT-40-4048 | 40"x48" | 36" to 54" | 2-Speed Auto Shift | 4,000 | 4 | 4"x2" Phenolic | 540 |
| HT-40-4848 | 48"x48" | 36" to 54" | 2-Speed Auto Shift | 4,000 | 4 | 4"x2" Phenolic | 565 |
| HT-60-2436 | 24"x36" | 36" to 54" | 2-Speed Auto Shift | 6,000 | 4 |
6"x 2-1/2" Phenolic |
477 |
| HT-60-3036 | 30x36" | 36" to 54" | 2-Speed Auto Shift | 6,000 | 4 | 6"x 2-1/2" Phenolic | 605 |
| HT-60-3042 | 30x42" | 36" to 54" | 2-Speed Auto Shift | 6,000 | 4 | 6"x 2-1/2" Phenolic | 635 |
| HT-60-3248 | 32"x48" | 36" to 54" | 2-Speed Auto Shift | 6,000 | 4 |
6"x 2-1/2" Phenolic |
556 |
| HT-60-4048 | 40"x48" | 36" to 54" | 2-Speed Auto Shift | 6,000 | 4 |
6"x 2-1/2" Phenolic |
728 |
| HT-60-4848 | 48"x48" | 36" to 54" | 2-Speed Auto Shift | 6,000 | 4 |
6"x 2-1/2" Phenolic |
728 |

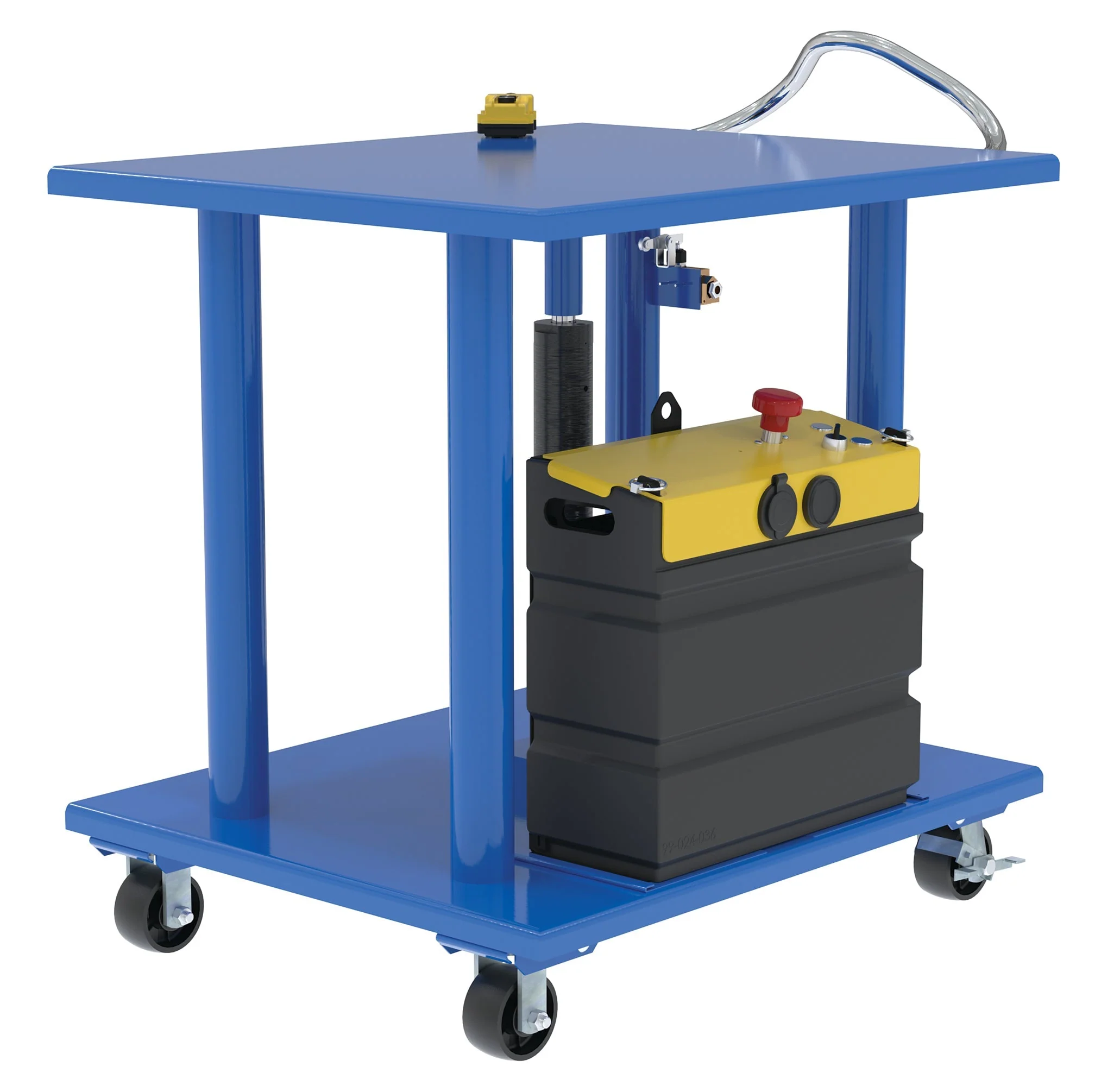

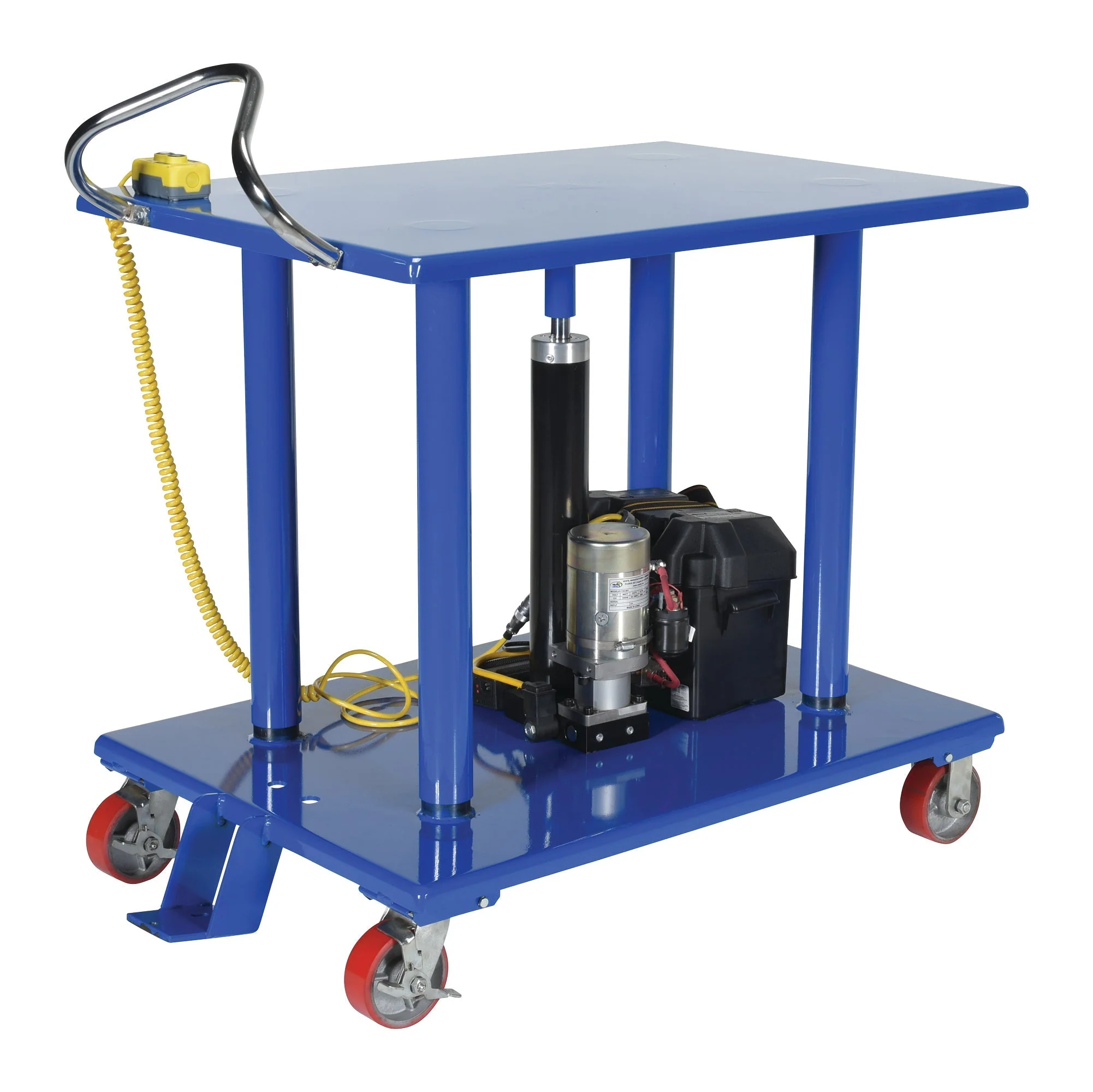

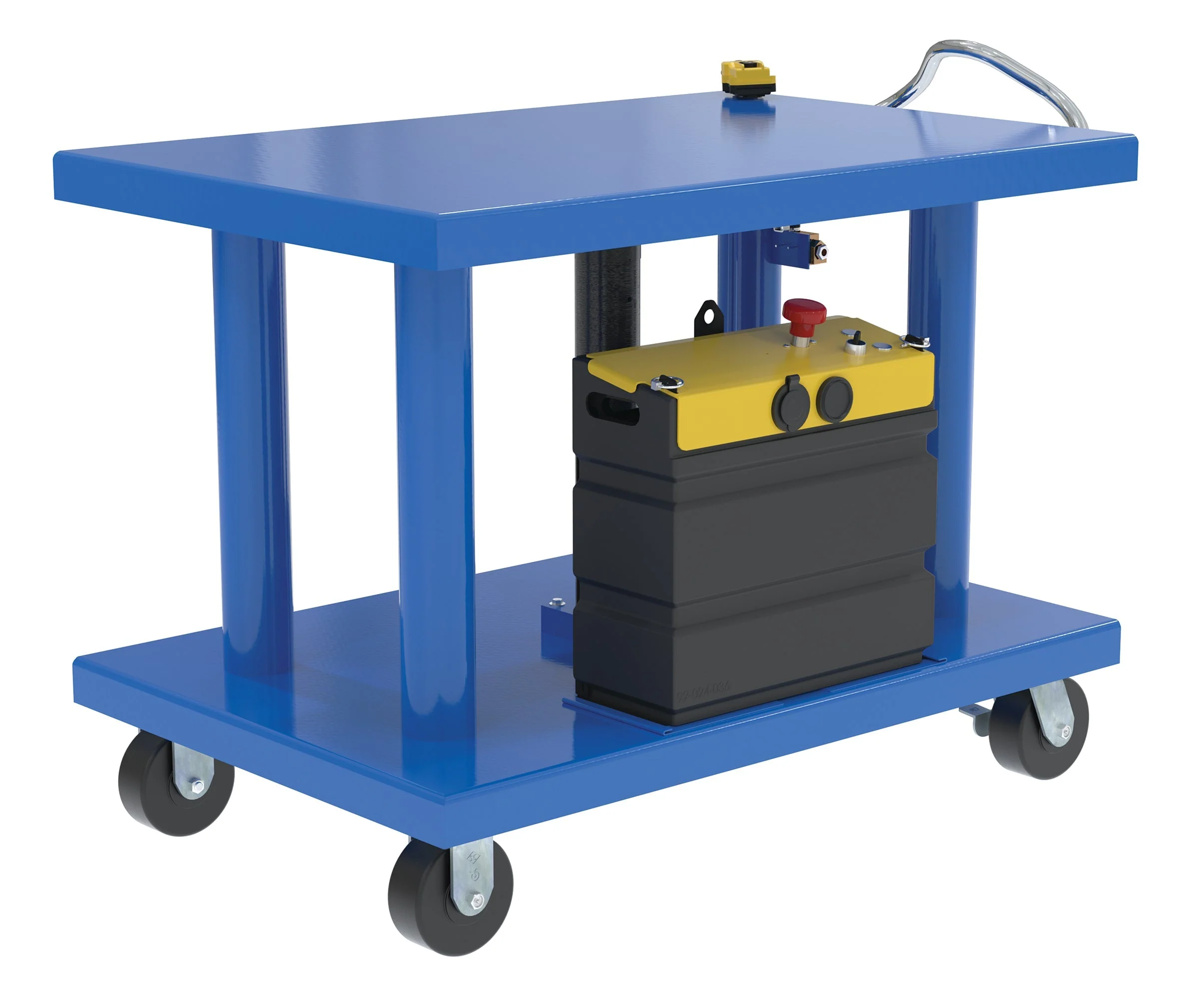

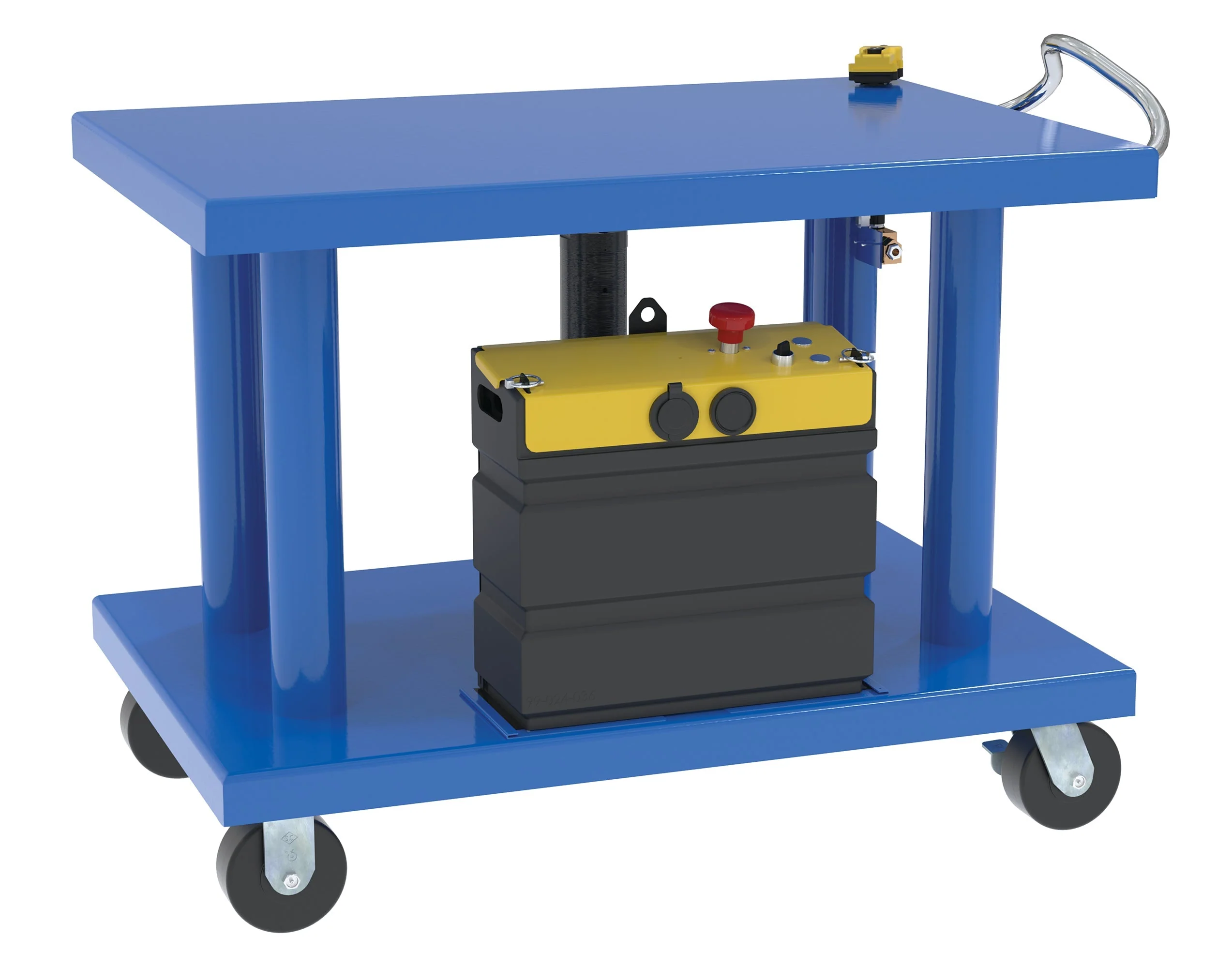

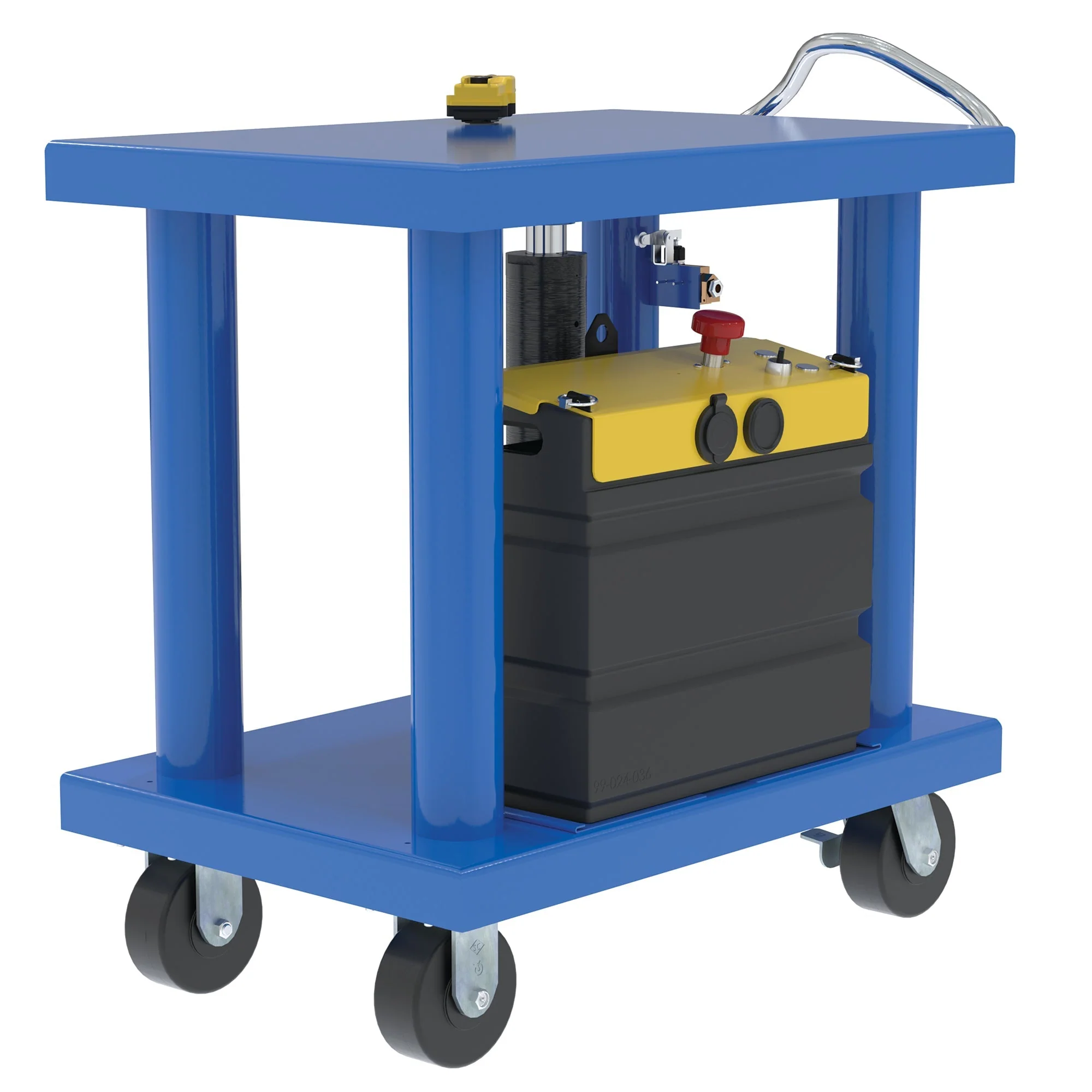

| DC Powered Post Table | |||||||
| Model | Platform Size |
Service Range | Operation | Capacity (lbs) |
# of Posts | Caster Size/Type | Wt. (lbs) |
| HT-20-2436-DC | 24"x36" | 36-1/2" to 54-1/2" | 12V DC Power | 2,000 | 4 | 4"x2" Phenolic | 396 |
| HT-20-3036-DC | 30"x36" | 36-1/2" to 54-1/2" | 12V DC Power | 2,000 | 4 | 4"x2" Phenolic | 425 |
| HT-40-2436-DC | 24"x36" | 36-1/2" to 54-1/2" | 12V DC Power | 4,000 | 4 | 4"x2" Phenolic | 441 |
| HT-40-3248-DC | 32"x48" | 36-1/2" to 54-1/2" | 12V DC Power | 4,000 | 4 | 4"x2" Phenolic | 495 |
| HT-60-2436-DC | 24"x36" | 36-1/2" to 54-1/2" | 12V DC Power | 6,000 | 4 | 6"x2-1/2" Phenolic | 498 |
| HT-60-3248-DC | 32"x48" | 36-1/2" to 54-1/2" | 12V DC Power | 6,000 | 4 | 6"x2-1/2" Phenolic | 558 |

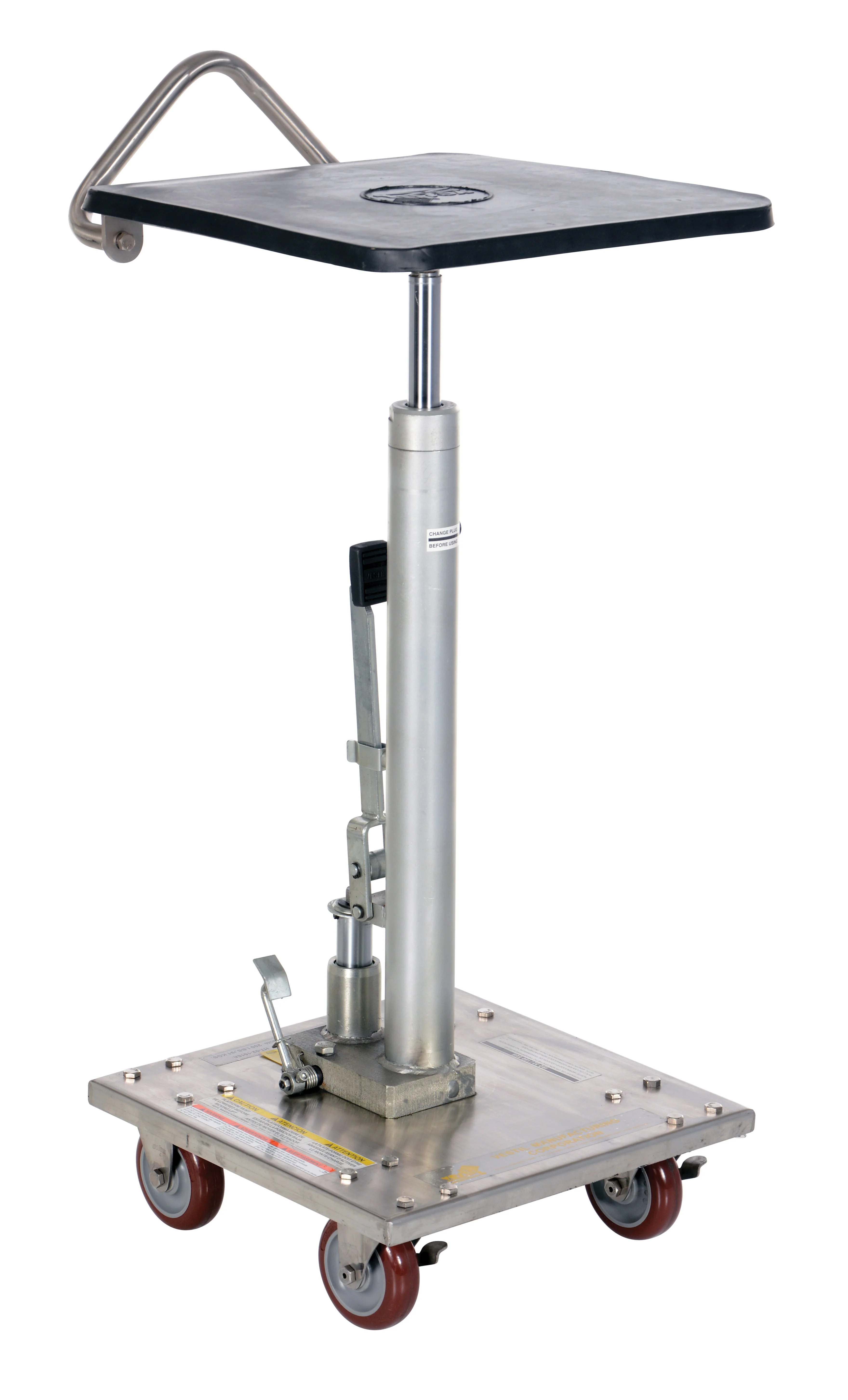

| Partially Stainless Steel Construction | |||||||
| Model | Platform Size |
Service Range | Operation | Capacity (lbs) |
# of Posts | Caster Size/Type | Wt. (lbs) |
| HT-02-1616A-PSS | 16"x16" | 31" to 49" | 1-Speed Foot Pump | 200 | 0 | 4"x1-1/4" Poly-on-Poly | 126 |
| HT-05-1818A-PSS | 18"x18" | 31" to 49" | 1-Speed Foot Pump | 500 | 2 | 4"x1-1/4" Poly-on-Poly | 151 |
| HT-10-2036A-PSS | 20"x36" | 36" to 54" | 2-Speed Foot Pump | 1,000 | 2 | 4"x1-1/2" Poly-on-Poly | 241 |
| HT-20-2436A-PSS | 24"x36" | 36" to 54" | 2-Speed Foot Pump | 2,000 | 4 | 5"x1-1/2" Poly-on-Poly | 332 |
| HT-20-3036A-PSS | 30"x36" | 36" to 54" | 2-Speed Foot Pump | 2,000 | 4 | 5"x1-1/2" Poly-on-Poly | 376 |
|
||||||||||||||||||||||||||||||||||||
Original: $507.00
-65%$507.00
$177.45
Description
Hydraulic Post Tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, or a two speed auto shifter that automatically shifts when the table is loaded. DC units include one (1) 12V battery to raise and lower the platform. They also include a battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360 degrees for use as a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle, casters rigs, and hardware are stainless steel.
