Vestil Laminated Dock Bumpers

Vestil Laminated Dock Bumpers

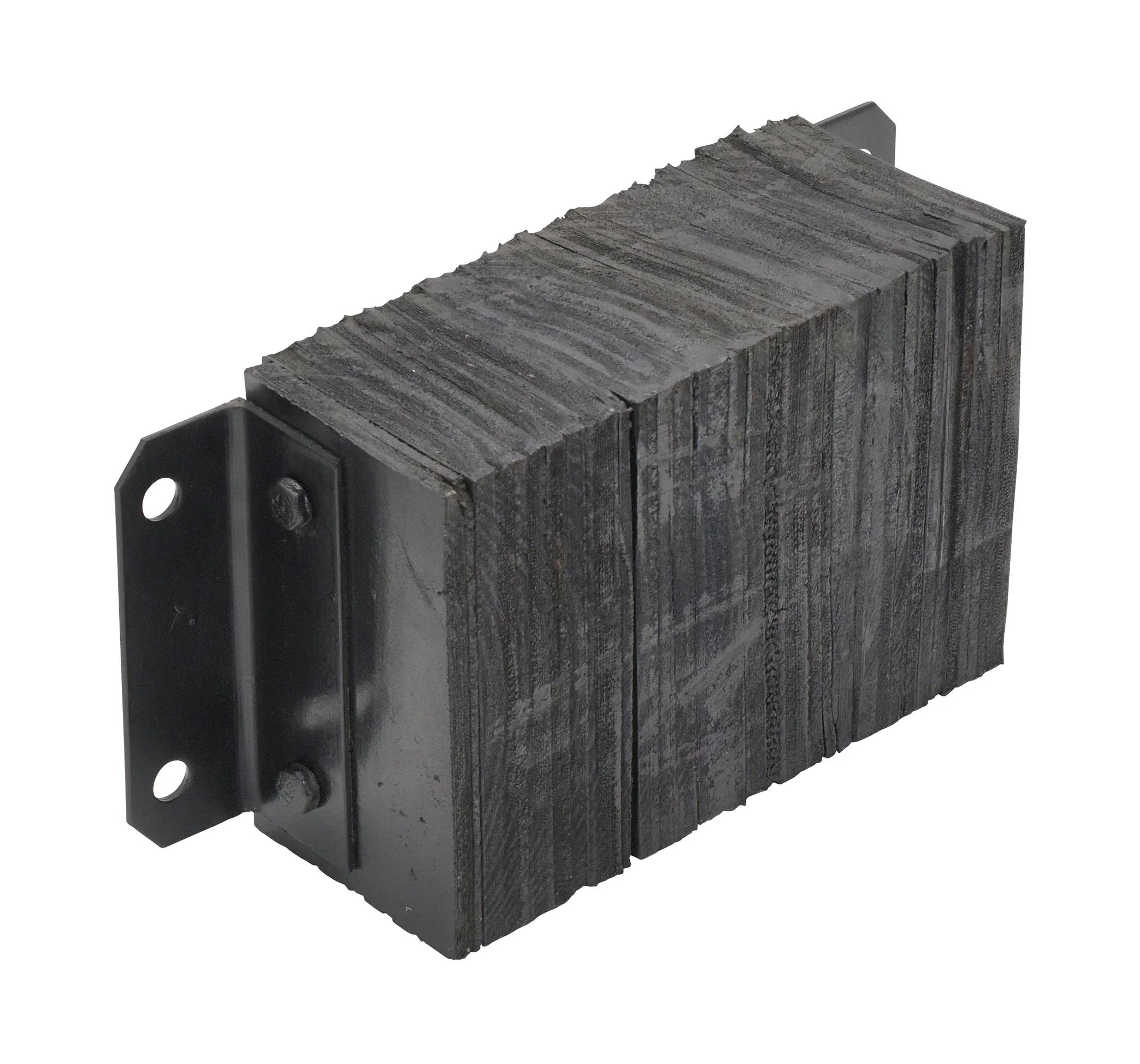

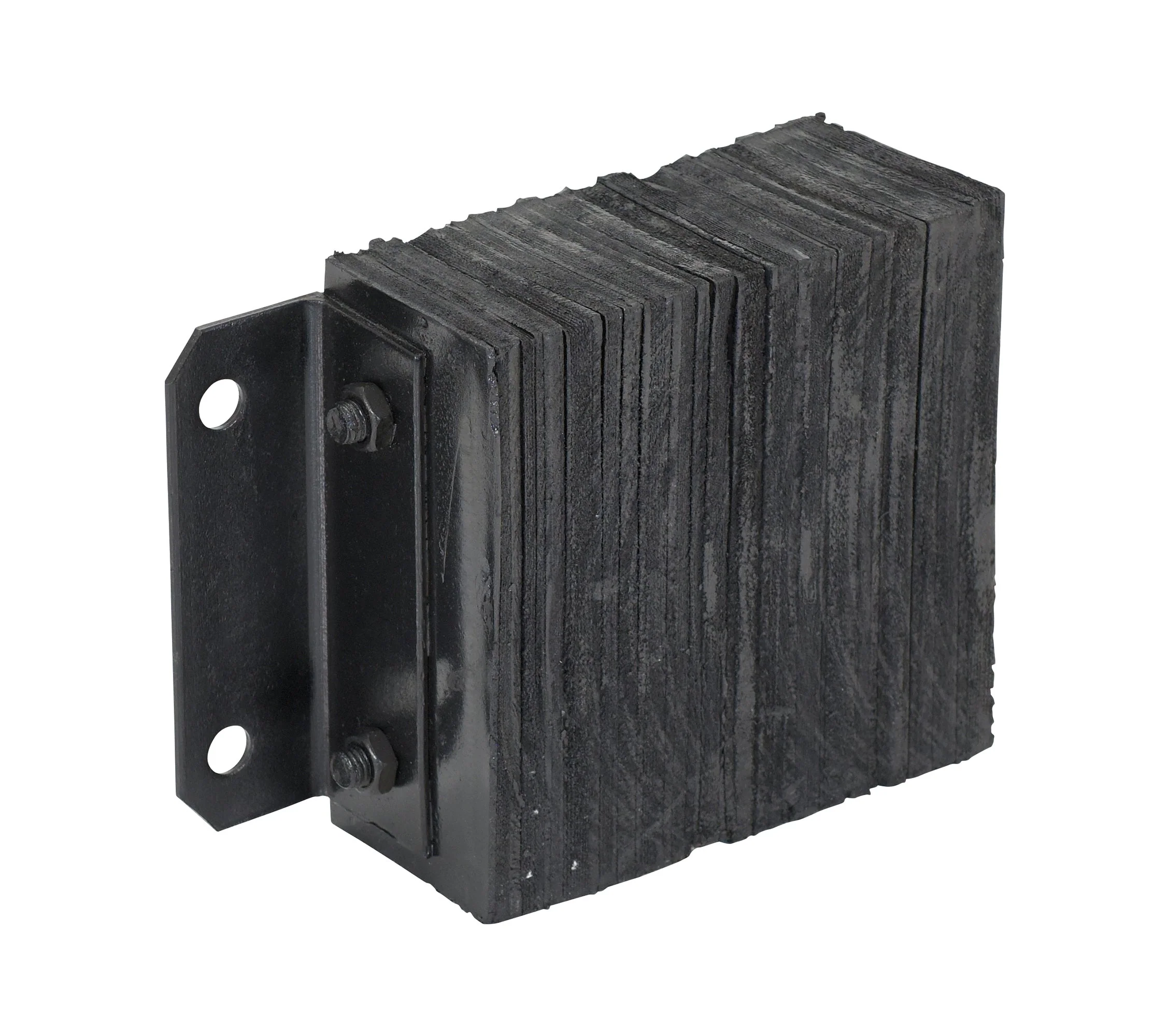

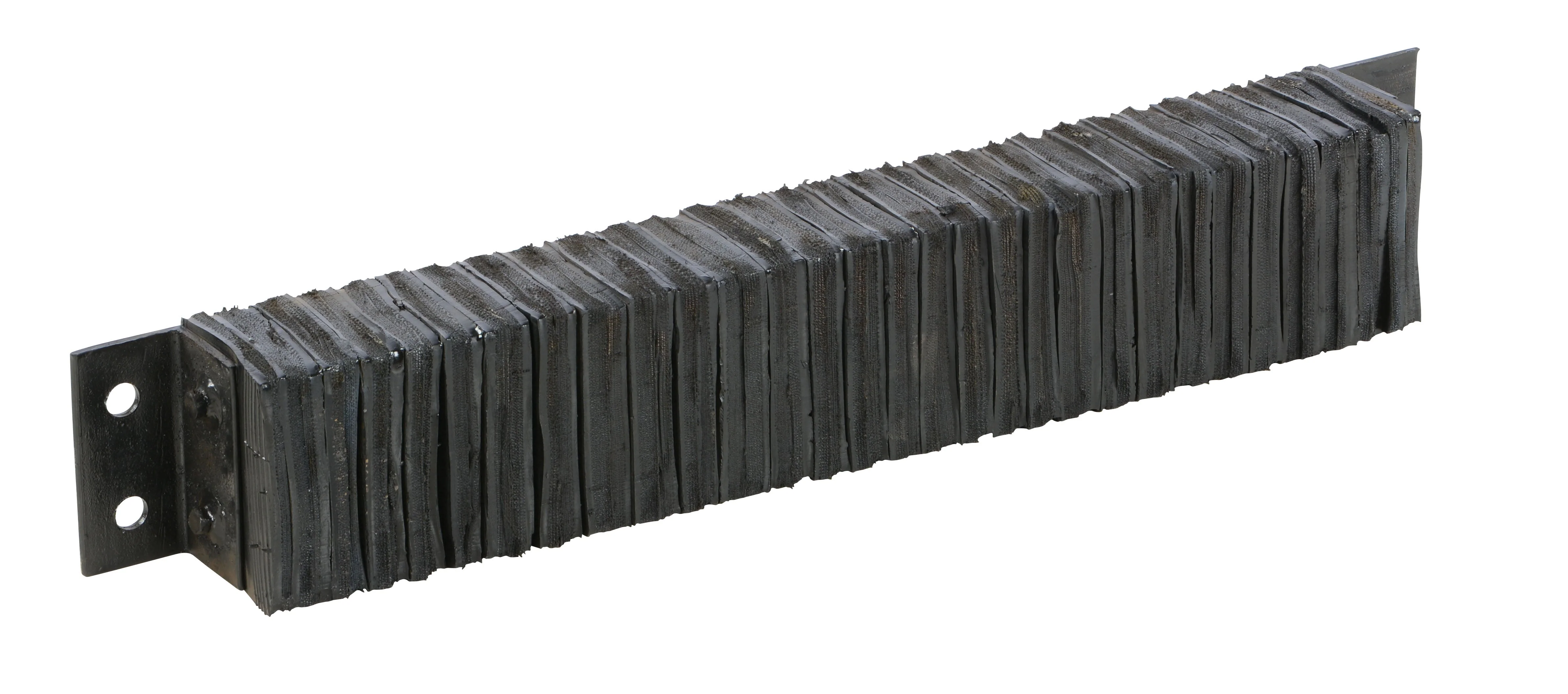

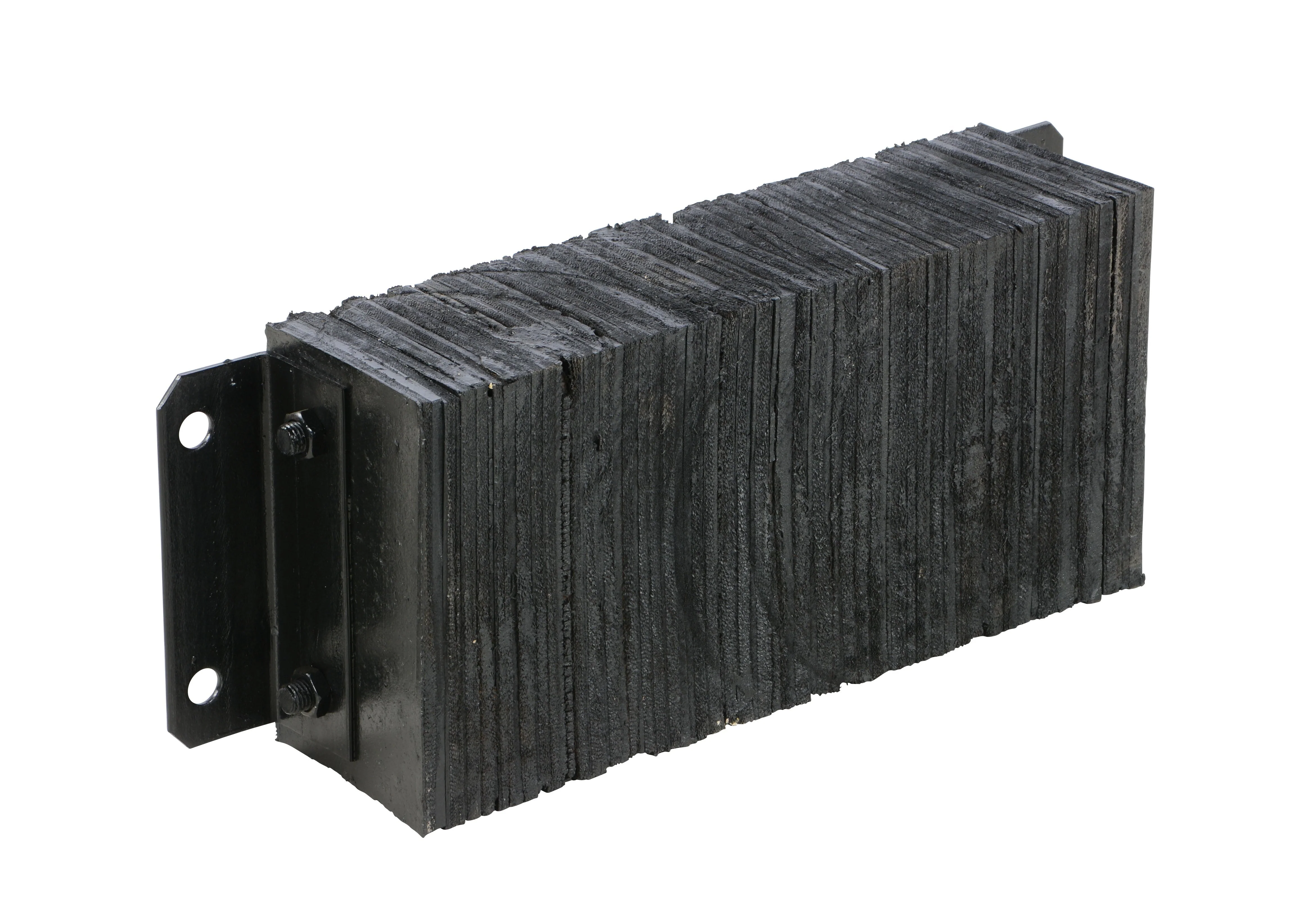

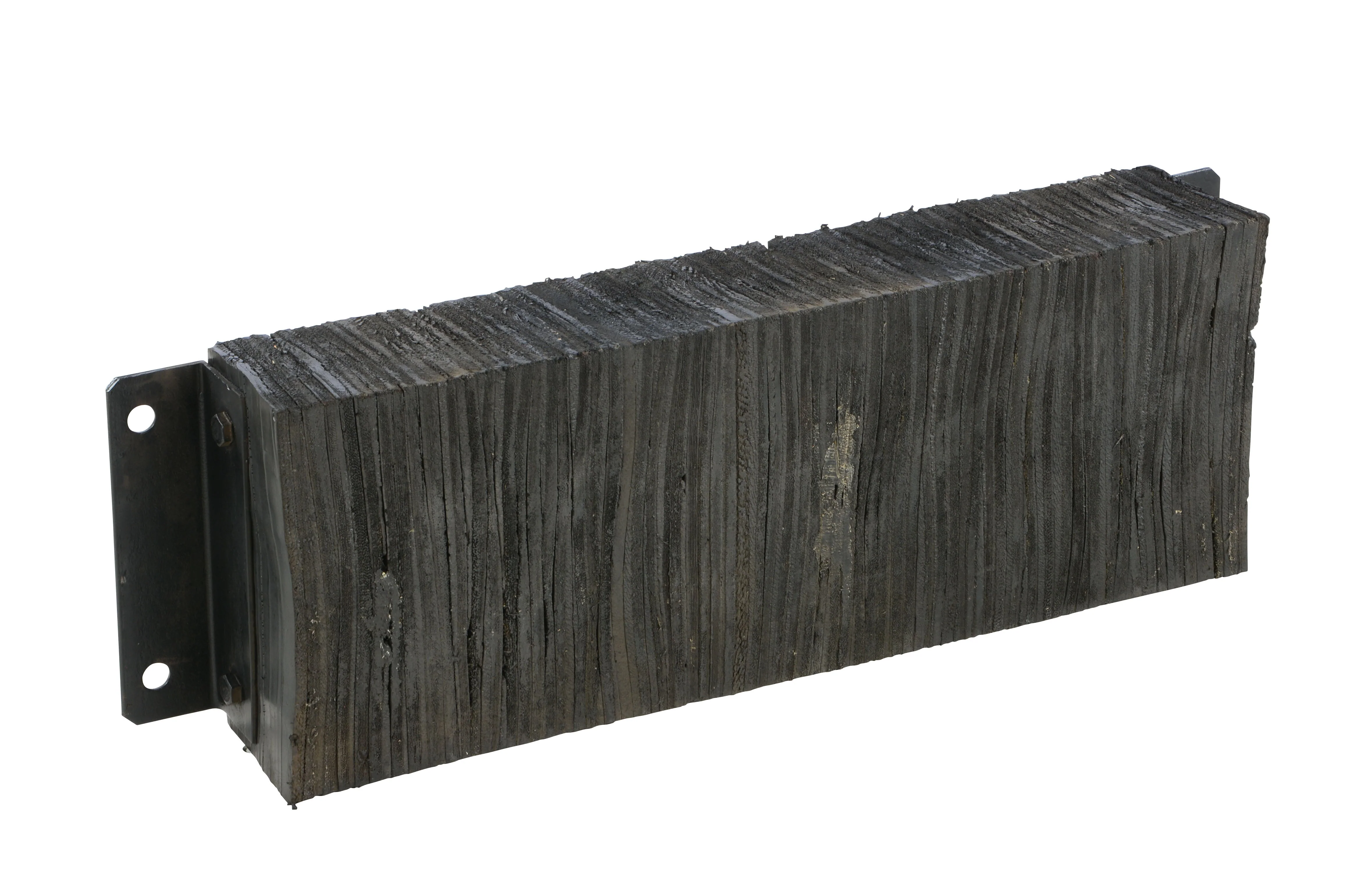

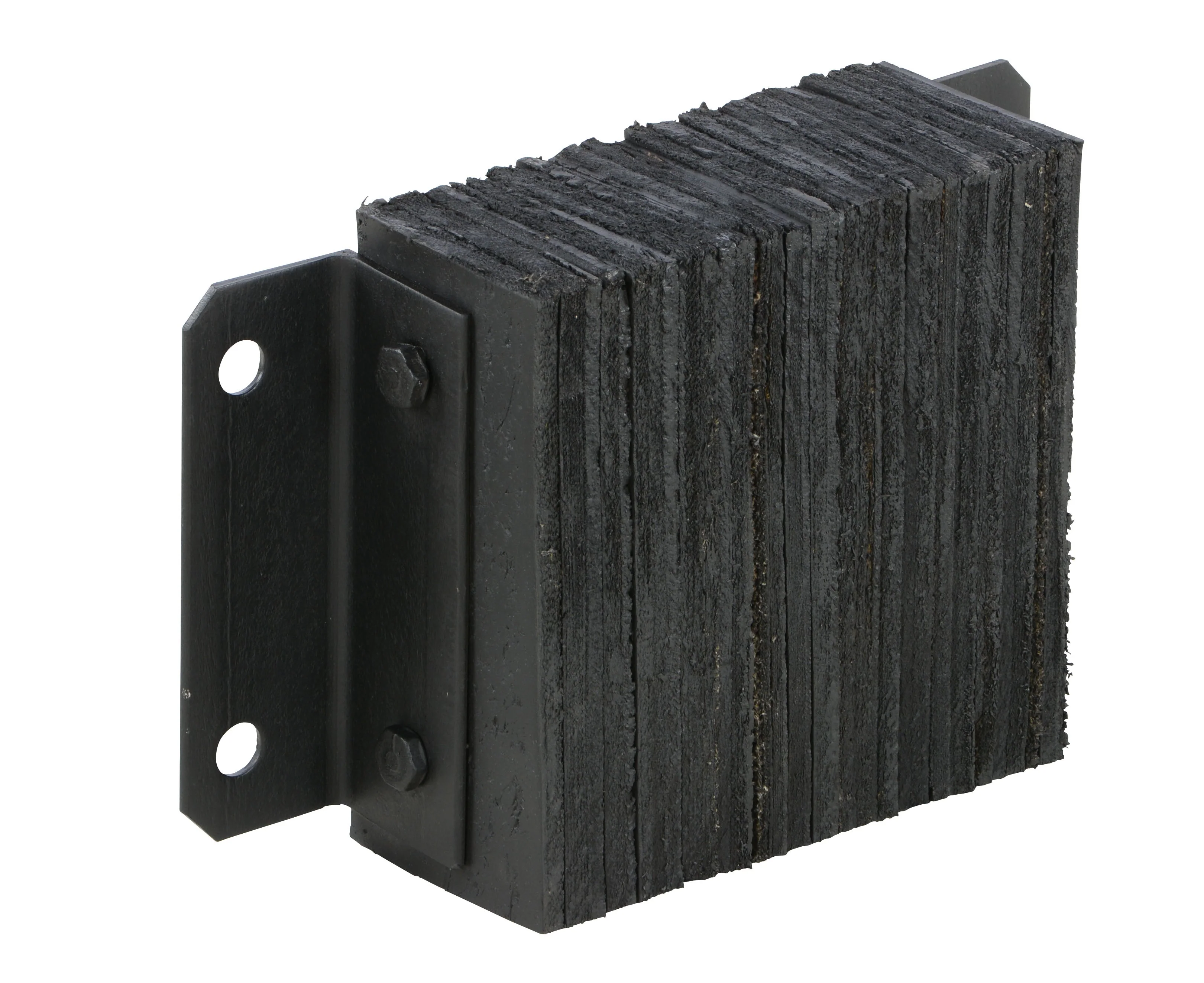

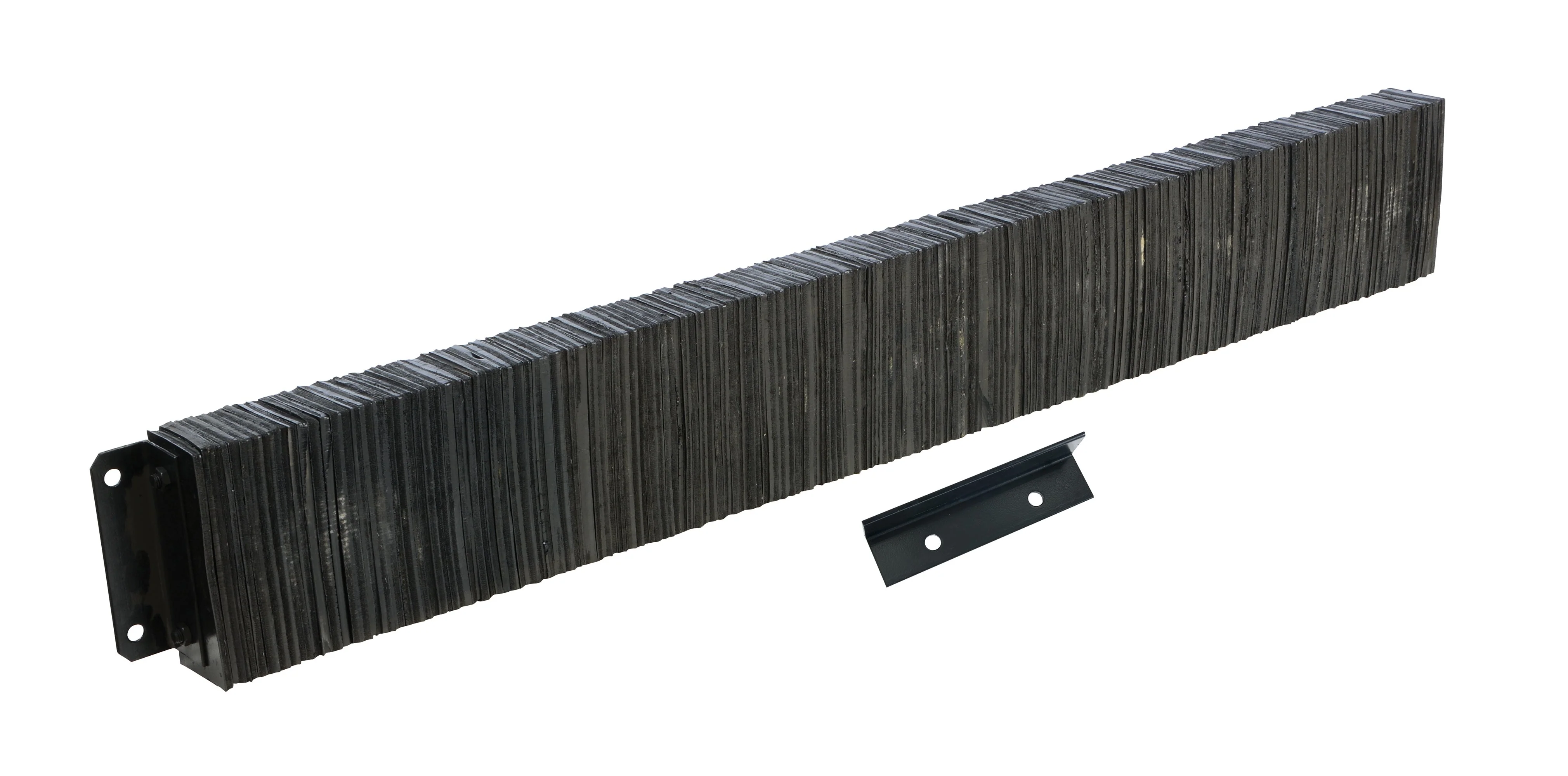

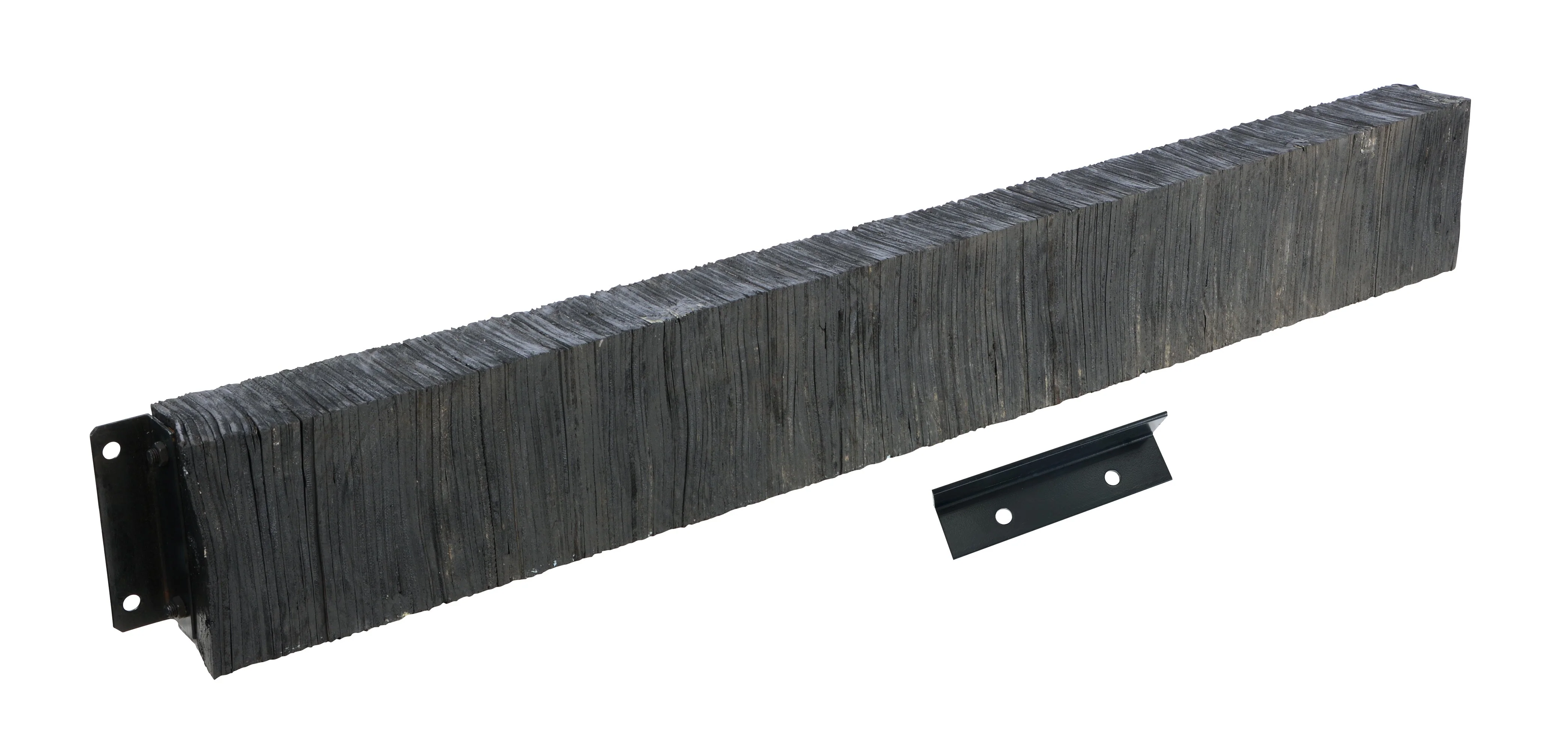

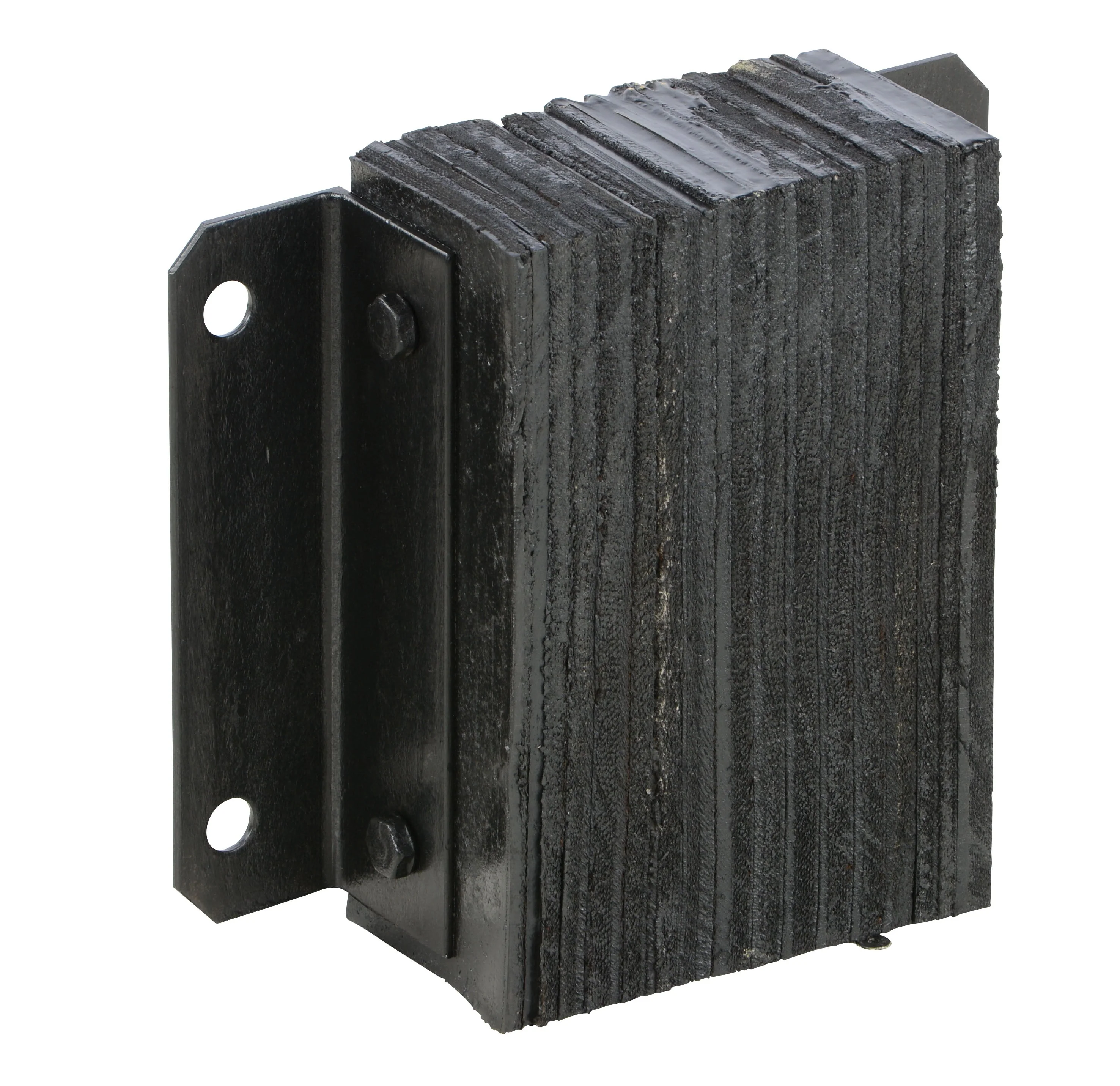

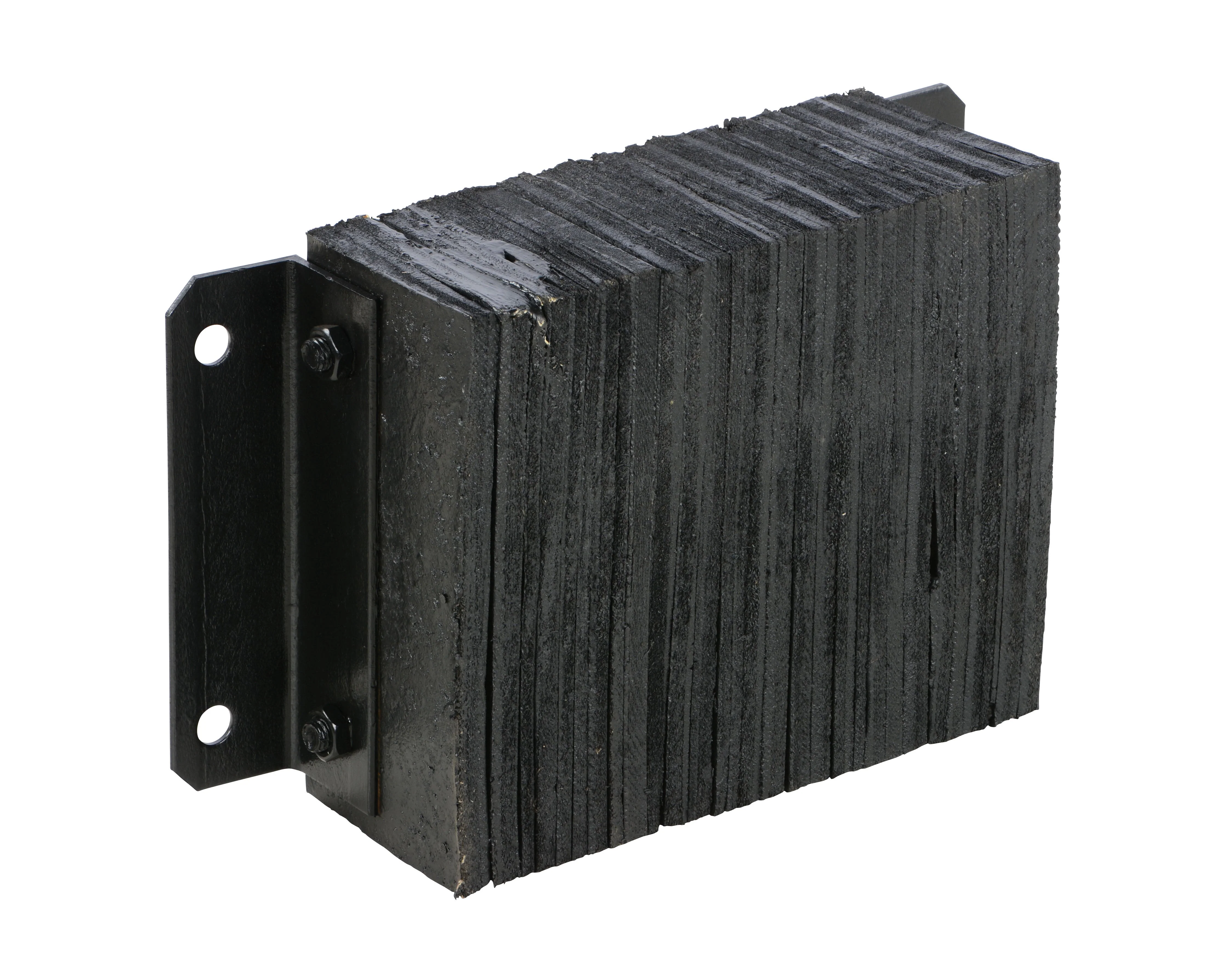

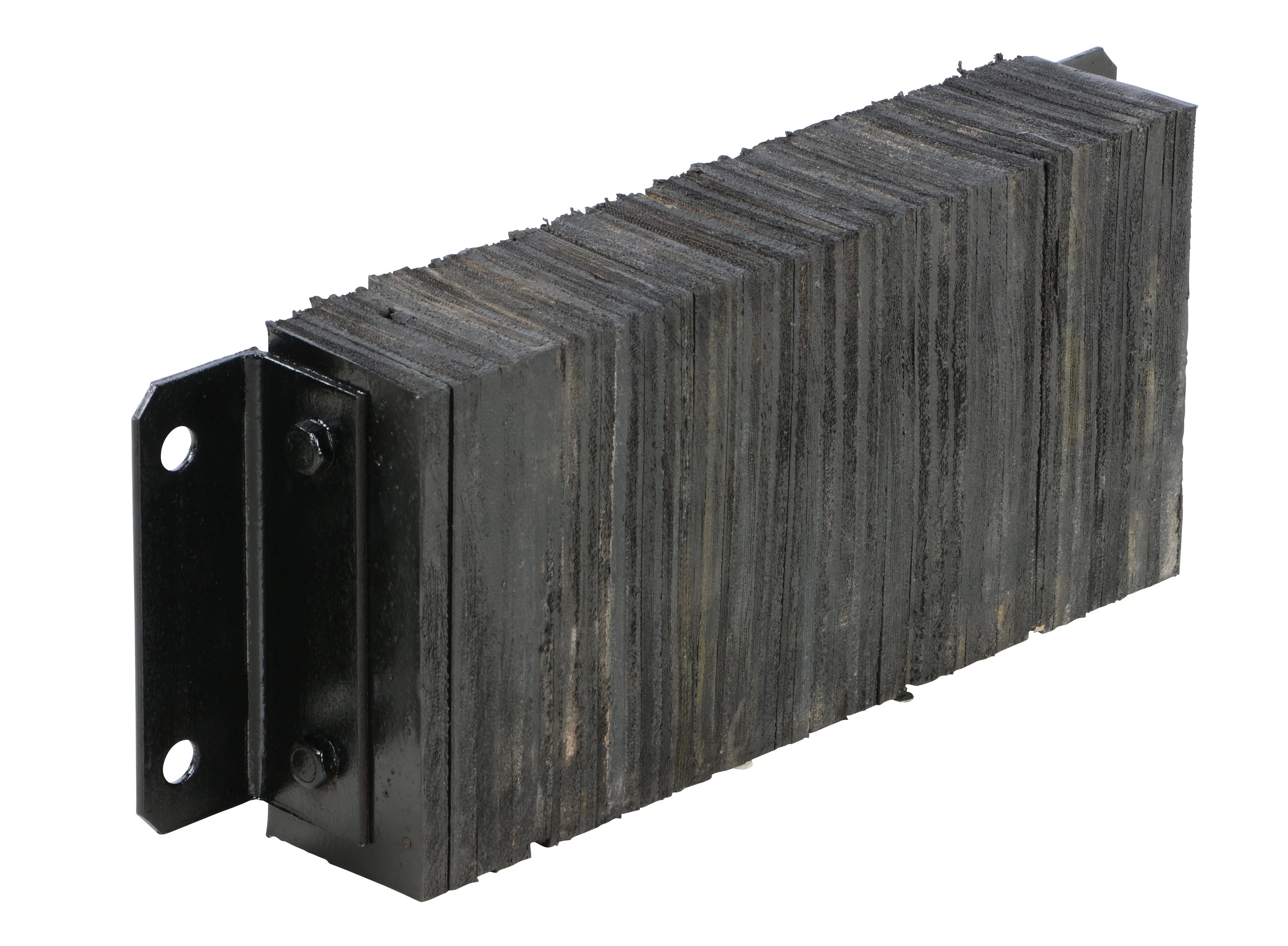

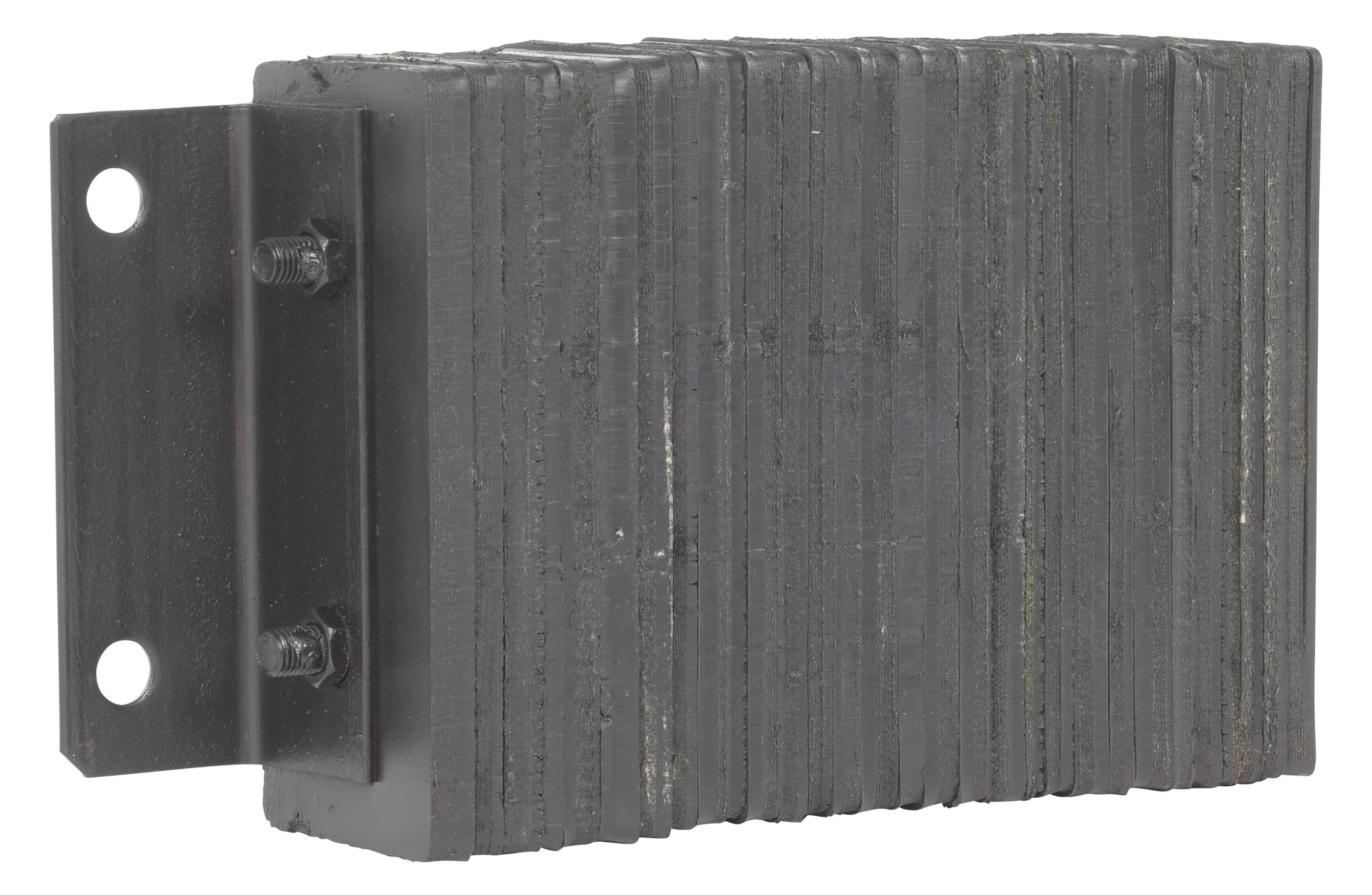

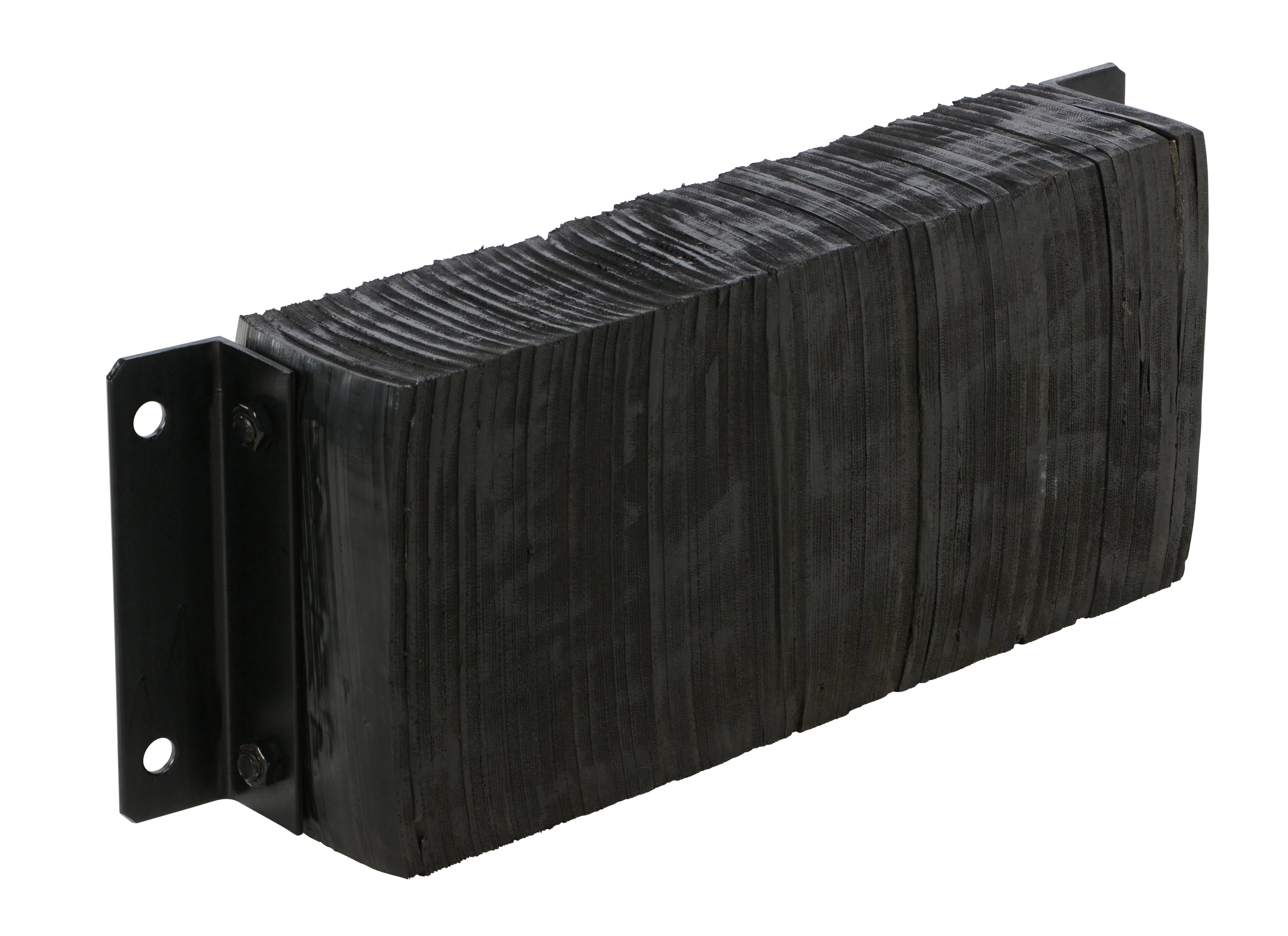

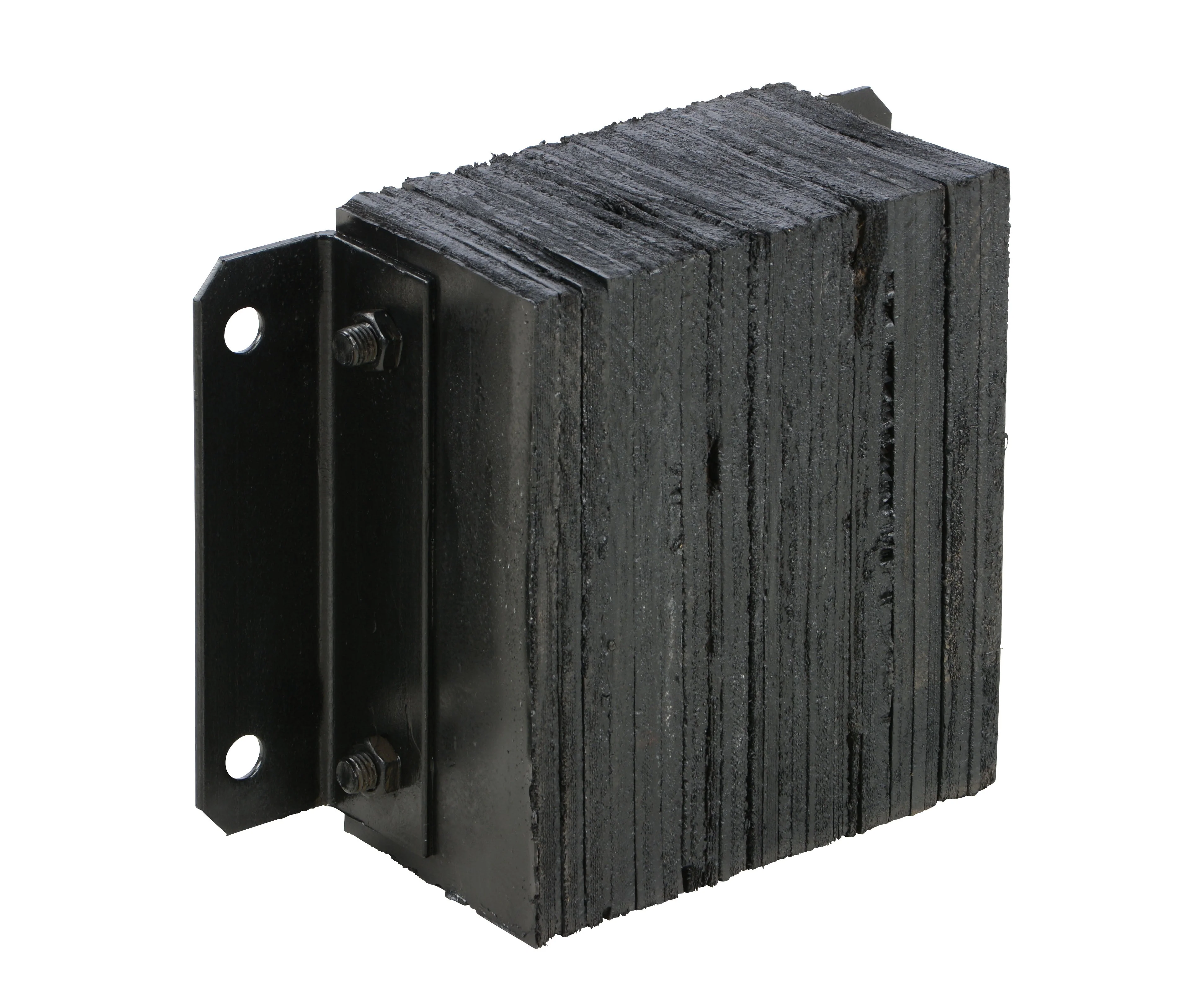

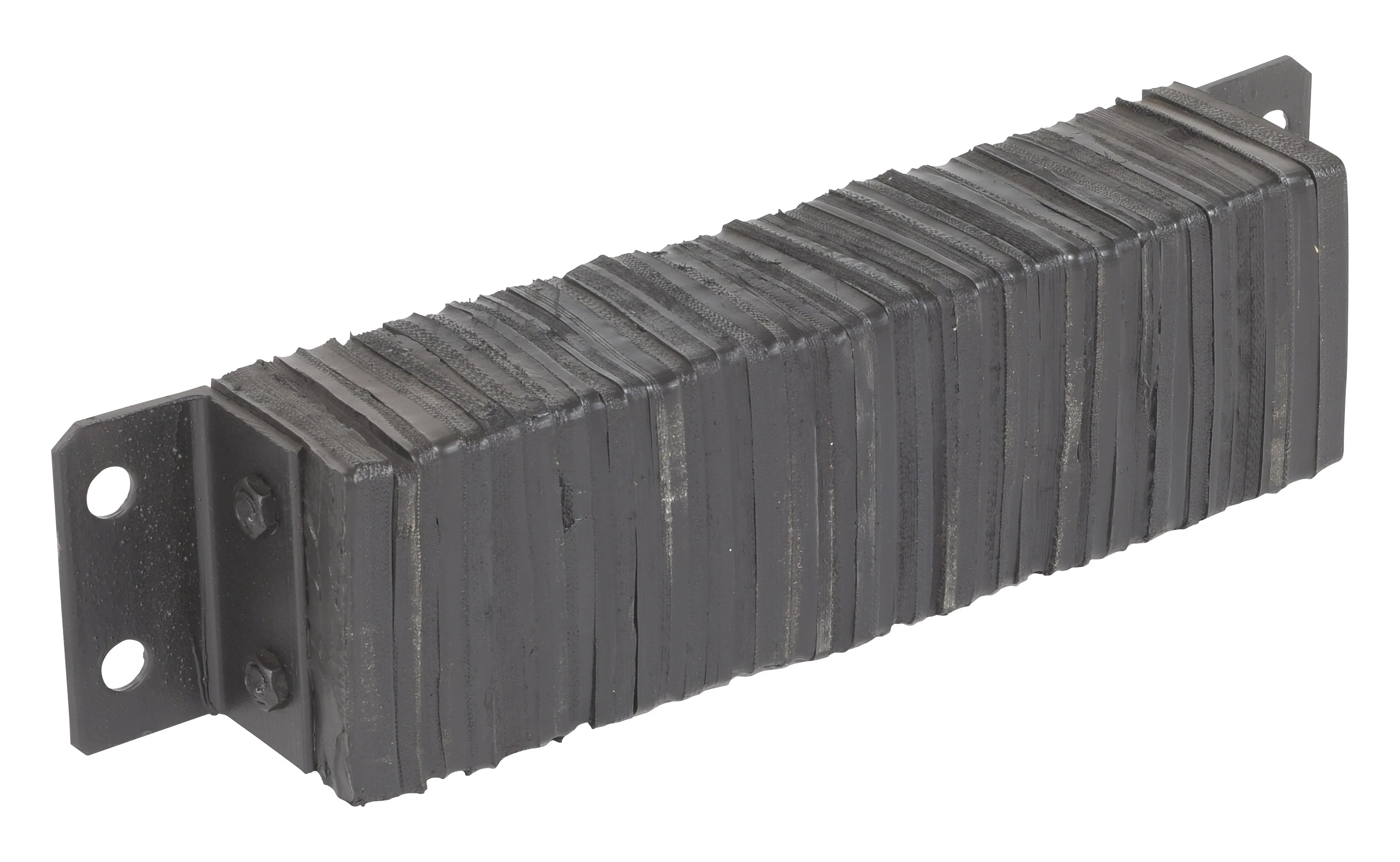

Laminated style dock bumpers provide durable, economical protection for your loading dock and trailers. Units are constructed of fabric reinforced rubber from recycled truck tires. Pads are laminated between painted structural angles and held together with 3/4" steel tie rods. A 12" long center support bracket is included with the 96" wide bumpers. Installation is quick and easy by bolting or welding units to the dock. Width is measured bolt hole center to bolt hole center, except Type C. Width is actual bolt hole center 1014-4.5F is 6", 1214-4.5F is 6-7/8". Bolt holes are 13/16" diameter on type A & C bumpers and 7/8" diameter on type B bumpers.

4.5" Projection Laminated Dock Bumpers
TYPE Model Description Wt. (lbs)
A 1012-4.5 10"H x 12"W x 4.5" Projection 22
A 1014-4.5 10"H x 14"W x 4.5" Projection 25
A 1018-4.5 10"H x 18"W x 4.5" Projection 36
A 1024-4.5 10"H x 24"W x 4.5" Projection 45
A 1030-4.5 10"H x 30"W x 4.5" Projection 60
A 1036-4.5 10"H x 36"W x 4.5" Projection 68
A 1096-4.5 10"H x 96"W x 4.5" Projection 191
A 1212-4.5 12"H x 12"W x 4.5" Projection 26
A 1214-4.5 12"H x 14"W x 4.5" Projection 31
A 1218-4.5 12"H x 18"W x 4.5" Projection 41
A 1224-4.5 12"H x 24"W x 4.5" Projection 56
A 1230-4.5 12"H x 30"W x 4.5" Projection 69
A 1236-4.5 12"H x 36"W x 4.5" Projection 88
A 1296-4.5 12"H x 96"W x 4.5" Projection 215
A 624-4.5 6"H x 24"W x 4.5" Projection 30
A 636-4.5 6"H x 36"W x 4.5" Projection 45

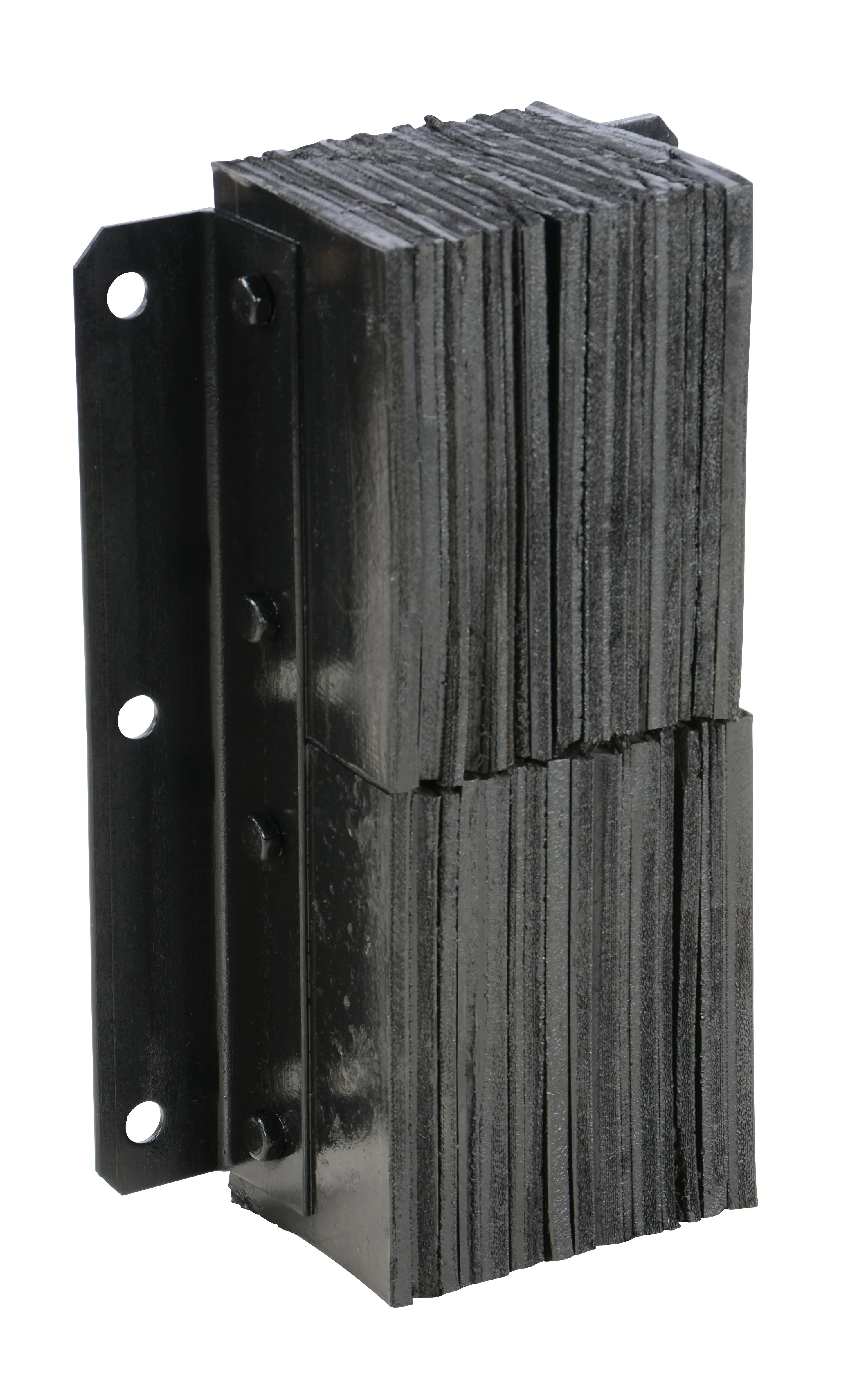

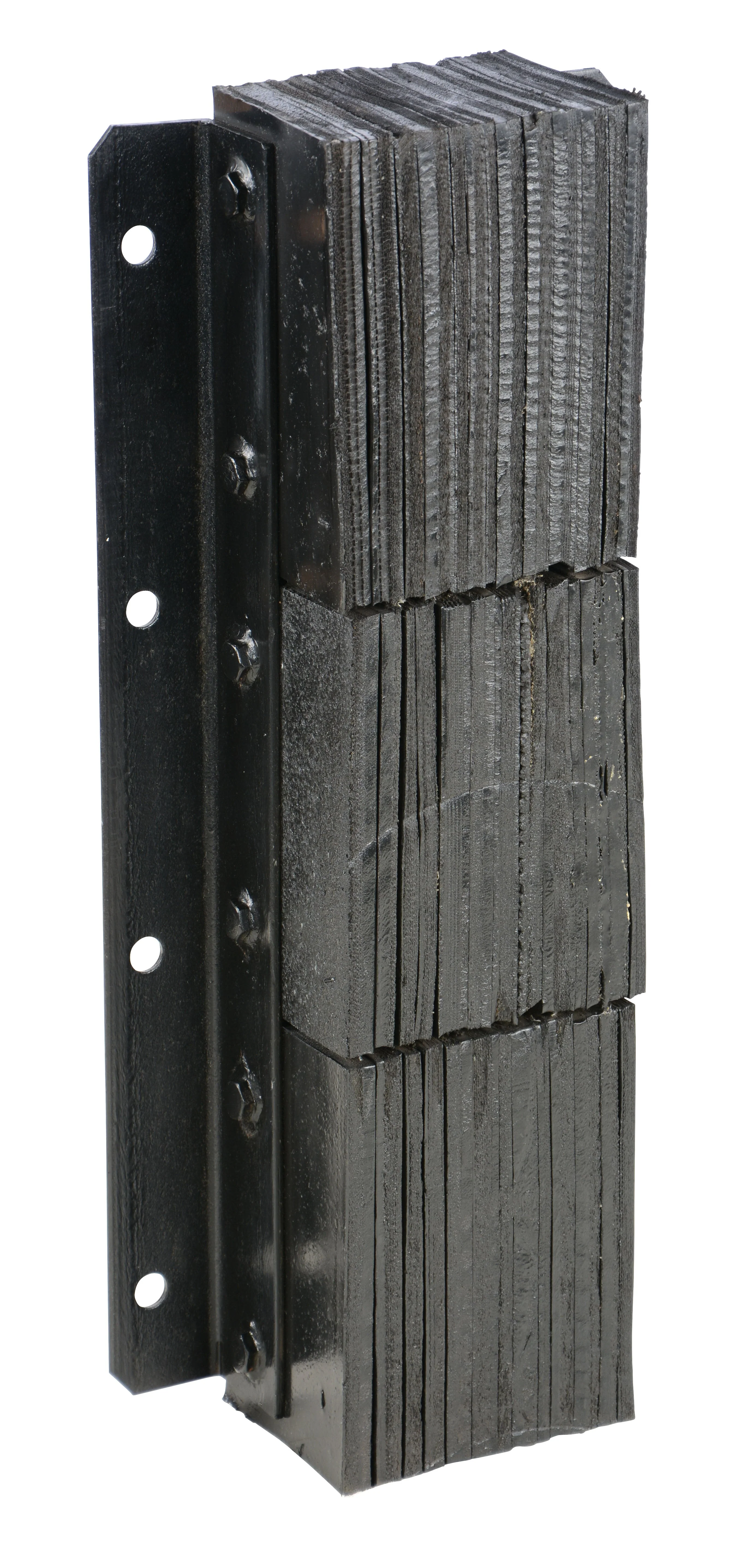

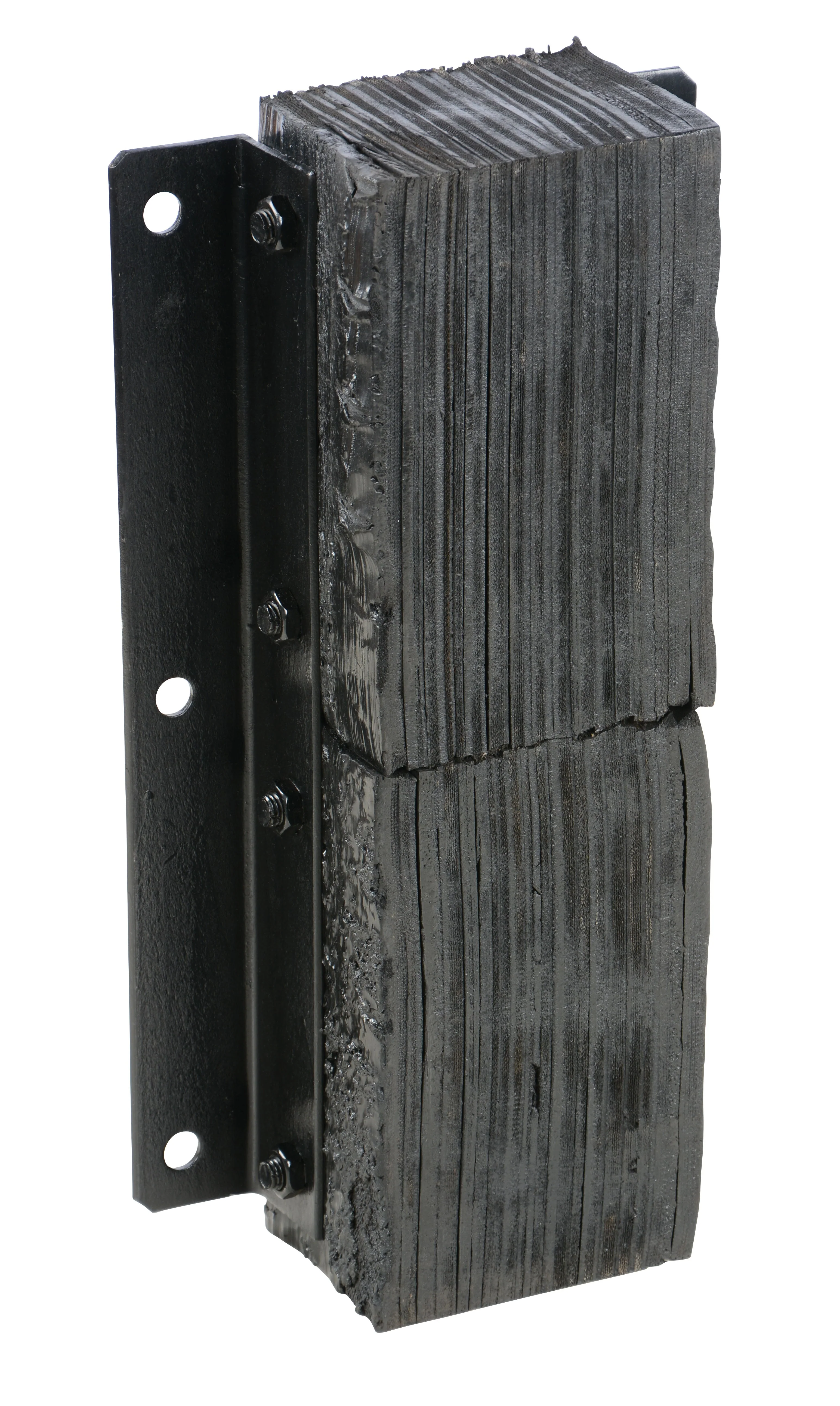

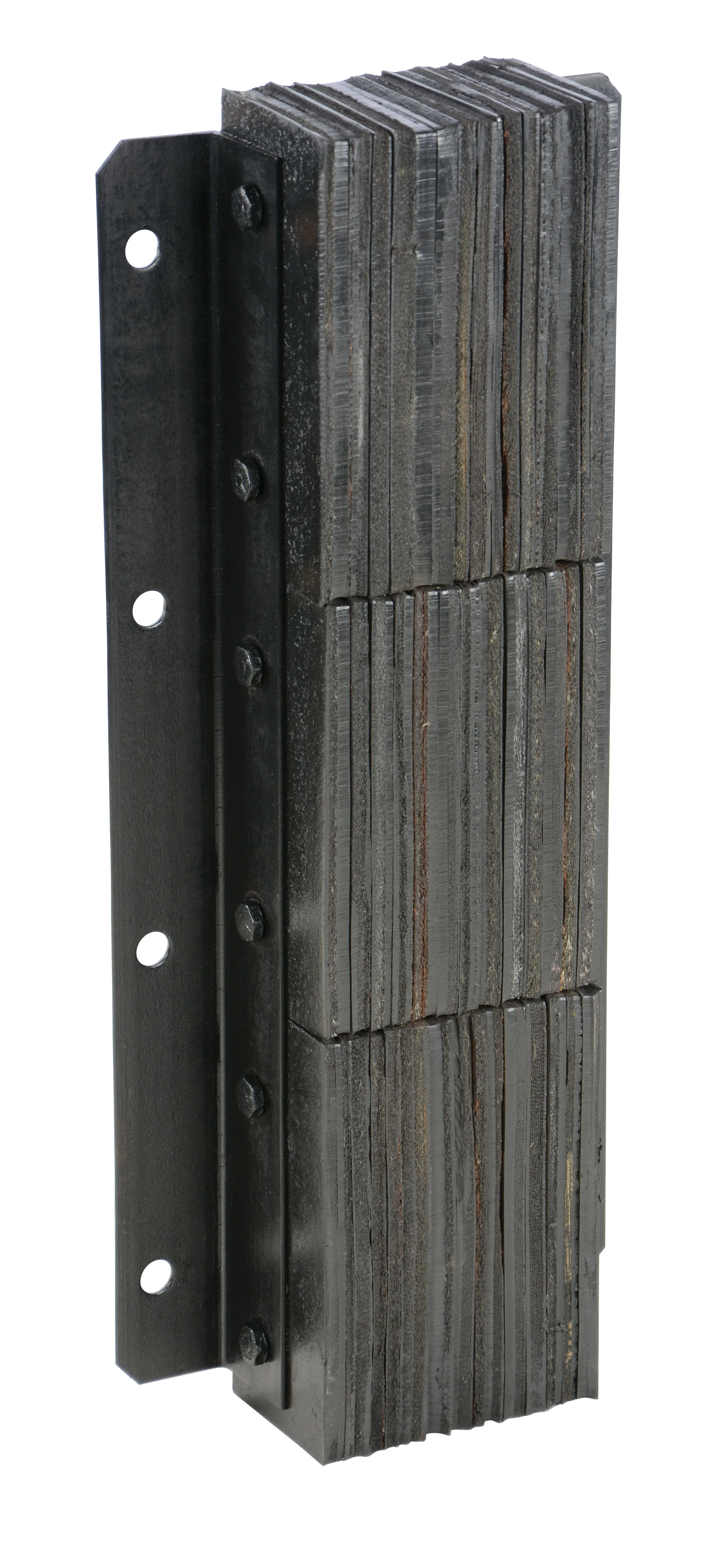

B V-1120-4.5 20"H x 11"W x 4.5" Projection - Vertical Style 41
B V-1124-4.5 24"H x 11"W x 4.5" Projection - Vertical Style 47
B V-1130-4.5 30"H x 11"W x 4.5" Projection - Vertical Style 92
B V-1136-4.5 36"H x 11"W x 4.5" Projection - Vertical Style 123

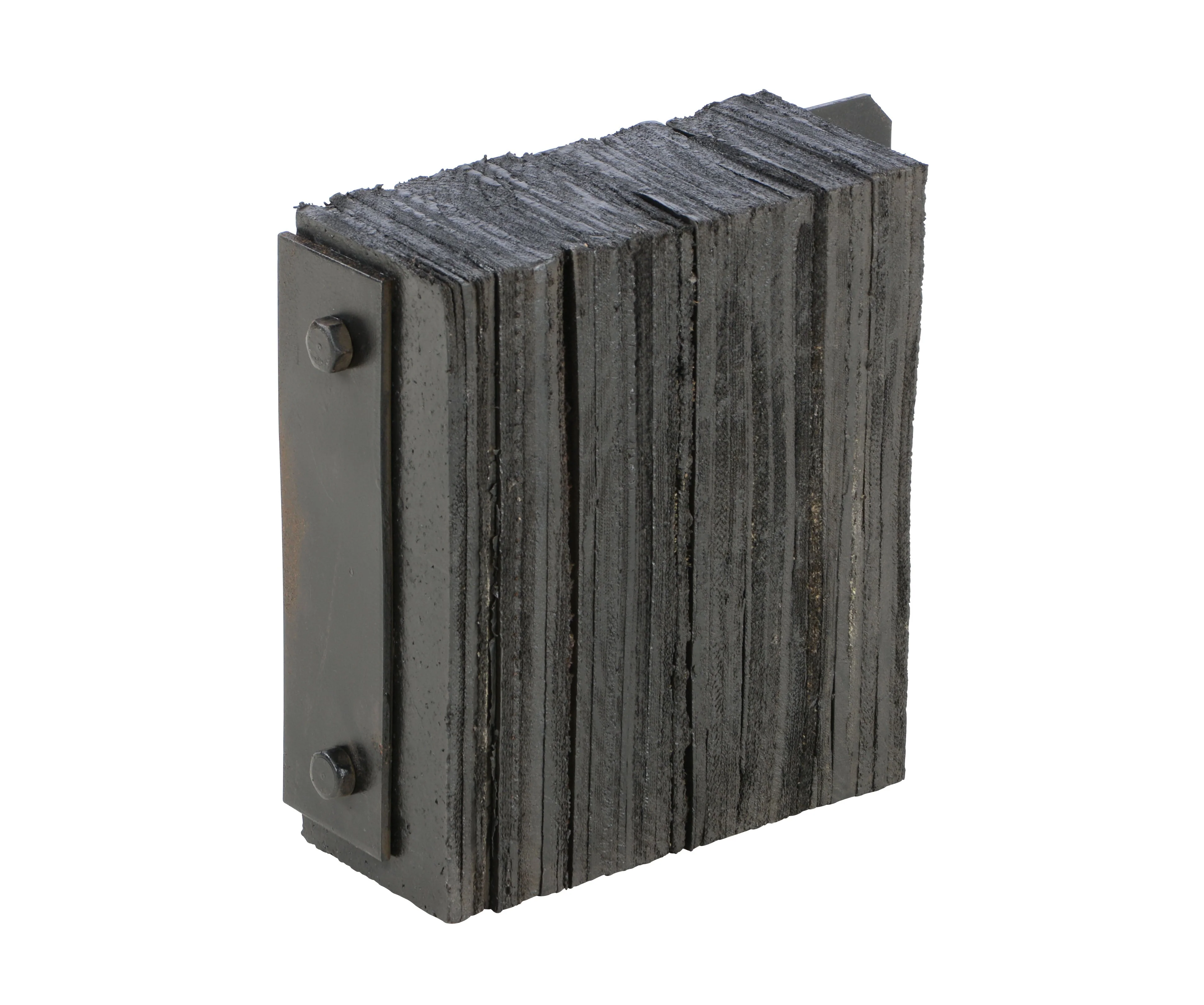

4.5" Angle Flat Bumper
Type Model Description Bolt Hole Center Wt. (lbs)
C 1014-4.5F 10"H x 14-1/8"W x 4-1/2" Projection - Flat one side 6" 32
C 1214-4.5F 12"H x 14-1/8"W x 4-1/2" Projection - Flat one side 6-7/8" 32
6" Projection Laminated Dock Bumpers
Type Model Description Wt. (lbs)
A 1012-6 10"H x 12"W x 6" Projection 27
A 1014-6 10"H x 14"W x 6" Projection 34
A 1018-6 10"H x 18"W x 6" Projection 43
A 1024-6 10"H x 24"W x 6" Projection 58
A 1030-6 10"H x 30"W x 6" Projection 75
A 1036-6 10"H x 36"W x 6" Projection 89
A 1212-6 12"H x 12"W x 6" Projection 31
A 1214-6 12"H x 14"W x 6" Projection 39
A 1218-6 12"H x 18"W x 6" Projection 51
A 1224-6 12"H x 24"W x 6" Projection 67
A 1230-6 12"H x 30"W x 6" Projection 77
A 1236-6 12"H x 36"W x 6" Projection 110
A 1296-6 12"H x 96"W x 6" Projection 316
B V-1120-6 20"H x 11"W x 6" Projection - Vertical Style 50
B V-1124-6 24"H x 11"W x 6" Projection - Vertical Style 61
B V-1130-6 30"H x 11"W x 6" Projection - Vertical Style 113
B V-1136-6 36"H x 11"W x 6" Projection - Vertical Style 134
Select Usable Dimensions (H x W)
Select Overall Depth (In.)
Select Mounting Hold Quantity
From $14.70

Original: $42.00

-65%
Vestil Laminated Dock Bumpers—

$42.00

$14.70
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

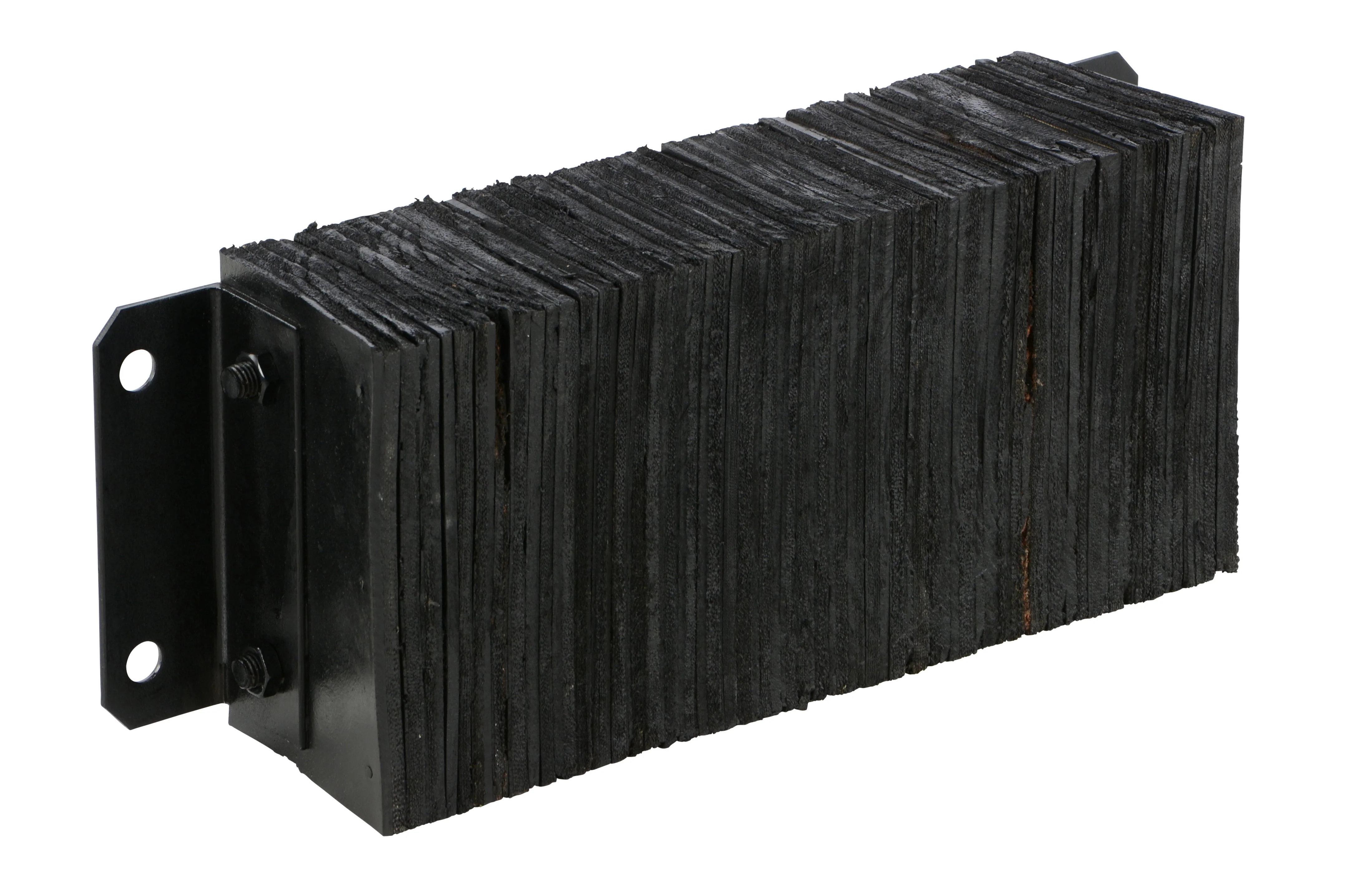

Product image 9
Product image 10

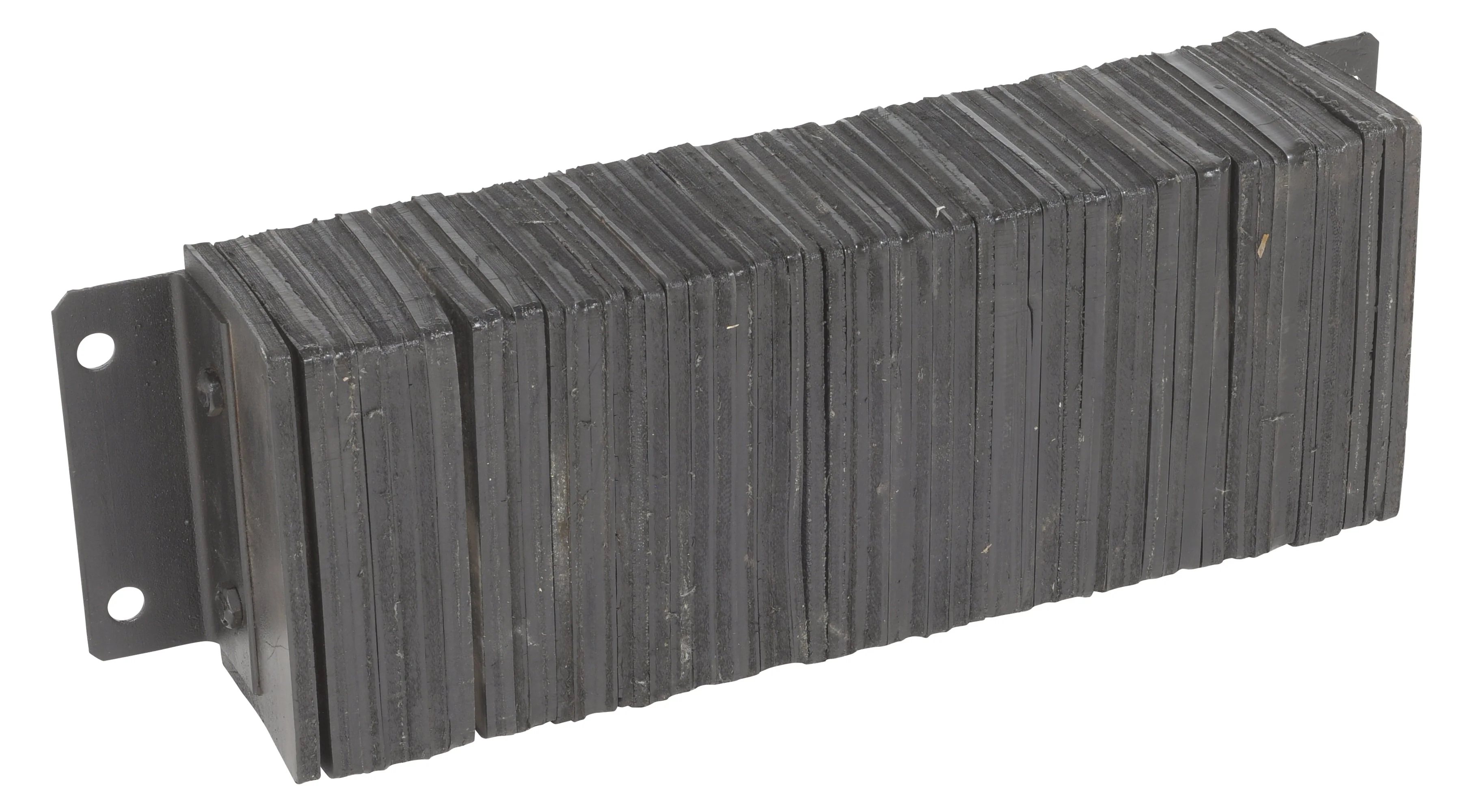

Product image 11

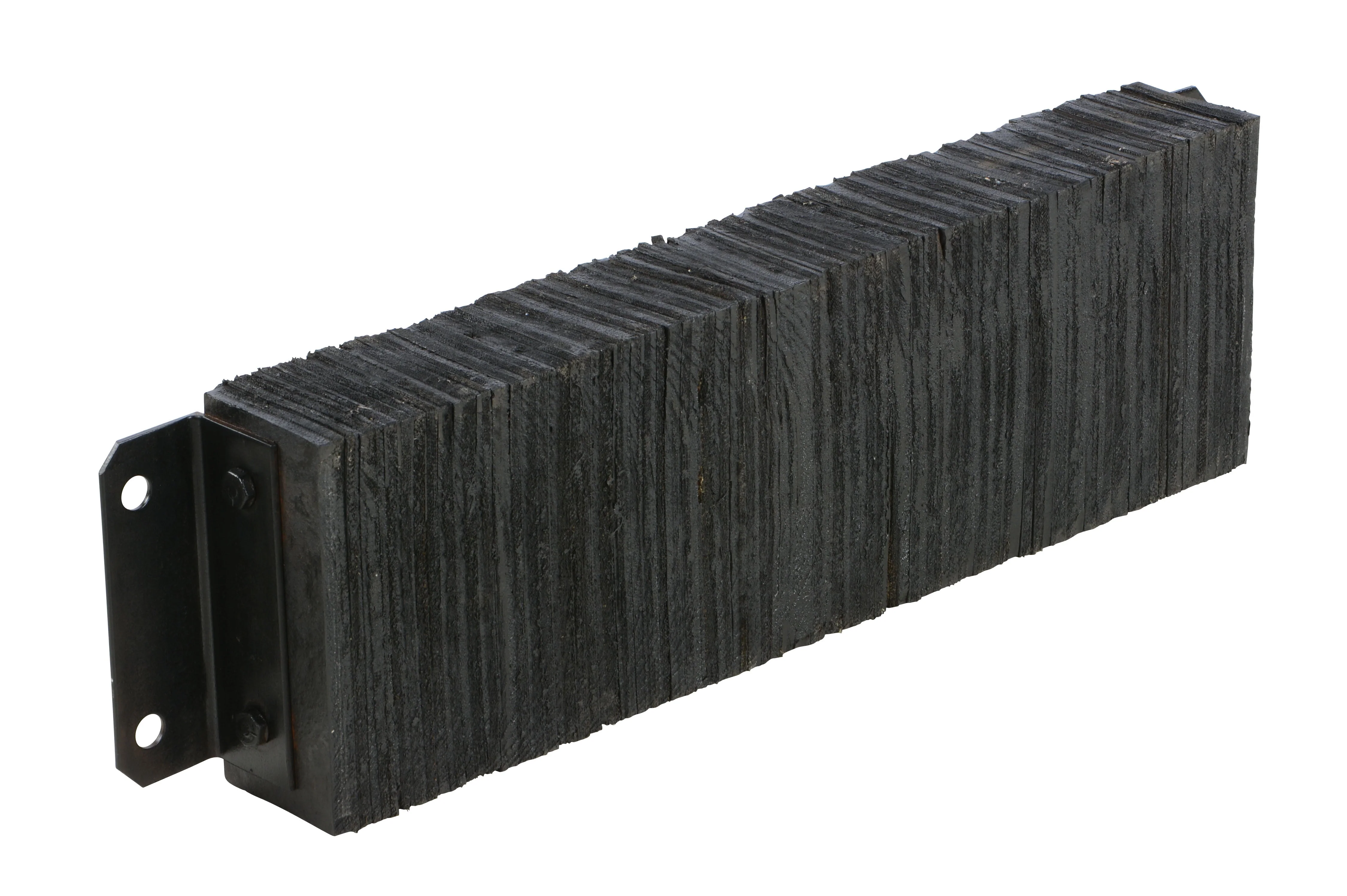

Product image 12

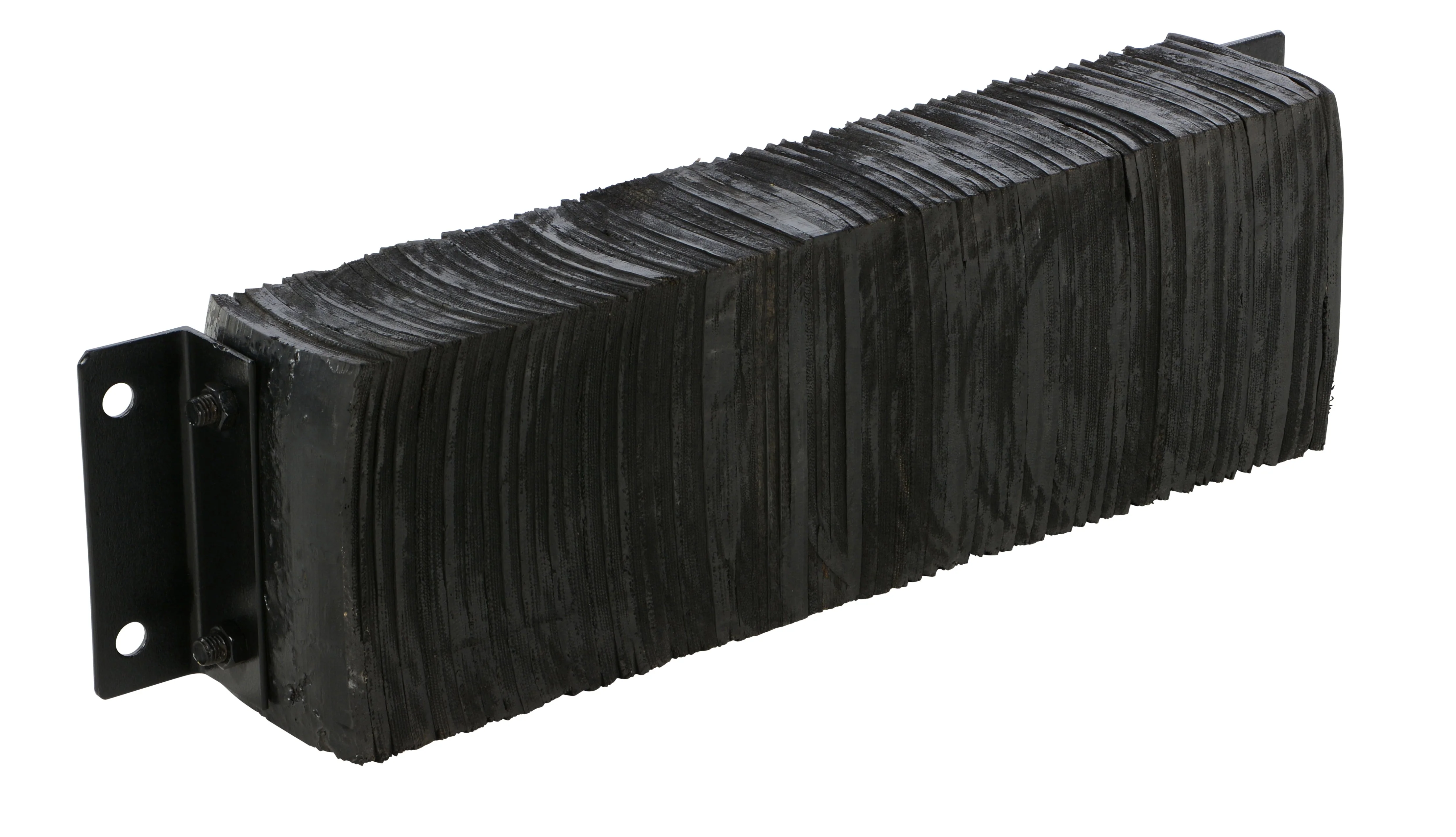

Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18

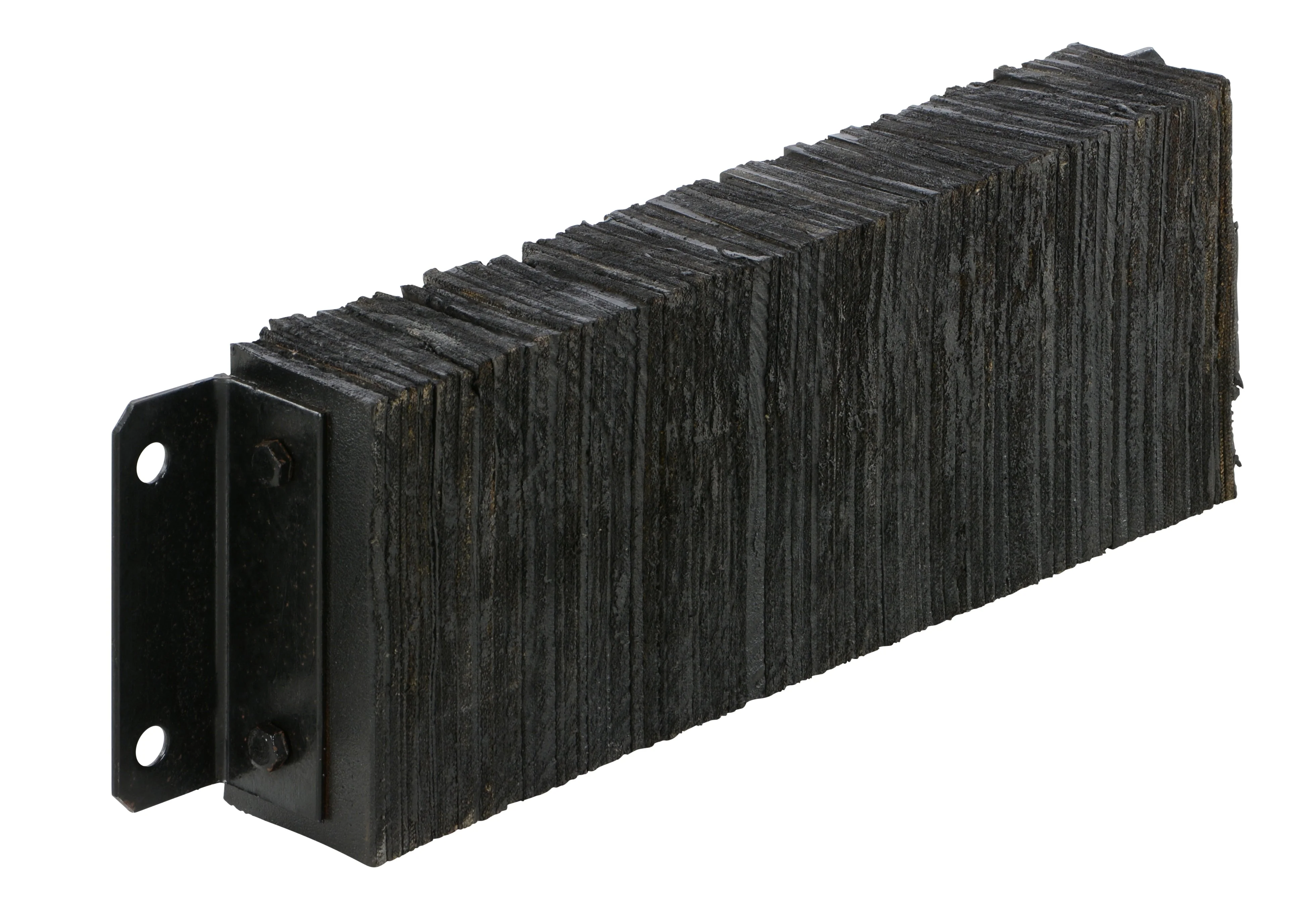

Product image 19
Product image 20
Product image 21
Product image 22

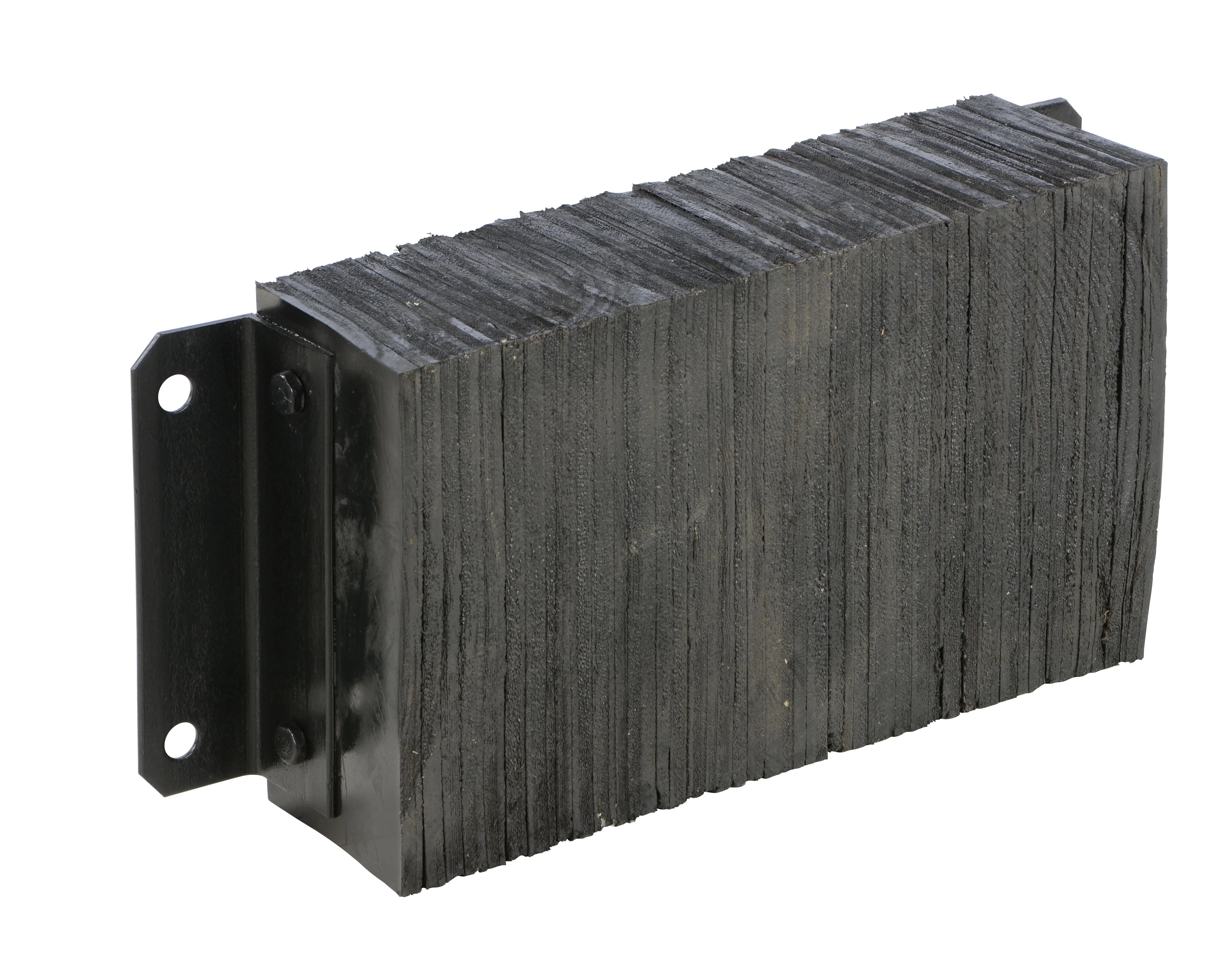

Product image 23
Product image 24
Product image 25

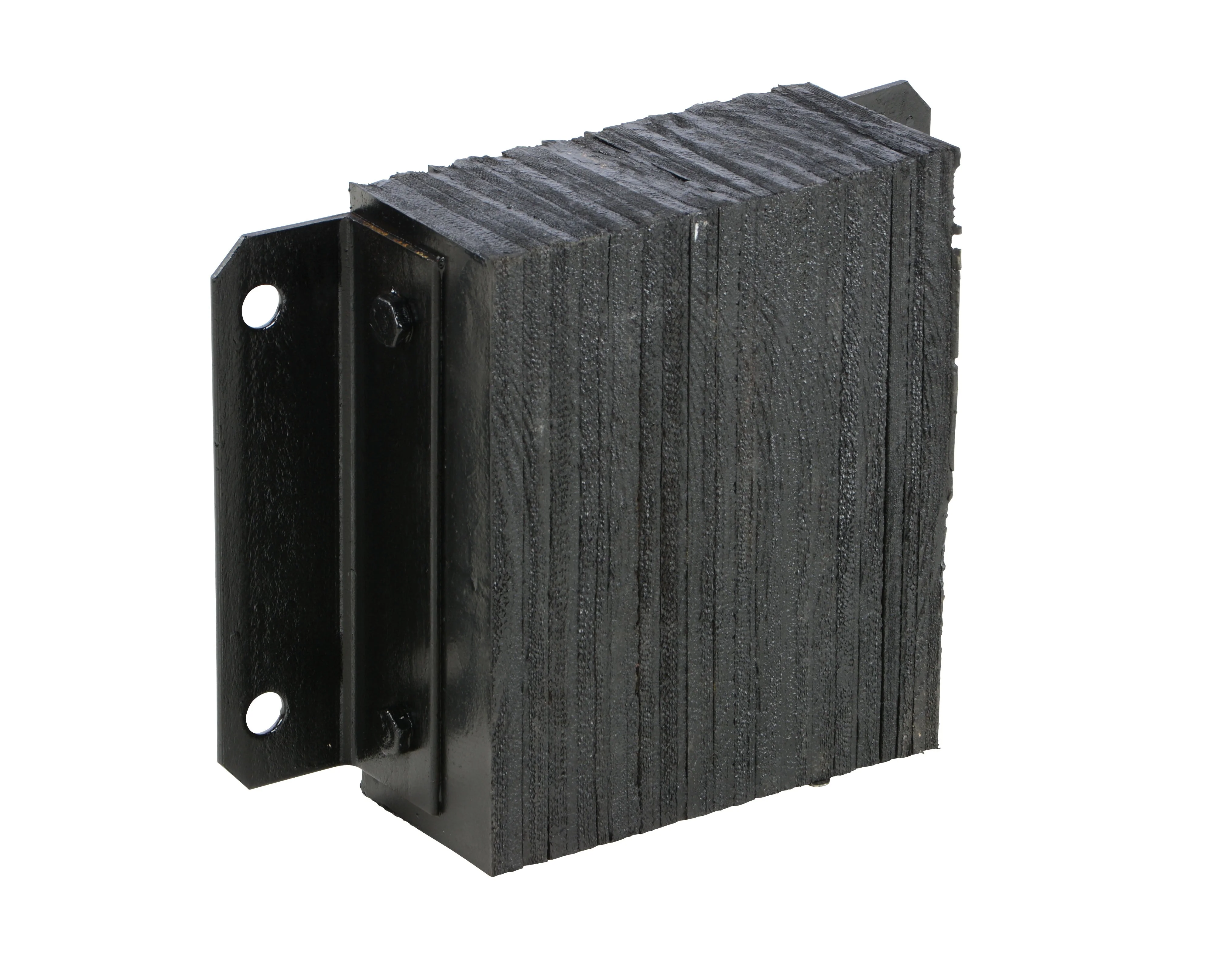

Product image 26
Product image 27
Product image 28
Product image 29
Product image 30

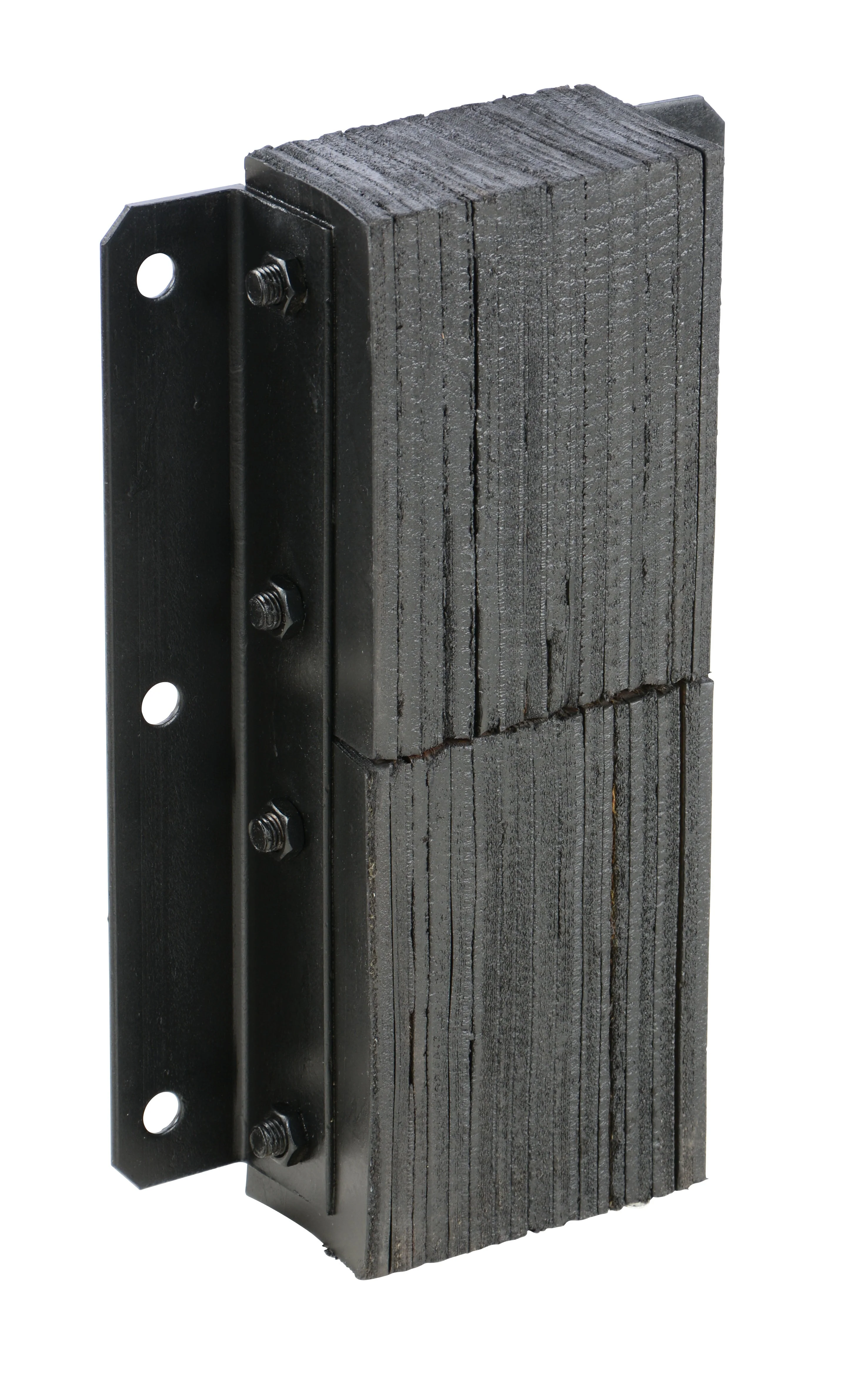

Product image 31
Product image 32

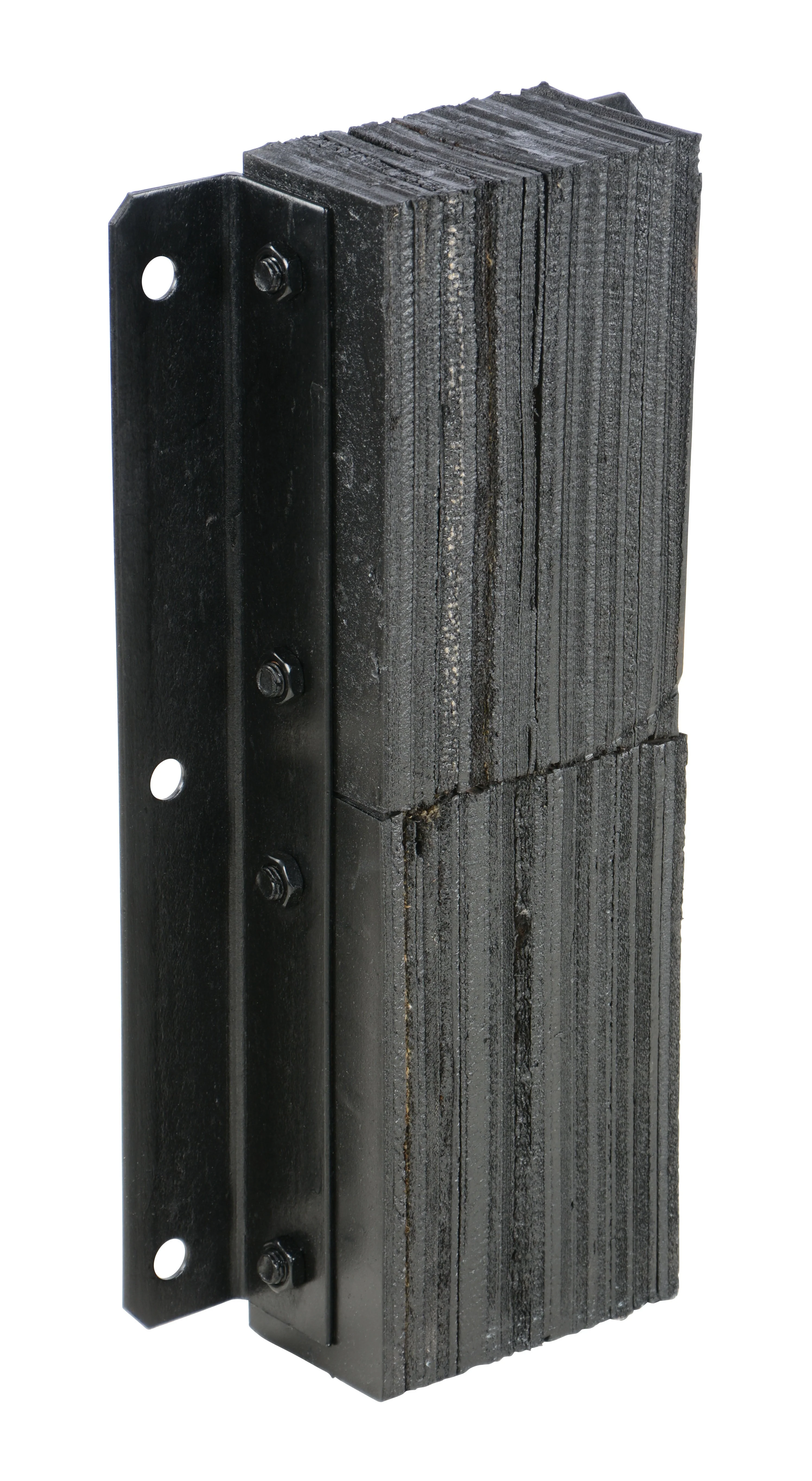

Product image 33

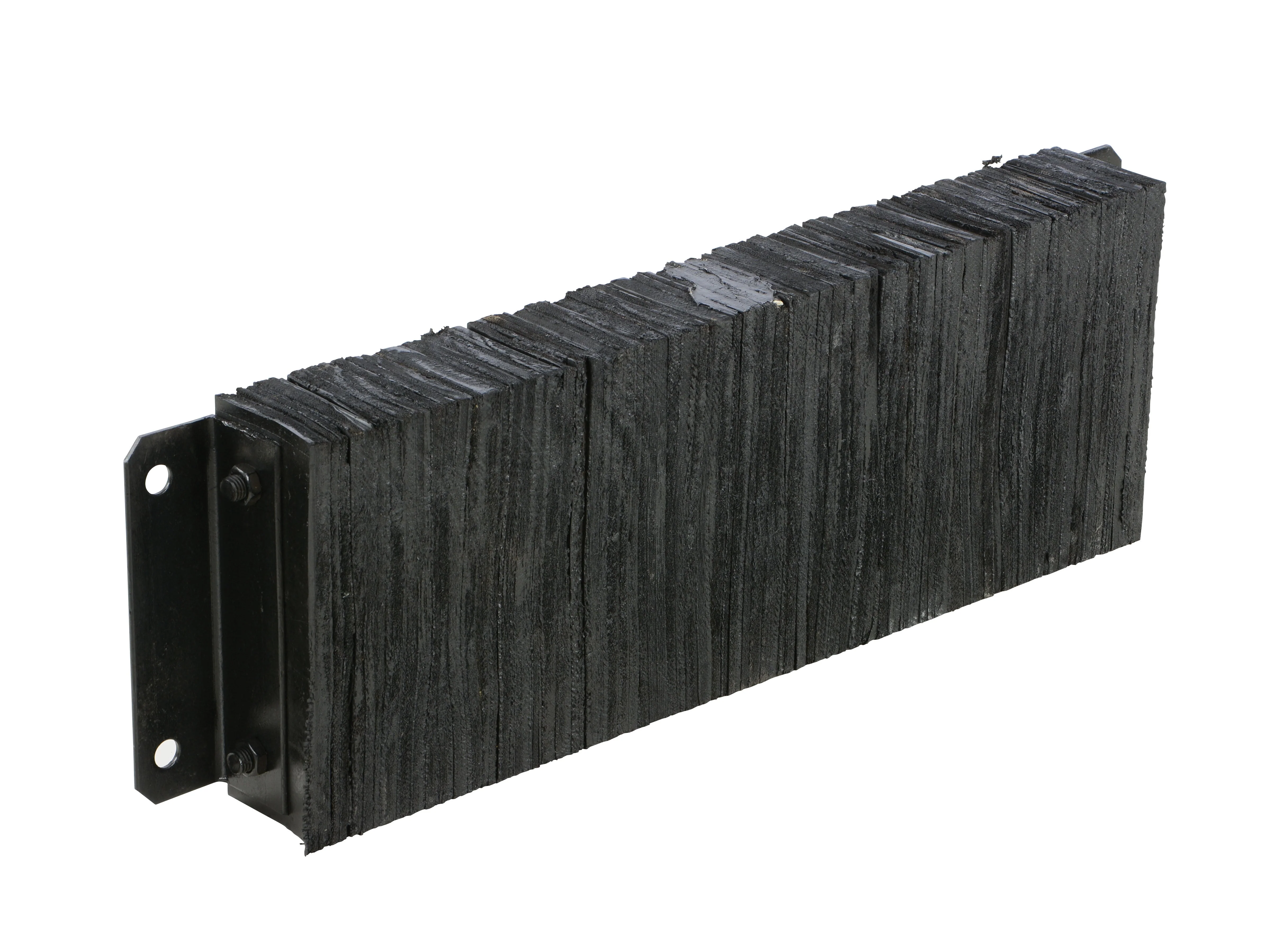

Product image 34
Product image 35
Product image 36

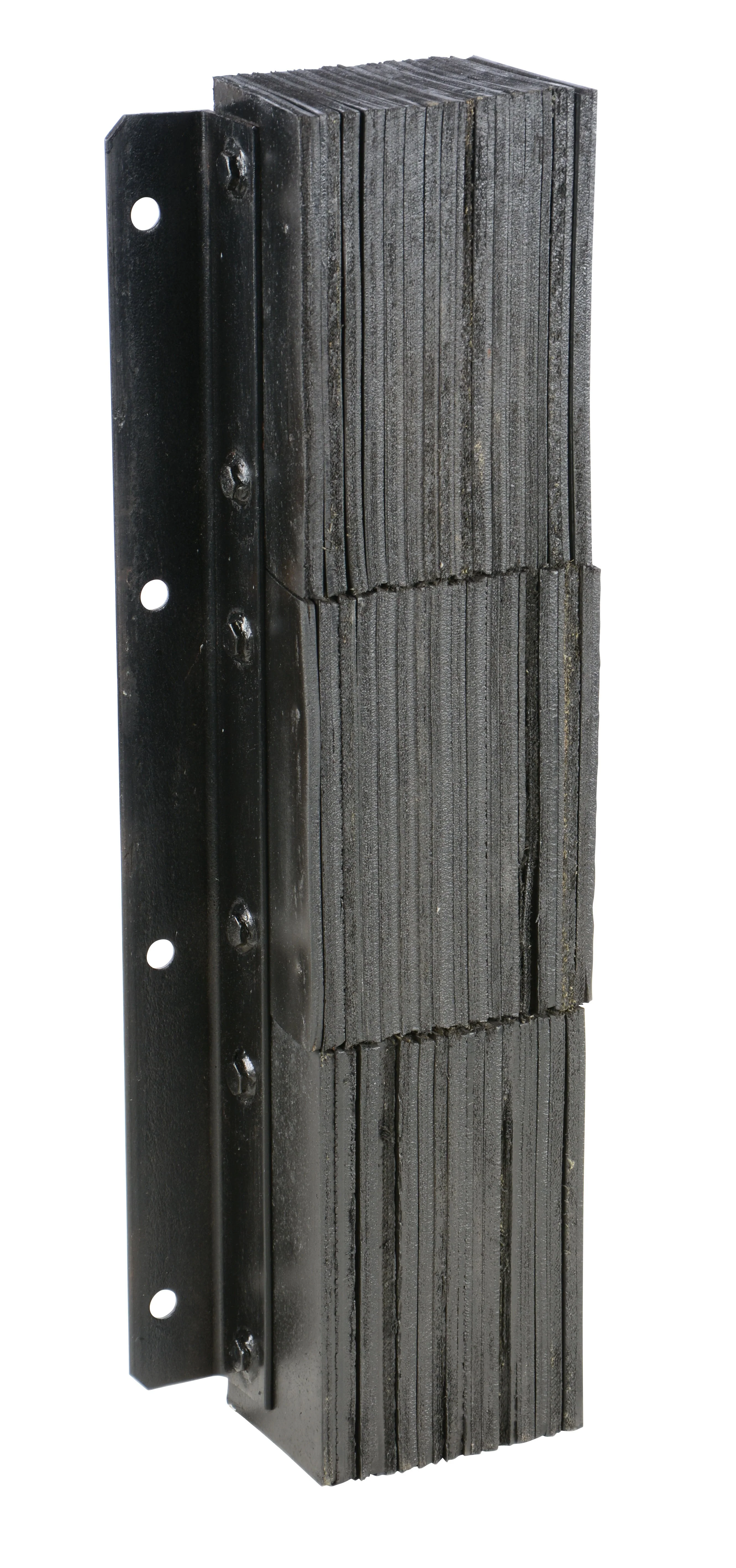

Product image 37
