Vestil Lift & Tilt Carts with Sequence Select

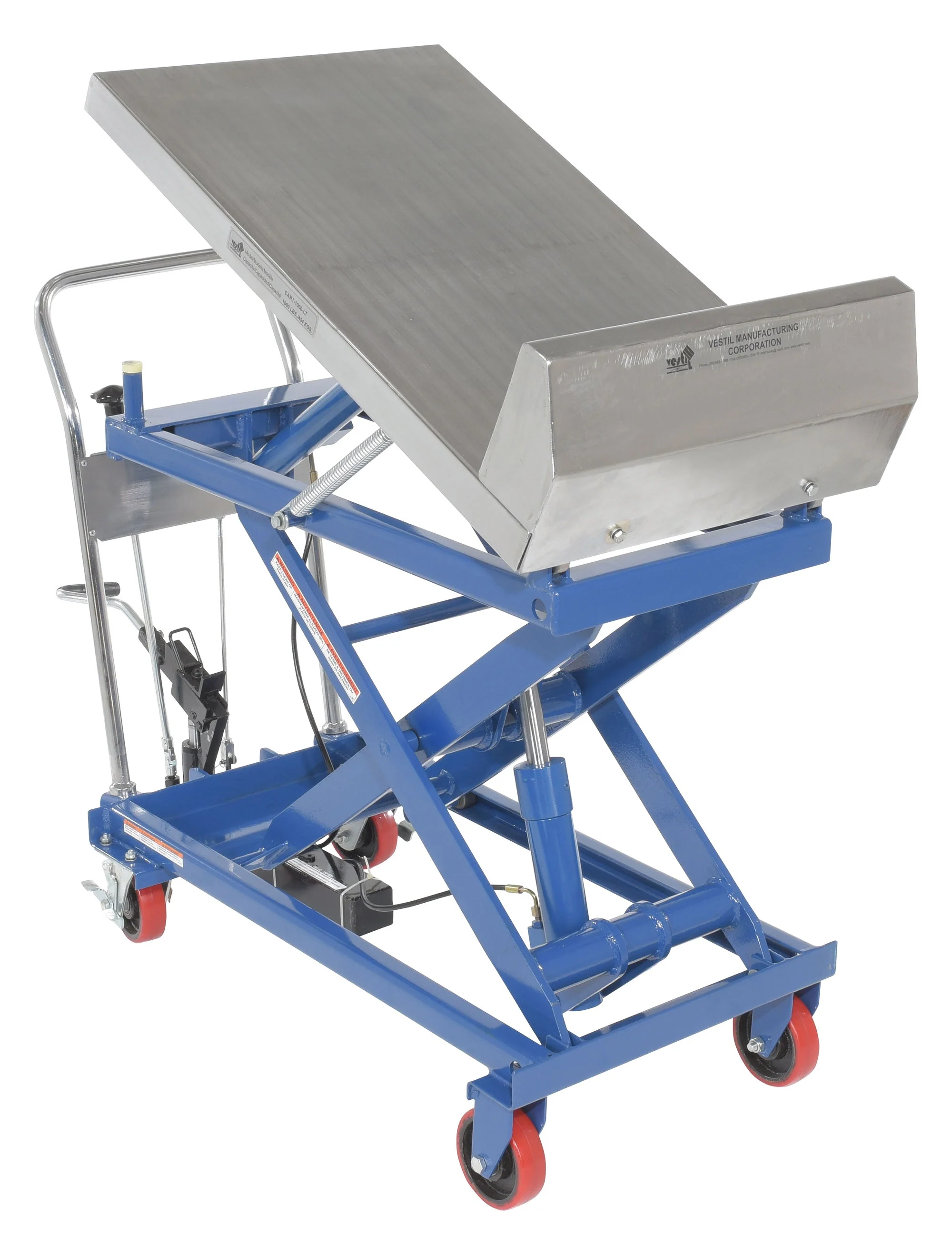

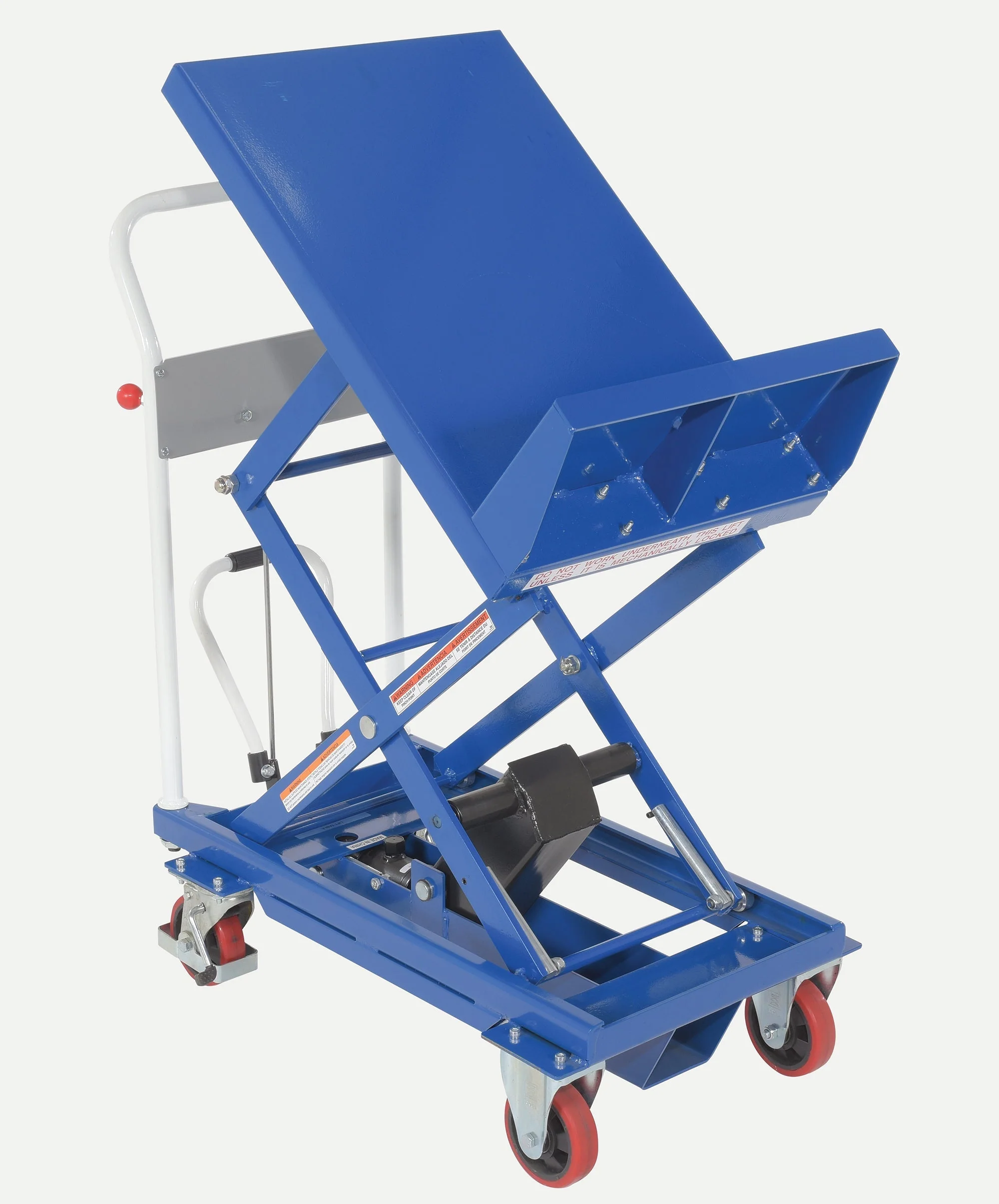

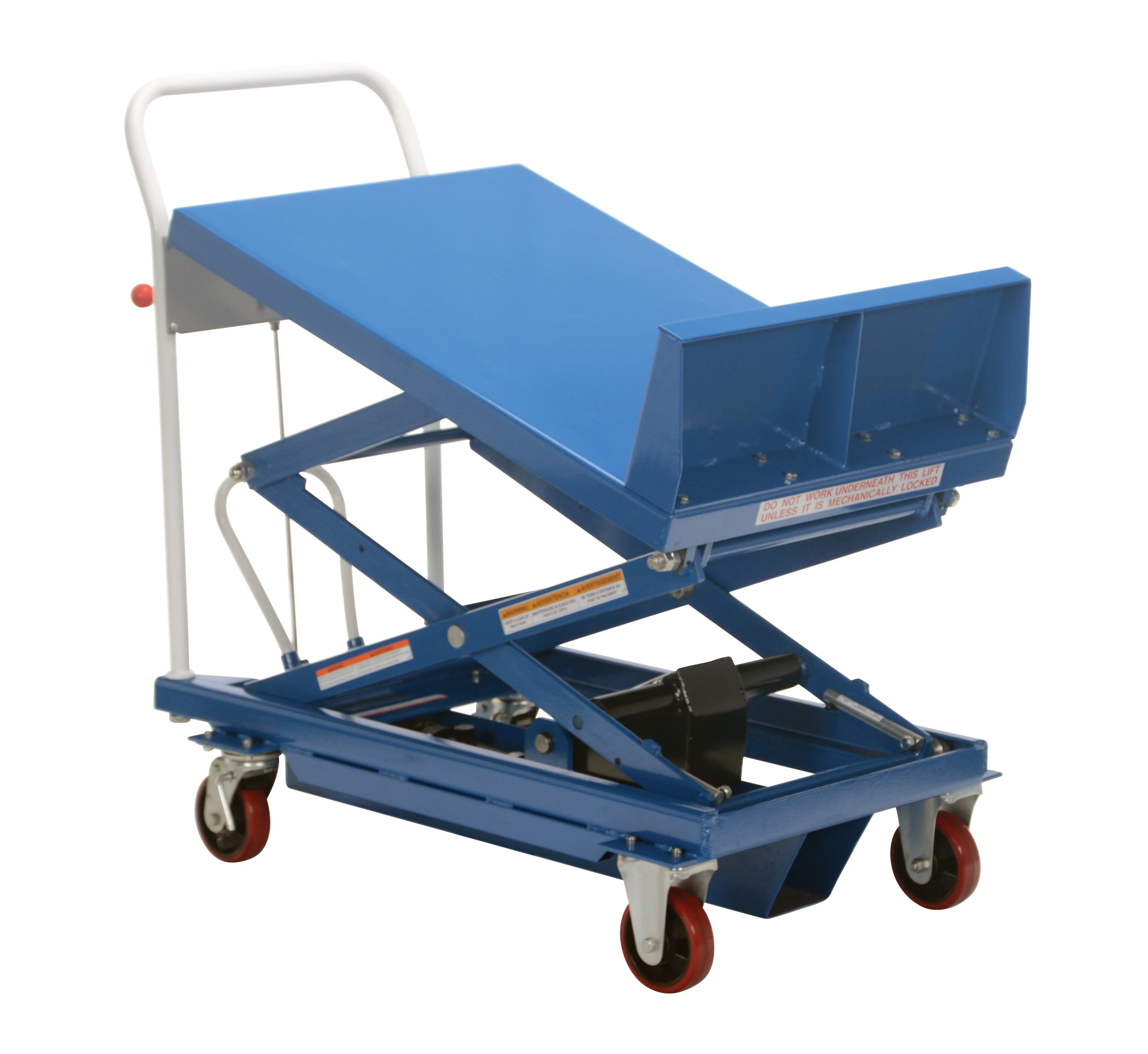

Models CART-1000-LT and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters. Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.
| Lift & Tilt Carts with Sequence Select | |||||
| Model | Platform Size (WxL) | Capacity (lbs) |
Maximum Tilt |
*Service Range |
Weight (lbs) |
| CART-1000-LT | 22"x33-1/2" | 1,000 | 35 degrees | 17-5/8" to 34-1/4" | 340 |
| CART-400-LT | 19-1/2"x30" | 400 | 45 degrees | 13" to 31" | 245 |
| CART-600-LT | 24"x36" | 600 | 45 degrees | 14" to 35" | 355 |
| Partially Stainless Steel Construction | |||||

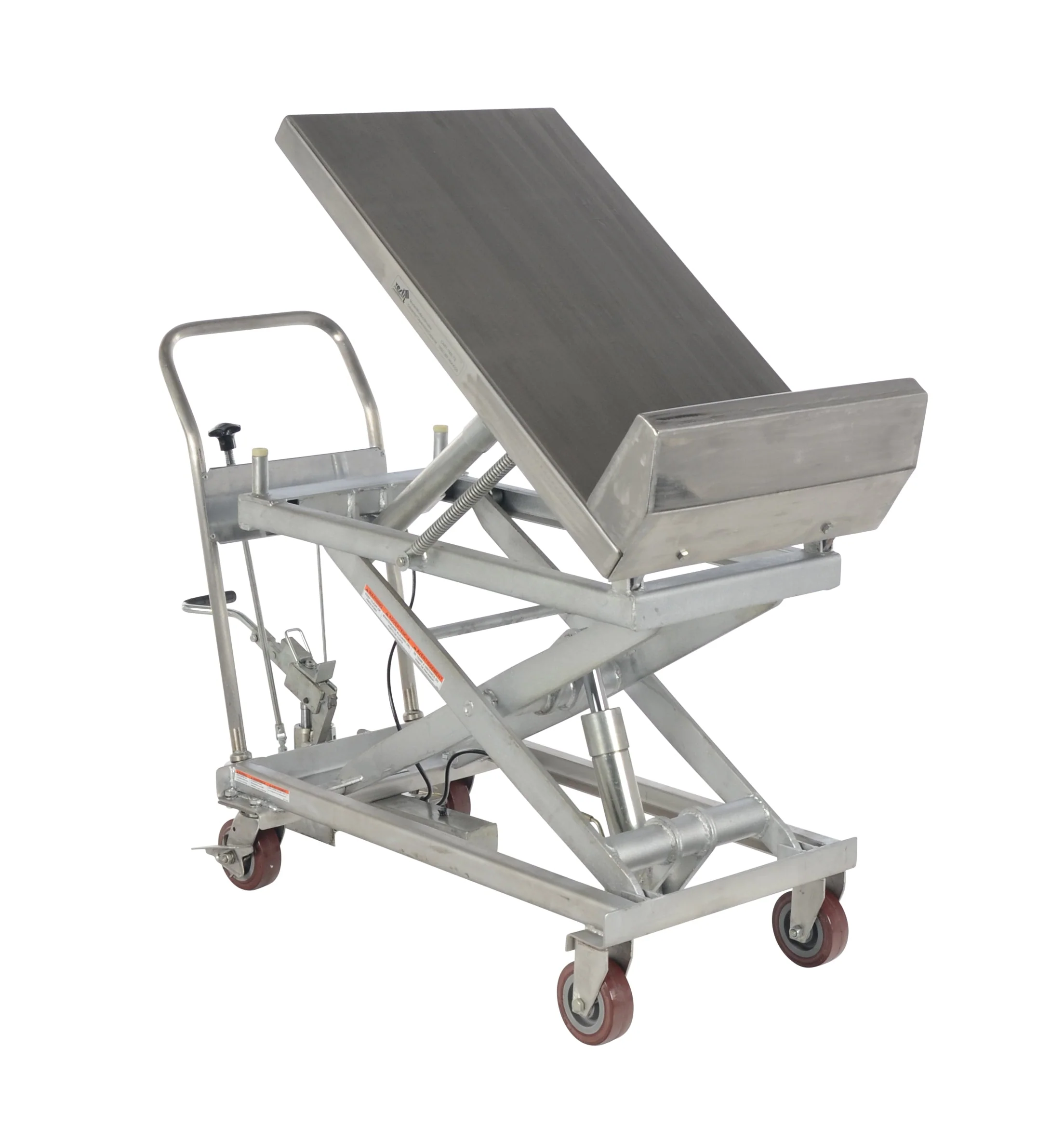

| CART-1000-LT-PSS** | 22" x 33-5/8" | 1,000 | 40 degrees | 17-1/2" to 35" | 323 |
| * Service Range with Platform Level | |||||
| **Platform, Handle, Caster Brackets & Hardware are all stainless steel. Pump assembly, Scissor Legs, and Foot Pedal are zinc plated. | |||||
Original: $955.74
-65%$955.74
$334.51
Description
Models CART-1000-LT and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters. Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.
| Lift & Tilt Carts with Sequence Select | |||||
| Model | Platform Size (WxL) | Capacity (lbs) |
Maximum Tilt |
*Service Range |
Weight (lbs) |
| CART-1000-LT | 22"x33-1/2" | 1,000 | 35 degrees | 17-5/8" to 34-1/4" | 340 |
| CART-400-LT | 19-1/2"x30" | 400 | 45 degrees | 13" to 31" | 245 |
| CART-600-LT | 24"x36" | 600 | 45 degrees | 14" to 35" | 355 |
| Partially Stainless Steel Construction | |||||
| CART-1000-LT-PSS** | 22" x 33-5/8" | 1,000 | 40 degrees | 17-1/2" to 35" | 323 |
| * Service Range with Platform Level | |||||
| **Platform, Handle, Caster Brackets & Hardware are all stainless steel. Pump assembly, Scissor Legs, and Foot Pedal are zinc plated. | |||||
