Vestil Linear Actuated Elevating Carts

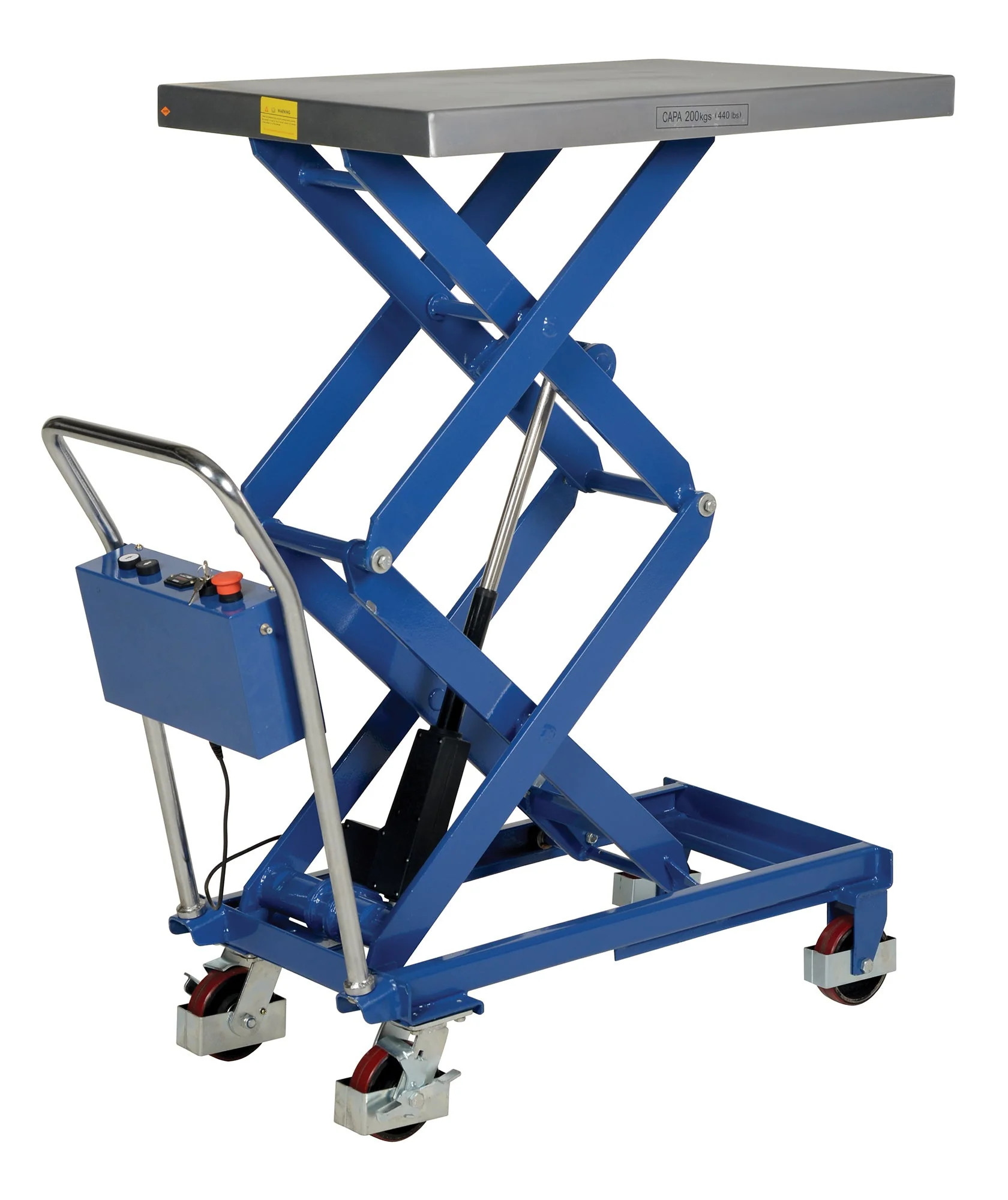

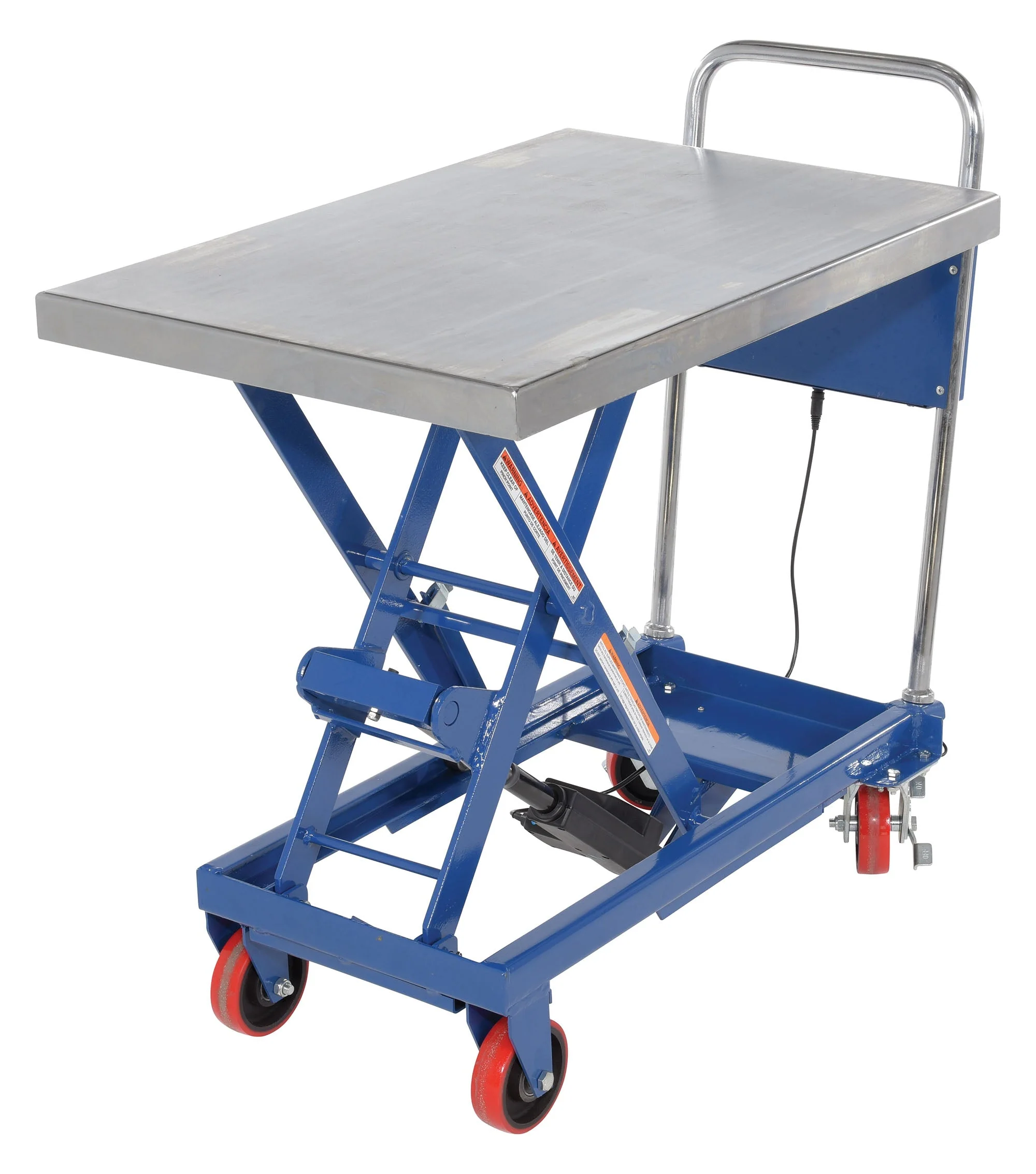

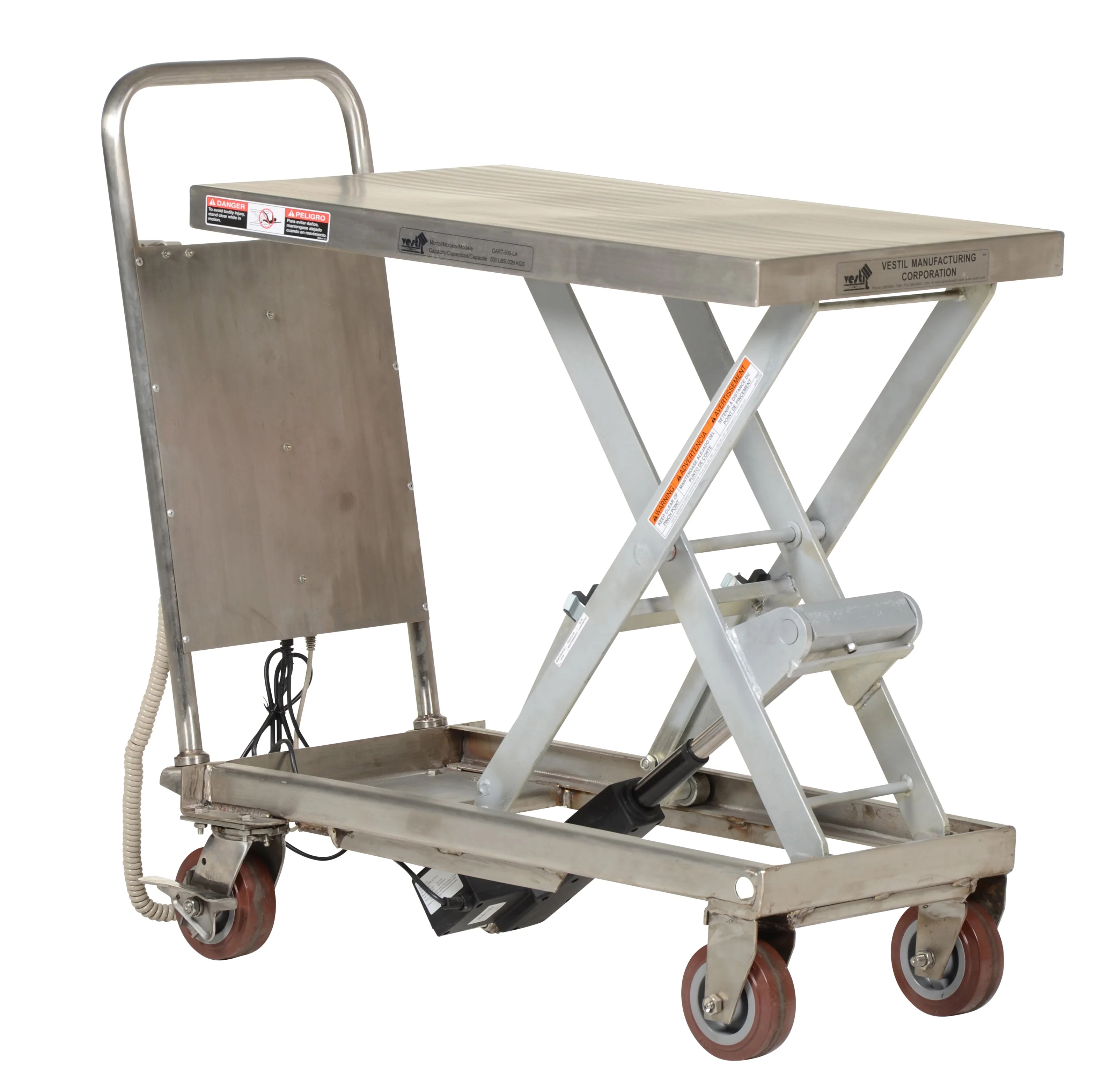

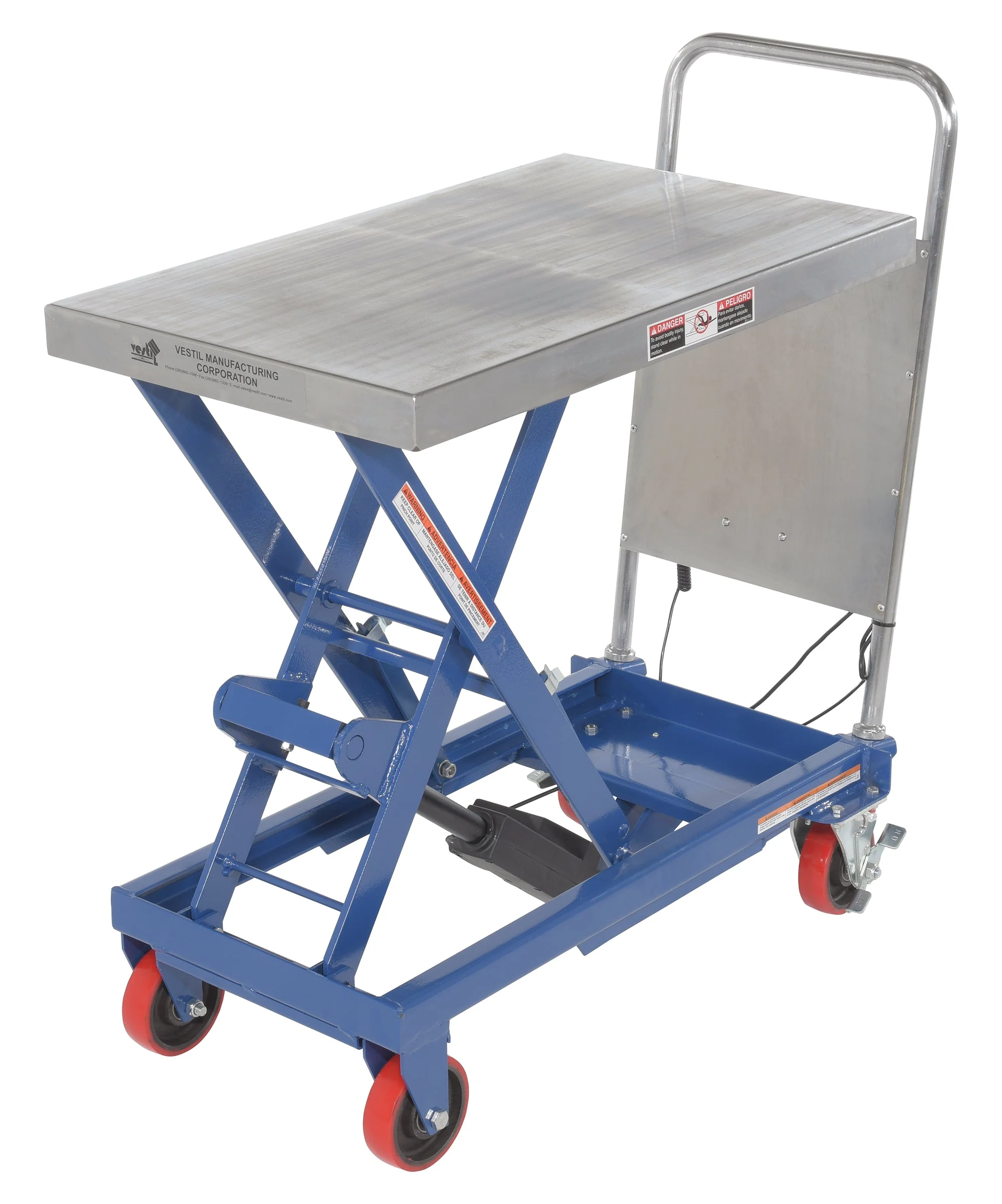

Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts. CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard. CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger. Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.
| Linear Actuated Elevating Cart | |||||
| Model | Platform Size (WxL) |
Capacity (lbs) |
Lowered Height |
Raised Height |
Wt. (lbs) |
| Steel Construction | |||||
| CART-400-LA | 23-5/8"x35-1/2" | 400 | 15" | 34" | 228 |
| CART-400-D-LA | 23-5/8"x35-1/2" | 400 | 15" | 50" | 276 |
| CART-500-LA | 19-1/2"x32" | 500 | 15" | 33" | 224 |
|
Partially Stainless Steel Construction |
|||||
| CART-500-LA-PSS | 19-1/2"x32" | 500 | 15" | 33" | 186 |
Original: $1,193.53
-65%$1,193.53
$417.74
Description
Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts. CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard. CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger. Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.
| Linear Actuated Elevating Cart | |||||
| Model | Platform Size (WxL) |
Capacity (lbs) |
Lowered Height |
Raised Height |
Wt. (lbs) |
| Steel Construction | |||||
| CART-400-LA | 23-5/8"x35-1/2" | 400 | 15" | 34" | 228 |
| CART-400-D-LA | 23-5/8"x35-1/2" | 400 | 15" | 50" | 276 |
| CART-500-LA | 19-1/2"x32" | 500 | 15" | 33" | 224 |
|
Partially Stainless Steel Construction |
|||||
| CART-500-LA-PSS | 19-1/2"x32" | 500 | 15" | 33" | 186 |
