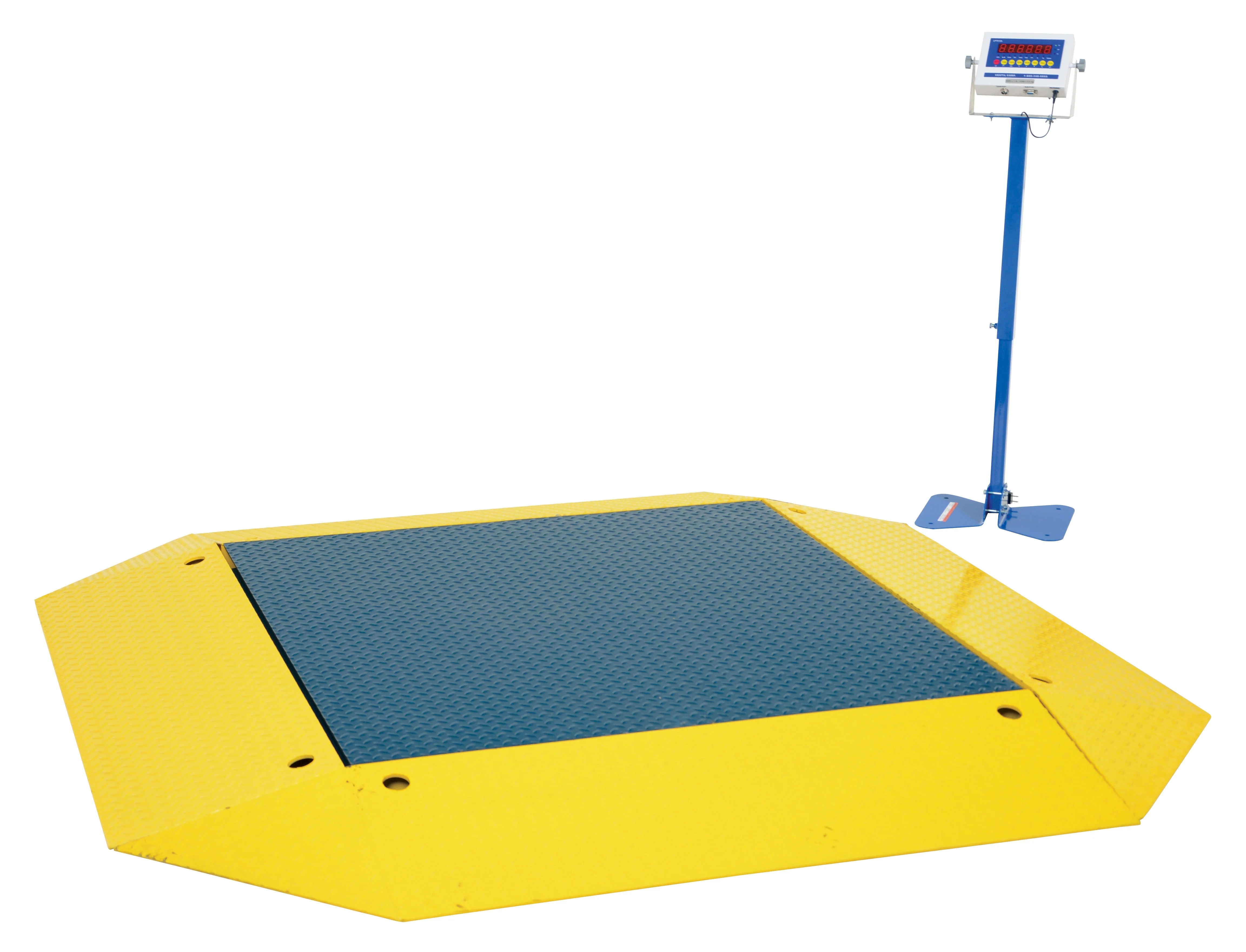

Vestil Low Profile Scale & Ramp
Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2 deck plate, grid core, and a 3/8 bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degree or 20 percent slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.
| Low Profile Scales & Ramps | |||
| Model | Capacity (lbs) |
Platform Size (WxLxH) |
Wt. (lbs) |
| SCALE-LP-44-5K | 5,000 | 48"x48"x 3" | 700 |
| SCALE-LP-44-10K | 10,000 | 48"x48"x 3" | 700 |
| SCALE-LP-44-20K | 20,000 | 48"x48"x 3" | 1480 |
Description
Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2 deck plate, grid core, and a 3/8 bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degree or 20 percent slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.
| Low Profile Scales & Ramps | |||
| Model | Capacity (lbs) |
Platform Size (WxLxH) |
Wt. (lbs) |
| SCALE-LP-44-5K | 5,000 | 48"x48"x 3" | 700 |
| SCALE-LP-44-10K | 10,000 | 48"x48"x 3" | 700 |
| SCALE-LP-44-20K | 20,000 | 48"x48"x 3" | 1480 |
