Vestil Maintenance Ladders

Vestil Maintenance Ladders

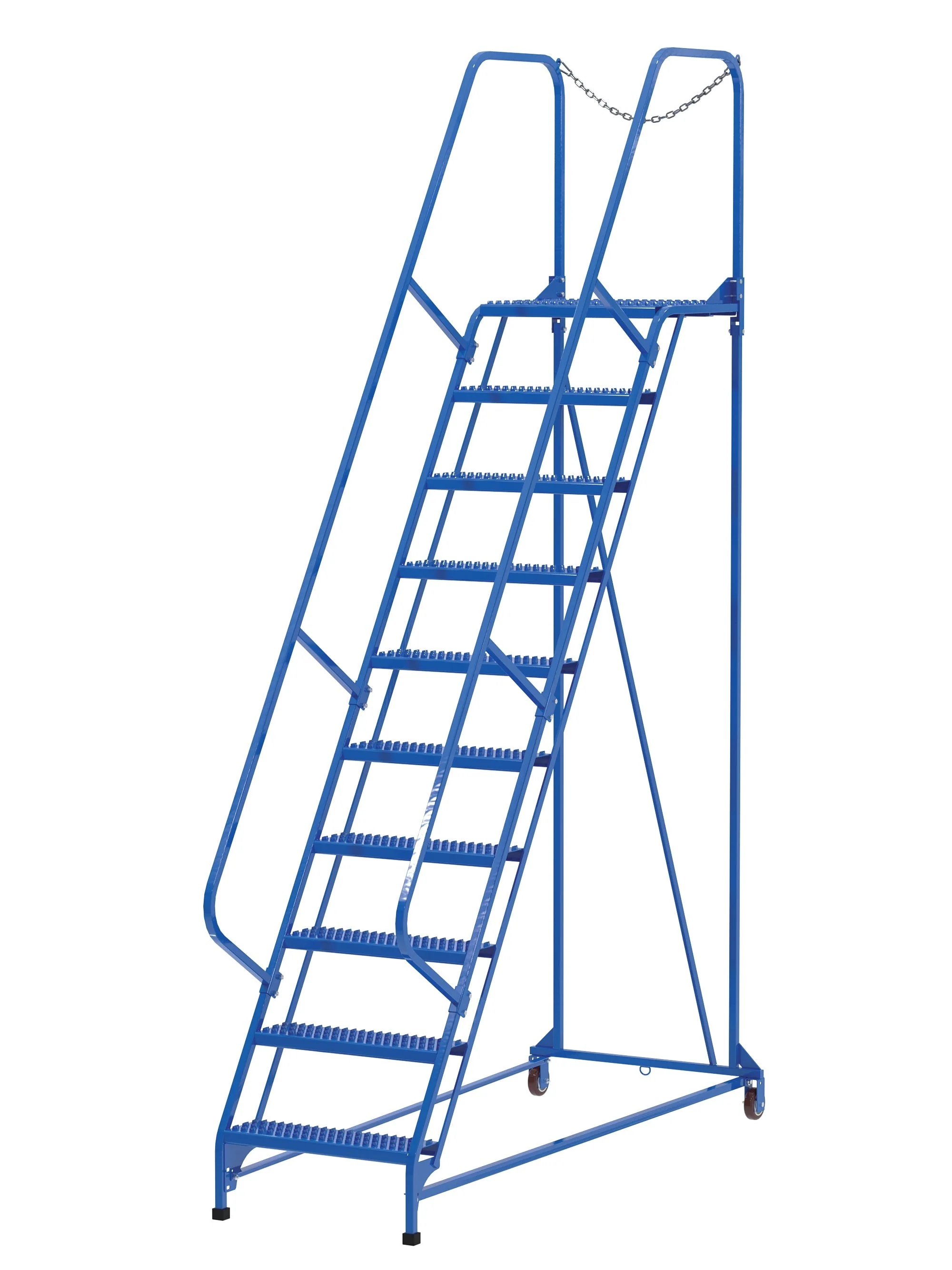

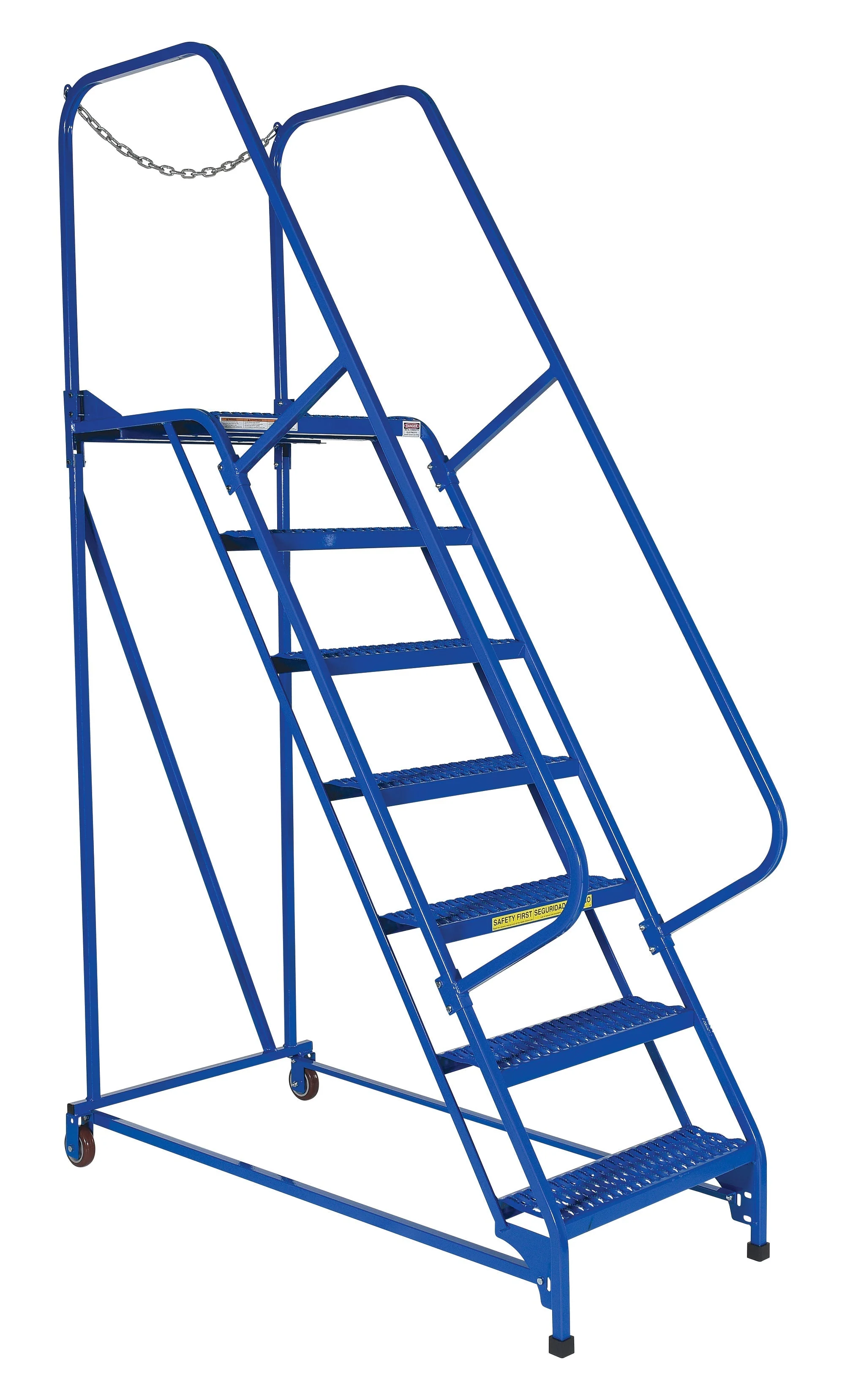

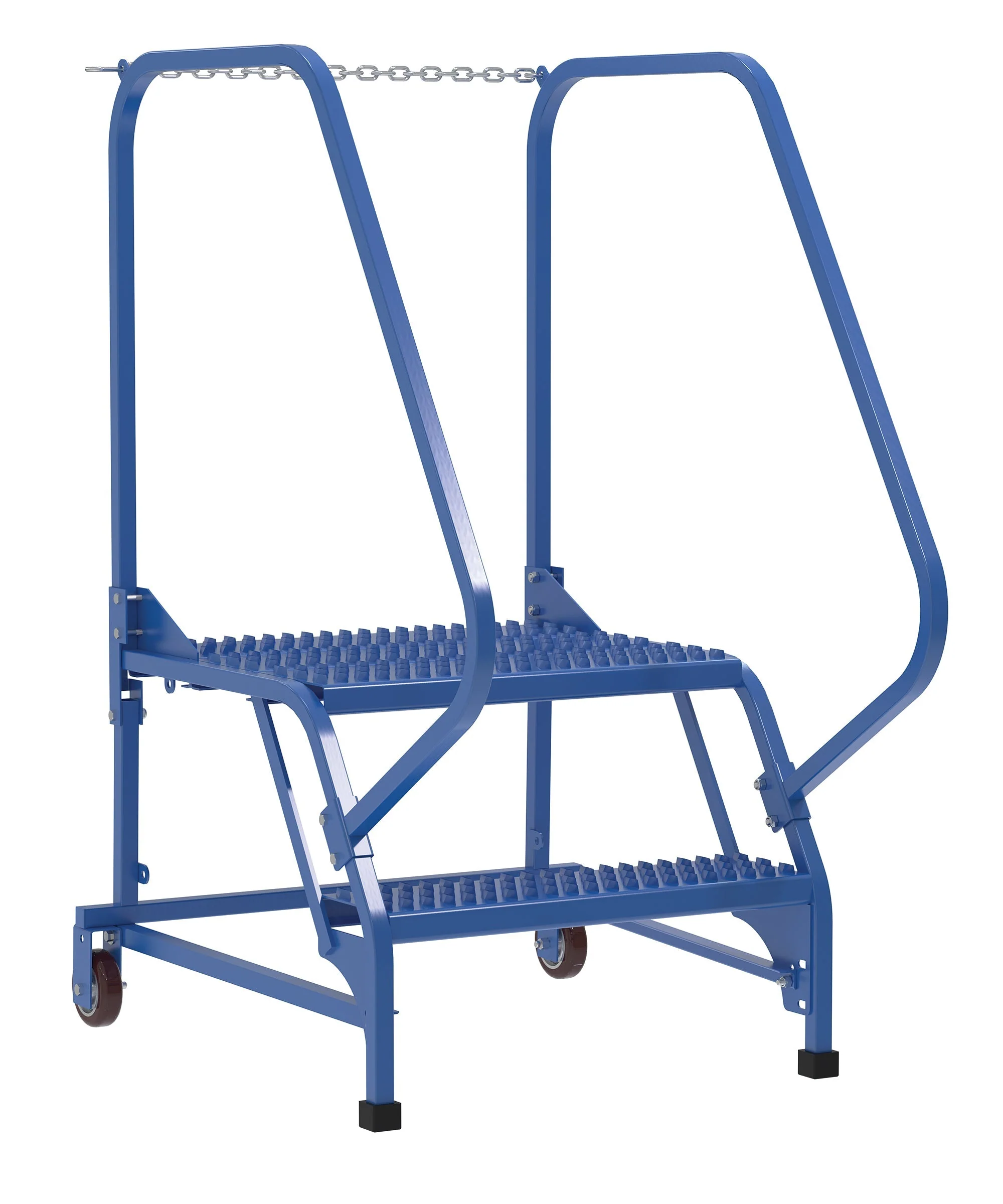

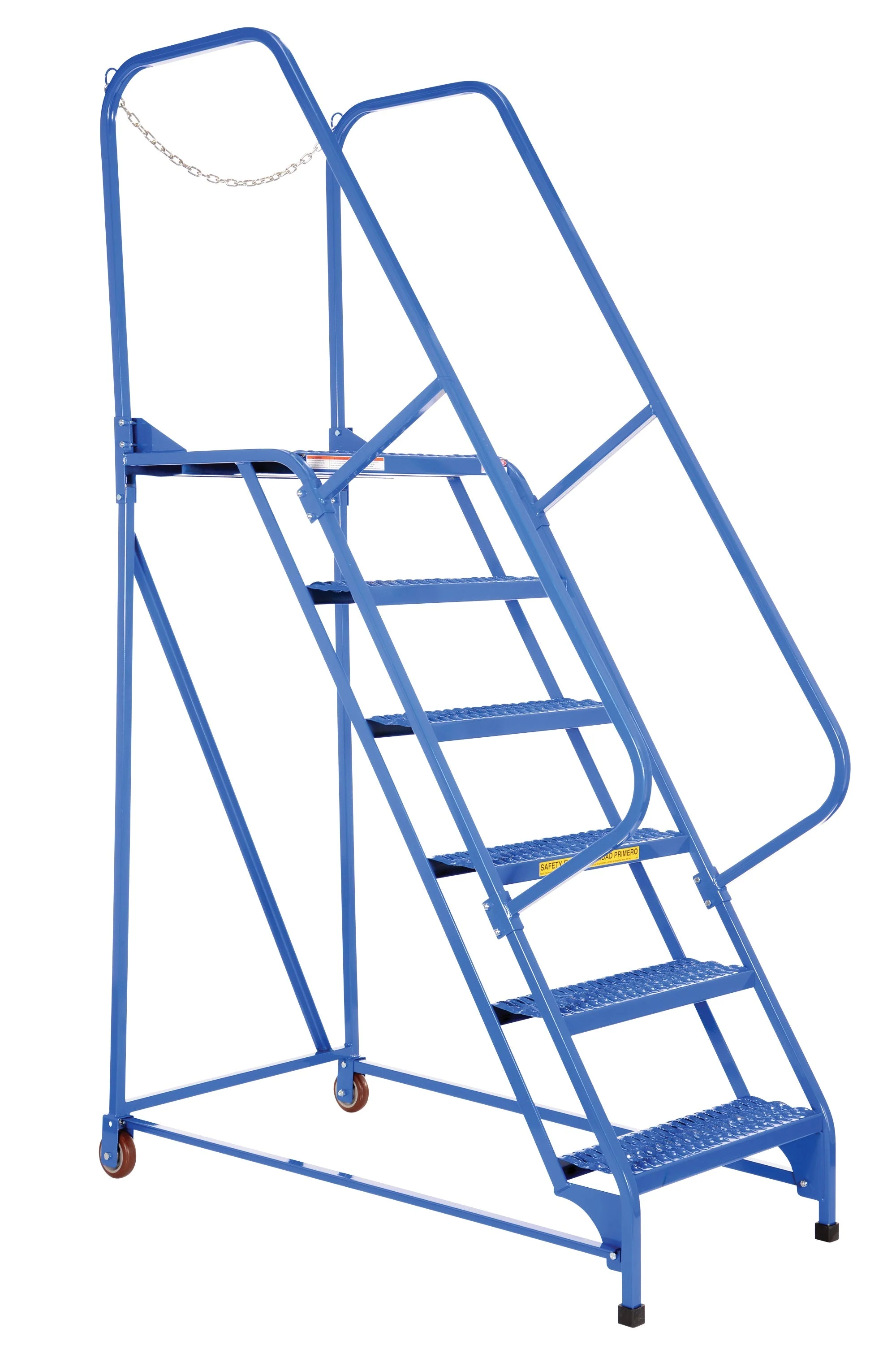

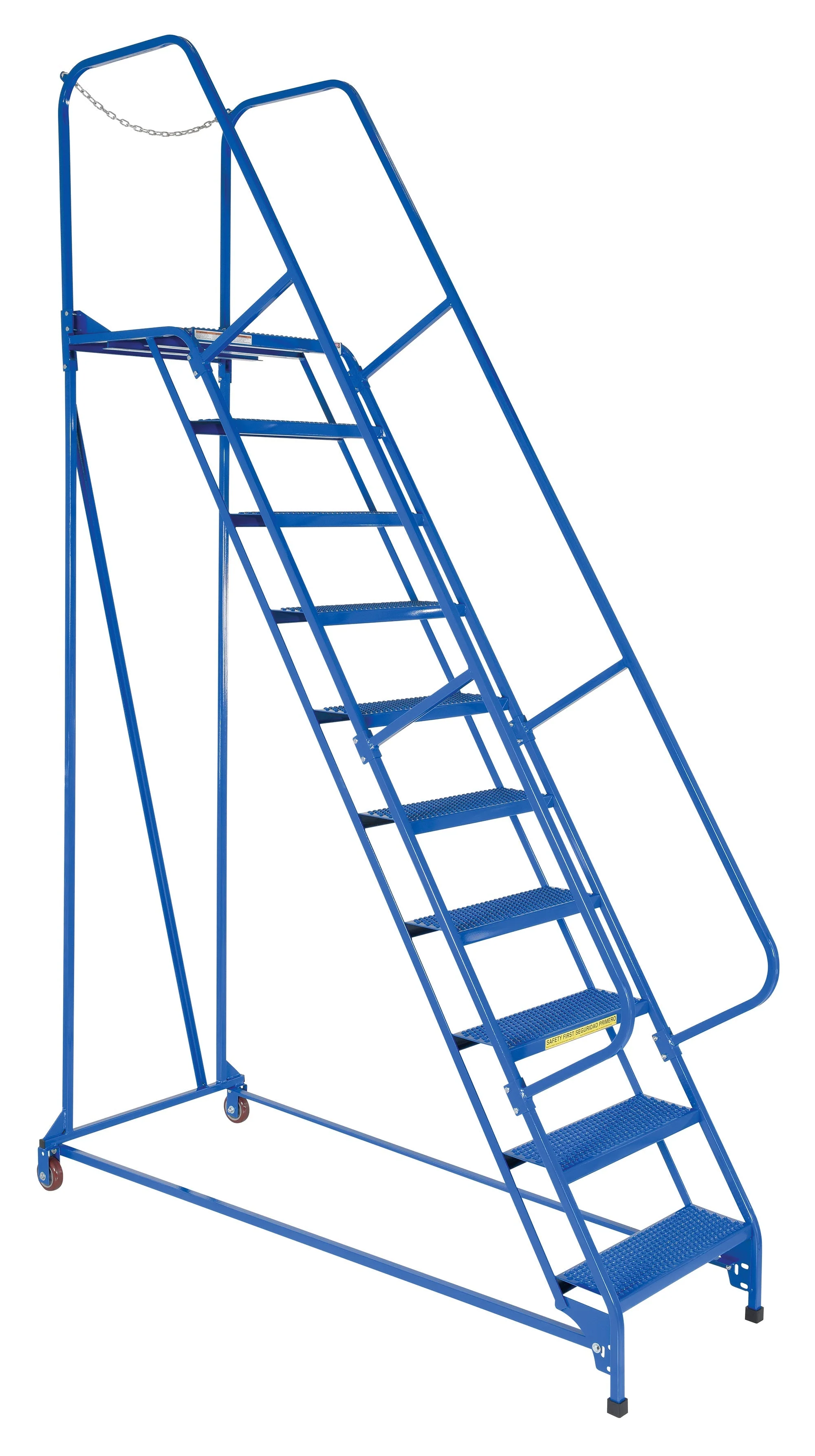

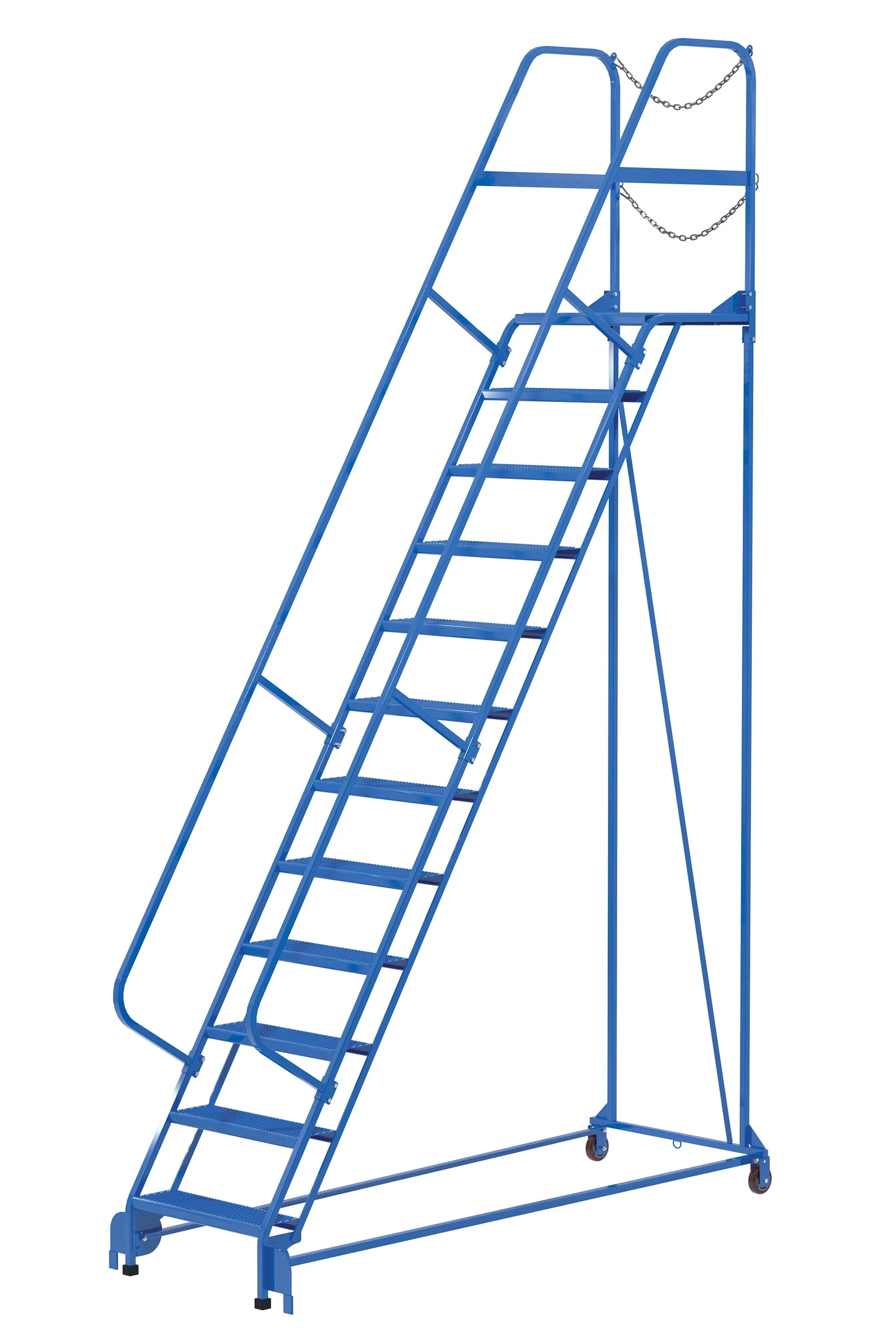

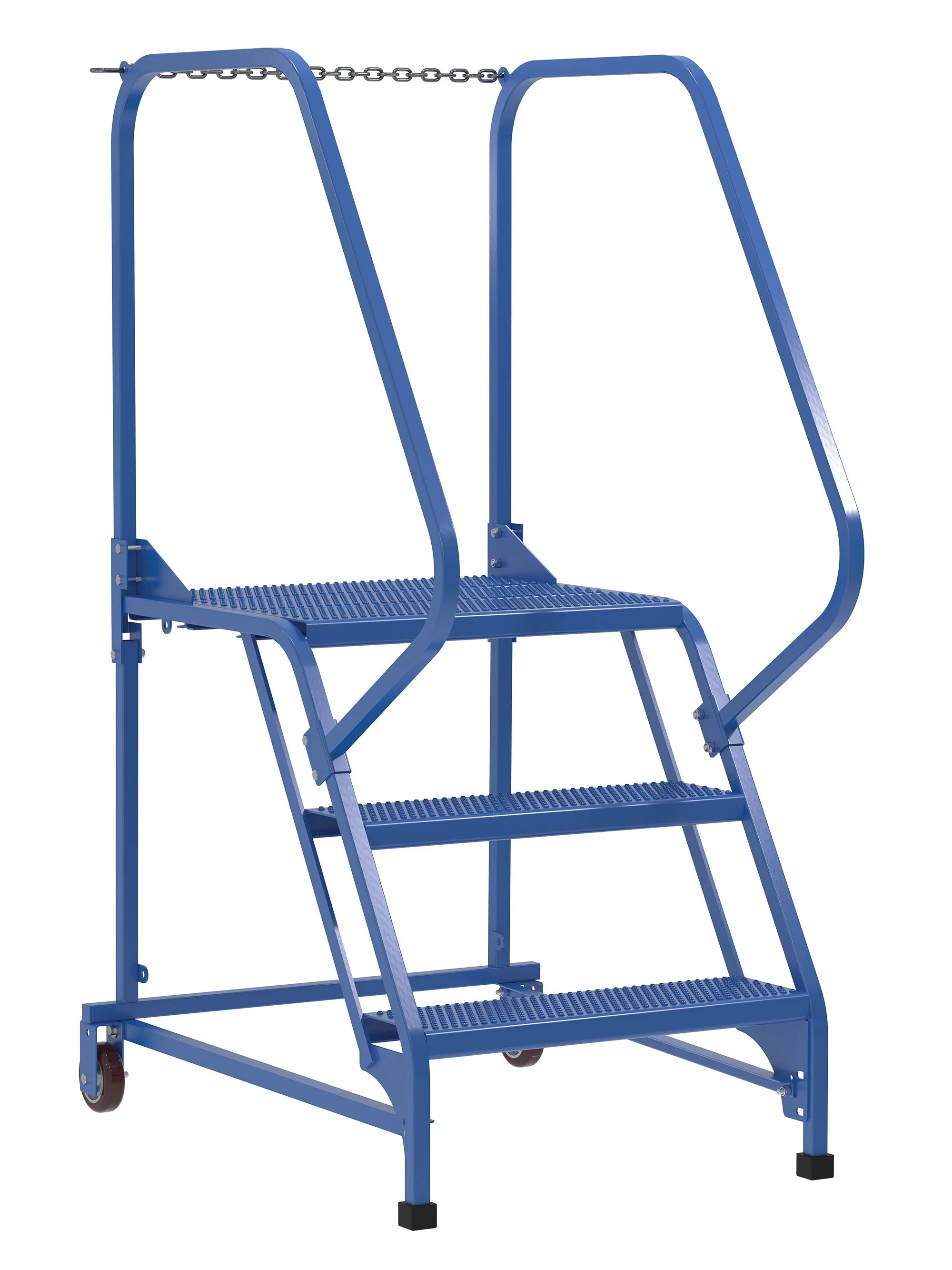

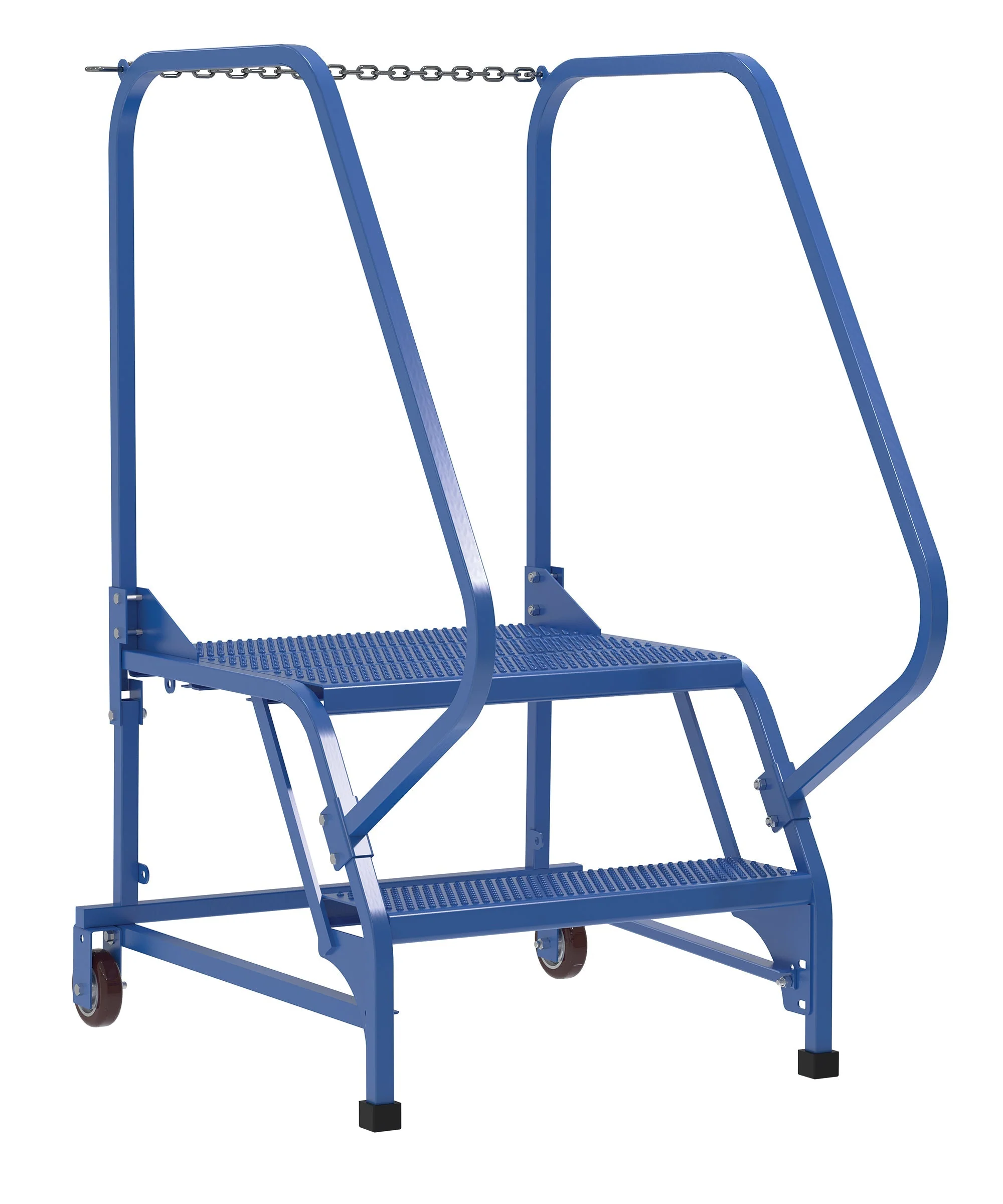

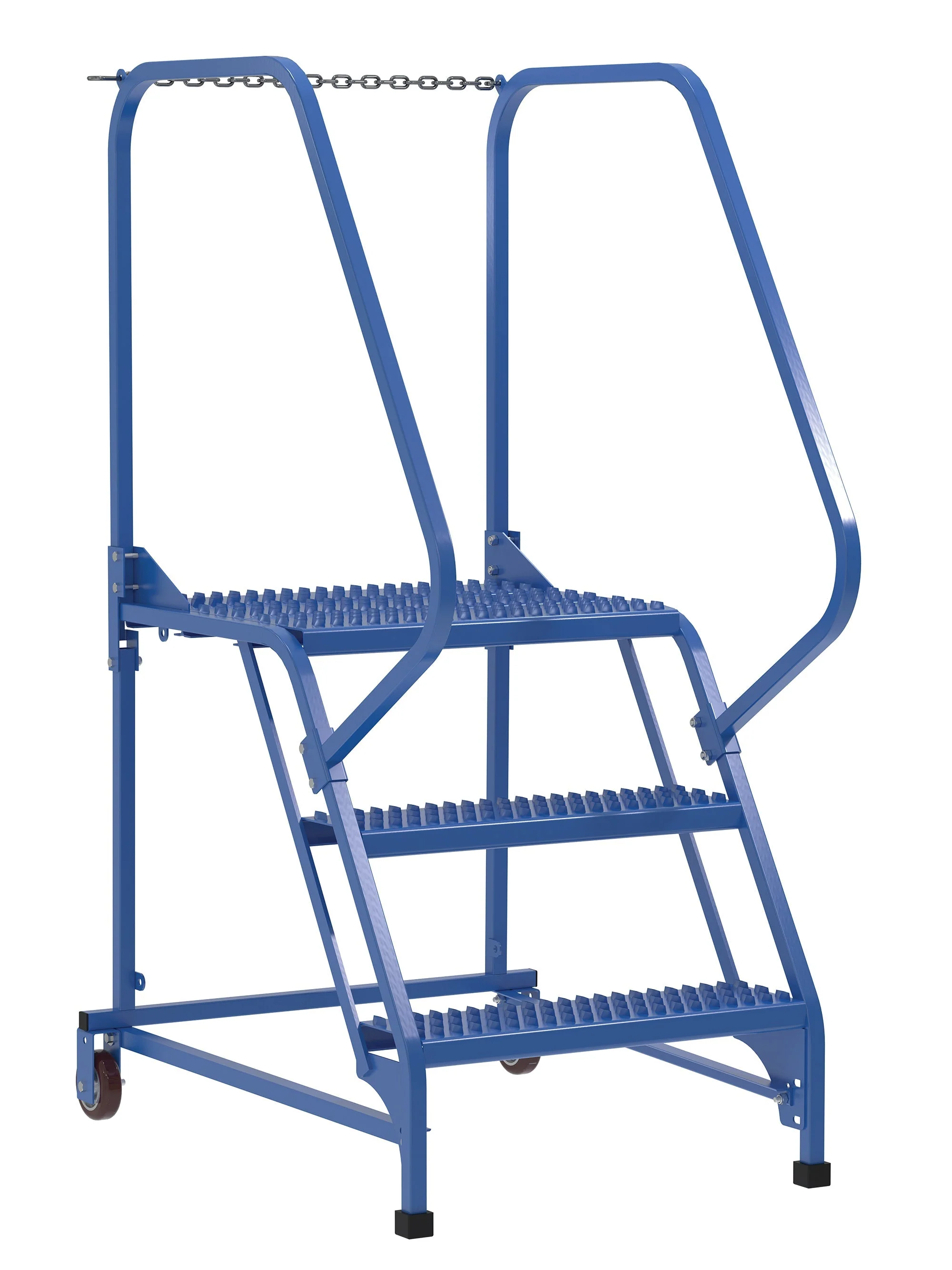

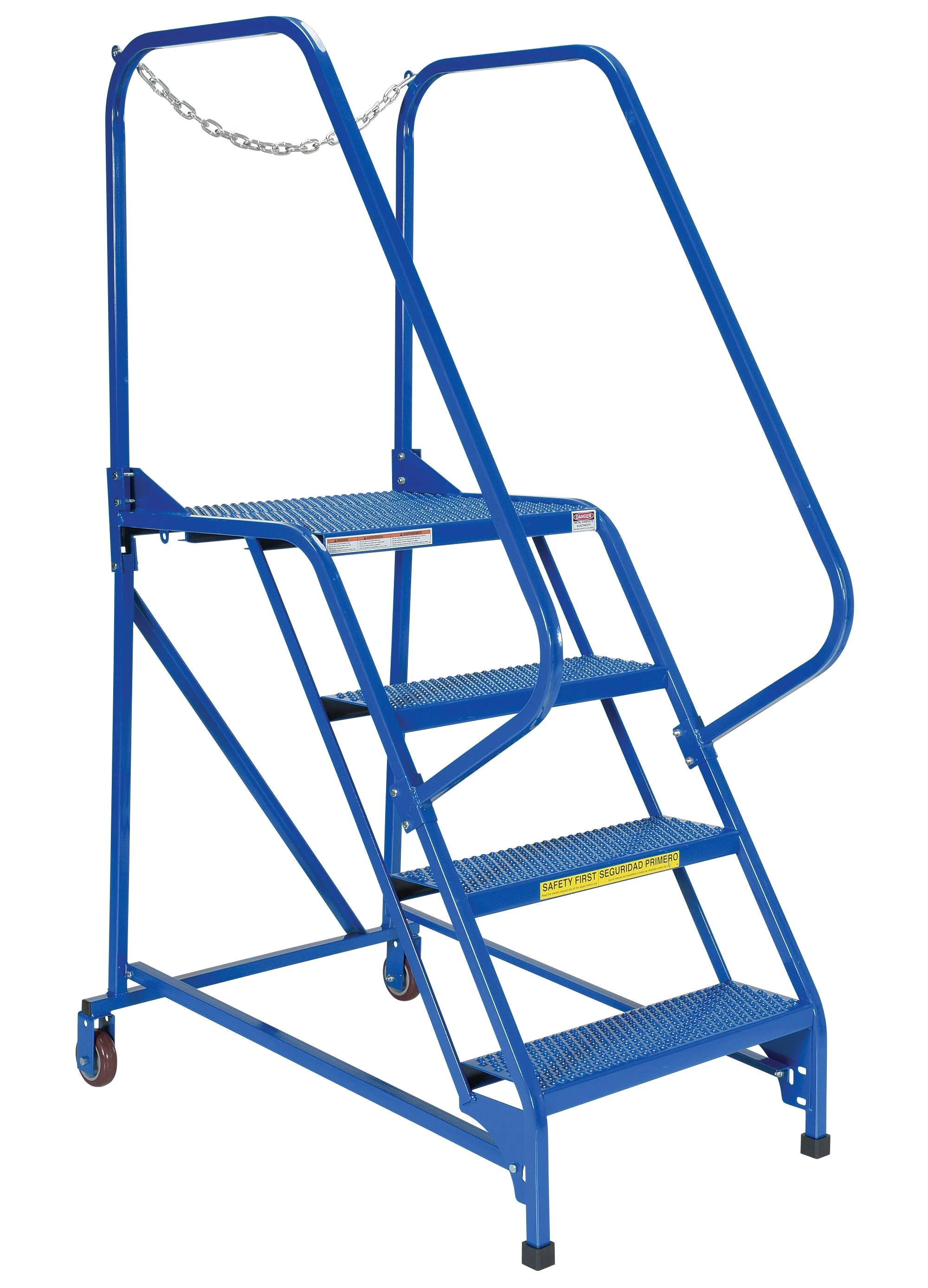

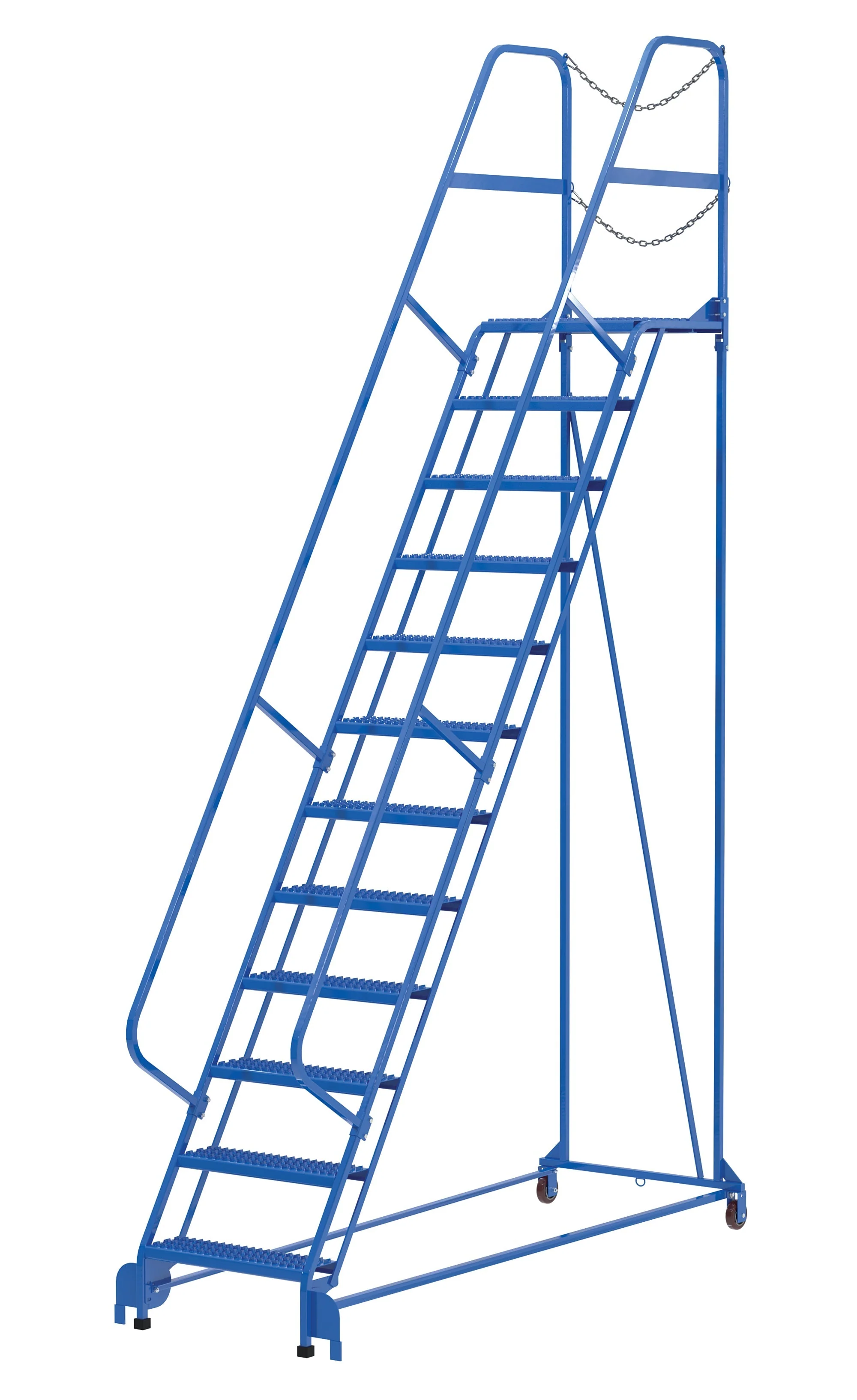

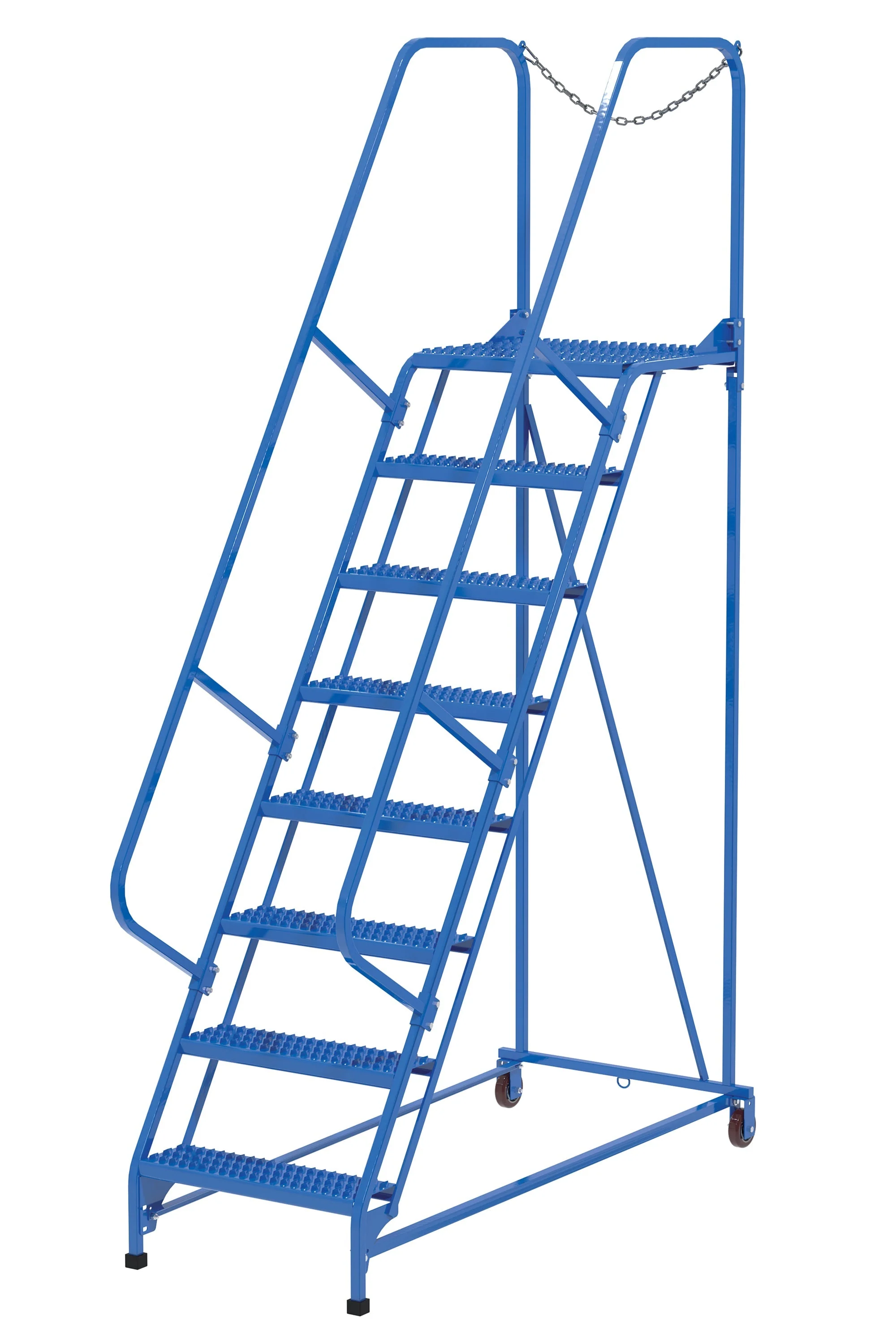

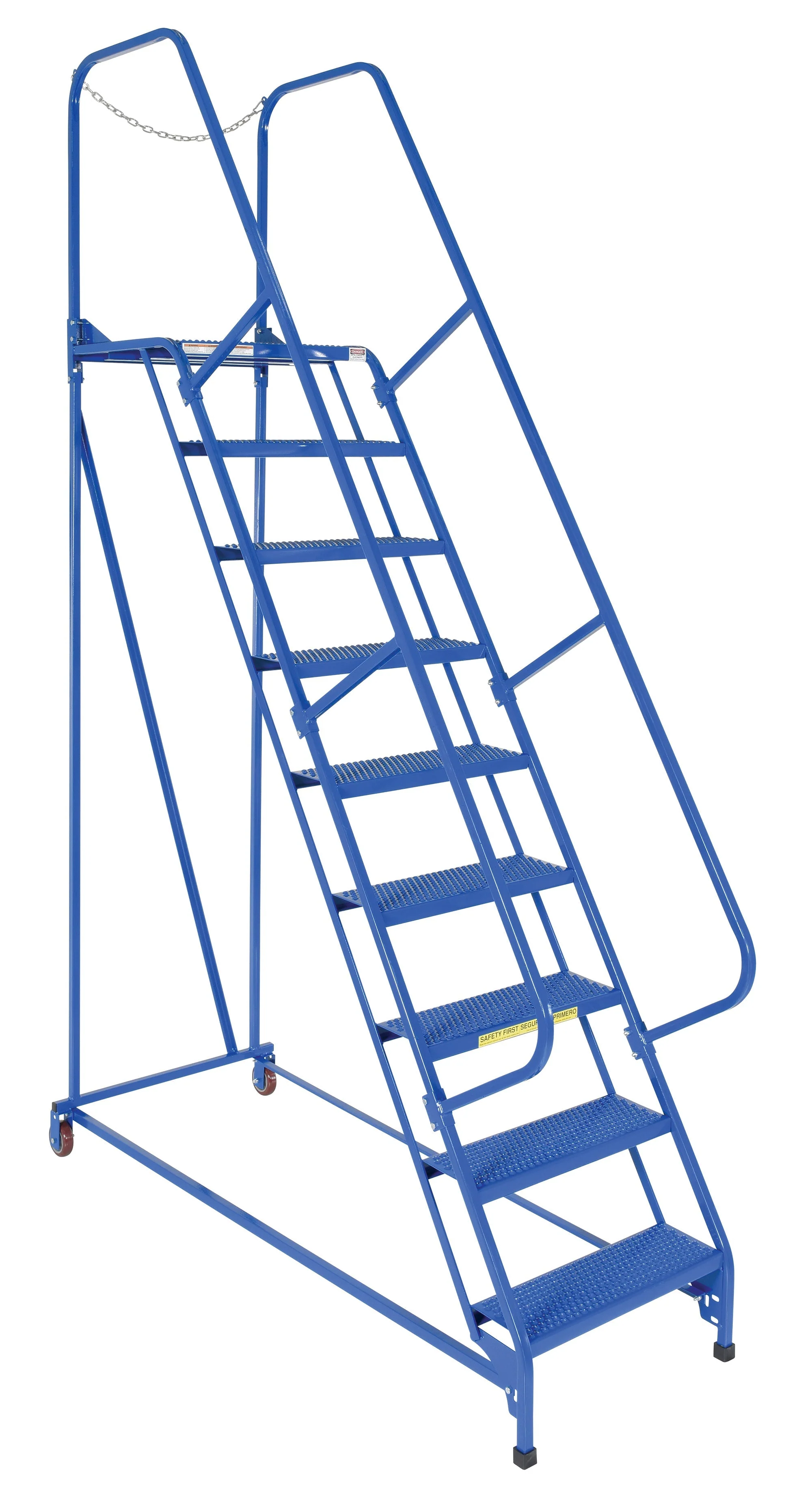

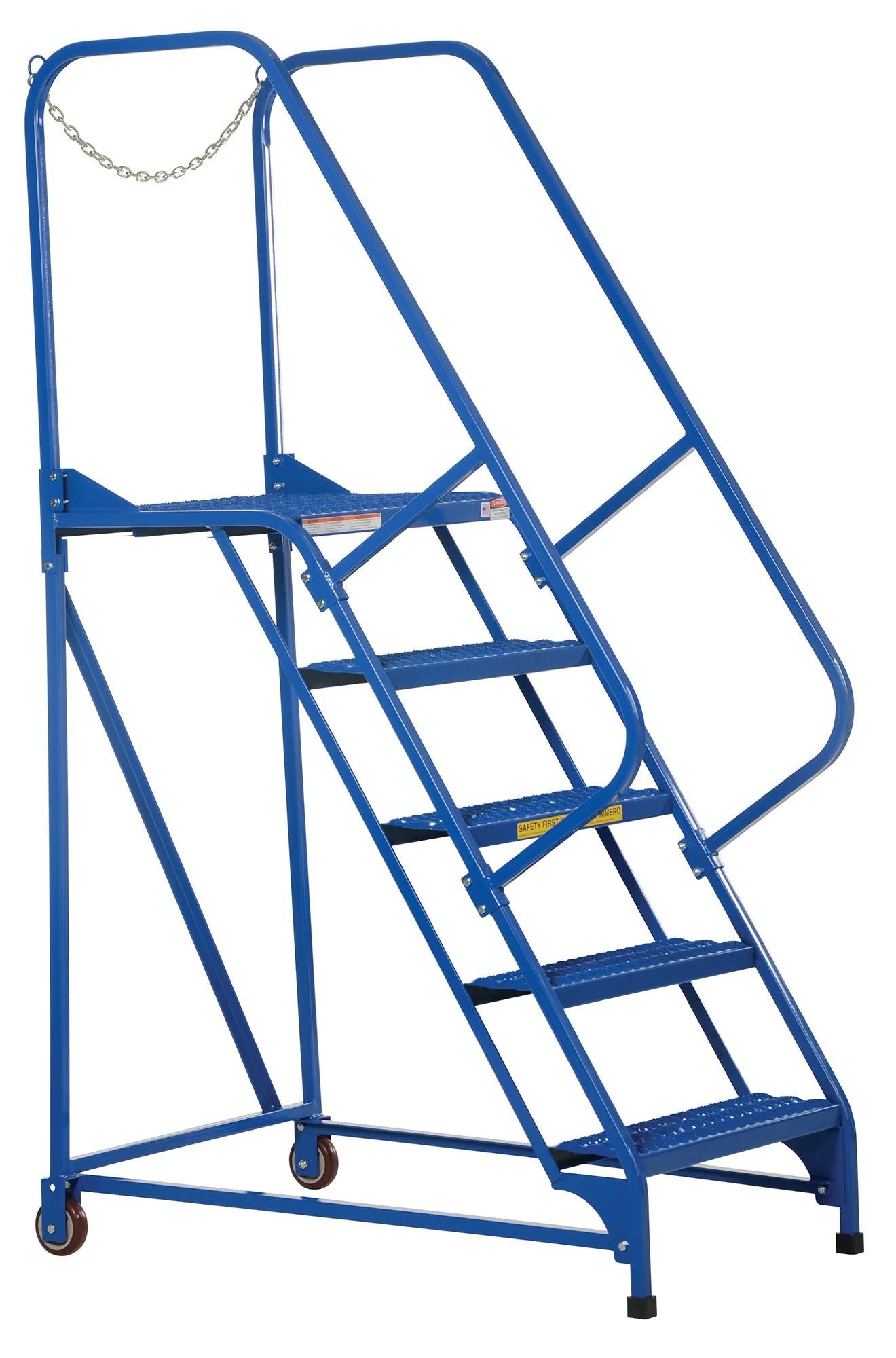

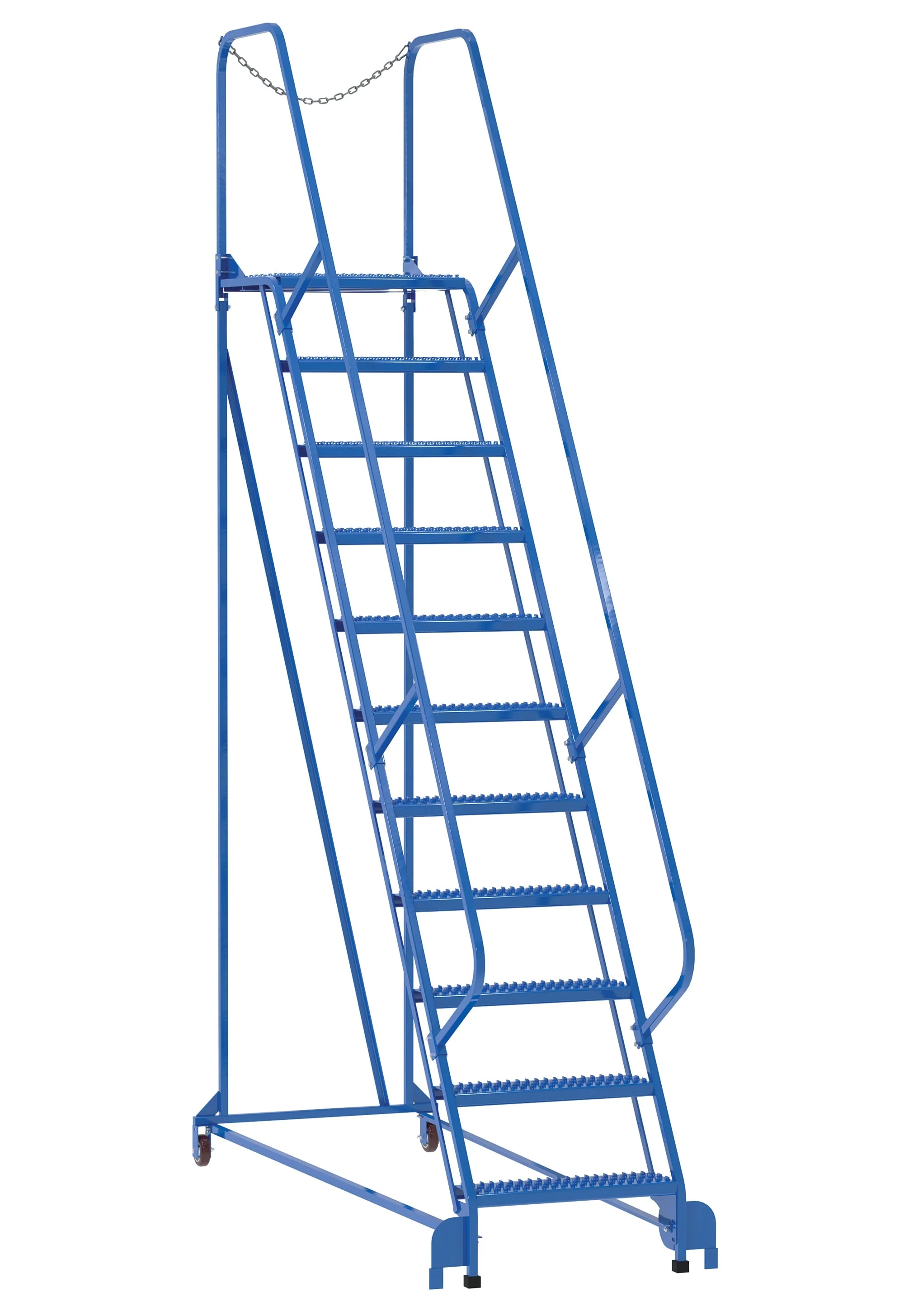

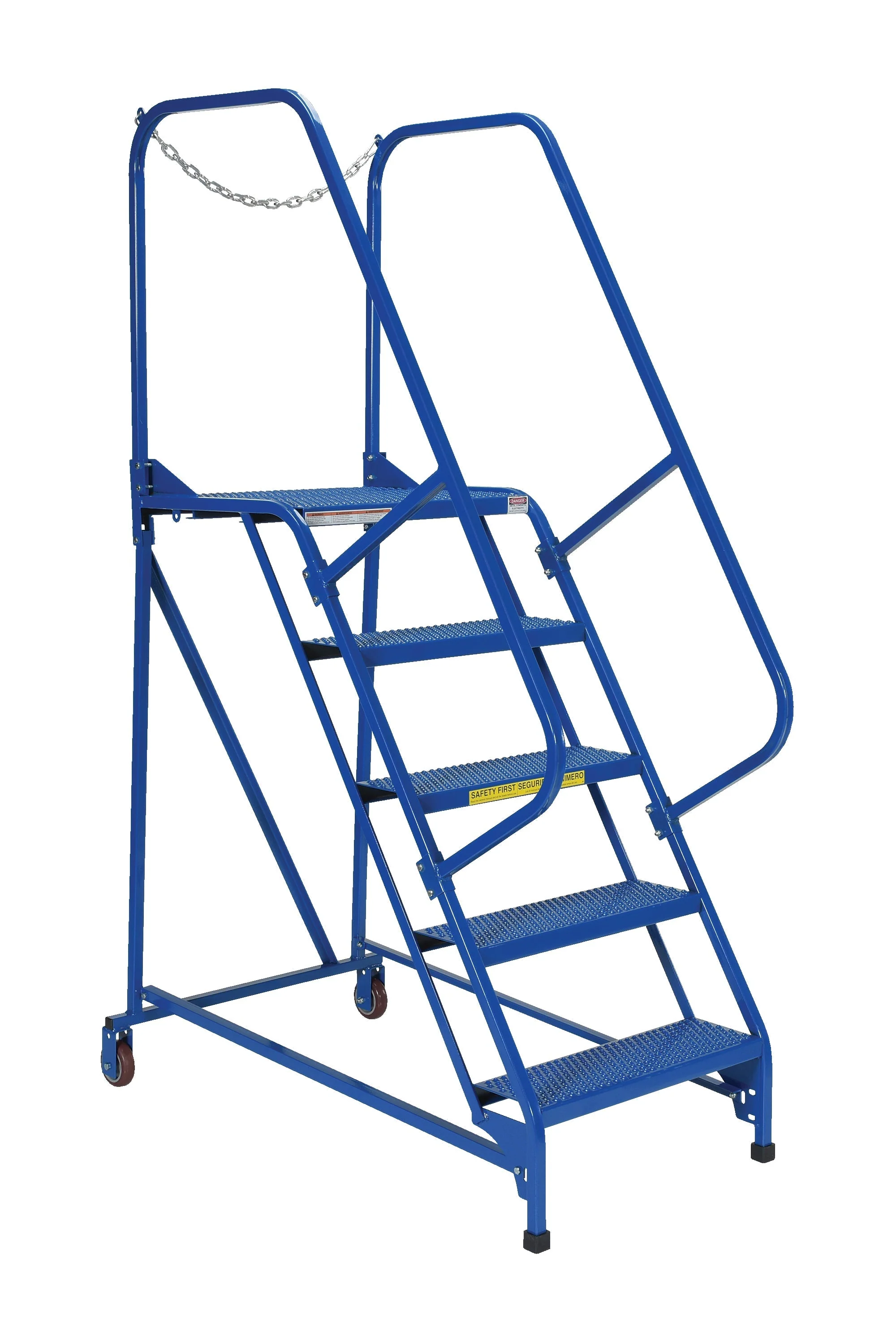

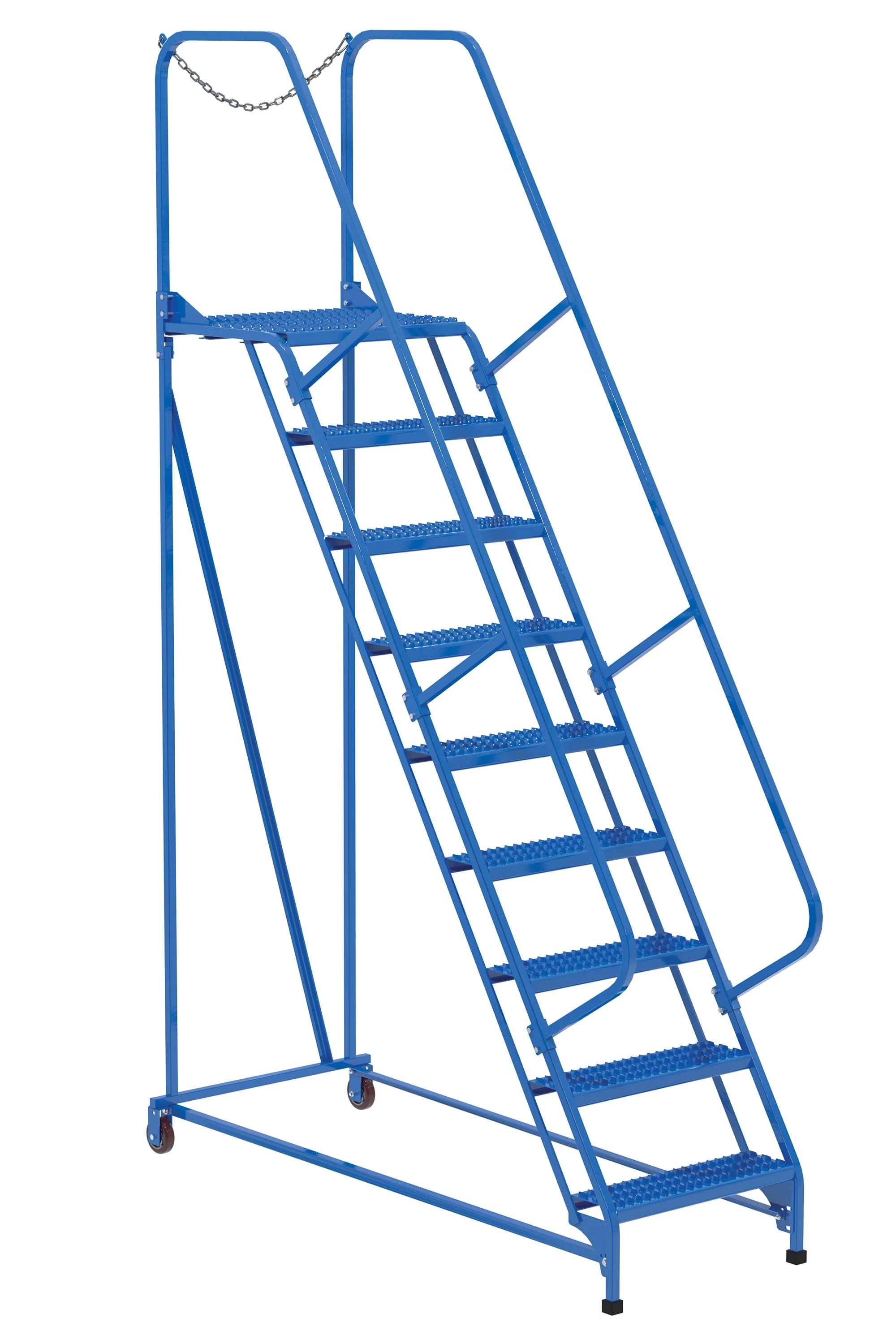

Portable ladders for use around warehouses, hardware stores or inventory rooms. Tilt the unit to allow for portability. Units roll on 4" poly-on-poly wheels. Constructed of square tubing framework which handles uniform capacities up to 350 lbs. Features 30" high removable hand railing, (36" on 12 step models), access chain, 21" deep top platform, and an industrial baked-in blue powder coat finish for toughness. Each step measures 24" wide by 7" deep and is spaced 10" apart. Model with 5-12 steps are ship crated, some assembly required. Complies with ANSI 14.7 and OSHA 1910.29 specifications.

Maintenance Ladders

Model Number

Steps

 Overall
(WxDxH)		 Top Step
Height		 Step
Type		 Wt.
(lbs.)
LAD-MM-2-P 2 29-1/2"x 38 1/2"x 50" 20" Perforated 110
LAD-MM-3-P 3 29 1/2"x 38-1/2"x 60" 30" Perforated 118
LAD-MM-4-P 4 29-1/2"x 43-5/8"x70"

40"

 Perforated 125
LAD-MM-5-P 5 29-1/2"x49-3/4"x80" 50" Perforated 180
LAD-MM-6-P 6 29-1/2"x 56-11/16"x 90" 60" Perforated 210
LAD-MM-7-P 7 29-1/2"x 62-3/8"x100" 70" Perforated 243
LAD-MM-8-P 8 29-1/2"x 68-5/8"x110"

80"

 Perforated 260
LAD-MM-9-P 9 29-1/2"x74-7/8"x120" 90" Perforated 279
LAD-MM-10-P 10 32"x81-1/8"x130" 100" Perforated 310
LAD-MM-11-P 11 32"x87-3/8"x140" 110" Perforated 334
LAD-MM-12-P 12 32"x93-1/4"x156" 120" Perforated 366
LAD-MM-2-G 2 29-1/2"x38 1/2"x50" 20" Grip-Strut 110
LAD-MM-3-G 3 29 1/2"x38-1/2"x60" 30" Grip-Strut 118
LAD-MM-4-G 4 29-1/2"x43-5/8"x70"

40"

 Grip-Strut 125
LAD-MM-5-G 5 29-1/2"x49-3/4"x80" 50" Grip-Strut 180
LAD-MM-6-G 6 29-1/2"x 56-11/16"x90" 60" Grip-Strut 210
LAD-MM-7-G 7 29-1/2"x 62-3/8"x100" 70" Grip-Strut 243
LAD-MM-8-G 8 29-1/2"x68-5/8"x110"

80"

 Grip-Strut 260
LAD-MM-9-G 9 29-1/2"x74-7/8"x120" 90" Grip-Strut 279
LAD-MM-10-G 10 32"x 81-1/8"x130" 100" Grip-Strut 310
LAD-MM-11-G 11 32"x 87-3/8"x140" 110" Grip-Strut 334
LAD-MM-12-G 12 32"x 93-1/4"x156" 120" Grip-Strut 366

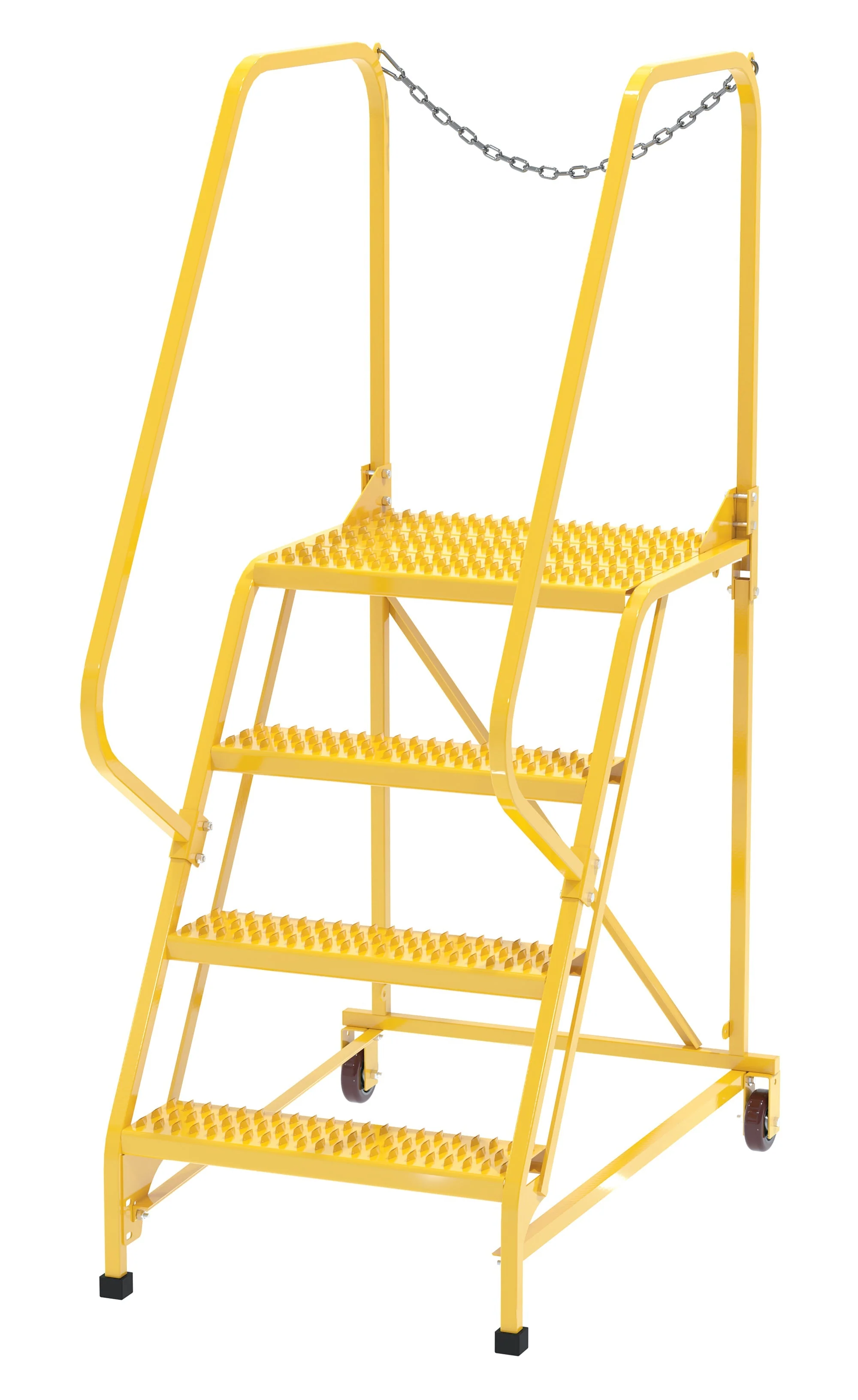

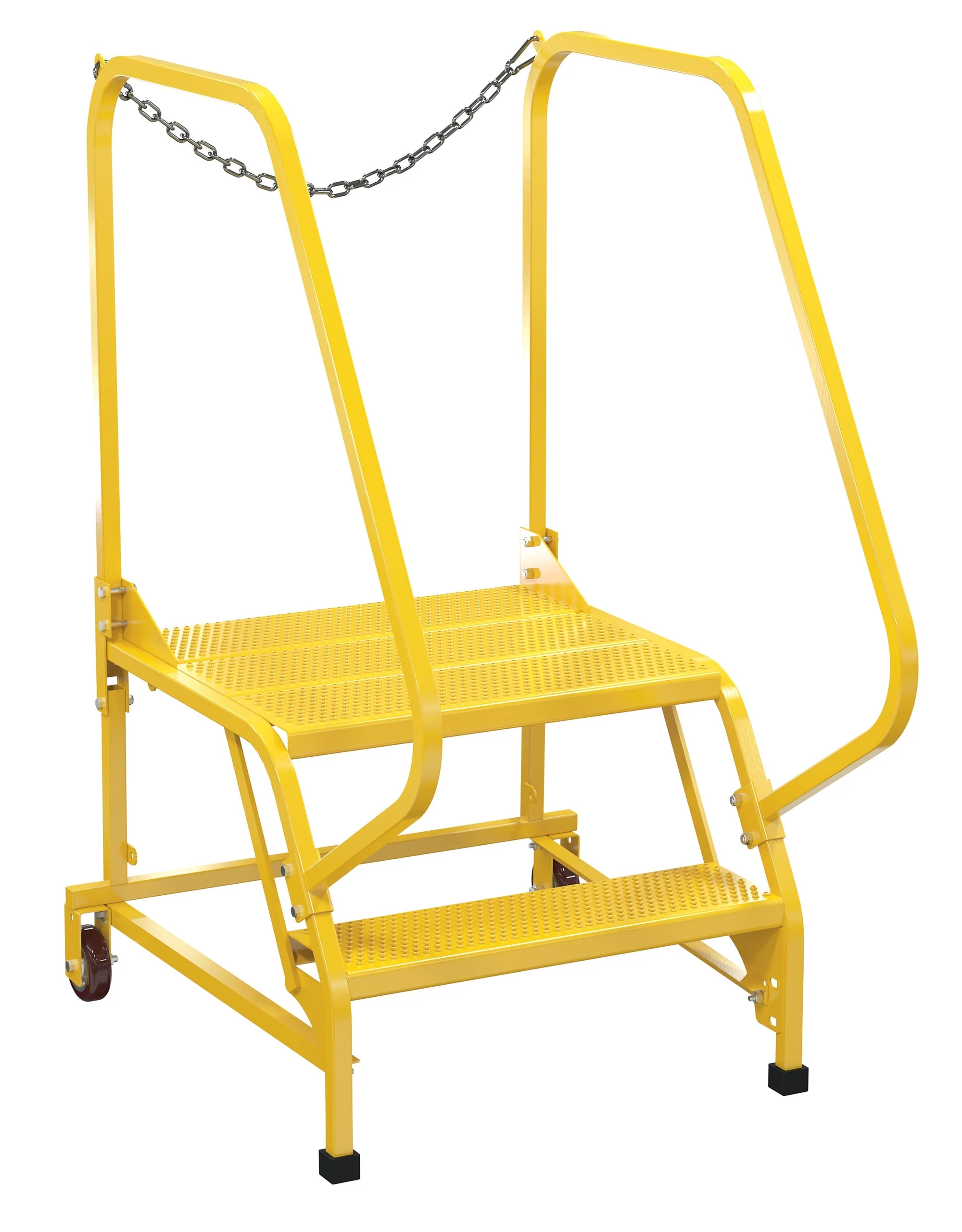

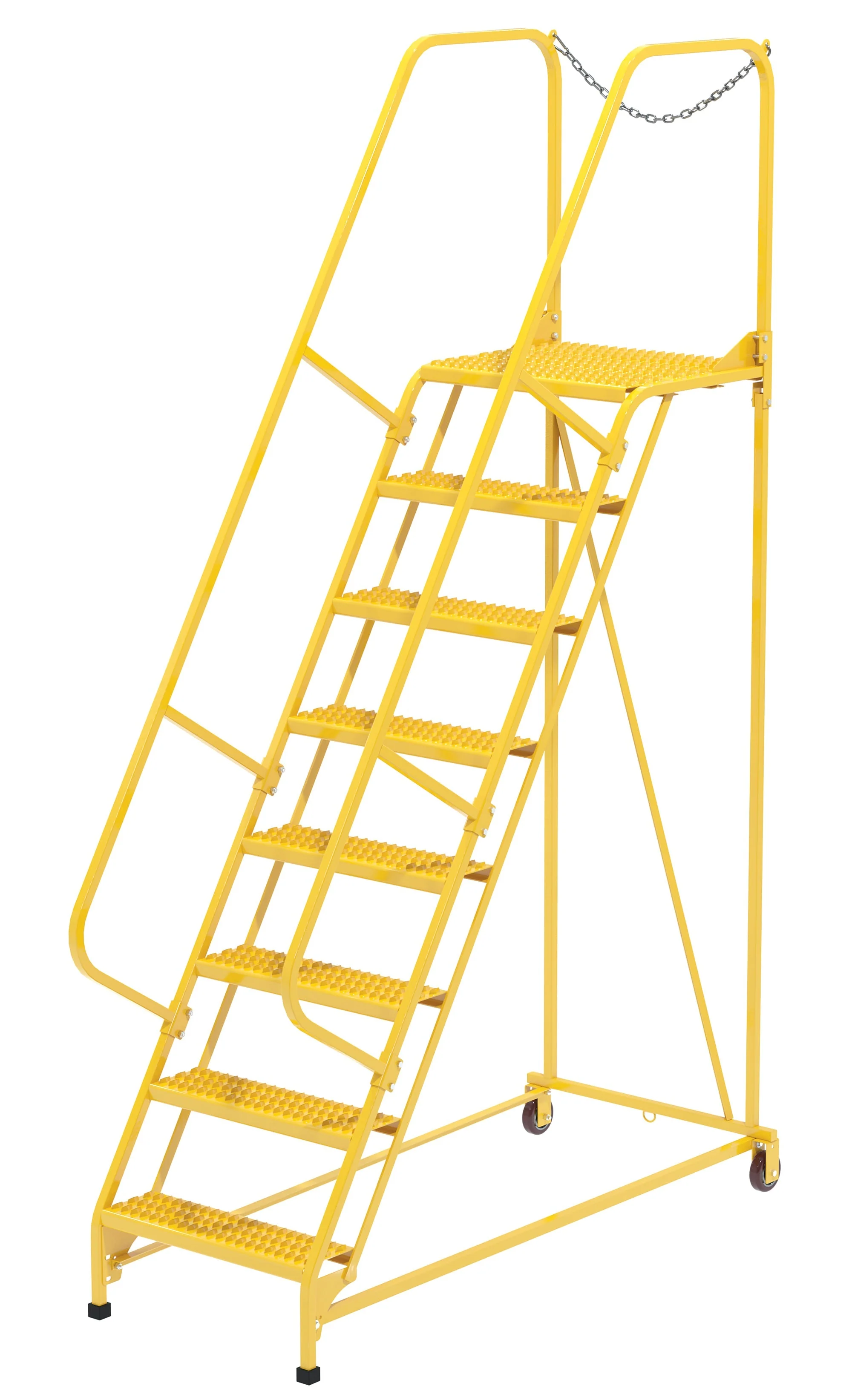

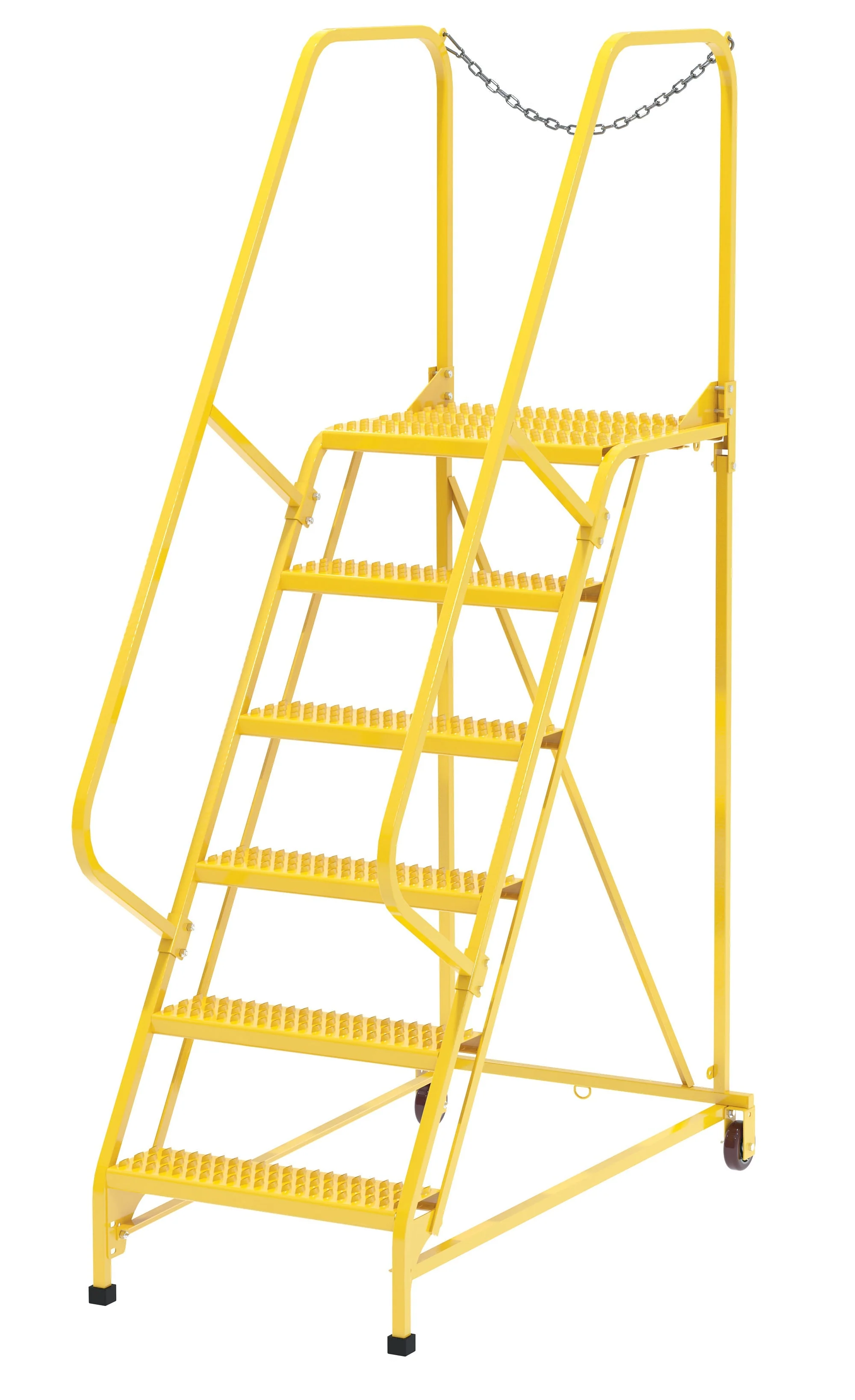

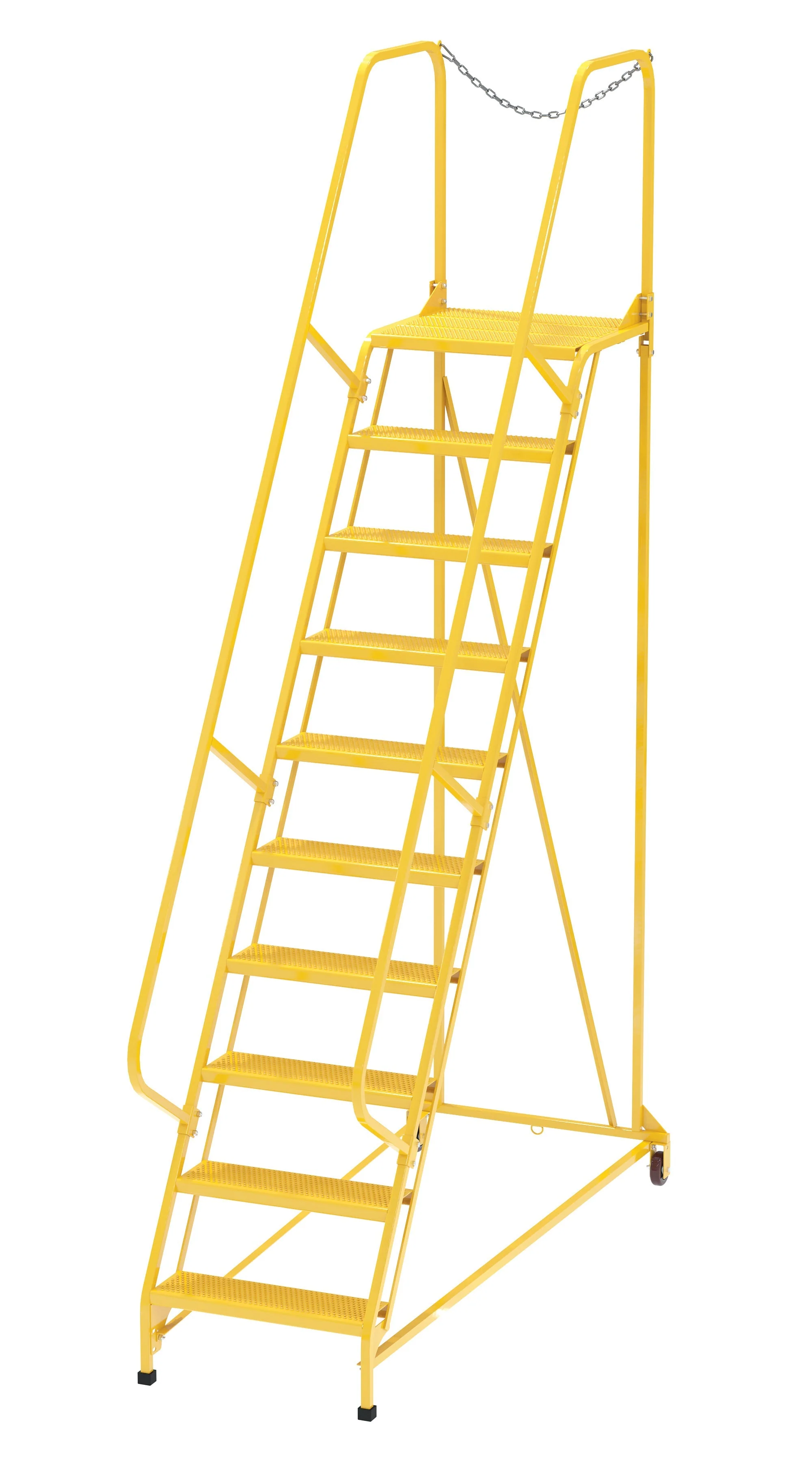

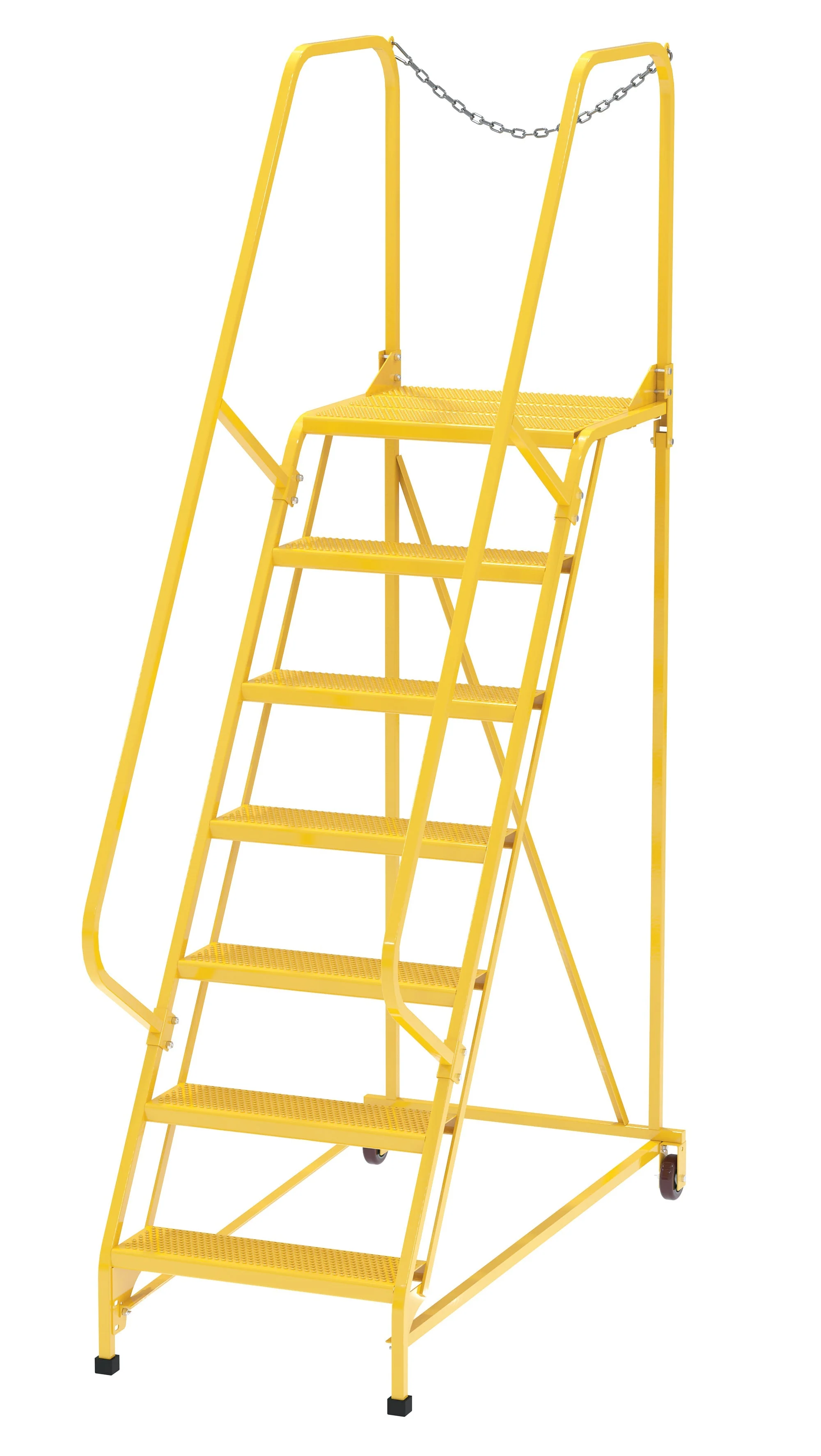

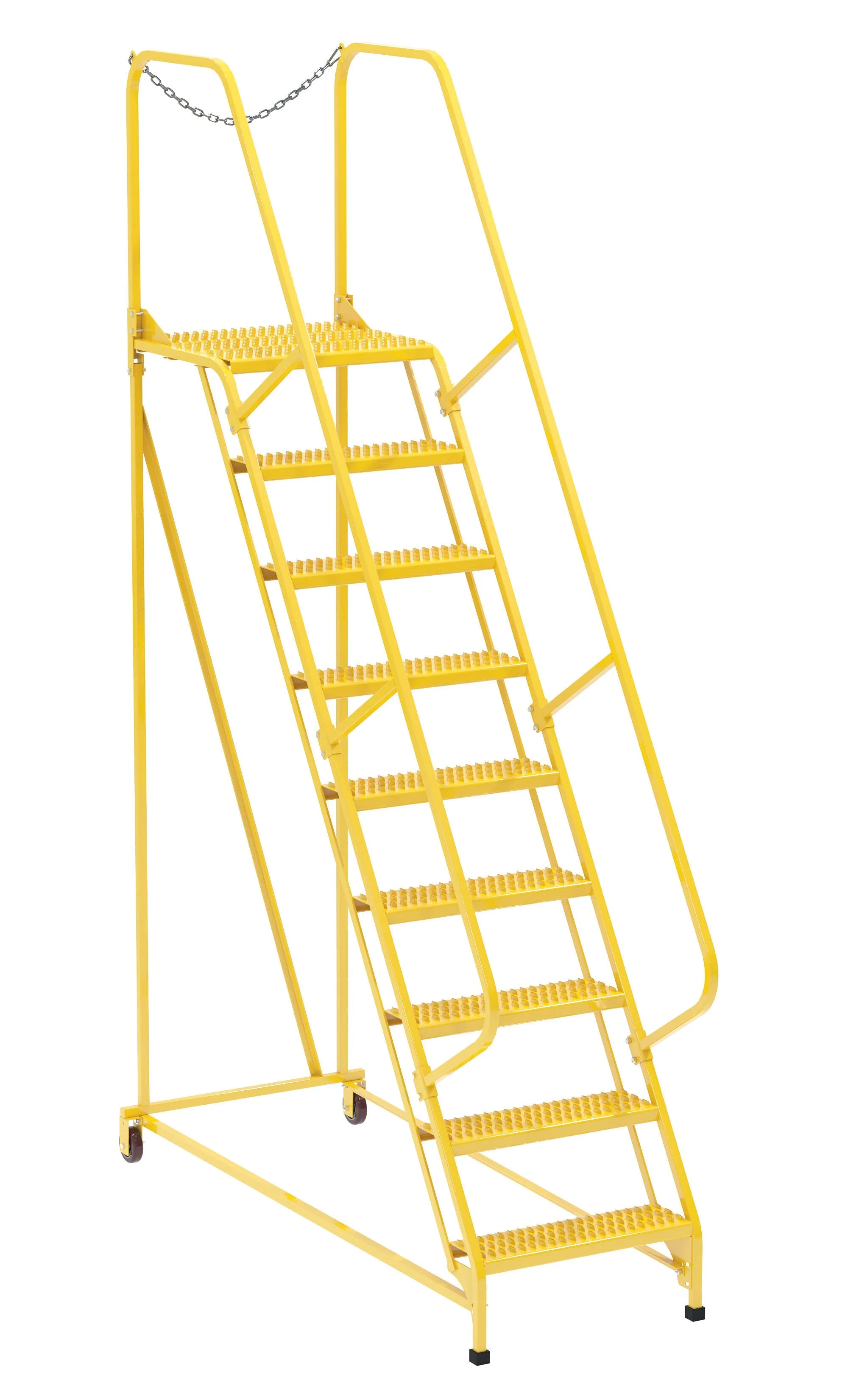

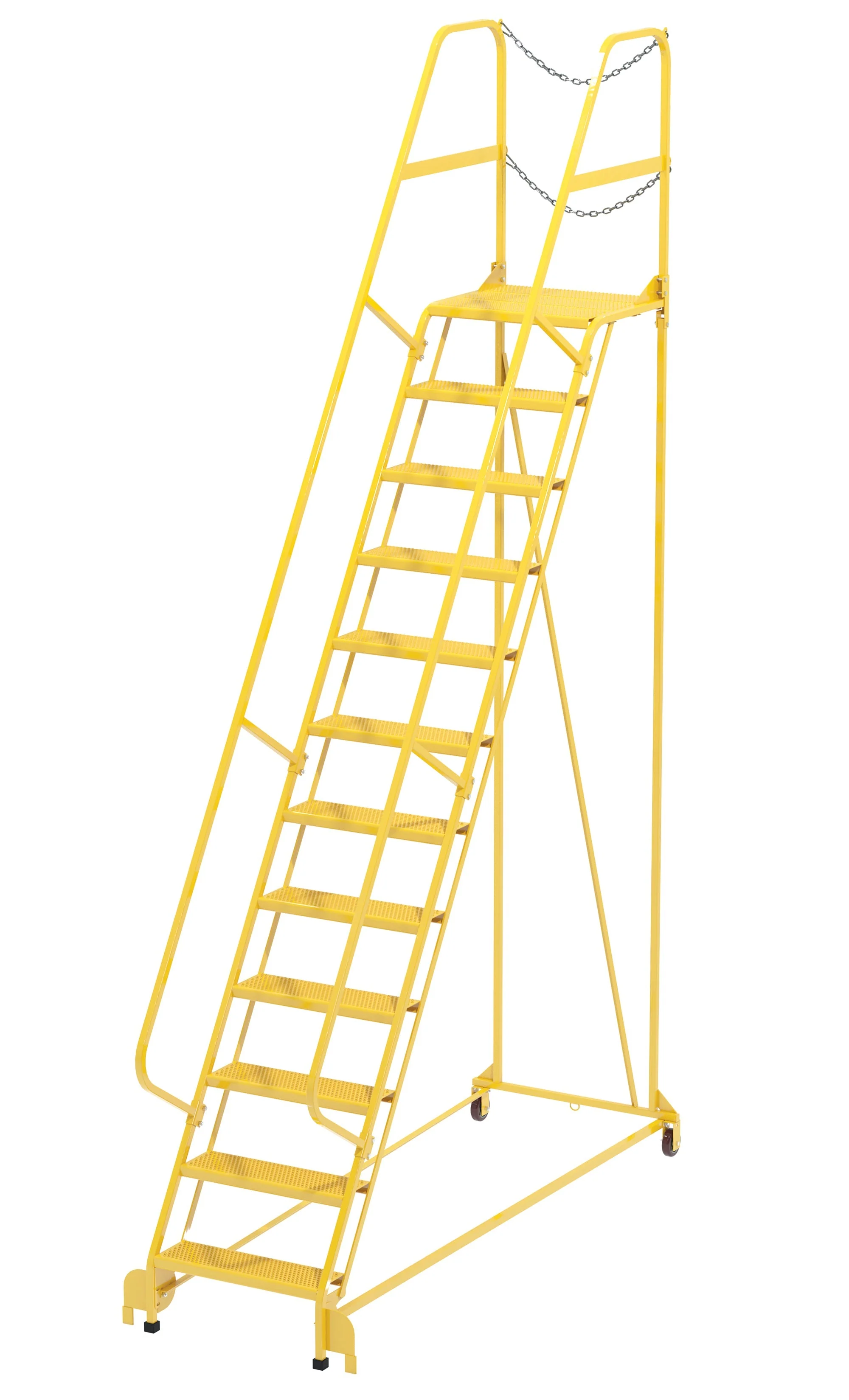

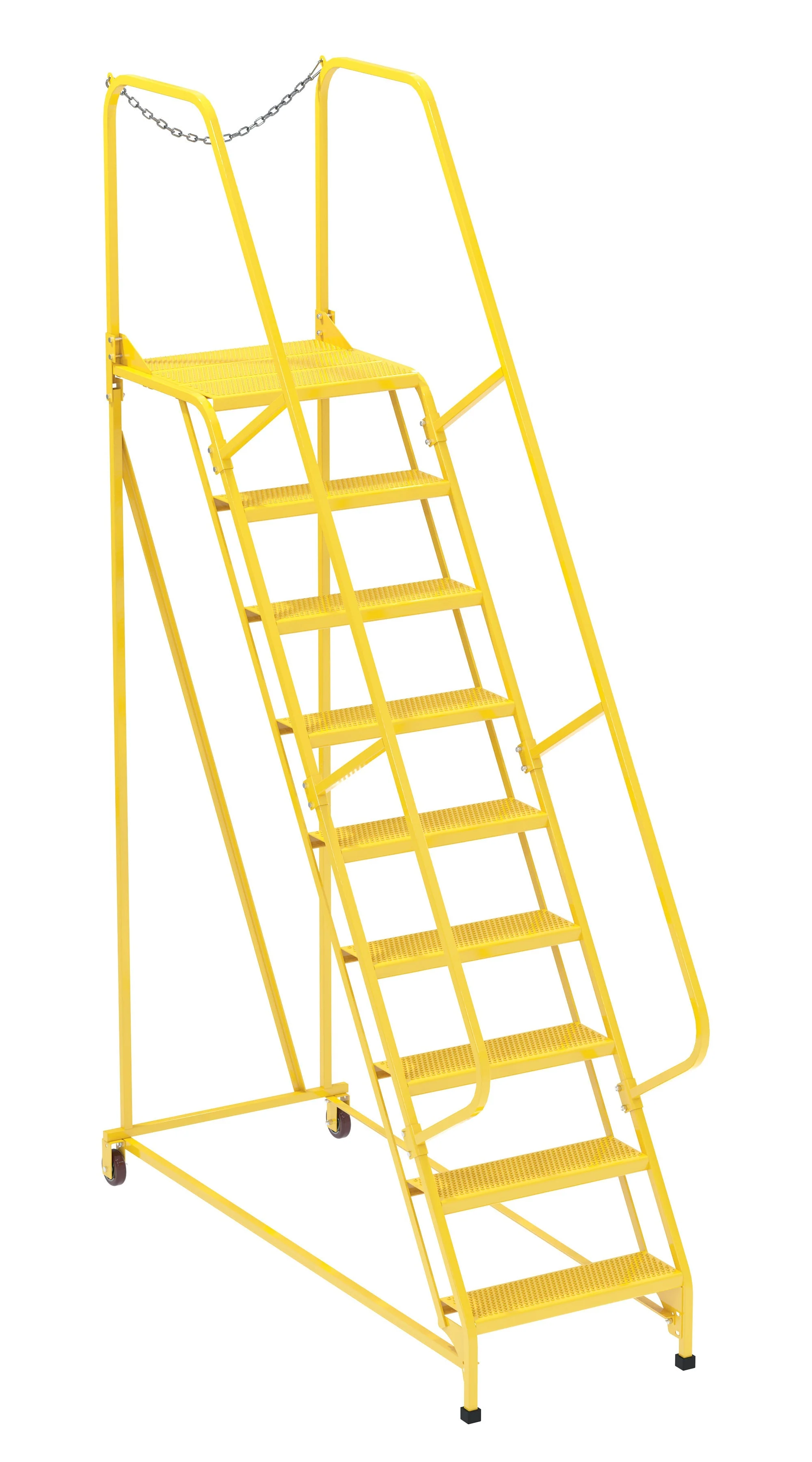

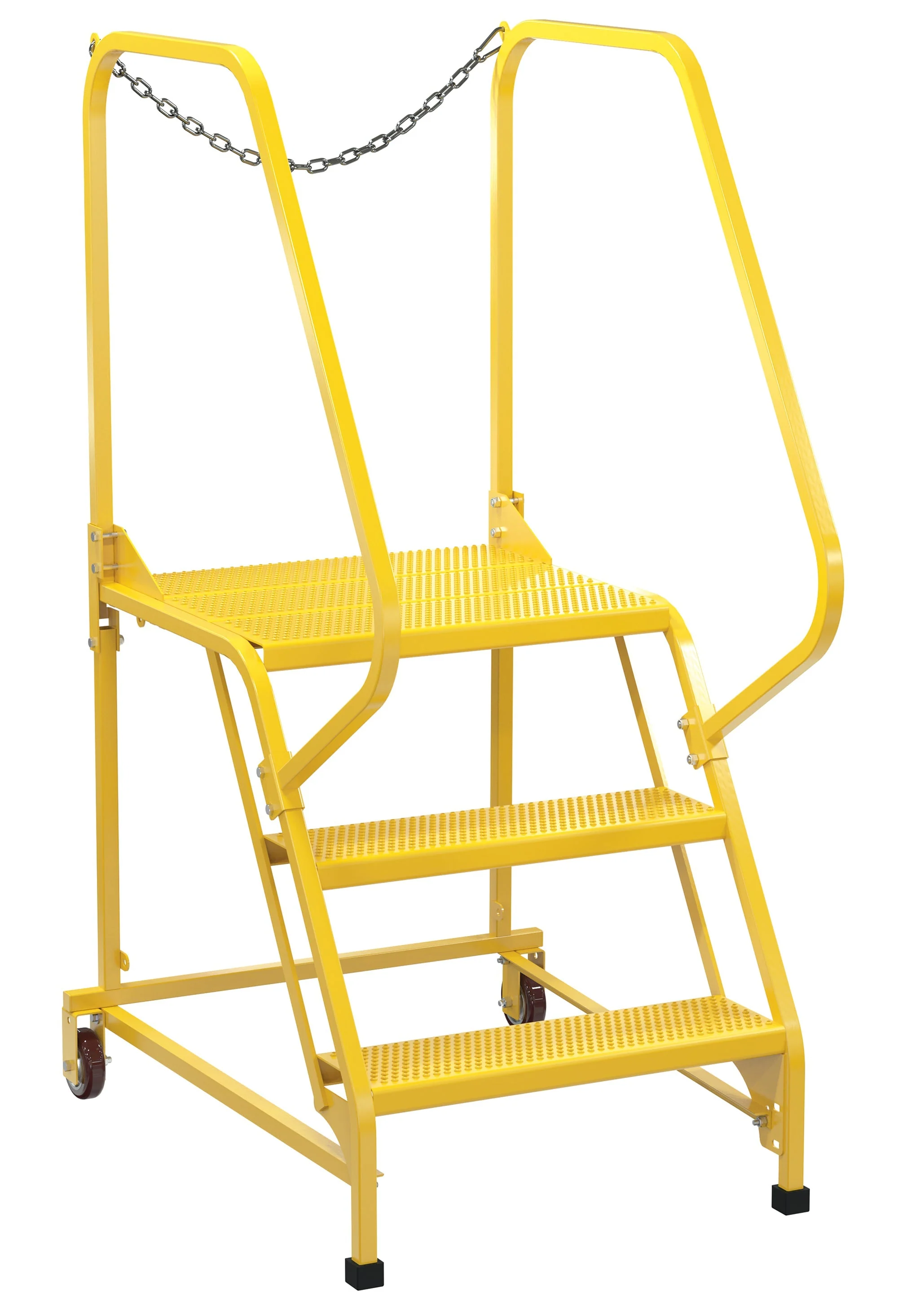

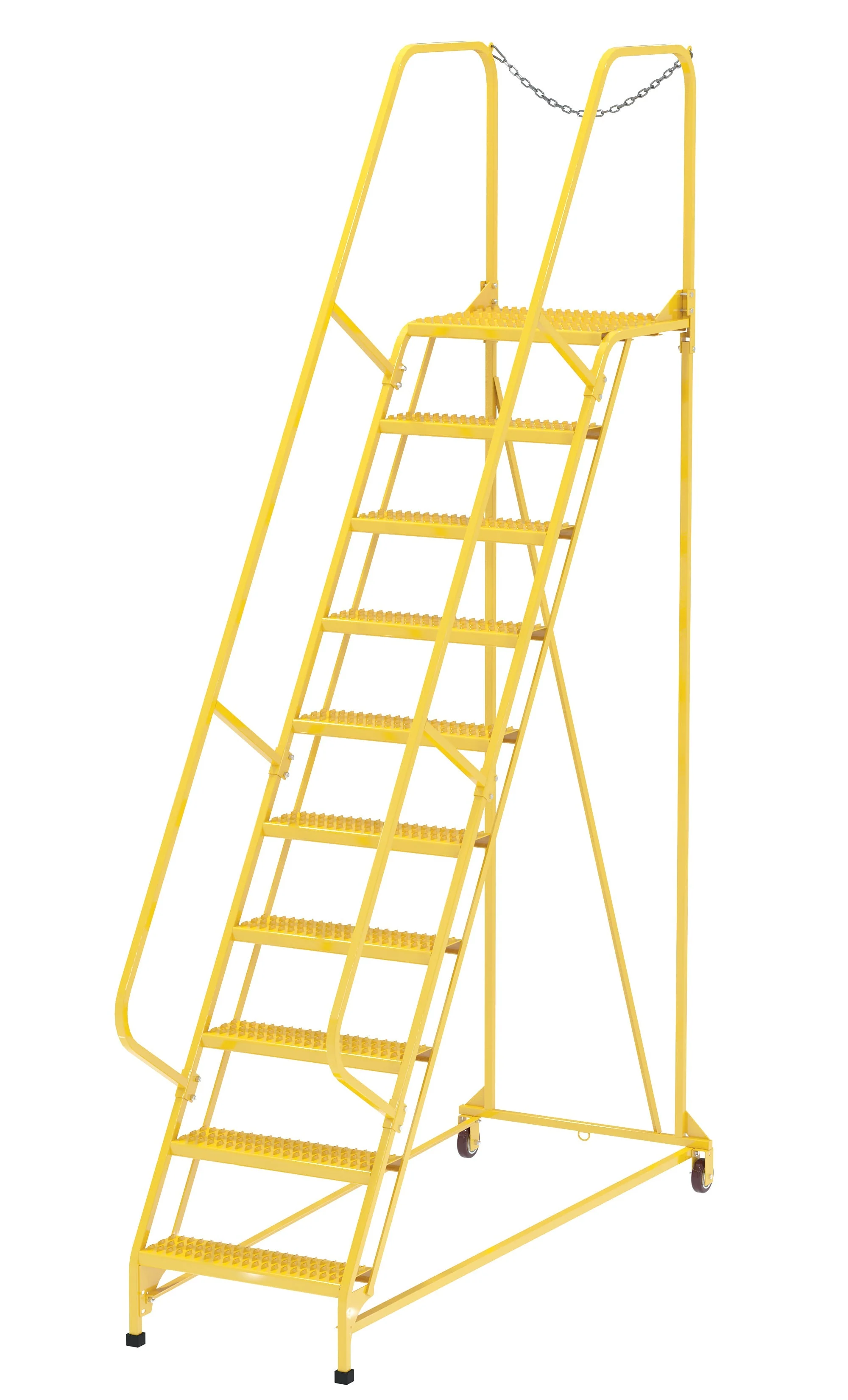

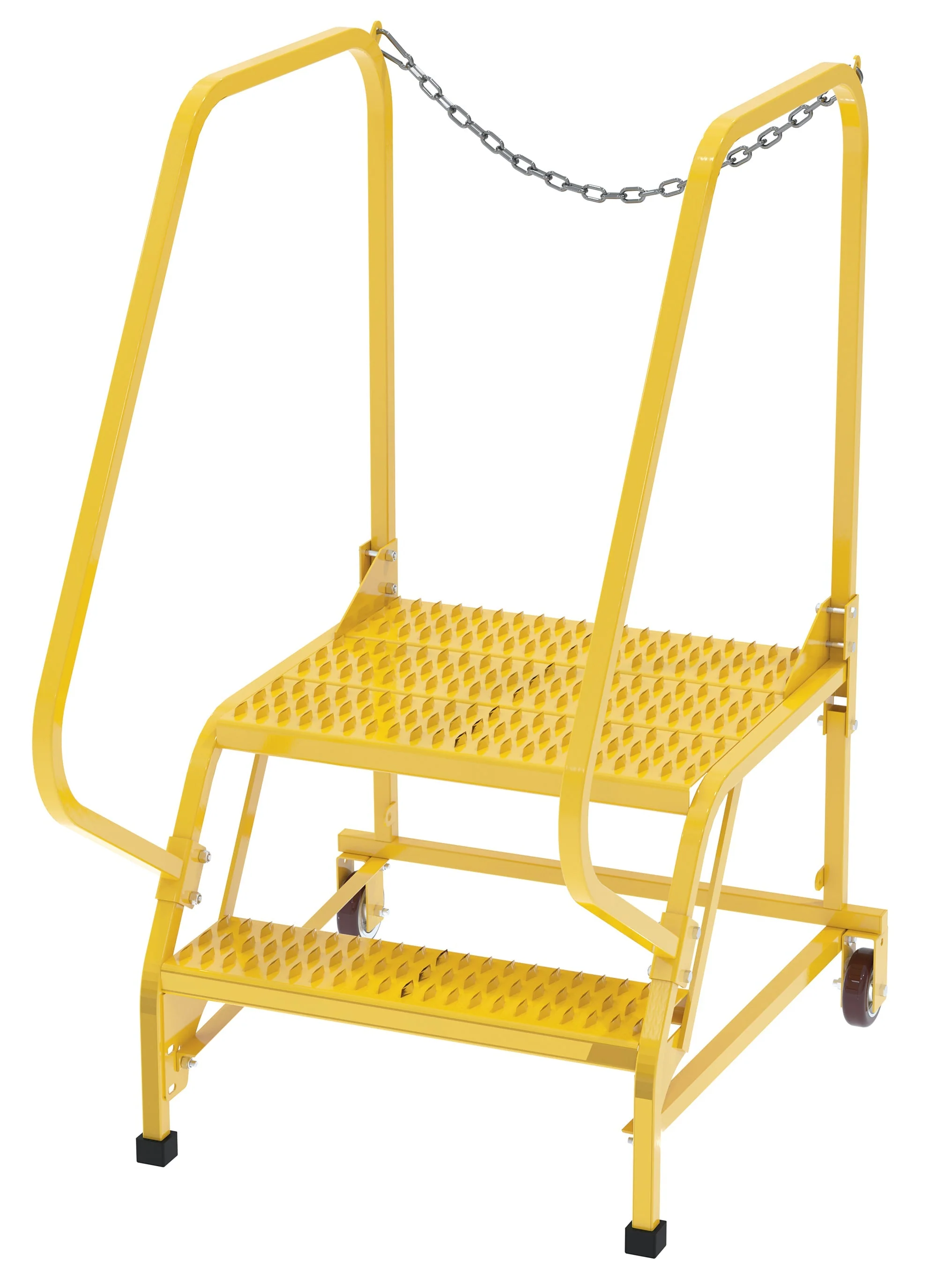

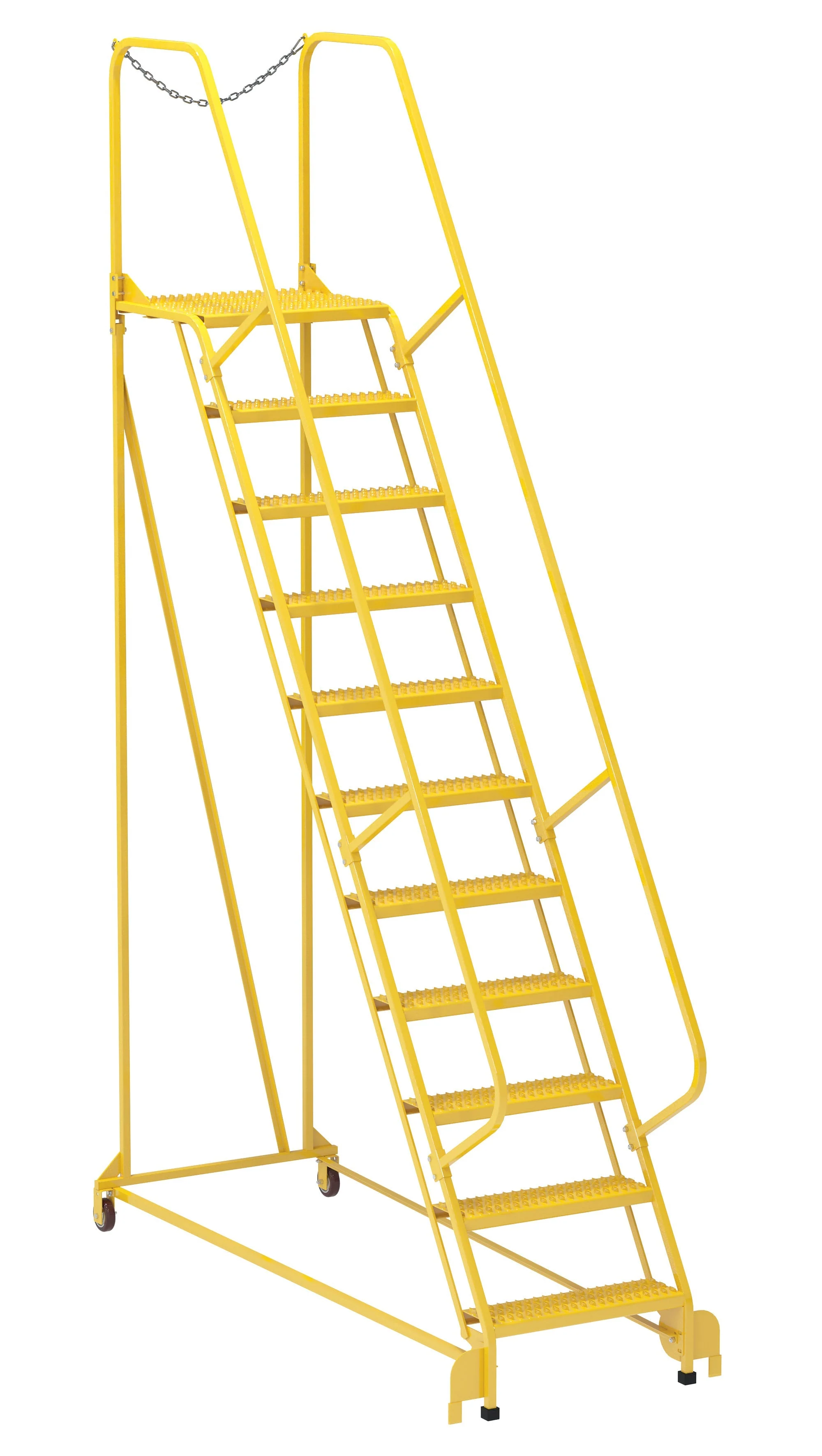

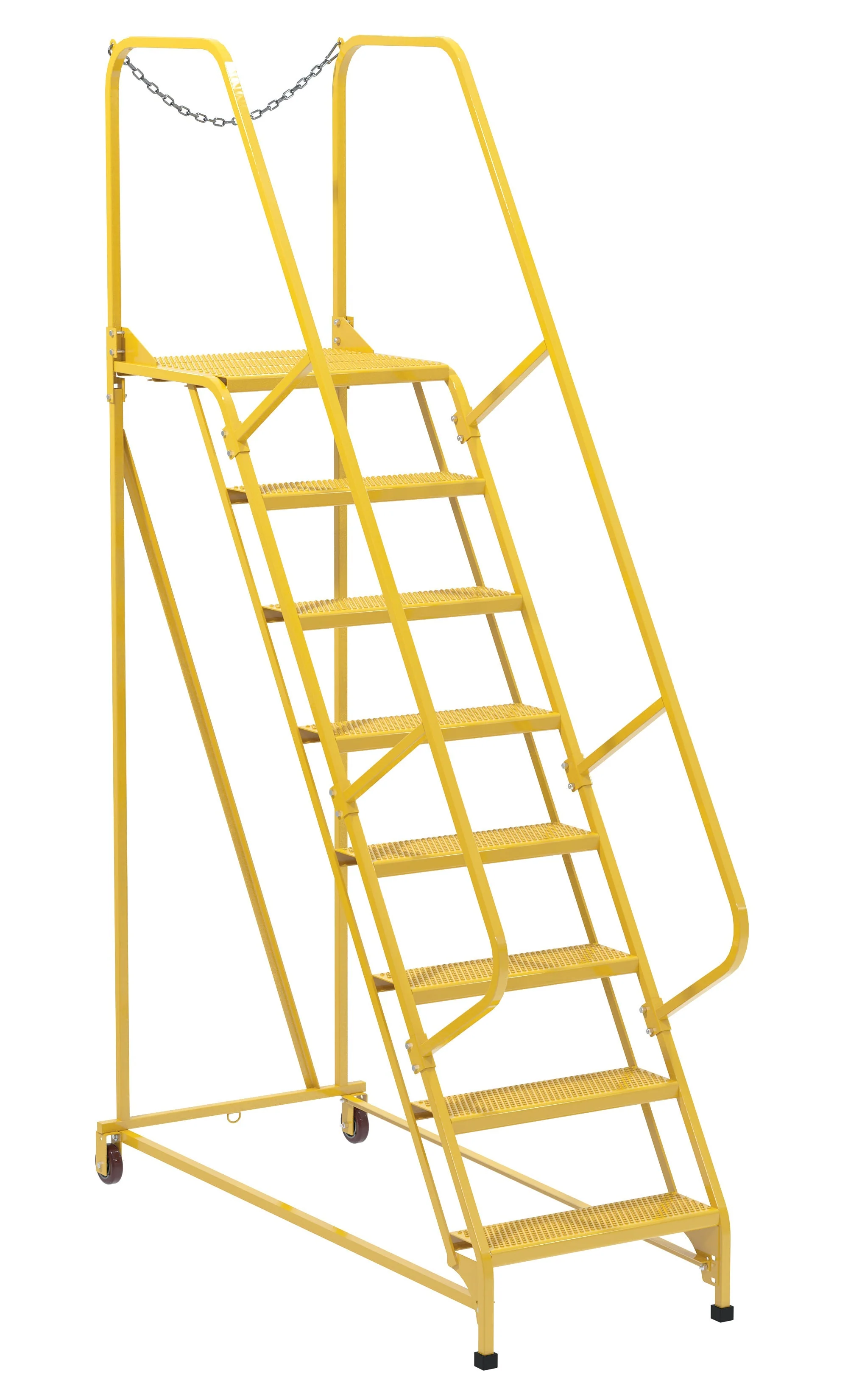

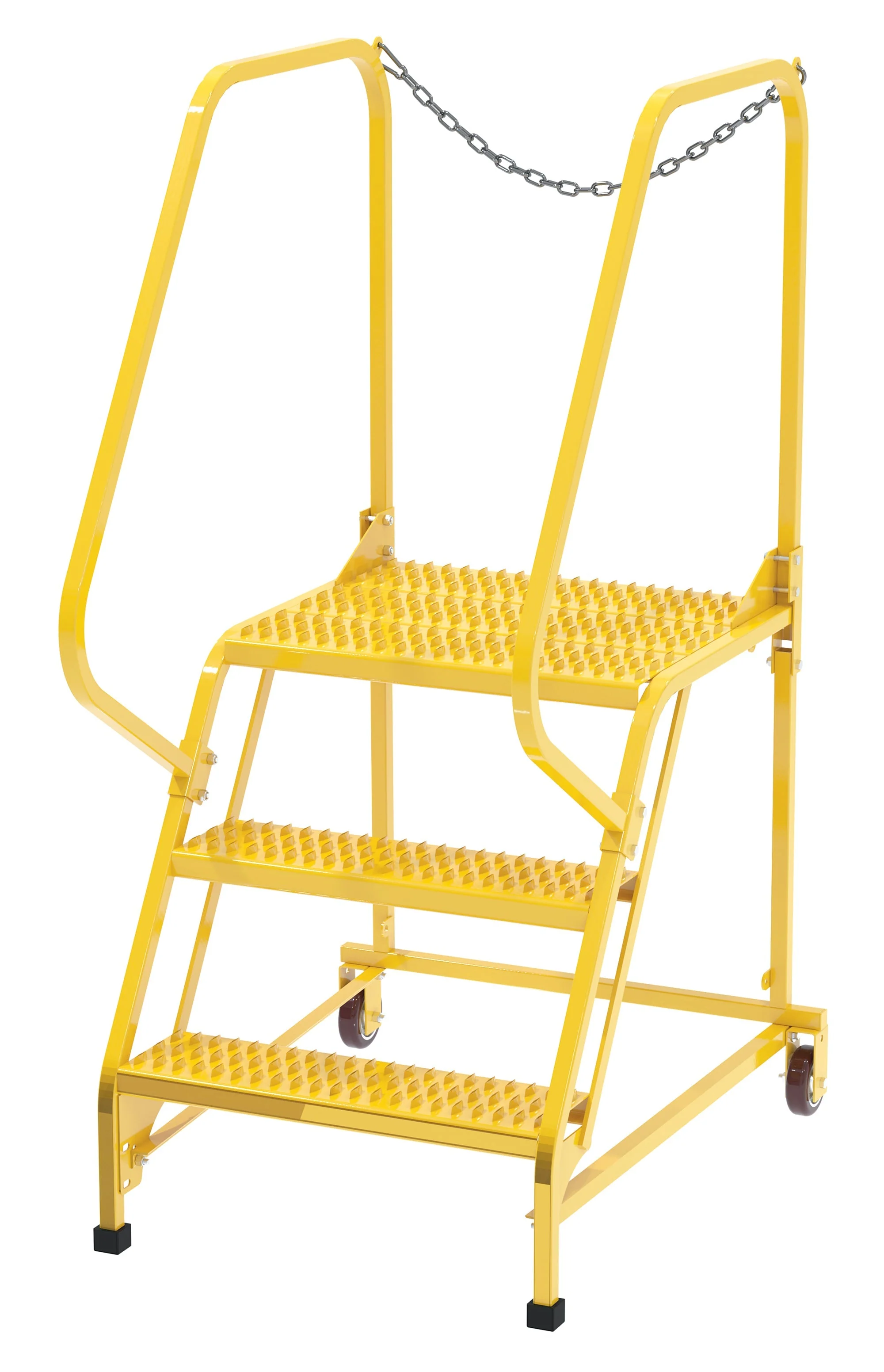

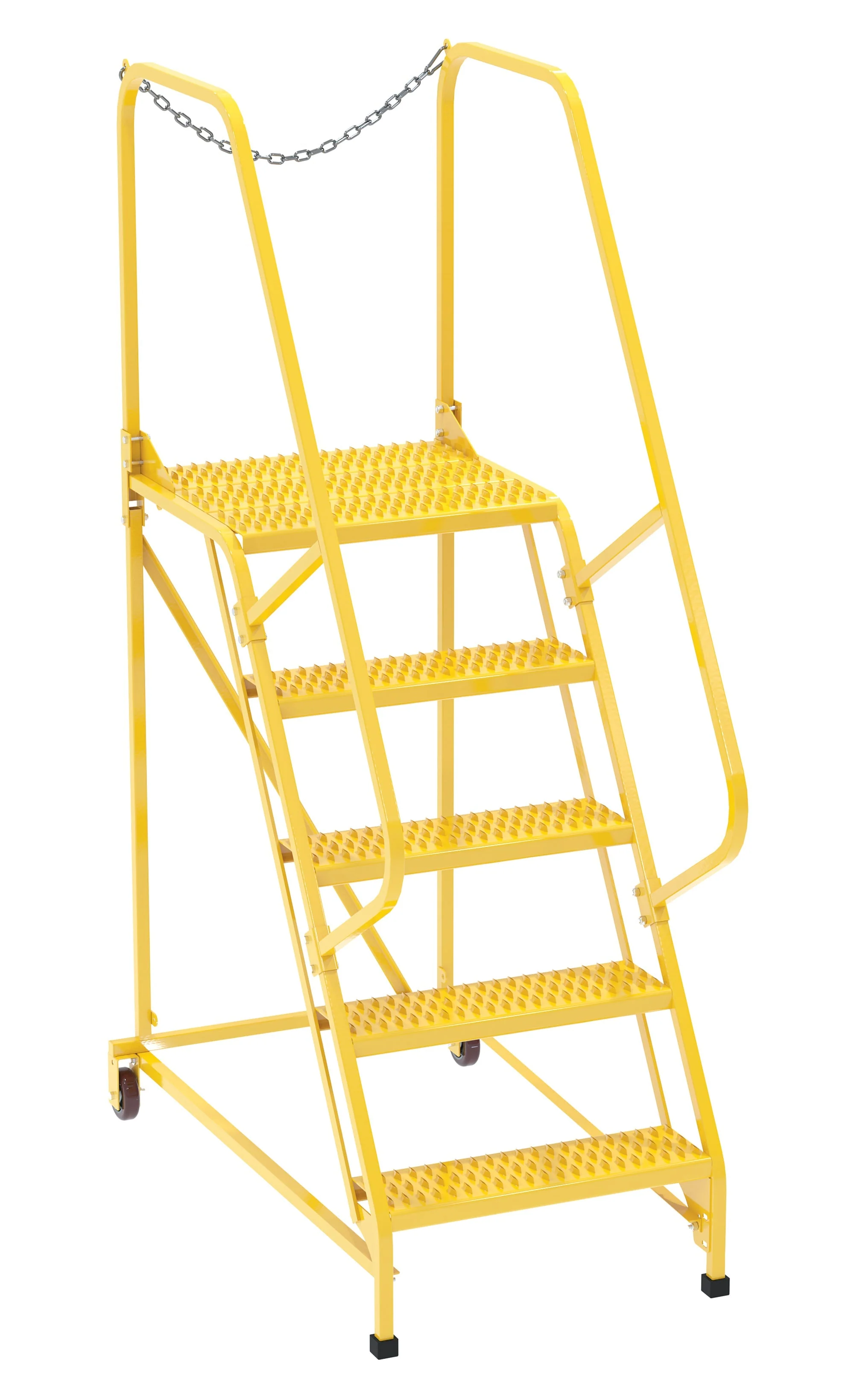

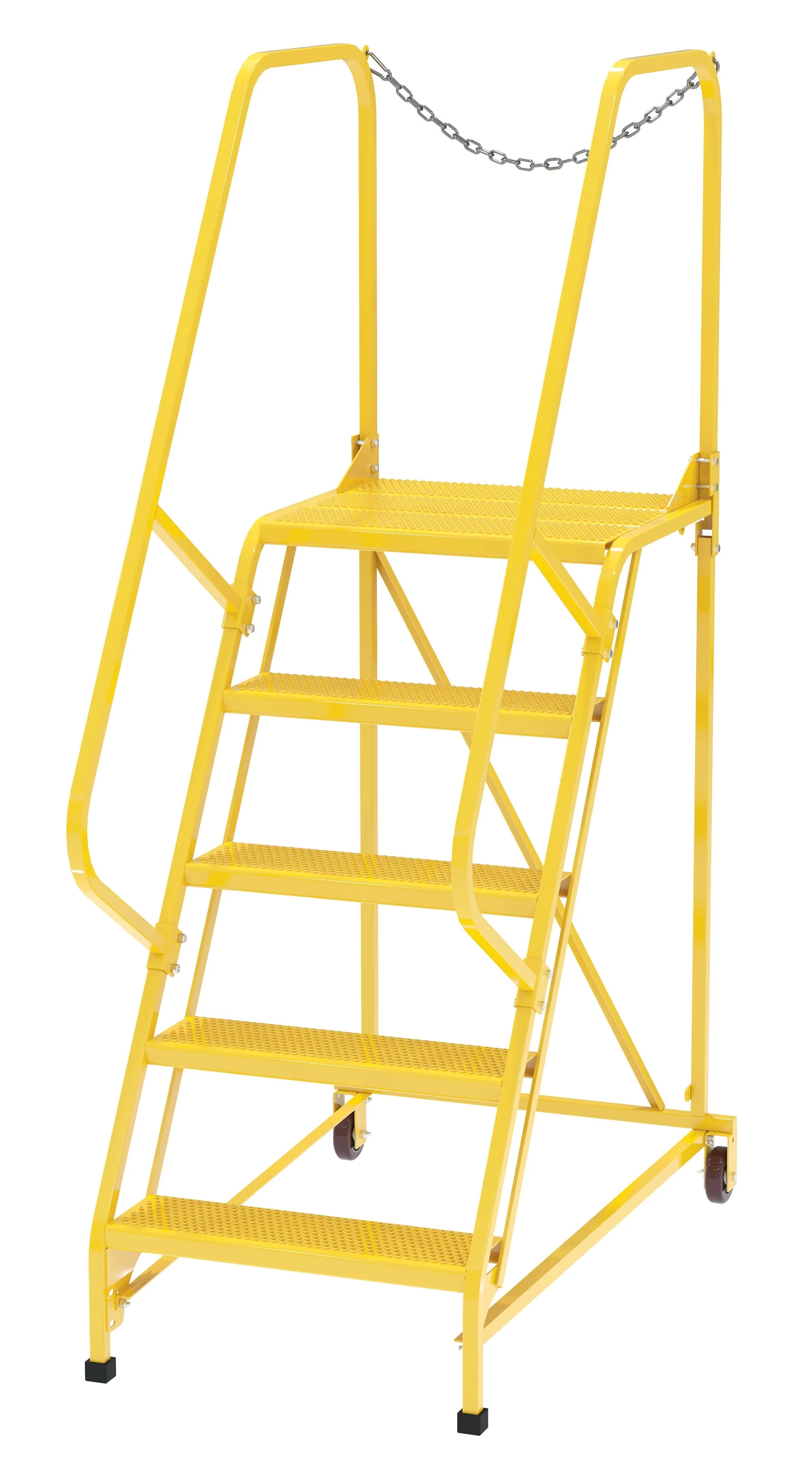

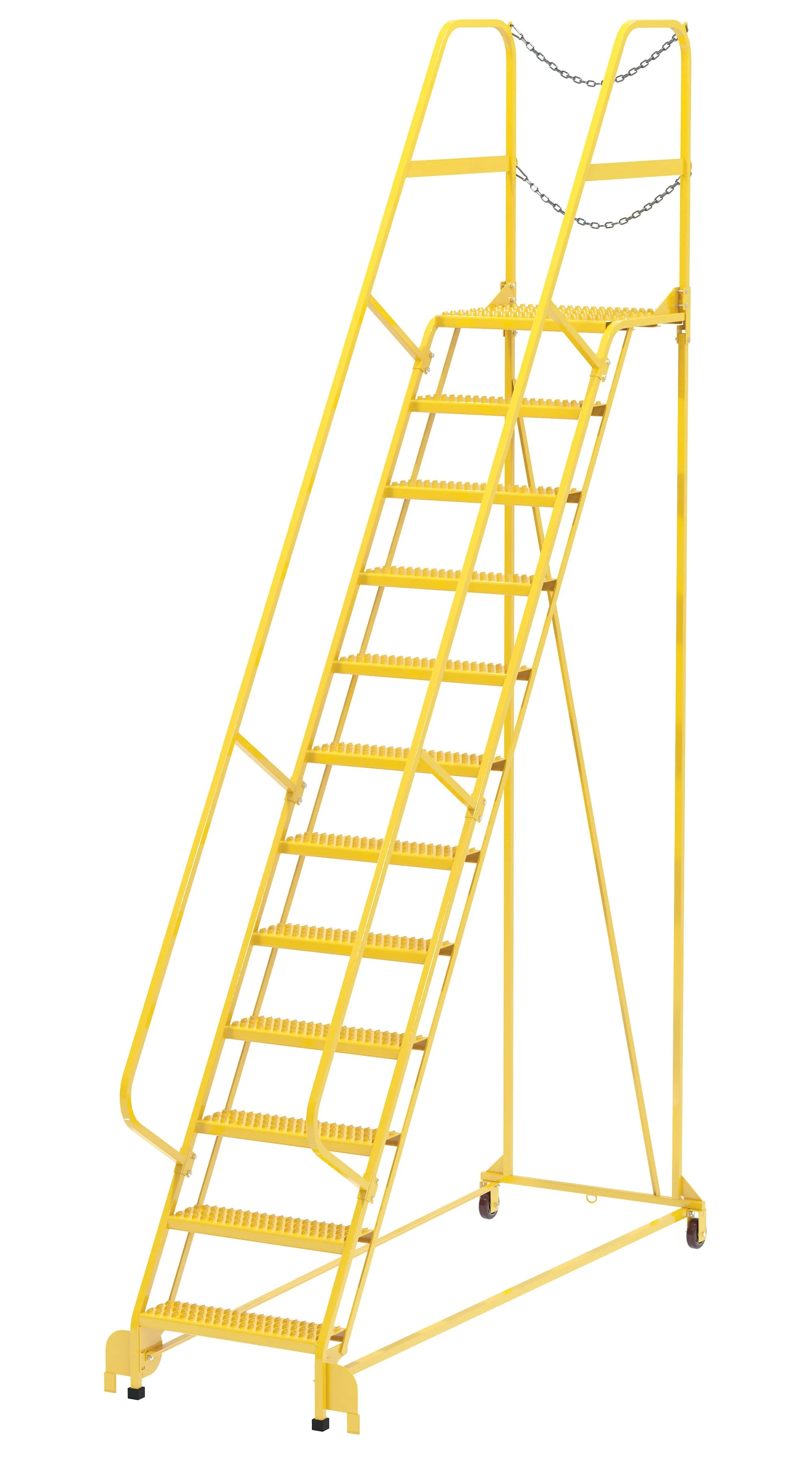

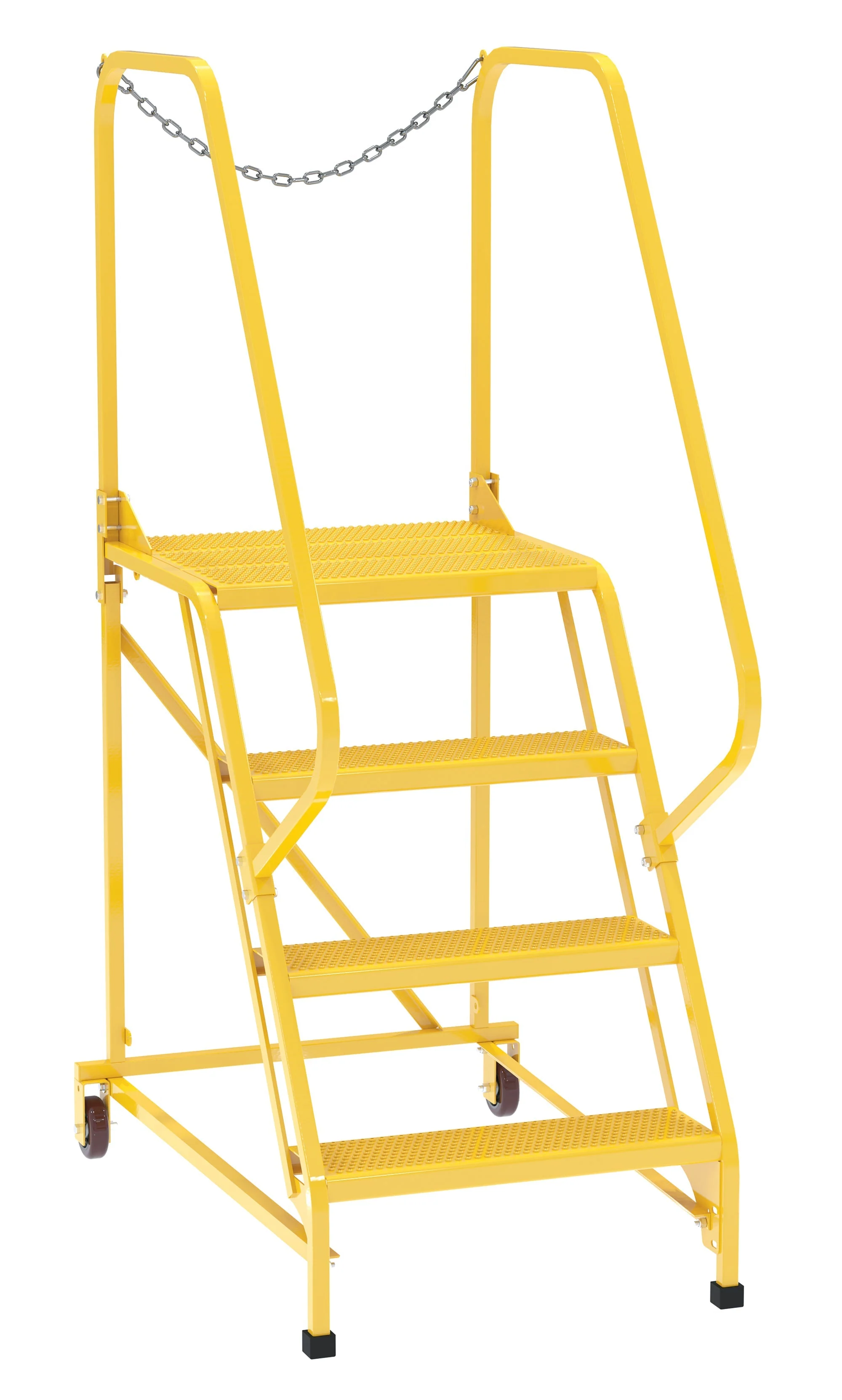

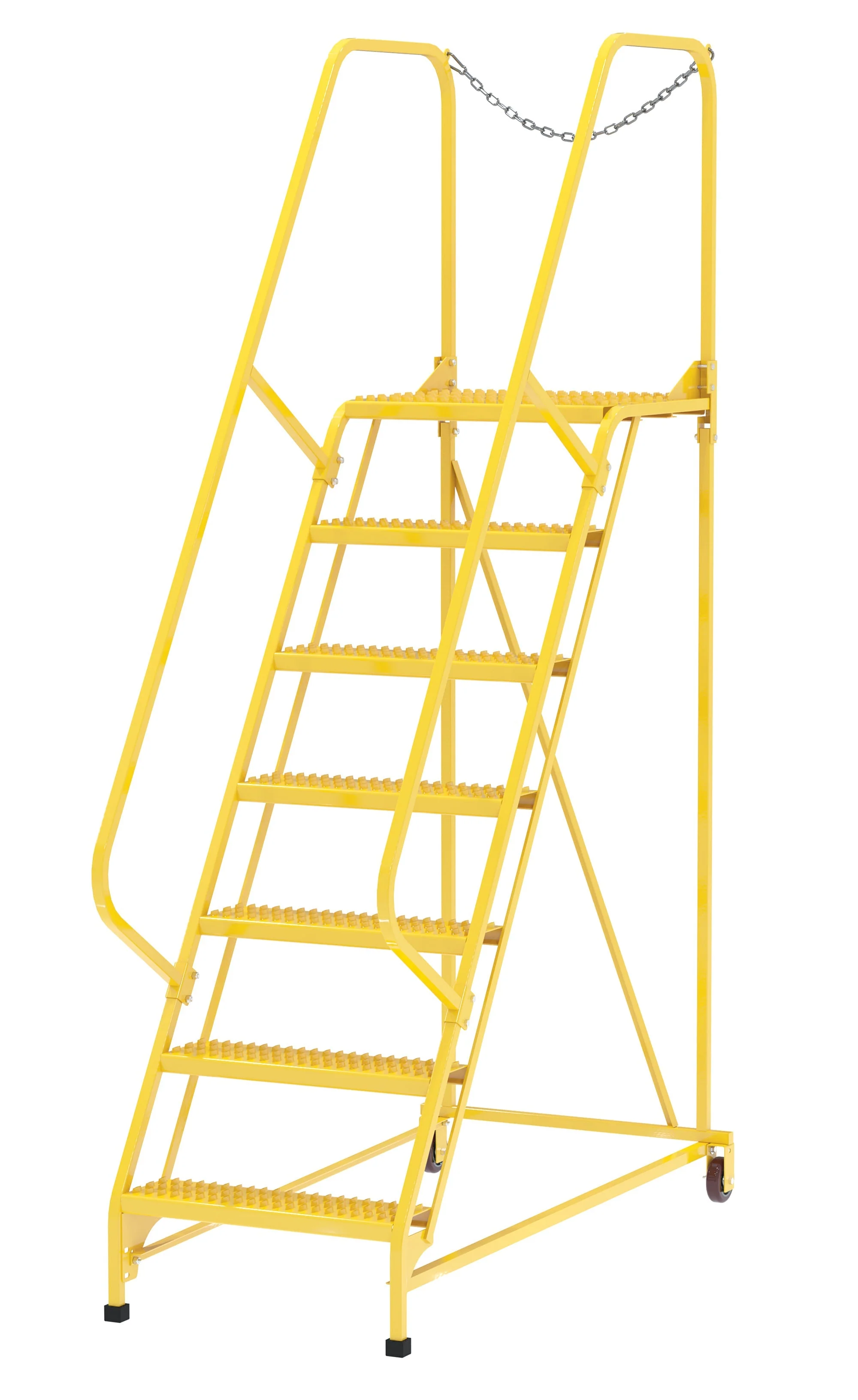

Yellow Maintenance Ladders

Model Number

Steps

 Overall
(WxDxH)		 Top Step
Height		 Step
Type		 Wt.
(lbs.)
LAD-MM-2-P-YL 2 29-1/2"x 38 1/2"x 50" 20" Perforated 110
LAD-MM-3-P-YL 3 29 1/2"x 38-1/2"x 60" 30" Perforated 118
LAD-MM-4-P-YL 4 29-1/2"x 43-5/8"x70"

40"

 Perforated 125
LAD-MM-5-P-YL 5 29-1/2"x49-3/4"x80" 50" Perforated 180
LAD-MM-6-P-YL 6 29-1/2"x 56-11/16"x 90" 60" Perforated 210
LAD-MM-7-P-YL 7 29-1/2"x 62-3/8"x100" 70" Perforated 243
LAD-MM-8-P-YL 8 29-1/2"x 68-5/8"x110"

80"

 Perforated 260
LAD-MM-9-P-YL 9 29-1/2"x74-7/8"x120" 90" Perforated 279
LAD-MM-10-P-YL 10 32"x81-1/8"x130" 100" Perforated 310
LAD-MM-11-P-YL 11 32"x87-3/8"x140" 110" Perforated 334
LAD-MM-12-P-YL 12 32"x93-1/4"x156" 120" Perforated 366
LAD-MM-2-G-YL 2 29-1/2"x38 1/2"x50" 20" Grip-Strut 110
LAD-MM-3-G-YL 3 29 1/2"x38-1/2"x60" 30" Grip-Strut 118
LAD-MM-4-G-YL 4 29-1/2"x43-5/8"x70"

40"

 Grip-Strut 125
LAD-MM-5-G-YL 5 29-1/2"x49-3/4"x80" 50" Grip-Strut 180
LAD-MM-6-G-YL 6 29-1/2"x 56-11/16"x90" 60" Grip-Strut 210
LAD-MM-7-G-YL 7 29-1/2"x 62-3/8"x100" 70" Grip-Strut 243
LAD-MM-8-G-YL 8 29-1/2"x68-5/8"x110"

80"

 Grip-Strut 260
LAD-MM-9-G-YL 9 29-1/2"x74-7/8"x120" 90" Grip-Strut 279
LAD-MM-10-G-YL 10 32"x 81-1/8"x130" 100" Grip-Strut 310
LAD-MM-11-G-YL 11 32"x 87-3/8"x140" 110" Grip-Strut 334
LAD-MM-12-G-YL 12 32"x 93-1/4"x156" 120" Grip-Strut 366
Select Step Count
Select Step Type
Select Color
From $197.57

Original: $564.49

-65%
Vestil Maintenance Ladders—

$564.49

$197.57
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

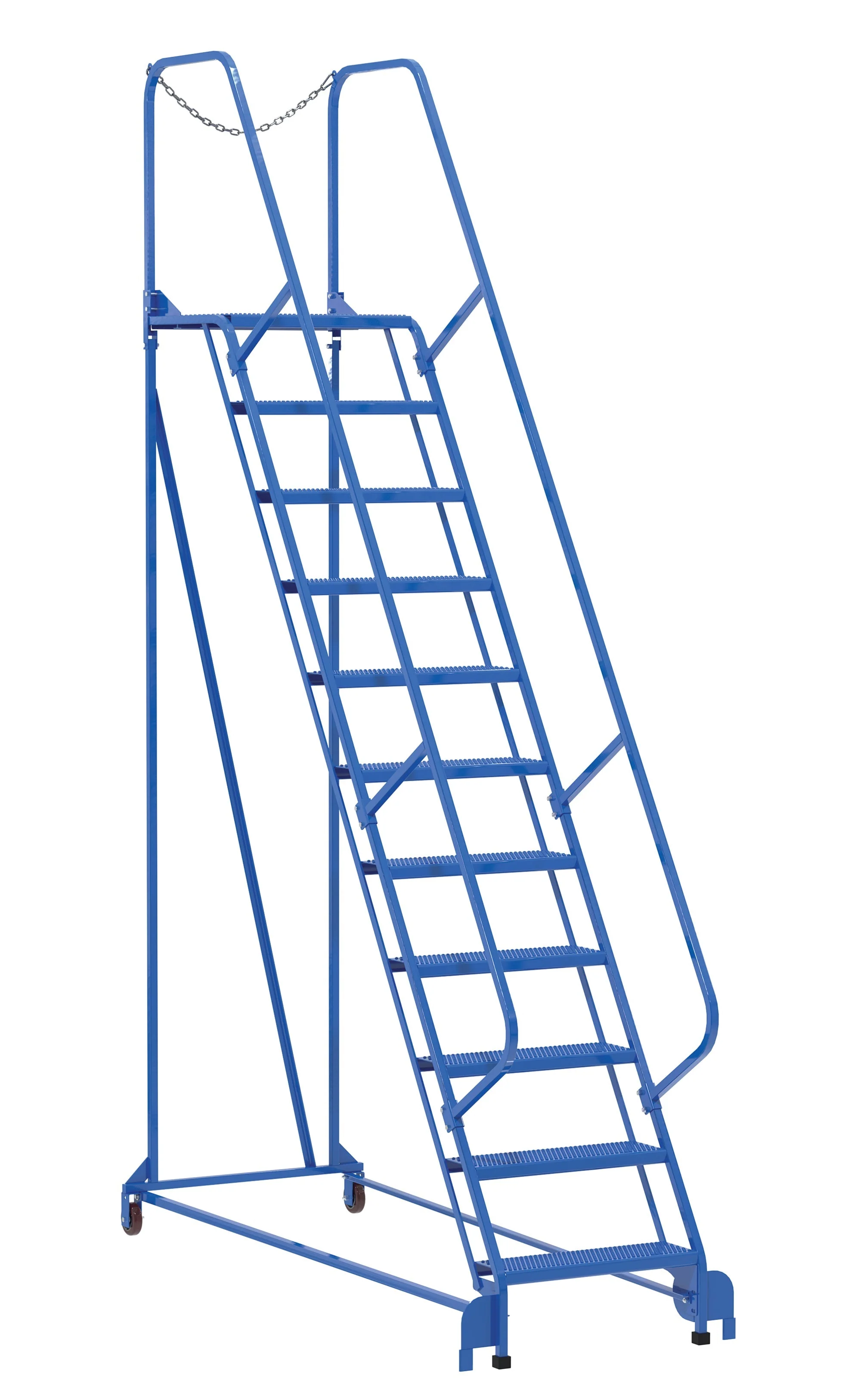

Product image 7

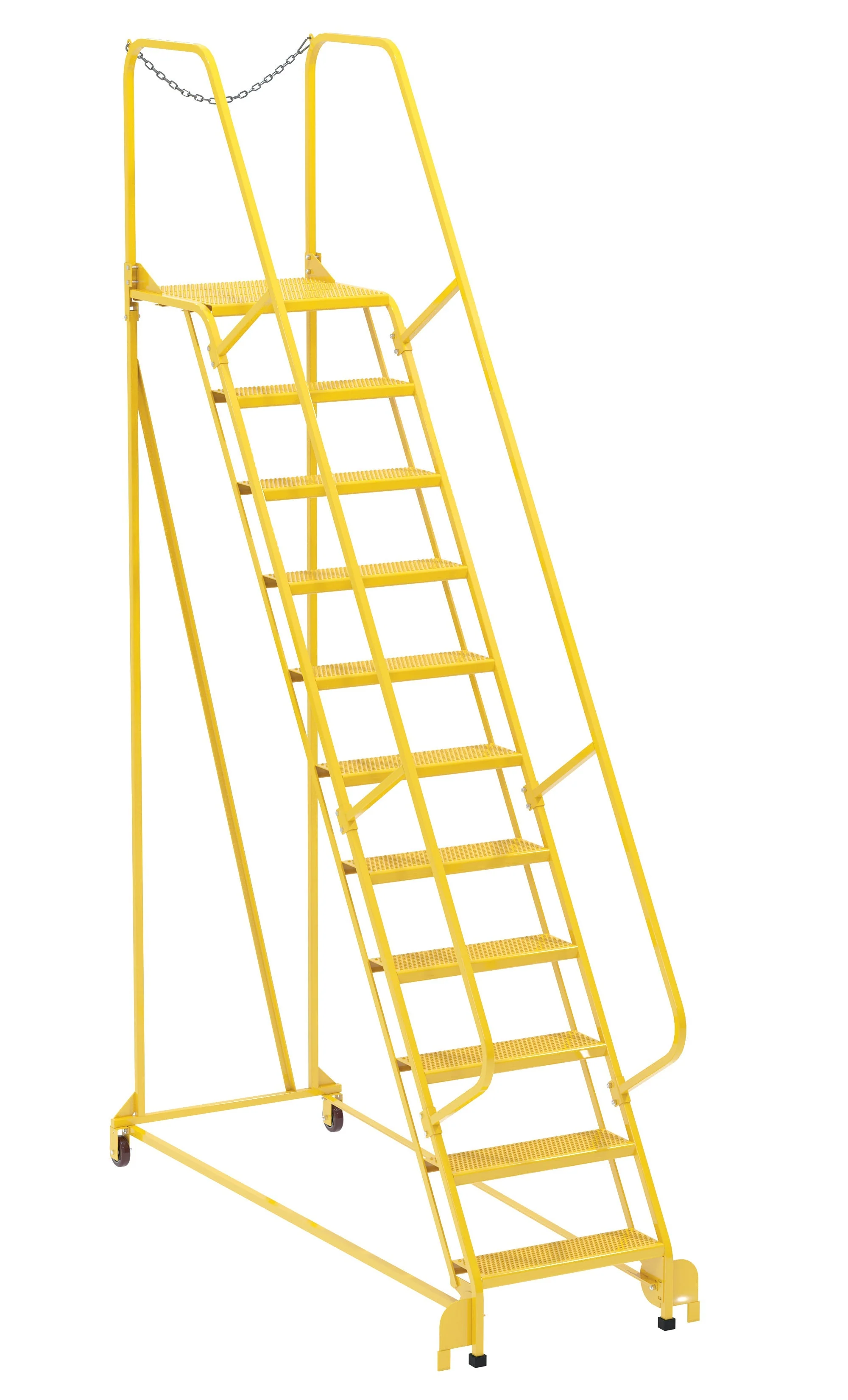

Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20

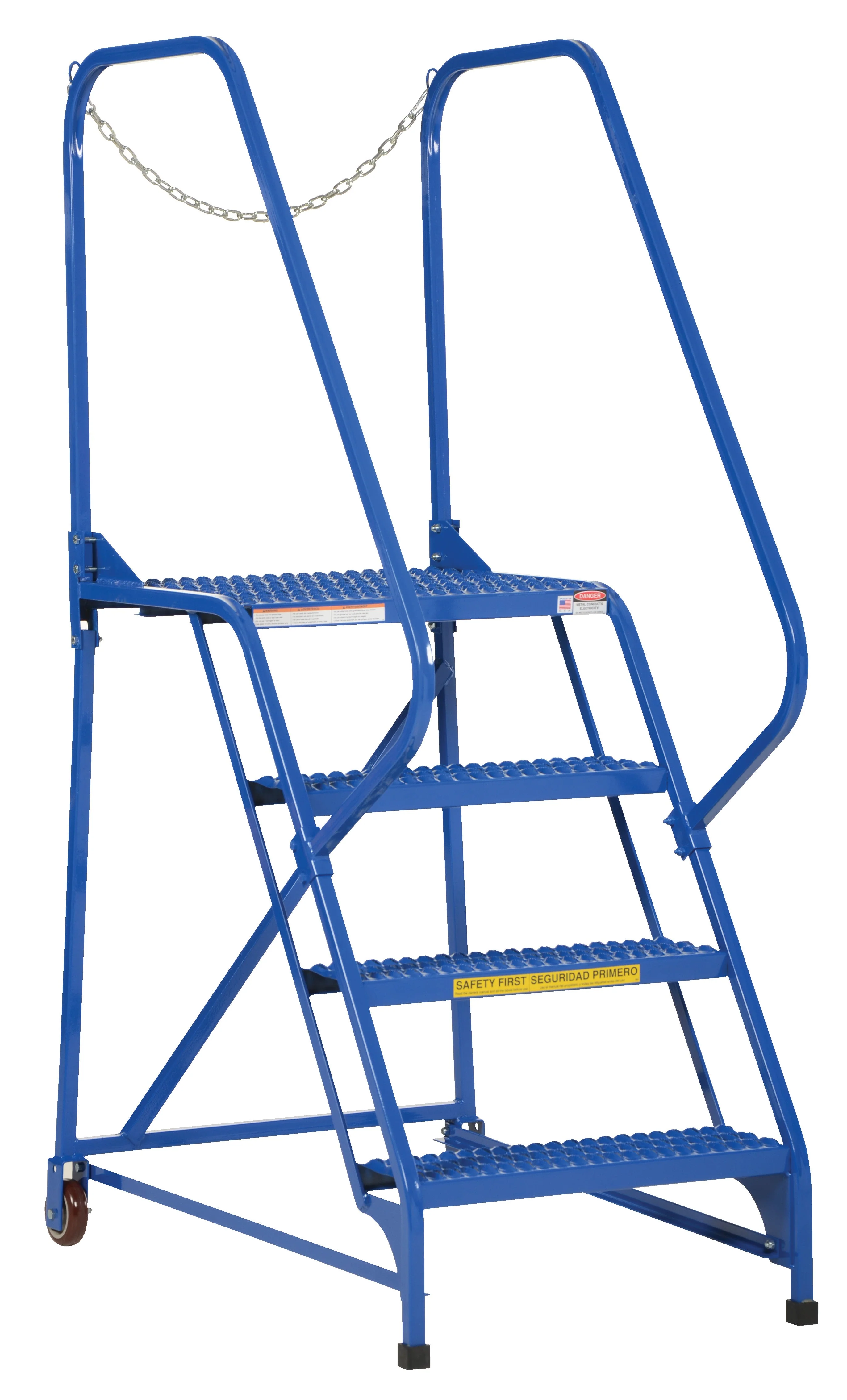

Product image 21
Product image 22
Product image 23
Product image 24

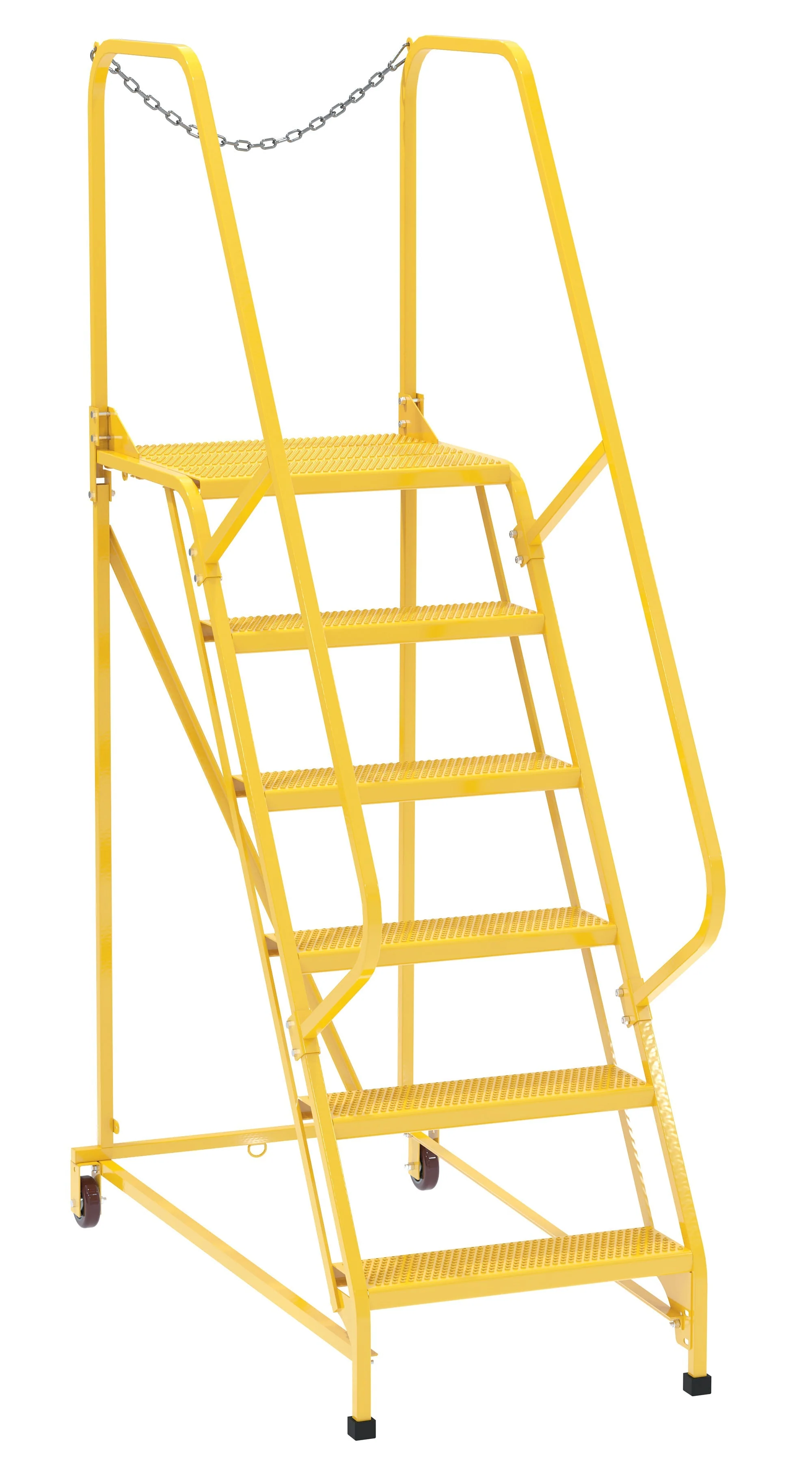

Product image 25
Product image 26
Product image 27
Product image 28
Product image 29
Product image 30

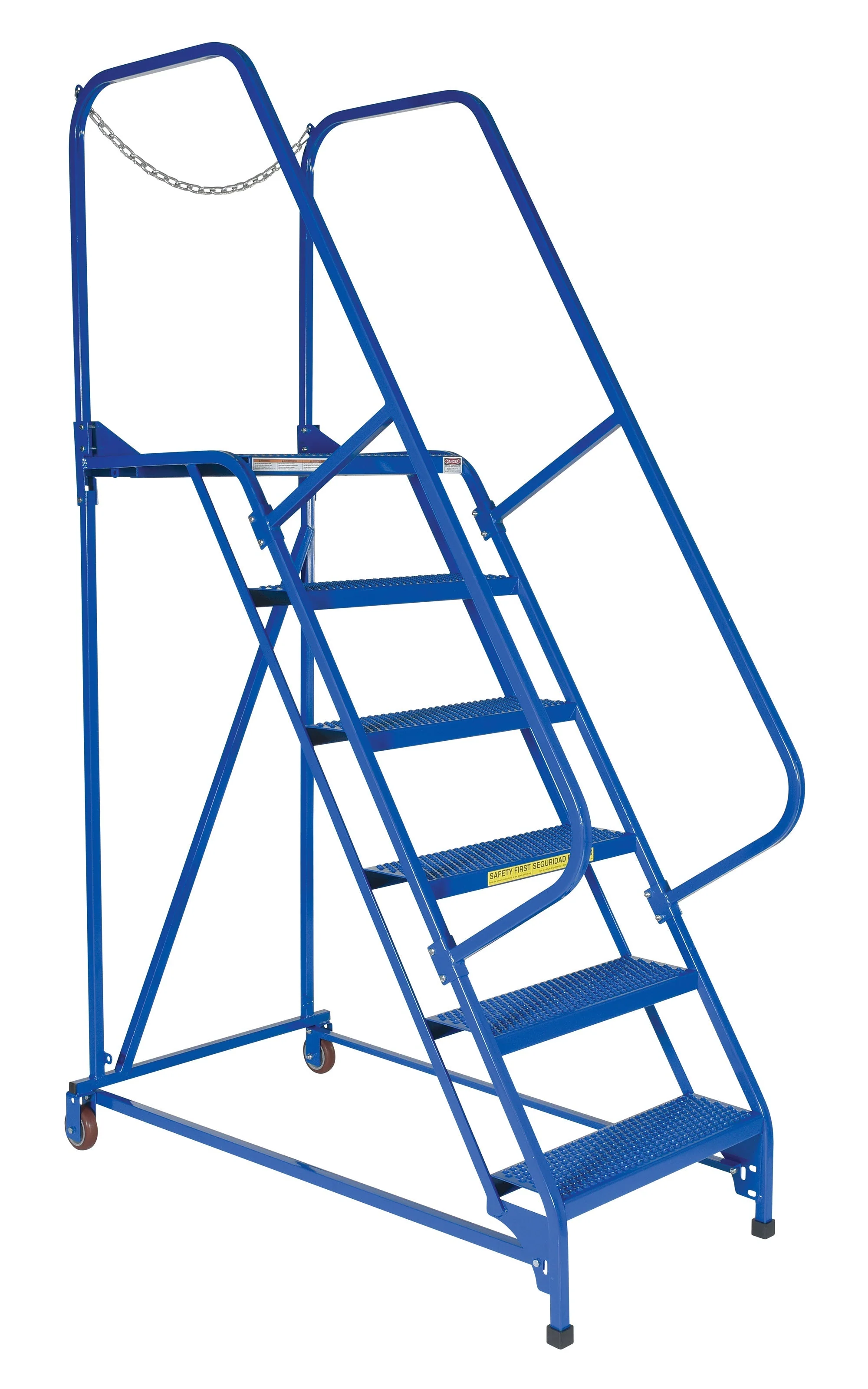

Product image 31

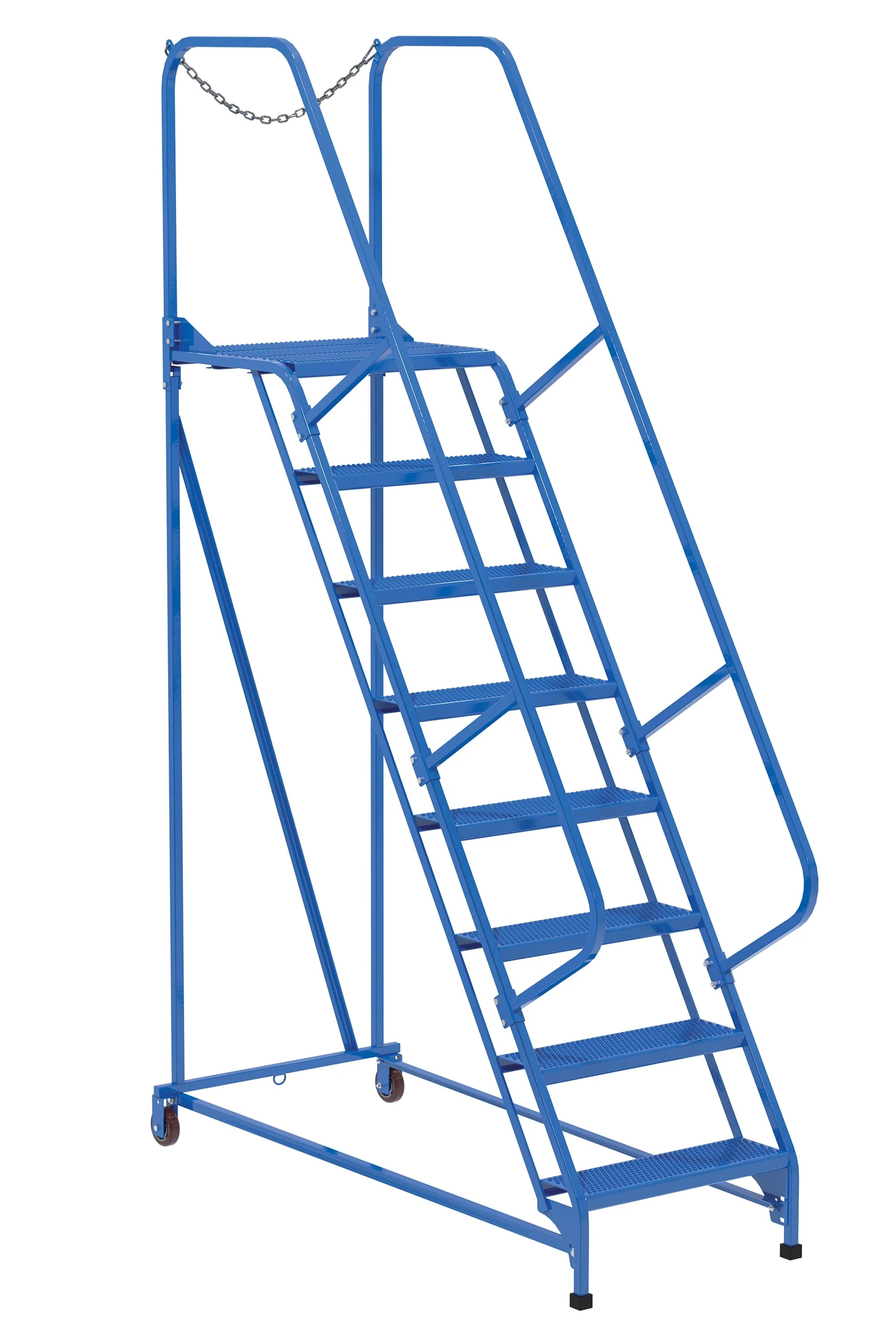

Product image 32
Product image 33
Product image 34

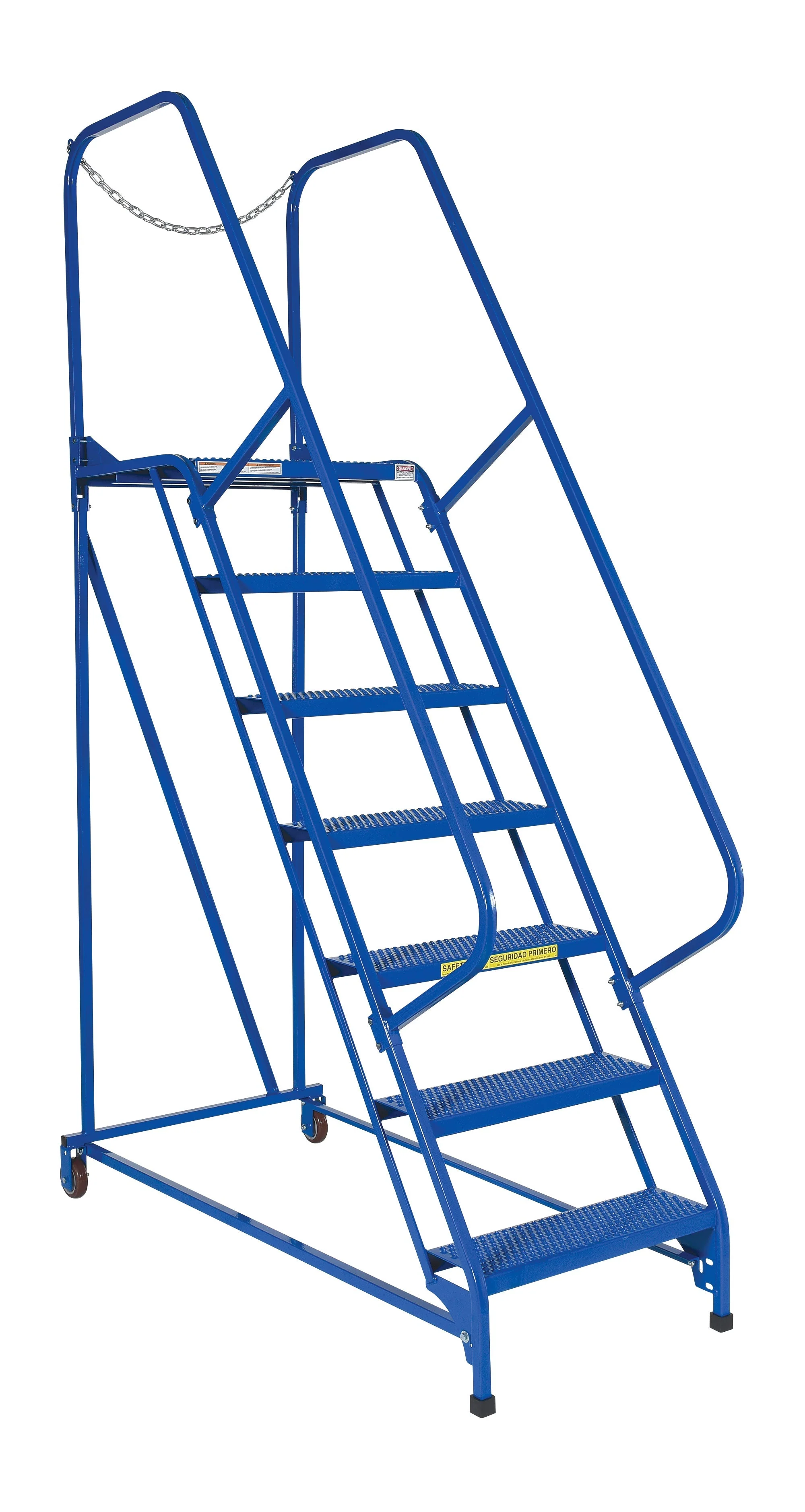

Product image 35
