Vestil Mechanical Dock Levelers

Vestil Mechanical Dock Levelers

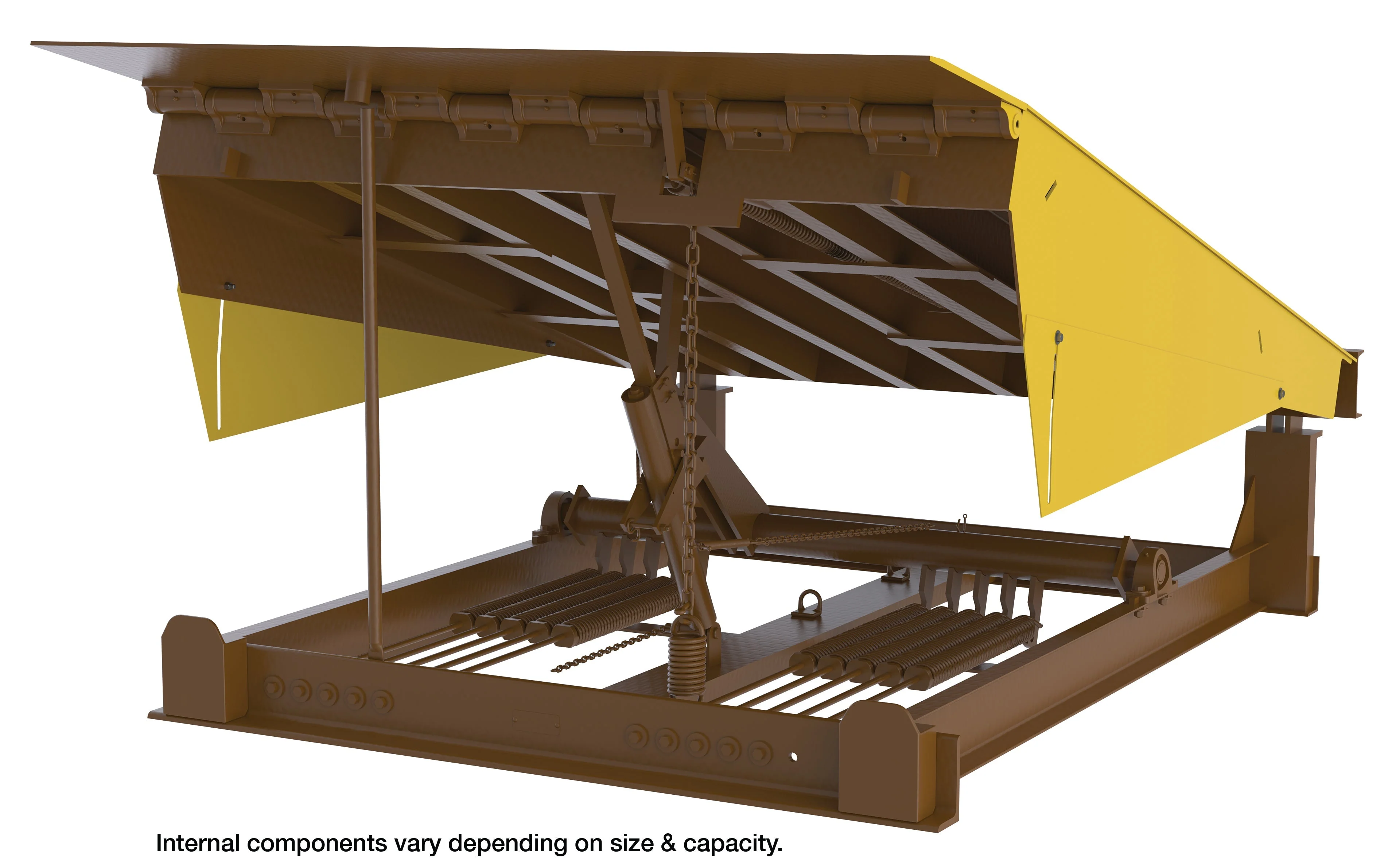

The Mechanical Dock levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock. Includes (2) 1014-4.5 laminated bumpers. Uniform capacities available up to 50,000 pounds.

Mechanical Dock levelers
All Capacities listed are 20,000 pounds
For capacities to 50,000 pounds - contact factory
Model Operation Overall Size
(Including Lip)		 Capacity Wt. (lbs)
RR-65-20 Pull Chain 6'W x 5'4"L 20,000 1696
RR-66-20 Pull Chain 6'W x 6'4"L 20,000 1812
RR-68-20 Pull Chain 6'W x 8'4"L 20,000 2211
RR-610-20 Pull Chain 6'W x 10'4"L 20,000 2563
RR-75-20 Pull Chain 7'Wx5'4"L 20,000 1812
RR-76-20 Pull Chain 7'Wx6'4"L 20,000 2016
RR-78-20 Pull Chain 7'Wx8'4"L 20,000 2428
RR-710-20 Pull Chain 7'W x 10'4" L 20,000 2854
Select Capacity (Lbs.)
Select Pit Length (In.)
Select Pit Width (In.)
From $1,545.99

Original: $4,417.11

-65%
Vestil Mechanical Dock Levelers—

$4,417.11

$1,545.99
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25
Product image 26
Product image 27
Product image 28
Product image 29
Product image 30
Product image 31
Product image 32
Product image 33
Product image 34
Product image 35
Product image 36

Description

The Mechanical Dock levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock. Includes (2) 1014-4.5 laminated bumpers. Uniform capacities available up to 50,000 pounds.

Mechanical Dock levelers
All Capacities listed are 20,000 pounds
For capacities to 50,000 pounds - contact factory
Model Operation Overall Size
(Including Lip)		 Capacity Wt. (lbs)
RR-65-20 Pull Chain 6'W x 5'4"L 20,000 1696
RR-66-20 Pull Chain 6'W x 6'4"L 20,000 1812
RR-68-20 Pull Chain 6'W x 8'4"L 20,000 2211
RR-610-20 Pull Chain 6'W x 10'4"L 20,000 2563
RR-75-20 Pull Chain 7'Wx5'4"L 20,000 1812
RR-76-20 Pull Chain 7'Wx6'4"L 20,000 2016
RR-78-20 Pull Chain 7'Wx8'4"L 20,000 2428
RR-710-20 Pull Chain 7'W x 10'4" L 20,000 2854
