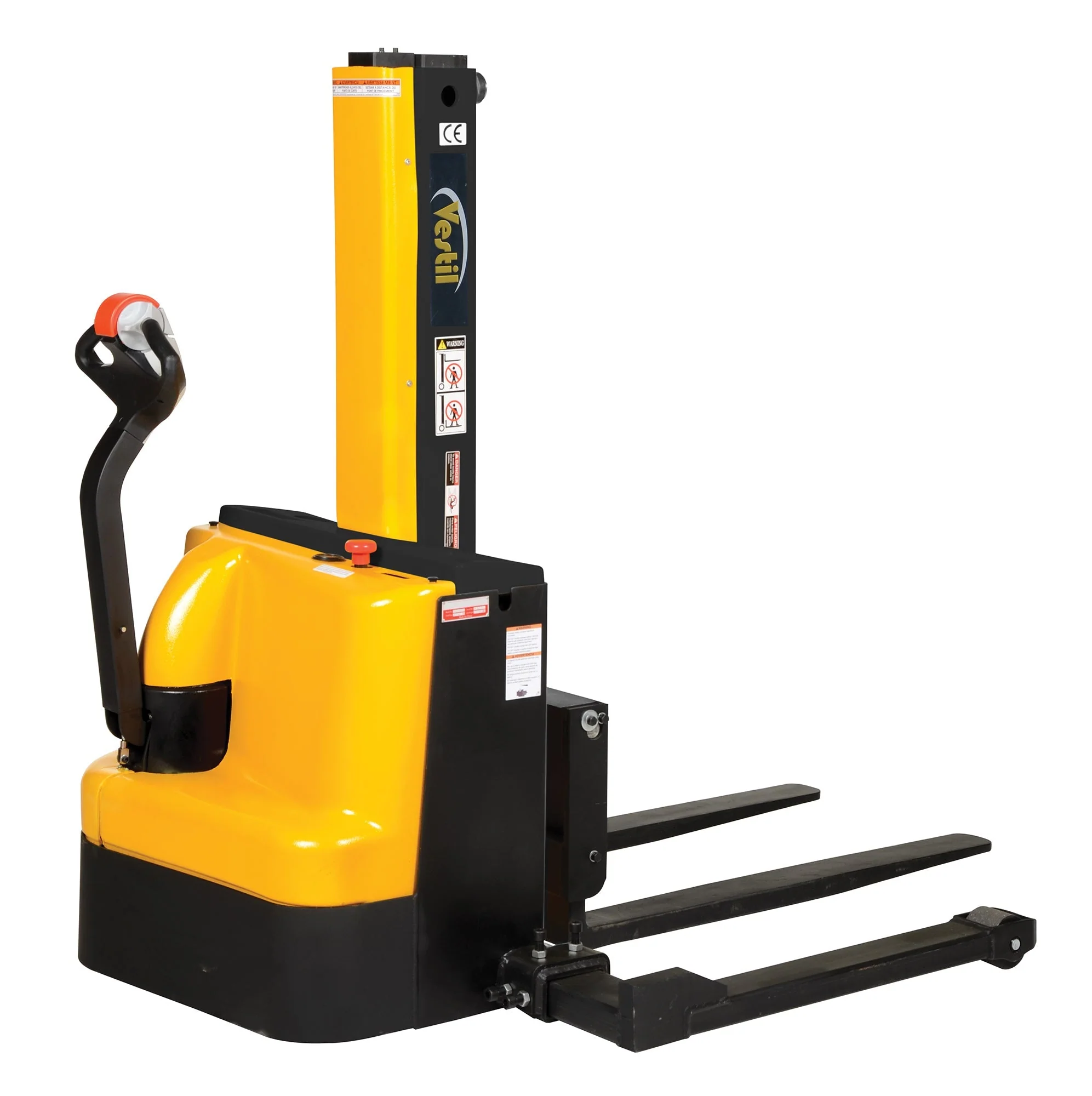

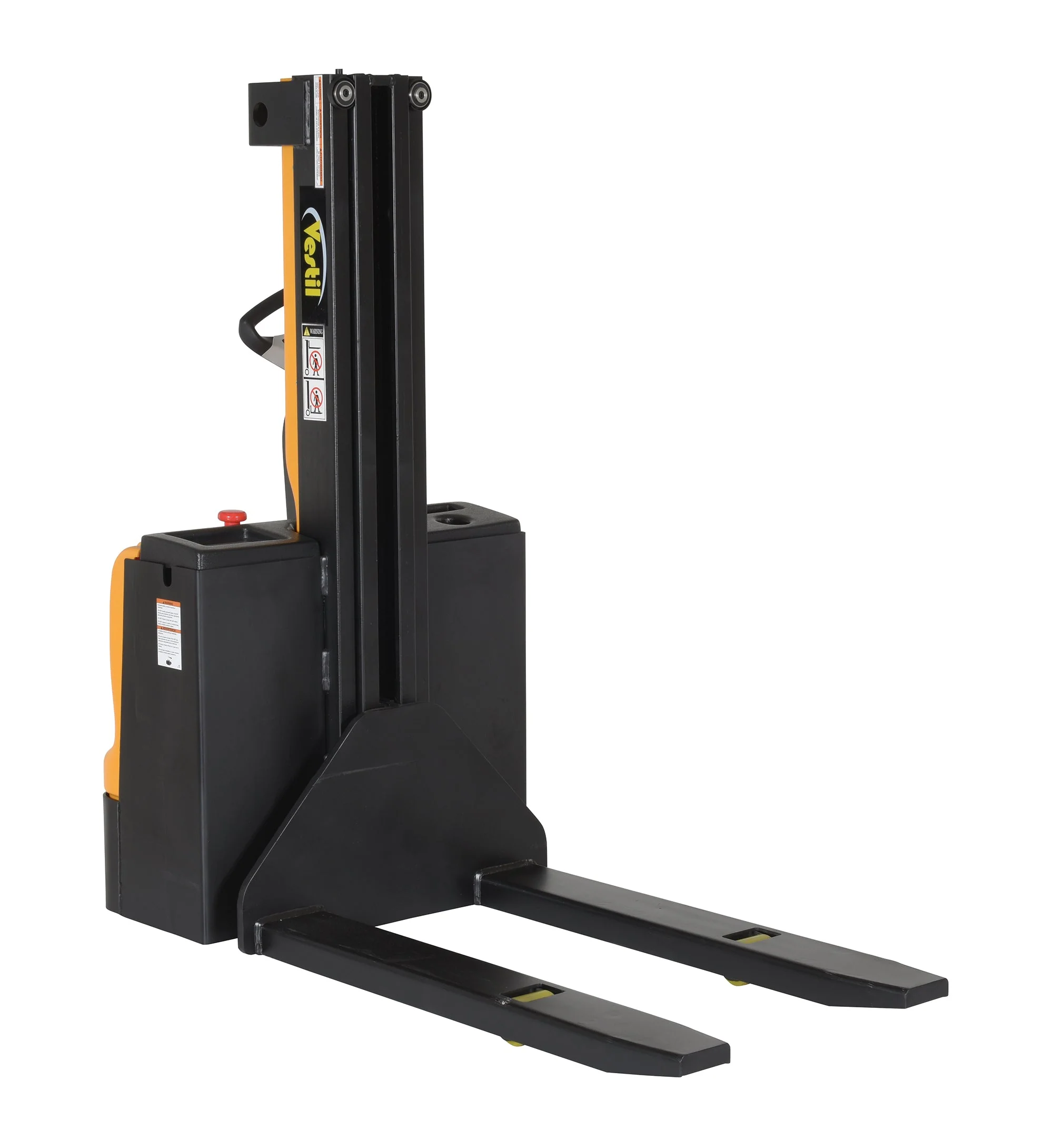

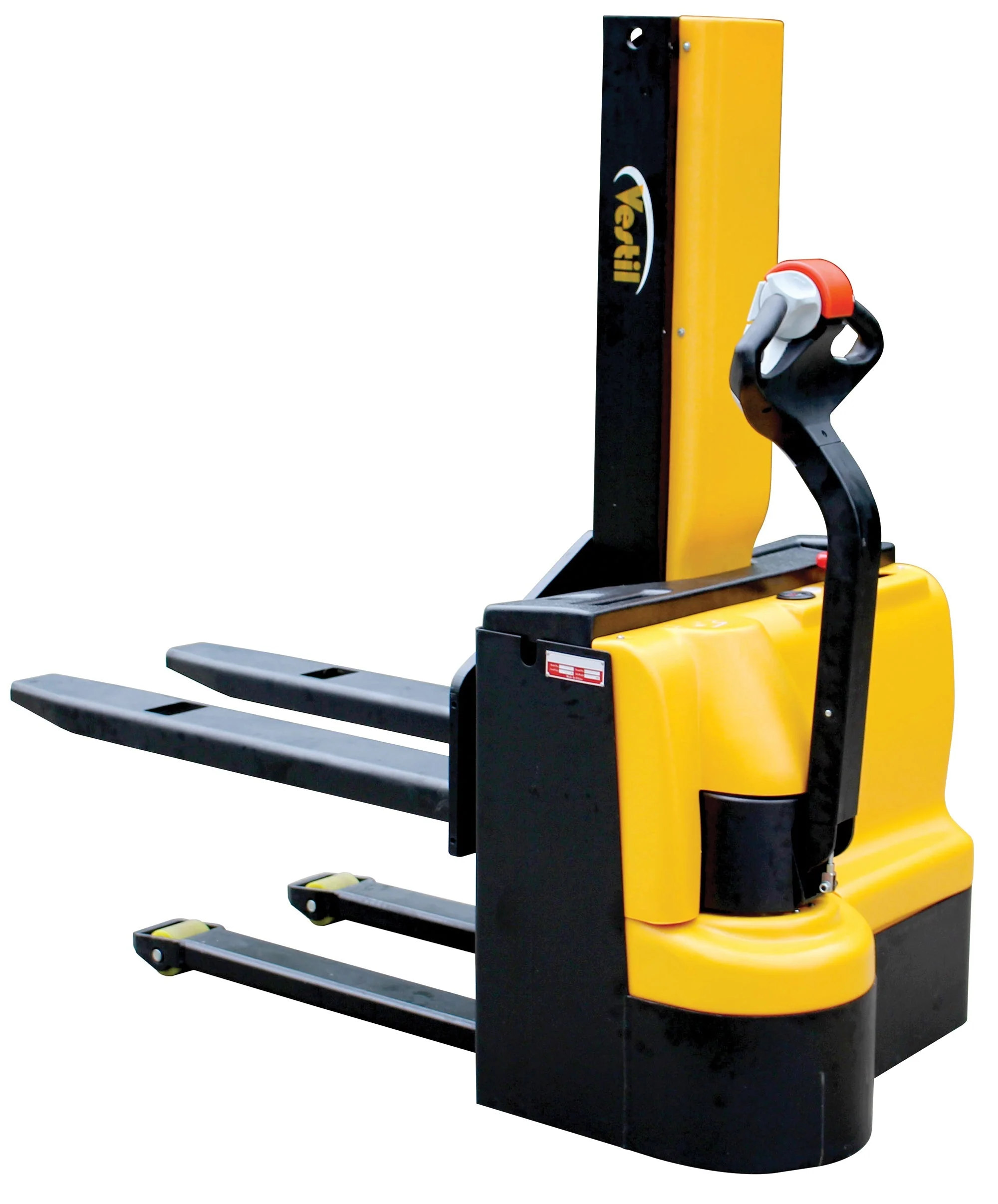

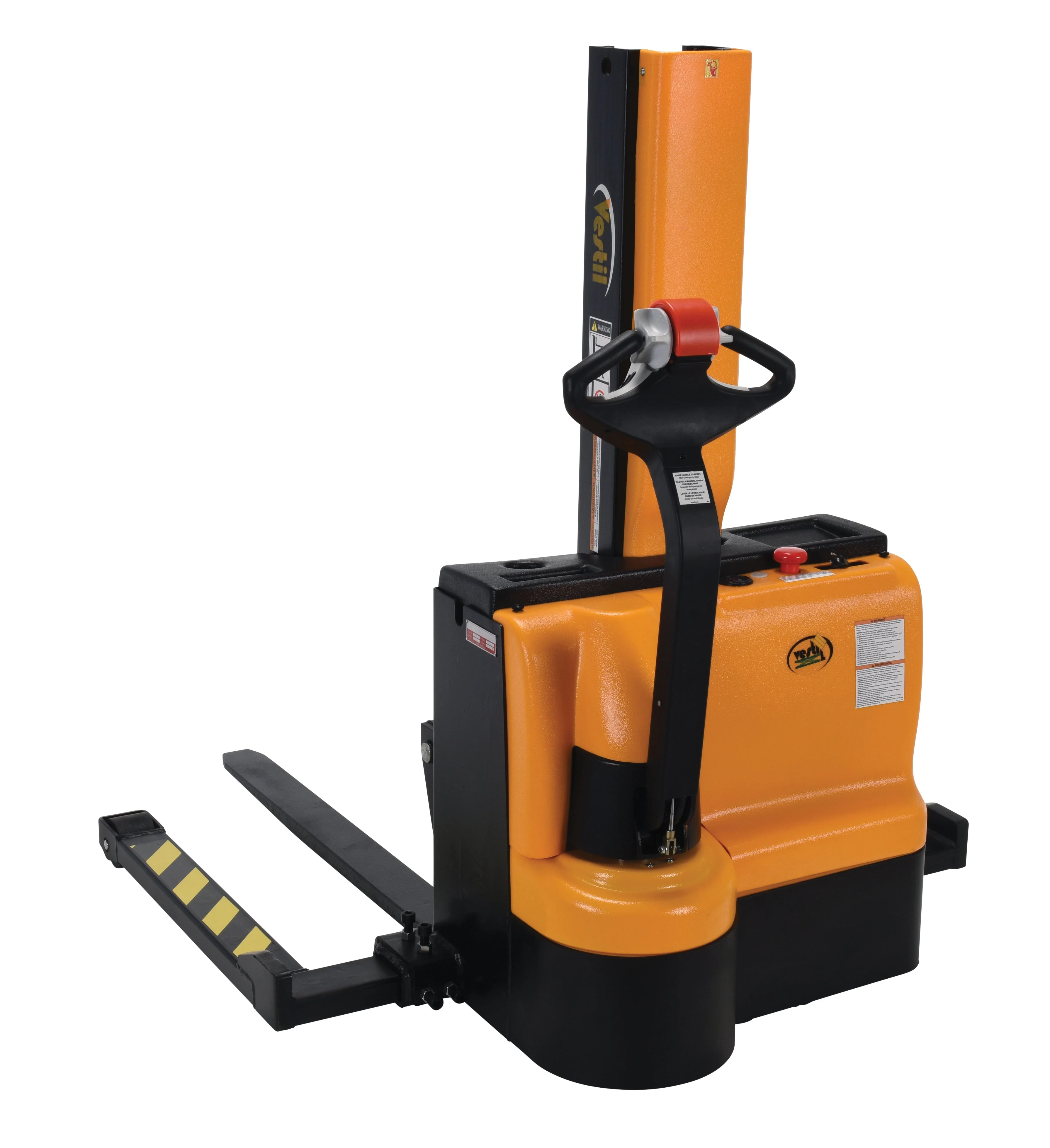

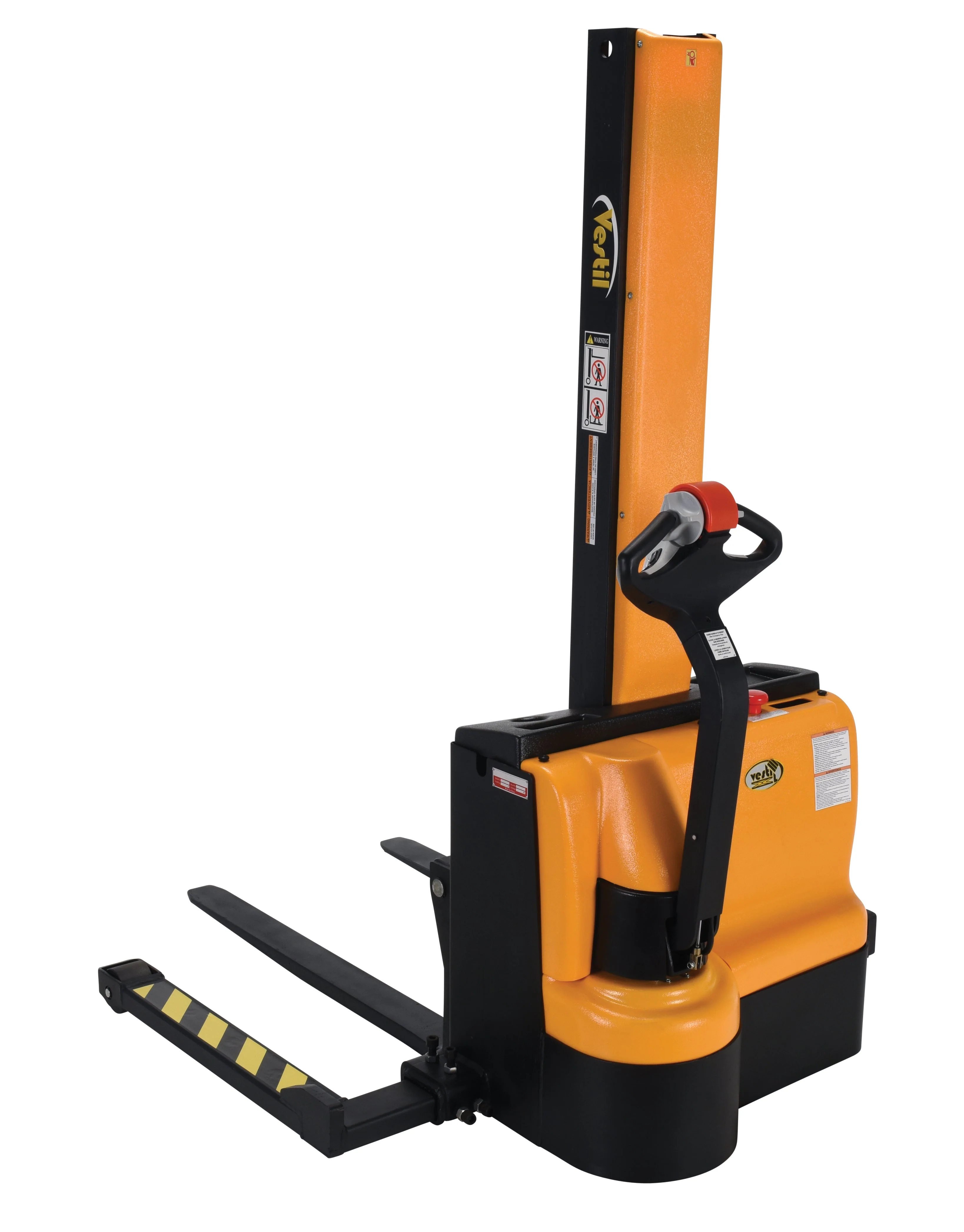

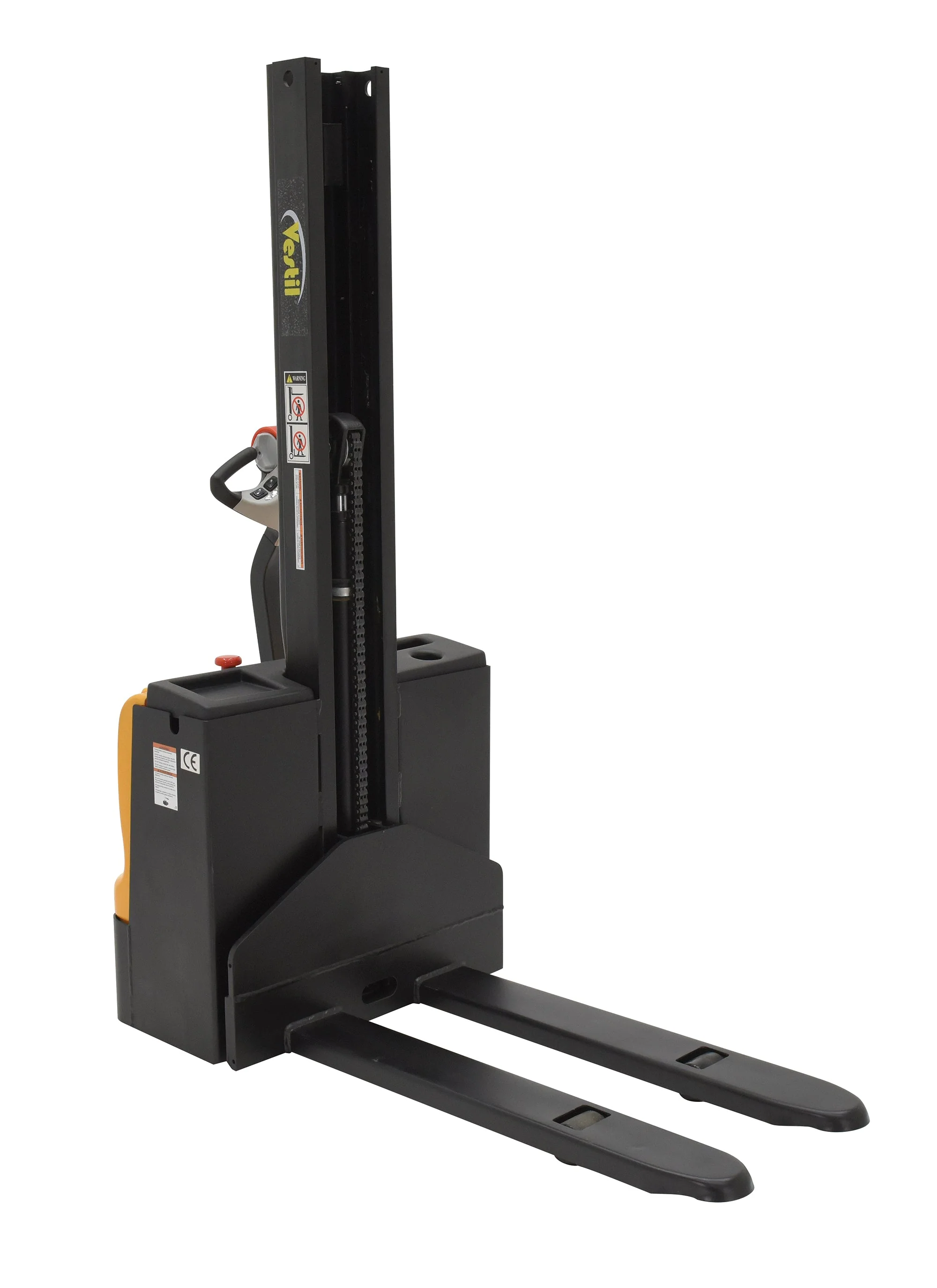

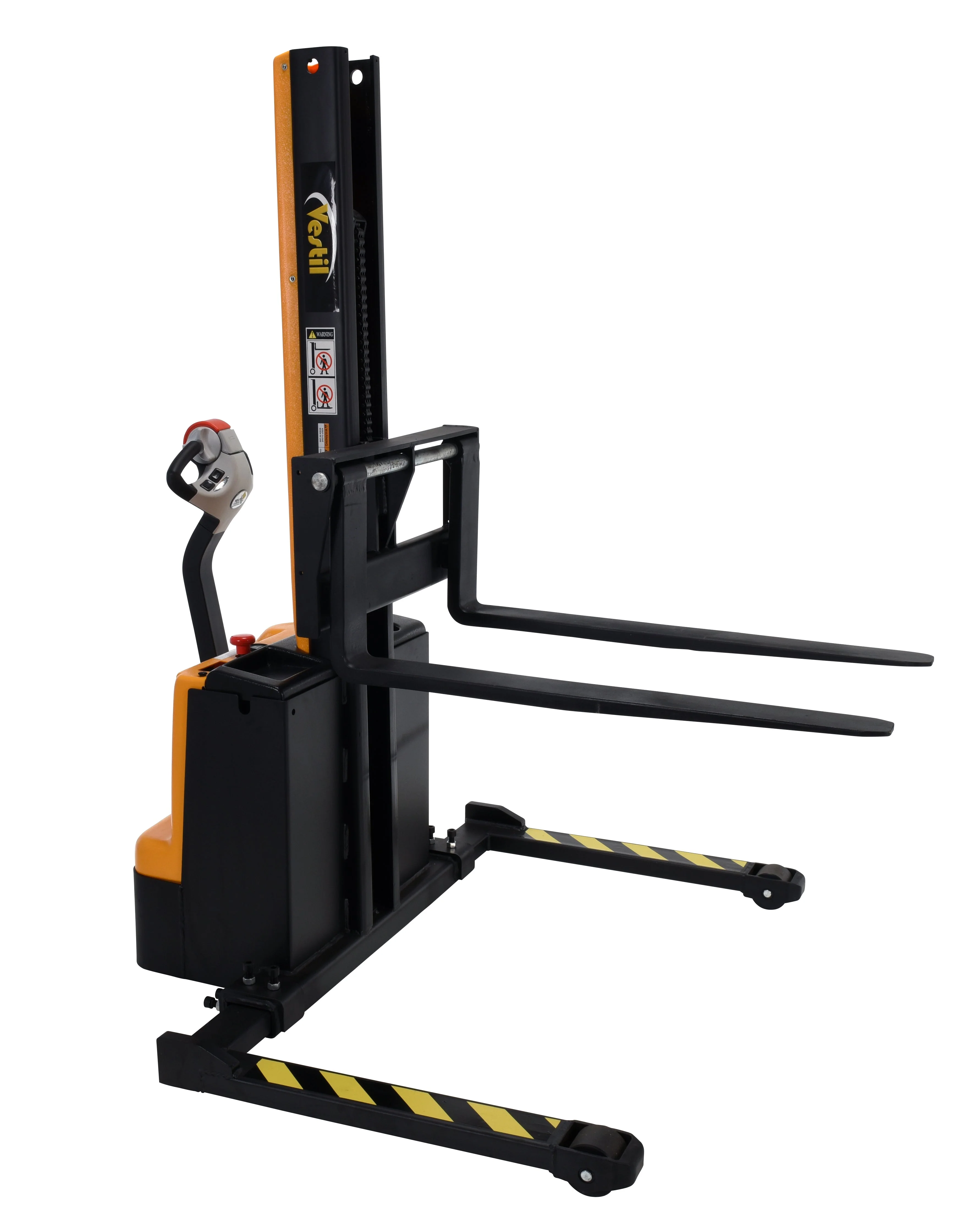

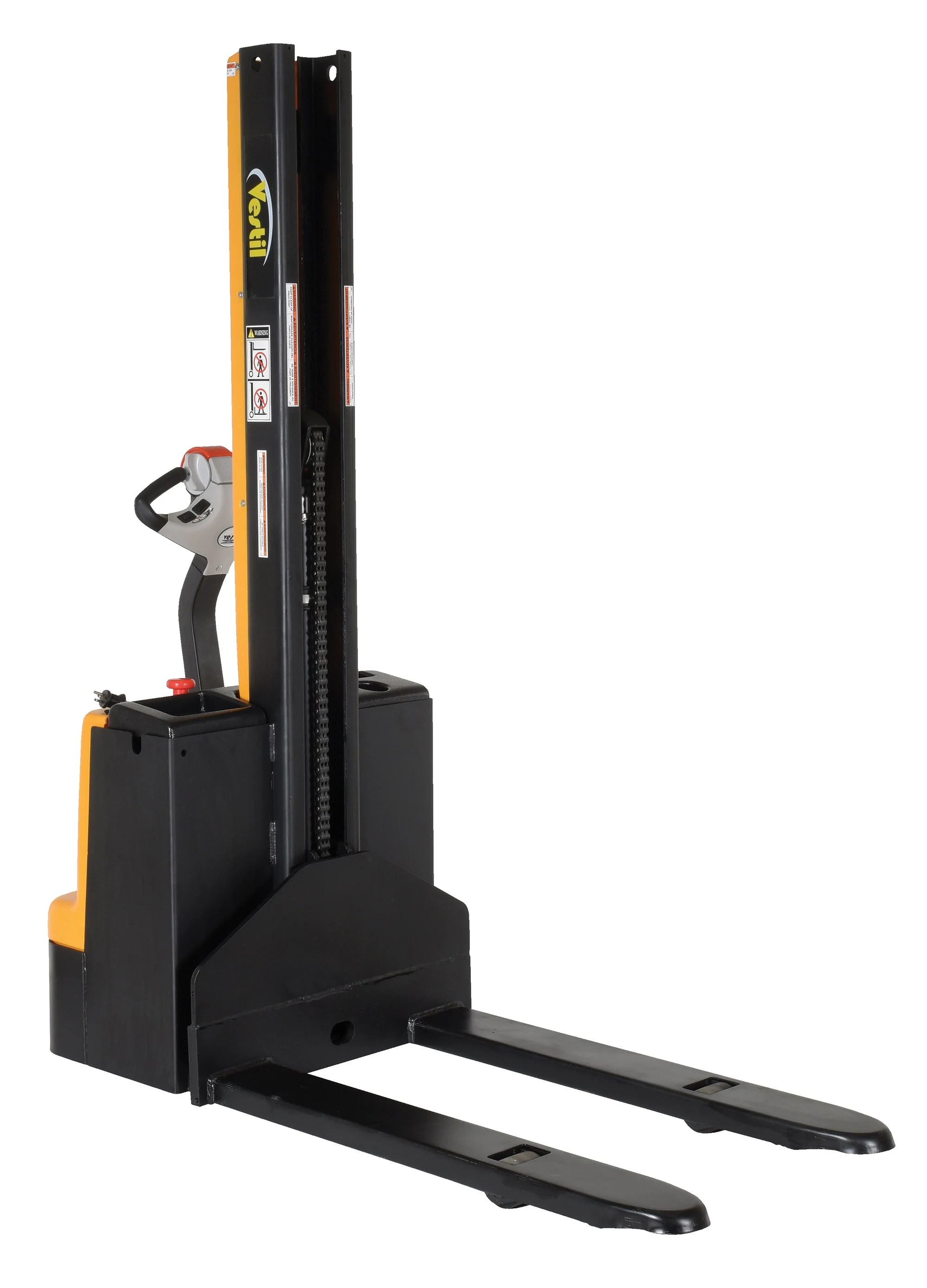

Vestil Narrow Mast Stackers with Powered Drive and Powered Lift
Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
| Narrow Mast Stacker with Powered Drive and Powered Lift | ||||||||
| Model | Image | Fork Size (in.) |
Service Range (in.) | Fork Spacing (in.) | Leg Spacing (in.) | Uniform Capacity 0"-62" RH |
Uniform Capacity 62"-118" RH |
|
|
Fixed Forks w/ Adjustable Support Legs (works with pallets & skids) |
||||||||
| SNM-62-FA |  |
5-9/10" x 42" | 2-3/8 to 62 | 26-3/4 | 40-1/8 to 50 | 2,200 lbs. | -- | |
|
Adjustable Forks w/ Adjustable Support Legs (works with pallets & skids) |
||||||||
| SNM15-62-AA* |  |
4 x 42-1/8 | 2 to 62 | 8 to 26-3/4 | 40-1/8 to 50 | 1,500 lbs. | -- | |
| SNM-62-AA |  |
4 x 42-1/8 | 2-1/8 to 62 | 8 to 26-3/4 | 40-1/8 to 50 | 2,200 lbs. | -- | |
| SNM-90-AA |  |
4 x 42-1/8 | 2-1/8 to 90-1/2 | 8 to 26-3/4 | 40-1/8 to 50 | 2,500 lbs. | 2,000 lbs. | |
| SNM3-43-AA |  |
4 x 42-1/8 | 2 to 43-3/10 | 8-3/8 to 26-3/4 | 40-1/8 to 50 | 3,000 lbs. | -- | |
|
Fixed Forks Over Fixed Support Legs (works with skids only) |
||||||||
| SNM15-62-FF-27* |  |
5-9/10 x 42-1/8 | 2 to 62 | 26-3/4 | 26-3/4 | 1,500 lbs. | -- | |
| SNM-62-FF-21 |  |
5-9/10 x 42-1/8 | 2-3/8 to 62 | 20-1/2 | 20-1/2 | 2,200 lbs. | -- | |
| SNM-62-FF-27 |  |
5-9/10 x 42-1/8 | 3-3/8 to 62 | 26-3/4 | 26-3/4 | 2,200 lbs. | -- | |
| SNM-90-FF-27 |  |
5-9/10 x 42 | 3-1/4 to 90 | 26-3/4 | 26-3/4 | 2,200 lbs. | 1,500 lbs. | |
| SNM3-43-FF-21 |  |
4 x 42 | 3-3/8 to 43 | 21 | 21 | 3,000 lbs. | -- | |
| SNM3-43-FF-27 |  |
5-9/10 x 42-1/8 | 3-3/8 to 43-3/8 | 26-3/4 | 26-3/4 | 3,000 lbs. | -- | |
Original: $8,251.95
-65%$8,251.95
$2,888.18
Description
Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
