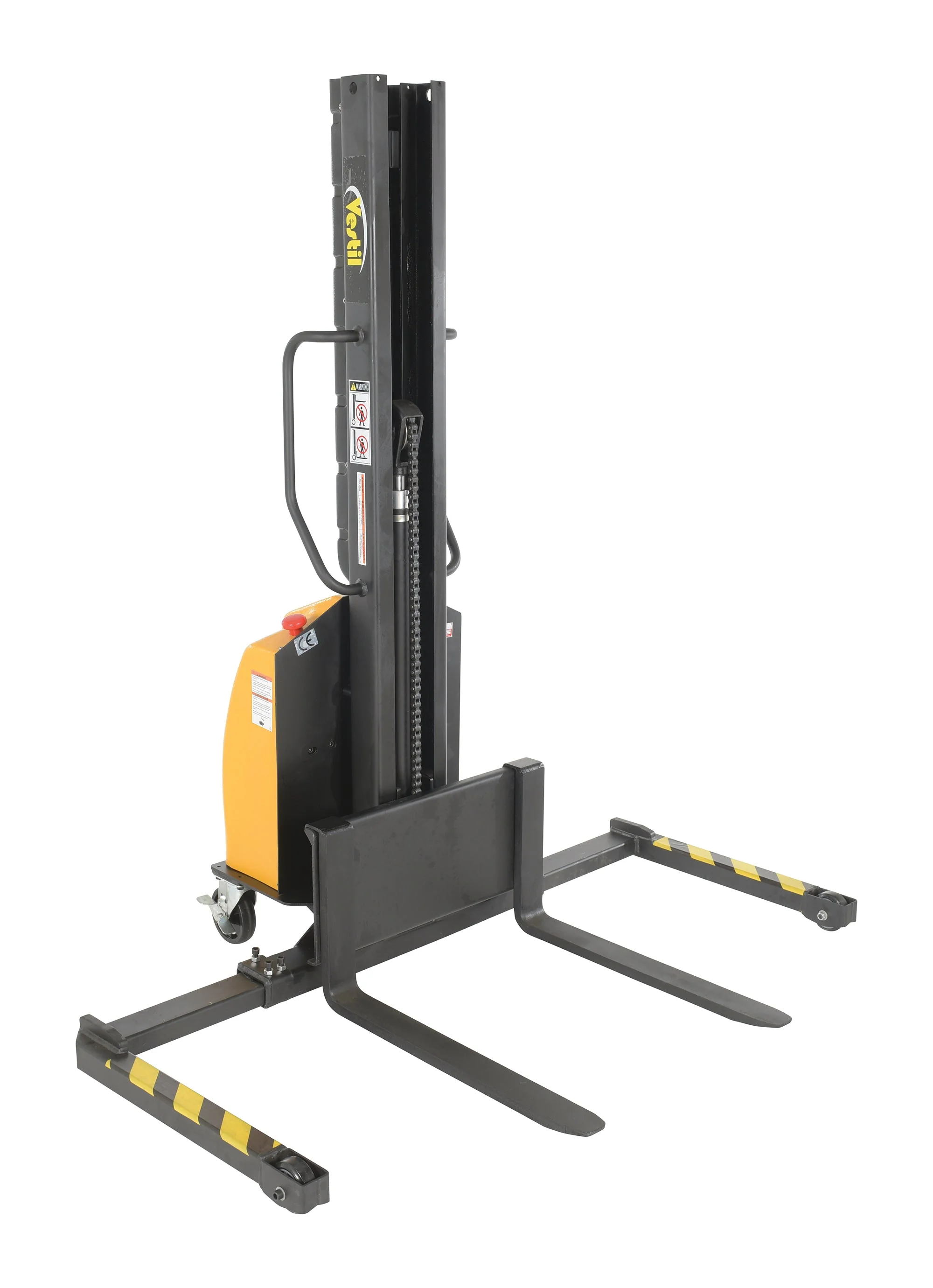

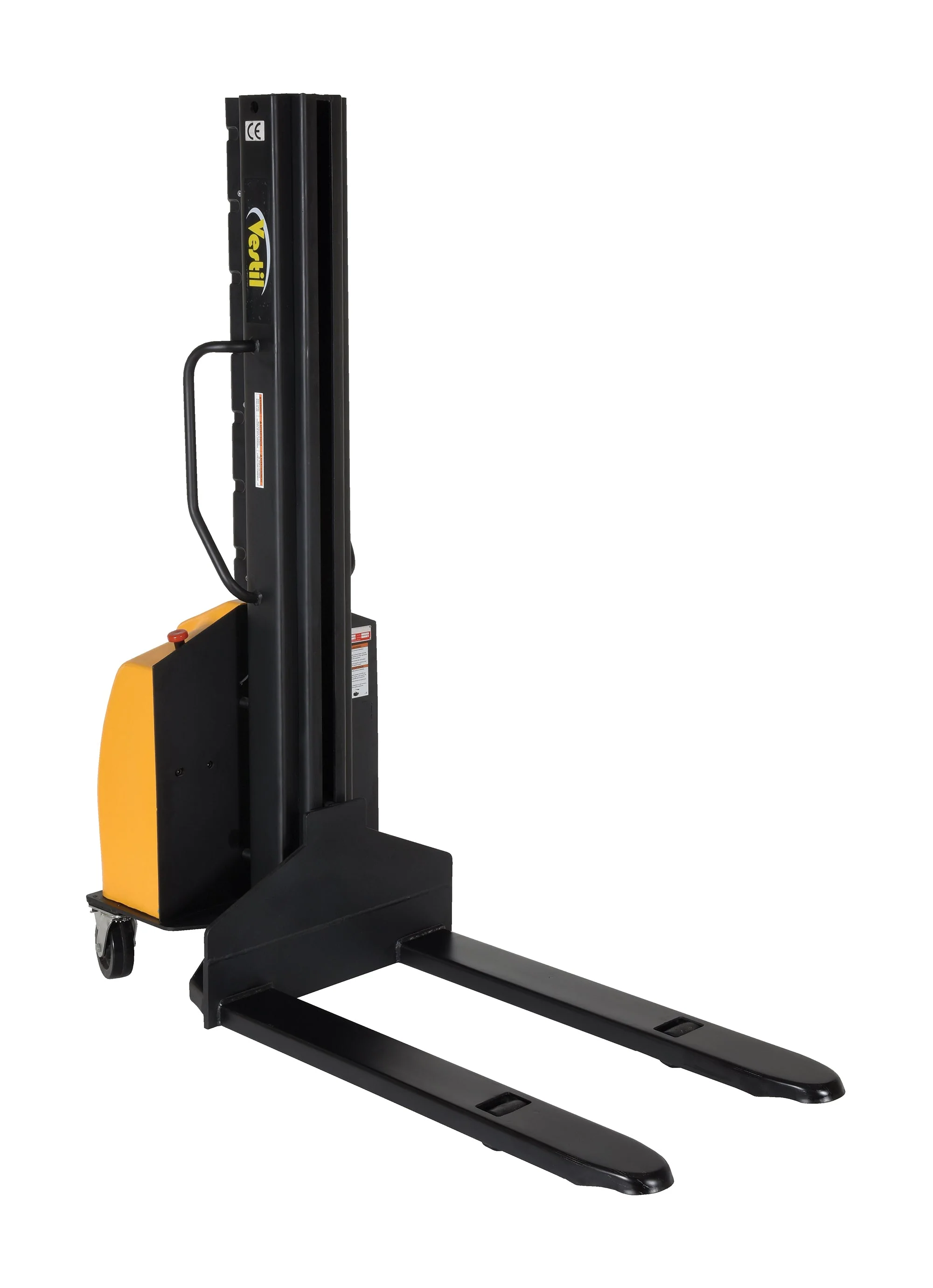

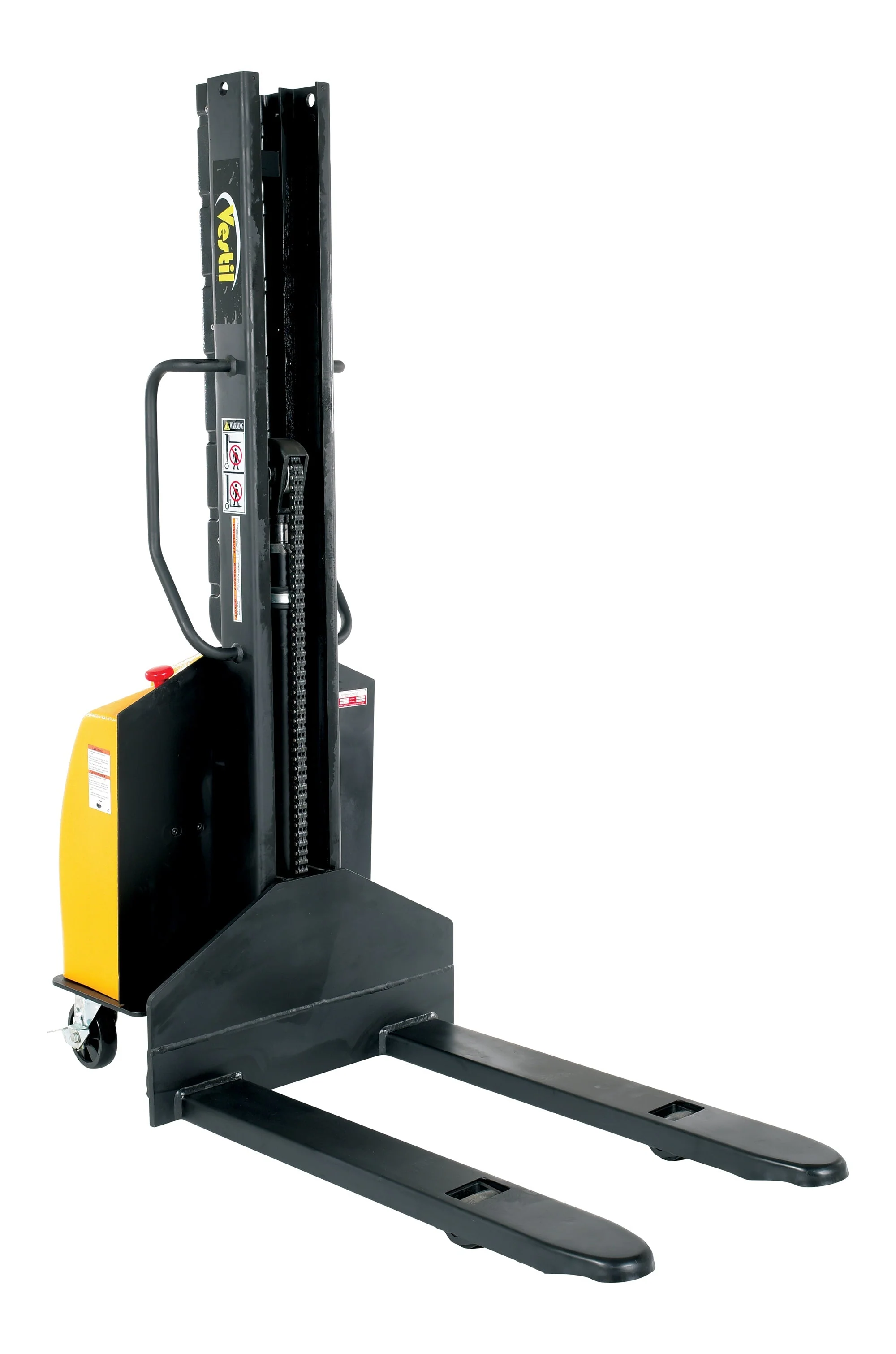

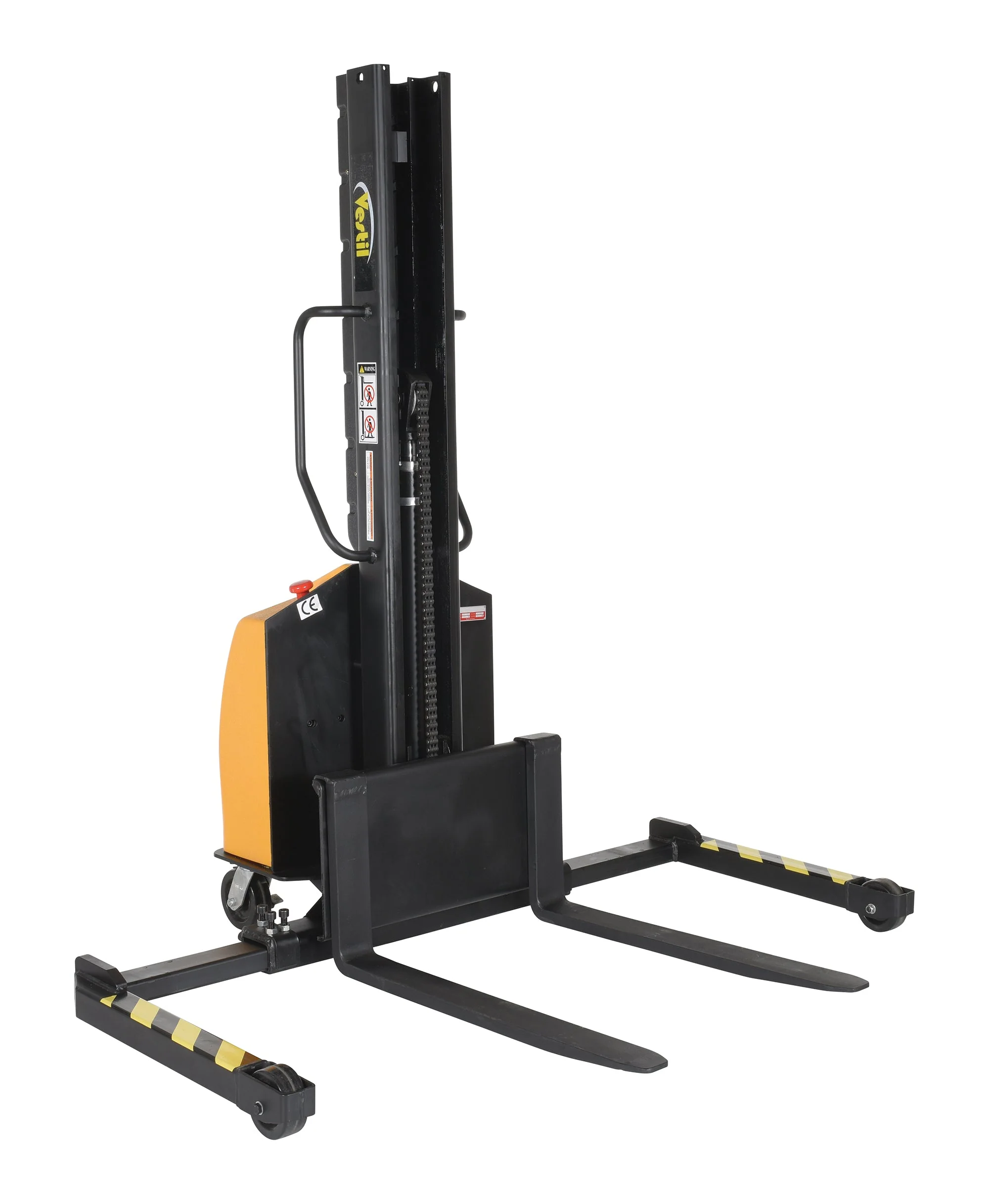

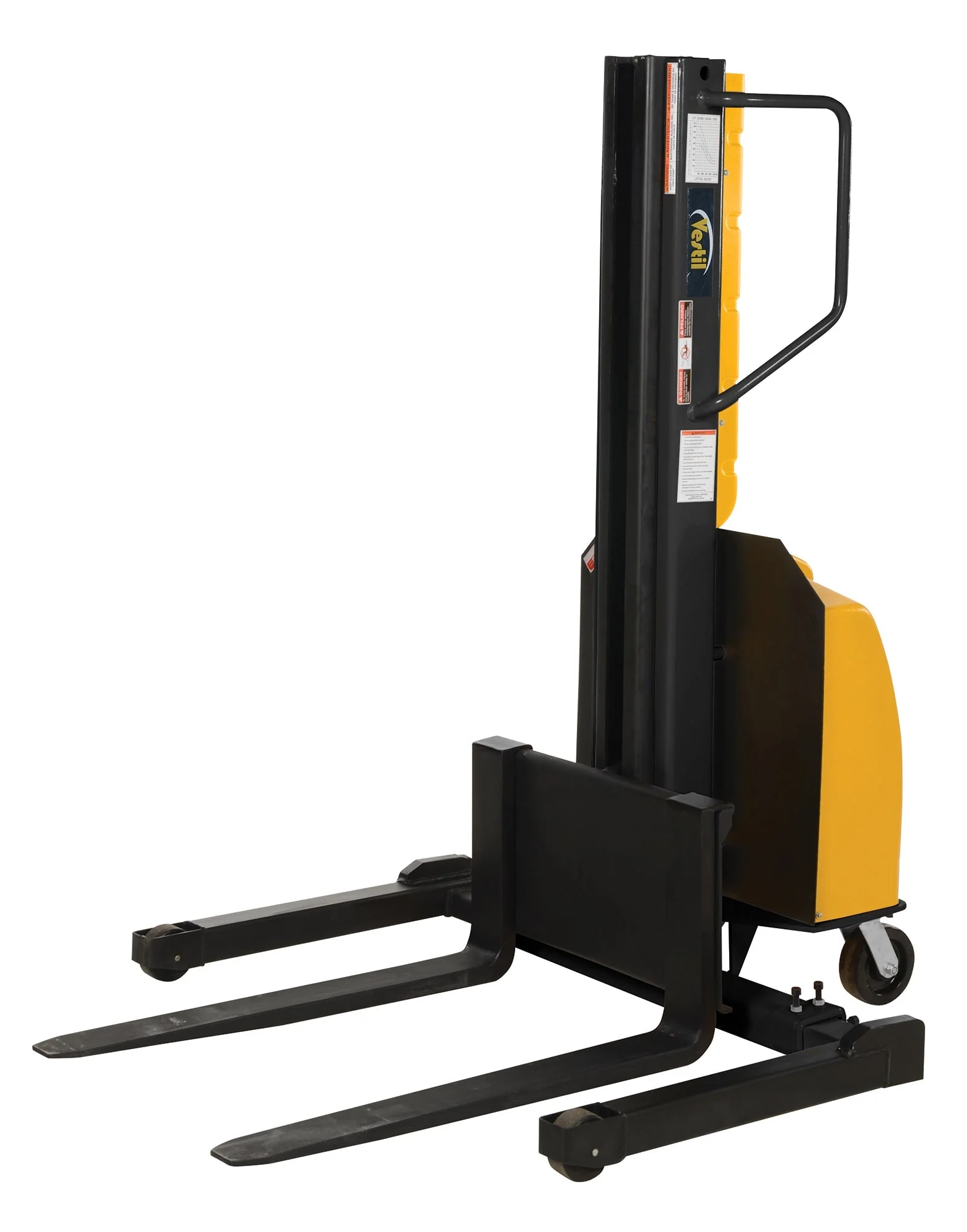

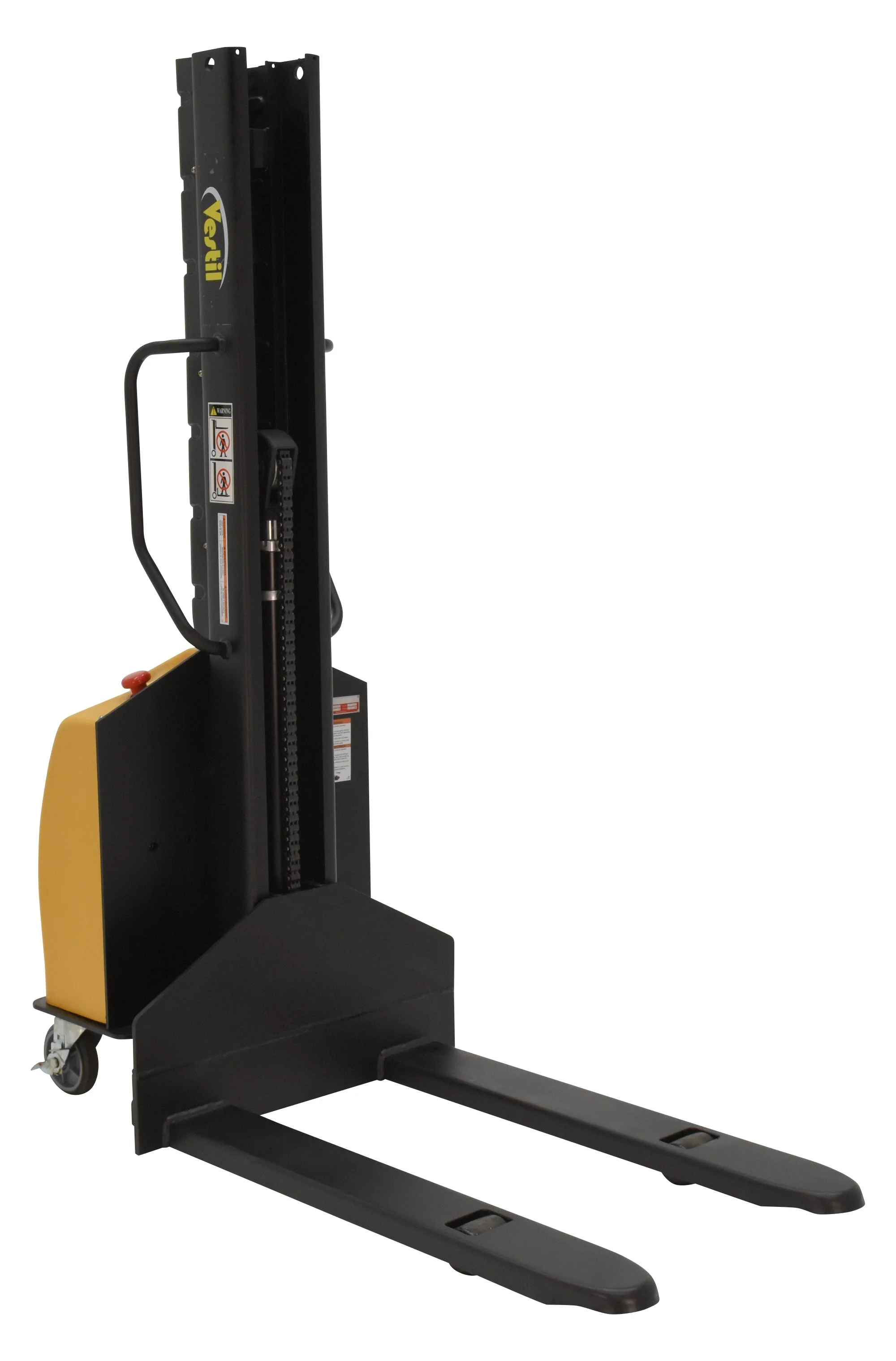

Vestil Narrow Mast Stackers with Powered Lift
Narrow Mast Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Material push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard steering handle. SLNM stackers are highly efficient and durable. Semi-electric stackers use one 12V battery. Integral battery charger and battery level gauge.
| Narrow Mast Stacker with Power Lift | |||||||||
| Model | Fork Size (in.) | Service Range (in.) | Fork Spacing (in.) | Leg Spacing (in.) | *Capacity (lbs) 0"-63" RH |
*Capacity (lbs) 63"-118" RH |
Wt. (lbs) |
||
| Adjustable Forks/Adjustable Support Legs (works with pallets & skids) | |||||||||
| SLNM-63-AA | 3-1/8 x 30 | 2 to 63 | 6-1/4 to 19-7/10 | 37-4/10 to 49-1/4 | 1,000 | -- | 580 | ||
| SLNM15-63-AA | 3-1/8 x 36 | 2 to 63 | 6-1/4 to 19-7/10 | 37-4/10 to 49-1/4 | 1,500 | -- | 686 | ||
| SLNM-98-AA |
4 x 36 |
2 to 98 | 8 to 27 | 40-1/8 to 50 | 1,500 | 1,000 | 798 | ||
| SLNM-118-AA | 4 x 36 | 2 to 118 | 8 to 27 | 40-1/8 to 50 | 1,500 | 1,000 | 912 | ||
| Fixed Forks Over Fixed Support Legs (works with skids only) | |||||||||
| SLNM-63-FF | 5-9/10 x 45-1/4 |
3-1/4 to 63 |
26-3/4 | 26-3/4 | 1,000 | -- | 444 | ||
| SLNM15-63-FF | 5-9/10 x 45-1/4 | 3-1/4 to 63 | 26-3/4 | 26-3/4 | 1,500 | -- | 686 | ||
| SLNM-118-FF | 5-9/10 x 45-1/4 | 3-1/4 to 118 | 26-3/4 | 26-3/4 | 1,500 | 1,000 | 756 | ||
Original: $3,493.90
-65%$3,493.90
$1,222.87
Description
Narrow Mast Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Material push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard steering handle. SLNM stackers are highly efficient and durable. Semi-electric stackers use one 12V battery. Integral battery charger and battery level gauge.
| Narrow Mast Stacker with Power Lift | |||||||||
| Model | Fork Size (in.) | Service Range (in.) | Fork Spacing (in.) | Leg Spacing (in.) | *Capacity (lbs) 0"-63" RH |
*Capacity (lbs) 63"-118" RH |
Wt. (lbs) |
||
| Adjustable Forks/Adjustable Support Legs (works with pallets & skids) | |||||||||
| SLNM-63-AA | 3-1/8 x 30 | 2 to 63 | 6-1/4 to 19-7/10 | 37-4/10 to 49-1/4 | 1,000 | -- | 580 | ||
| SLNM15-63-AA | 3-1/8 x 36 | 2 to 63 | 6-1/4 to 19-7/10 | 37-4/10 to 49-1/4 | 1,500 | -- | 686 | ||
| SLNM-98-AA |
4 x 36 |
2 to 98 | 8 to 27 | 40-1/8 to 50 | 1,500 | 1,000 | 798 | ||
| SLNM-118-AA | 4 x 36 | 2 to 118 | 8 to 27 | 40-1/8 to 50 | 1,500 | 1,000 | 912 | ||
| Fixed Forks Over Fixed Support Legs (works with skids only) | |||||||||
| SLNM-63-FF | 5-9/10 x 45-1/4 |
3-1/4 to 63 |
26-3/4 | 26-3/4 | 1,000 | -- | 444 | ||
| SLNM15-63-FF | 5-9/10 x 45-1/4 | 3-1/4 to 63 | 26-3/4 | 26-3/4 | 1,500 | -- | 686 | ||
| SLNM-118-FF | 5-9/10 x 45-1/4 | 3-1/4 to 118 | 26-3/4 | 26-3/4 | 1,500 | 1,000 | 756 | ||
