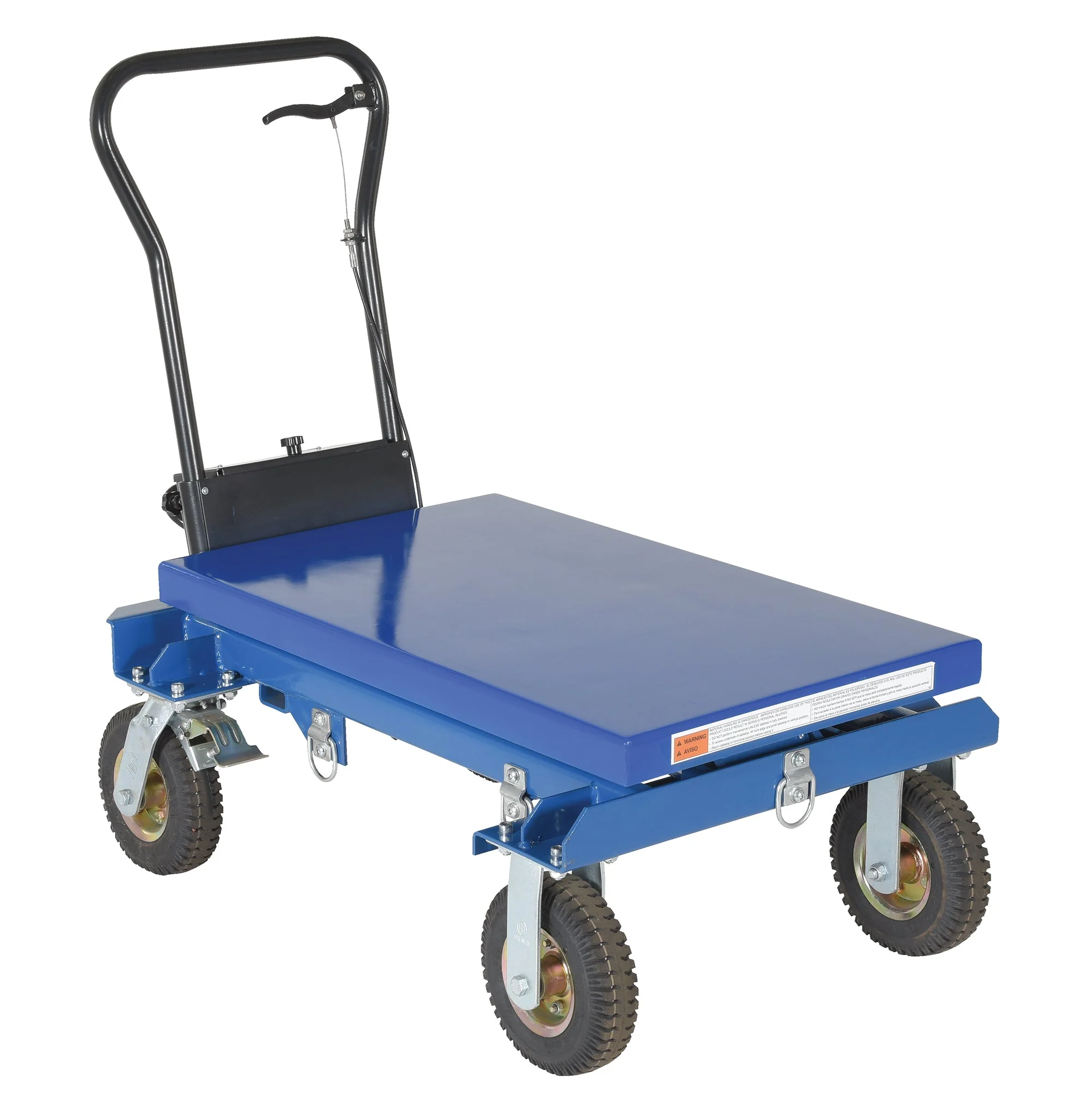

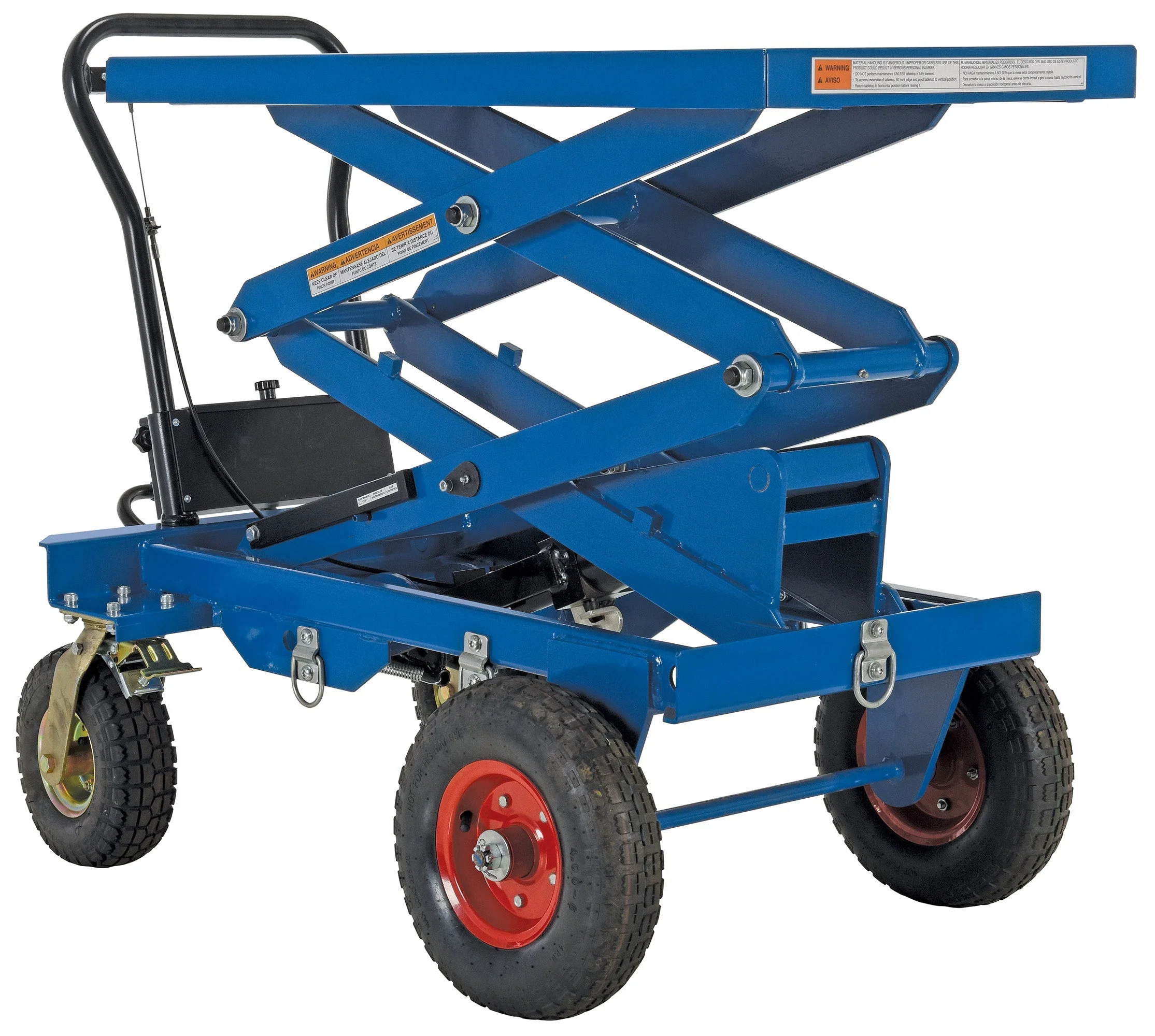

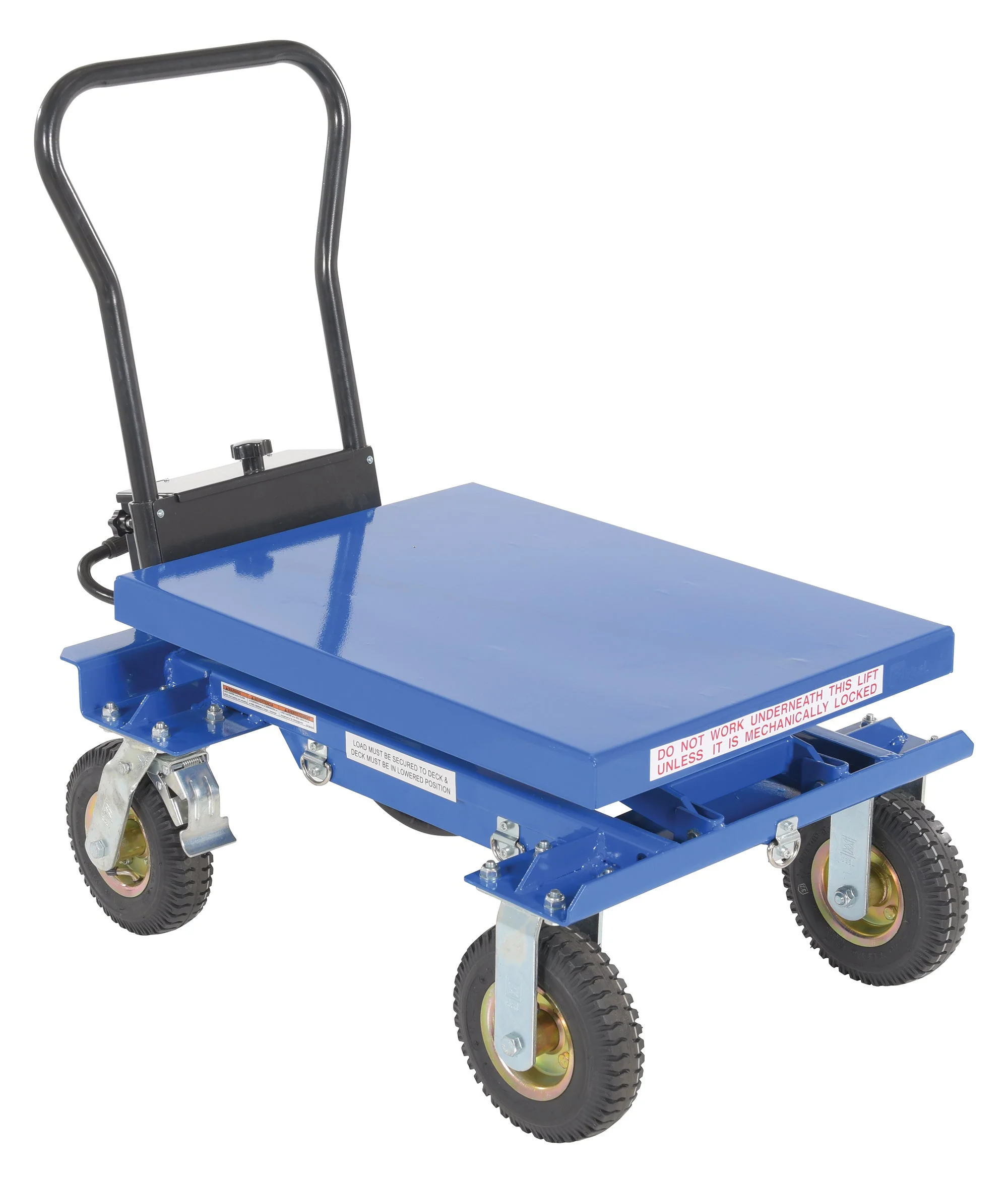

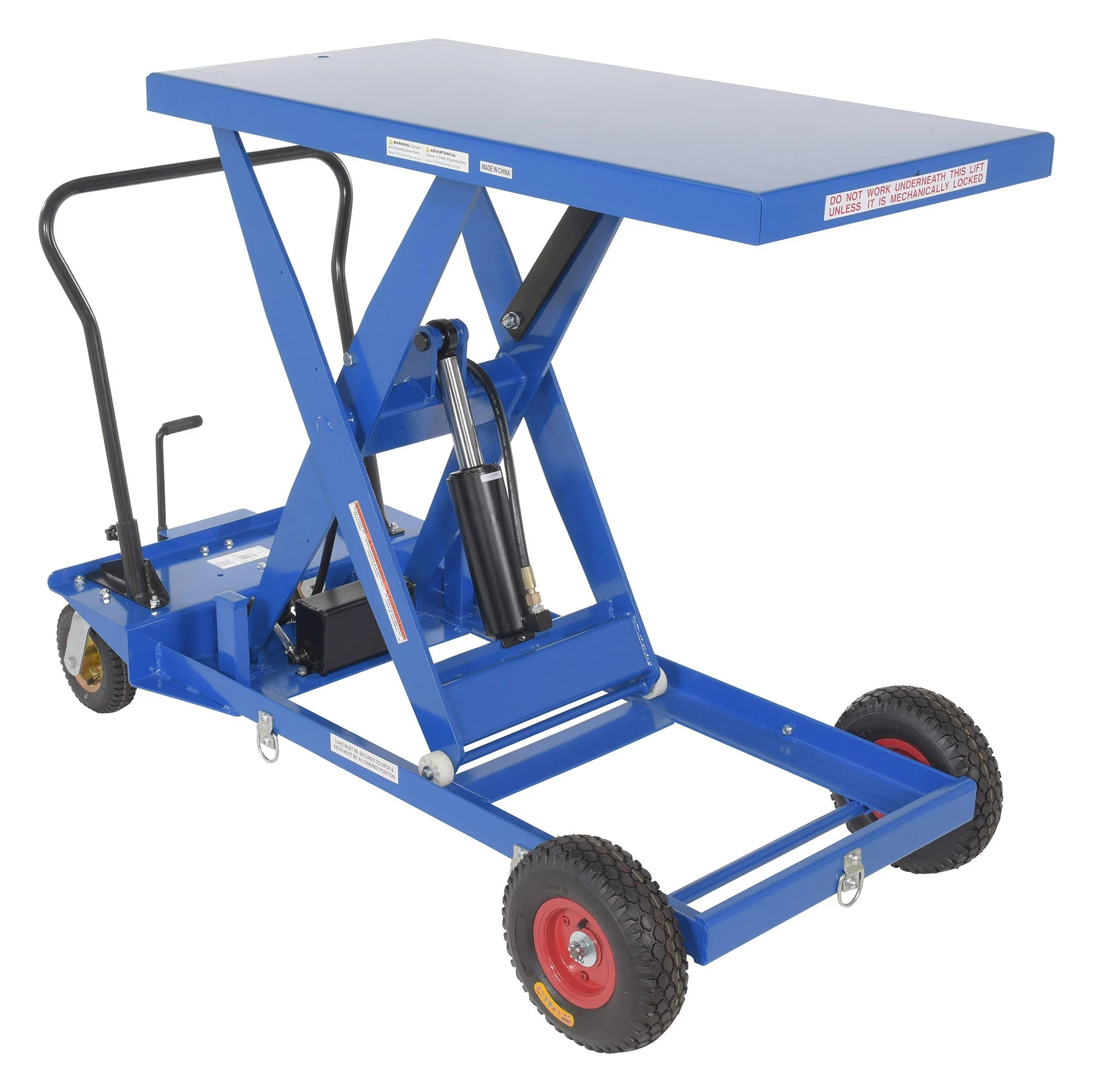

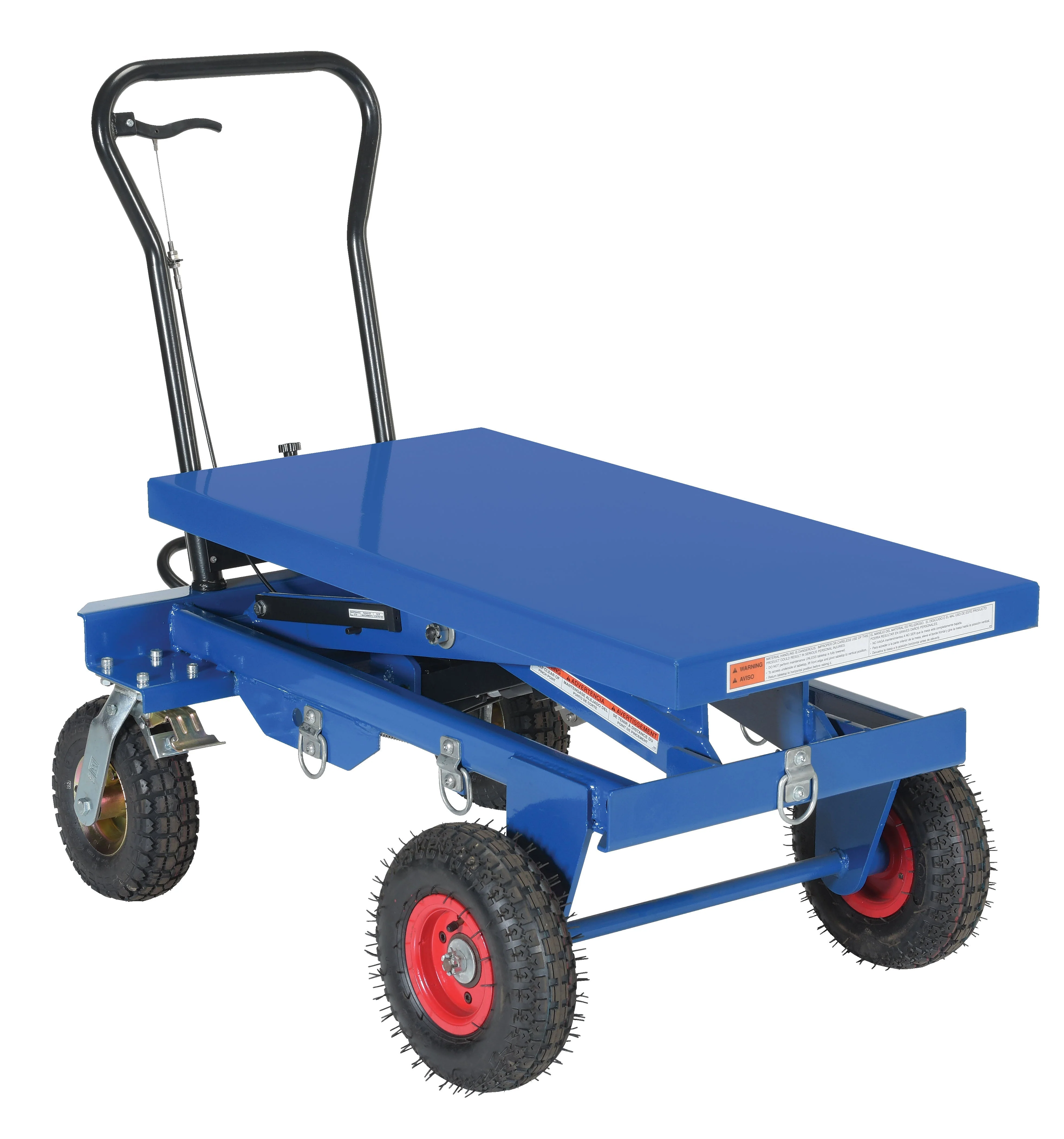

Vestil Pneumatic Tire Elevating Carts
Pneumatic Tire Elevating Carts are designed to be used at nurseries, gardens, construction sites, and gravel pits. Large front and rear pneumatic tires allow for movement over most surfaces. Great for moving loads over terrain. These carts minimize operator bending and lifting. Hydraulic system includes a soft-lowering down valve. Little exertion is required to raise and lower platform. The simplicity and compactness of these carts make them ideal for lifting and transporting loads. Rugged welded steel construction. Baked-in powder-coated toughness.
| Rough Terrain Elevating Carts | |||||
| Model | Platform Size (WxL) |
Uniform Capacity (lbs) |
Service Range |
Wheel Size Front/Rear |
Wt. (lbs) |
| CART-PN-400 | 20-1/2" x 27-1/2" | 400 | 15"to 34-1/2" | 7-7/8"/7-7/8" | 222 |
| CART-PN-600 | 20-1/2" x 33-1/2" | 600 | 16-1/8"to 40" | 7-7/8"/ 7-7/8" | 266 |
| CART-PN-600-D | 20-1/2" x 40" | 600 | 21-1/2"to 67" | 13"/10" | 430 |
| CART-PN-1000 | 24" x 48 | 1000 | 13-1/2"to 46-1/2" | 13"/9-7/8" | 560 |
| CART-PN-1500 | 20-1/2" x 40" | 1500 | 21-1/2"to 43-3/4" | 13"/9-7/8" | 396 |
Original: $1,235.53
-65%$1,235.53
$432.44
Description
Pneumatic Tire Elevating Carts are designed to be used at nurseries, gardens, construction sites, and gravel pits. Large front and rear pneumatic tires allow for movement over most surfaces. Great for moving loads over terrain. These carts minimize operator bending and lifting. Hydraulic system includes a soft-lowering down valve. Little exertion is required to raise and lower platform. The simplicity and compactness of these carts make them ideal for lifting and transporting loads. Rugged welded steel construction. Baked-in powder-coated toughness.
| Rough Terrain Elevating Carts | |||||
| Model | Platform Size (WxL) |
Uniform Capacity (lbs) |
Service Range |
Wheel Size Front/Rear |
Wt. (lbs) |
| CART-PN-400 | 20-1/2" x 27-1/2" | 400 | 15"to 34-1/2" | 7-7/8"/7-7/8" | 222 |
| CART-PN-600 | 20-1/2" x 33-1/2" | 600 | 16-1/8"to 40" | 7-7/8"/ 7-7/8" | 266 |
| CART-PN-600-D | 20-1/2" x 40" | 600 | 21-1/2"to 67" | 13"/10" | 430 |
| CART-PN-1000 | 24" x 48 | 1000 | 13-1/2"to 46-1/2" | 13"/9-7/8" | 560 |
| CART-PN-1500 | 20-1/2" x 40" | 1500 | 21-1/2"to 43-3/4" | 13"/9-7/8" | 396 |
