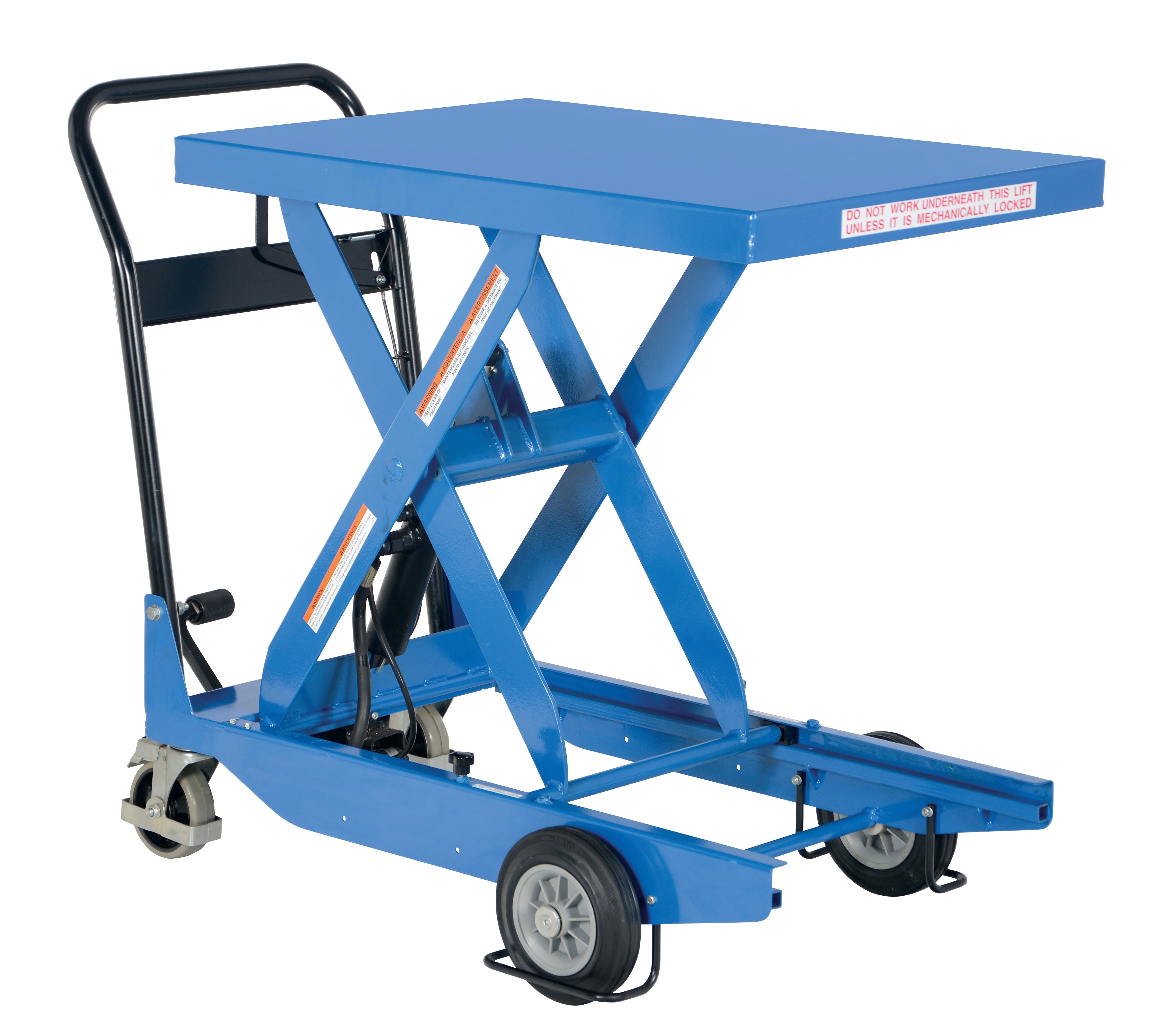

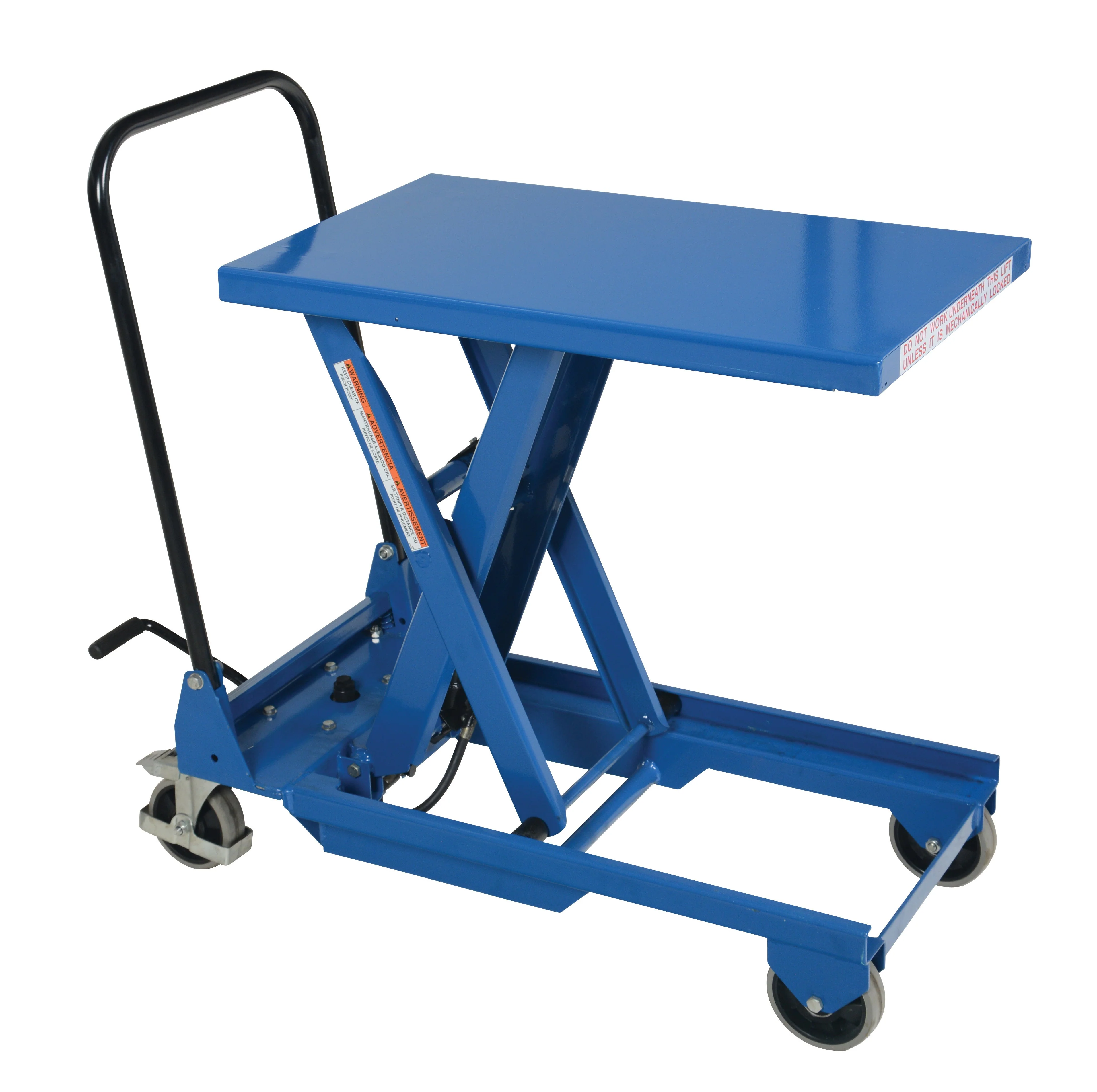

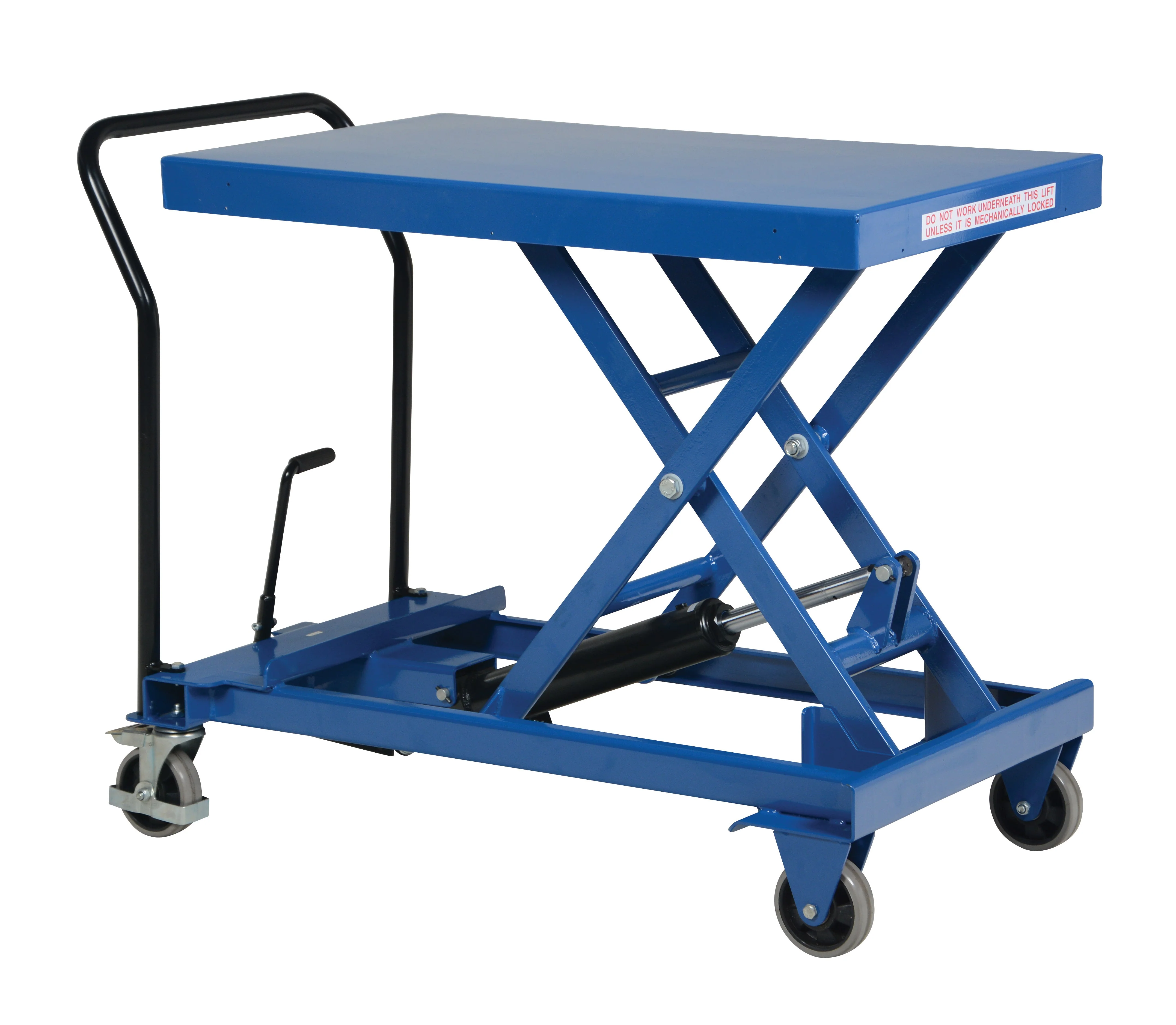

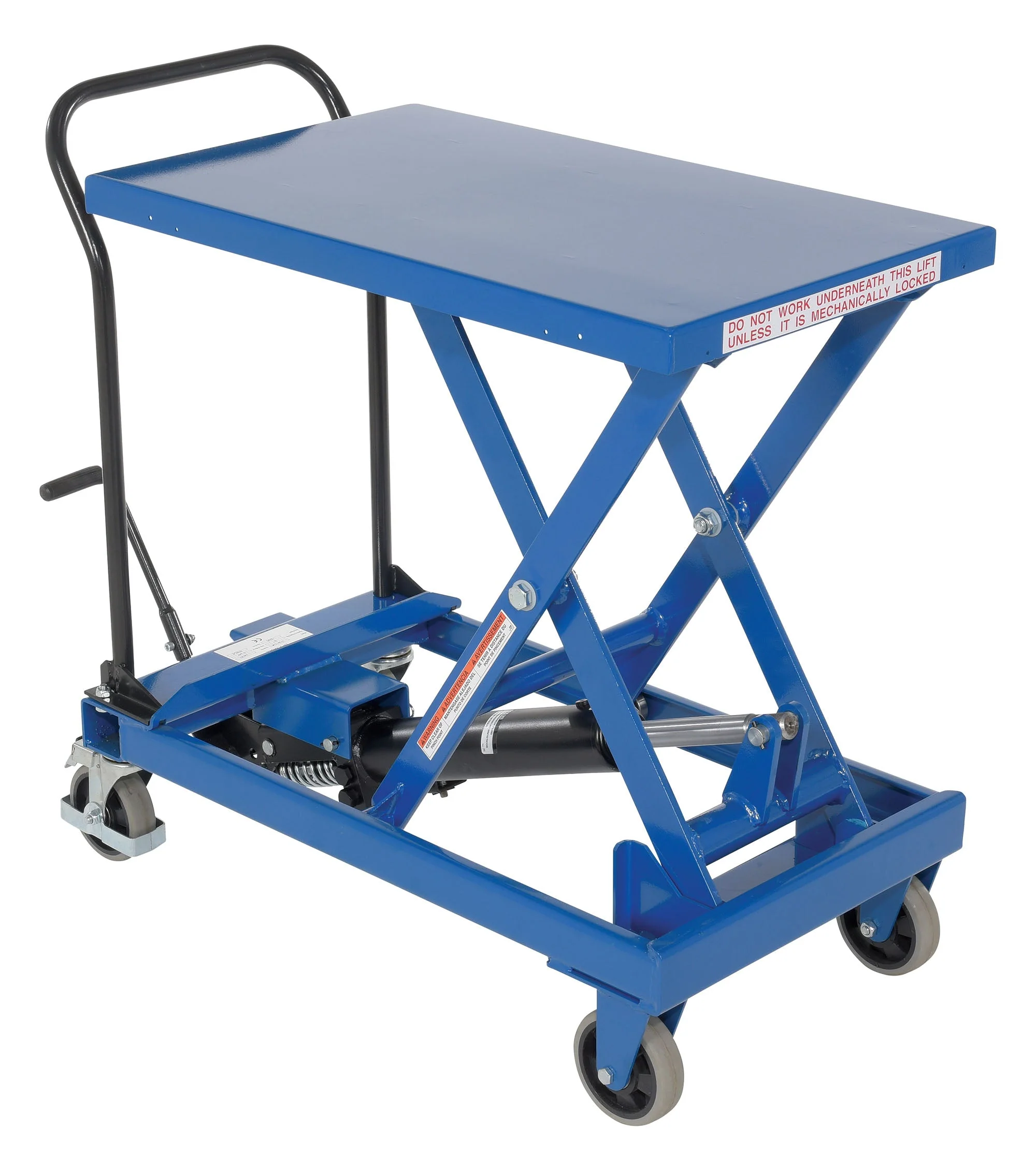

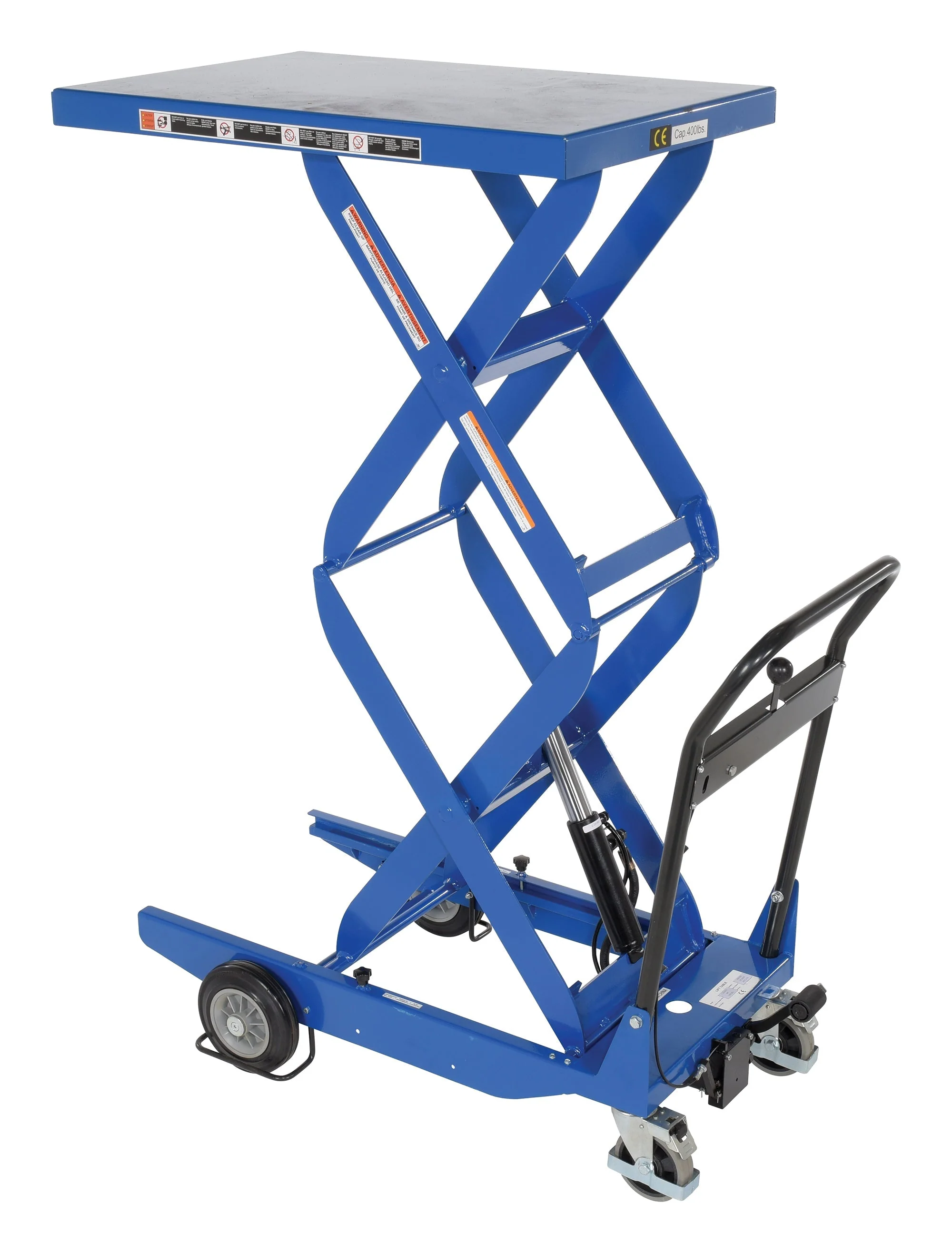

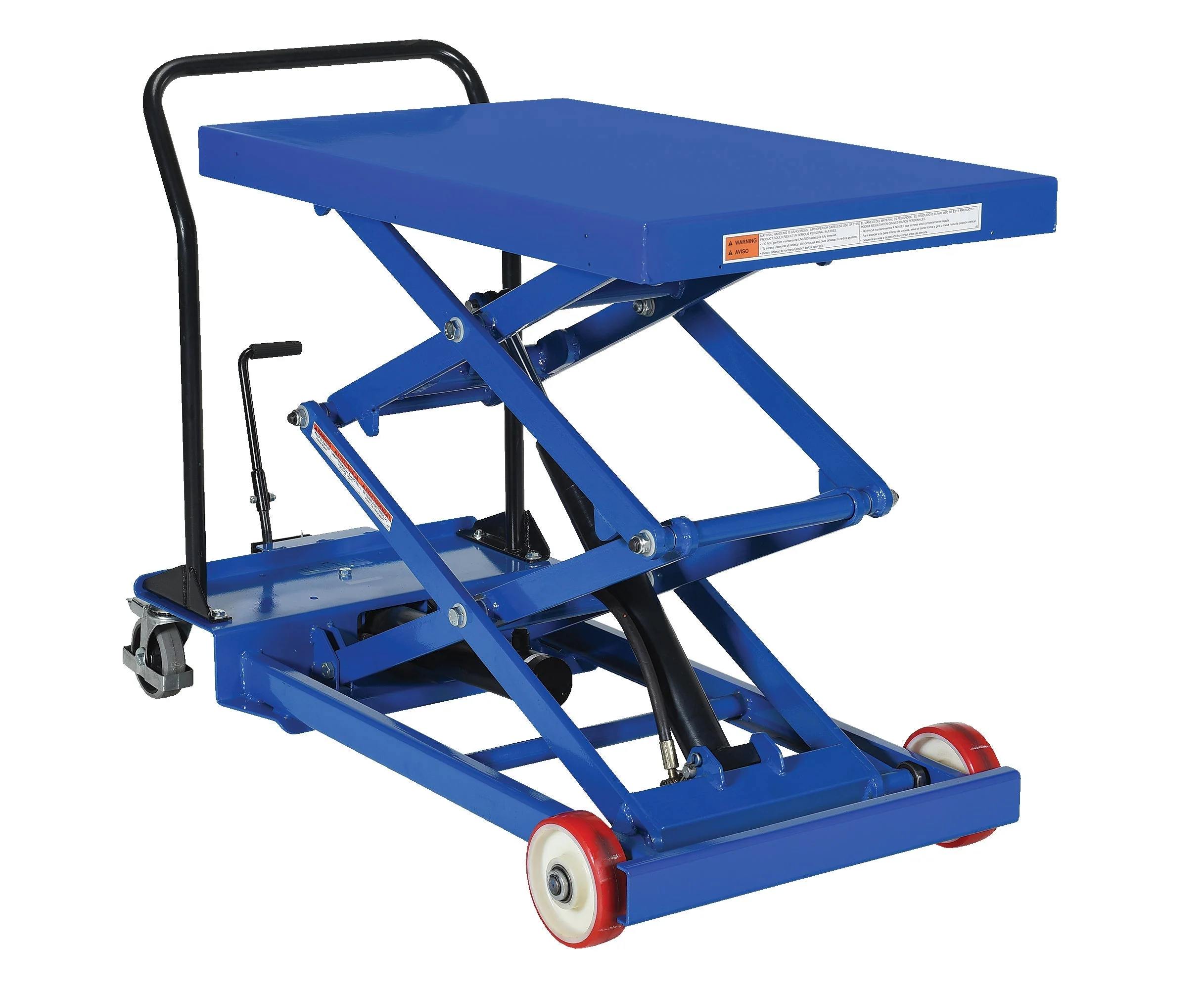

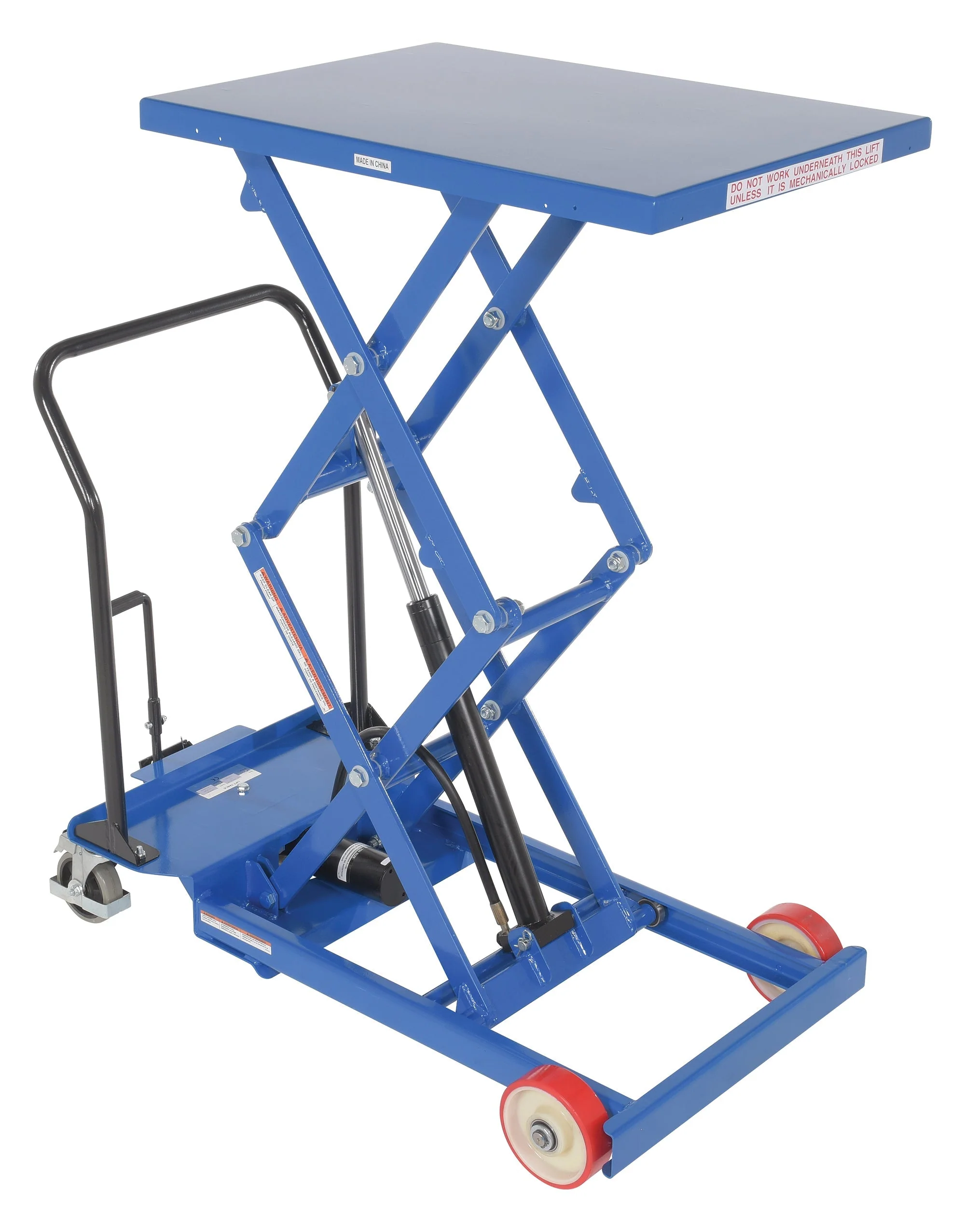

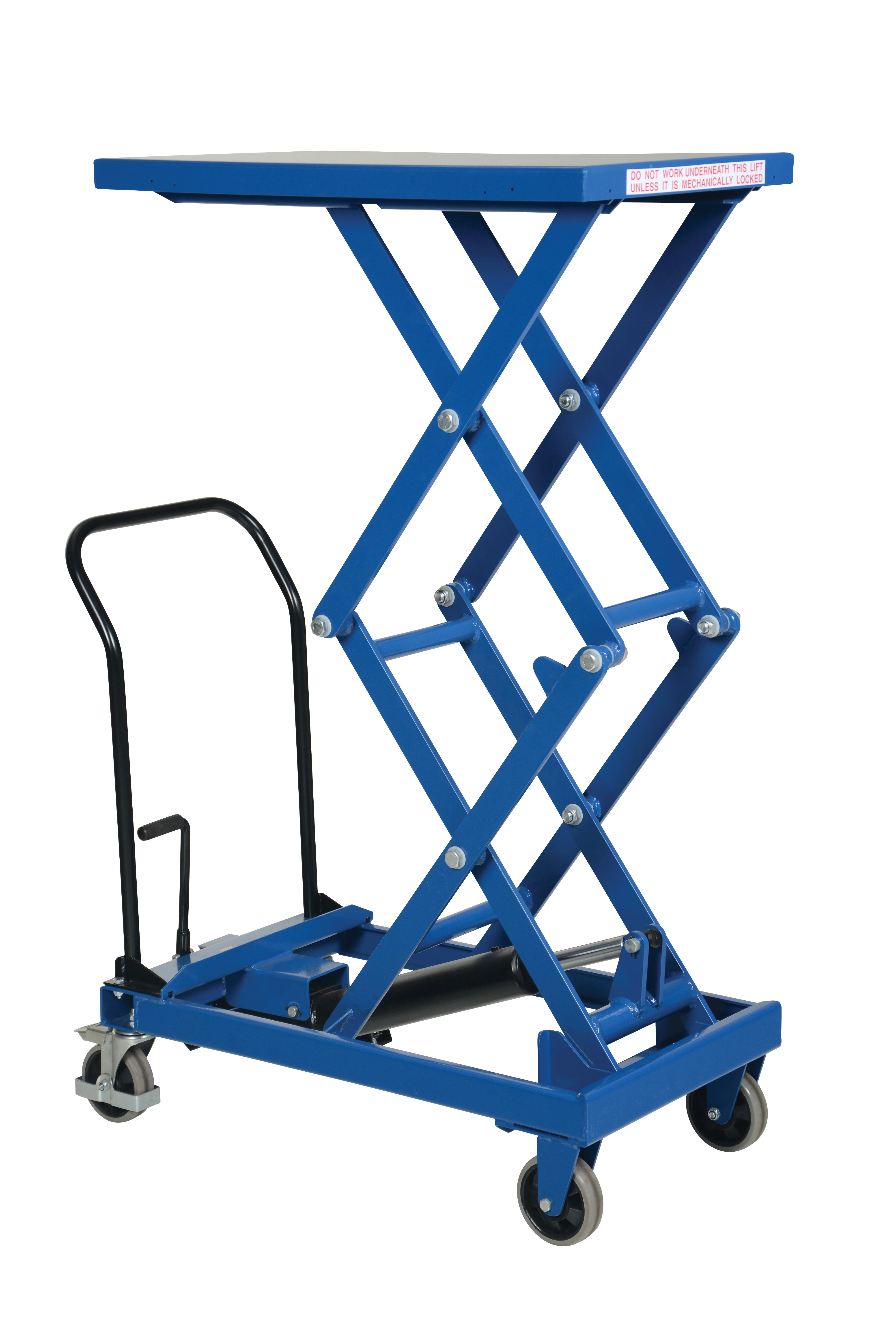

Vestil Premium Scissor Lift Carts
Constructed of heavy duty steel and designed to withstand the most demanding industrial environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck with the high quality, foot-actuated, single-speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. The hand operated carts have safety stops to prevent an empty deck from lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.
| Premium Scissor Lift Carts | ||||||
| Model | Scissor Design |
Platform Size (WxL) |
Uniform Capacity (lbs) |
Lowered Height | Raised Height | Wt. (lbs) |
| Foot Release | ||||||
| CART-300-S-FR | Single | 17-3/4"x30" | 300 | 10" | 31" | 158 |
| CART-600-S-FR | Single | 19-3/4"x33-1/8" | 600 | 13 1/4" | 34" | 230 |
| CART-1000-S-FR | Single | 24"x40-1/2" | 1,000 | 13 1/2" | 35-1/2" | 312 |
| CART-300-D-FR | Double | 19-1/2"x33" | 300 | 17" | 56" | 264 |
| CART-600-D-FR | Double | 23-1/4"x33" | 600 | 12" | 53-1/2" | 301 |
| CART-1000-D-FR | Double | 24"x40-1/2" | 1,000 | 11-3/4" | 61-1/2" | 418 |
|
Hand Release |
||||||
| CART-1000-S-HR | Single | 23-5/8"x35-7/16" | 1,000 | 13-1/8" | 36-3/8" | 212 |
| CART-400-D-HR | Double | 23 5/8"x35 7/16" | 400 | 18 1/8" | 65" | 290 |
Original: $703.25
-65%$703.25
$246.14
Description
Constructed of heavy duty steel and designed to withstand the most demanding industrial environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck with the high quality, foot-actuated, single-speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. The hand operated carts have safety stops to prevent an empty deck from lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.
| Premium Scissor Lift Carts | ||||||
| Model | Scissor Design |
Platform Size (WxL) |
Uniform Capacity (lbs) |
Lowered Height | Raised Height | Wt. (lbs) |
| Foot Release | ||||||
| CART-300-S-FR | Single | 17-3/4"x30" | 300 | 10" | 31" | 158 |
| CART-600-S-FR | Single | 19-3/4"x33-1/8" | 600 | 13 1/4" | 34" | 230 |
| CART-1000-S-FR | Single | 24"x40-1/2" | 1,000 | 13 1/2" | 35-1/2" | 312 |
| CART-300-D-FR | Double | 19-1/2"x33" | 300 | 17" | 56" | 264 |
| CART-600-D-FR | Double | 23-1/4"x33" | 600 | 12" | 53-1/2" | 301 |
| CART-1000-D-FR | Double | 24"x40-1/2" | 1,000 | 11-3/4" | 61-1/2" | 418 |
|
Hand Release |
||||||
| CART-1000-S-HR | Single | 23-5/8"x35-7/16" | 1,000 | 13-1/8" | 36-3/8" | 212 |
| CART-400-D-HR | Double | 23 5/8"x35 7/16" | 400 | 18 1/8" | 65" | 290 |
