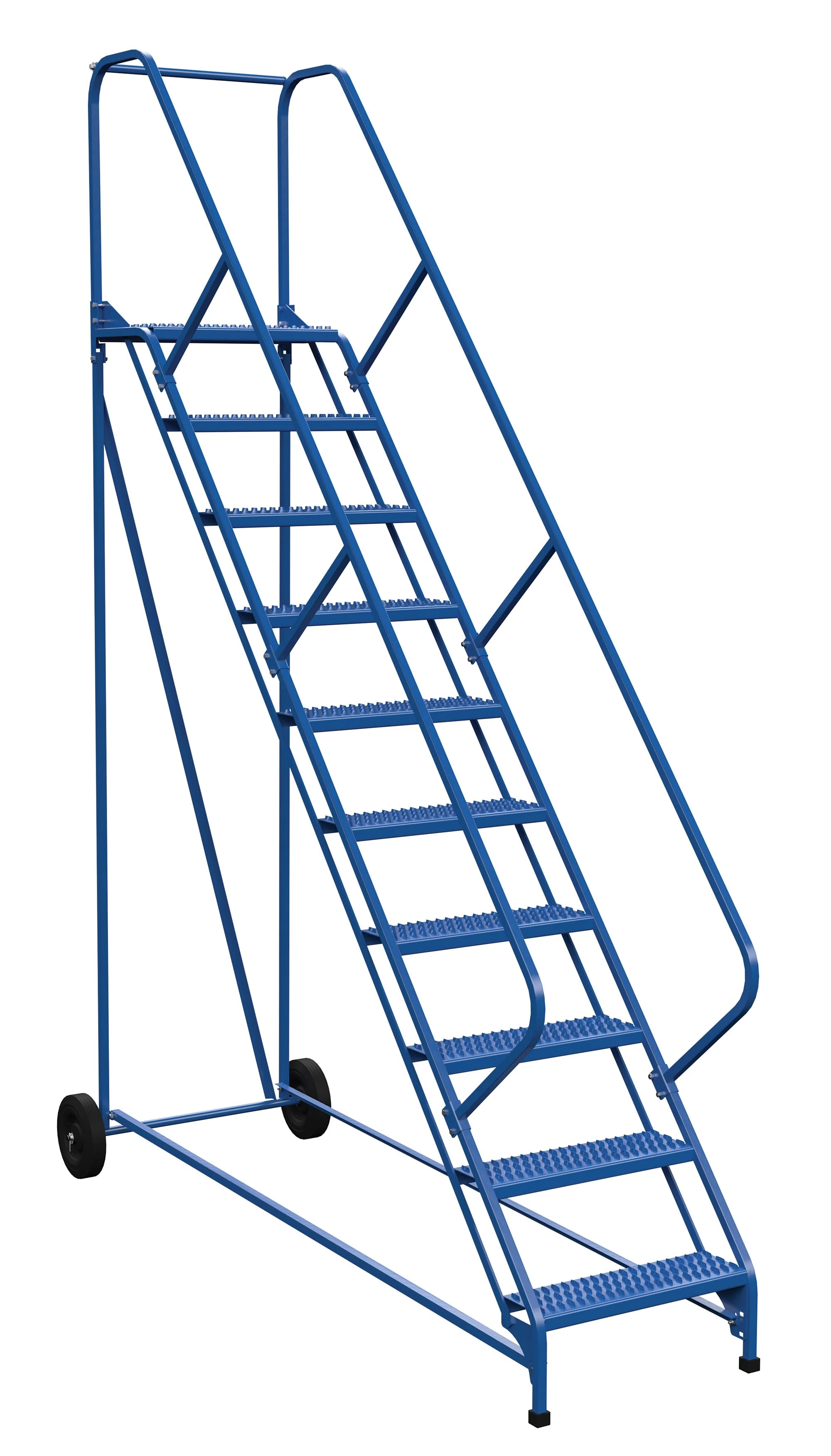

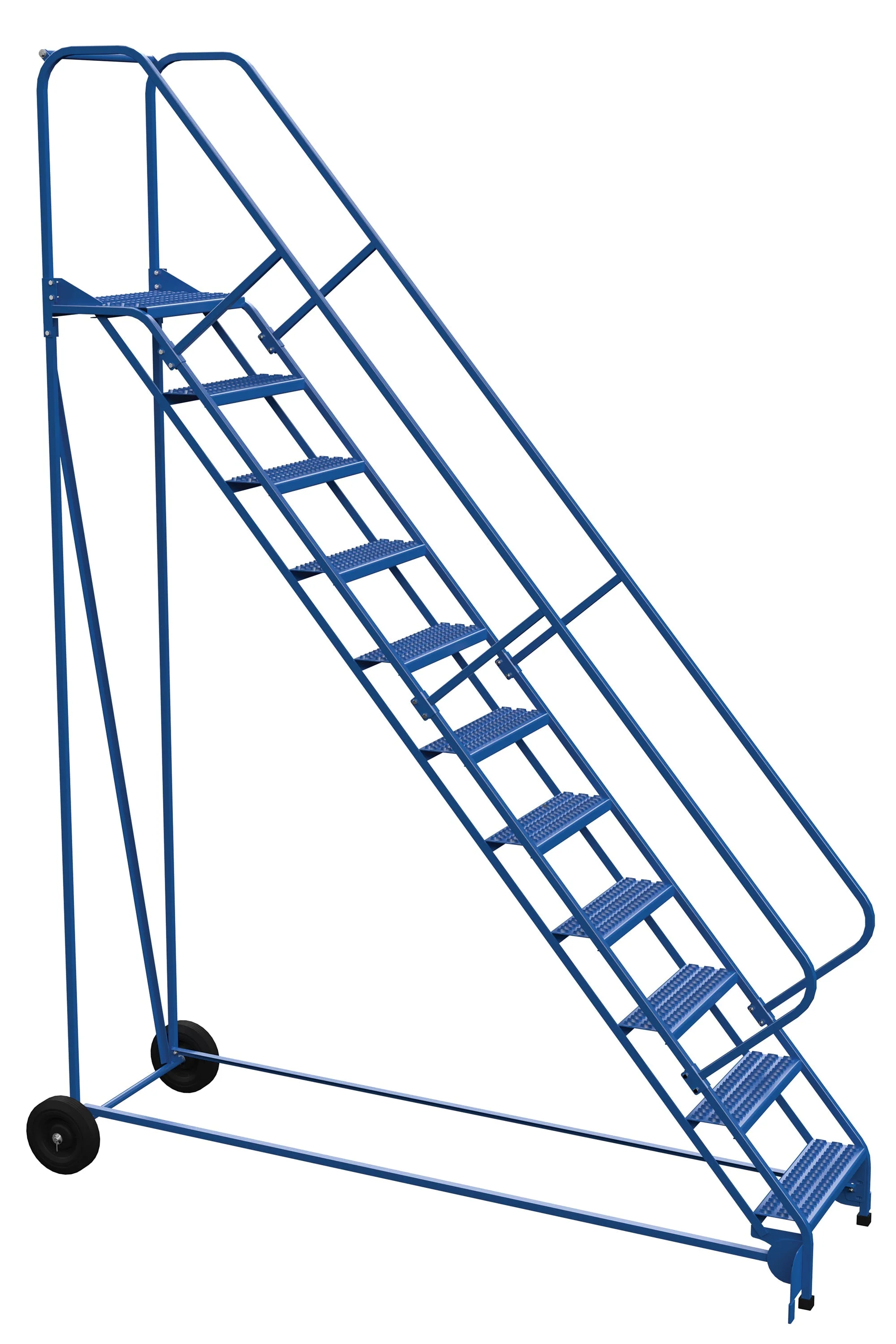

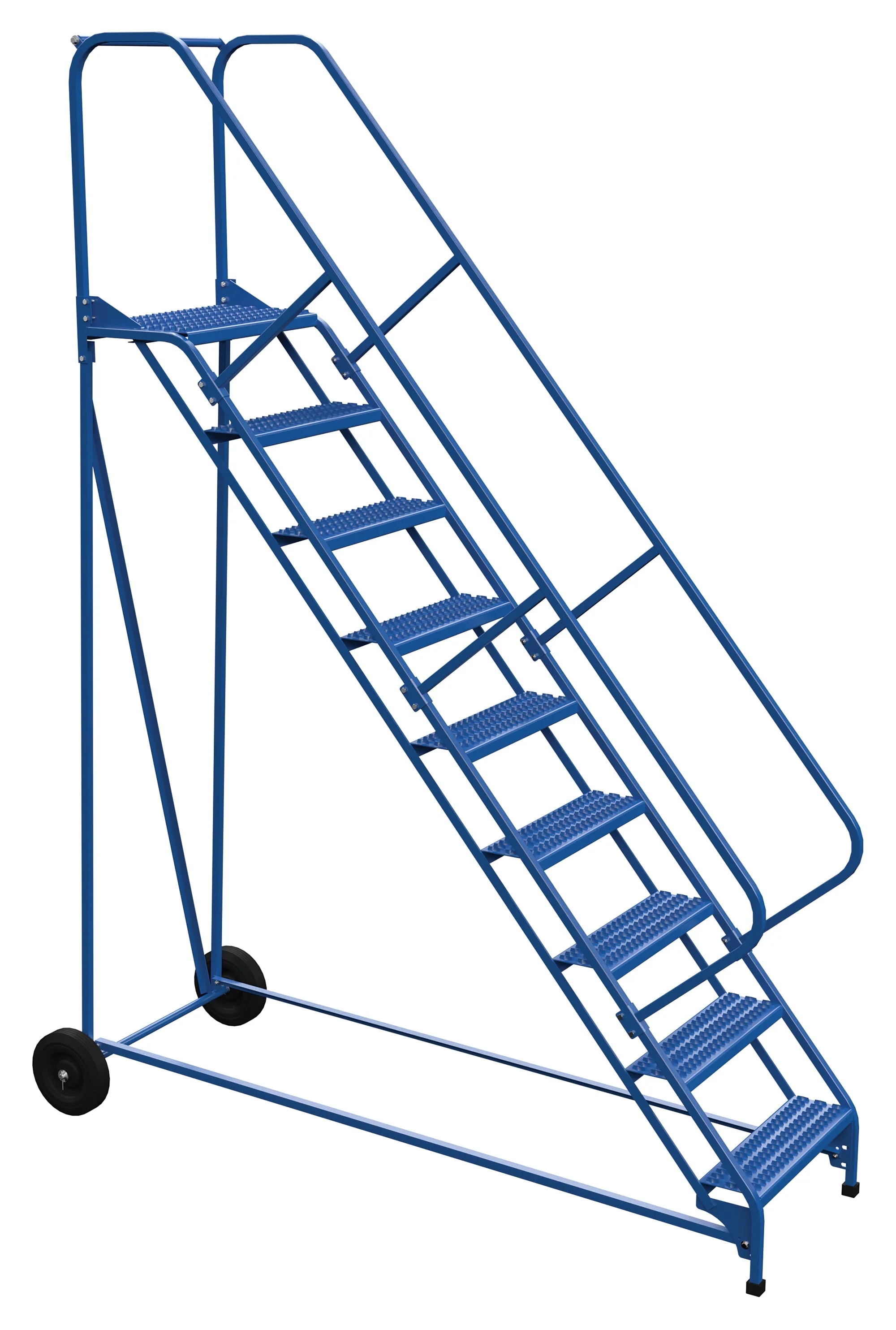

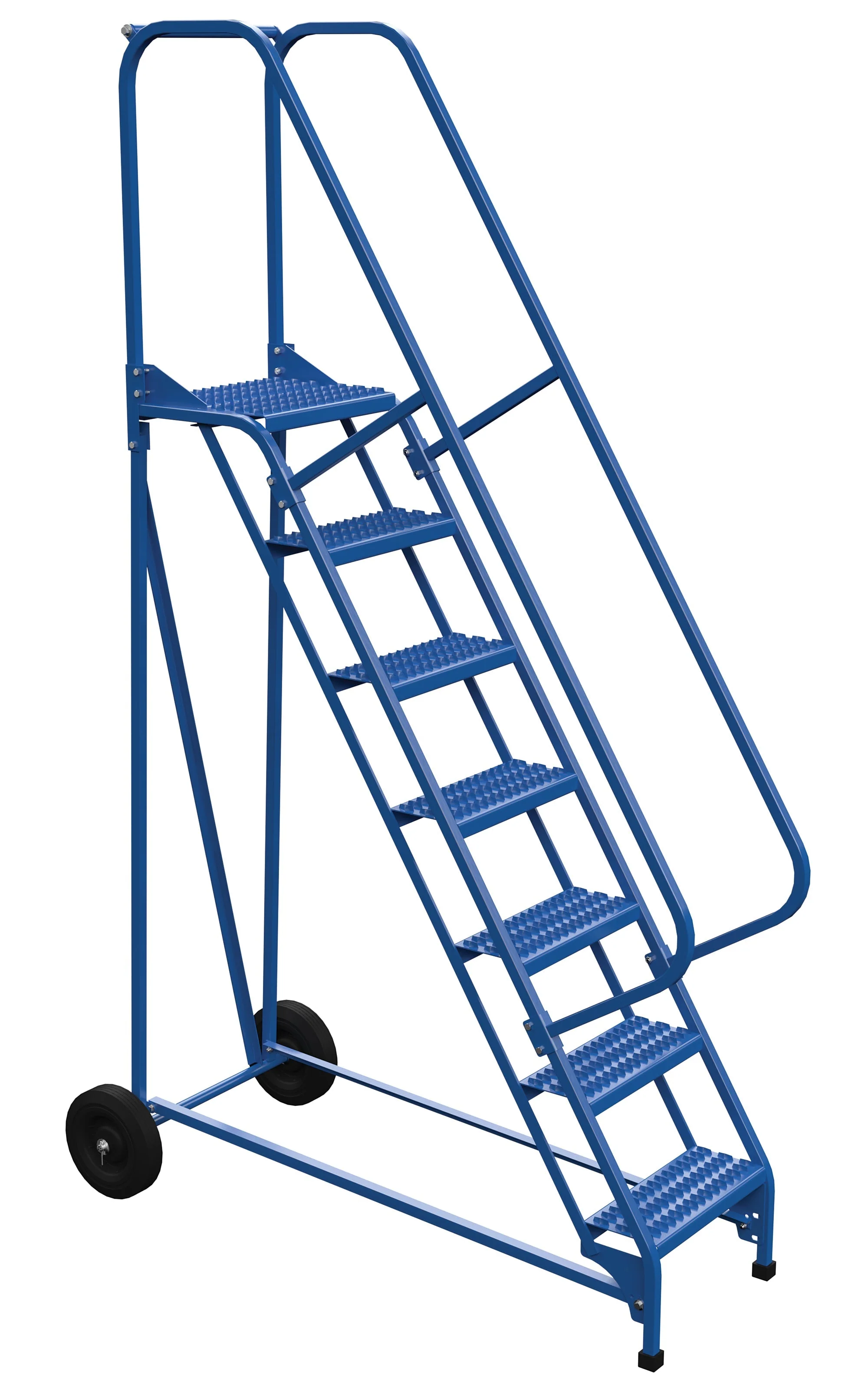

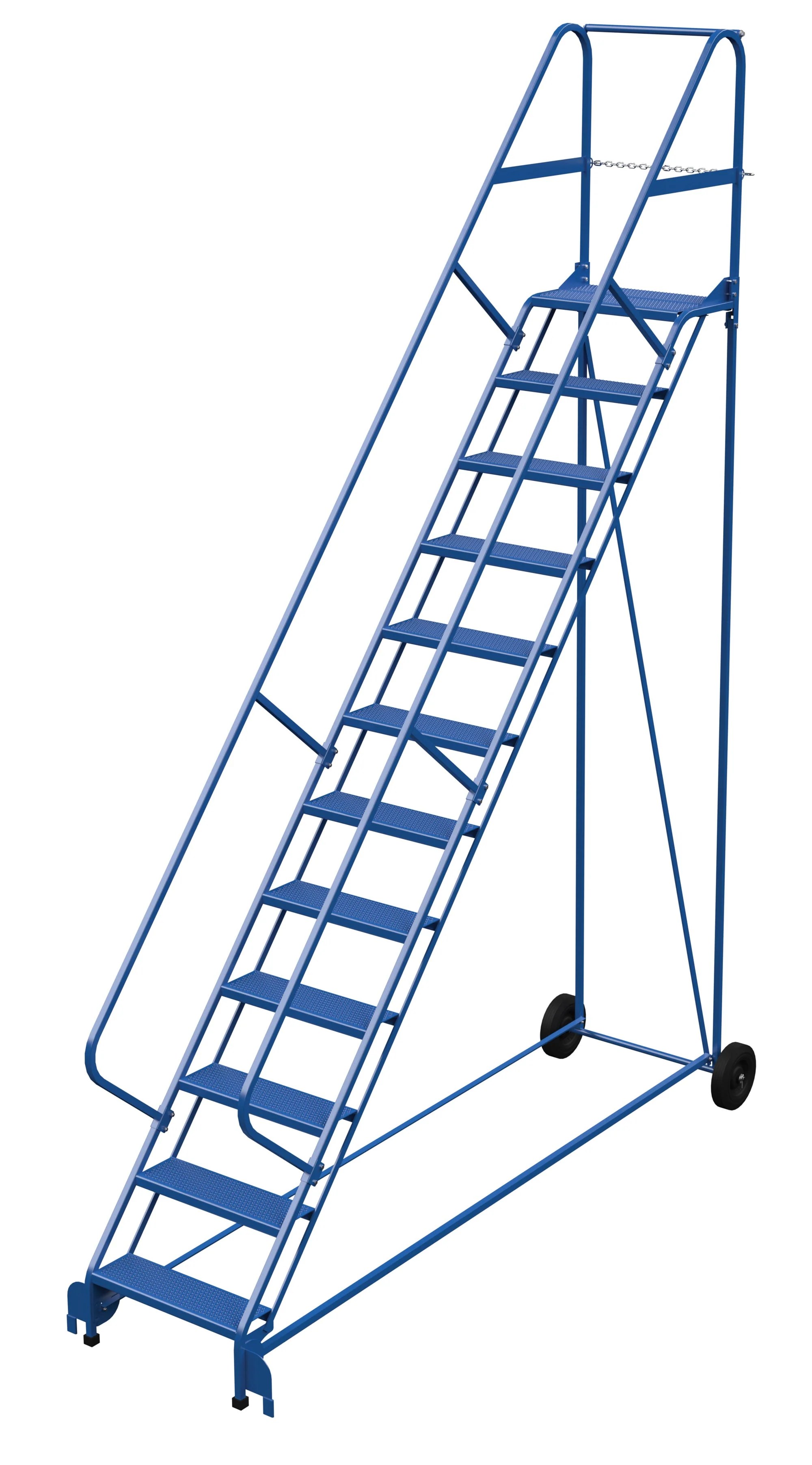

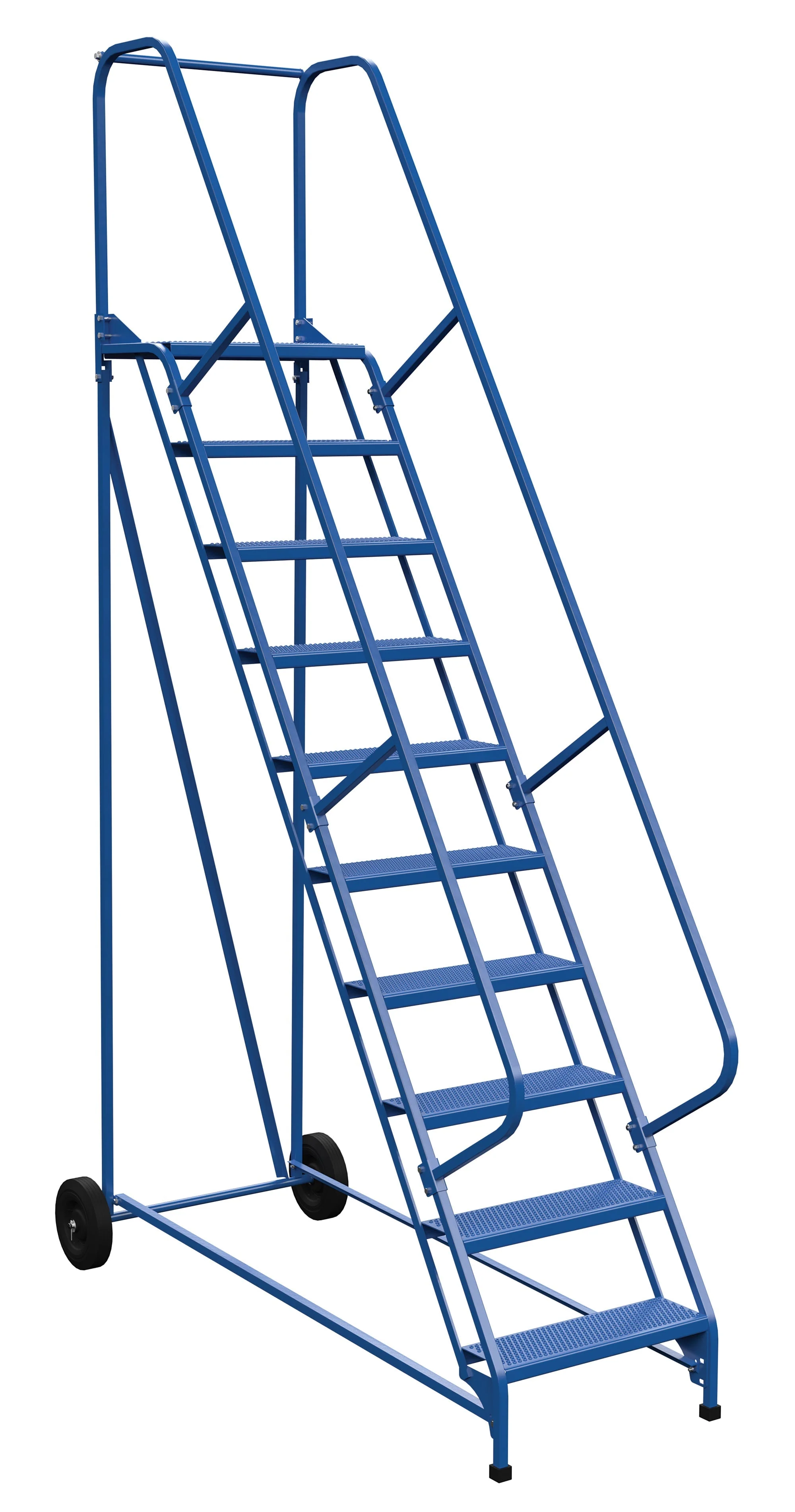

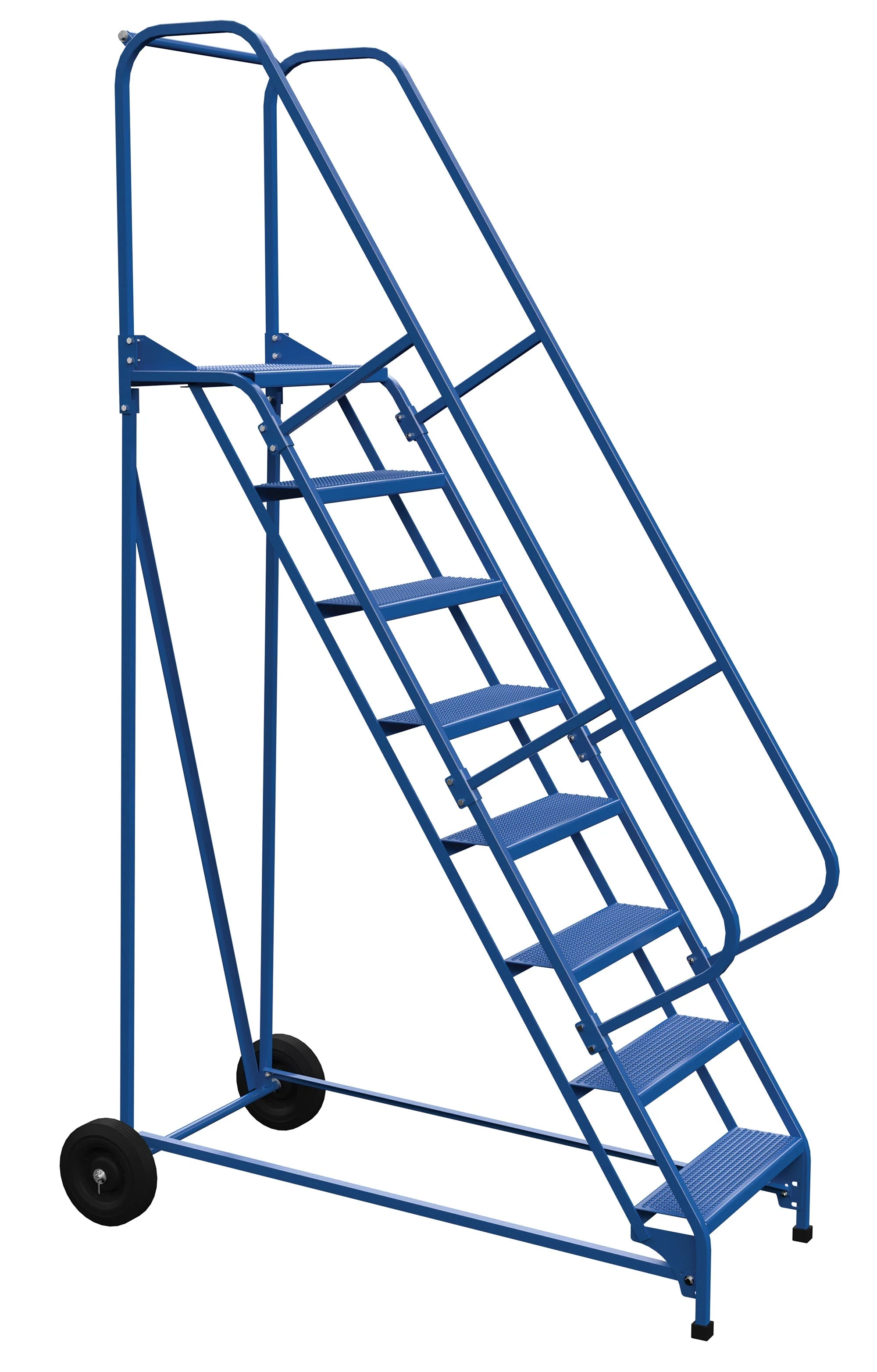

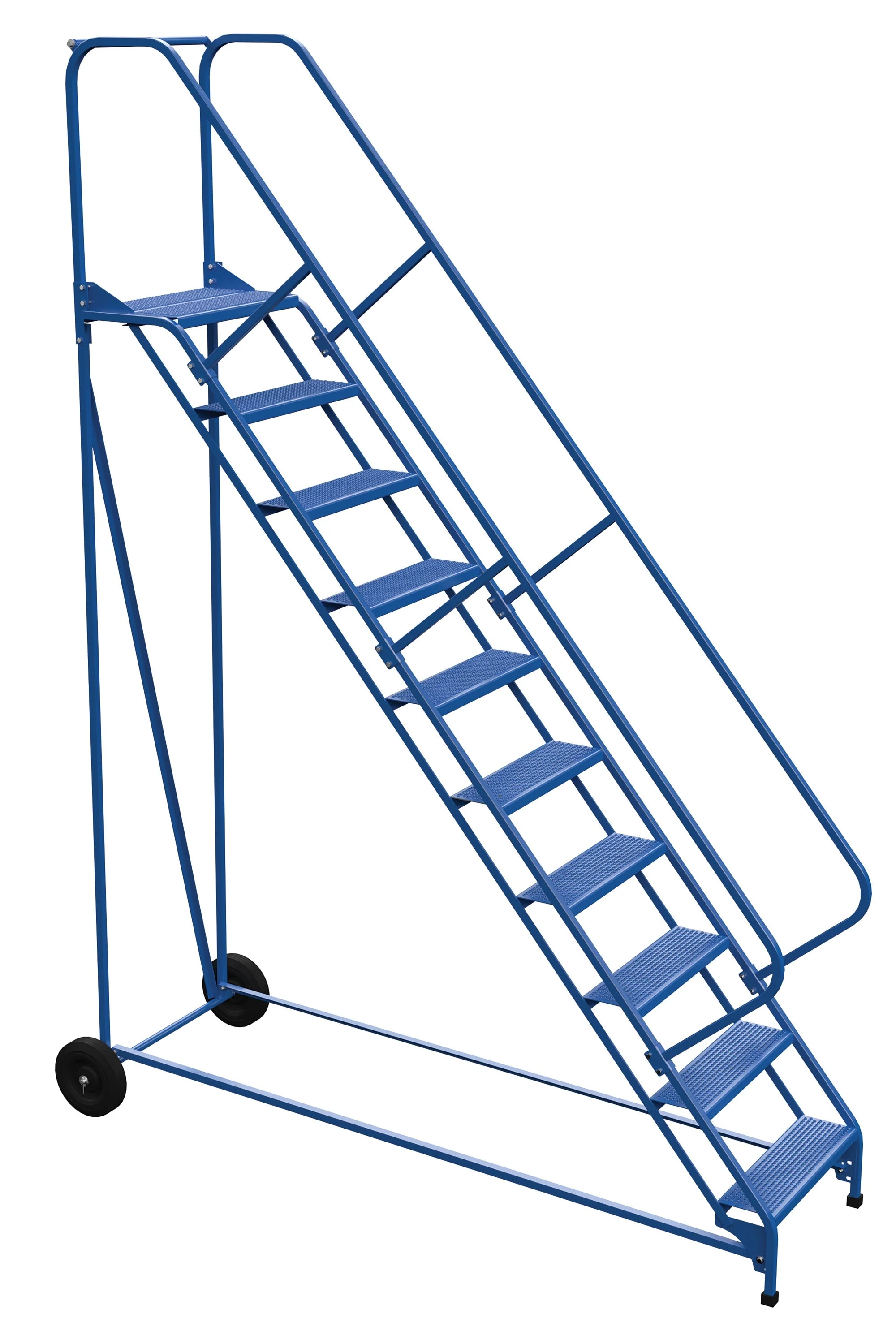

Vestil Roll-A-Fold Ladders

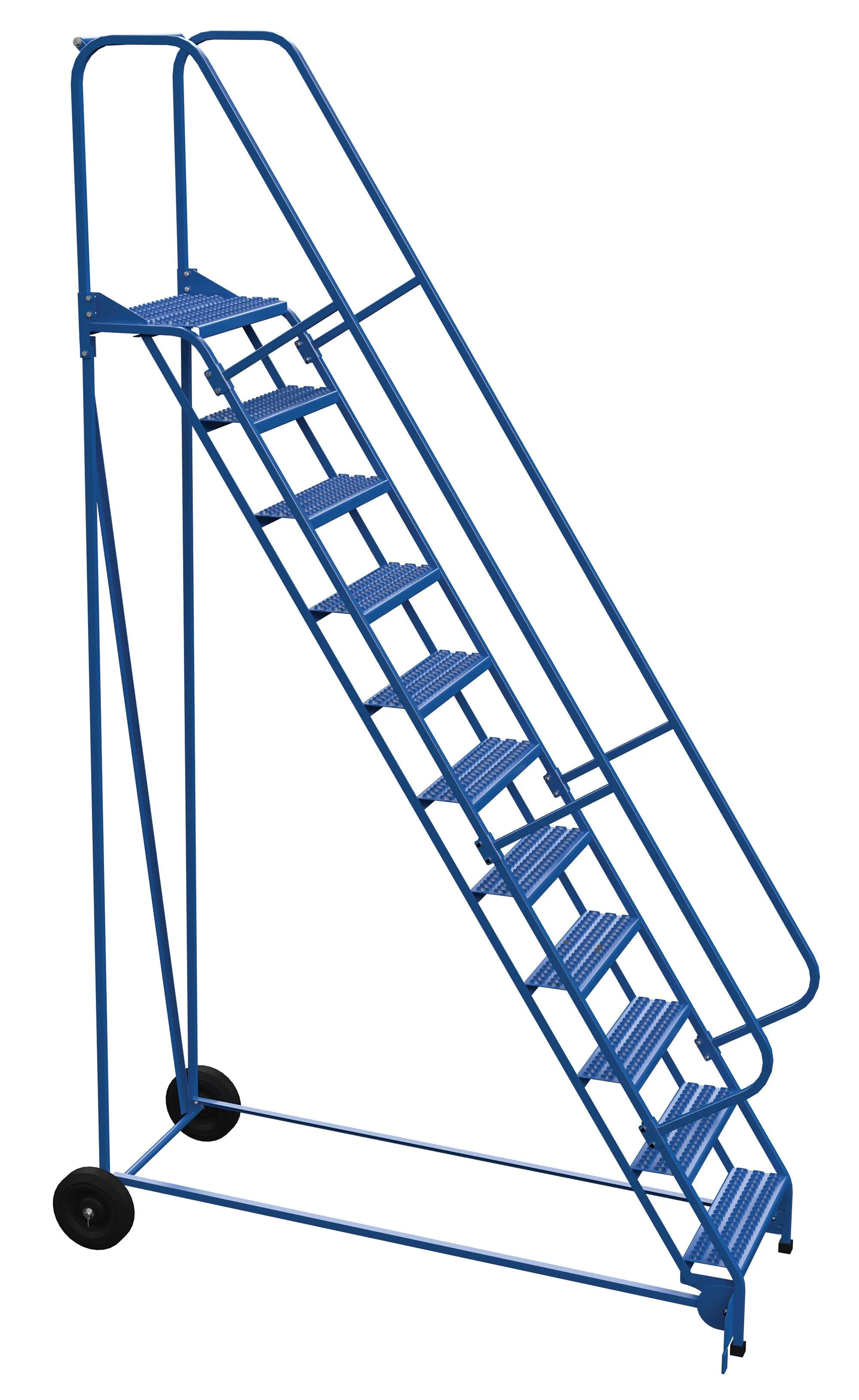

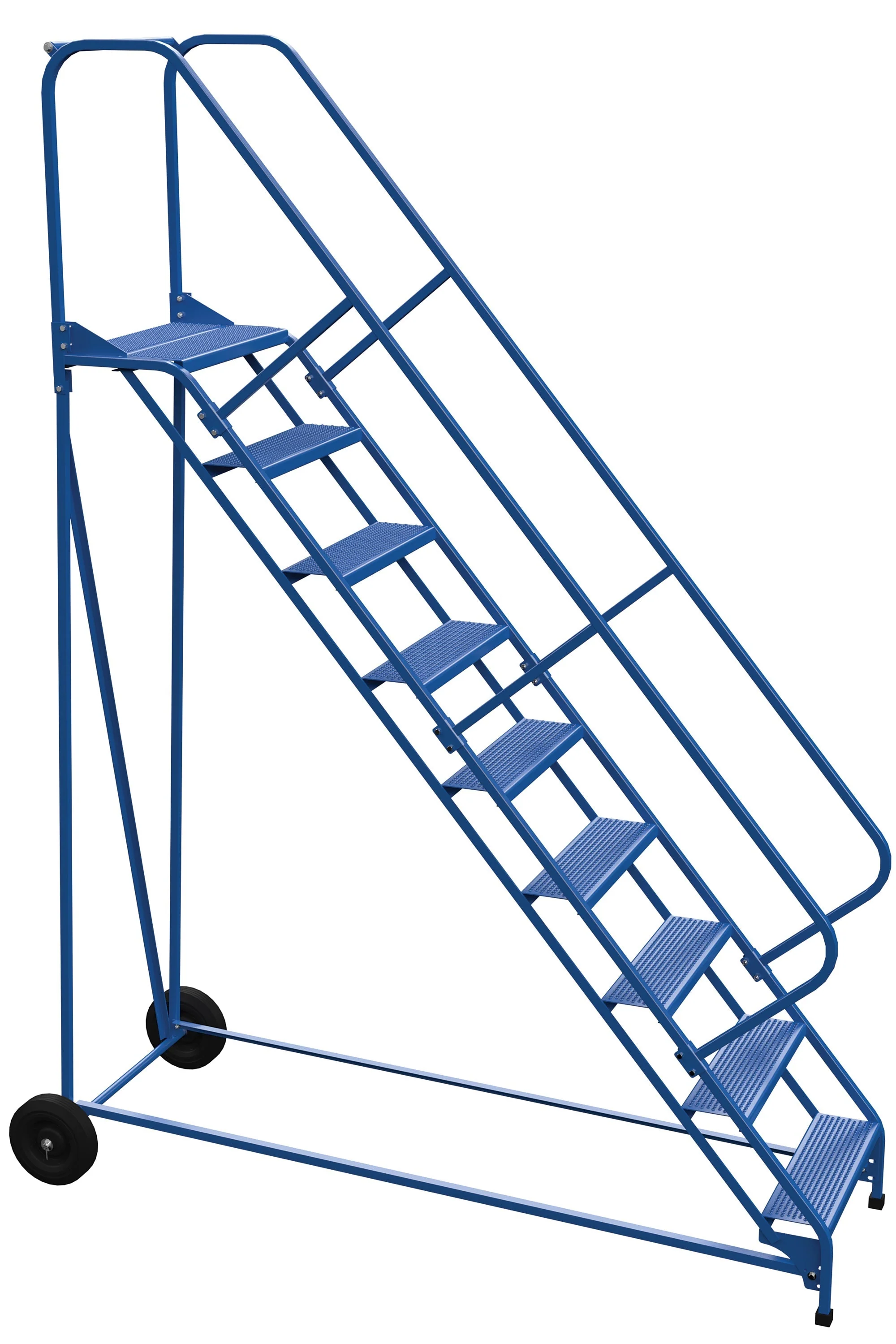

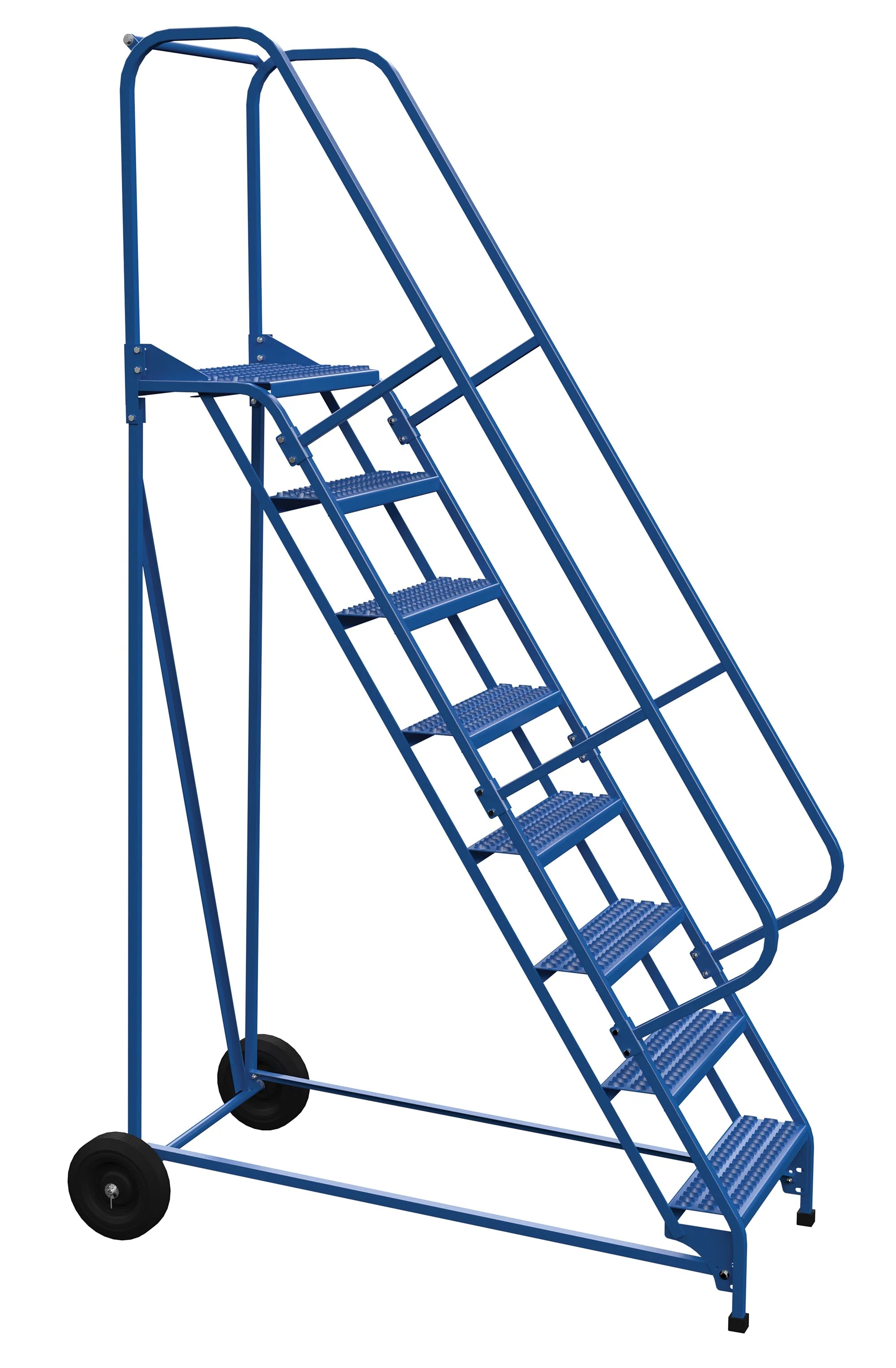

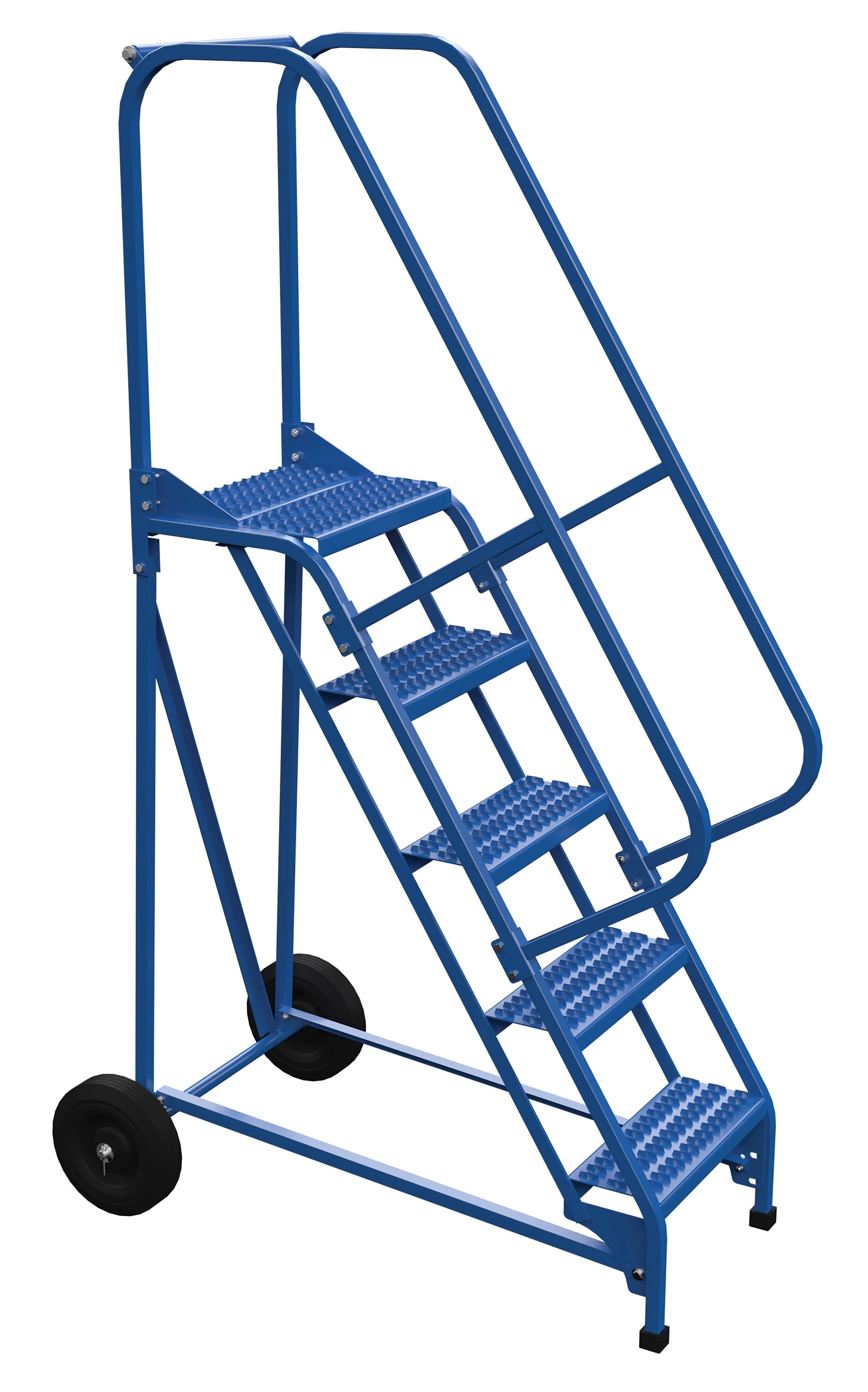

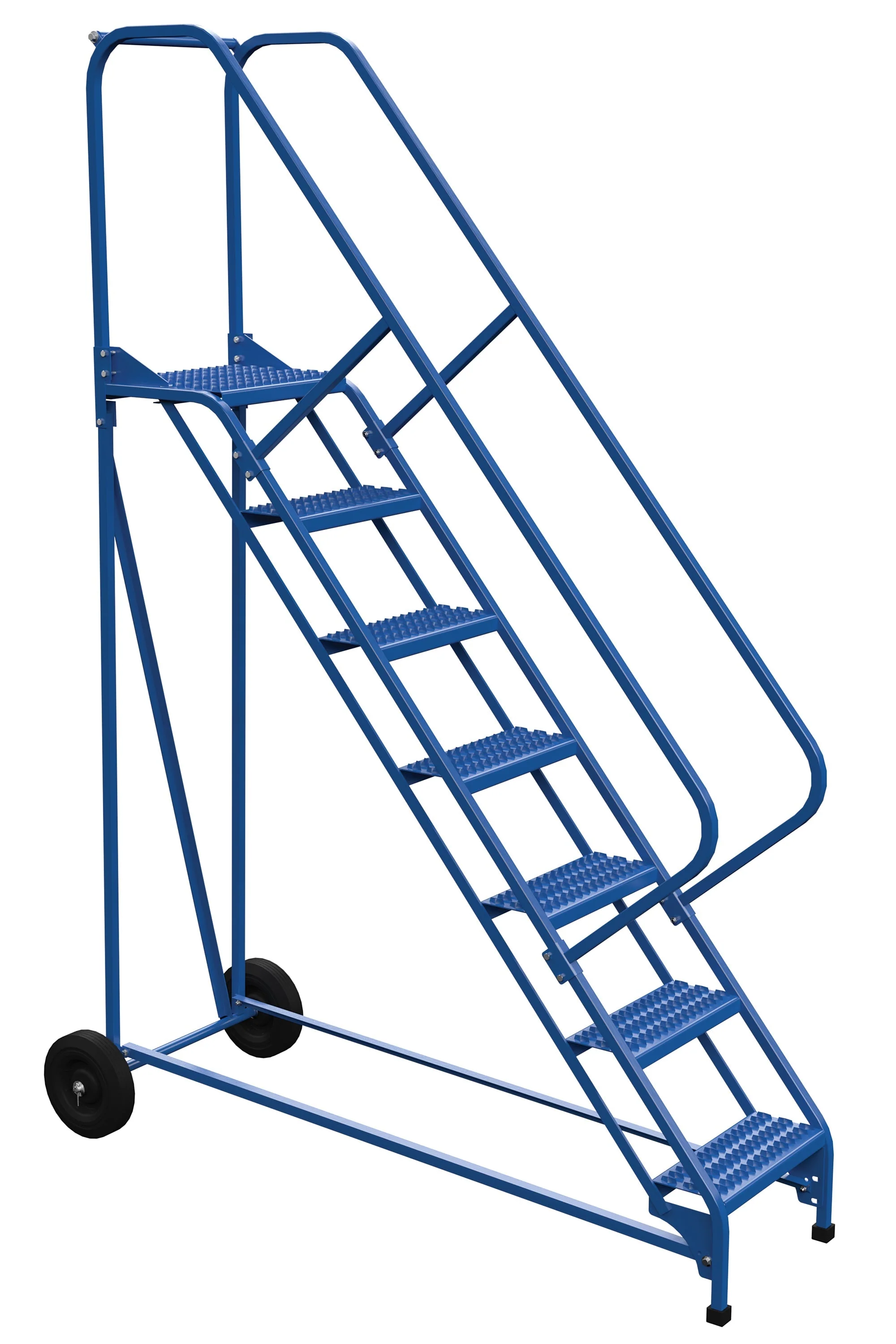

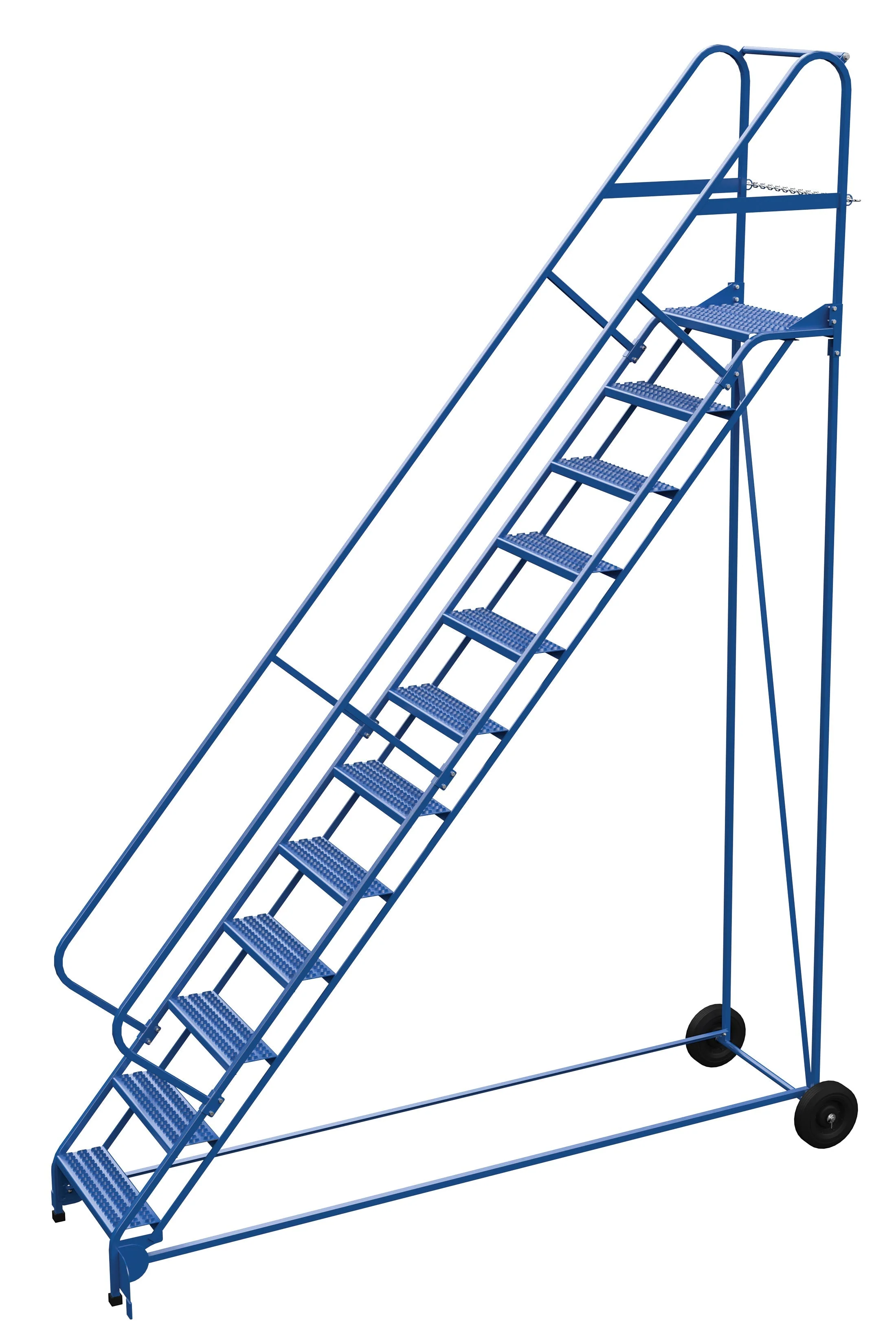

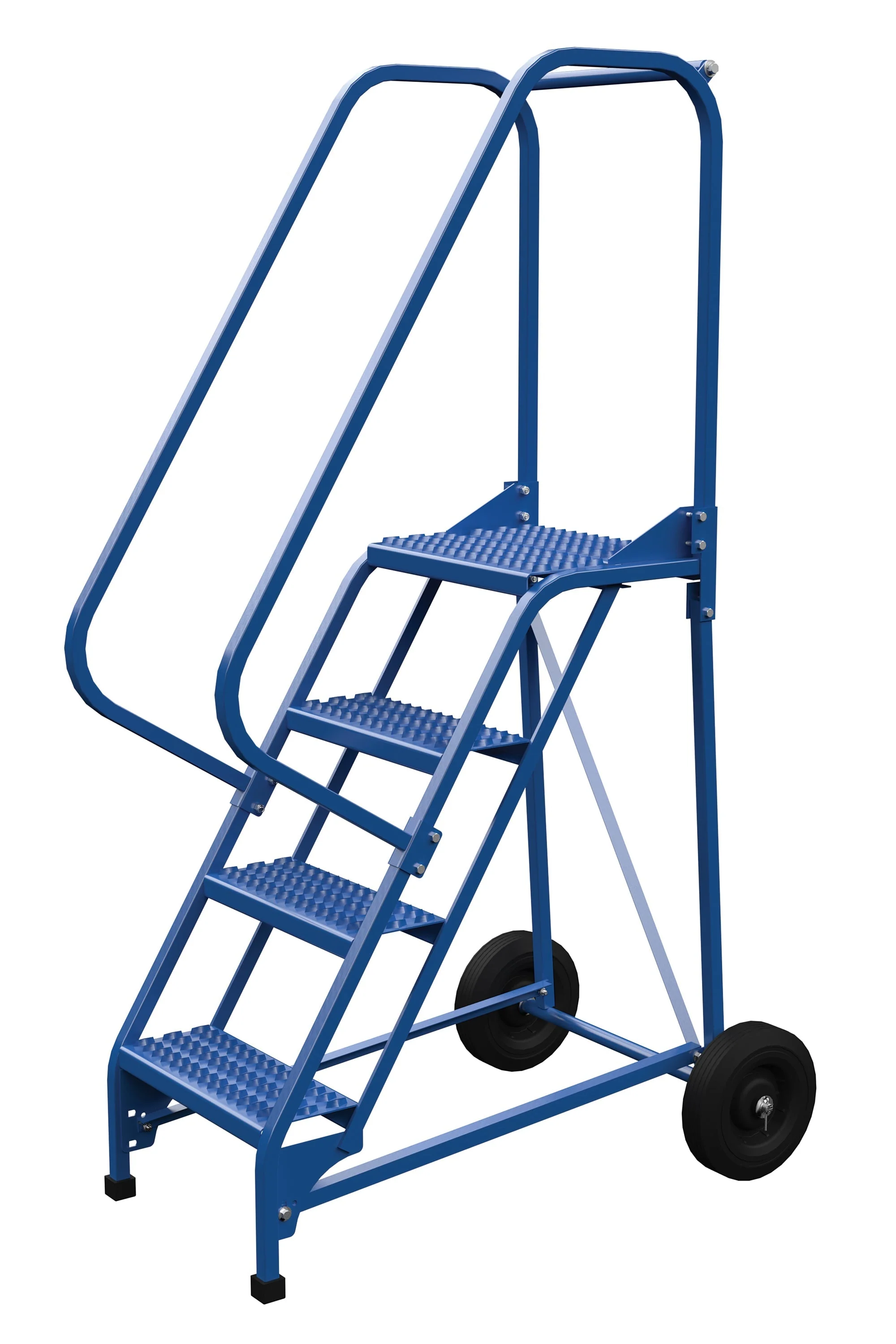

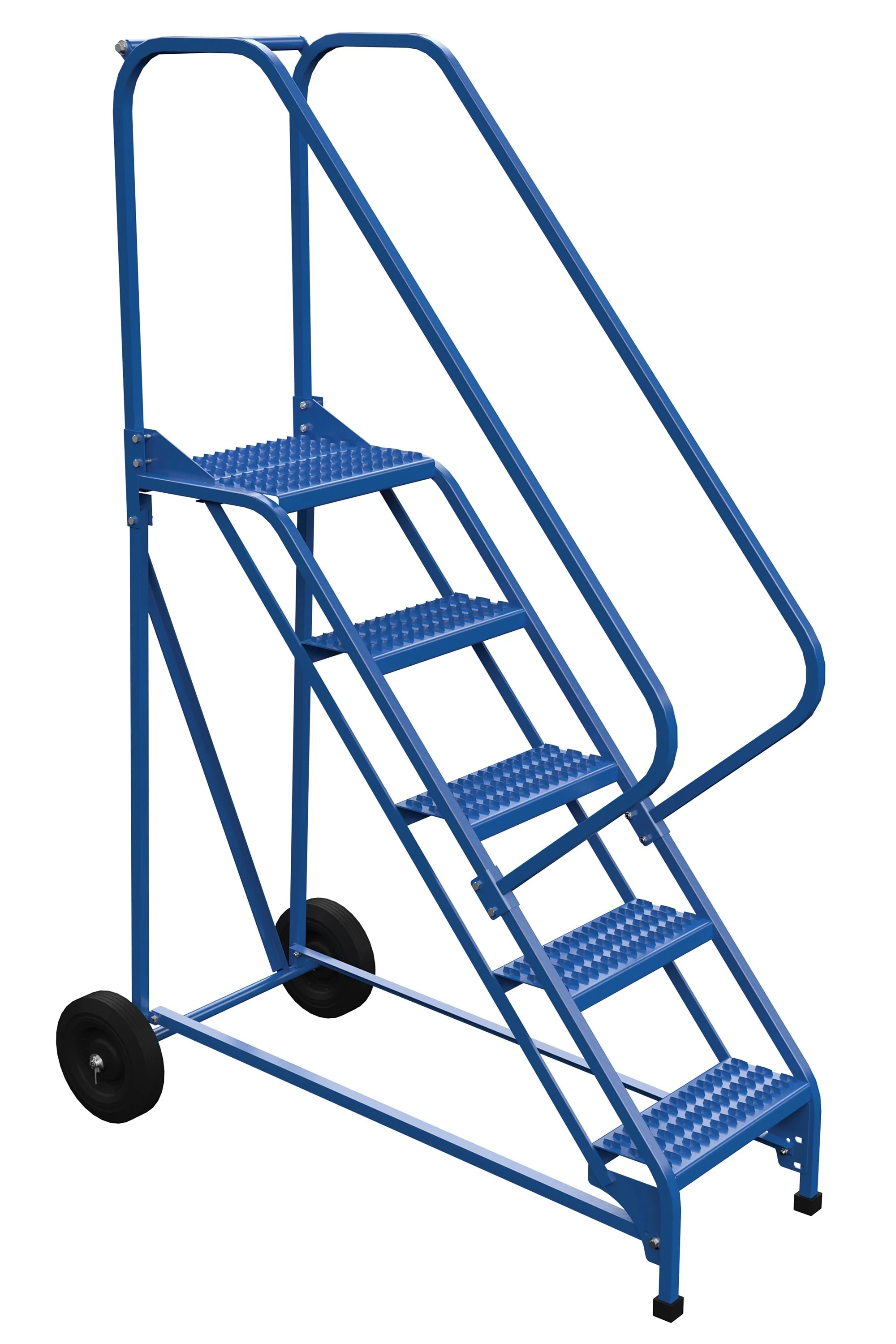

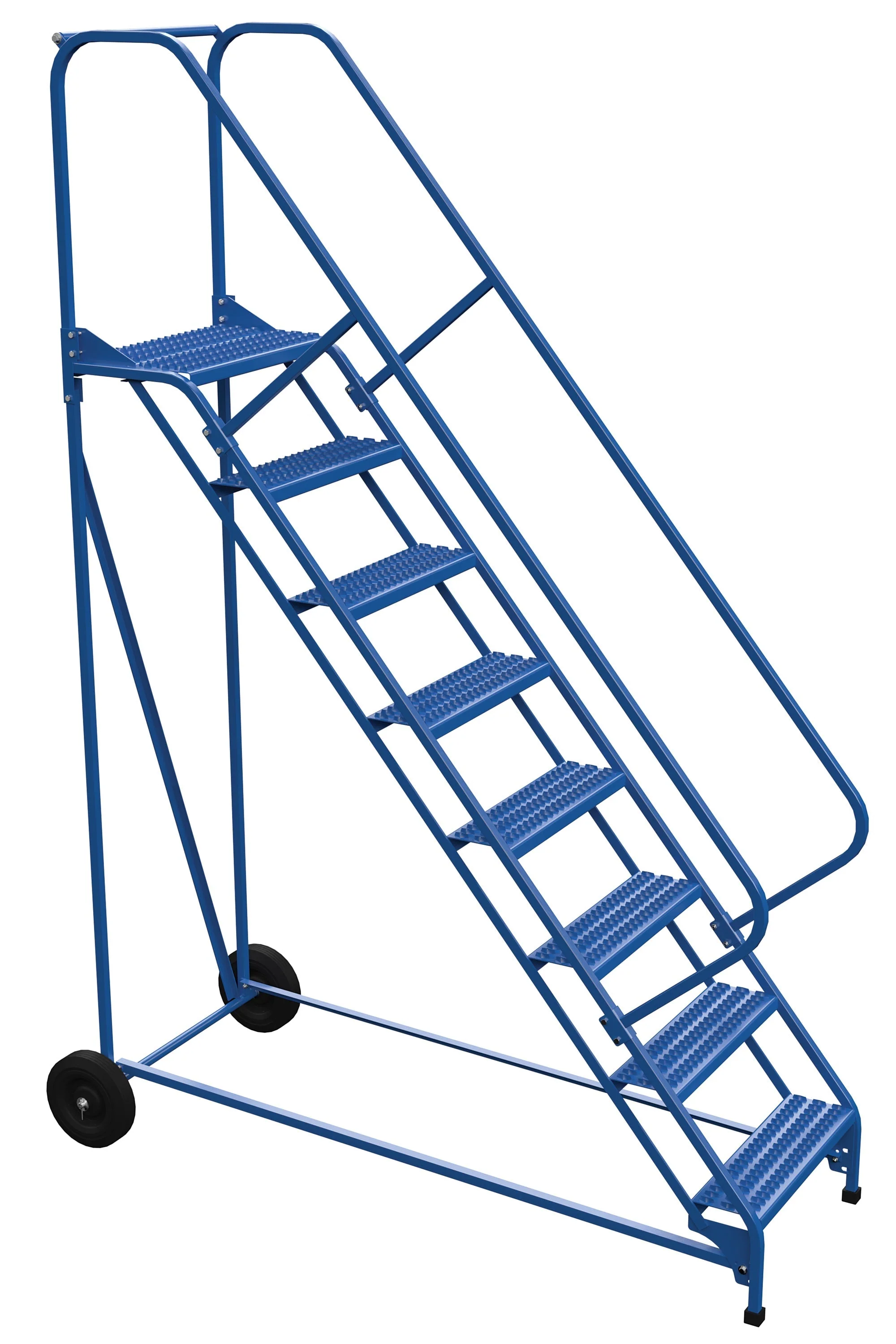

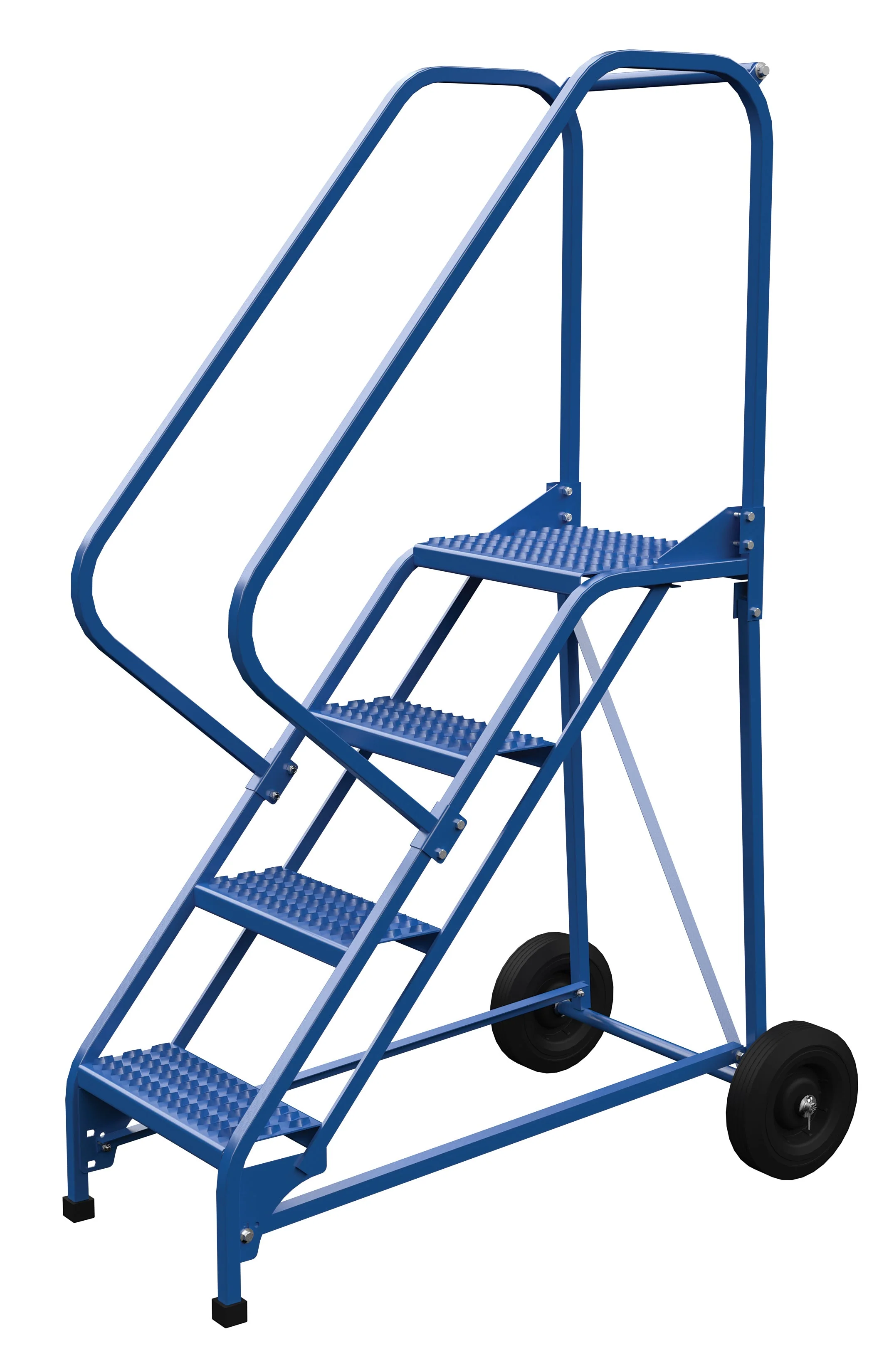

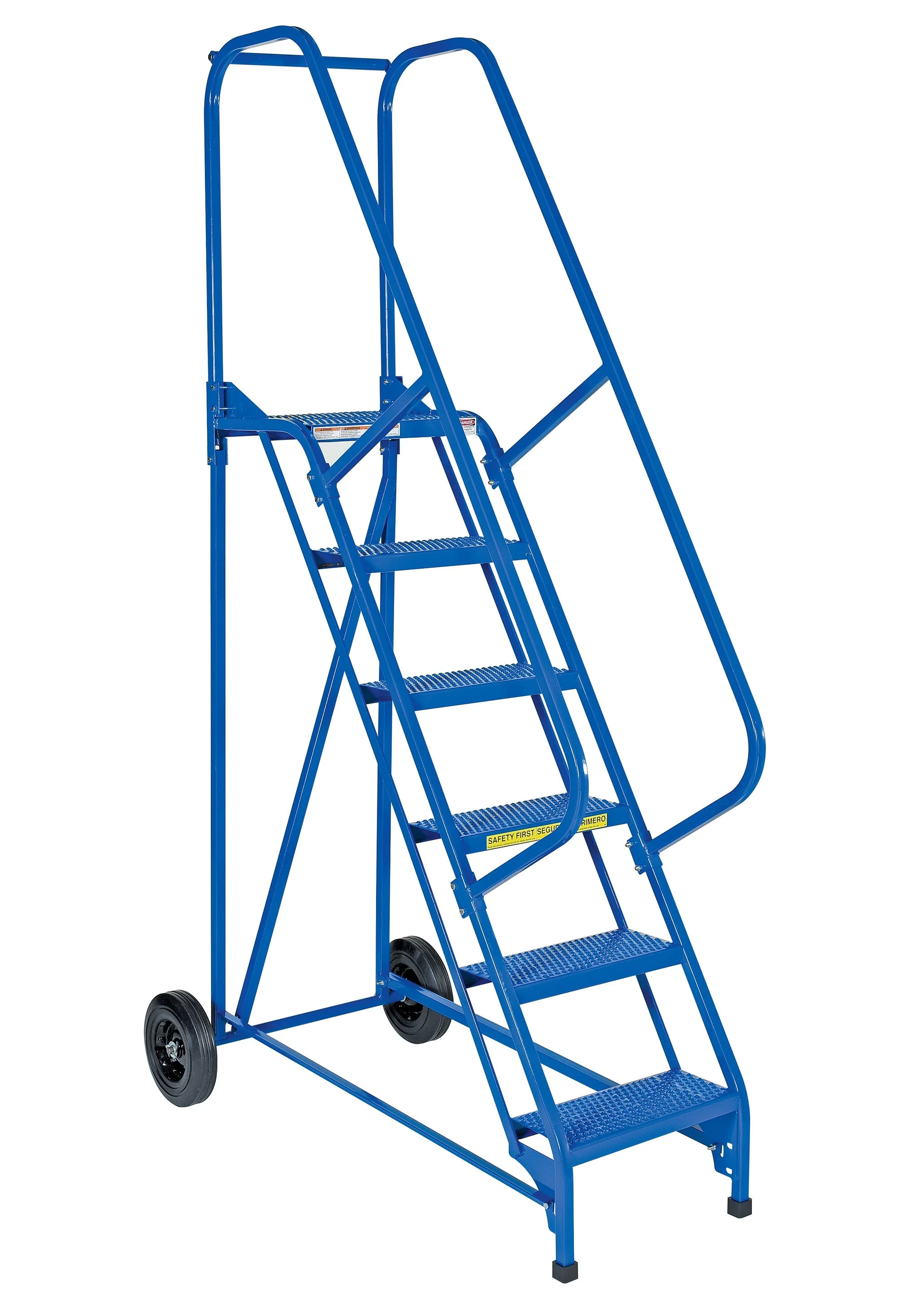

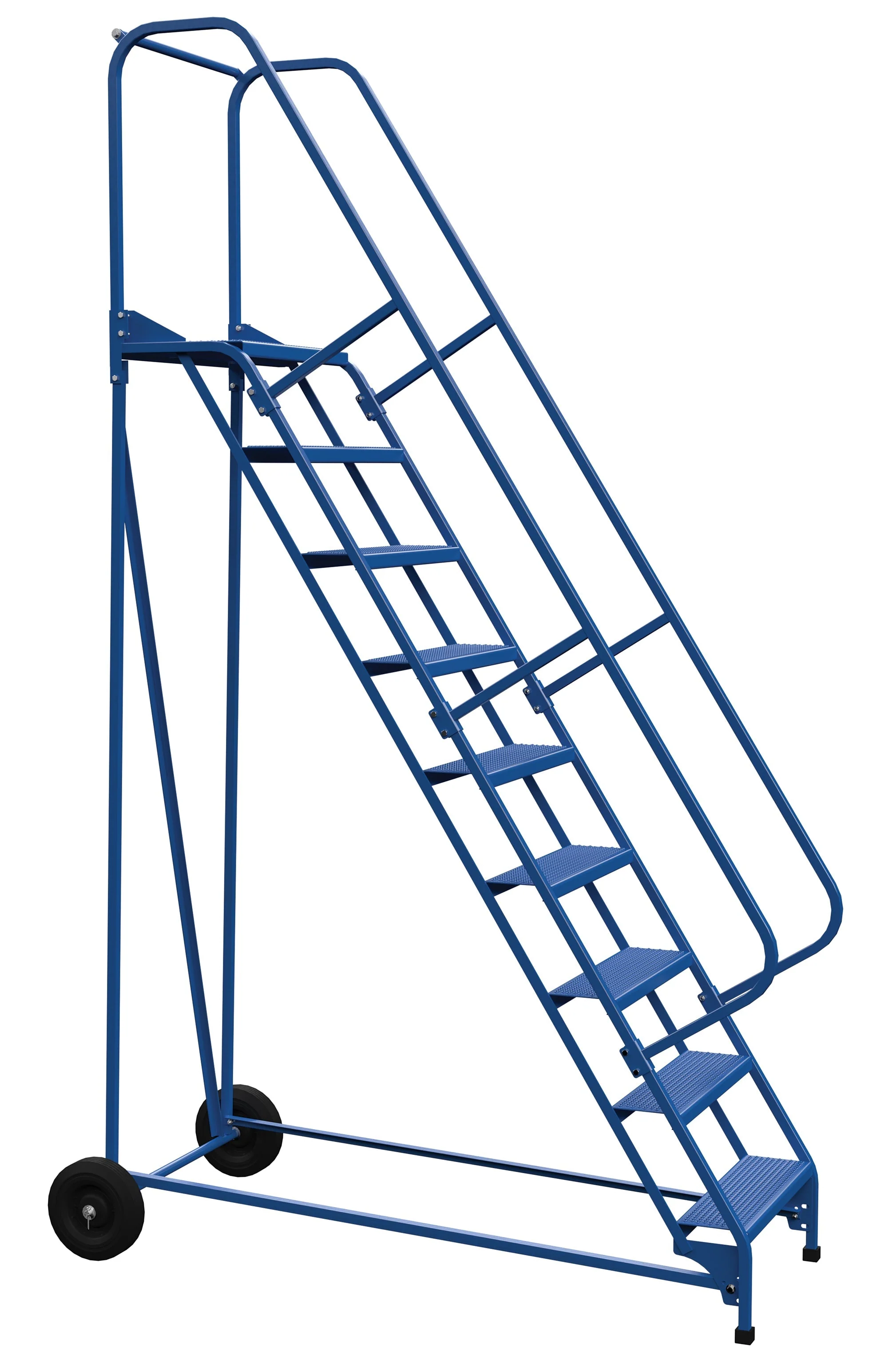

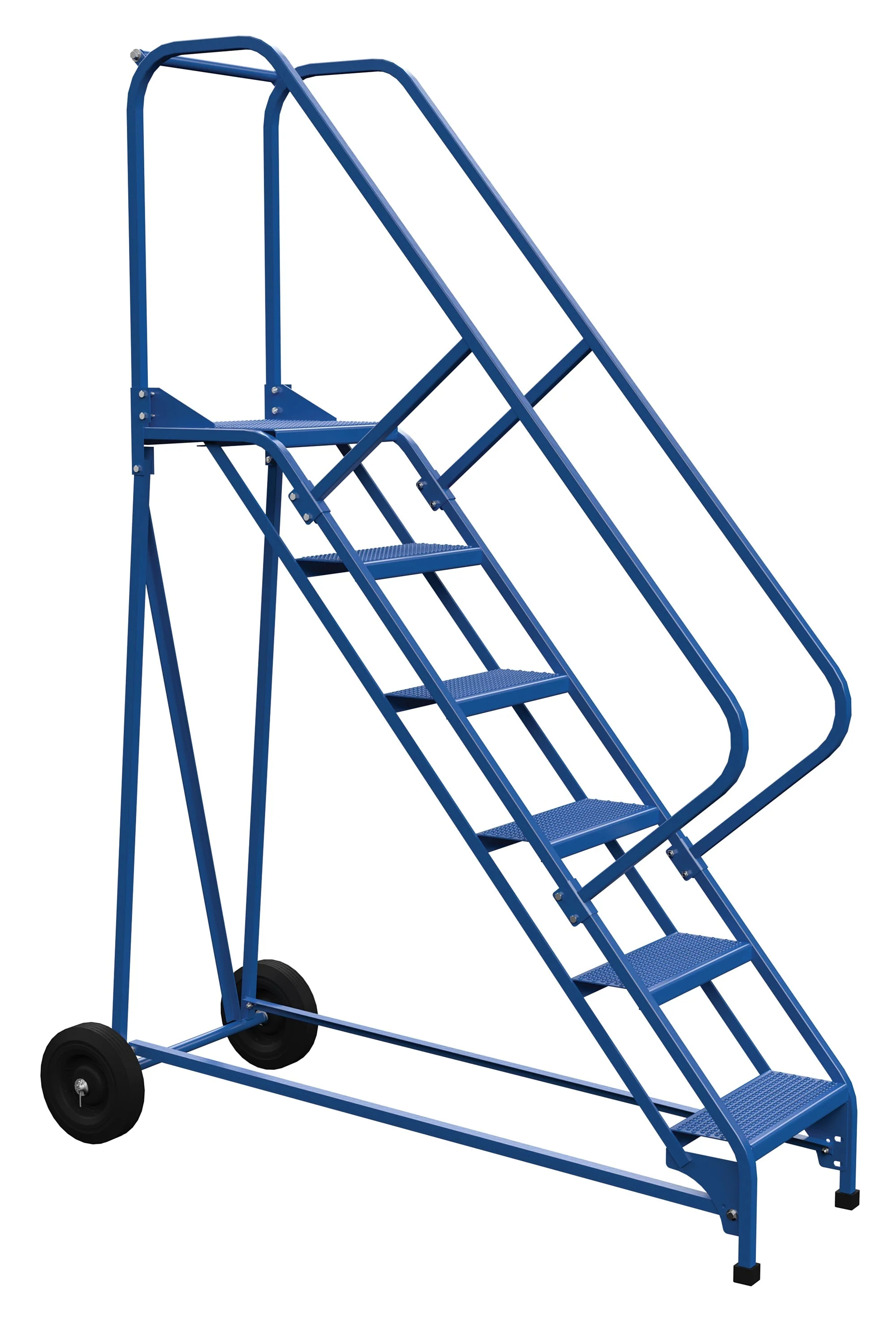

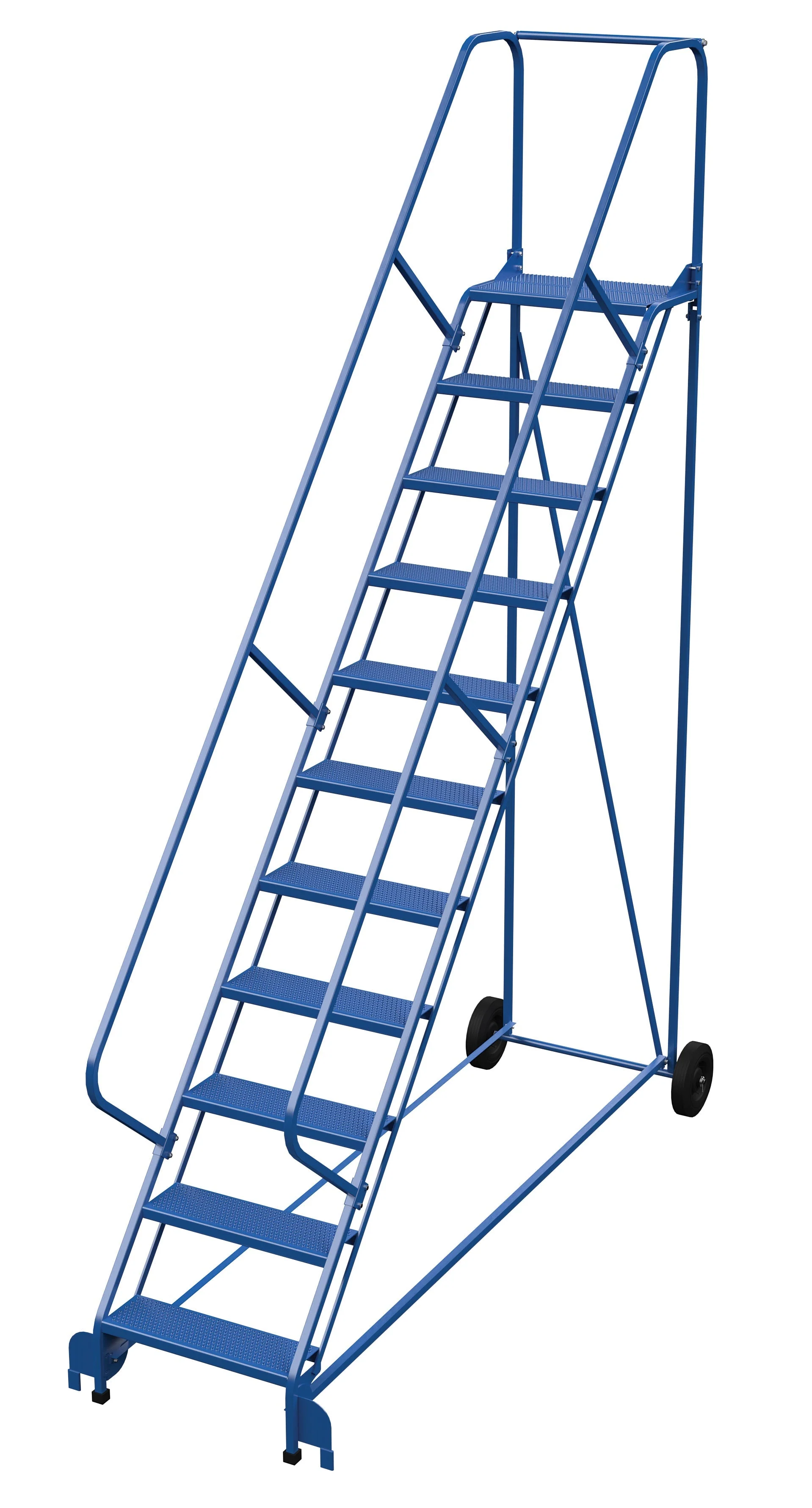

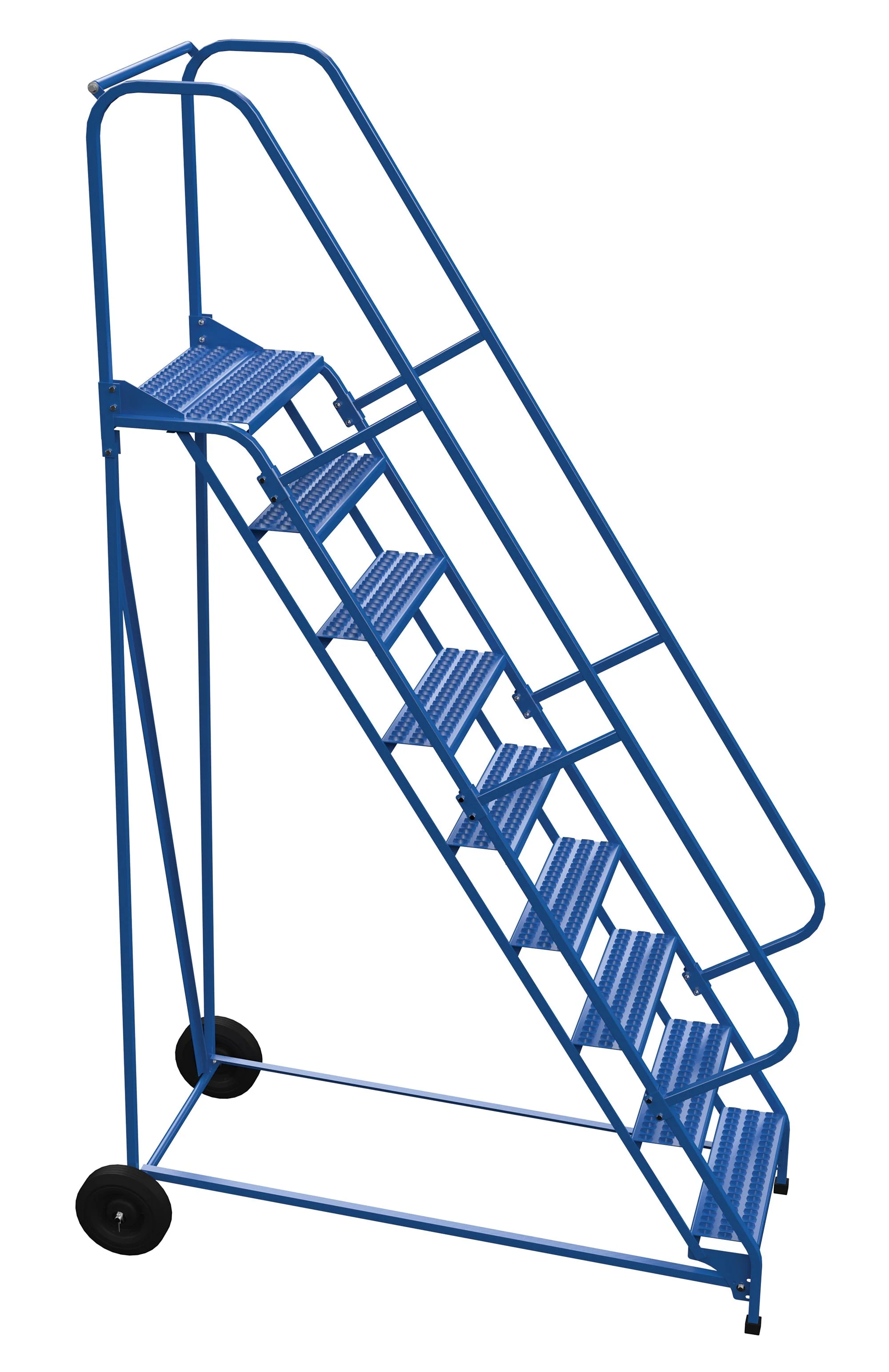

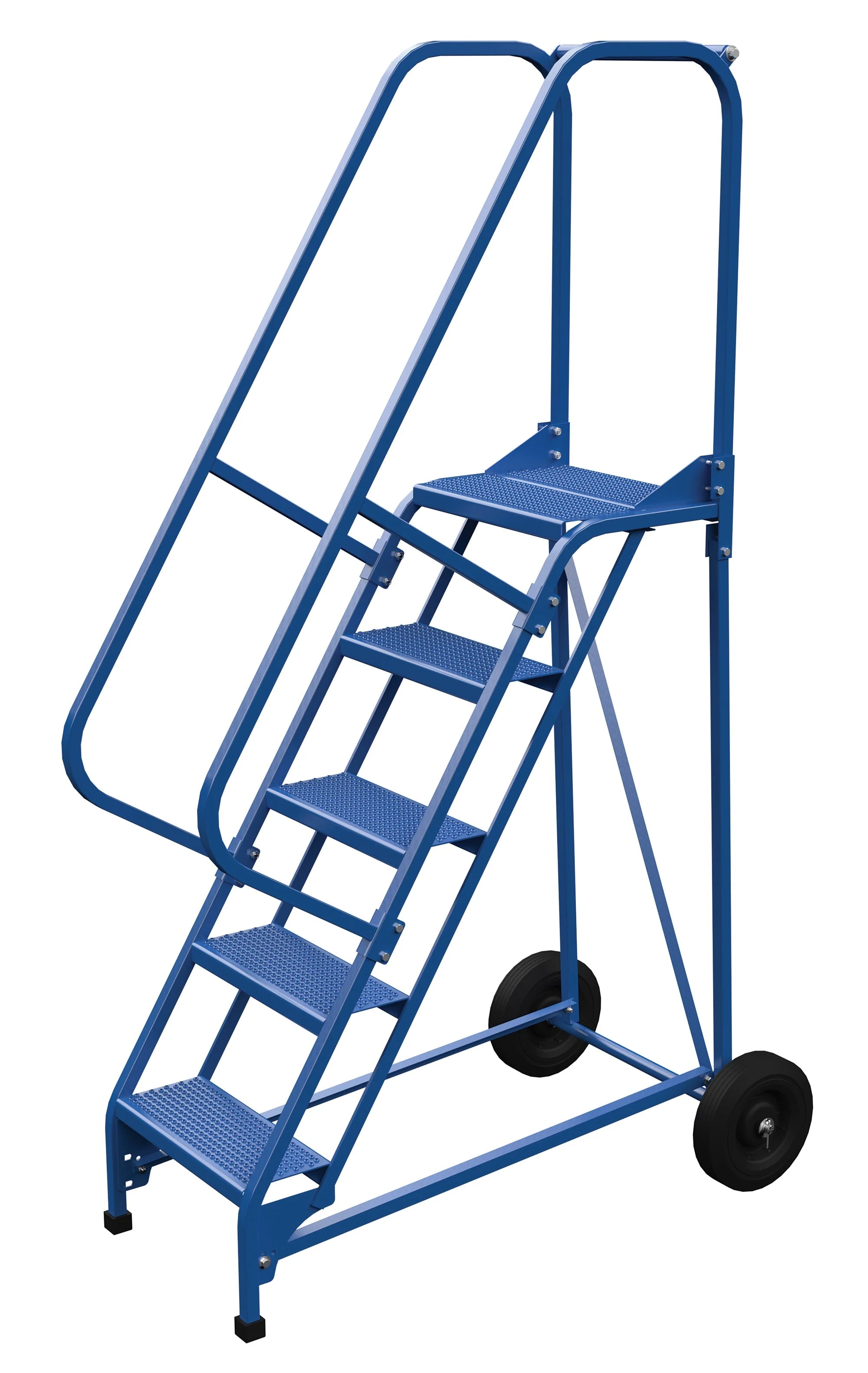

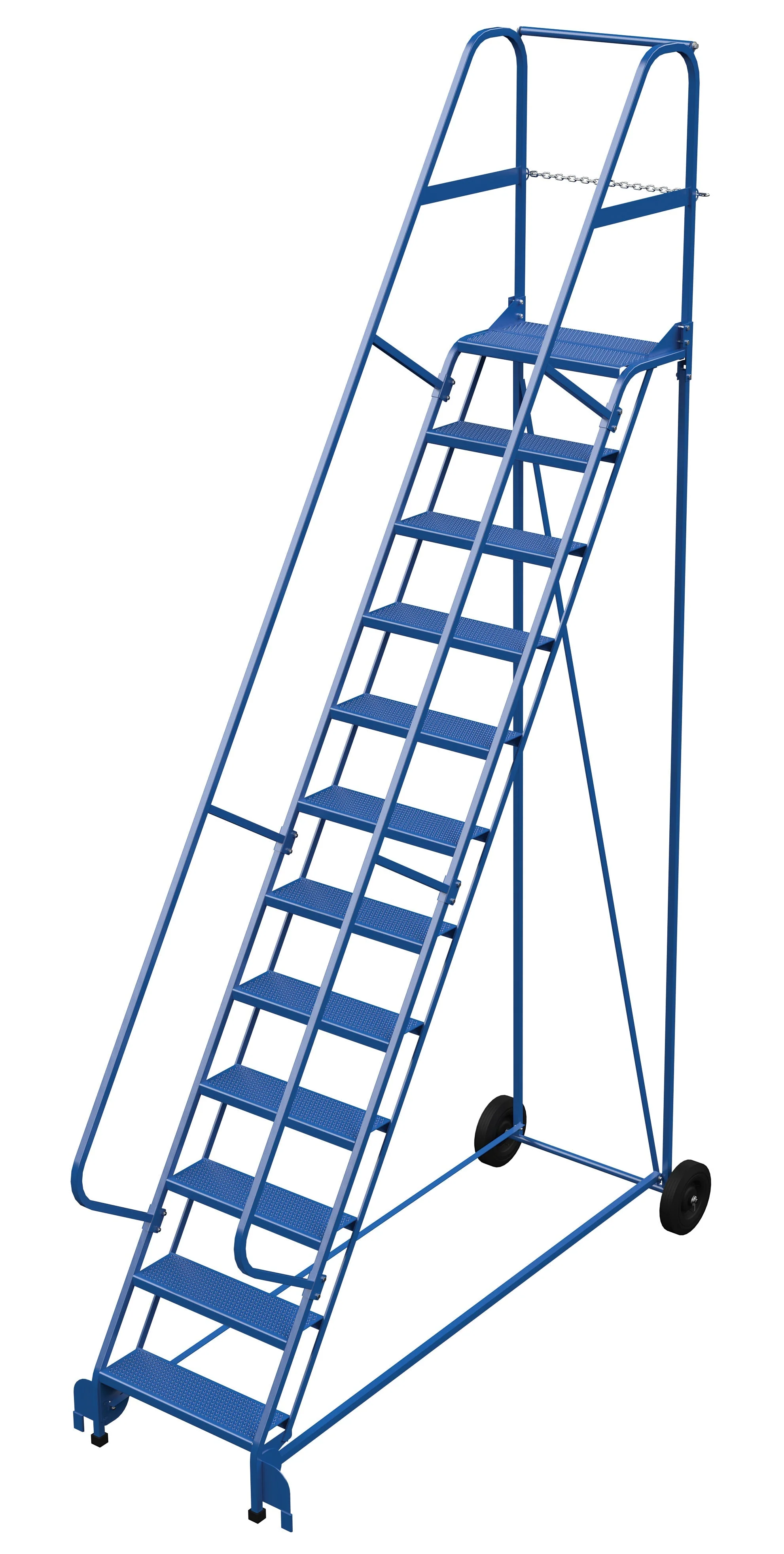

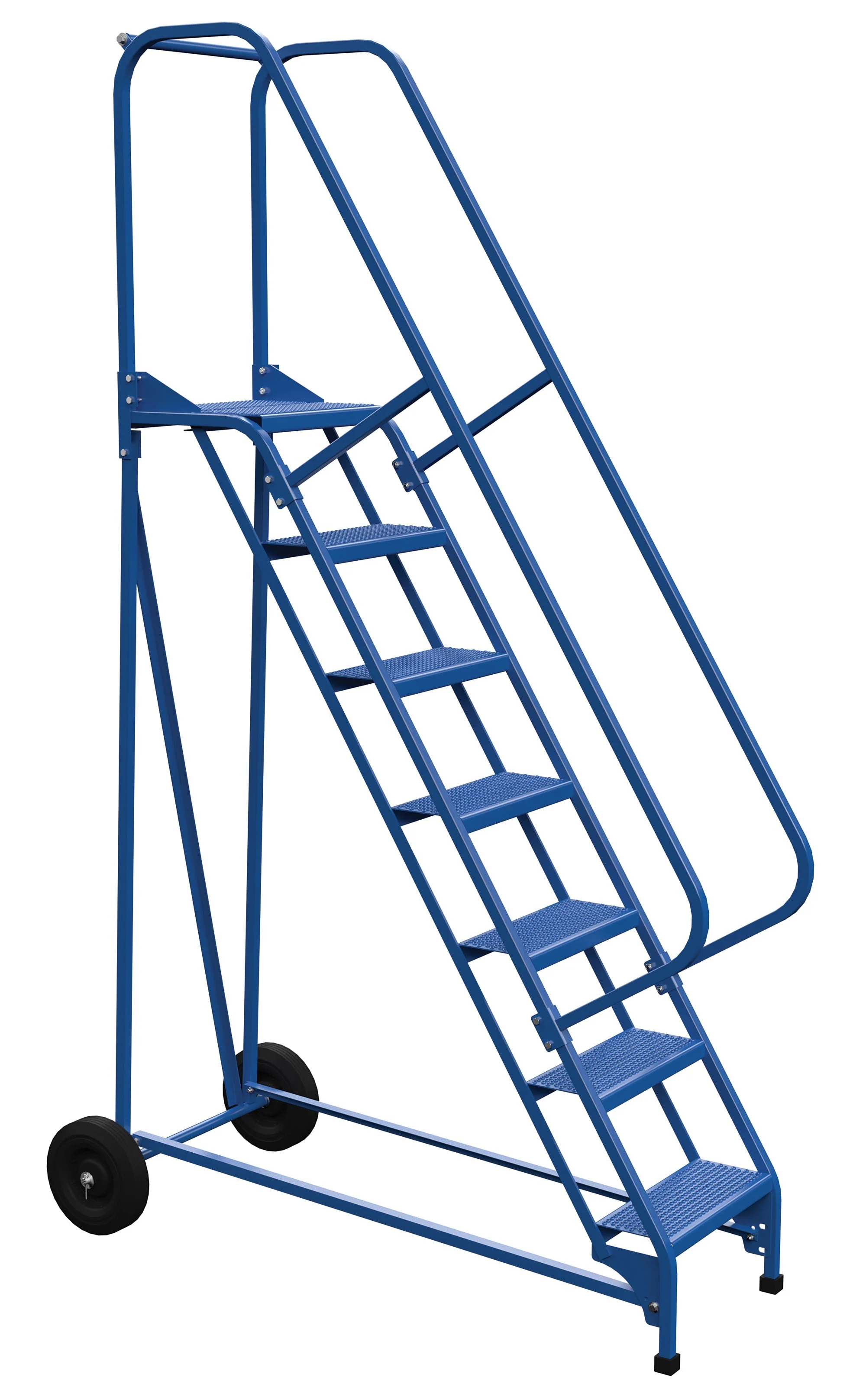

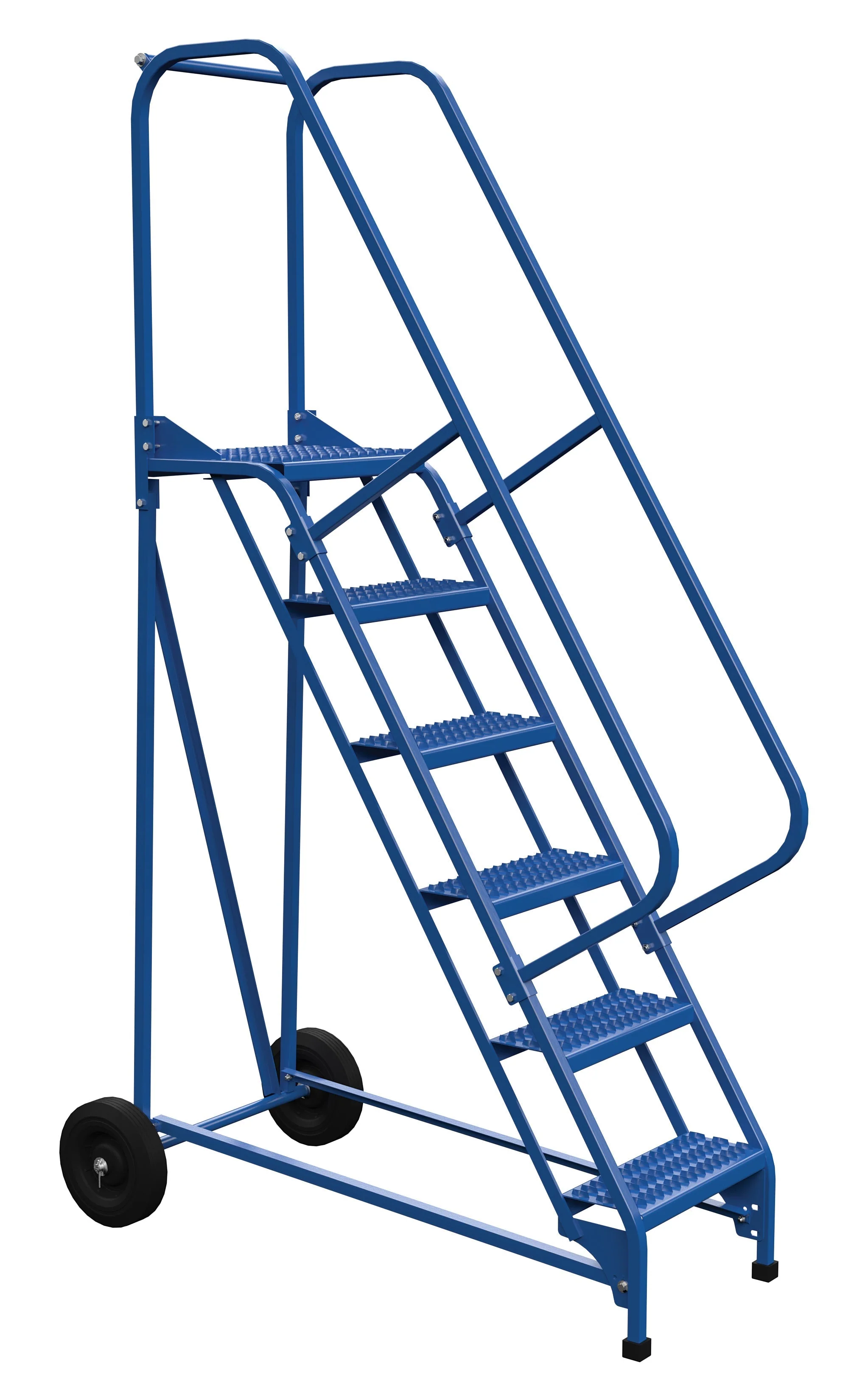

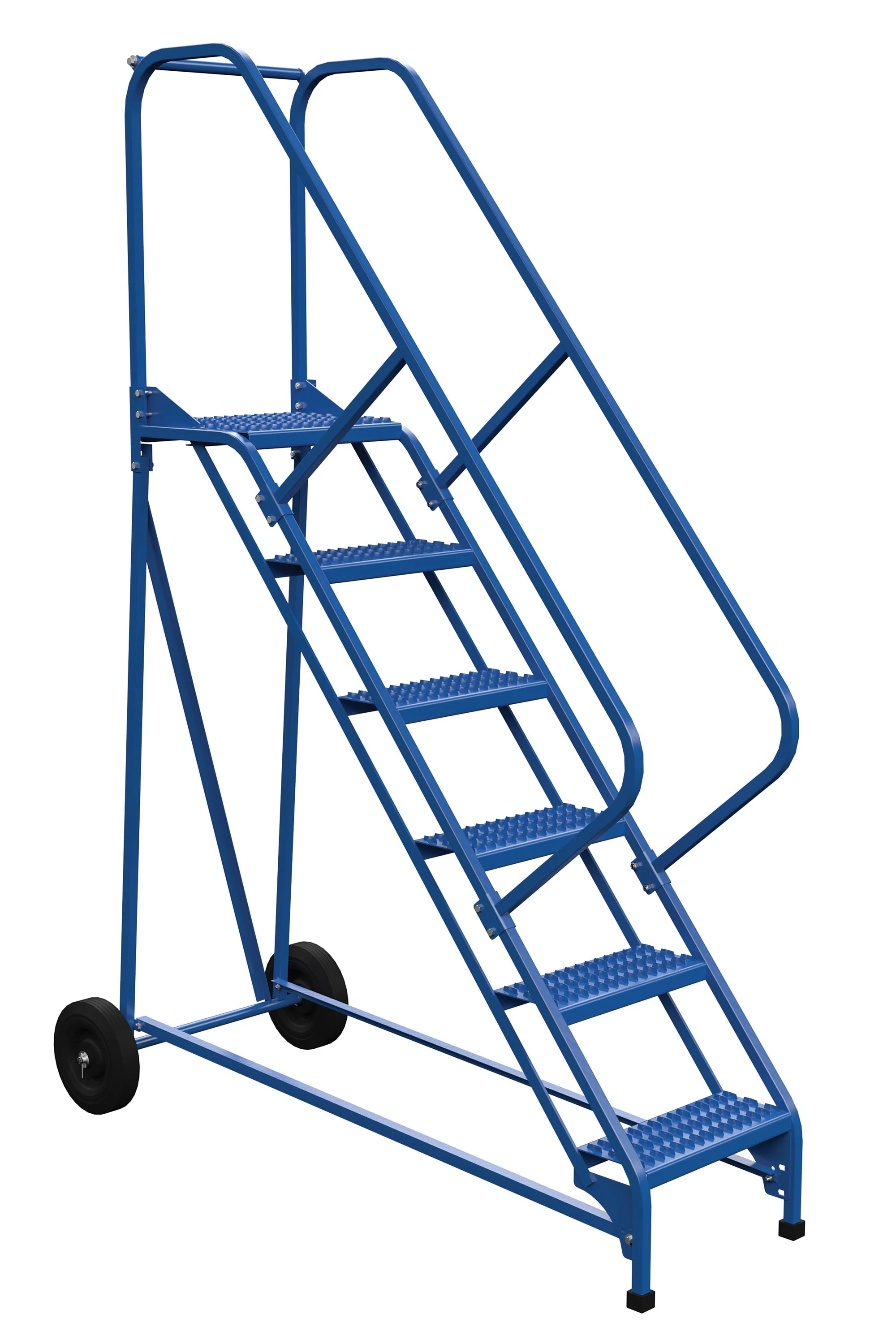

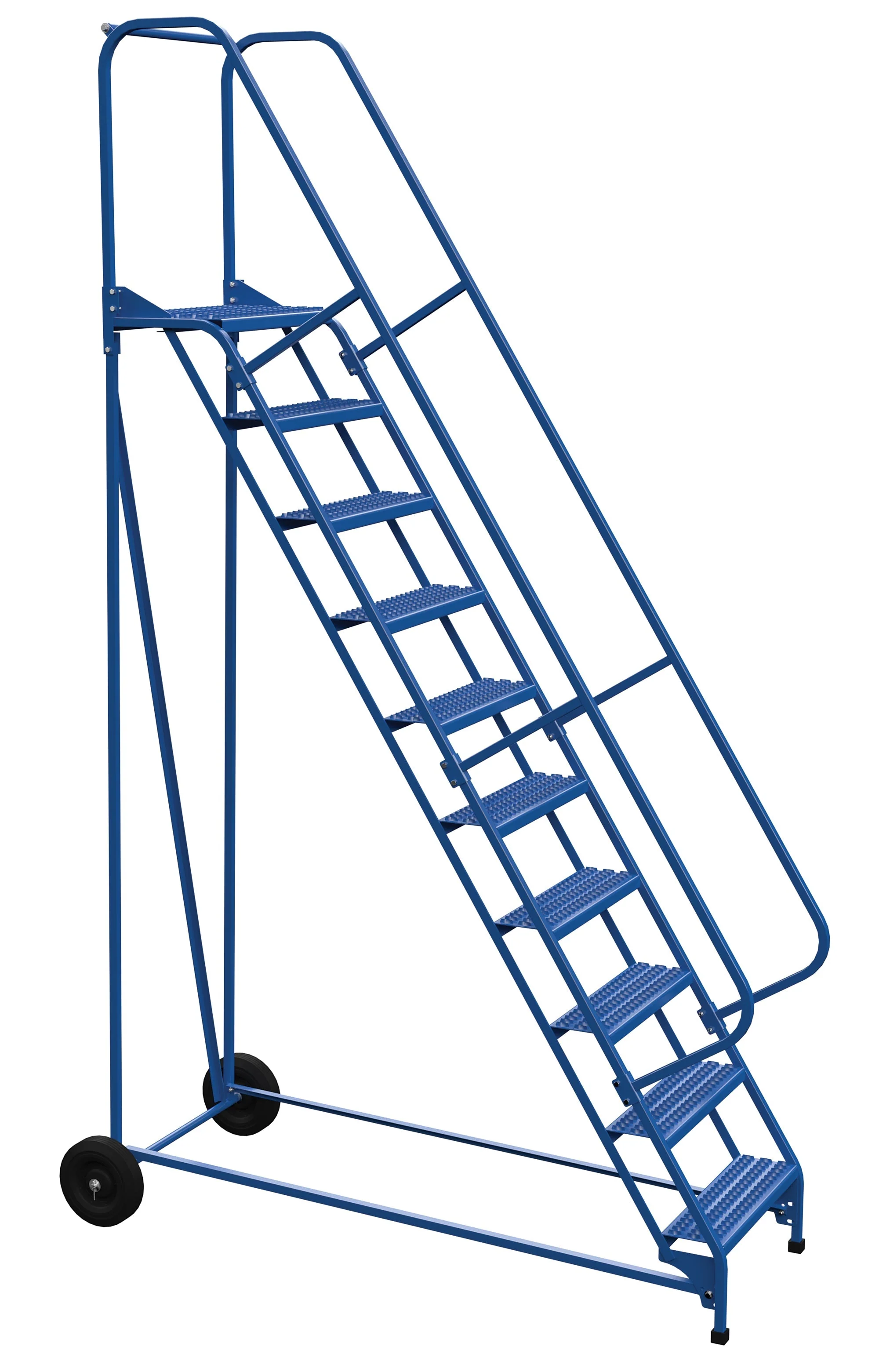

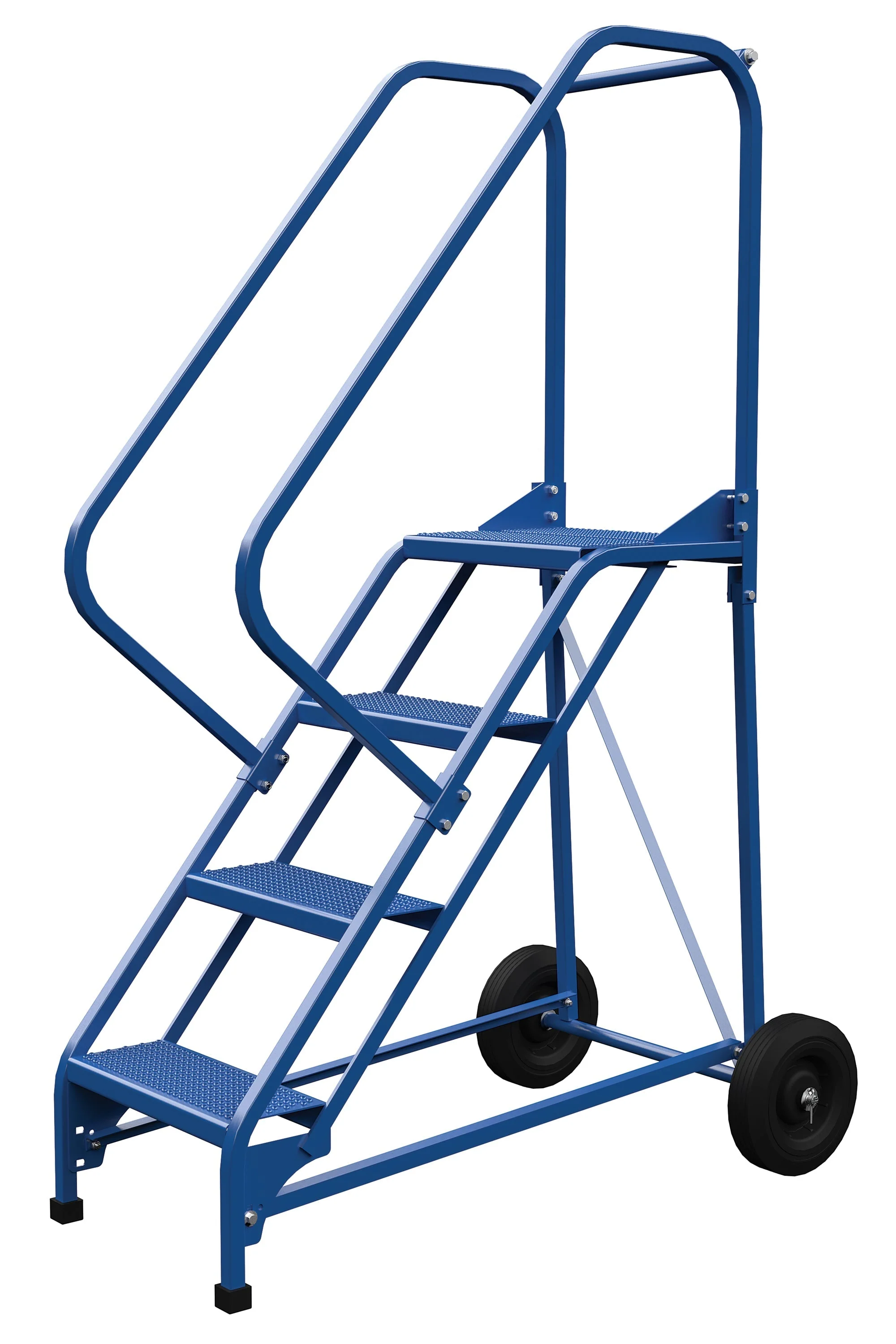

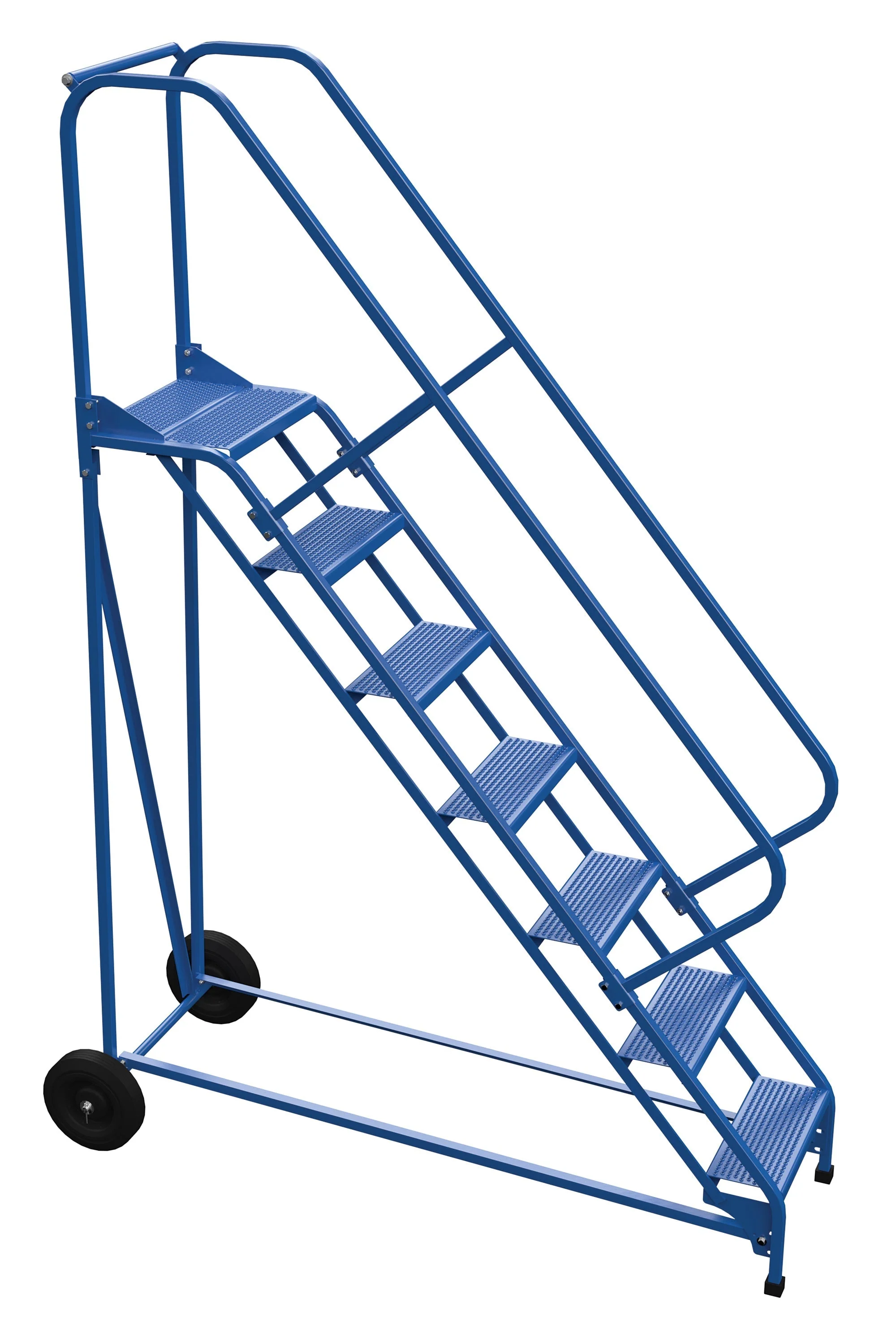

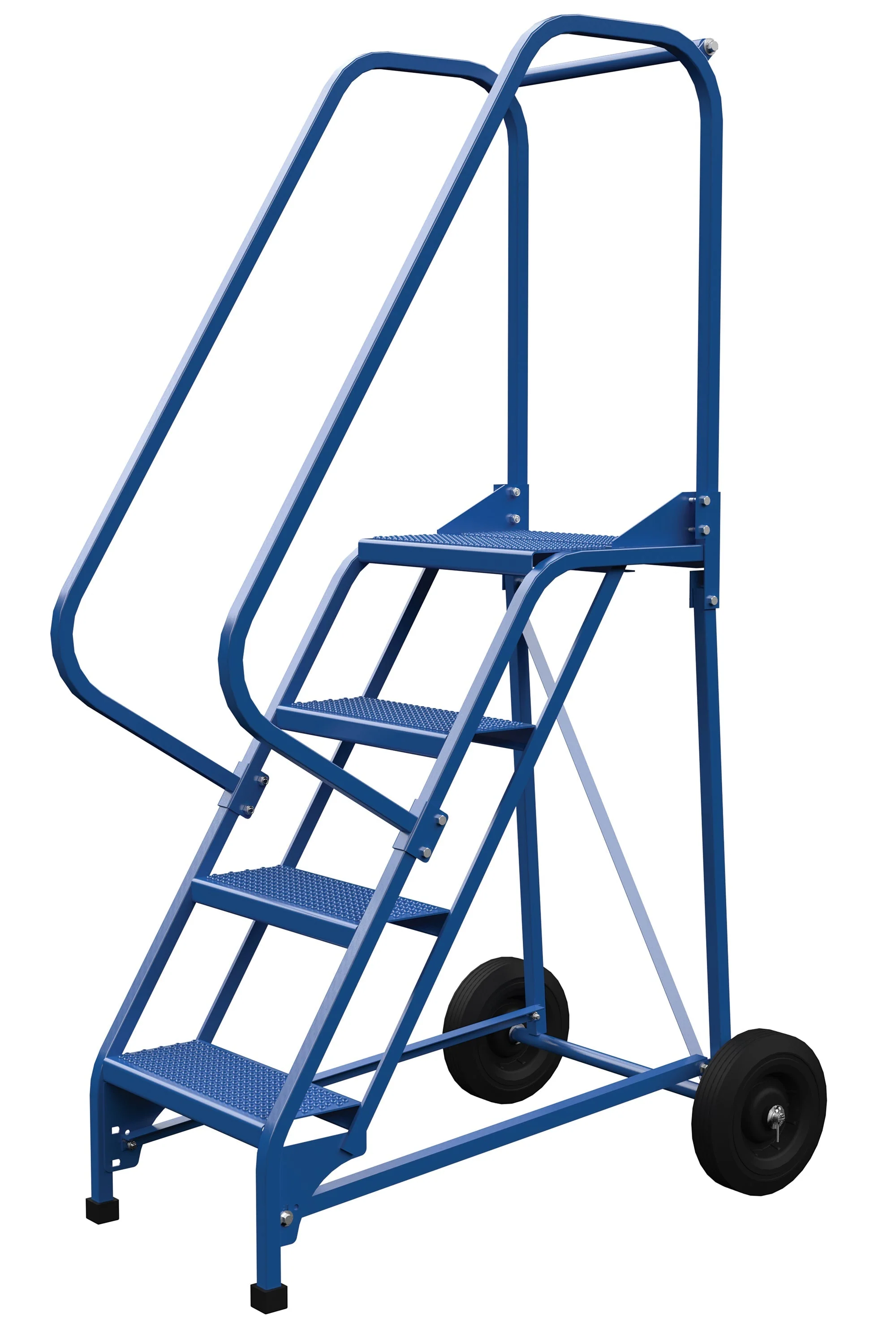

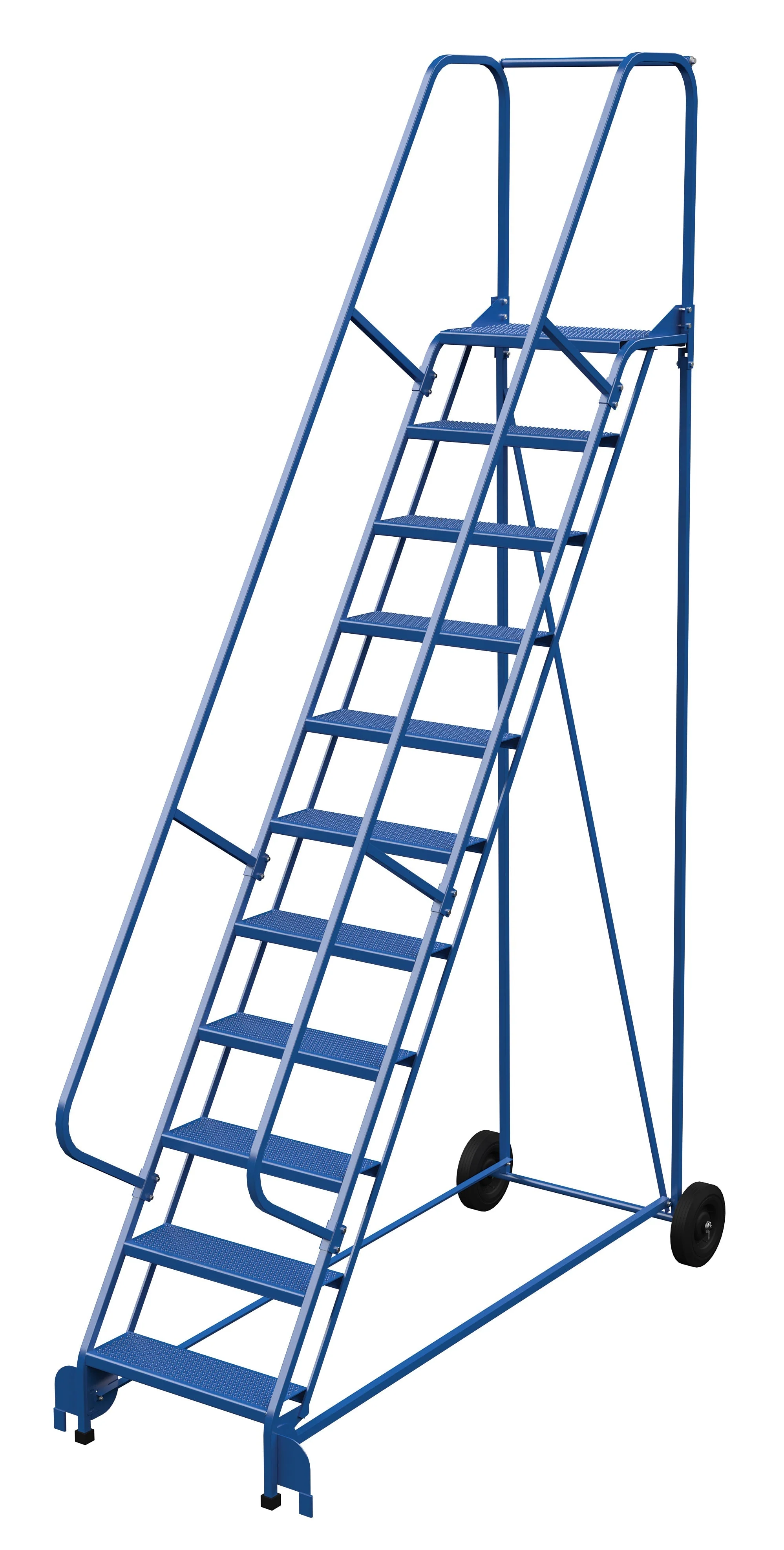

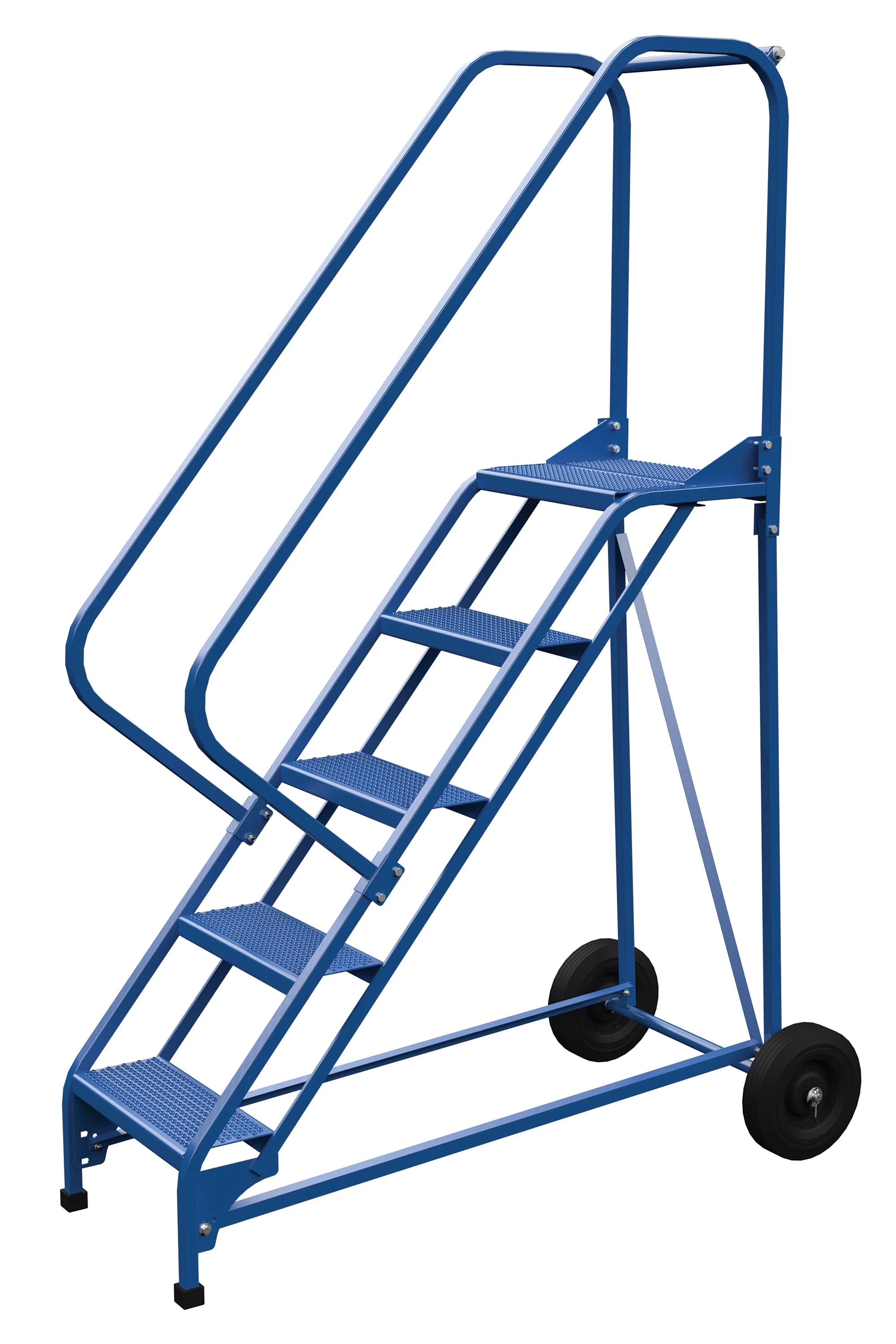

Portable ladders conveniently folds for storage. Constructed of square tubing framework which handles capacities up to 350 lbs. 4 step - 11 step models feature a 30" high removable hand railing. 12 step models feature a 36" removable hand railing and 14" deep top platform. Standard models feature a 58 degree climb angle, while models ending with suffix "-EZ" have a 50 degree climb angle. Each step measures 16-13/16" wide by 7" deep and is spaced 10" apart. Models with 8 - 12 steps have steps that measure 23-9/16" wide. Unit rolls around on two large 10" x 2-1/2" hard rubber wheels. Units are shipped crated, some assembly required. Complies with ANSI 14.7 and OSHA 1910.29 specifications.
| Roll-A-Fold Ladders | |||||
|
Model |
Steps |
Climb Angle |
Top Step (WxH) |
Step Type |
Wt. (lbs.) |
| LAD-RAF-4-P | 4 | 58 degrees |
16-13/16"x40" |
Perforated | 117 |
| LAD-RAF-5-P | 5 | 58 degrees |
16-13/16"x50" |
Perforated | 144 |
| LAD-RAF-6-P | 6 | 58 degrees | 16-13/16"x60" | Perforated | 154 |
| LAD-RAF-7-P | 7 | 58 degrees | 16-13/16"x70" | Perforated | 218 |
| LAD-RAF-8-24-P | 8 | 58 degrees |
23-9/16"x80" |
Perforated | 258 |
| LAD-RAF-9-24-P | 9 | 58 degrees | 23-9/16"x90" | Perforated | 284 |
| LAD-RAF-10-24-P | 10 | 58 degrees | 23-9/16"x100" | Perforated | 375 |
| LAD-RAF-11-24-P | 11 | 58 degrees | 23-9/16"x110" | Perforated | 376 |
| LAD-RAF-12-24-P | 12 | 58 degrees | 23-9/16"x120" | Perforated | 378 |
| LAD-RAF-4-G | 4 | 58 degrees |
16-13/16"x40" |
Grip-Strut | 117 |
| LAD-RAF-5-G | 5 | 58 degrees |
16-13/16"x50" |
Grip-Strut | 144 |
| LAD-RAF-6-G | 6 | 58 degrees | 16-13/16"x60" | Grip-Strut | 154 |
| LAD-RAF-7-G | 7 | 58 degrees | 16-13/16"x70" | Grip-Strut | 218 |
| LAD-RAF-8-24-G | 8 | 58 degrees |
23-9/16"x80" |
Grip-Strut | 258 |
| LAD-RAF-9-24-G | 9 | 58 degrees | 23-9/16"x90" | Grip-Strut | 284 |
| LAD-RAF-10-24-G | 10 | 58 degrees | 23-9/16"x100" | Grip-Strut | 375 |
| LAD-RAF-11-24-G | 11 | 58 degrees | 23-9/16"x110" | Grip-Strut | 376 |
| LAD-RAF-12-24-G | 12 | 58 degrees | 23-9/16"x120" | Grip-Strut | 378 |
| LAD-RAF-4-P-EZ | 4 | 50 degrees |
16-13/16"x40" |
Perforated | 119 |
| LAD-RAF-5-P-EZ | 5 | 50 degrees |
16-13/16"x50" |
Perforated | 147 |
| LAD-RAF-6-P-EZ | 6 | 50 degrees | 16-13/16"x60" | Perforated | 208 |
| LAD-RAF-7-P-EZ | 7 | 50 degrees | 16-13/16"x70" | Perforated | 220 |
| LAD-RAF-8-24-P-EZ | 8 | 50 degrees |
23-9/16"x80" |
Perforated | 256 |
| LAD-RAF-9-24-P-EZ | 9 | 50 degrees | 23-9/16"x90" | Perforated | 312 |
| LAD-RAF-10-24-P-EZ | 10 | 50 degrees | 23-9/16"x100" | Perforated | 322 |
| LAD-RAF-11-24-P-EZ | 11 | 50 degrees | 23-9/16"x110" | Perforated | 364 |
| LAD-RAF-12-24-P-EZ | 12 | 50 degrees | 23-9/16"x120" | Perforated | 384 |
| LAD-RAF-4-G-EZ | 4 | 50 degrees |
16-13/16"x40" |
Grip-Strut | 119 |
| LAD-RAF-5-G-EZ | 5 | 50 degrees |
16-13/16"x50" |
Grip-Strut | 147 |
| LAD-RAF-6-G-EZ | 6 | 50 degrees | 16-13/16"x60" | Grip-Strut | 208 |
| LAD-RAF-7-G-EZ | 7 | 50 degrees | 16-13/16"x70" | Grip-Strut | 220 |
| LAD-RAF-8-24-G-EZ | 8 | 50 degrees |
23-9/16"x80" |
Grip-Strut | 256 |
| LAD-RAF-9-24-G-EZ | 9 | 50 degrees | 23-9/16"x90" | Grip-Strut | 312 |
| LAD-RAF-10-24-G-EZ | 10 | 50 degrees | 23-9/16"x100" | Grip-Strut | 322 |
| LAD-RAF-11-24-G-EZ | 11 | 50 degrees | 23-9/16"x110" | Grip-Strut | 364 |
| LAD-RAF-12-24-G-EZ | 12 | 50 degrees | 23-9/16"x120" | Grip-Strut | 384 |
