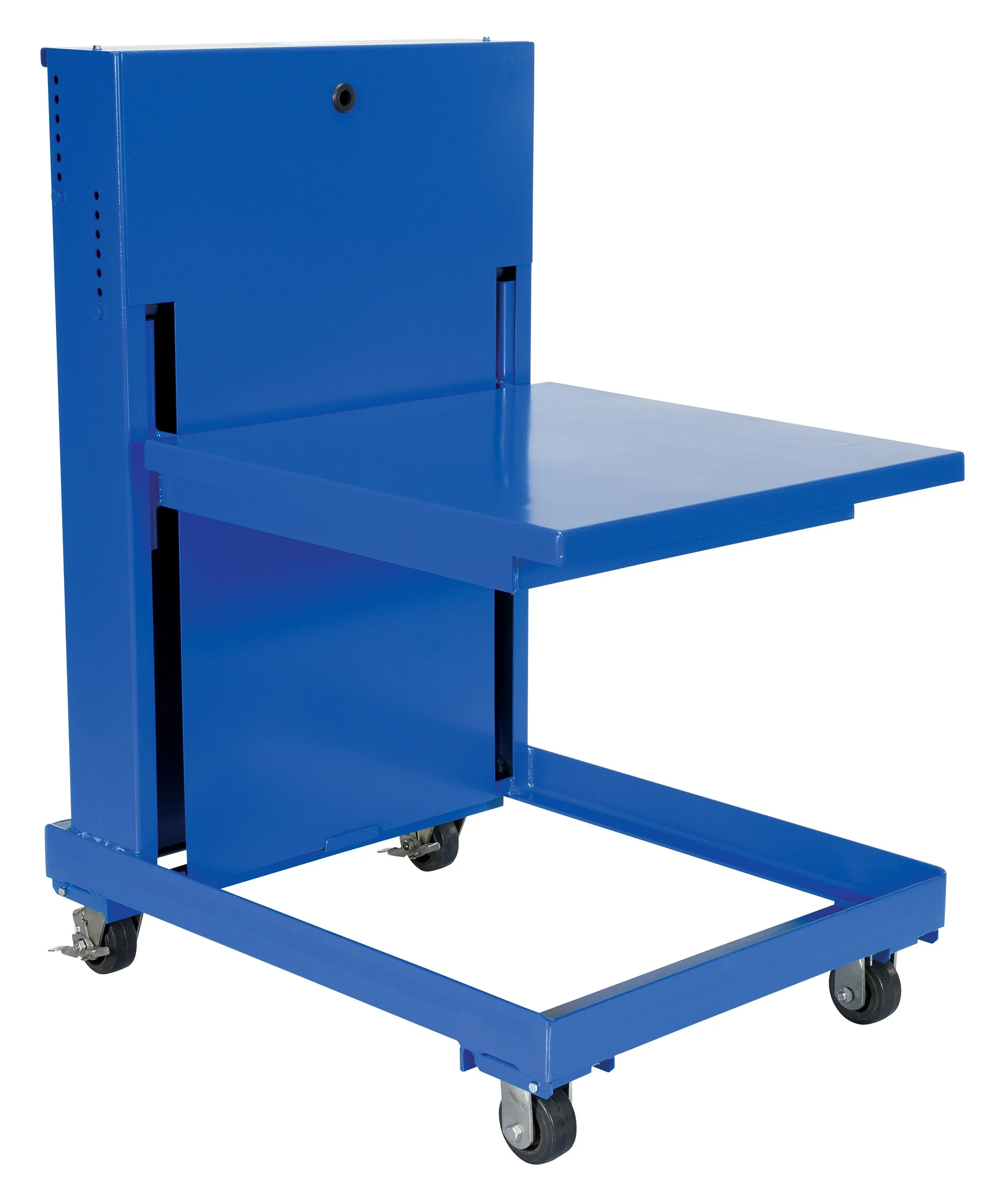

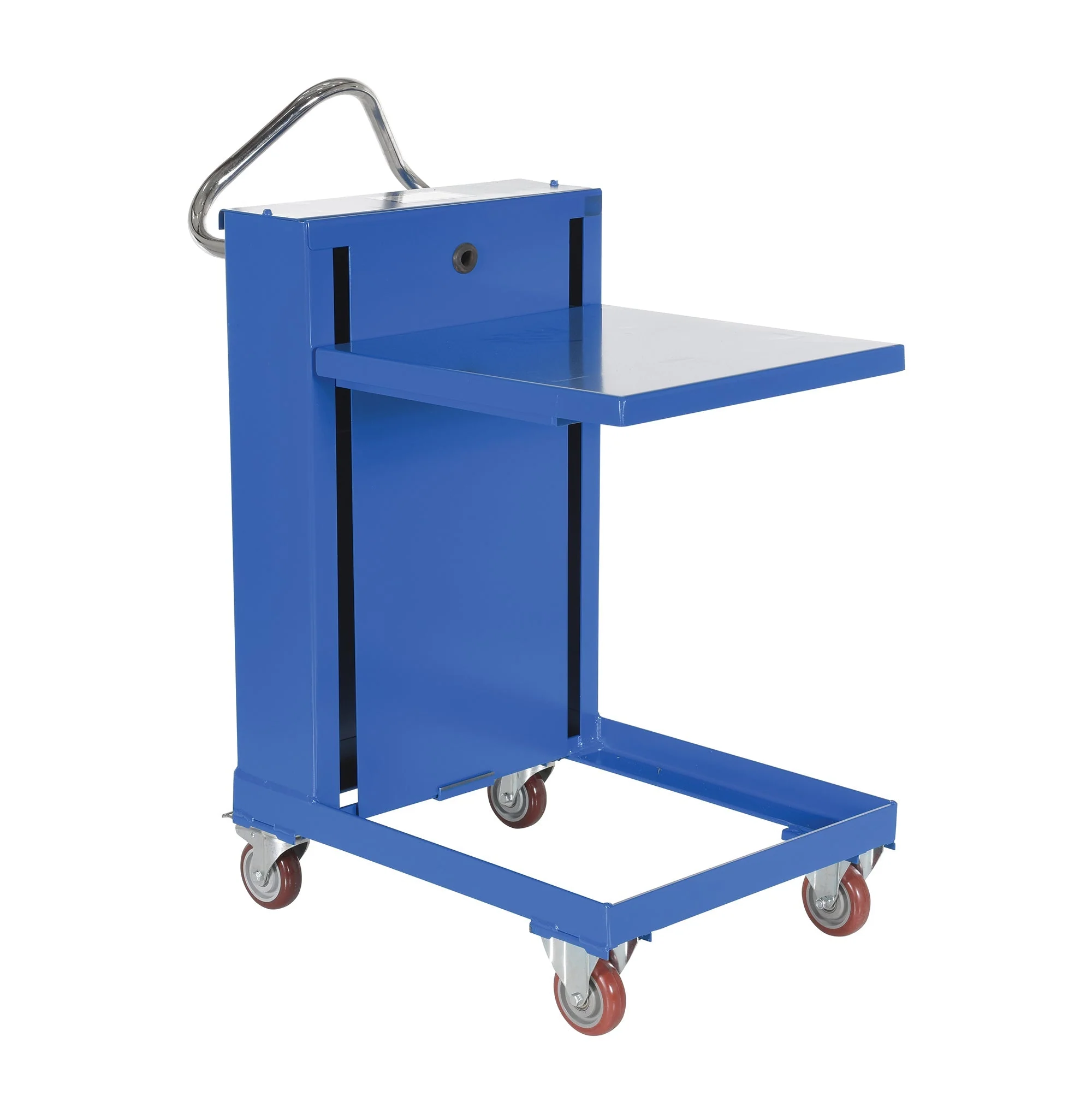

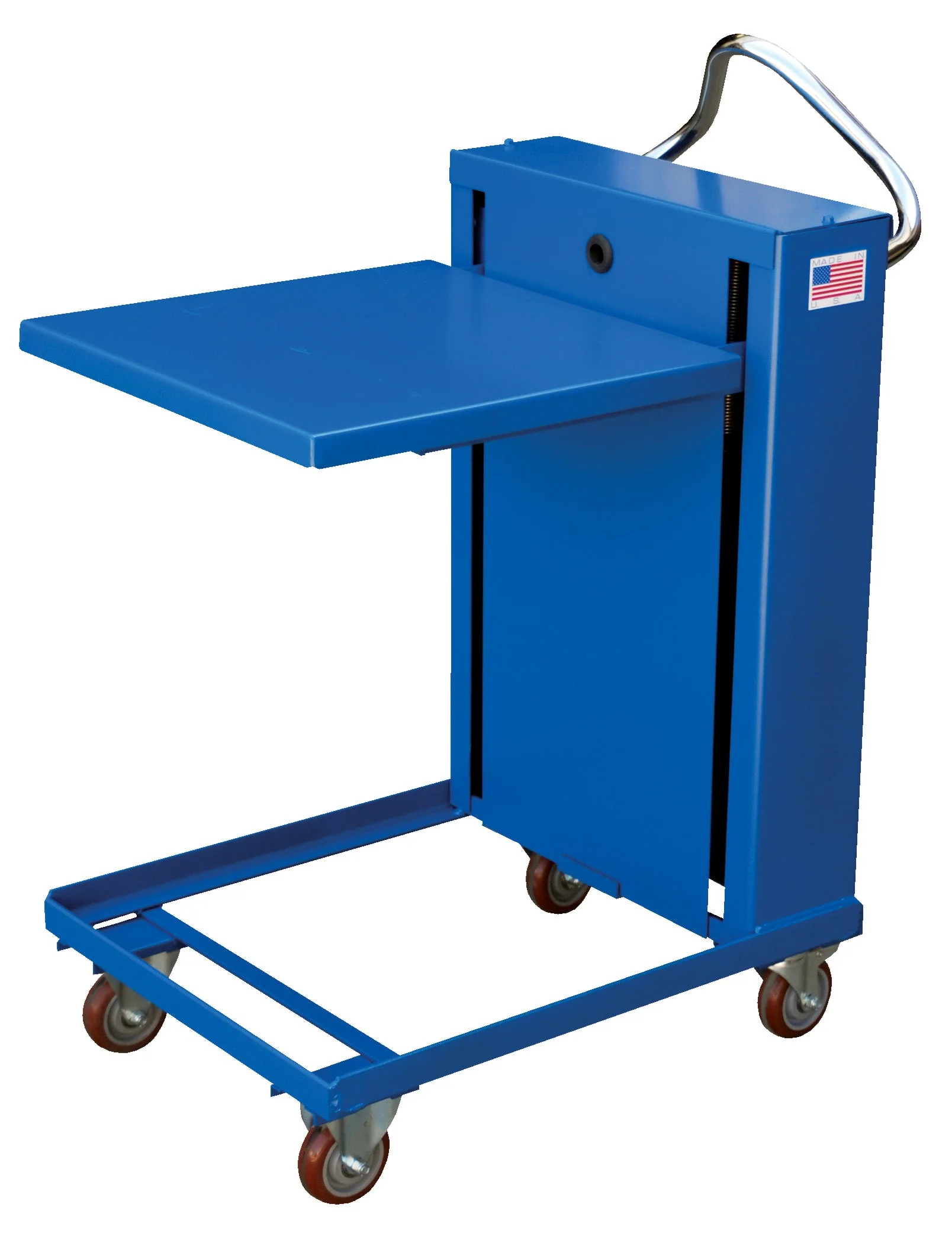

Vestil Self-Elevating Spring Tables
The Self-Elevating Tables, series ETS, is designed to automatically raise or lower as materials are removed or added to the platform. Keeping material at an ergonomic work height, Self-Elevating Tables increase efficiency while reducing potentially harmful bending and twisting motions. The ETS Series tables utilize internal counterbalance springs which may be easily added or removed to adjust the rate of movement. This feature allows the user to conveniently set the table to fit each particular application. The ETS-230/460 has poly-on-poly casters, while the ETS-840/1120 rolls smoothly on mold-on rubber casters.
| Spring Self-Elevating Table | ||||||
| Model | Platform (WxL) |
Capacity (lbs) |
Caster Size |
Service Range |
Overall Dim. (WxLxH) |
Wt. (lbs) |
| ETS-230 | 20"x20" | 230 | 4" x 1-1/4" | 11" to 33" | 21"x 32-3/8"x 37-3/4" | 168 |
| ETS-460 | 20"x20" | 460 | 4" x 1-1/4" | 11" to 33" | 21"x 32-3/8"x 37-3/4" | 184 |
| ETS-840-30 | 30"x30" | 840 | 4" x 2" | 15" to 38" | 30-3/8"x43-5/16x51-1/2" | 448 |
| ETS-1120-24 | 24"x24" | 1,120 | 4" x 2" | 15" to 38" | 24-3/8"x37-7/16"x51-1/2" | 332 |
Original: $860.86
-65%$860.86
$301.30
Description
The Self-Elevating Tables, series ETS, is designed to automatically raise or lower as materials are removed or added to the platform. Keeping material at an ergonomic work height, Self-Elevating Tables increase efficiency while reducing potentially harmful bending and twisting motions. The ETS Series tables utilize internal counterbalance springs which may be easily added or removed to adjust the rate of movement. This feature allows the user to conveniently set the table to fit each particular application. The ETS-230/460 has poly-on-poly casters, while the ETS-840/1120 rolls smoothly on mold-on rubber casters.
| Spring Self-Elevating Table | ||||||
| Model | Platform (WxL) |
Capacity (lbs) |
Caster Size |
Service Range |
Overall Dim. (WxLxH) |
Wt. (lbs) |
| ETS-230 | 20"x20" | 230 | 4" x 1-1/4" | 11" to 33" | 21"x 32-3/8"x 37-3/4" | 168 |
| ETS-460 | 20"x20" | 460 | 4" x 1-1/4" | 11" to 33" | 21"x 32-3/8"x 37-3/4" | 184 |
| ETS-840-30 | 30"x30" | 840 | 4" x 2" | 15" to 38" | 30-3/8"x43-5/16x51-1/2" | 448 |
| ETS-1120-24 | 24"x24" | 1,120 | 4" x 2" | 15" to 38" | 24-3/8"x37-7/16"x51-1/2" | 332 |
