Vestil Specialty Molded Dock Bumpers

Manufactured from fiber reinforced prime rubber containing nylon and polyester. These molded bumpers are built to endure years of abusive pounding. All units have pre-drilled countersunk mounting holes for easy installation. Plastic face bumper, model B-1213-4PF, features two piece construction fully assembled and ready for installation. Installation hardware sold separately.

Specialty Molded Bumpers
Model	Overall Size (WxHxP)	# of Holes & Size	Wt. (lbs)

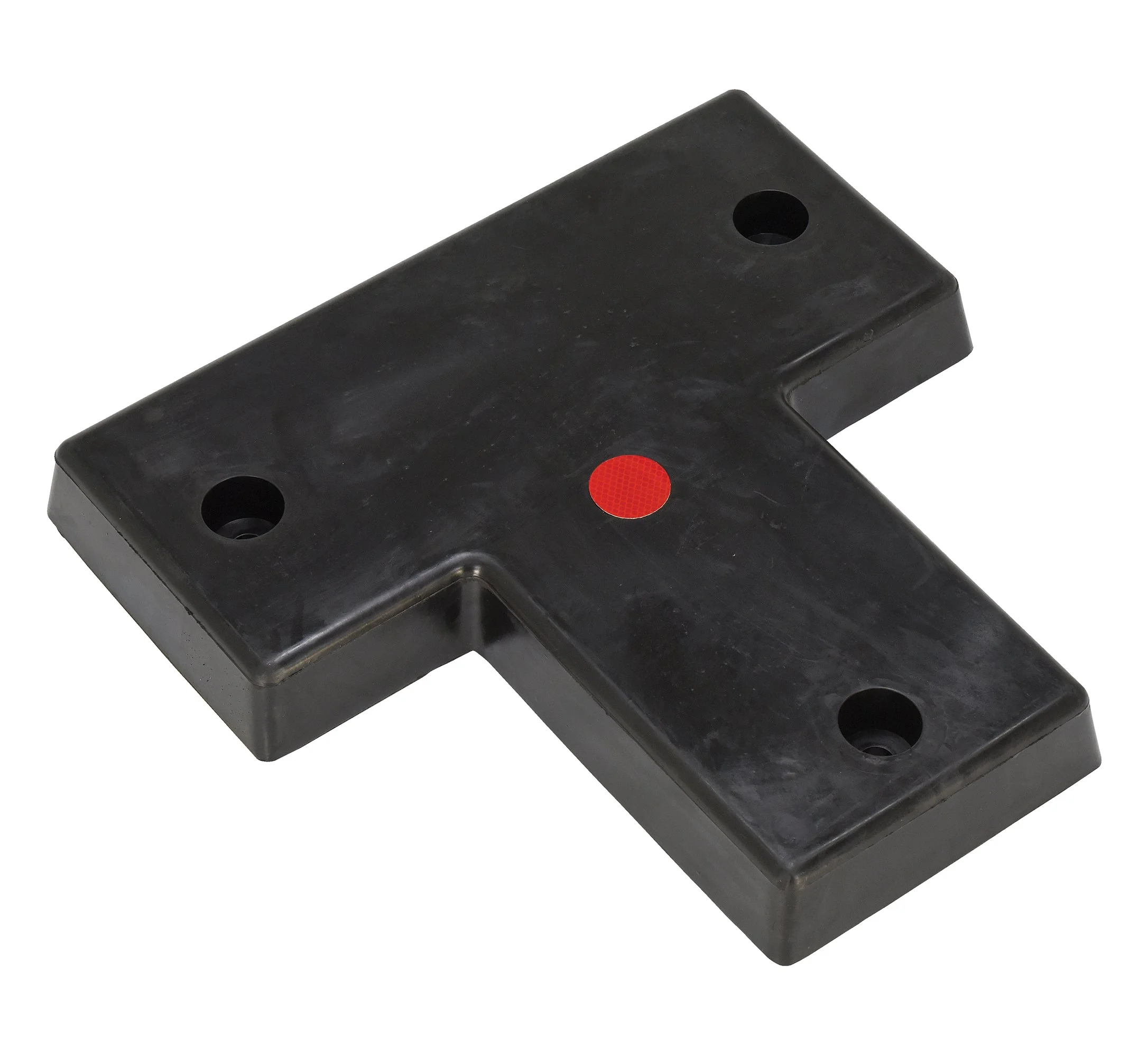

T-22	22"W x 22"H x 3"P	3, 3/4"	44
B-1224-3	24"W x 12"H x 3"P	4, 3/4"	34
B-1224-6	24"W x 12"H x 6"P	4, 3/4"	57
B-1213-4	12"W x 13"H x 4"P	4, 3/4"	24
B-1213-4PF	12"W x 13"H x 4"P (Plastic Face Molded Bumper)	4, 3/4"	29
L-1818-4	18"W x 18"H x 4"P (L-Shaped Molded Rubber)	3, 1"	36

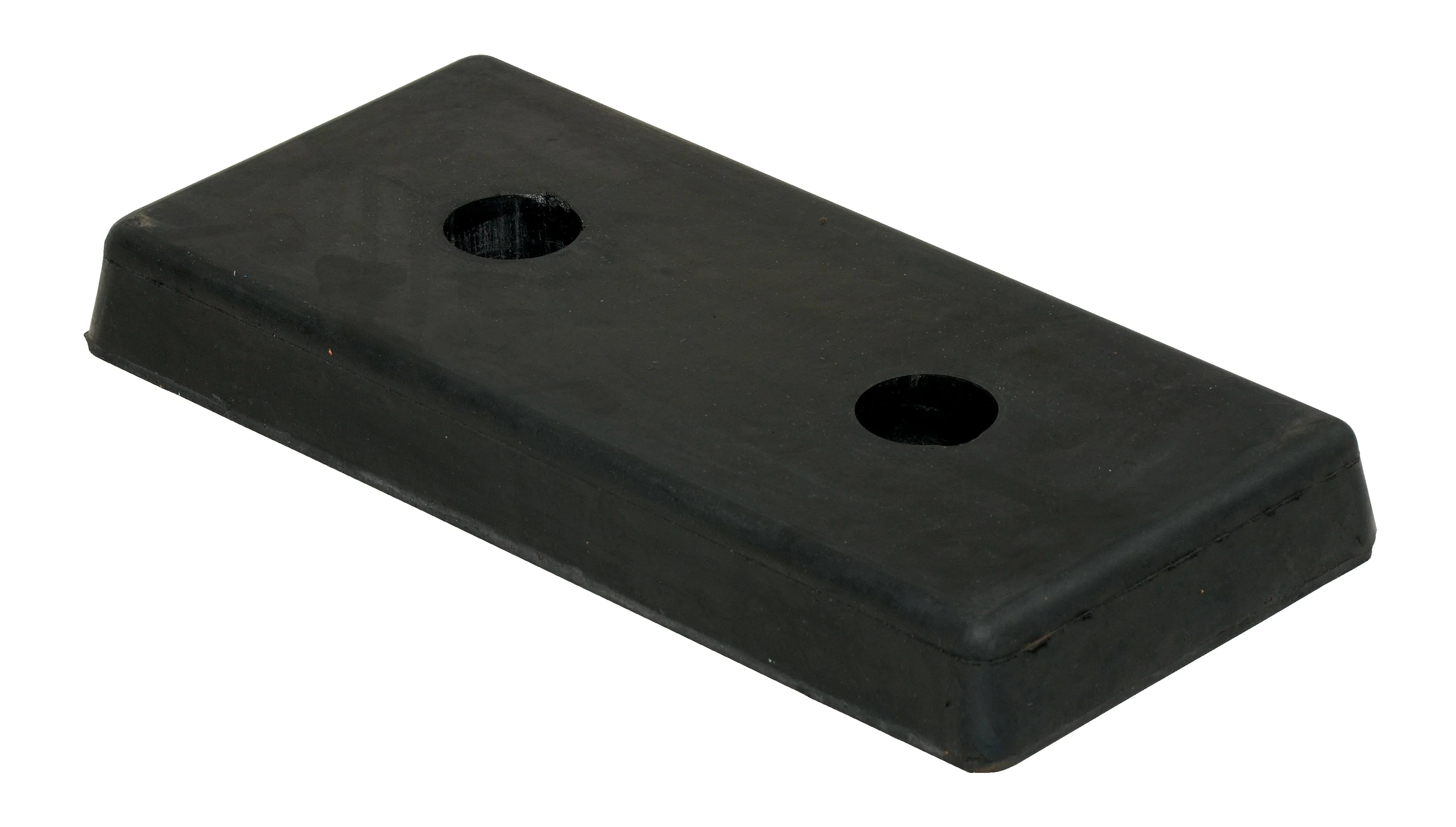

B-516	16"W x 5"H x 2"P	2, 5/8"	8
B-818	18"W x 8"H x 2"P	2, 5/8"	16

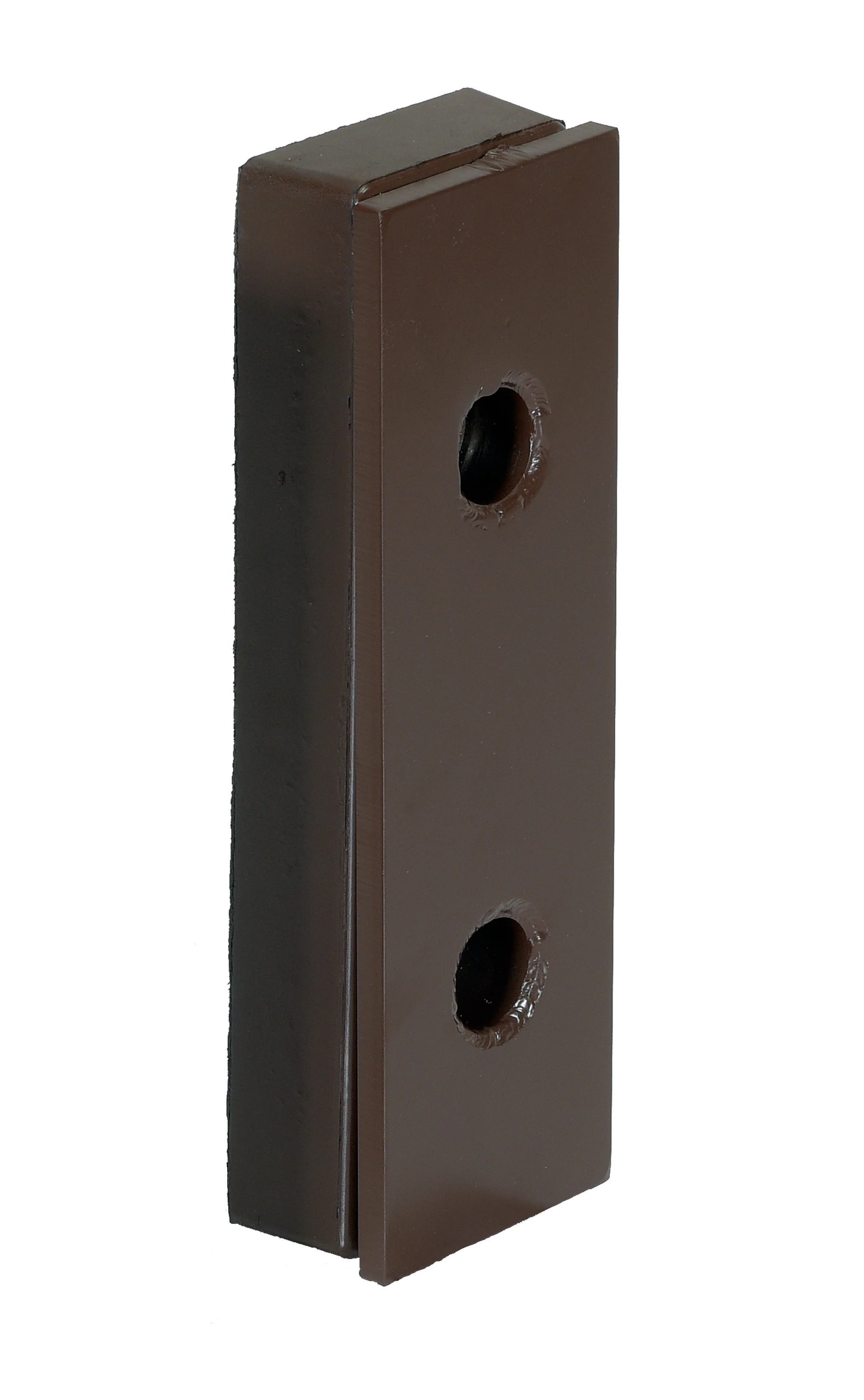

B-516-SF	16"Wx5"Hx2-1/2"P (Steel Faced Molded Bumper)	2, 3/4"	21

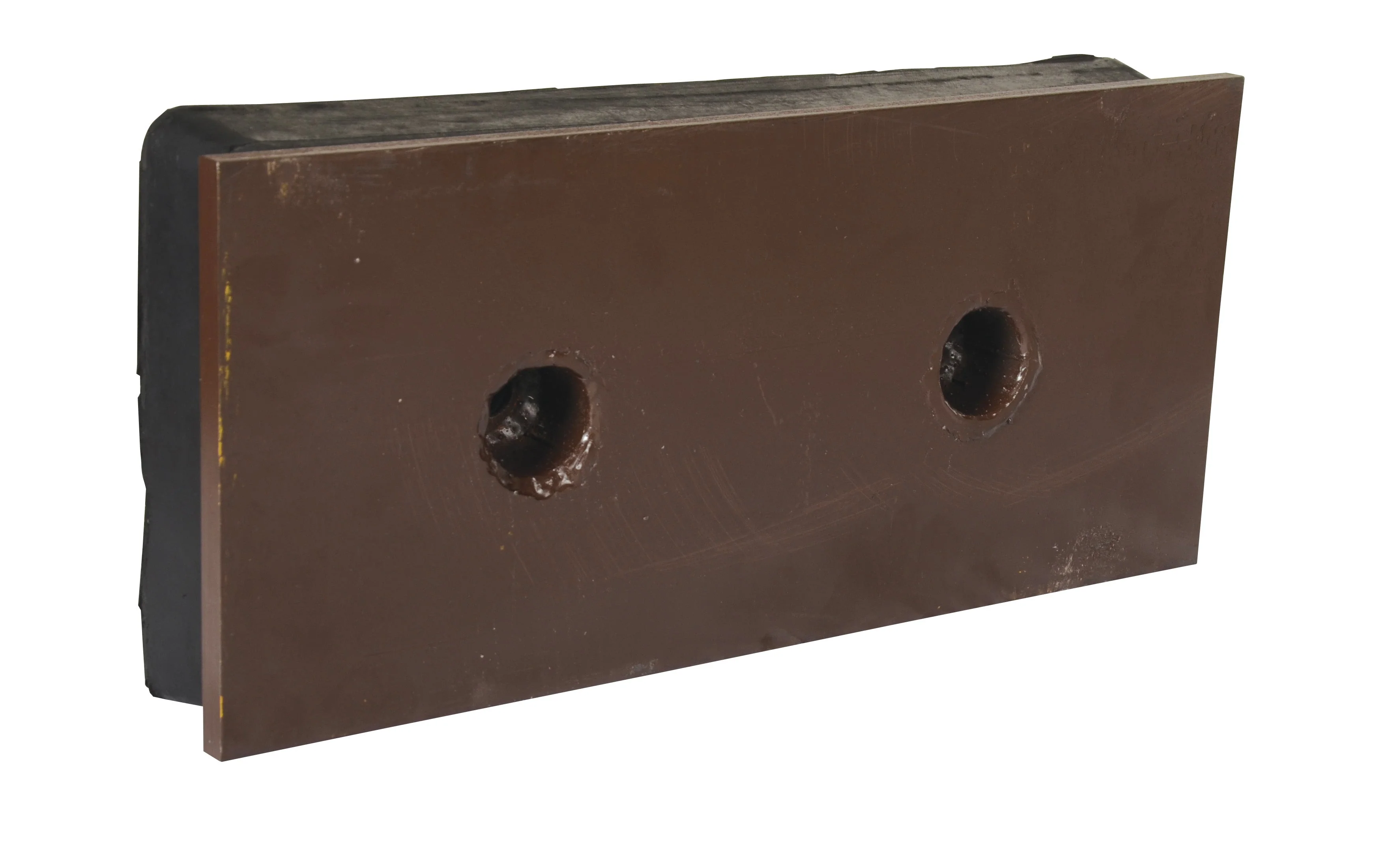

B-818-SF	18"Wx8"Hx2-1/2"P (Steel Faced Molded Bumper)	2, 3/4"	35
