Vestil Standard-Duty Cantilever Racking

Vestil Standard-Duty Cantilever Racking

Standard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities. The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments. The adjustable arms allow the unit to be customized to fit the needs of individual circumstances. Individual components are sold separately to accommodate your requirements. Capacity listed is per upright.

Standard Duty Cantilever Racking
Model Image Height Base Arms
To Use		 Capacity
(lbs)		 Wt.
(lbs)

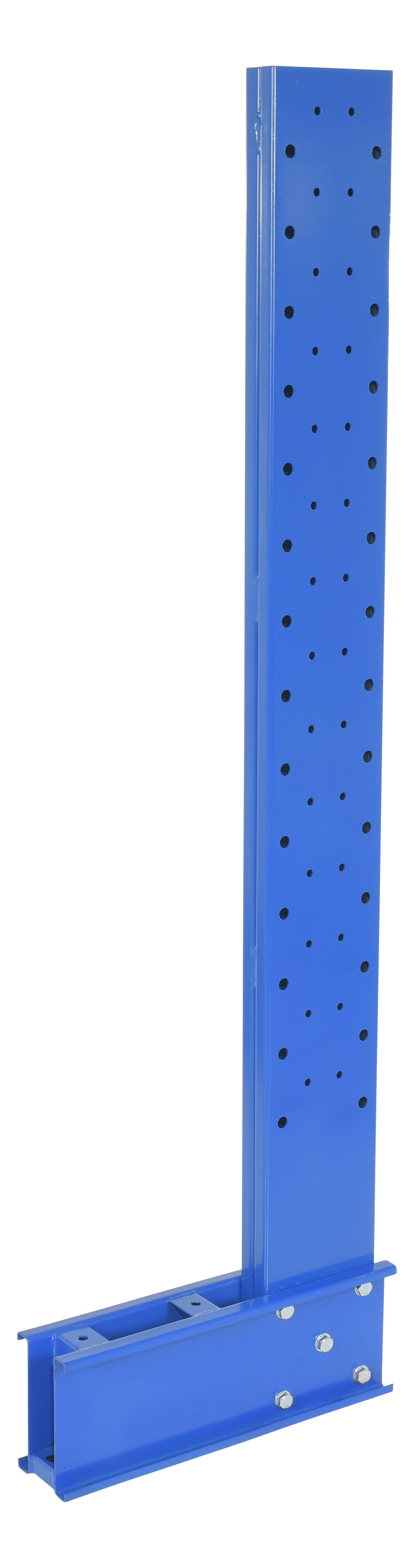

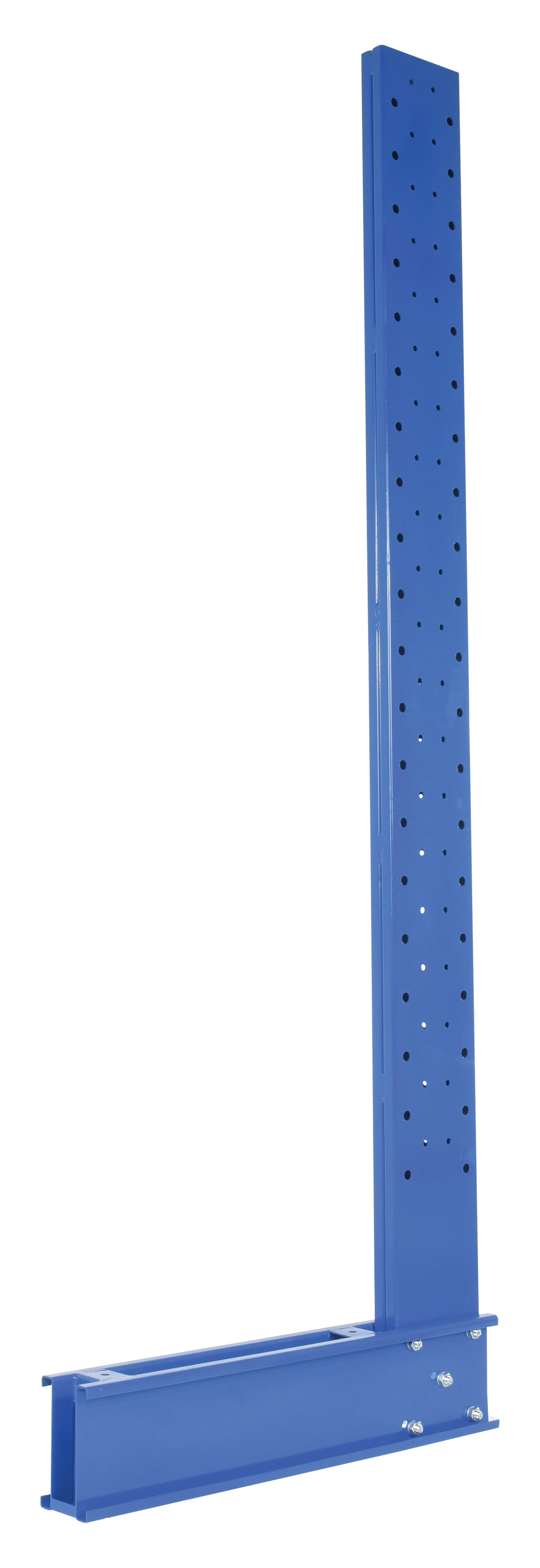

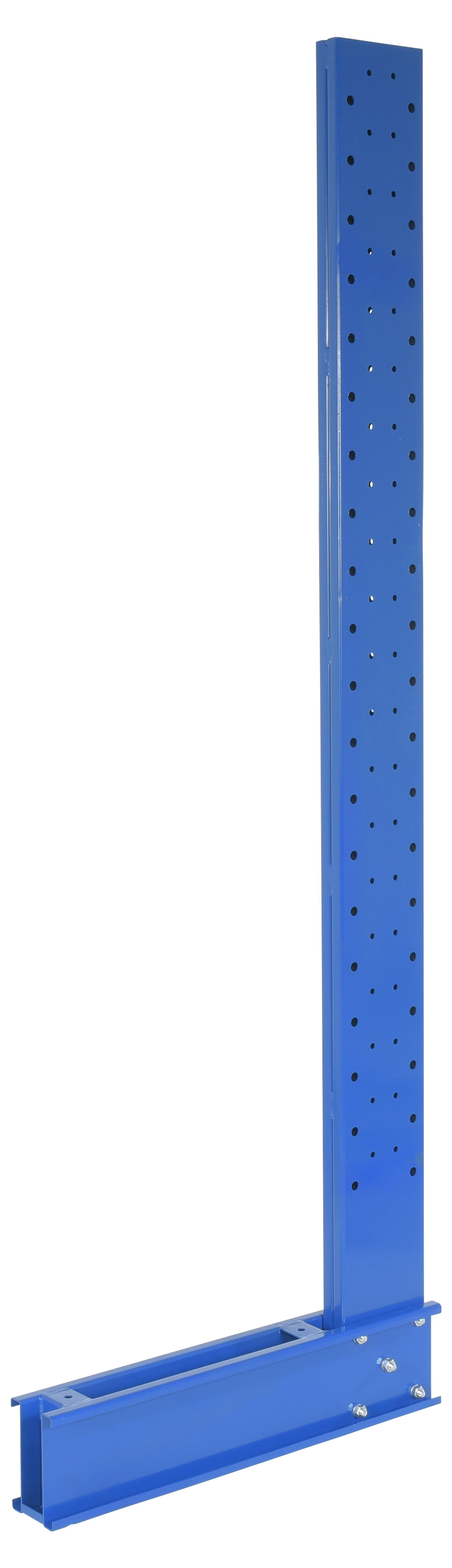

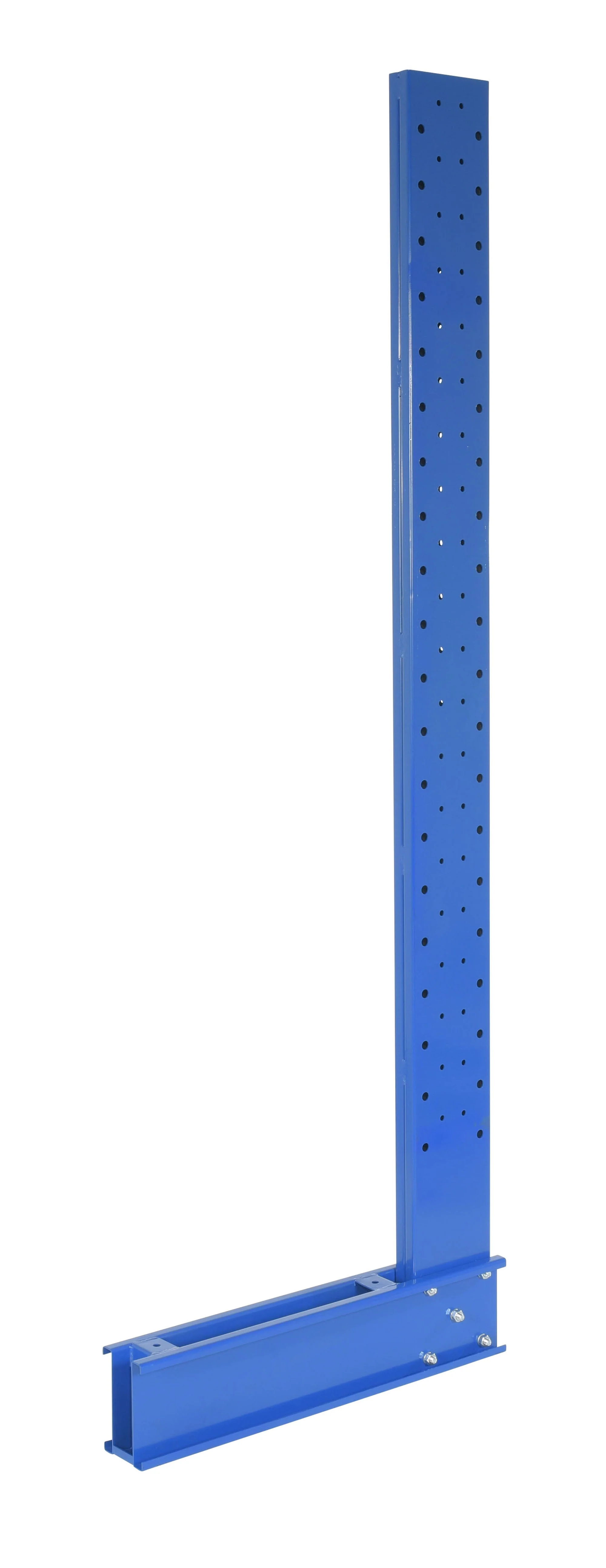

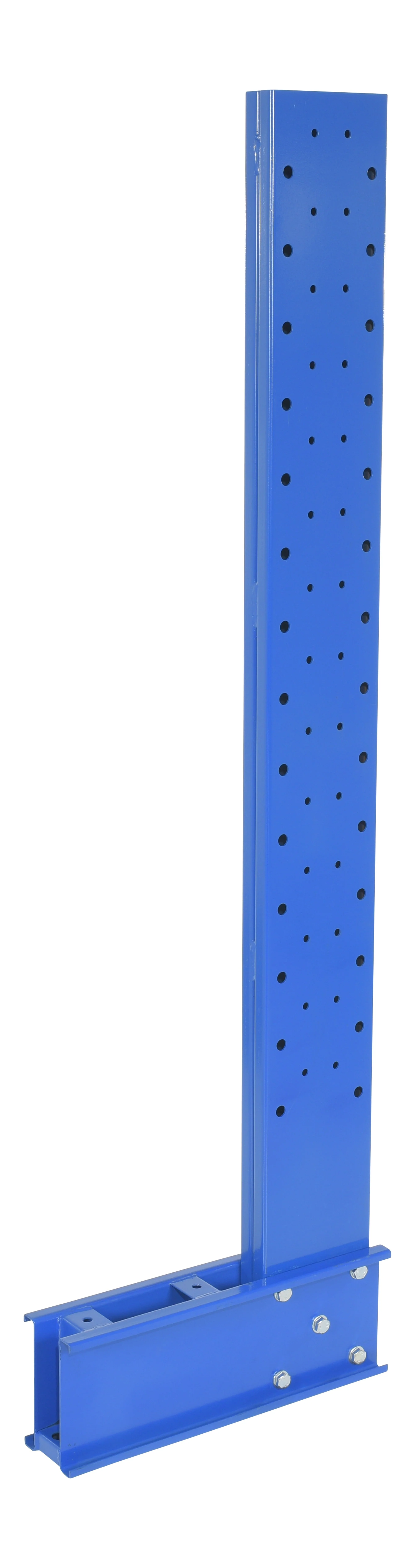

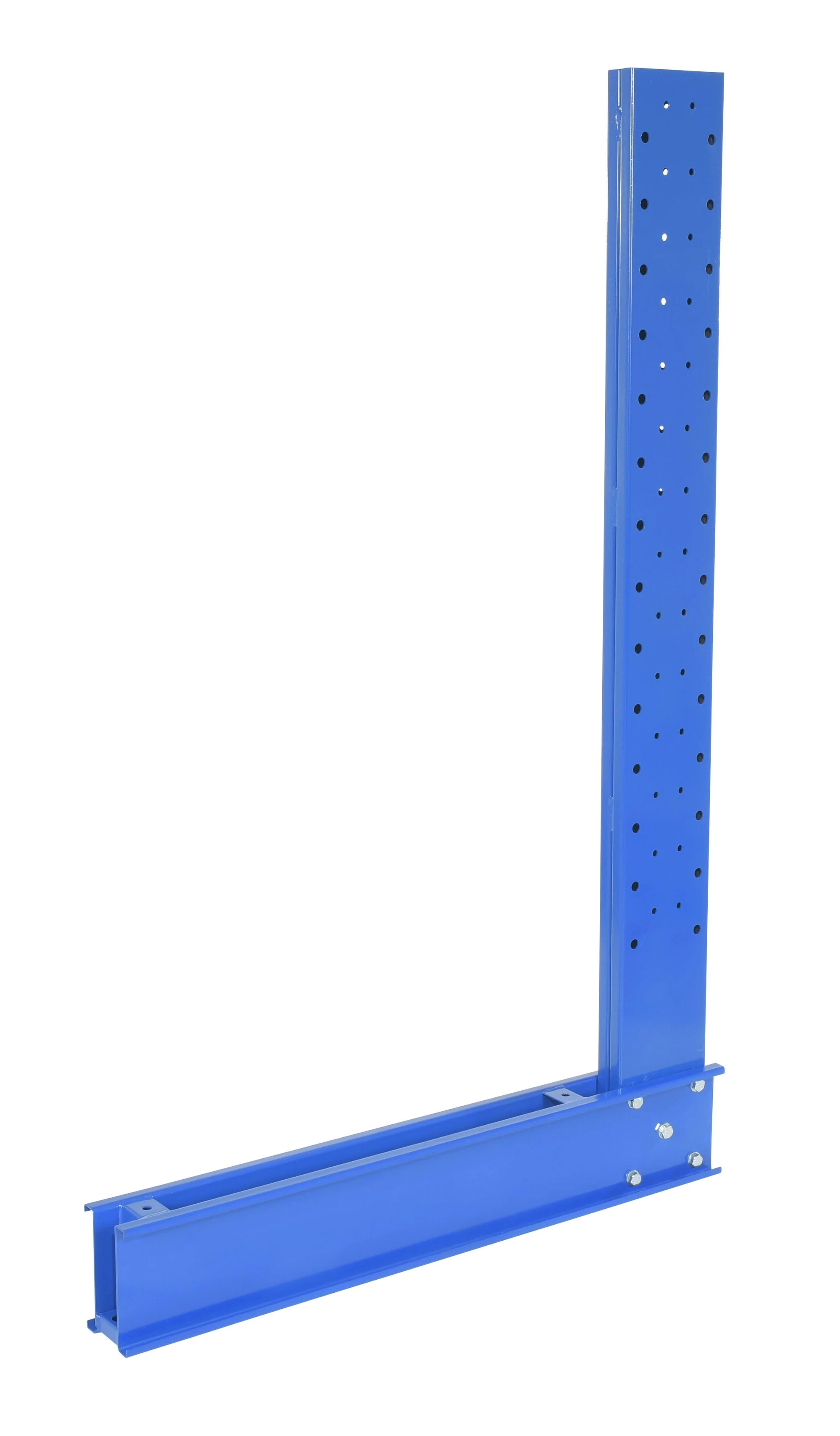

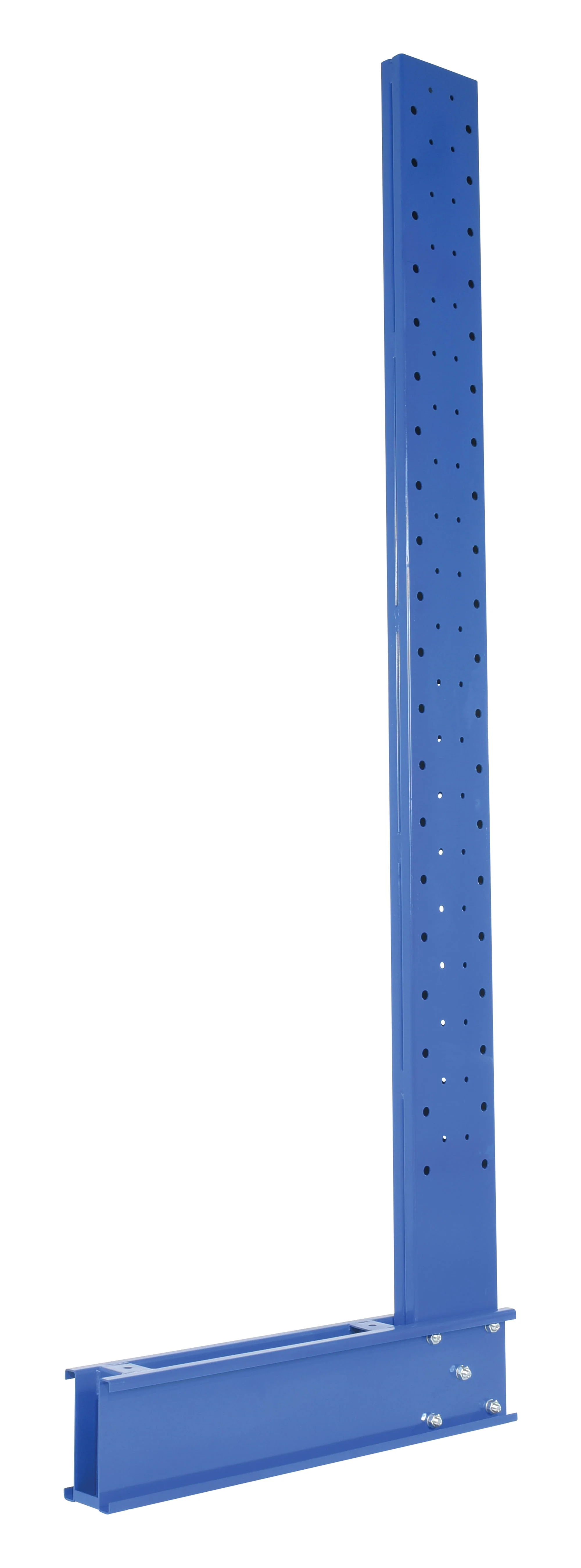

Single Sided Uprights
SU-C-6-12 72" 21-3/4" 12" 5,500 172
SU-C-6-18 72" 27.875" 18" 4,300 182
SU-C-6-24 72" 33.8125" 24" 3,800 195
SU-C-6-36 72" 45.875" 30"/
36"		 3,000 /
2,600		 198
SU-C-8-12 96" 21-3/4" 12" 5,000 186
SU-C-8-18 96" 27.875" 18" 4,000 191
SU-C-8-24 96" 33.8125" 24" 3,500 197
SU-C-8-36 96" 45.875" 30"/
36"		 2,700 /
2,400		 208
SU-C-10-12 120" 21-3/4" 12" 4,600 214
SU-C-10-18 120" 27.875" 18" 3,600 219
SU-C-10-24 120" 33.8125" 24" 3,200 225
SU-C-10-36 120" 45.875" 30"/
36"		 2,500 /
2,100		 237
Model Image Height Base Arms
To Use		 Capacity
(lbs)		 Wt.
(lbs)

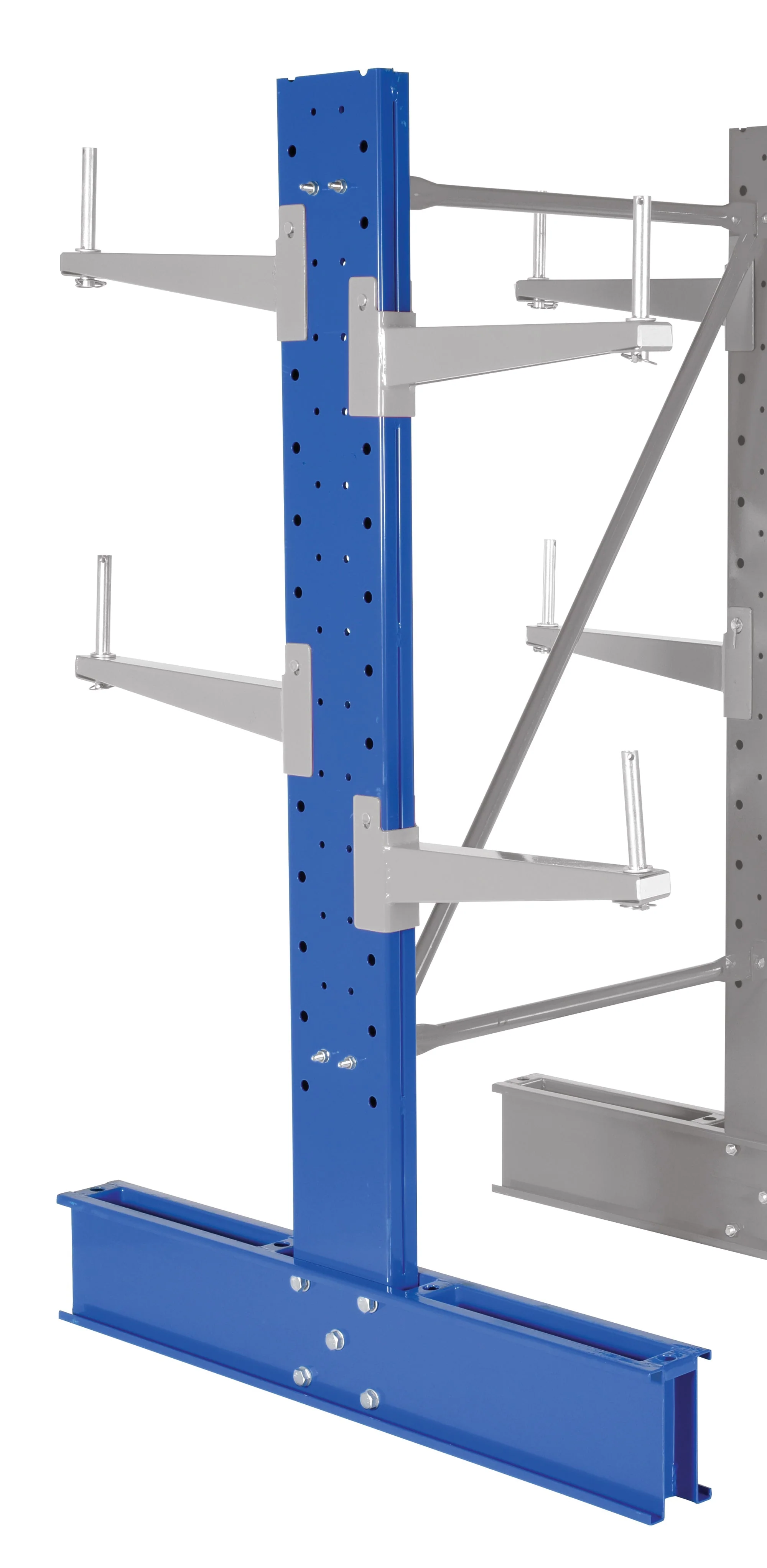

Double Sided Uprights
SDU-C-6-12 72" 34" 12" 11,000 183
SDU-C-6-18 72" 46" 18" 8,600 183
SDU-C-6-24 72" 58" 24" 7,700 195
SDU-C-6-36 72" 82" 30"/
36"		 6,000 /
5,200		 215
SDU-C-8-12 96" 34" 12" 10,100 197
SDU-C-8-18 96" 46" 18" 8,000 208
SDU-C-8-24 96" 58" 24" 7,100 219
SDU-C-8-36 96" 82" 30"/
36"		 5,500 /
4,800		 242
SDU-C-10-12 120" 34" 12" 9,300 225
SDU-C-10-18 120" 46" 18" 7,300 236
SDU-C-10-24 120" 58" 24" 6,500 249
SDU-C-10-36 120" 82" 30"/
36"		 5,000 /
4,300		 270

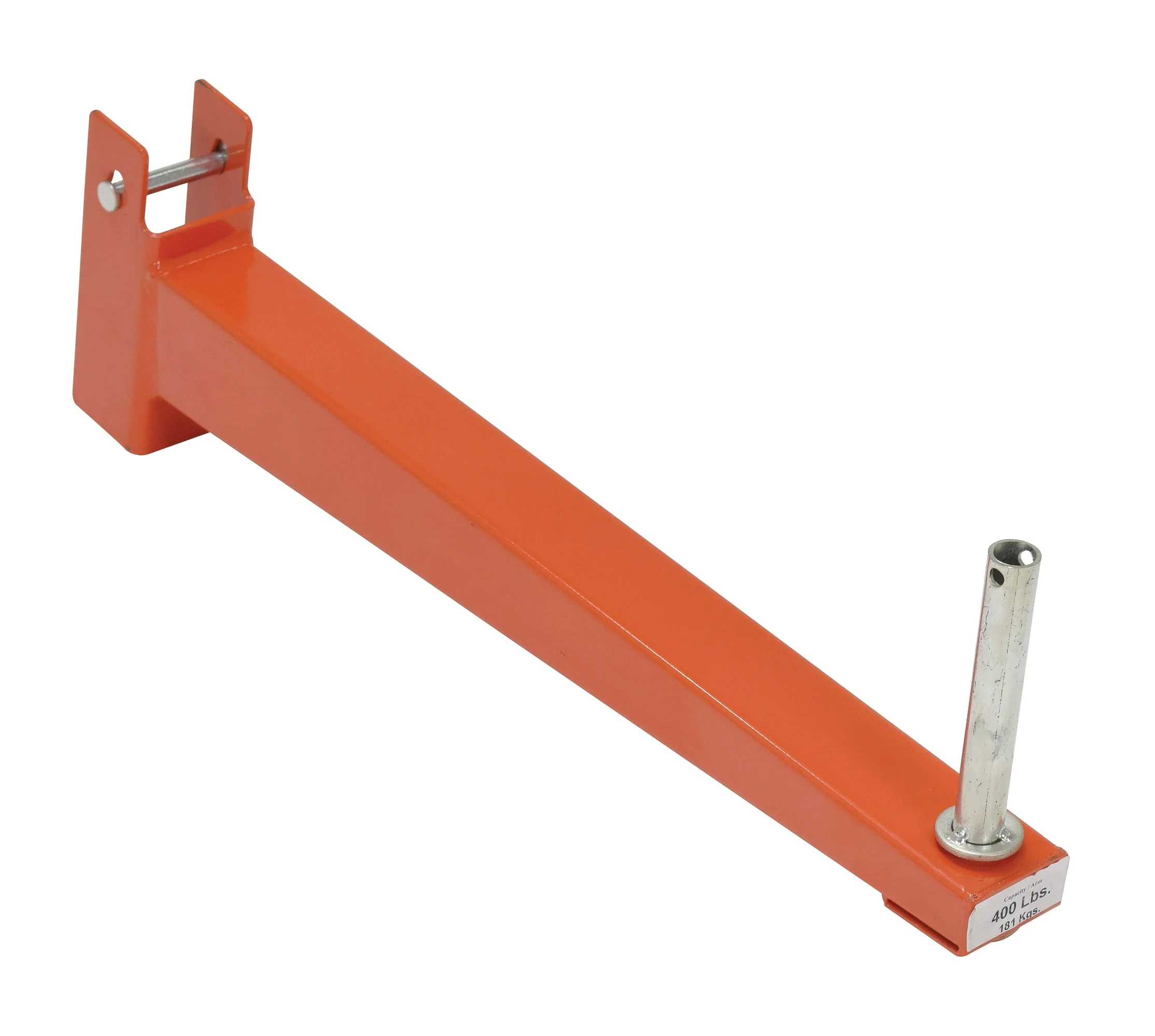

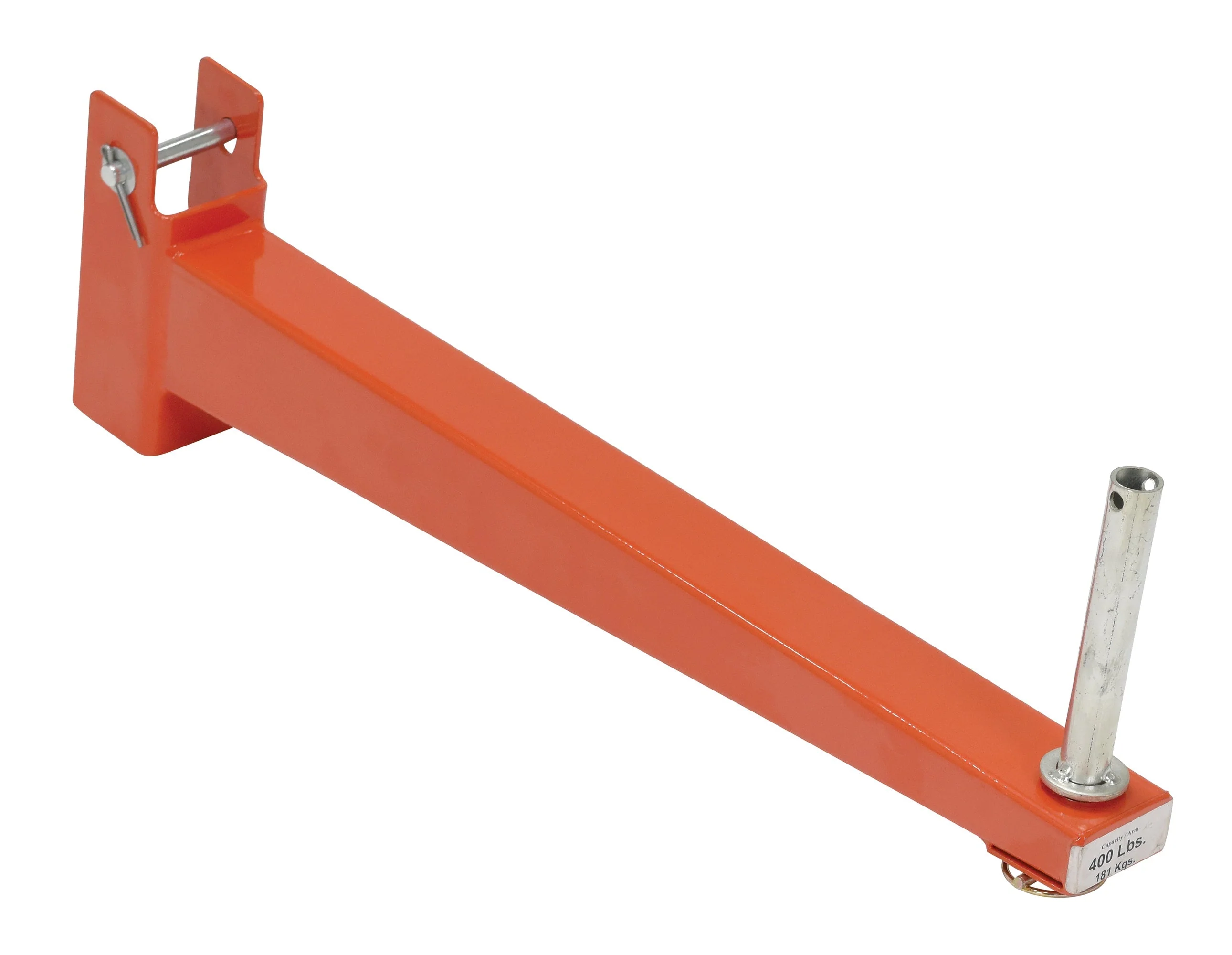

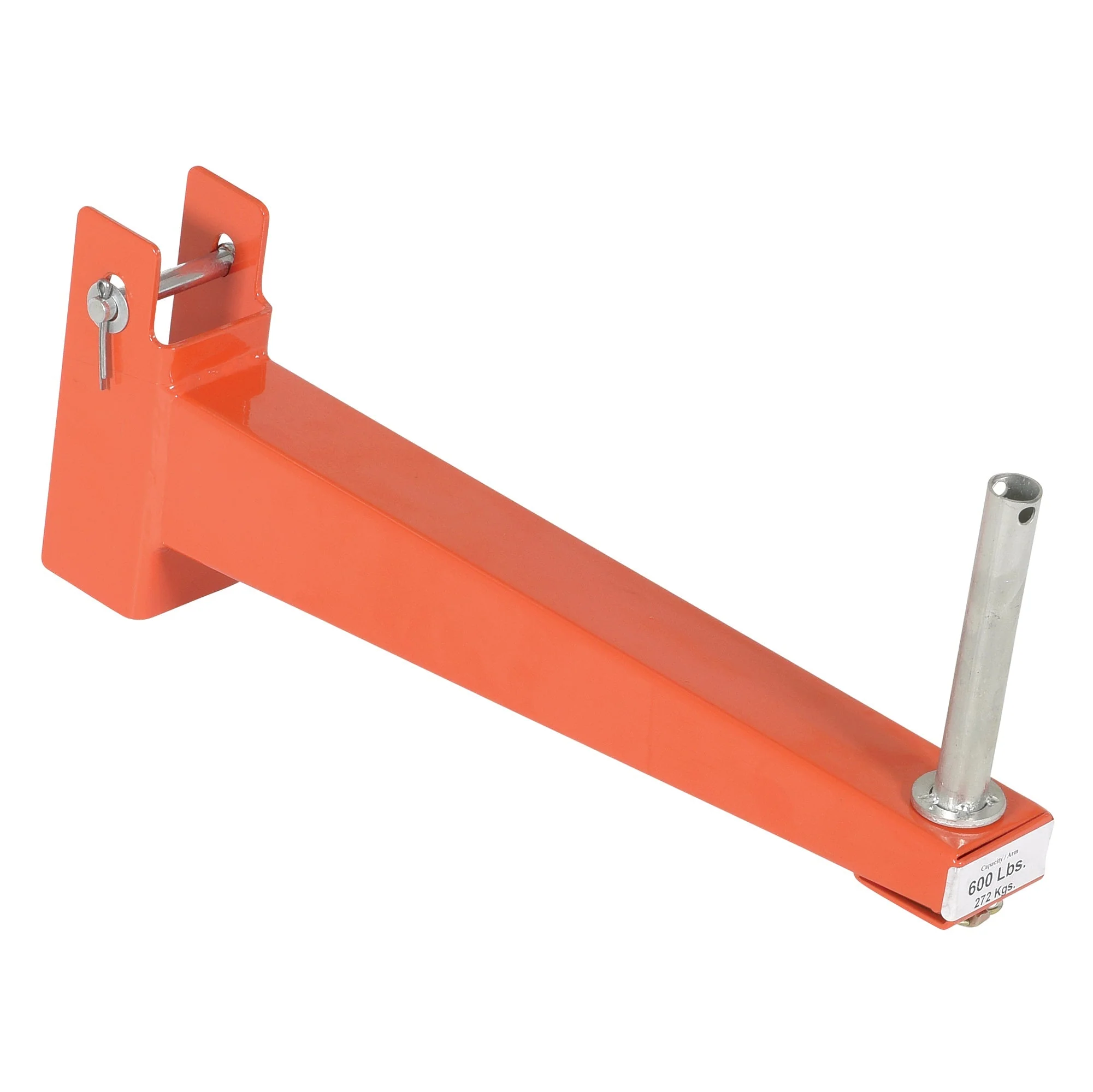

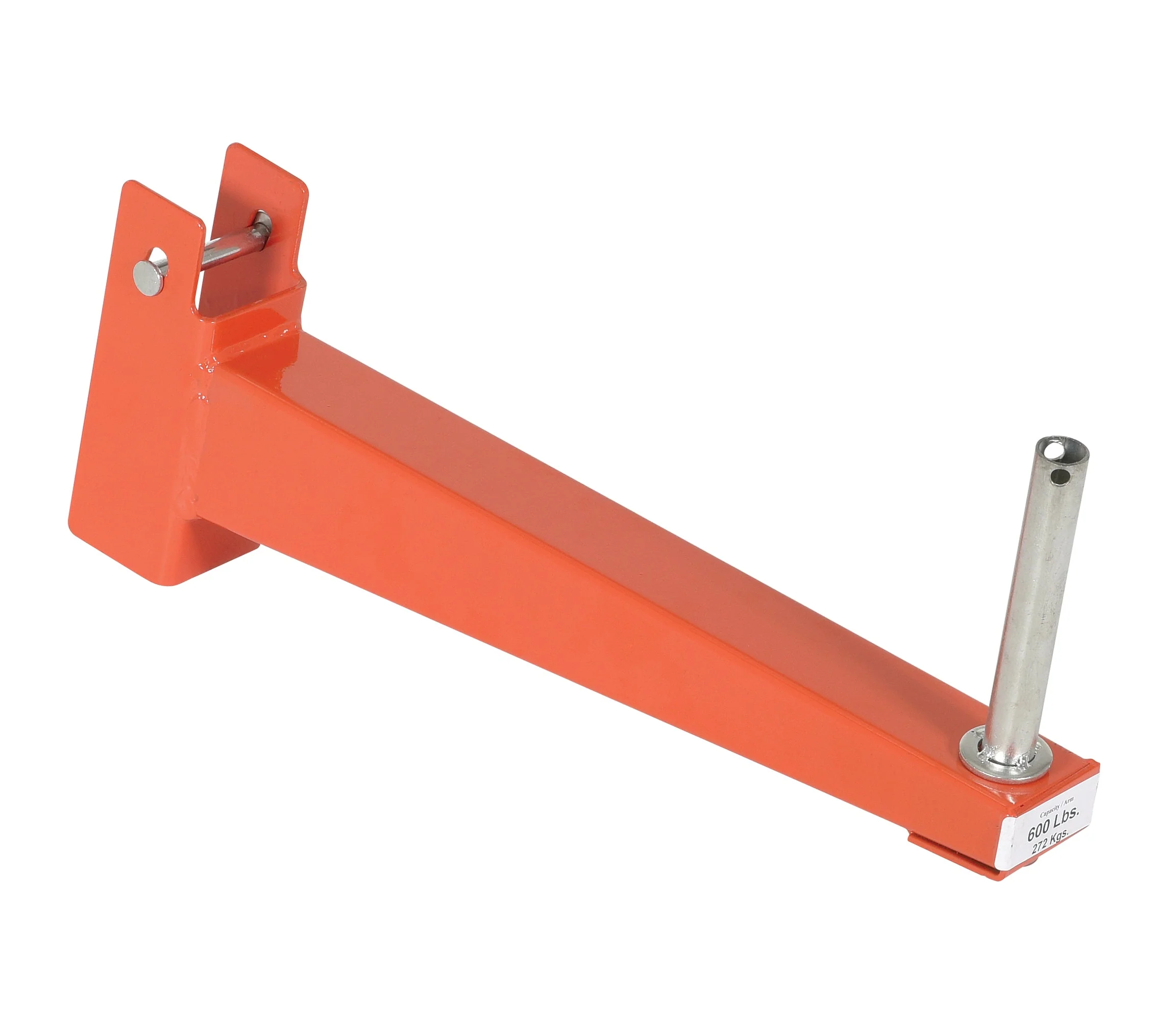

Straight Arms
Model Uniform
Capacity
Per Arm		 Arm
Length		 Wt.
(lbs)
SSA-C-12 800 lbs. 12" 10
SSA-C-18 600 lbs. 18" 12
SSA-C-24 400 lbs. 24" 15
SSA-C-30 300 lbs. 30" 17
SSA-C-36 200 lbs. 36" 21
10 Degree Inclined Arms
Model Uniform
Capacity
Per Arm		 Arm
Length		 Wt.
(lbs)
SIA-C-12 800 lbs. 12" 10
SIA-C-18 600 lbs. 18" 12
SIA-C-24 400 lbs. 24" 15
SIA-C-30 300 lbs. 30" 17
SIA-C-36 200 lbs. 36" 21

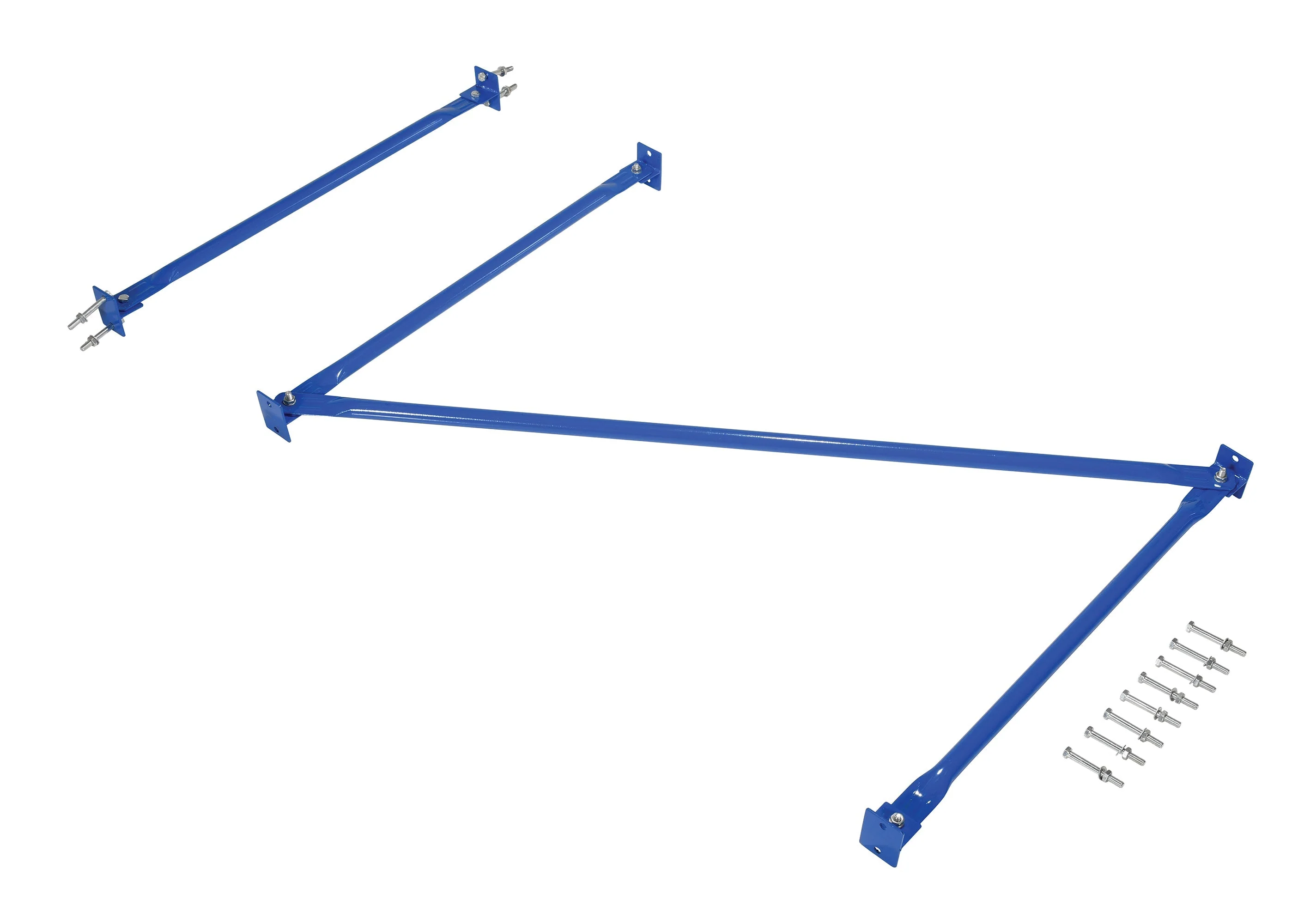

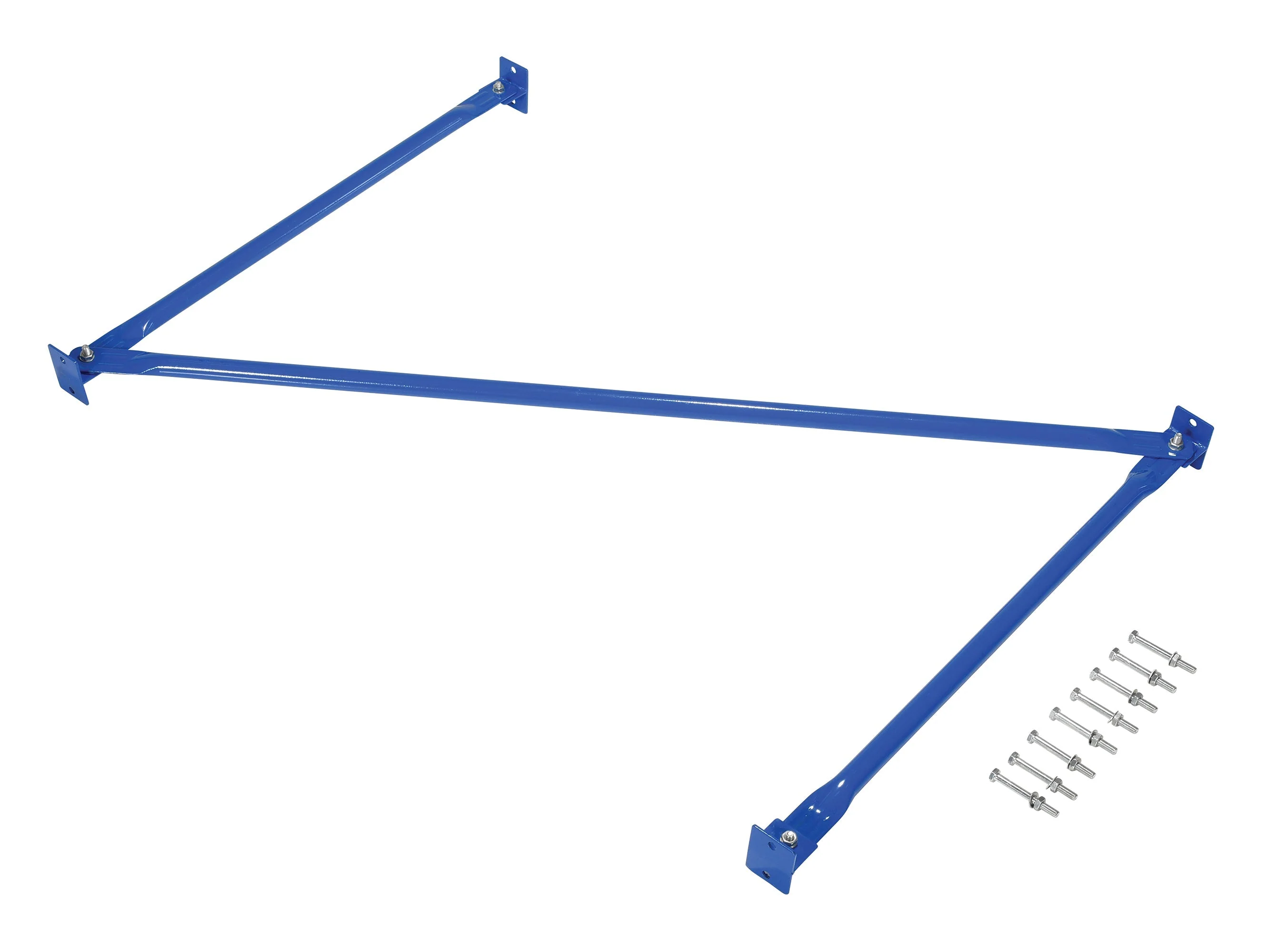

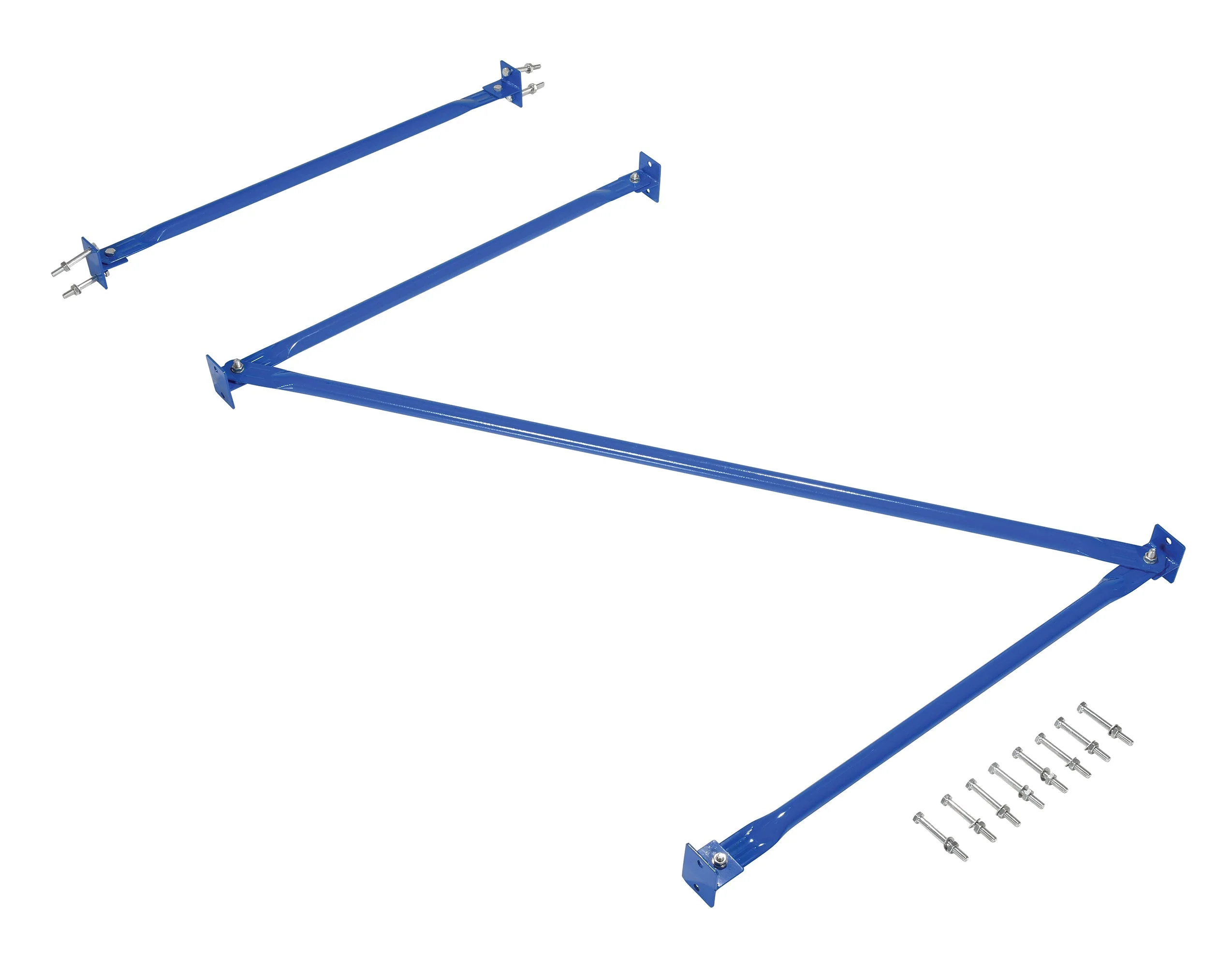

Brace Sets For 6 Foot Uprights
Model Length Wt.
(lbs)
SB-C-6-36 36" 26
SB-C-6-48 48" 38
SB-C-6-60 60" 44
SB-C-6-72 72" 50
SB-C-6-96 96" 64
Brace Sets For 8 Foot Uprights
Model Length Wt.
(lbs)
SB-C-8-36 36" 28
SB-C-8-48 48" 42
SB-C-8-60 60" 48
SB-C-8-72 72" 52
SB-C-8-96 96" 66
Brace Sets For 10 Foot Uprights
Model Length Wt.
(lbs)
SB-C-10-36 36" 30
SB-C-10-48 48" 44
SB-C-10-60 60" 50
SB-C-10-72 72" 54
SB-C-10-96 96" 90
Select Type
Select Dimensions
From $12.16

Original: $34.75

-65%
Vestil Standard-Duty Cantilever Racking—

$34.75

$12.16
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25
Product image 26
Product image 27
Product image 28
Product image 29
Product image 30
Product image 31
Product image 32
Product image 33
Product image 34
Product image 35
Product image 36
Product image 37
Product image 38
Product image 39
Product image 40
Product image 41
Product image 42
Product image 43
Product image 44

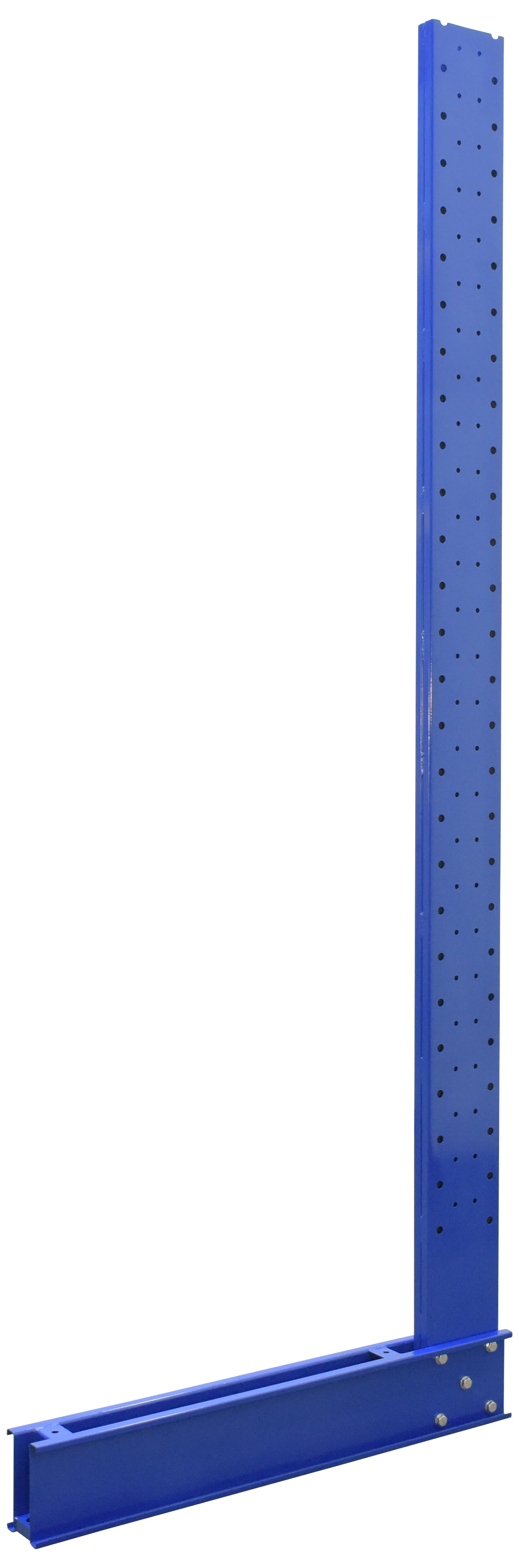

Product image 45
Product image 46

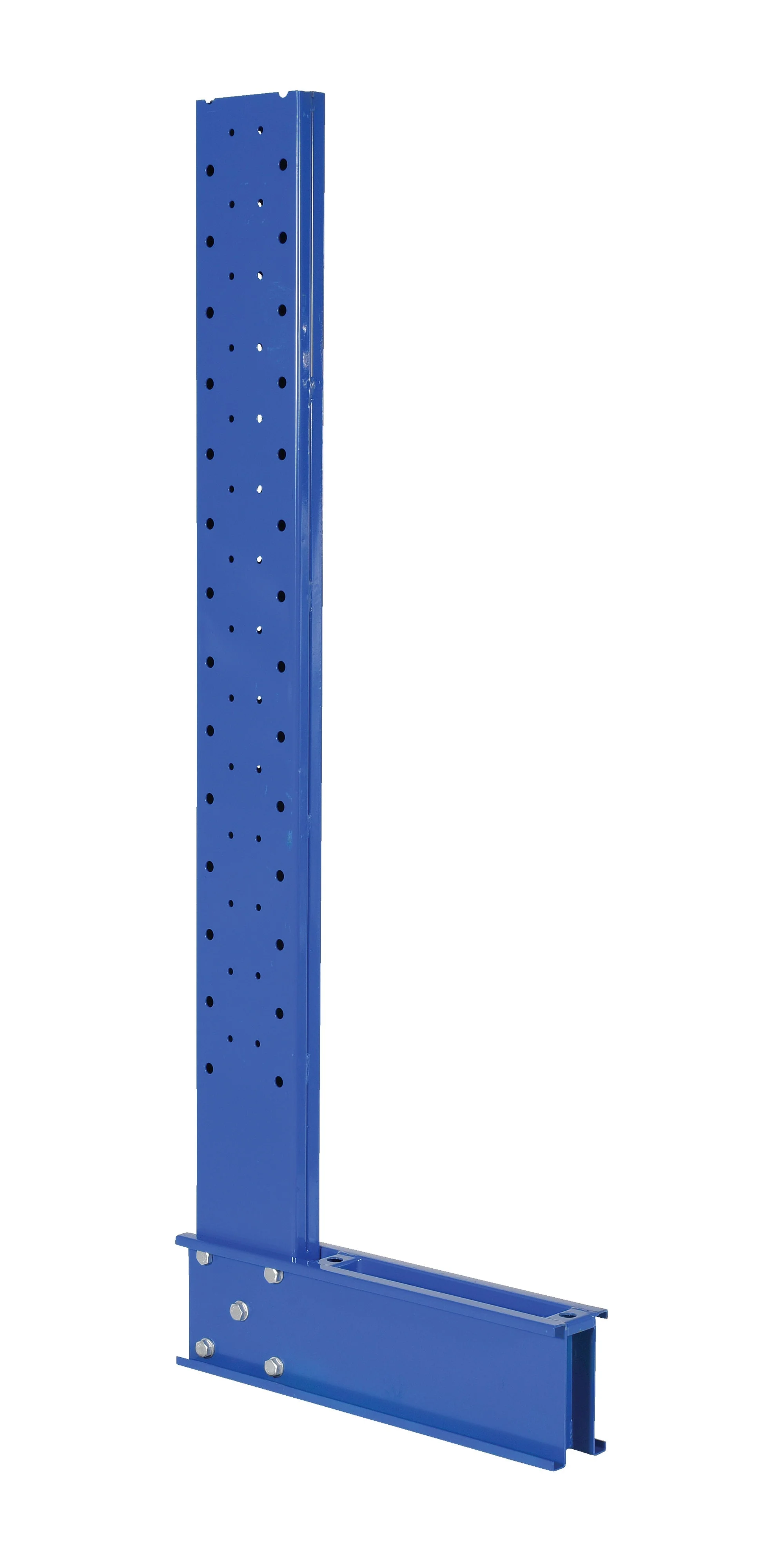

Product image 47
Product image 48

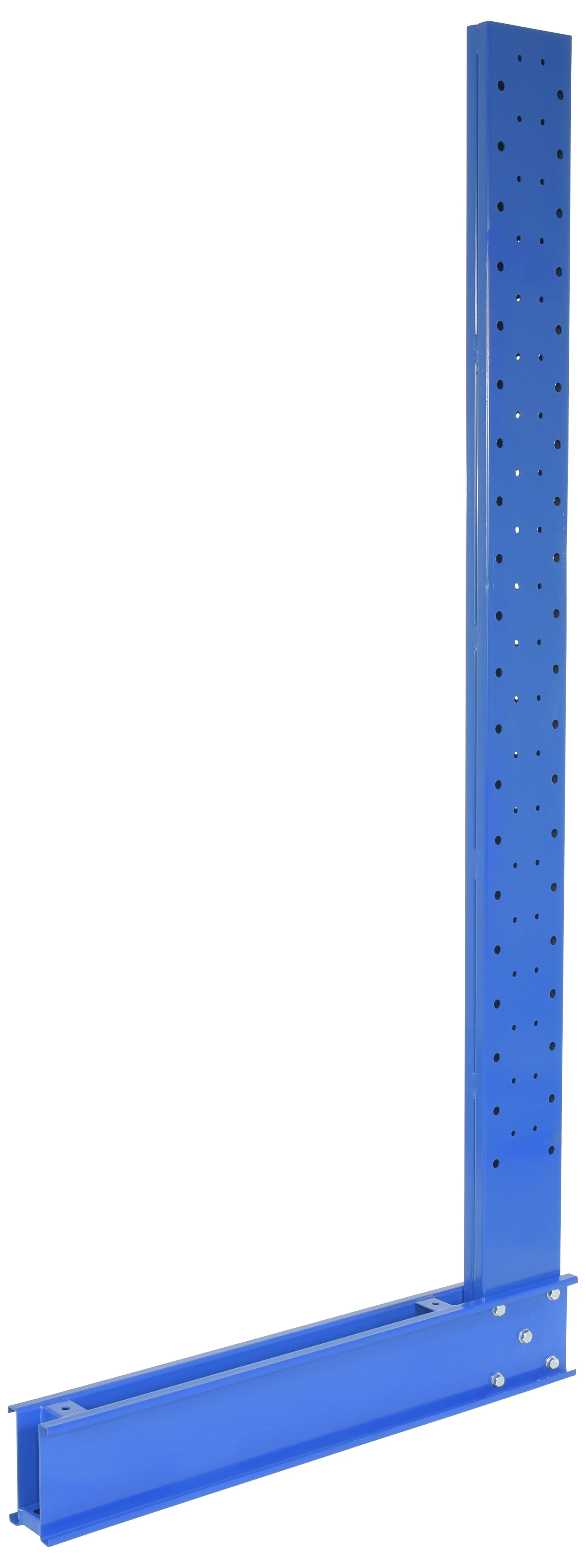

Product image 49
