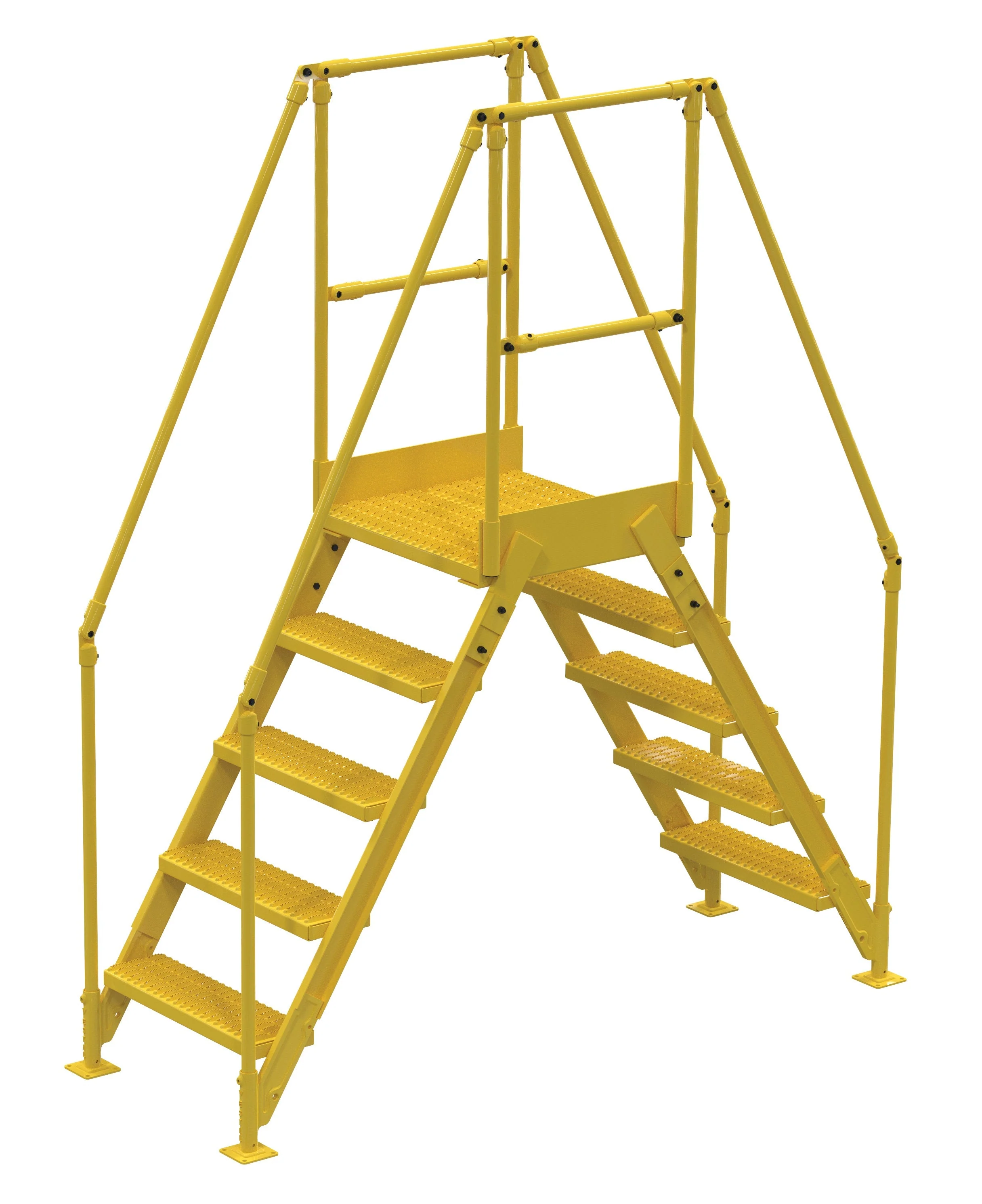

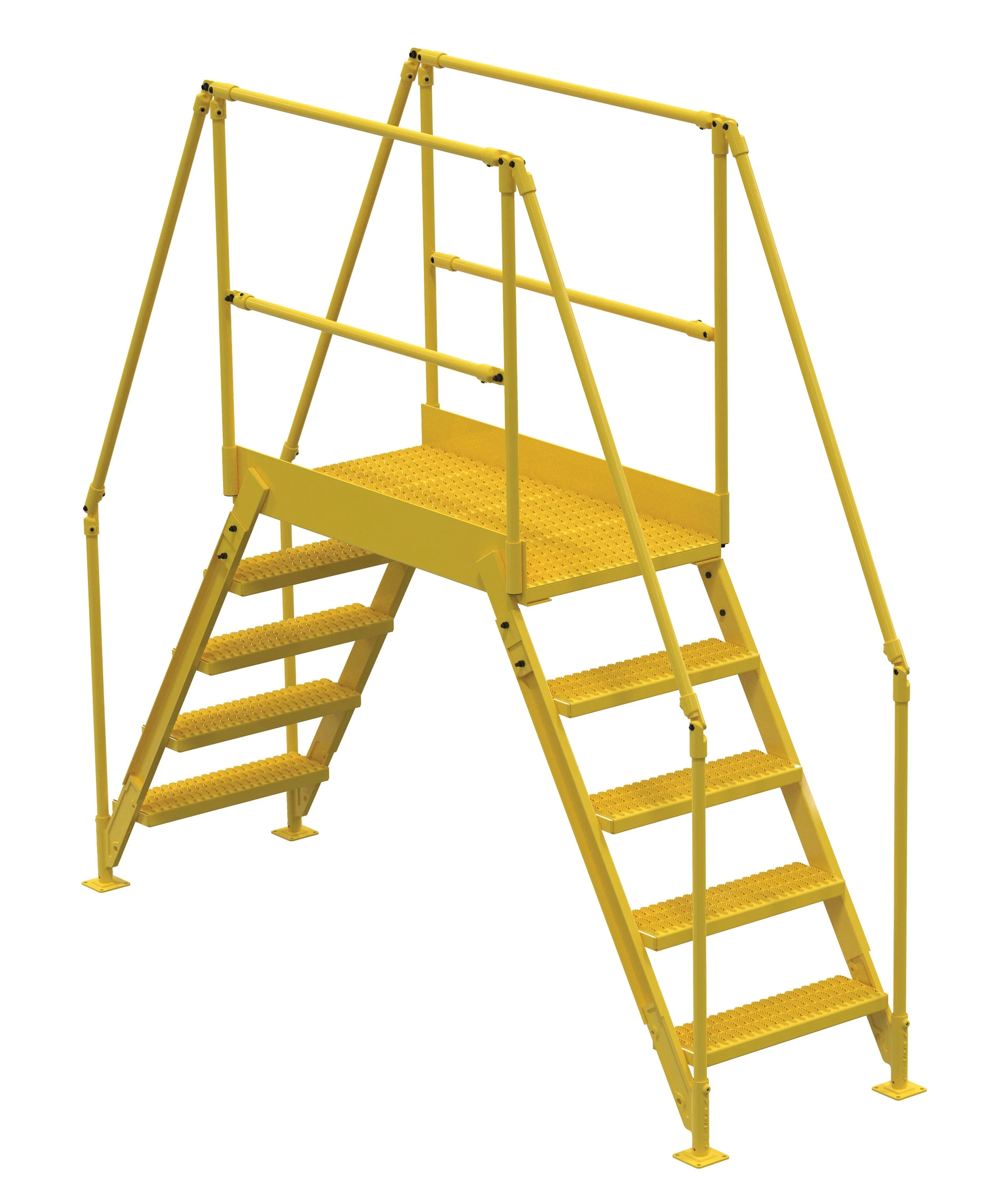

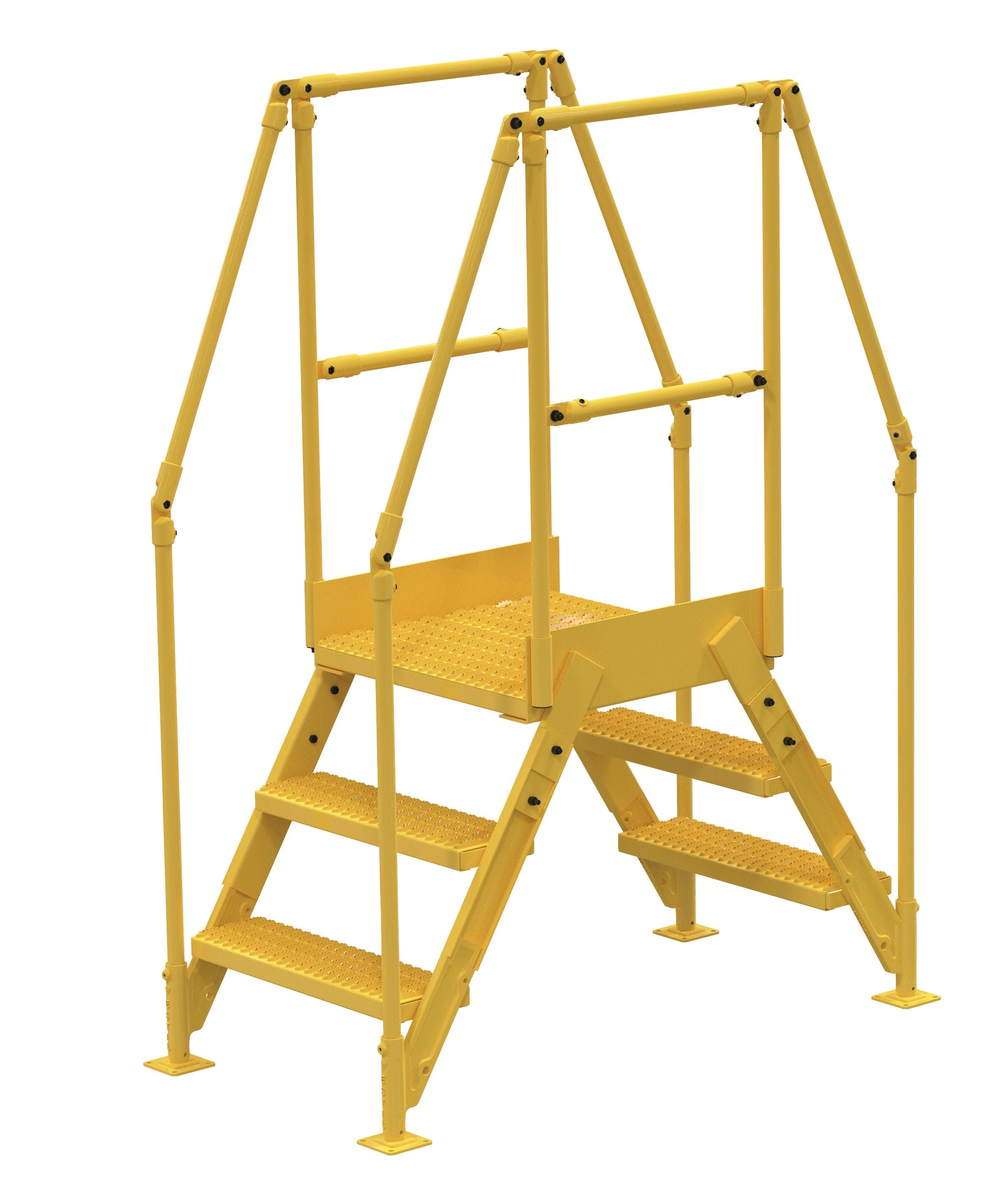

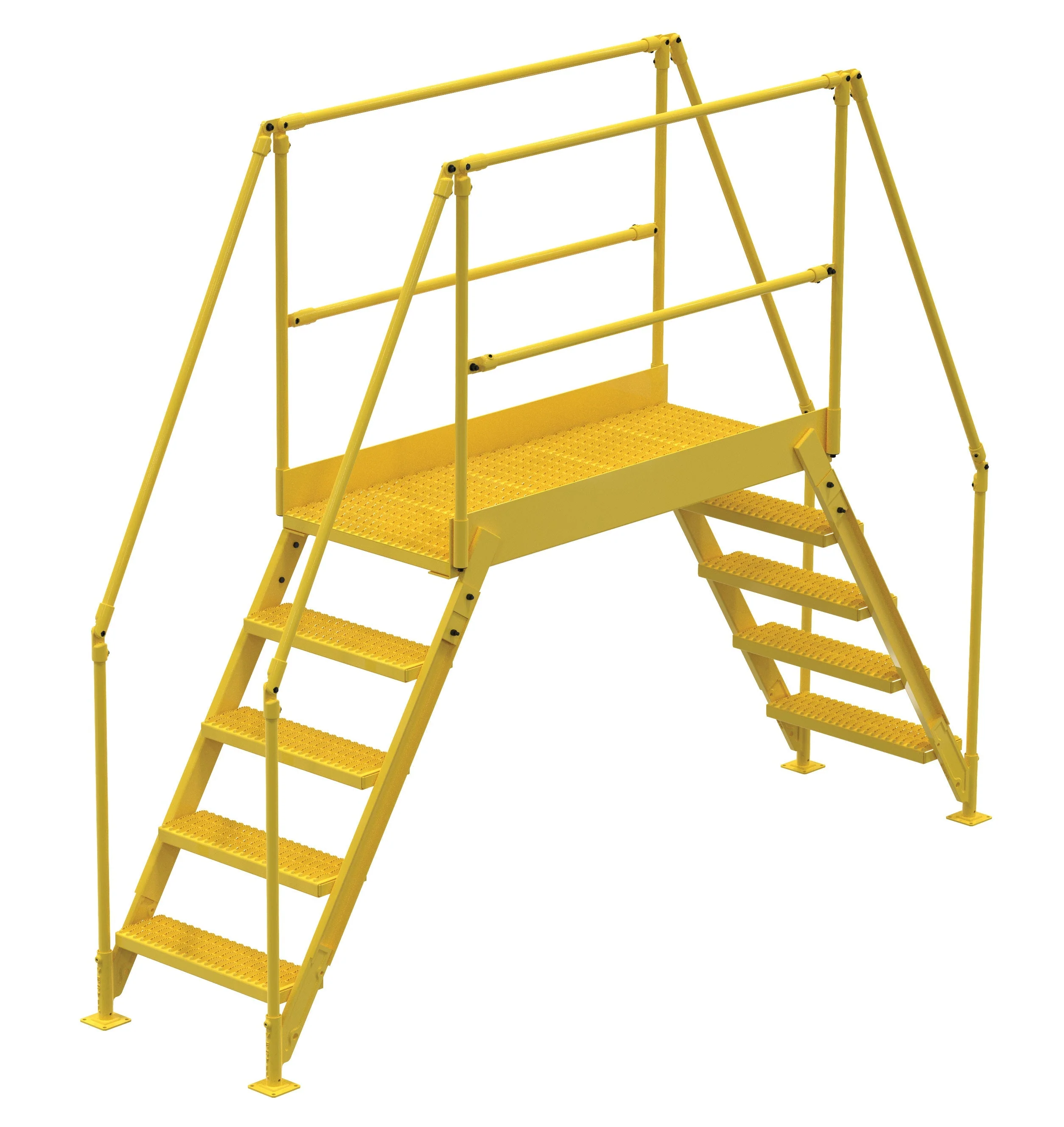

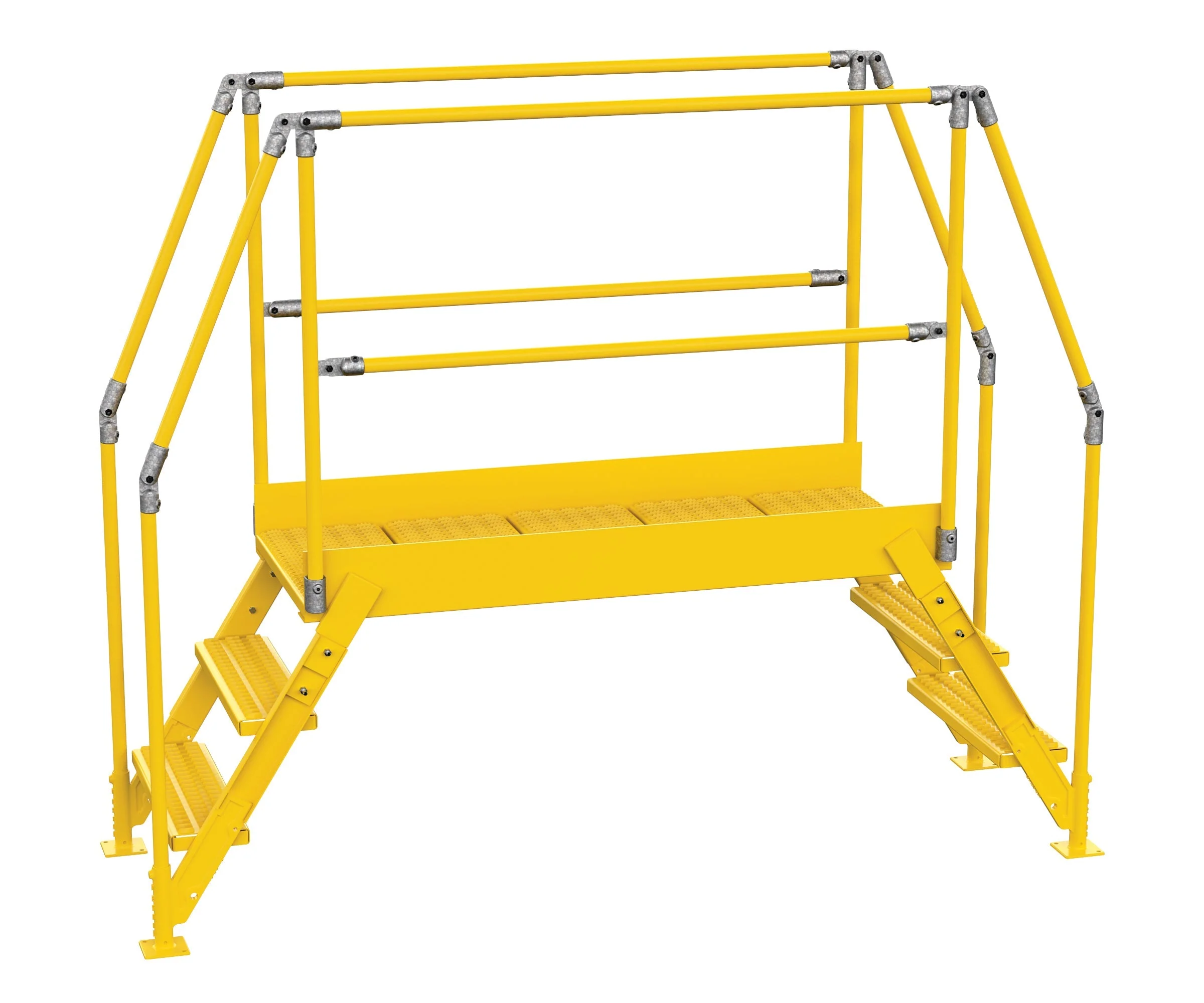

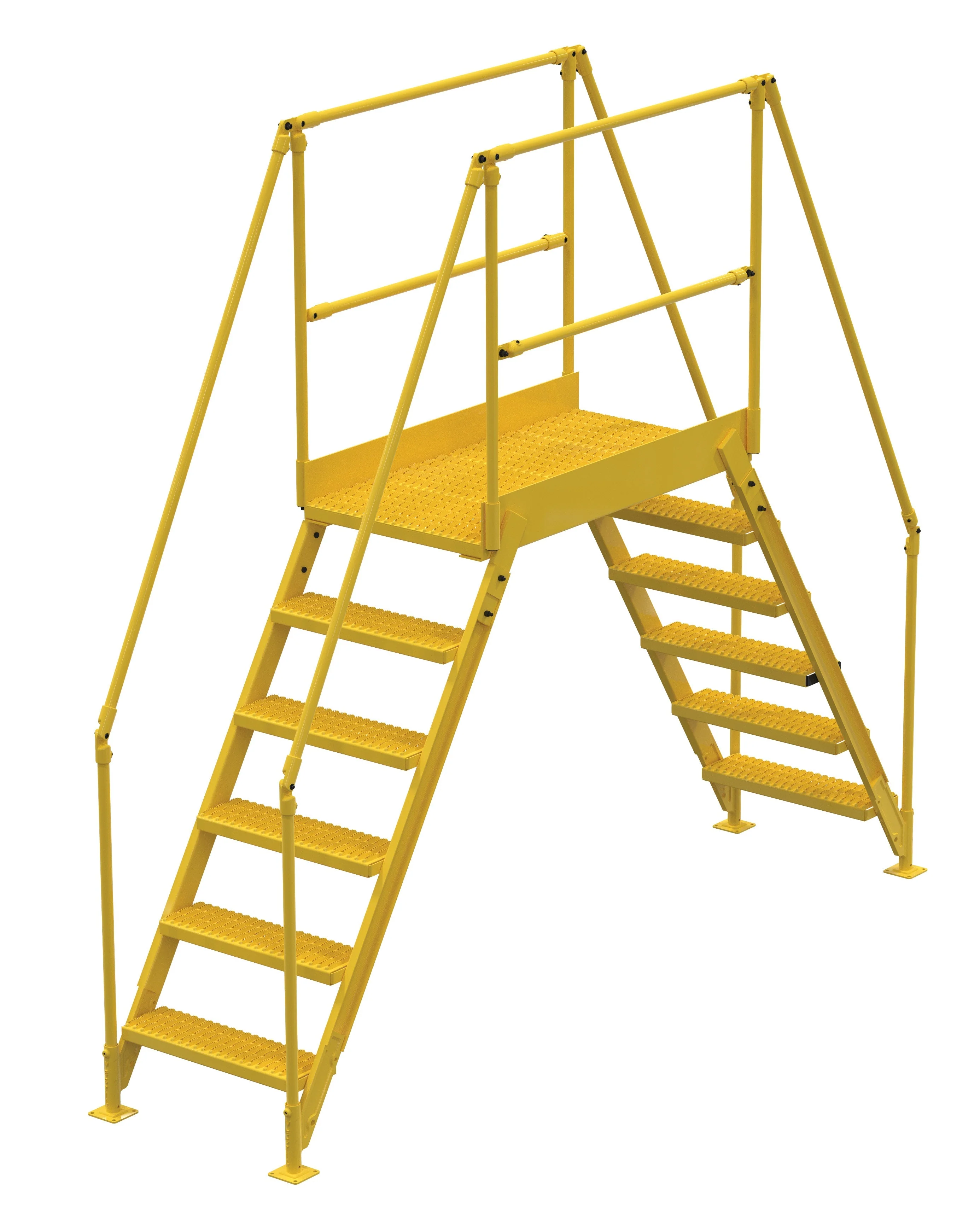

Vestil Steel Cross-Over Ladders

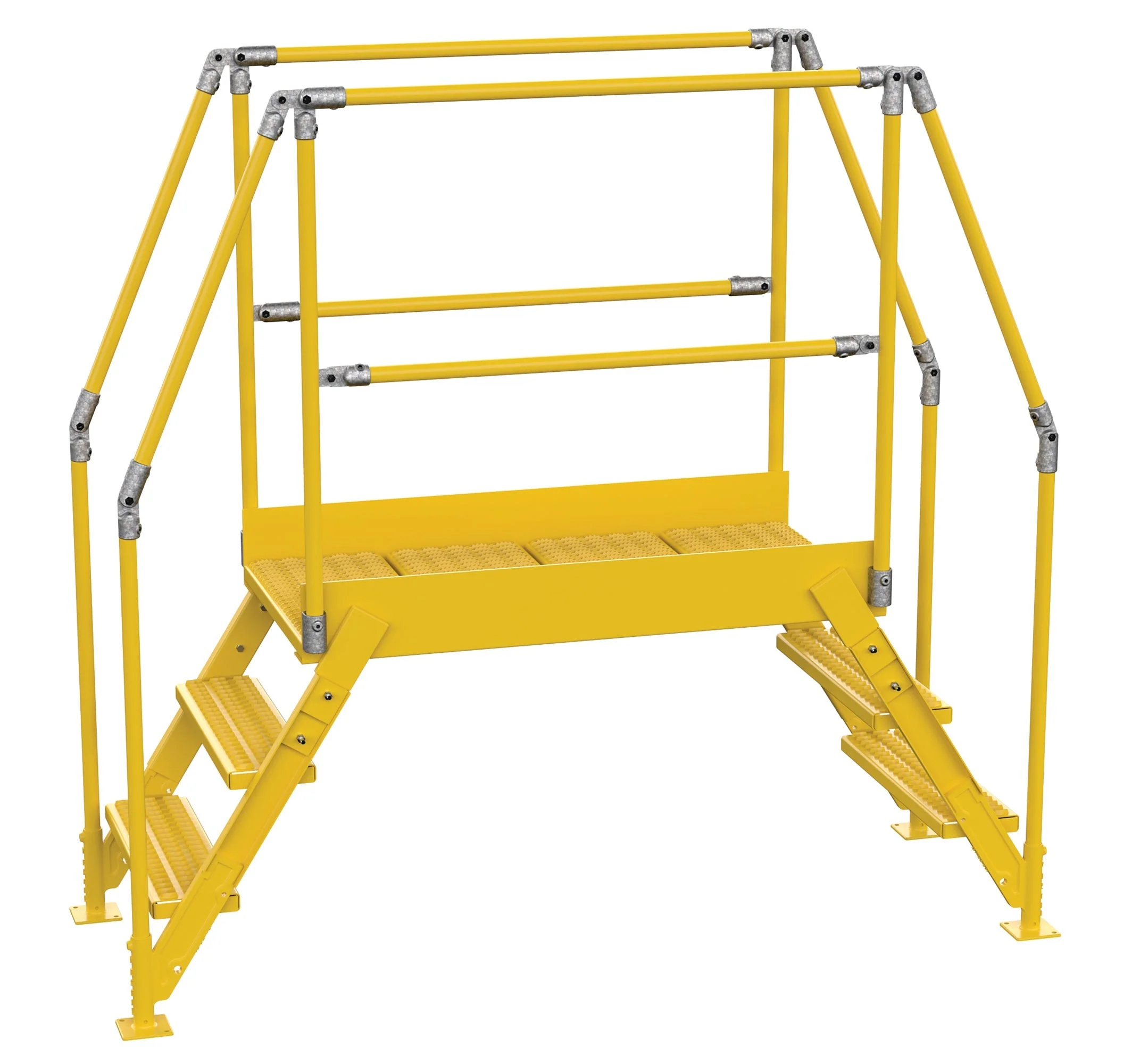

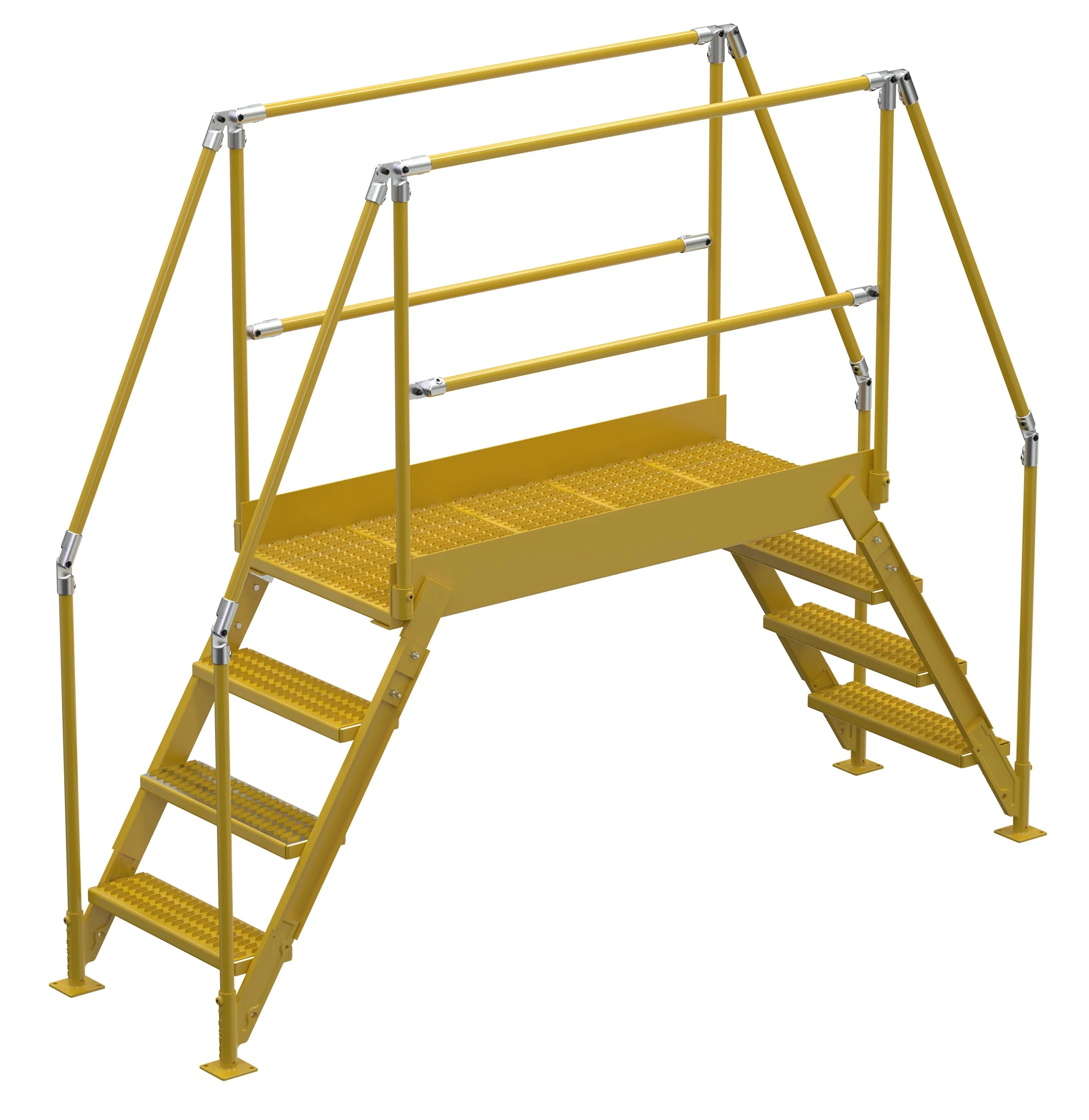

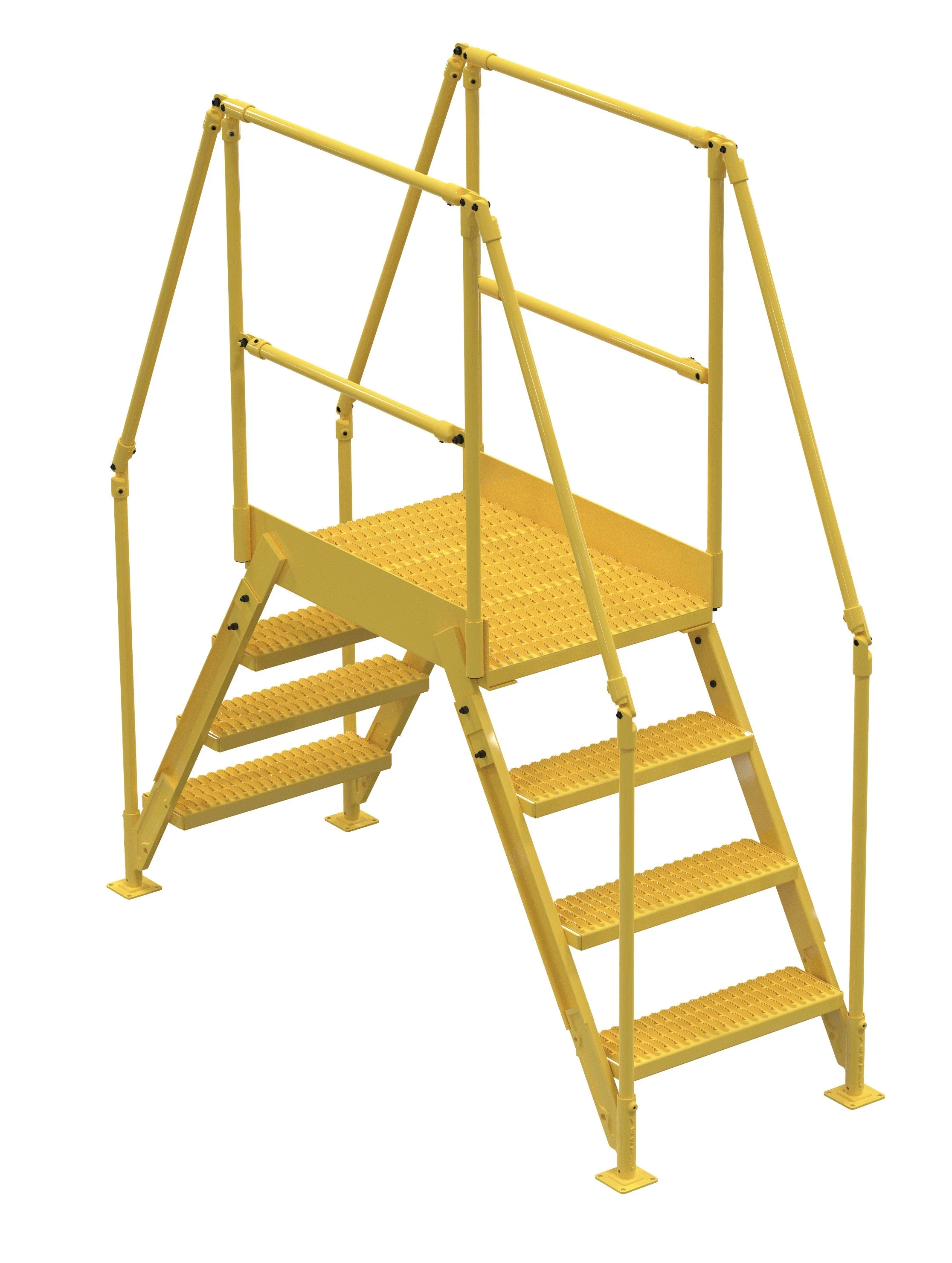

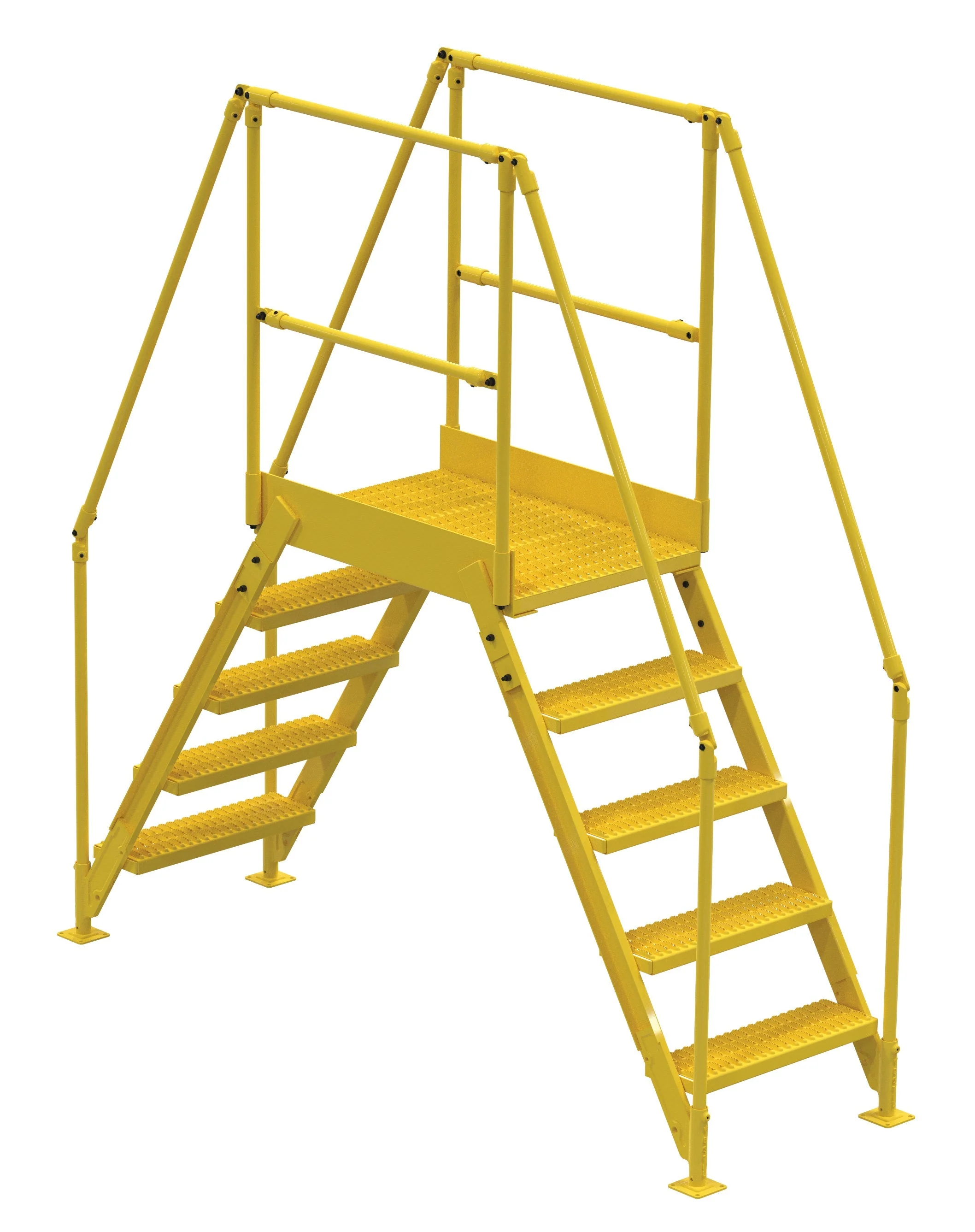

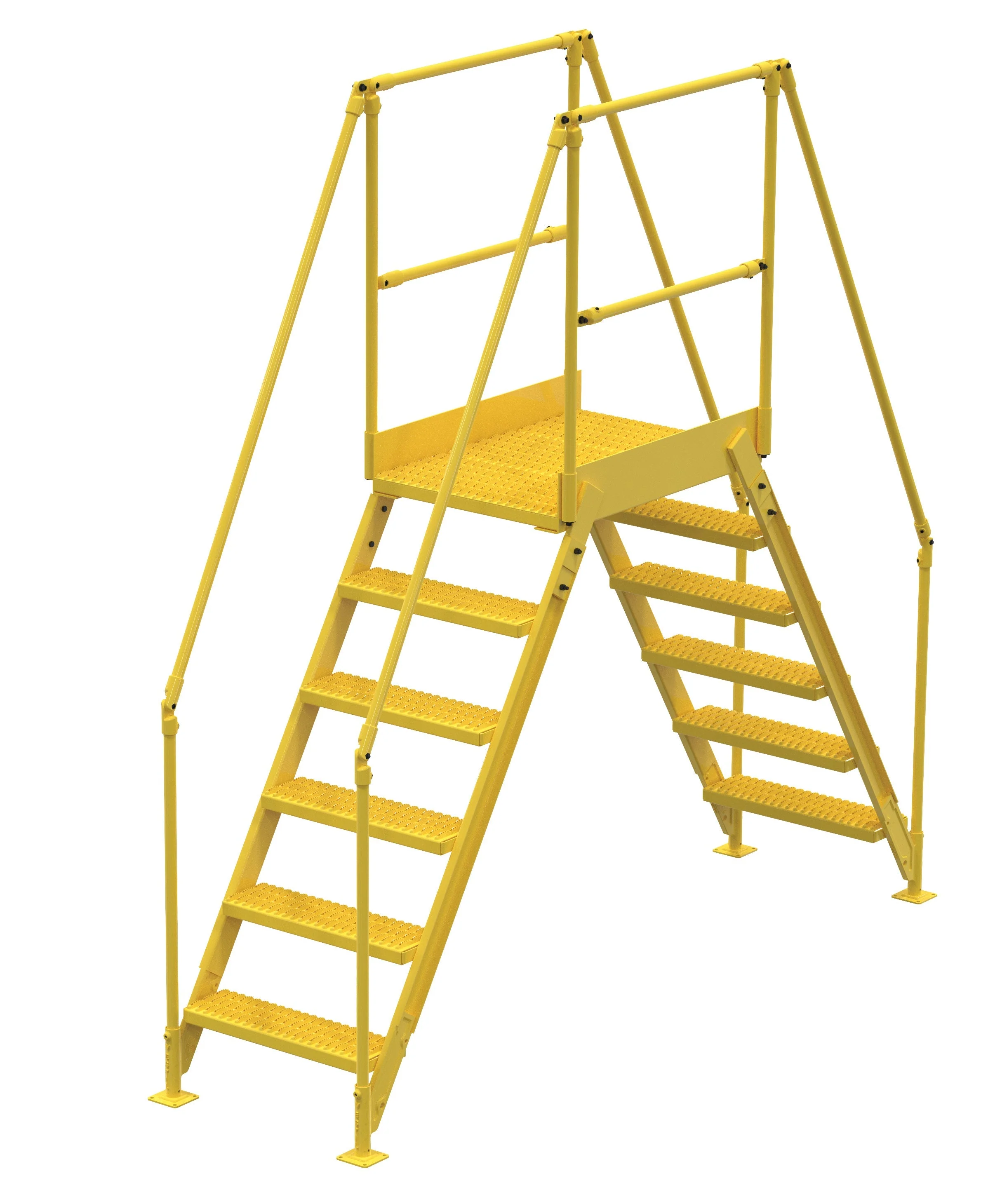

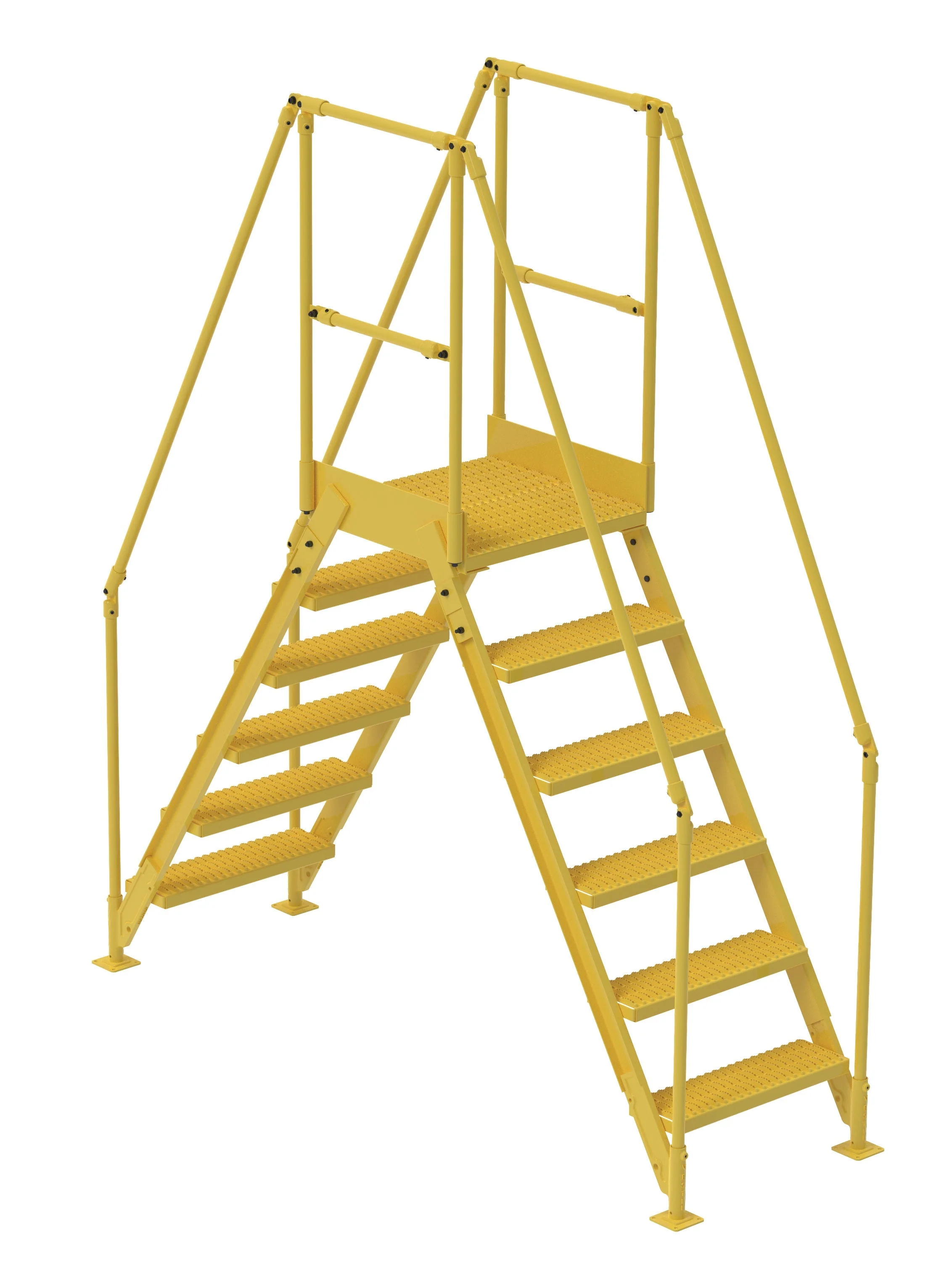

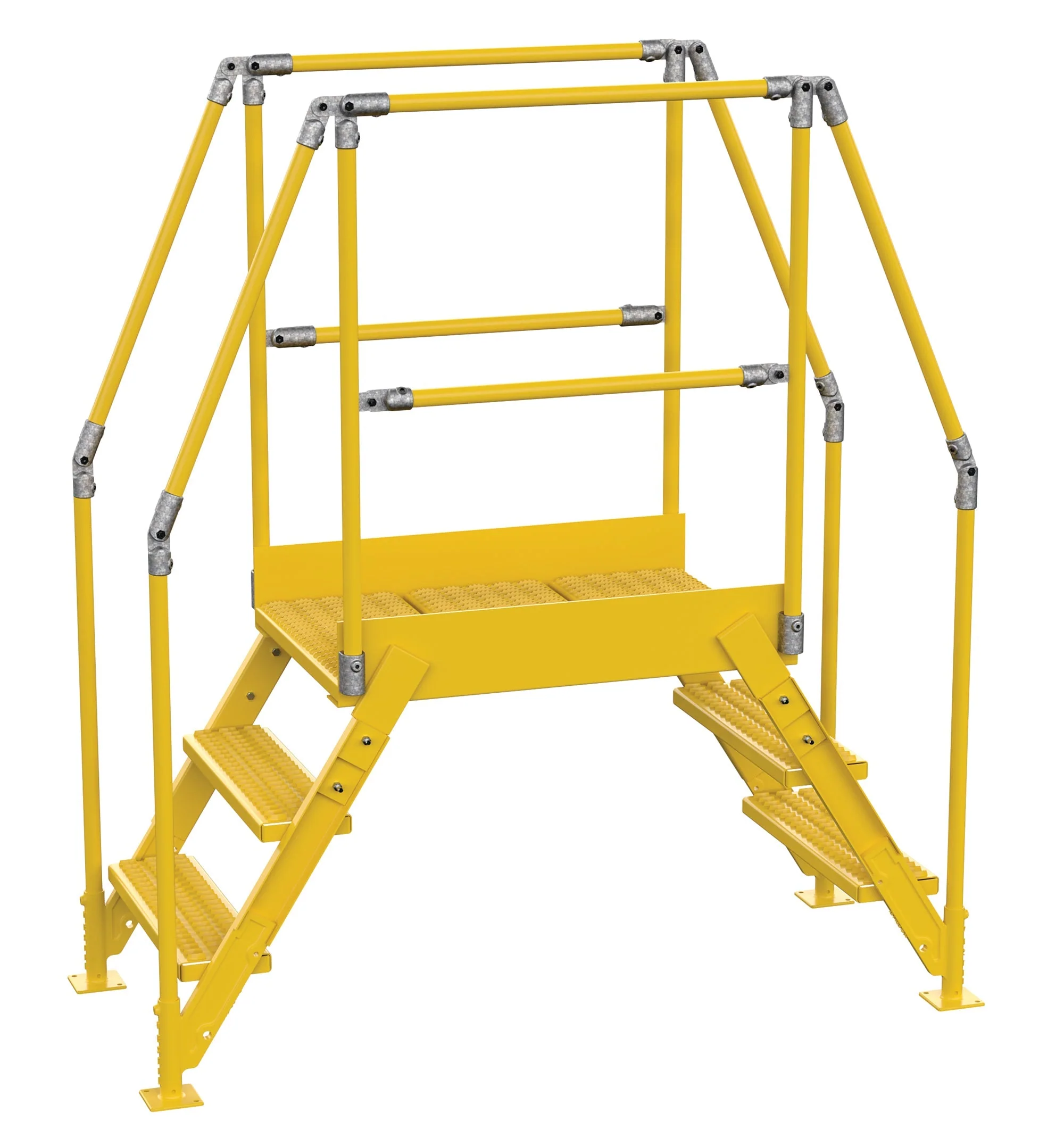

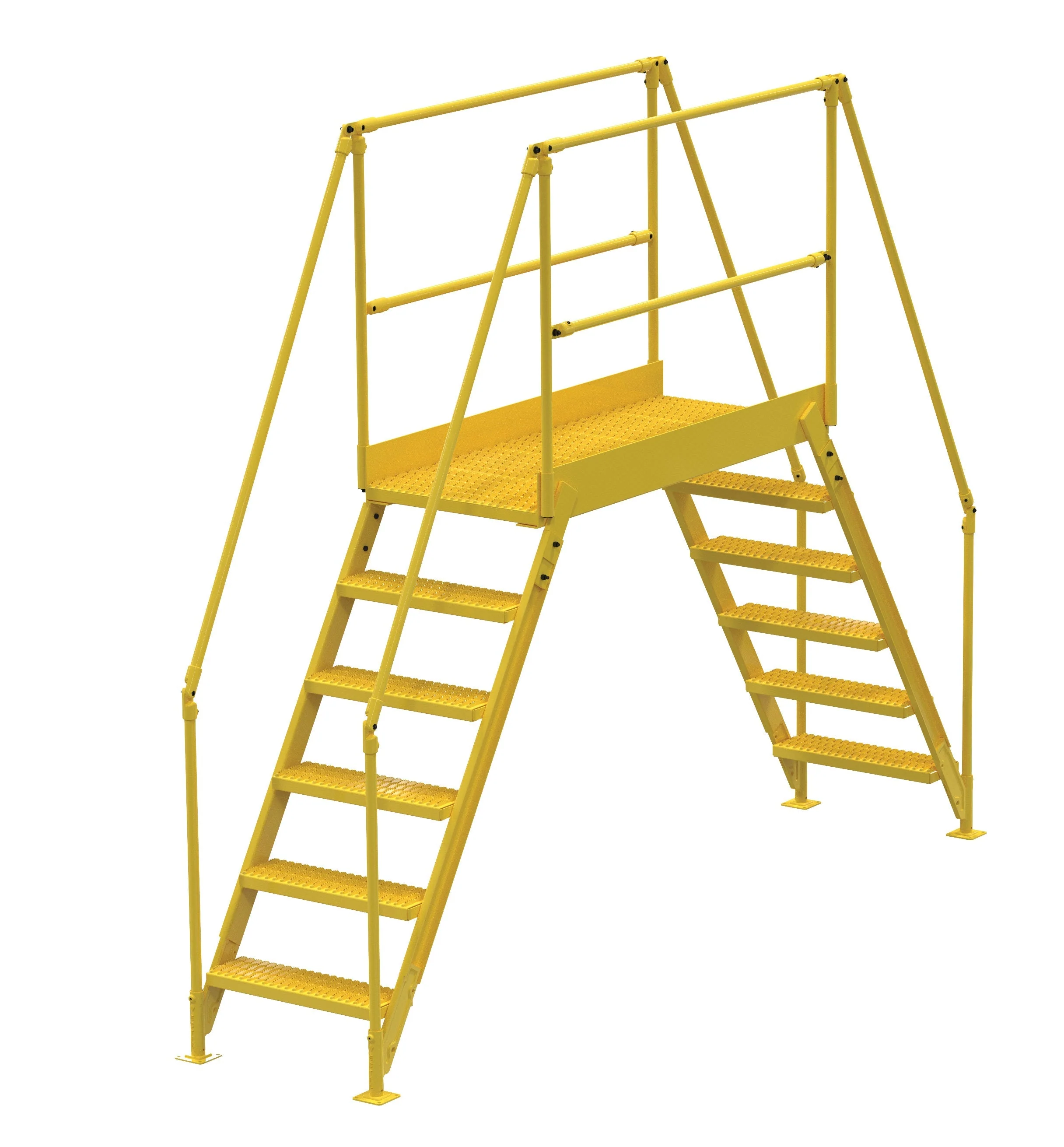

Mount where you need permanent access at crossover points. The upper platform features removable two sided 42-5/8" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Serrated steps for extra grip and safety are 23-1/2" wide and 7" deep with a step spacing of 10". The angle of the steps is 58 degrees. The overall ladder width is 29-1/4". Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all welded steel construction but can be knock-down for storage and shipping. Uniform capacity is 500 pounds. Meets ANSI A14.7 and OSHA 29 CFR 1910.24. Baked-in powder coat finish for added toughness.
| Cross-Over Ladders | ||||||||
|
Model Number |
Number |
A |
B |
C |
D |
E | F | Wt. (lbs.) |
| COL-3-26-14 | 3 | 28-1/4" | 14-1/8" | 54-1/2" | 72-7/8" | 30" | 24" | 264 |
| COL-3-26-23 | 3 | 28-1/4" | 26-1/8" | 66-1/2" | 72-7/8" | 30" | 36" | 309 |
| COL-3-26-33 | 3 | 28-1/4" | 38-1/8" | 78-1/2" | 72-7/8" | 30" | 48" | 328 |
| COL-3-26-44 | 3 | 28-1/4" | 50-1/8" | 90-1/2" | 73" | 30" | 60" | 349 |
| COL-4-36-14 | 4 | 38-1/4" | 14-1/8" | 67" | 82-7/8" | 40" | 24" | 326 |
| COL-4-36-23 | 4 | 38-1/4" | 26-1/8" | 79" | 82-7/8" | 40" | 36" | 346 |
| COL-4-36-33 | 4 | 38-1/4" | 38-1/8" | 91" | 82-7/8" | 40" | 48" | 356 |
| COL-4-36-44 | 4 | 38-1/4" | 50-1/8" | 103" | 83" | 40" | 60" | 378 |
| COL-5-46-14 | 5 | 48-1/4" | 14-1/8" | 79-1/2" | 92-7/8" | 50" | 24" | 340 |
| COL-5-46-23 | 5 | 48-1/4" | 26-1/8" | 91-1/2" | 92-7/8" | 50" | 36" | 380 |
| COL-5-46-33 | 5 | 48-1/4" | 38-1/8" | 103-1/2" | 92-7/8" | 50" | 48" | 420 |
| COL-5-46-44 | 5 | 48-1/4" | 50-1/8" | 115-1/2" | 93" | 50" | 60" | 440 |
| COL-6-56-14 | 6 | 58-1/4" | 14-1/8" | 92" | 102-7/8" | 60" | 24" | 348 |
| COL-6-56-23 | 6 | 58-1/4" | 26-1/8" | 104" | 102-7/8" | 60" | 36" | 397 |
| COL-6-56-33 | 6 | 58-1/4" | 38-1/8" | 116" | 102-7/8" | 60" | 48" | 401 |
| COL-6-56-44 | 6 | 58-1/4" | 50-1/8" | 128" | 103" | 60" | 60" | 460 |
| Hot Dip Galvanized Finish | ||||||||
|
Model Number |
Number |
A |
B |
C |
D |
E | F | Wt. (lbs.) |
| COL-3-26-14-HDG | 3 | 28-1/4" | 14-1/8" | 54-1/2" | 72-7/8" | 30" | 24" | 264 |
| COL-3-26-23-HDG | 3 | 28-1/4" | 26-1/8" | 66-1/2" | 72-7/8" | 30" | 36" | 282 |
| COL-3-26-33-HDG | 3 | 28-1/4" | 38-1/8" | 78-1/2" | 72-7/8" | 30" | 48" | 315 |
| COL-3-26-44-HDG | 3 | 28-1/4" | 50-1/8" | 90-1/2" | 73" | 30" | 60" | 349 |
| COL-4-36-14-HDG | 4 | 38-1/4" | 14-1/8" | 67" | 82-7/8" | 40" | 24" | 326 |
| COL-4-36-23-HDG | 4 | 38-1/4" | 26-1/8" | 79" | 82-7/8" | 40" | 36" | 346 |
| COL-4-36-33-HDG | 4 | 38-1/4" | 38-1/8" | 91" | 82-7/8" | 40" | 48" | 380 |
| COL-4-36-44-HDG | 4 | 38-1/4" | 50-1/8" | 103" | 83" | 40" | 60" | 378 |
| COL-5-46-14-HDG | 5 | 48-1/4" | 14-1/8" | 79-1/2" | 92-7/8" | 50" | 24" | 340 |
| COL-5-46-23-HDG | 5 | 48-1/4" | 26-1/8" | 91-1/2" | 92-7/8" | 50" | 36" | 380 |
| COL-5-46-33-HDG | 5 | 48-1/4" | 38-1/8" | 103-1/2" | 92-7/8" | 50" | 48" | 420 |
| COL-5-46-44-HDG | 5 | 48-1/4" | 50-1/8" | 115-1/2" | 93" | 50" | 60" | 440 |
| COL-6-56-14-HDG | 6 | 58-1/4" | 14-1/8" | 92" | 102-7/8" | 60" | 24" | 348 |
| COL-6-56-23-HDG | 6 | 58-1/4" | 26-1/8" | 104" | 102-7/8" | 60" | 36" | 397 |
| COL-6-56-33-HDG | 6 | 58-1/4" | 38-1/8" | 116" | 102-7/8" | 60" | 48" | 401 |
| COL-6-56-44-HDG | 6 | 58-1/4" | 50-1/8" | 128" | 103" | 60" | 60" | 460 |
| Aluminum Cross-Over Ladders | ||||||||
|
Model Number |
Number |
A |
B |
C |
D |
E | F | Wt. (lbs.) |
| COL-AL-3-26-14 | 3 | 28-1/4" | 14-1/8" | 54-1/2" | 72-7/8" | 30" | 24" | 236 |
| COL-AL-3-26-23 | 3 | 28-1/4" | 26-1/8" | 66-1/2" | 72-7/8" | 30" | 36" | 250 |
| COL-AL-3-26-33 | 3 | 28-1/4" | 38-1/8" | 78-1/2" | 72-7/8" | 30" | 48" | 274 |
| COL-AL-3-26-44 | 3 | 28-1/4" | 50-1/8" | 90-1/2" | 73" | 30" | 60" | 300 |
| COL-AL-4-36-14 | 4 | 38-1/4" | 14-1/8" | 67" | 82-7/8" | 40" | 24" | 283 |
| COL-AL-4-36-23 | 4 | 38-1/4" | 26-1/8" | 79" | 82-7/8" | 40" | 36" | 298 |
| COL-AL-4-36-33 | 4 | 38-1/4" | 38-1/8" | 91" | 82-7/8" | 40" | 48" | 323 |
| COL-AL-4-36-44 | 4 | 38-1/4" | 50-1/8" | 103" | 83" | 40" | 60" | 321 |
| COL-AL-5-46-14 | 5 | 48-1/4" | 14-1/8" | 79-1/2" | 92-7/8" | 50" | 24" | 293 |
| COL-AL-5-46-23 | 5 | 48-1/4" | 26-1/8" | 91-1/2" | 92-7/8" | 50" | 36" | 323 |
| COL-AL-5-46-33 | 5 | 48-1/4" | 38-1/8" | 103-1/2" | 92-7/8" | 50" | 48" | 353 |
| COL-AL-5-46-44 | 5 | 48-1/4" | 50-1/8" | 115-1/2" | 93" | 50" | 60" | 368 |
| COL-AL-6-56-14 | 6 | 58-1/4" | 14-1/8" | 92" | 102-7/8" | 60" | 24" | 299 |
| COL-AL-6-56-23 | 6 | 58-1/4" | 26-1/8" | 104" | 102-7/8" | 60" | 36" | 336 |
| COL-AL-6-56-33 | 6 | 58-1/4" | 38-1/8" | 116" | 102-7/8" | 60" | 48" | 339 |
| COL-AL-6-56-44 | 6 | 58-1/4" | 50-1/8" | 128" | 103" | 60" | 60" | 307 |
Original: $1,364.34
-65%$1,364.34
$477.52
Description
Mount where you need permanent access at crossover points. The upper platform features removable two sided 42-5/8" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Serrated steps for extra grip and safety are 23-1/2" wide and 7" deep with a step spacing of 10". The angle of the steps is 58 degrees. The overall ladder width is 29-1/4". Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all welded steel construction but can be knock-down for storage and shipping. Uniform capacity is 500 pounds. Meets ANSI A14.7 and OSHA 29 CFR 1910.24. Baked-in powder coat finish for added toughness.
