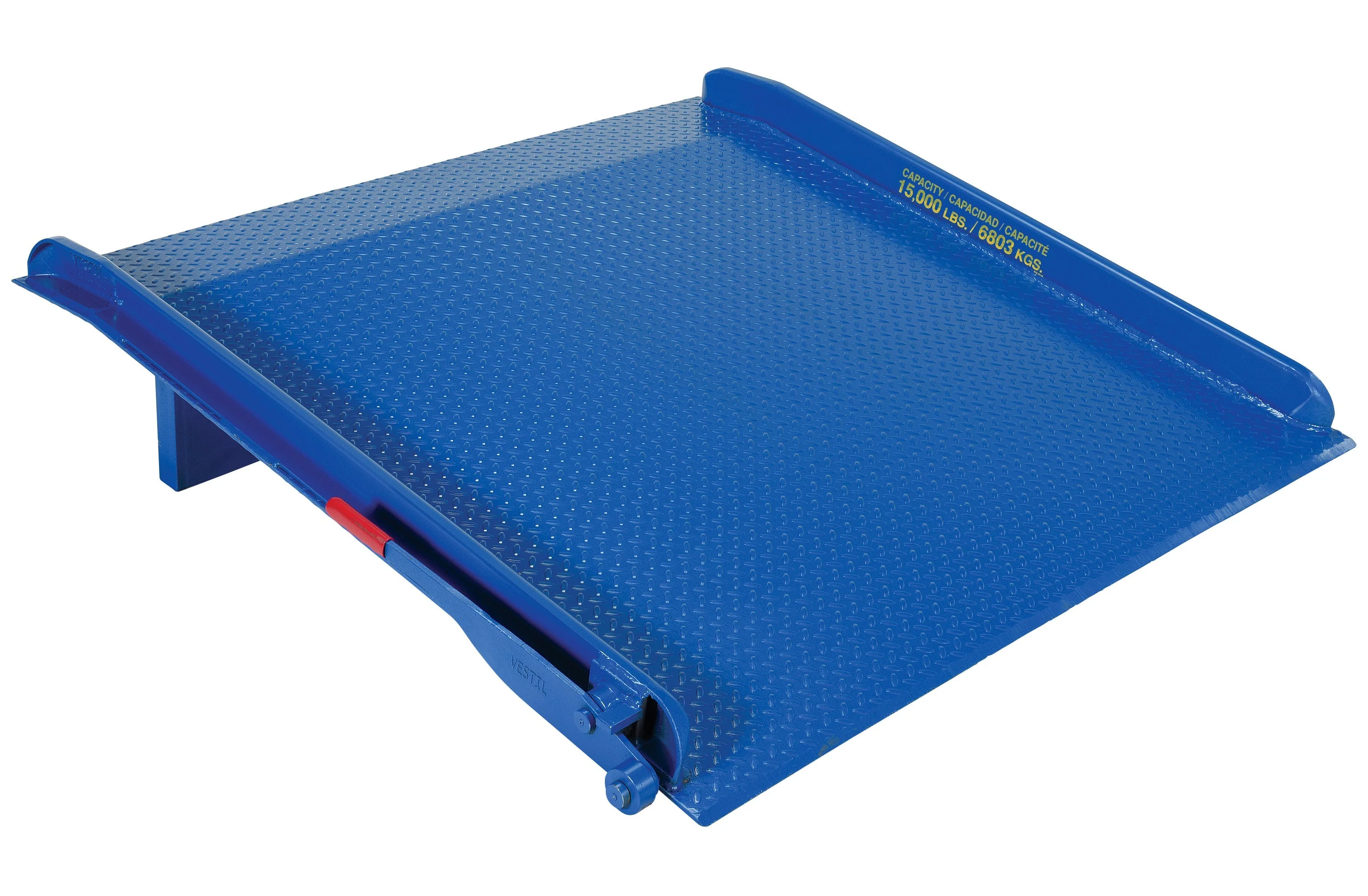

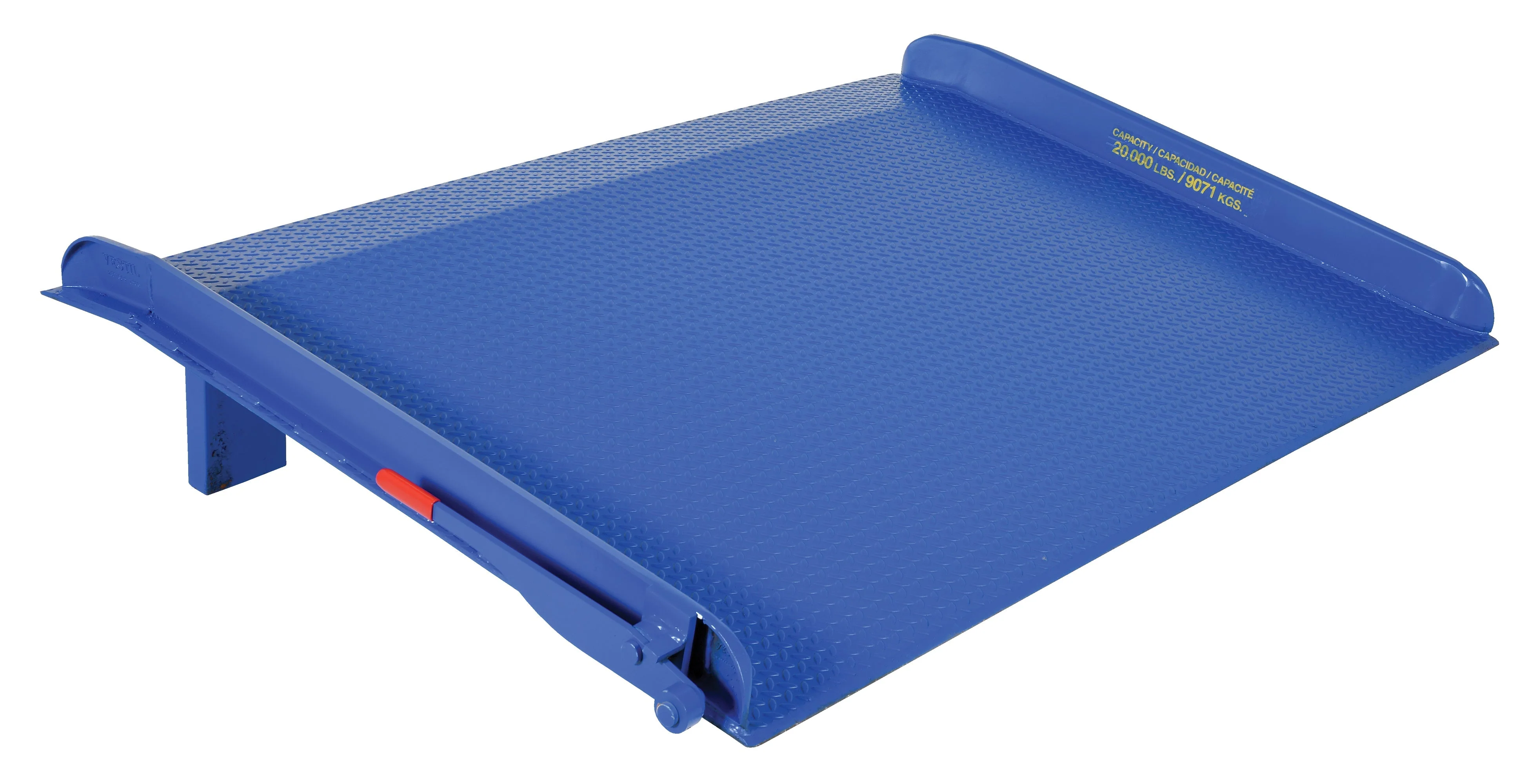

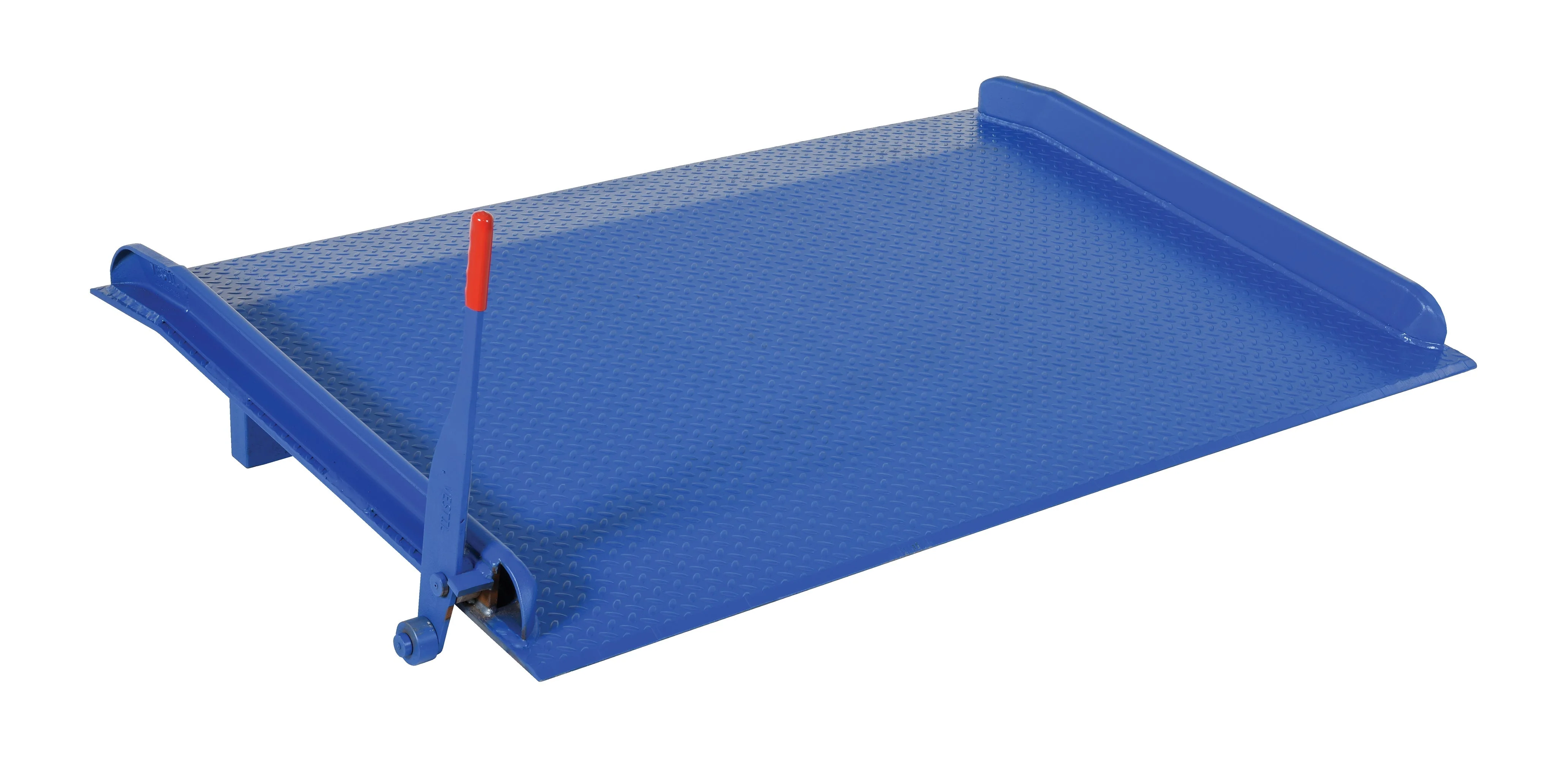

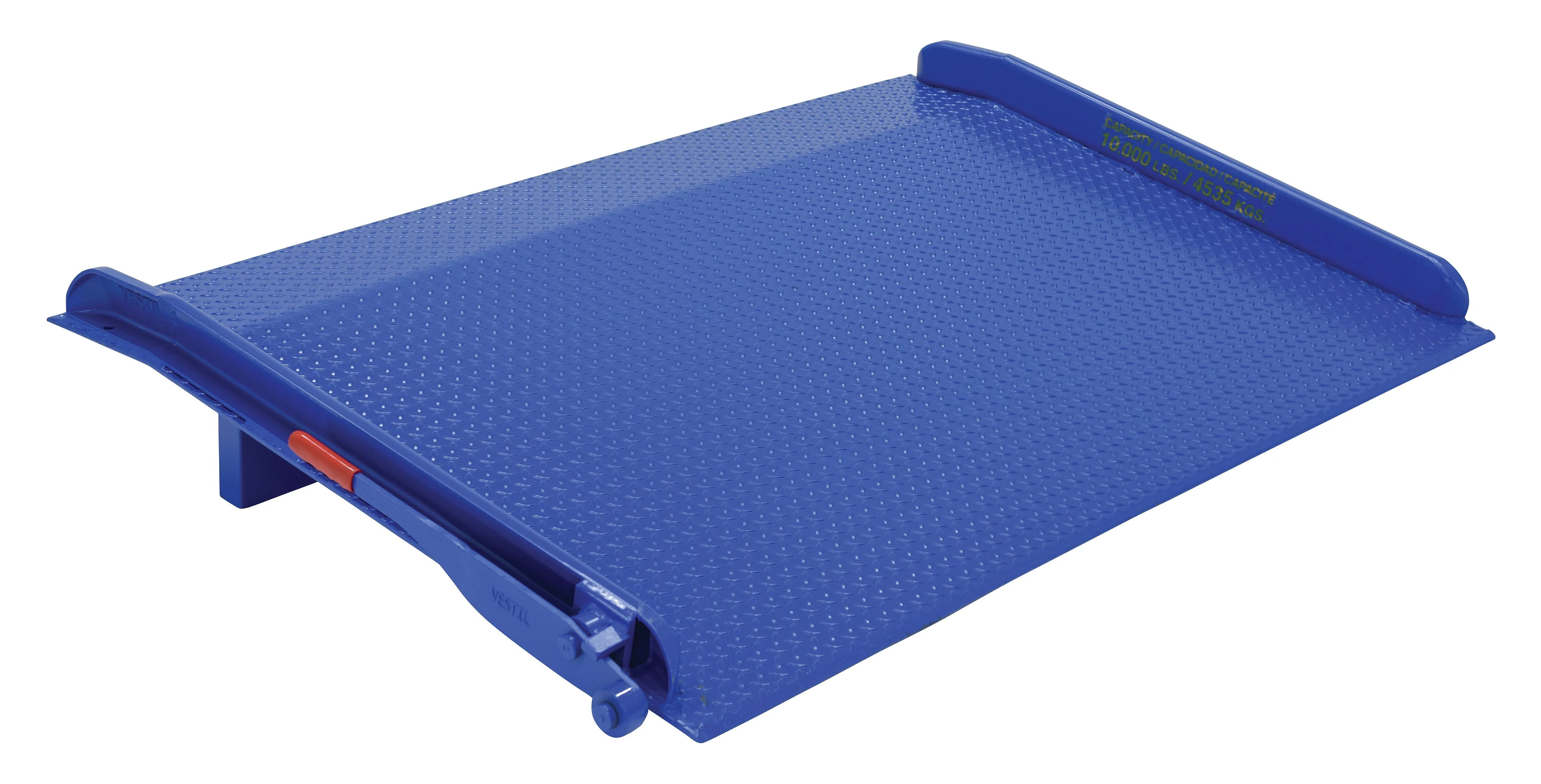

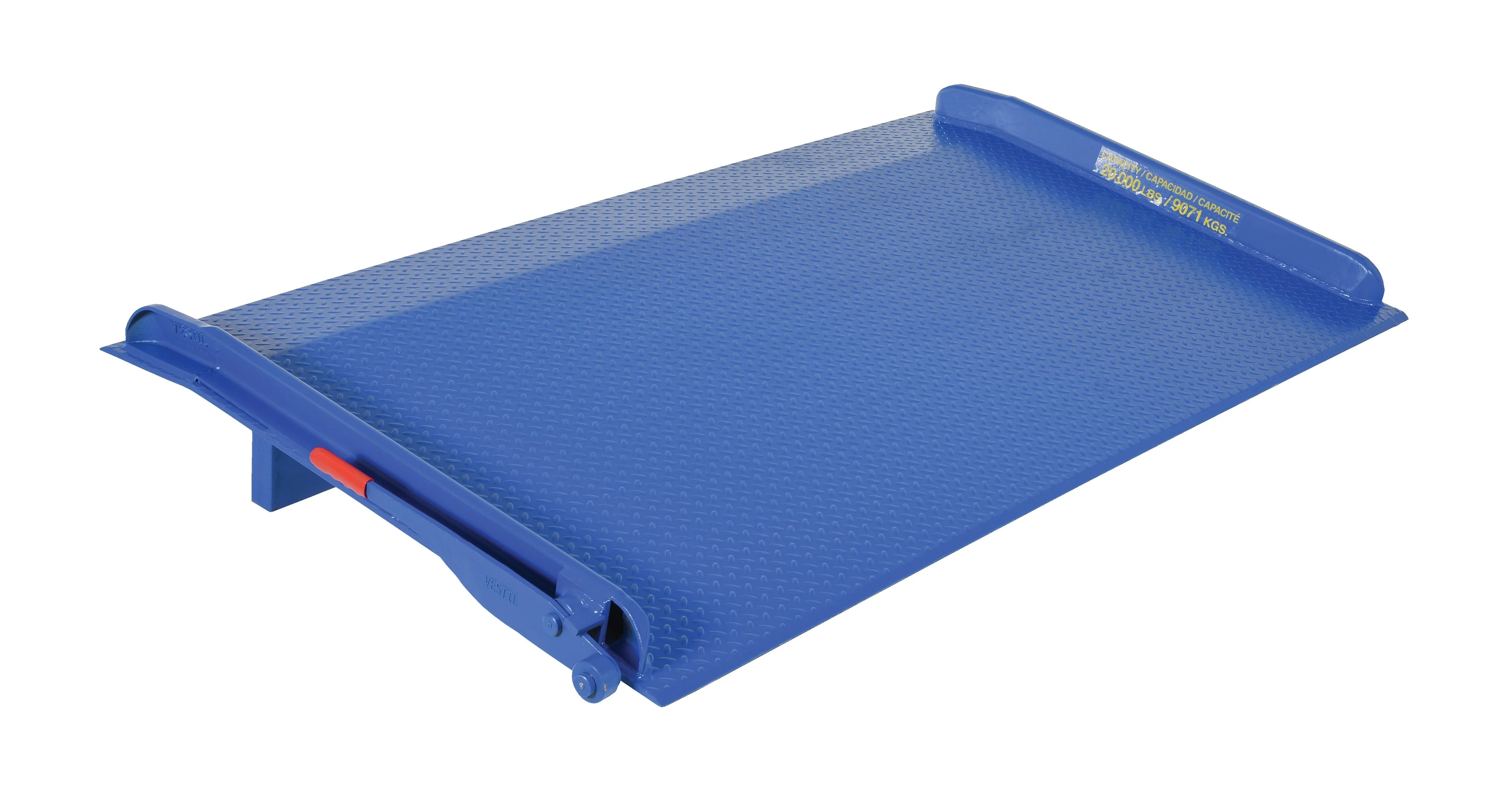

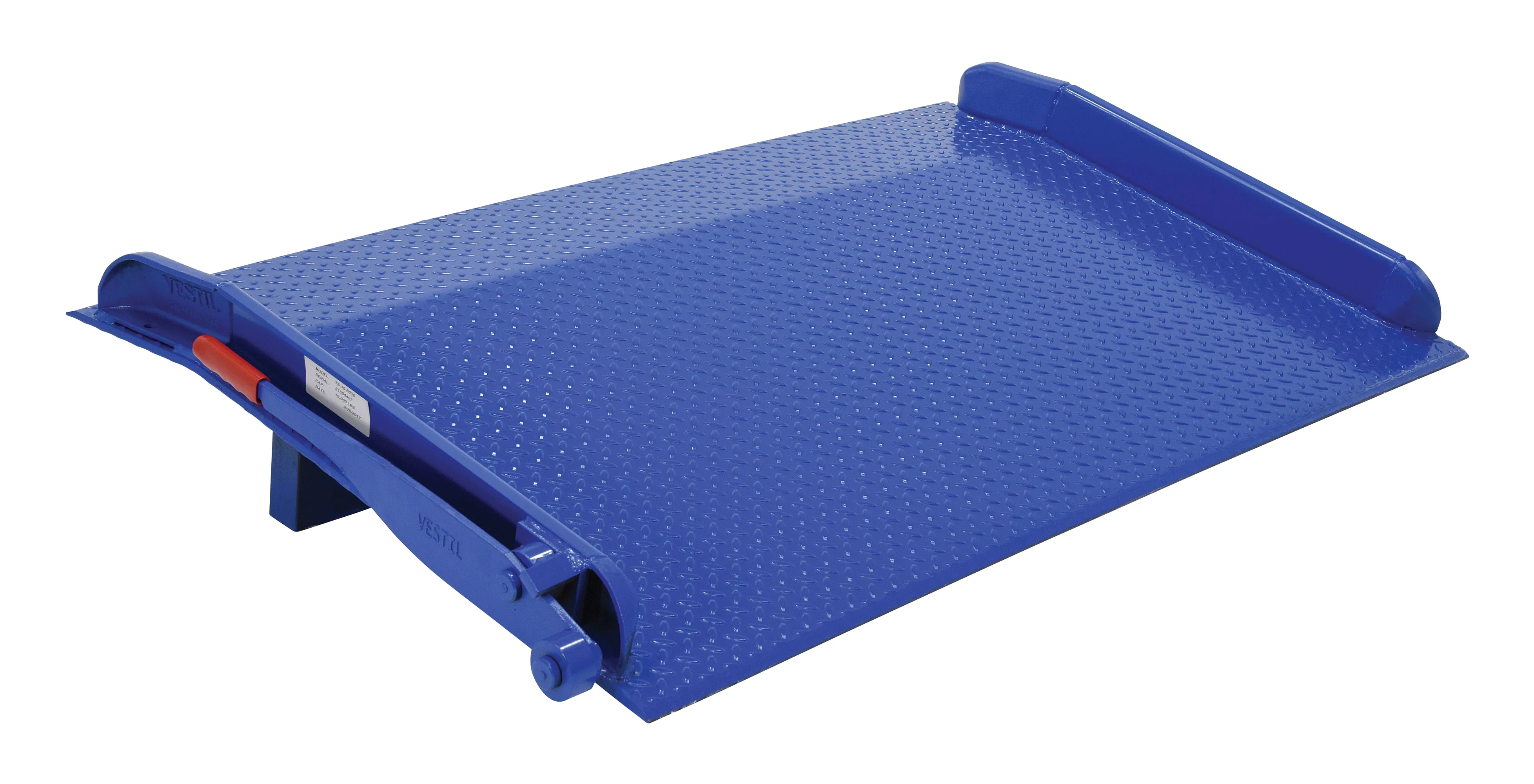

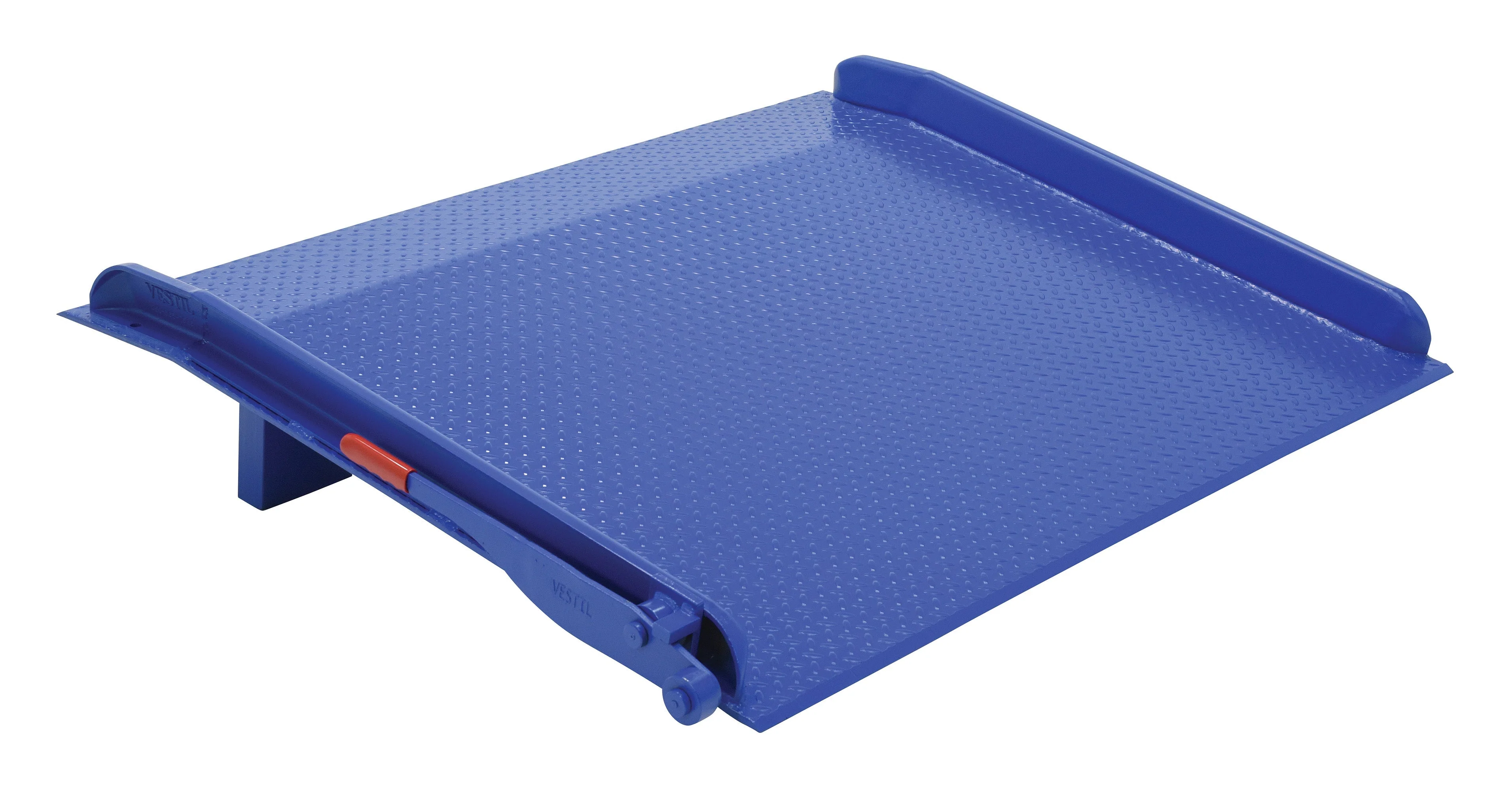

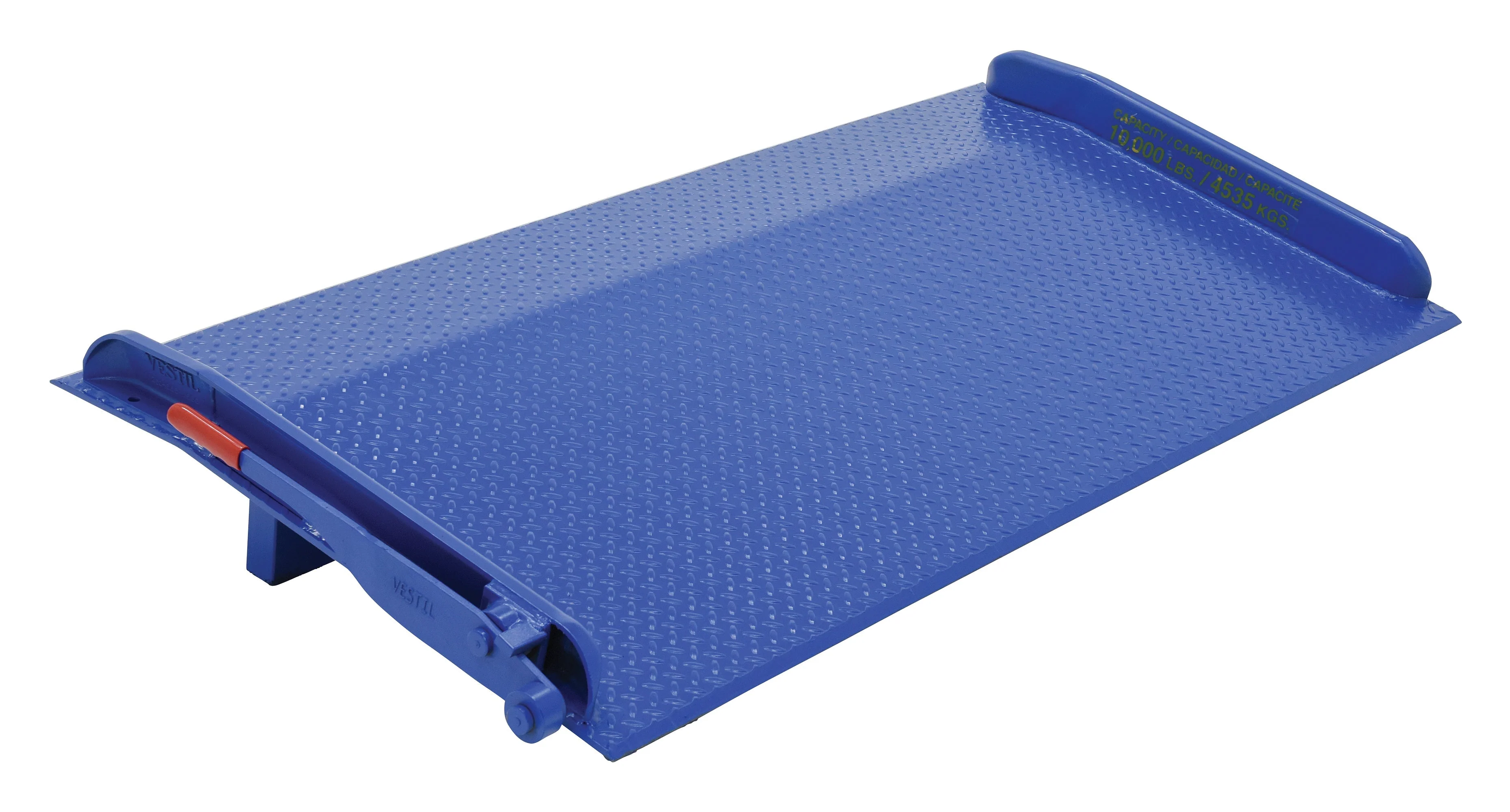

Vestil Steel Truck Dockboards

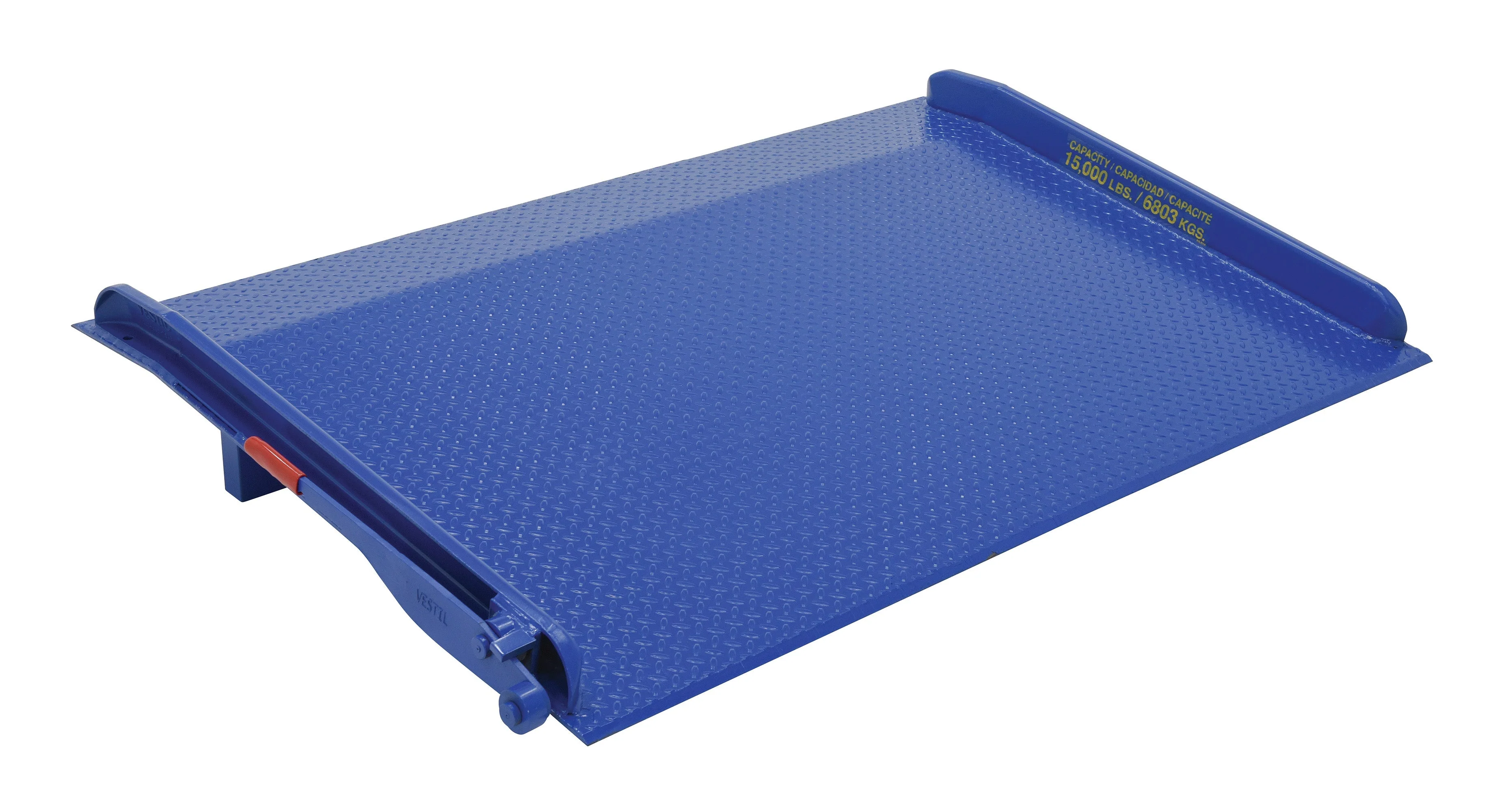

Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.

Uniform Capacity			10,000 Lbs.		15,000 Lbs.
Size (Inches) Width x Length		Ht. Diff. 11 Degrees/19% Inches	Model	Wt. (lbs)	Model	Wt. (lbs)
60	30	4	TS-10-6030	256	TS-15-6030	276
60	36	5	TS-10-6036	263	TS-15-6036	295
60	48	7	TS-10-6048	388	TS-15-6048	390
60	60	10	TS-10-6060	457	TS-15-6060	458
60	72	12	TS-10-6072	535	TS-15-6072	601
72	36	5	TS-10-7236	300	TS-15-7236	347
72	48	7	TS-10-7248	391	TS-15-7248	443
72	60	10	TS-10-7260	563	TS-15-7260	581
72	72	12	TS-10-7272	721	TS-15-7272	668
Uniform Capacity			20,000 Lbs.		25,000 Lbs.
Size (Inches) Width x Length		Ht. Diff. 11 Degrees/19% Inches	Model	Wt. (lbs)	Model	Wt. (lbs)
60	36	5	TS-20-6036	303	TS-25-6036	447
60	48	7	TS-20-6048	433	TS-25-6048	562
60	60	10	TS-20-6060	582	TS-25-6060	695
60	72	12	TS-20-6072	791	TS-25-6072	791
72	36	5	TS-20-7236	390	TS-25-7236	437
72	48	7	TS-20-7248	512	TS-25-7248	651
72	60	10	TS-20-7260	655	TS-25-7260	807
72	72	12	TS-20-7272	919	TS-25-7272	859
84	48	7	TS-20-8448	556	TS-25-8448	741
84	60	10	TS-20-8460	742
