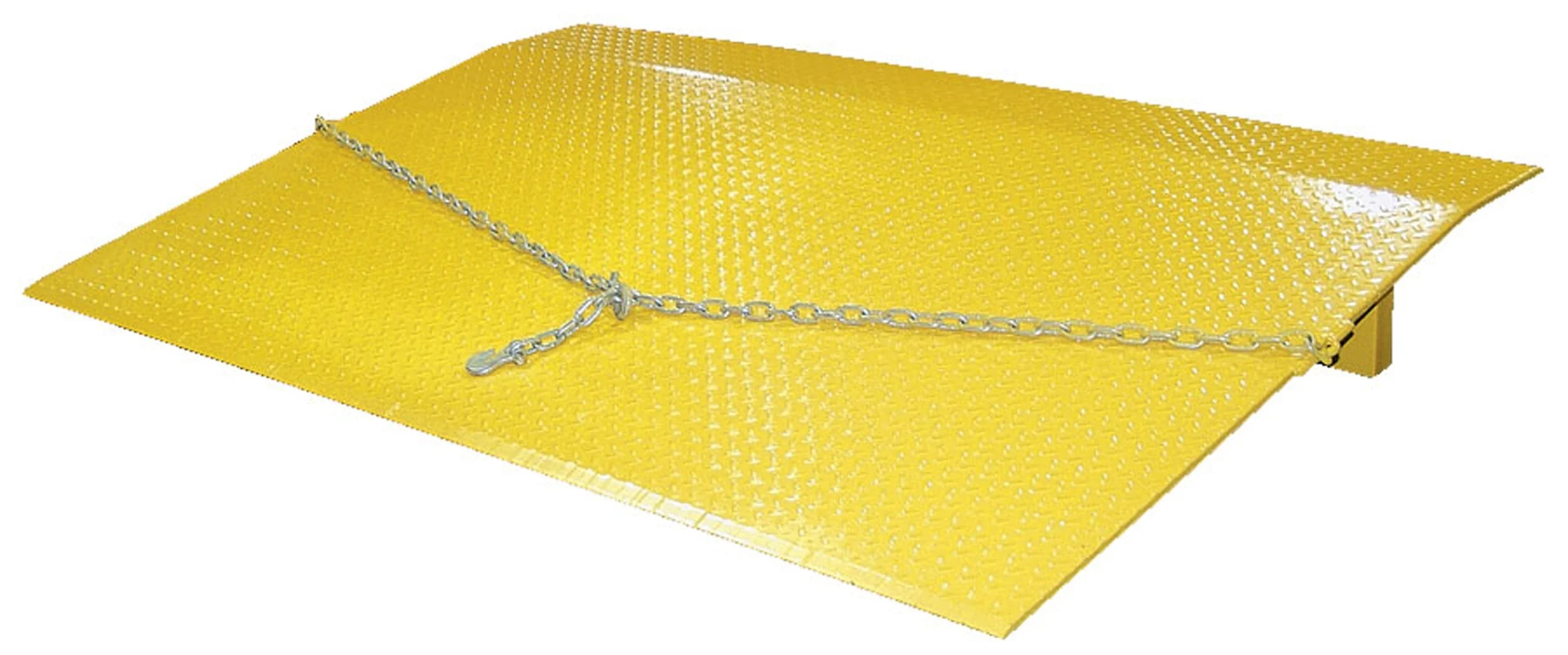

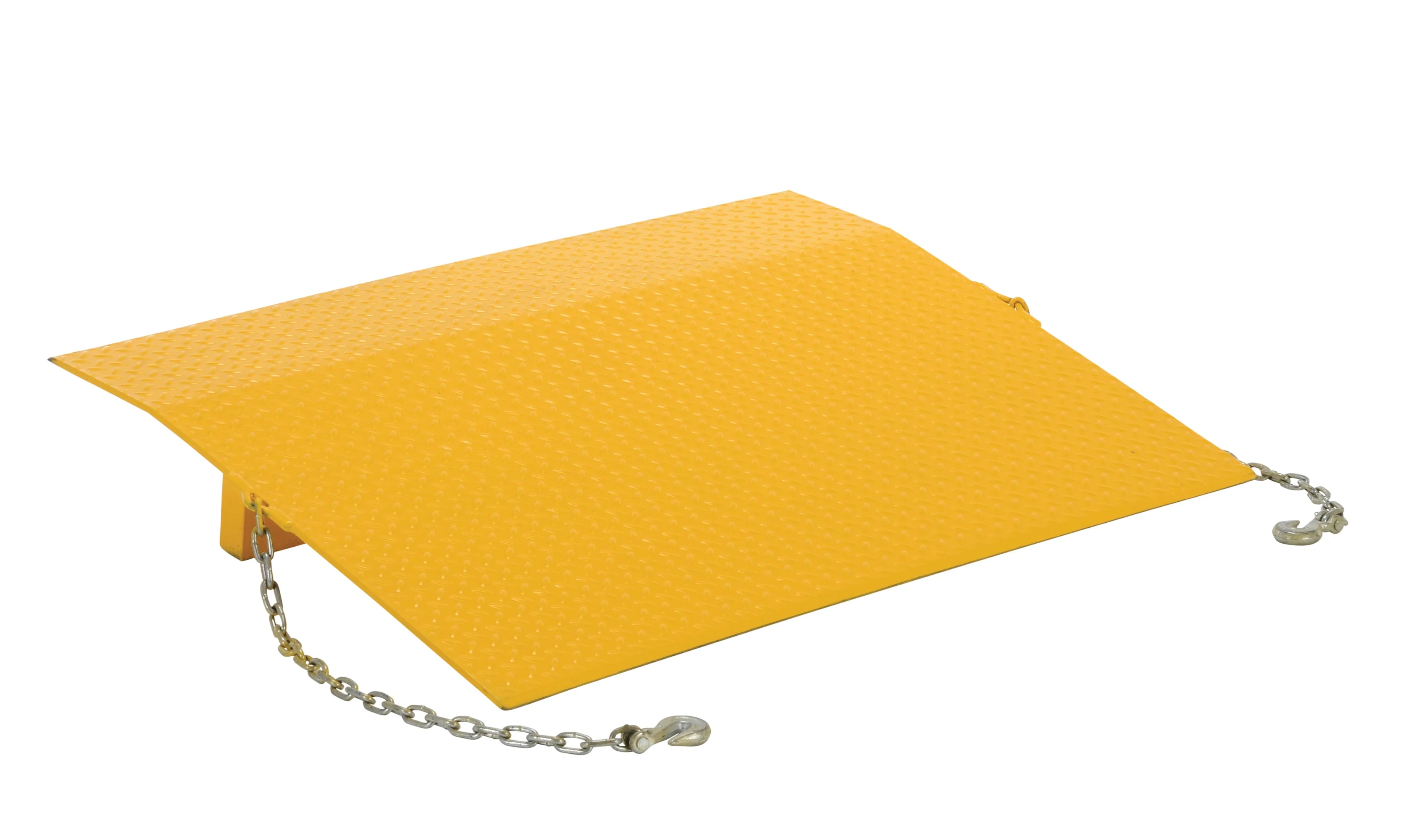

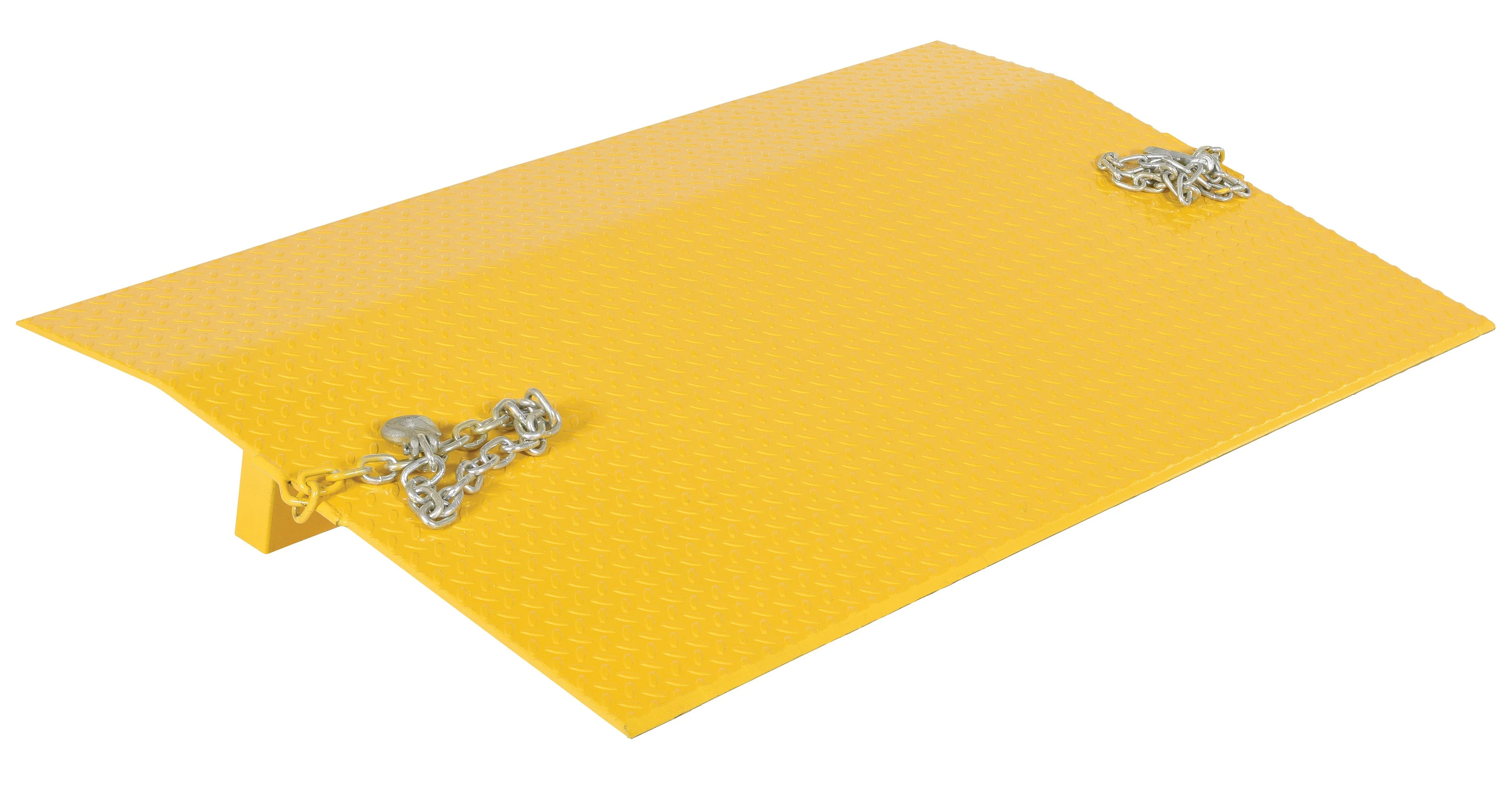

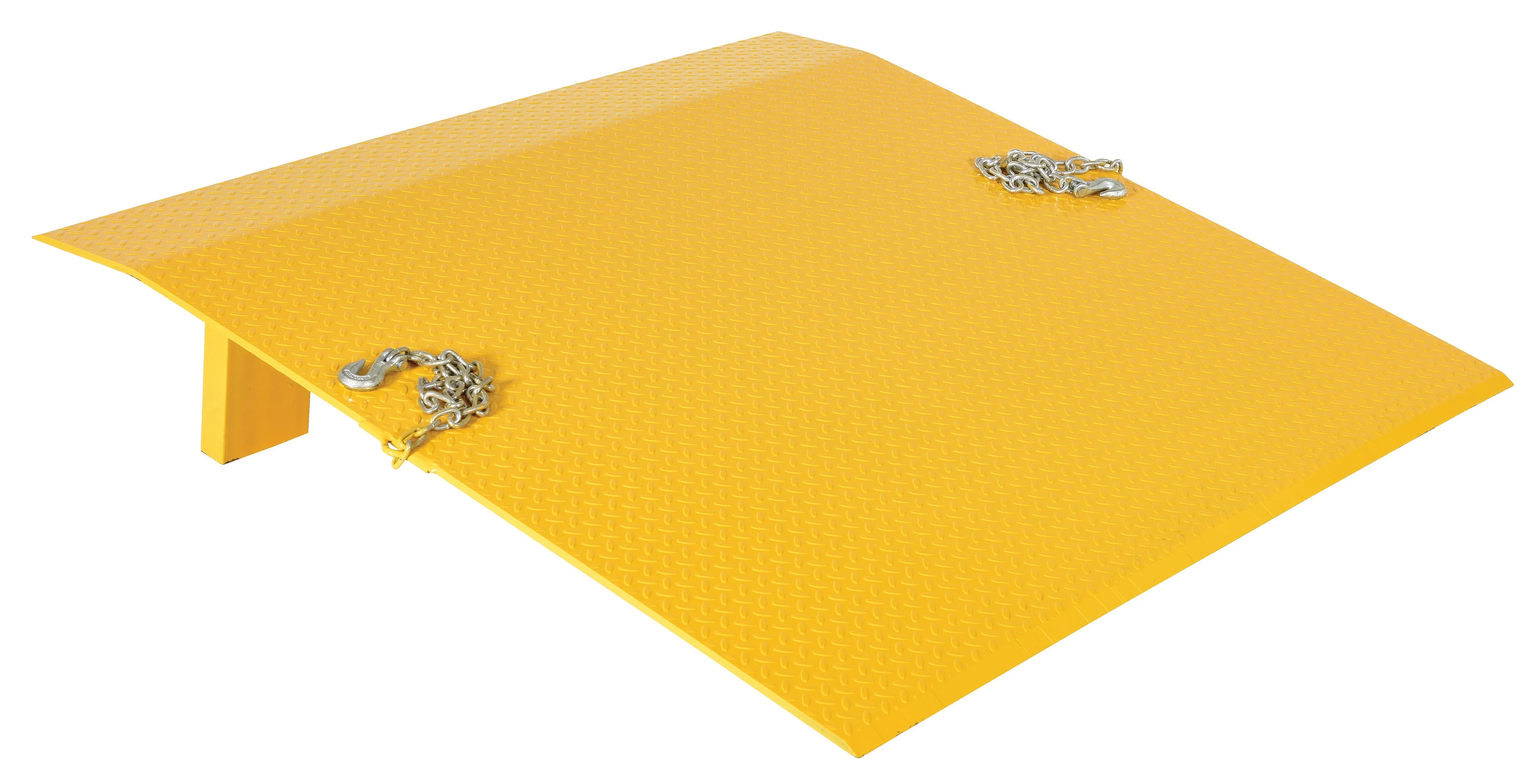

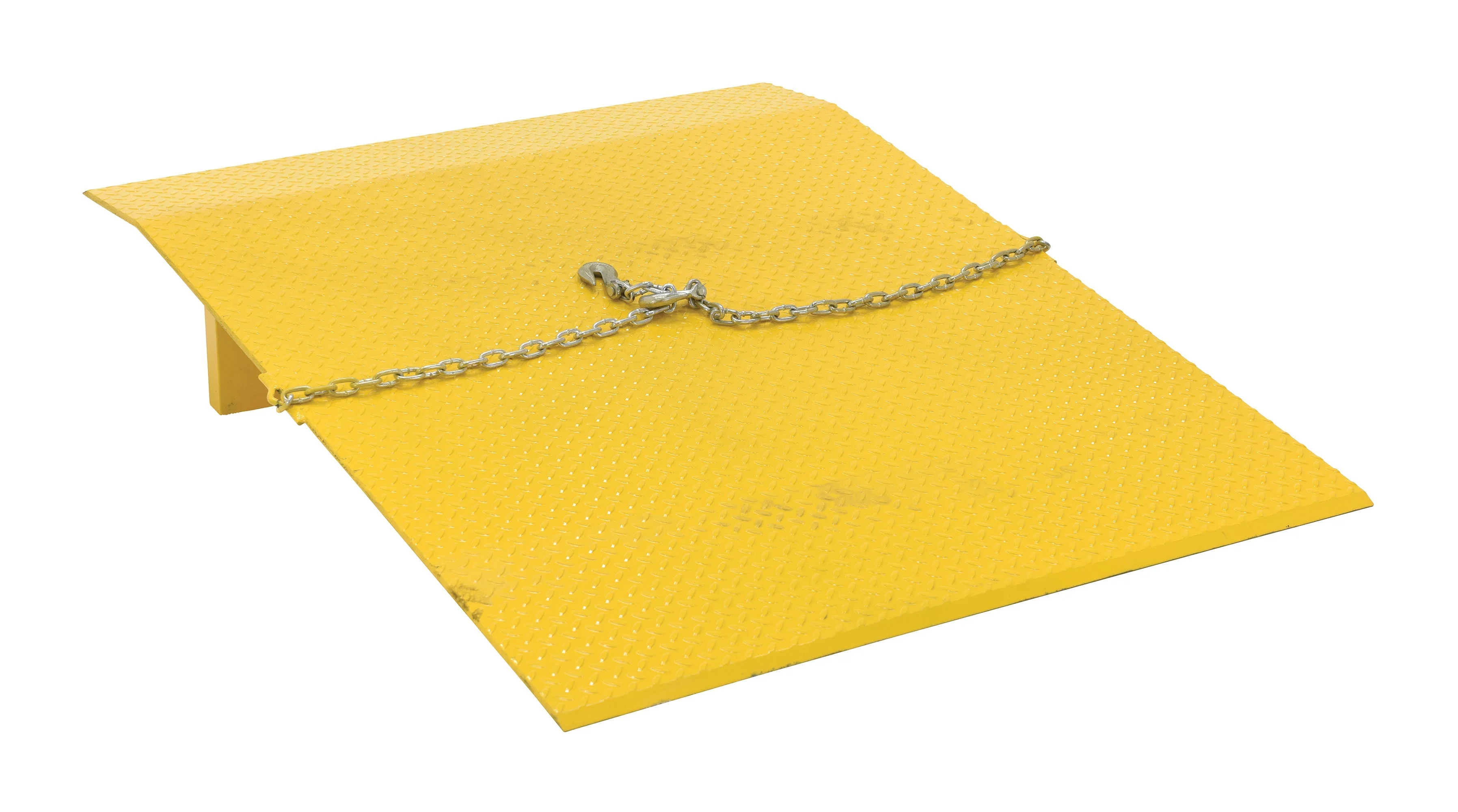

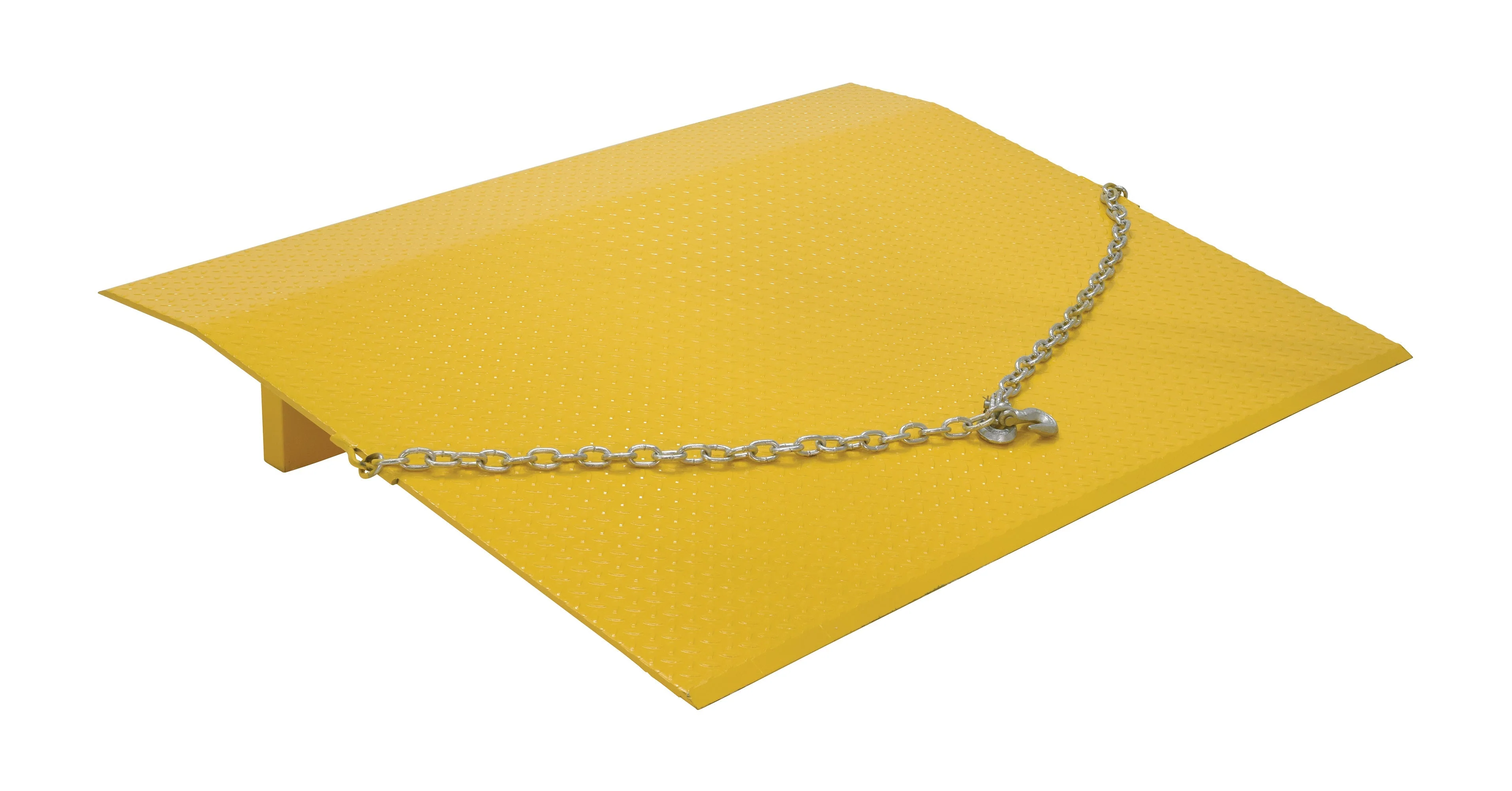

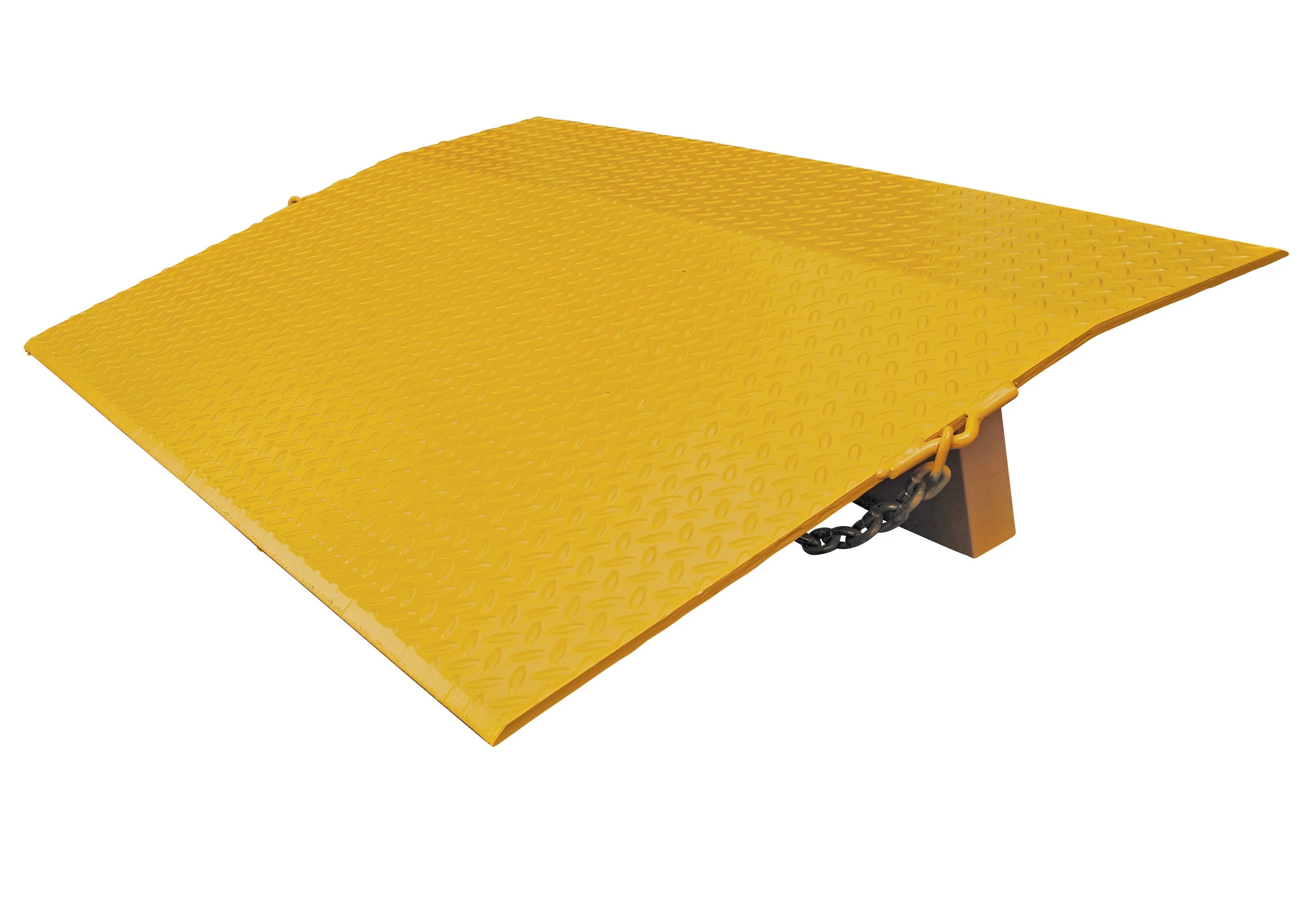

Vestil Steel Truck Dockplates
Steel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.
| Steel Truck Dockplates | |||||
| Model | Width | Length | Height Diff. |
Capacity (lbs) |
Wt. (lbs) |
|
3/8" Plate Thickness |
|||||
| SE-4830 | 48" | 30" | 4" | 5,000 | 177 |
| SE-4836 | 48" | 36" | 5" | 4,125 | 215 |
| SE-4848 | 48" | 48" | 7" | 3,090 | 324 |
| SE-4860 | 48" | 60" | 9" | 2,475 | 341 |
| SE-6036 | 60" | 36" | 5" | 5,150 | 261 |
| SE-6048 | 60" | 48" | 7" | 3,860 | 362 |
| SE-6060 | 60" | 60" | 9" | 3,090 | 498 |
| SE-7230 | 72" | 30" | 4" | 7,720 | 289 |
| SE-7236 | 72" | 36" | 5" | 6,430 | 303 |
| SE-7248 | 72" | 48" | 7" | 4,820 | 413 |
| SE-7260 | 72" | 60" | 9" | 3,860 | 475 |
|
1/2" Plate Thickness |
|||||
| SEH-3630 | 36" | 30" | 4" | 6,600 | 224 |
| SEH-3642 | 36" | 42" | 6" | 4,700 | 235 |
| SEH-4830 | 48" | 30" | 4" | 8,800 | 227 |
| SEH-4836 | 48" | 36" | 5" | 7,300 | 263 |
| SEH-4848 | 48" | 48" | 7" | 5,500 | 429 |
| SEH-4860 | 48" | 60" | 9" | 4,400 | 528 |
| SEH-5430 | 54" | 30" | 4" | 9,900 | 253 |
| SEH-5436 | 54" | 36" | 5" | 8,250 | 371 |
| SEH-5448 | 54" | 48" | 7" | 6,185 | 486 |
| SEH-5460 | 54" | 60" | 9" | 4,950 | 575 |
| SEH-6036 | 60" | 36" | 5" | 9,160 | 317 |
| SEH-6048 | 60" | 48" | 7" | 6,875 | 445 |
| SEH-6060 | 60" | 60" | 9" | 5,500 | 554 |
| SEH-6636 | 66" | 36" | 5" | 10,000 | 355 |
| SEH-6648 | 66" | 48" | 7" | 7,550 | 378 |
| SEH-7230 | 72" | 30" | 4" | 13,200 | 369 |
| SEH-7236 | 72" | 36" | 5" | 11,000 | 385 |
| SEH-7248 | 72" | 48" | 7" | 8,250 | 528 |
| SEH-7260 | 72" | 60" | 9" | 6,600 | 627 |
Original: $384.21
-65%$384.21
$134.47
Description
Steel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.
