Vestil Structural Cantilever Racking

Cantilever Rack Systems offer flexibility to custom-fit individual applications. The unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements. Arms attach to upright with a "C" clamps that are infinitely adjustable. Capacity listed is per upright.

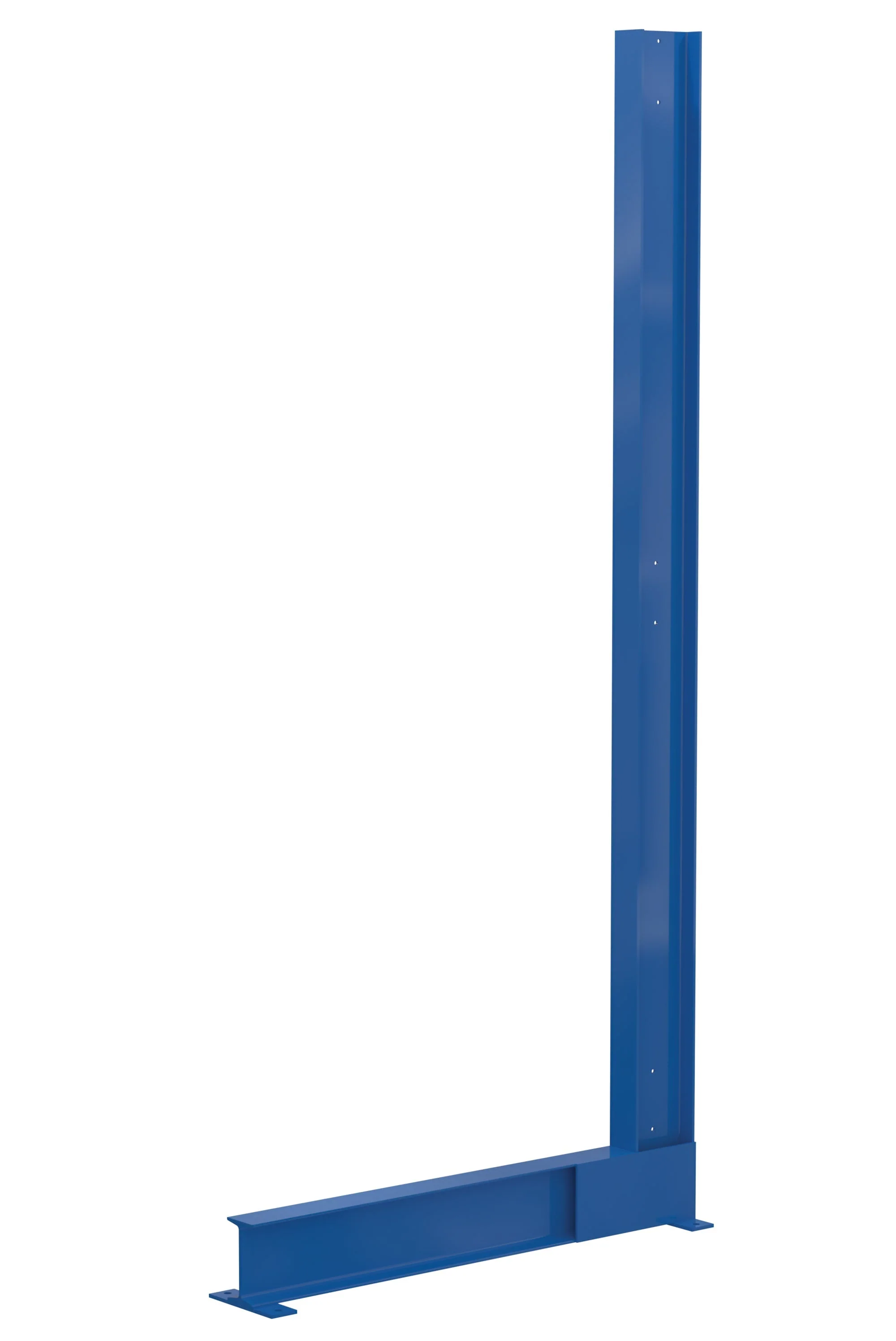

Single-Sided Cantilever Uprights
Model	Column Height	Arm Length to use	Uniform Capacity Per Upright (lbs)	Wt. (lbs)
SAC-812	96"	12"	9,000	220
SAC-824	96"	24"	6,000	229
SAC-836	96"	36"	4,600	243
SAC-848	96"	48"	3,800	265
SAC-1012	120"	12"	13,250	285
SAC-1024	120"	24"	8,300	294
SAC-1036	120"	36"	6,125	317
SAC-1048	120"	48"	4,750	329
SAC-1212	144"	12"	13,300	325
SAC-1224	144"	24"	8,250	335
SAC-1236	144"	36"	6,125	358
SAC-1248	144"	48"	4,750	369

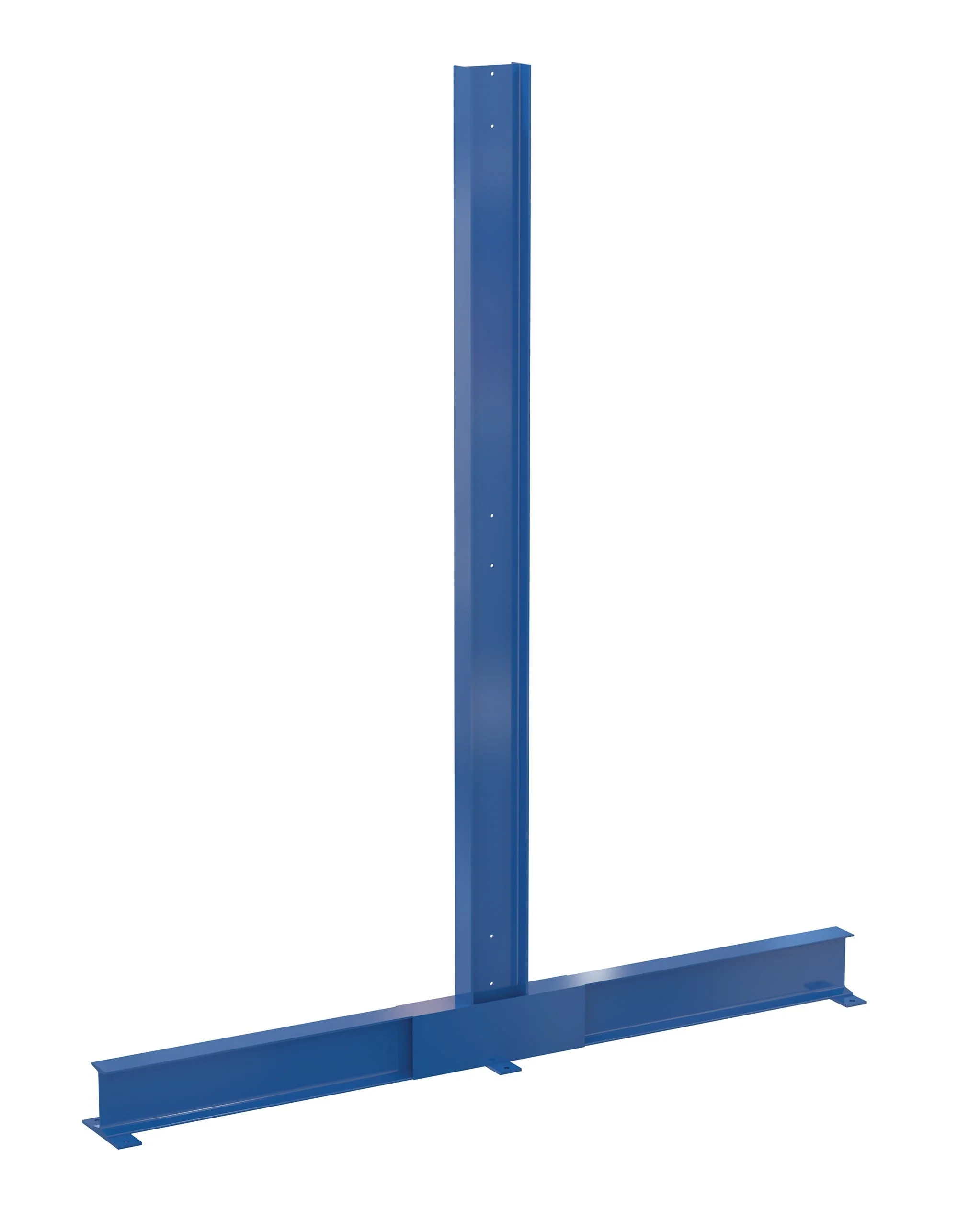

Double-Sided Cantilever Uprights
Model	Column Height	Arm Length to use	Uniform Capacity Per Upright (lbs)	Wt. (lbs)
DAC-812	96"	12"	18,000	242
DAC-824	96"	24"	12,000	271
DAC-836	96"	36"	9,200	290
DAC-1012	120"	12"	26,500	316
DAC-1024	120"	24"	16,600	350
DAC-1036	120"	36"	12,250	365
DAC-1212	144"	12"	26,600	357
DAC-1224	144"	24"	16,500	386
DAC-1236	144"	36"	12,250	405

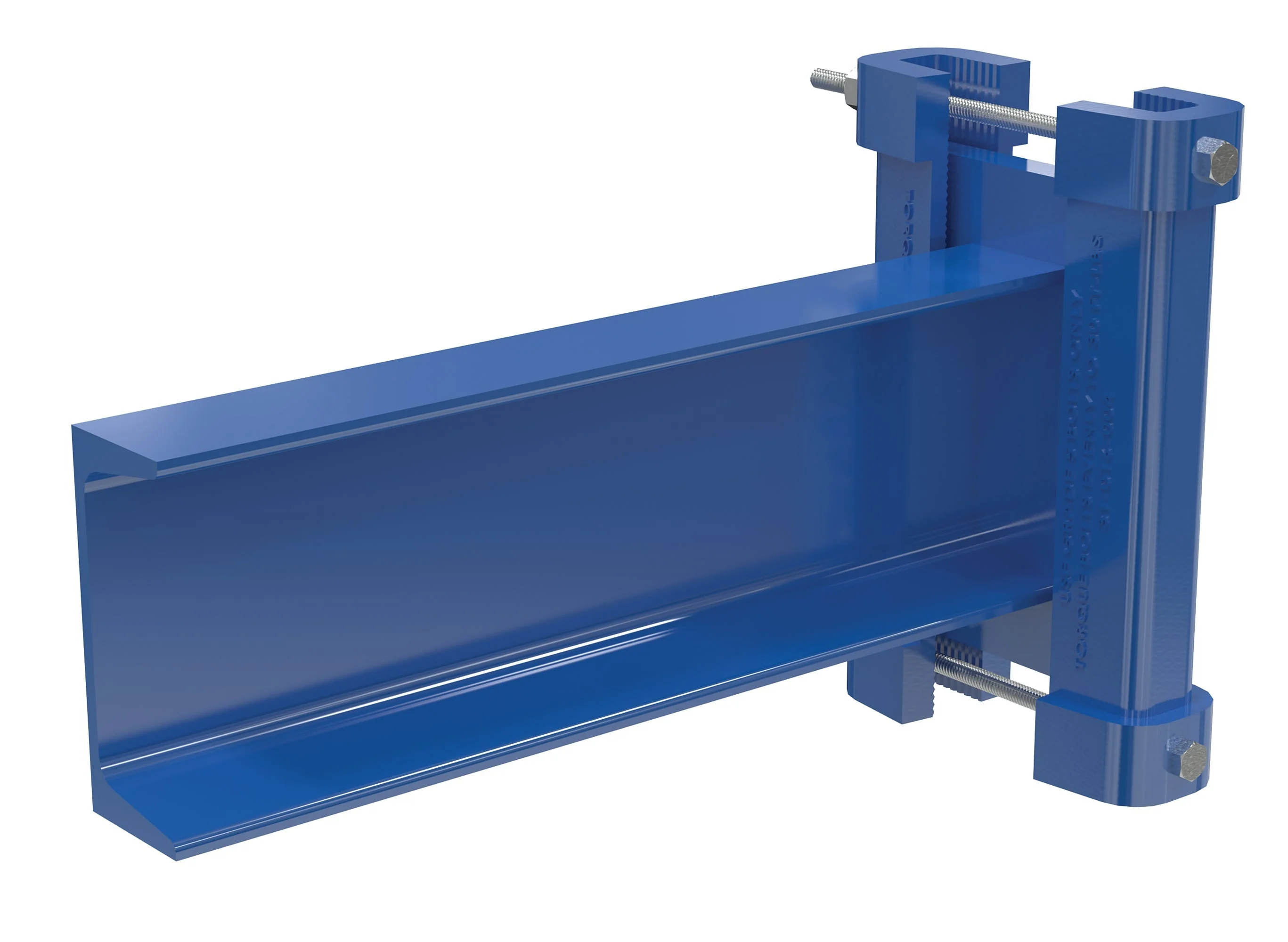

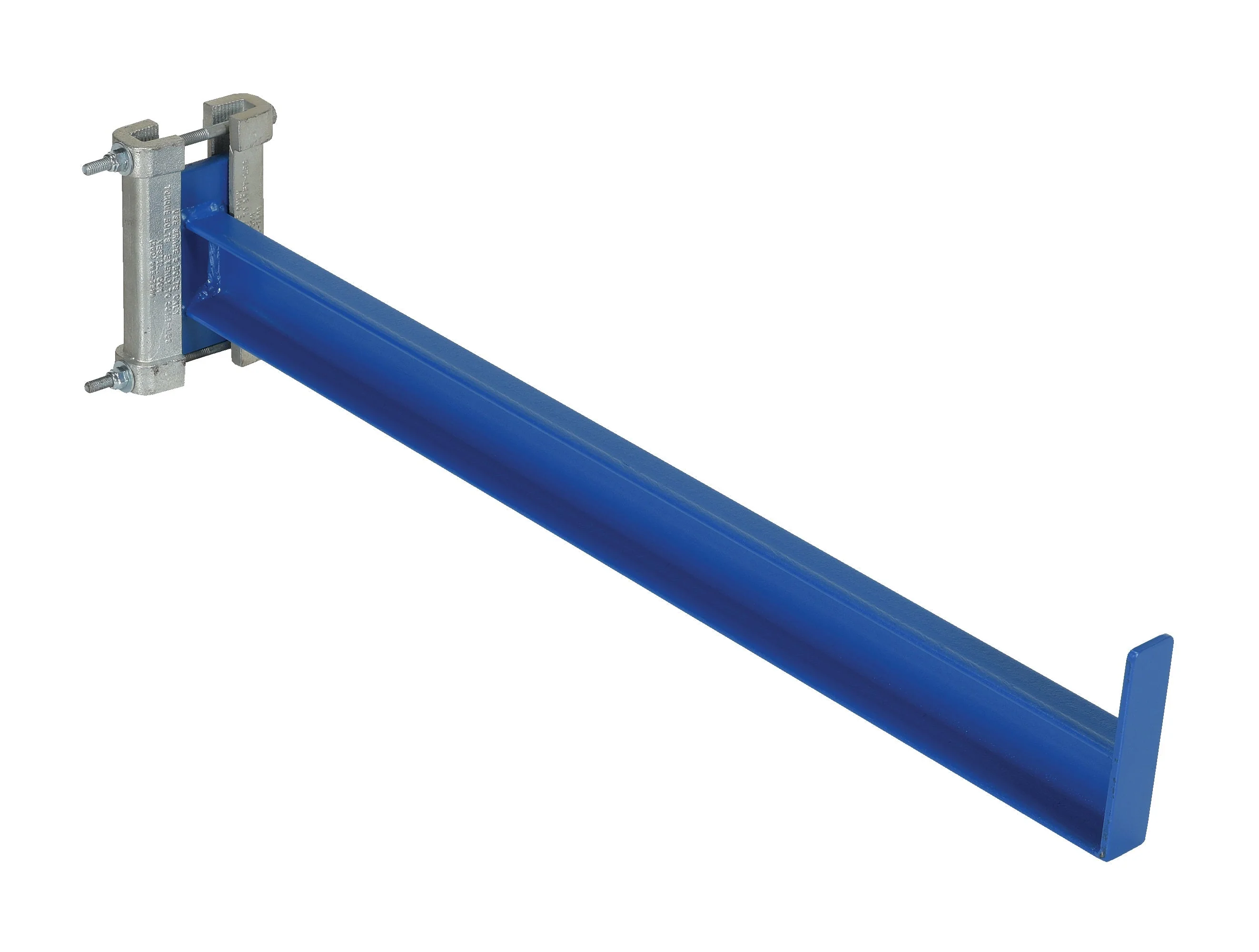

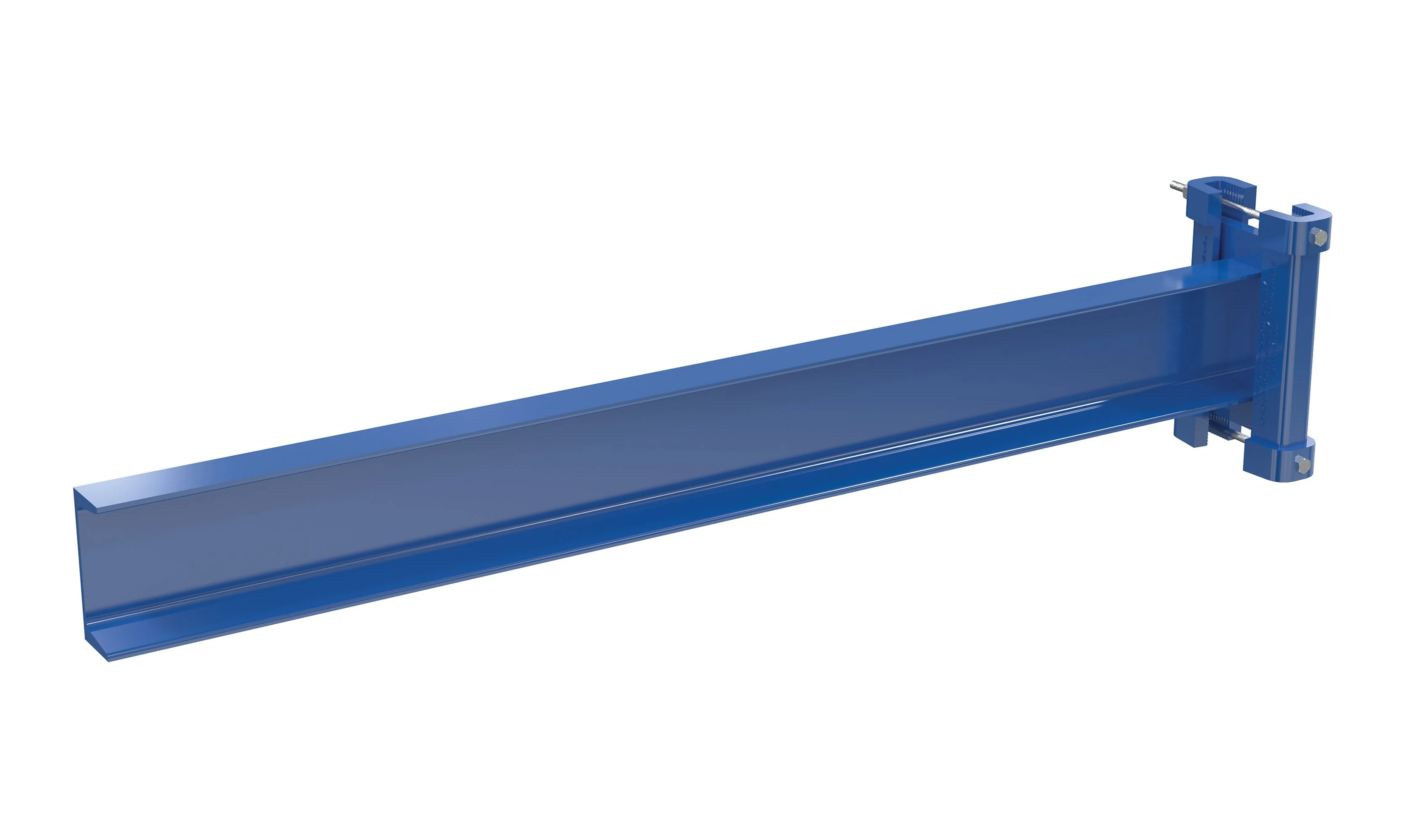

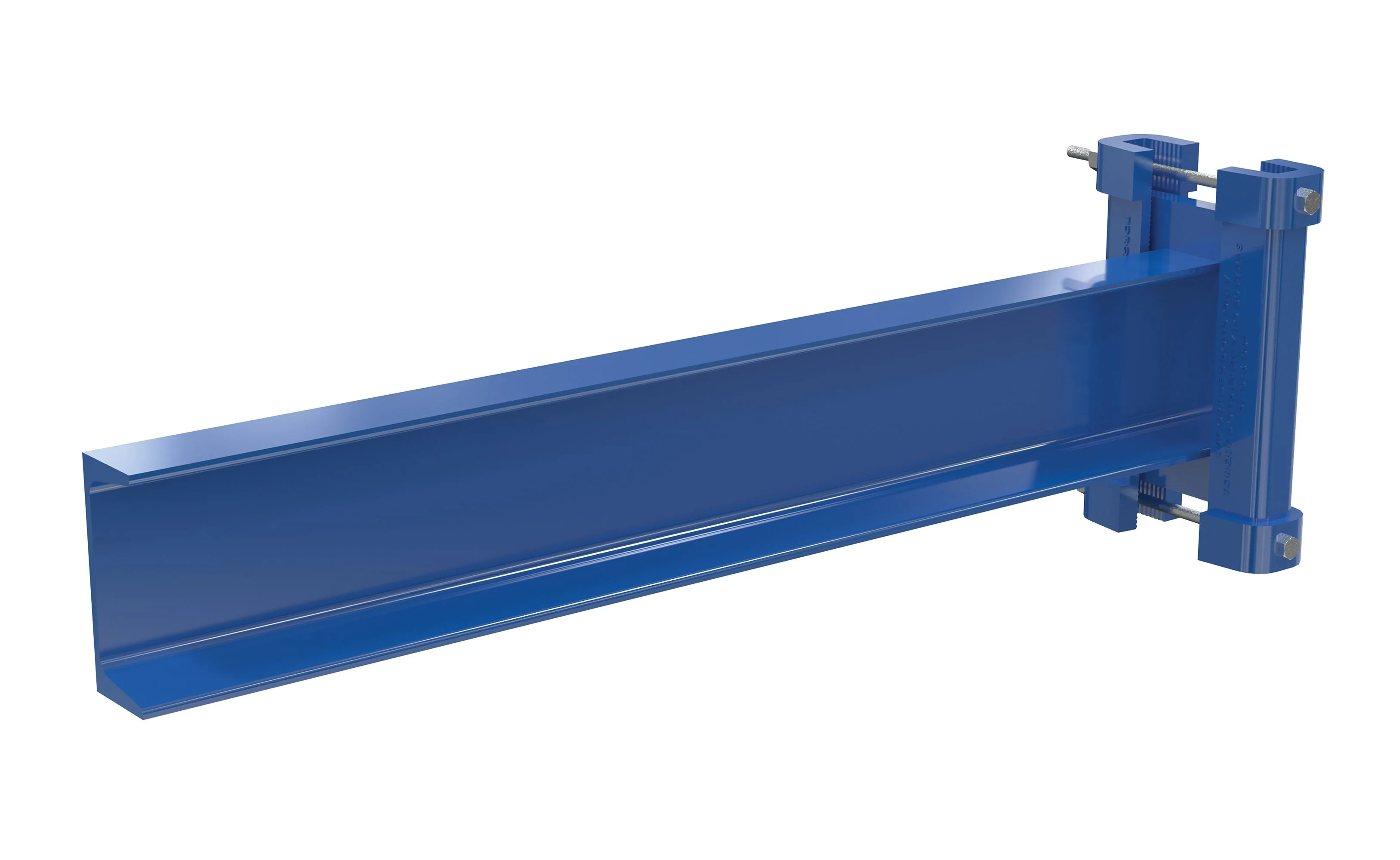

Straight Arms with Lips
Model	Usable Arm Length		Uniform Capacity Per Arm (lbs)	Wt. (lbs)
SSAL-12	11-5/16"		3,000	11
SSAL-24	23-5/16"		2,000	15
SSAL-36	35-5/16"		1,200	20
SSAL-48	47-5/16"		1,000	24

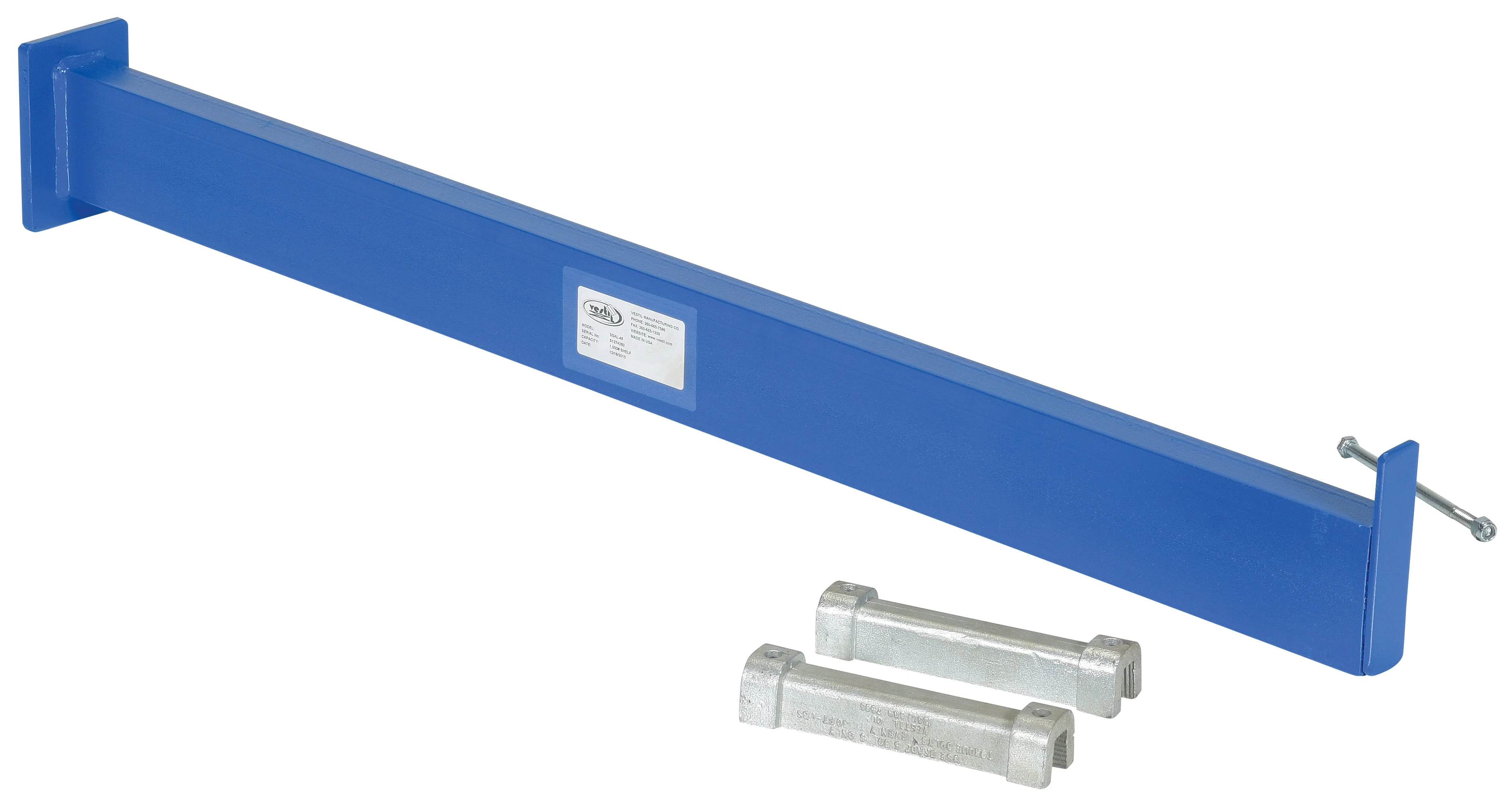

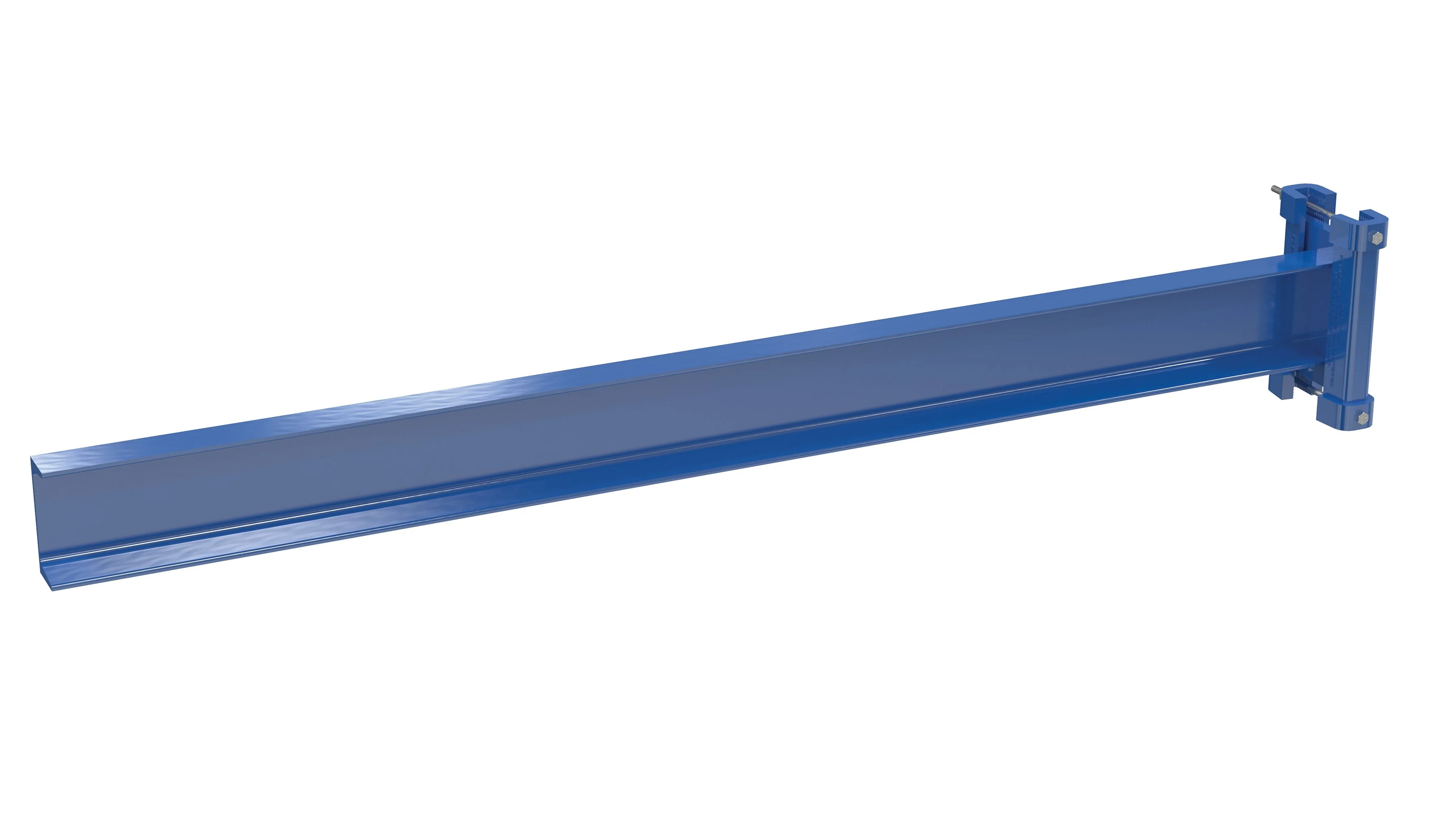

Straight Arms with No Lips
SSAL-12-NL	11-5/16"		3,000	11
SSAL-24-NL	23-5/16"		2,000	15
SSAL-36-NL	35-5/16"		1,200	20
SSAL-48-NL	47-5/16"		1,000	24

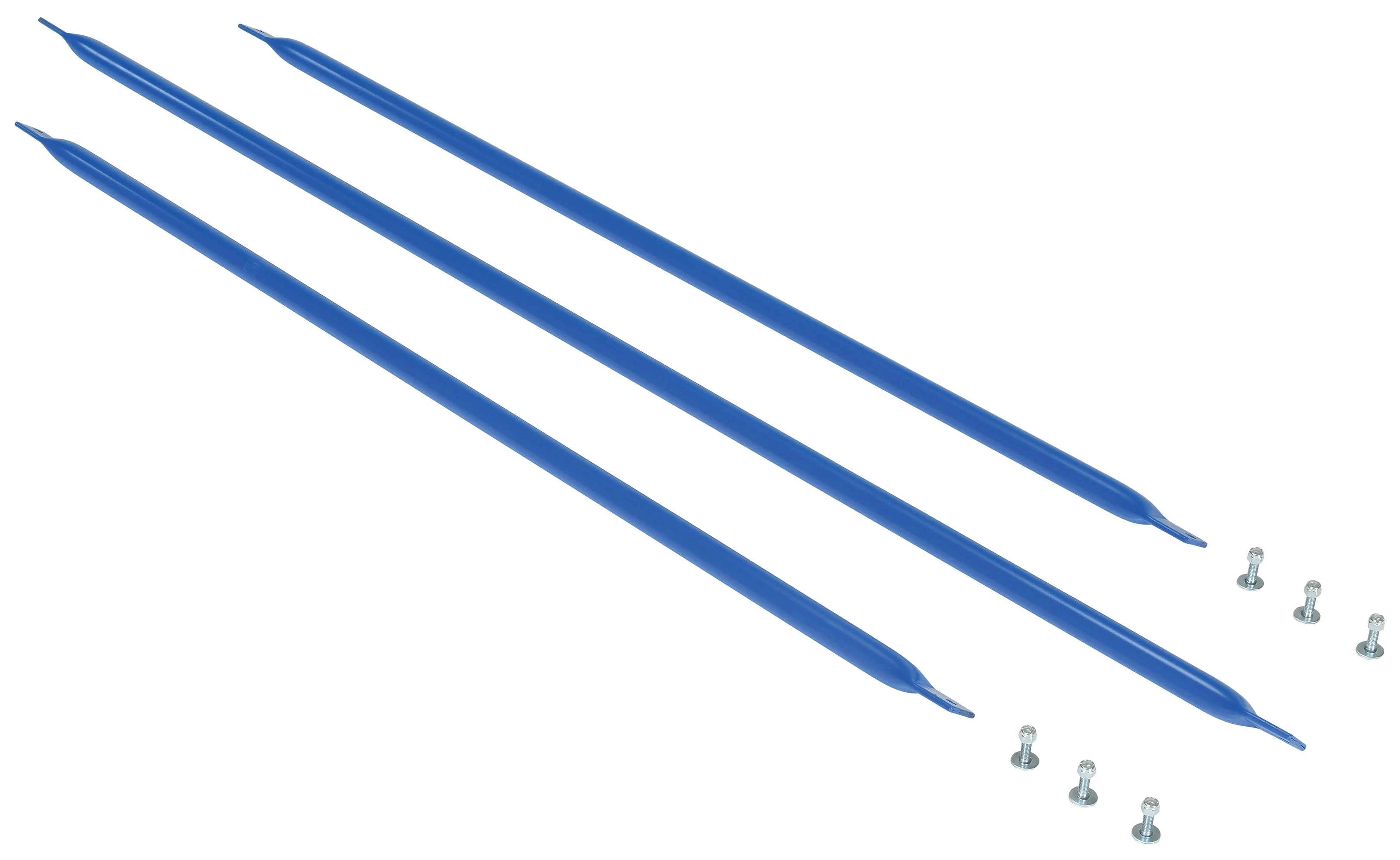

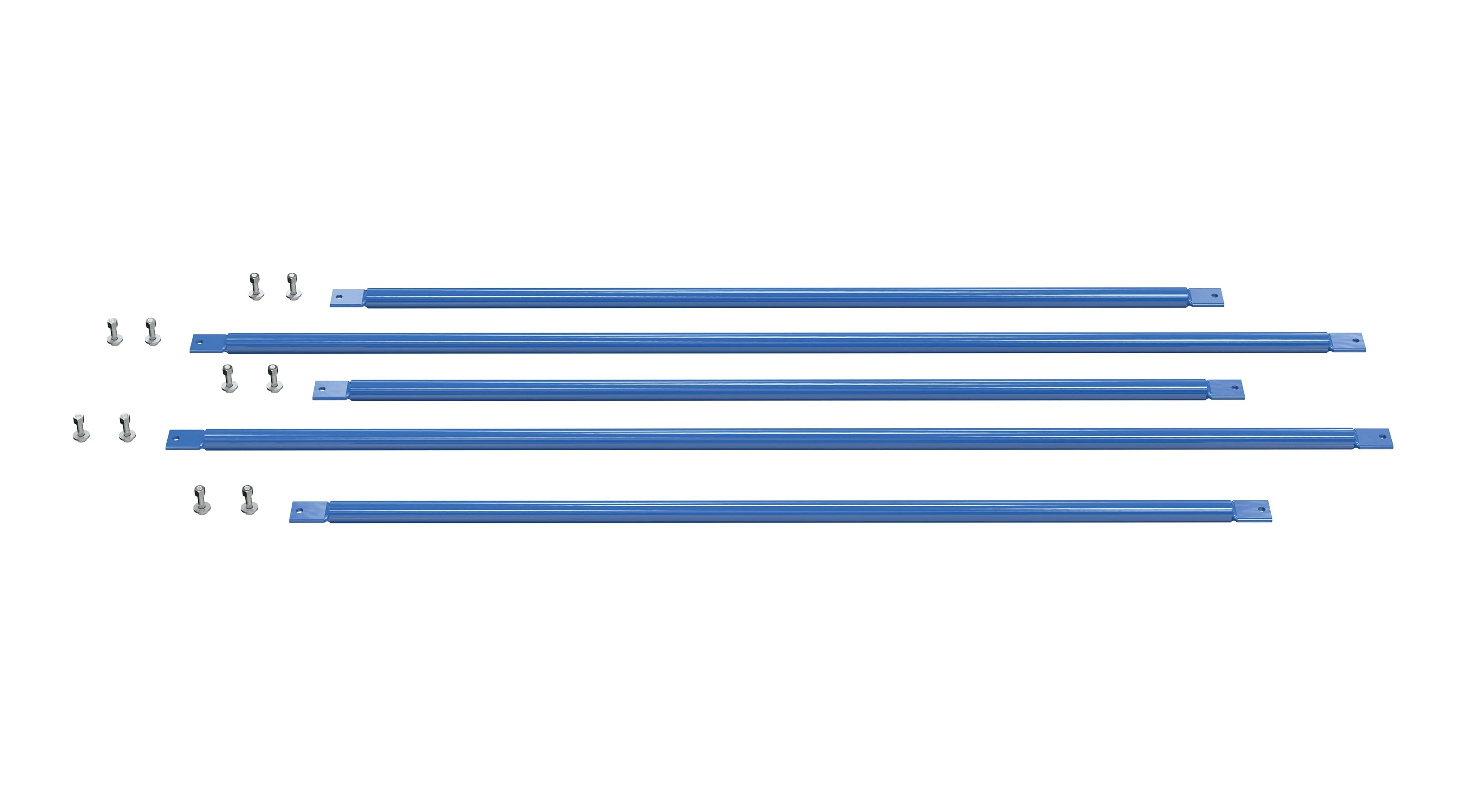

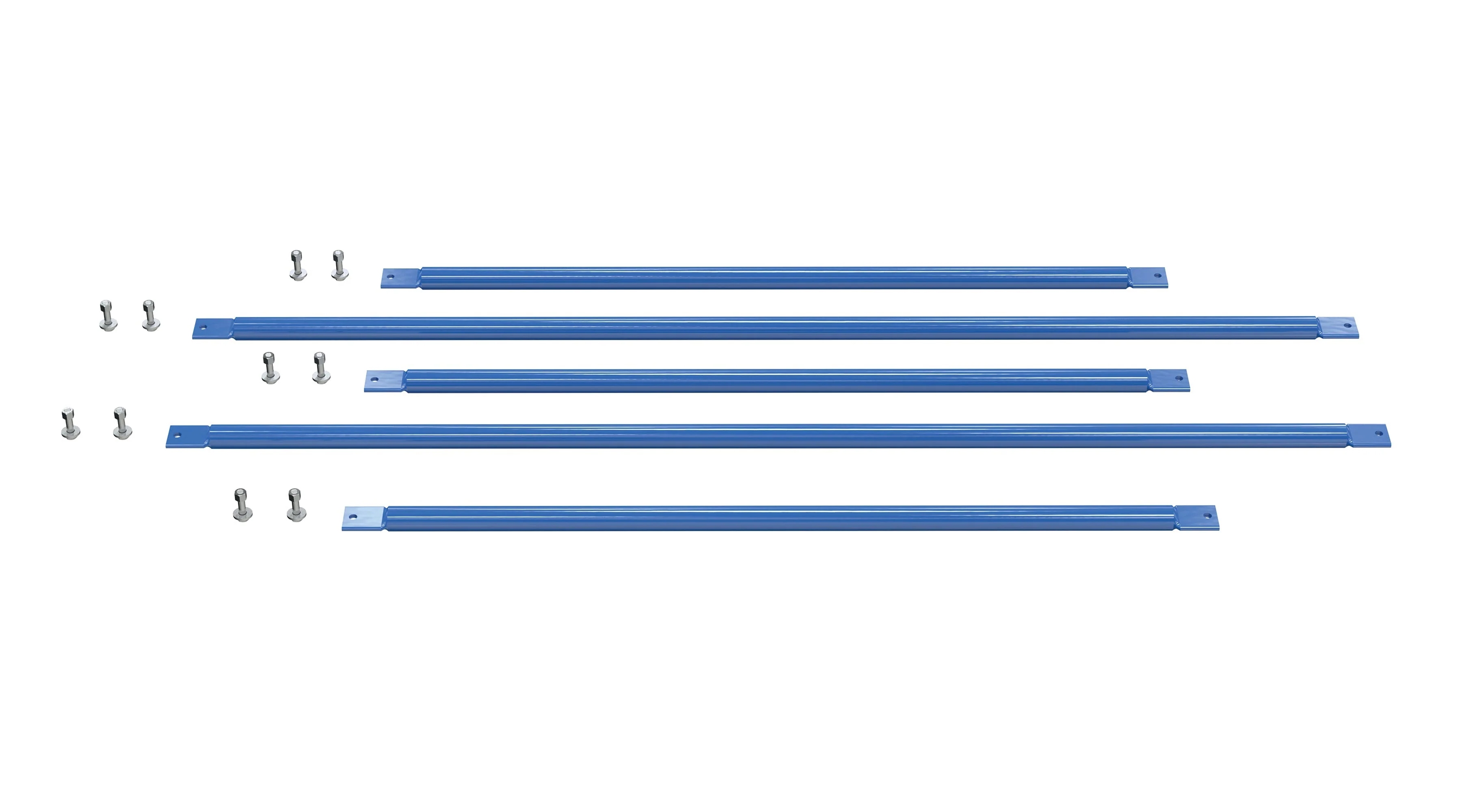

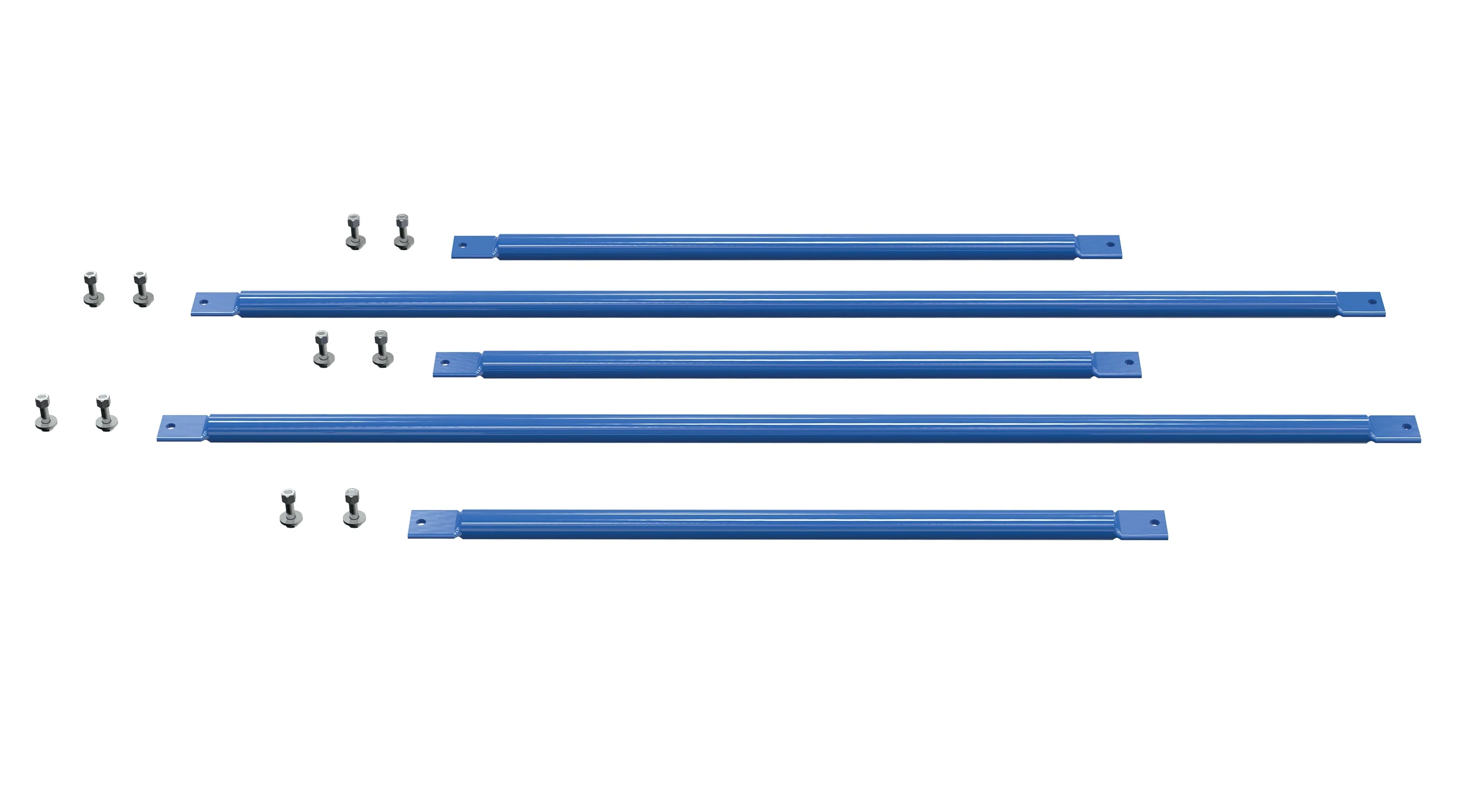

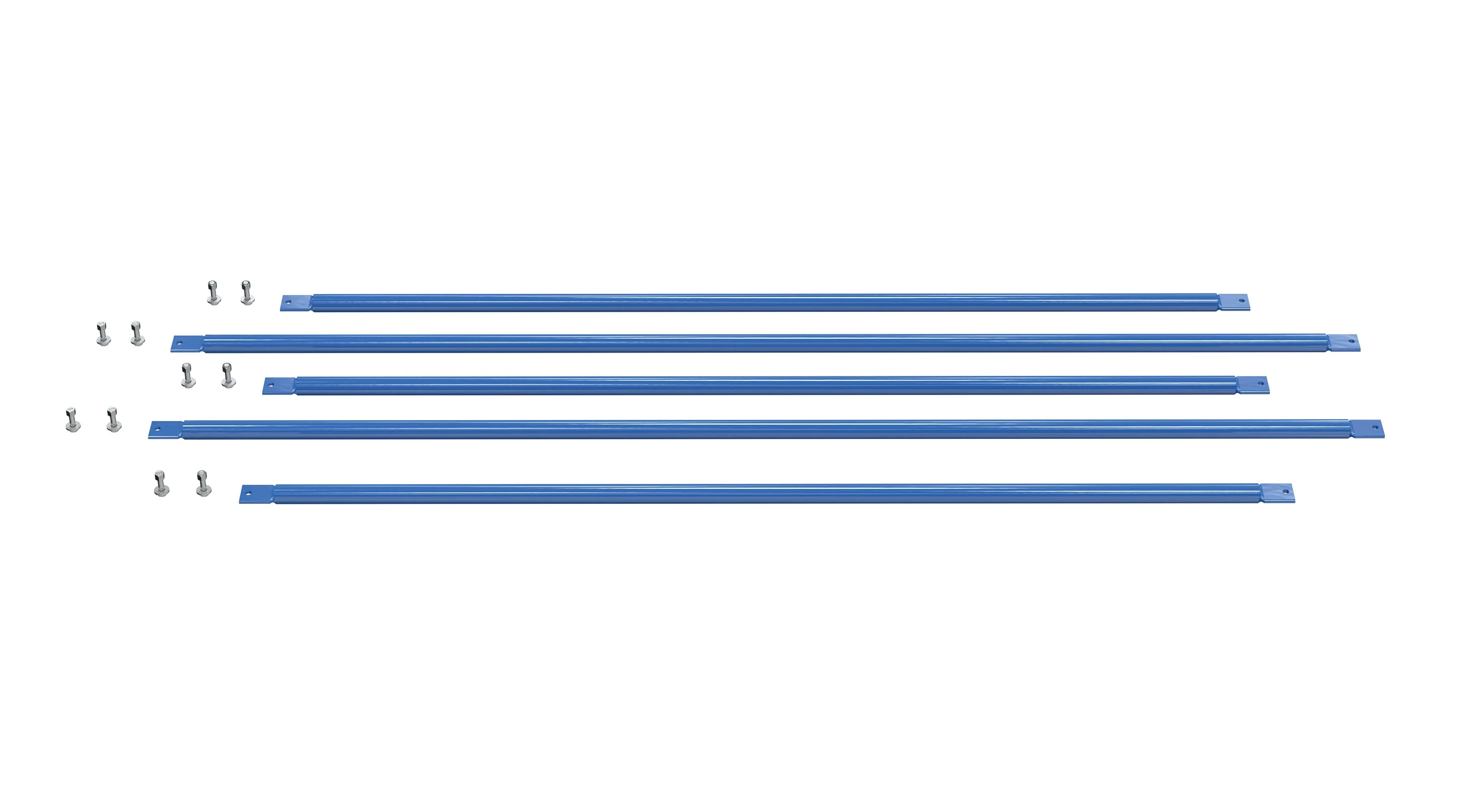

Horizontal Brace Sets
Model	Column Height	Column Spacing	Braces Per Set	Wt. (lbs)
HBS-83	96"	36"	3	21
HBS-84	96"	48"	3	30
HBS-85	96"	60"	3	36
HBS-86	96"	72"	3	41
HBS-10123	120" & 144"	36"	5	84
HBS-10124	120" & 144"	48"	5	92
HBS-10125	120" & 144"	60"	5	102
HBS-10126	120" & 144"	72"	5	111
