Vestil Structural Channel Guard Rail Systems
Constructed of structural C-channel 11.5 lbs. per foot for maximum strength and protection. Railing can be removed in a matter of seconds. Features 10" x 10" base plate with four (4) pre-drilled mounting holes. Posts include mounting holes on three sides for use as corner or center posts. Drop-in style bracket, and their hardware come with each structural rail purchased. Baked-in powder-coated toughness.
| Channel Guard Rail System- "C" Channel Drop In Design | |||||
| Model | Description | # of Brackets |
Height | Length | Weight (lbs) |
| Channel Guard Rail System | |||||

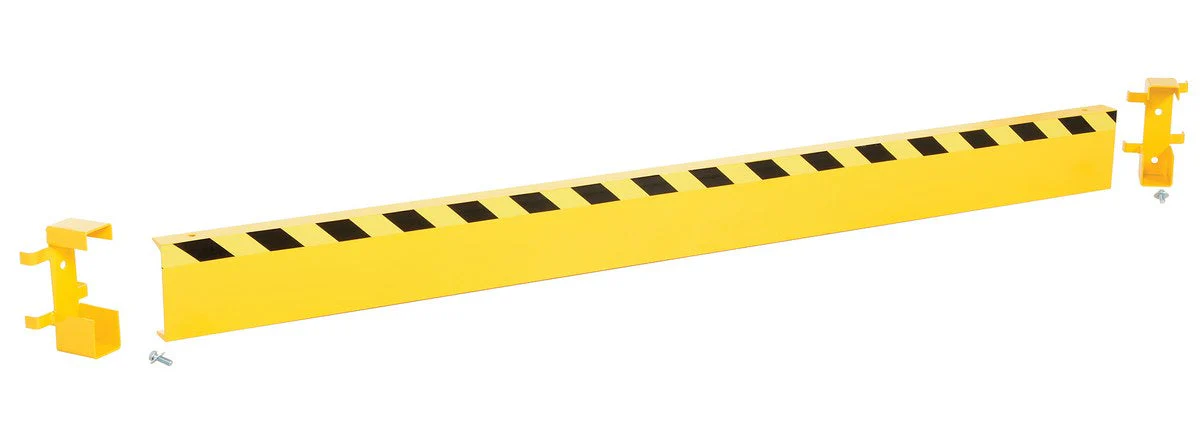

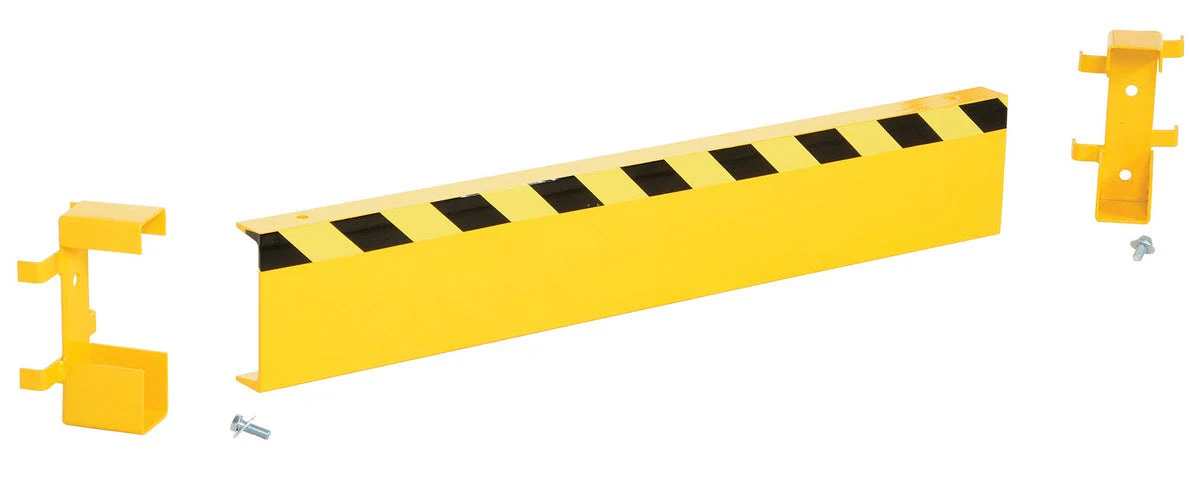

| GR-STC8-DI-4-YL | Structural Guard Rail System (Includes drop-in style brackets and hardware) |
2 | 8" | 48" | 56 |
| GR-STC8-DI-6-YL | Structural Guard Rail System (Includes drop-in style brackets and hardware) |
2 | 8" | 72" | 71 |
| GR-STC8-DI-8-YL | Structural Guard Rail System (Includes drop-in style brackets and hardware) |
2 | 8" | 96" | 95 |
| GR-STC8-DI-10-YL | Structural Guard Rail System (Includes drop-in style brackets and hardware) |
3 | 8" | 120" | 118 |
| GR-STC8-DI-12-YL | Structural Guard Rail System (Includes drop-in style brackets and hardware) |
3 | 8" | 144" | 195 |
| Tubular Mounting Posts with Drop-In Style Bracket | |||||

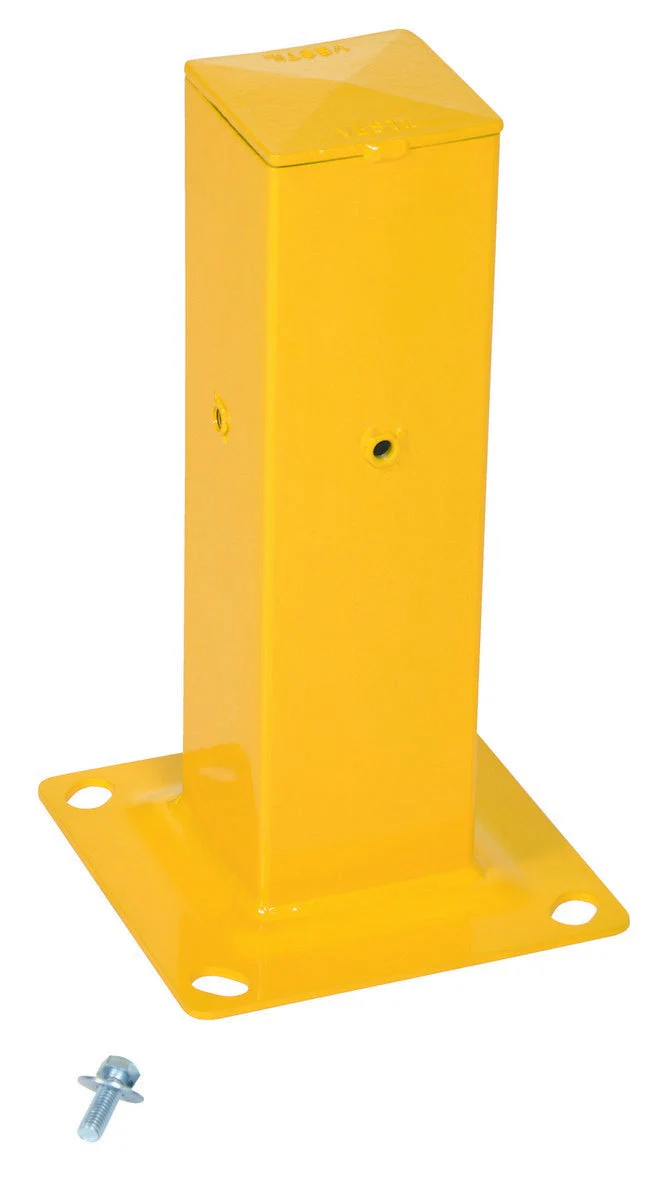

| GR-STC8-DI-TP18-YL | 18" High Post (Accommodates 1 Rail) | 27 | |||

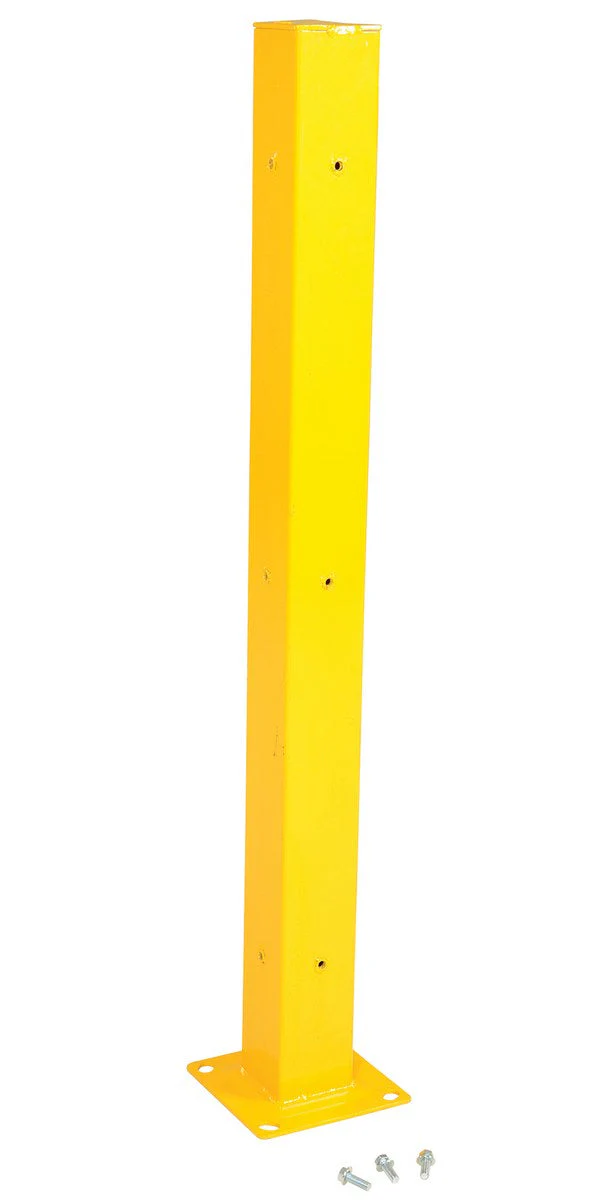

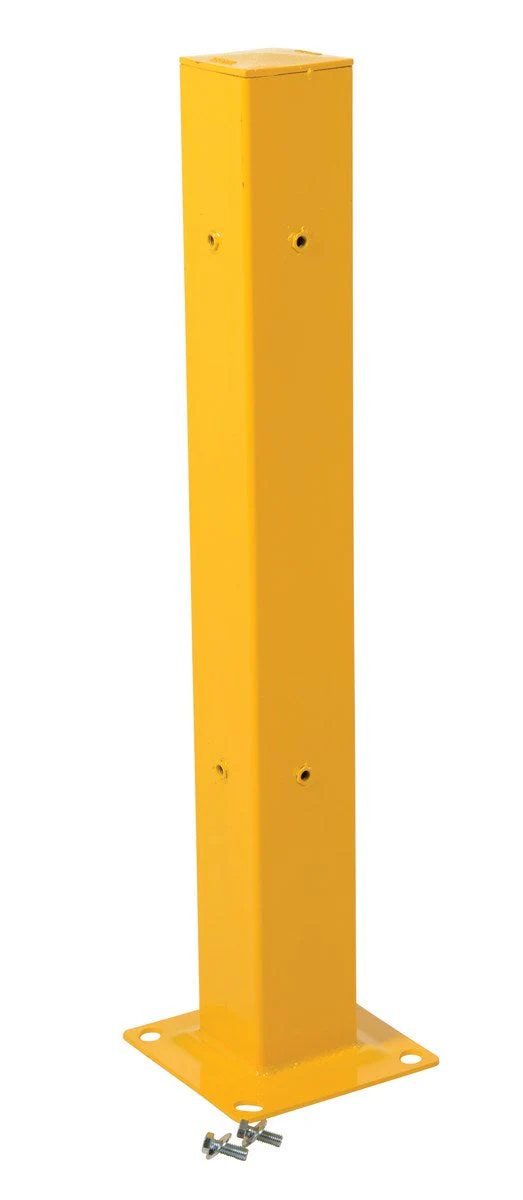

| GR-STC8-DI-TP42-YL | 42" High Post (Accommodates 2 Rail) | 52 | |||
| GR-STC8-DI-TP60-YL | 60" High Post (Accommodates 3 Rail) | 95 | |||
| GR-STC8-DI-TP72-YL | 72" High Post (Accommodates 3 Rail) | 116 | |||

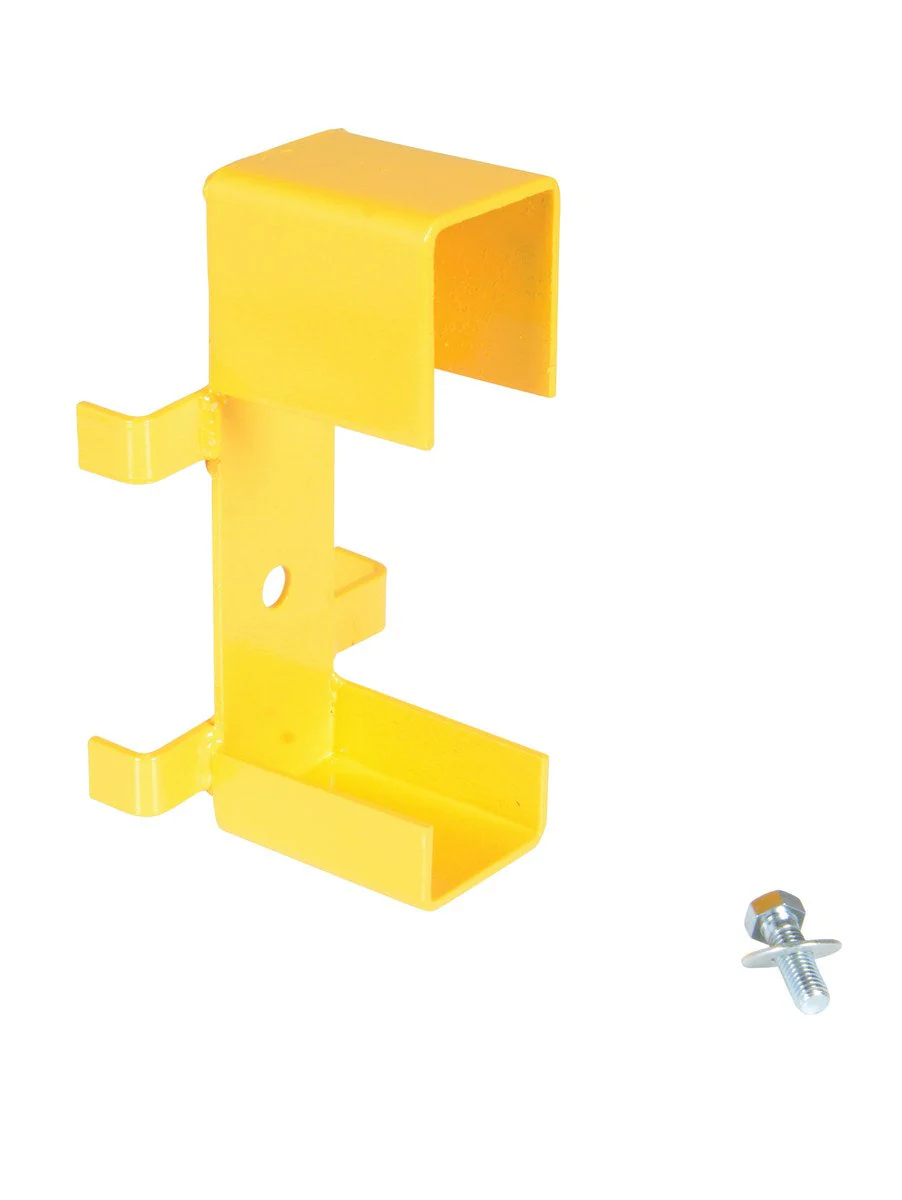

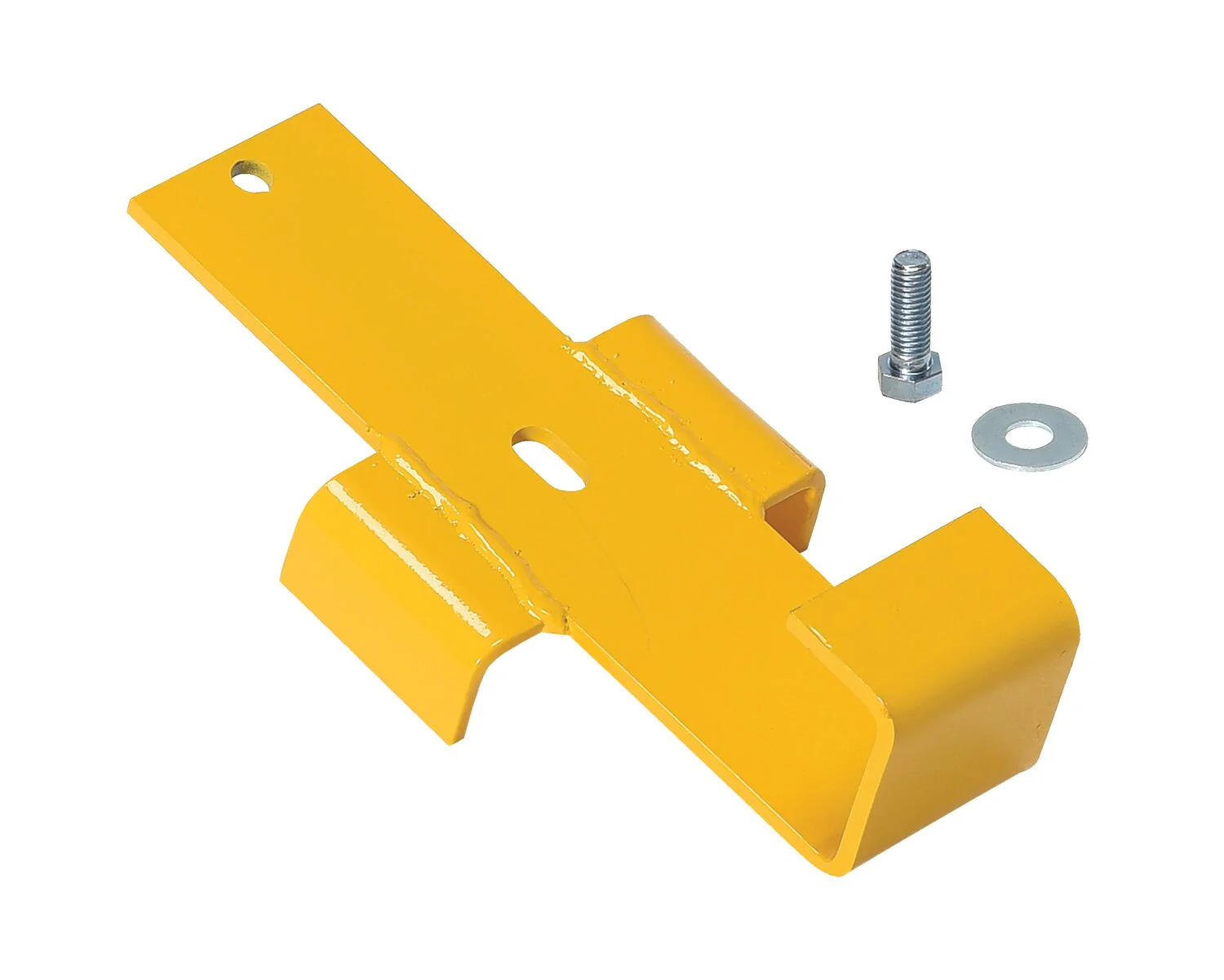

| GR-STC8-DI-BKT-YL | One Post Mounting Bracket (Additional) | 7 | |||

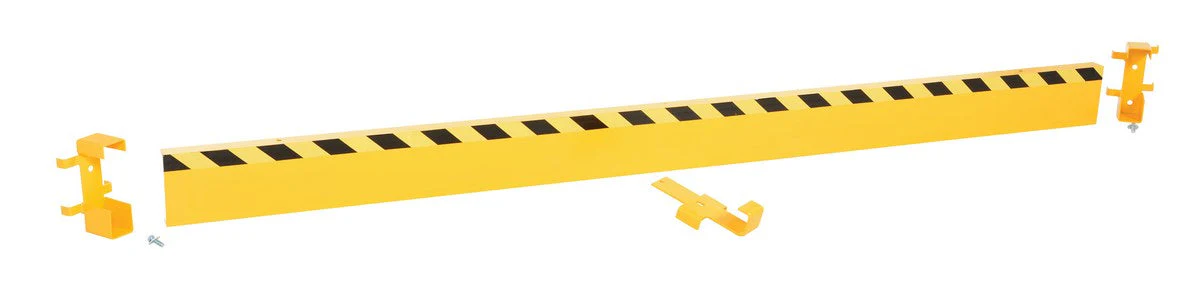

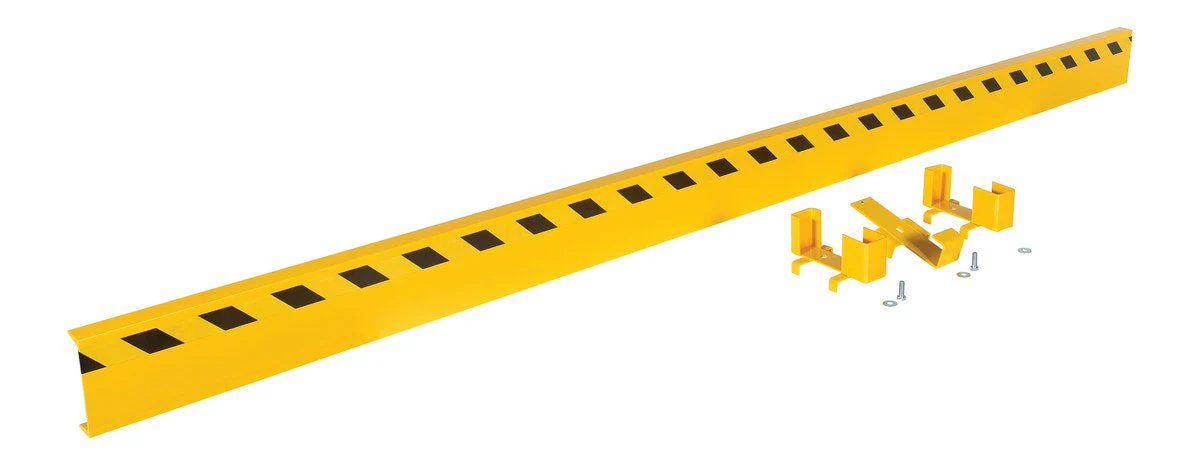

| GR-STC8-DI-BKTCS-YL | One Center Support Bracket 10 & 12 Ft. Rails (Additional) | 5 | |||
Original: $39.70
-65%$39.70
$13.89
